Condition: Used

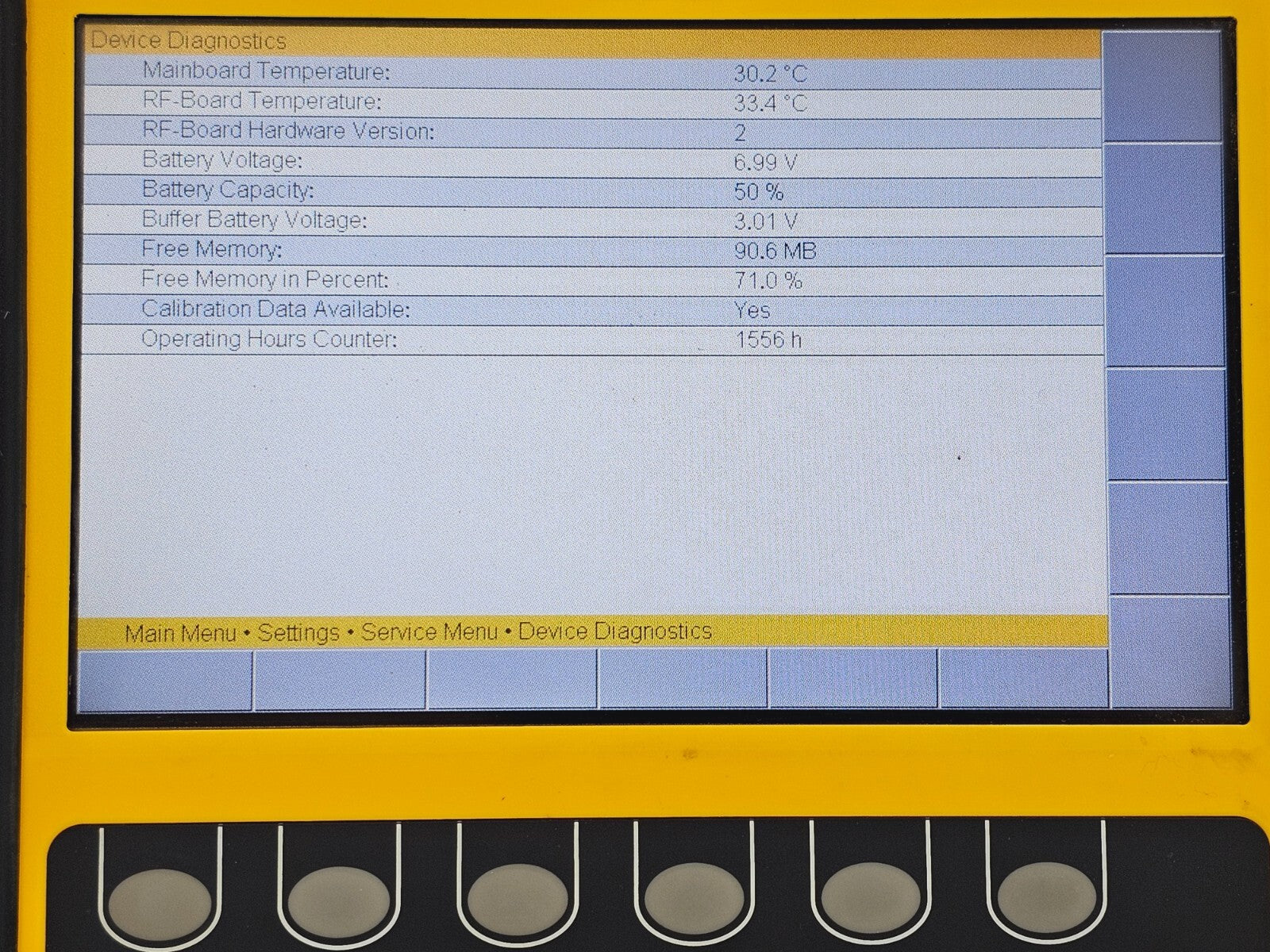

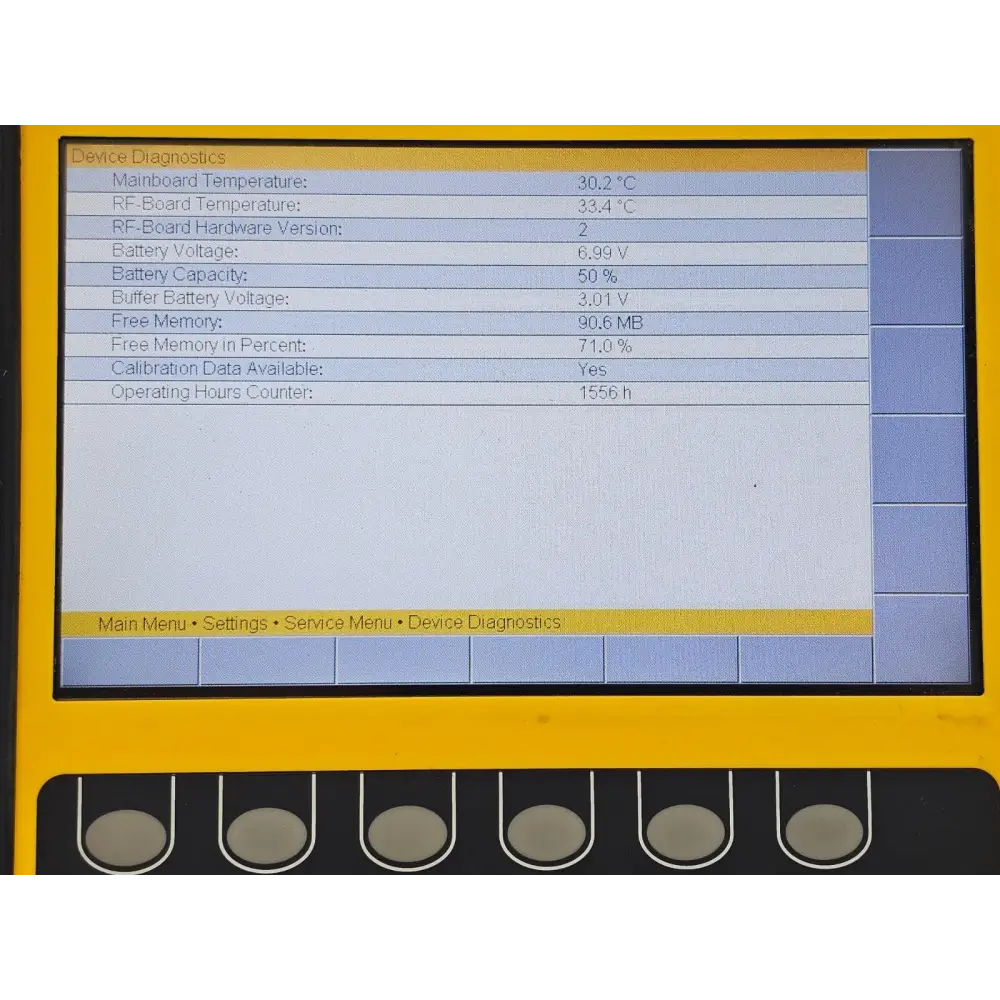

Tested and working, in good condition with a low run time of only 1,556 hours. Includes the SRM-3006 platform (3006/01) and the three-axis isotropic E-field probe 3501/03 covering 27 MHz to 3 GHz with a dynamic range of 0.2 mV/m to 200 V/m.

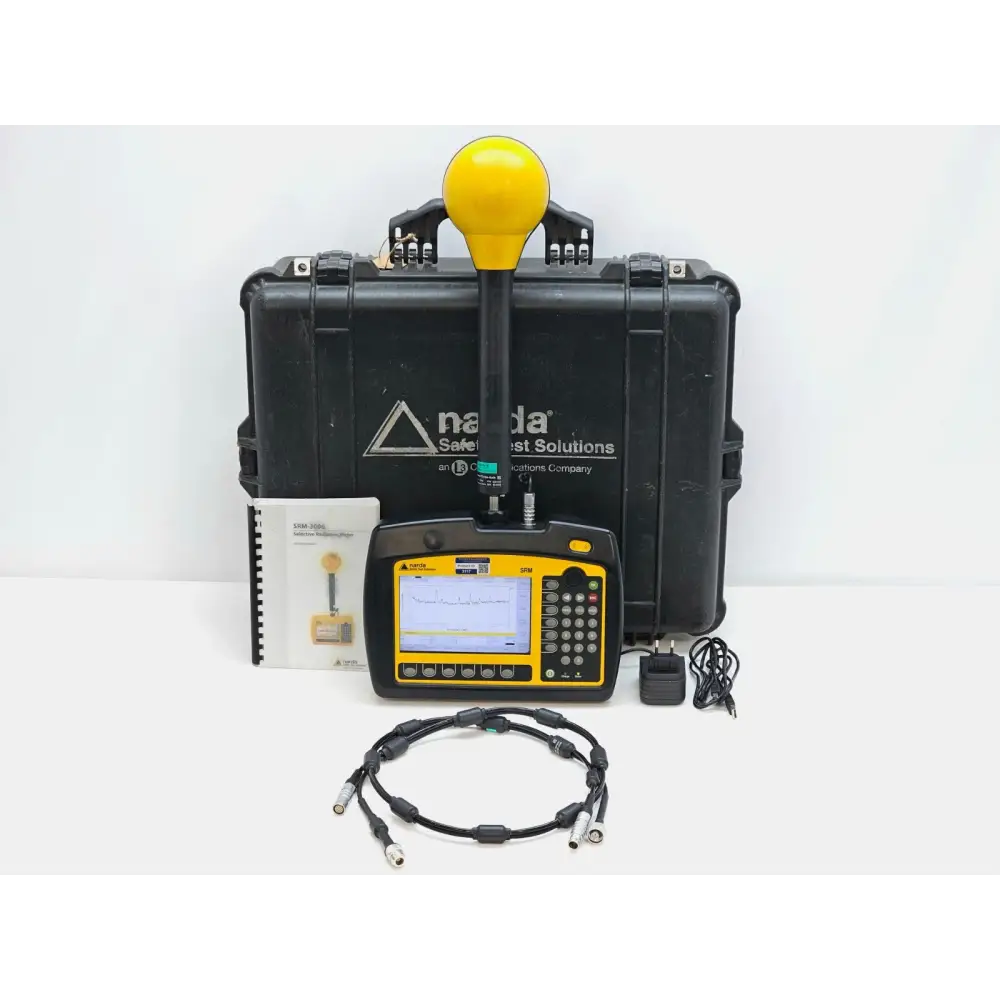

Included in the sale:

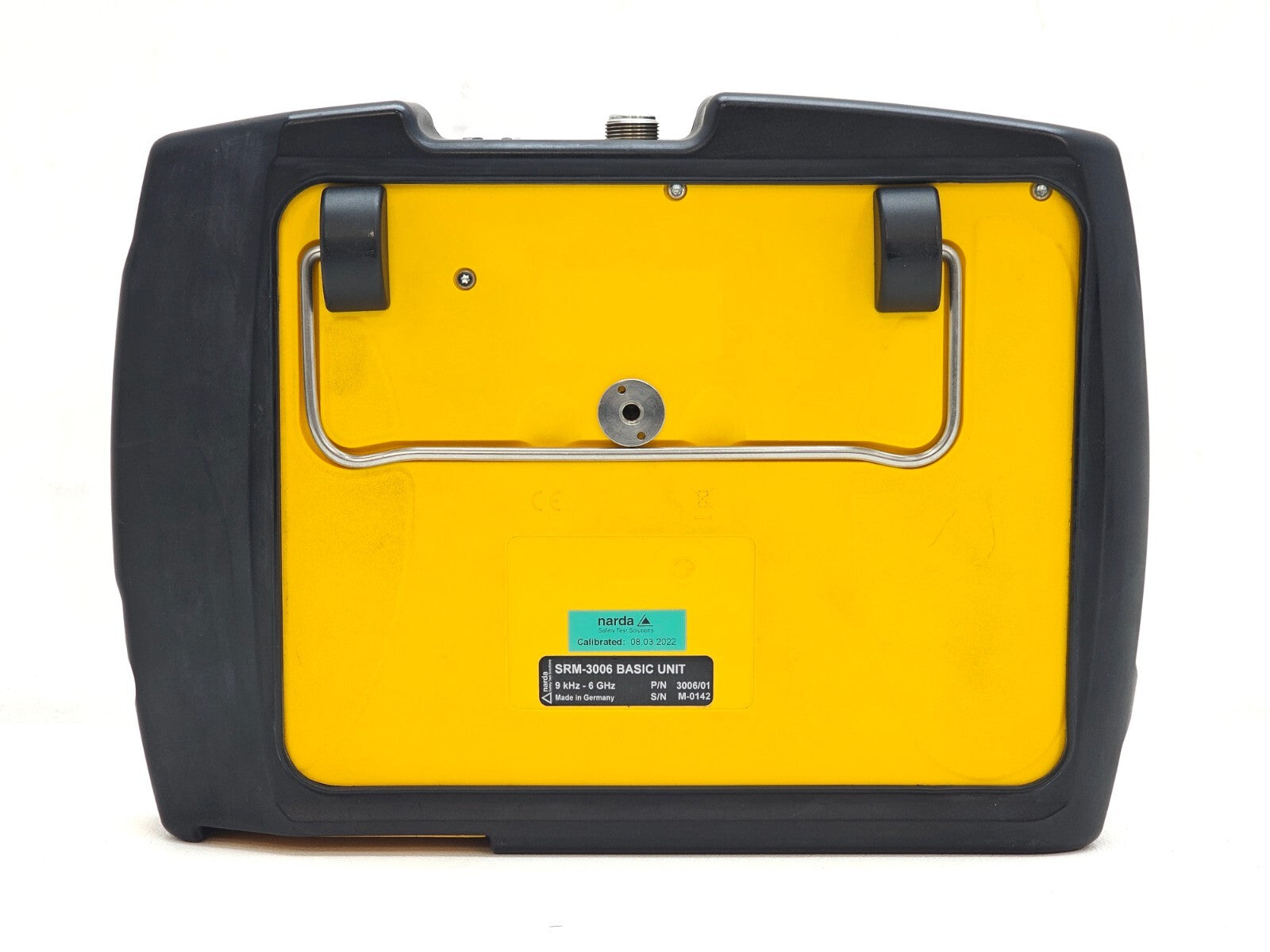

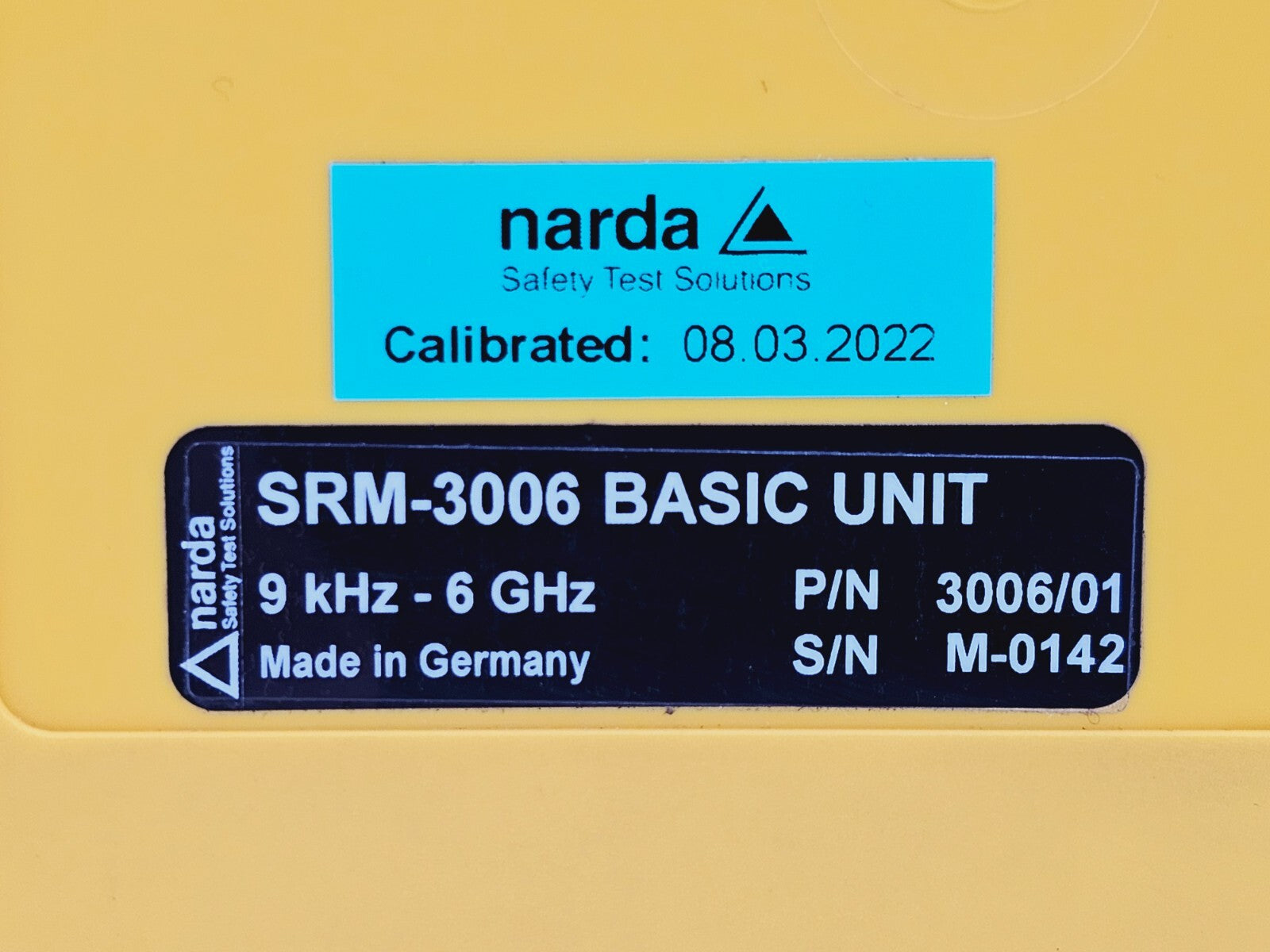

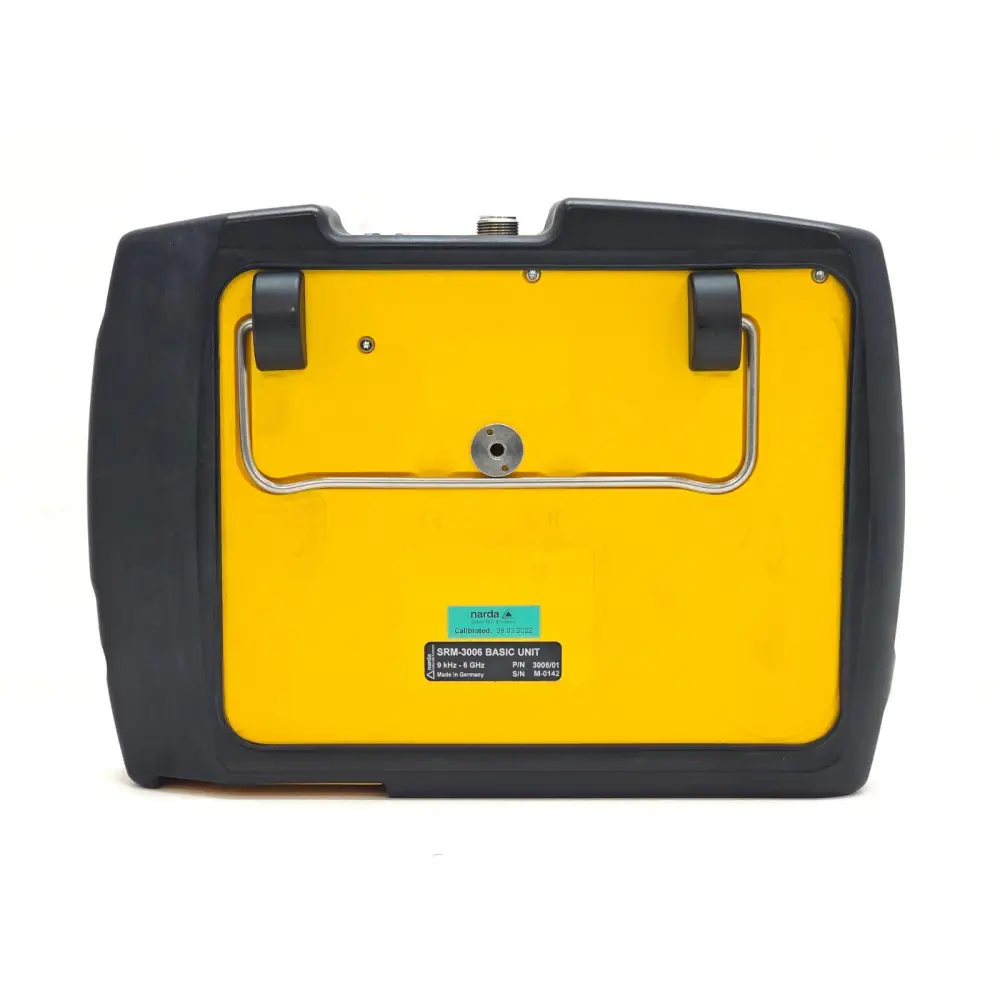

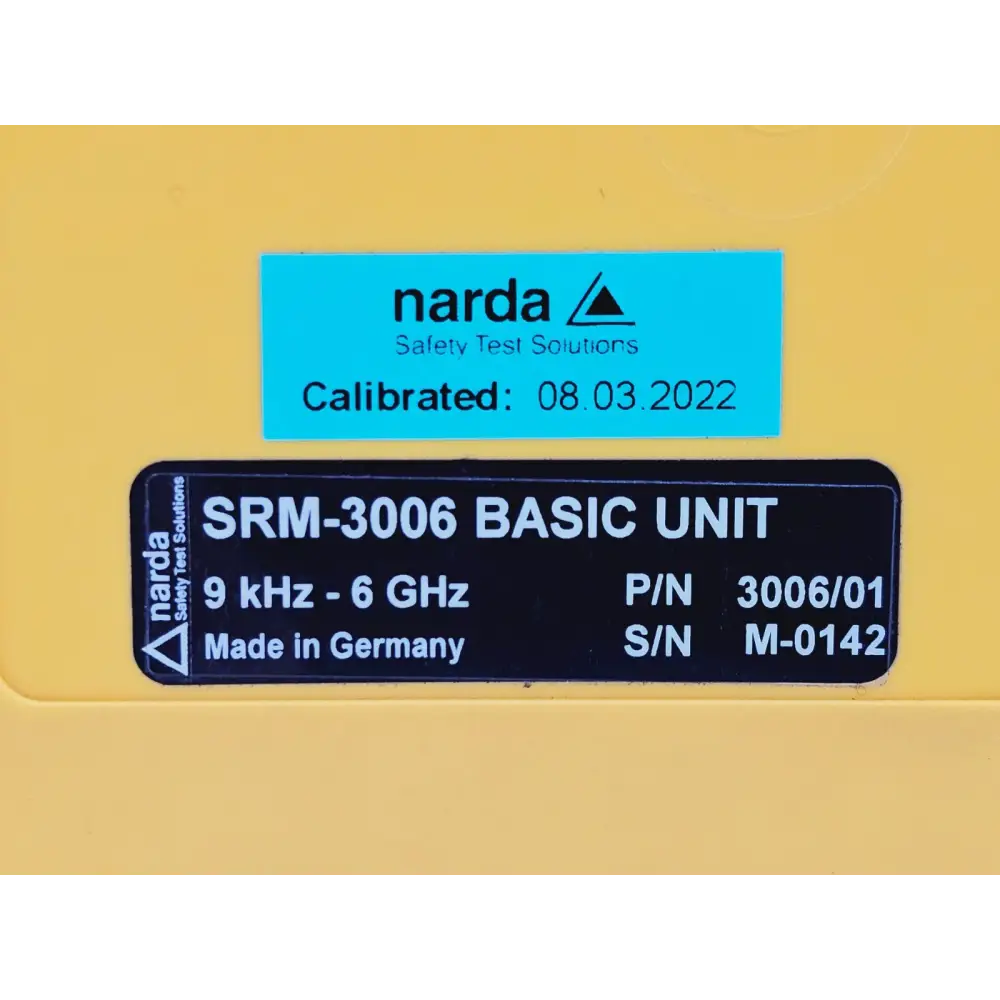

• SRM-3006 Platform (3006/01)

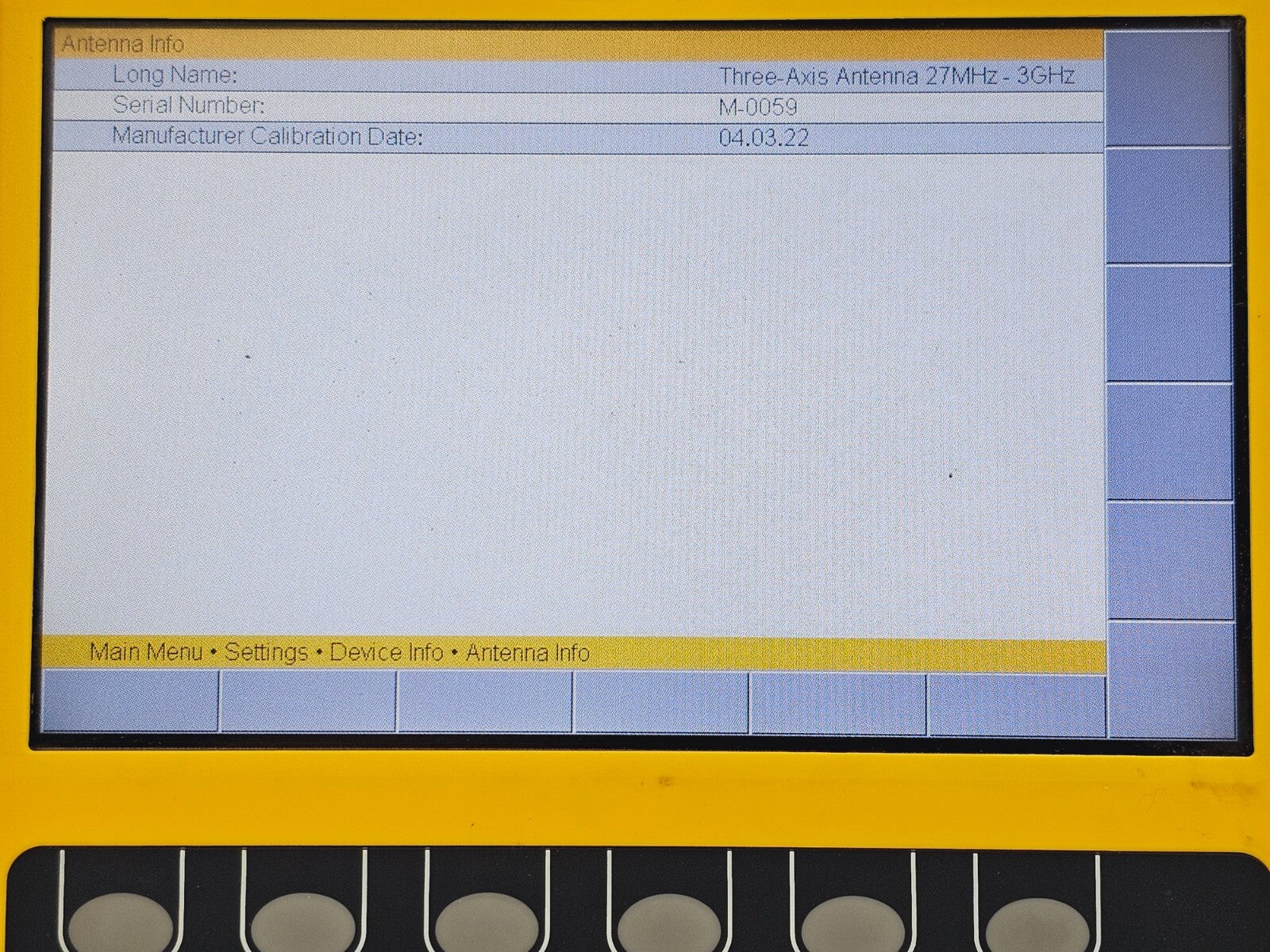

• E-Field Antenna Three-Axis 27 MHz – 3 GHz Probe (3501/03)

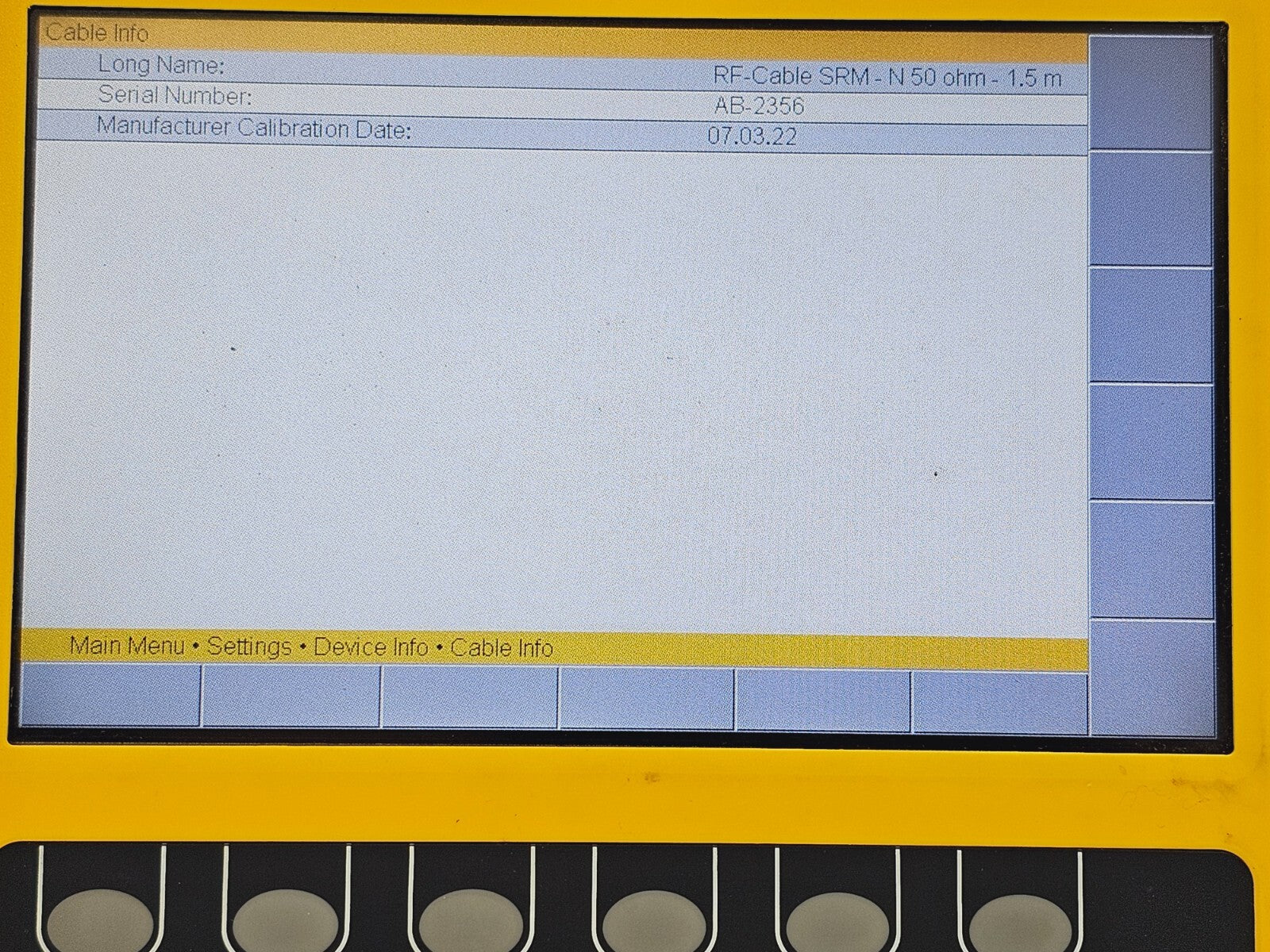

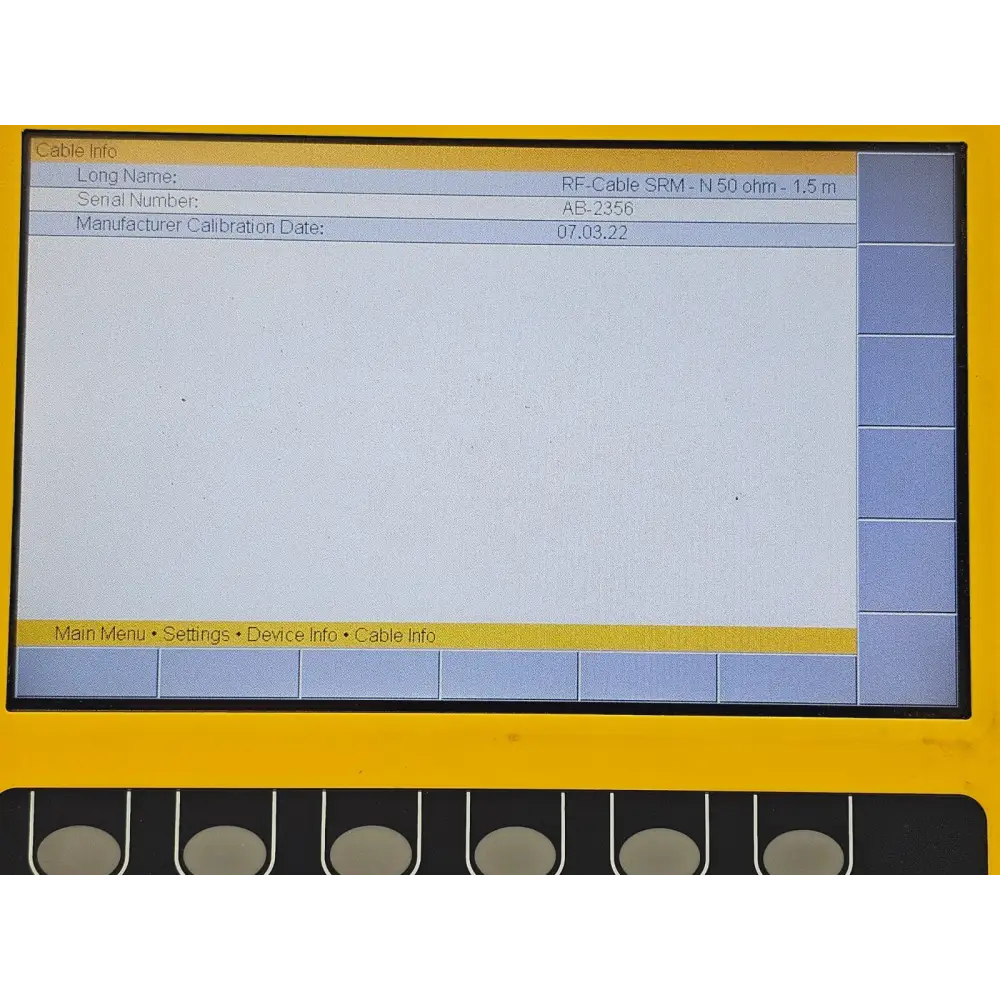

• RF Cable 9 kHz–6 GHz, 1.5 m (3602/01)
• Carry Case
• Power Adapter 12 VDC, 100 V–240 VAC

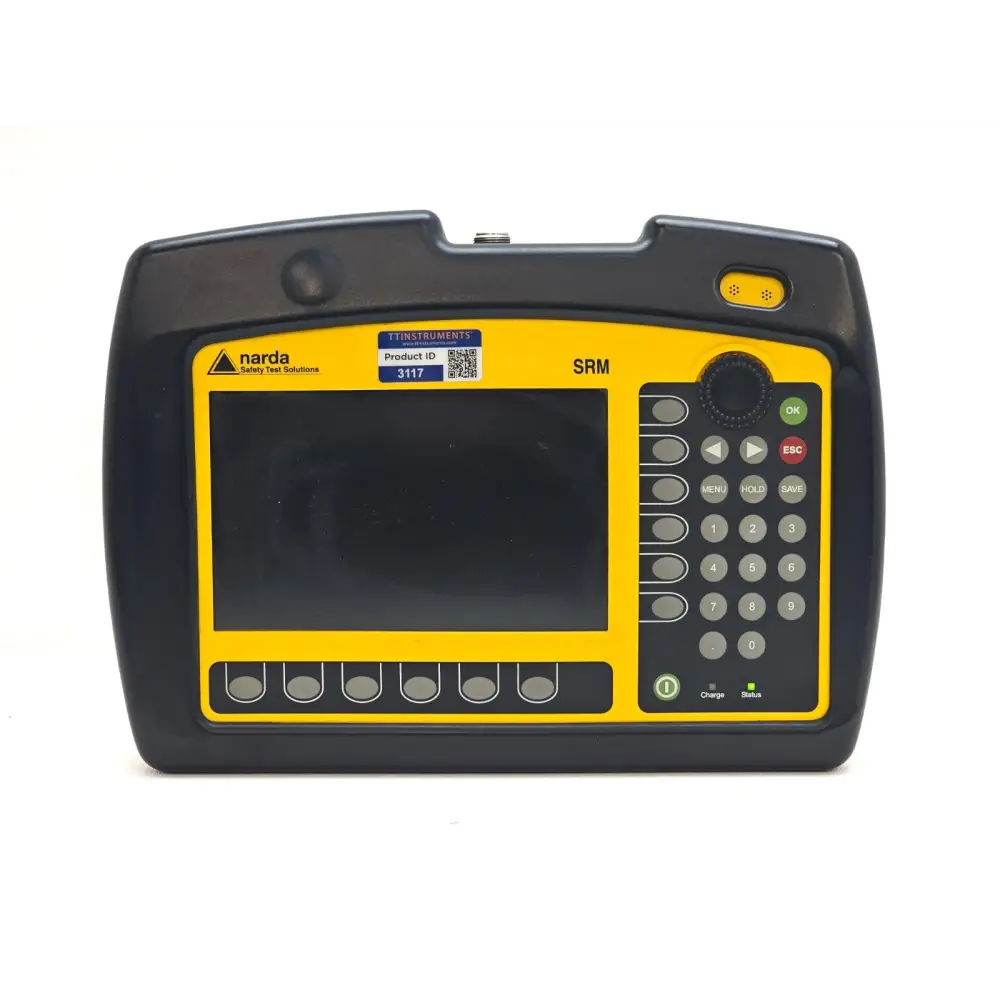

The Narda SRM-3006 Selective Radiation Meter is a compact, frequency-selective handheld measuring system developed by Narda Safety Test Solutions for safety analysis and environmental measurement of high-frequency electromagnetic fields. It combines the analysis features of a spectrum analyser with the simplicity of a wideband measuring set, and is specially designed for assessing compliance with human safety standards in electromagnetic fields.

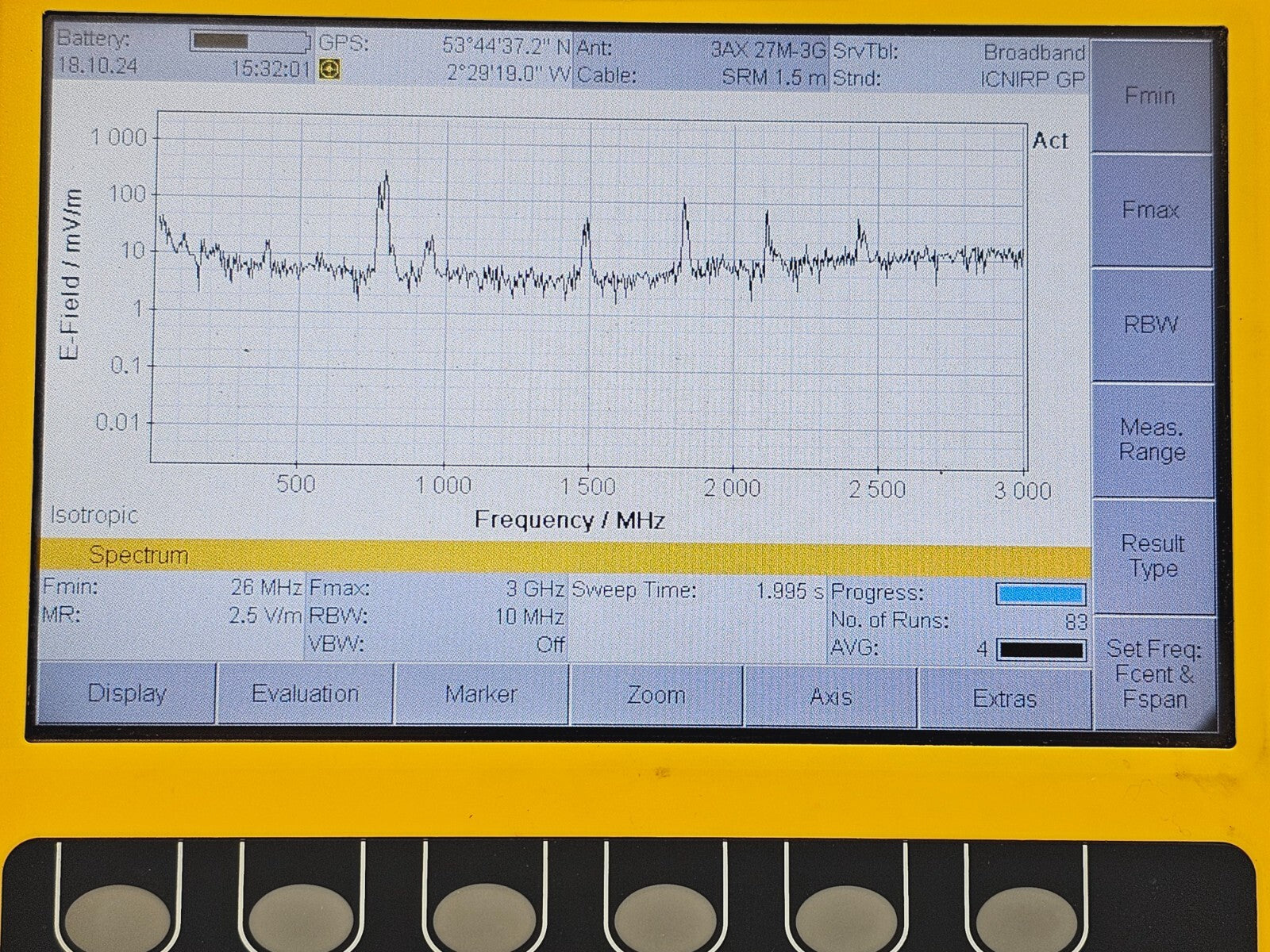

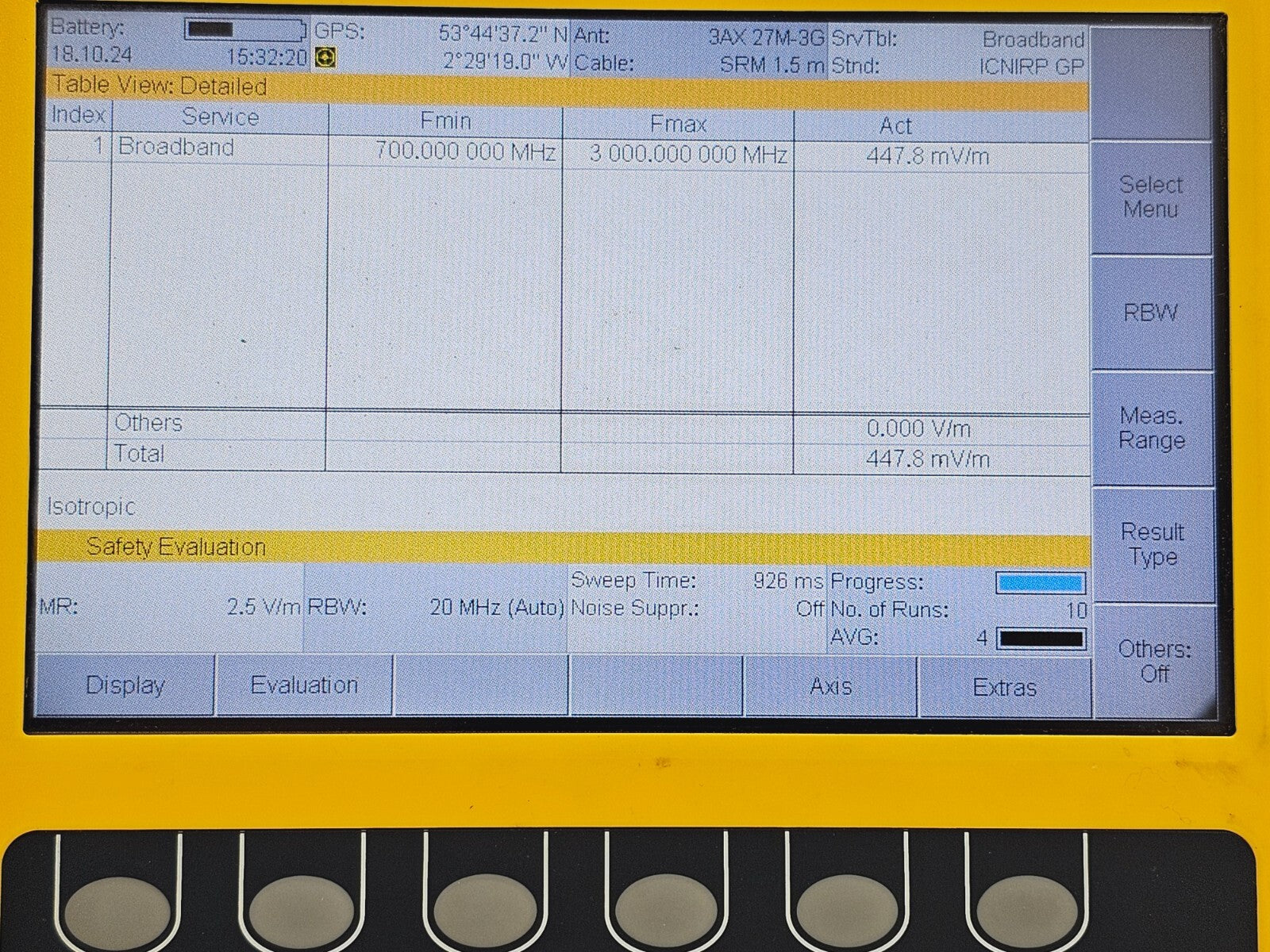

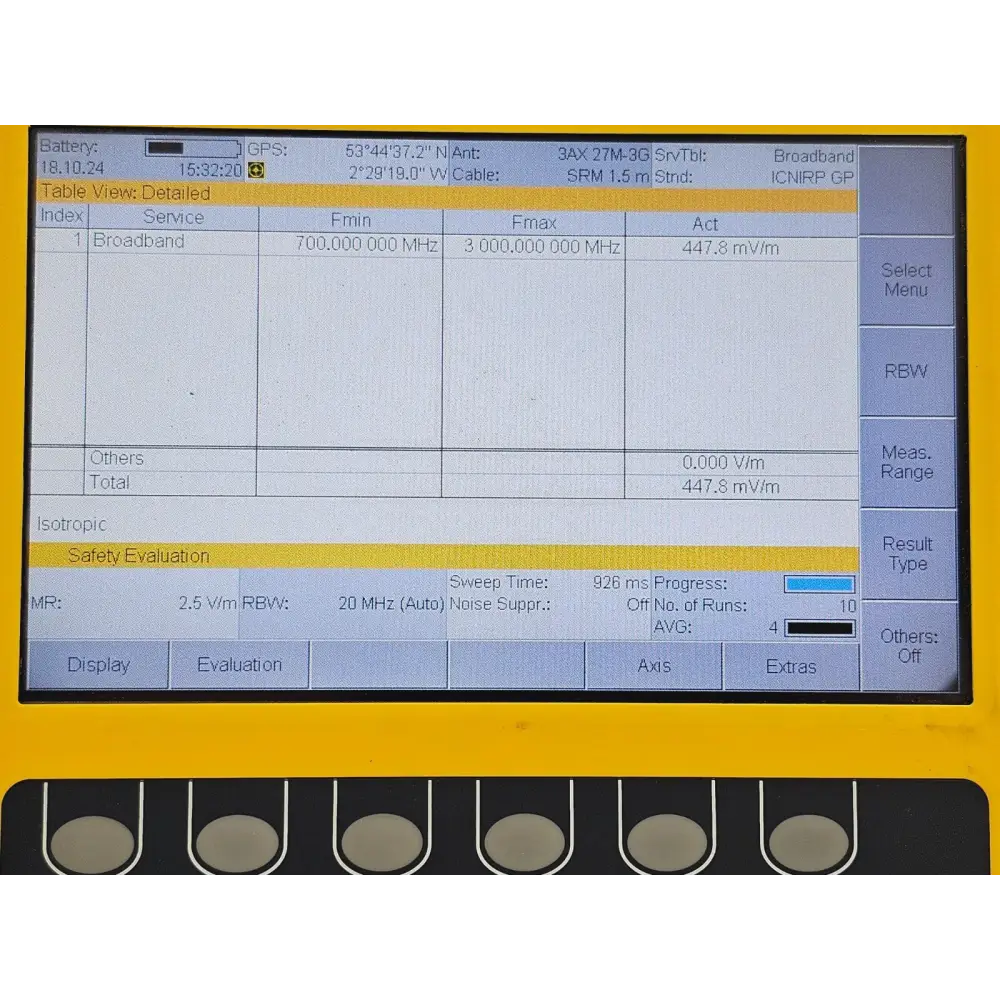

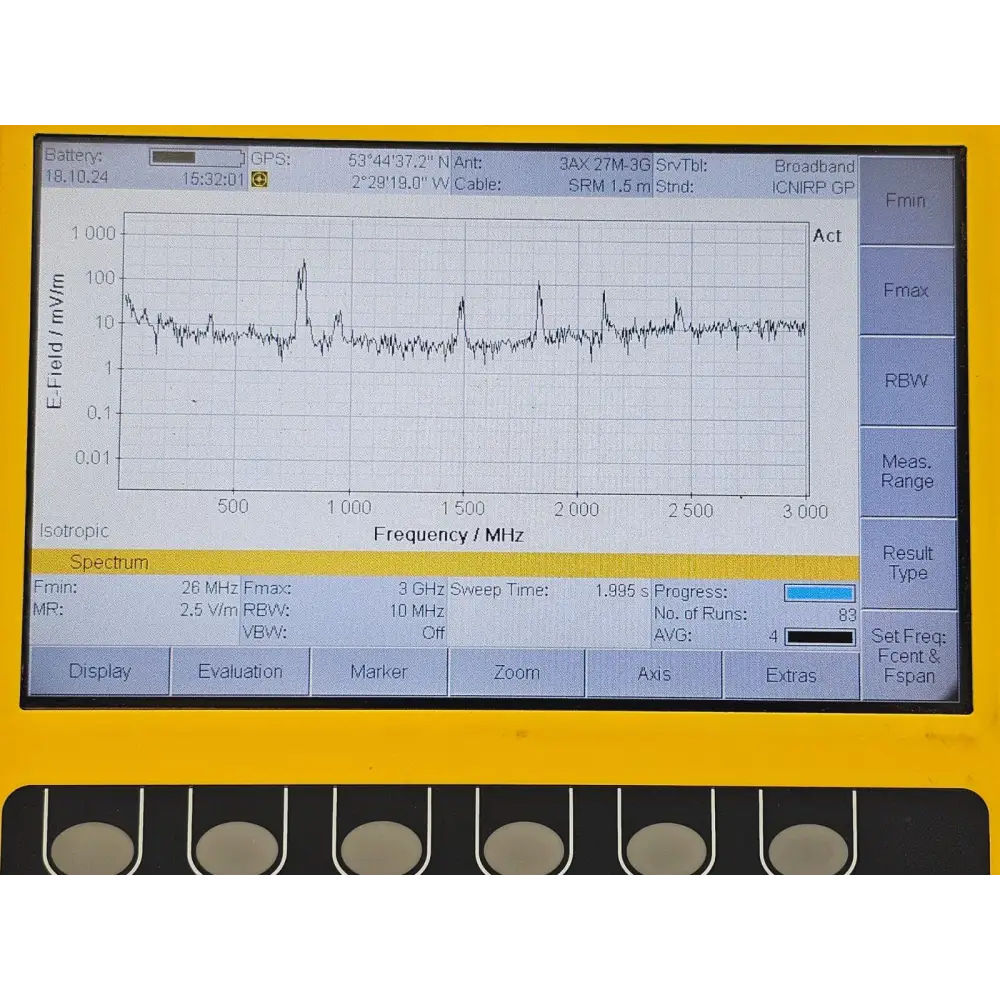

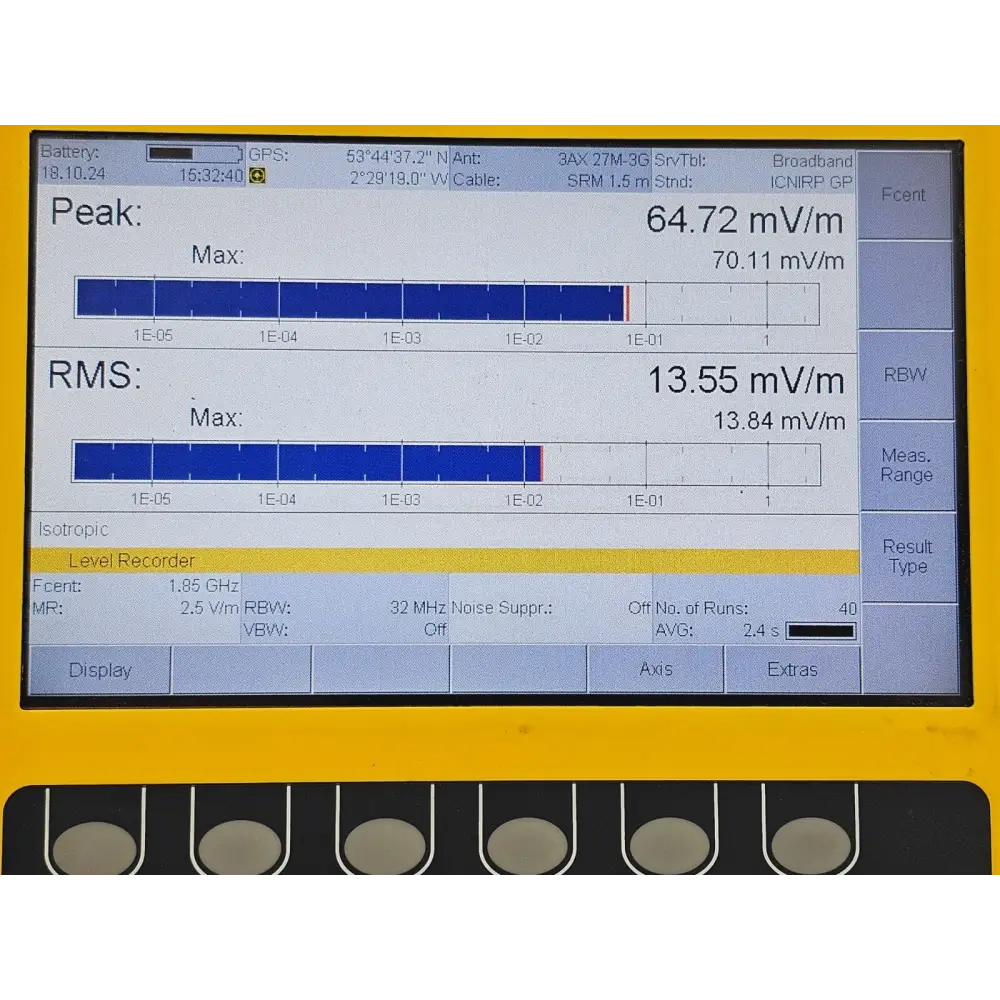

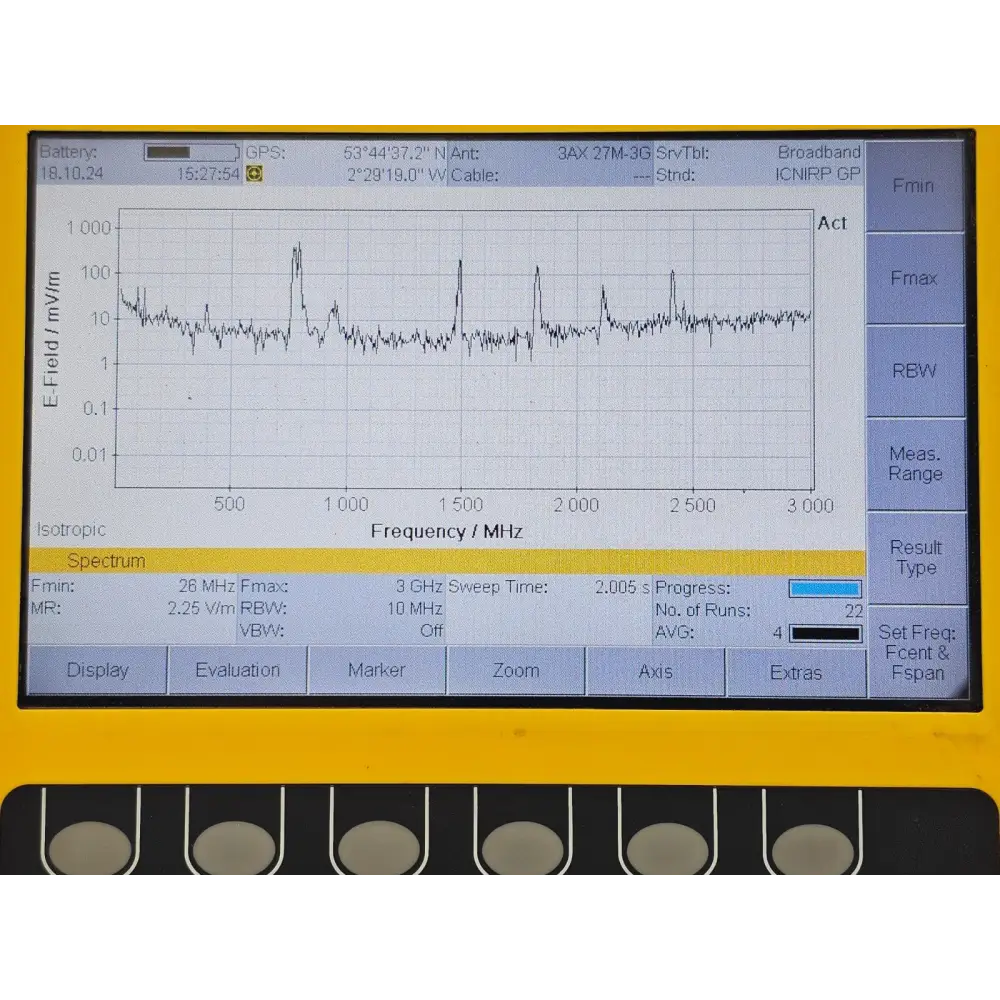

The SRM-3006 provides operating modes tailored to each application — Safety Evaluation, Spectrum Analysis, and Scope — for measuring individual transmission channels and separate services including GSM, UMTS, LTE, DVB-T, DAB, WLAN, and WiMAX. Results are displayed in field strength (V/m), power density (W/cm²), or directly as a percentage of permitted limit values per ICNIRP, FCC, and other national standards.

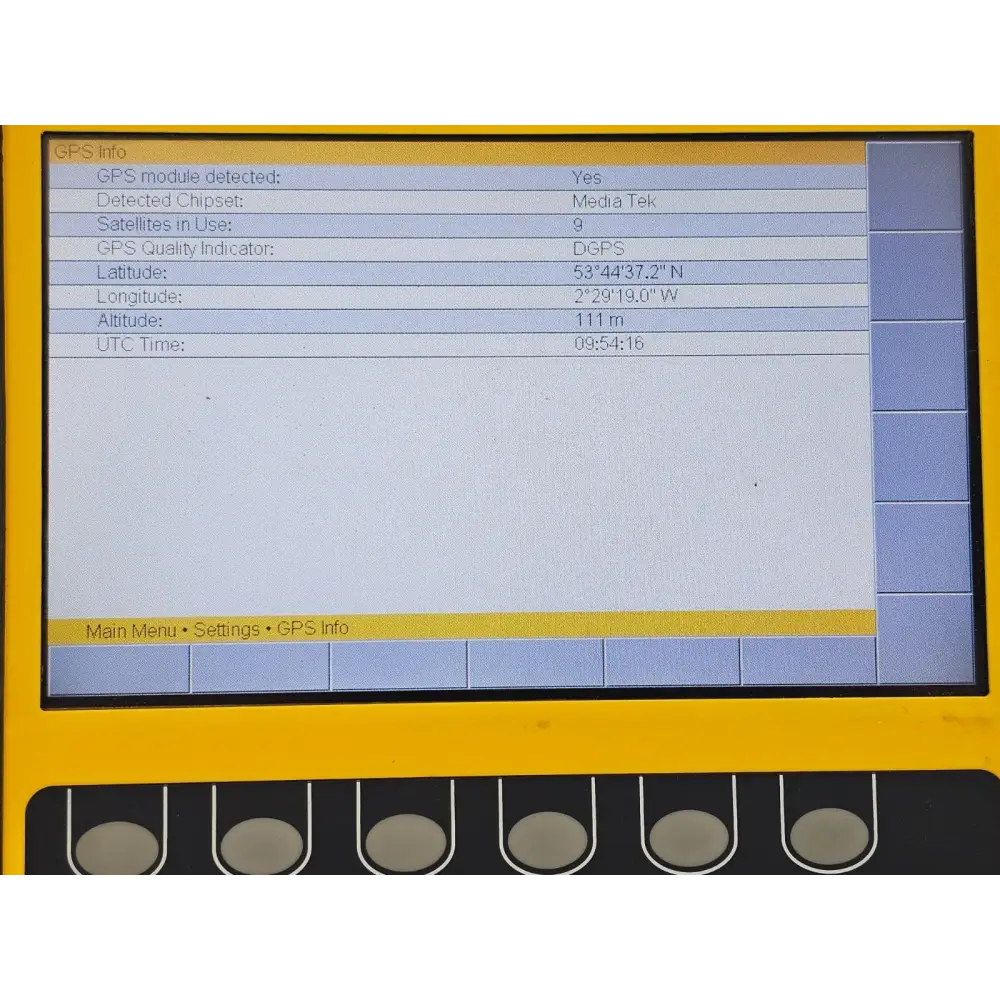

The instrument supports isotropic three-axis and single-axis antennas covering DC to 90 GHz (model dependent), with automatic recognition of Narda antenna and cable calibration data via the digital probe interface — eliminating the need to re-calibrate the meter itself. It is splash-proof, radiation-proof up to 200 V/m, and features replaceable rechargeable batteries, an integrated GPS receiver, and a voice recorder for field use.

SRM-3006 Basic Unit Specifications:
Frequency Range: 9 kHz to 6 GHz
Resolution Bandwidth (RBW): Up to 32 MHz
Measurement Range Fine Tuning: 1 dB steps
Irradiation Proof Level: Up to 200 V/m
Long-Term Monitoring: Up to 99 hours (all modes except Scope)
Display: Results in V/m, A/m, W/cm², or % of limit value

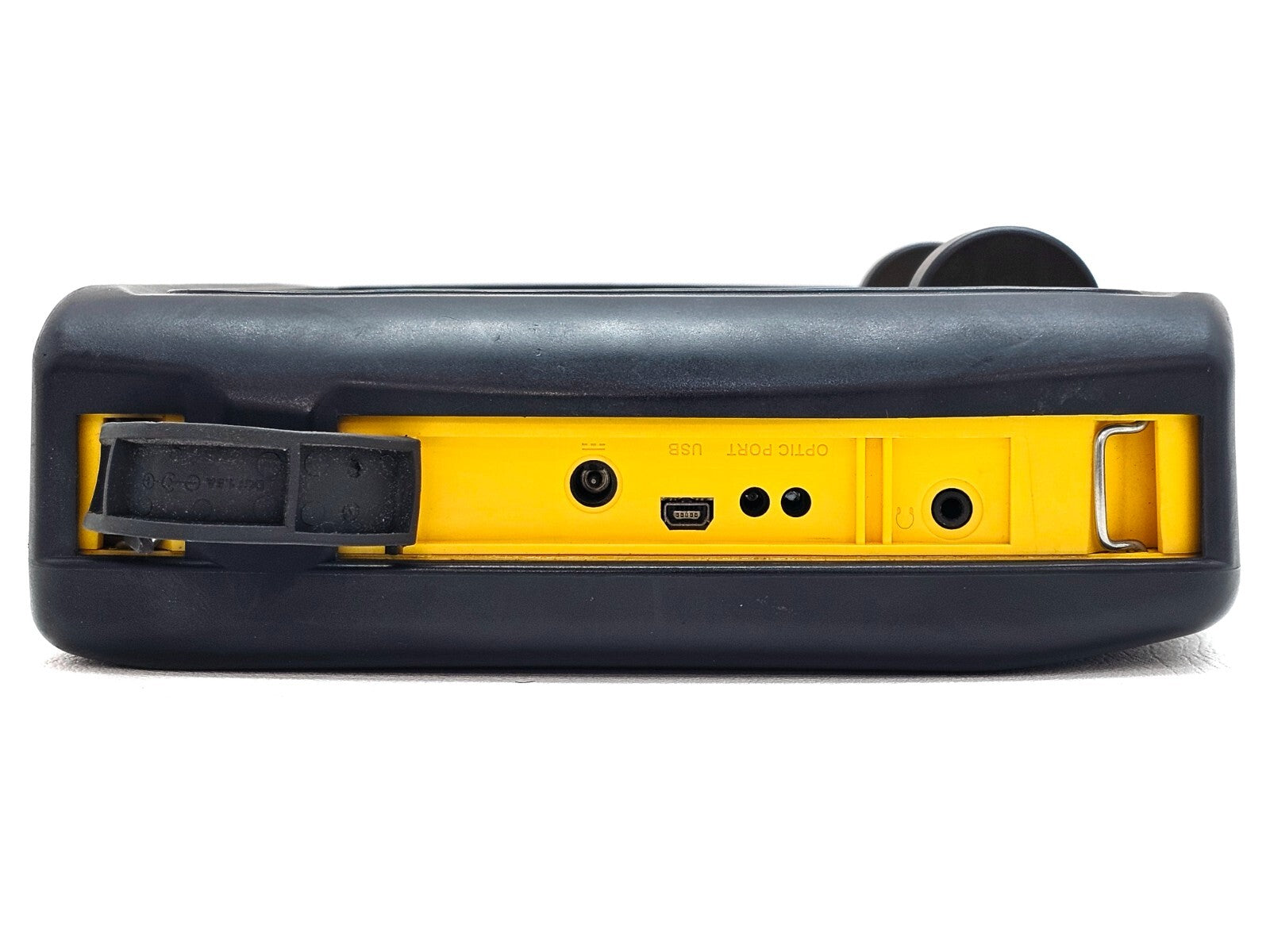

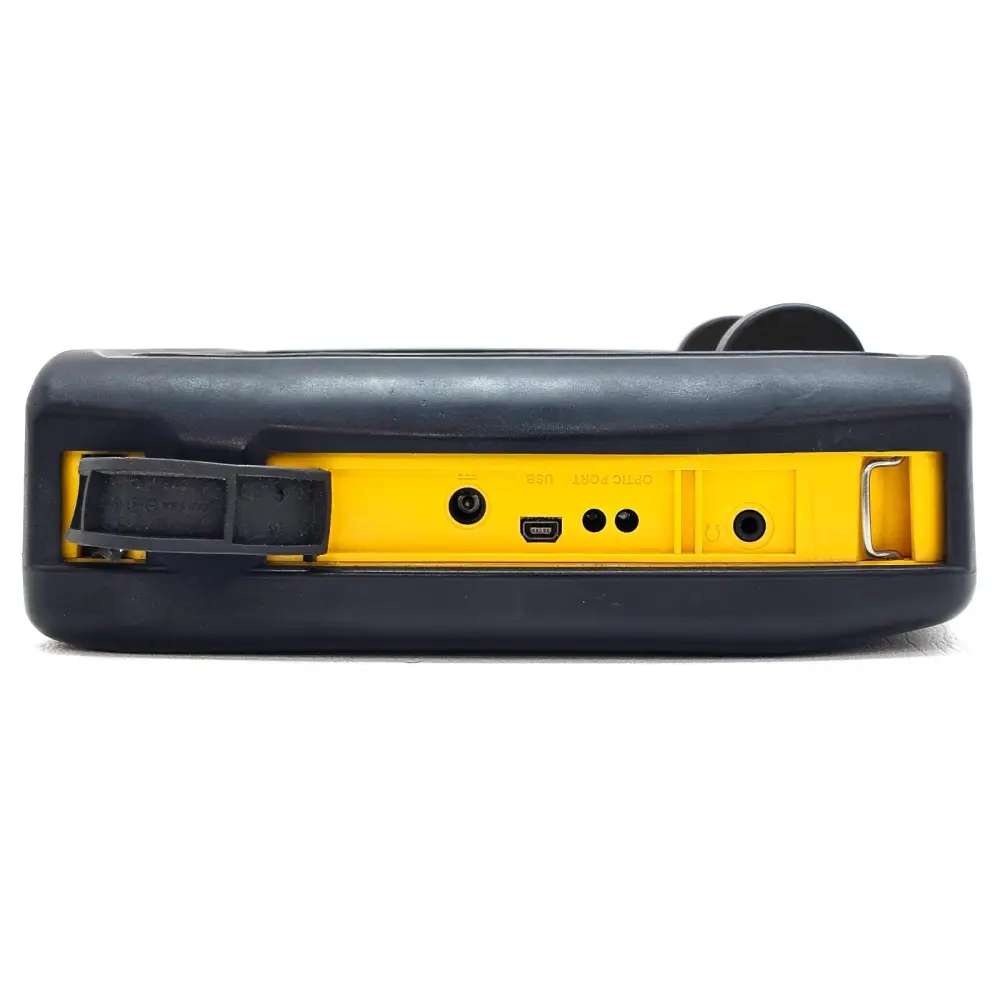

Interface: USB and optical
Power Supply: Exchangeable rechargeable battery pack; external AC adapter (100–240 VAC, 9 V nominal)

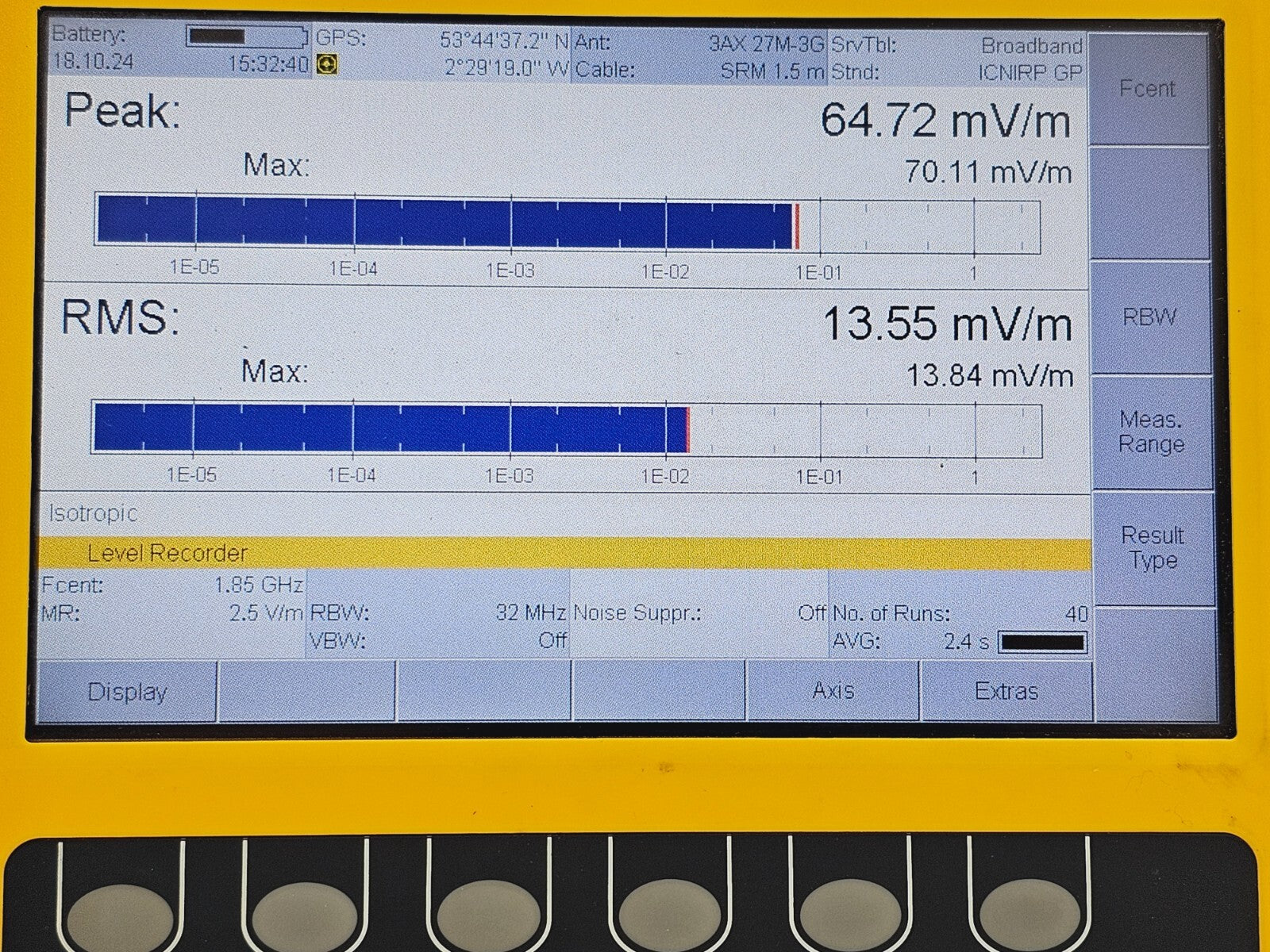

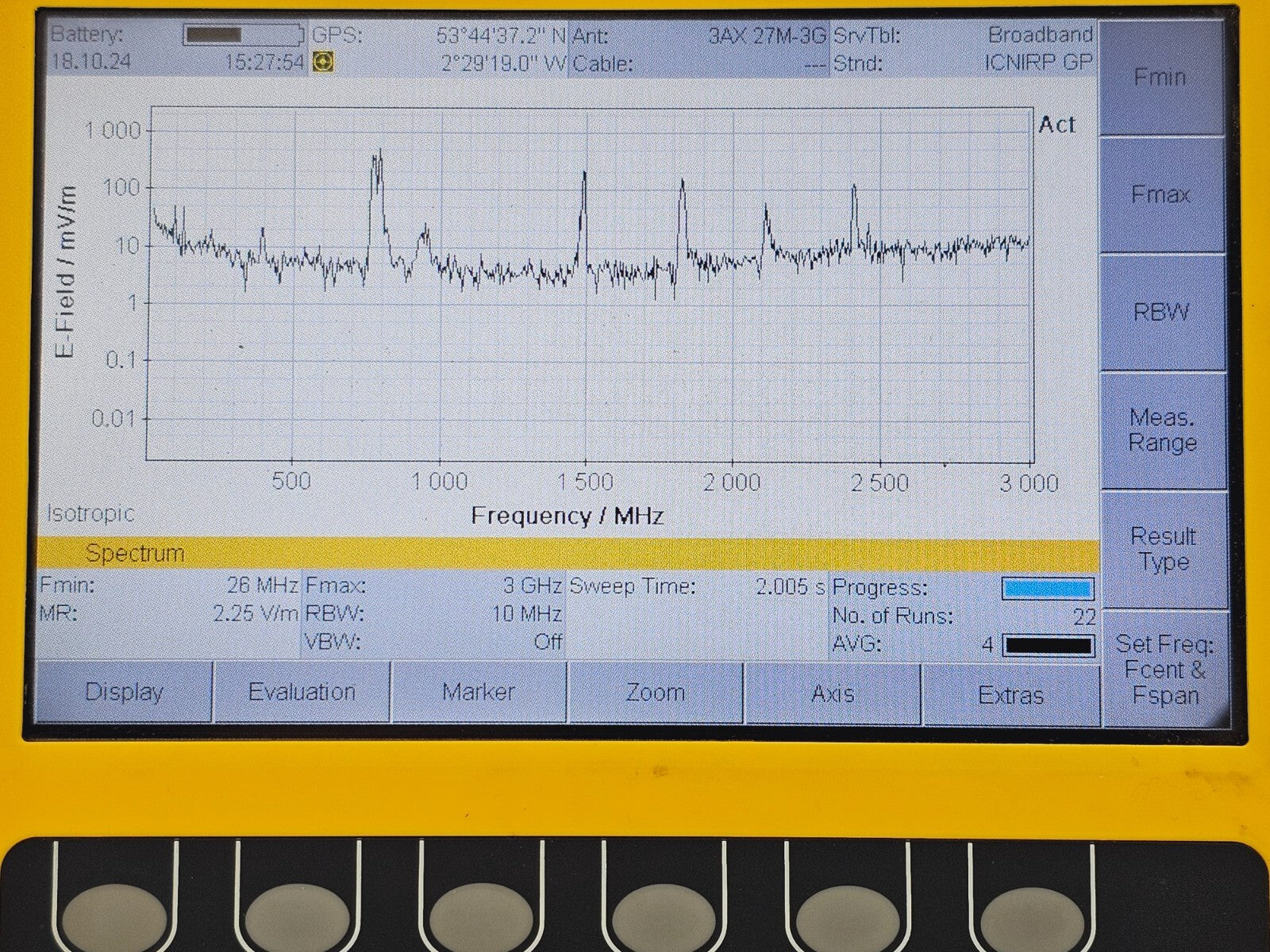

Operating Modes: Safety Evaluation, Spectrum Analysis, Scope, Recorder
Compliance Standards: ICNIRP, FCC, EMF Directive 2013/35/EU and regional standards

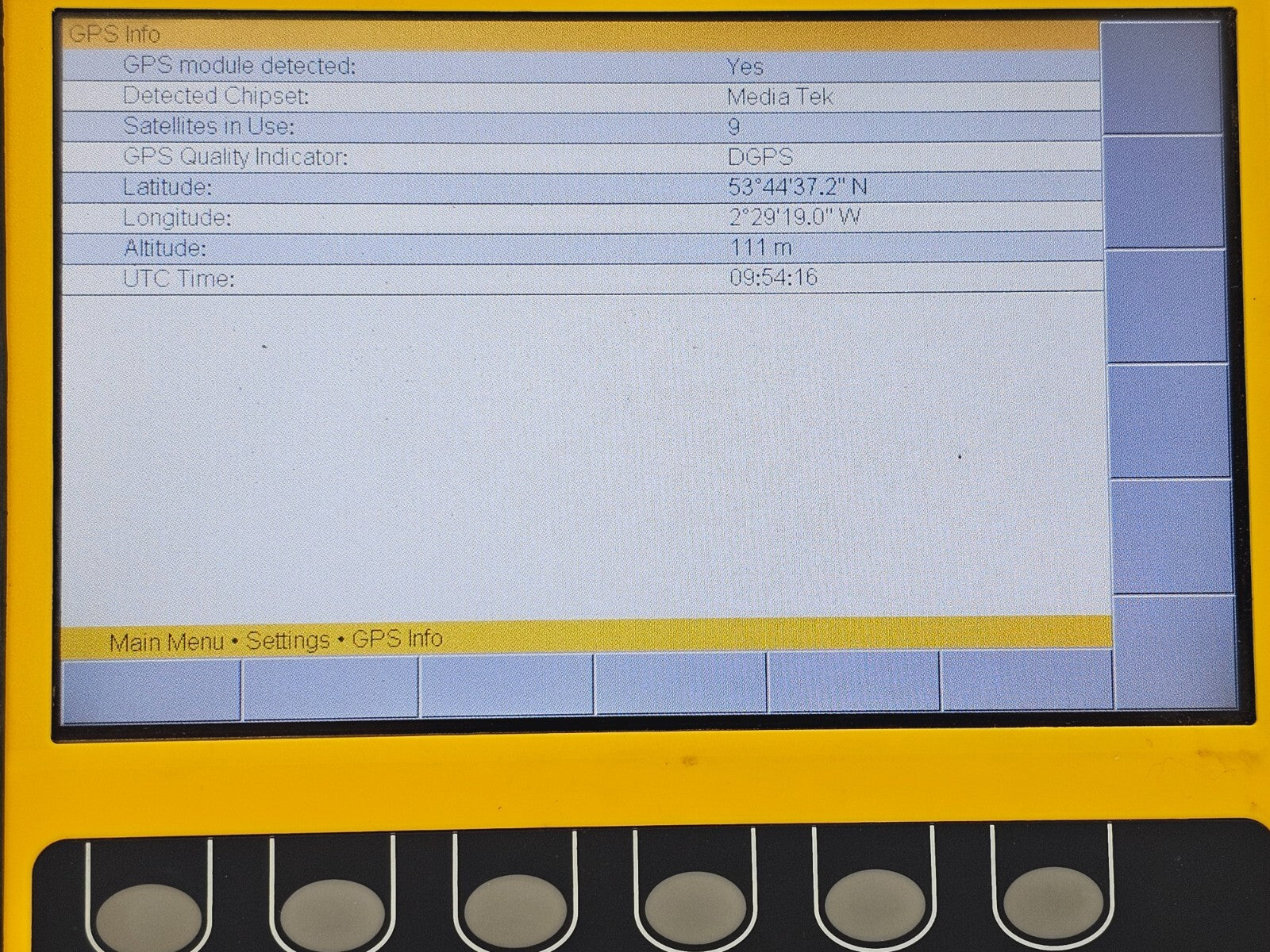

Additional Features: Integrated GPS, voice recorder, programmable measurement routines, PC software (SRM-3006 Tools)

Probe 3501/03 — Three-Axis E-Field Antenna Specifications:
Frequency Range: 27 MHz to 3 GHz
Measurement Dynamic Range: 0.2 mV/m to 200 V/m
Antenna Type: Three-axis isotropic E-field
Directivity: Isotropic (non-directional)

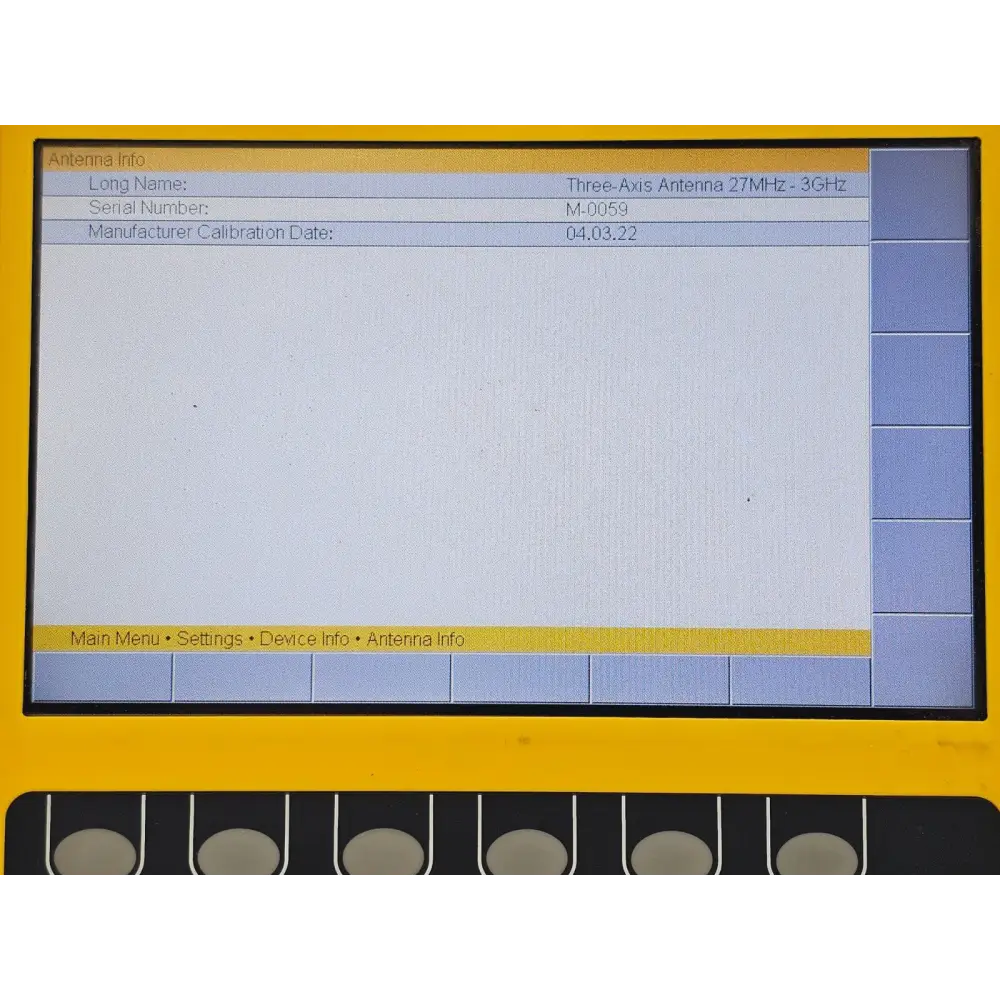

Calibration: Correction factors stored in EEPROM, applied automatically
Weight: 450 g
Length (including shaft): 460 mm
CW Damage Level: 435 V/m or 50 mW/cm²
Calibration Cycle: 24 months

Narda SRM-3006 Datasheet — product overview and key specifications (TestEquipmentHQ): Download PDF

Narda SRM-3006 Full Technical Datasheet NSTS 0721-E0272M — detailed specifications (TestUnlimited): Download PDF

Narda SRM-3006 Operating Manual — full user and operating guide (McGill University mirror): Download PDF

Narda SRM-3006 Product Brochure — features and application overview (McGill University mirror): Download PDF

Narda SRM-3006 US Datasheet — NAR-SRM-3006-116394 (Electro Rent / KC assets): Download PDF
