Condition: Used

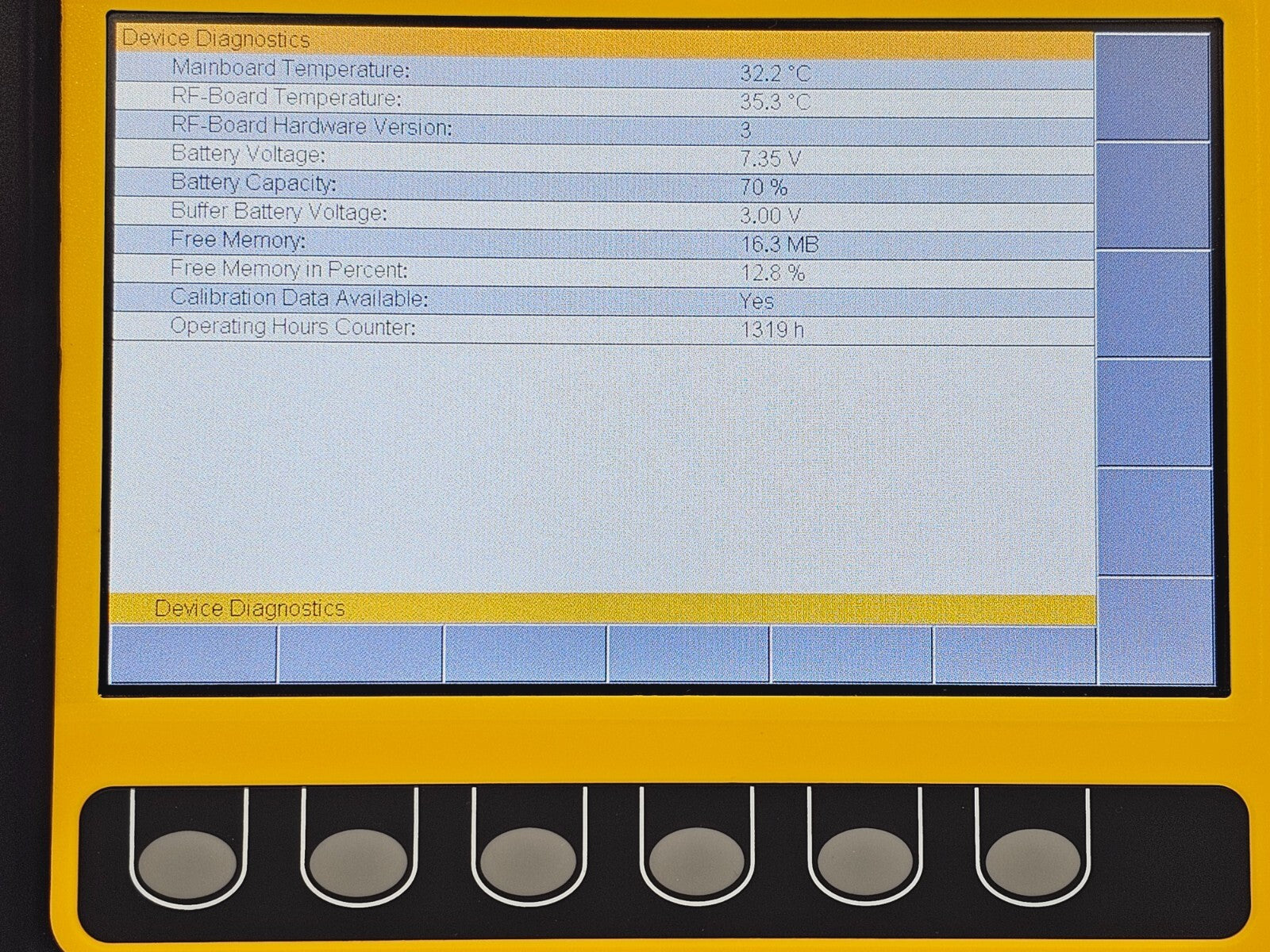

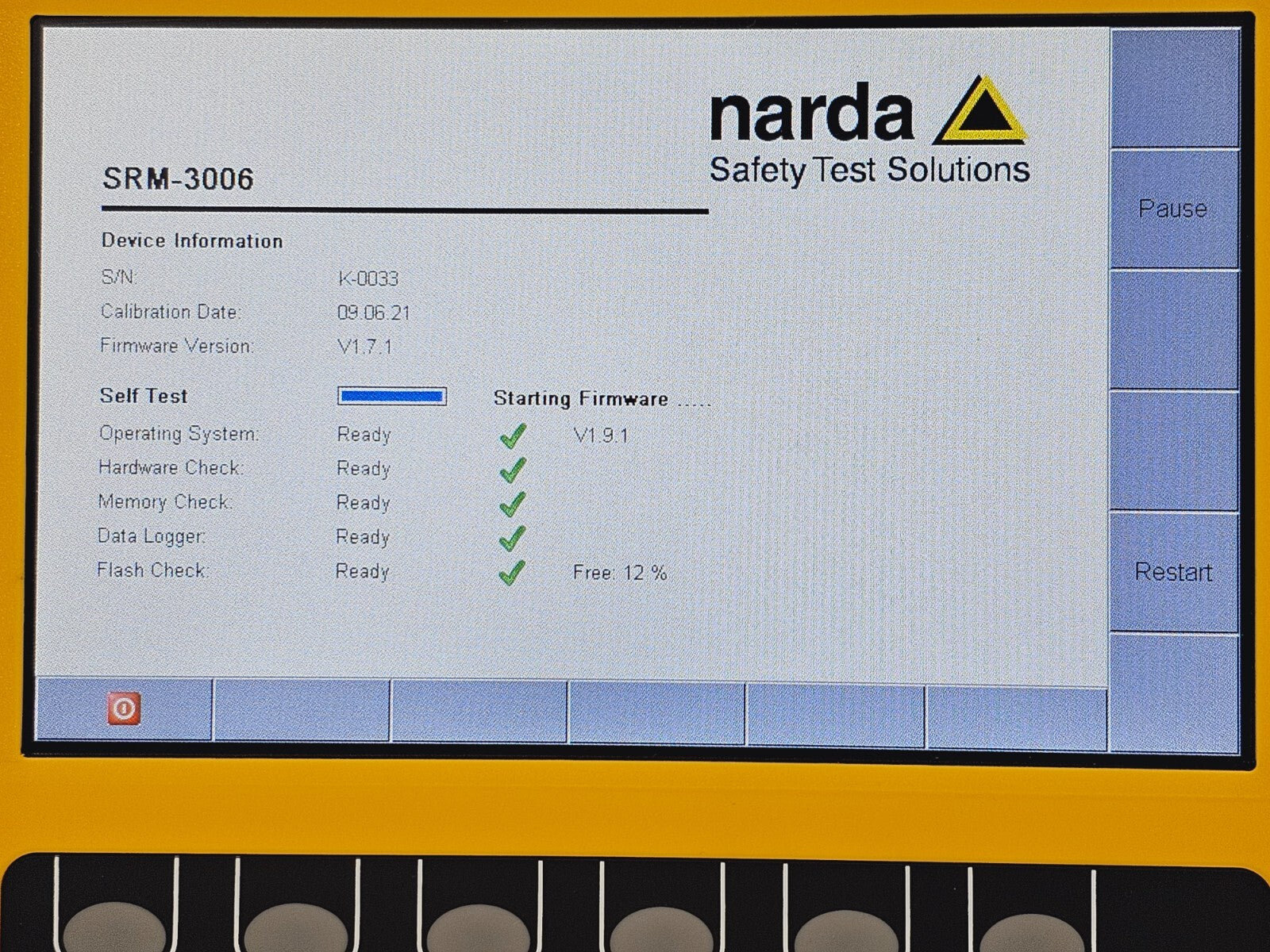

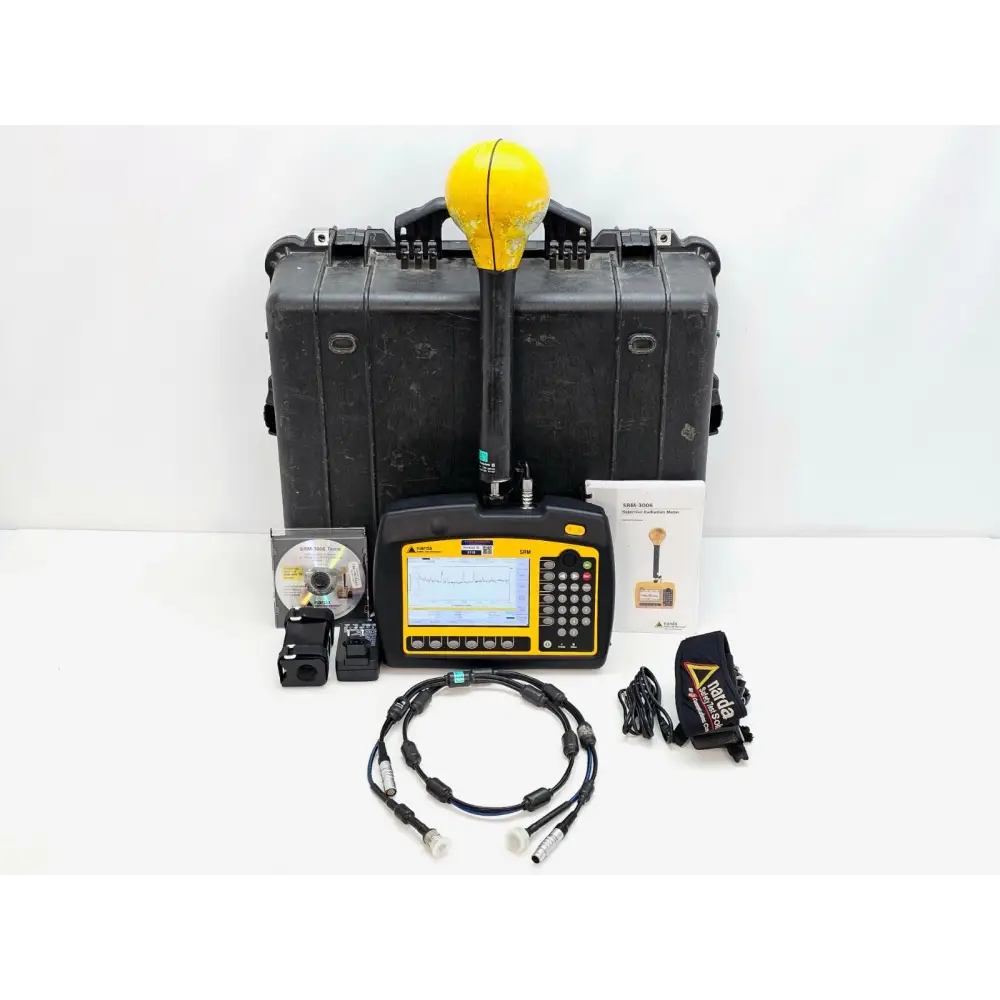

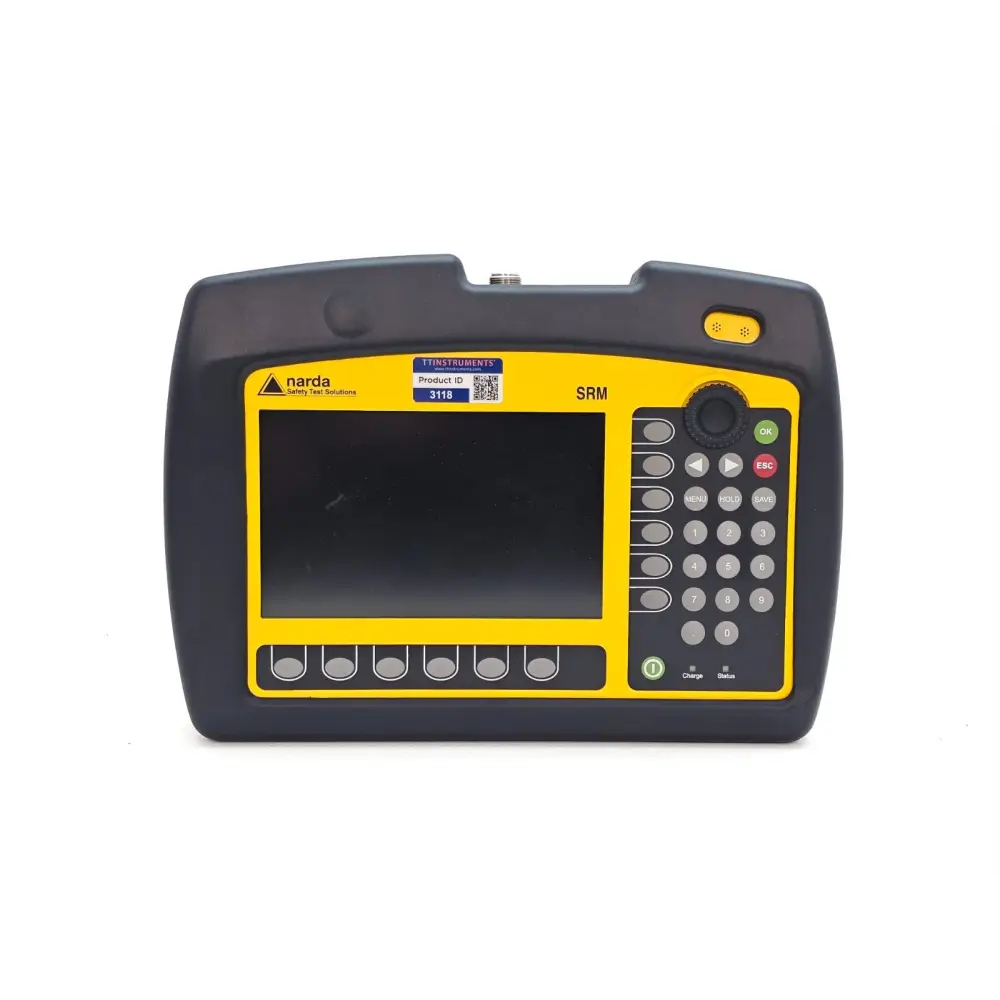

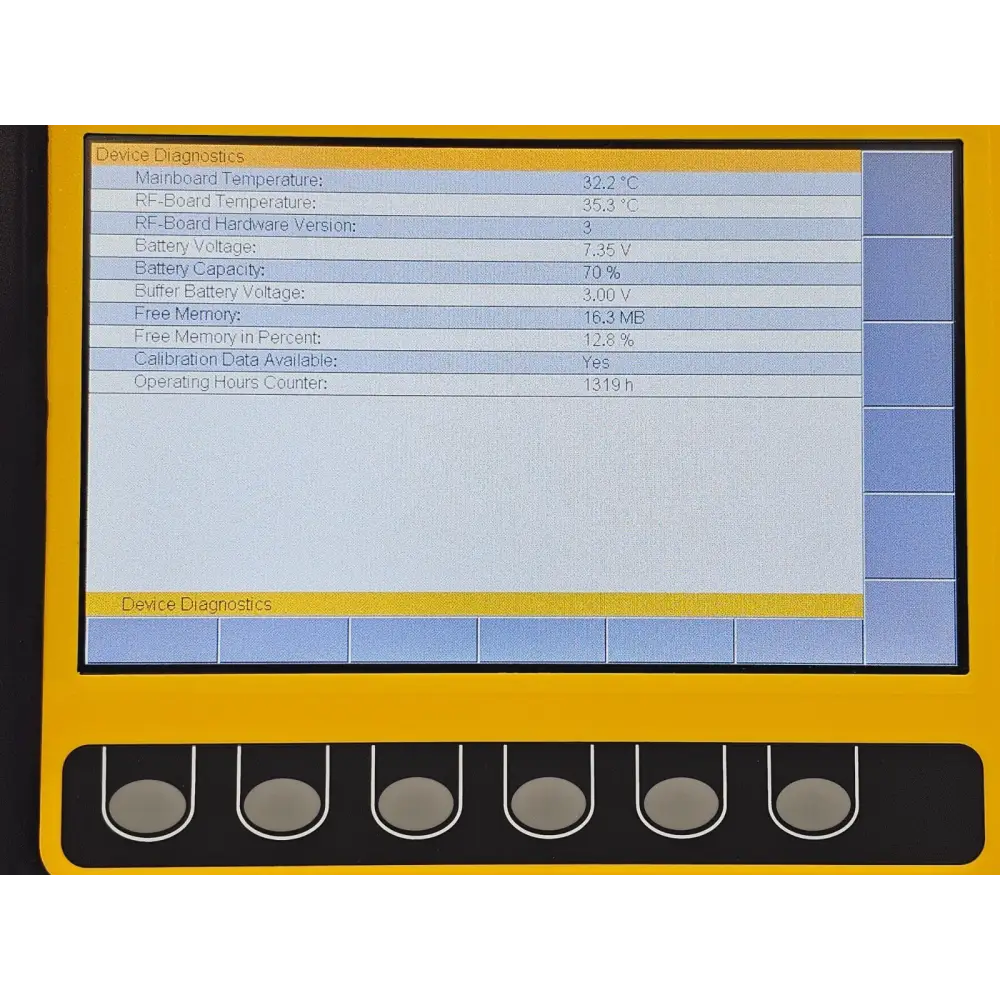

Tested and working Narda SRM-3006 platform (3006/01) with the 3501/03 three-axis E-field antenna covering 27 MHz to 3 GHz. Run time of only 1,319 hours. Includes the full carry case kit for field deployment.

Included in the sale:

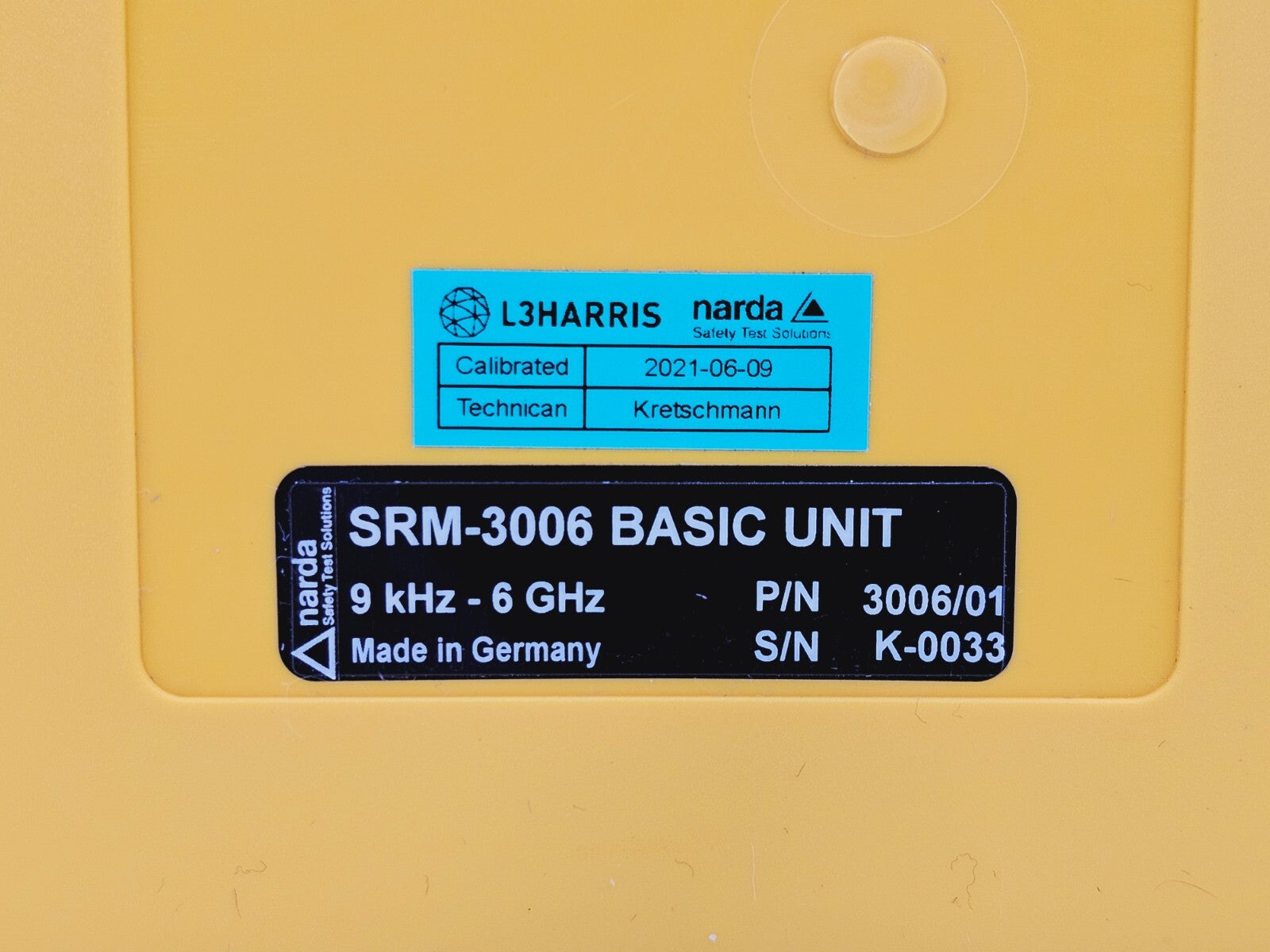

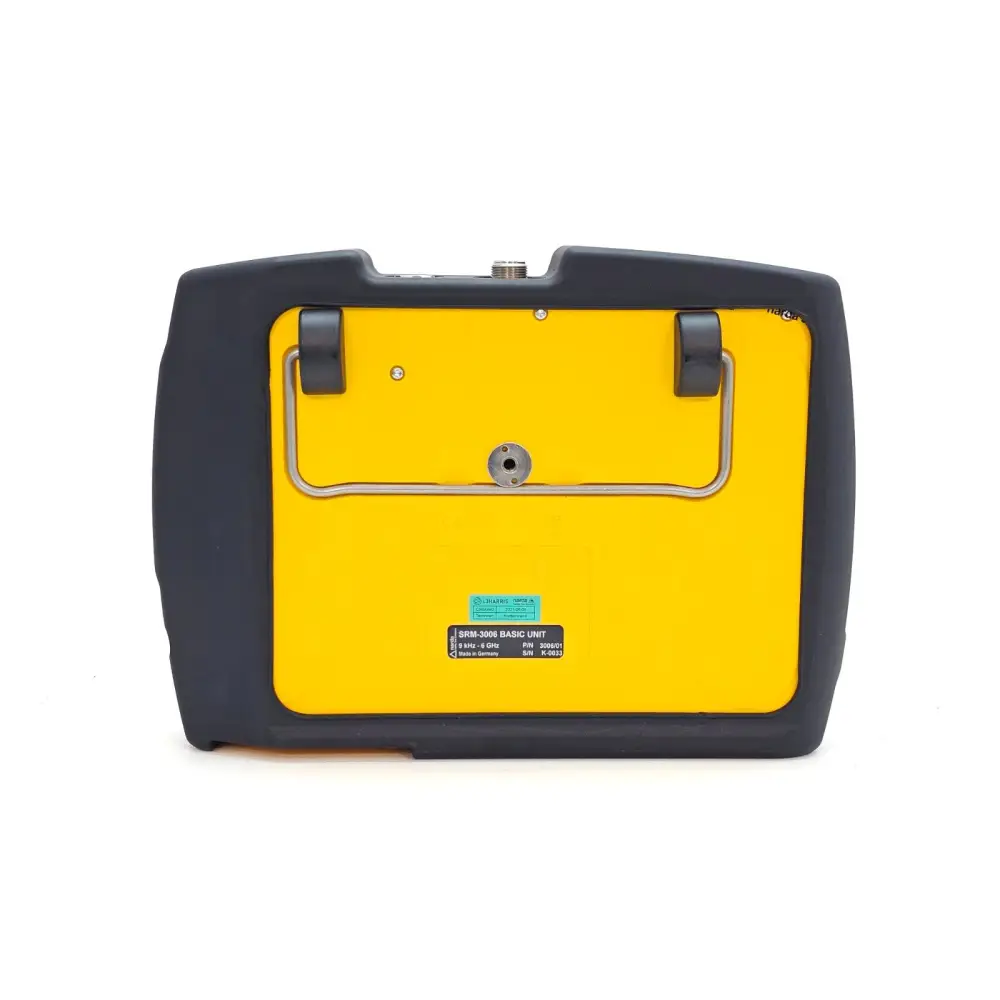

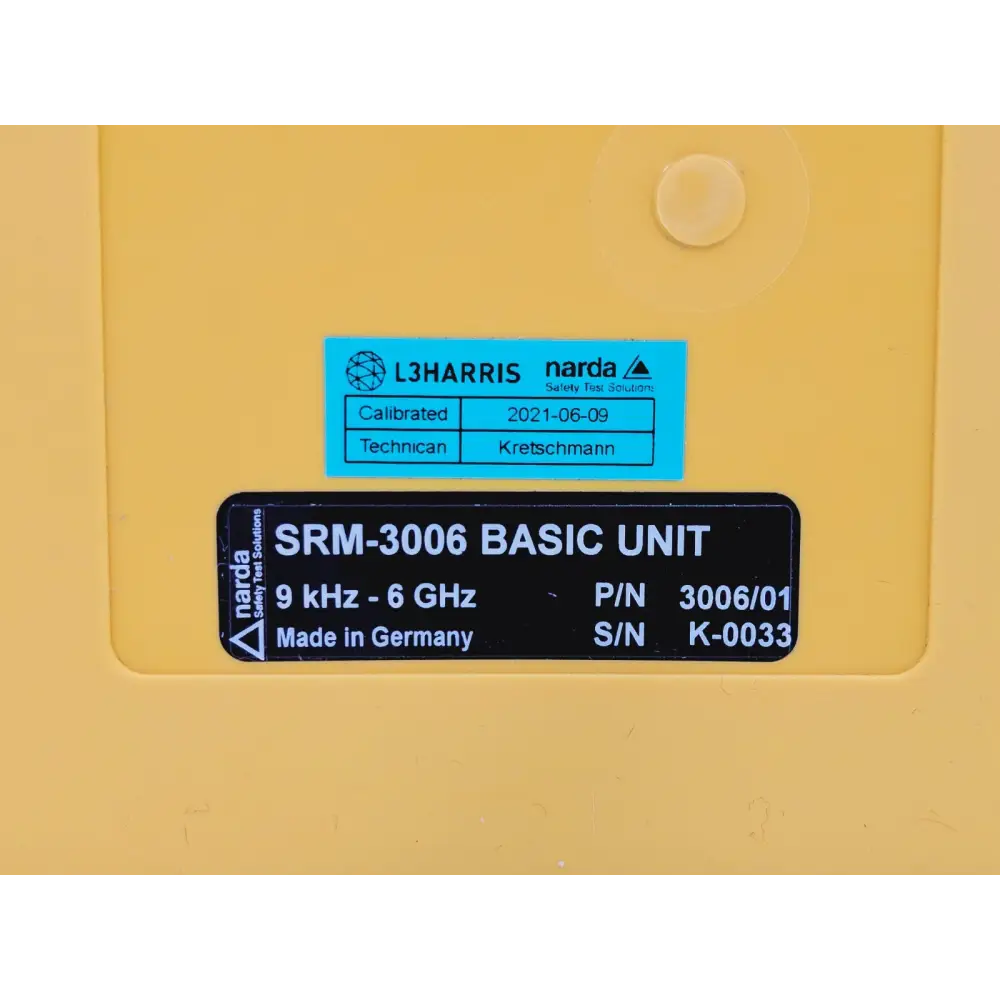

• SRM-3006 Platform (3006/01)
• E-Field Antenna Three-Axis 27 MHz–3 GHz Probe (3501/03)

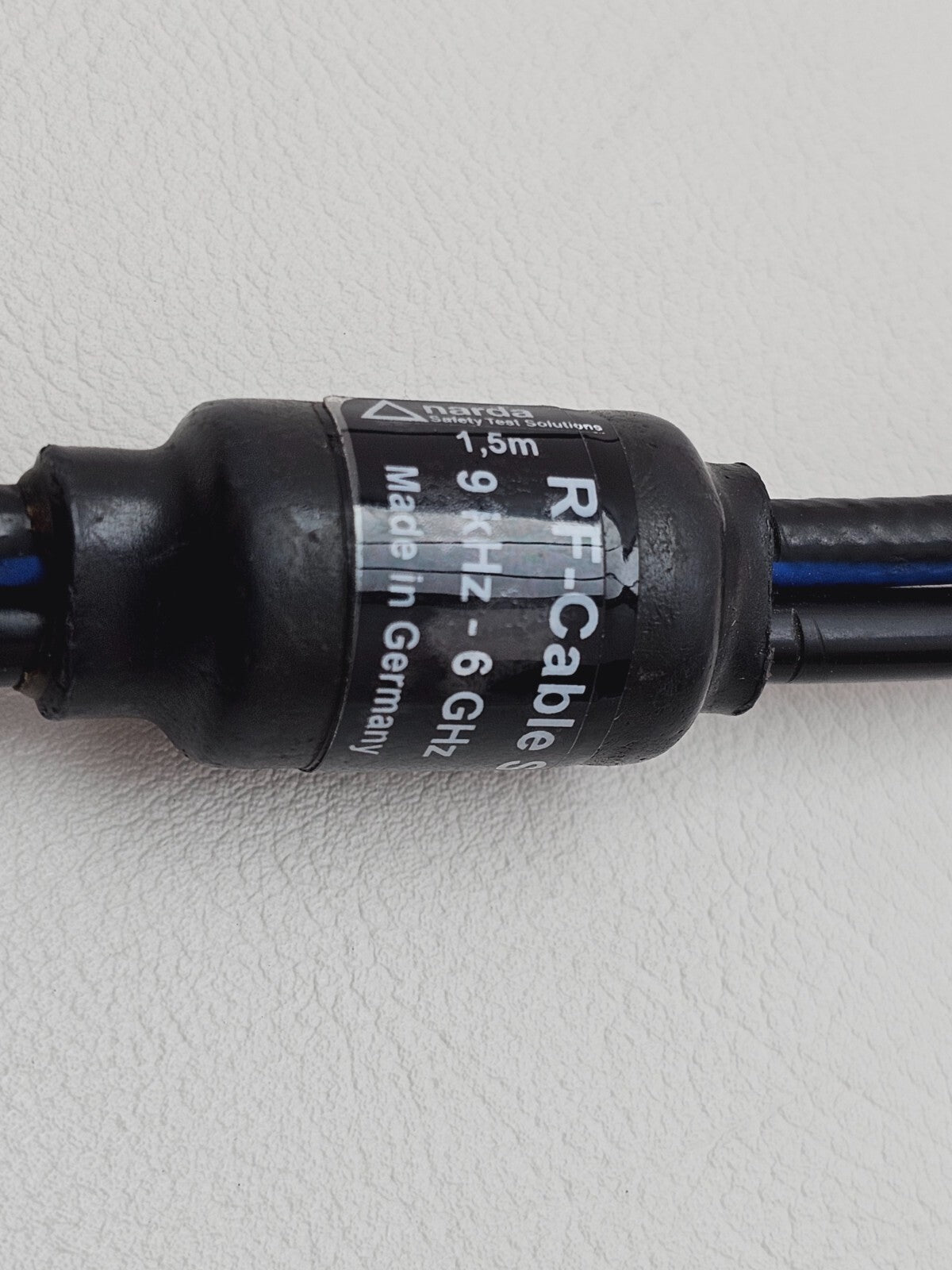

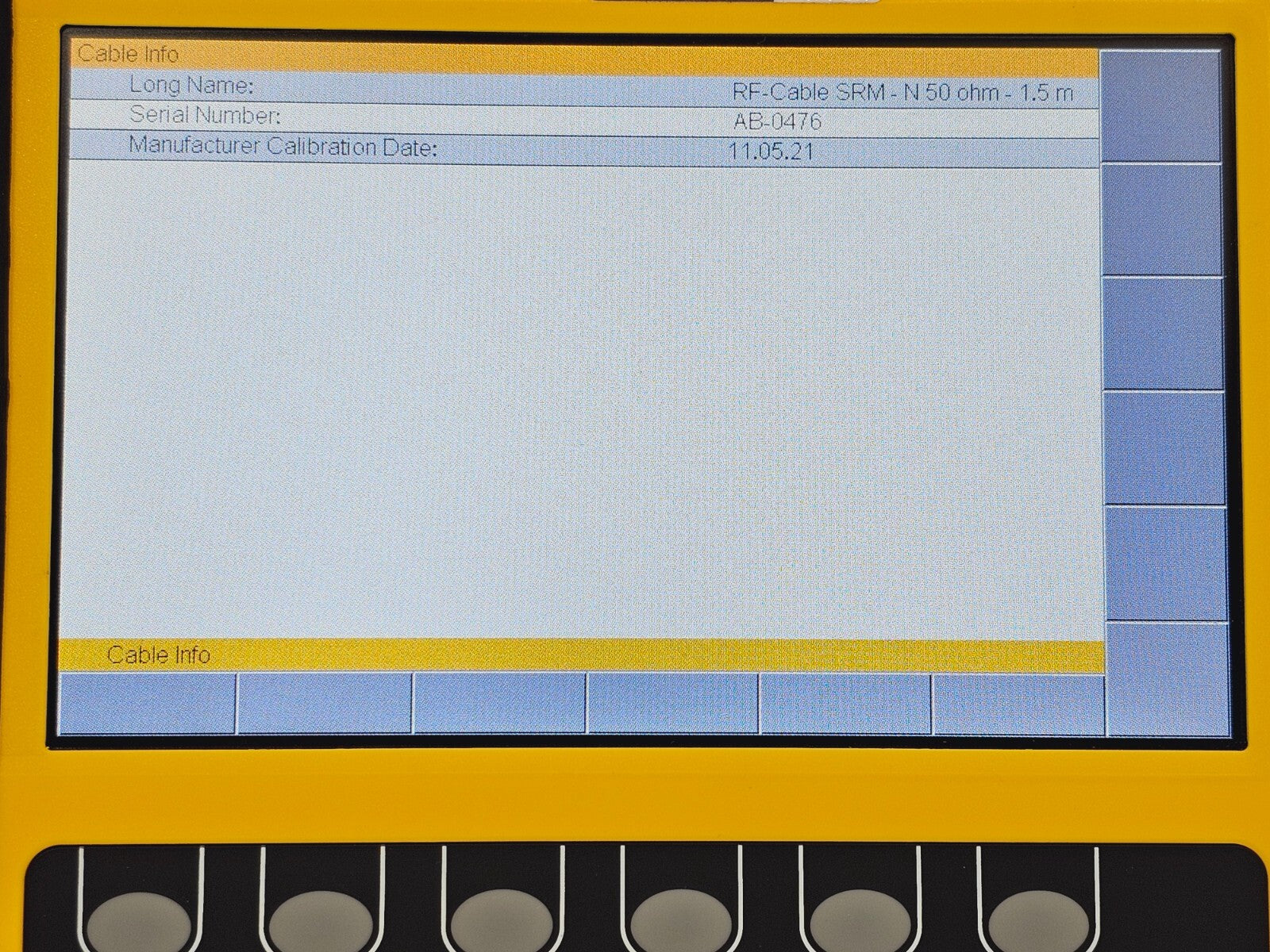

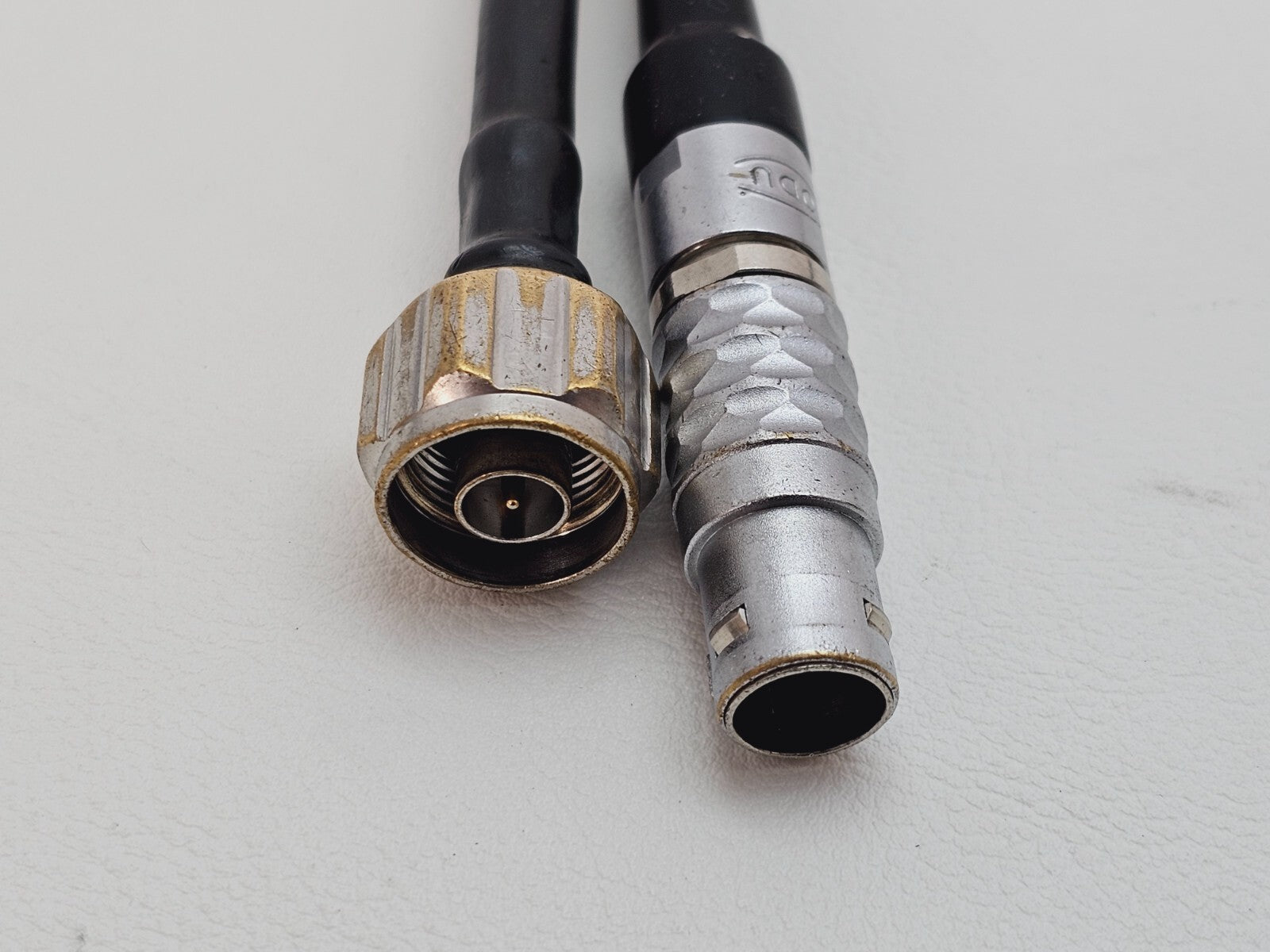

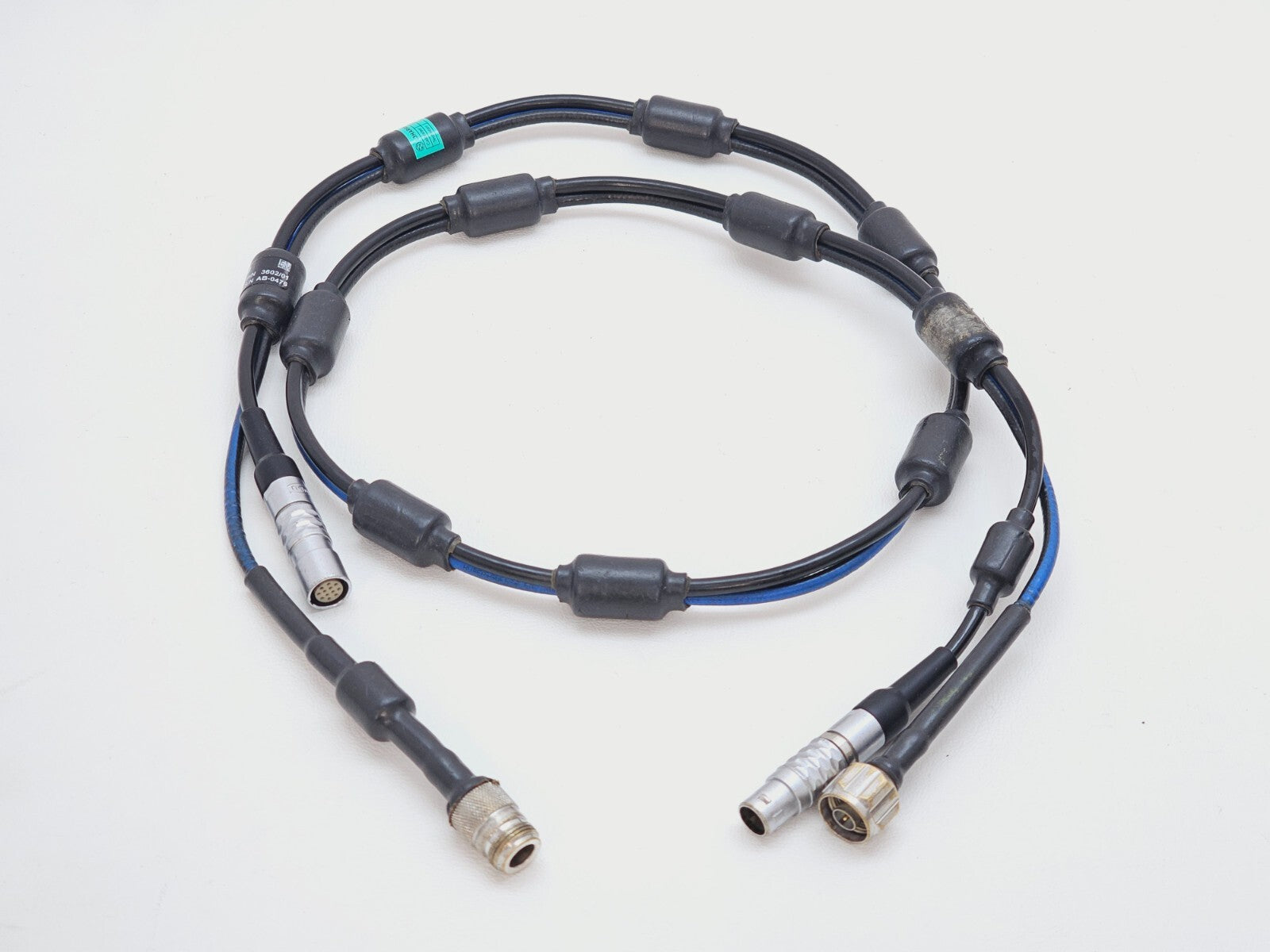

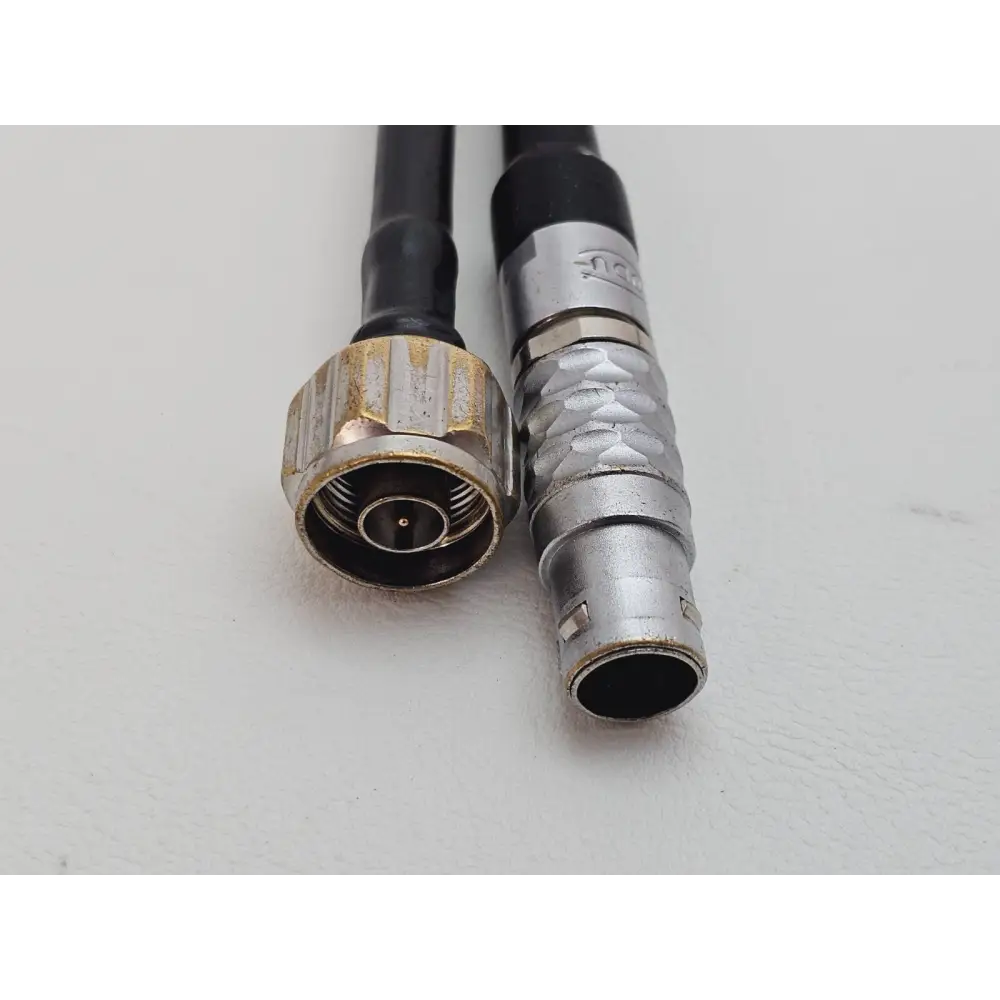

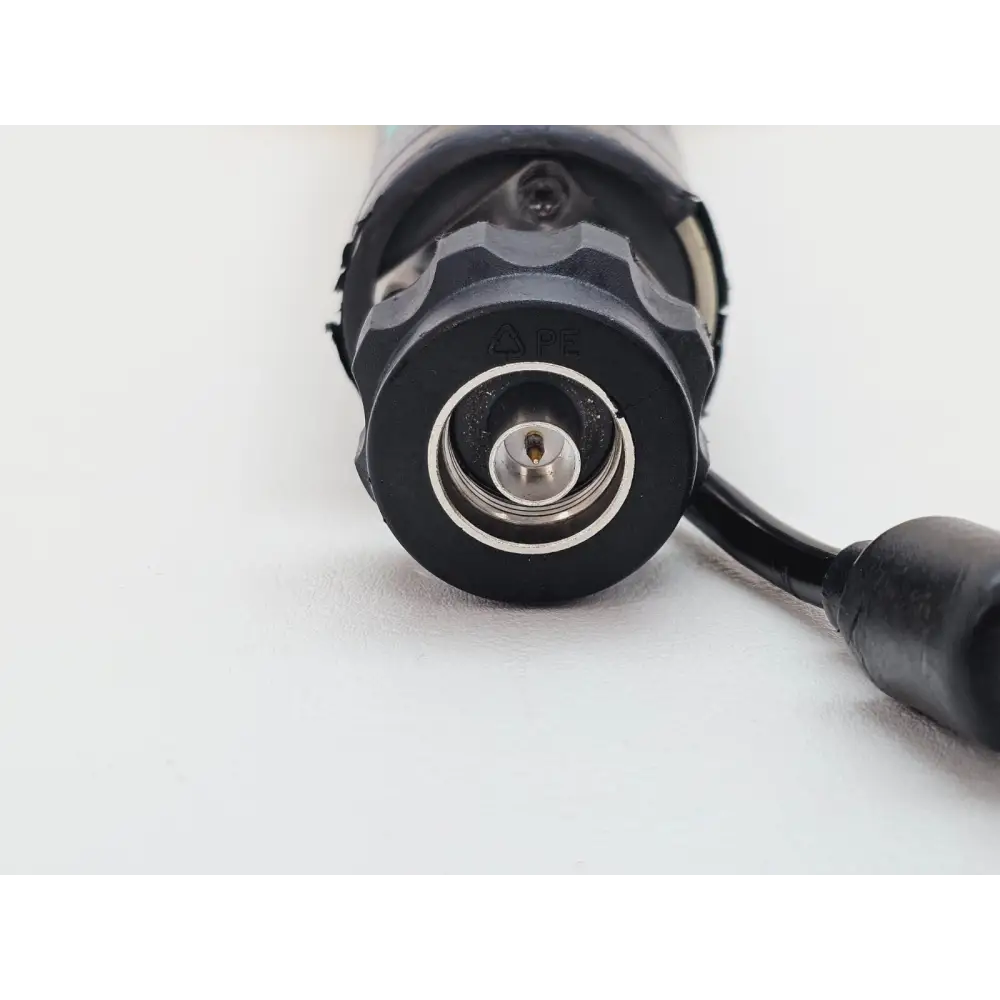

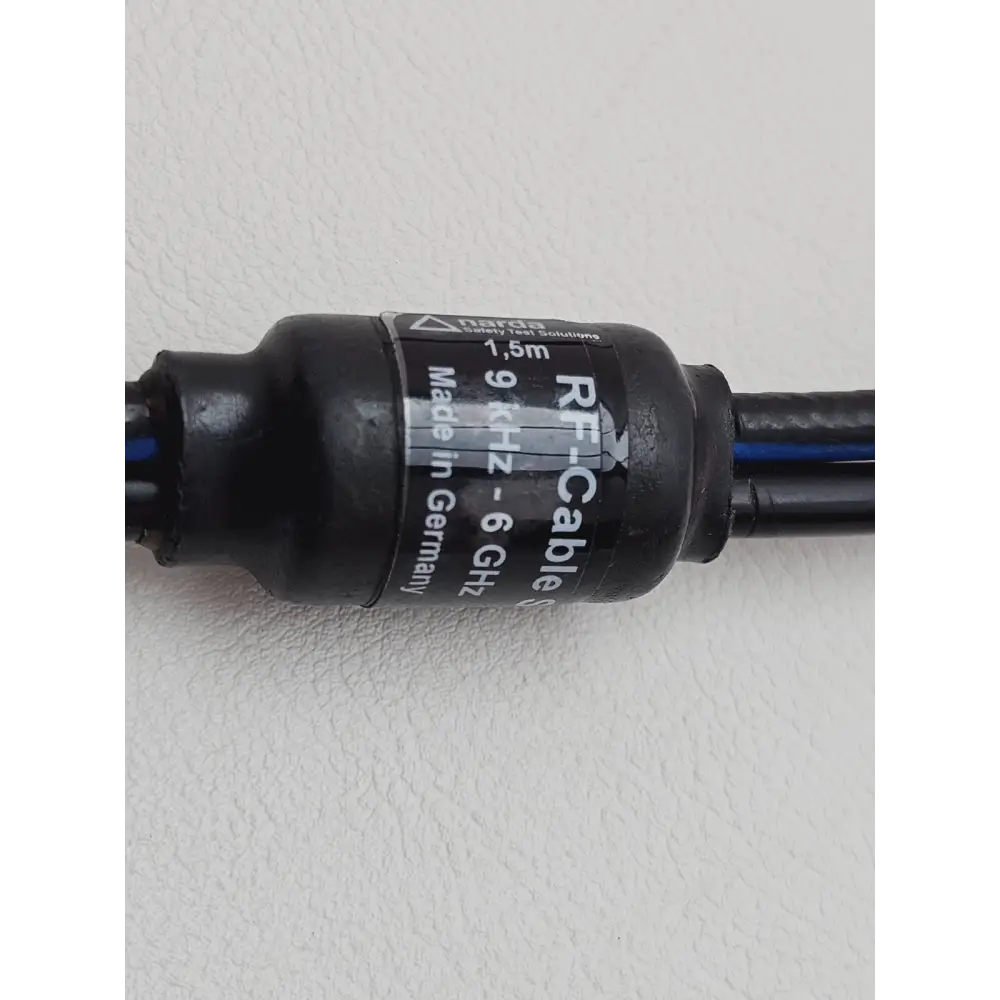

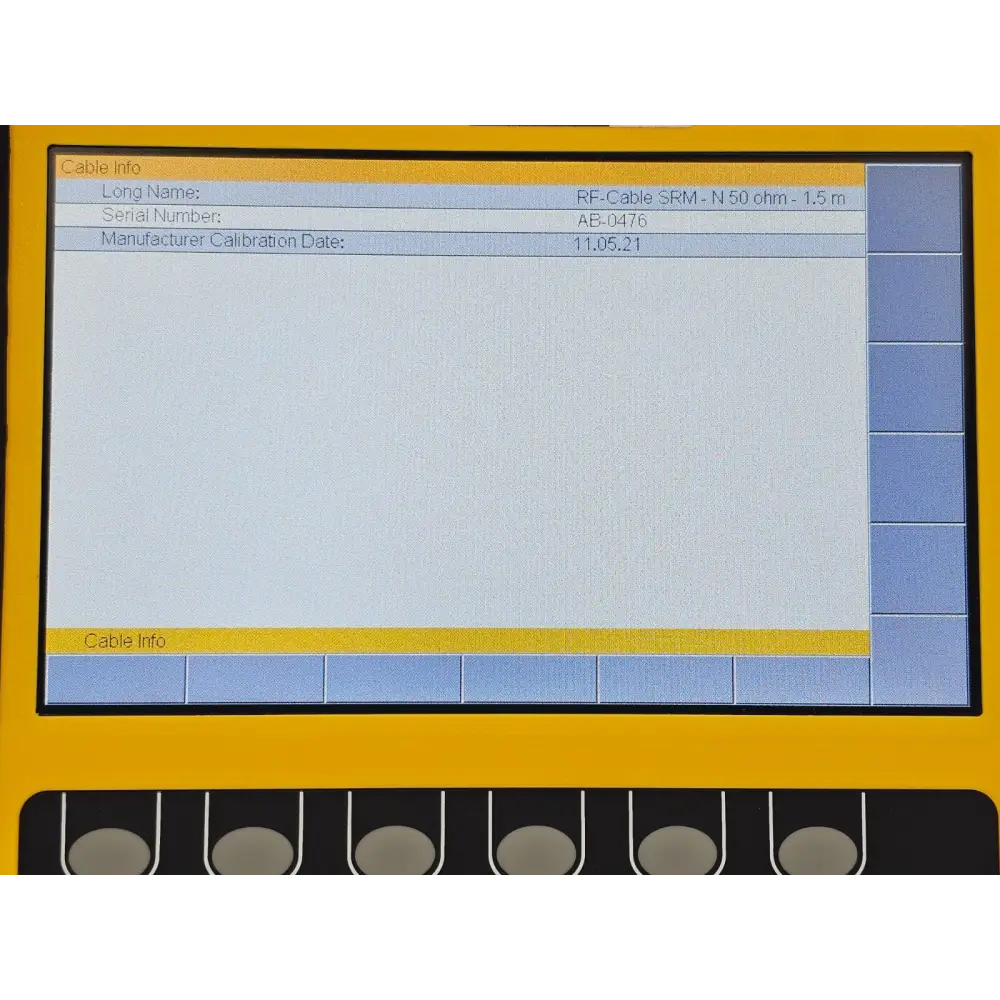

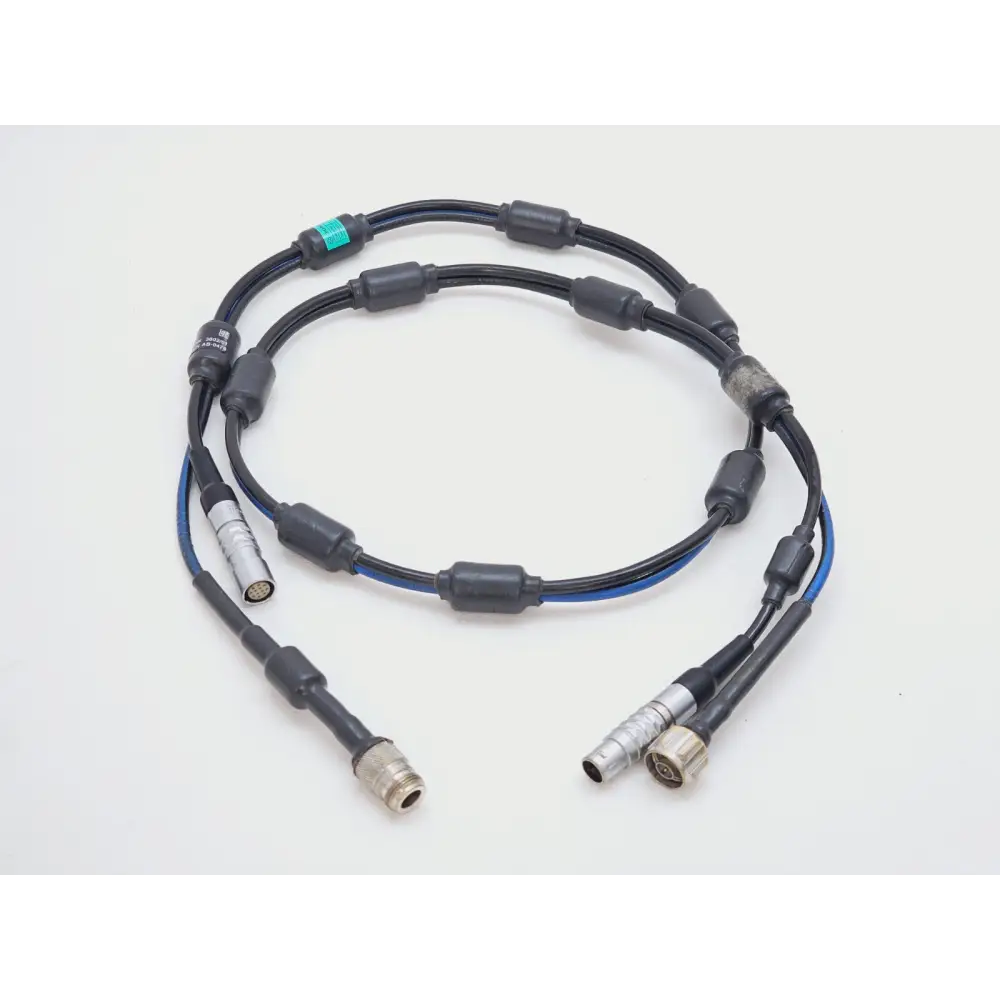

• RF-Cable 9 kHz–6 GHz, 1.5 m (3602/01)
• Carry Case
• Power Adapter 12 VDC, 100 V–240 VAC

The Narda SRM-3006 Selective Radiation Meter is a compact, frequency-selective measuring system from Narda Safety Test Solutions, designed specifically for safety analysis and environmental measurements of high-frequency electromagnetic fields. It combines the analysis features of a spectrum analyser with the simplicity of a wideband measuring set, covering broadcasting, mobile telephony, and industrial frequencies from the lowest long-wave range up to the latest wireless applications.

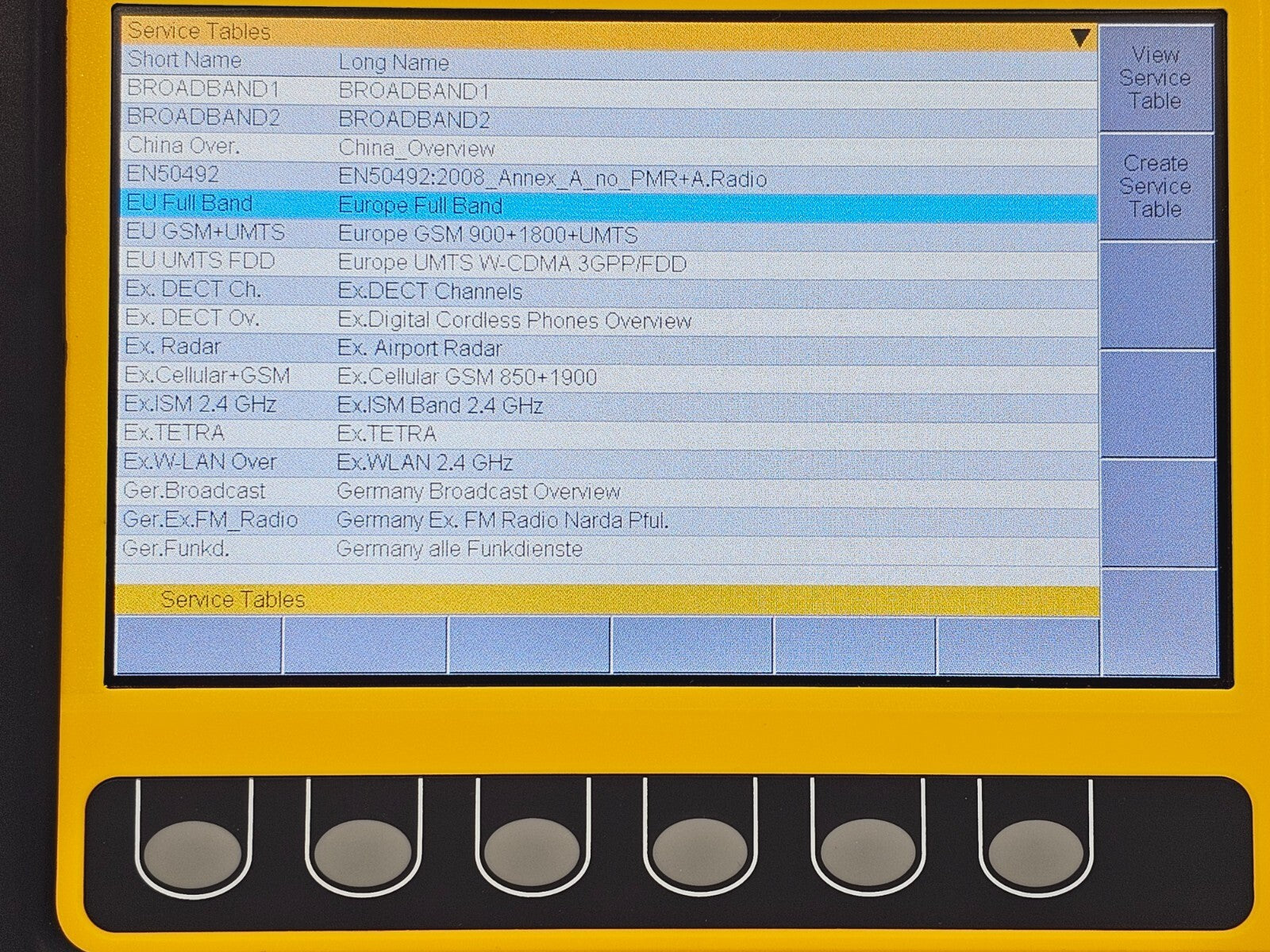

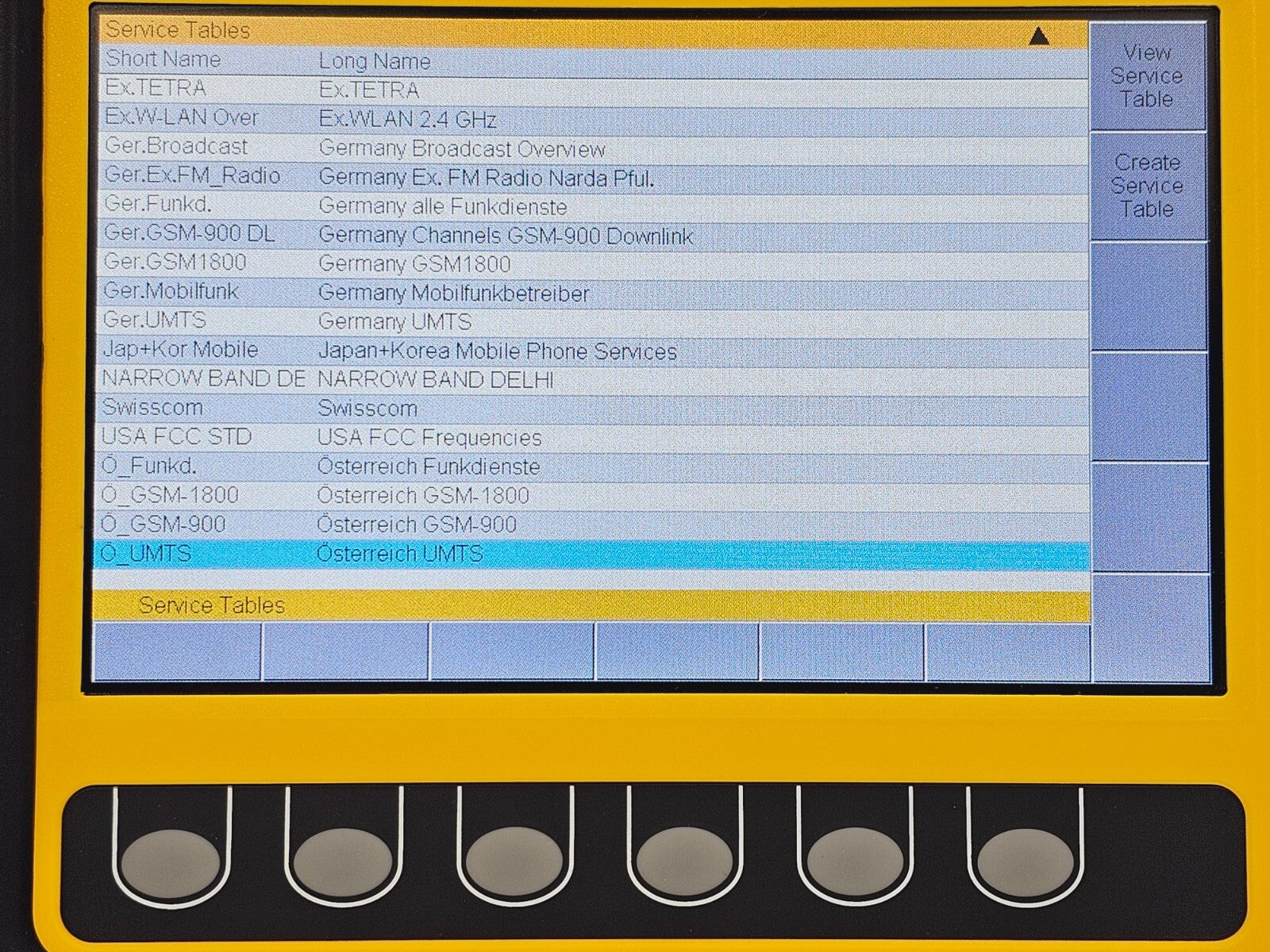

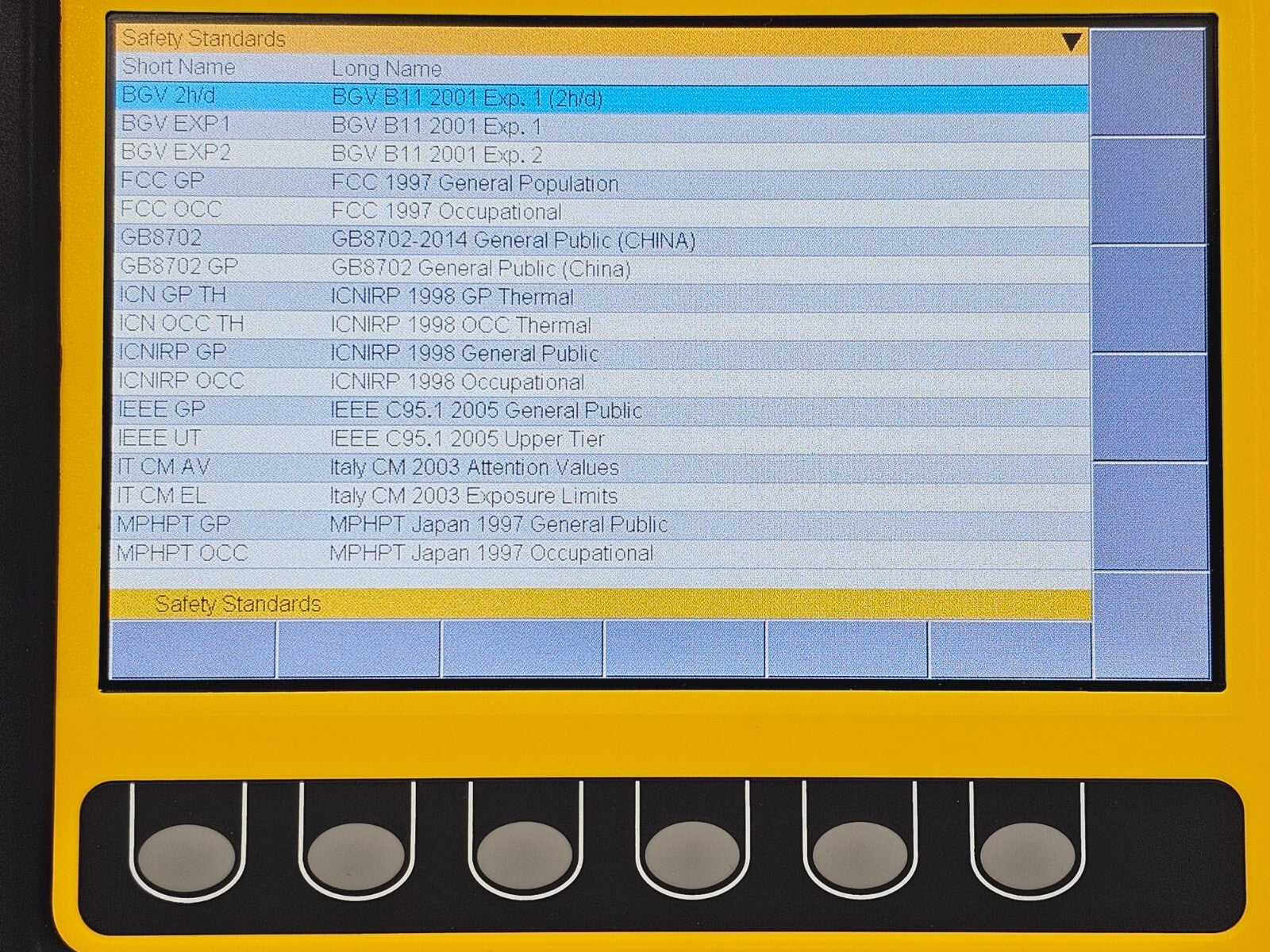

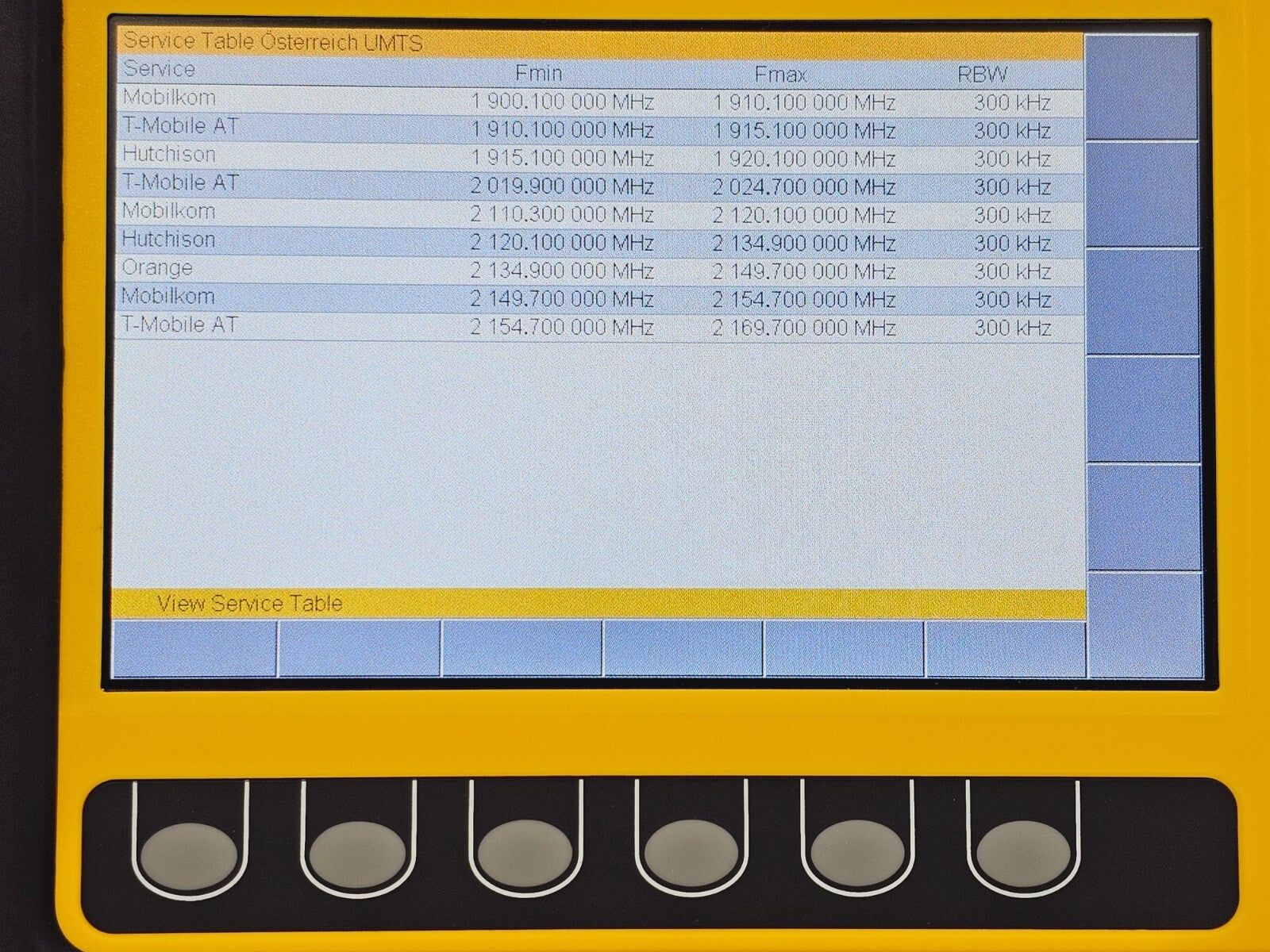

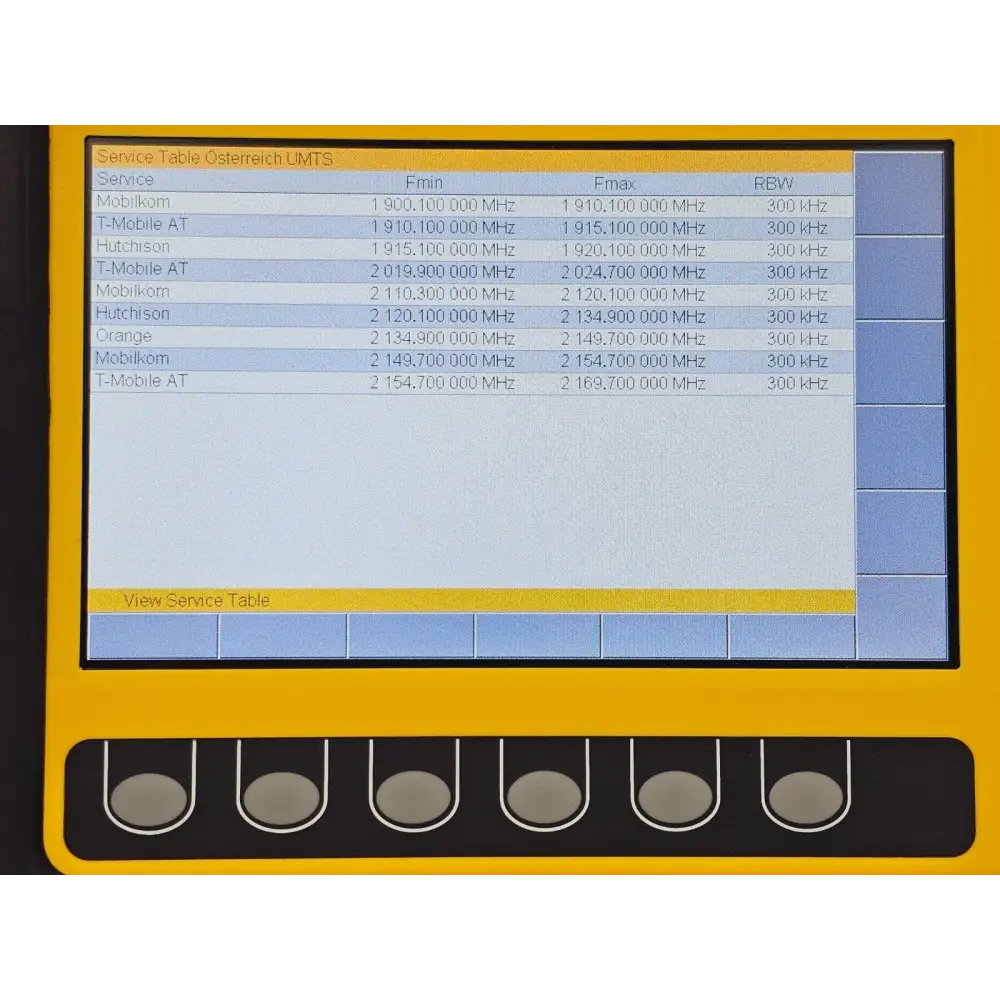

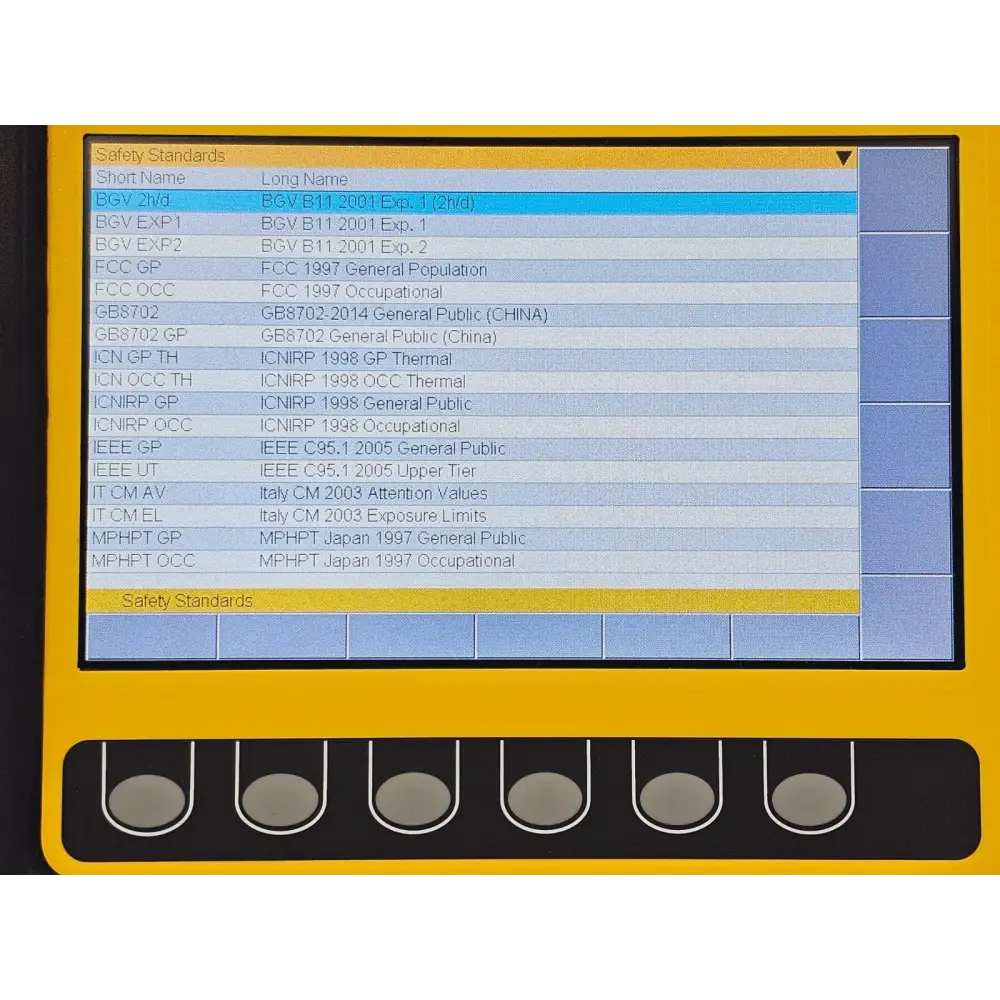

The SRM-3006 evaluates field exposure levels in accordance with international and national standards including ICNIRP, FCC, and the EU EMF Directive (2013/35/EU), displaying results directly as a percentage of the permitted limit value. Unlike an adapted spectrum analyser, it provides operating modes tailored to each application — measuring individual transmission channels and separate services such as GSM, UMTS, LTE, DVB-T, DAB, WLAN, and WiMAX.

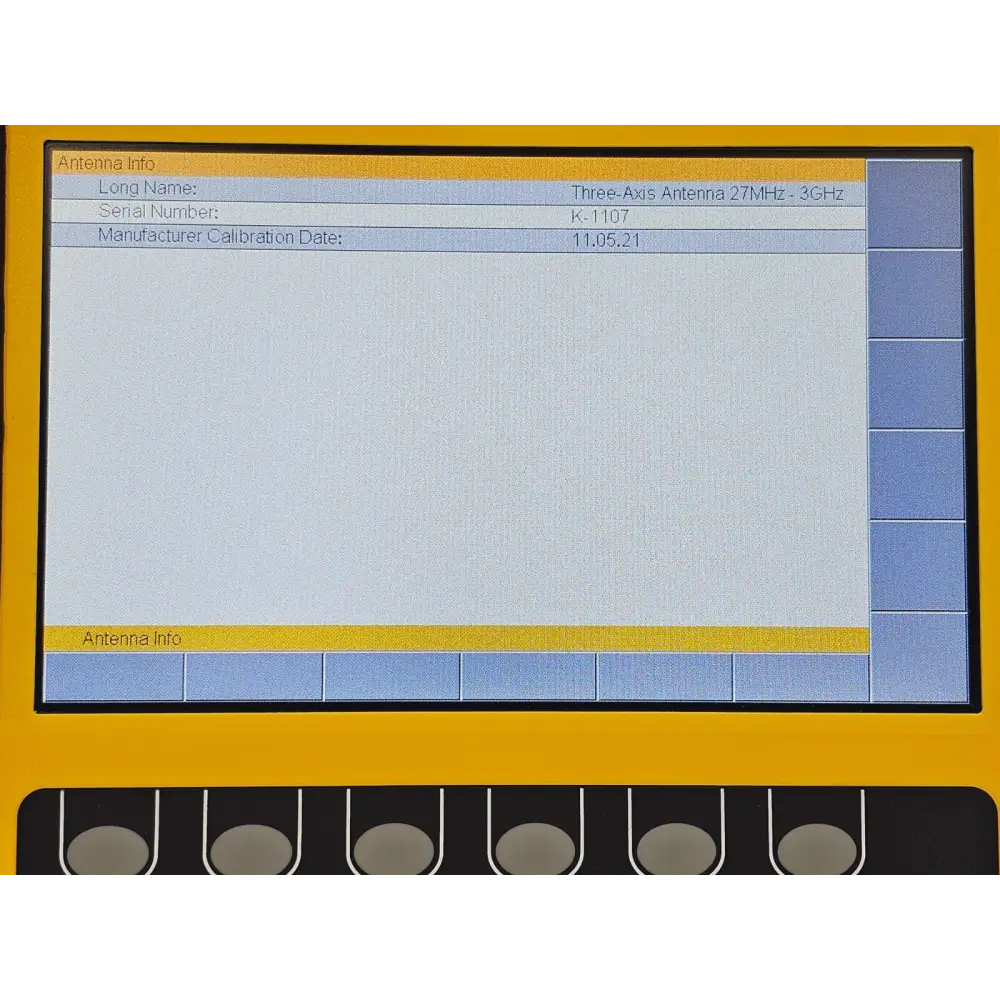

The triaxial (isotropic) antenna system detects fields from all directions simultaneously, summing them in correct phase to produce a direction-independent result — ideal for rapid field assessments without needing precise antenna orientation. Calibration factors are stored in the antenna's EEPROM and are applied automatically when connected to the SRM basic unit.

Key Features:
• Frequency-selective narrowband EMF analysis from 9 kHz to 6 GHz
• Highest physically possible measurement dynamic range
• Fine tuning of measurement range in 1 dB steps
• Irradiation-proof up to 200 V/m
• Resolution bandwidths (RBW) up to 32 MHz for evaluation of modern mobile communications
• Built-in evaluation functions and specified overall measurement uncertainty

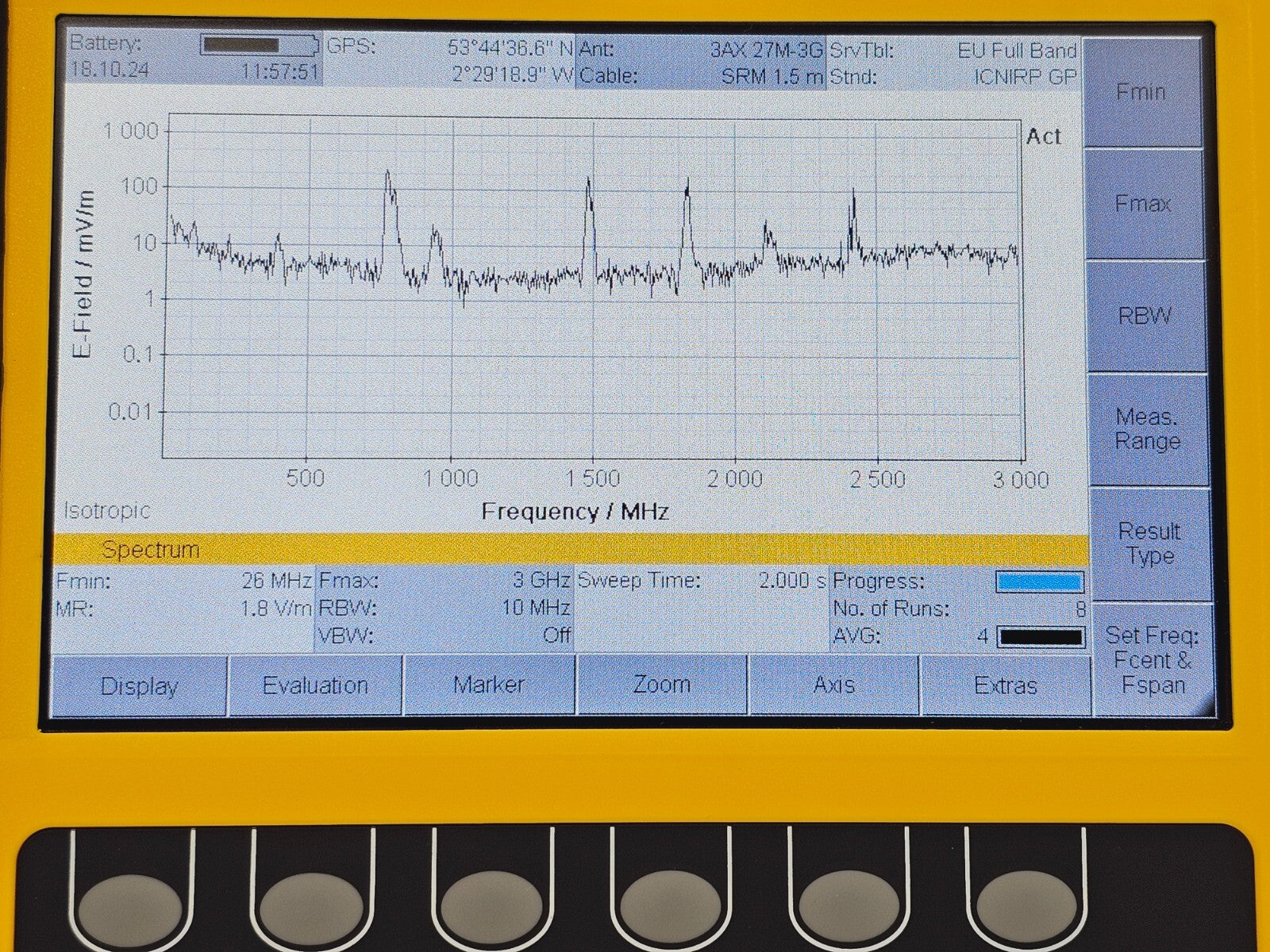

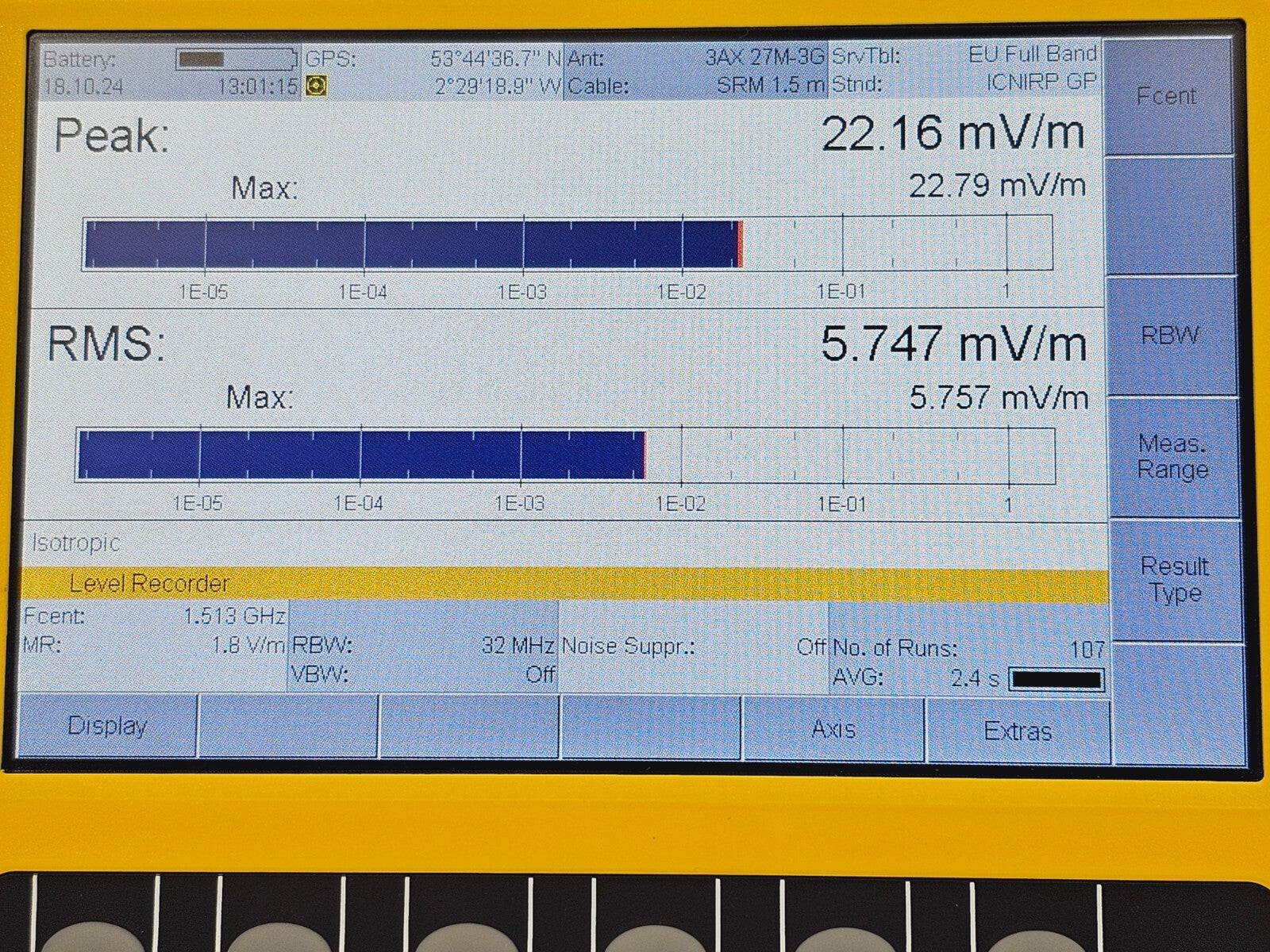

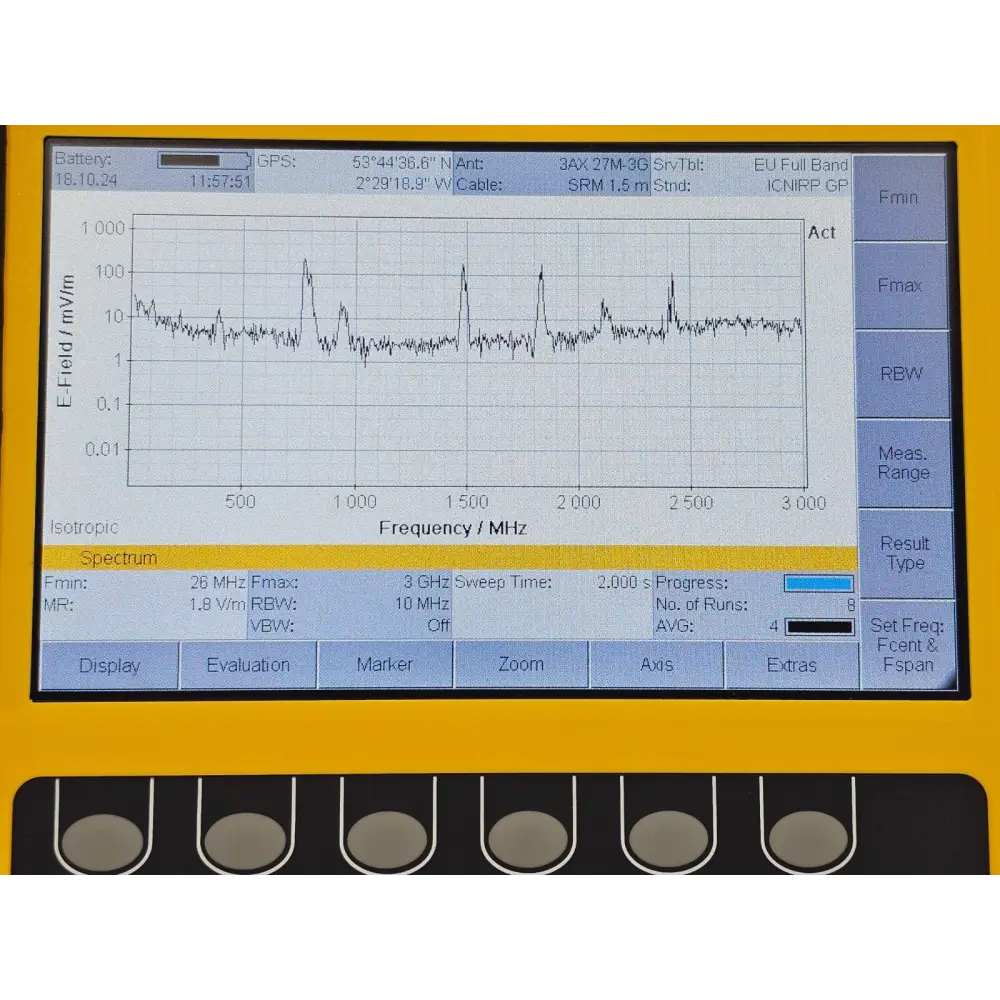

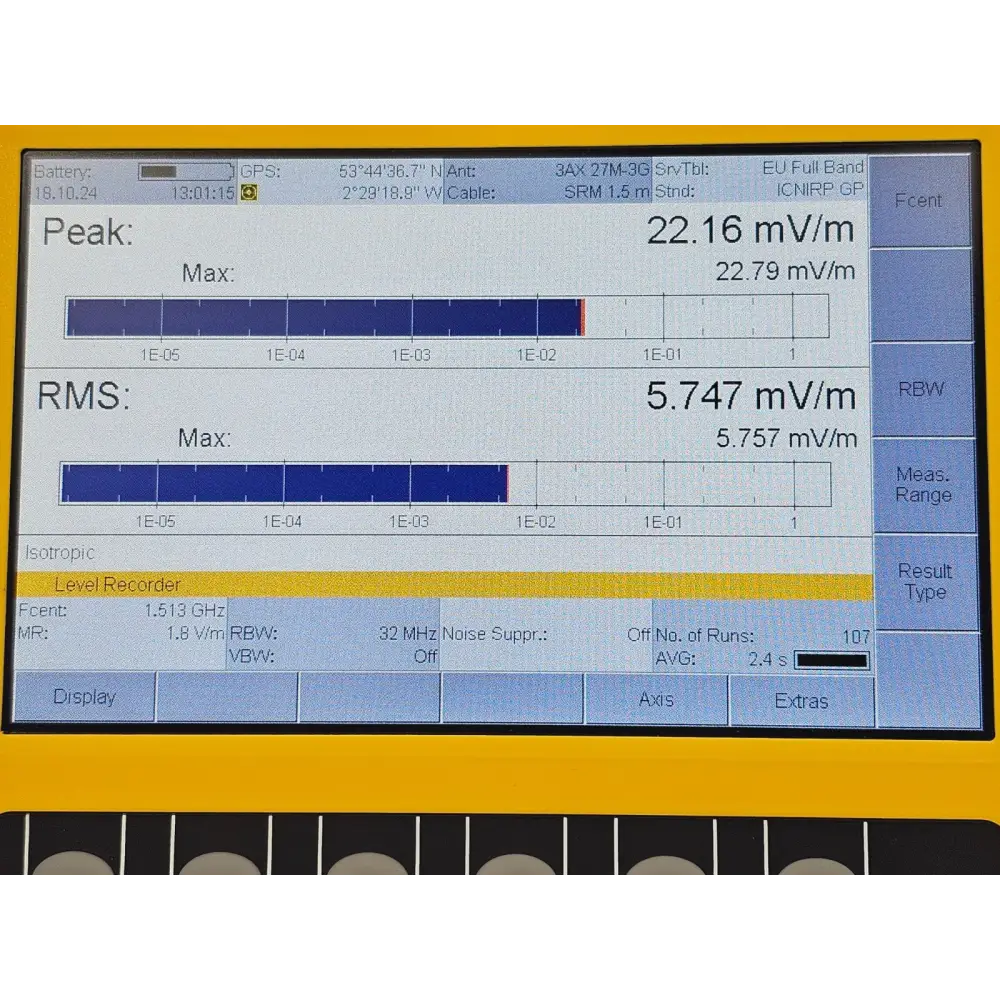

• Safety Evaluation, Spectrum Analysis, Level Recorder, and Scope operating modes
• Results displayed in V/m, A/m, W/cm², dBµV/m, or as % of limit value

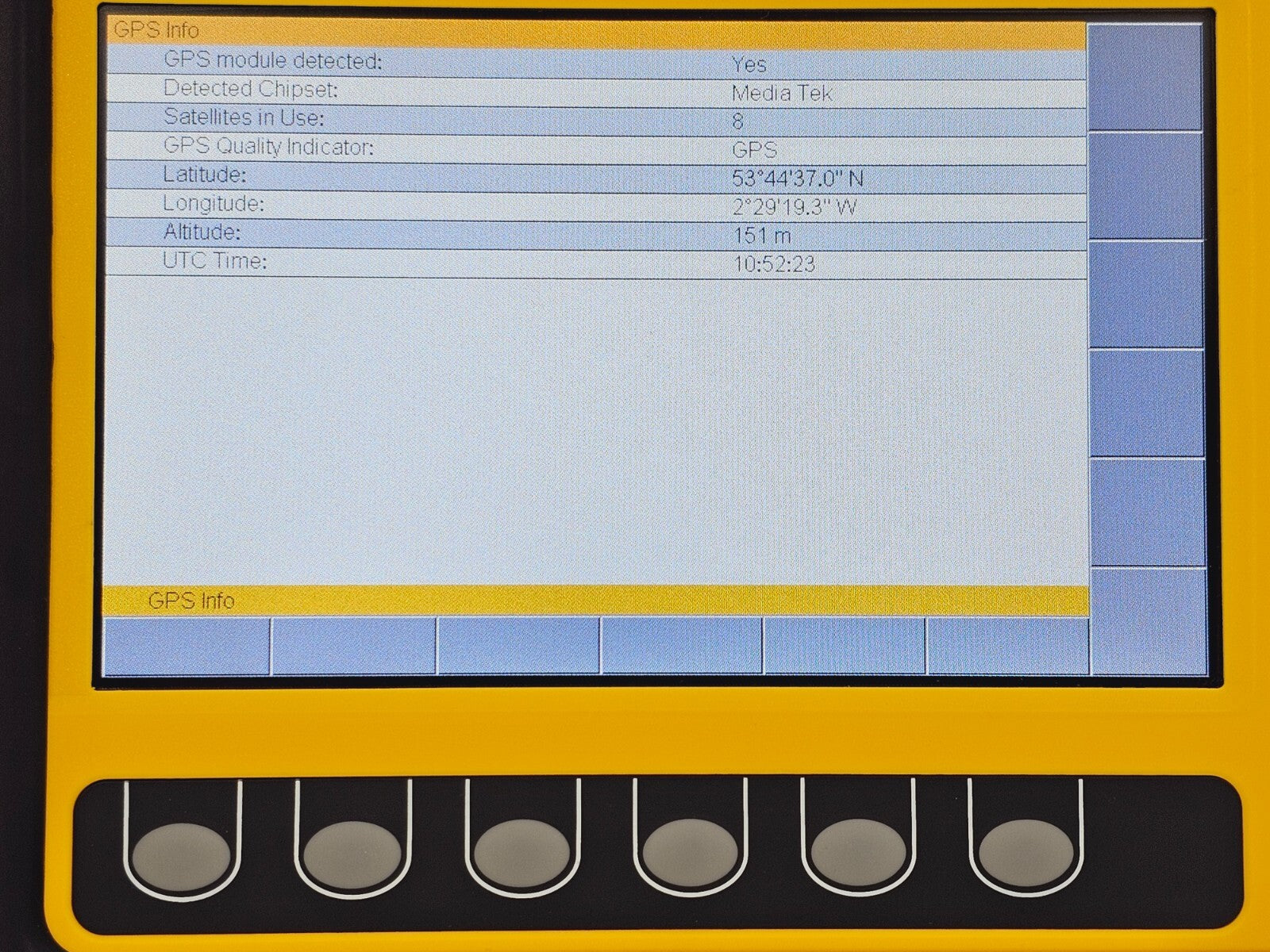

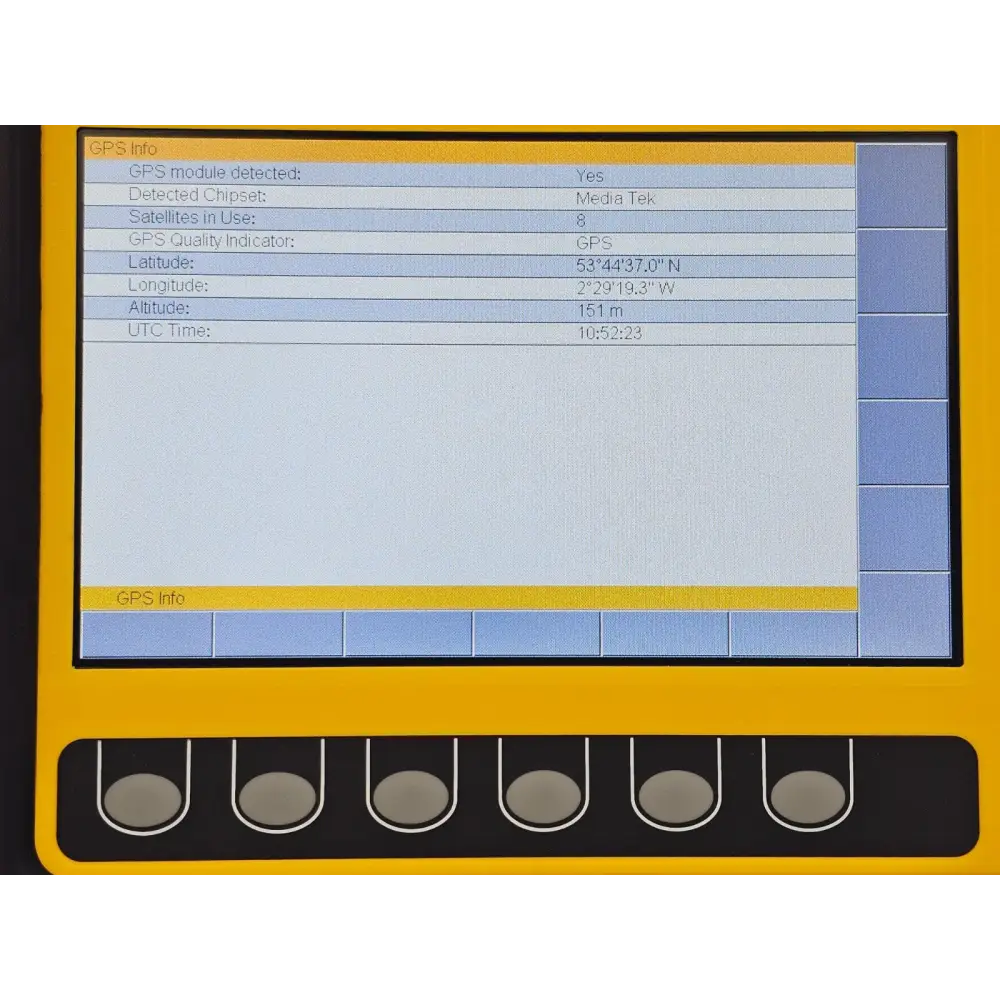

• Integrated GPS and voice recorder; splash-proof and ruggedised for outdoor use

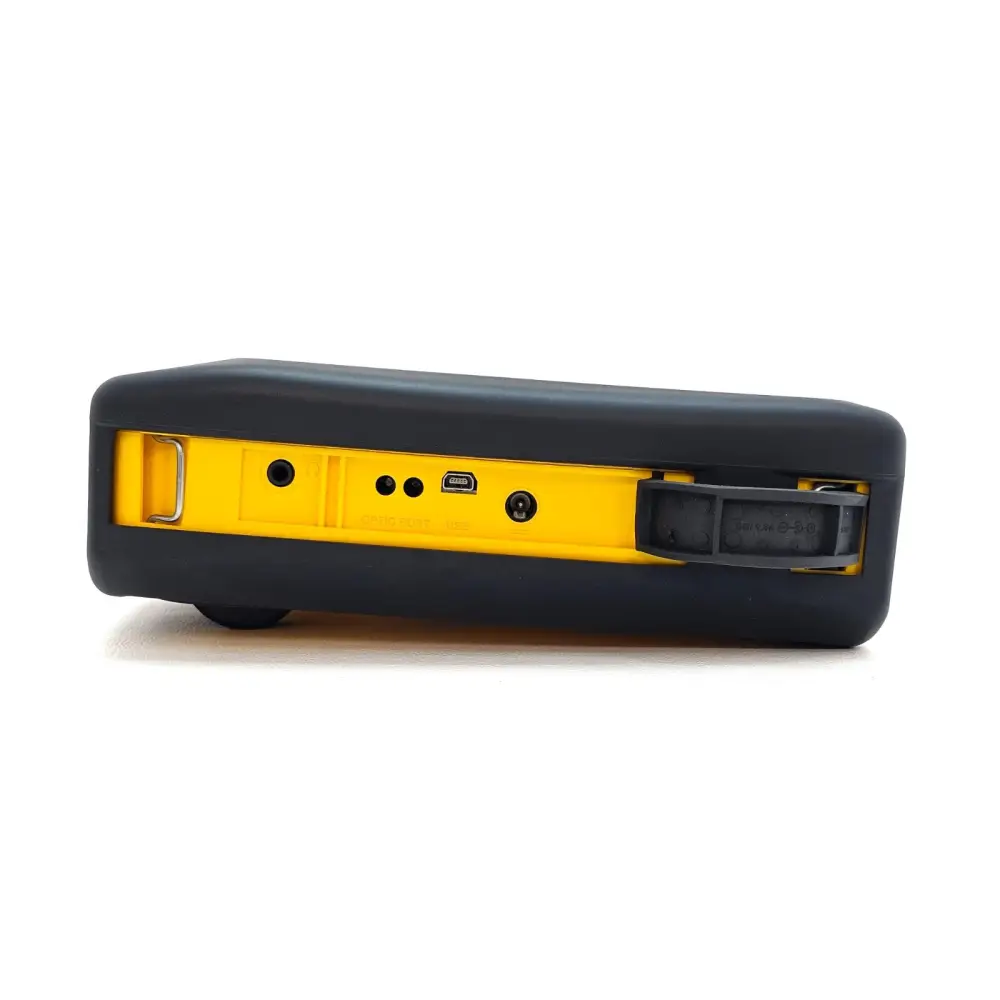

• Exchangeable rechargeable batteries; optical and USB interfaces

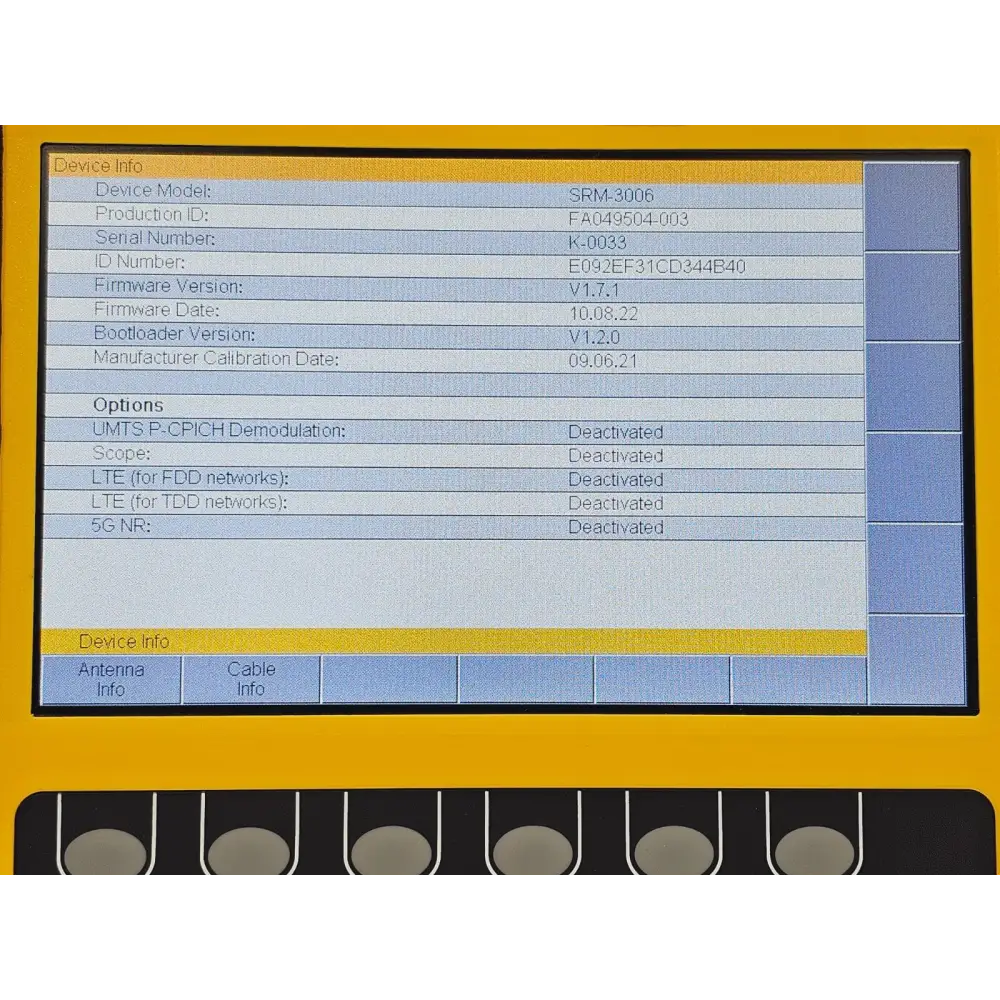

• Compatible with optional LTE-FDD, LTE-TDD, UMTS P-CPICH, and 5G NR demodulation options

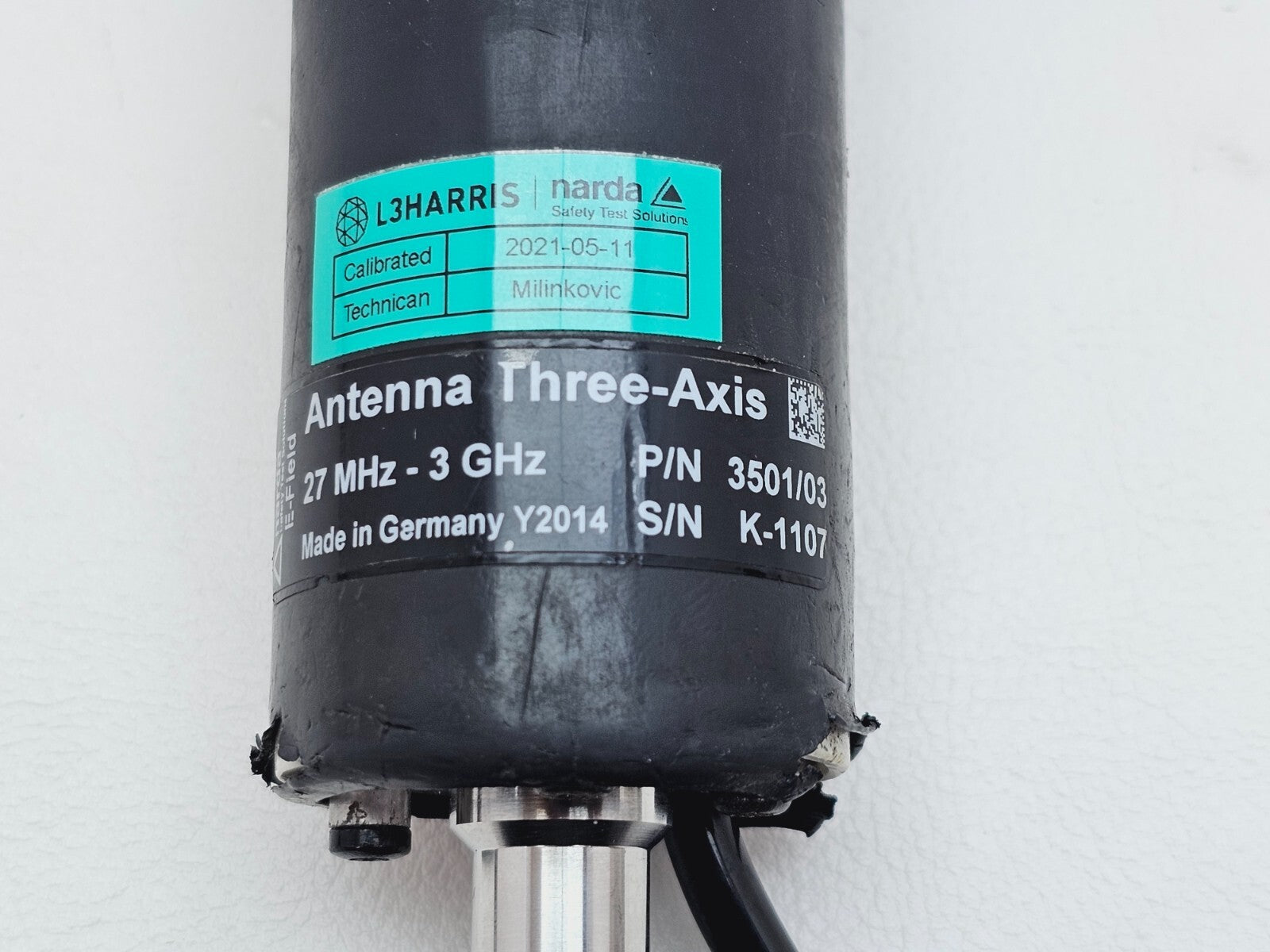

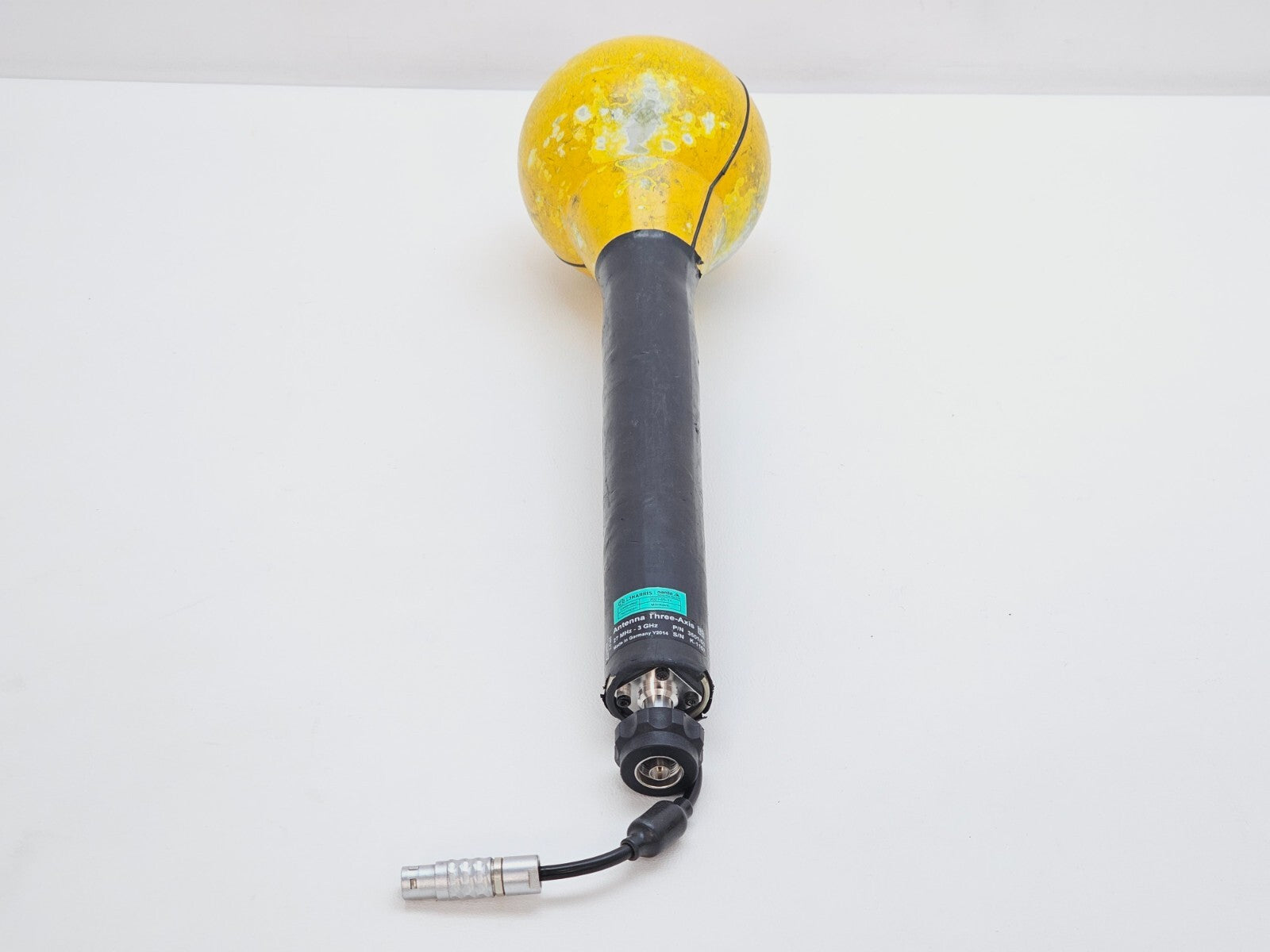

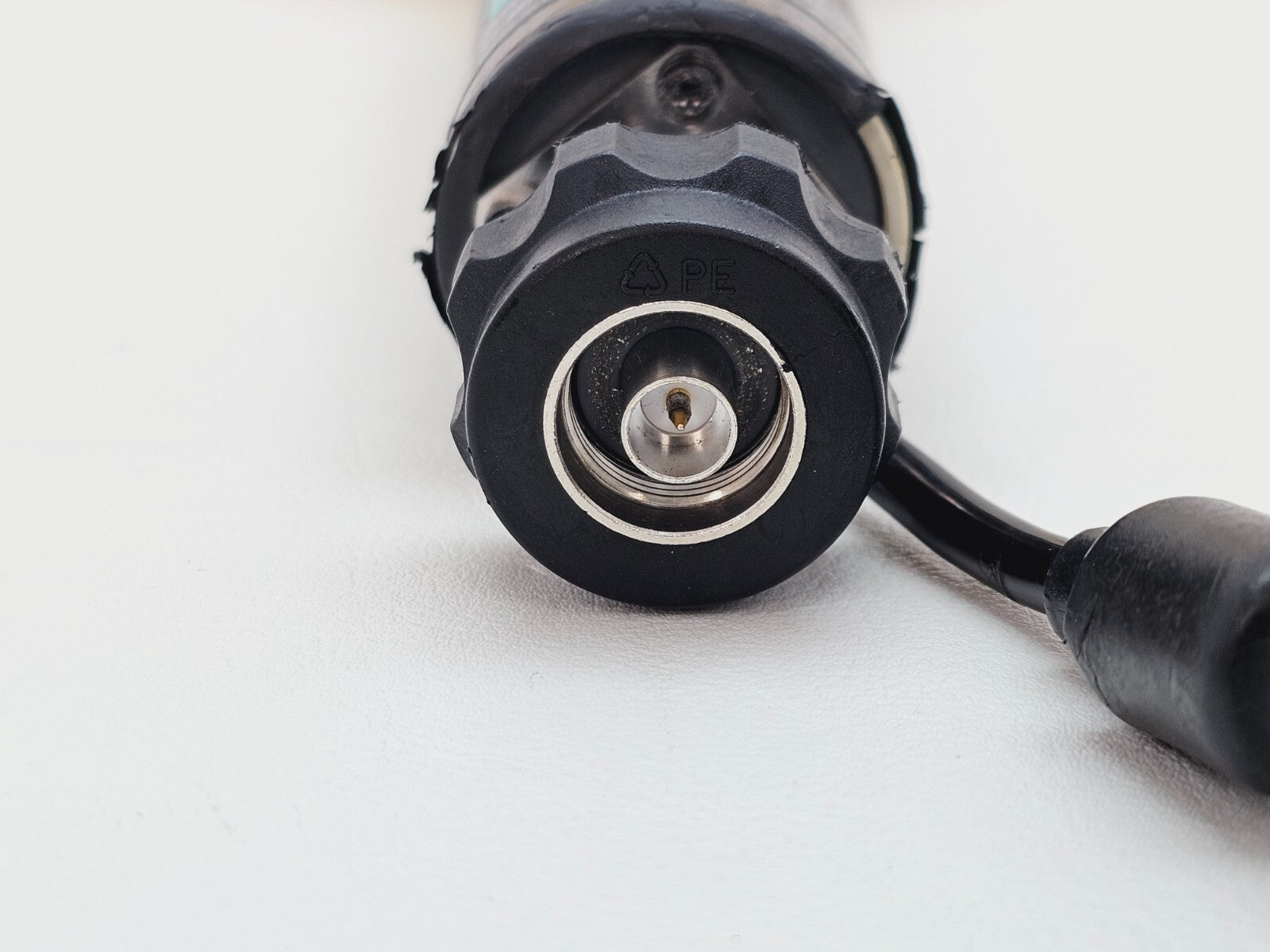

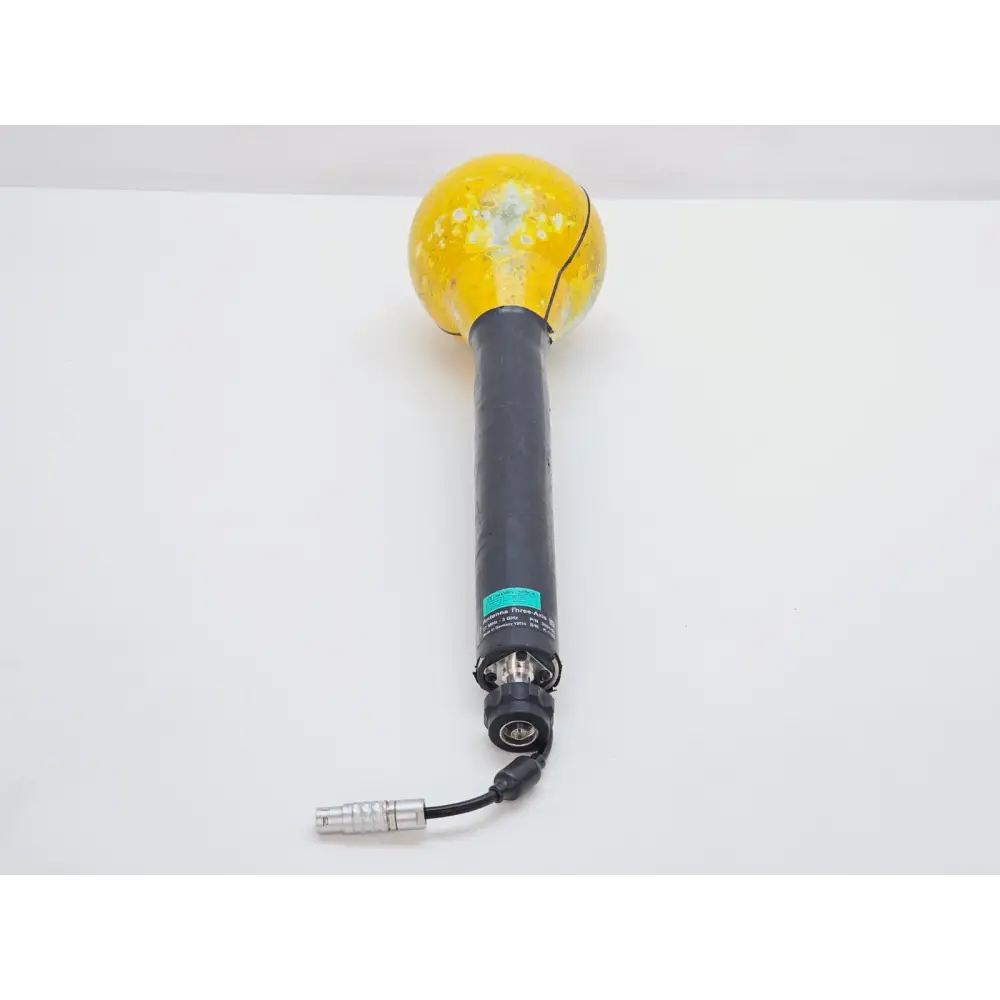

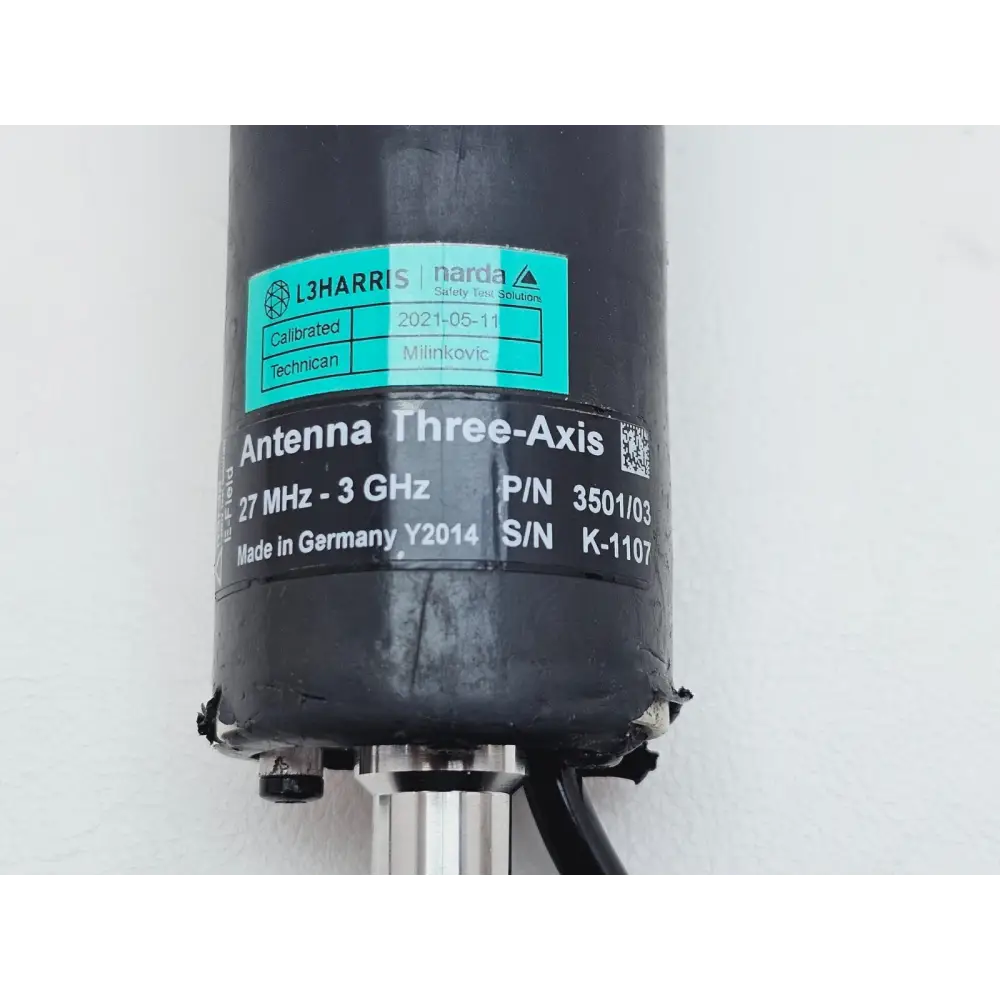

Probe 3501/03 — Three-Axis E-Field Antenna Specifications:
Frequency Range: 27 MHz to 3 GHz
Measurement Dynamic Range: 0.2 mV/m to 200 V/m
Directivity: Isotropic (three-axis)
Weight: 450 g
Length (including shaft): 460 mm

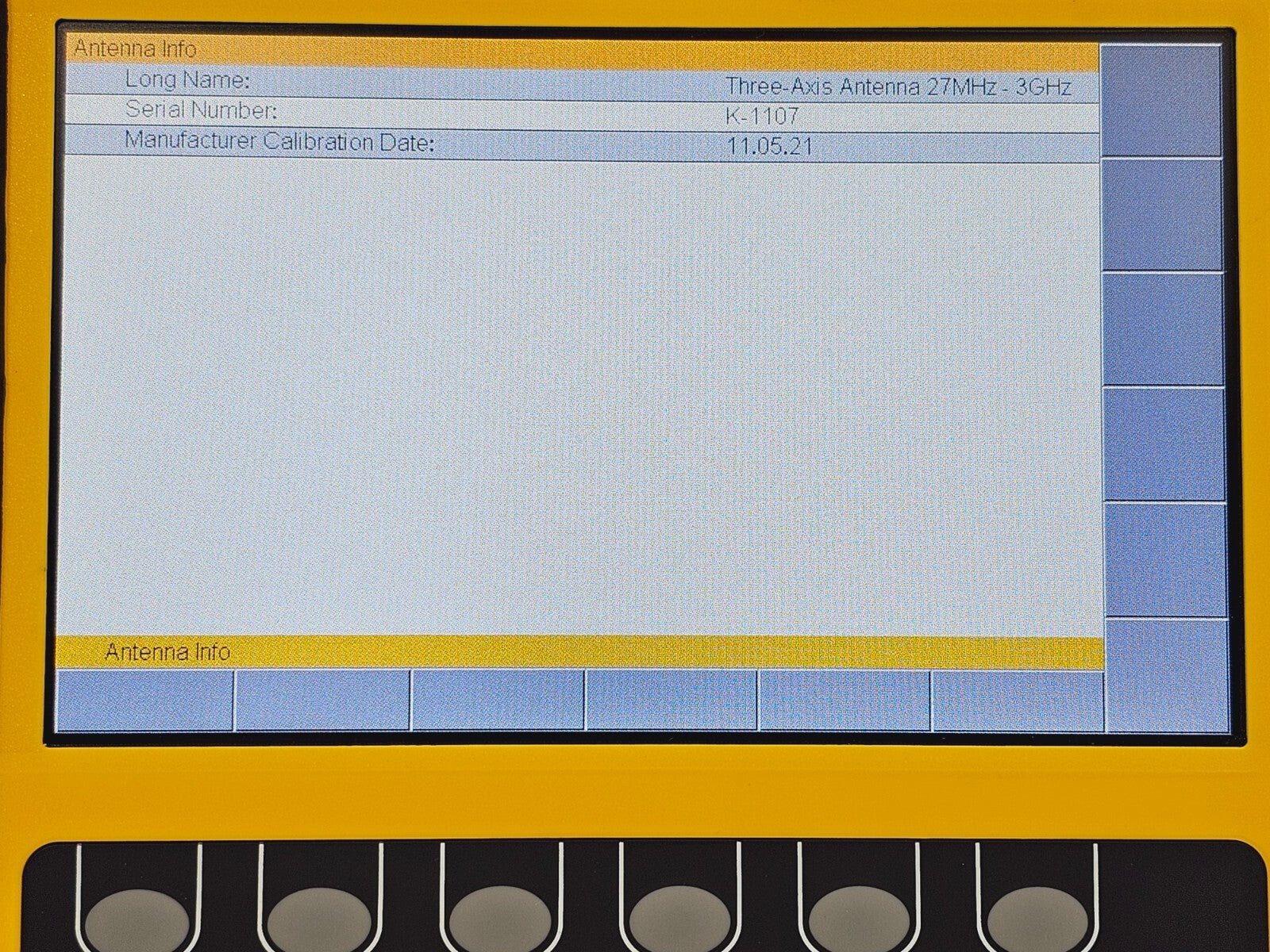

Calibration: Individual correction factors stored in EEPROM, applied automatically

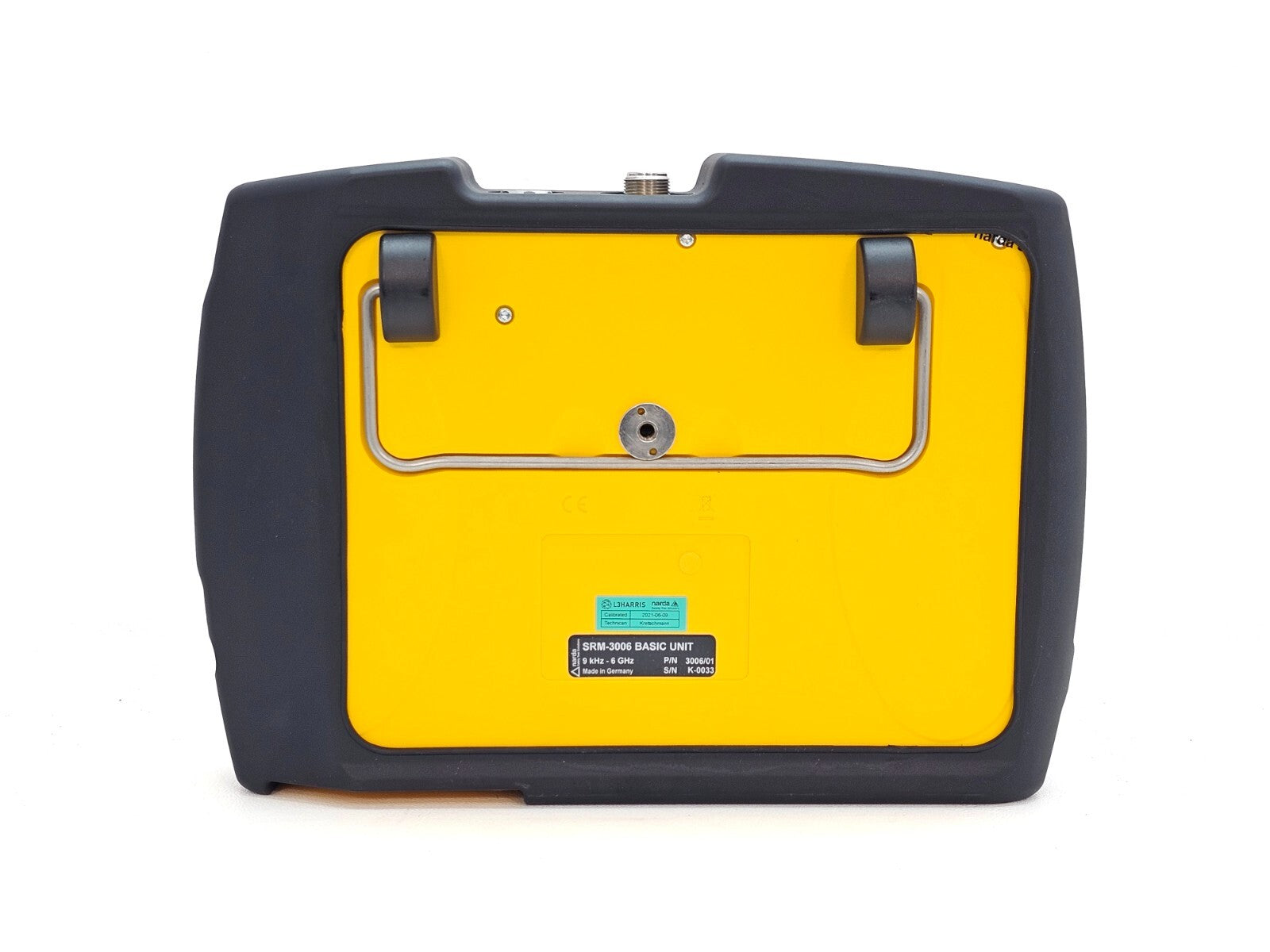

SRM-3006 Basic Unit Key Specifications:
Frequency Range: 9 kHz to 6 GHz
RBW Range: Up to 32 MHz
Measurement Range Fine Adjustment: 1 dB steps
Display: Field strength (V/m, A/m), power density (W/cm²), or % of limit
Power Supply: Rechargeable battery pack (7.4 V / 4 Ah) or 12 VDC adapter (100–240 VAC)

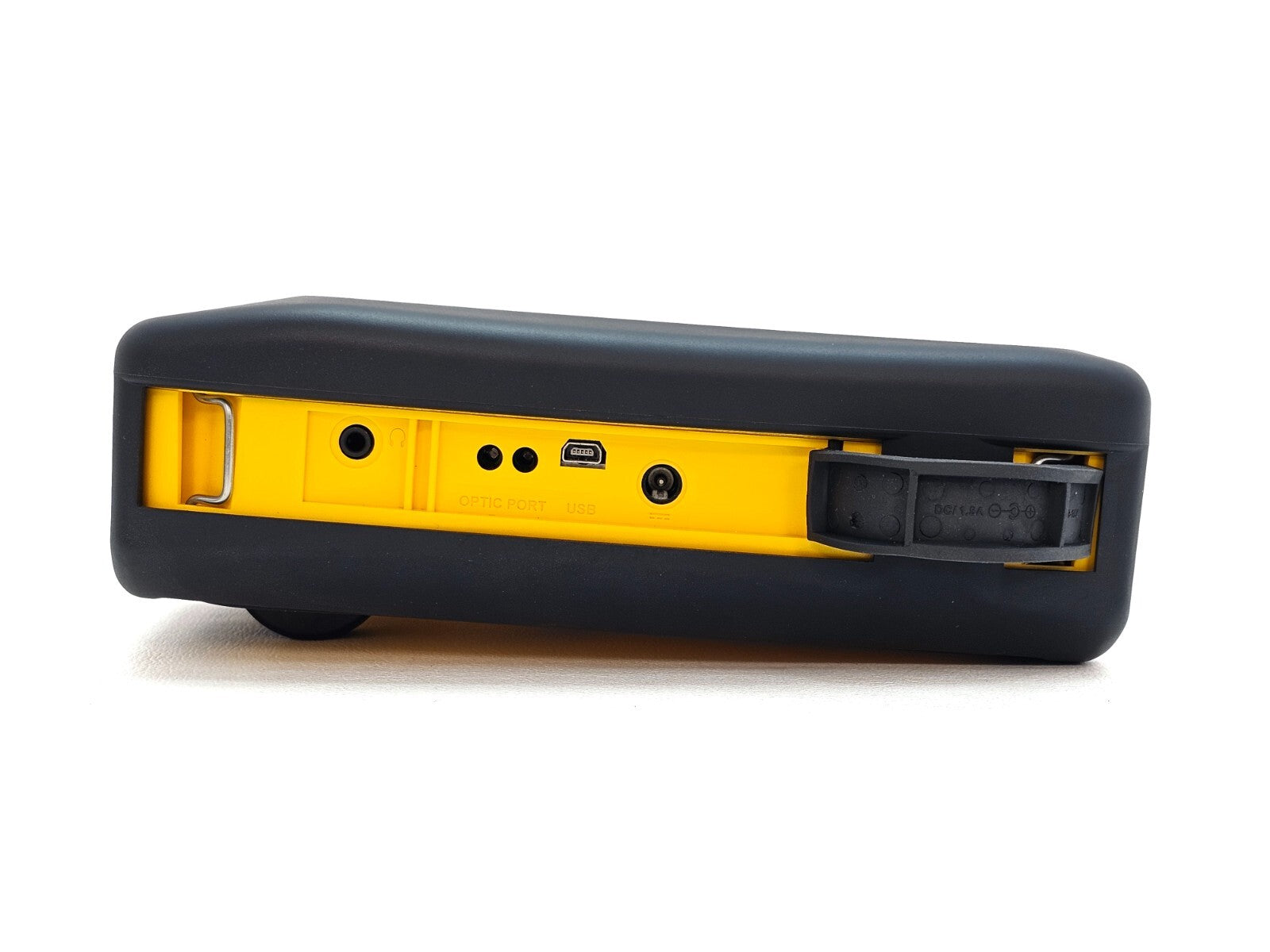

Interfaces: USB, optical
Environmental: Splash-proof, suitable for outdoor use
Standards Compliance: ICNIRP, FCC, IEEE, EU Directive 2013/35/EU

Narda SRM-3006 Official Datasheet (Narda Safety Test Solutions): Download PDF

Narda SRM-3006 Datasheet — McGill University hosted copy: Download PDF

Narda SRM-3006 Operating Manual — McGill University hosted copy: Download PDF

Narda SRM-3006 Detailed Technical Datasheet (Electro Rent / Narda hosted): Download PDF

Narda SRM-3006 Product Flyer — When Safety Counts: Download PDF

Narda SRM-3006 Full Datasheet (Narda-sts.com): Download PDF
