Condition: Used

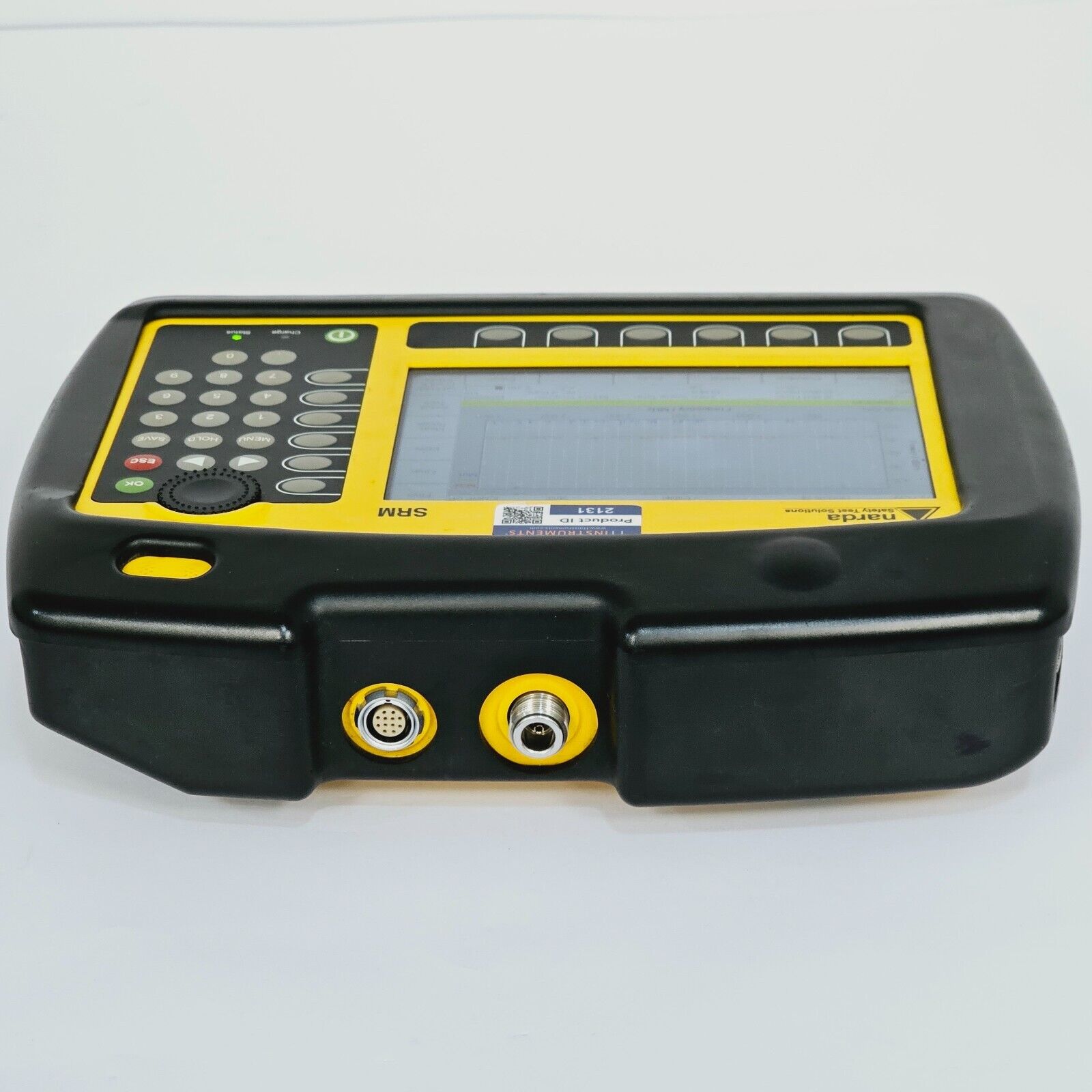

Tested and working. This is a complete Narda SRM-3006 selective radiation meter system comprising the SRM-3006 platform and Probe 3501/03 three-axis E-field antenna (27 MHz–3 GHz, 0.2 mV/m to 200 V/m dynamic range), supplied with all accessories listed below.

Included:

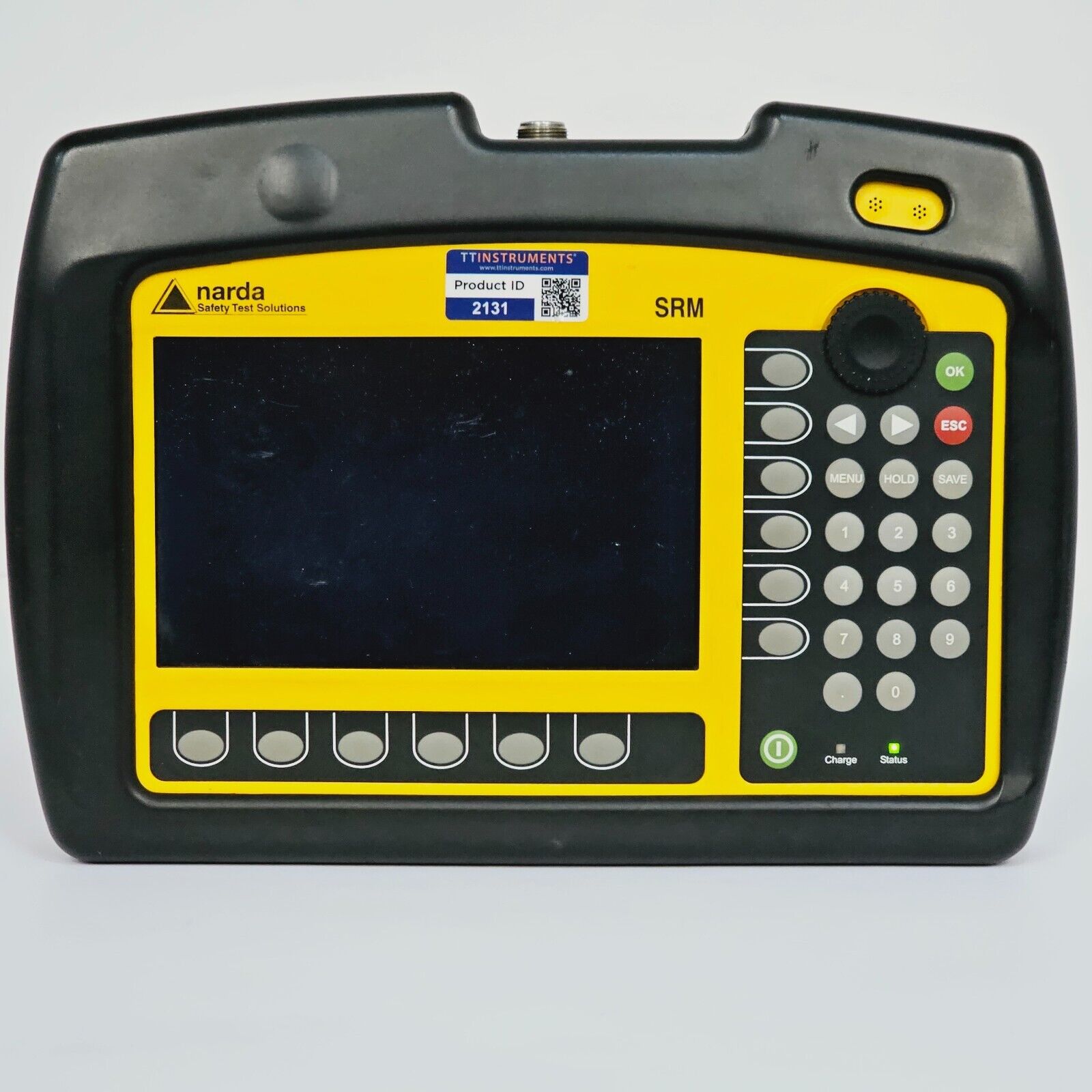

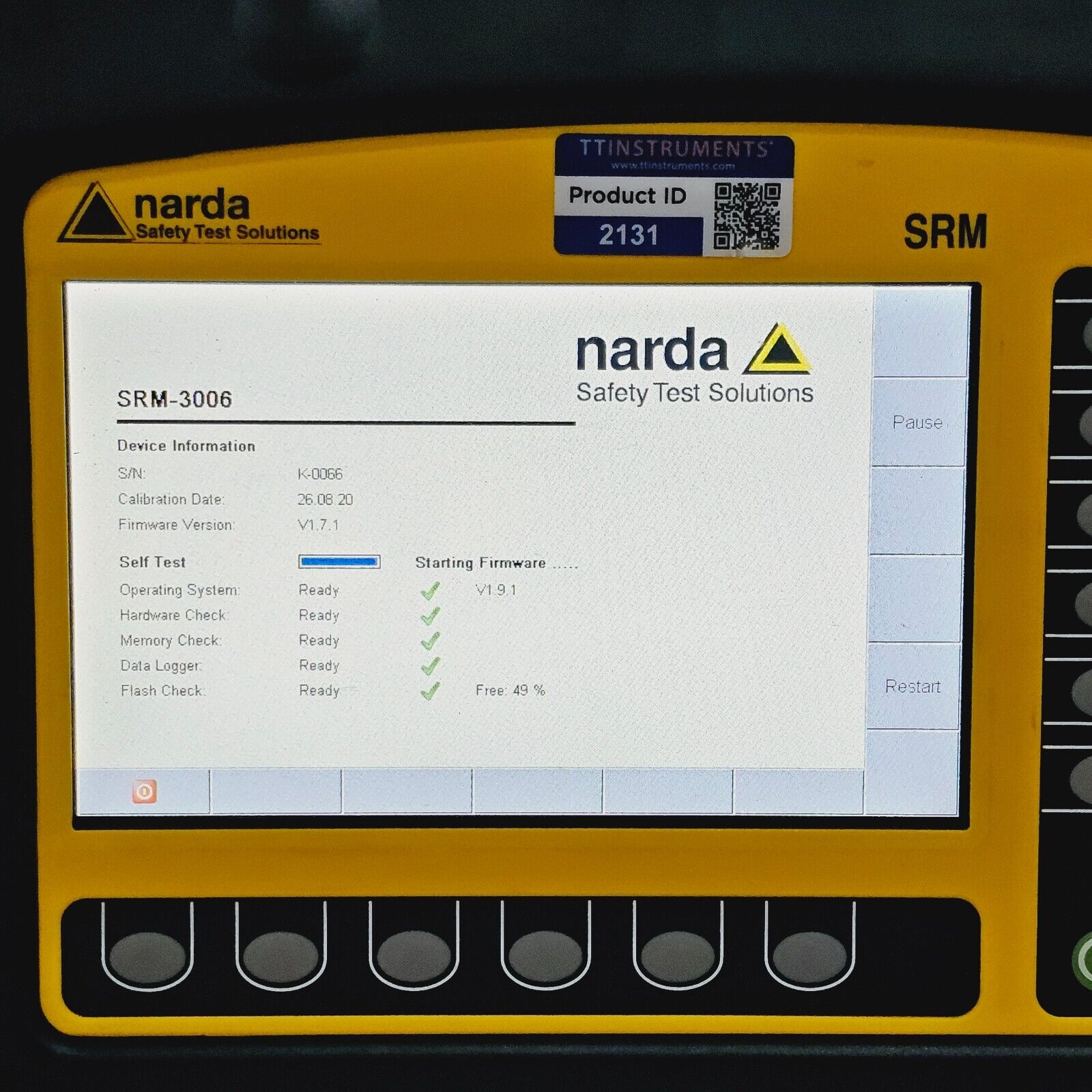

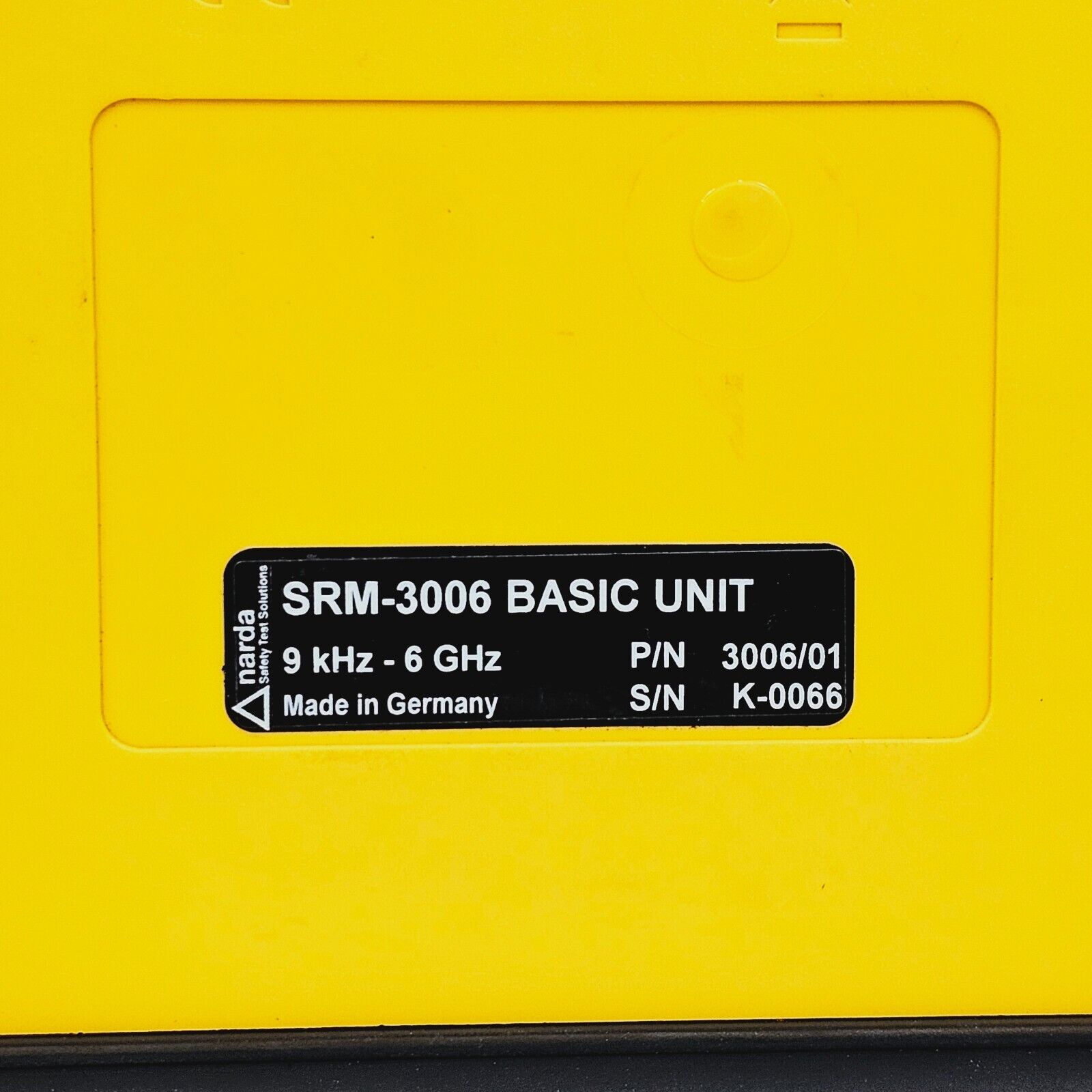

• SRM-3006 Platform (3006/01)
• E-Field Antenna Three-Axis 27 MHz–3 GHz, Probe 3501/03

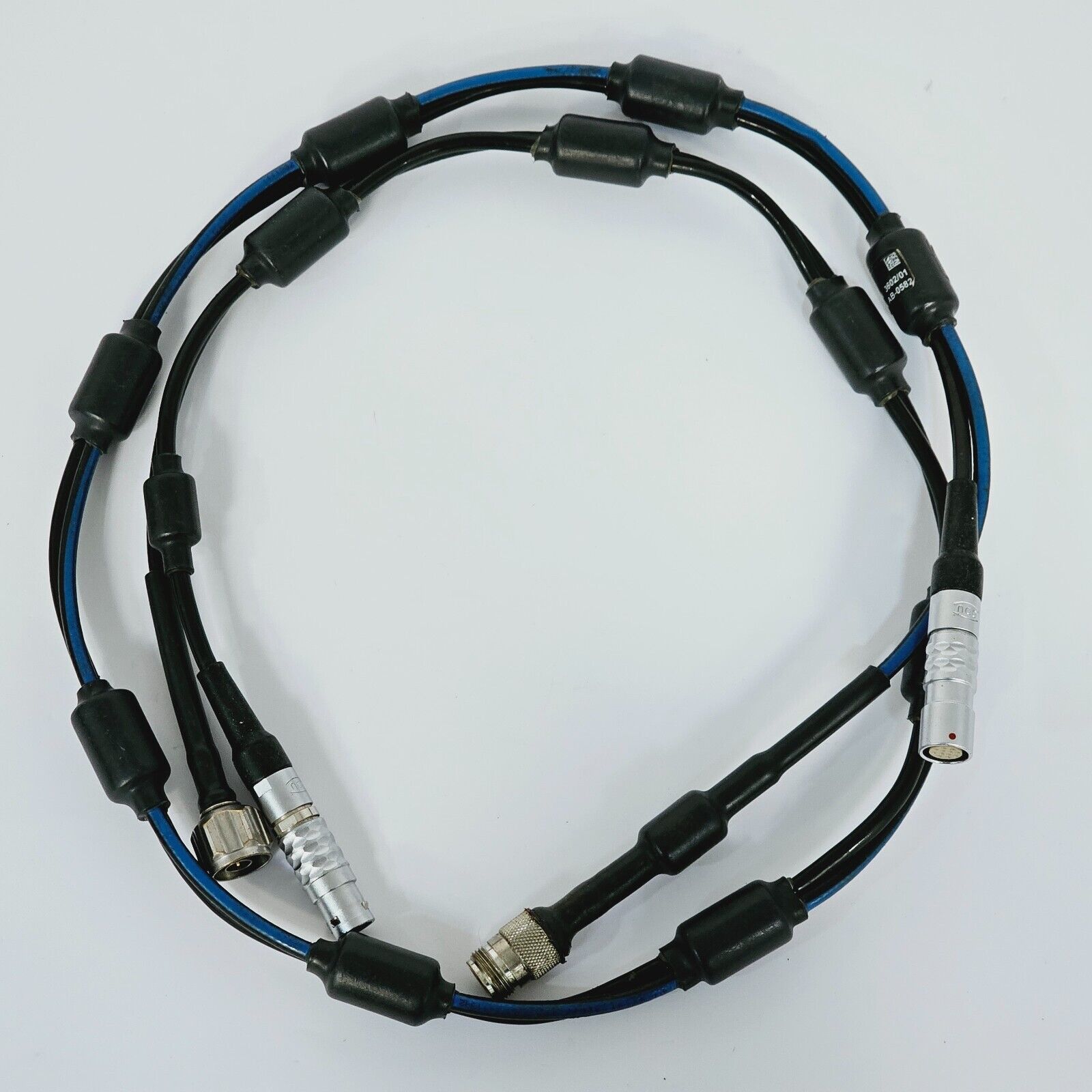

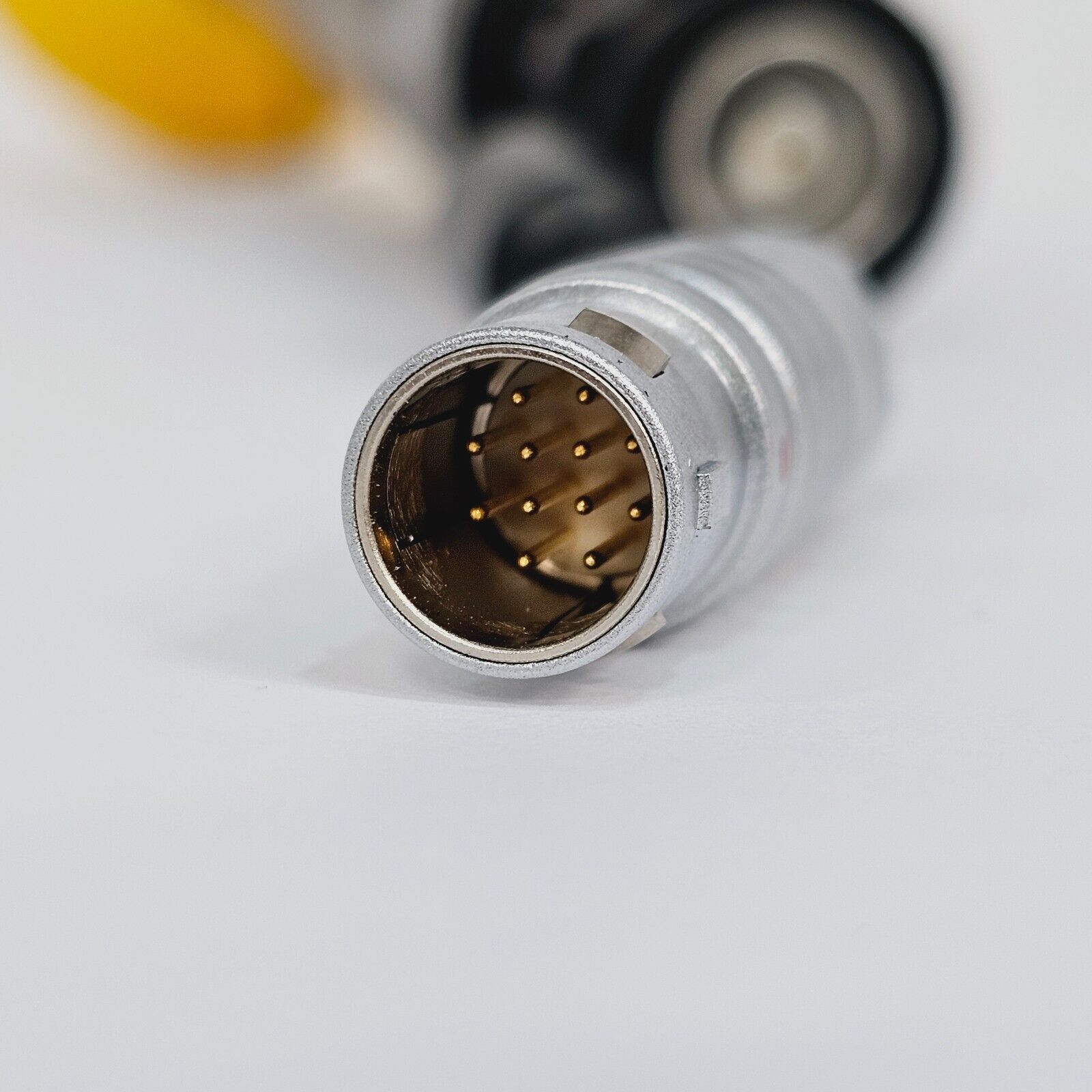

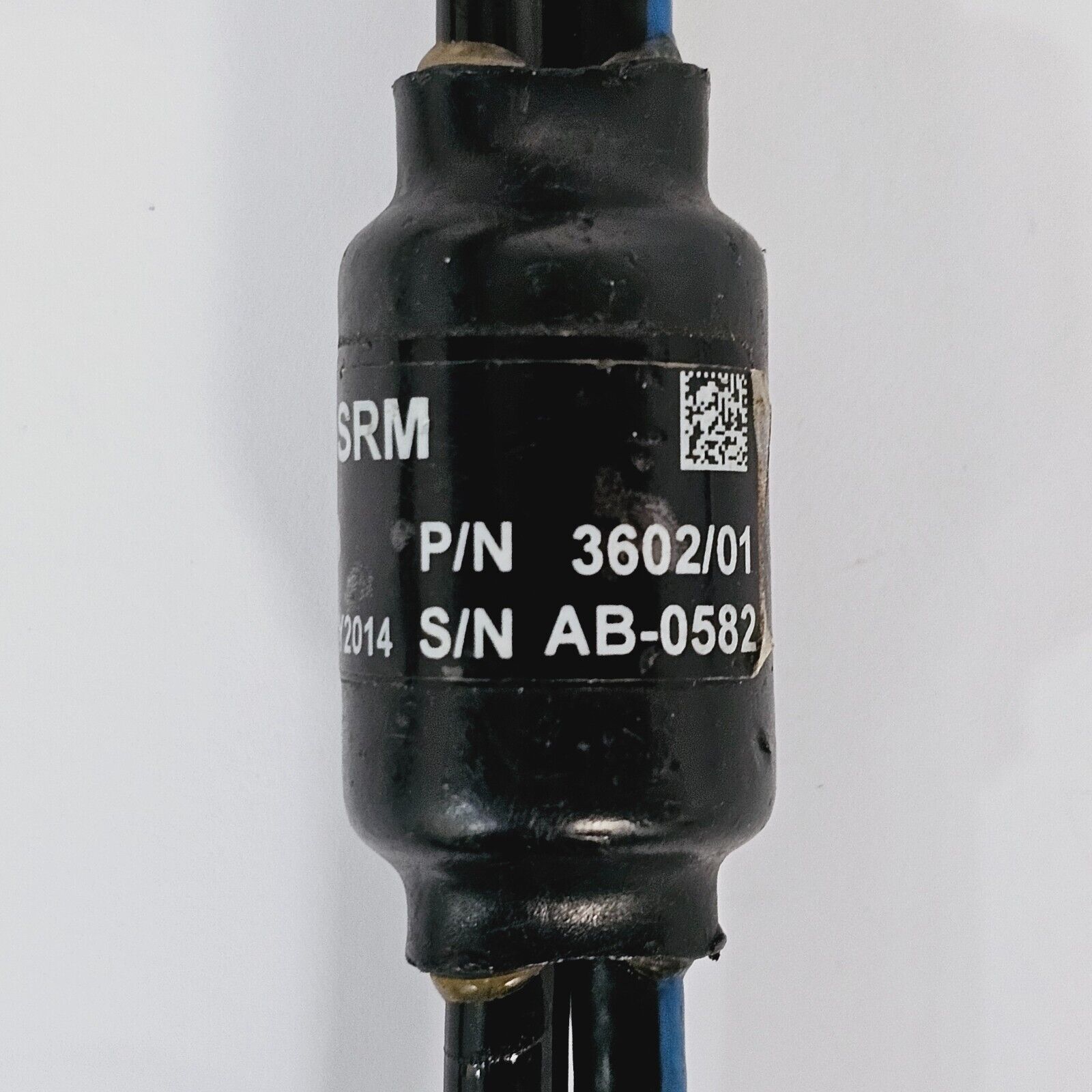

• RF-Cable 9 kHz–6 GHz, 1.5 m (3602/01)

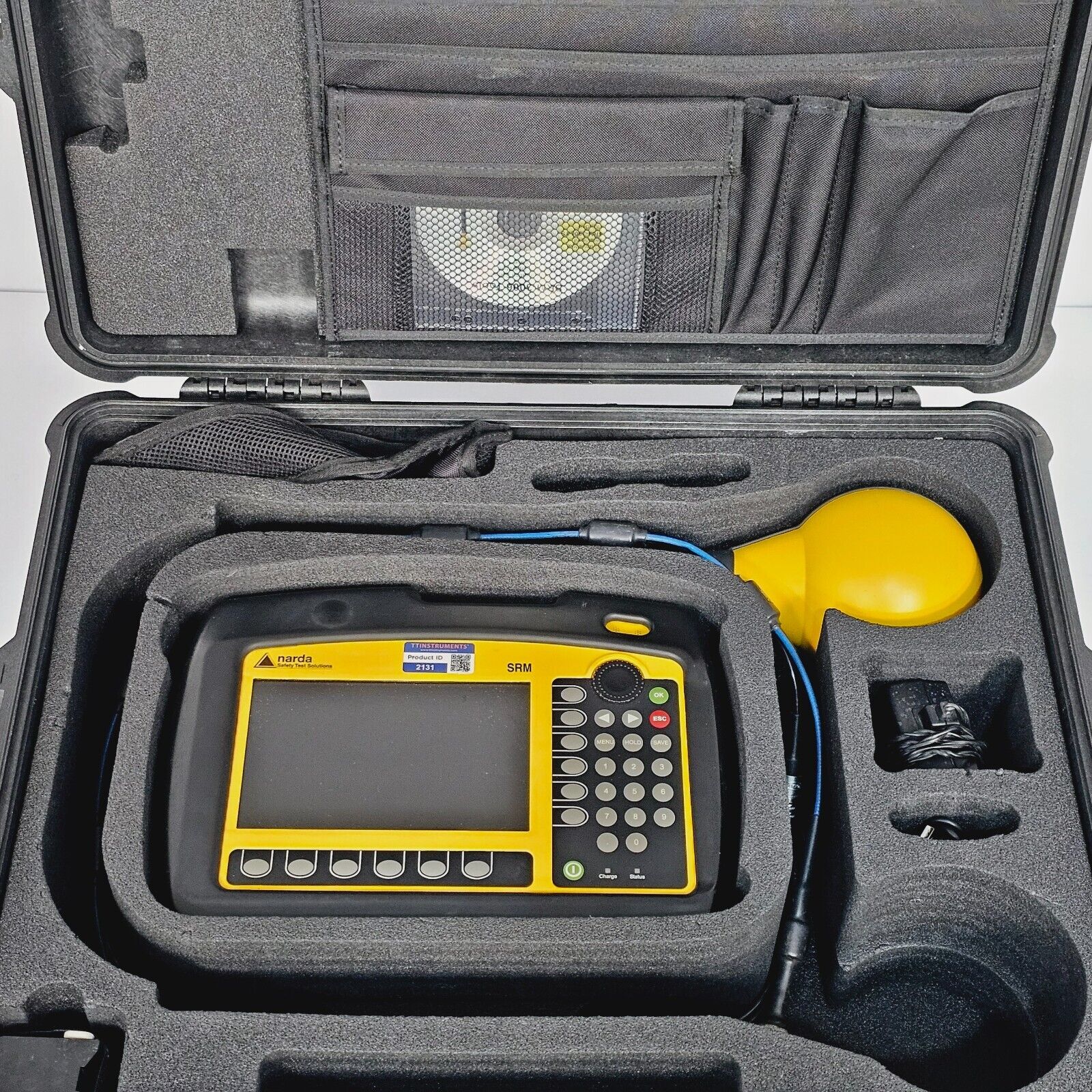

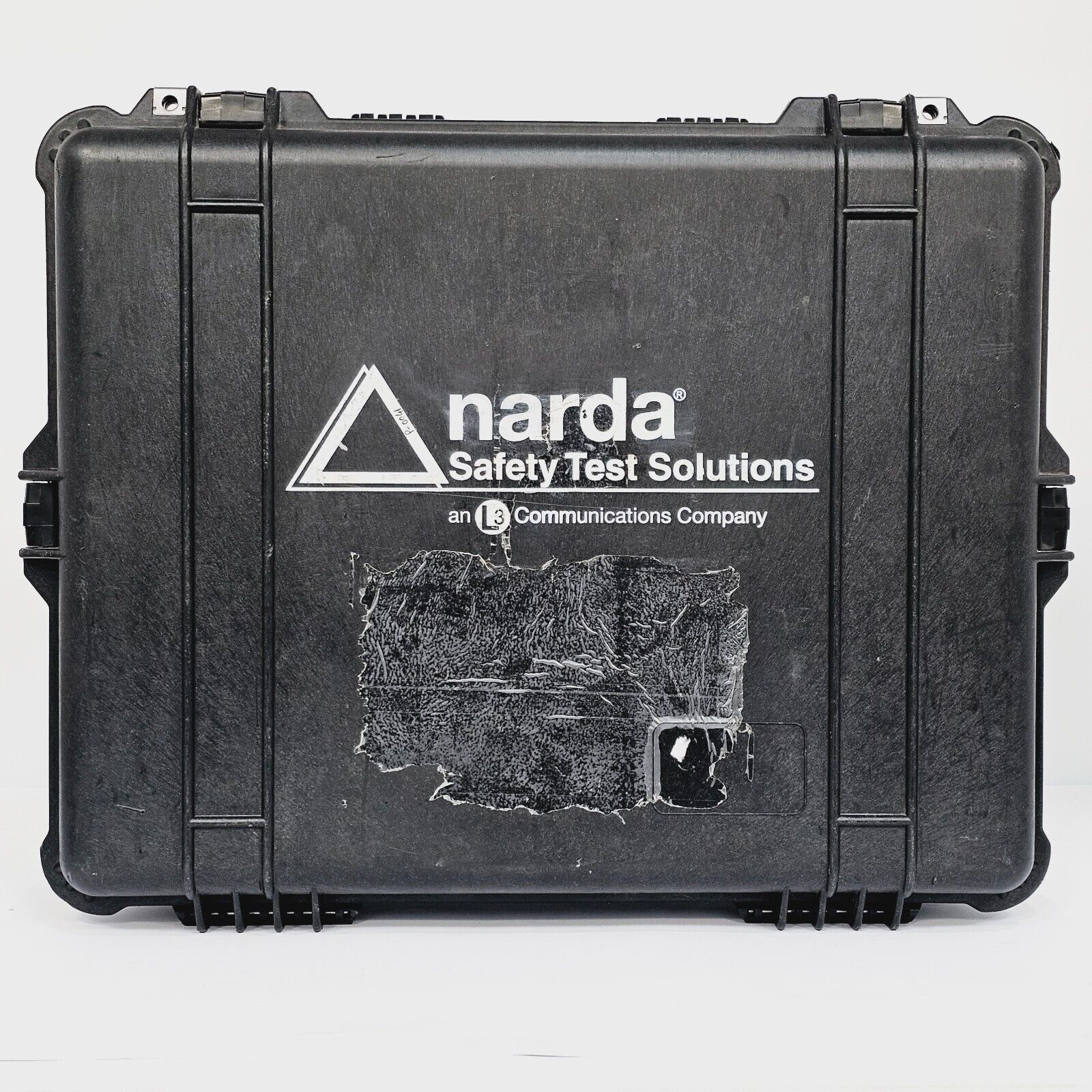

• Carry Case

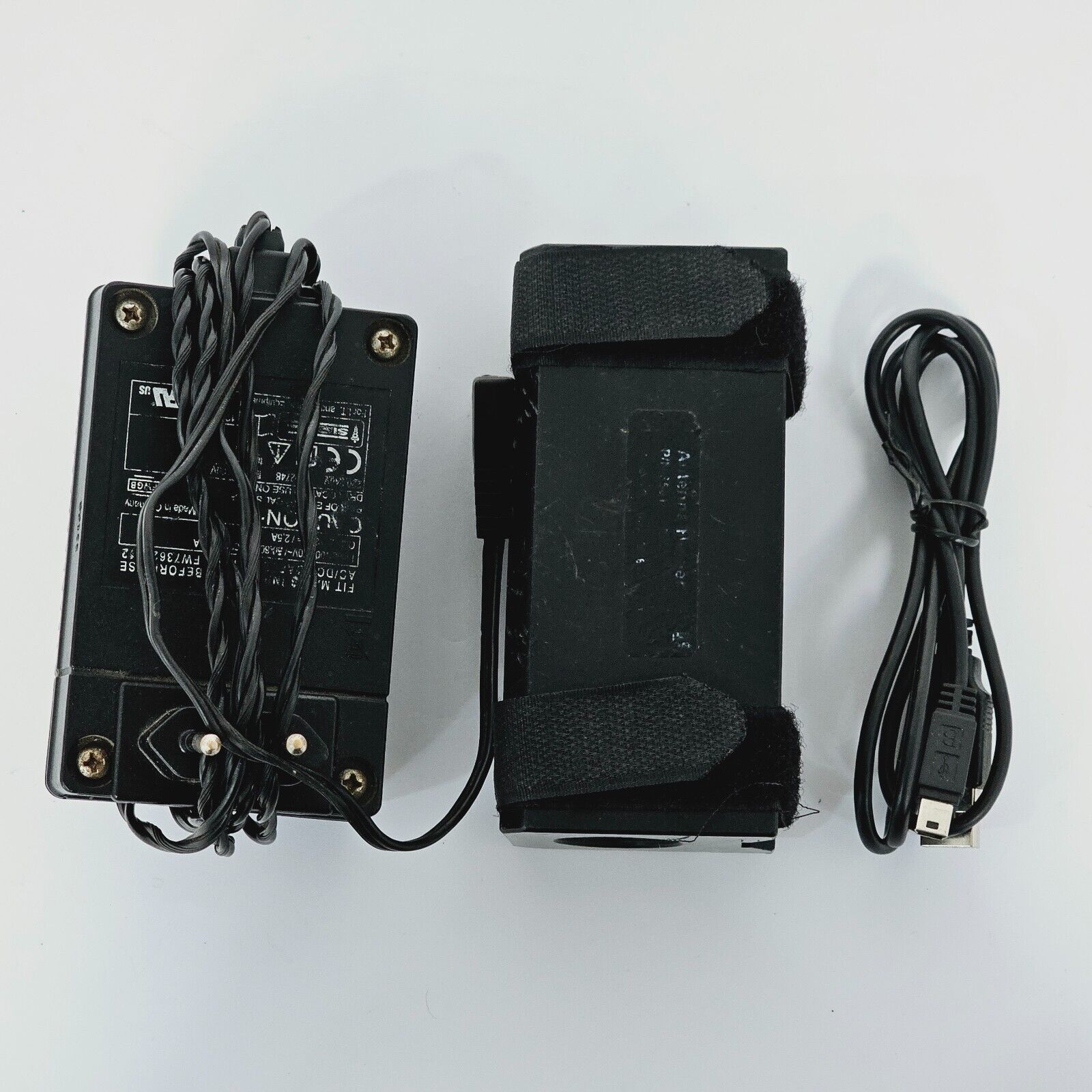

• Power Adapter 12 VDC, 100 V–240 VAC

The Narda SRM-3006 Selective Radiation Meter is a compact, frequency-selective measuring system from Narda Safety Test Solutions, designed for safety analysis and environmental measurements of high-frequency electromagnetic fields. It combines the analysis features of a spectrum analyser with the simplicity of a wideband measuring set, and was specially developed for assessing safety in electromagnetic fields.

The SRM-3006 has become established as the standard instrument for EMF safety assessments, providing automatic evaluations against human safety standards directly on the instrument, together with a specified overall measurement uncertainty that removes the need for complex post-processing calculations. Results can be displayed in field strength (V/m), power density (W/cm²), or directly as a percentage of the permitted limit value per standards such as ICNIRP, FCC, and the EU EMF Directive (2013/35/EU).

Operating Modes:
- Safety Evaluation: rapid overview of exposure contributions from individually definable frequency ranges, services, and operators

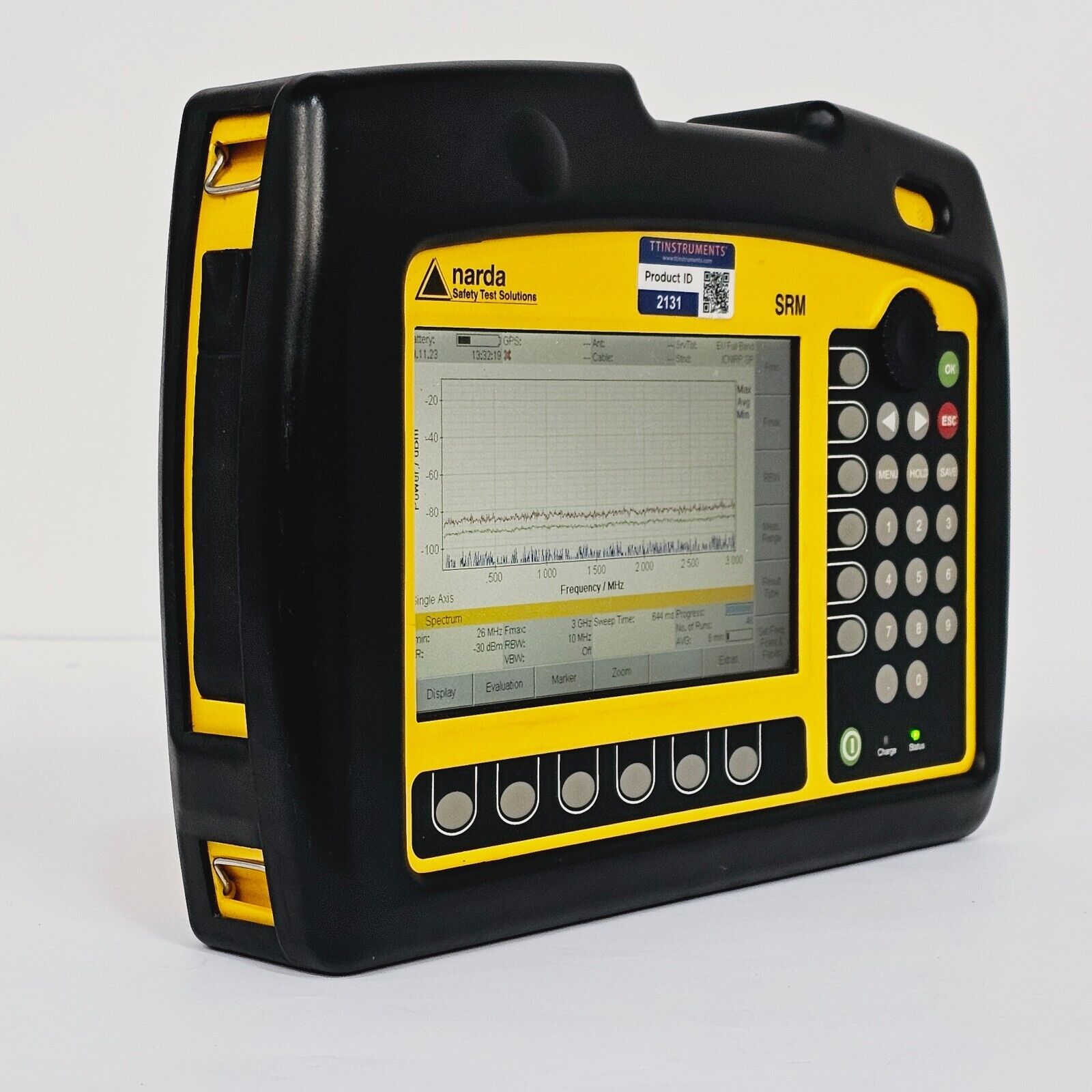

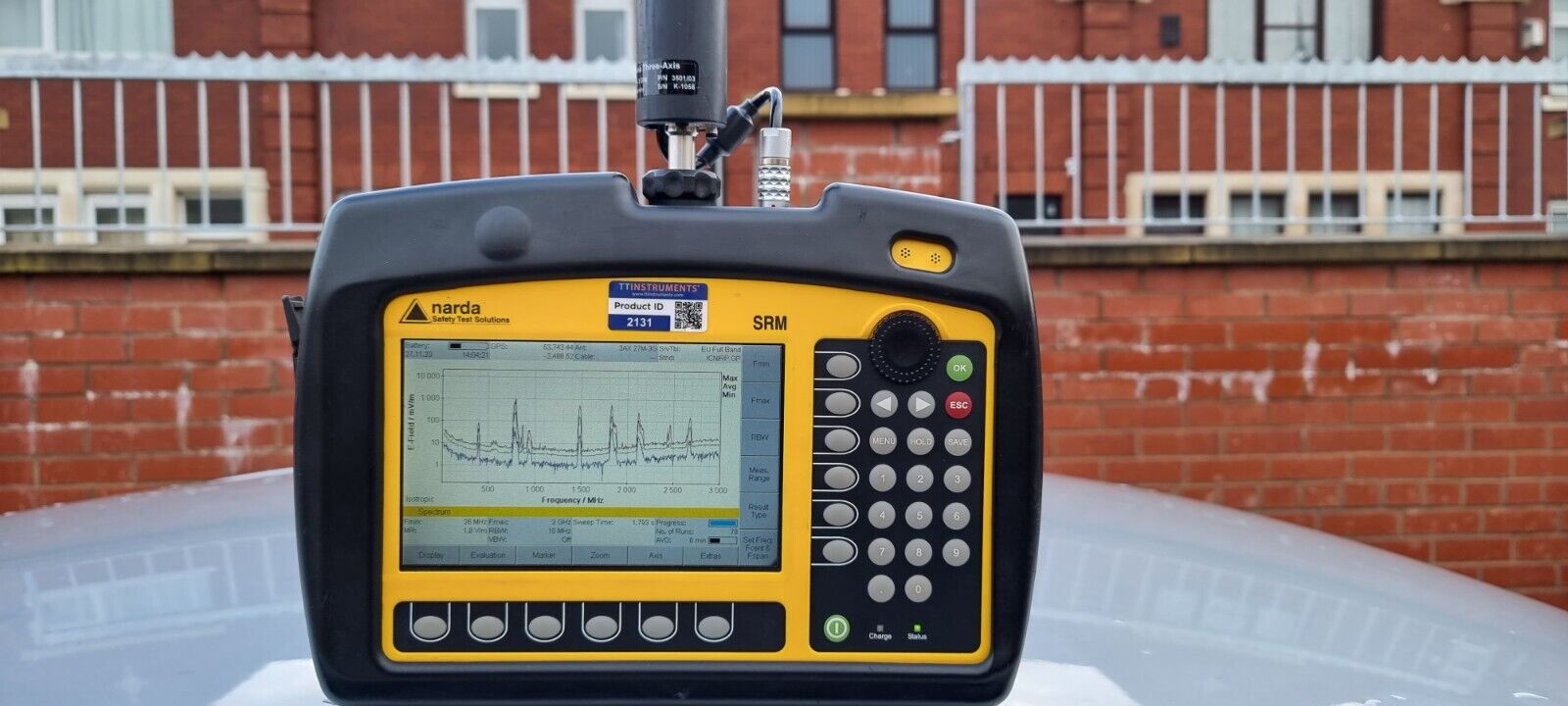

- Spectrum Analysis: detailed frequency-domain analysis with full spectrum analyser functionality
- Scope: real-time display of time-domain signal characteristics at a fixed frequency, with microsecond resolution for pulsed signals such as radar
- Recorder: long-term monitoring of exposure levels

Key Features:
- Frequency range (basic unit): 9 kHz to 6 GHz
- Resolution bandwidth (RBW): up to 32 MHz
- Measurement range fine adjustment: 1 dB steps
- Irradiation proof: up to 200 V/m

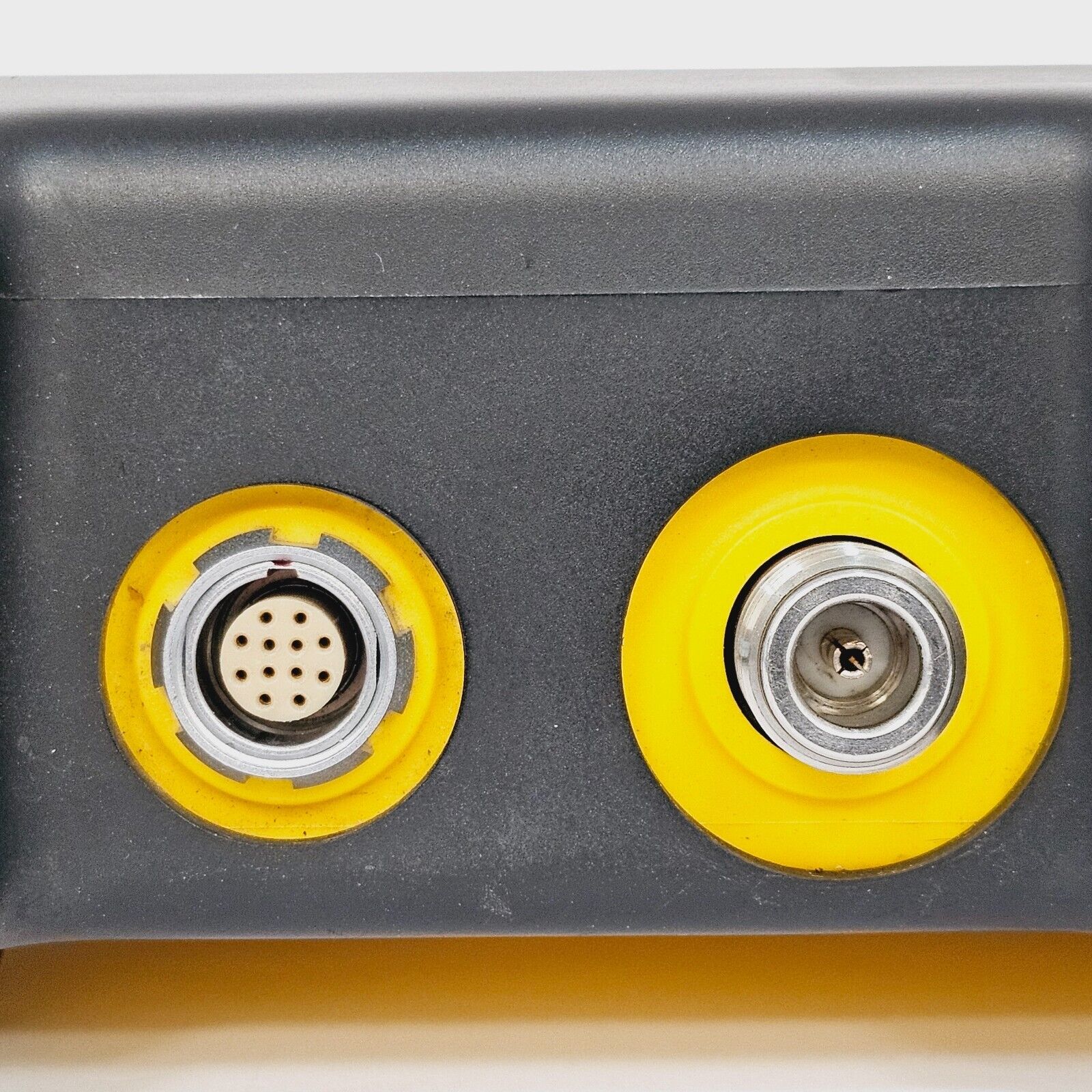

- Antenna interface: automatic recognition of Narda antennas; calibration factors stored in antenna EEPROM and applied automatically
- Standards compliance: ICNIRP, FCC, IEEE, EU Directive 2013/35/EU and other national standards
- Long-term monitoring: up to 99 hours (all modes except Scope)
- Programmable measurement routines and setups for reproducible results

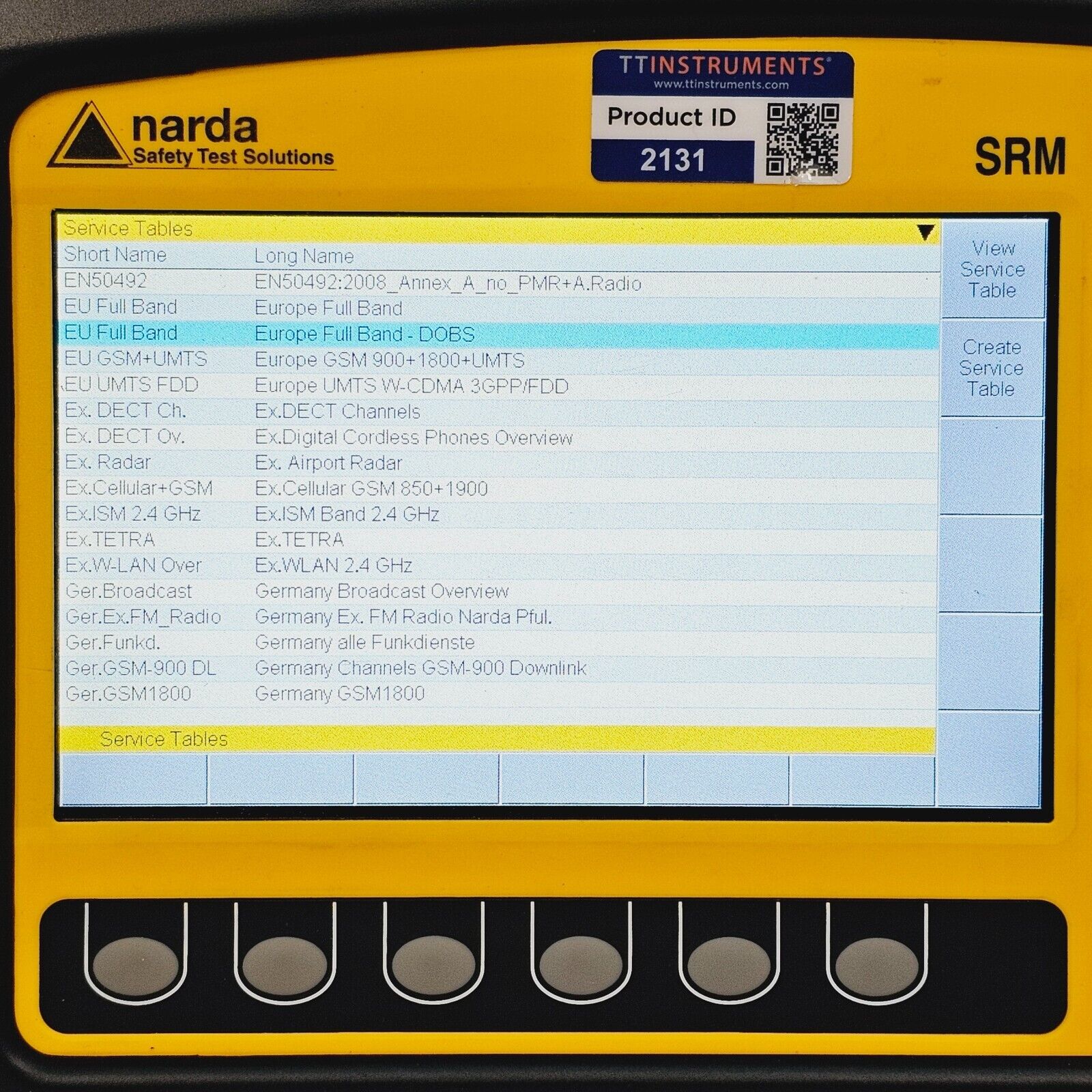

- Editable service tables for automatic correlation with telecoms services (GSM, UMTS, LTE, WLAN, WiMAX, DVB-T, DAB, etc.)

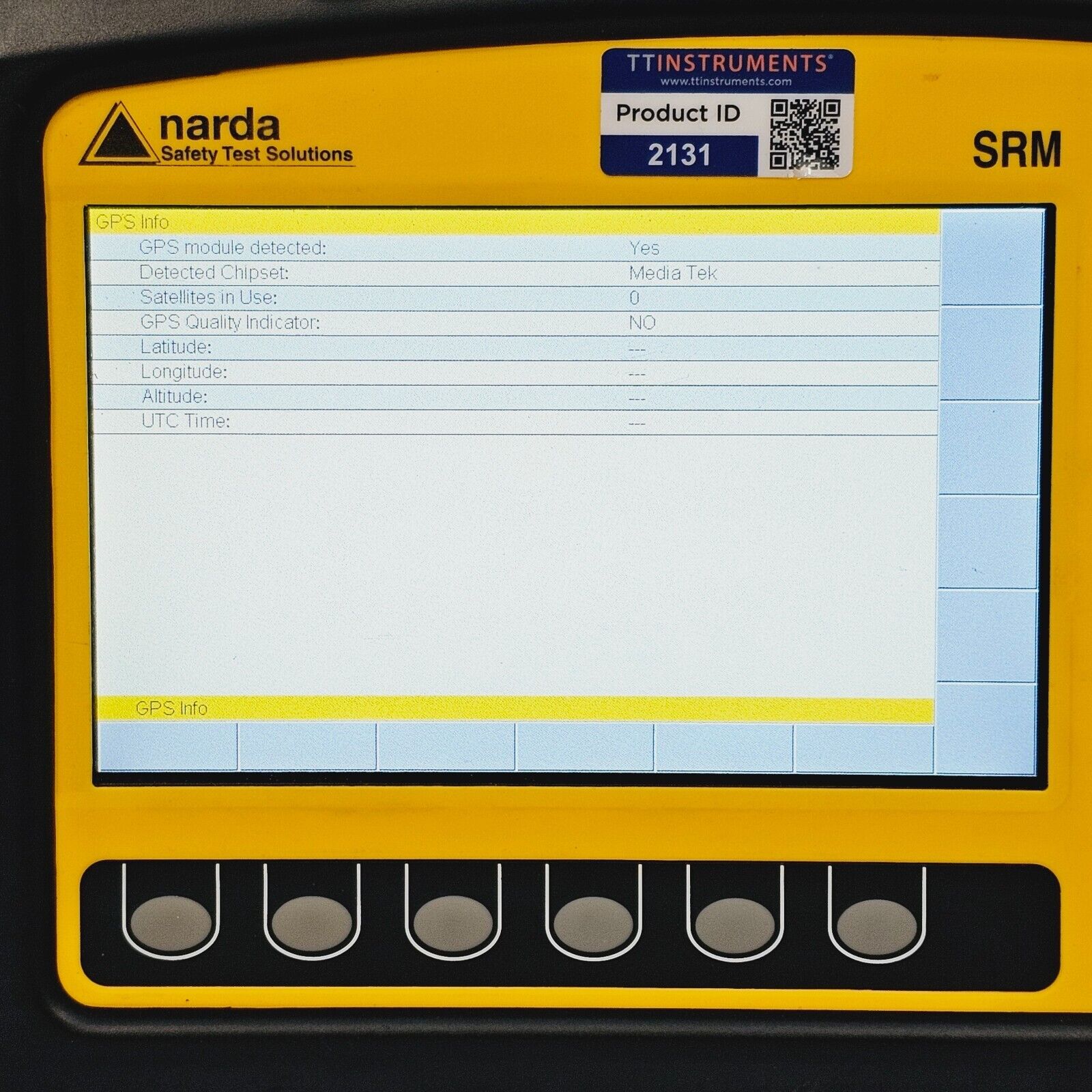

- Built-in GPS and voice recorder
- Outdoor-rated: radiation-protected, robust, splash-proof design with exchangeable rechargeable batteries
- Battery life: approximately 3 hours from fully charged batteries; full-day operation with spare battery set

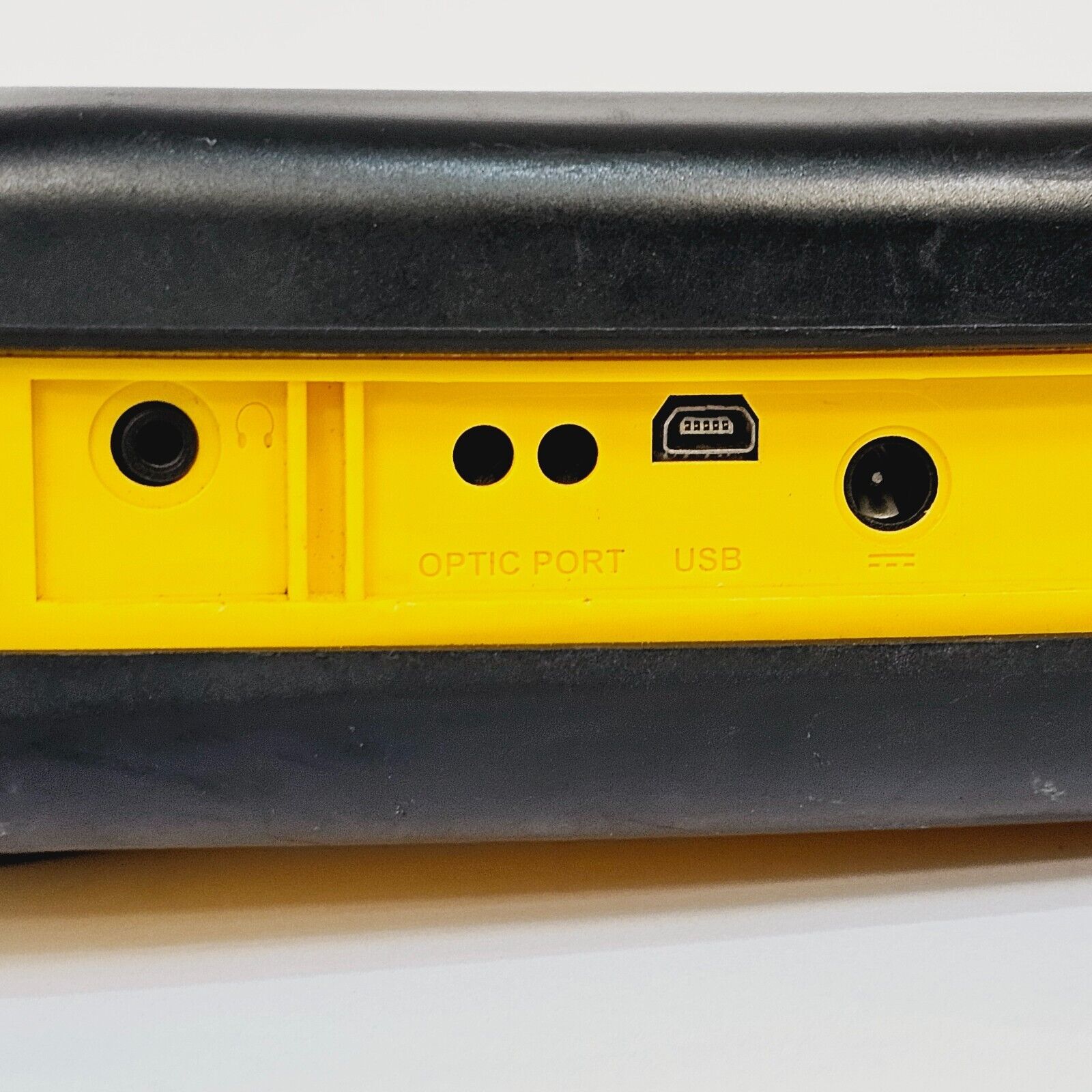

- PC connectivity: USB and optical interface; SRM-3006 Tools PC software for data management, custom tables, and measurement routine preparation

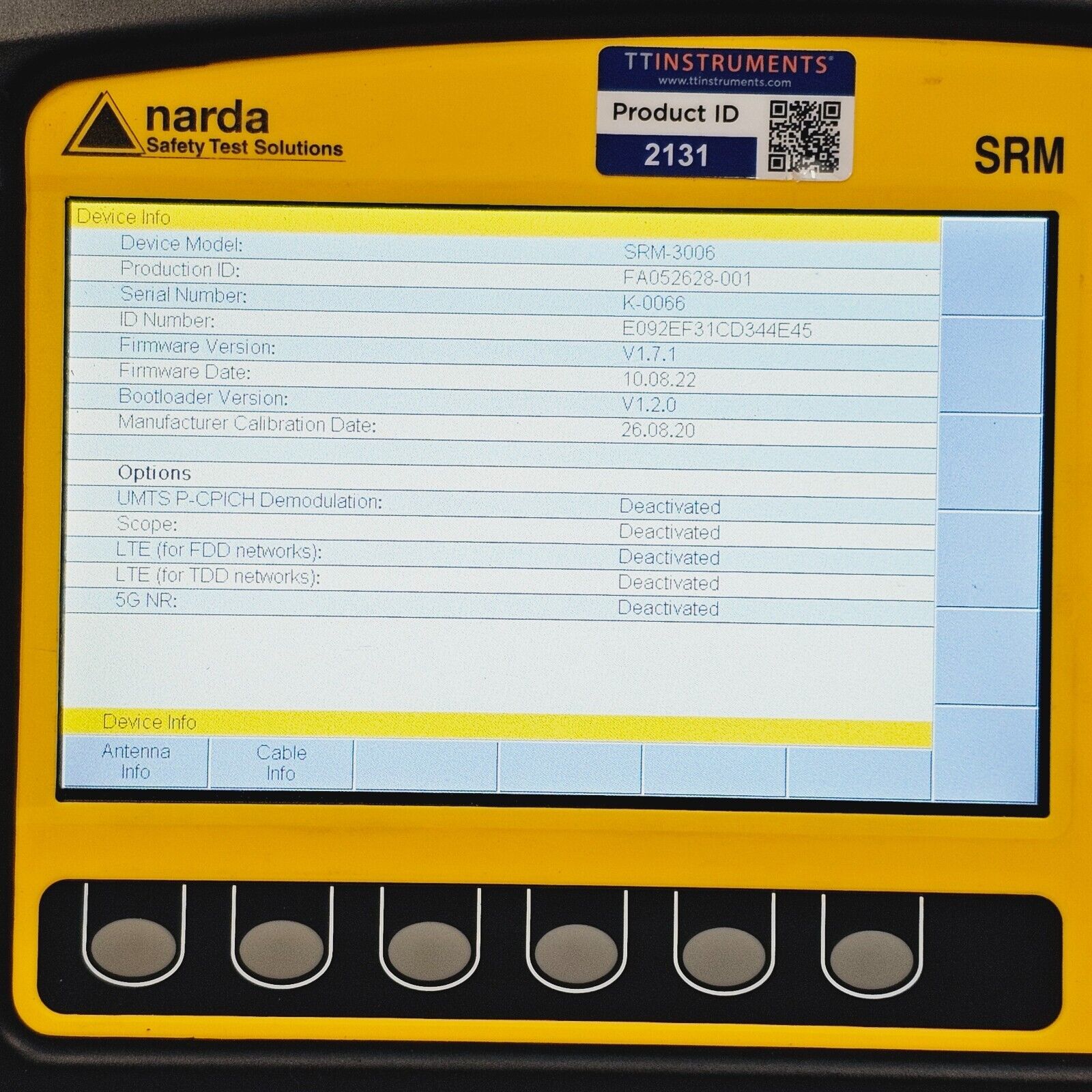

Optional Modes (licence-activated):
- UMTS P-CPICH demodulation
- LTE-FDD
- LTE-TDD
- 5G NR (FR1)

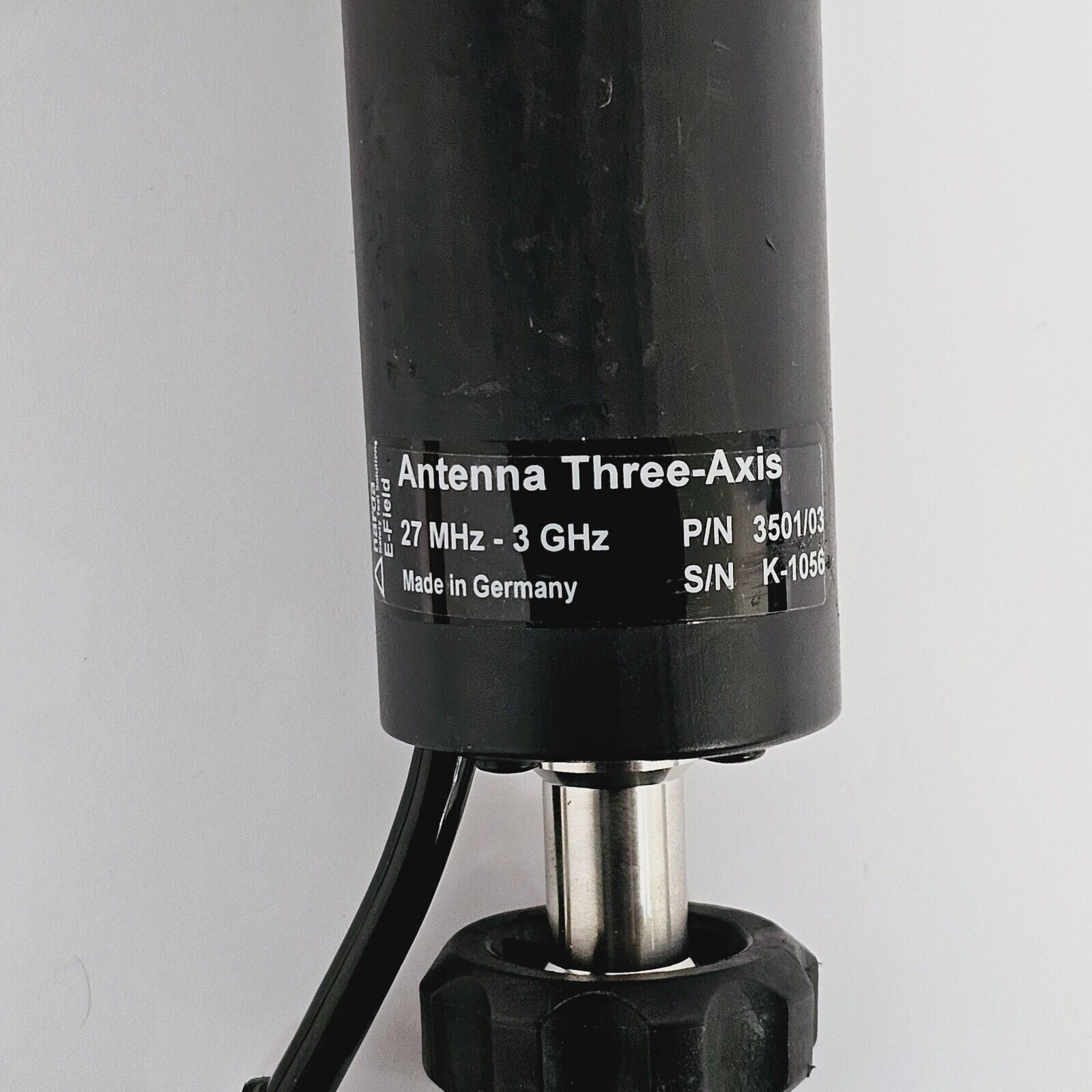

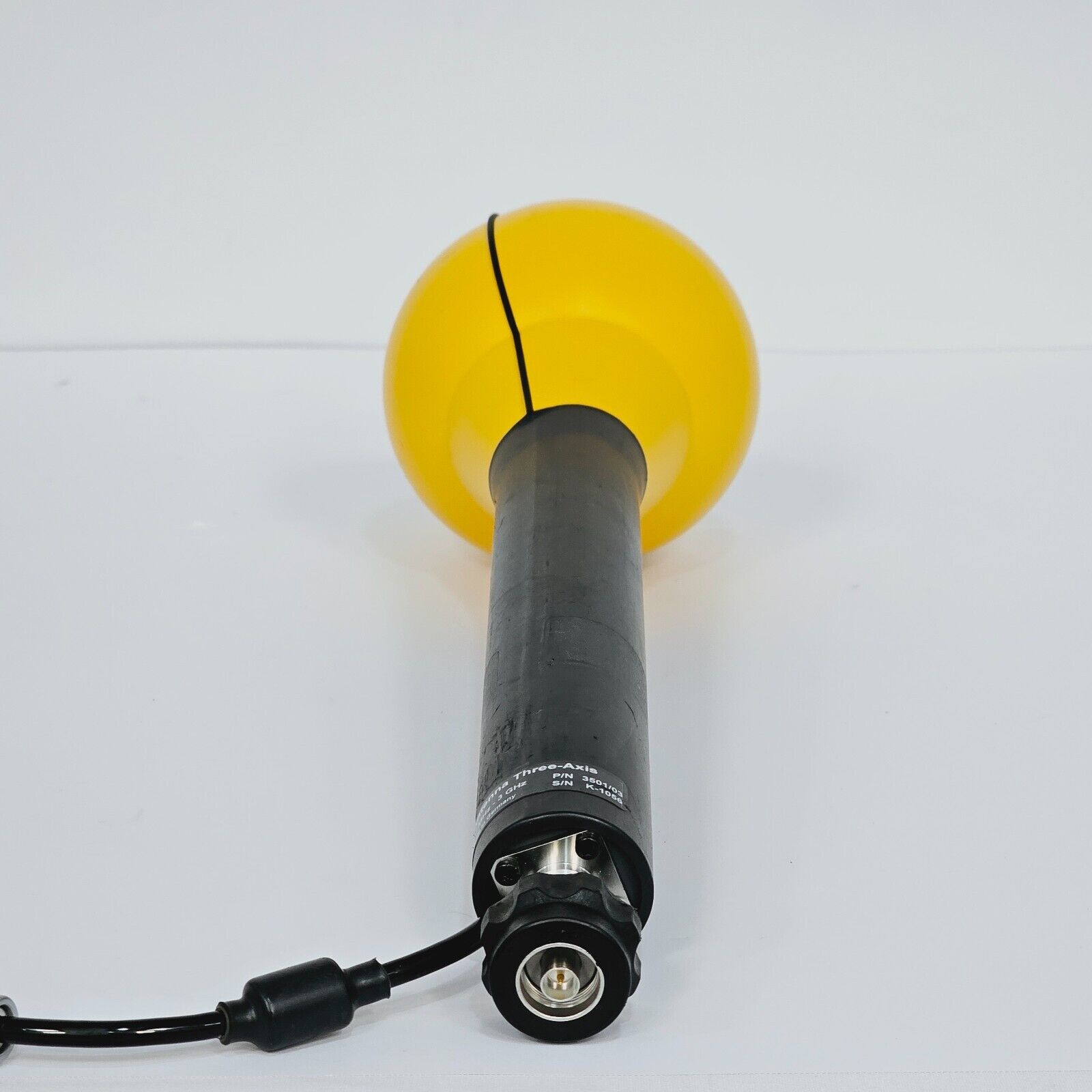

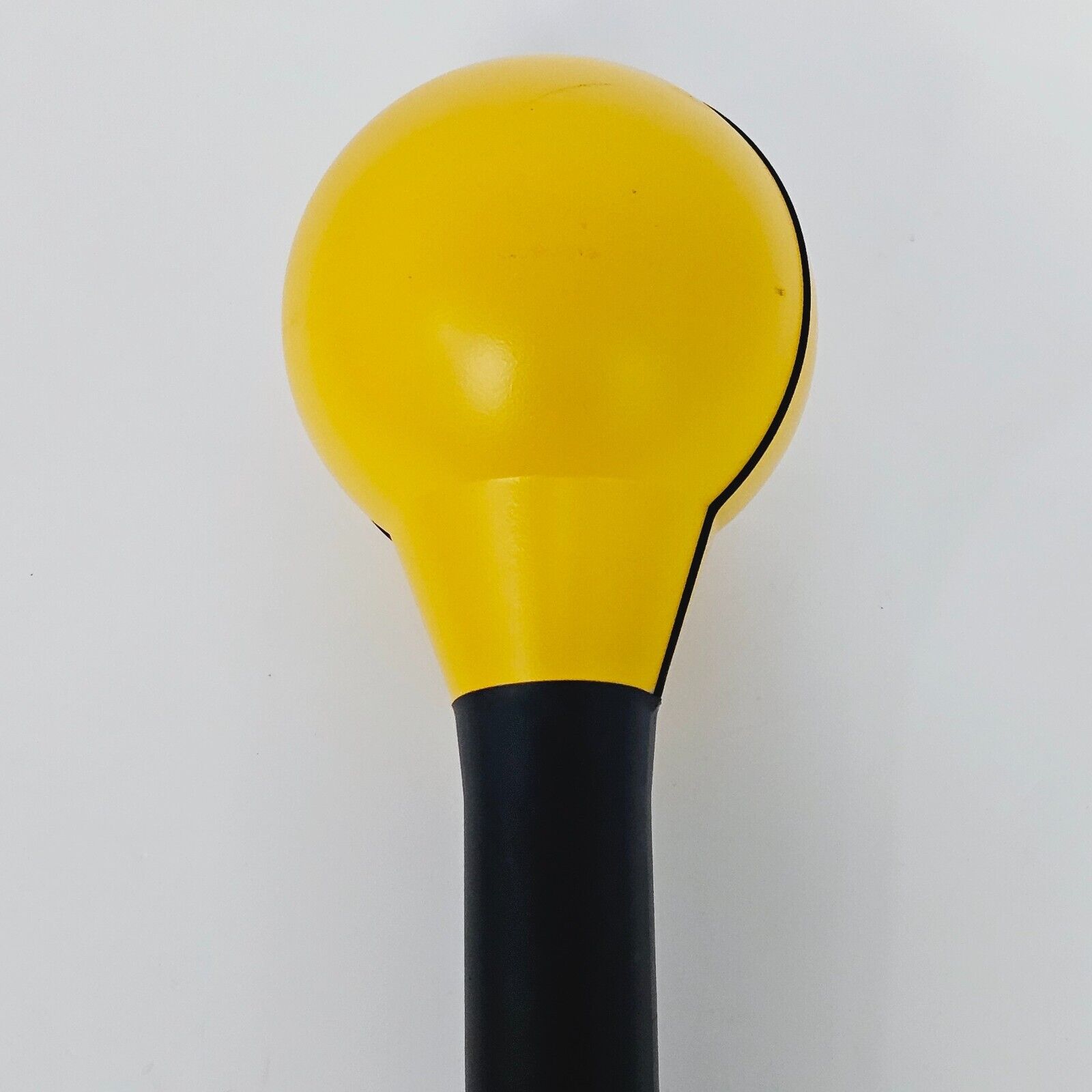

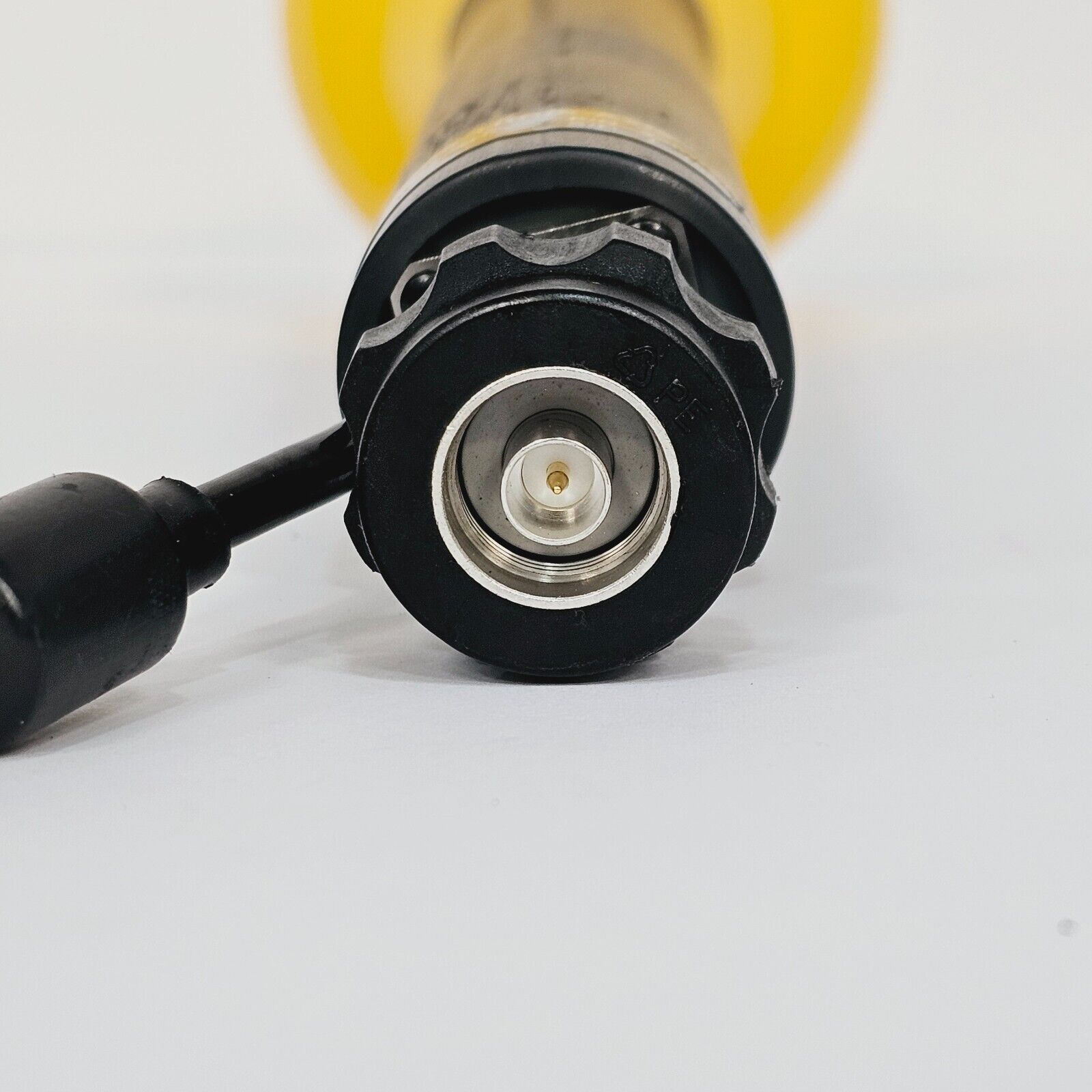

Probe 3501/03 — Three-Axis E-Field Antenna:
Frequency range: 27 MHz to 3 GHz
Measurement dynamic range: 0.2 mV/m to 200 V/m
Characteristic: Isotropic (triaxial)
Weight: 450 g
Length (including shaft): 460 mm
Calibration: Stored calibration factors in EEPROM, applied automatically by the SRM-3006 basic unit

Typical Applications:
- Mobile communications base station safety assessments
- Workplace EMF compliance measurements (EU Directive 2013/35/EU)
- Broadcasting and TV transmitter site surveys
- WLAN, WiMAX, and wireless infrastructure audits
- Regulatory compliance verification to ICNIRP, FCC, and national standards
- Radar and pulsed signal capture

Narda SRM-3006 Datasheet (TestEquipmentHQ hosted PDF): Download PDF

Narda SRM-3006 Datasheet — US version (Kontent Cloud hosted PDF): Download PDF

Narda SRM-3006 Brochure — Selective Radiation Meter for electromagnetic fields up to 6 GHz (PDF): Download PDF

Narda SRM-3006 Operating Manual (McGill University hosted PDF): Download PDF

Narda SRM-3006 US Datasheet (McGill University hosted PDF): Download PDF

Narda SRM-3006 Full Technical Datasheet NSTS 0721-E0272M (TestUnlimited hosted PDF): Download PDF
