Narda Attenuator 777C 3 dB

Condition: Used

The Narda 777C-3 is a 3 dB fixed coaxial attenuator from Narda-MITEQ, covering DC to 12.4 GHz with Type N male-to-female connectors and a 2 W average power rating. A robust, precision-built passive RF component suited to laboratory and system integration use.

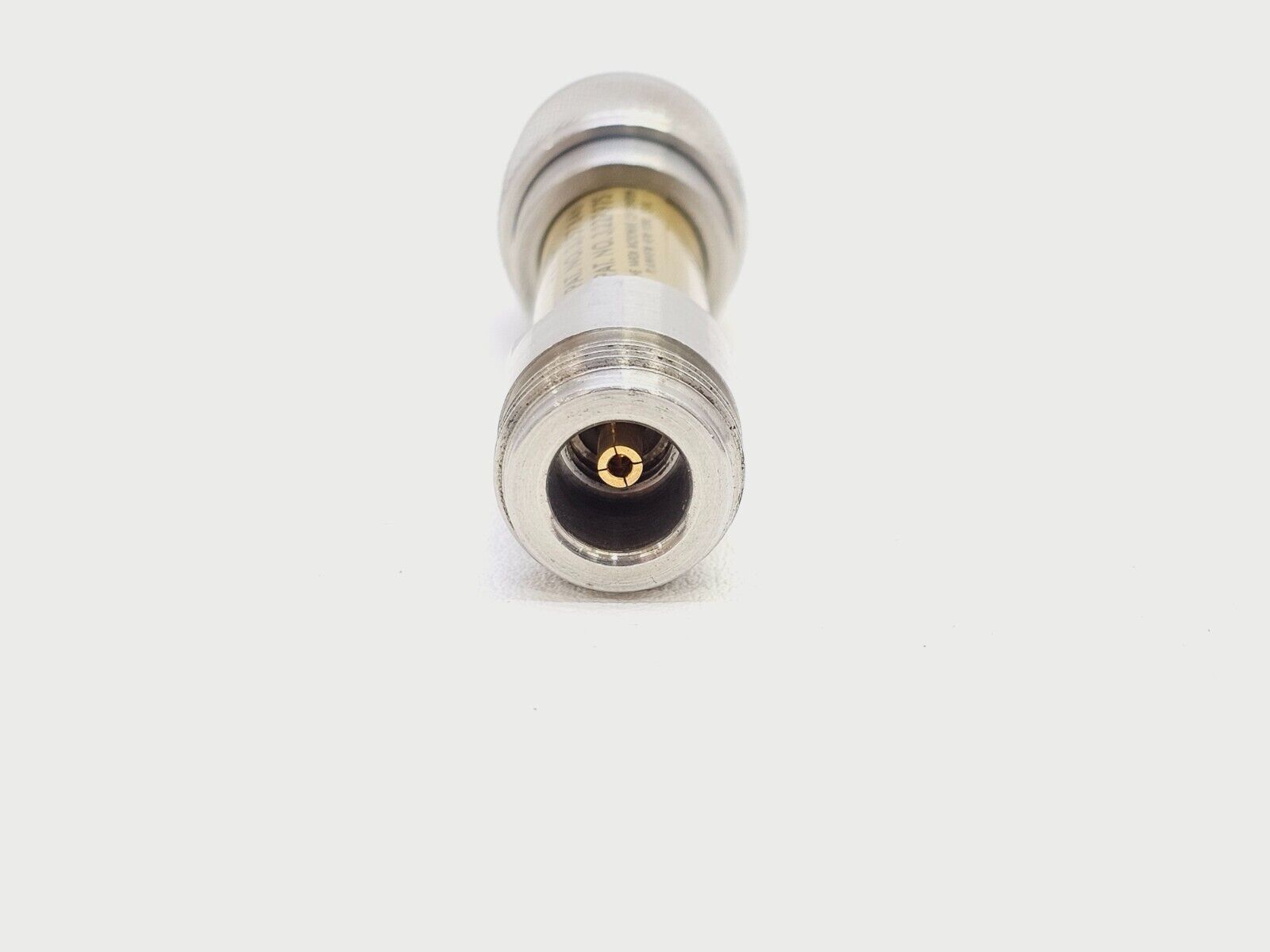

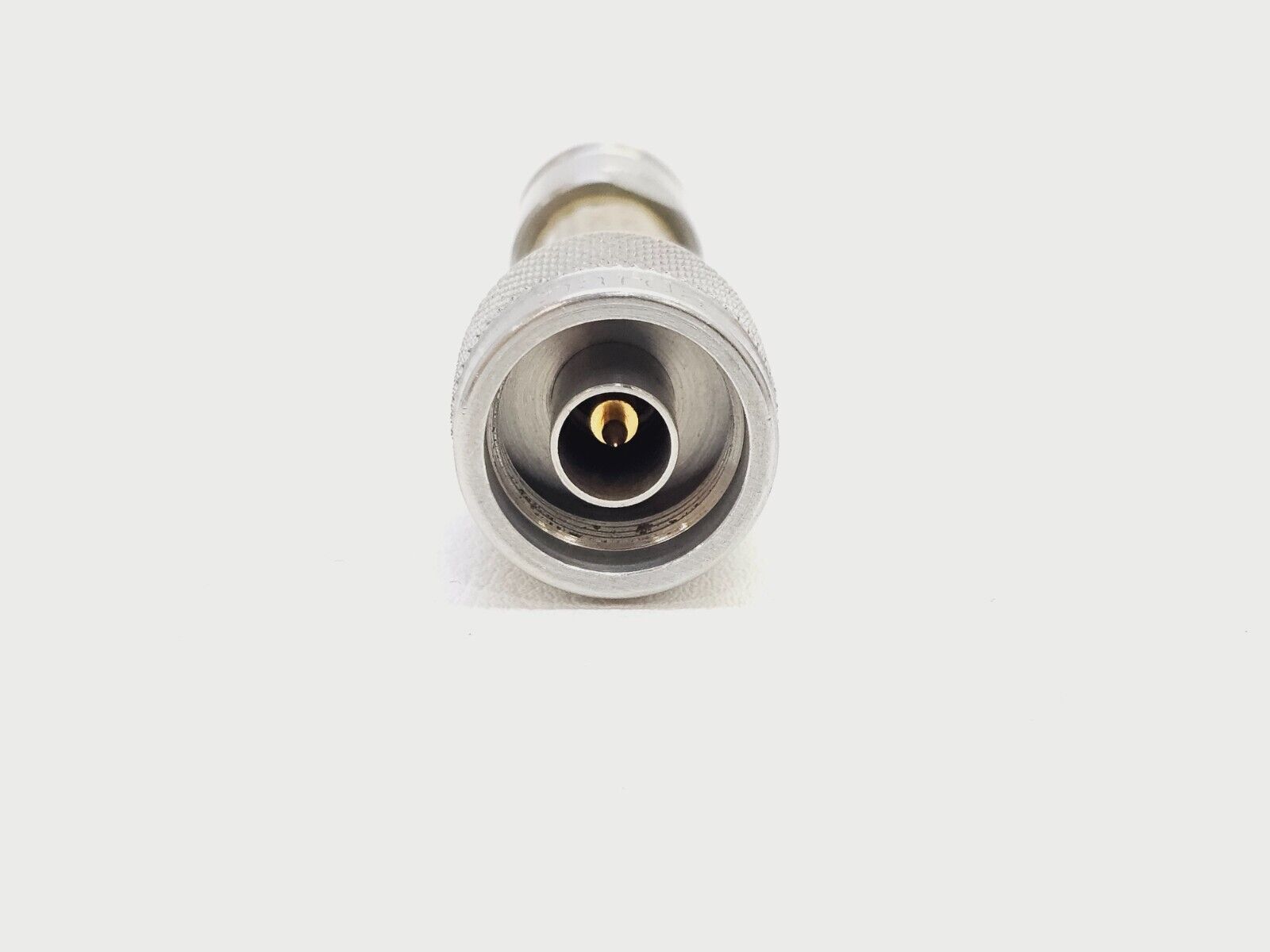

Supplied as pictured.

The Narda-MITEQ 777C series are fixed coaxial attenuators designed for precision RF and microwave applications from DC to 12.4 GHz. Manufactured using thin-film deposition techniques with stainless steel Type N connectors, the 777C series is bi-directional and available in standard attenuation values from 3 to 60 dB. The 777C-3 is calibrated at DC, 4, 8, 10, and 12.4 GHz, with attenuation certification recorded to the nearest 0.05 dB. All standard-line units feature stainless steel connectors for extended connector life and maintained VSWR performance. The series meets MIL-A-3933E environmental requirements.

Model: Narda 777C-3
Attenuation: 3 dB (nominal)
Attenuation Deviation (DC–6 GHz): ±0.3 dB
Attenuation Deviation (6–12.4 GHz): ±0.3 dB
Frequency Range: DC to 12.4 GHz
Average Power Input (max): 2 W
Peak Power Input (max): 0.2 kW
VSWR (max, DC–6 GHz): 1.15
VSWR (max, 6–12.4 GHz): 1.20
Connector Type: Type N, male/female
Impedance: 50 ohm
Weight (max): 2.9 oz (82 g)
Temperature Coefficient: 0.0006 dB/dB/°C
Power Coefficient: 0.0005 dB/dB/W
Connector Material: Stainless steel
Military Compliance: MIL-A-3933E

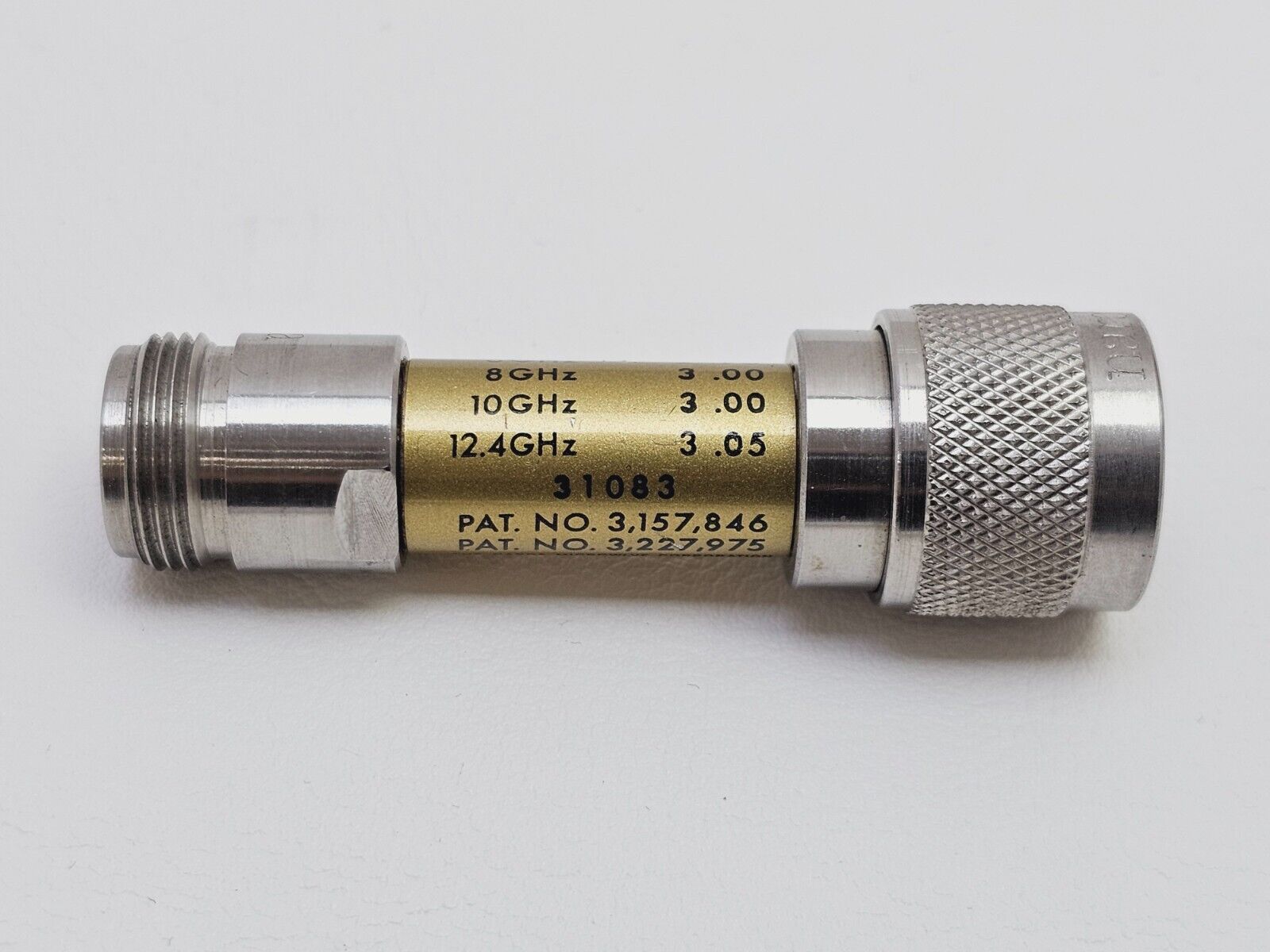

Calibration Points: DC, 4 GHz, 8 GHz, 10 GHz, 12.4 GHz
Applications: RF/microwave test and measurement, signal conditioning, power level adjustment, system calibration, telecommunications, radar
