Condition: Used

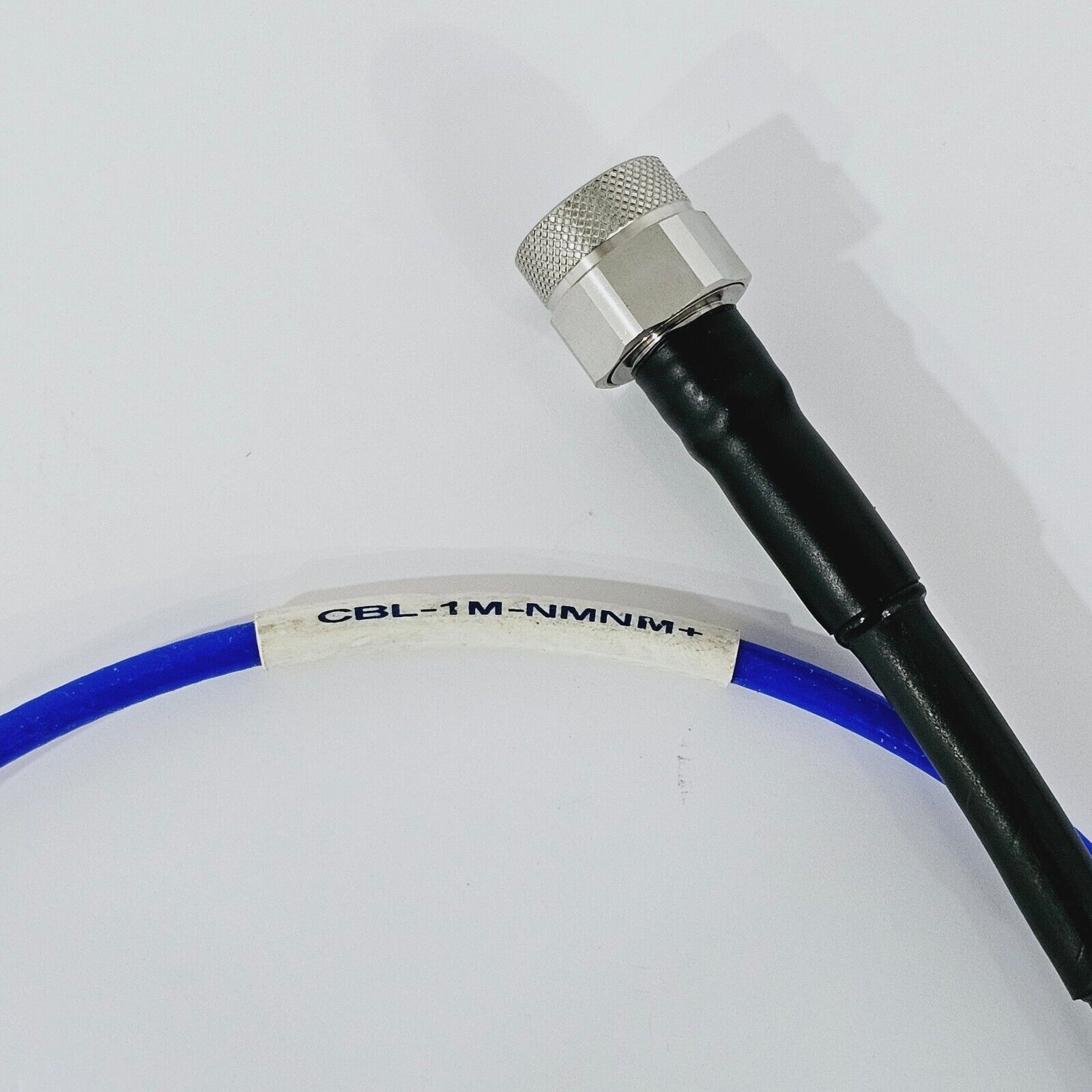

The Mini-Circuits CBL-1M-NMNM+ is a used precision RF test cable with N-Male to N-Male terminations, covering DC to 18 GHz over a 1-metre length. Part of the TEST FLEX series, it is well-suited to bench, lab, and production test applications requiring consistent, repeatable high-frequency performance.

Typically supplied with:

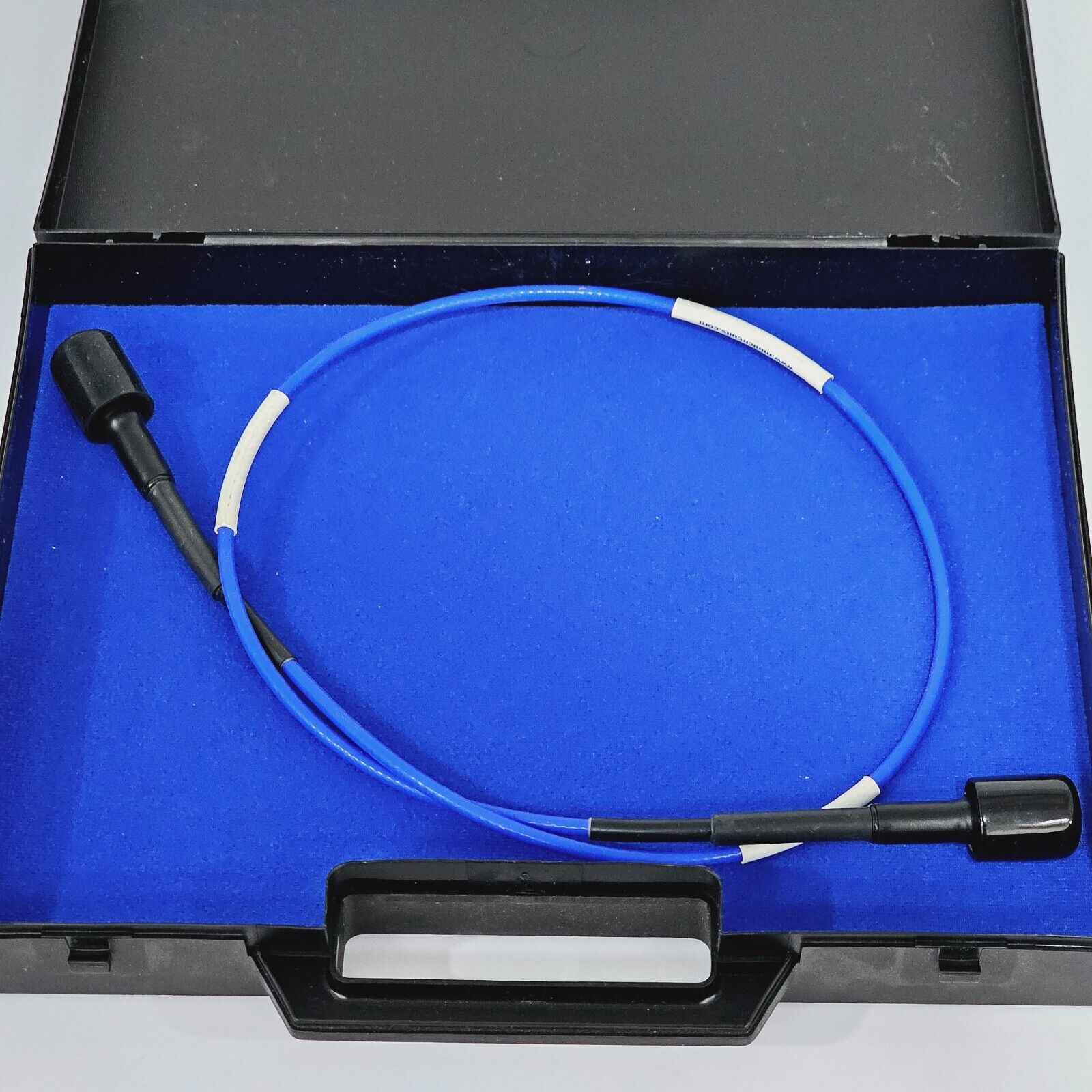

• CBL-1M-NMNM+ precision test cable (1 metre, N-Male to N-Male)

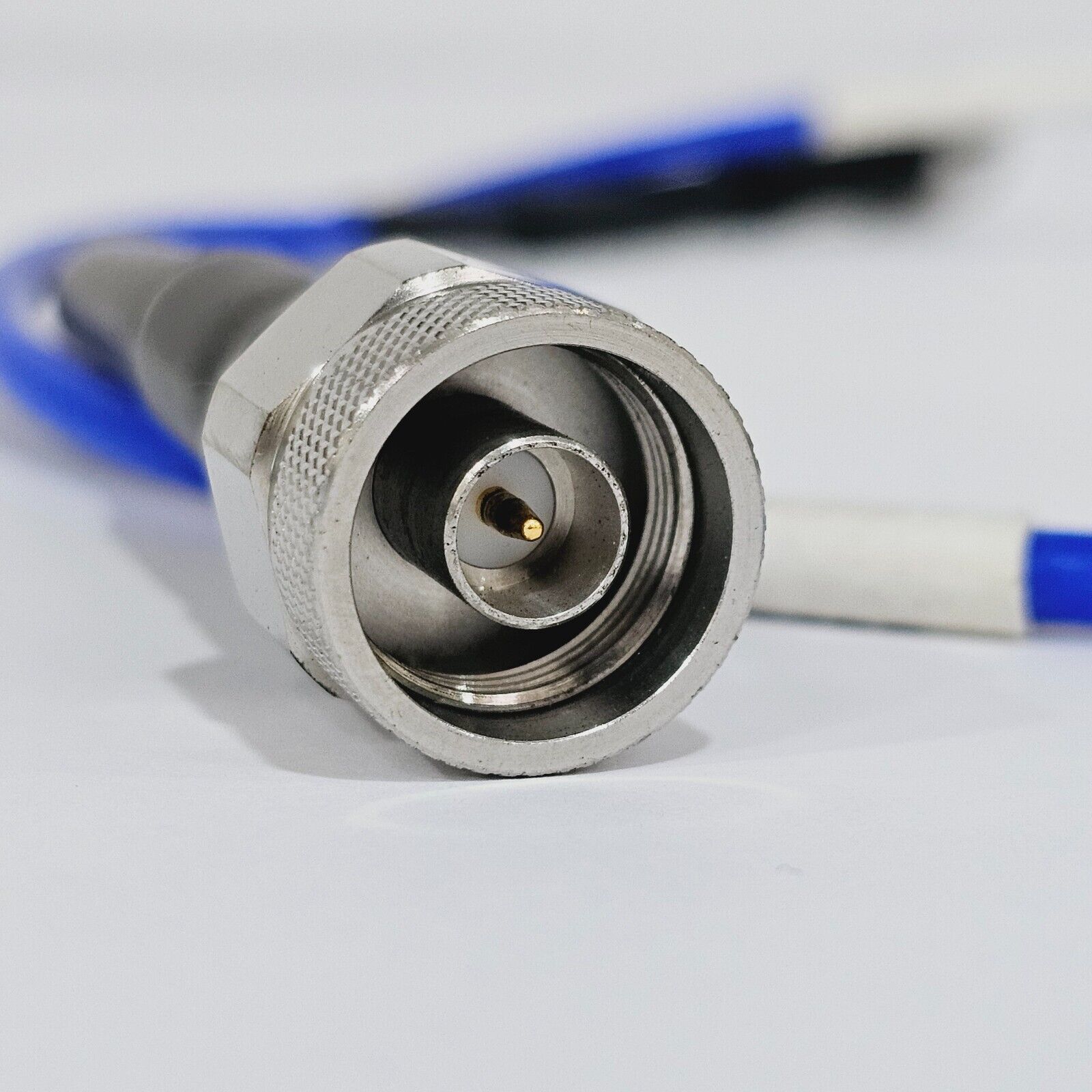

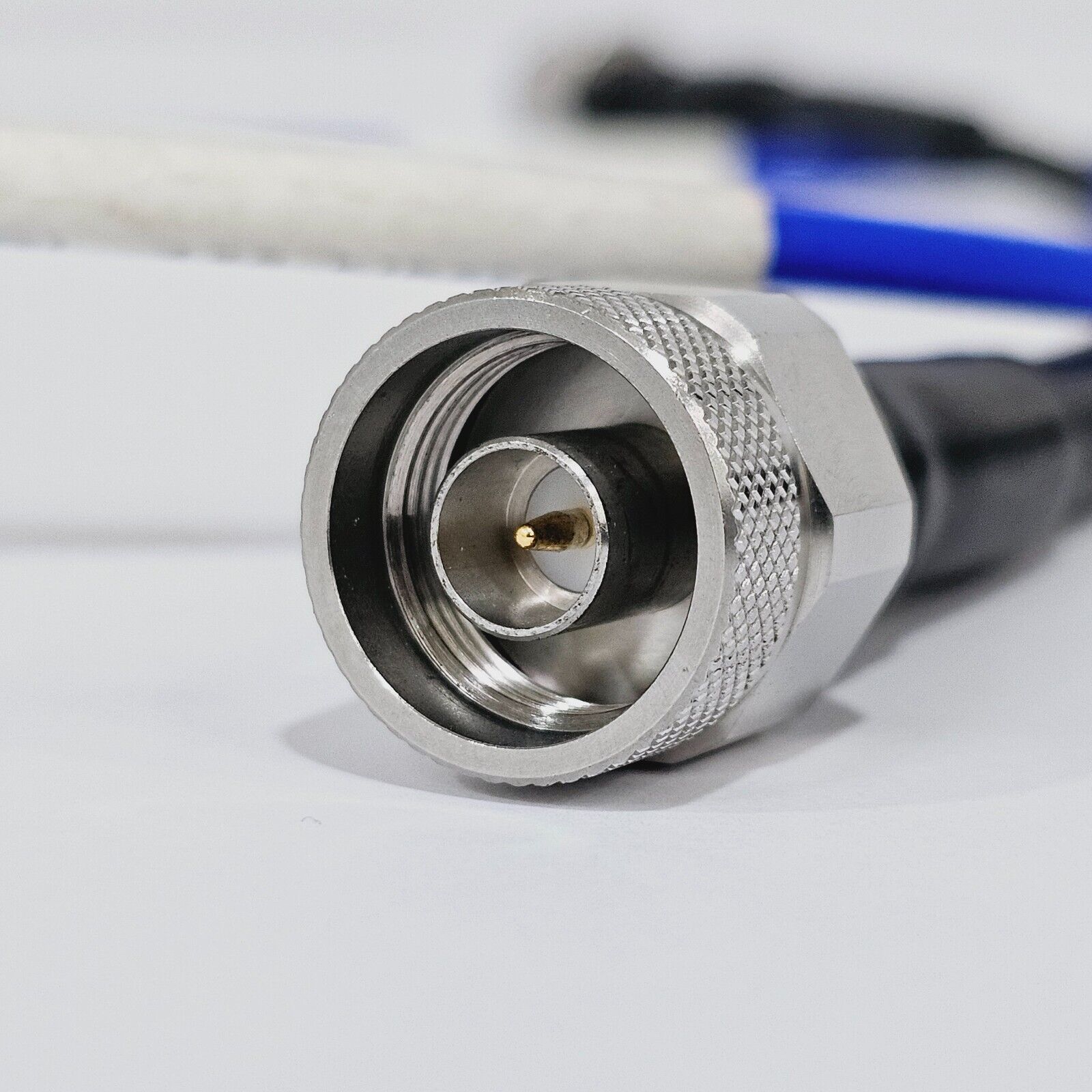

The Mini-Circuits CBL-1M-NMNM+ is a precision RF test cable from the TEST FLEX series, designed for wideband coverage from DC to 18 GHz. It features an extra rugged construction with strain relief for extended connector life, stainless steel N-Male connectors rated for long mating-cycle use, and a triple-shield design for excellent shielding effectiveness. The flexible low-loss cable delivers superior stability of insertion loss, VSWR, and phase across repeated flexing cycles, making it ideal for use in high-cycle production and lab environments.

Typical insertion loss at 6 GHz is approximately 1.10 dB, rising to approximately 2.3 dB at 18 GHz. Return loss exceeds 24 dB across the full frequency range under typical conditions.

Applications:
• High volume production test stations
• Research and development laboratories
• Environmental and temperature test chambers
• Replacement for OEM test port cables
• Field RF testing
• Cellular infrastructure site testing

Specifications:
Model: CBL-1M-NMNM+
Frequency Range: DC to 18 GHz
Impedance: 50 Ω
Connectors: N-Male (both ends)
Cable Length: 1.0 m (3.28 ft)
Insertion Loss at 18 GHz: approx. 2.3 dB (typical)
Operating Temperature: -55°C to +105°C
Shielding: Triple shield
Compliance: RoHS and REACH
Weight: approx. 162 g

Mini-Circuits CBL-1M-NMNM+ official datasheet (PDF) — specifications, performance data, and features: Download PDF

Mini-Circuits CBL-1M-NMNM+ S-parameter typical performance data (PDF): Download PDF
