Condition: For parts or not working

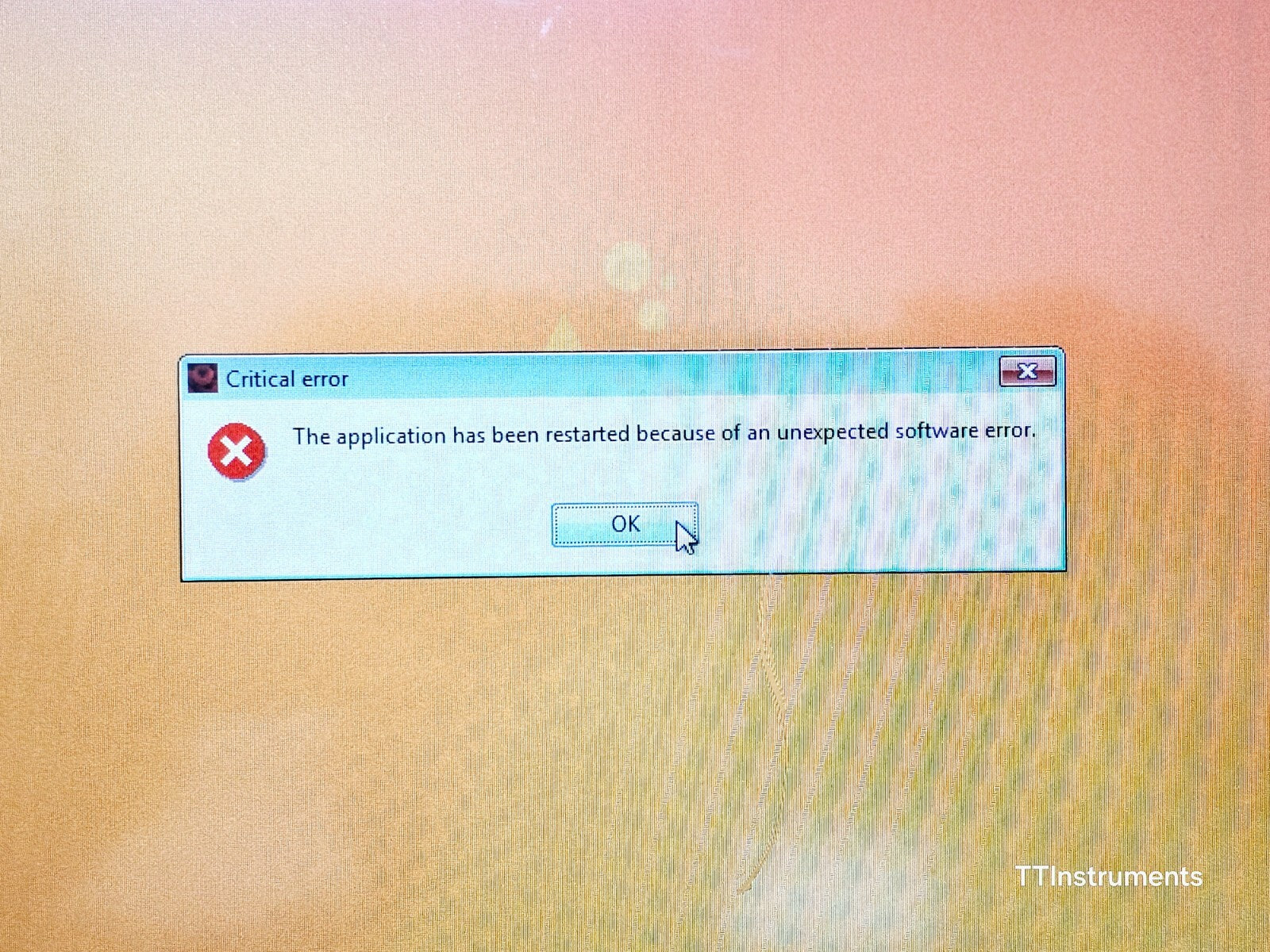

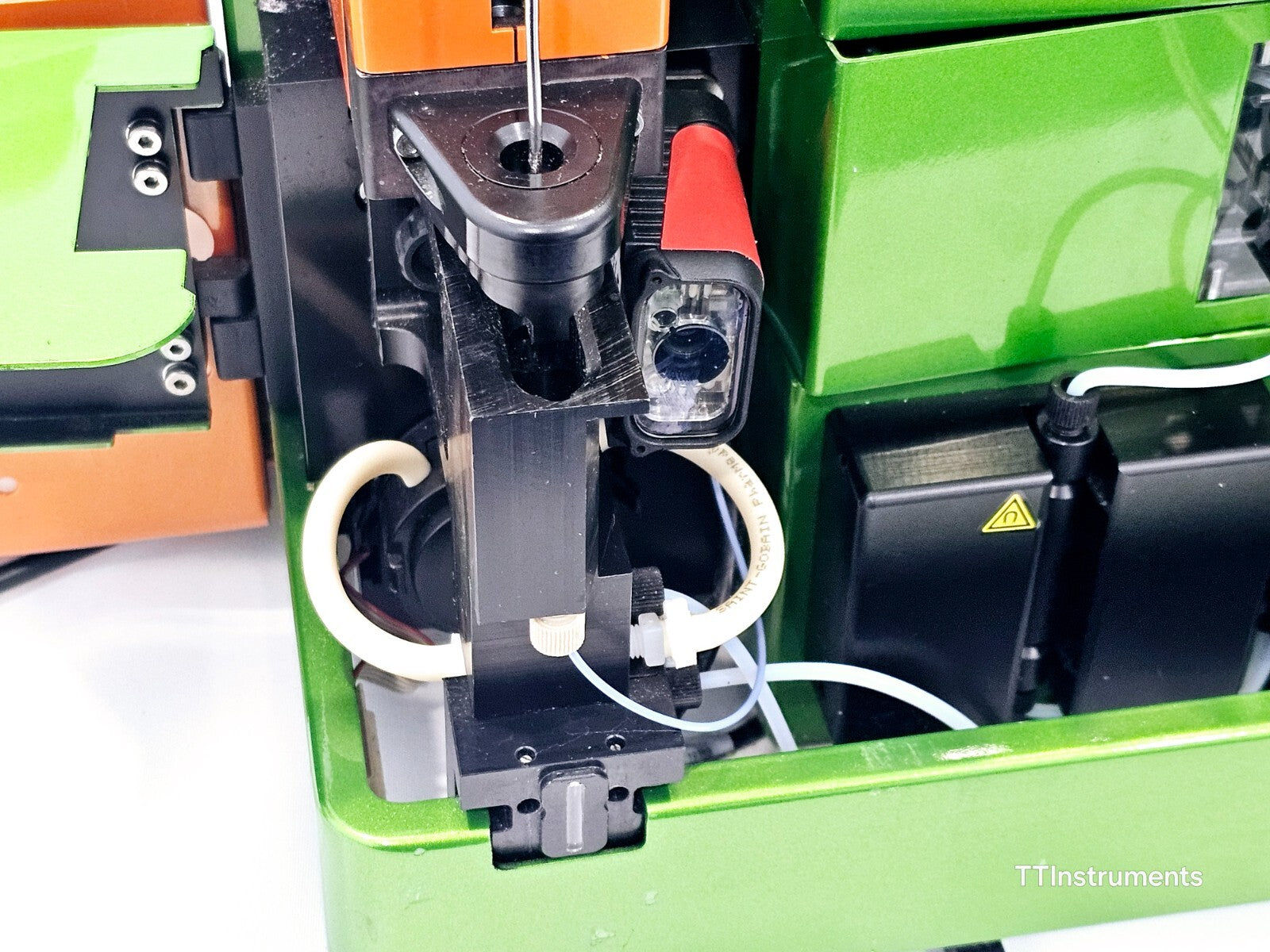

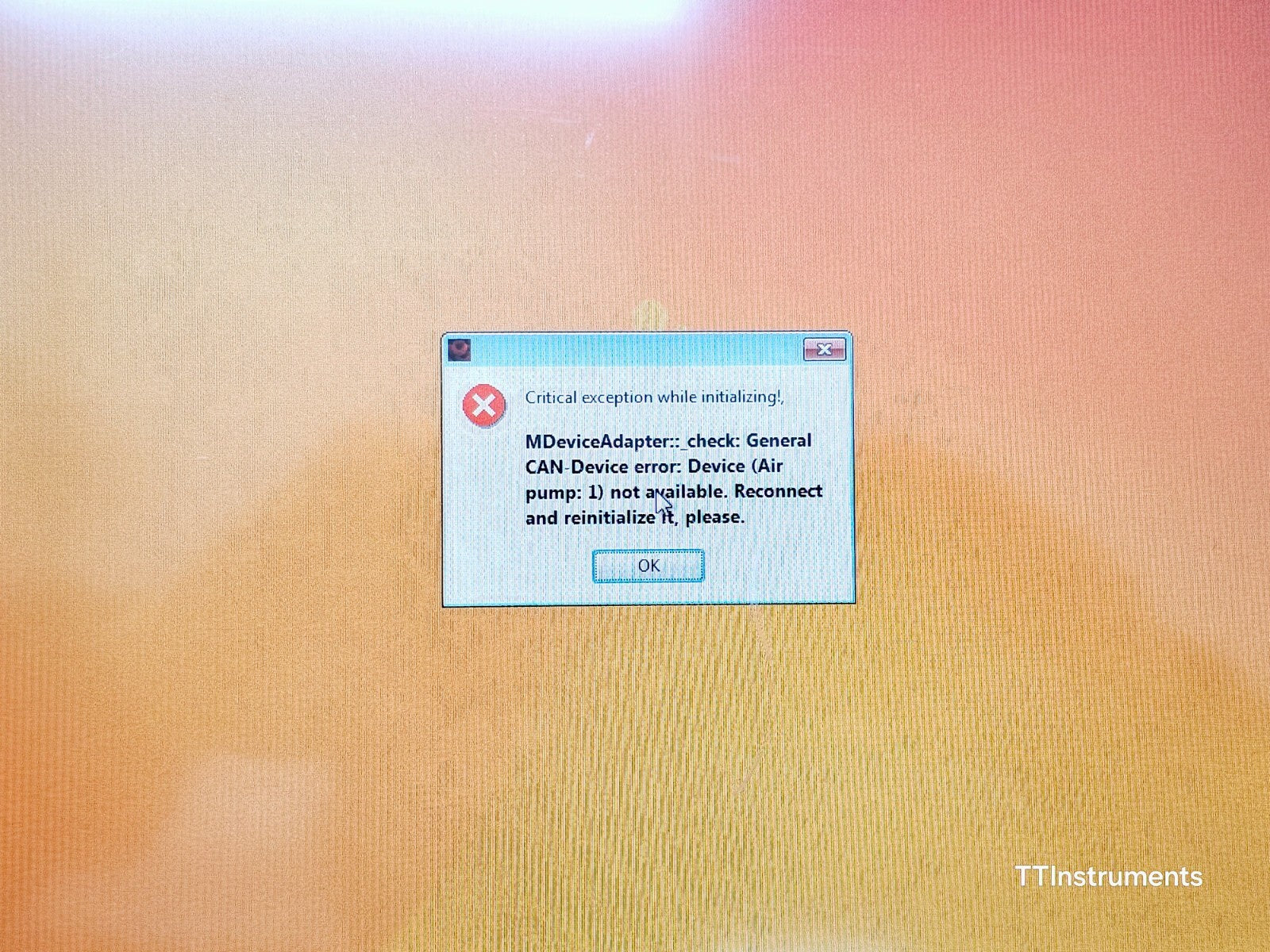

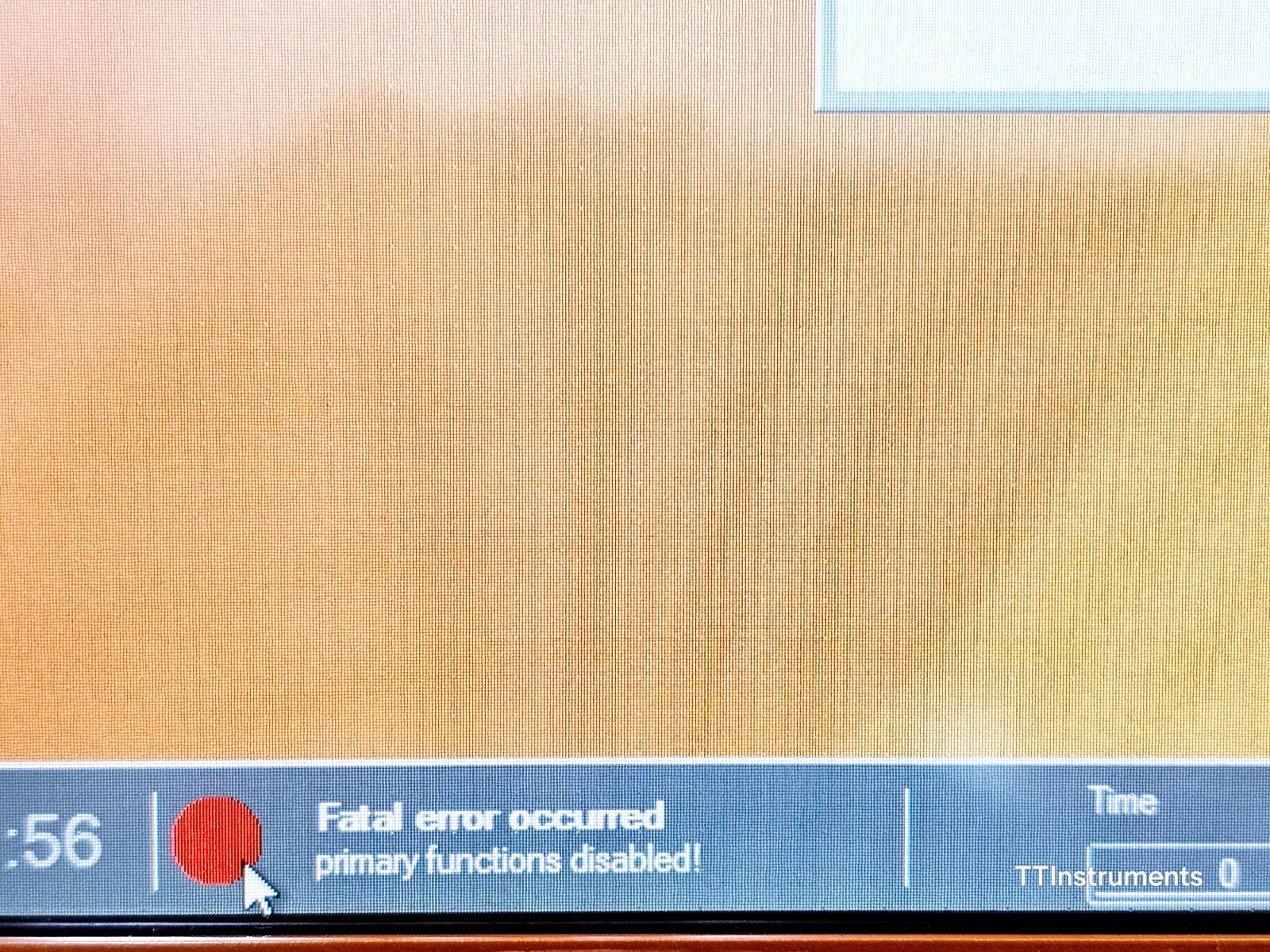

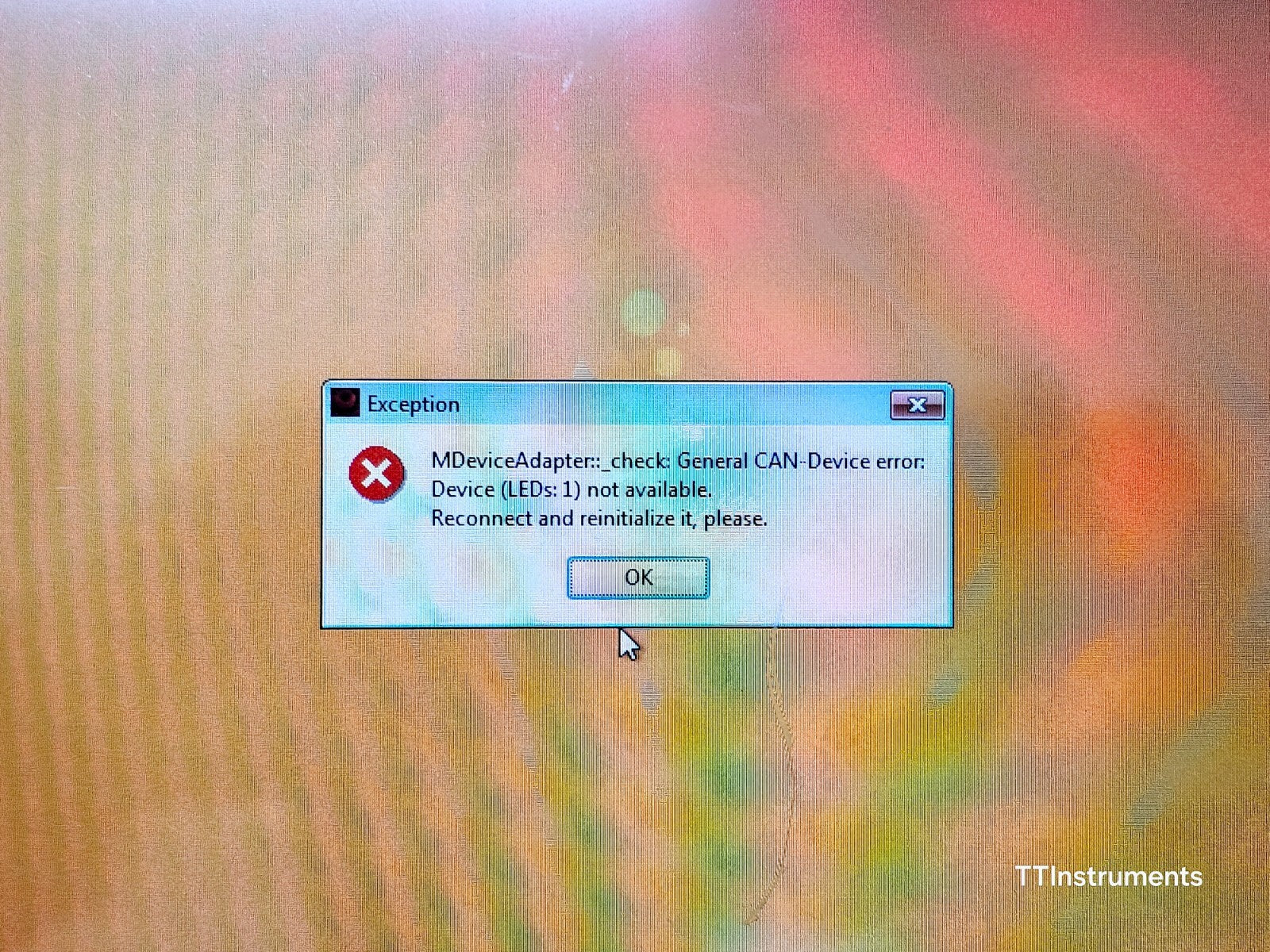

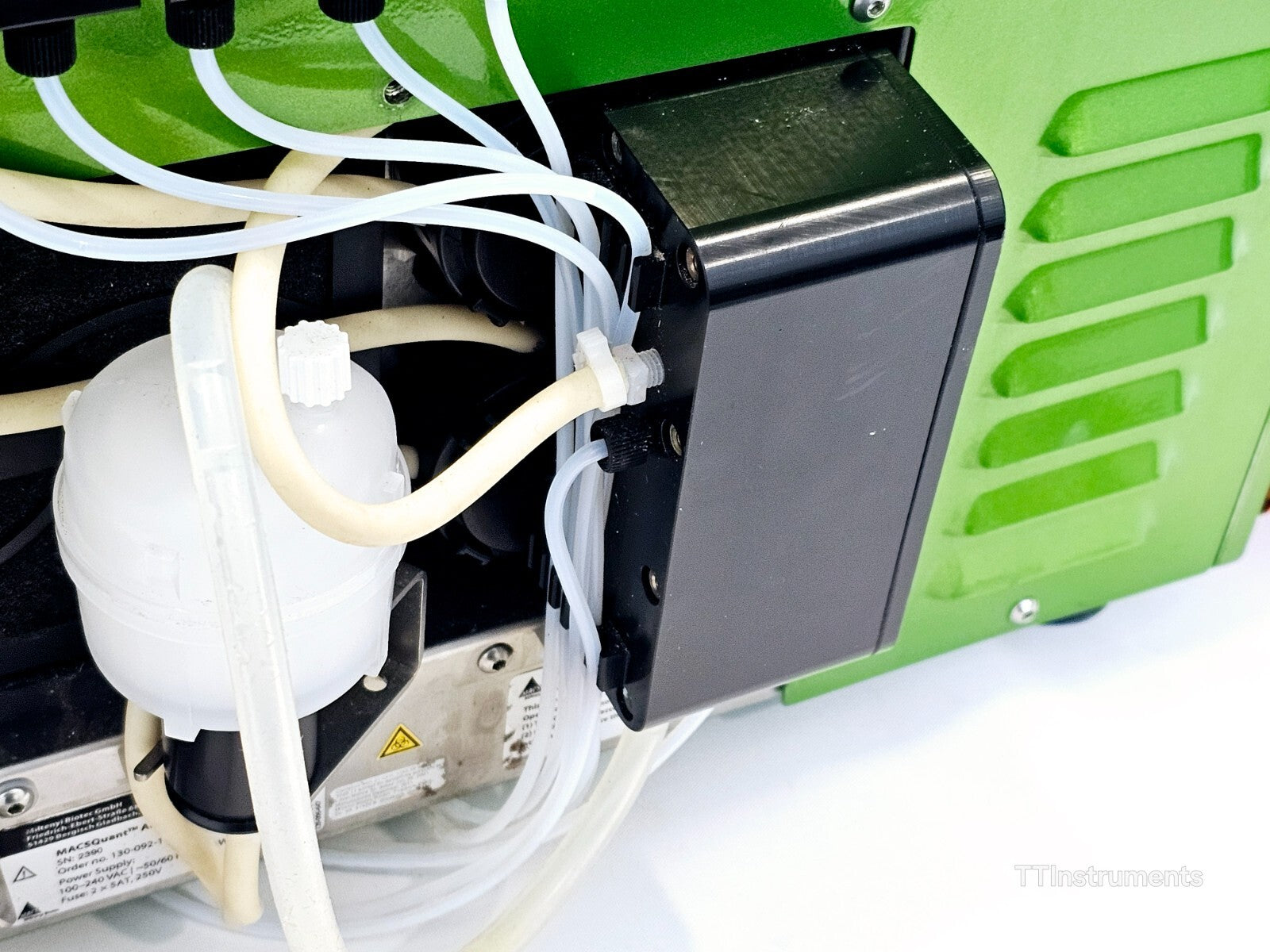

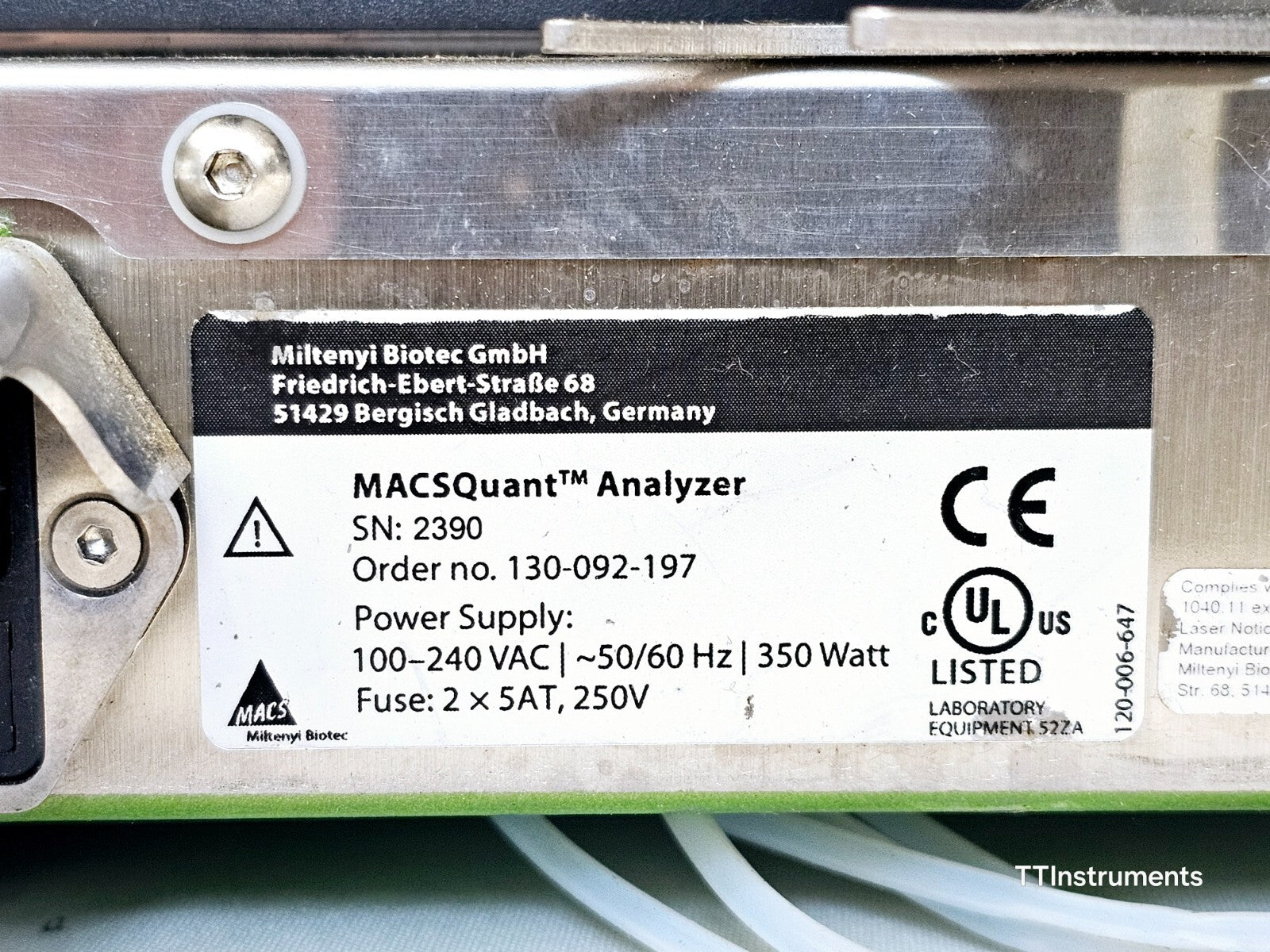

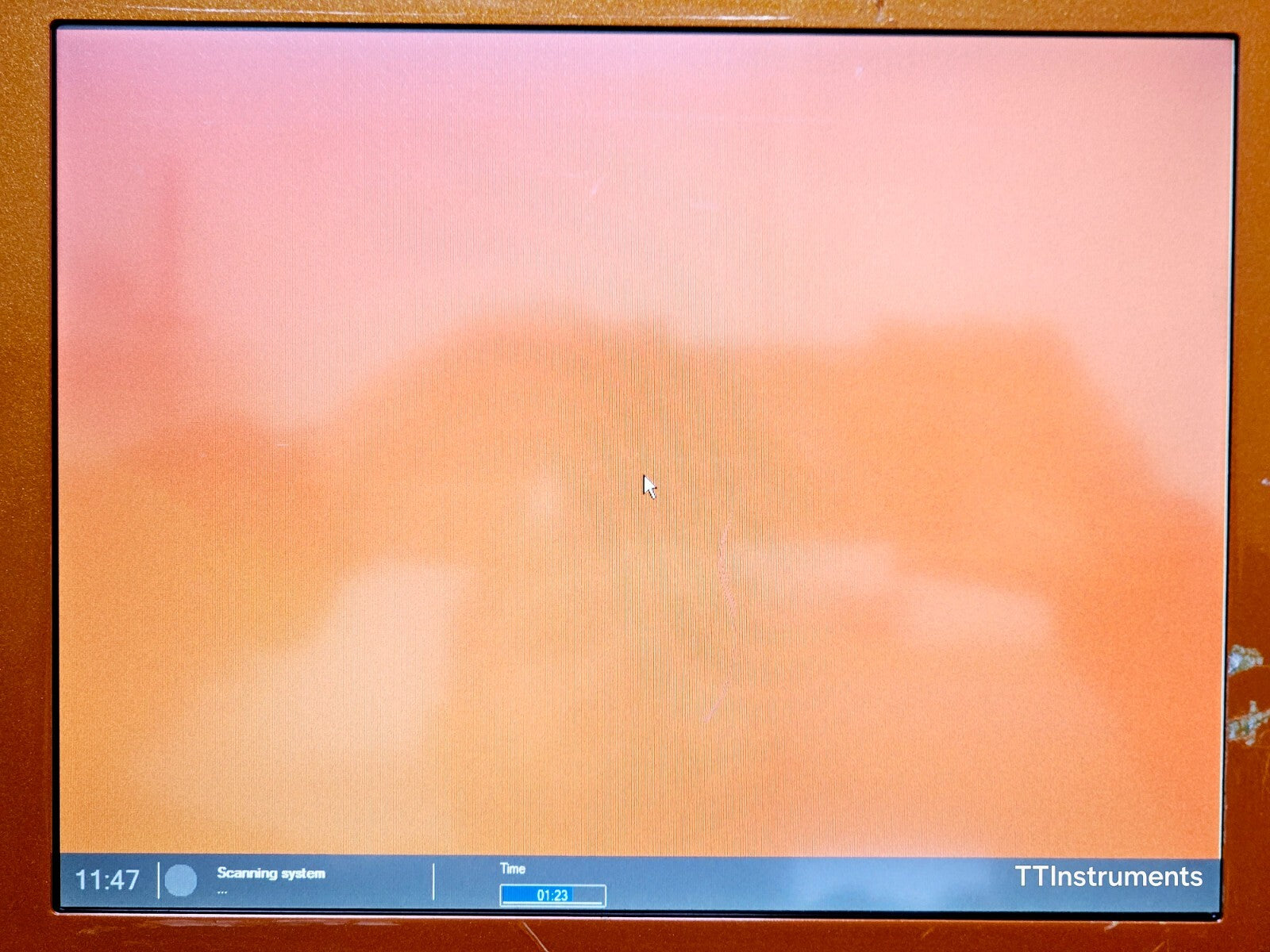

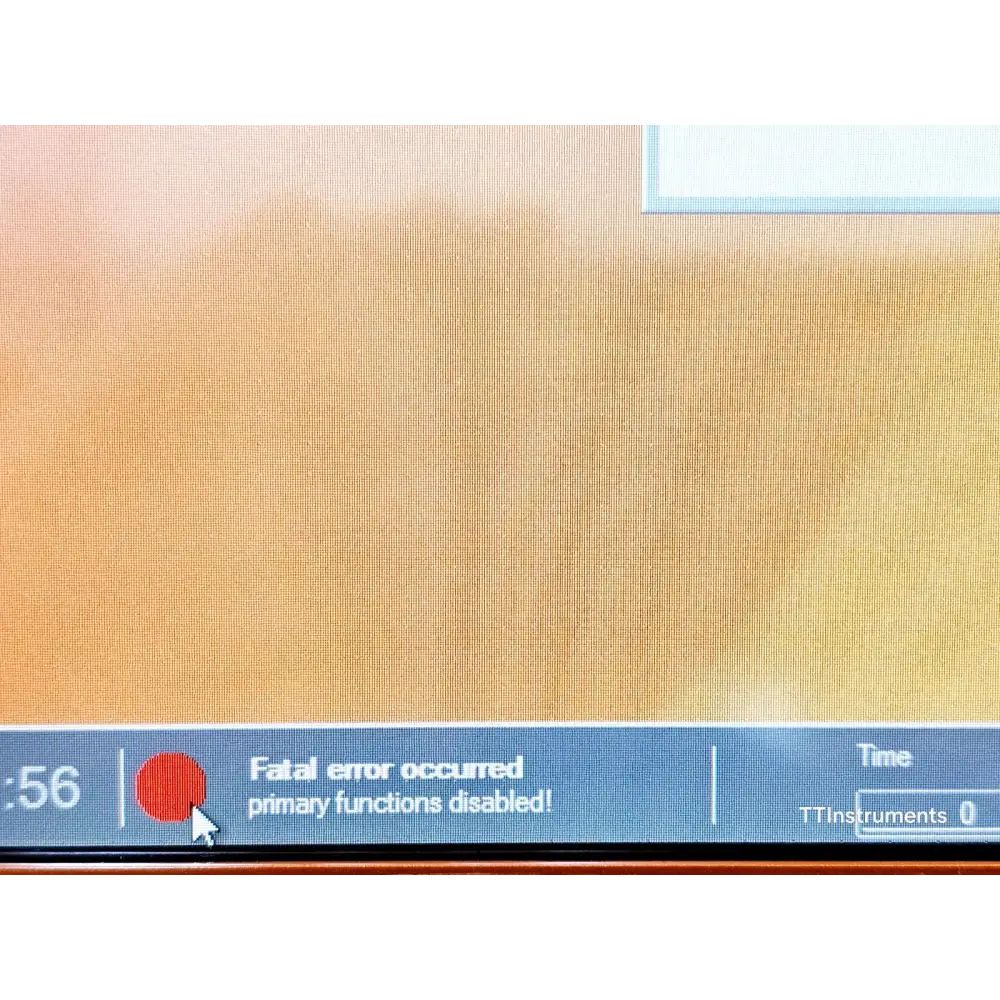

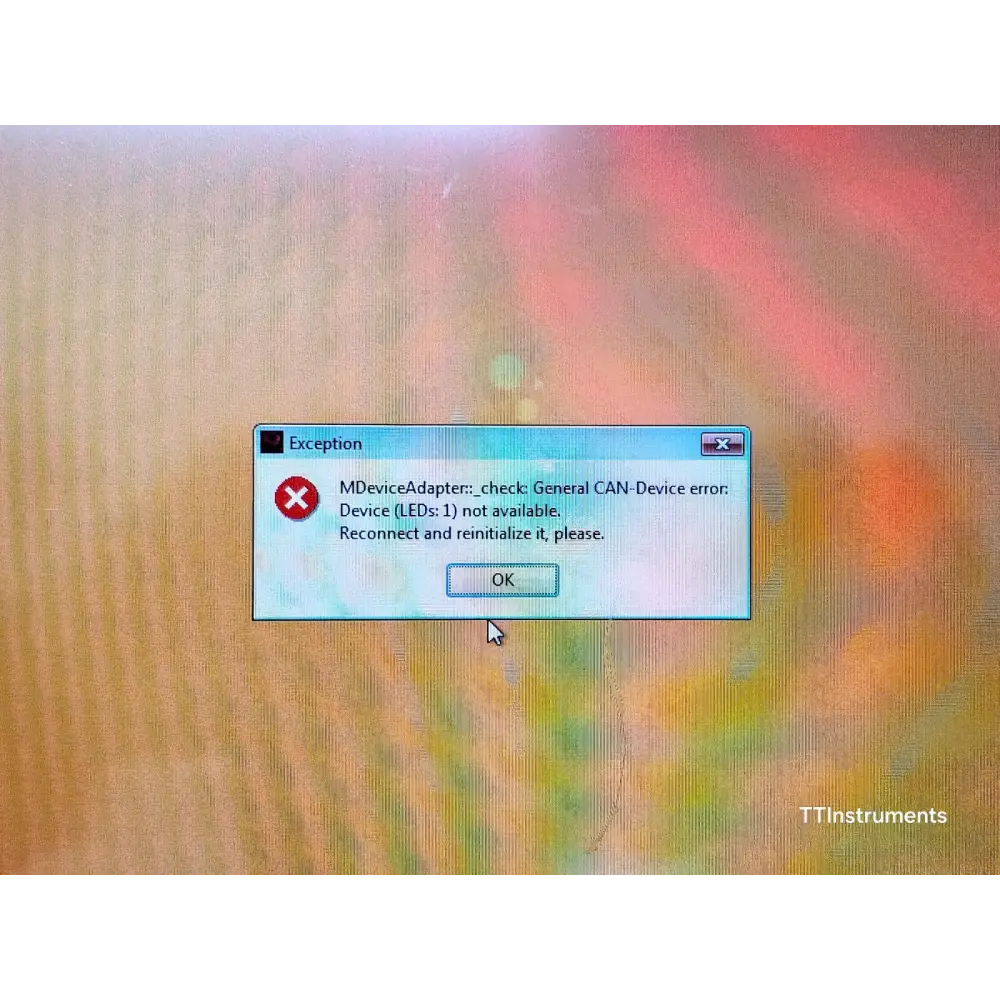

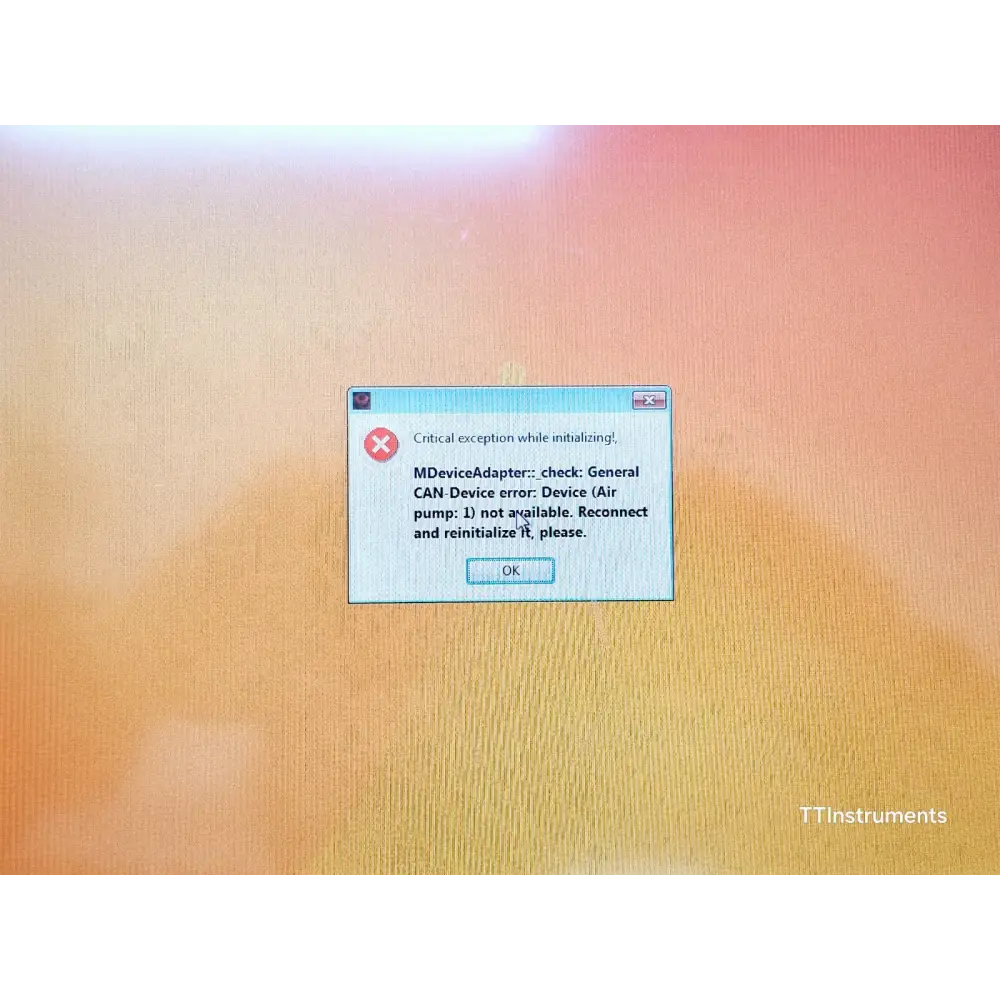

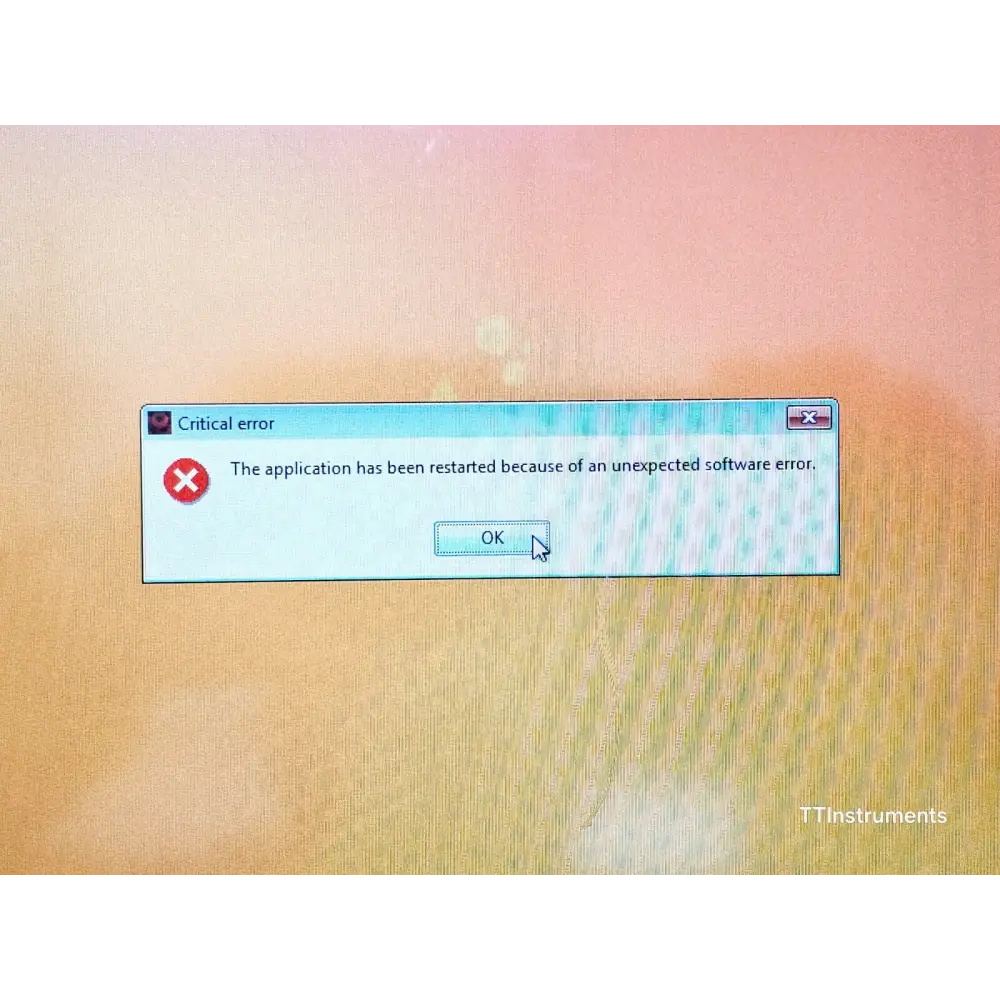

This Miltenyi Biotec MACSQuant Analyzer 10 flow cytometer was manufactured in 2011 (MFD 2011). The instrument powers on but displays error messages; further detail is visible in the accompanying photographs. Offered as a source of spare parts or for a technician to diagnose and repair.

Included items (as described):

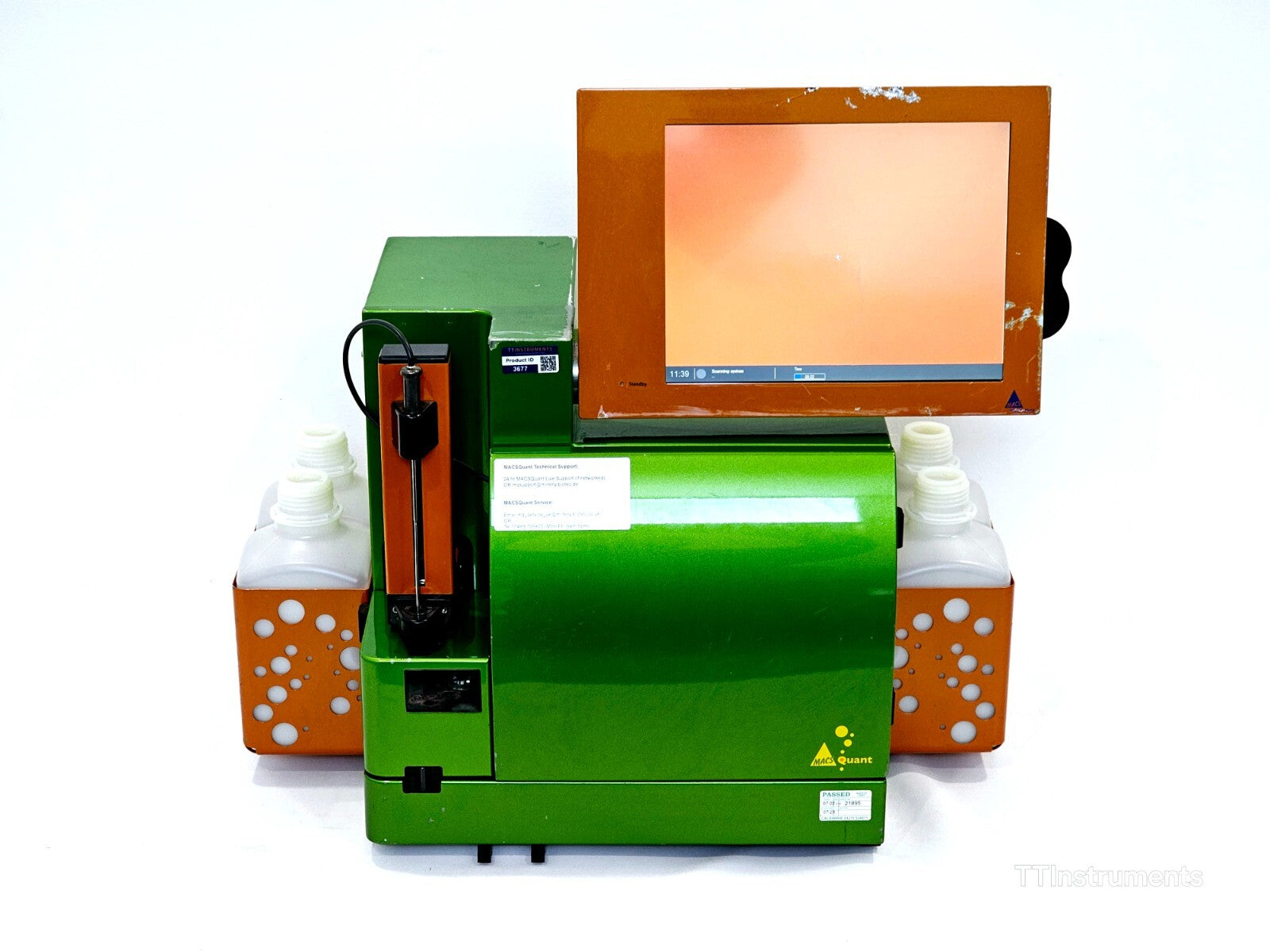

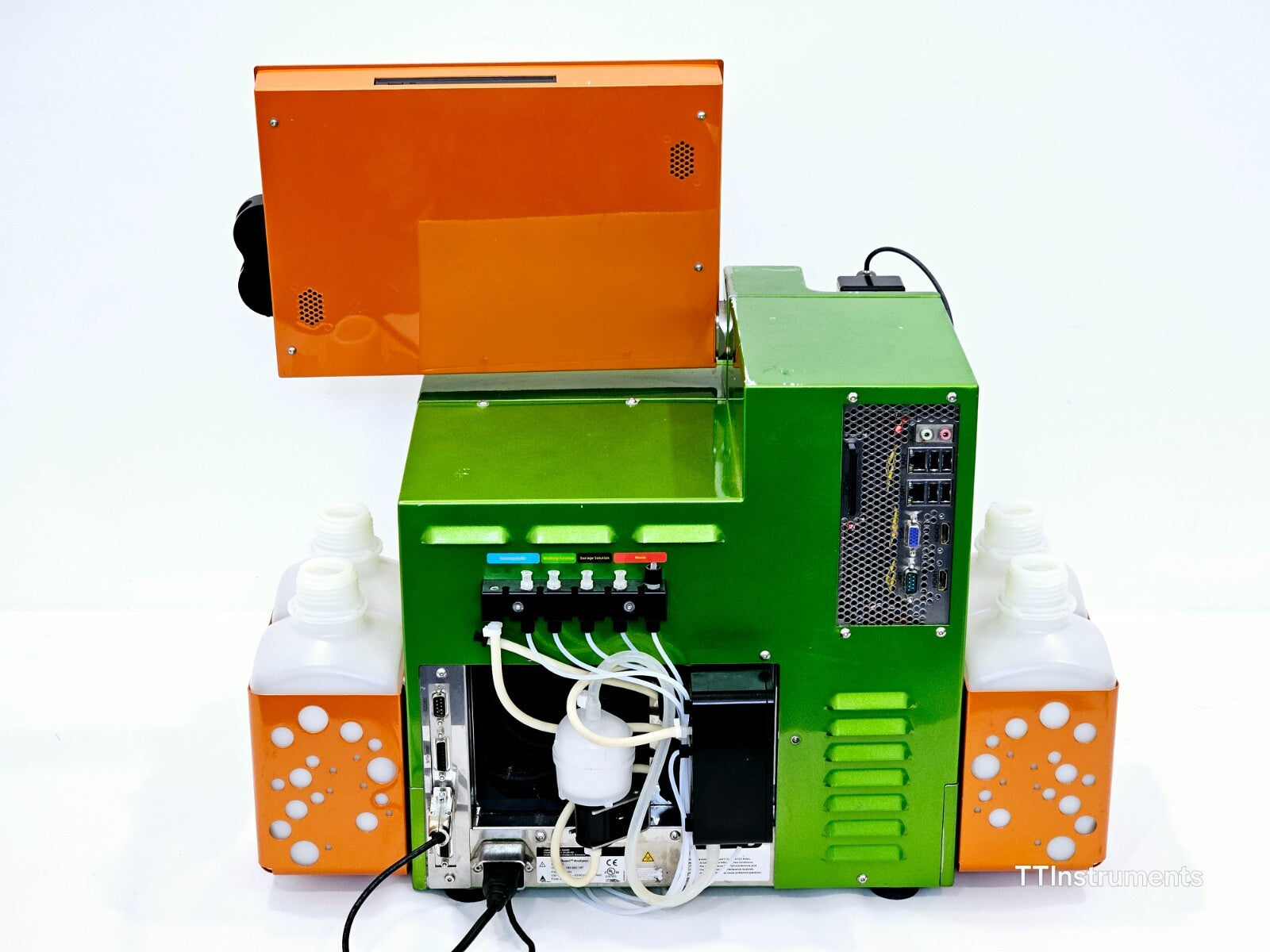

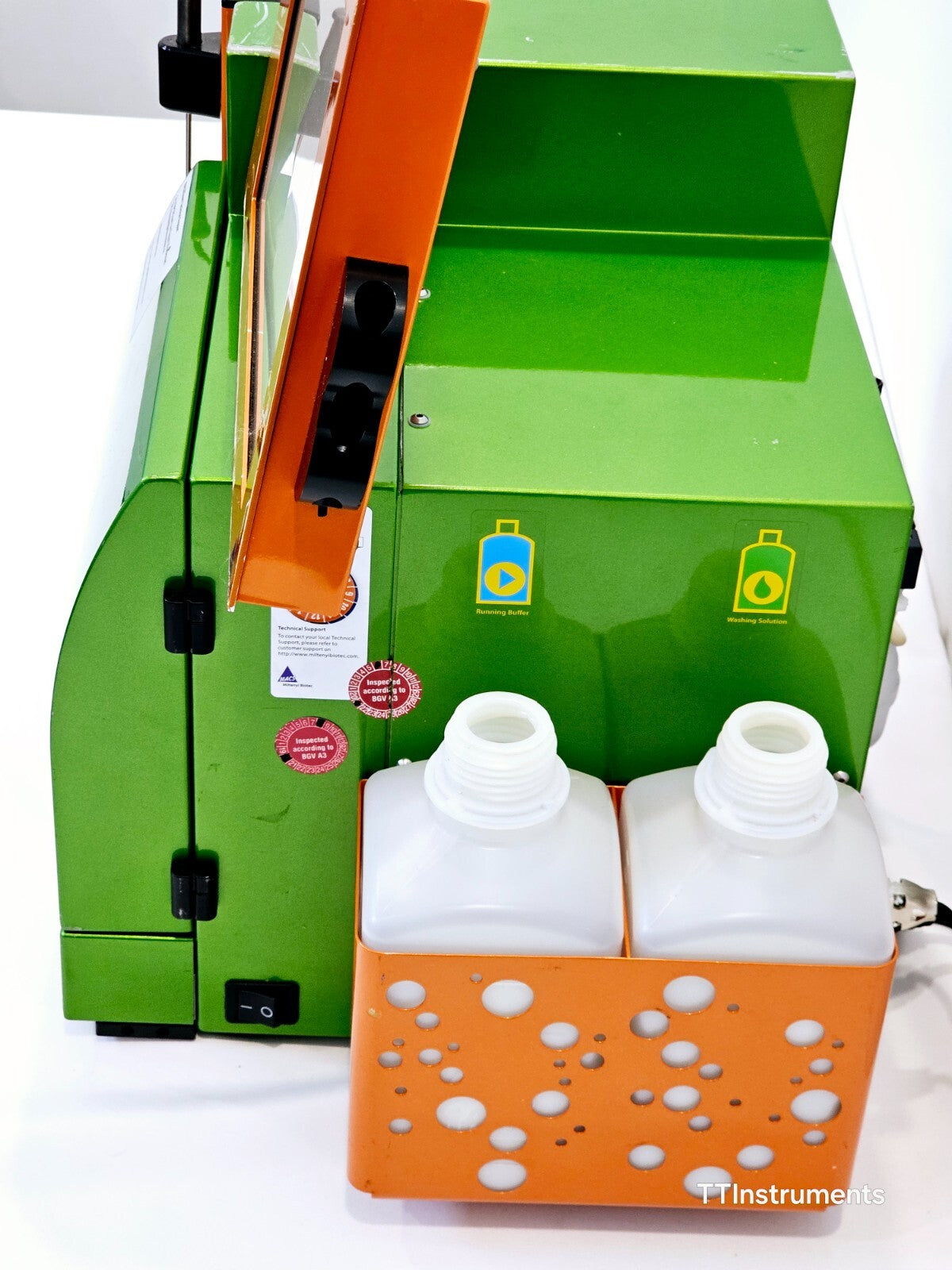

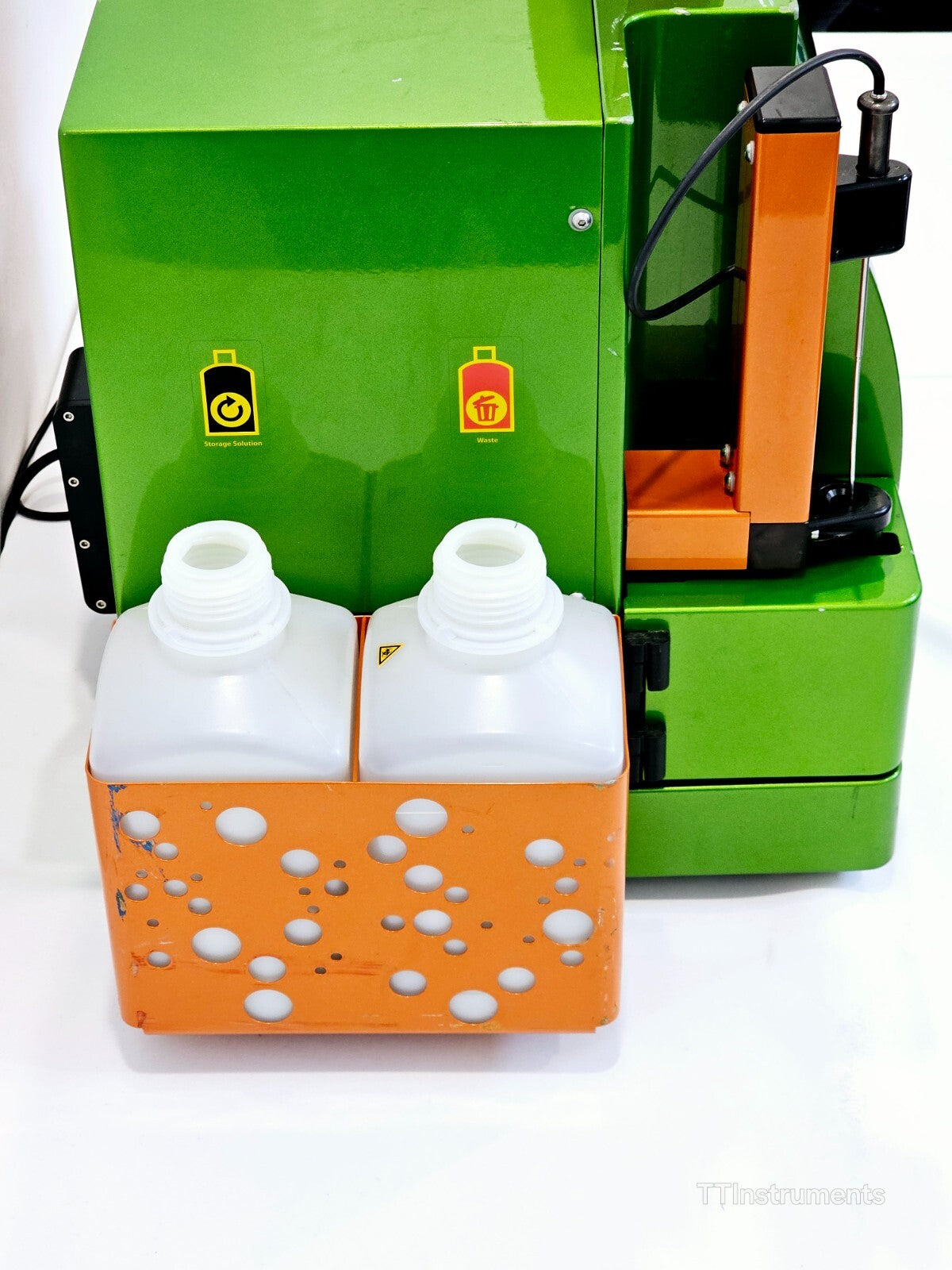

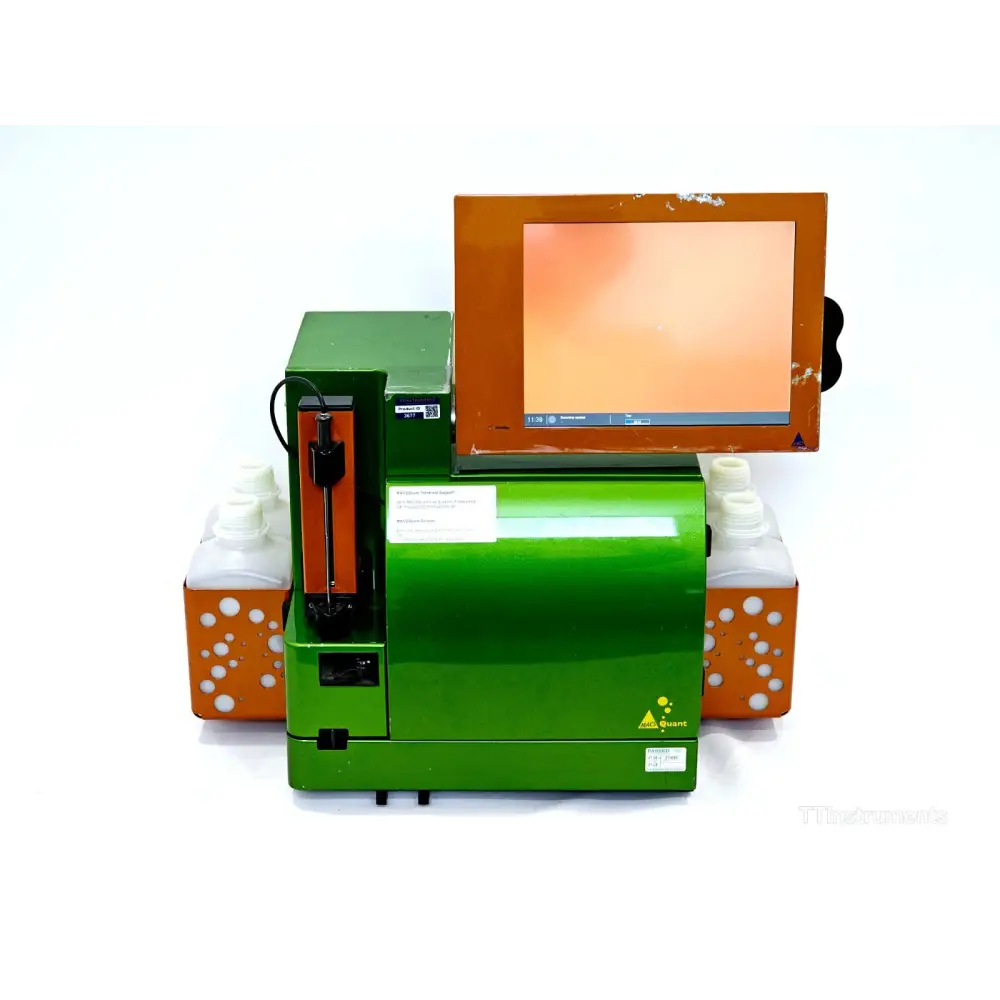

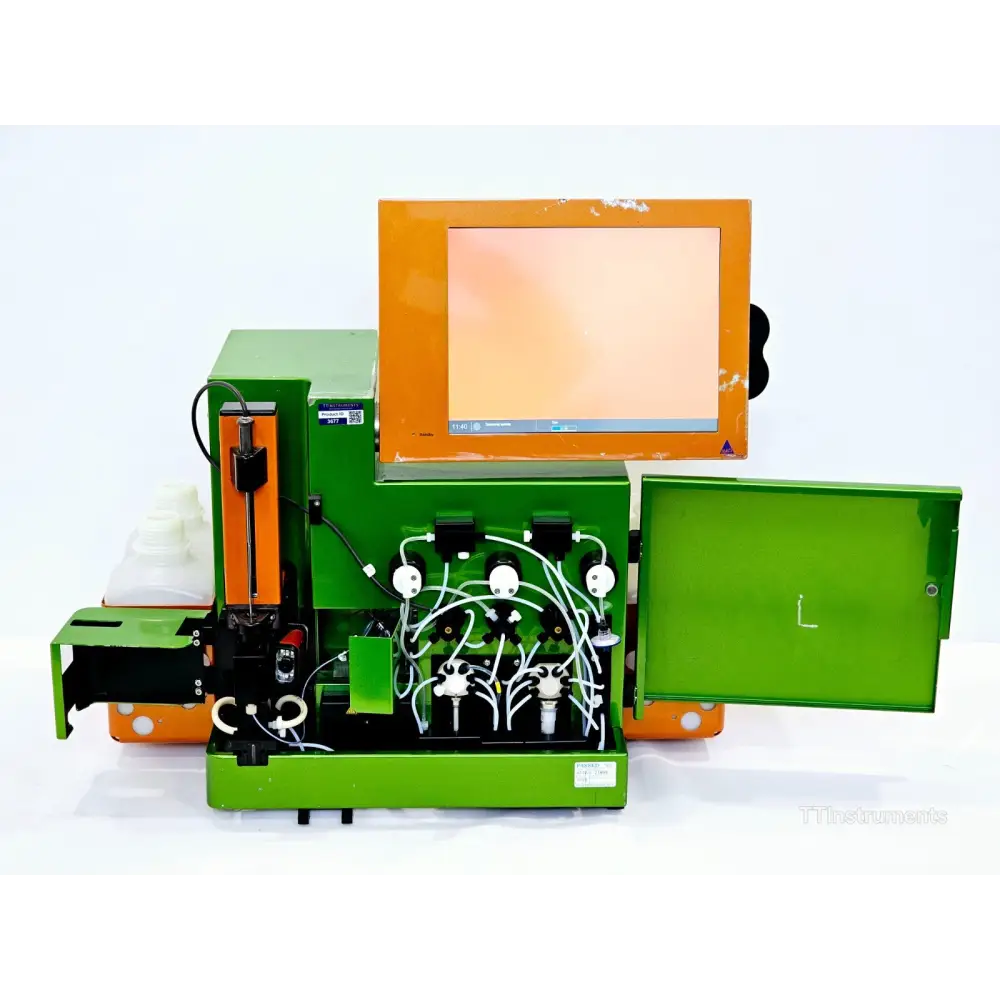

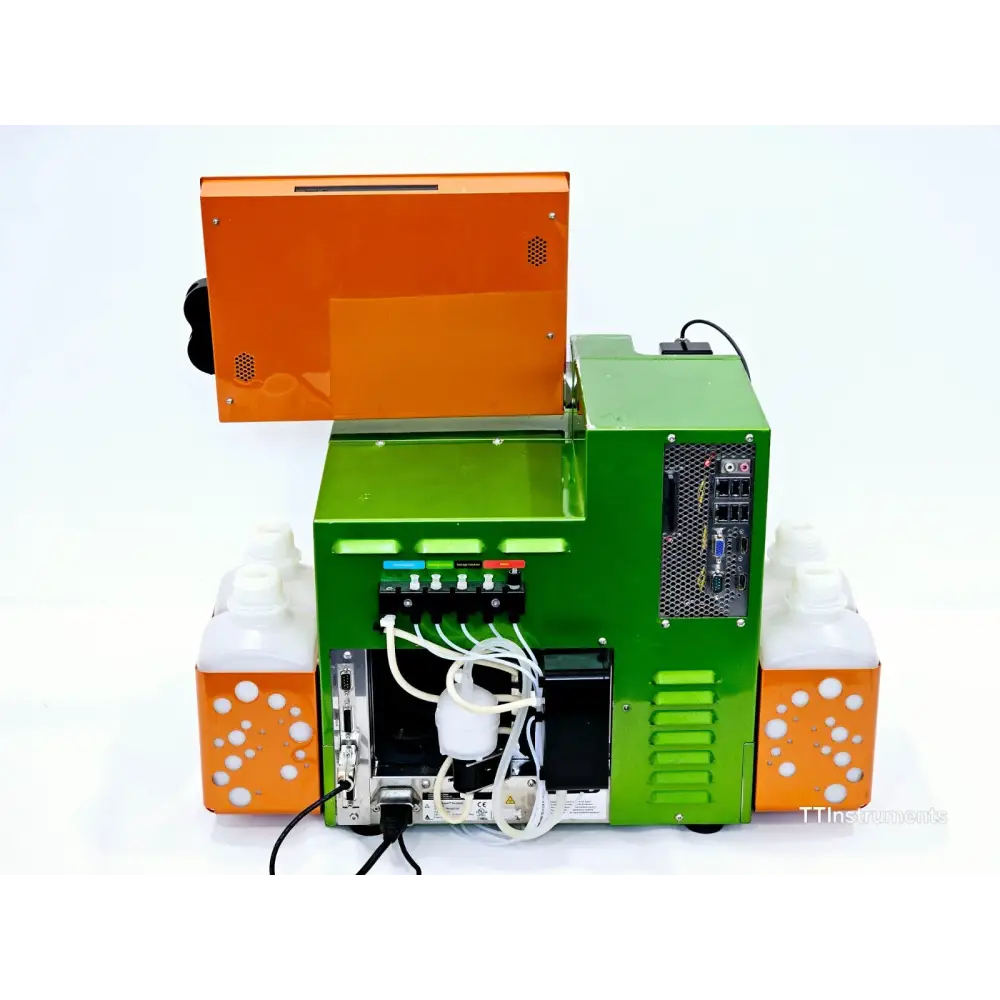

• MACSQuant Analyzer 10 main instrument unit

The Miltenyi Biotec MACSQuant Analyzer 10 (order no. 130-096-343) is a compact benchtop digital flow cytometer equipped with three lasers, 10 optical channels, and intuitive MACSQuantify software to facilitate rapid and automated cellular analysis. Its robust fluidics design and fixed optical bench deliver consistency and reproducibility across all assays. The instrument is well suited to immunophenotyping, rare cell detection, cell manufacturing quality control (including CAR-T cell manufacturing), cell biology, neuroscience, systems biology, and general life-science research.

Optics:
Laser excitation: 405 nm (40 mW diode), 488 nm (30 mW DPSS), 640 nm (20 mW diode)
Emission channels: FSC (488/10 nm), SSC (488/10 nm), V1 (450/50 nm), V2 (525/50 nm), B1 (525/50 nm), B2 (585/40 nm), B3 (655–730 nm), B4 (750 nm LP), R1 (655–730 nm), R2 (750 nm LP)
Optical alignment: Fixed tree-like configuration — no user adjustments required
Fluorescence sensitivity (MESFs, CV <5%): FITC <200, PE <100, APC <150
Flow cell dimensions: 200 × 250 µm
Fluorescence performance: 5-decade logarithmic scale (10⁻² to 10³), displayed in lin, log, or hlog scales

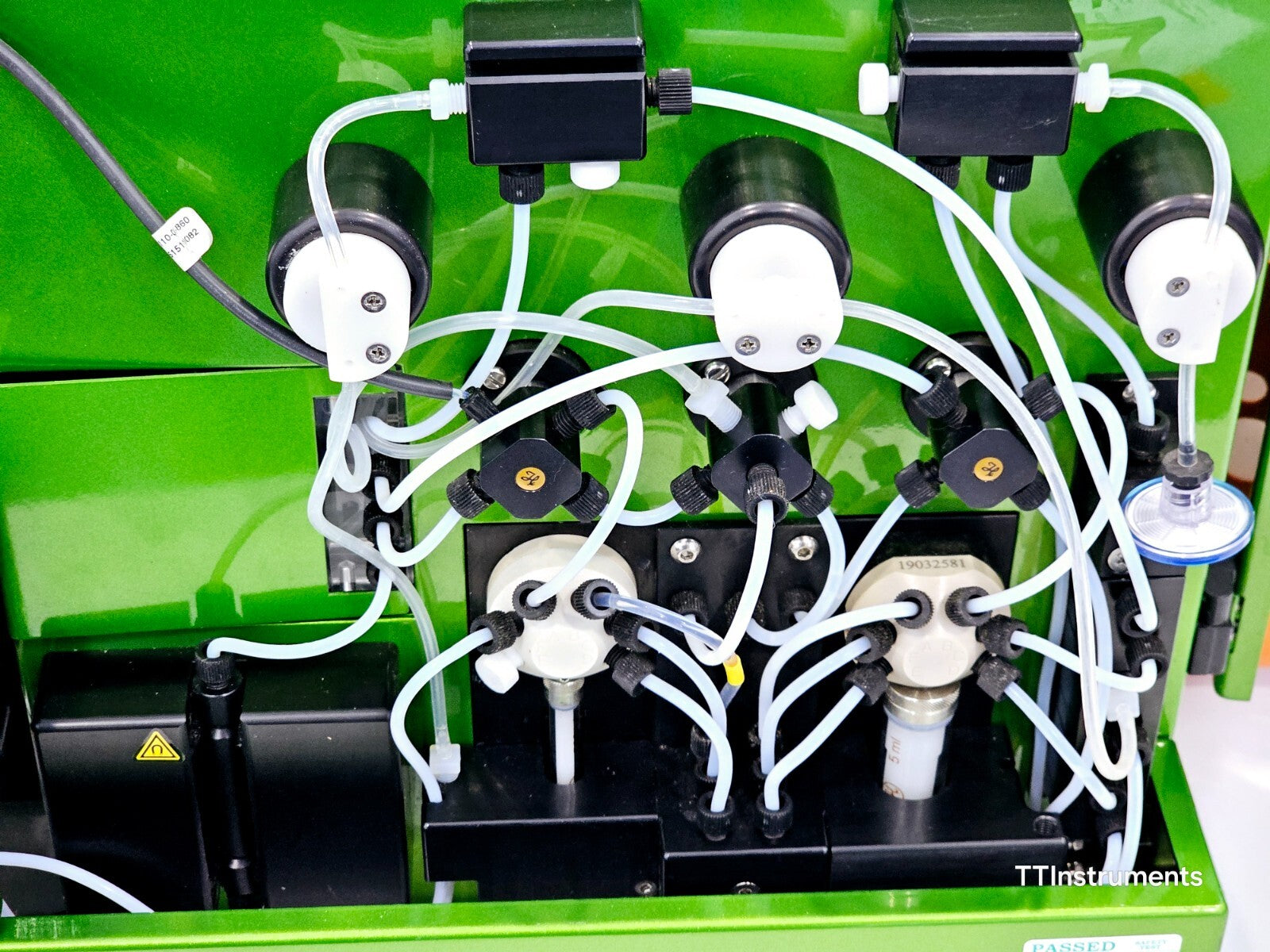

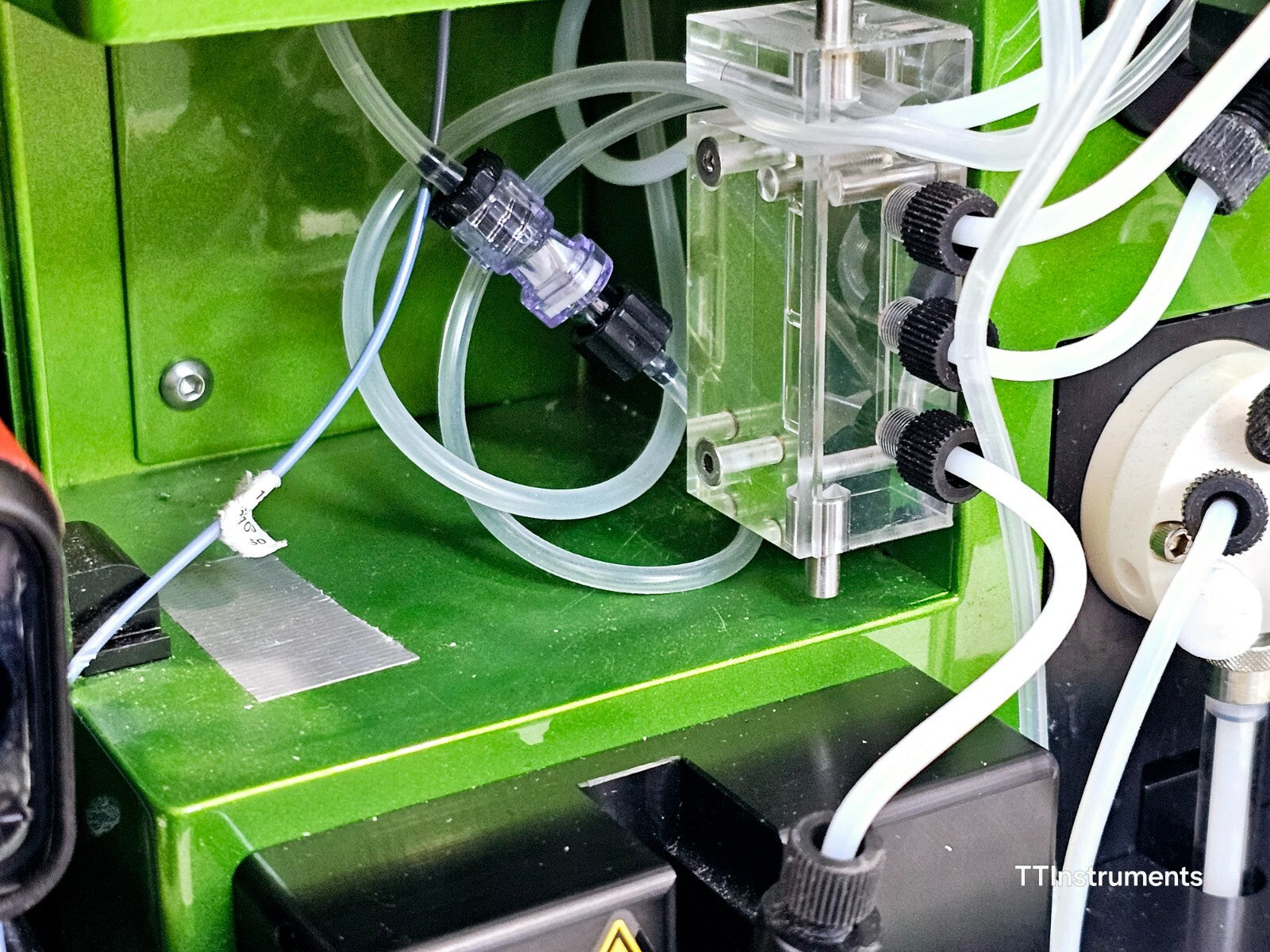

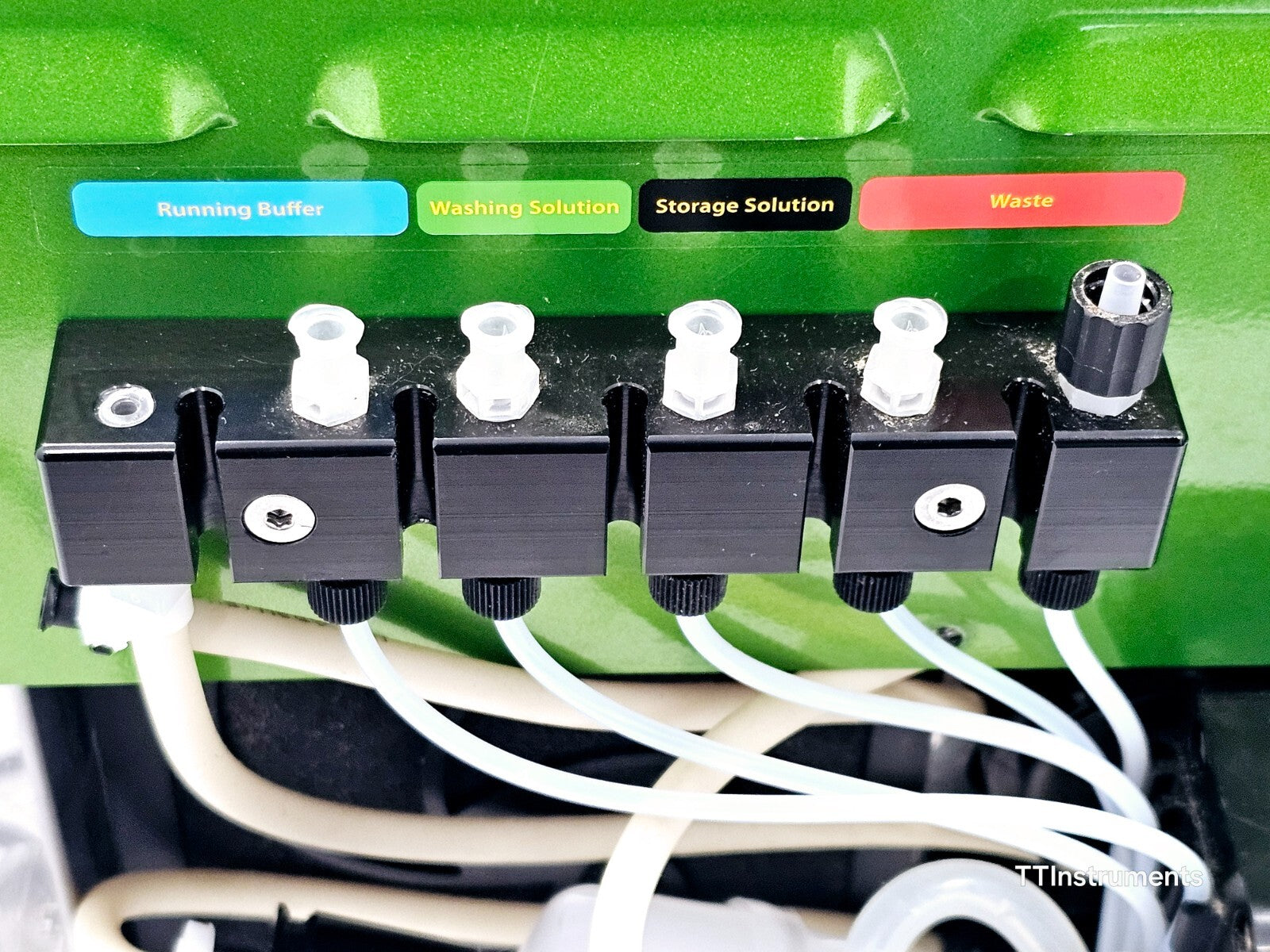

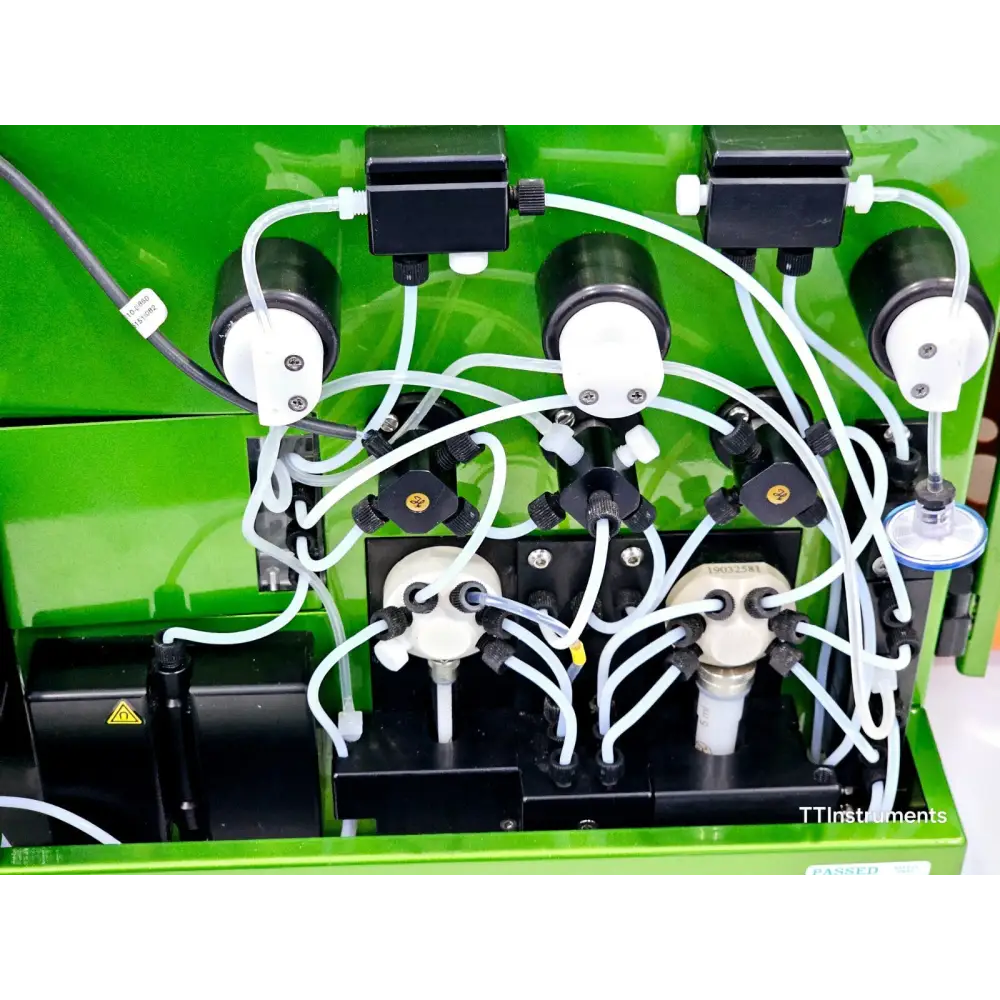

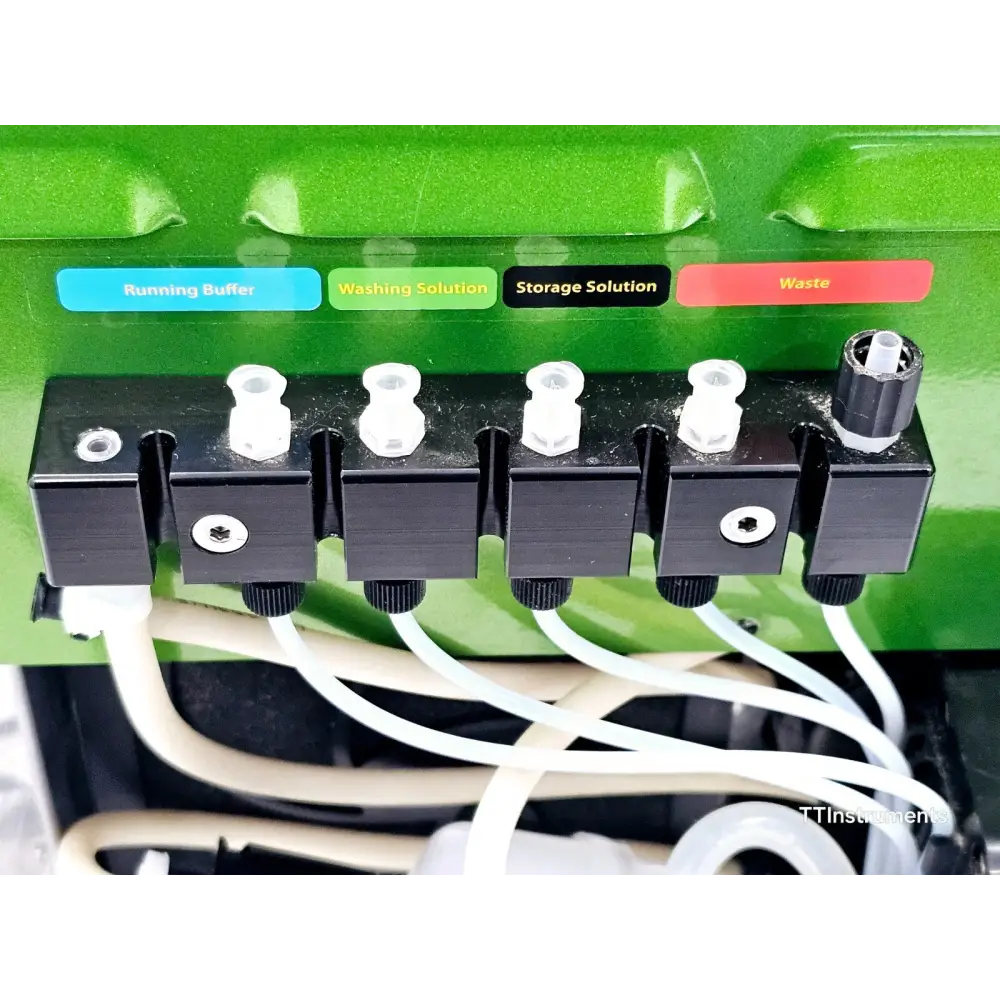

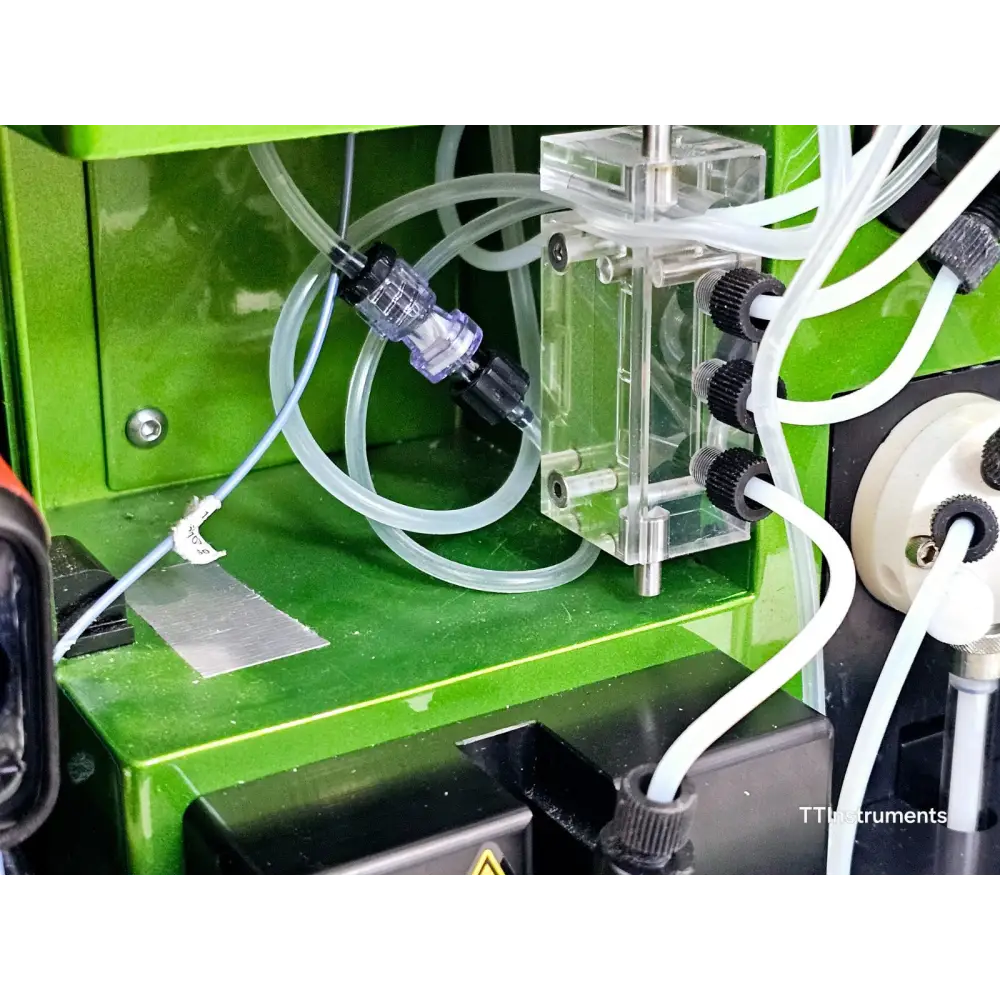

Fluidics:
Minimal uptake volume: 1 µL (25 µL recommended for volumetric counting)
Minimum sample particle size: 1 µm (recommended)
Sample flow rate: 25, 50, or 100 µL/min; or automated to maintain 500, 1,000, or 2,000 events/second
Maximum event rate: Up to 10,000 events/second
Maximum measurement rate: <25 minutes per 96-well plate (5 µL per well)
Sample carry-over: 0.01%

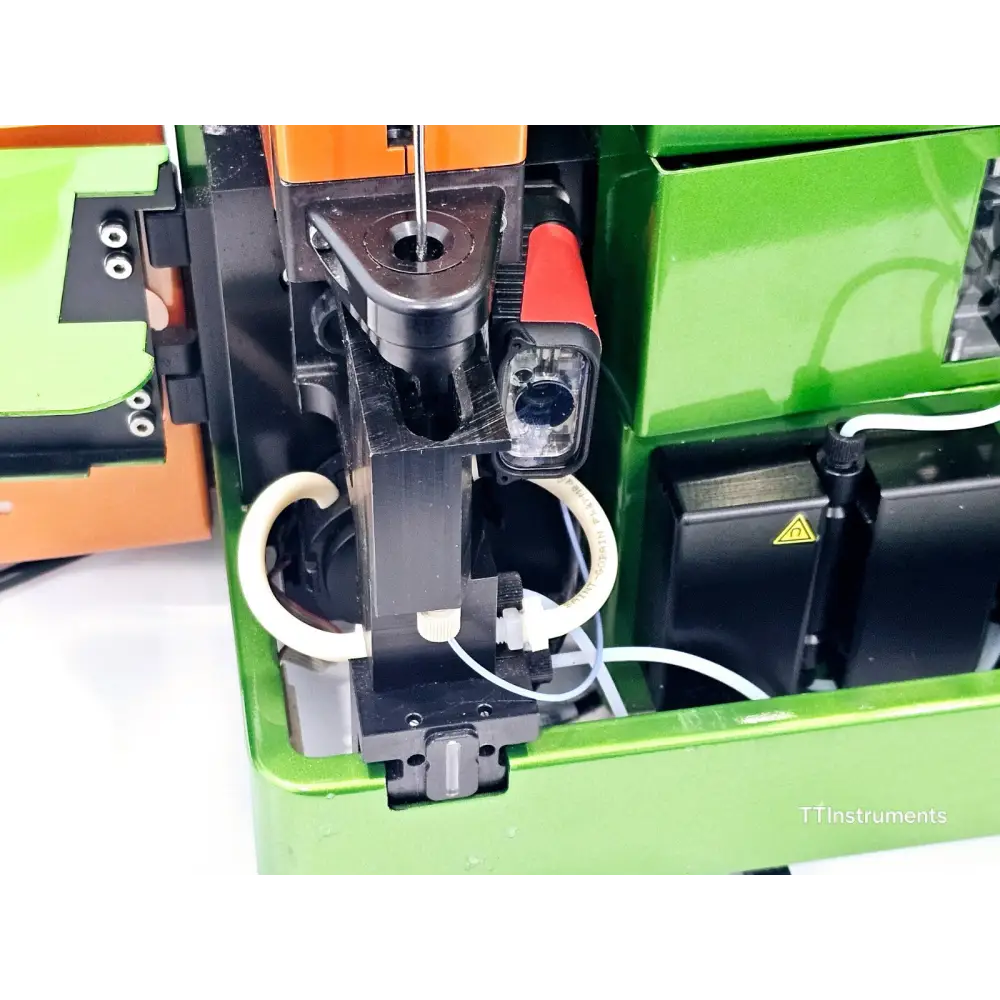

Sample uptake: Robotic uptake port (y/z axis) with automated washing station
Sheath fluid consumption: 2–10 mL/minute

Data & Software:
Operating system: Microsoft Windows / MACSQuantify Software
Data files: .mqd (proprietary), .fcs (2.0, 3.0, 3.1 compatible)
Compensation: Automated, or manual with 8×8 matrix, during or after acquisition
Trigger: Threshold settable on any channel

Physical:
Dimensions (W × D): 605 × 400 mm (23.8 × 15.7") without MiniSampler
Weight: 50 kg (110 lbs)

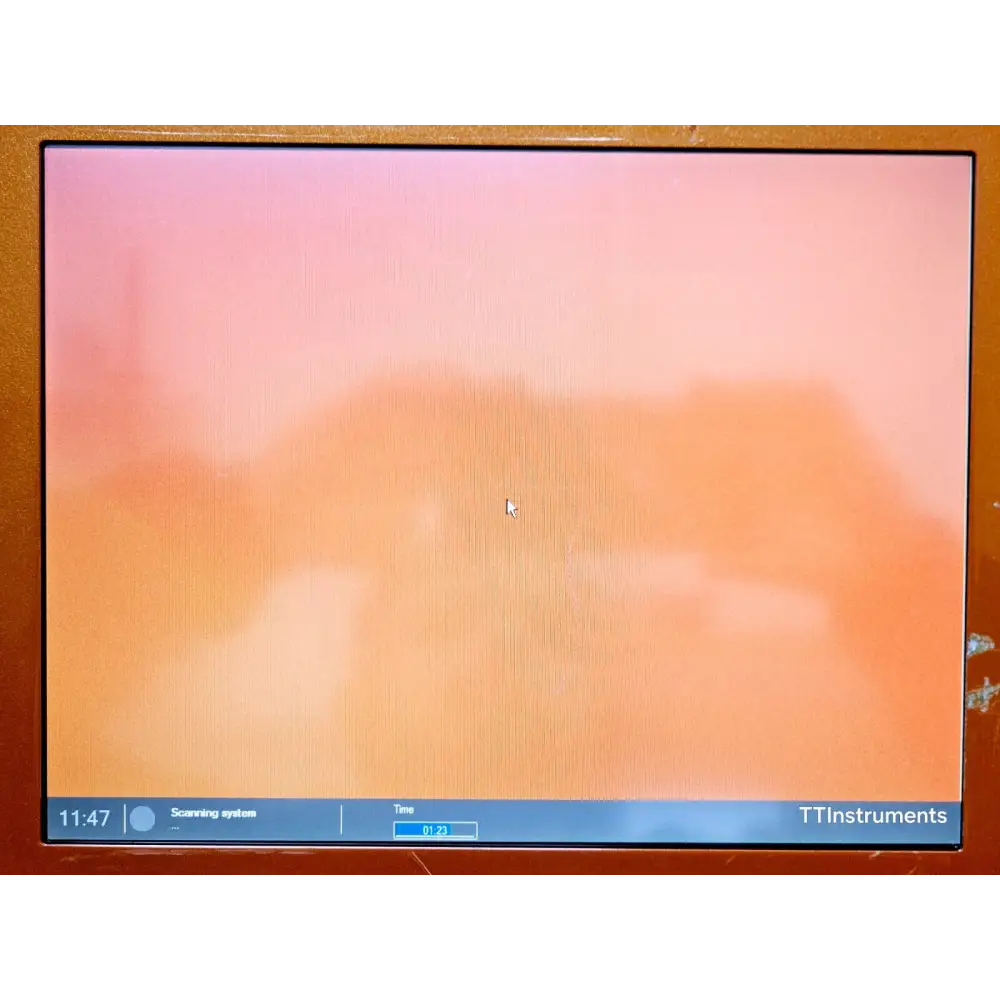

Monitor: 15.6" integrated touchscreen

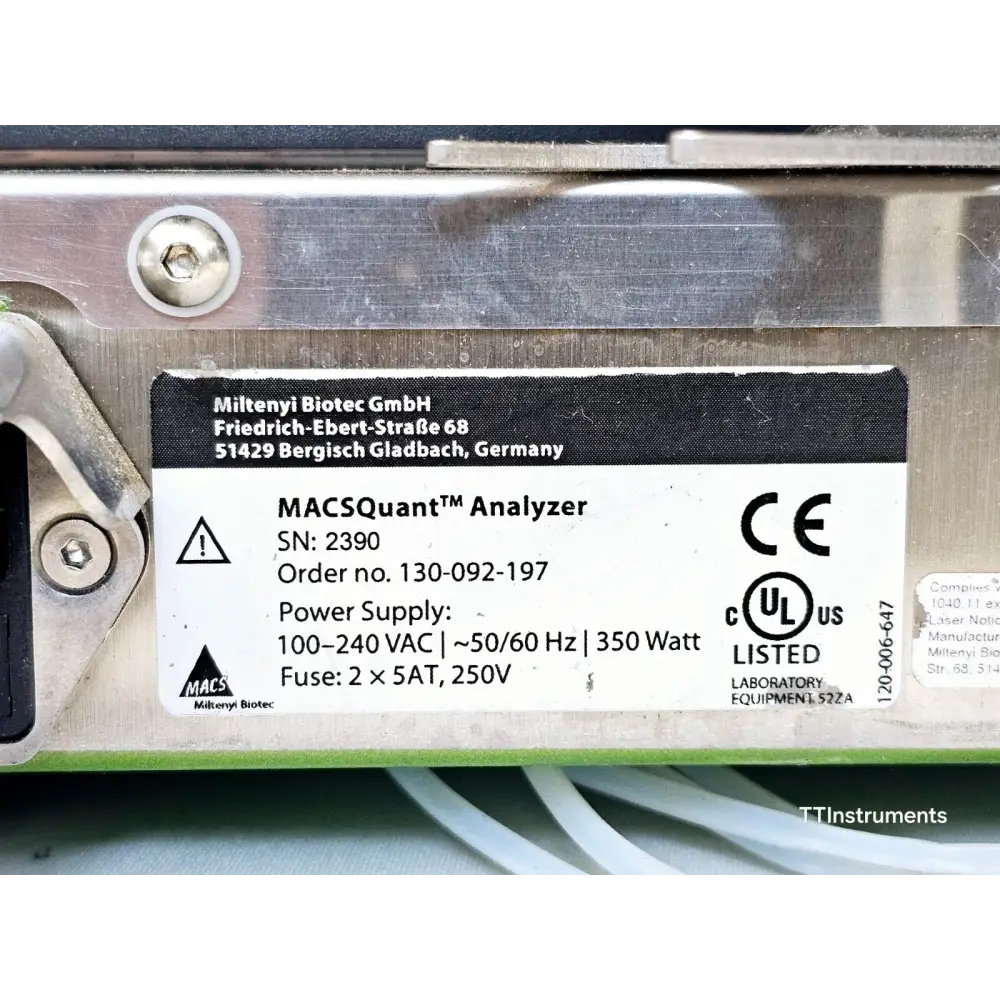

Power requirements: 100–240 VAC, 50/60 Hz
Power consumption: 350 W

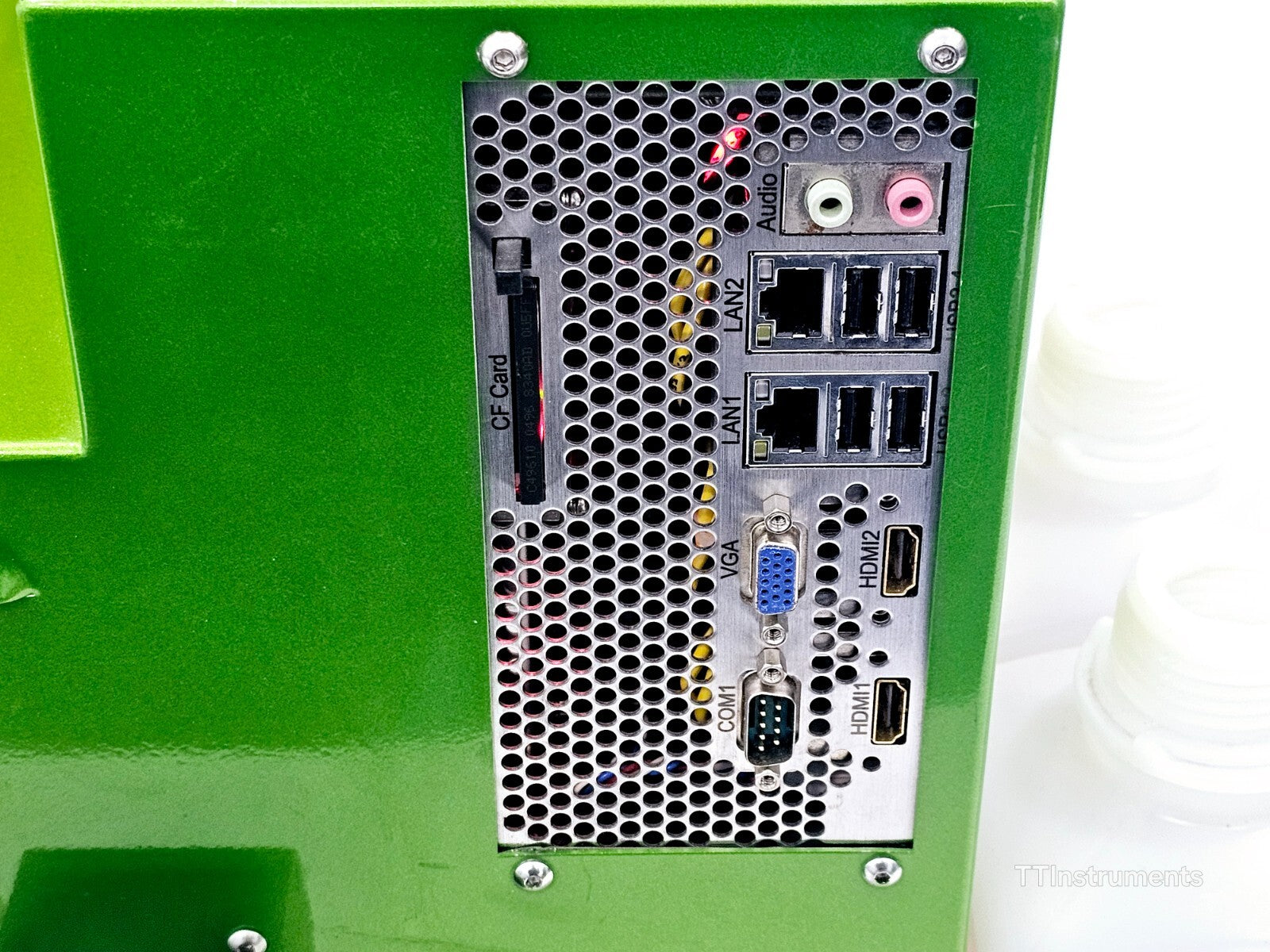

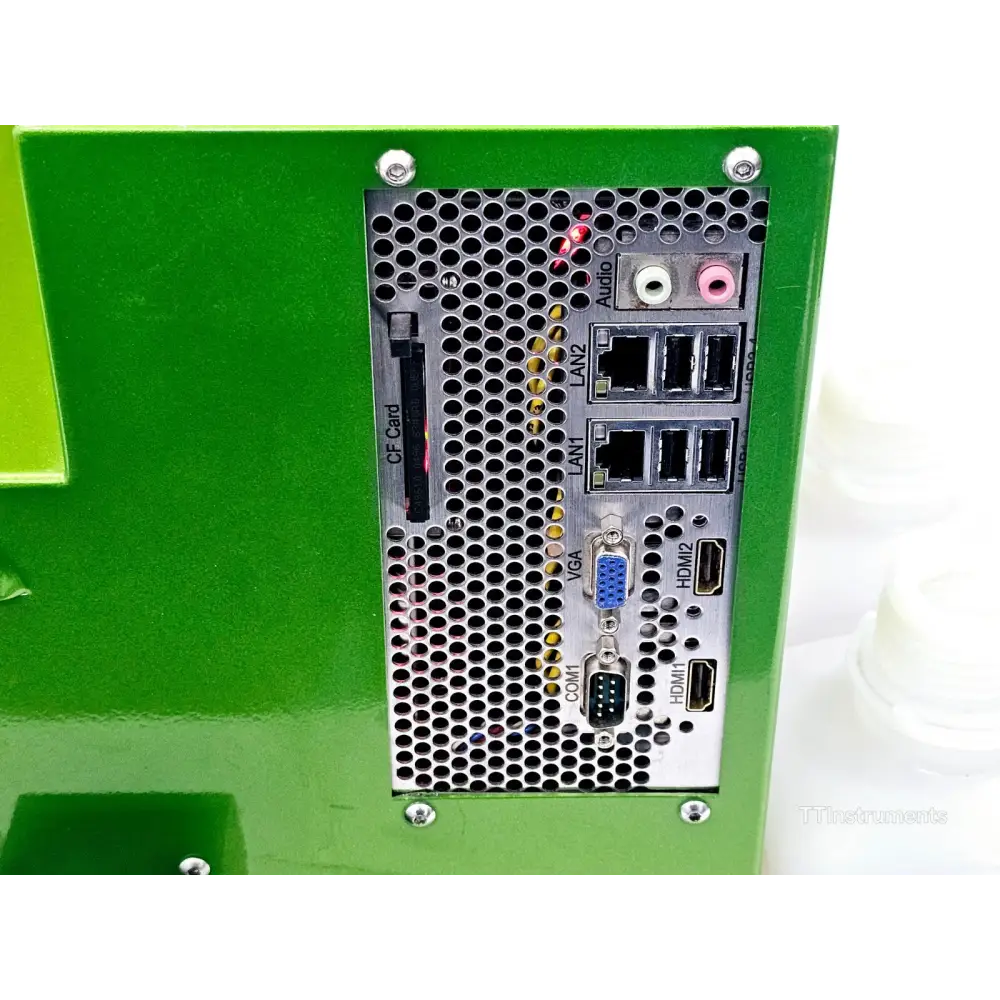

Ports: 4× USB 2.0, 2× DisplayPort, VGA, LAN
Noise level: <70 dB(A) at workstation
Certification: CE-marked

System maintenance: Automated startup, PMT calibration, cleaning cycles, and shutdown routines.

MACSQuant Analyzer 10 official instrument specifications datasheet (Miltenyi Biotec, 2023): Download PDF

MACSQuant Analyzer 10 instrument specifications datasheet (Dartmouth/Miltenyi, 2013): Download PDF

MACSQuant Analyzer 10 instrument specifications sheet — University of Missouri mirror (June 2018): Download PDF

MACSQuantify Software 2.11 User Manual — covers MACSQuant Analyzer 10 operation (Miltenyi Biotec): Download PDF

MACSQuant Instrument User Manual Version 5 (University of Vermont mirror): Download PDF

MACSQuant Analyzer 10 product brochure — flow cytometry solutions overview (UConn Health mirror): Download PDF
