Condition: Used

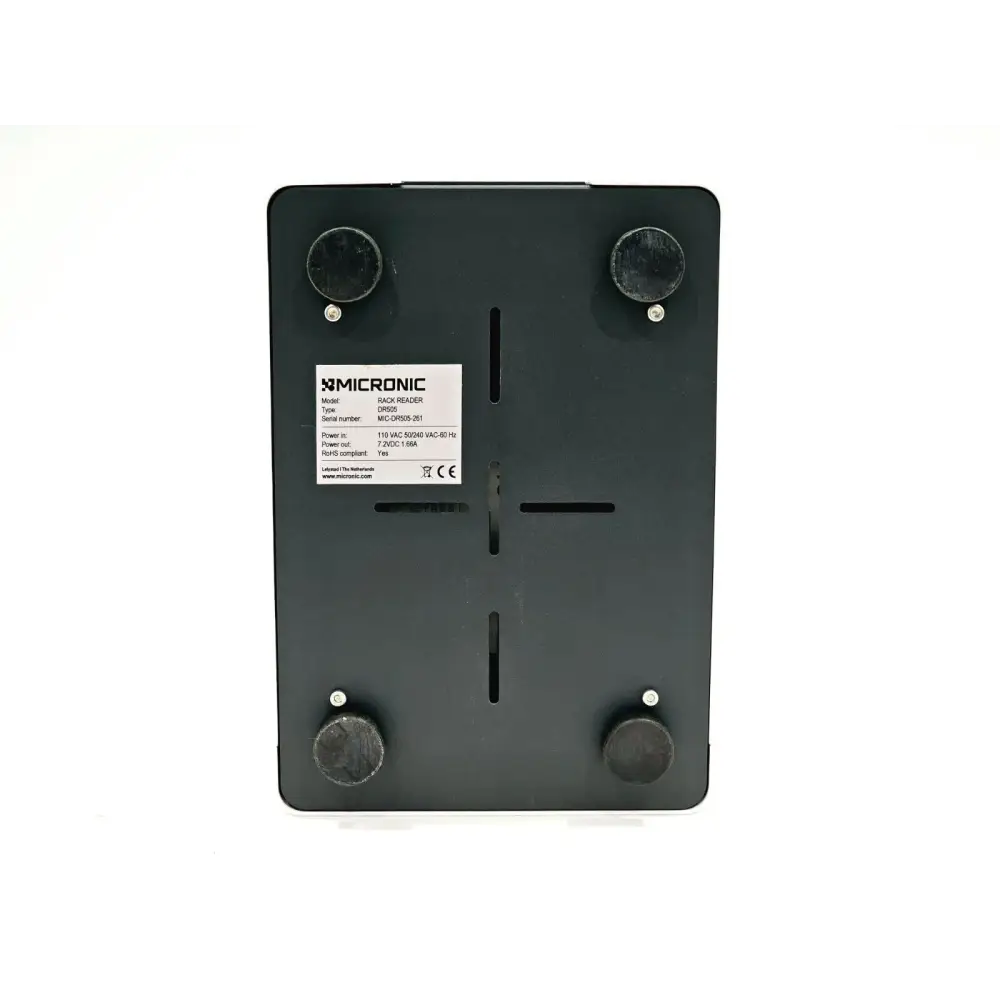

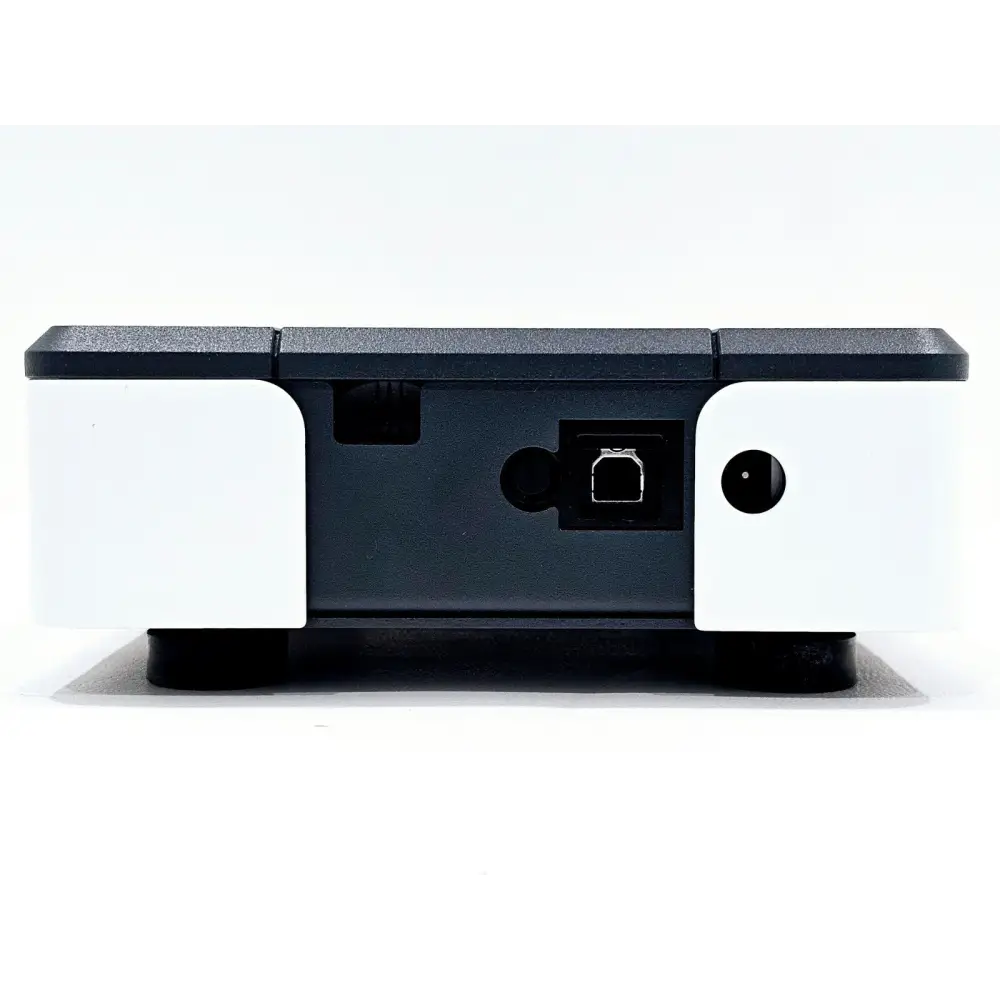

This Micronic DR505 Rack Reader is in good working condition and is supplied complete with its Side Barcode Reader (MP35240, Leuze CR55 scanner module), USB cable, and power supply. The unit serial number is MIC-DR505-261 and is powered at 110 VAC / 50–60 Hz with 7.2 VDC output, as confirmed on the rear label.

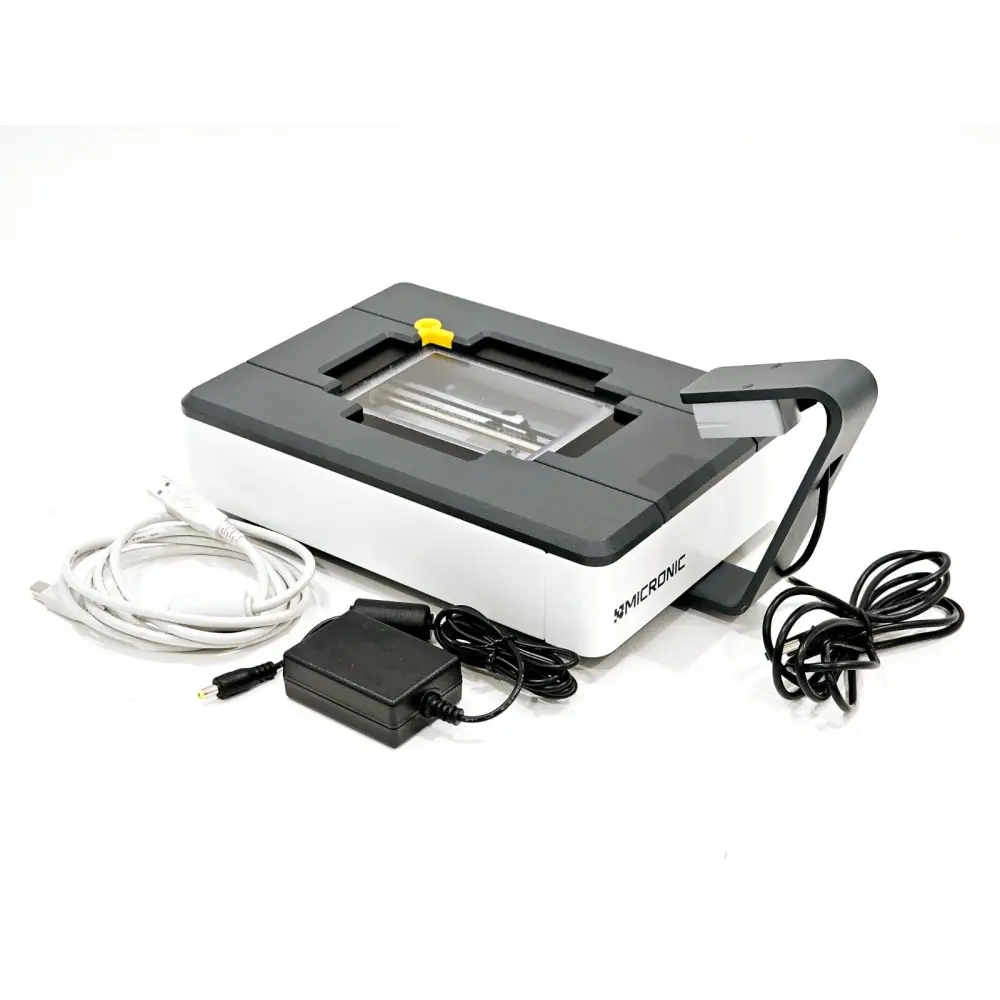

Included in the sale:
• Micronic DR505 Rack Reader (Type: DR505, Serial: MIC-DR505-261)

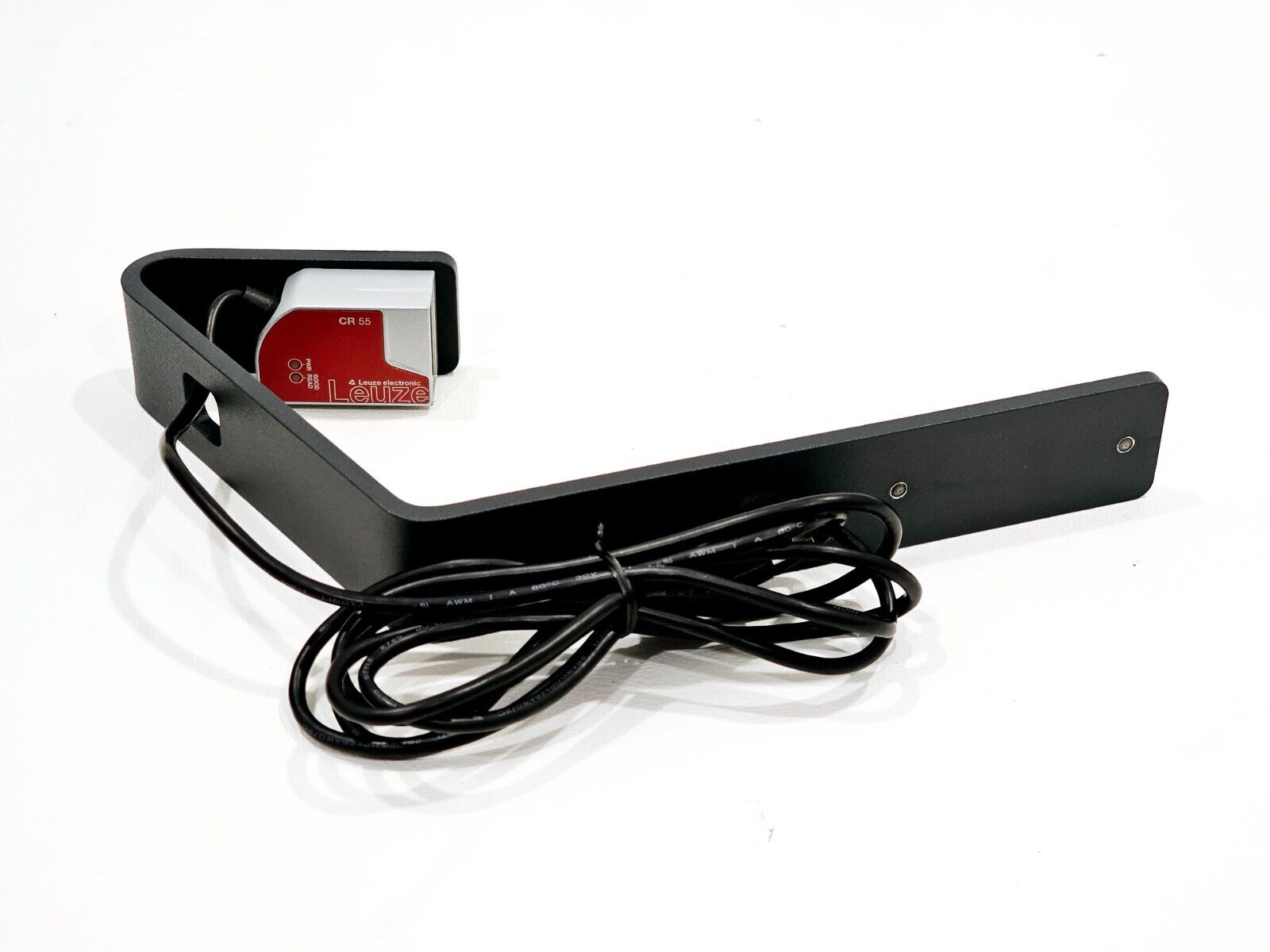

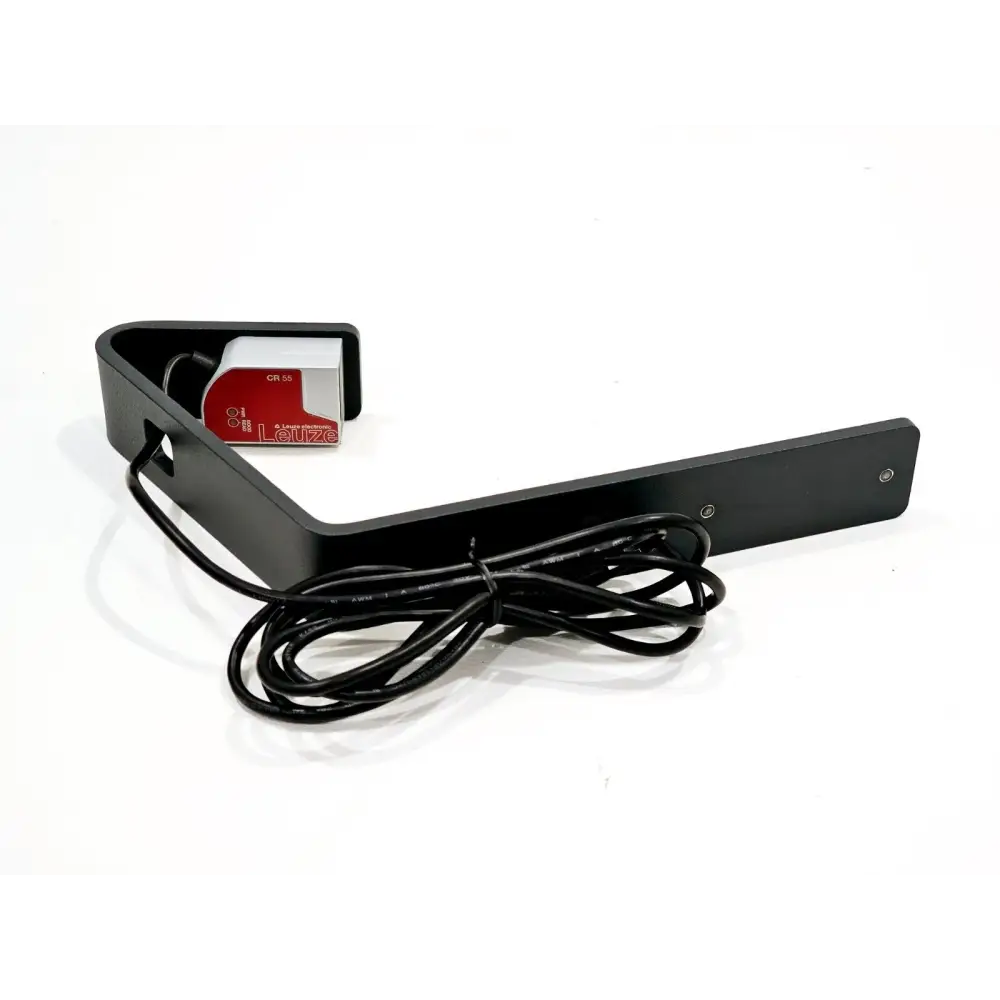

• Micronic Side Barcode Reader MP35240 (Leuze CR55 module on mounting arm with cable)
• USB interface cable
• Power supply / AC adapter

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

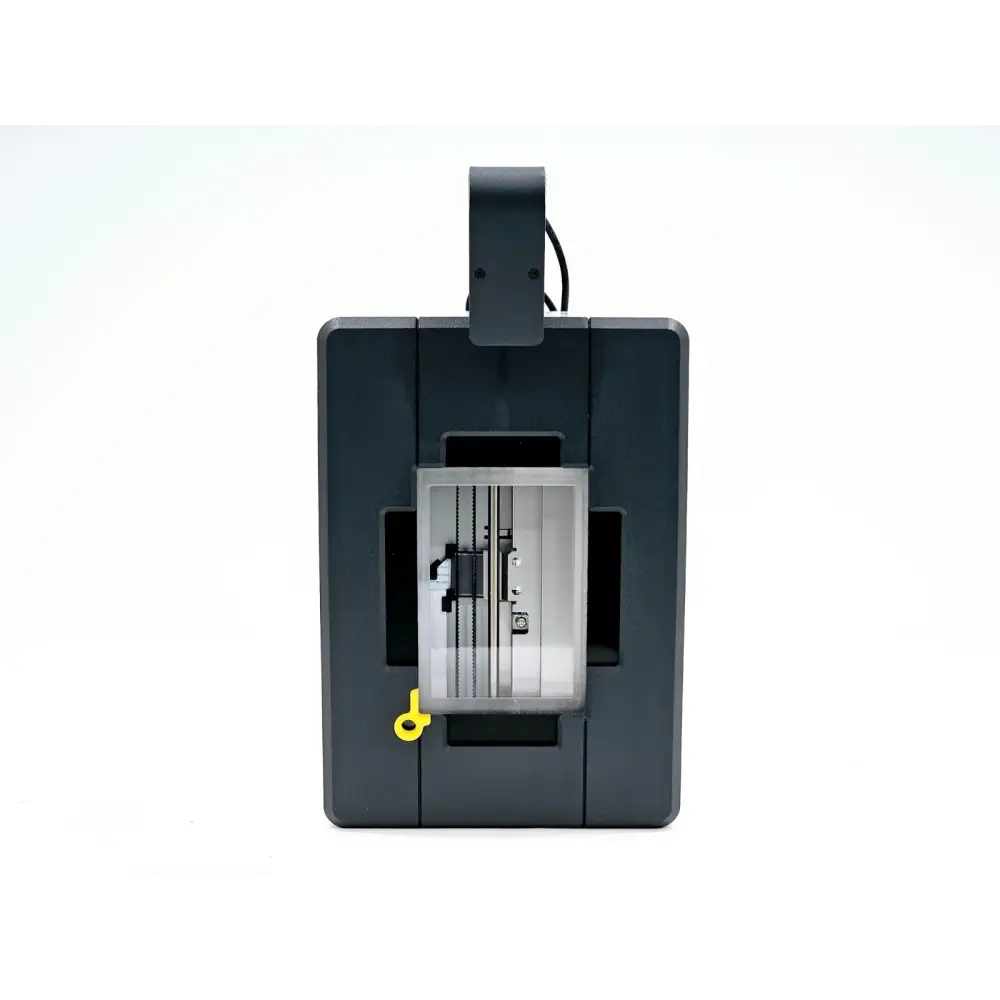

The Micronic Rack Reader DR505 is a compact benchtop solution designed to read whole racks filled with 2D Data-Matrix coded tubes quickly, cost-effectively, and with a minimal laboratory footprint. Built for high-throughput and automated systems, it enables reliable integration with laboratory sample organisation and LIMS systems.

The DR505 features a passive anti-frost system that minimises condensation on the scanner plate when reading racks of frozen samples directly from the freezer, preserving sample integrity and improving productivity. It is compatible with most brands of 2D Data-Matrix coded tubes and supports 96-, 48-, and 24-well format racks.

With the optional Side Barcode Reader (MP35240) mounted on the side, the Micronic Code Reader Software can simultaneously read both the 1D rack barcode and 2D Data-Matrix tube codes in a single scan. The software supports CSV data export and LIMS integration, and includes an automatic re-read function to ensure all codes are captured without manual intervention.

Key Specifications:
Imaging Technology: CIS (Contact Image Sensor)
Decode Time: 1 second (per tube)
Scan Time (whole rack): Less than 5 seconds
Scan Time (single tube, 96-well format): Less than 2 seconds
Dimensions (W x D x H): 265 x 186 x 70 mm
Rack Compatibility: 96-, 48-, and 24-well format racks
Code Type: 2D Data-Matrix (ECC200); optional 1D rack barcode via Side Barcode Reader
Anti-Frost System: Passive
Power Input: 110 VAC / 240 VAC, 50–60 Hz
Power Output: 7.2 VDC, 1.66 A
Connectivity: USB
Software Compatibility: Windows (Micronic Code Reader Software)
Data Export: CSV
RoHS Compliant: Yes
Manufacturer: Micronic, Lelystad, The Netherlands
Website: www.micronic.com

Typical Applications: Pharmaceutical research, clinical diagnostics, biobanking, and automated laboratory sample management workflows.

Micronic Code Reader Range 2025 — product overview and specifications for all Micronic rack and tube readers including the DR505: Download PDF
