The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

This Megger TDR2000/3 is in very good used condition and has been tested and confirmed fully working. The unit powers on correctly, both channels are operational, and all active software options function as expected.

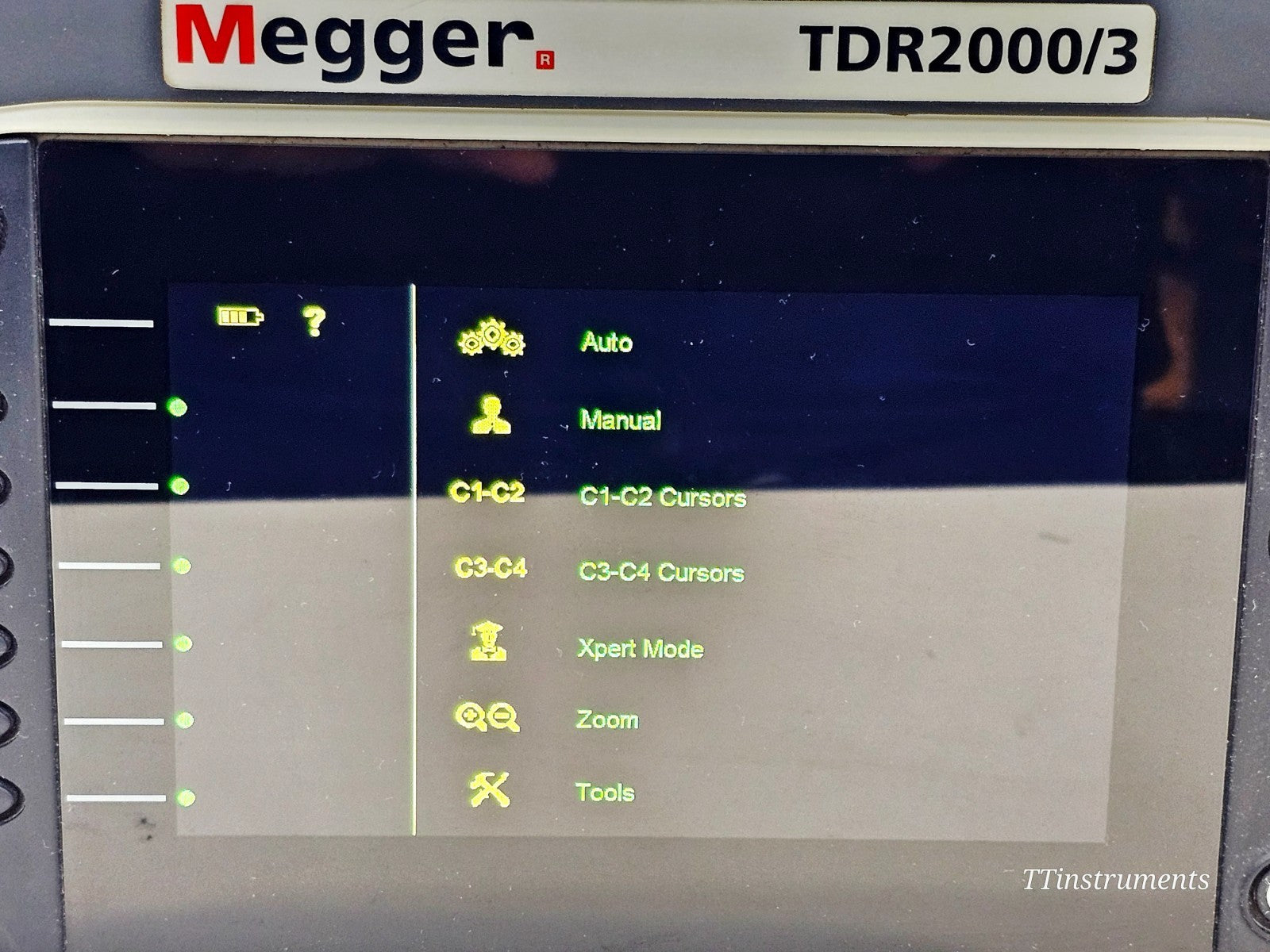

This unit is loaded with the following active options:
• Xpert Mode — one-press automatic fault detection with sequential disturbance identification

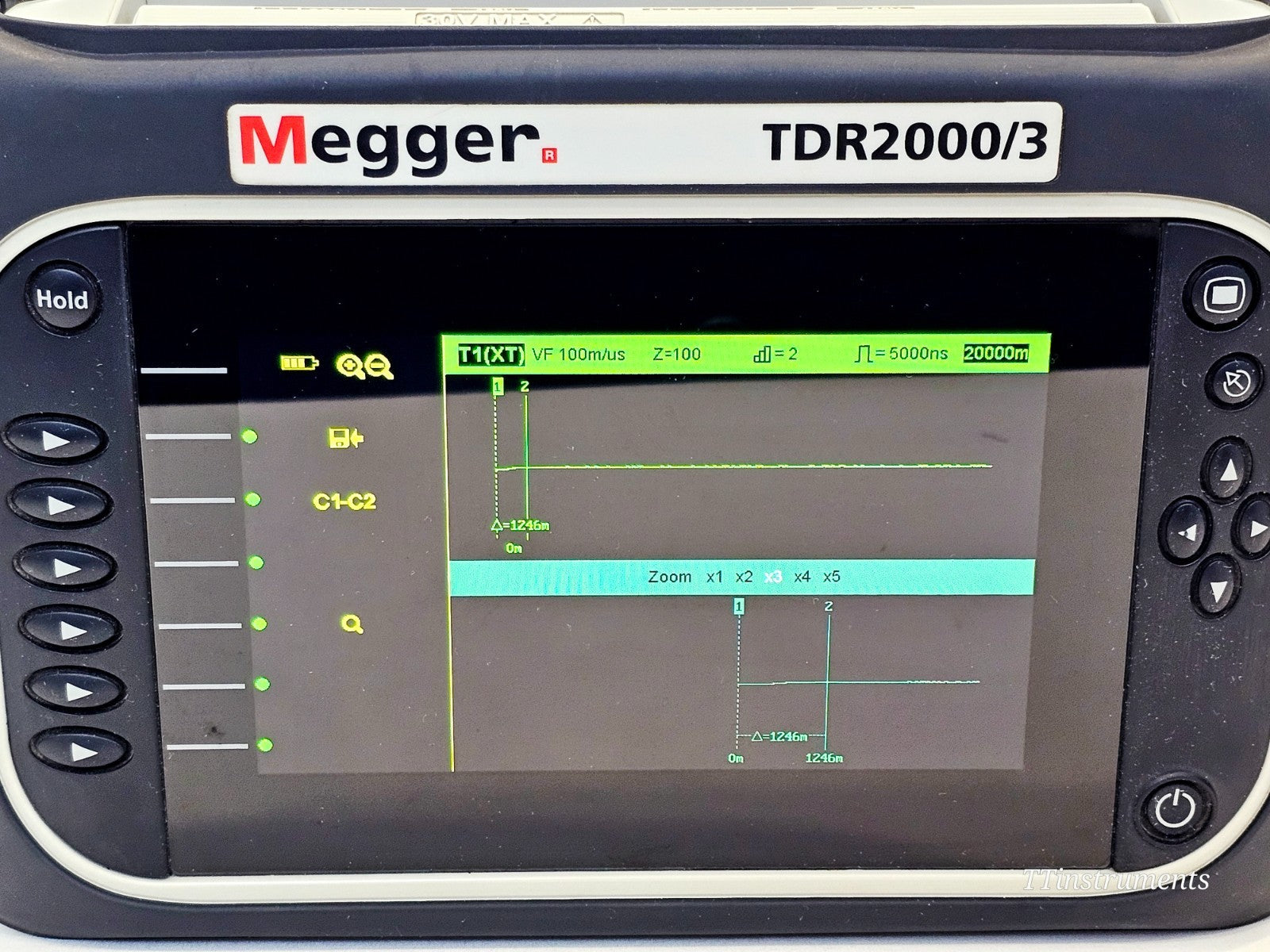

• Crosstalk (Xtalk) — dual-channel crosstalk measurement mode for coupled cable pair fault location

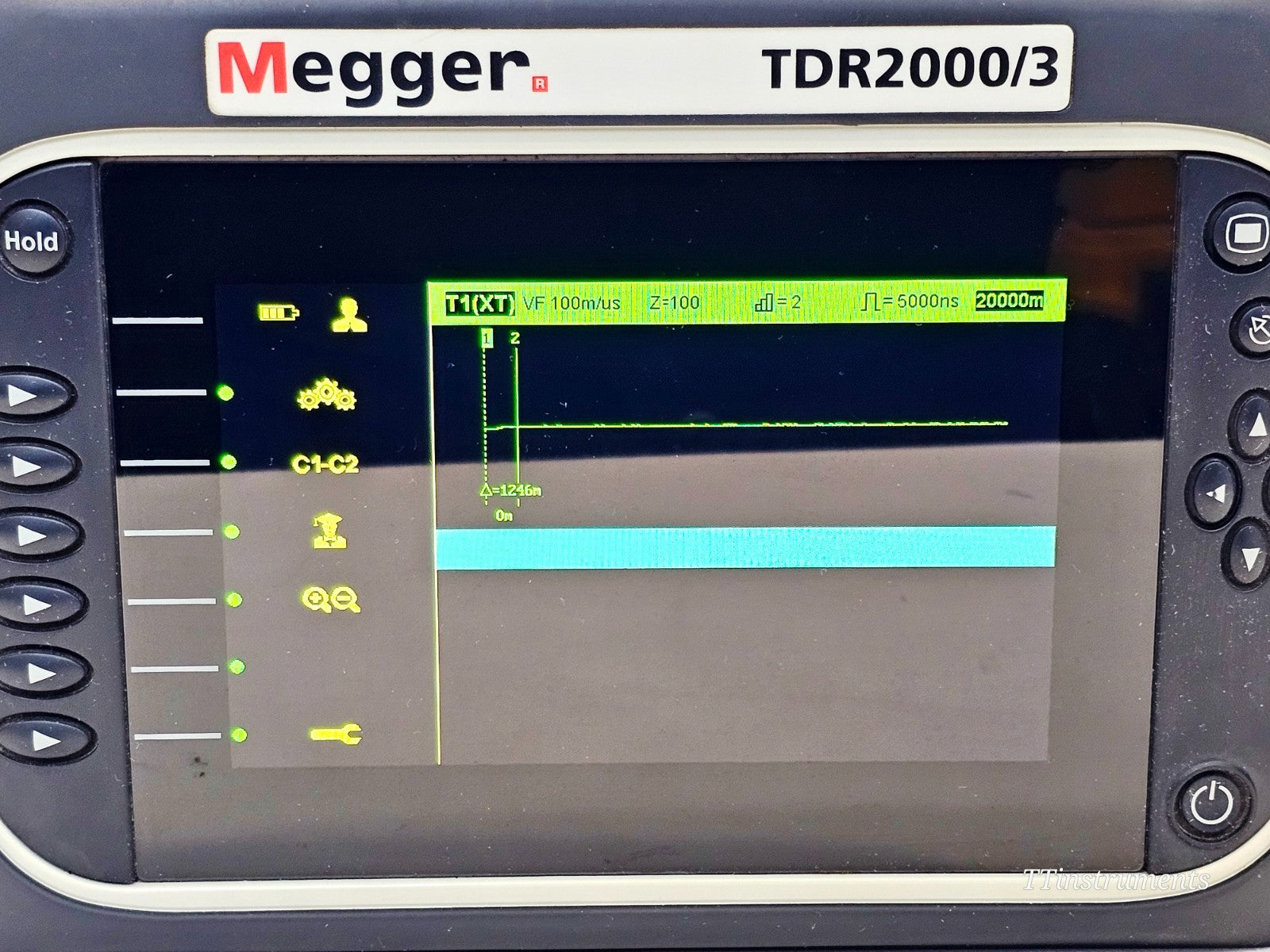

• C1-C2 / C3-C4 Dual Cursor modes — direct distance-between-points measurement
• Zoom function — x1 through x5 zoom for detailed trace inspection

The following items are included:

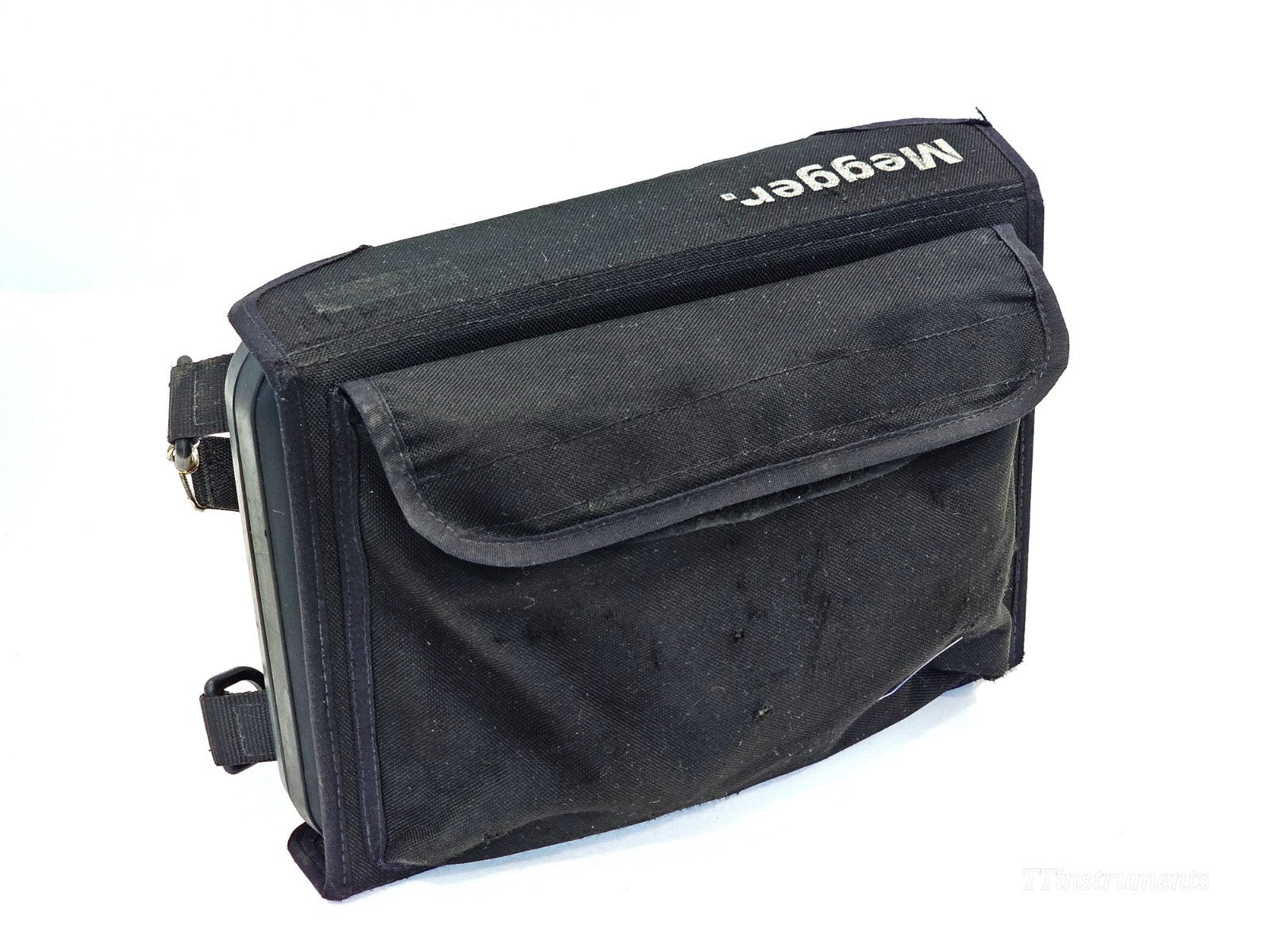

• Megger TDR2000/3 main unit in Megger branded carry bag with shoulder strap

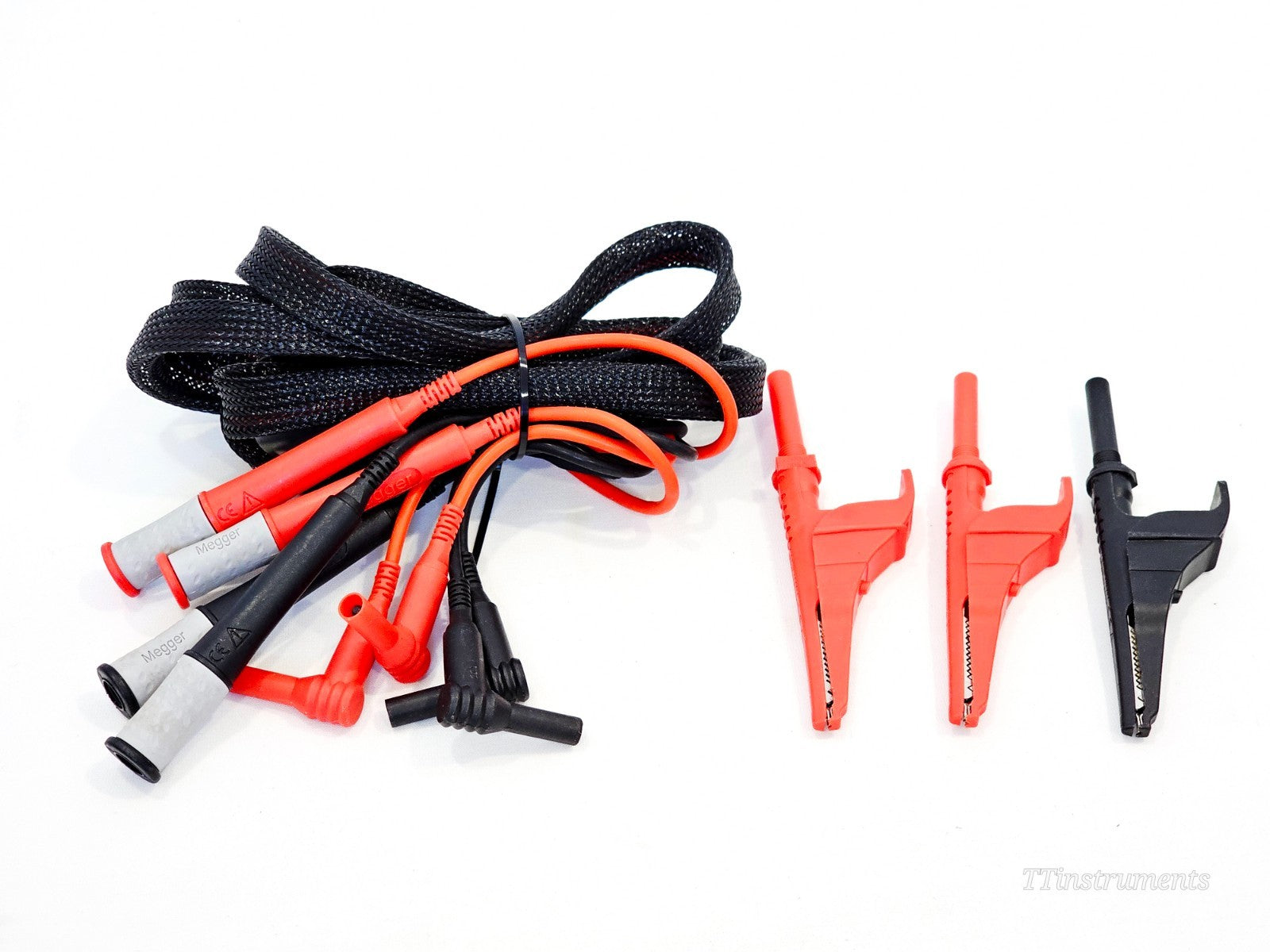

• Test lead set (4mm shrouded leads with miniature crocodile clips)
• AC mains power adapter / charger

The Megger TDR2000/3 is a state-of-the-art, dual-channel, high-resolution, compact Time Domain Reflectometer with a colour screen, designed for the location of faults in communication and pilot cables and some power supplies.

Built tough and rated CAT IV to 150 V, the TDR2000/3 is dust and weatherproof to IP54, making it ideal for field use. The large backlit WVGA colour display (800 x 480 px) provides clear trace visualisation under all lighting conditions. AUTO set-up mode selects the most effective parameters instantly, while the built-in Xpert mode automatically adjusts range and gain and positions the cursor to the first major fault event — press again to jump to the next disturbance. Dual trace and dual cursor capabilities give the operator full control with instant distance-between-points readout. Up to 100 test results can be stored on the instrument and downloaded to a PC via USB using the included TraceXpert software. A Crosstalk (Xtalk) mode enables fault location on coupled cable pairs using the dual channel inputs.

Maximum Range: 20,000 m (20 km / 65 kft)
Minimum Resolution: 0.1 m / 0.3 ft
Accuracy: ±1% of range ±1 pixel at 0.67 VF
Output Pulse Amplitude: Up to 20 V peak-to-peak into open circuit
Minimum Pulse Width: 2 ns
Output Impedance: 25, 50, 75, 100, 125 Ω + AUTO
Velocity Factor: 0.20 – 0.99 (adjustable in 0.01 steps)
Display: 800 x 480 px backlit colour LCD (WVGA)
Safety Rating: 150 V CAT IV / 300 V CAT III
Battery: Li-Ion rechargeable, ~12 hours typical
IP Rating: IP54
Dimensions: 290 x 190 x 55 mm
Weight: 1.7 kg
Operating Temperature: -15°C to +50°C

Megger TDR2000/3 datasheet: Download PDF
