Please note that we have multiple units of this item in stock. The item you receive may differ slightly in cosmetic appearance from the one shown, but will be in a similar overall condition.

This Megger TDR2000/3 is offered in used, very good condition. The unit has been tested and is confirmed fully working across all modes.

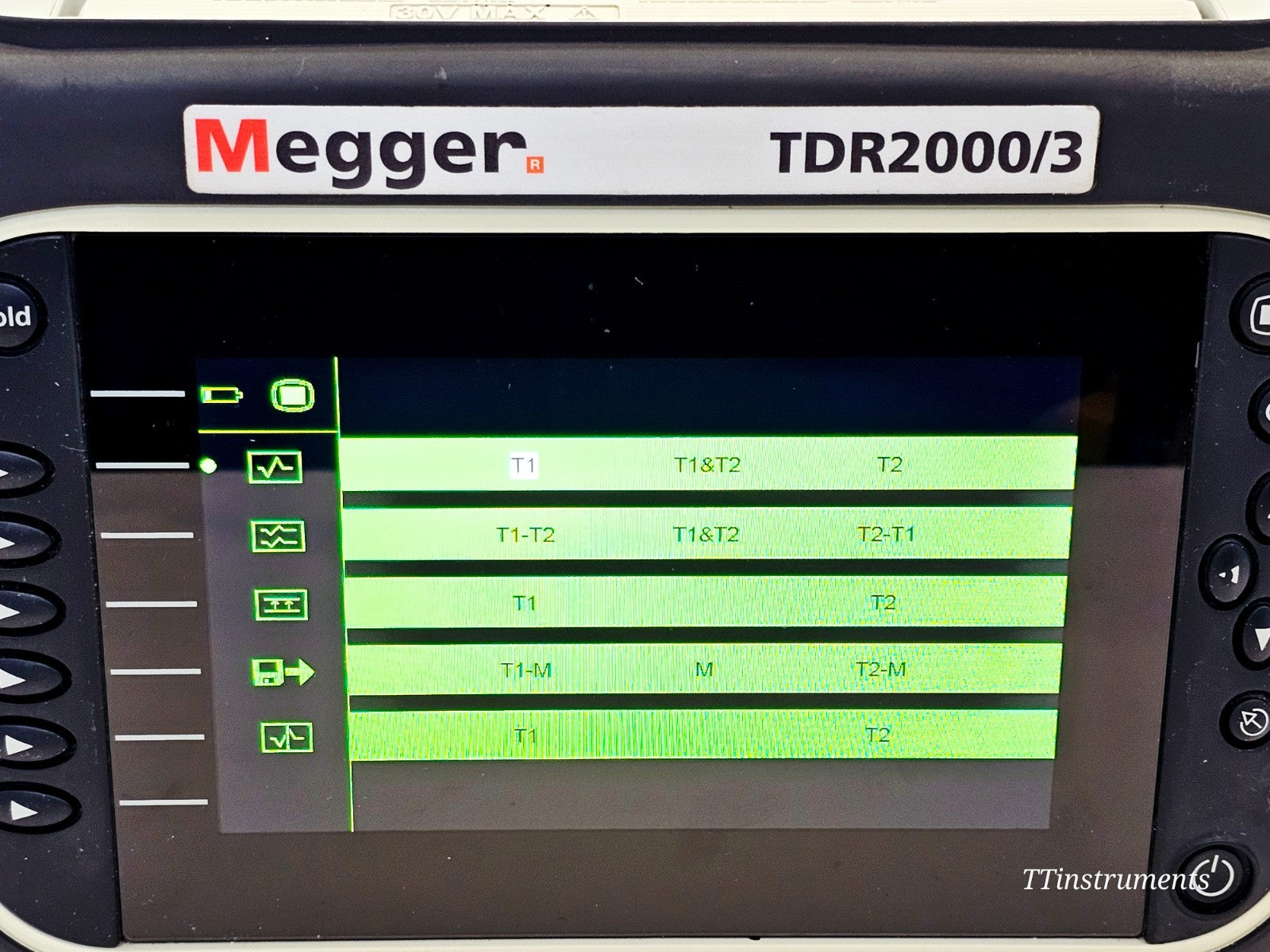

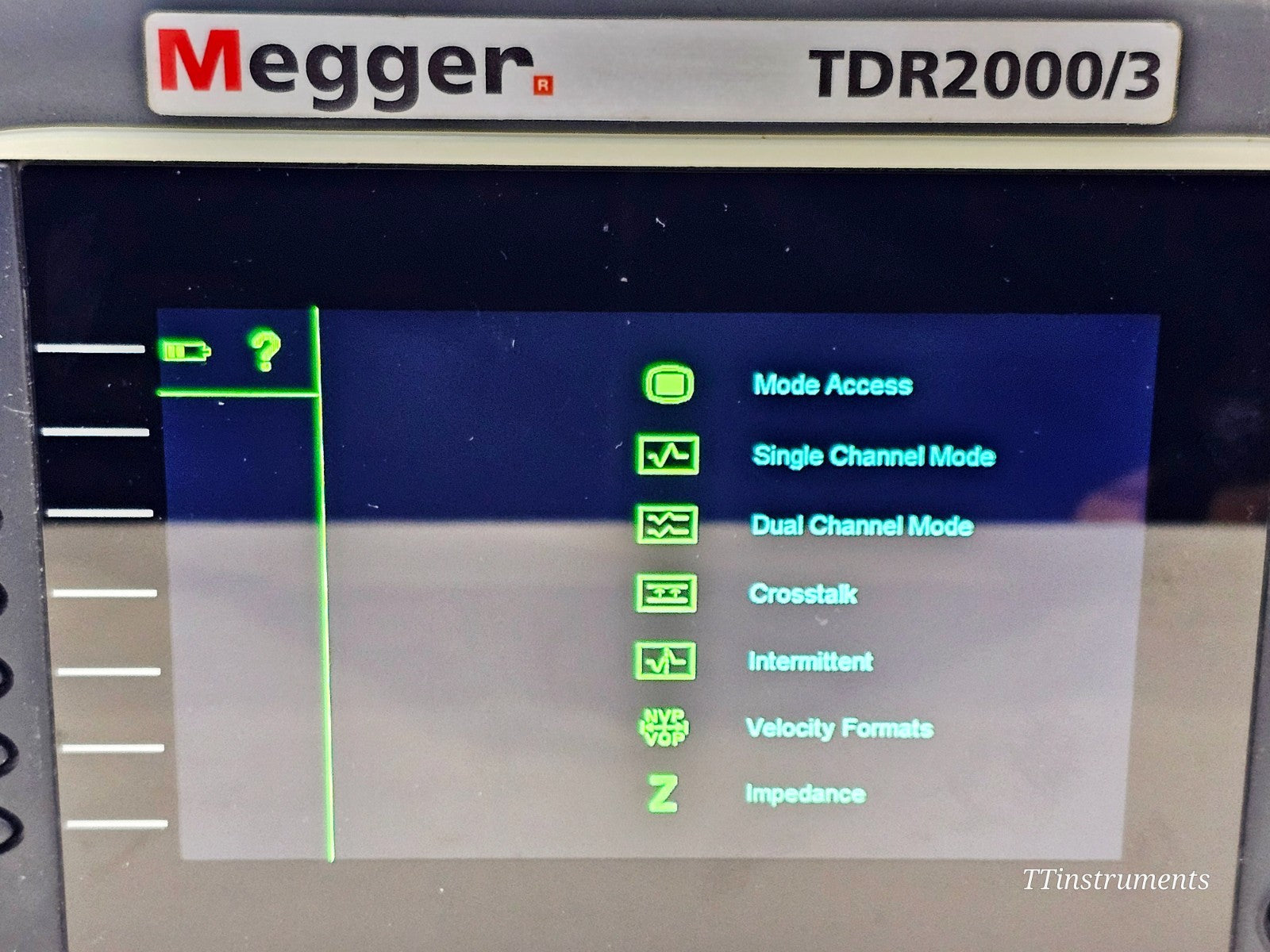

Active modes confirmed on this unit:
• Single Channel Mode (T1 or T2)
• Dual Channel Mode (T1-T2, T2-T1, T1&T2)
• Crosstalk Mode
• Intermittent Mode
• Velocity Formats (NVP/VoP)
• Impedance Mode
• AutoFind

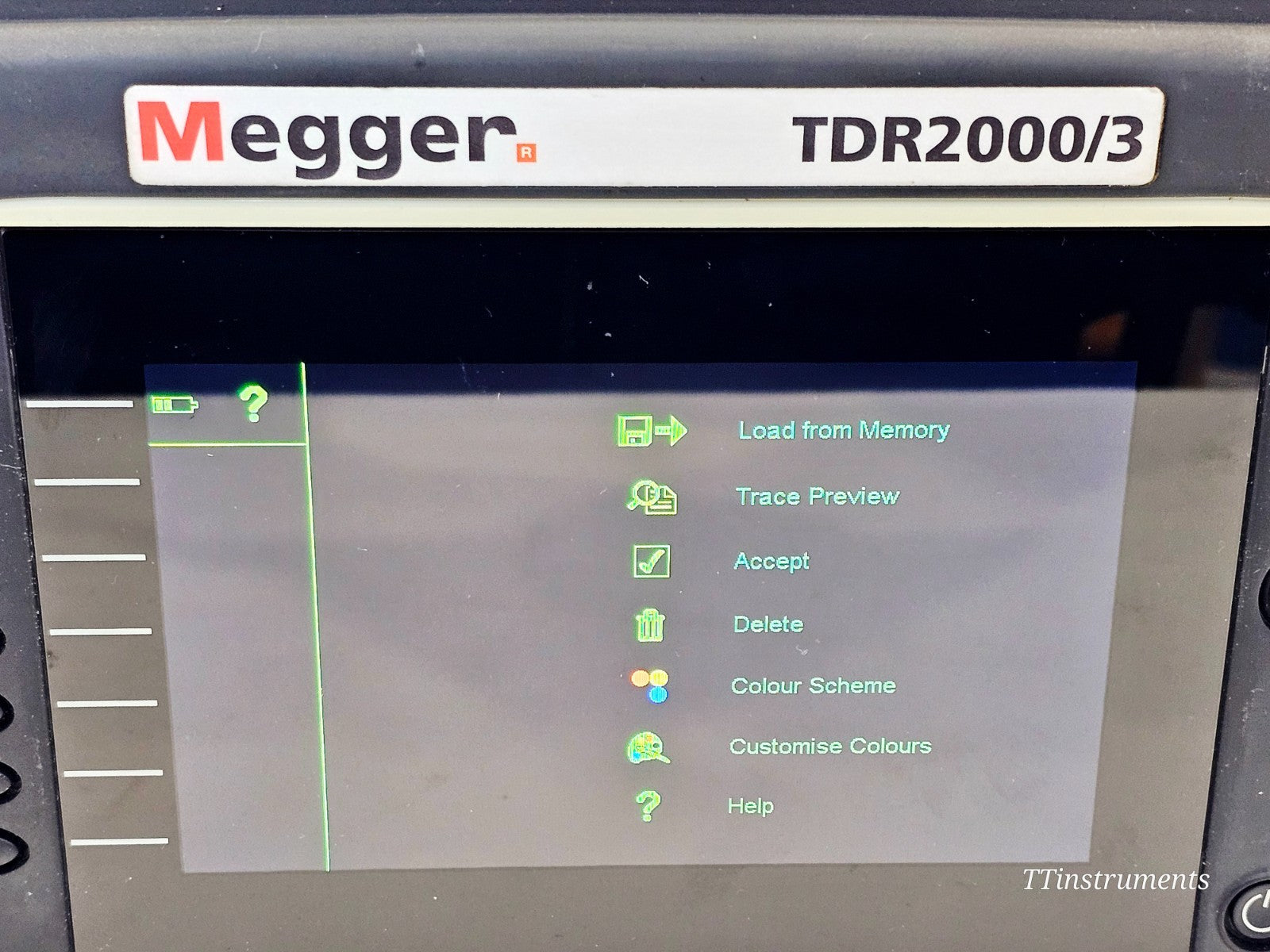

• Save to Memory / Load from Memory (up to 100 traces)

This listing includes:

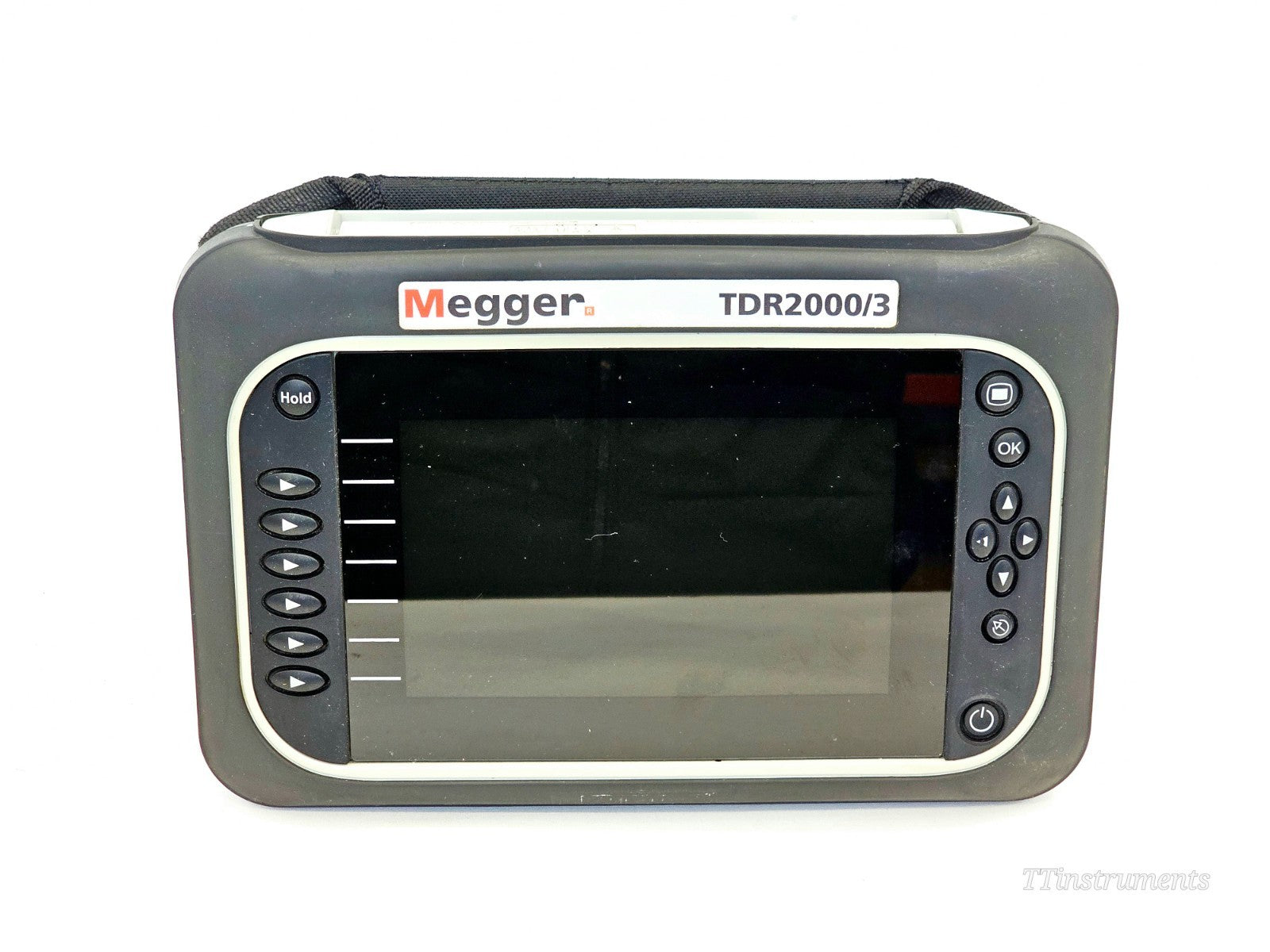

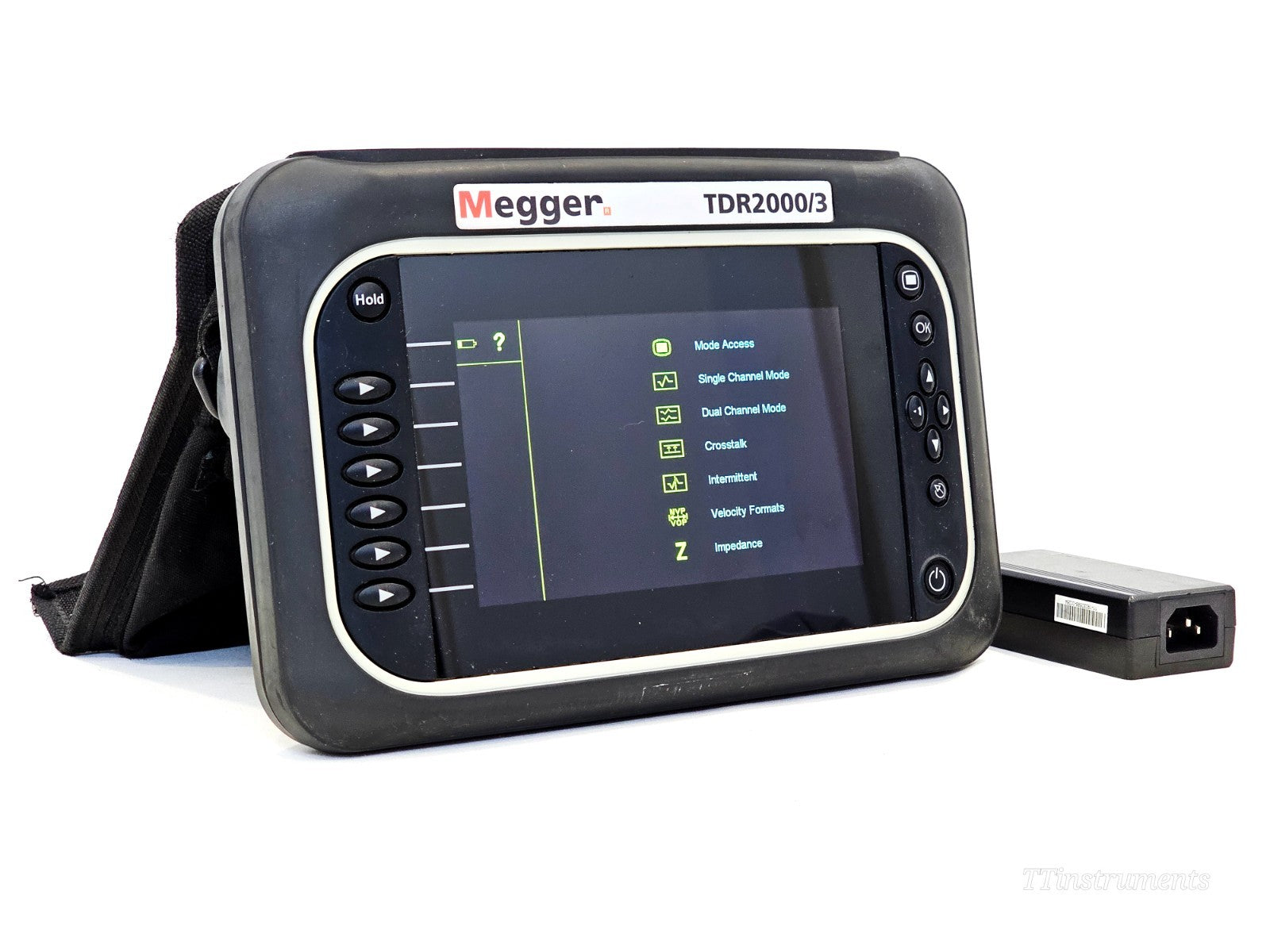

• Megger TDR2000/3 dual channel TDR unit

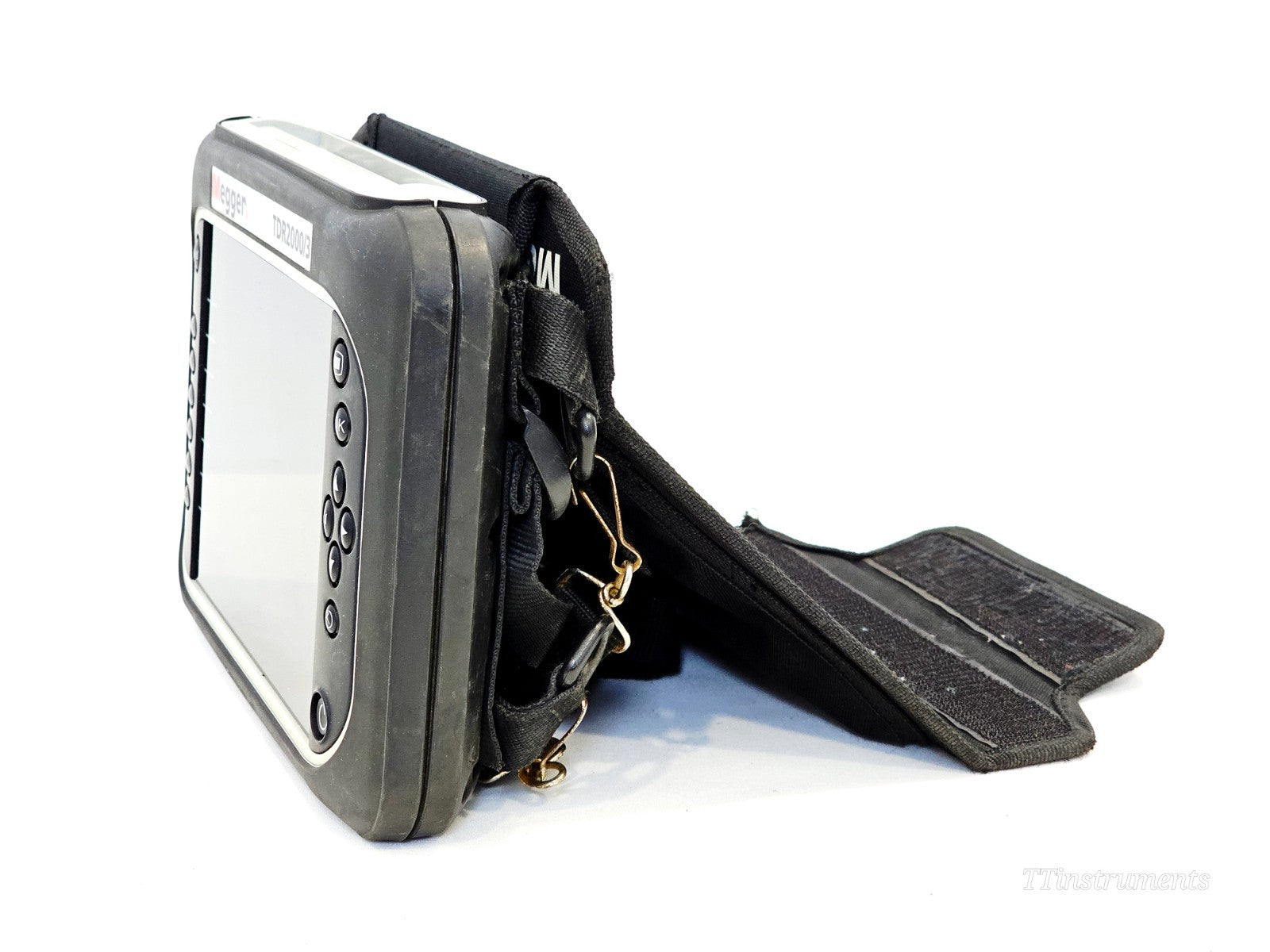

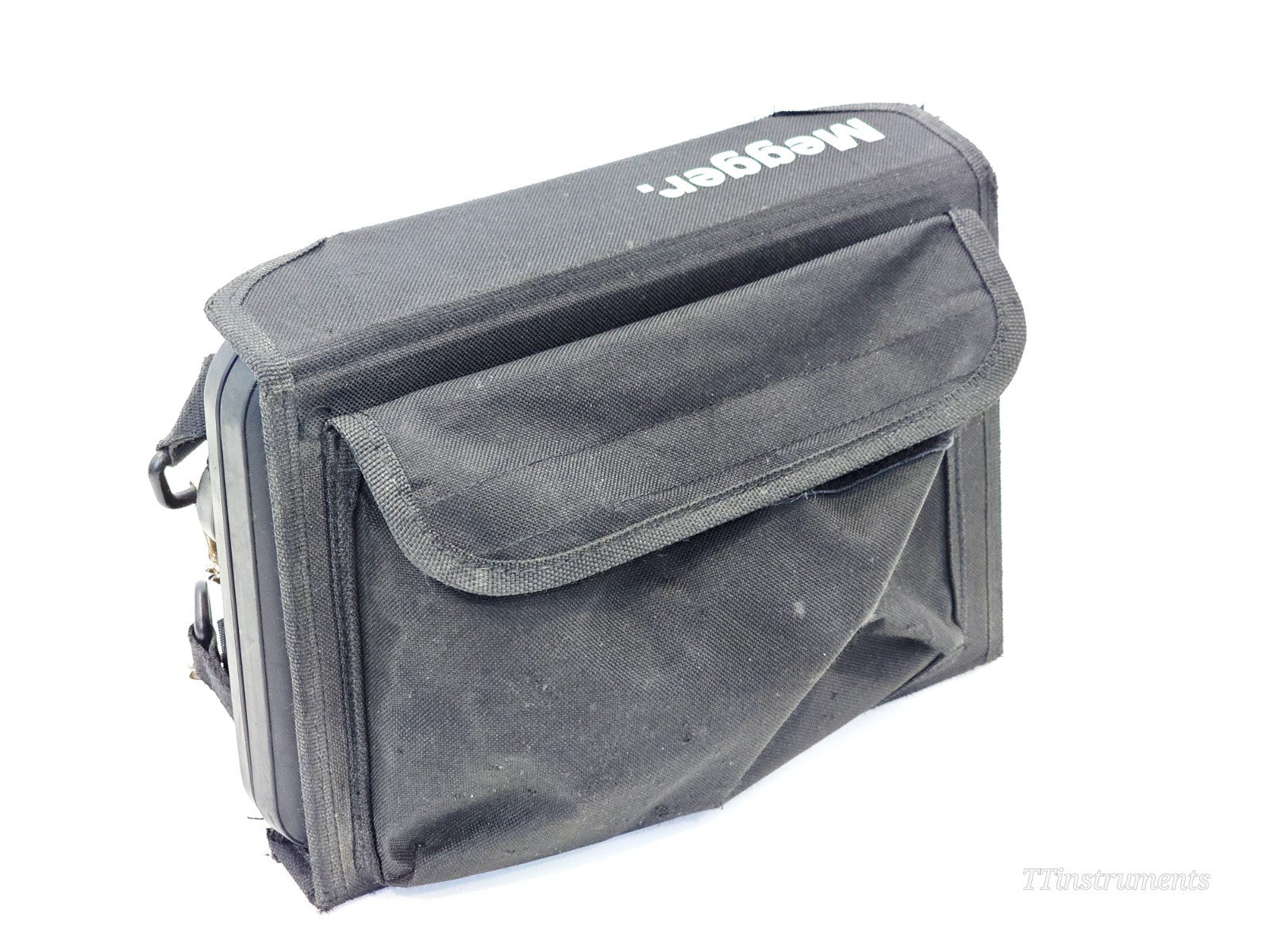

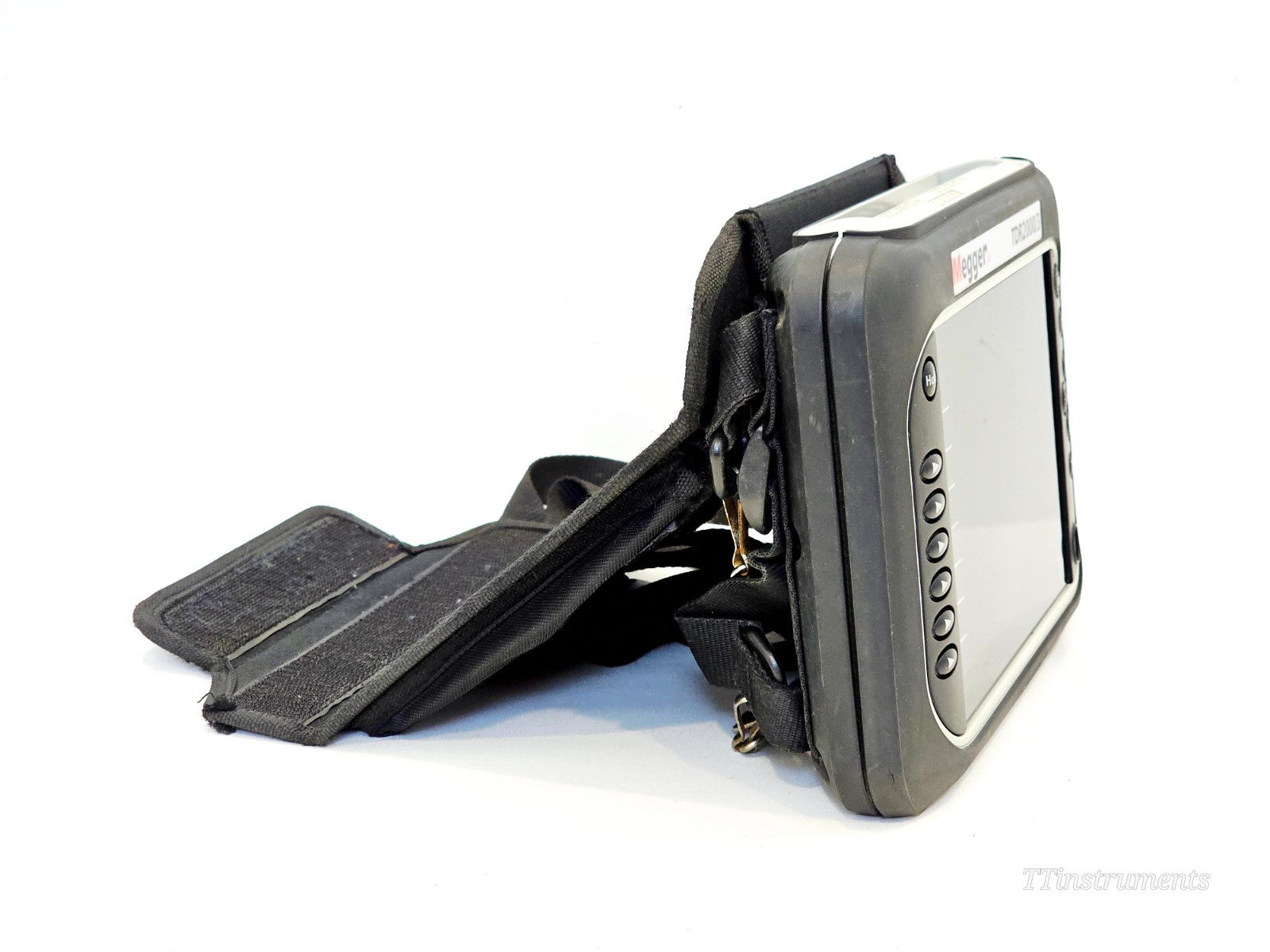

• Megger branded carry case / harness
• Mains charger / power supply unit

⚠ FAO TT Instruments: Please confirm whether mini-clip test leads and/or TraceXpert USB download kit are included, and update this section before publishing.

The Megger TDR2000/3 is a state-of-the-art, dual-channel, high-resolution, compact Time Domain Reflectometer with a colour screen, designed for locating faults on paired metallic cables in applications as diverse as street lighting, telephony, and CATV. It has been designed for the location of faults in communication and pilot cables and some power supplies.

Key features and highlights:

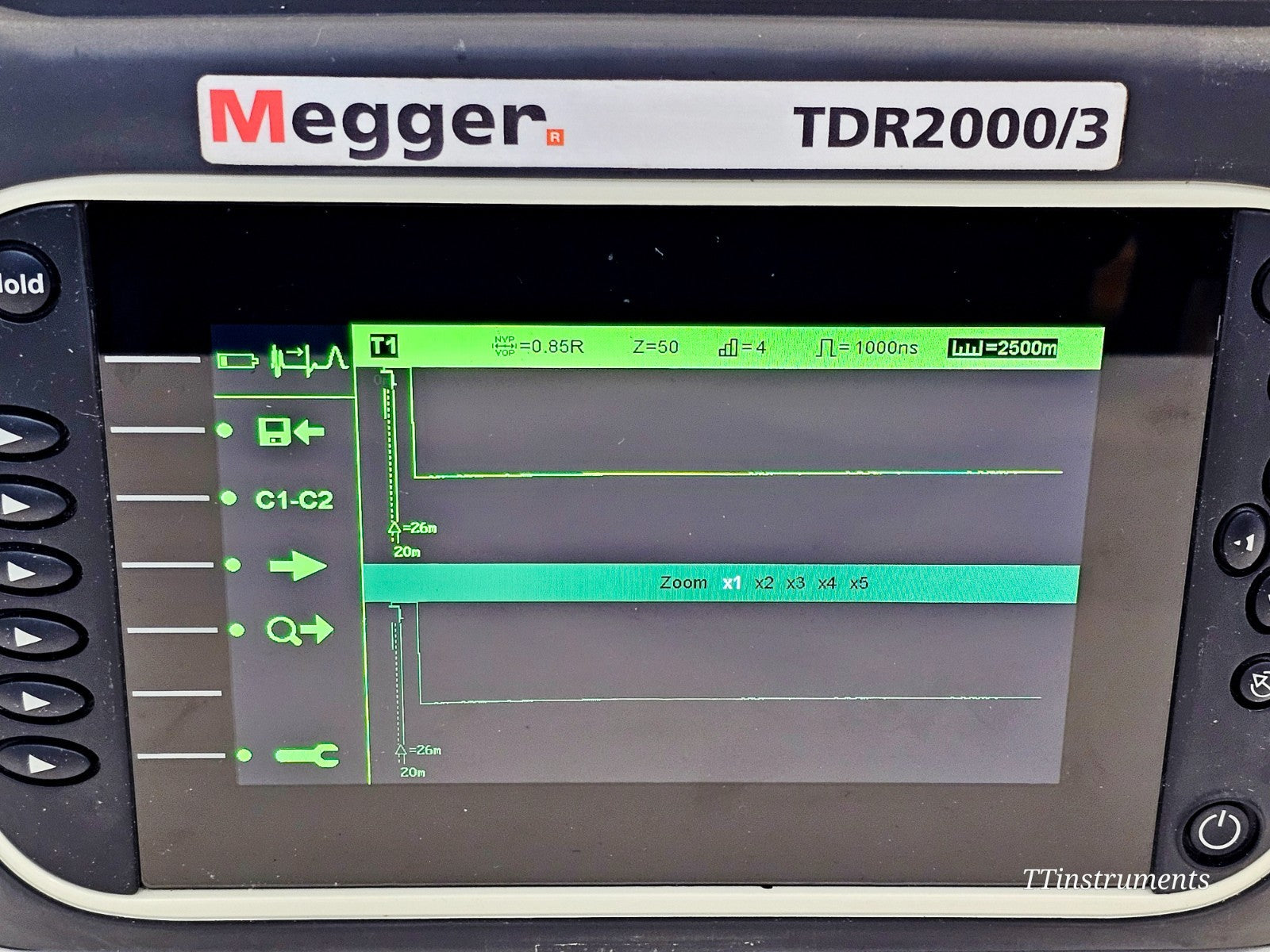

- Dual-channel capability with dual aspect display and dual cursor functionality

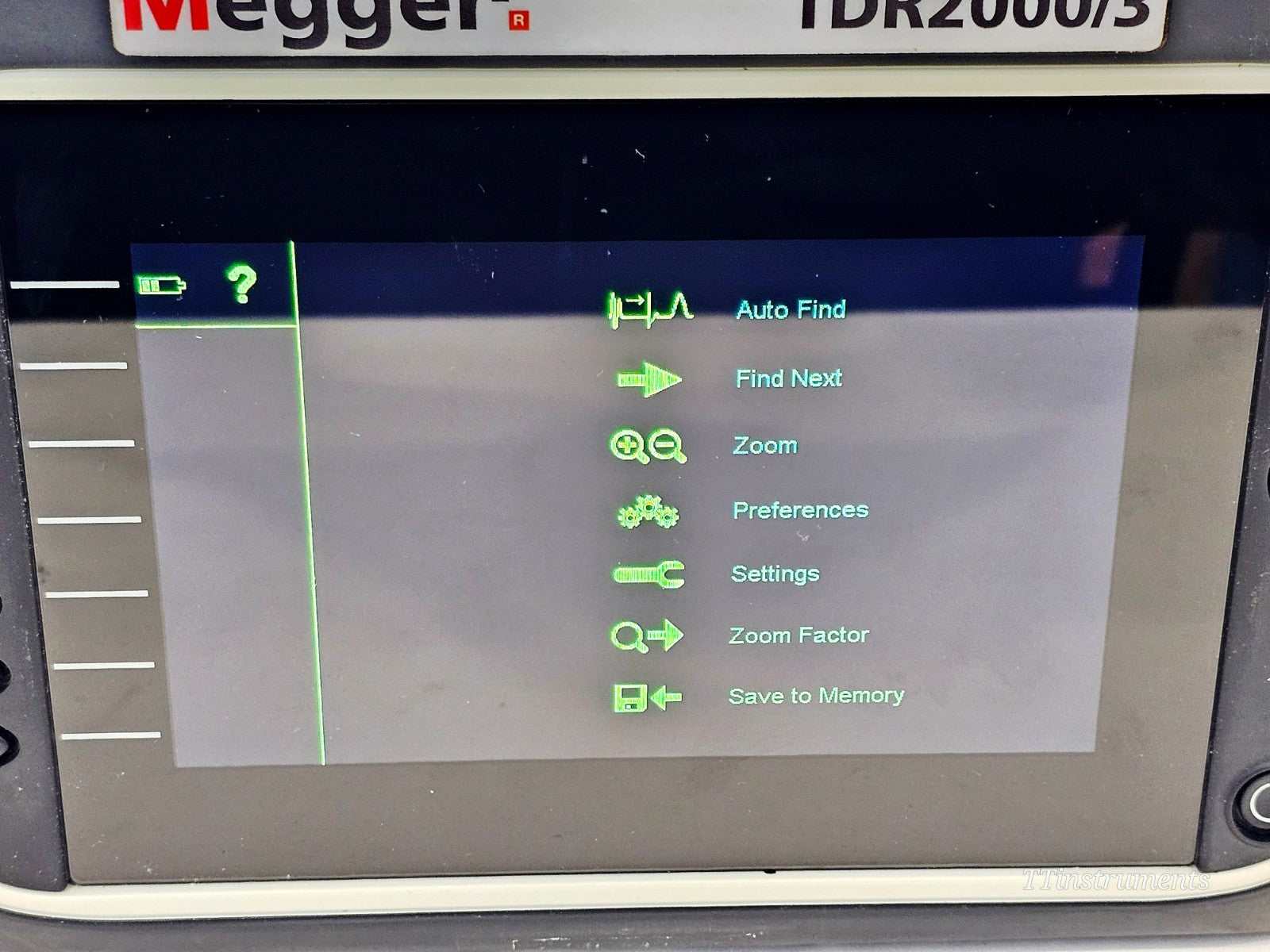

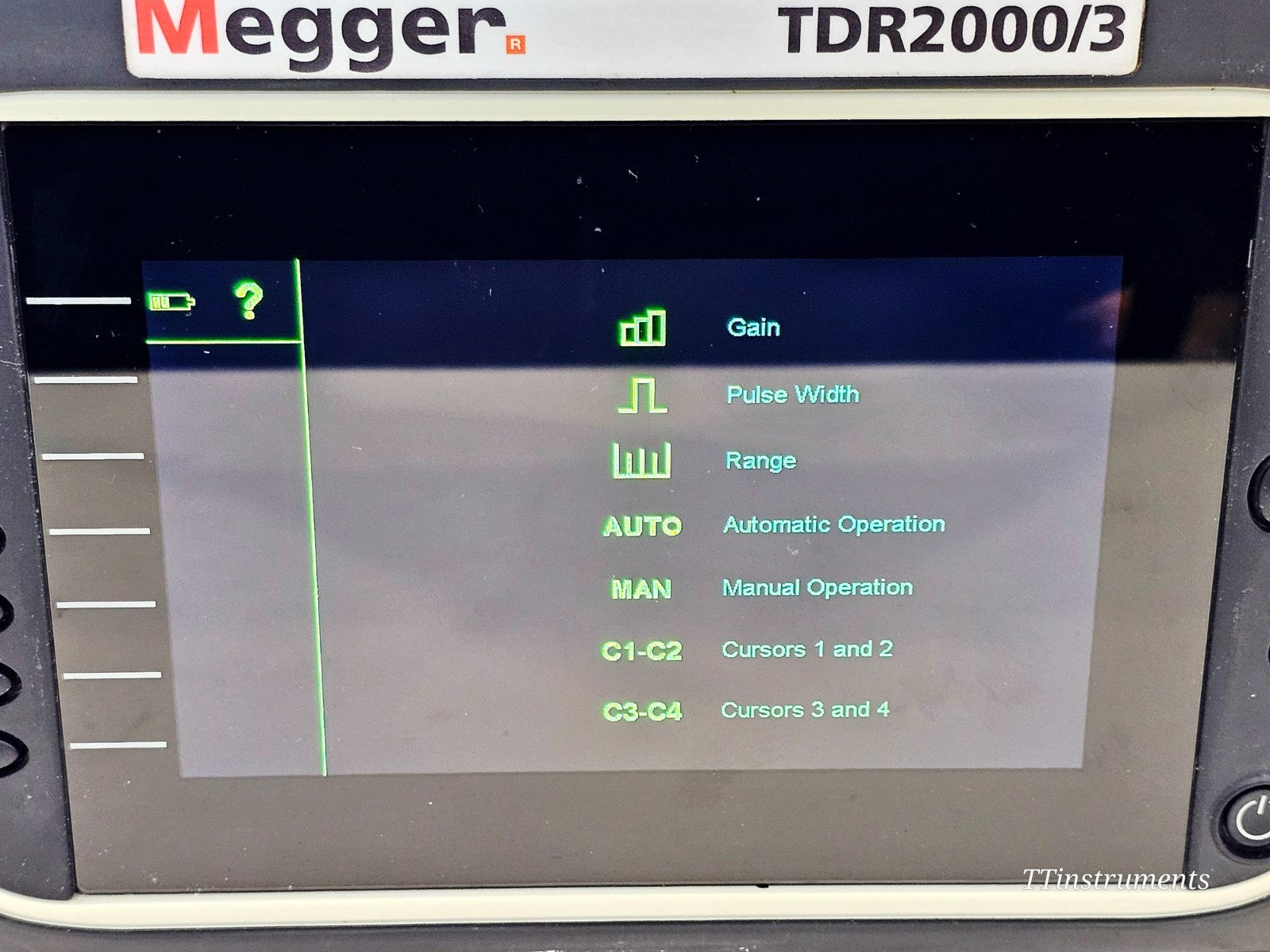

- AutoFind mode: one press automatically adjusts range and gain, positioning the cursor to the first major fault event

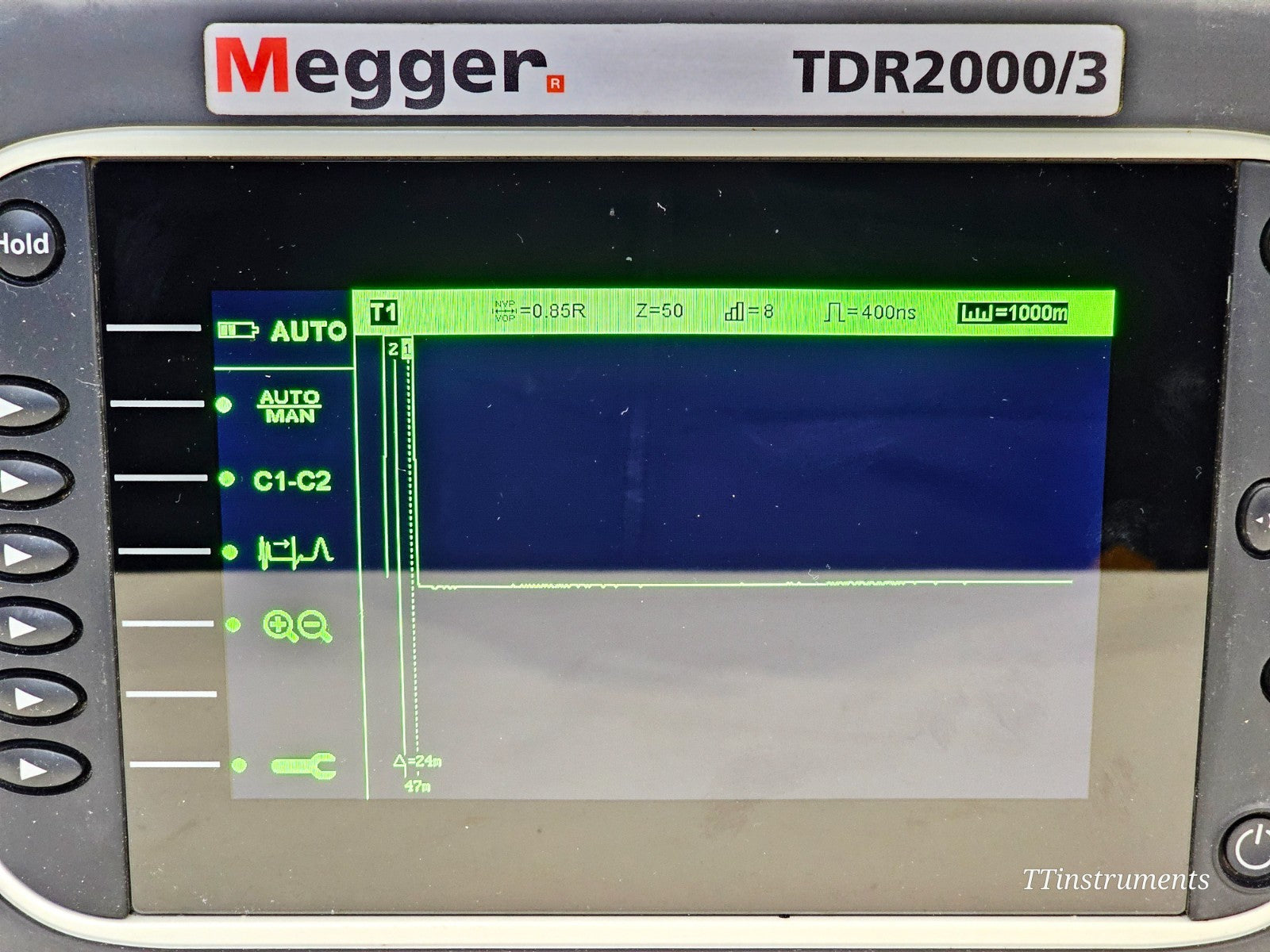

- AUTO setup mode ensures optimal parameters are selected instantly for each measurement range
- Manual override allows expert users to fine-tune gain, pulse width, and impedance for hard-to-detect faults
- Trace comparison feature: stored traces can be recalled and overlaid against live results
- 100-trace on-board memory with USB download to PC via TraceXpert software
- Large WVGA colour LCD (800 x 480) with white backlight, adjustable contrast, and selectable colour schemes
- IP54 dust and weatherproof construction rated for field use
- Built-in power blocking filter for safety on energised telecom circuits
- Li-Ion rechargeable battery with intelligent charge management and up to 12 hours typical life
- Lightweight and portable at 1.7 kg with standard tripod mount compatibility

Maximum Range: 20,000 m / 65 kft (velocity factor dependent)
Minimum Resolution: 0.1 m / 0.3 ft
Accuracy: ±1%
Output Pulse Amplitude: Up to 20 V peak-to-peak
Minimum Pulse Width: 2 ns
Output Impedance: 25, 50, 75, 100, 125 Ω + AUTO
Velocity Factor: 0.20 to 0.99 (steps of 0.01)

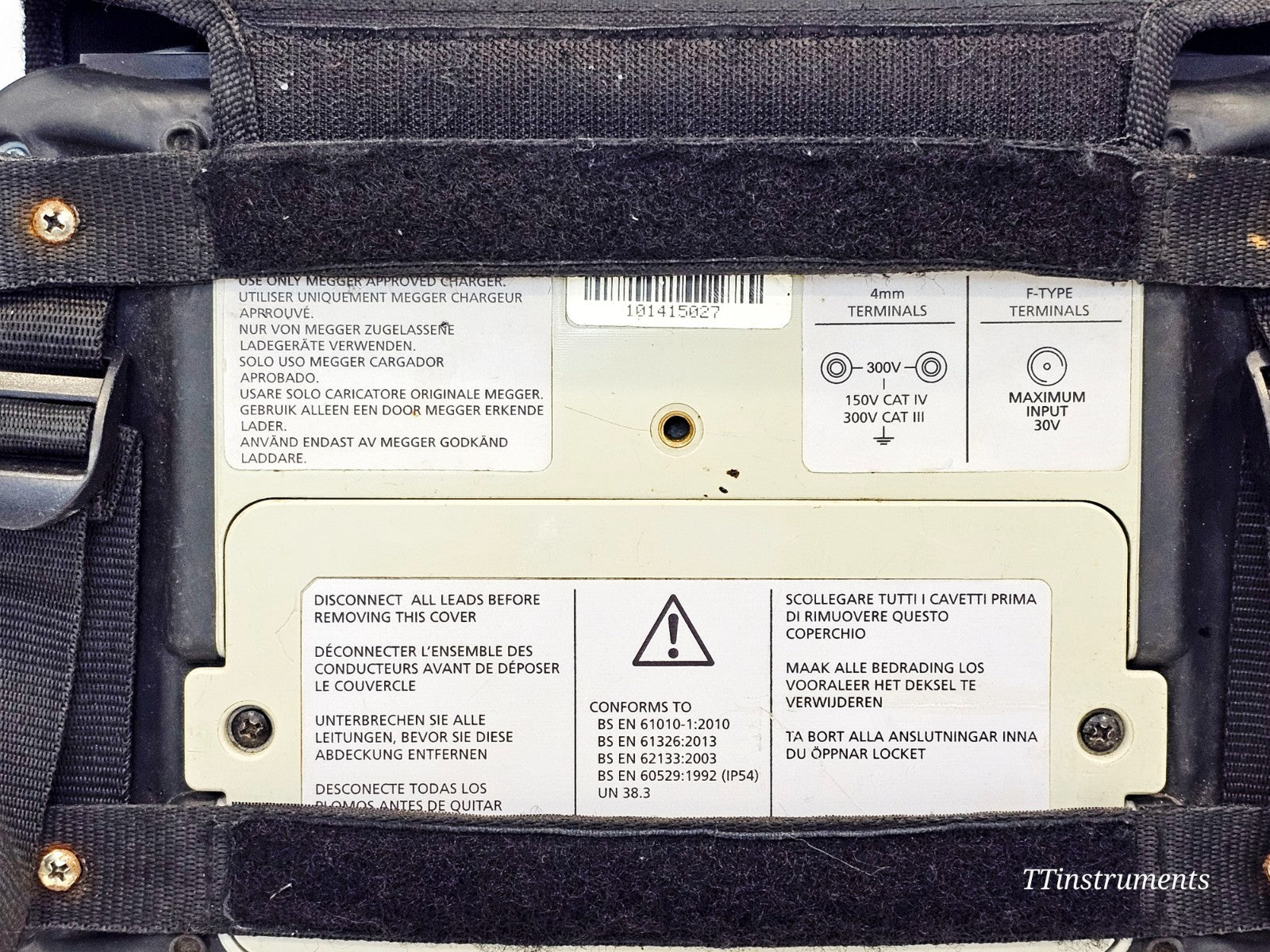

Safety Rating: 150 V CAT IV / 300 V CAT III
IP Rating: IP54
Battery Life: 12 hours typical (Li-Ion)
Display: 800 x 480 WVGA colour LCD
PC Interface: USB
Operating Temperature: -15°C to +50°C
Dimensions: 290 x 190 x 55 mm
Weight: 1.7 kg
MPN: 1003-036

Megger TDR2000/3 datasheet: Download PDF
