Condition: Used

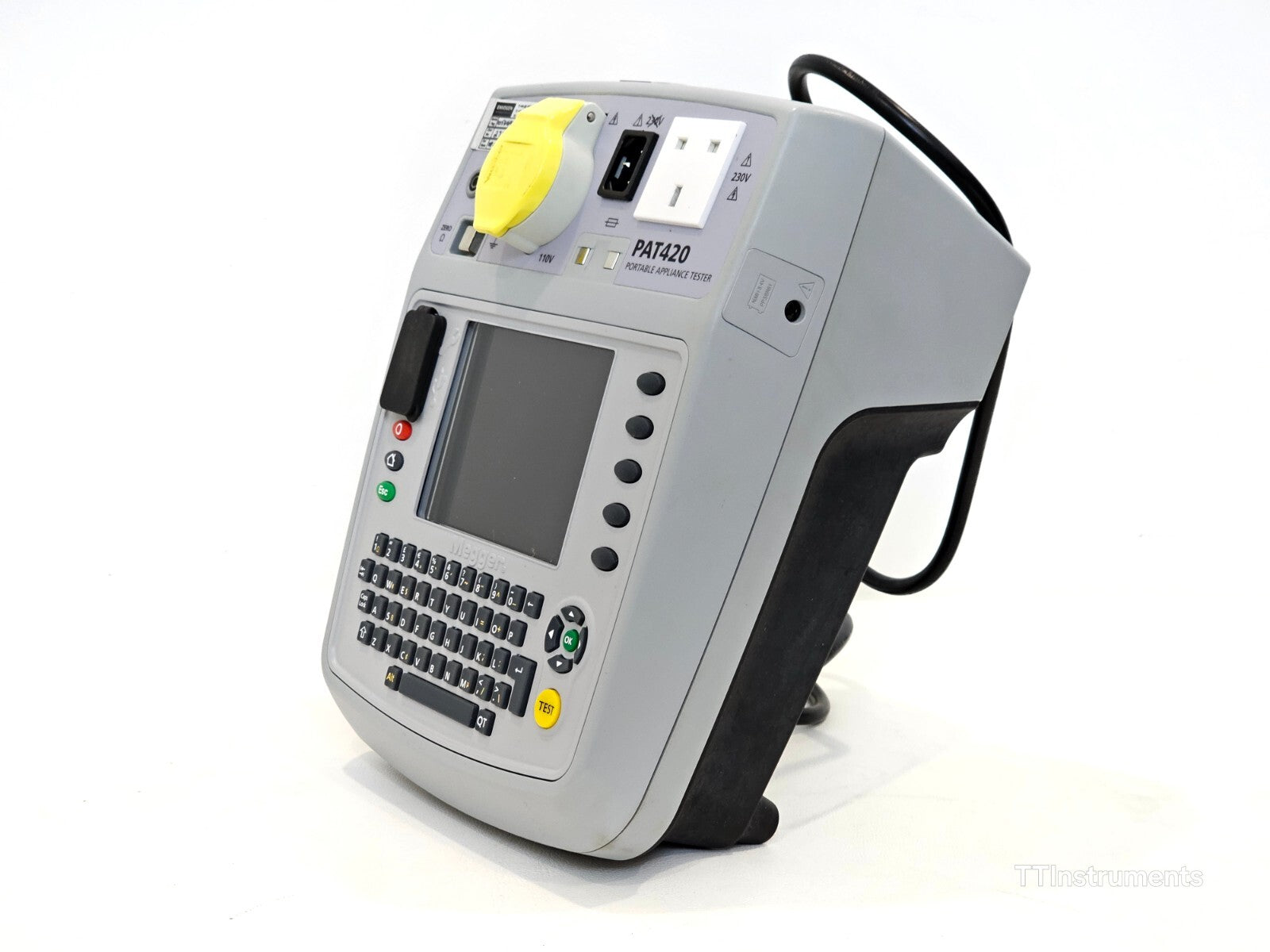

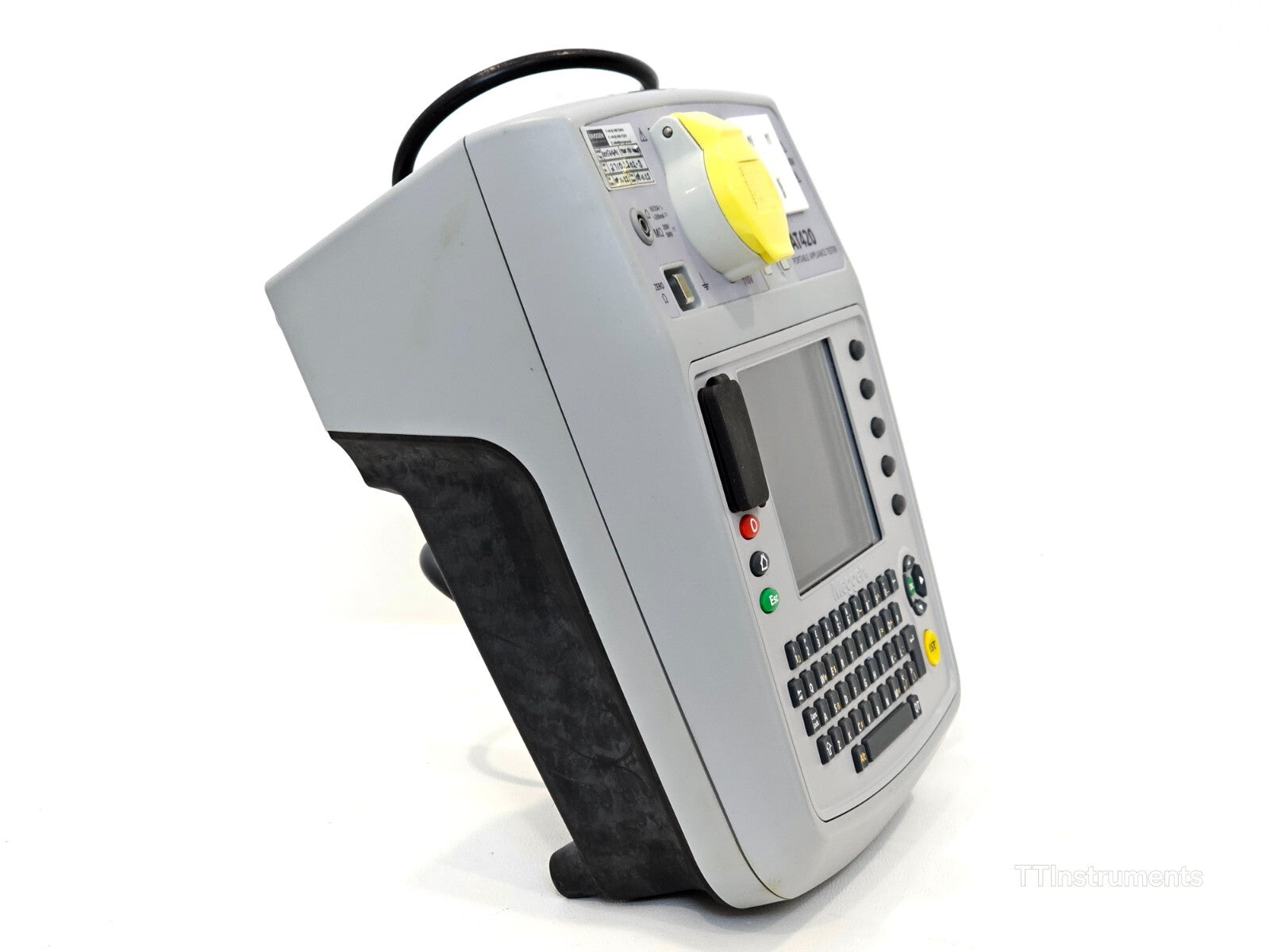

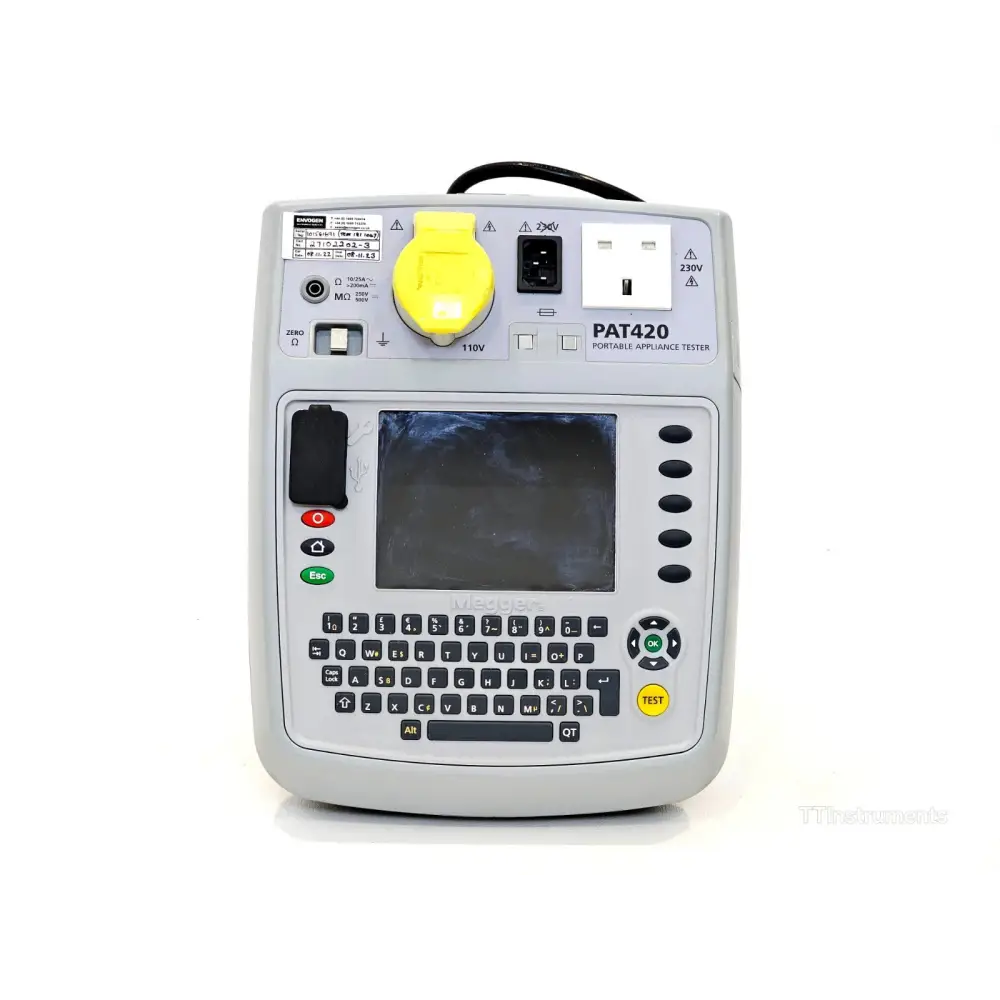

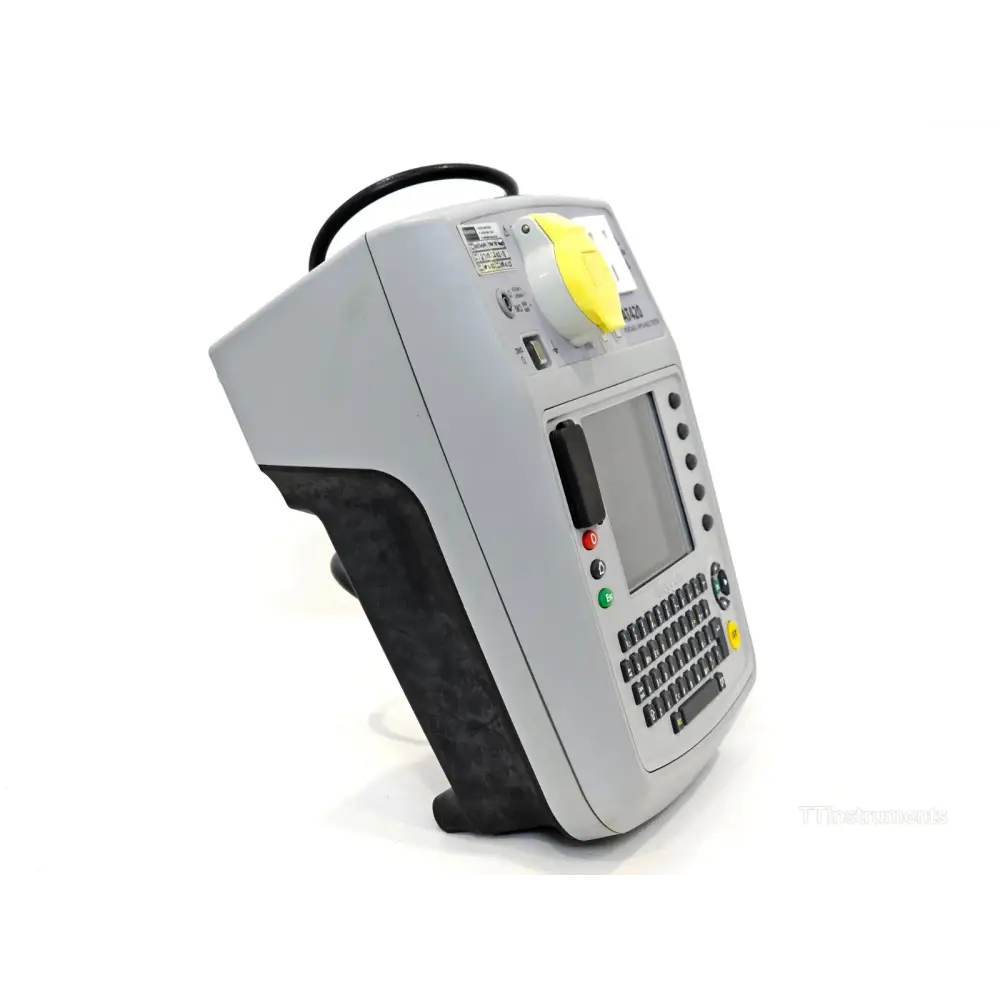

The Megger PAT420 is a used downloading portable appliance tester supplied with accessories, presented in good condition. Part of the PAT400 series, the PAT420 is Megger's mid-range dual-voltage workhorse, designed for full-time industrial and commercial PAT testers.

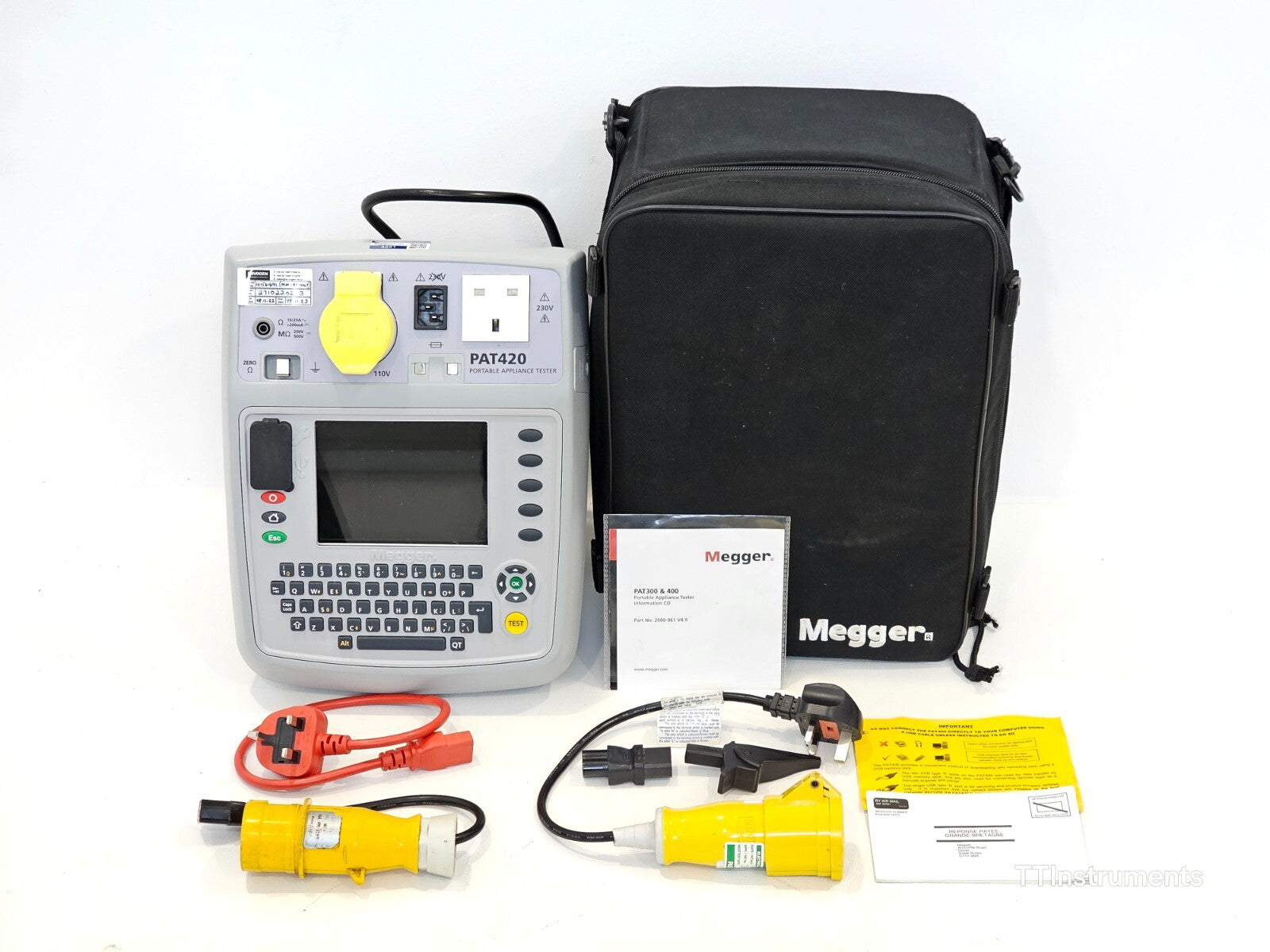

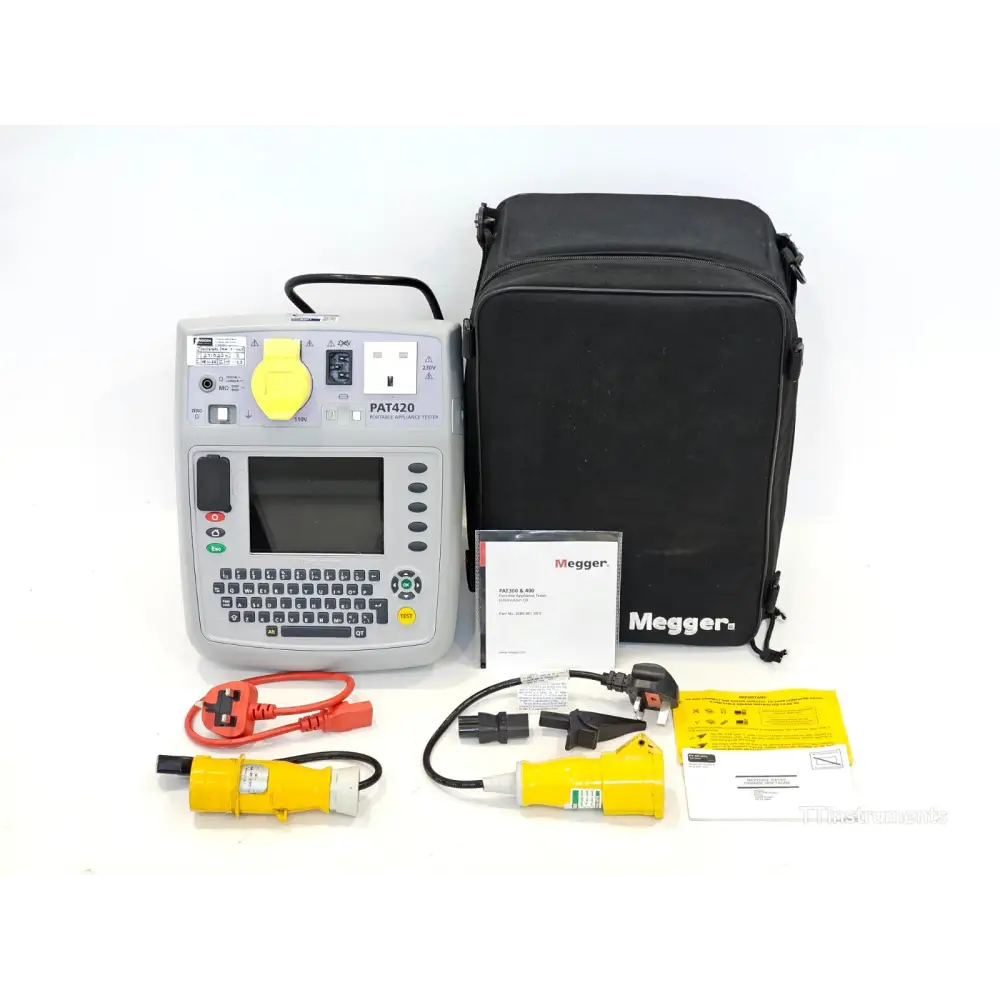

Typically included with this product:

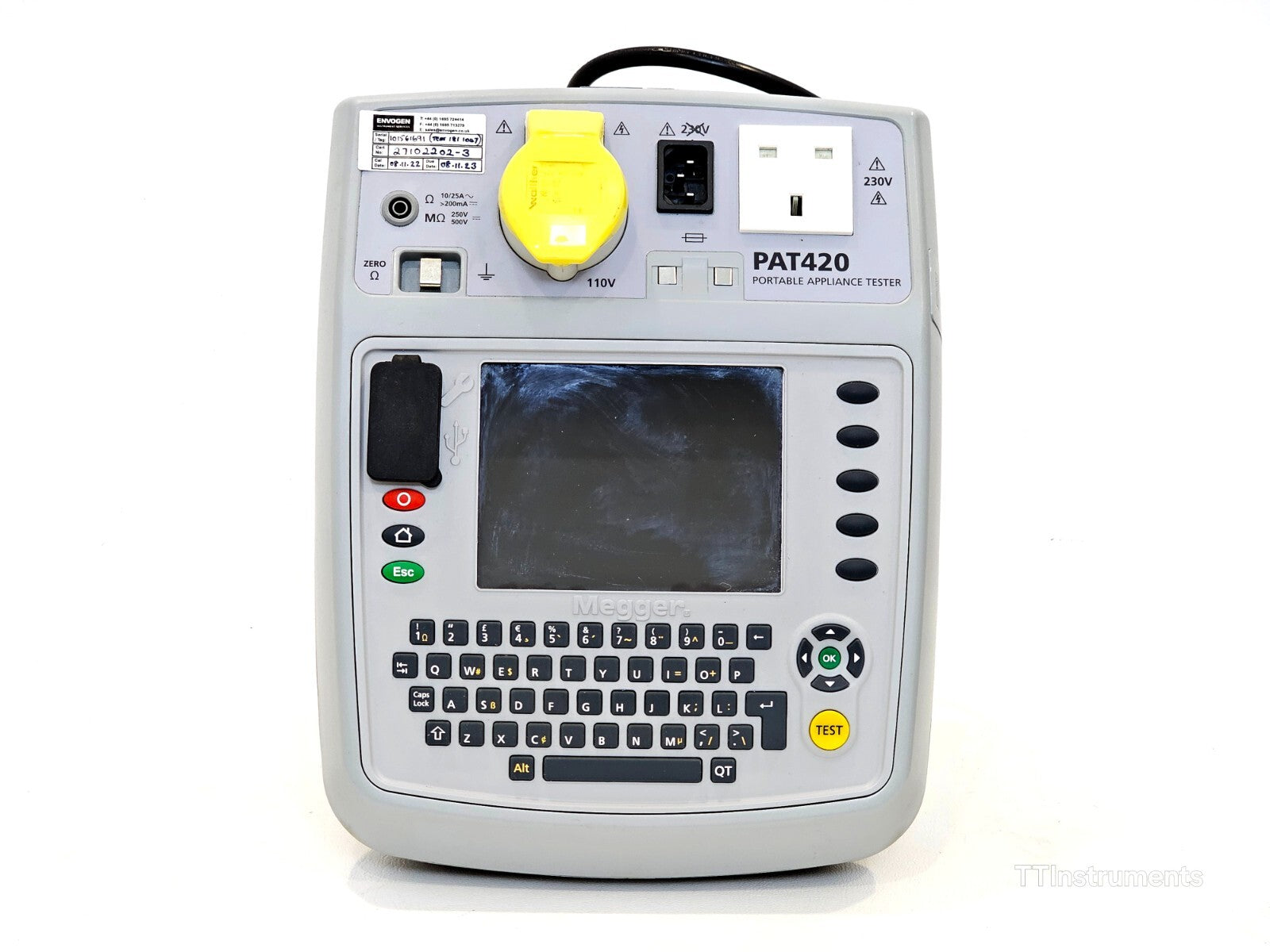

• PAT420 portable appliance tester (main unit)

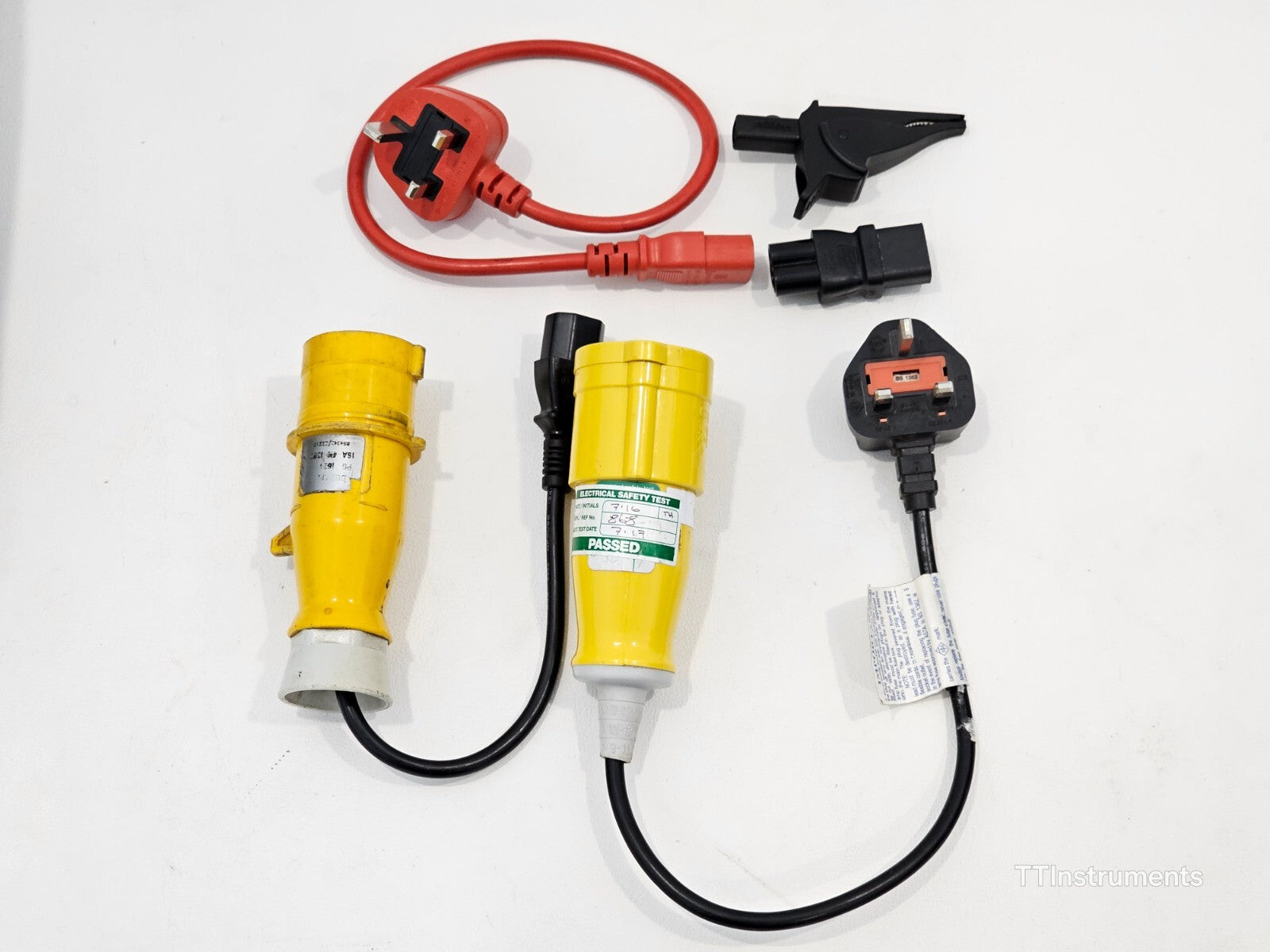

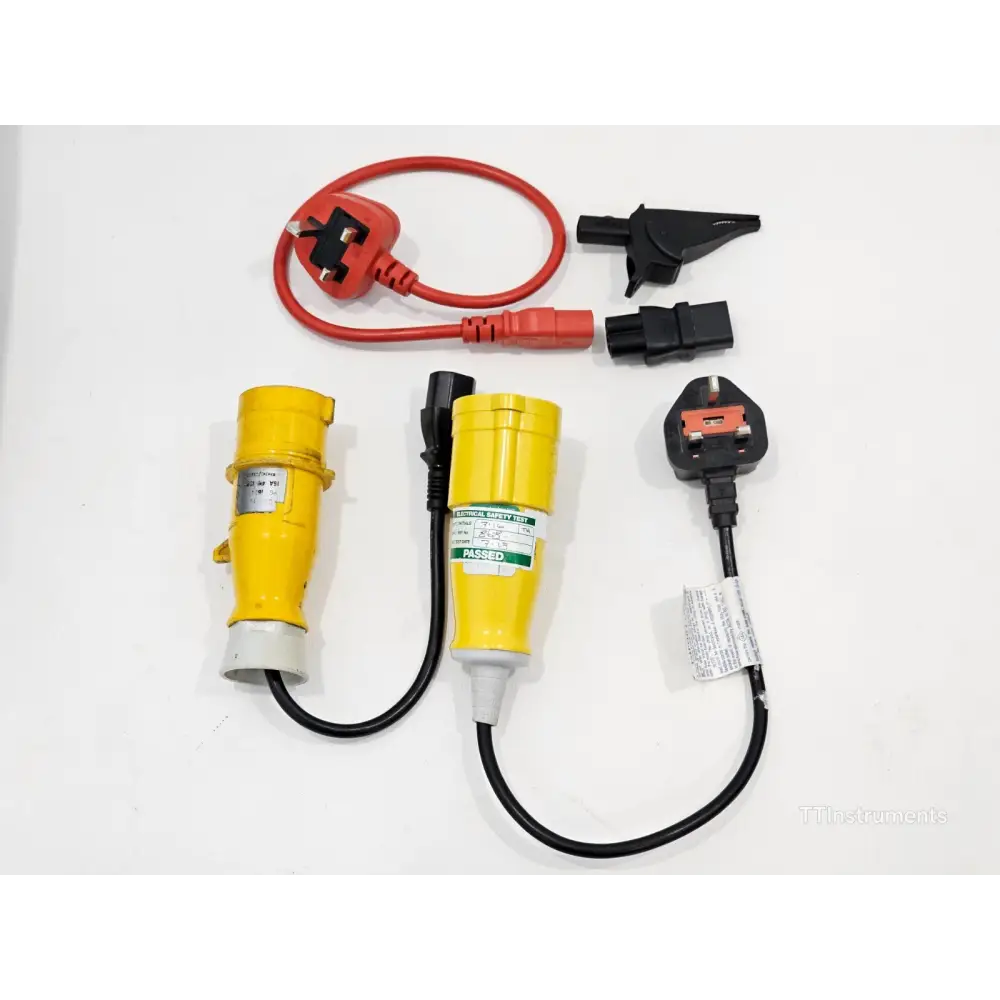

• Accessories (as pictured)

The Megger PAT420 is part of the PAT400 series — a new generation of fully automated downloading portable appliance testers designed for fast, professional-grade electrical safety testing of portable equipment in line with the Code of Practice for the In-Service Inspection and Testing of Electrical Equipment.

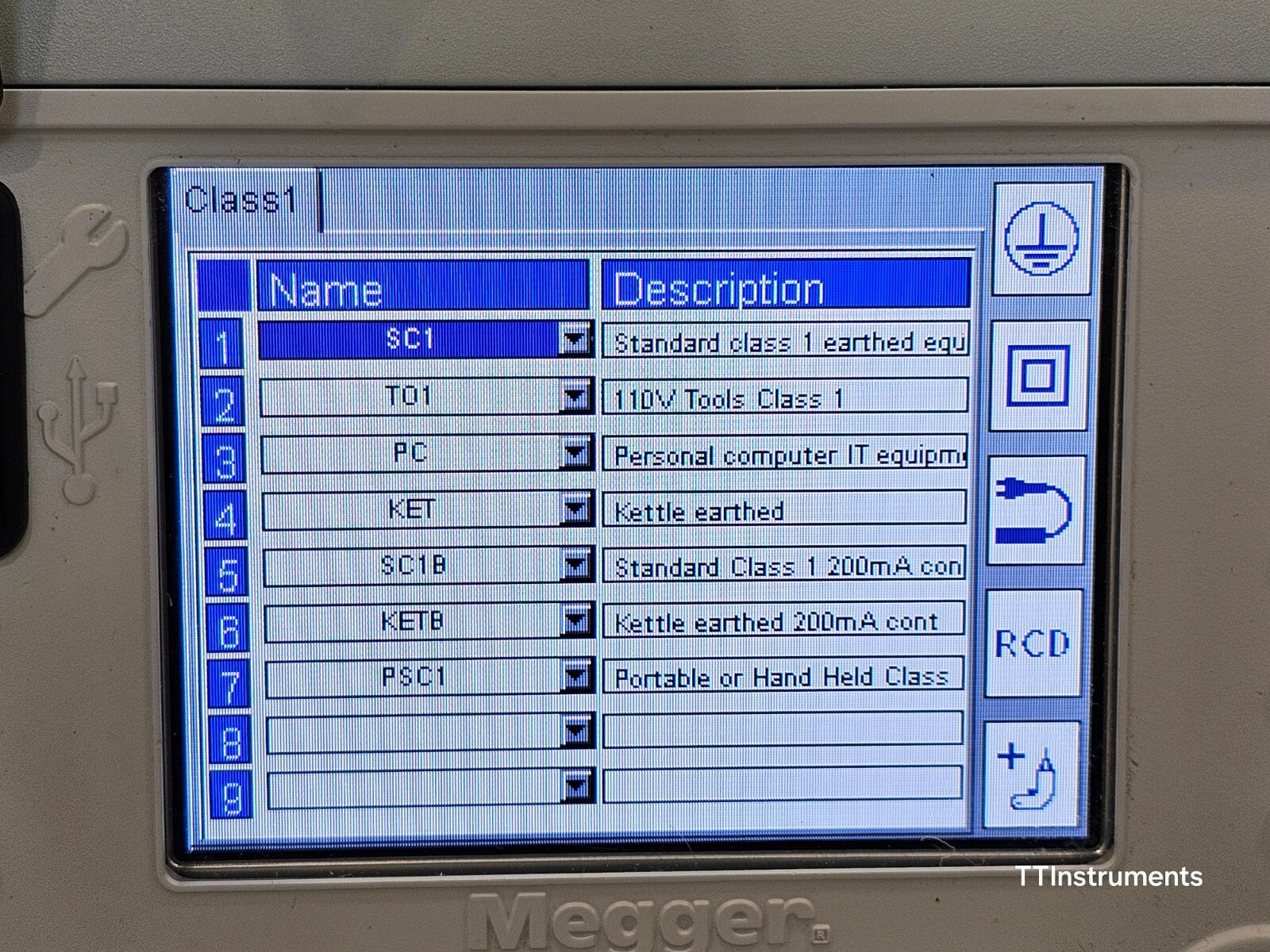

The PAT420 adds dual 230V and 110V operation to the PAT410 platform, along with 10 A and 25 A high-current earth bond testing, making it the preferred choice for full-time industrial and commercial PAT testers. Testing can be performed in manual or fully configurable automatic mode with user-defined pass/fail limits and test sequences.

Key Features:

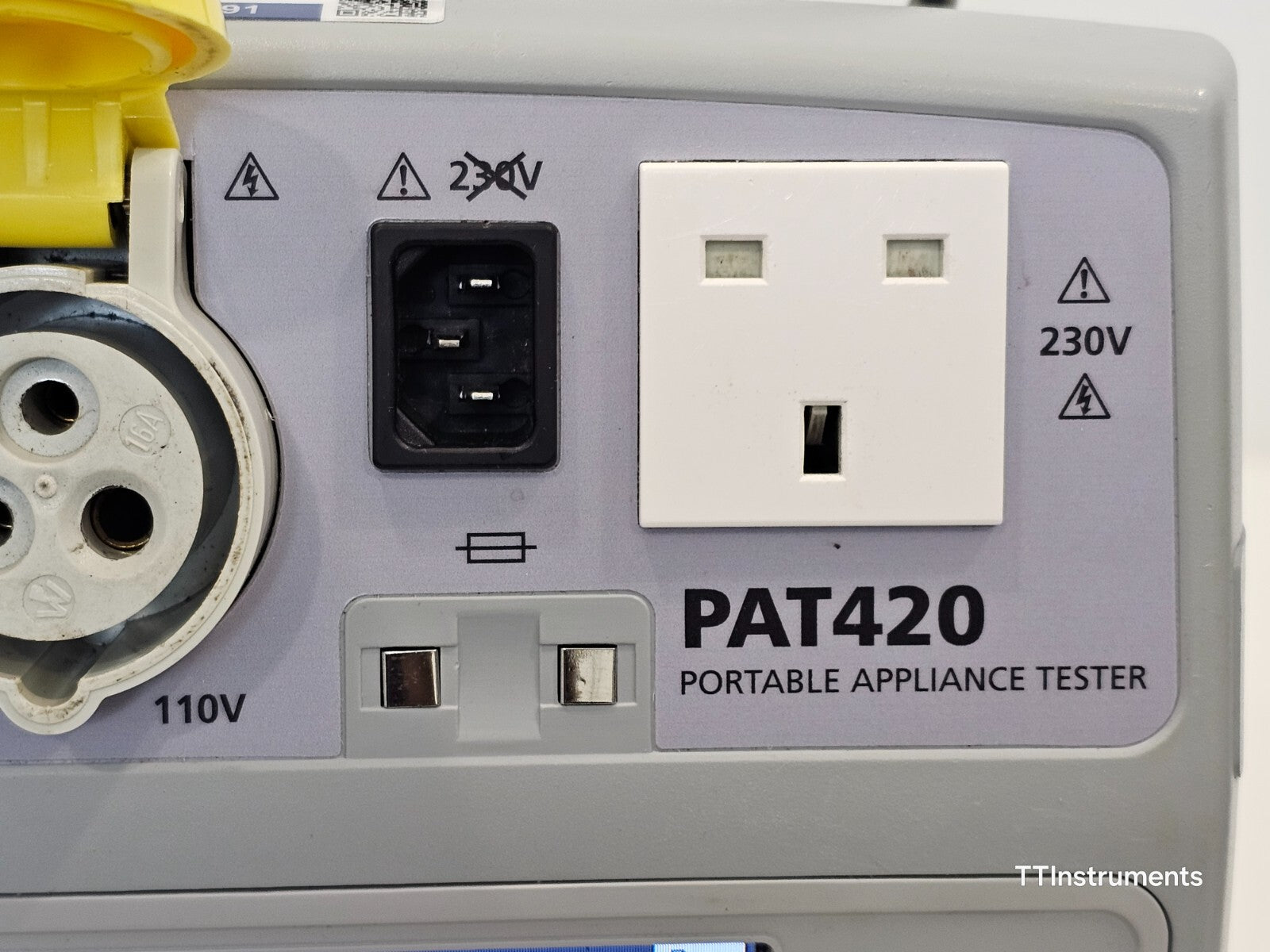

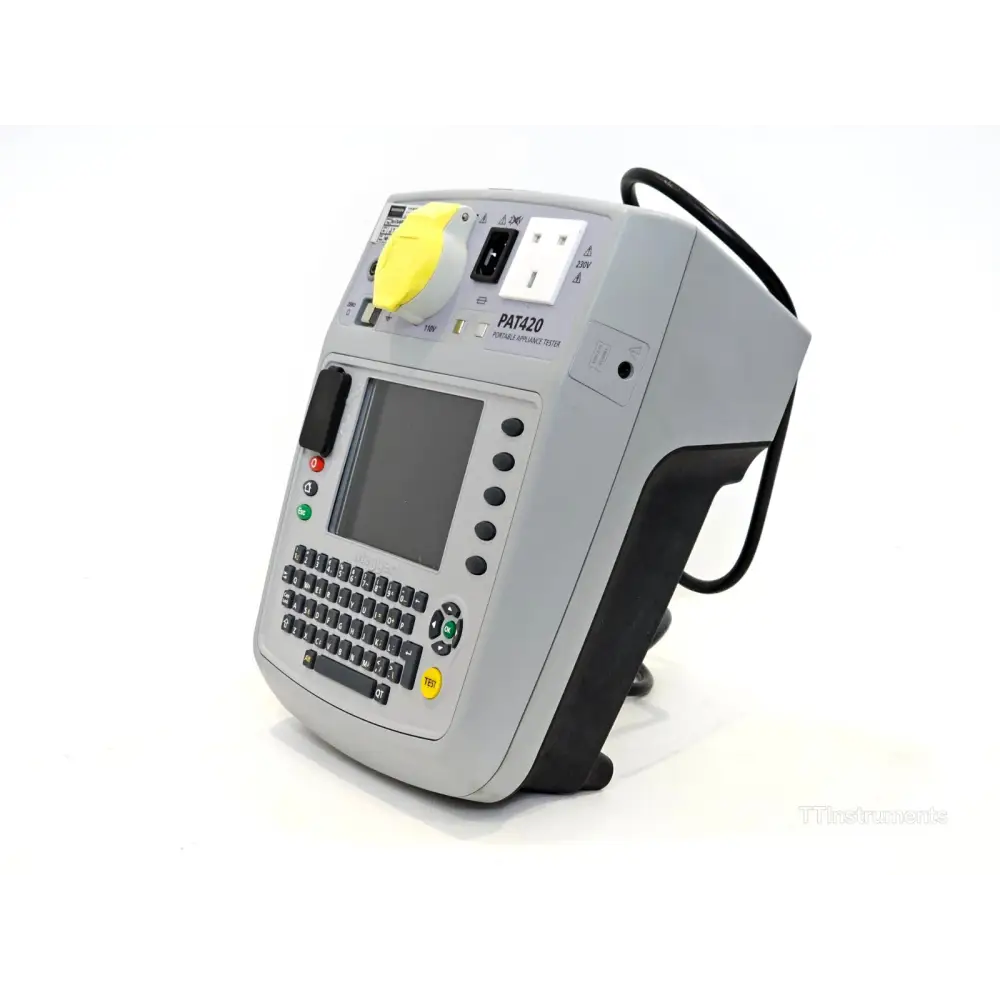

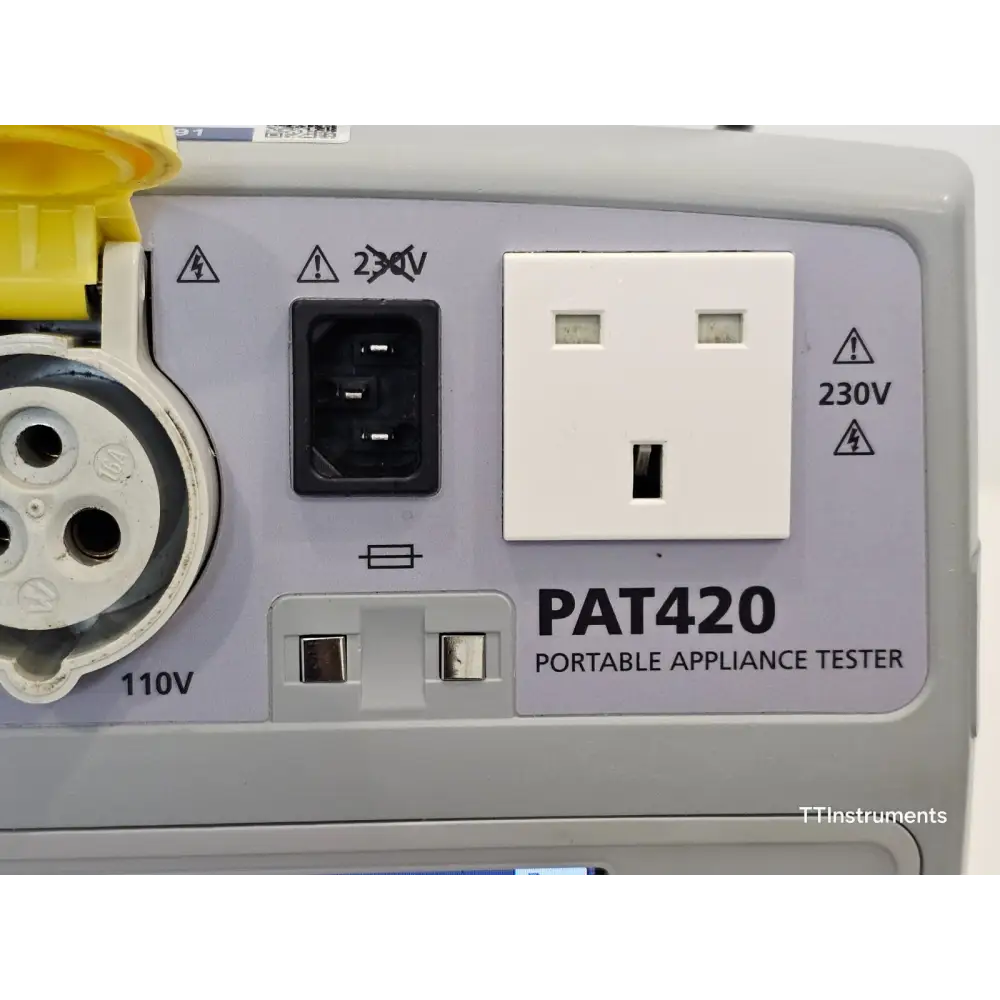

• Dual voltage operation: 230V and 110V

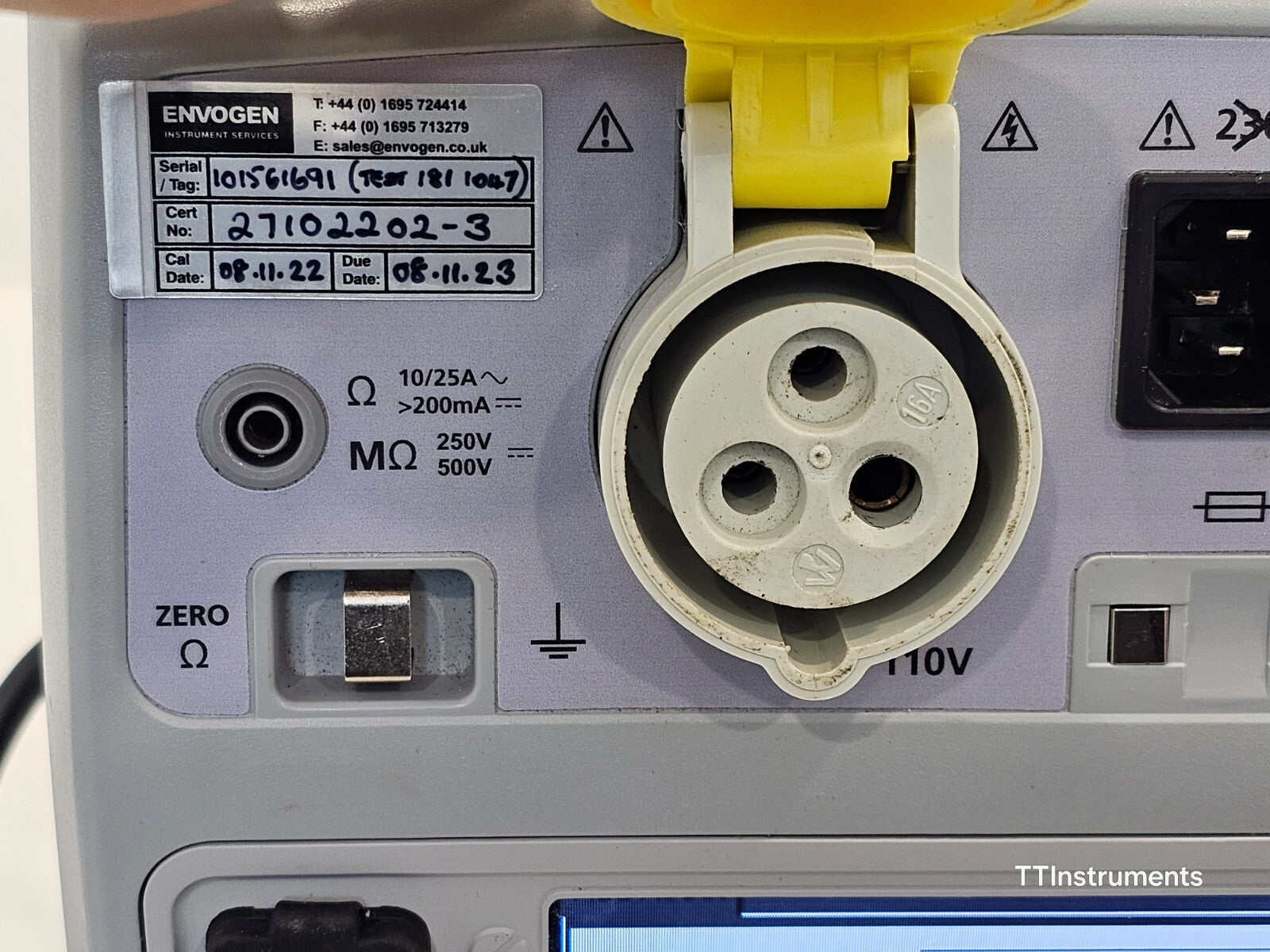

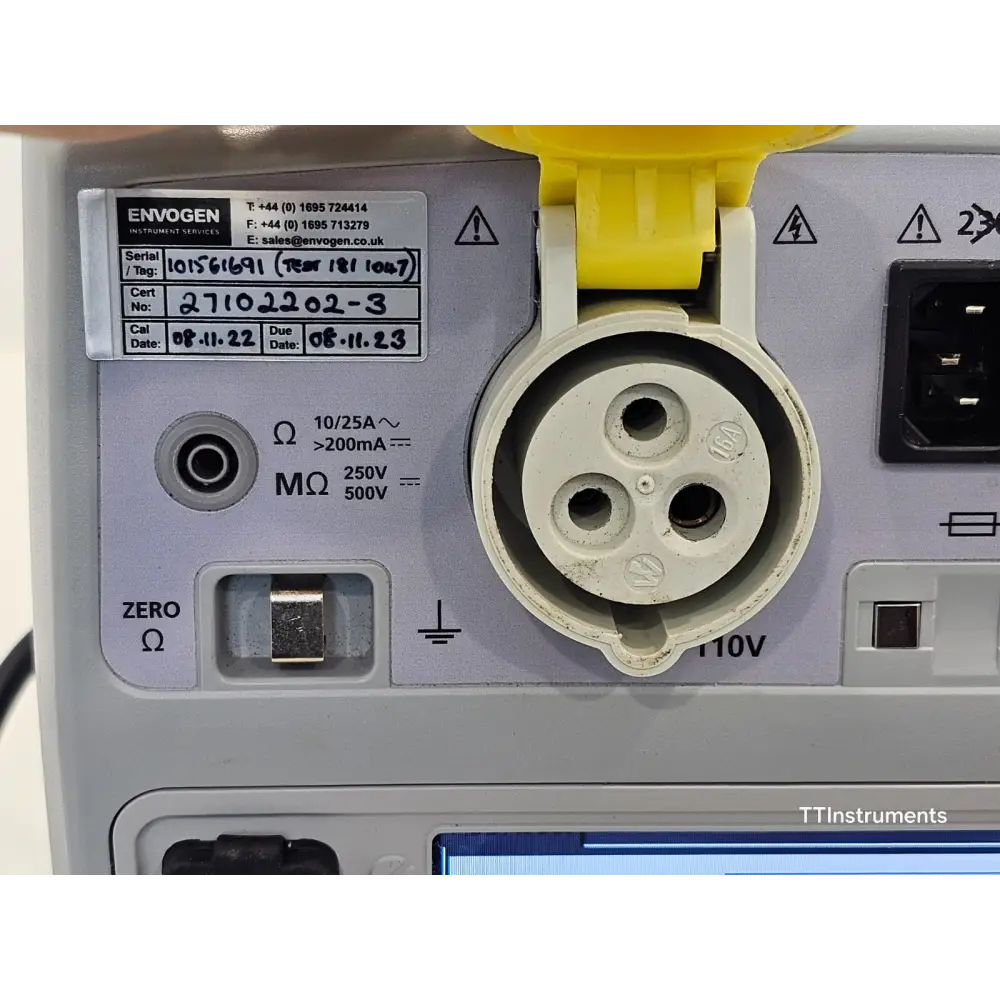

• Earth bond test currents: 200 mA, 10 A and 25 A
• Insulation test voltages: 250V and 500V
• Leakage tests: Differential, substitute and touch current

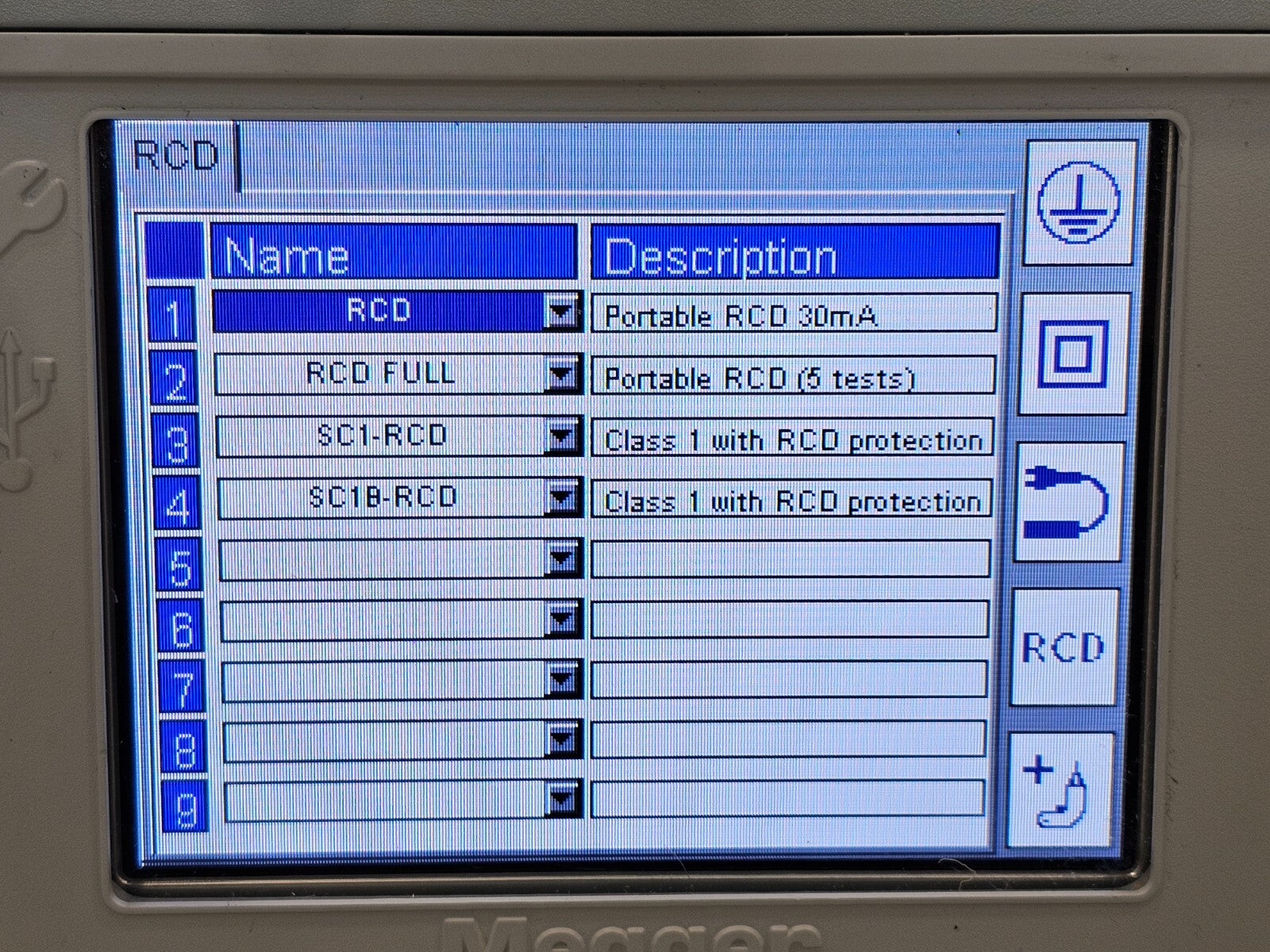

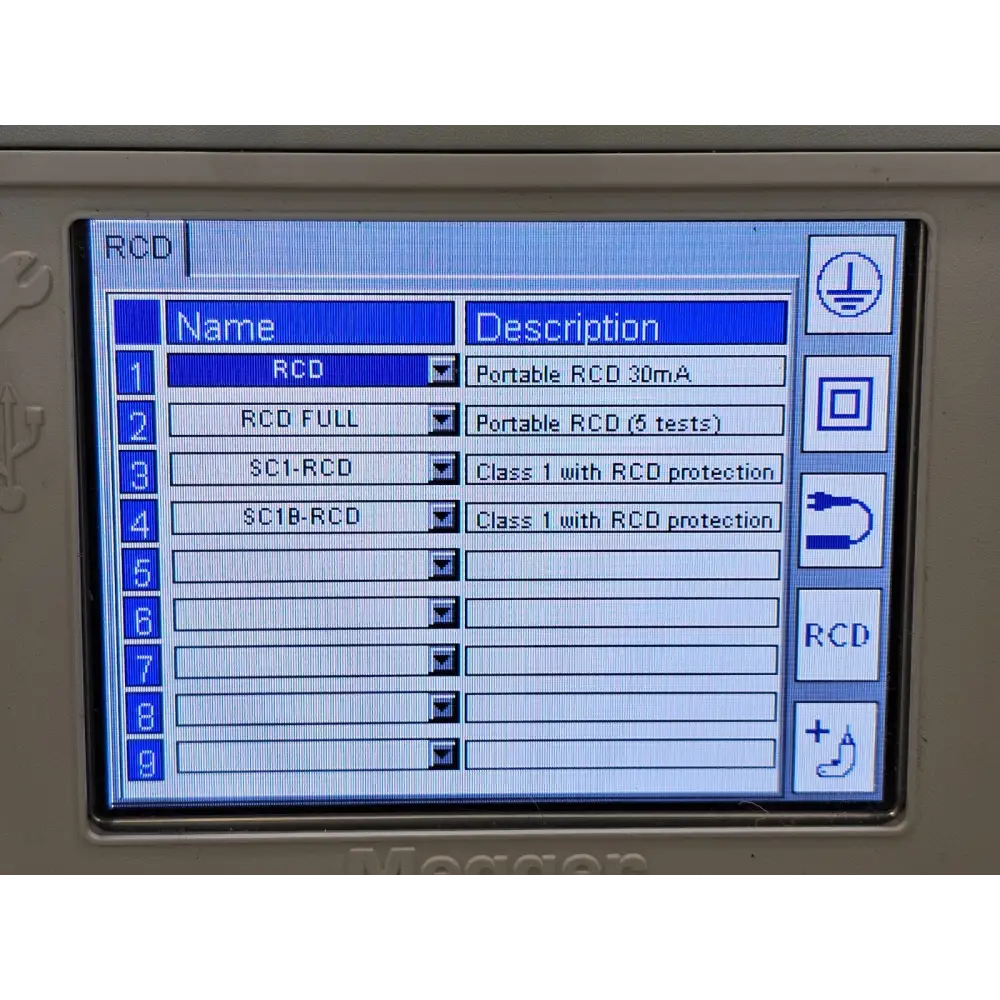

• RCD trip-time testing for portable and plug-in RCDs

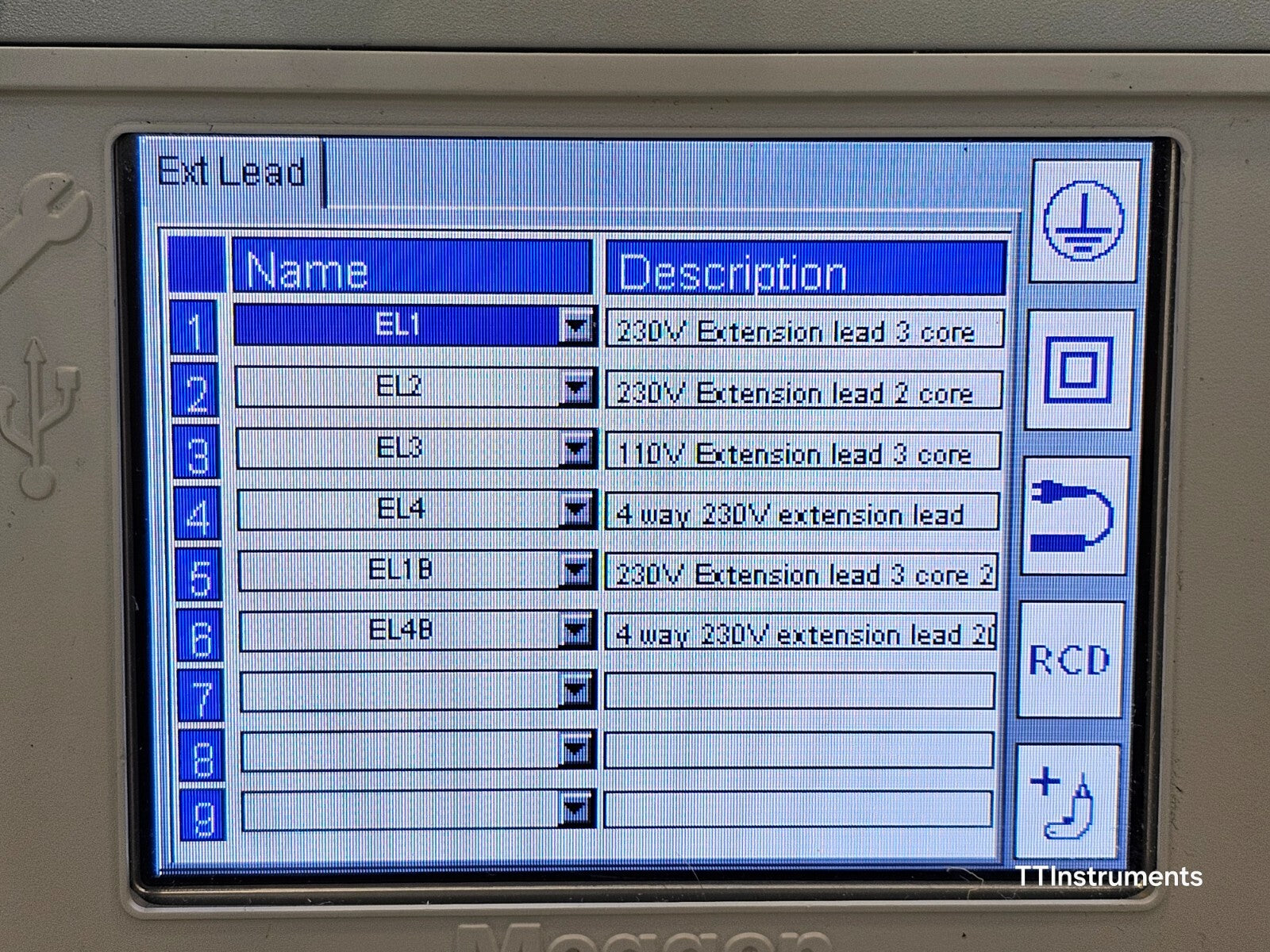

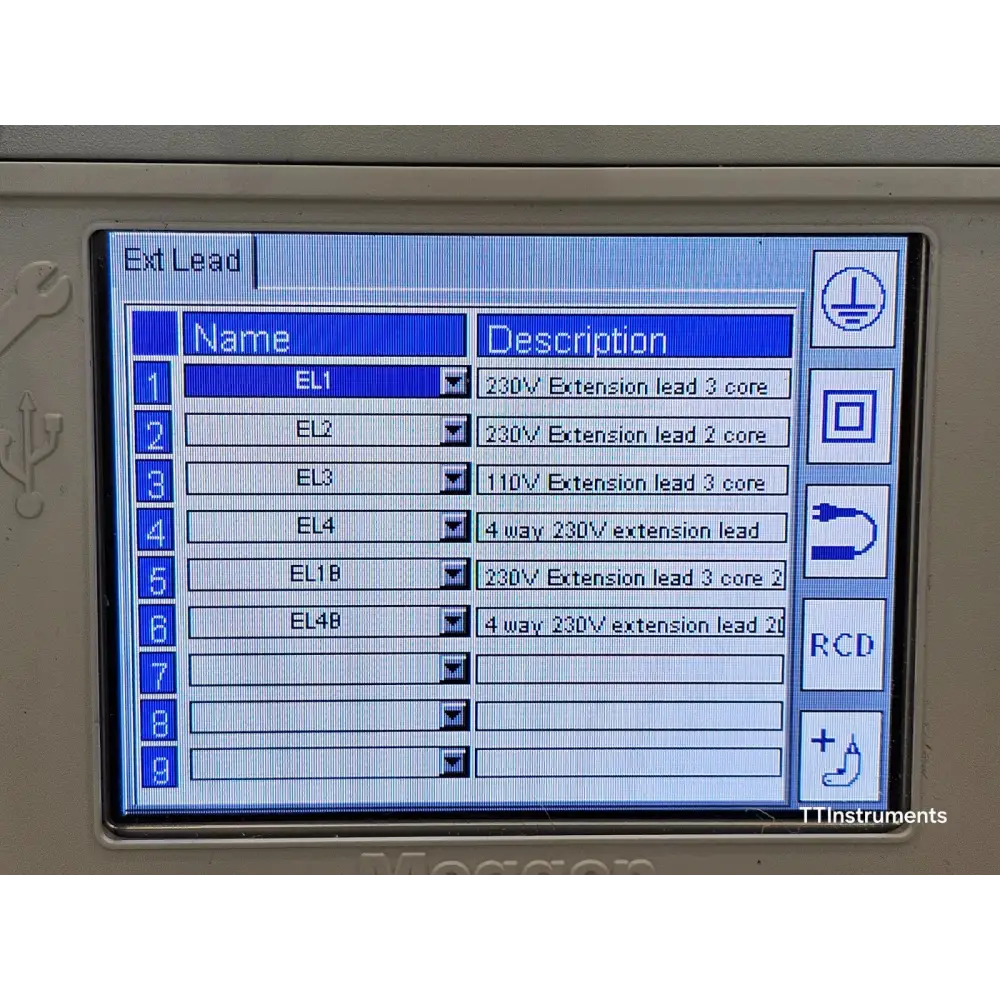

• Extension lead, power cord and anti-surge lead testing
• Operational test with VA display
• IEC polarity test and inbuilt fuse checker

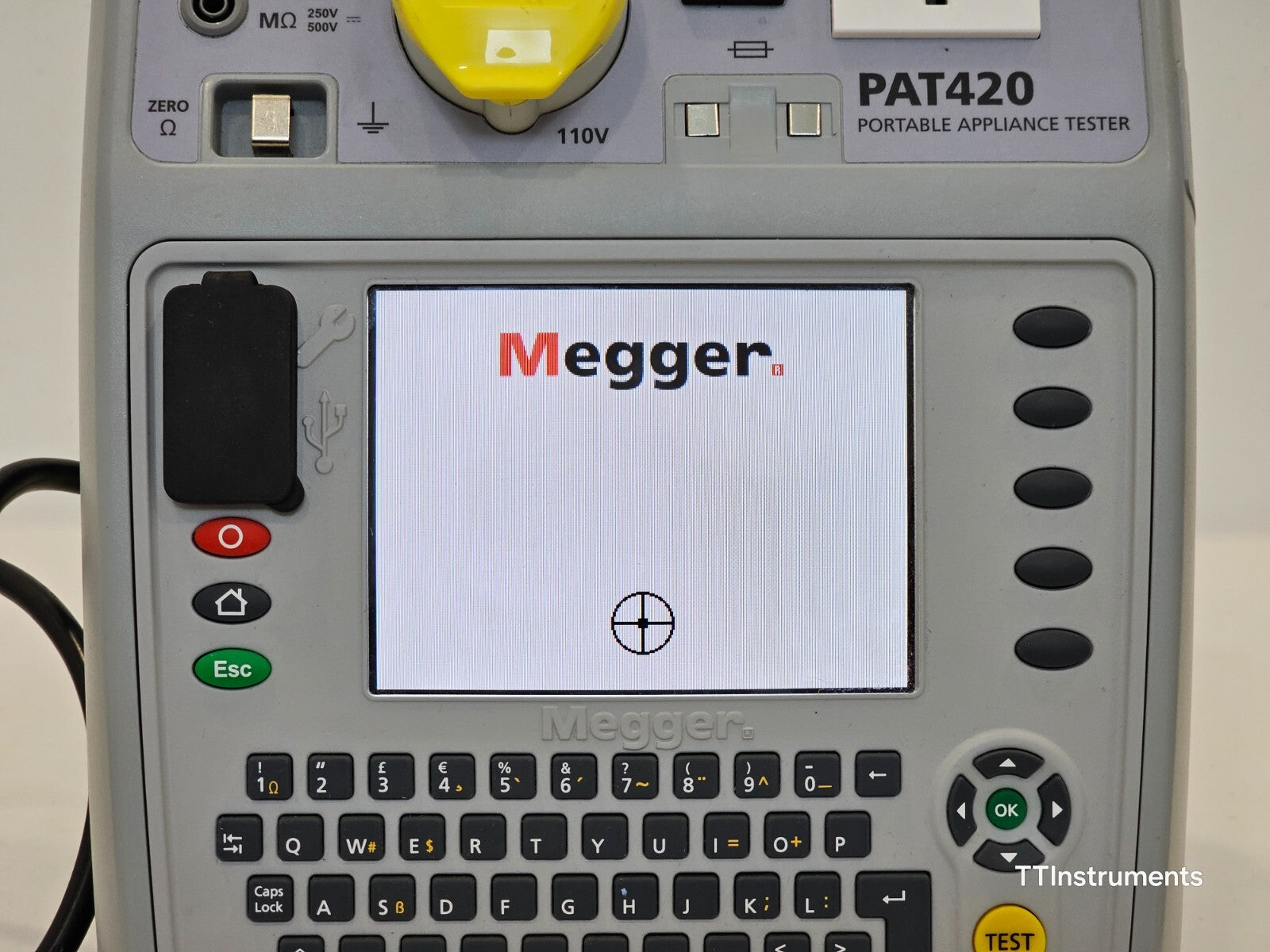

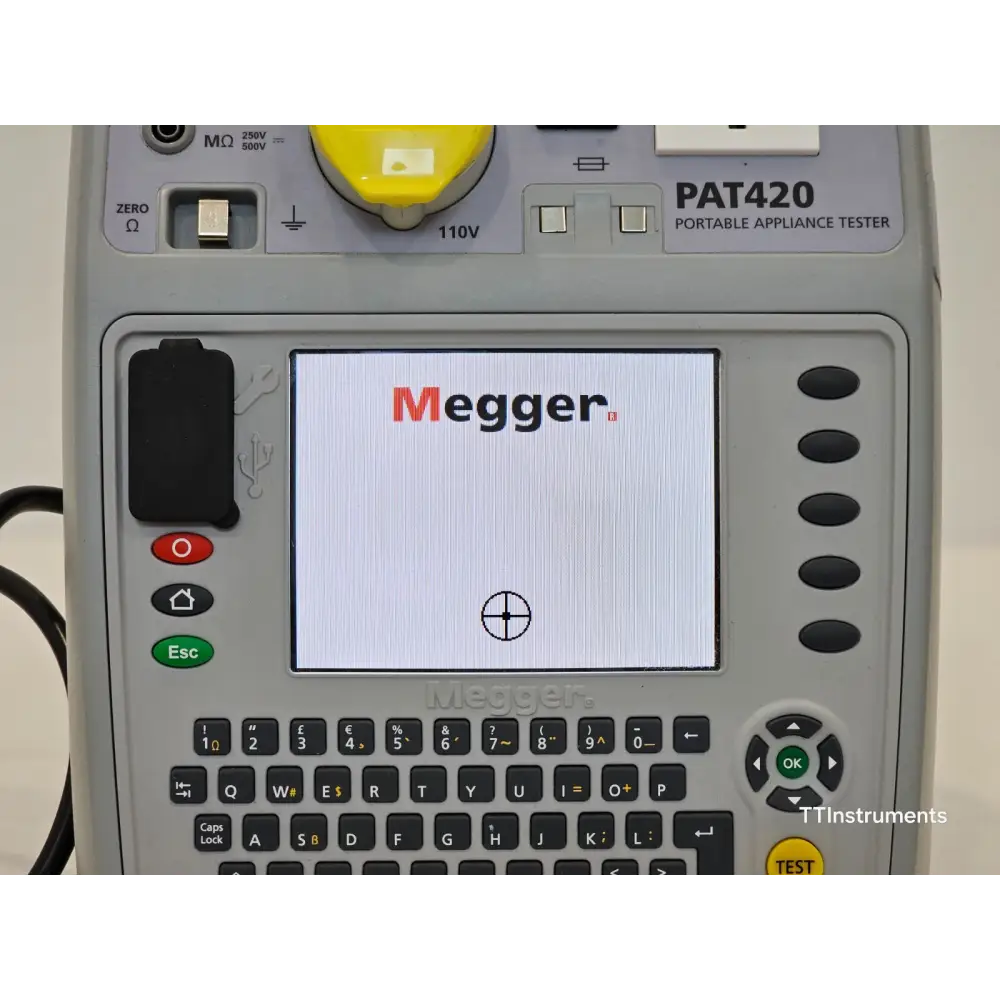

• 5.7" VGA backlit colour display with colour PASS/FAIL indication

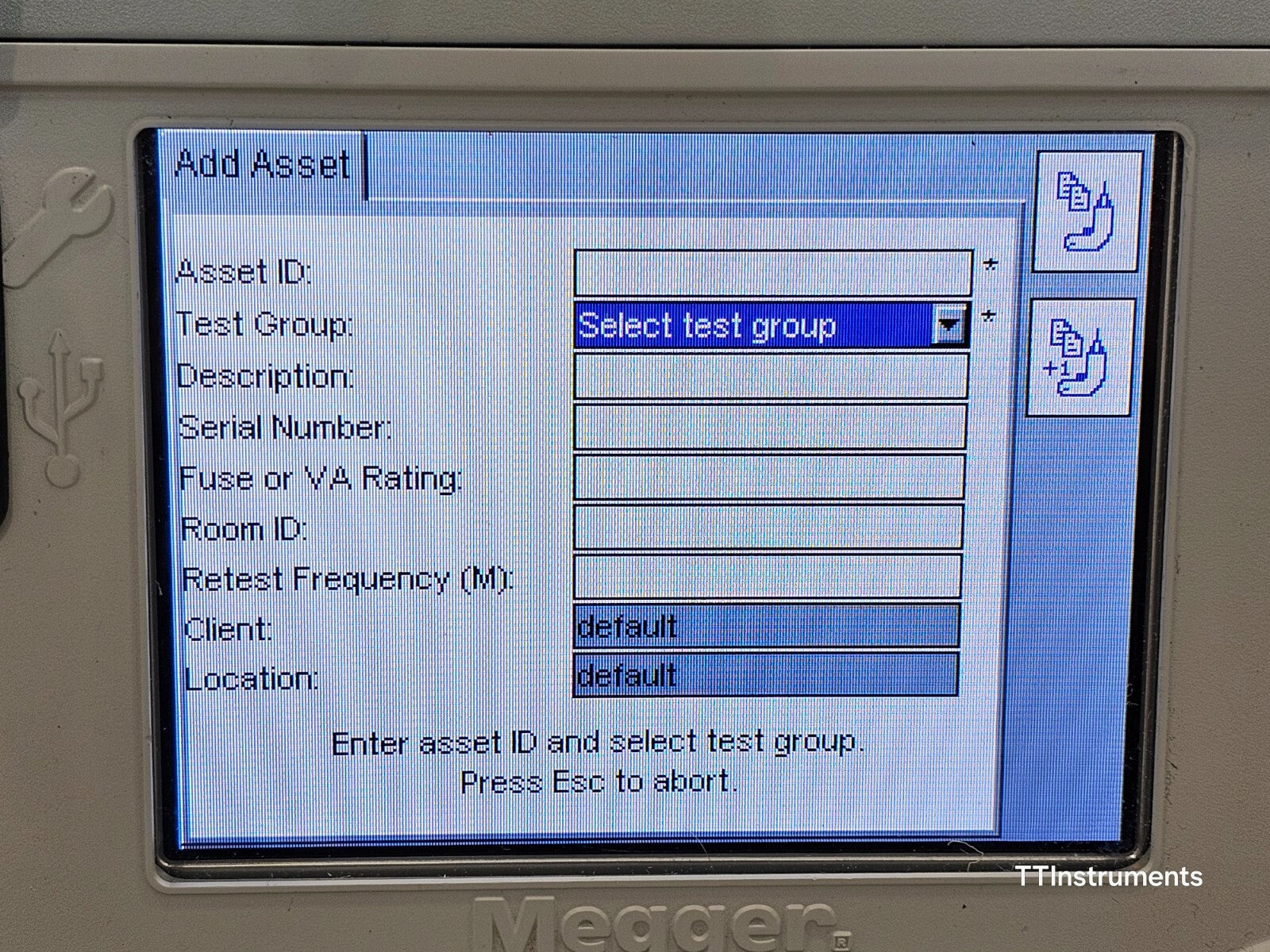

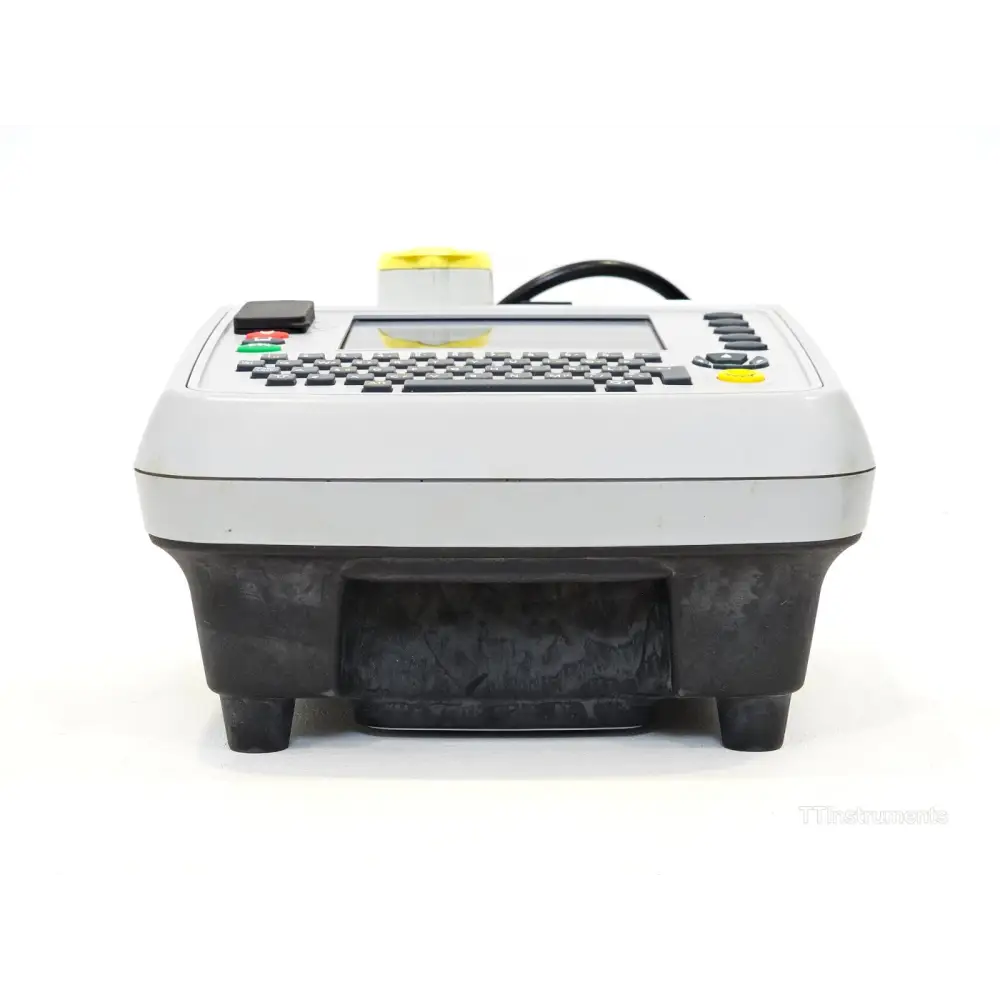

• Full QWERTY keypad for fast, accurate data entry
• 5 user-defined hot-keys for direct access to frequently used functions
• 10,000-record onboard memory for uninterrupted testing

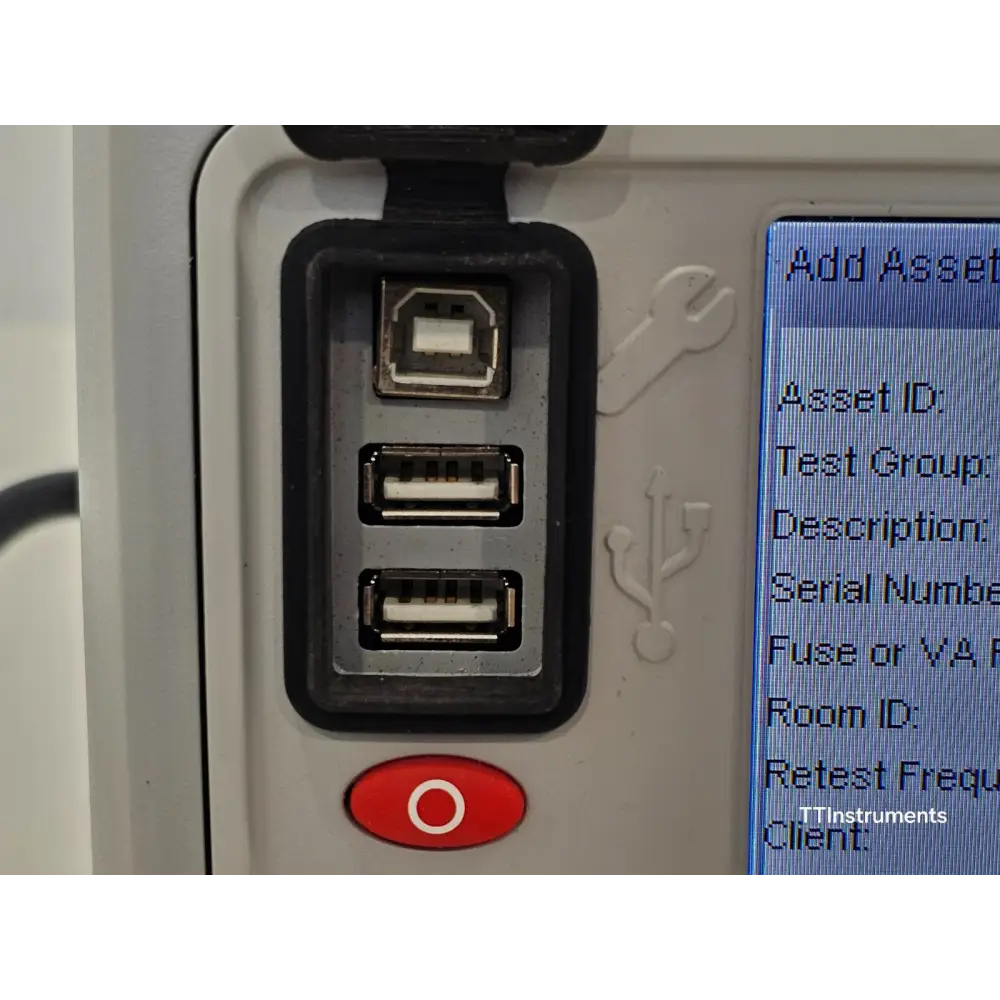

• USB port for download to memory stick (no need to return to office)

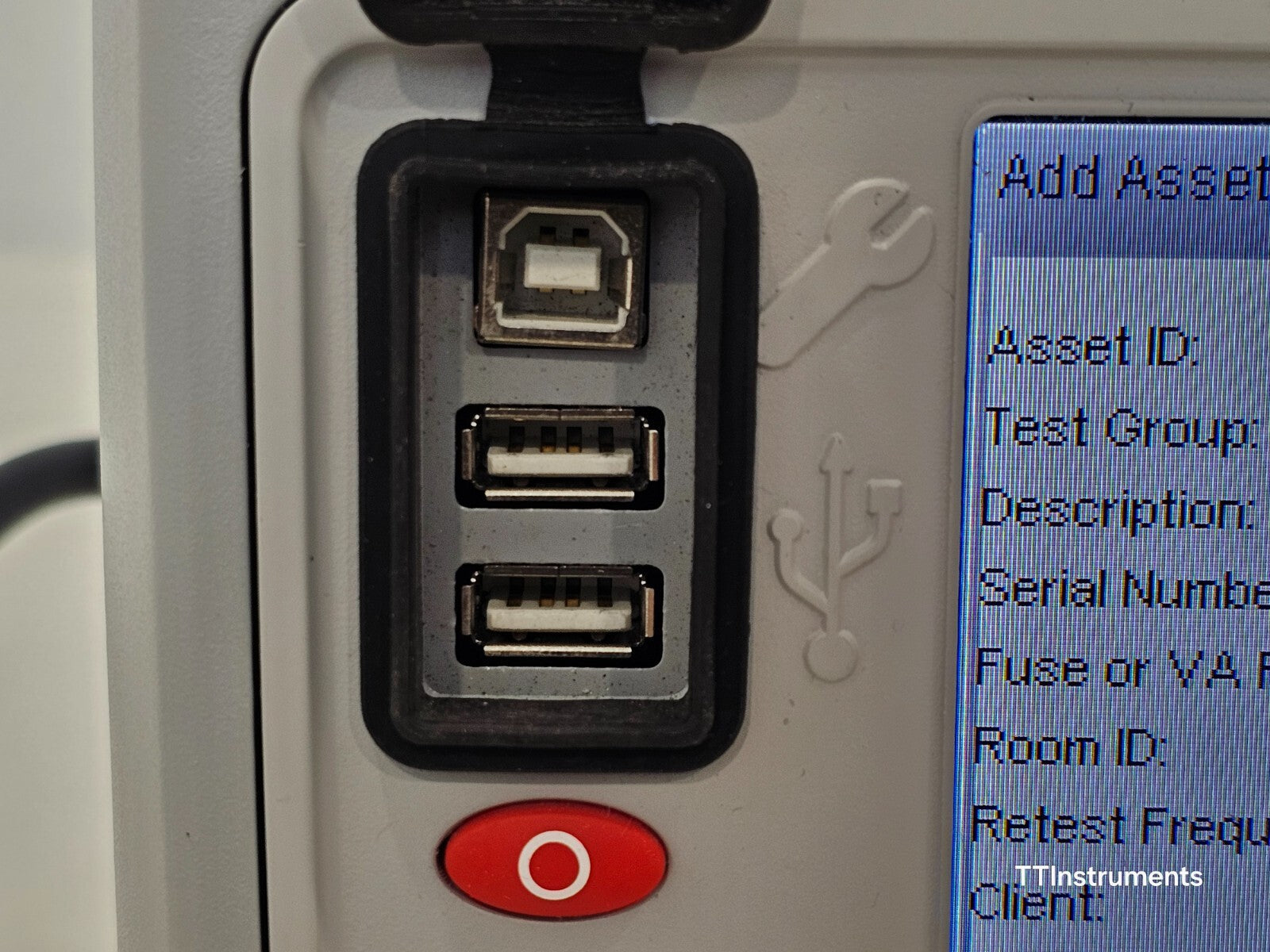

• 2 USB ports supporting optional barcode reader and label printer
• Instant fast-restart when moved between rooms
• Compatible with Megger PowerSuite software for full database asset management and professional certificate generation
• Download Manager software included — exports data to CSV for use in Microsoft Excel
• High duty-cycle design for all-day use

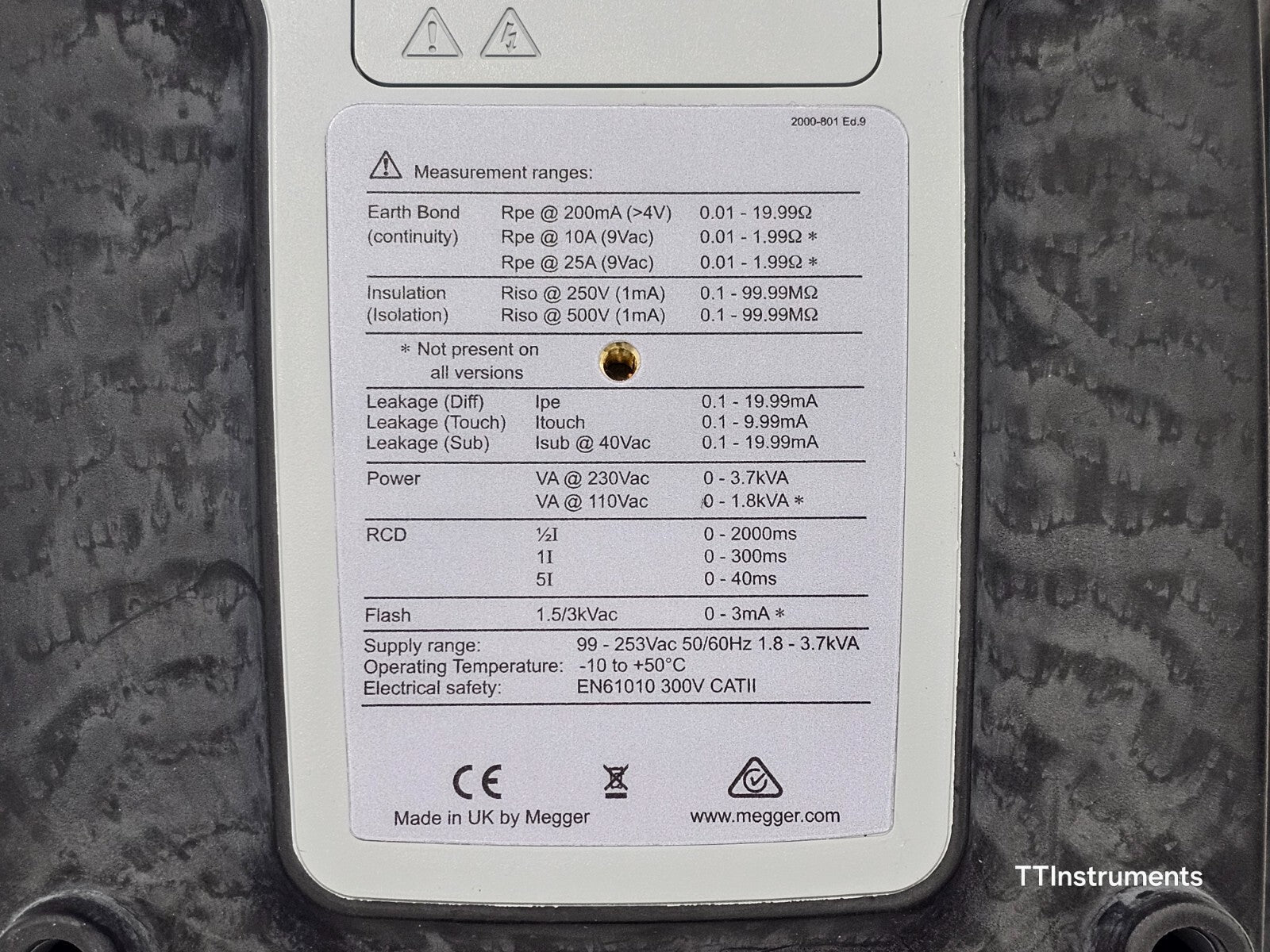

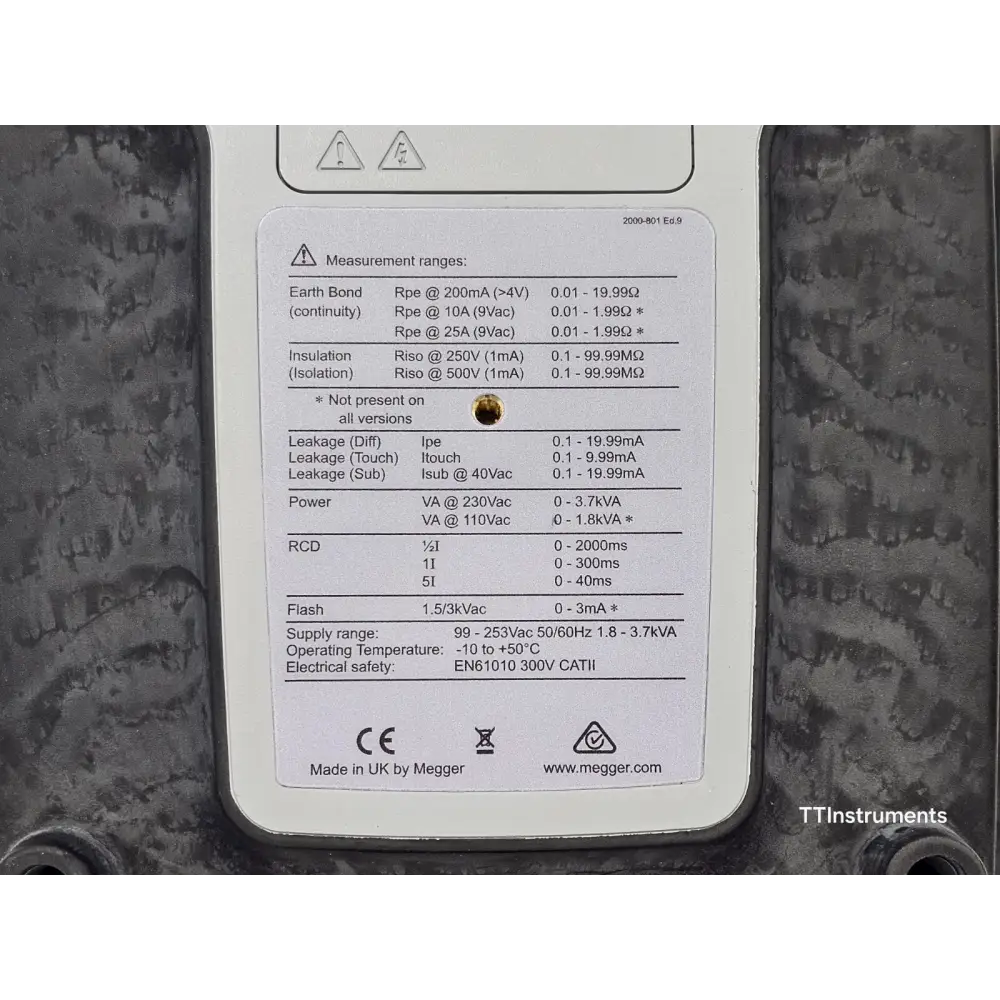

Technical Specifications:
Supply Voltage: 230V AC / 110V AC
Insulation Test Voltages: 250V / 500V
Earth Bond Test Currents: 200 mA, 10 A, 25 A
Leakage Test Types: Differential, Substitute (Alternative), Touch
RCD Test Currents: 10 mA, 30 mA
Trip Time Resolution: 0.1 ms
Polarity Test Voltage: 12V
Fuse Test Voltage: 3.3V
Display: 5.7" VGA backlit colour screen
Memory: 10,000 records
Communication: USB (data download and peripheral connection)
Dimensions: 180 x 255 x 320 mm
Weight: 4.4 kg
Humidity Range: Up to 90% RH @ 10–30°C / Up to 75% RH @ 30–40°C
Compliance: IEC 61010-1, CAT II 300V, IEC 61326-1, IEC 61326-2-2
Test Types: Class I, Class II
Testing Mode: Automatic and Manual
Order Code (UK): 1000-752
Manufacturer: Megger Instruments Ltd, Archcliffe Road, Dover, Kent, CT17 9EN, England

Megger PAT400 Series User Manual (covers PAT410, PAT420, PAT450) — hosted by RS Components: Download PDF

Megger PAT400 Series User Manual (covers PAT410, PAT420, PAT450) — hosted by Megger/AWS: Download PDF

Megger PAT400 Series Datasheet (covers PAT410, PAT420, PAT450) — hosted by Megger/AWS: Download PDF

Megger PAT400 Series User Manual — hosted by Instrumart: Download PDF
