Megger MIT420/2 Insulation Tester
Model: MIT420/2
Condition: Used
In stock: 0
SKU: 2964 3D02
- Electronic T&M
- Multifunction & Appliance Testers
Choose options
Condition: Used

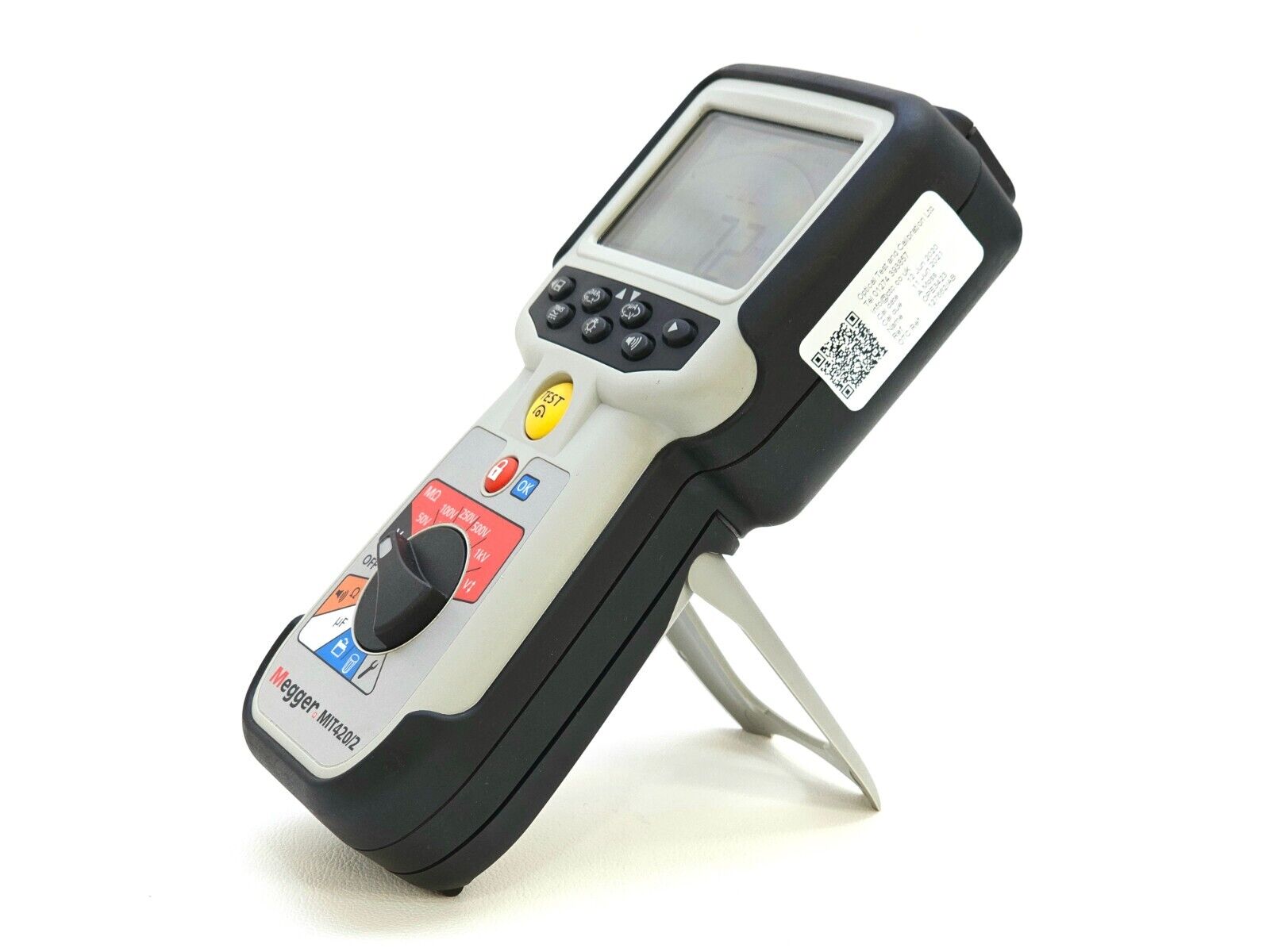

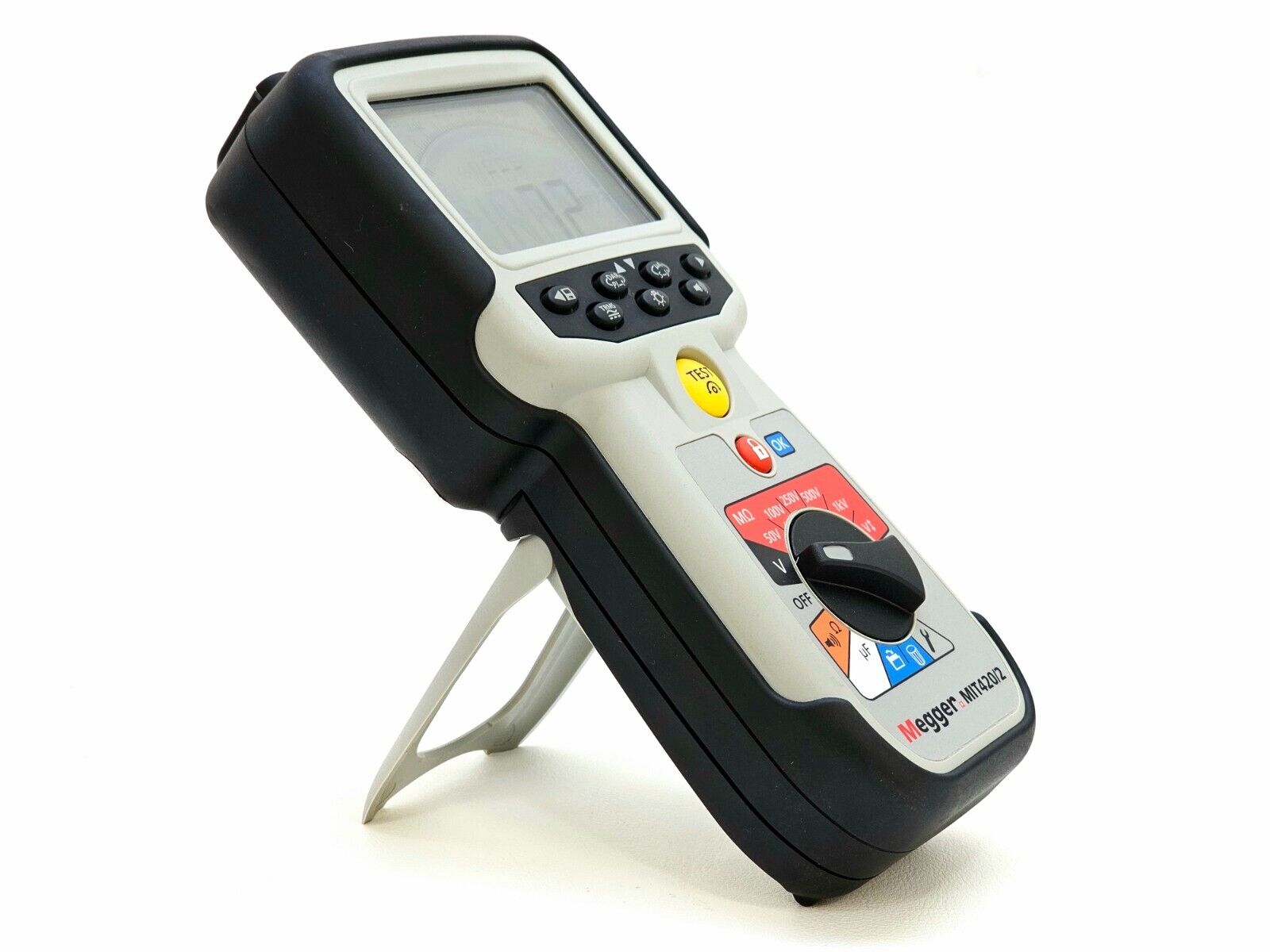

The Megger MIT420/2 is a used CAT IV insulation and continuity tester from Megger's MIT400/2 series. Order code 1004-739. Supplied with pictured accessories — cosmetic condition as shown.

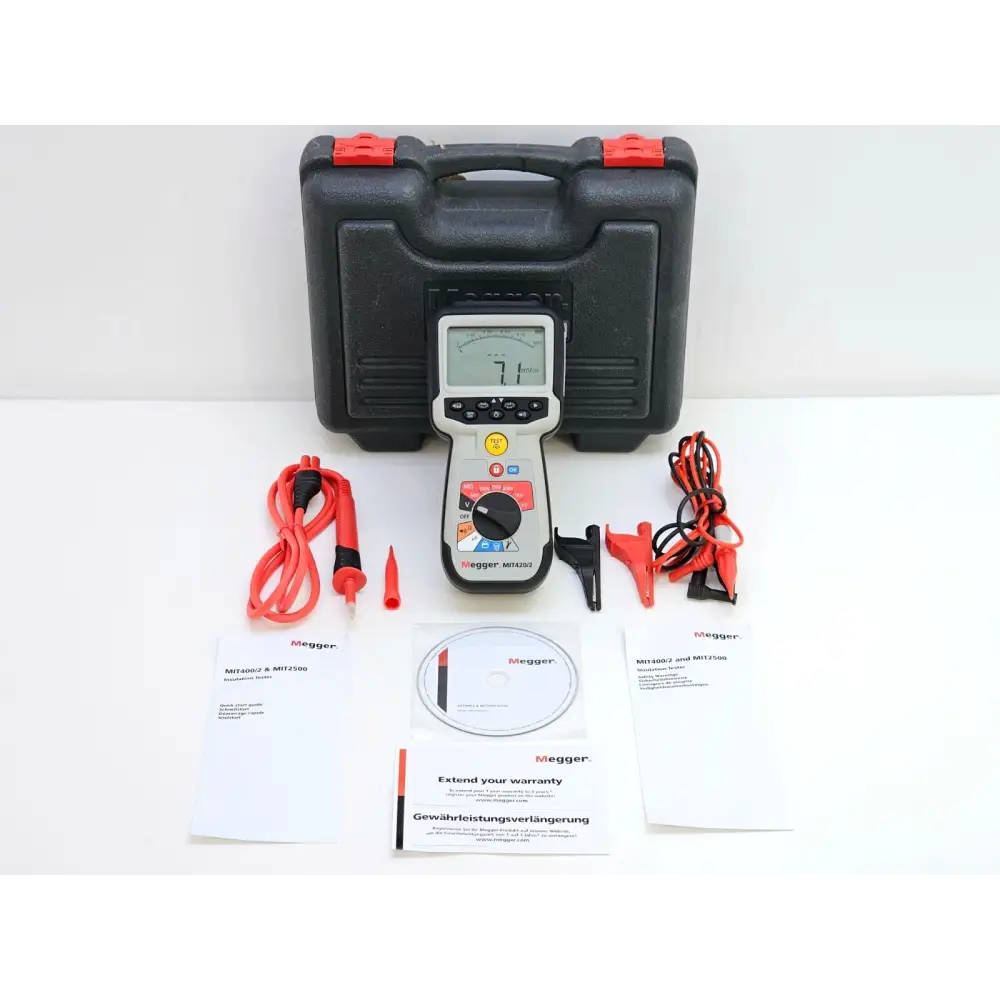

Typically supplied with:

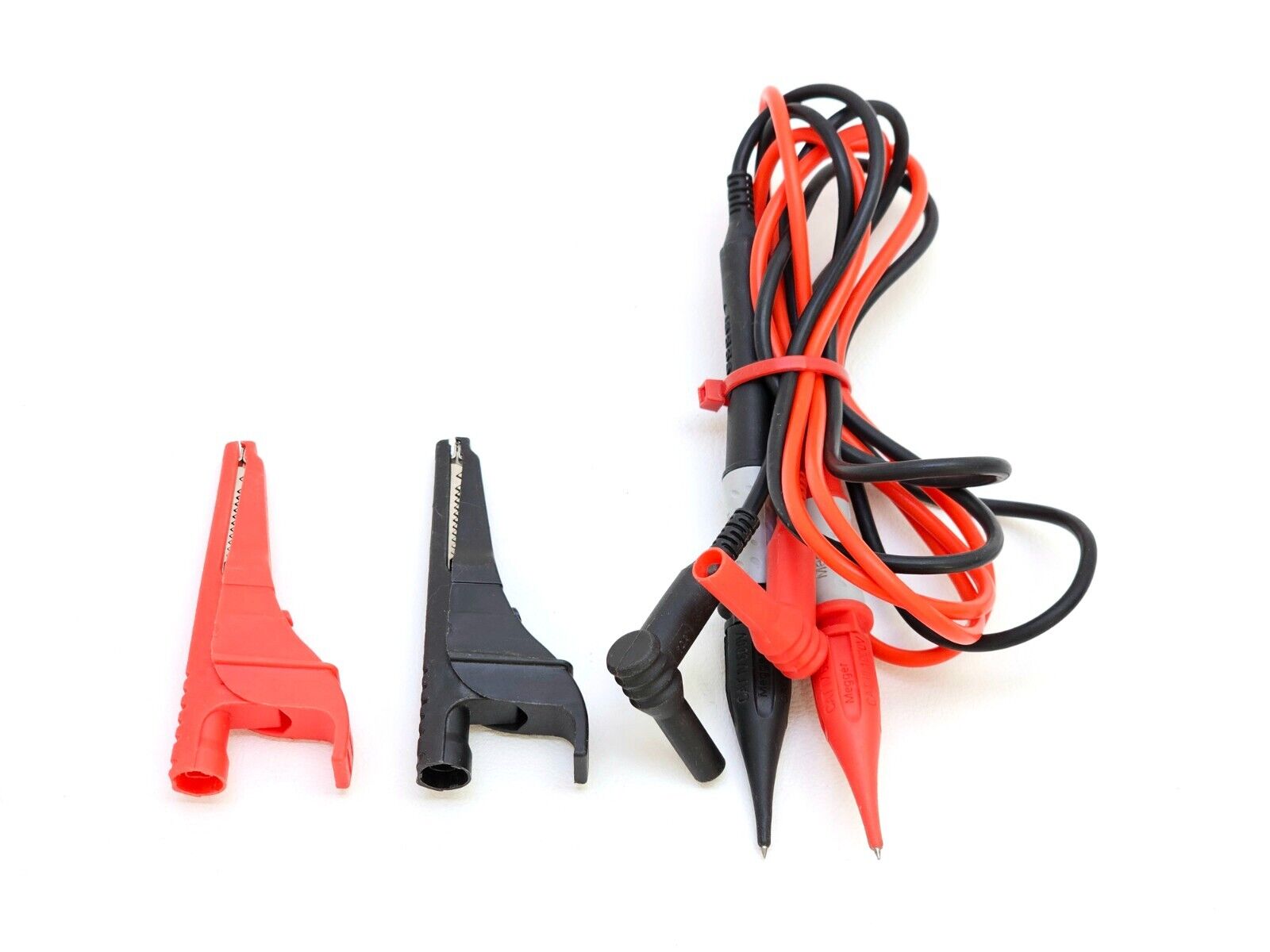

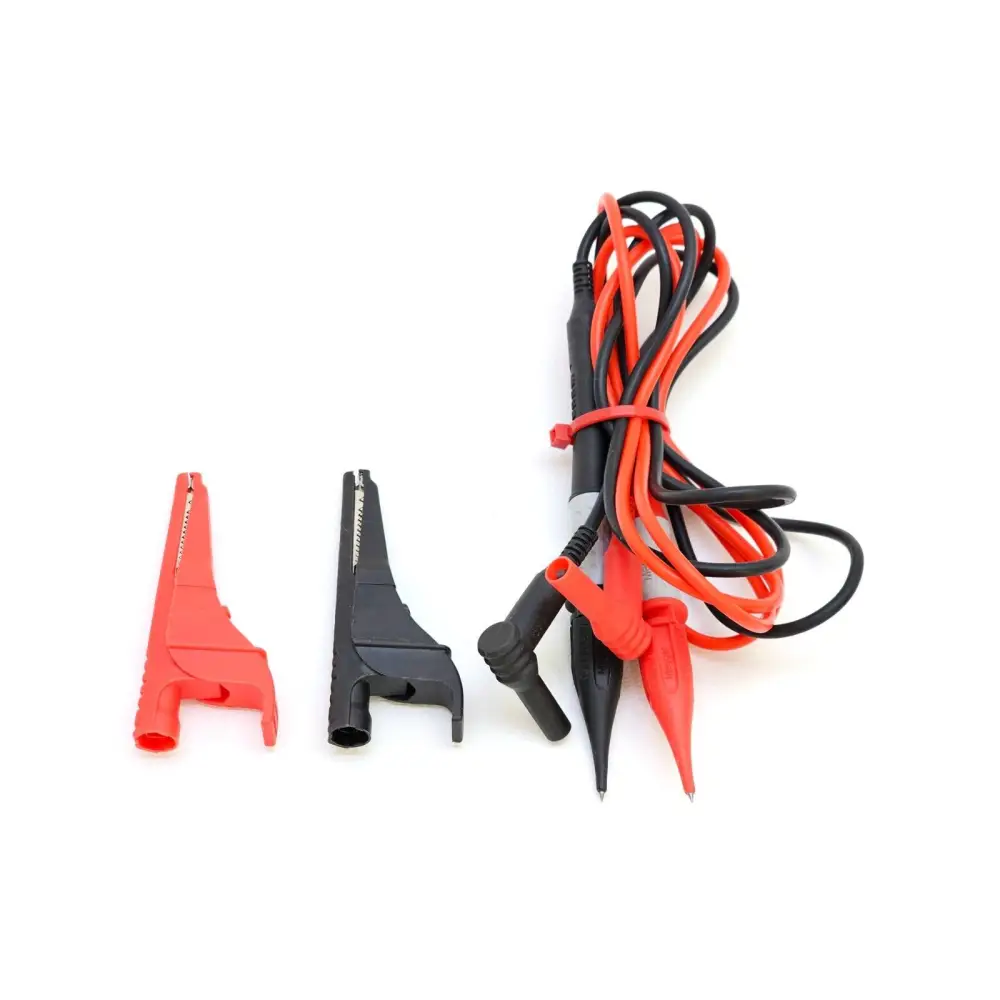

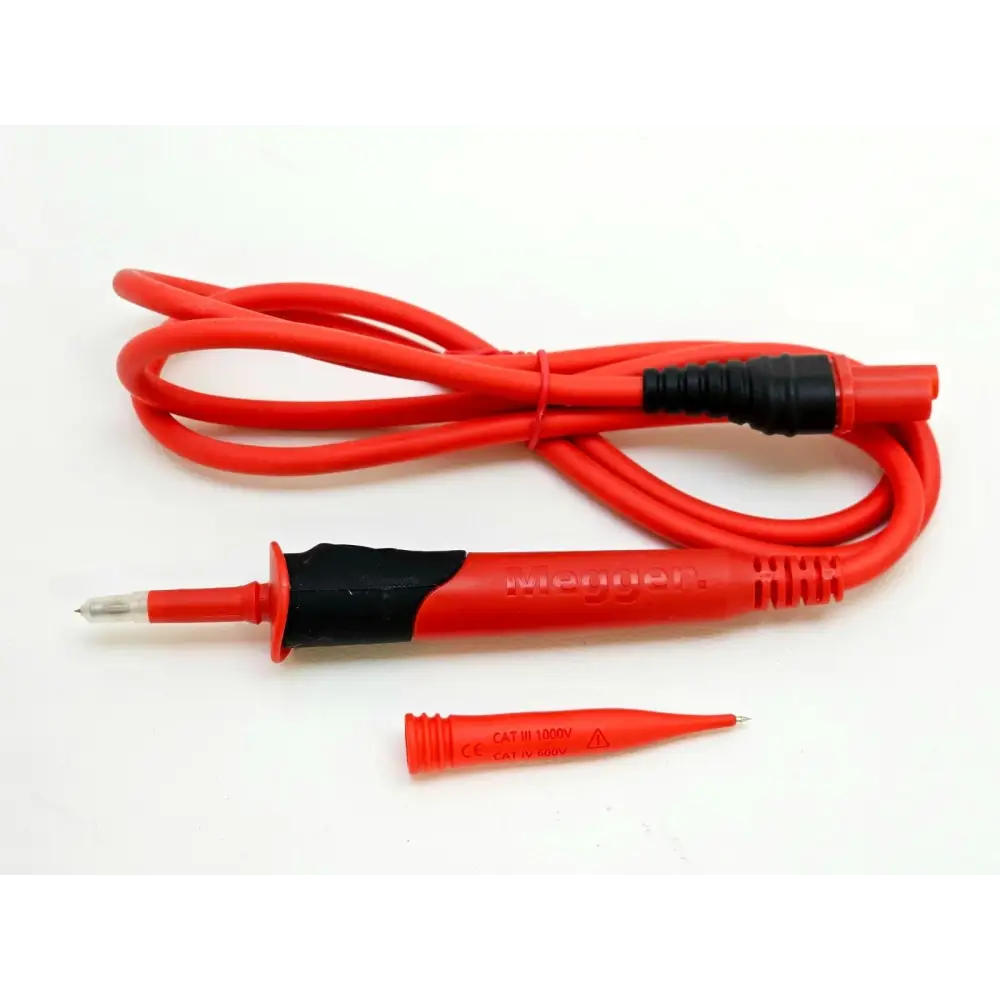

• Red/black silicone test leads

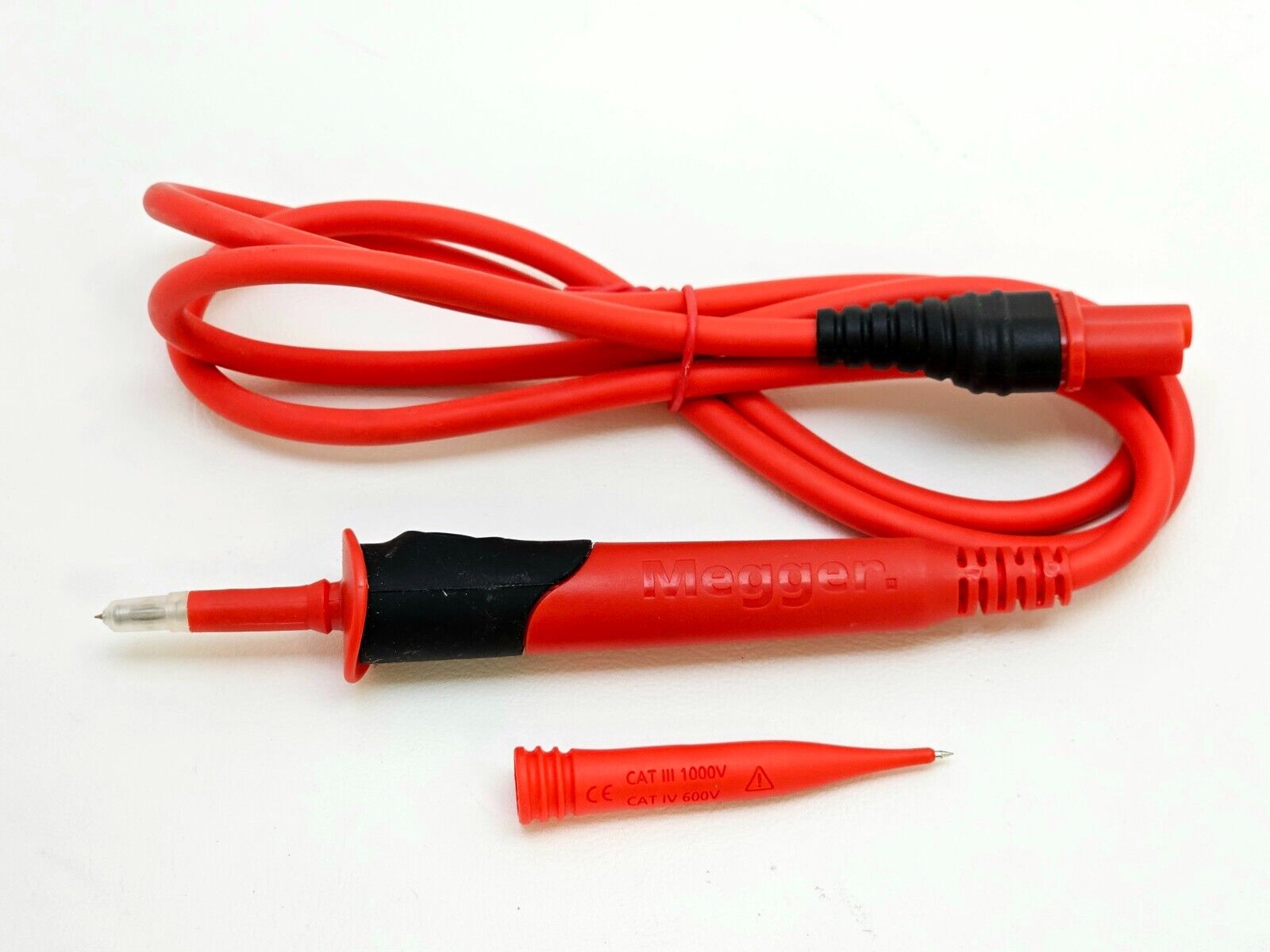

• SP5 remote switched probe

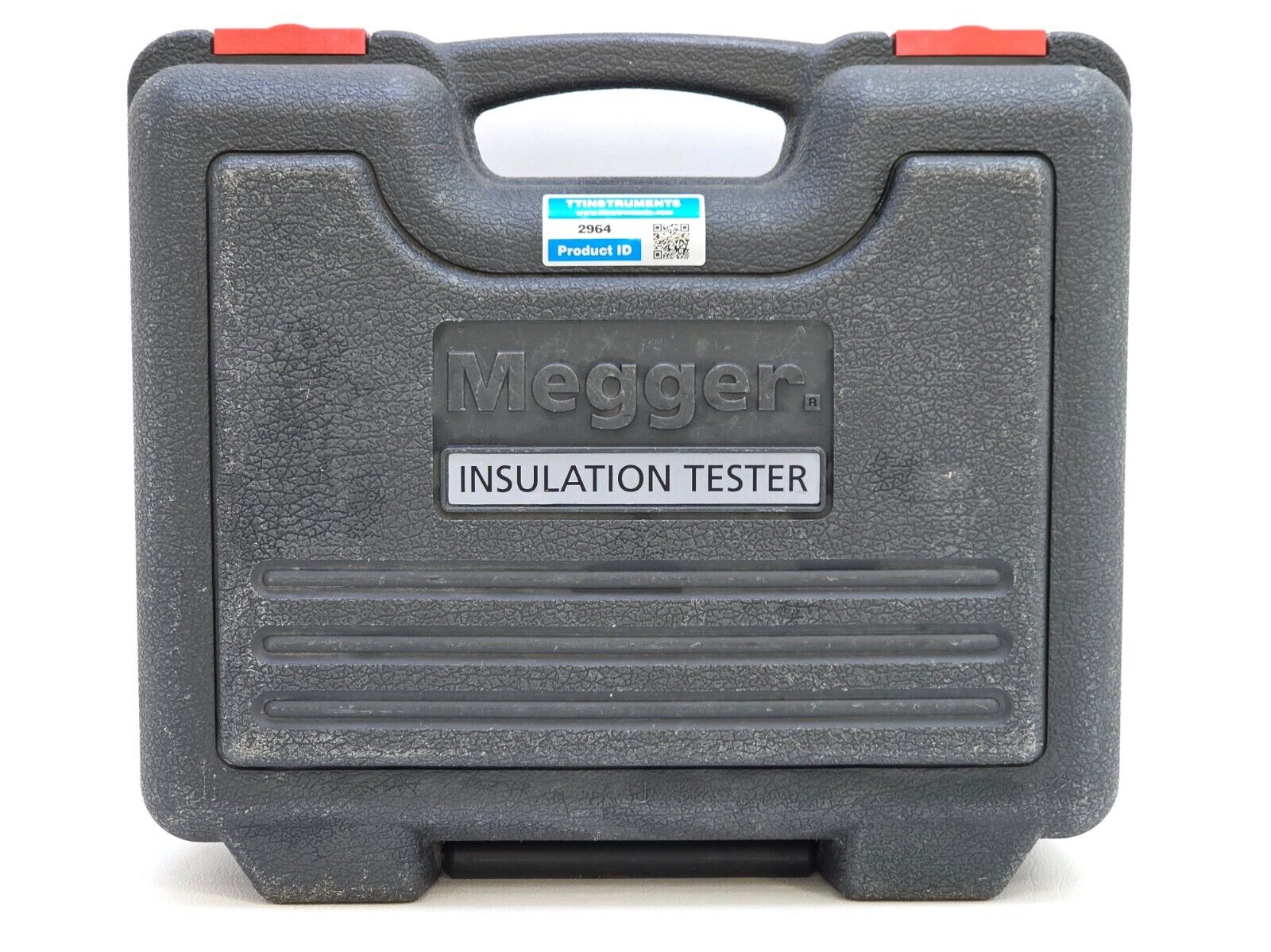

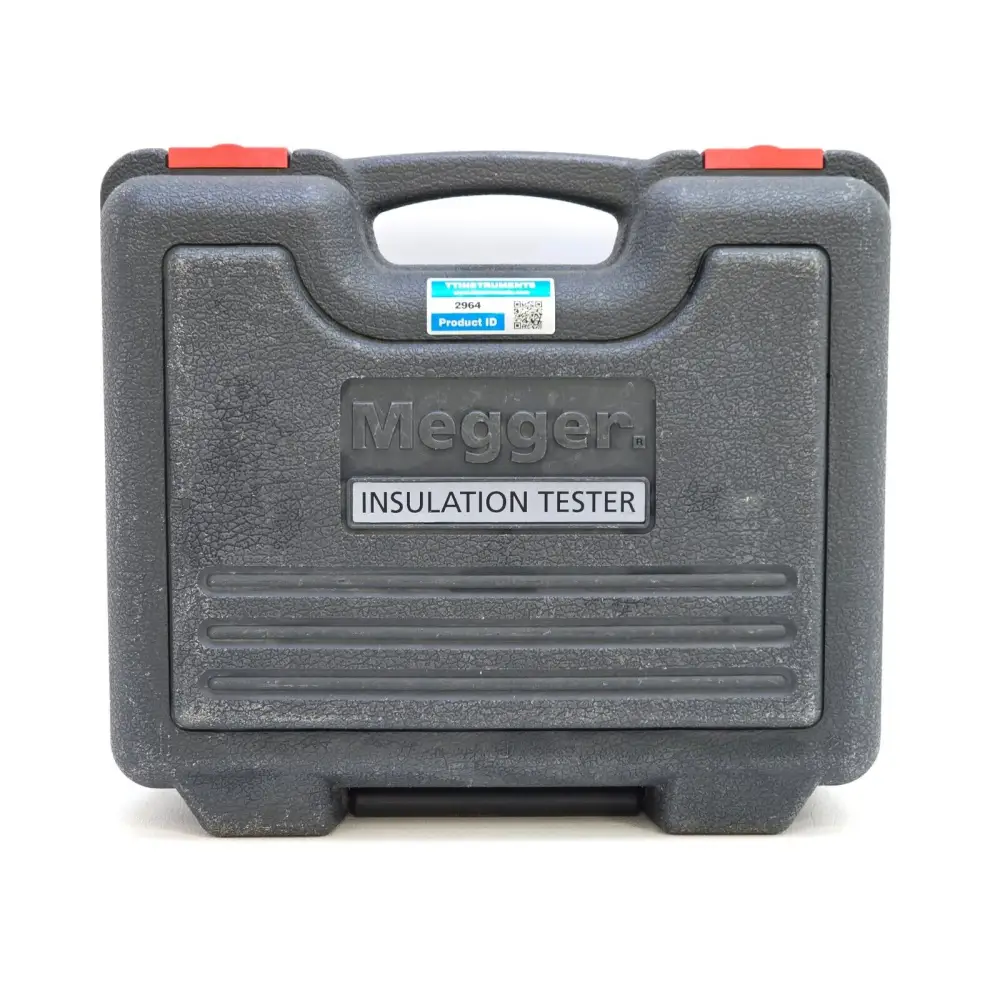

• Hard carry case
• 6 x AA alkaline batteries
• Download Manager software CD
The Megger MIT420/2 (order code 1004-739) is a CAT IV 600 V rated insulation resistance and continuity tester from the MIT400/2 series, designed for a wide range of applications including electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, and maintenance. It builds on the MIT410/2 with the addition of variable test voltage, result storage and recall, and capacitance measurement.
Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
Variable test voltage range: 10 V to 1000 V in 1 V steps
Insulation measurement range: Up to 200 GΩ
Continuity range: 0.01 Ω to 1.0 MΩ (auto-ranging)
Continuity test current: 200 mA or 20 mA (selectable)
Capacitance measurement: 0.1 nF to 10 µF
Result storage: Up to 1000 test results
Diagnostic functions: Polarisation Index (PI) and Dielectric Absorption Ratio (DAR)
Overvoltage limit: 2% (vs. industry standard 10–20%)

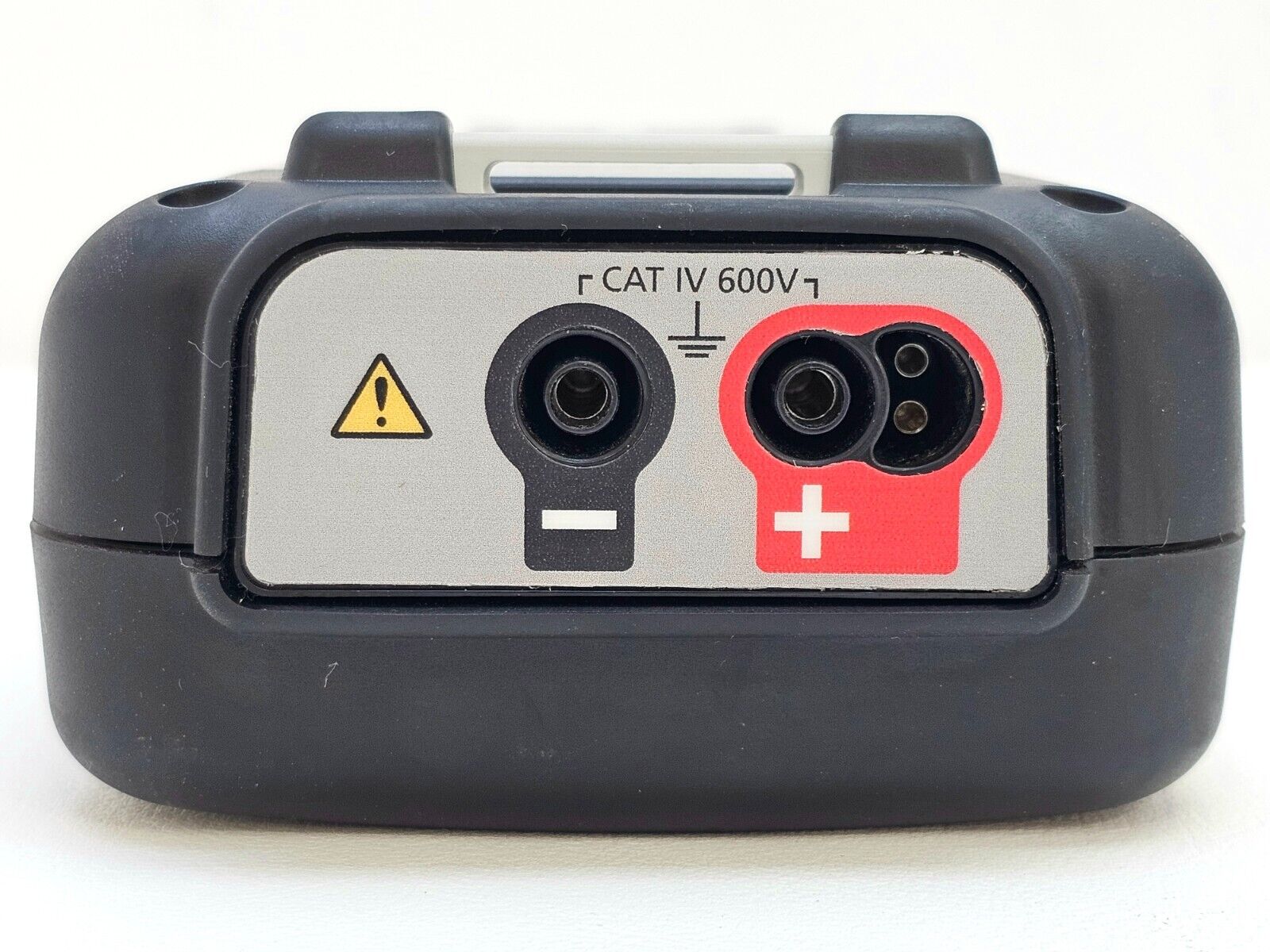

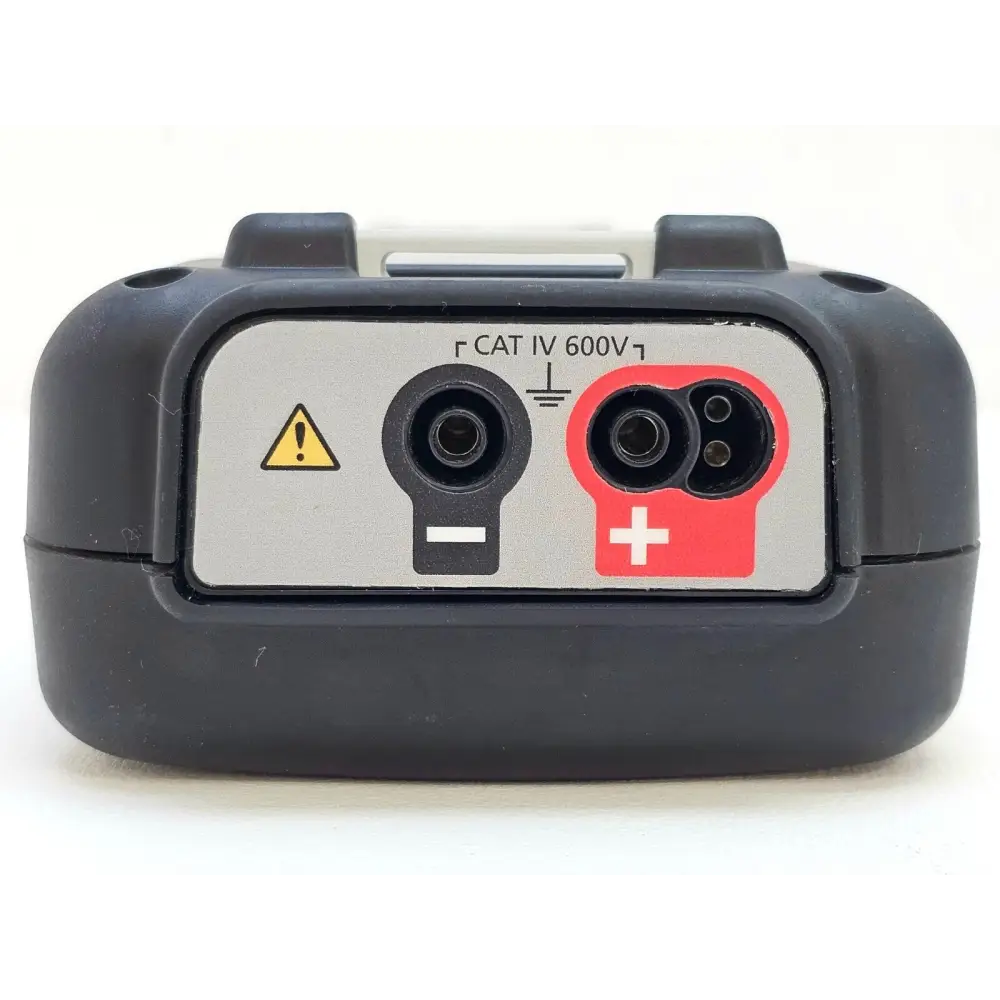

Safety category: CAT IV 600 V

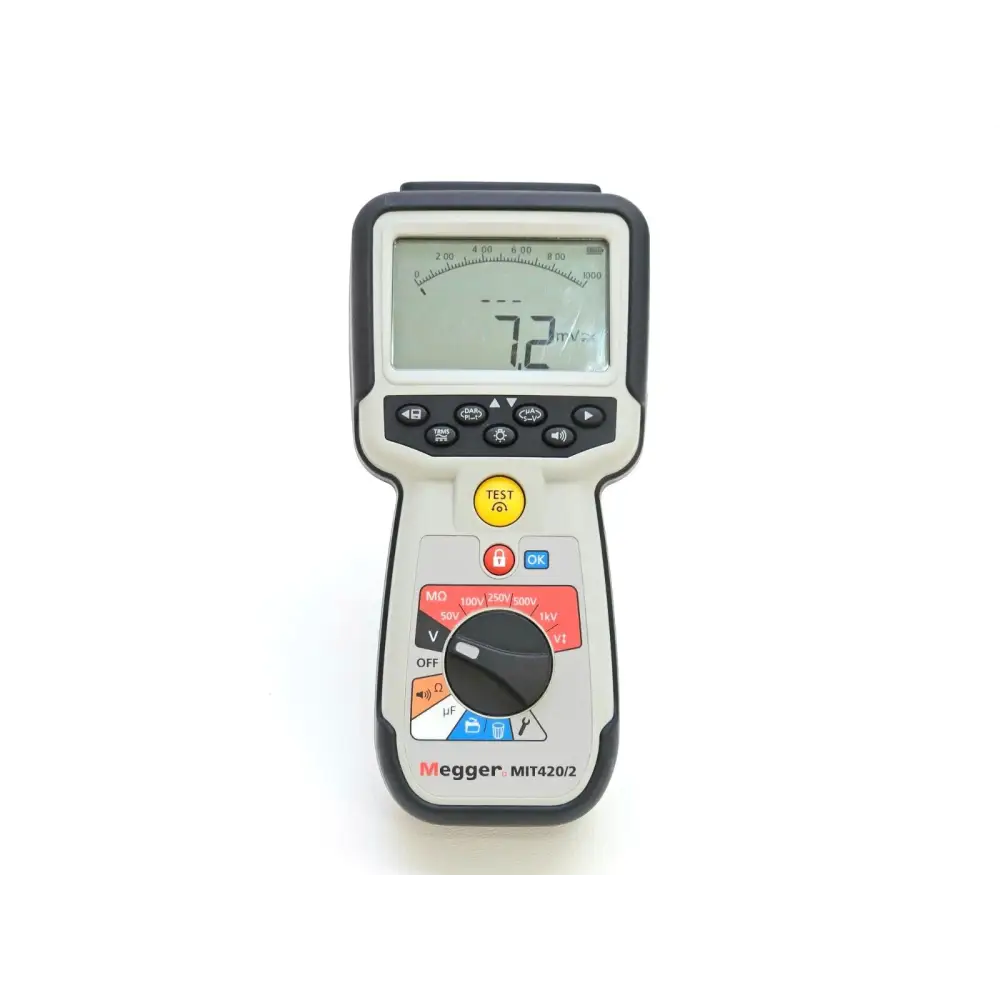

Display: Dual digital display with patented analogue arc
Voltage measurement: AC TRMS and DC
Live circuit detection: Yes — prevents testing on live circuits above 50 V
IP rating: IP54 weatherproof

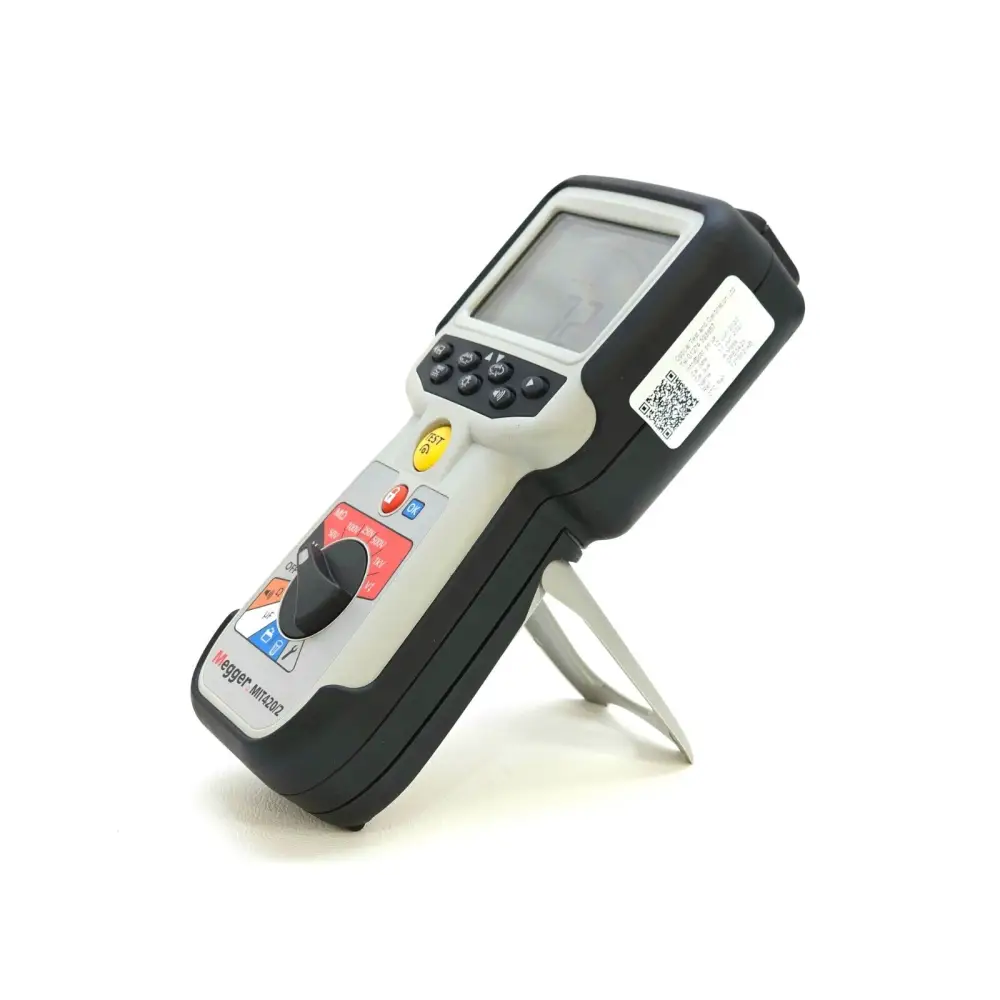

Construction: Rubber over-moulded for shock resistance and grip
Dimensions: 228 mm x 108 mm x 63 mm

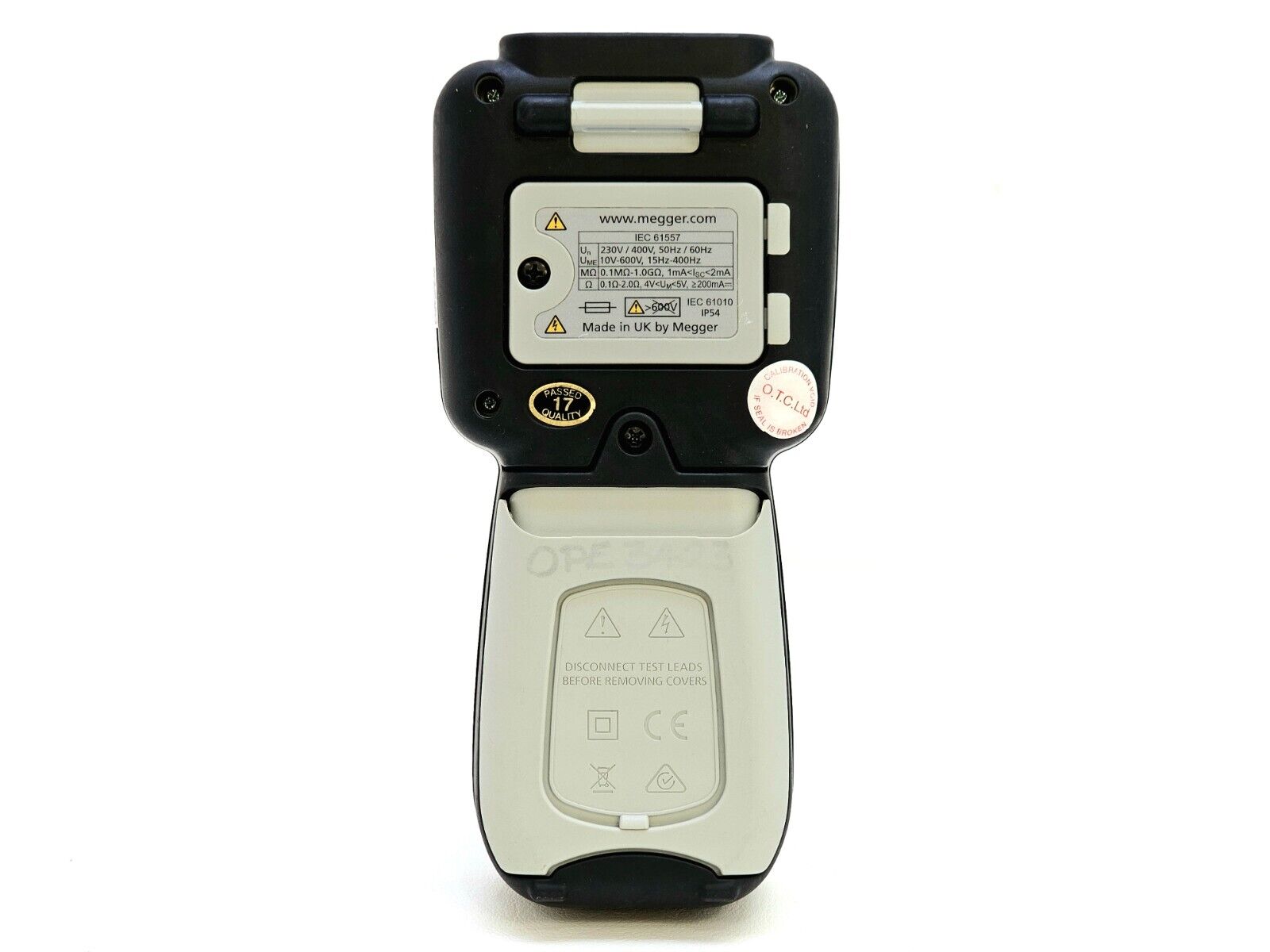

Power: 6 x AA alkaline batteries
Compliance: BS EN 61557-2
Typical applications: Electrical installations, cable and motor testing, avionics, military communications, production line, ESD and electronic component testing
Megger MIT400/2 Series Official Datasheet (covers MIT420/2) — PDF: Download PDF
Megger MIT400/2 Series User Guide / User Manual — PDF: Download PDF
Megger MIT400/2 Series Datasheet (Transcat hosted) — PDF: Download PDF
Megger MIT420/2 MIT400 Series User Manual — PDF (ITM hosted): Download PDF
Product Overview
Condition: Used
The Megger MIT420/2 is a used CAT IV insulation and continuity tester from Megger's MIT400/2 series. Order code 1004-739. Supplied with pictured accessories — cosmetic condition as shown.
Typically supplied with:
• Red/black silicone test leads
• SP5 remote switched probe
• Hard carry case
• 6 x AA alkaline batteries
• Download Manager software CD
Manufacturer's Description
The Megger MIT420/2 (order code 1004-739) is a CAT IV 600 V rated insulation resistance and continuity tester from the MIT400/2 series, designed for a wide range of applications including electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, and maintenance. It builds on the MIT410/2 with the addition of variable test voltage, result storage and recall, and capacitance measurement.
Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
Variable test voltage range: 10 V to 1000 V in 1 V steps
Insulation measurement range: Up to 200 GΩ
Continuity range: 0.01 Ω to 1.0 MΩ (auto-ranging)
Continuity test current: 200 mA or 20 mA (selectable)
Capacitance measurement: 0.1 nF to 10 µF
Result storage: Up to 1000 test results
Diagnostic functions: Polarisation Index (PI) and Dielectric Absorption Ratio (DAR)
Overvoltage limit: 2% (vs. industry standard 10–20%)
Safety category: CAT IV 600 V
Display: Dual digital display with patented analogue arc
Voltage measurement: AC TRMS and DC
Live circuit detection: Yes — prevents testing on live circuits above 50 V
IP rating: IP54 weatherproof
Construction: Rubber over-moulded for shock resistance and grip
Dimensions: 228 mm x 108 mm x 63 mm
Power: 6 x AA alkaline batteries
Compliance: BS EN 61557-2
Typical applications: Electrical installations, cable and motor testing, avionics, military communications, production line, ESD and electronic component testing
Resources
Megger MIT400/2 Series Official Datasheet (covers MIT420/2) — PDF: Download PDF
Megger MIT400/2 Series User Guide / User Manual — PDF: Download PDF
Megger MIT400/2 Series Datasheet (Transcat hosted) — PDF: Download PDF
Megger MIT420/2 MIT400 Series User Manual — PDF (ITM hosted): Download PDF
