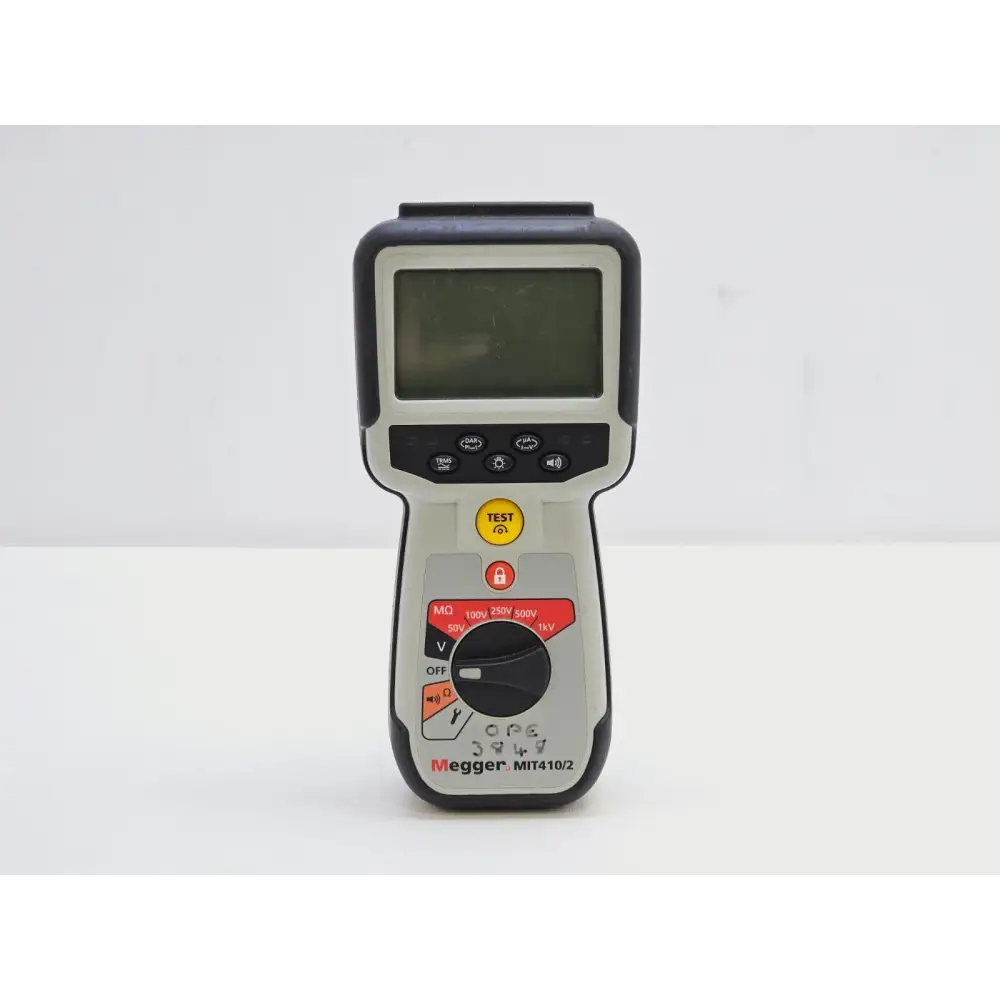

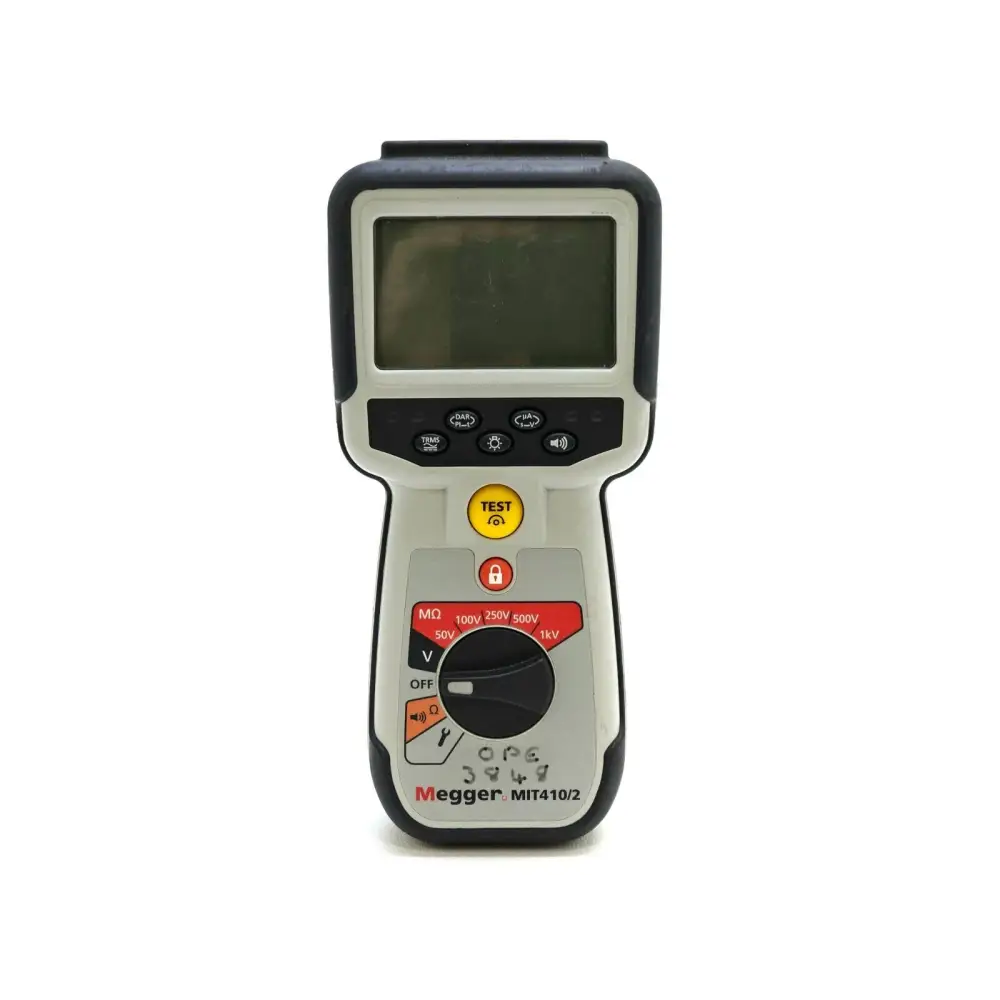

Megger MIT410/2 Megohmmeter Insulation Continuity Tester

Condition: Used

The Megger MIT410/2 is a used CAT IV insulation and continuity tester from the MIT400/2 series. Supplied with pictured accessories — cosmetic condition as shown. A robust, field-ready instrument suited to electrical installation, motor, and cable testing.

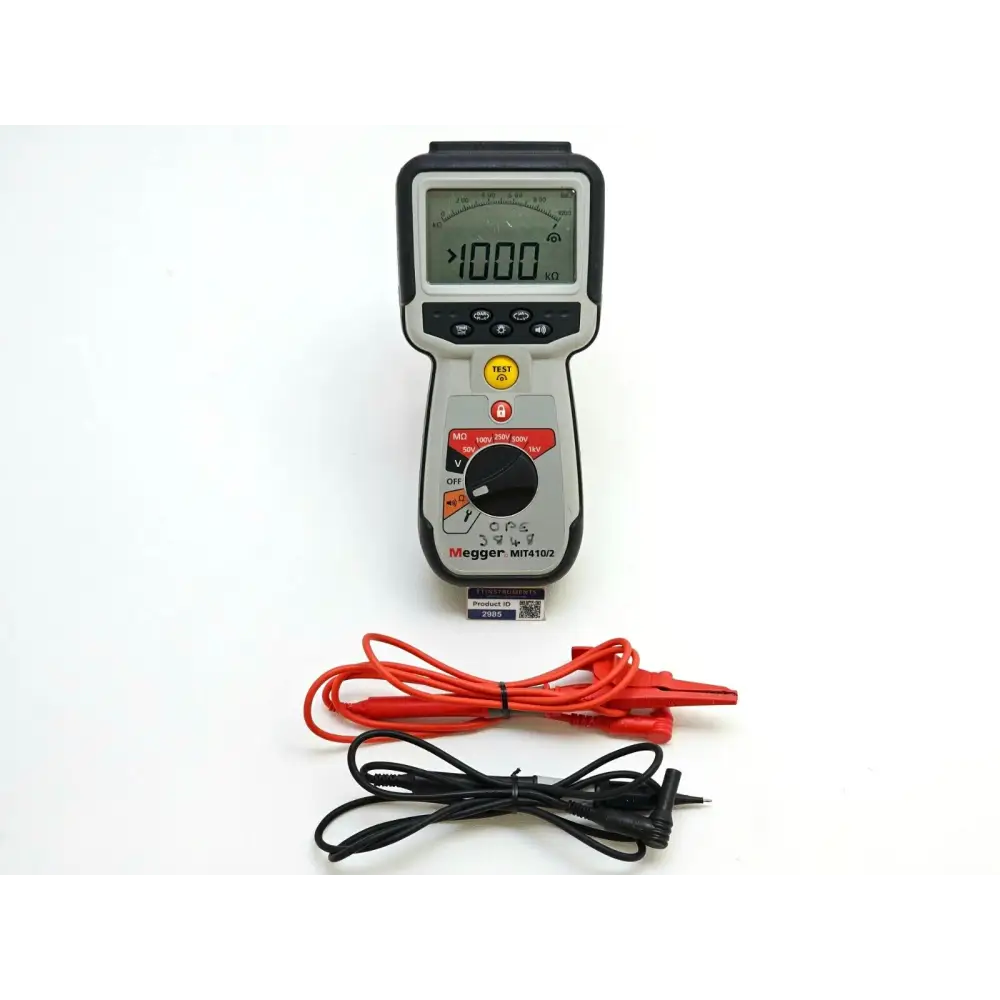

Typically supplied with:

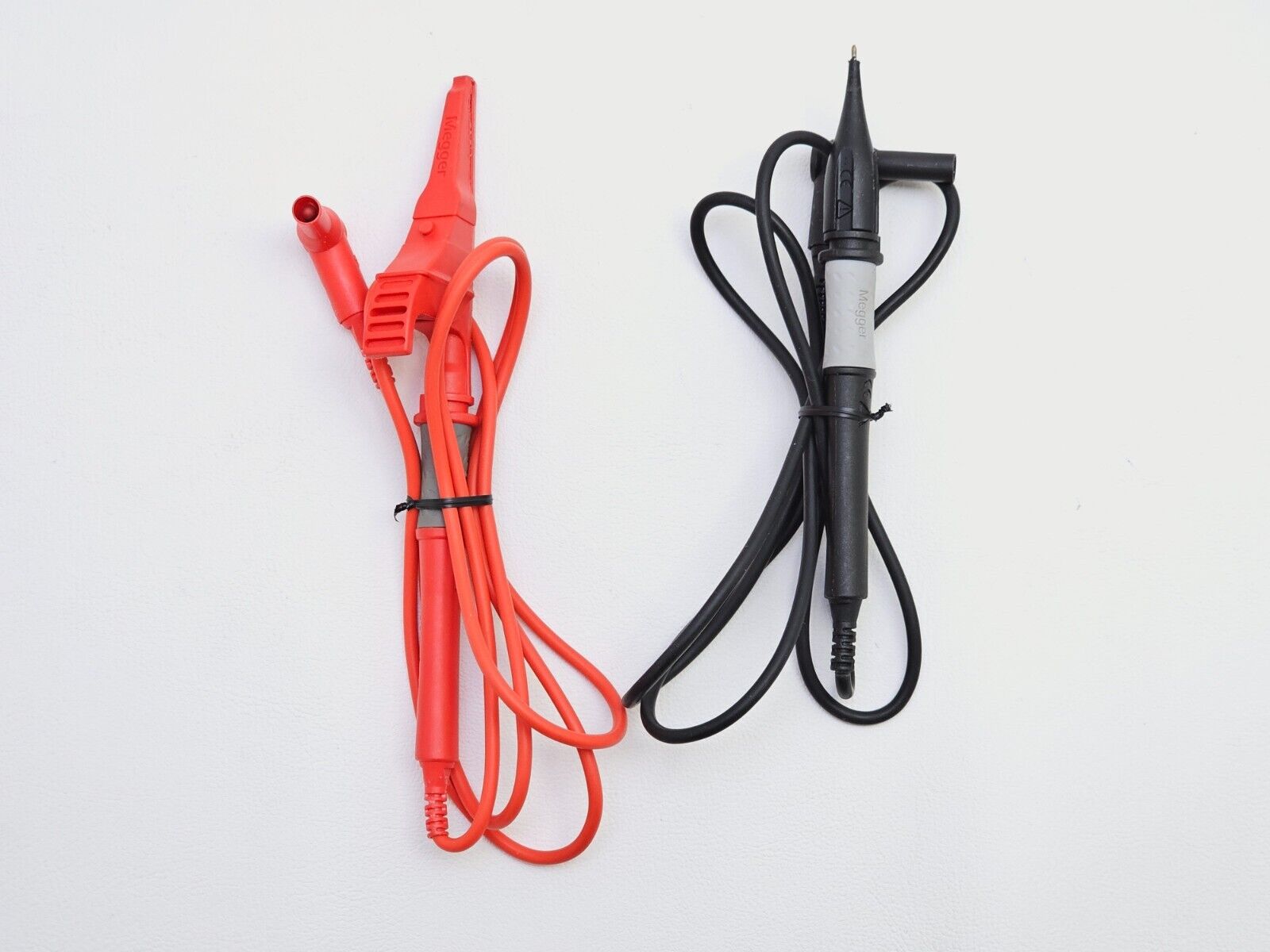

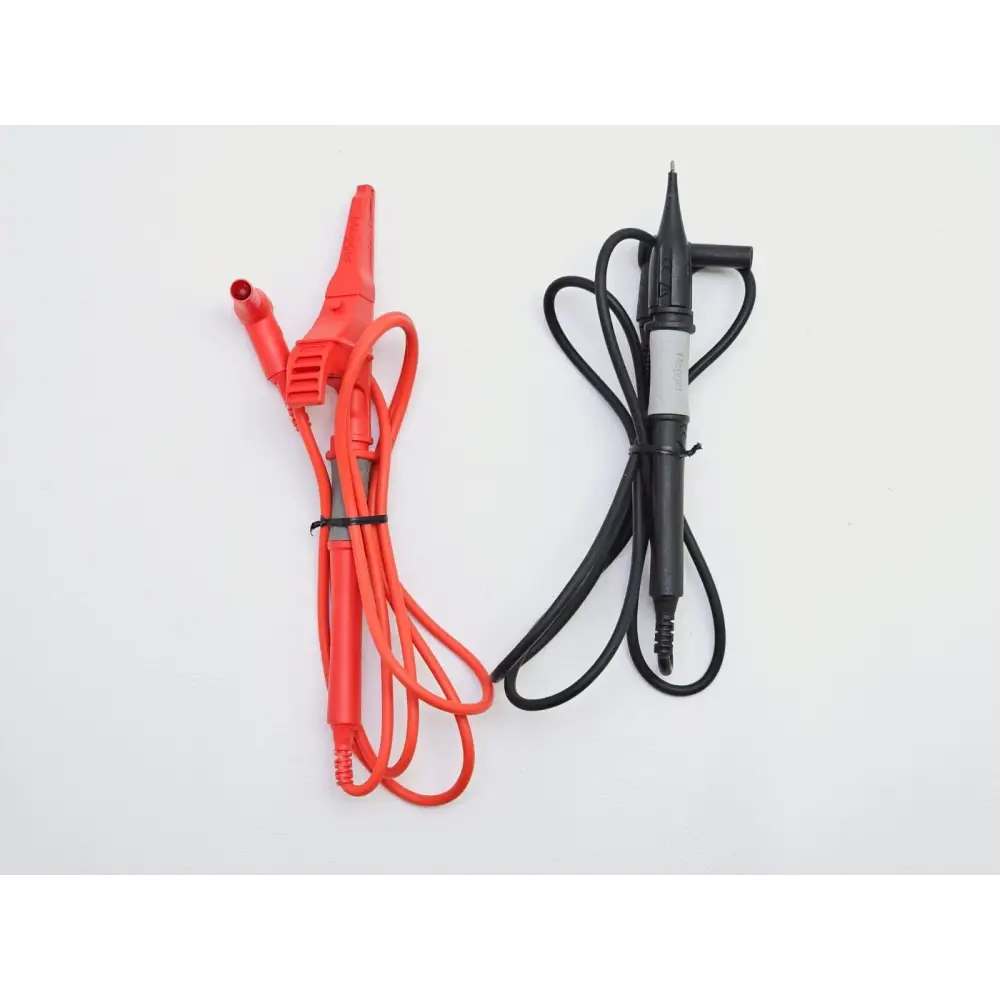

• Red/black silicone test leads with probes and clips
• SP5 remote switch probe
• 6 x AA alkaline batteries
• Hard carry case

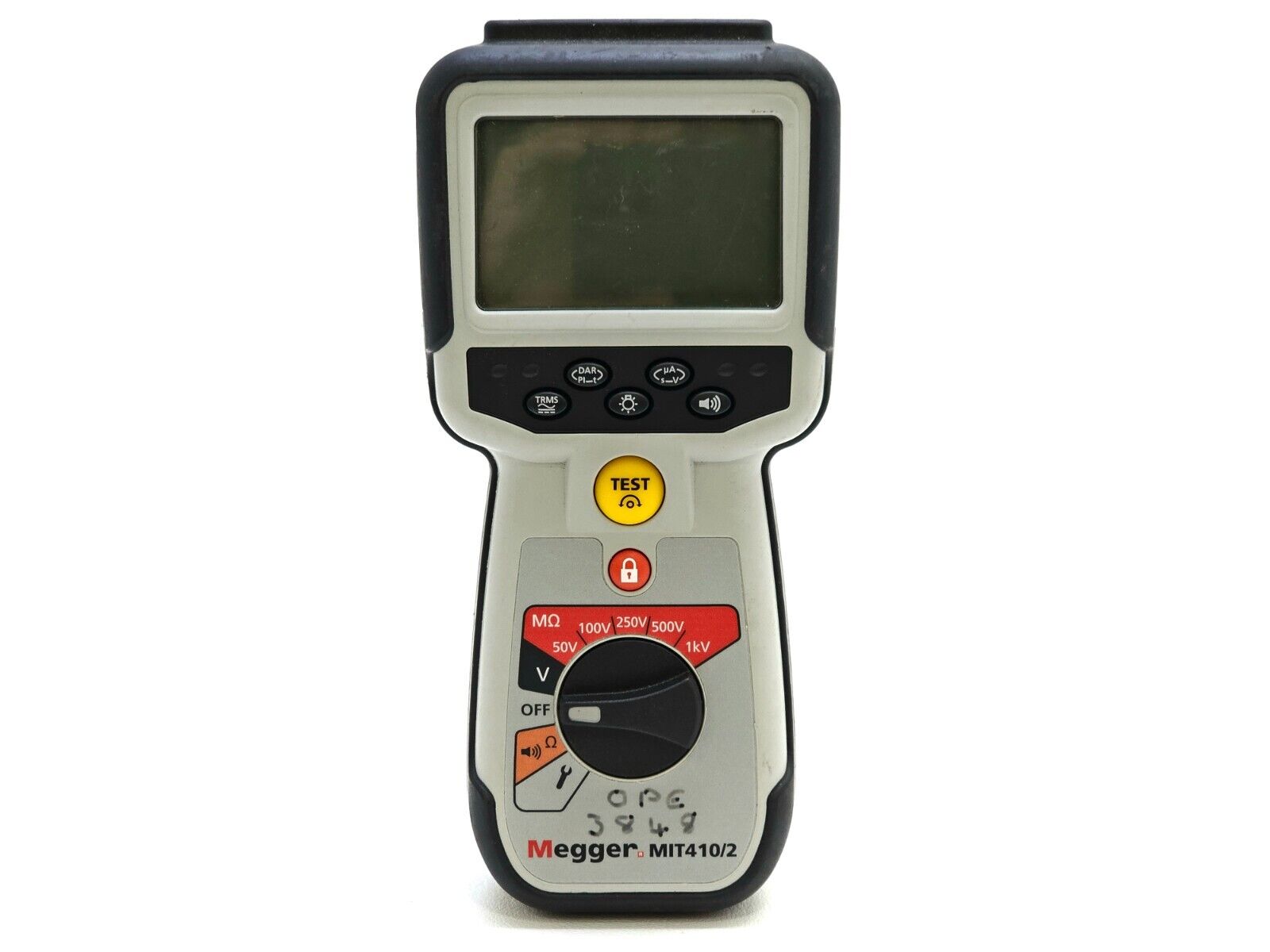

The Megger MIT410/2 is a CAT IV insulation and continuity tester from the MIT400 mk2 (MIT400/2) series, designed for electrical and industrial testing across a wide range of applications including electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, and maintenance.

Insulation testing is enhanced with feedback-controlled test voltages that limit overvoltage to just 2%, compared to the industry standard of 10–20%. The MIT410/2 adds 50 V and 100 V test ranges to the base MIT400/2, as well as Polarization Index (PI), Dielectric Absorption Ratio (DAR), and timed testing functions.

Continuity testing is single auto-ranging from 0.01 Ω to 1.0 MΩ, with 200 mA and 20 mA test current options retained. True RMS voltage measurement to 600 V AC/DC and frequency measurement from 15 to 400 Hz are also included. A dual digital display shows main results alongside secondary data such as test mode, test voltage, and leakage current, complemented by an analogue arc display for charge/discharge characteristics.

Live circuit detection inhibits insulation testing on circuits above the configurable threshold (default 50 V) and operates even if the protection fuse has failed. The instrument meets IEC 61010 and EN 61557 international safety requirements.

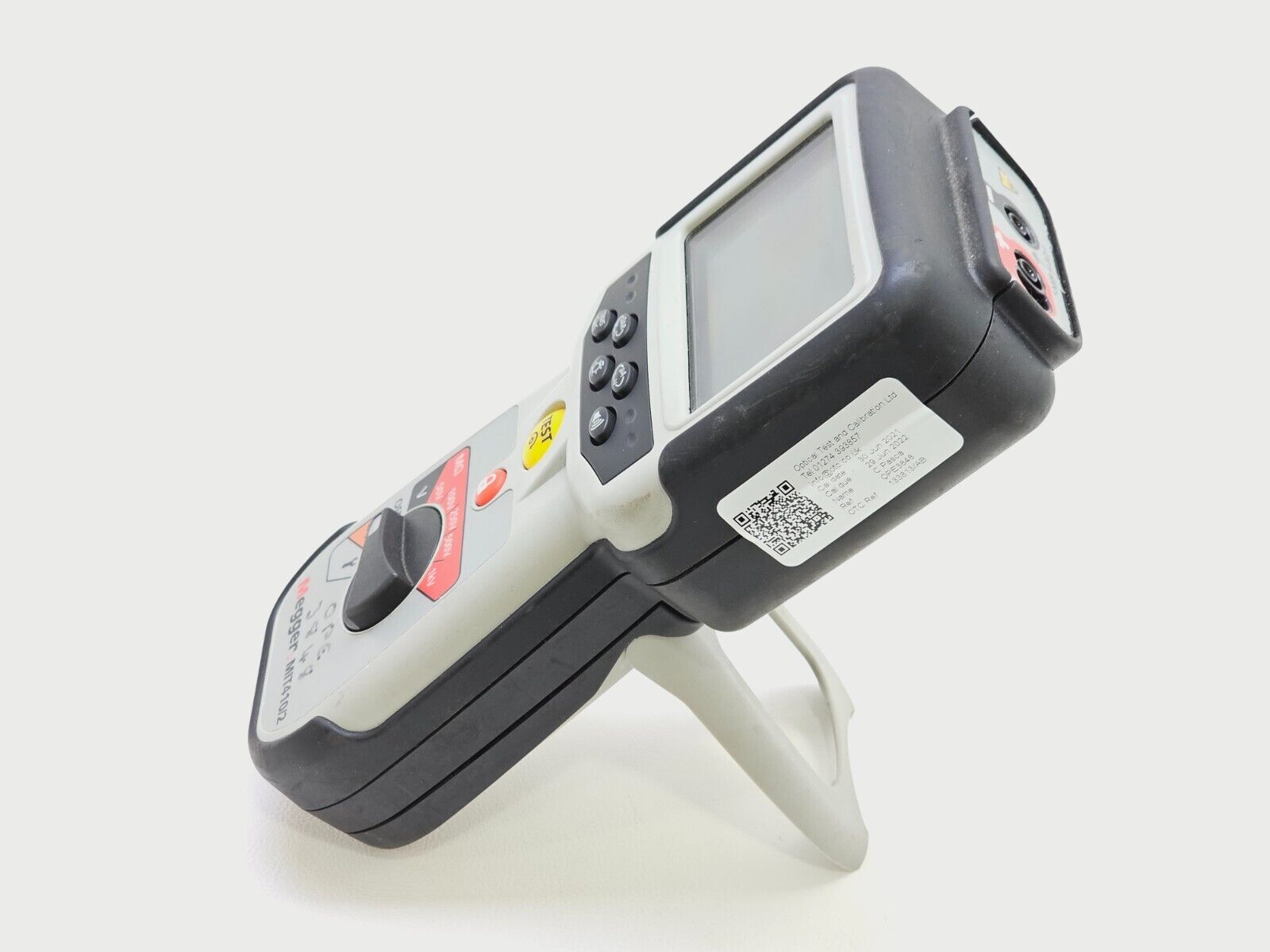

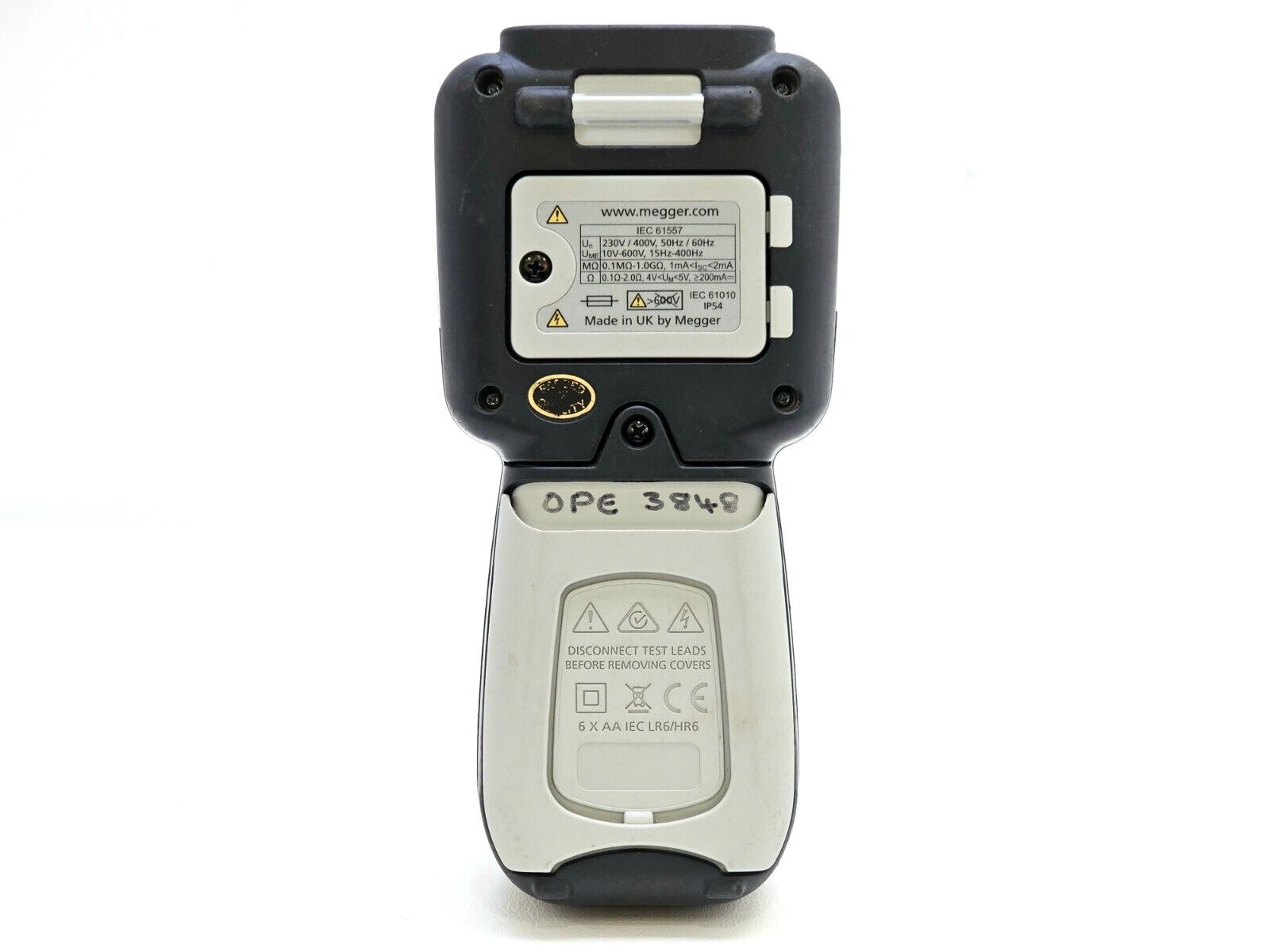

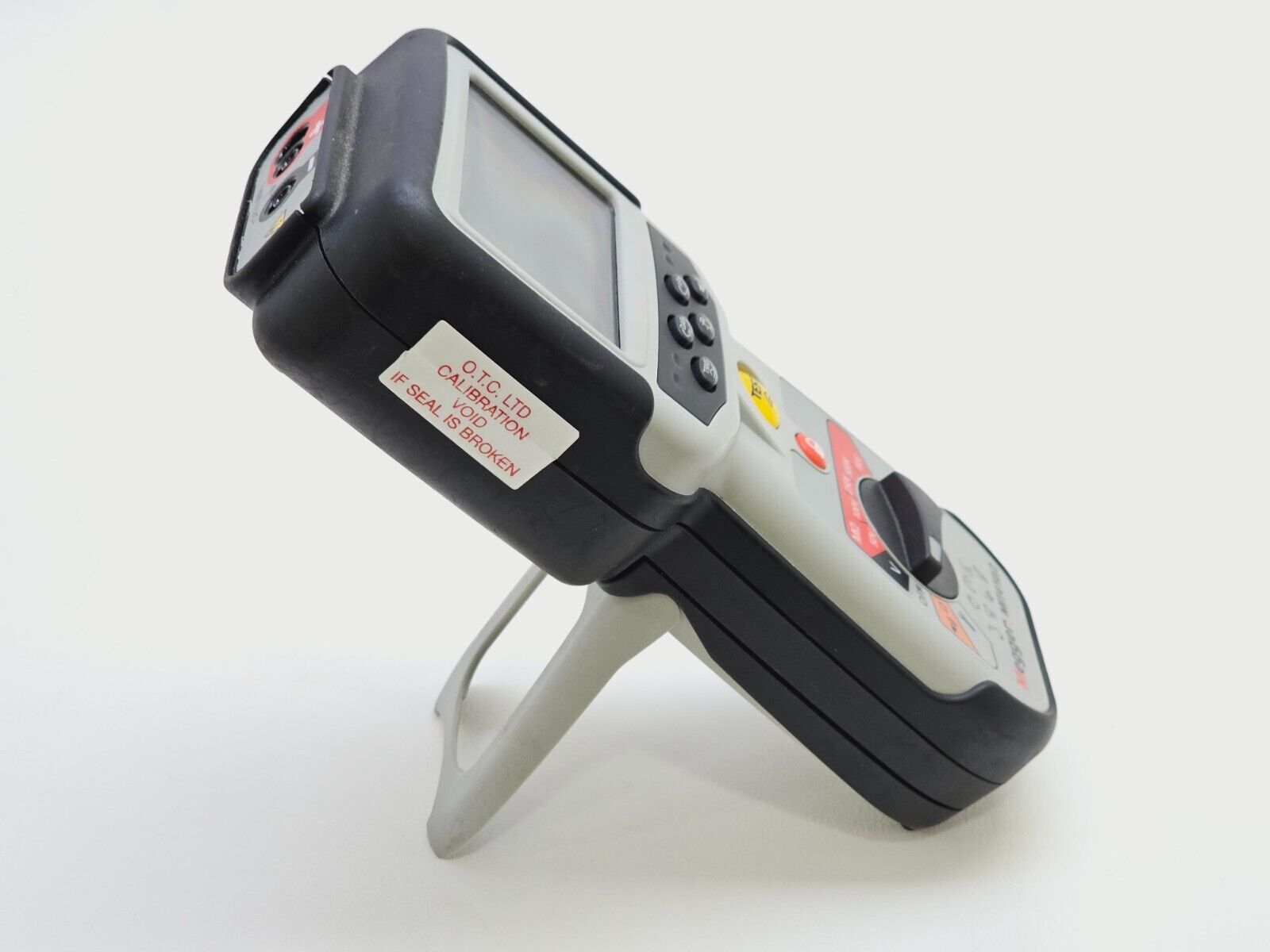

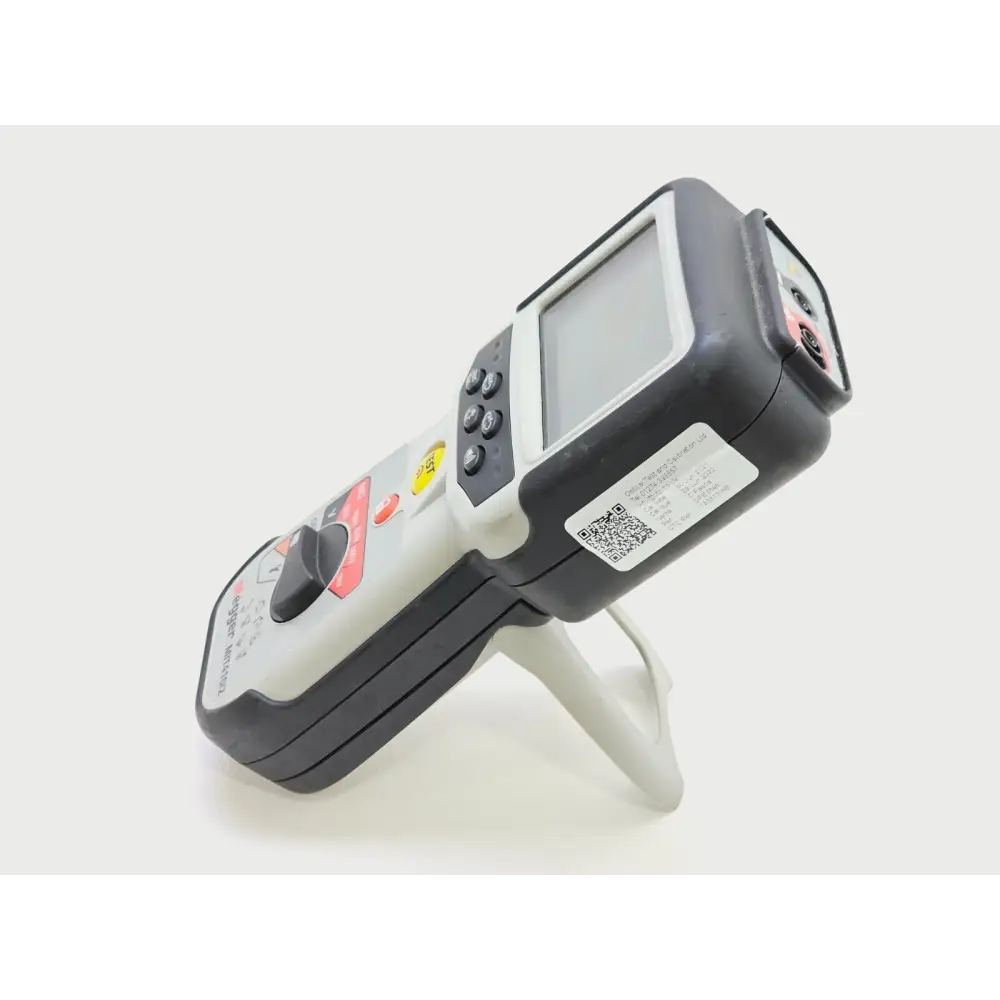

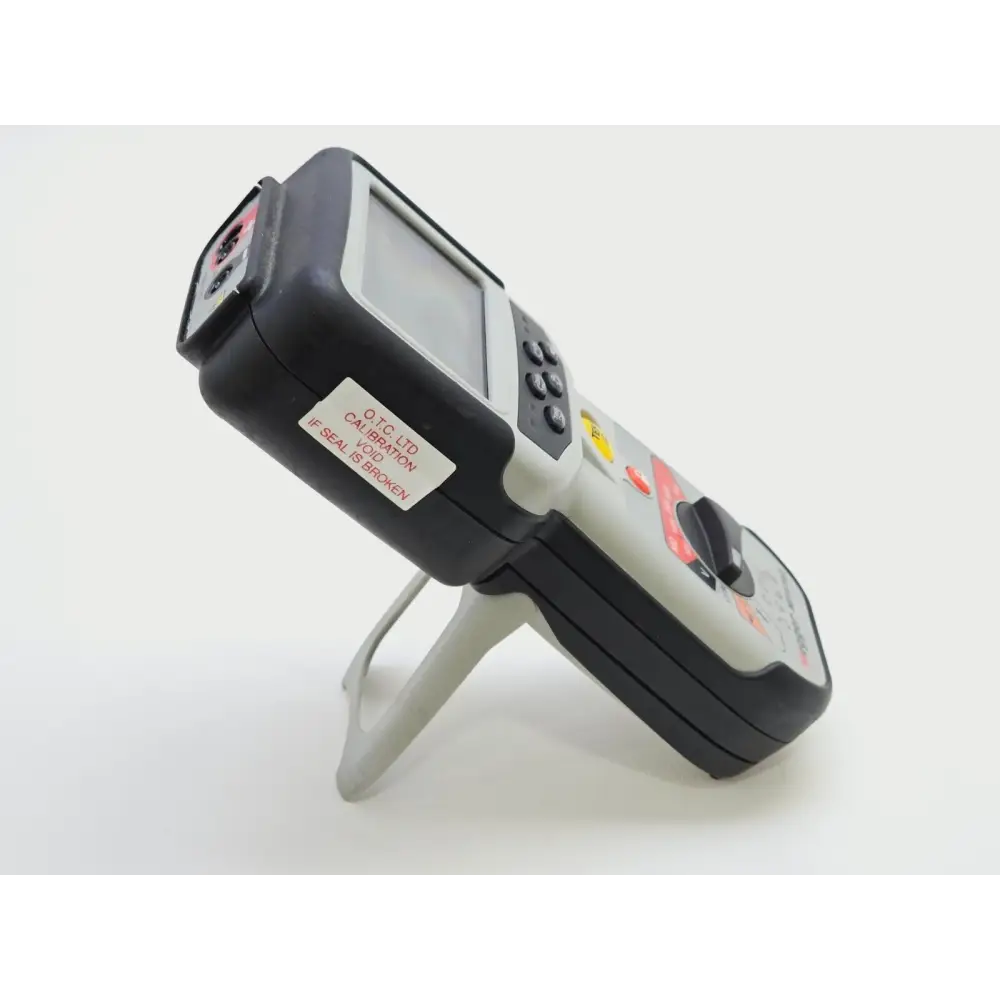

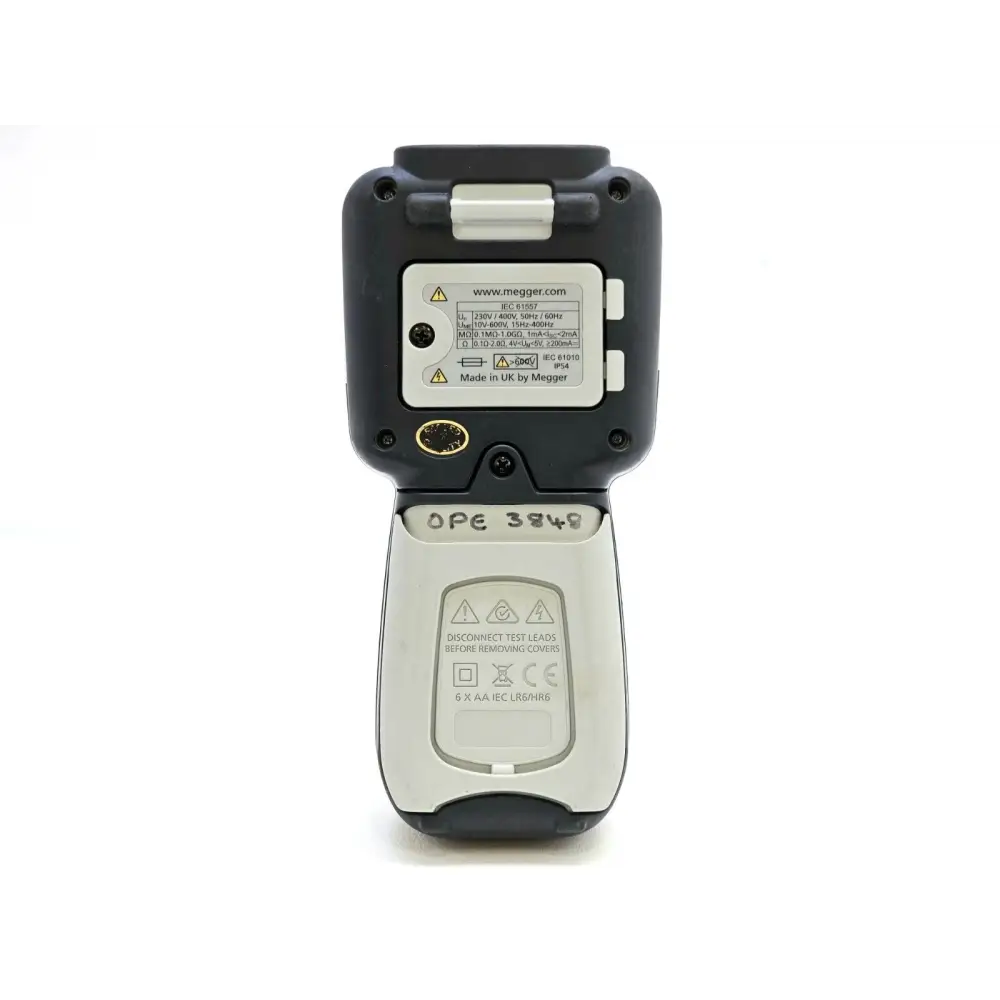

The redesigned case features rubber over-moulding for shock resistance, an IP54 weatherproof rating, a 6-cell battery compartment with separate fuse access, and a fold-out backstand.

Key Specifications:
Test Voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
Insulation Range: Up to 200 GΩ
Insulation Accuracy (1000 V): 200 GΩ ± 2% ± 2 digits ± 0.2% per GΩ
Continuity Range: 0.01 Ω to 999 kΩ (auto-ranging)
Continuity Accuracy: ±3% ±2 digits (0–100 Ω); ±5% ±2 digits (100 Ω–500 kΩ)
Test Current (Continuity): 200 mA (–0 mA +20 mA) for 0.01 Ω to 4 Ω
Voltage Measurement: AC/DC 10 mV to 600 V TRMS
Frequency Measurement: 15 Hz to 400 Hz
Short Circuit/Charge Current: 2 mA +0% –50% (to EN 61557-2)
Open Circuit Voltage: –0% +2% ±2 V

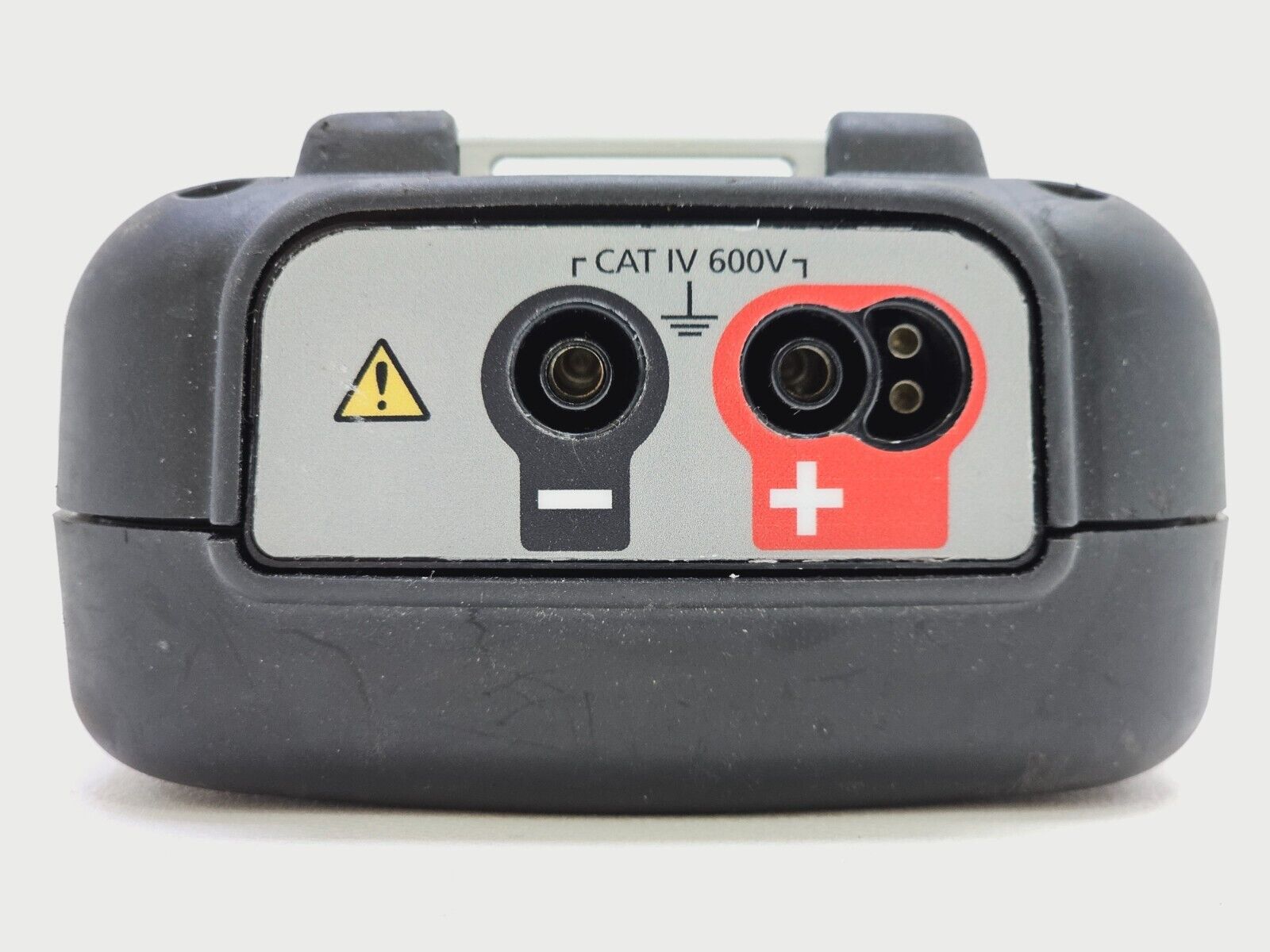

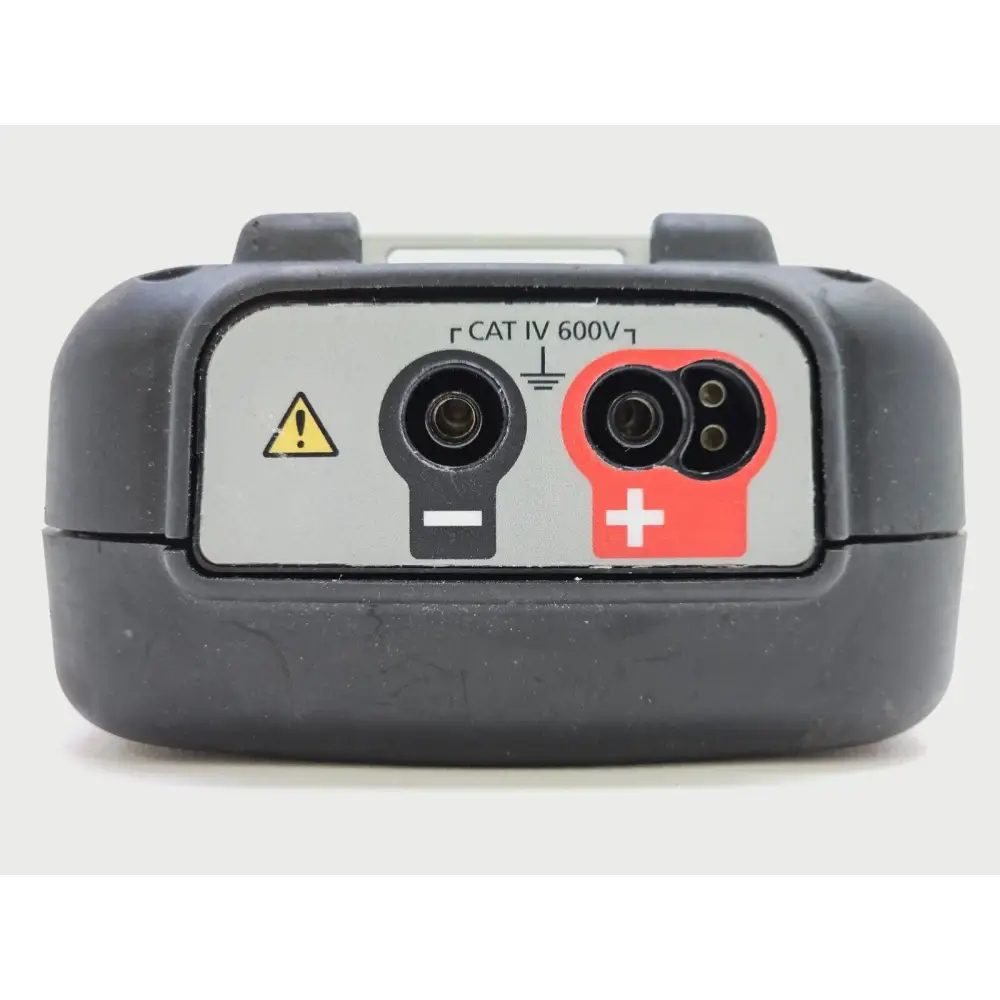

Safety Rating: CAT IV 600 V / CAT III 1000 V
IP Rating: IP54
Operating Temperature: –10 °C to +55 °C
Humidity: 90% RH at 40 °C maximum
Dimensions: 228 mm x 108 mm x 63 mm
Weight: 600 g
Power: 6 x AA alkaline batteries

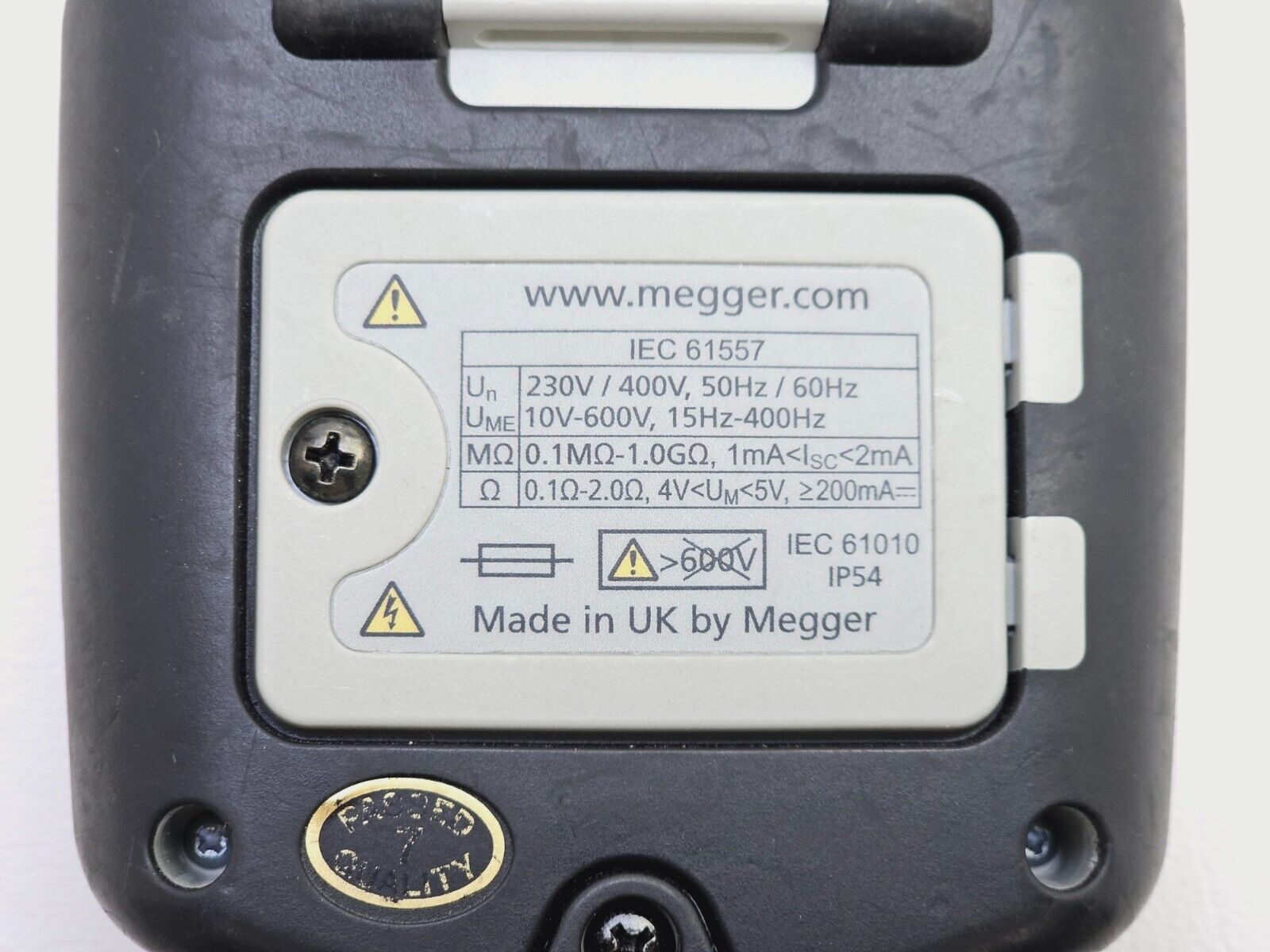

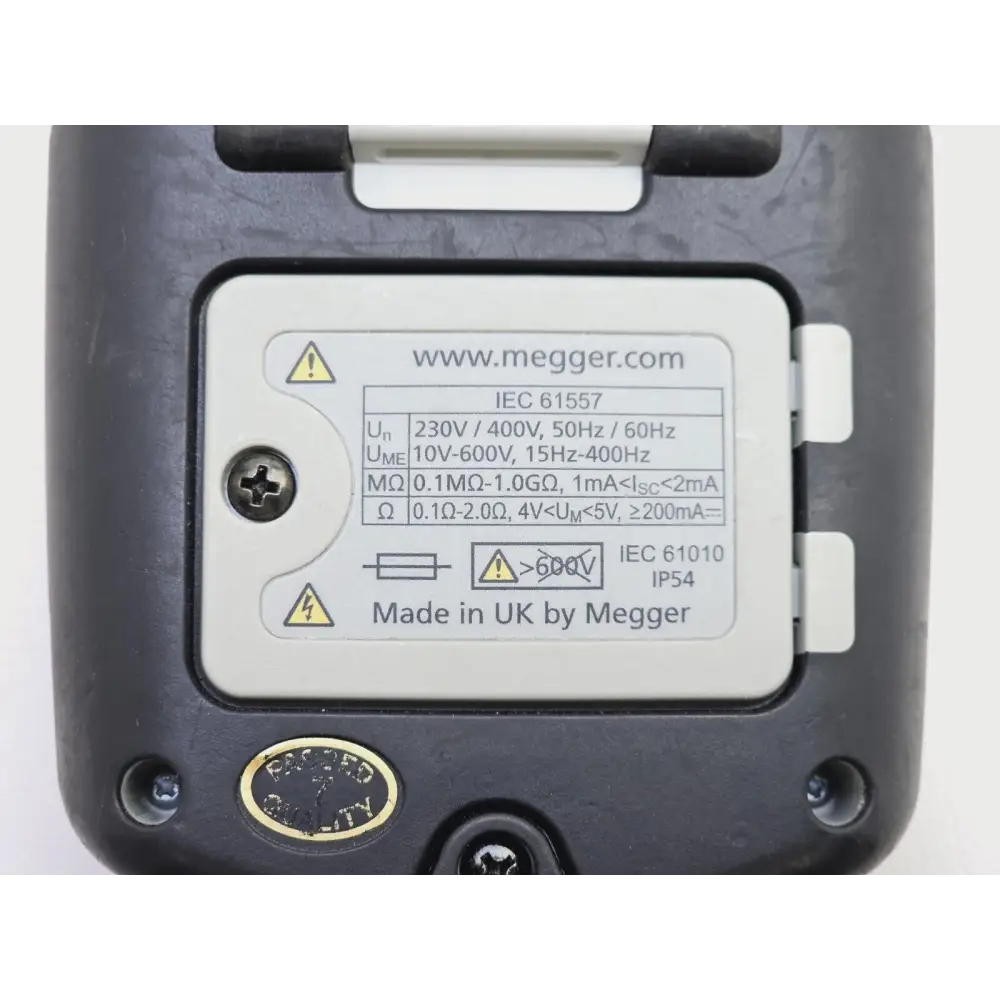

Standards: IEC 61010, EN 61557

Megger MIT400/2 Series Datasheet (covers MIT410/2) — key specifications and ordering information: Download PDF

Megger MIT400/2 Series User Guide — full operating manual covering MIT410/2: Download PDF

Megger MIT400/2 Series Datasheet (Transcat hosted) — product overview and specifications: Download PDF
