Condition: Used

The Megger DET4TC2 is a used four-terminal earth resistance and soil resistivity tester supplied with pictured accessories. As a dry-cell battery-powered instrument in Megger's DET4 series, it is built for versatile field use across a wide range of earth testing applications.

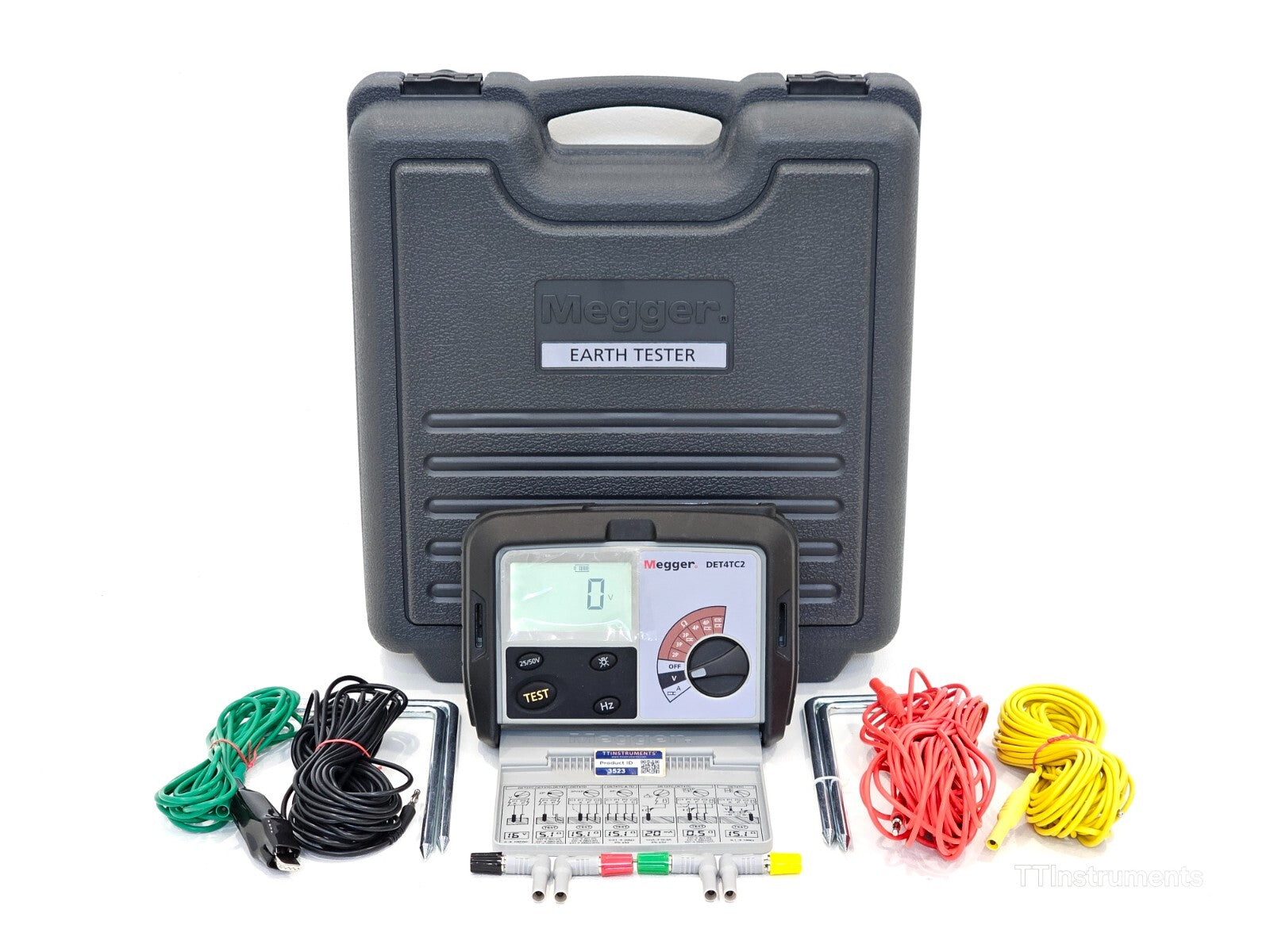

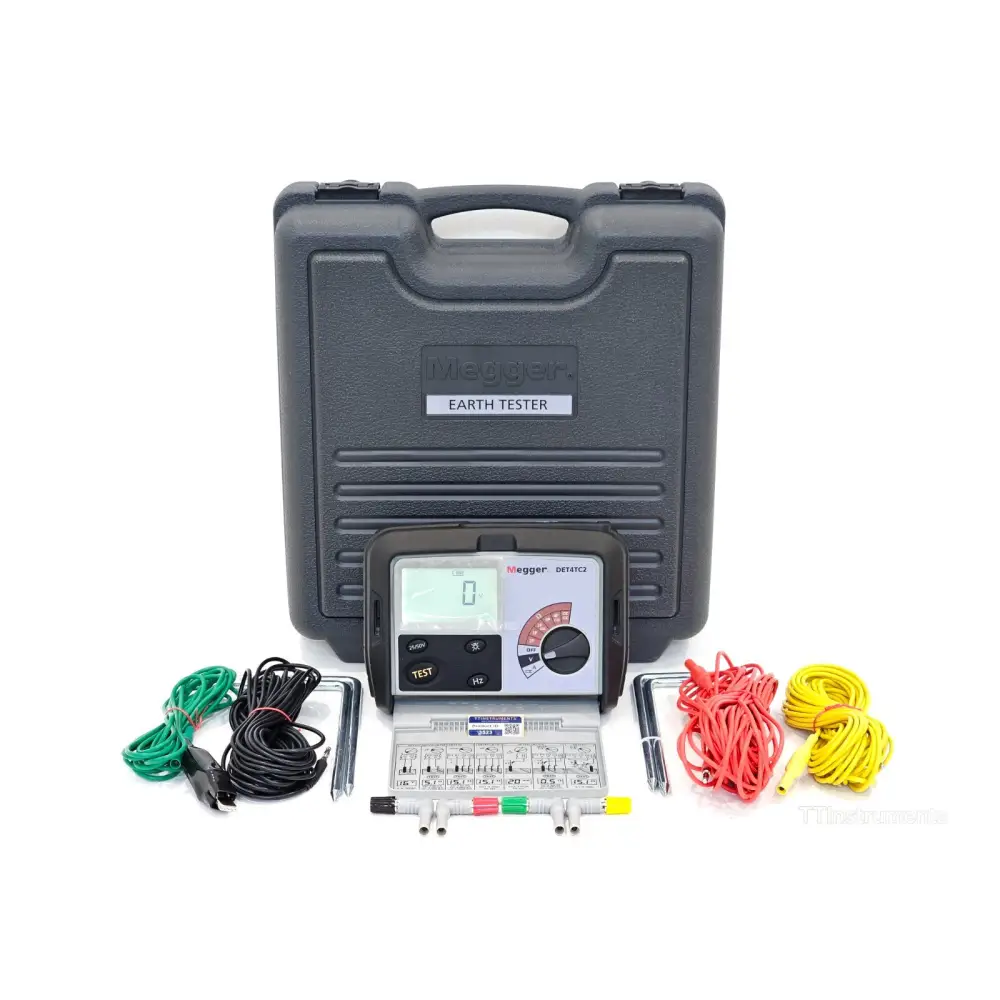

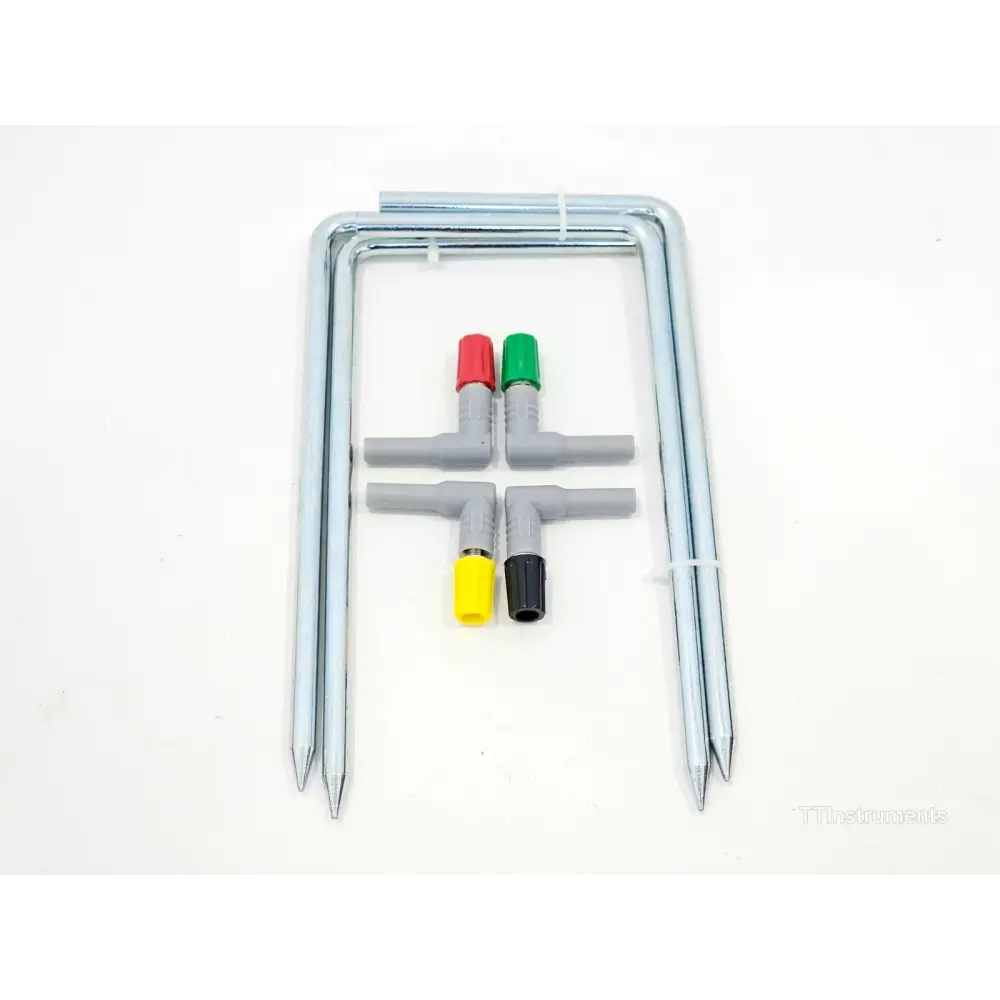

Included (as pictured):

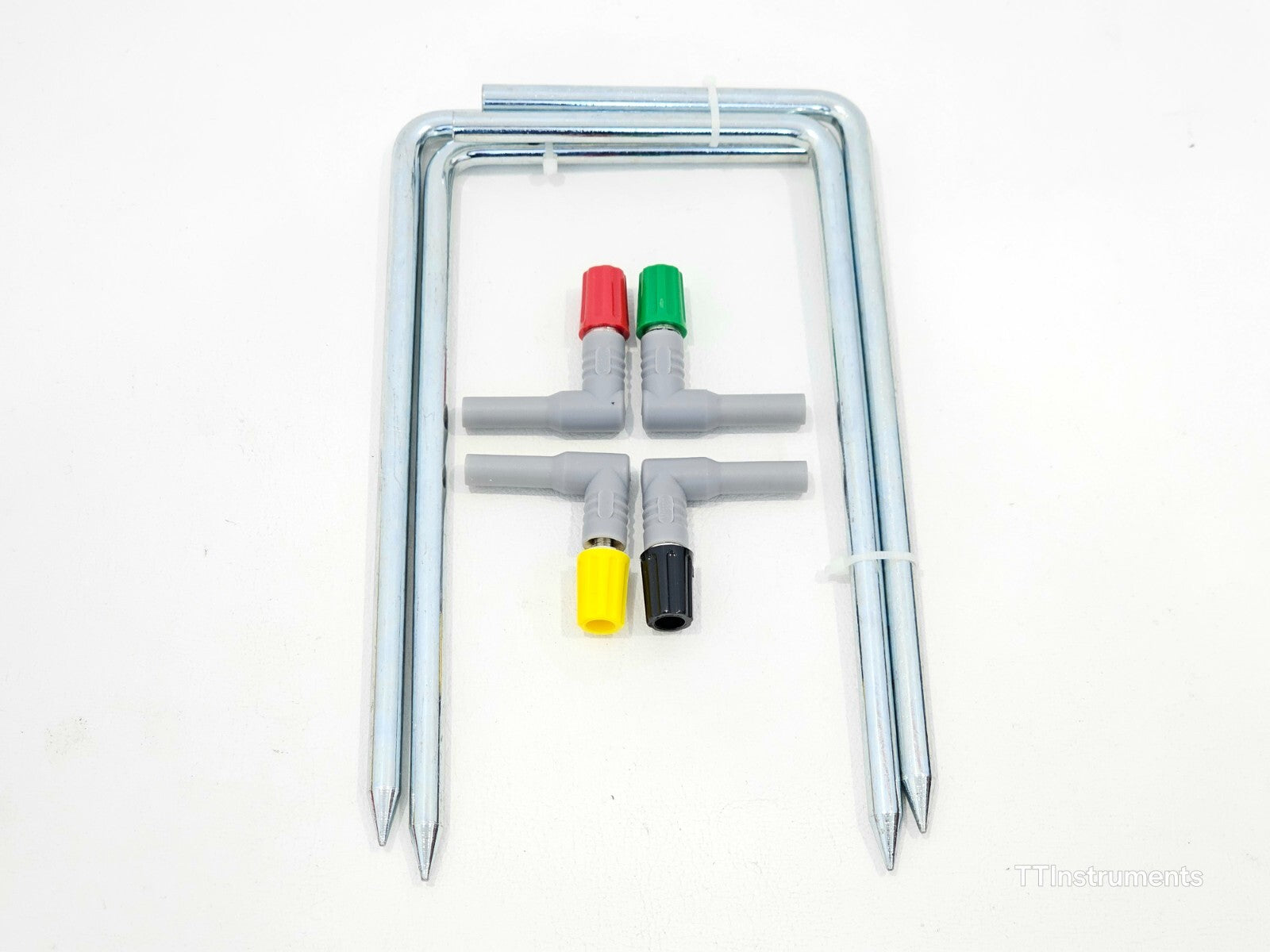

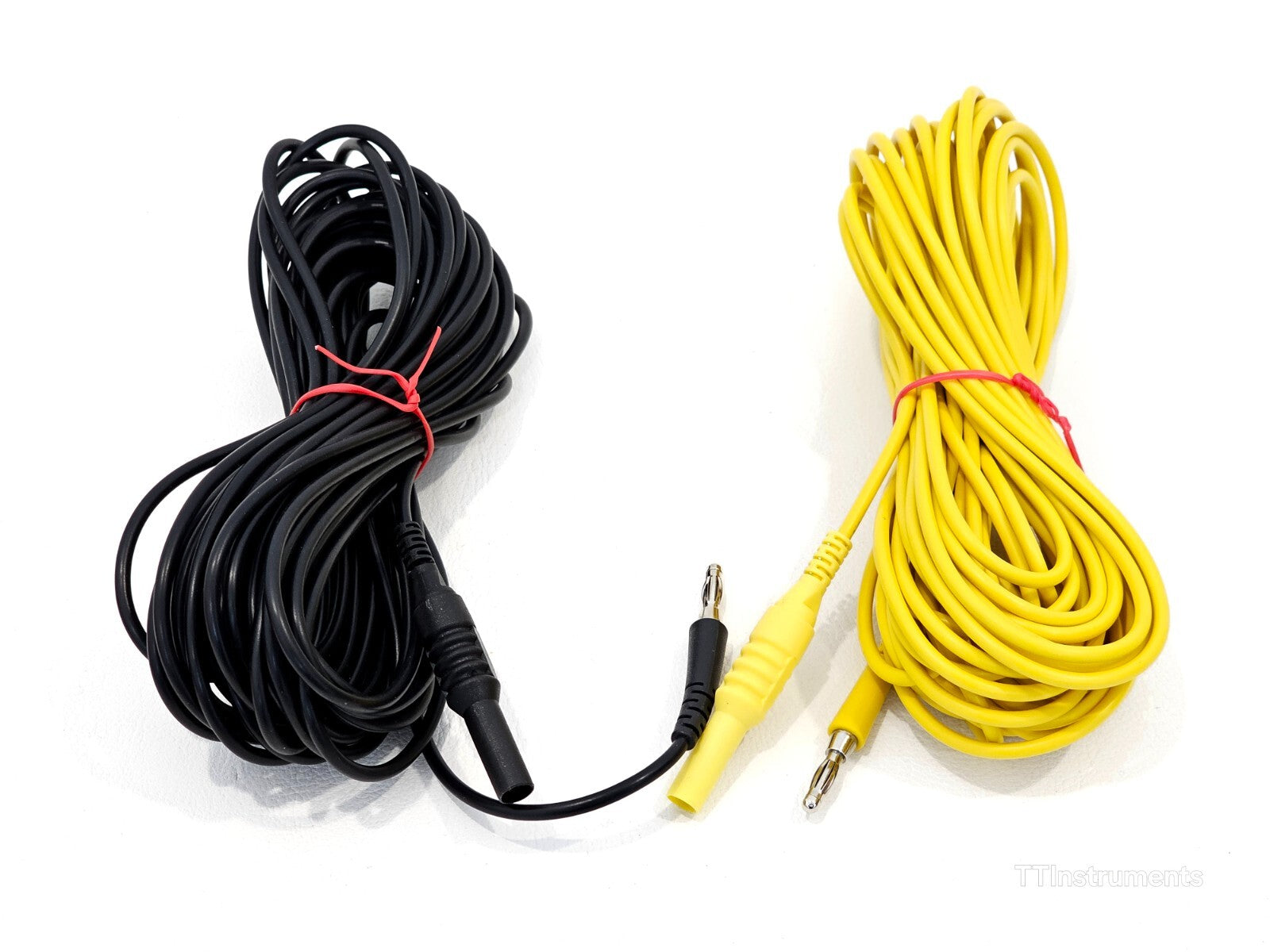

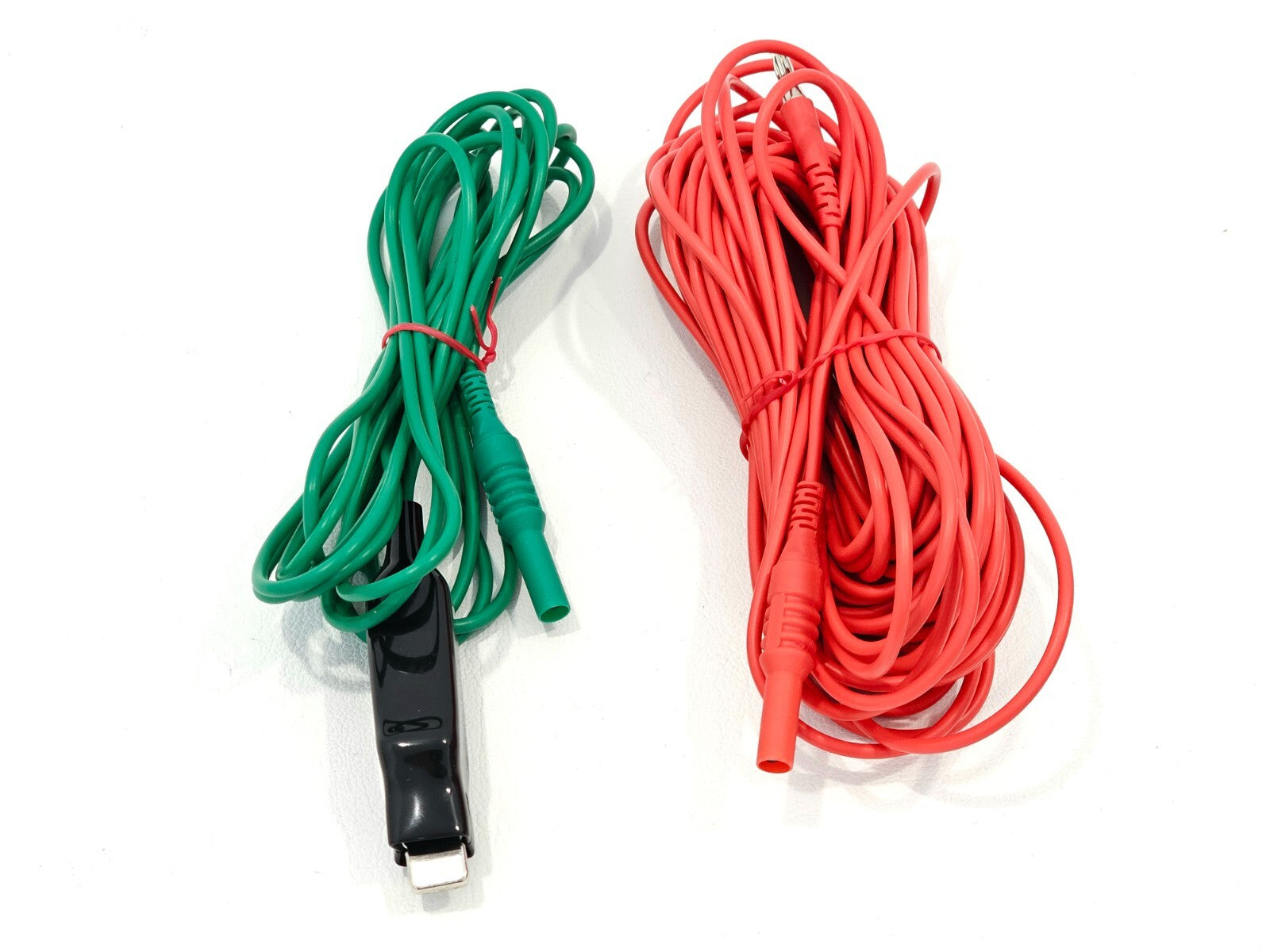

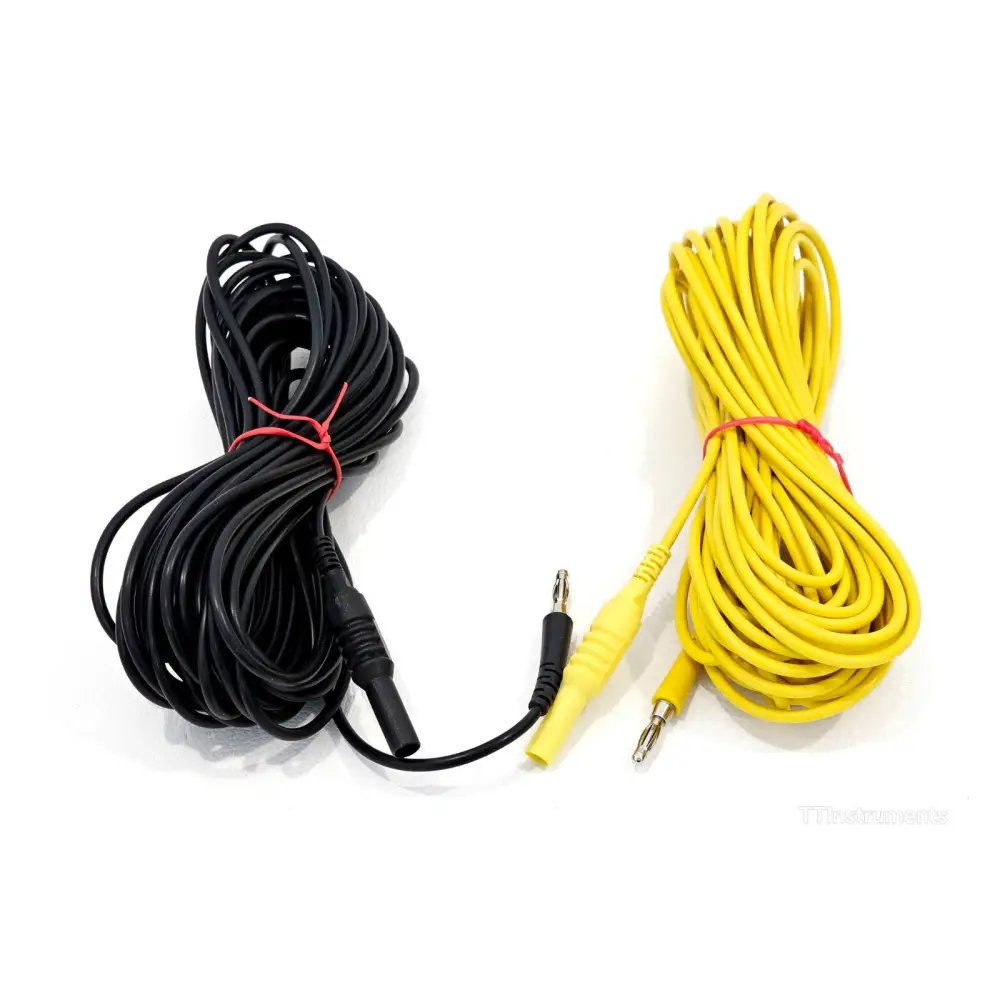

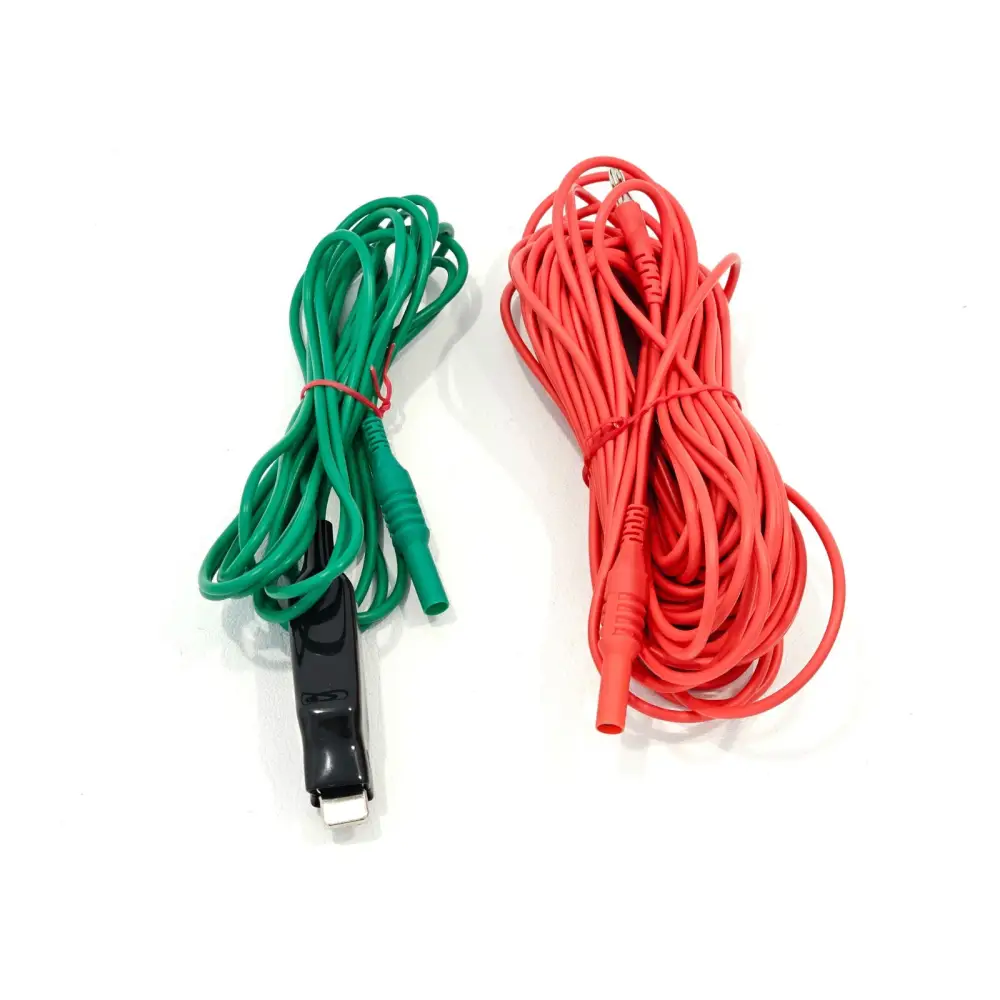

• Supplied accessories as pictured

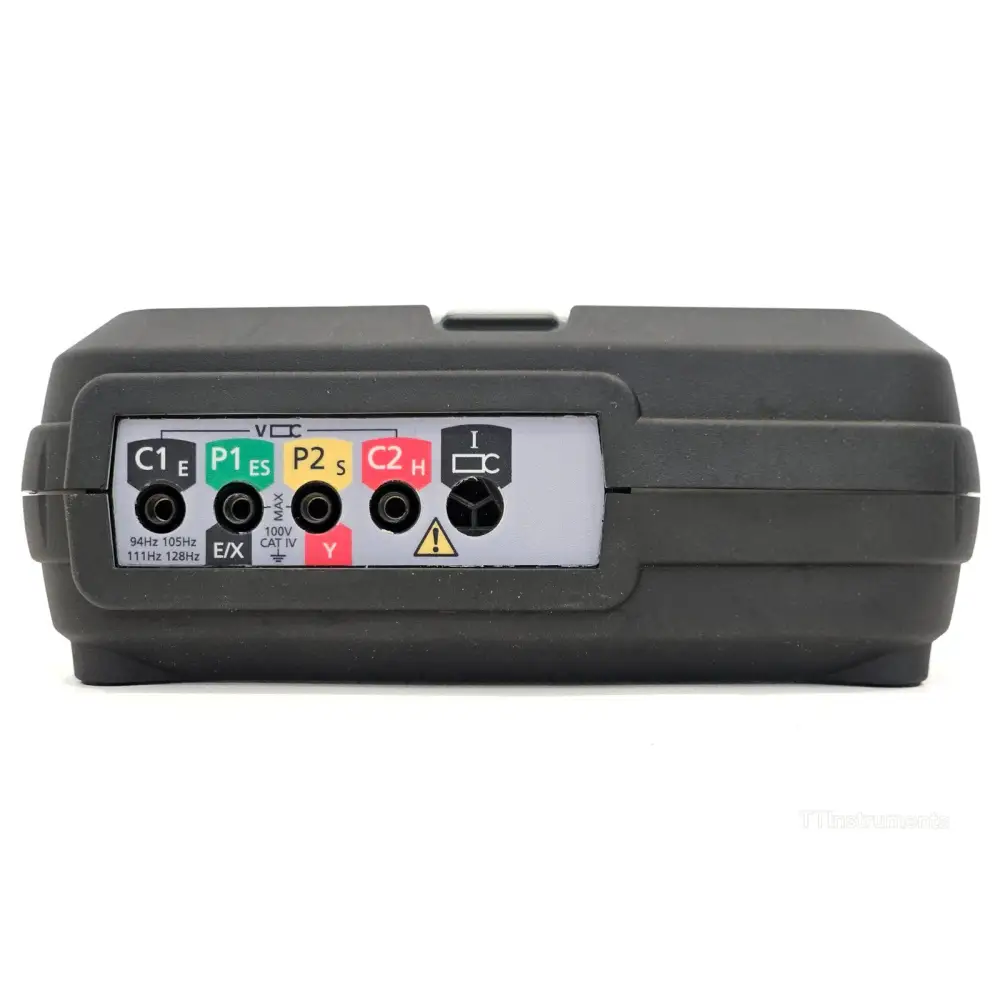

The Megger DET4TC2 is a dry-cell battery-powered four-terminal earth/ground resistance and soil resistivity tester from Megger's DET4 series, designed for demanding applications requiring maximum versatility. It supports 2, 3, and 4-pole testing, Attached Rod Technique (ART), stakeless (clamp-on) measurements, leakage current measurement, and earth noise voltage measurement.

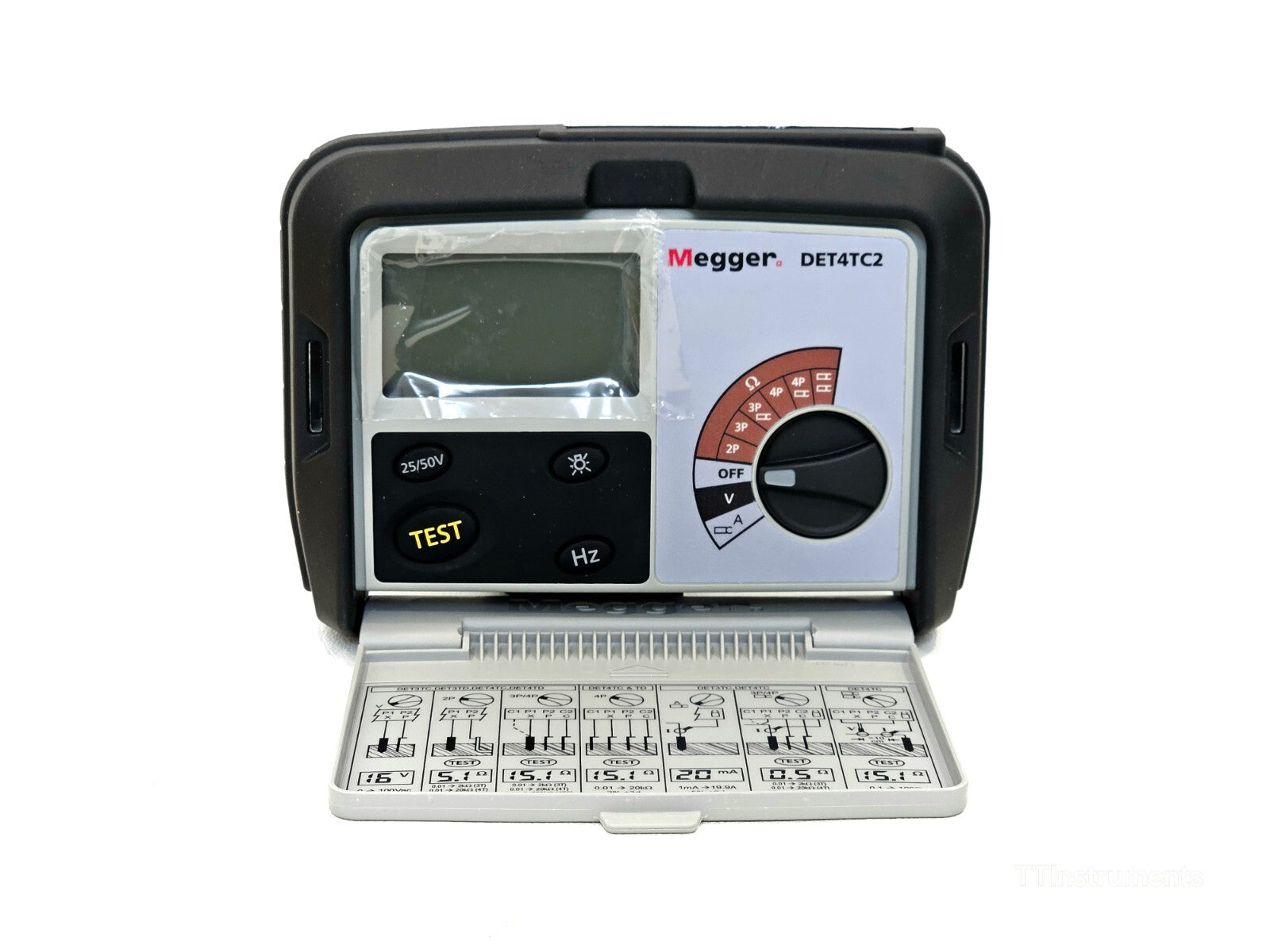

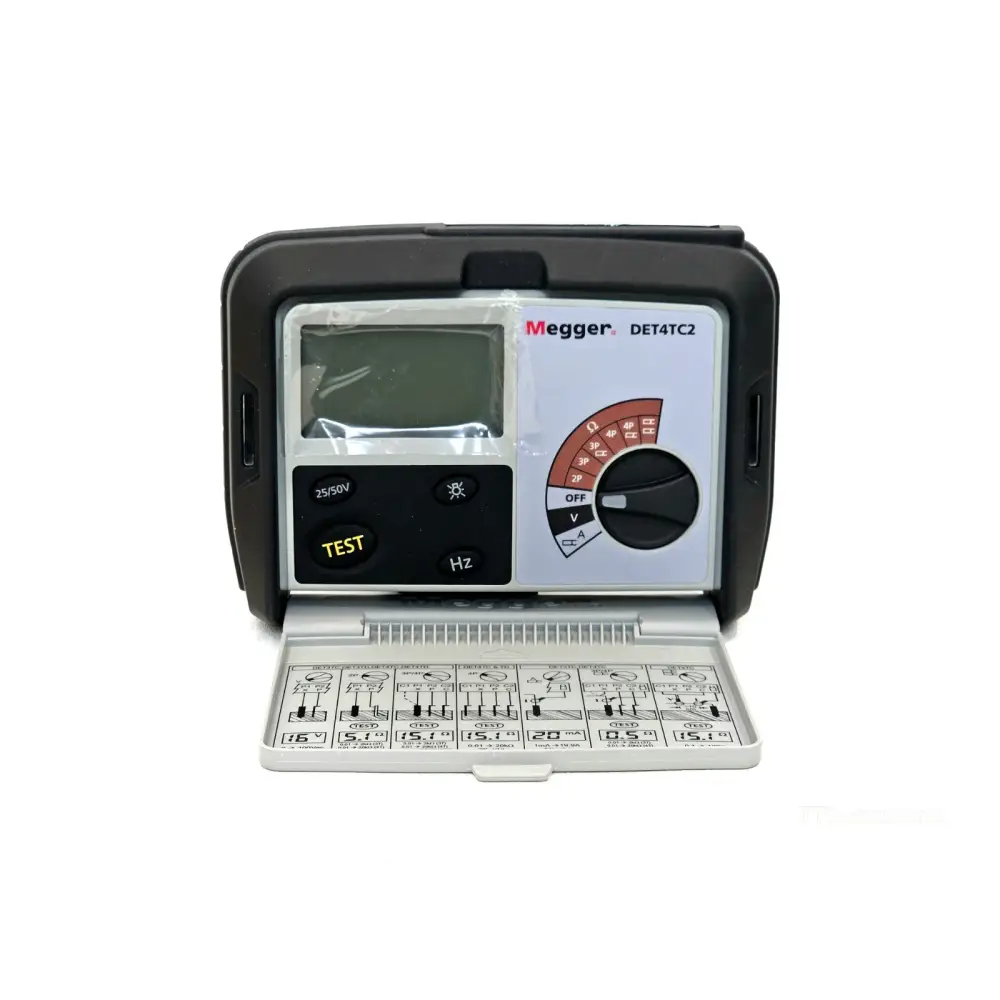

The DET4TC2 is powered by eight AA batteries with battery status shown via a bar-graph on the LCD display. The instrument features a selectable test frequency (94 Hz, 105 Hz, 111 Hz, and 128 Hz) to minimise the effects of interference in difficult conditions, and a selectable 25 V or 50 V output voltage for compliance with IEC 61557-5 (25 V output required for agricultural environment testing). A backlit display extends operational use to cable cellars and other dark locations. The large rotary selector switch and single-button test operation allow use even with gloved hands. The instrument automatically checks connection conditions of the P spike and C spike and rejects noise voltages exceeding 40 V peak-to-peak.

By using the optional ICLAMP accessory, the DET4TC2 can perform ART testing, allowing individual ground electrodes to be tested without disconnecting the utility connection. The optional VCLAMP enables true stakeless (clamp-on) measurements where driving stakes is impractical.

Key Specifications:
Test Methods: 2-pole, 3-pole, 4-pole, ART (Attached Rod Technique), Stakeless (clamp-on)
Resistance Range: 0.01 Ω to 200 kΩ
Earth Voltage Range: 0 to 100 V
Earth Voltage Accuracy: ±2% ±2 V
Ground Noise Voltage Range: 1 V to 100 V
Ground Current Measurement Range: 1 mA to 20 A
Selectable Test Frequencies: 94 Hz, 105 Hz, 111 Hz, 128 Hz
Selectable Output Voltage: 25 V / 50 V
Noise Rejection: Auto-rejects noise voltages exceeding 40 V pk-pk
Display: 3½-digit high-contrast backlit LCD

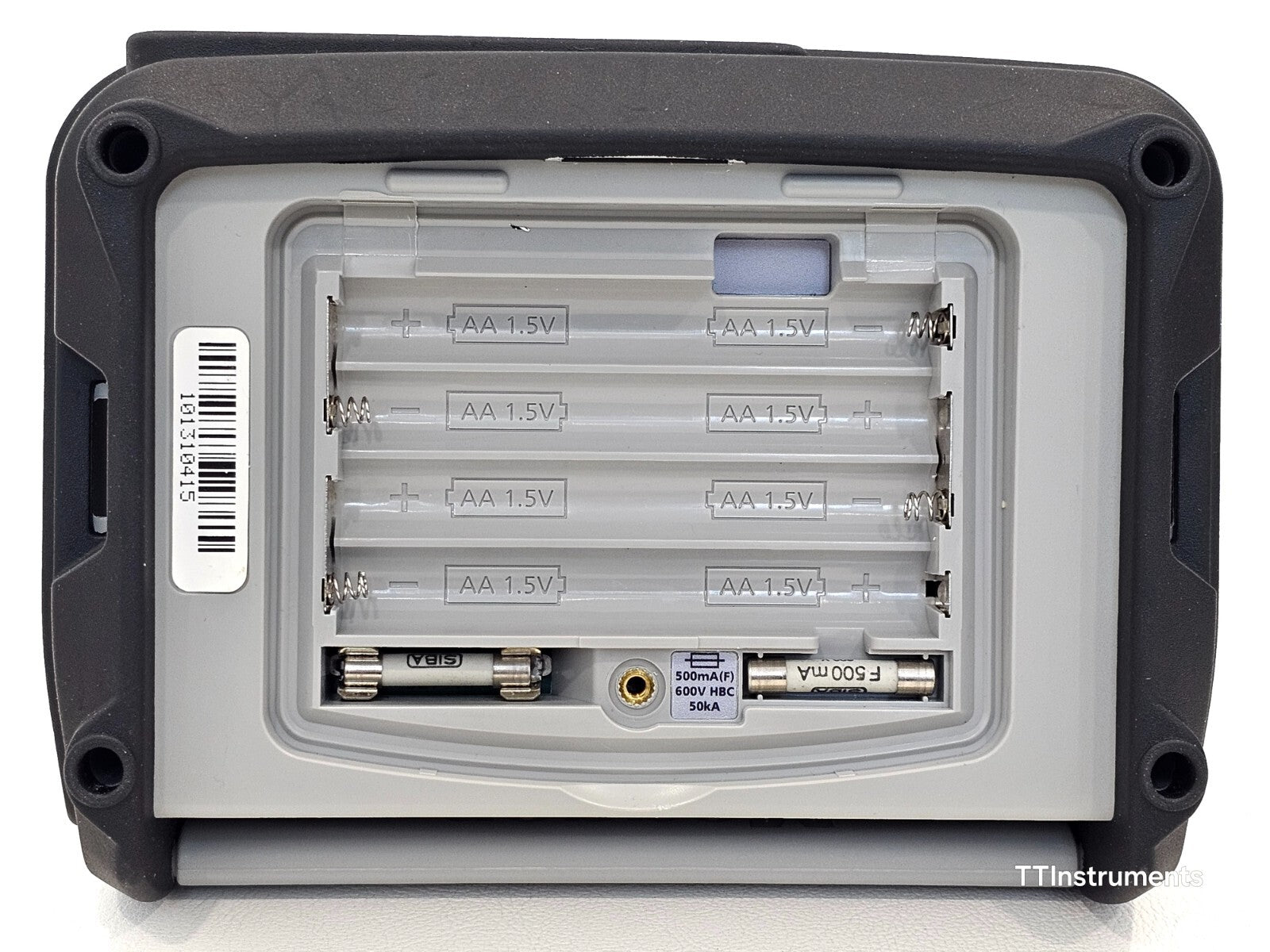

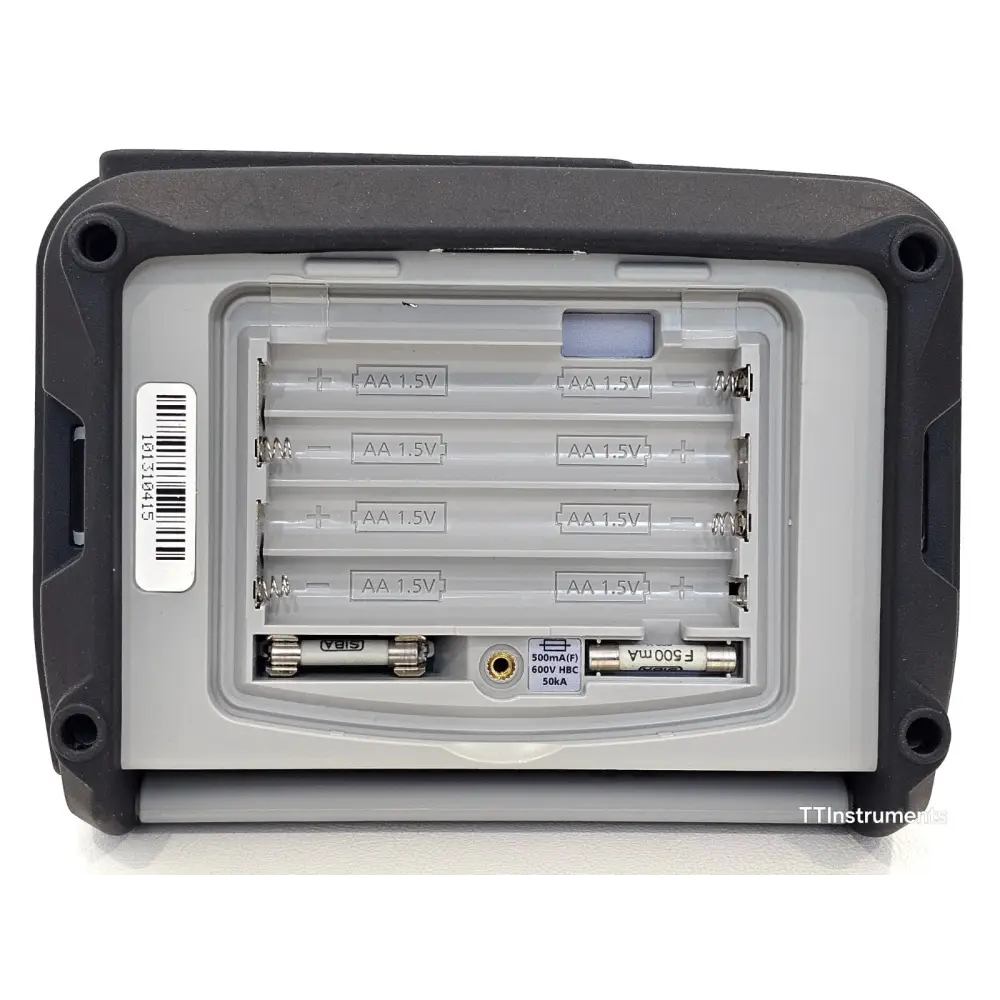

Power Source: 8 x AA dry-cell batteries
IP Rating: IP54
Safety Rating: CAT IV 100 V
Compliance: IEC 61557-5
Auto Power-Off: 6 minutes after last operation
Delivered with calibration certificate

Megger DET4TC2 & DET4TCR2 Official Datasheet (RS Components hosted PDF): Download PDF

Megger DET Series Earth Ground Electrode Testers User Guide (covers DET4TC2): Download PDF
