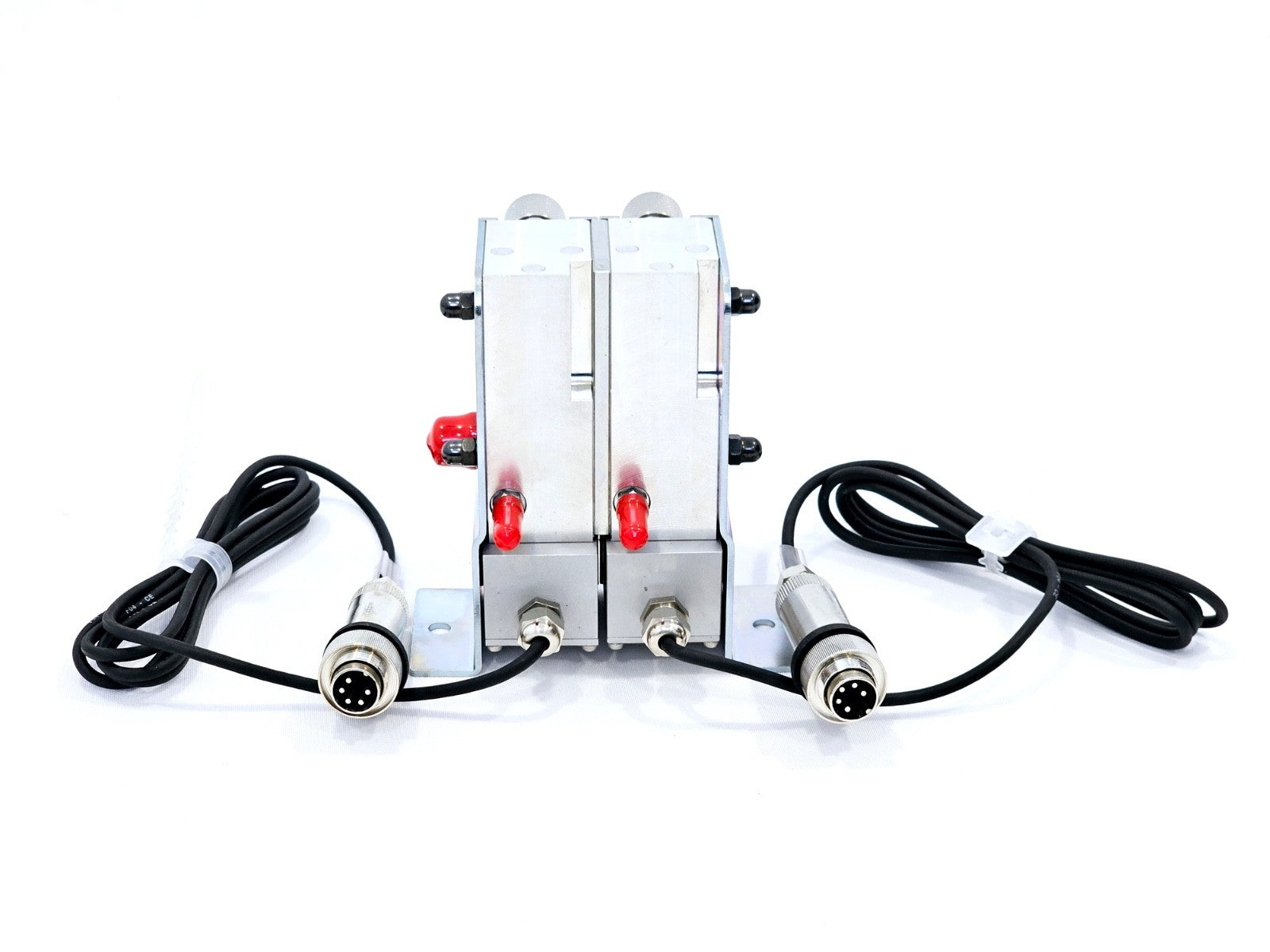

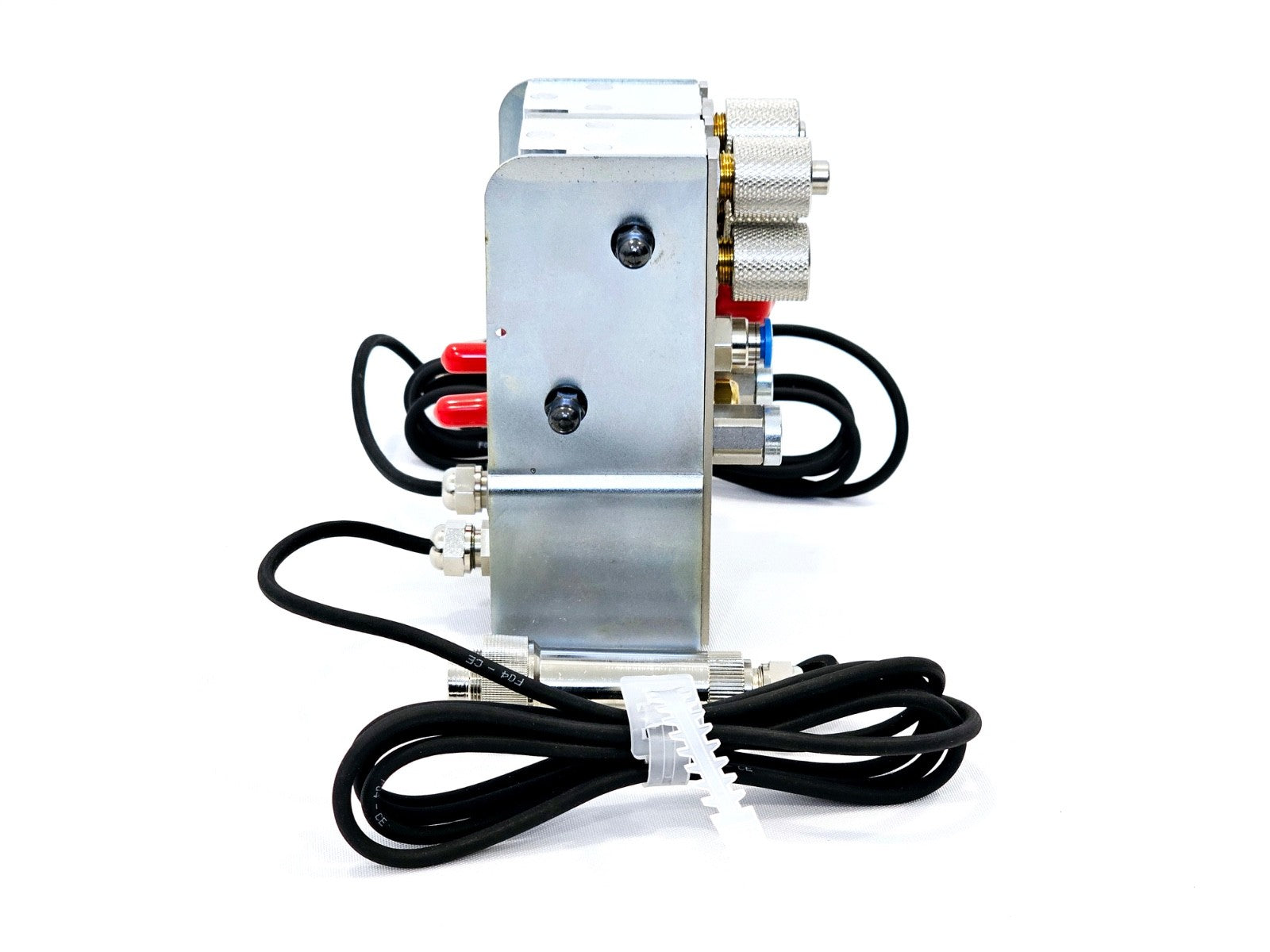

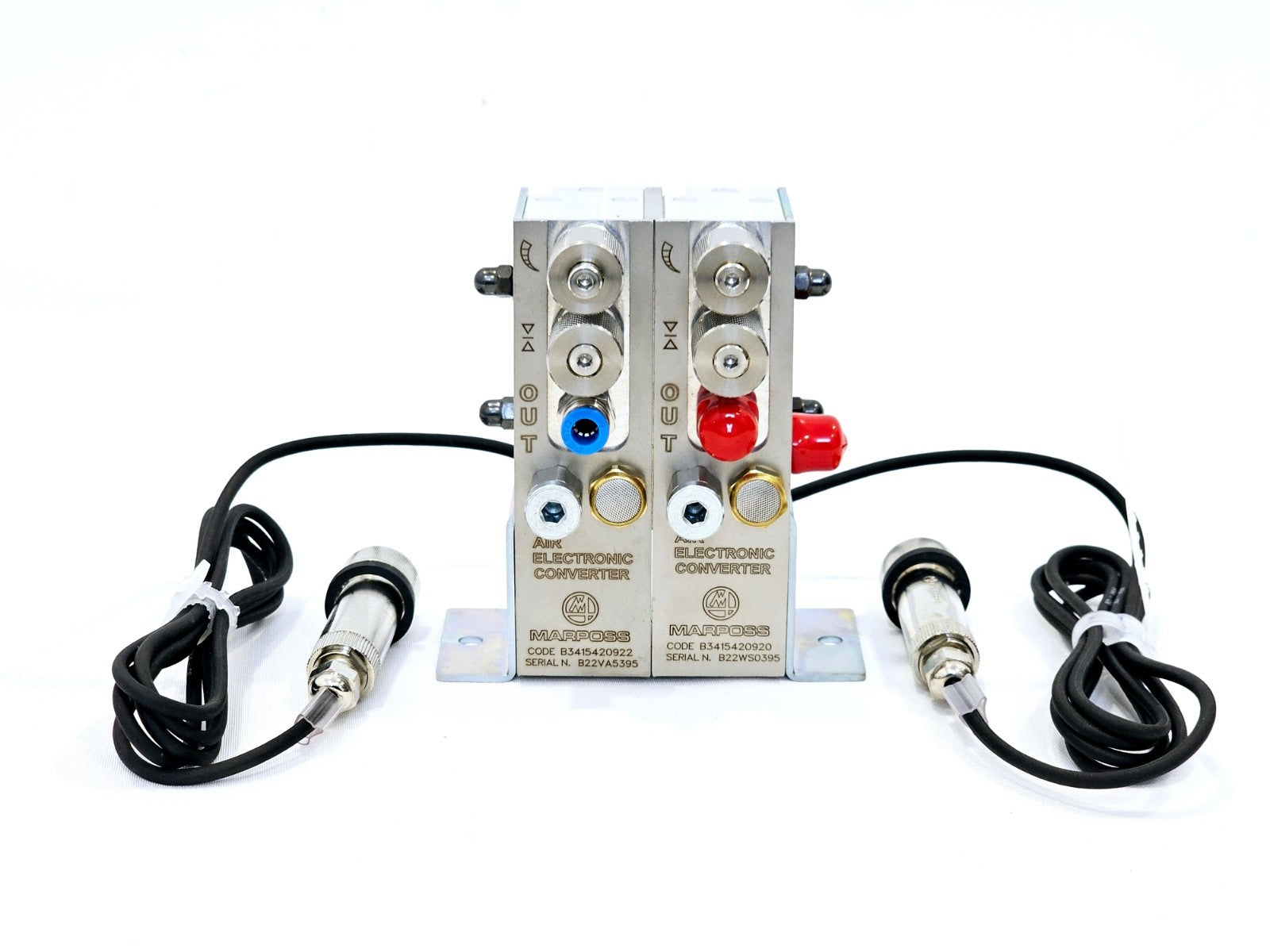

This listing comprises a Marposs dual air-to-electronic converter assembly (part numbers B3415420922 and B3415420920) mounted together on a bracket, ready for integration into a Marposs pneumatic measurement system. Each converter independently handles one air measurement channel, outputting an LVDT signal to compatible Marposs electronics.

Included in the sale:
• Marposs dual Air Electronic Converter assembly (B3415420922 and B3415420920) on mounting bracket
• 2 × cables with 5-pin circular connectors

Marposs Air-to-Electronic Converters are high-definition pneumo-electronic interface devices that translate pneumatic gauge pressure signals into electrical signals for connection to Marposs display and processing units. Based on the pressure-divider principle, the converters use compressed air through a pneumatic circuit where an air nozzle is positioned at a set distance from the target surface; dimensional variation generates a pressure change that is transduced into an electrical signal proportional to the measured dimension.

Each Air Electronic Converter handles one independent air measurement channel. Systems can be configured as modular multi-unit assemblies of 2 to 6 converters to suit multi-channel inspection applications. Output signal versions include analogue LVDT, HBT, ±10 V, and 4–20 mA, enabling connection to Marposs or third-party electronic units.

Key Features:
• Pneumo-electronic measurement technology — contactless dimensional inspection without touching the part
• Adjustable zero and sensitivity regulators on the front panel for straightforward calibration
• High flexibility: compatible with a wide variety of air nozzle types and gap distances
• Suitable for post-process grinding inspection and in-process gauging applications
• Engineered for workshop environments; robust and reliable in production settings
• Compatible with Marposs display units including E4N, Duo, and Easy Box series

Typical Performance (referred to a typical application):
Resolution: 0.01 µm
Repeatability: < 0.15 µm
Noise: < 0.1 µm
Linearity: < 0.4% of working range
Response Time: 200 ms
Air Supply Pressure: 3 bar ± 0.1 (working range 1.5 to 4 bar); air must be dry, unoiled, and filtered to 5 µm
Output Signal Types: LVDT (full-bridge), HBT (half-bridge), ±10 V analogue, 4–20 mA
Modular Assembly: 2 to 6 converter units
Tolerance Capability: Dimensions with tolerances < 10 µm

Typical Applications:
• Post-process and in-process inspection on grinding machines
• Internal and external diameter measurement (bore gauges, ring gauges, snap gauges)
• High-volume precision manufacturing quality control
• Match-grinding and selective assembly
• Integration with Marposs E4N, Duo, Easy Box, and industrial PC-based gauging systems

Marposs S.p.A. is a world leader in precision measurement, inspection, and test technologies for the production environment, ISO 9001, ISO 14001, and OHSAS 18001 certified.

For full technical specifications refer to the Marposs Air-to-Electronic Converter product page: https://www.marposs.com/eng/product/air-to-electronic-converter

Marposs Analog A/E Converter Box (Duo Air) Datasheet — D6D01900G0: Download PDF

Marposs Interface Boxes for Data Acquisition (Easy Box / Air converters) Datasheet — D6D02000G0: Download PDF

Marposs Manual Gauging Components Quick Guide (includes Duo Air A/E converters) — D6W00700G0: Download PDF
