Condition: New other (see details)

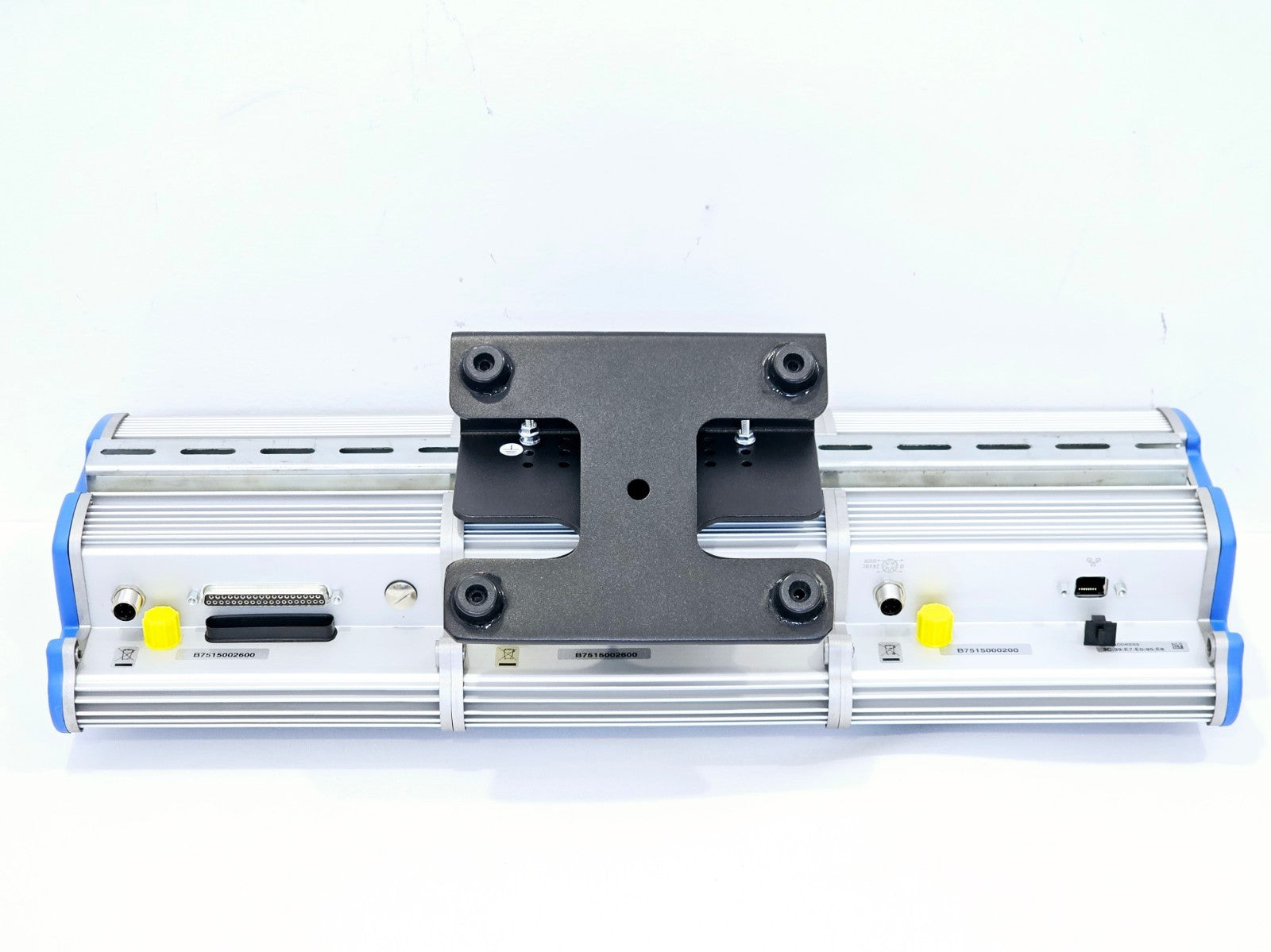

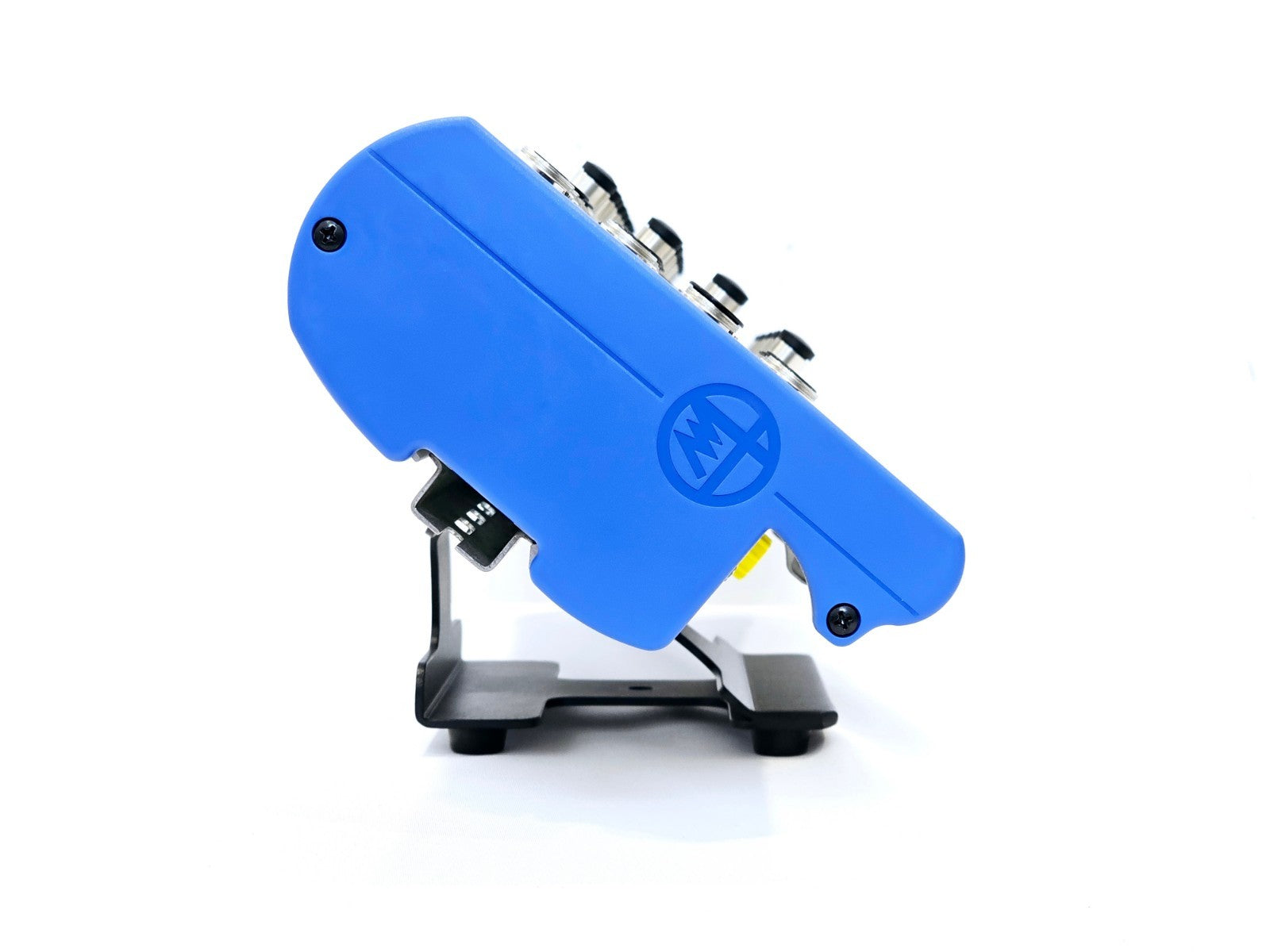

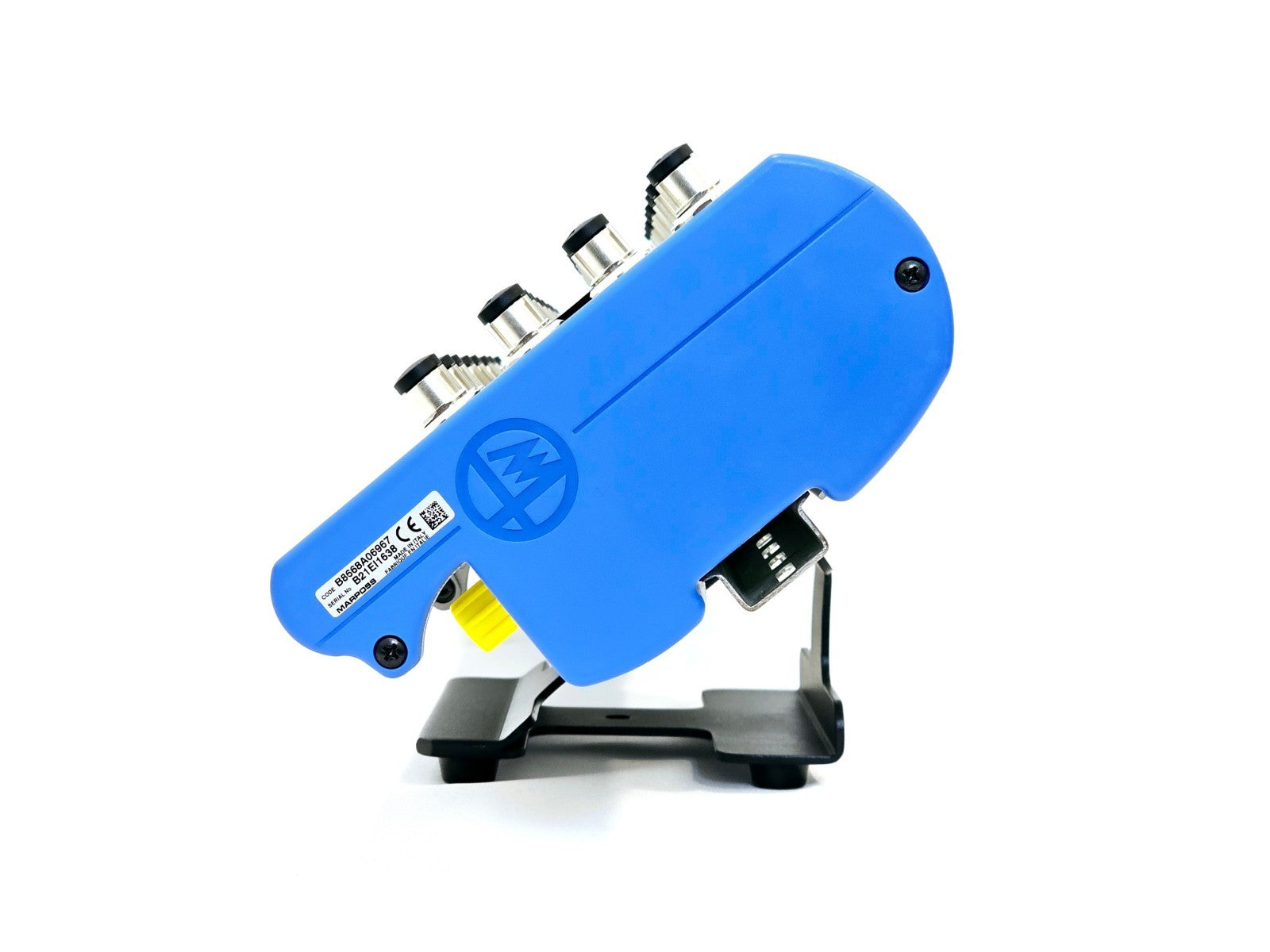

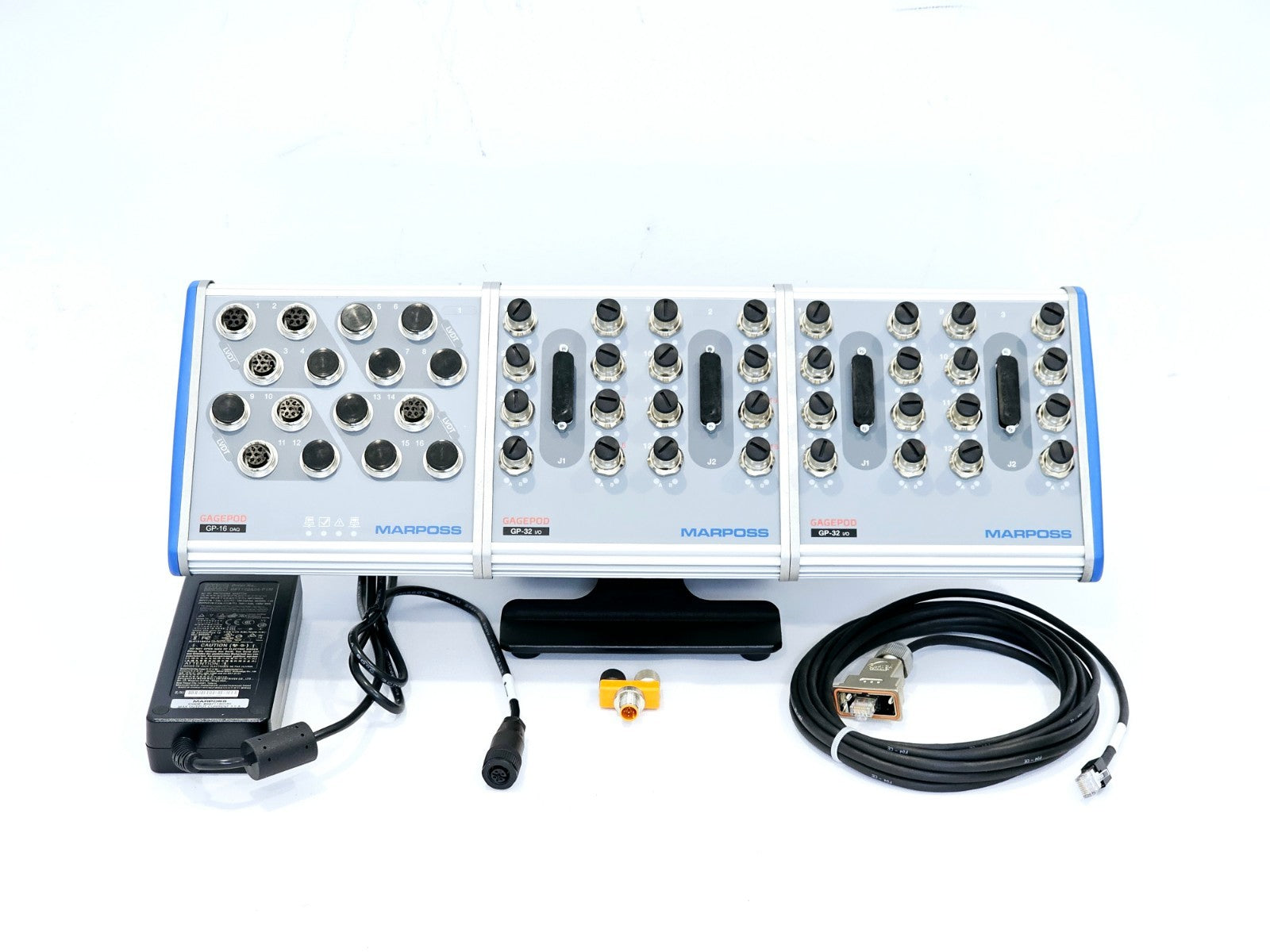

Brand new open box Marposs GagePod system comprising a GP-16 DAQ 16-channel data acquisition module and two GP-32 I/O digital input/output modules. Supplied with a power supply and all pictured accessories, this is a complete, ready-to-deploy measurement interface system.

Included in the sale:
• Marposs GagePod GP-16 DAQ module
• 2x Marposs GagePod GP-32 I/O modules
• 1x Power supply

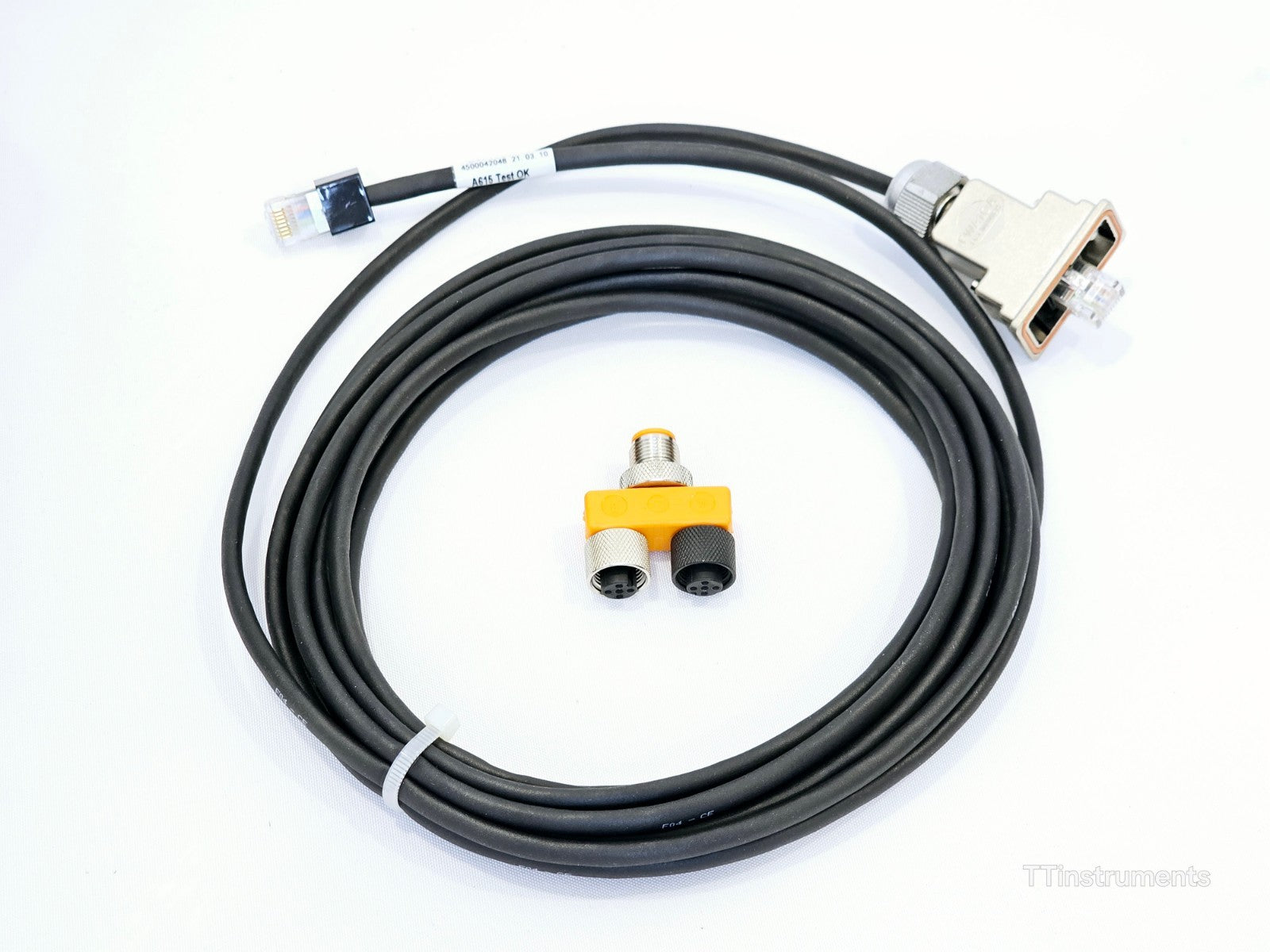

• All pictured accessories

The Marposs GagePod is a modular, distributed data acquisition system designed to serve applications ranging from simple manual gauging through to fully automatic measurement and inspection systems. Modules are based on ARM9 RISC technology and snap together without interconnecting cables, making the system easily configurable and scalable to any application requirement. Data signals, synchronisation signals, and 24Vdc power supply are all channelled through an internal Ethernet bus between modules for maximum efficiency.

The GP-16 DAQ module provides 16 analogue input channels with a 24-bit A/D converter, supporting LVDT and HBT sensor types which can be mixed and matched in groups of four. The GP-32 I/O module manages 32 opto-isolated 24Vdc digital input/output signals. All inputs and outputs are in parallel between available connectors, enabling simultaneous microswitch, PLC and/or cycle box connections from a single module.

All modules in a GagePod system are fully synchronised, supporting even the most demanding dynamic measurement tasks including management of linear and rotary encoder signals. The system connects to a host computer via a single USB or Ethernet cable, or wirelessly via Bluetooth or Wi-Fi.

Specifications:
DAQ Channels: 16 (LVDT, HBT, Digicrown, HBT-13kHz sensor types)
ADC Resolution: 24-bit
Digital I/O (GP-32 I/O): 32 opto-isolated channels, 24Vdc
Processor Architecture: ARM9 RISC
Power Supply: 24Vdc AC/DC
Host Connectivity: USB, Ethernet, Bluetooth, Wi-Fi
Fieldbus Support: PROFIBUS, PROFINET, EtherNet/IP (via optional fieldbus module)
Encoder Support: 9-channel linear/rotary encoder module available

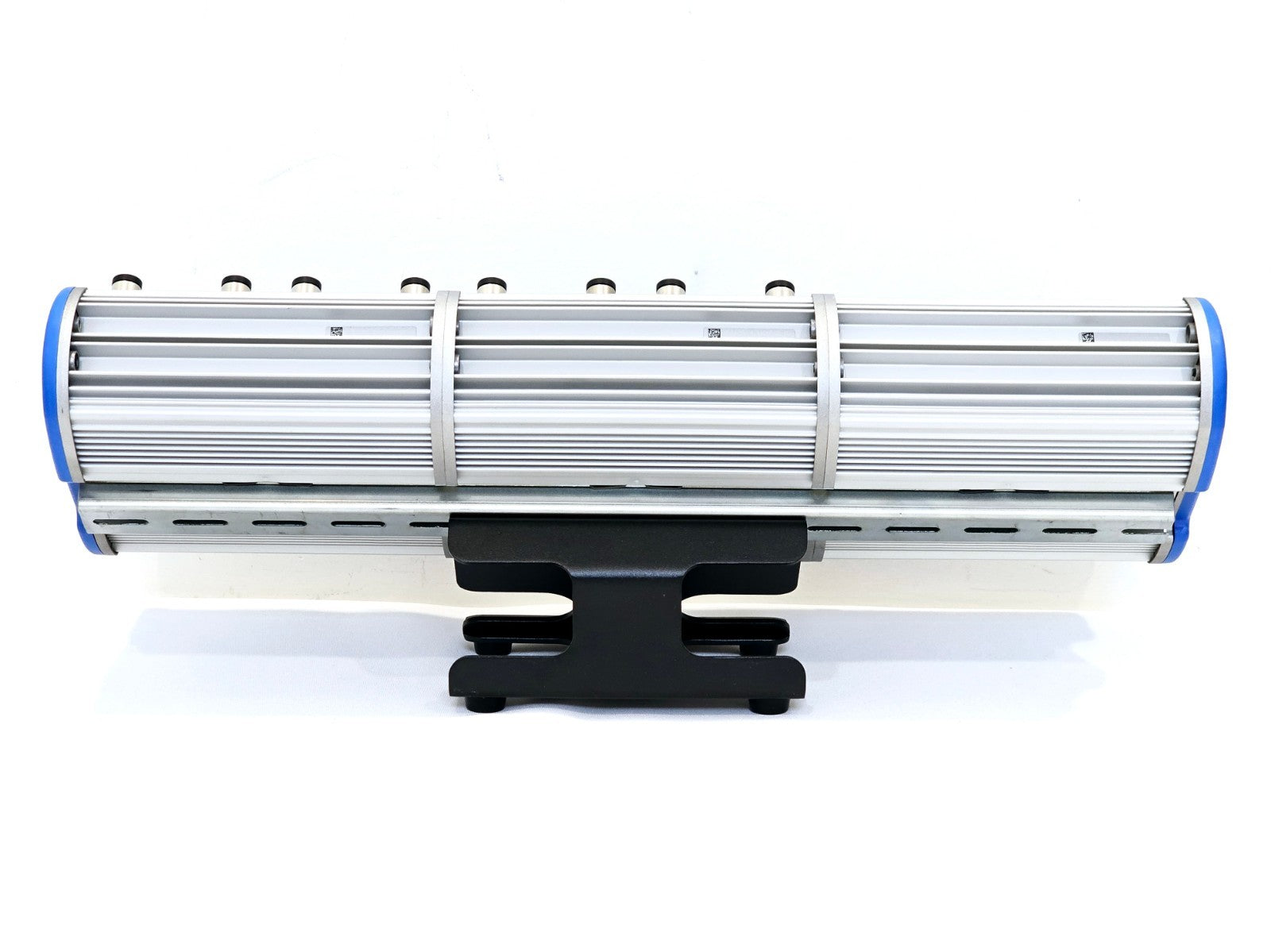

Mounting: Integrated DIN-rail; optional bench support
Ingress Protection: IP54
Operating Temperature: 5 to 45 °C
Storage Temperature: -20 to 60 °C
Relative Humidity: 5 to 80% (non-condensing)
Compatible Software: Marposs Quick SPC (Statistical Process and Quality Control)
Compatible Industrial Computer: Marposs E9066 series or any commercial PC

Marposs GagePod Distributed Data Acquisition System — Product Brochure (EN, D6D03100G0, Ed. 03/2023): Download PDF

Marposs GagePod Distributed Data Acquisition System — Product Sheet (IT, D6D00700I0): Download PDF

Marposs Manual Gauging Components Quick Guide — includes GagePod overview (D6W00700G0, Ed. 04/2022): Download PDF
