Condition: New other (see details)

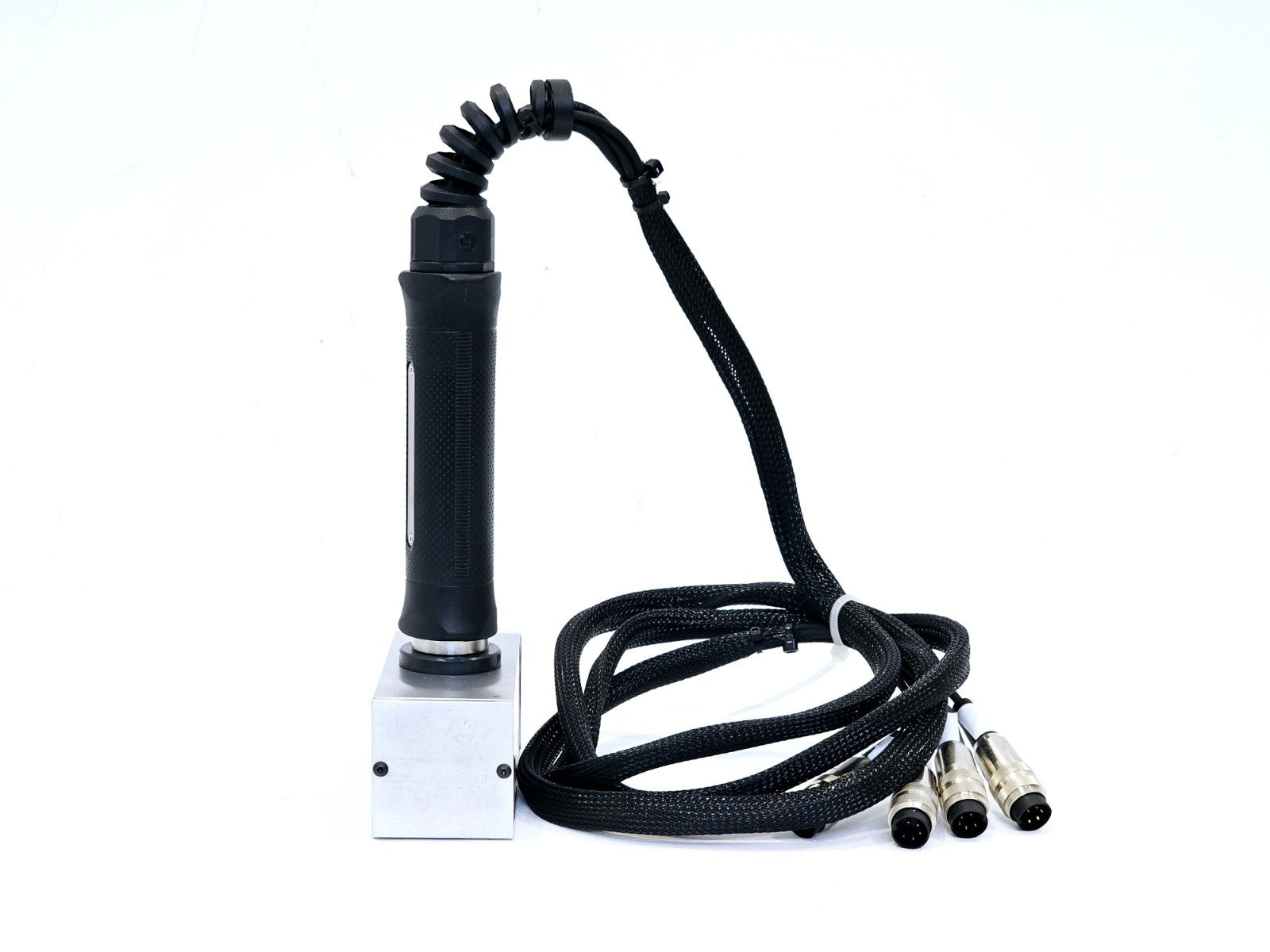

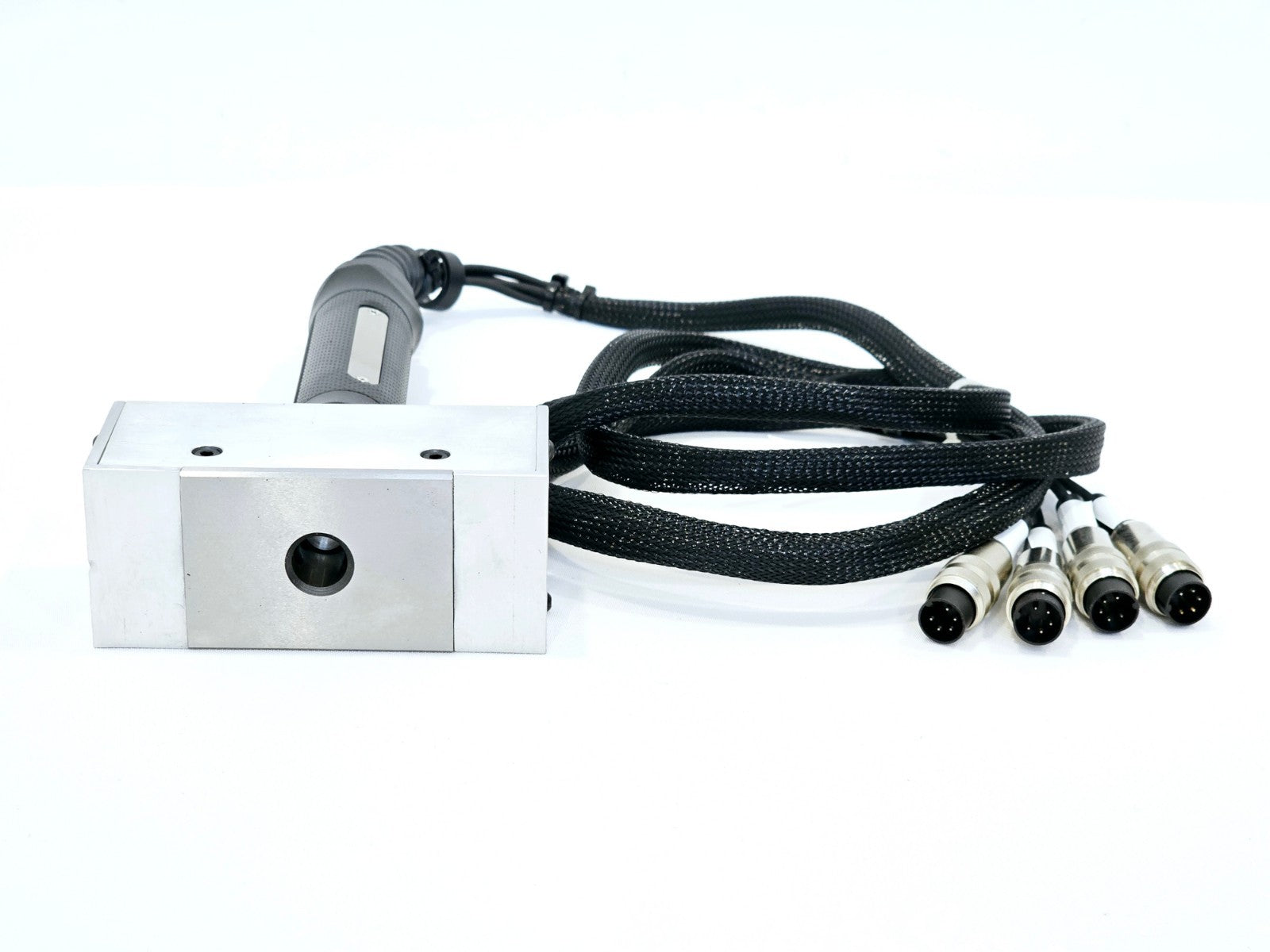

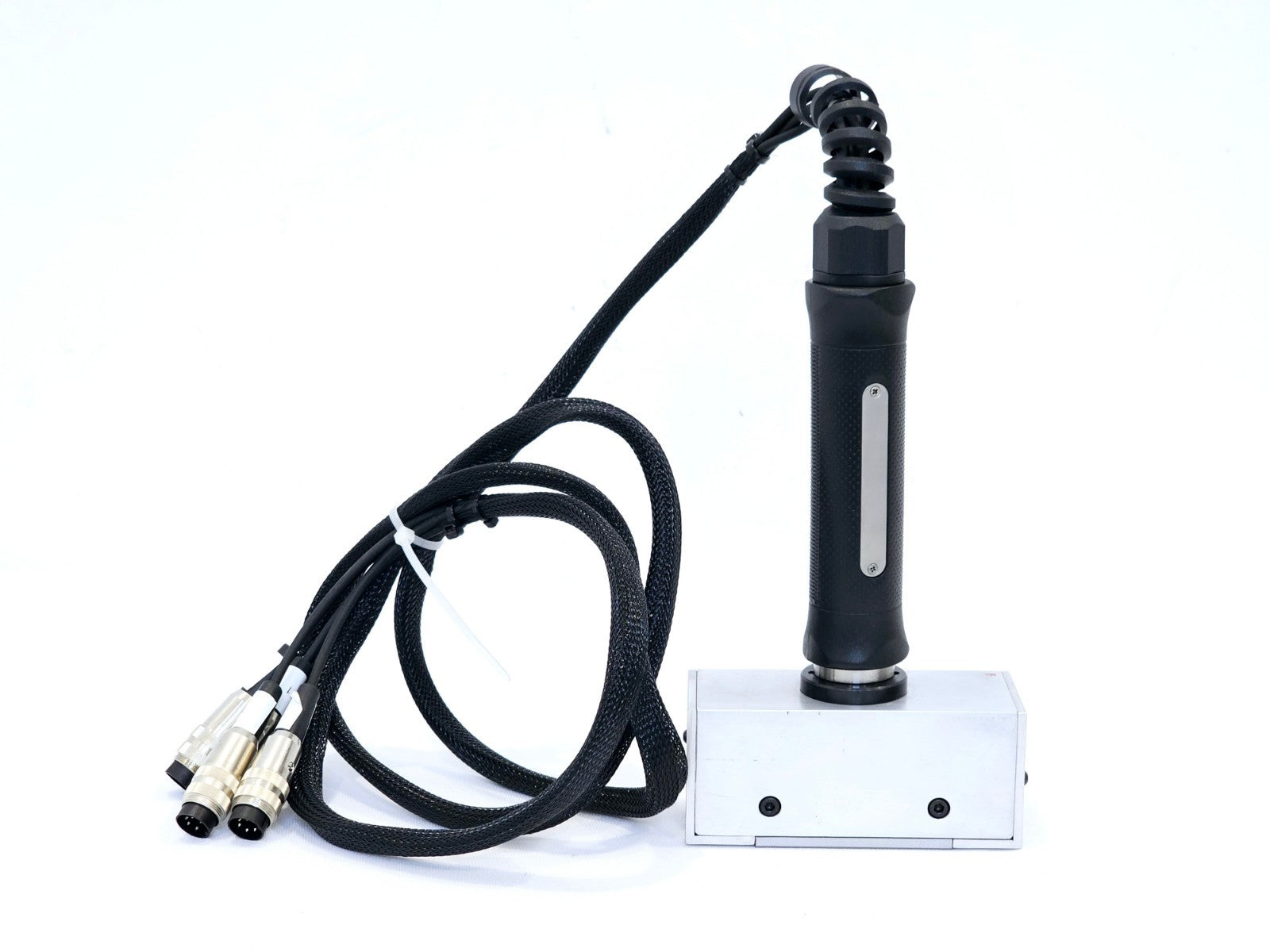

Brand new, opened box — missing original packaging. This assembly features four Marposs REDCrown2 F05 LVDT pencil probes (B3PR01L0000) integrated within an aluminium enclosure block, fitted with an H2G2 Short 12-14 handle and coiled strain-relief cable. Three multi-pin connector cables exit the assembly for connection to compatible Marposs amplifiers.

Included in the sale:
• 4x Marposs F05 B3PR01L0000 REDCrown2 LVDT pencil probes mounted in aluminium housing

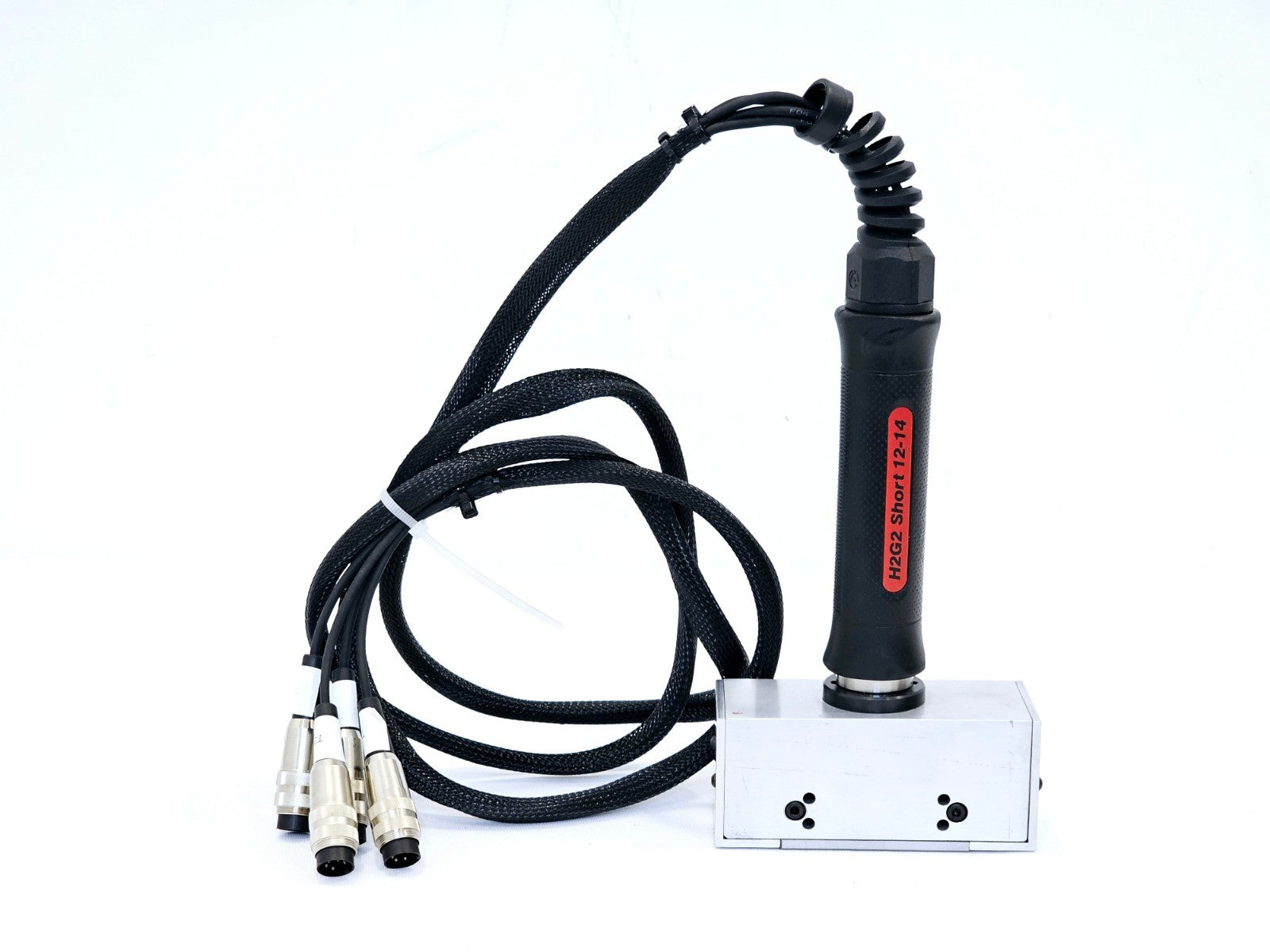

• H2G2 Short 12-14 probe handle
• Multi-cable assembly with 3x multi-pin circular connectors
• Coiled strain-relief cable

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

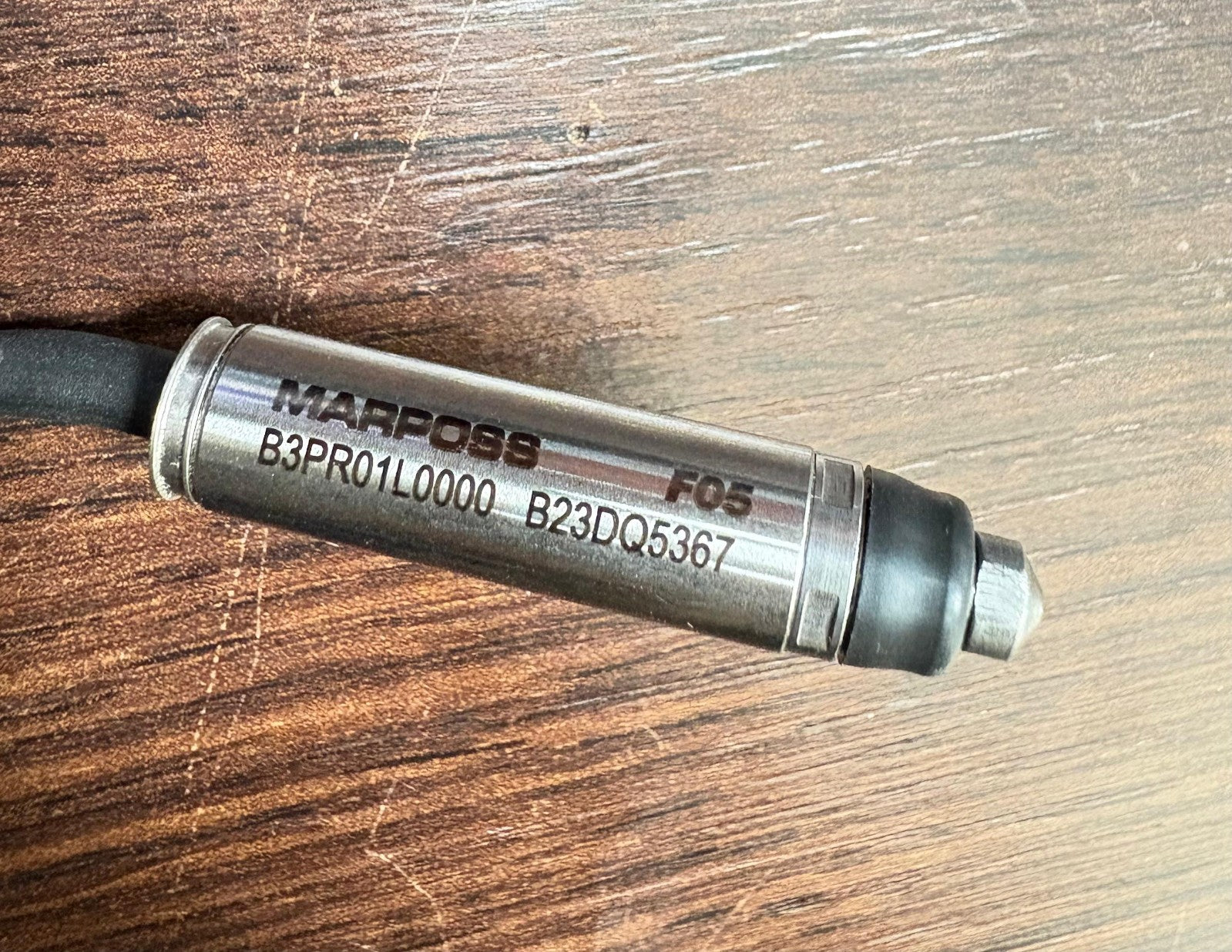

The Marposs REDCrown2 F05 (B3PR01L0000) is part of the REDCrown2 LVDT pencil probe family — the latest generation of precision displacement sensors developed by Marposs for the highest metrological performance in gauge and fixture applications. The compact 8 mm body diameter, precision ball cage movement, and sturdy design make these probes the fundamental building block for customised gauging solutions in manufacturing and quality control environments.

The REDCrown2 LVDT series is available in Standard configuration (with fluoroelast gasket, IP65) and features improved Mu-metal shielding for enhanced protection against electrical and magnetic interference. The LVDT transducer allows direct connection to standard Marposs amplifiers or compatible third-party amplifiers. Both static and dynamic measurements can be performed, and the probes are suitable for in-process and post-process dimensional control.

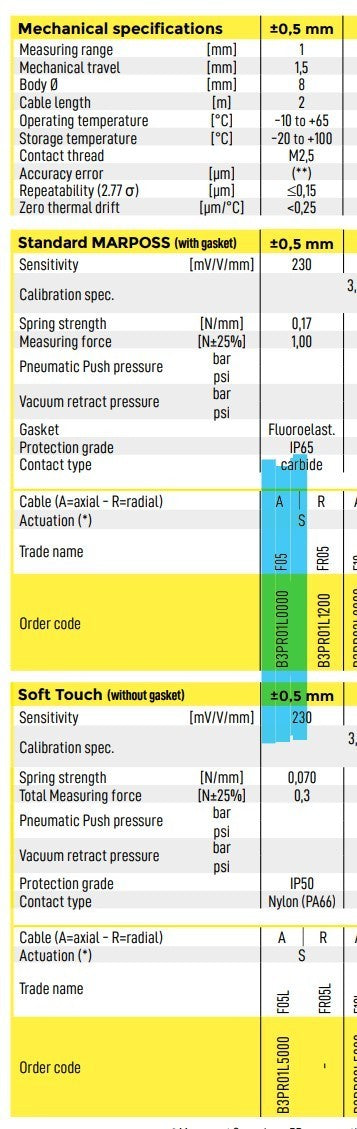

Mechanical Specifications (F05 / B3PR01L0000 — Standard MARPOSS ±0.5 mm):
Measuring Range: ±0.5 mm (total 1 mm)
Mechanical Travel: 1.5 mm
Body Diameter: 8 mm
Cable Length: 2 m
Operating Temperature: -10 to +65 °C
Storage Temperature: -20 to +100 °C
Contact Thread: M2.5
Repeatability (2.77σ): ≤0.15 µm
Zero Thermal Drift: <0.25 µm/°C
Sensitivity: 230 mV/V/mm
Spring Strength: 0.17 N/mm
Measuring Force: 1.00 N (±25%)
Protection Grade: IP65
Gasket Material: Fluoroelastomer
Contact Type: Carbide
Cable Output: Axial (A)
Actuation: Spring (S)
Transducer Type: LVDT (analogue)
Order Code: B3PR01L0000 (Trade name: F05)

Marposs REDCrown2 pencil probe family brochure — specifications, order codes and product overview (includes F05/B3PR01L0000): Download PDF

Marposs REDCrown2 second generation pencil probes datasheet — full specifications, LVDT/HBT variants, order codes: Download PDF
