Condition: New other (see details)

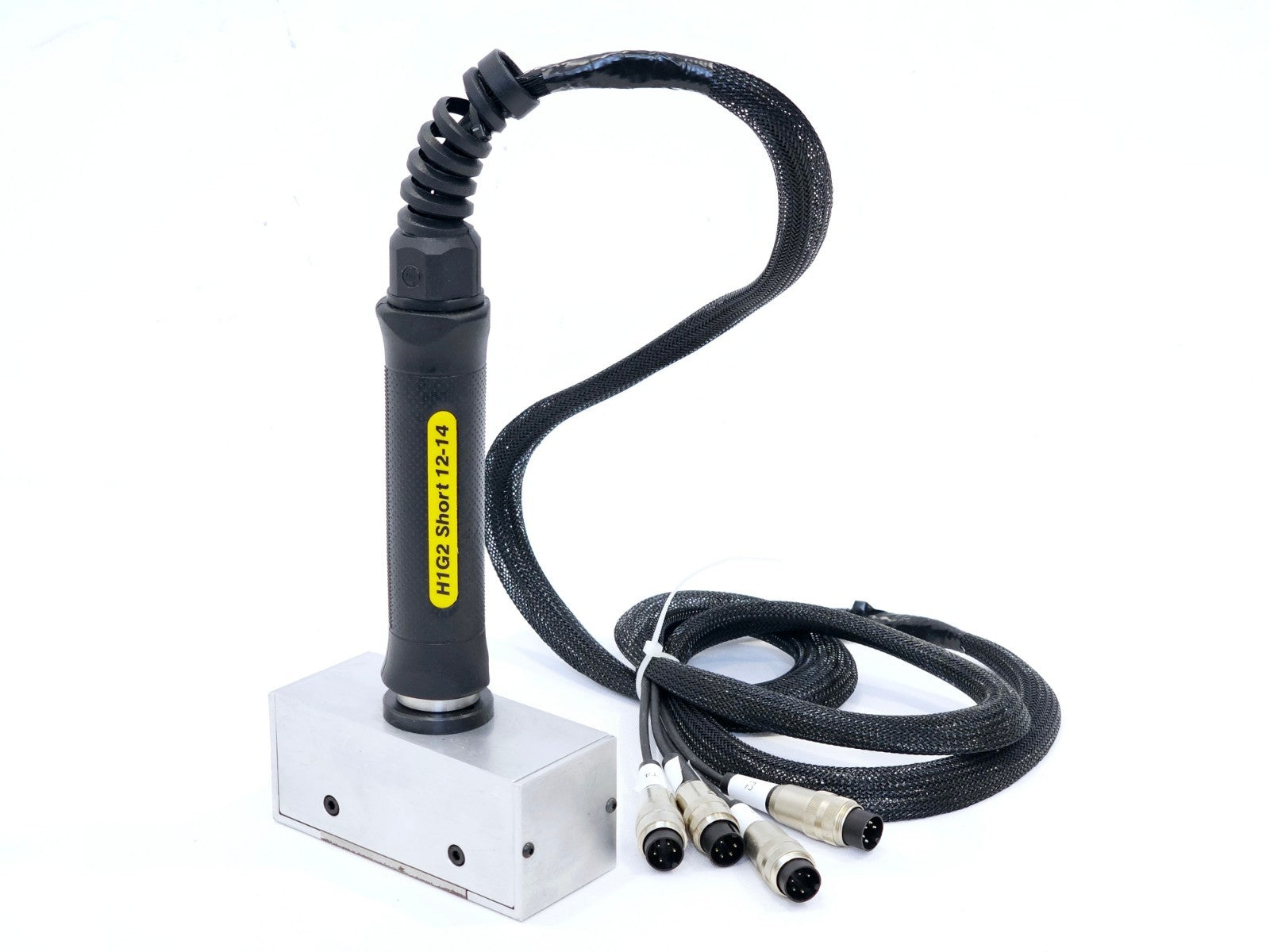

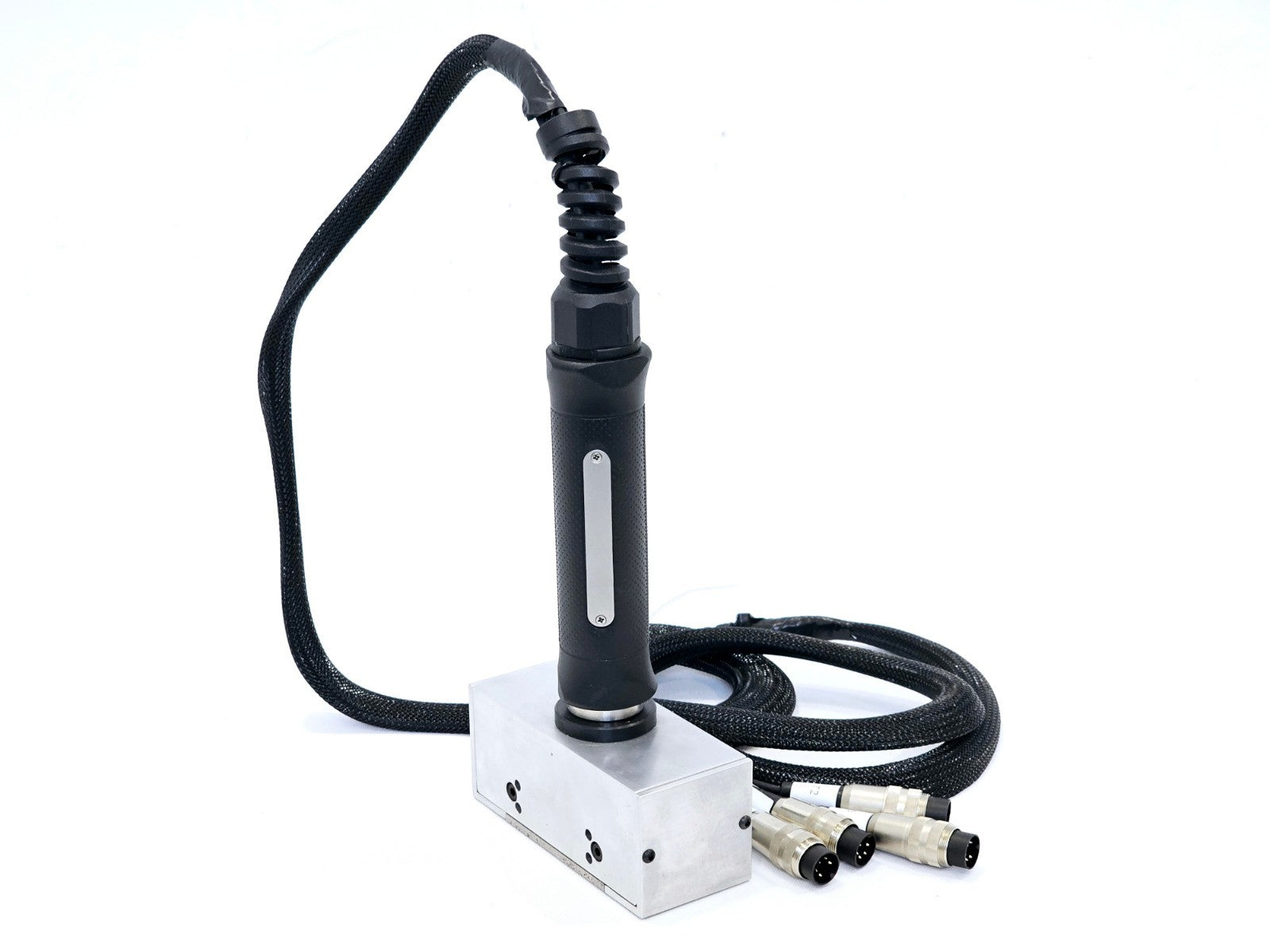

Brand new, opened box — missing original packaging. This assembly comprises four Marposs REDCrown2 LVDT F05 pencil probes (order code B3PR01L0000) mounted within a precision-machined aluminium housing block, paired with an H1G2 Short 12-14 ergonomic handle and a braided multi-conductor cable assembly terminating in four circular multi-pin connectors. Each probe is the standard IP65 variant with fluoroelast gasket and carbide contact tip, axial cable output, spring actuation, and a sensitivity of 230 mV/V/mm.

Included in the sale:

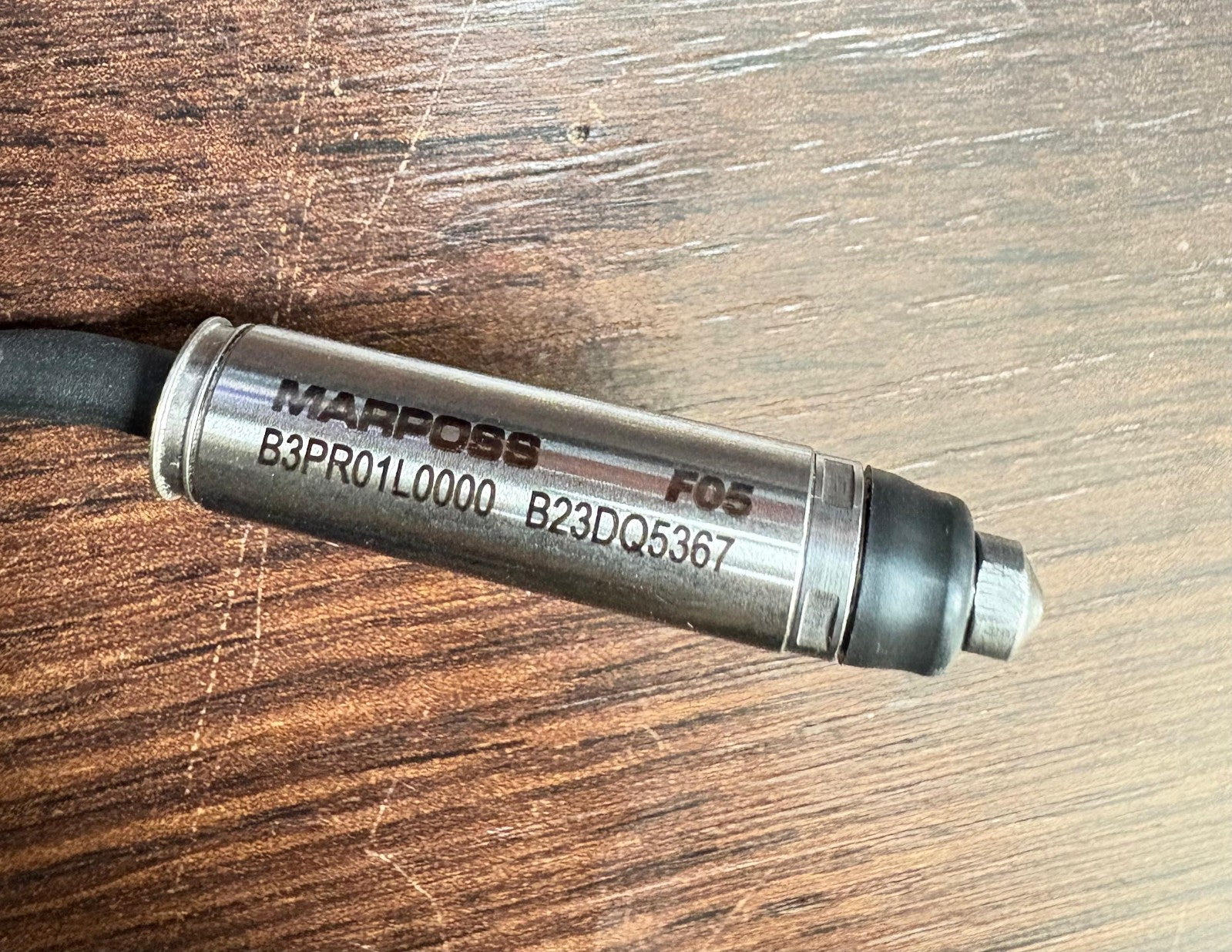

• 4x Marposs REDCrown2 F05 LVDT Pencil Probe B3PR01L0000 (mounted in housing)
• Precision-machined aluminium probe enclosure/housing block
• H1G2 Short 12-14 ergonomic handle assembly
• Braided multi-conductor cable with 4x circular multi-pin connectors

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Marposs REDCrown2 F05 (B3PR01L0000) is part of the REDCrown2 LVDT pencil probe family — the latest generation of precision displacement sensors developed by Marposs for the highest metrological performance in gauge and fixture applications. The compact 8 mm body diameter, precision ball cage movement, and sturdy design make these probes the fundamental building block for customised gauging solutions in manufacturing and quality control environments.

The REDCrown2 LVDT series is available in Standard configuration (with fluoroelast gasket, IP65) and features improved Mu-metal shielding for enhanced protection against electrical and magnetic interference. The LVDT transducer allows direct connection to standard Marposs amplifiers or compatible third-party amplifiers. Both static and dynamic measurements can be performed, and the probes are suitable for in-process and post-process dimensional control.

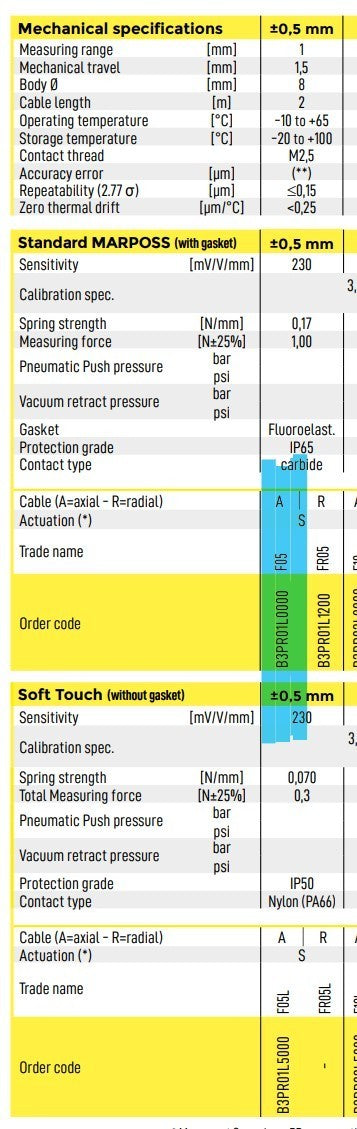

Mechanical Specifications (F05 / B3PR01L0000 — Standard MARPOSS ±0.5 mm):
Measuring Range: ±0.5 mm (total 1 mm)
Mechanical Travel: 1.5 mm
Body Diameter: 8 mm
Cable Length: 2 m
Operating Temperature: -10 to +65 °C
Storage Temperature: -20 to +100 °C
Contact Thread: M2.5
Repeatability (2.77σ): ≤0.15 µm
Zero Thermal Drift: <0.25 µm/°C
Sensitivity: 230 mV/V/mm
Spring Strength: 0.17 N/mm
Measuring Force: 1.00 N (±25%)
Protection Grade: IP65
Gasket Material: Fluoroelastomer
Contact Type: Carbide
Cable Output: Axial (A)
Actuation: Spring (S)
Transducer Type: LVDT (analogue)
Order Code: B3PR01L0000 (Trade name: F05)

Marposs REDCrown2 pencil probe family brochure — specifications, order codes and product overview (includes F05/B3PR01L0000): Download PDF

Marposs REDCrown2 second generation pencil probes datasheet — full specifications, LVDT/HBT variants, order codes: Download PDF
