Condition: Used

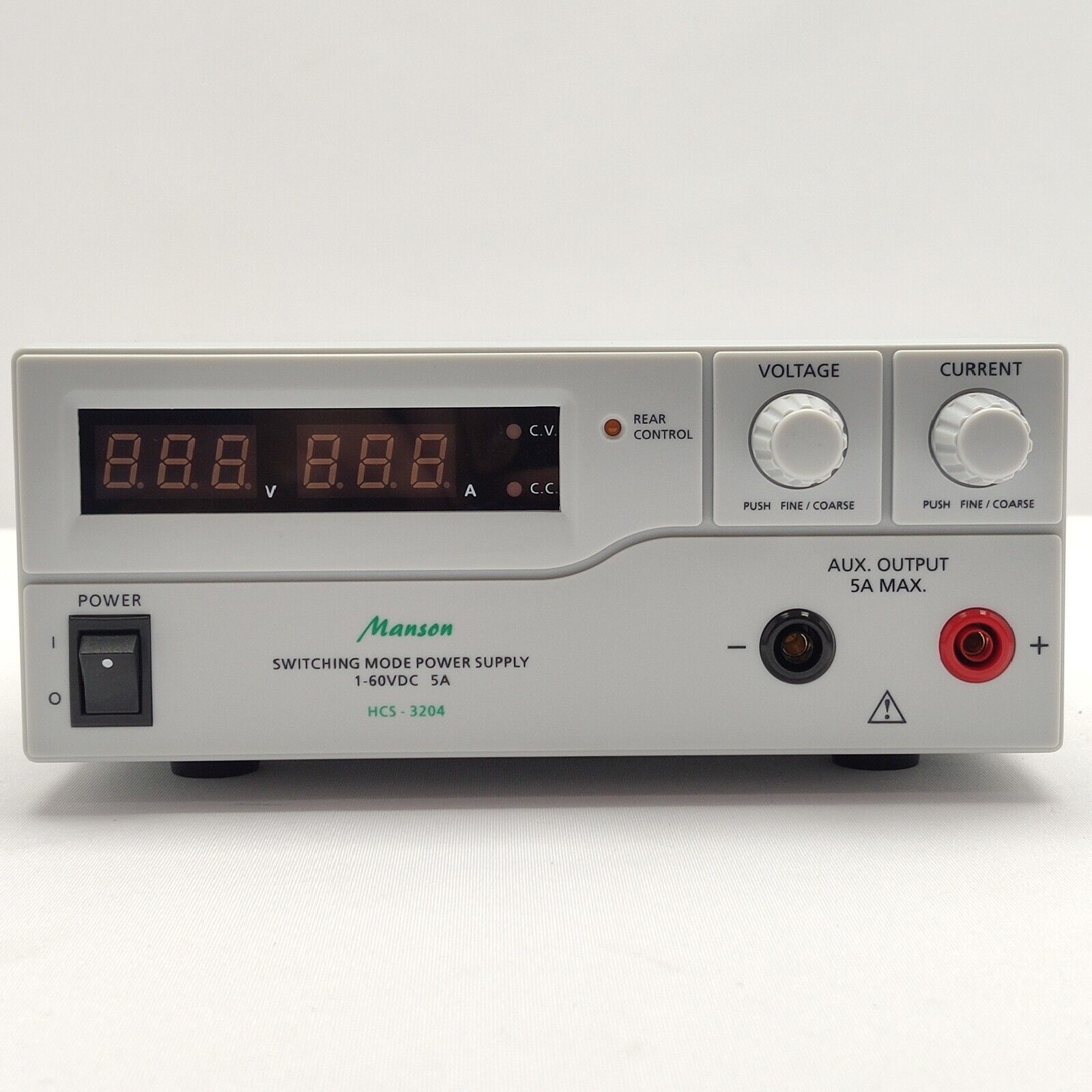

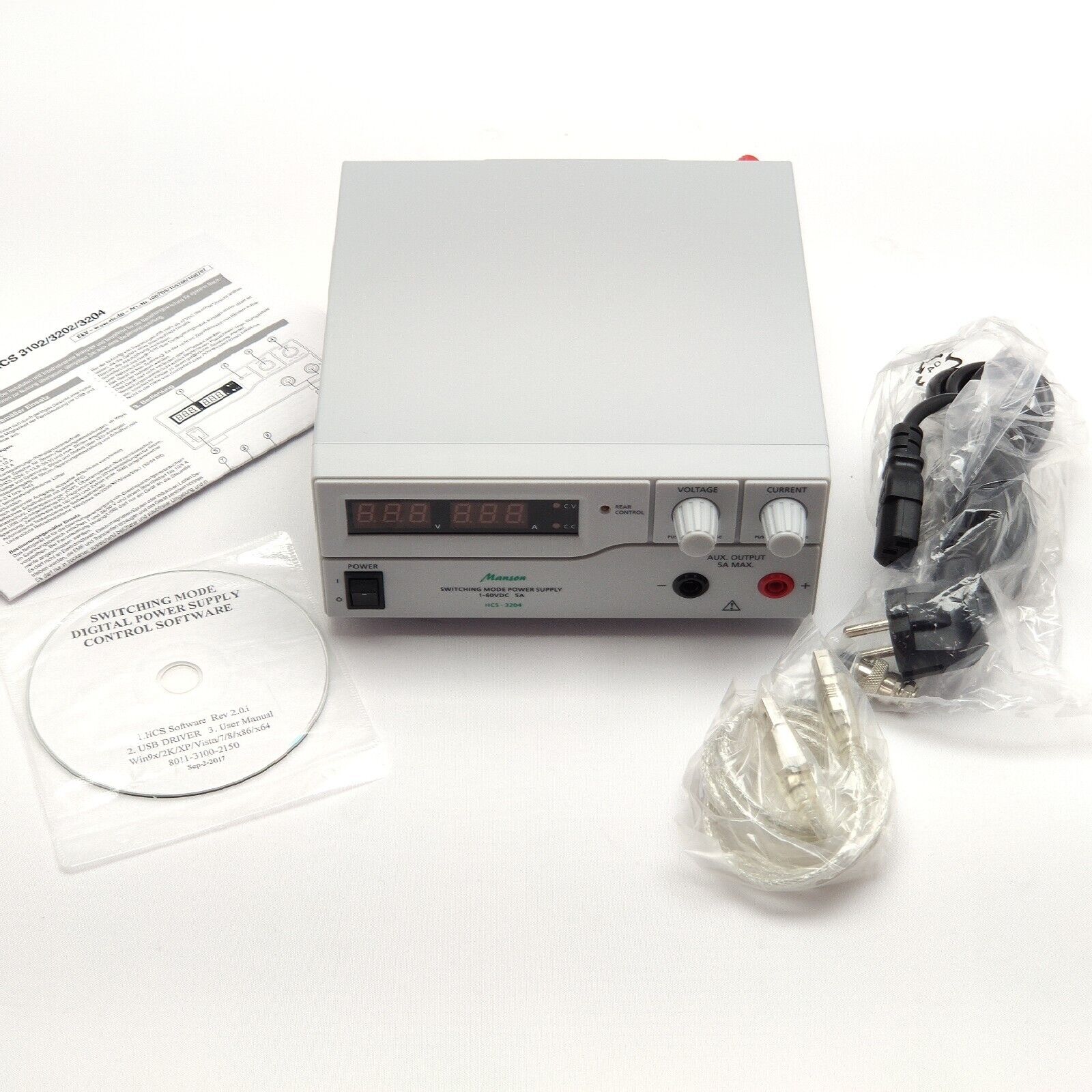

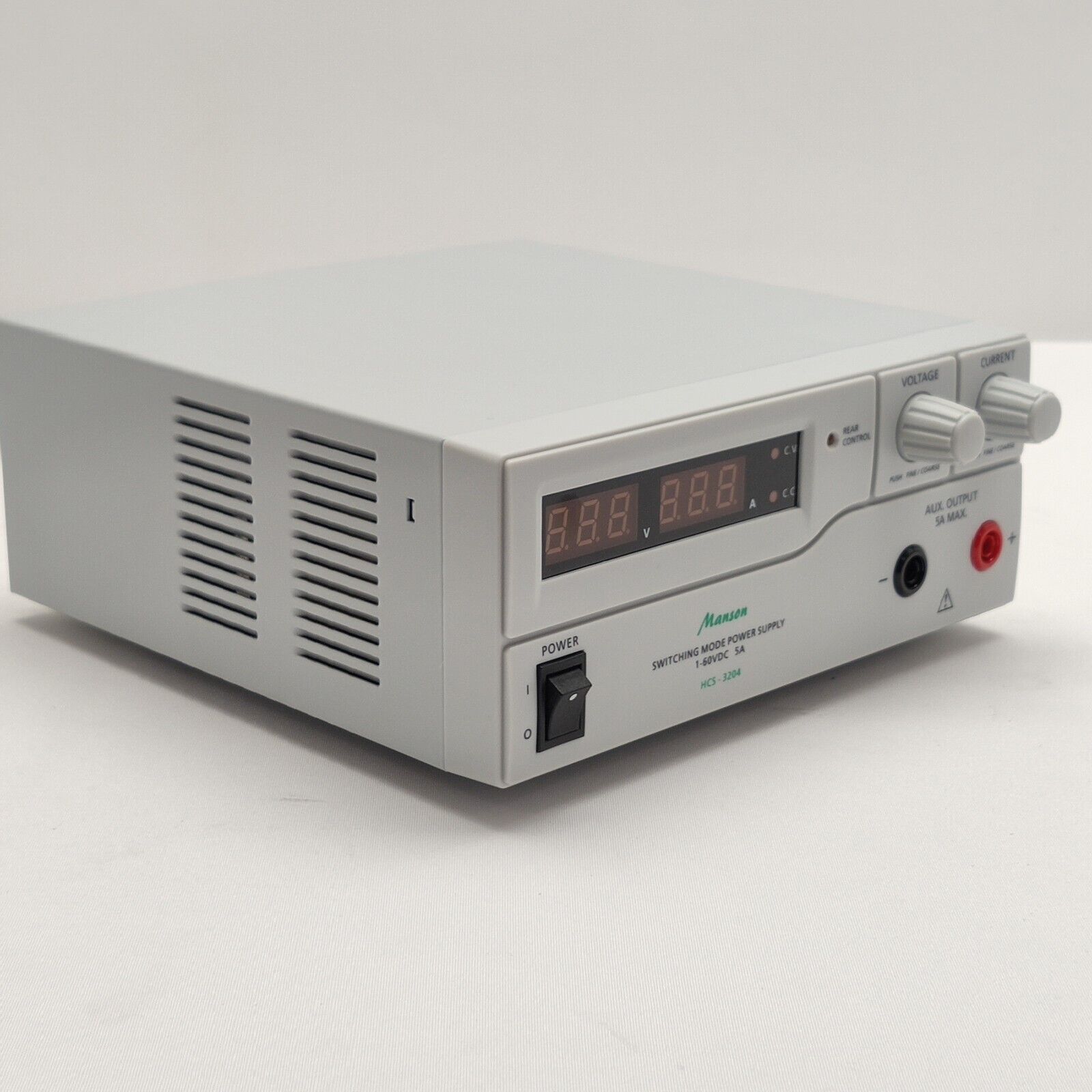

The Manson HCS-3204 is a used laboratory-grade switching mode power supply offering a variable output of 1–60 VDC at 0–5 A. Supplied as pictured. No additional accessories are specified in the listing.

Typically included (as described):
• Manson HCS-3204 power supply unit

The Manson HCS-3204 is a Laboratory Grade & High RFI Immunity Switching Mode Power Supply with Rotary Encoder Control, part of the HCS-3200 series manufactured by Manson Engineering Industrial Ltd. Designed for laboratory, university, workshop, production, quality control, and professional DIY applications, it combines USB remote programmability with analogue remote control and on-panel preset memory in a compact, energy-efficient chassis.

Key Features:
- Remotely programmable via USB with included PC software (Windows compatible up to Windows 11)
- 20 programmable sets of voltage, current, and cycle periods for repetitive operation up to 999 cycles
- 3 user-defined V & I panel presets for frequent use
- Analogue remote control of voltage, current, and output On/Off (no computer required)
- Dual-action rotary encoder knobs with coarse and fine tuning
- Thermostatic variable-speed cooling fan (zero to full speed)
- Power-on self-test for LED display and cooling fan
- Isolated/floating output ground with active PFC
- CV/CC automatic crossover
- ASCII-based command set over USB-to-serial (COM port) interface

Specifications (HCS-3204):
Output Voltage Range: 1 – 60 VDC (variable)
Output Current Range: 0 – 5 A (variable)
Total Rated Current (Aux. + Main): 5 A
Voltage Regulation (Load, 10–100%): ≤50 mV
Voltage Regulation (Line, 90–264 VAC variation): ≤11 mV
Output Ripple & Noise: ≤5 mV
Voltage Setting Resolution: 10 mV
Current Setting Resolution: 10 mA
Voltage Meter Accuracy: 3-digit LED ±(0.2% + 3 counts)
Current Meter Accuracy: 3-digit LED ±(0.2% + 3 counts)
Optimal Efficiency: ≥86%
AC Input Voltage: Universal (90–264 VAC)
Protections: Overload, Short Circuit (Constant Current), Output Tracking Over-Voltage (OVP), Over Temperature (OTP)
Cooling: Thermostatic variable-speed fan
PC Interface: USB (Silicon Labs CP210x USB-to-serial bridge)
Preset Programs (panel): 3 (P1, P2, P3)
Remote Programs (PC): 20 sets, up to 999 cycles
Dimensions (W × H × D): 200 × 80 × 208 mm
Weight: 2.4 kg
Approvals: CE; EMC: EN 55011, EN 55022; LVD: EN 60950, EN 61010

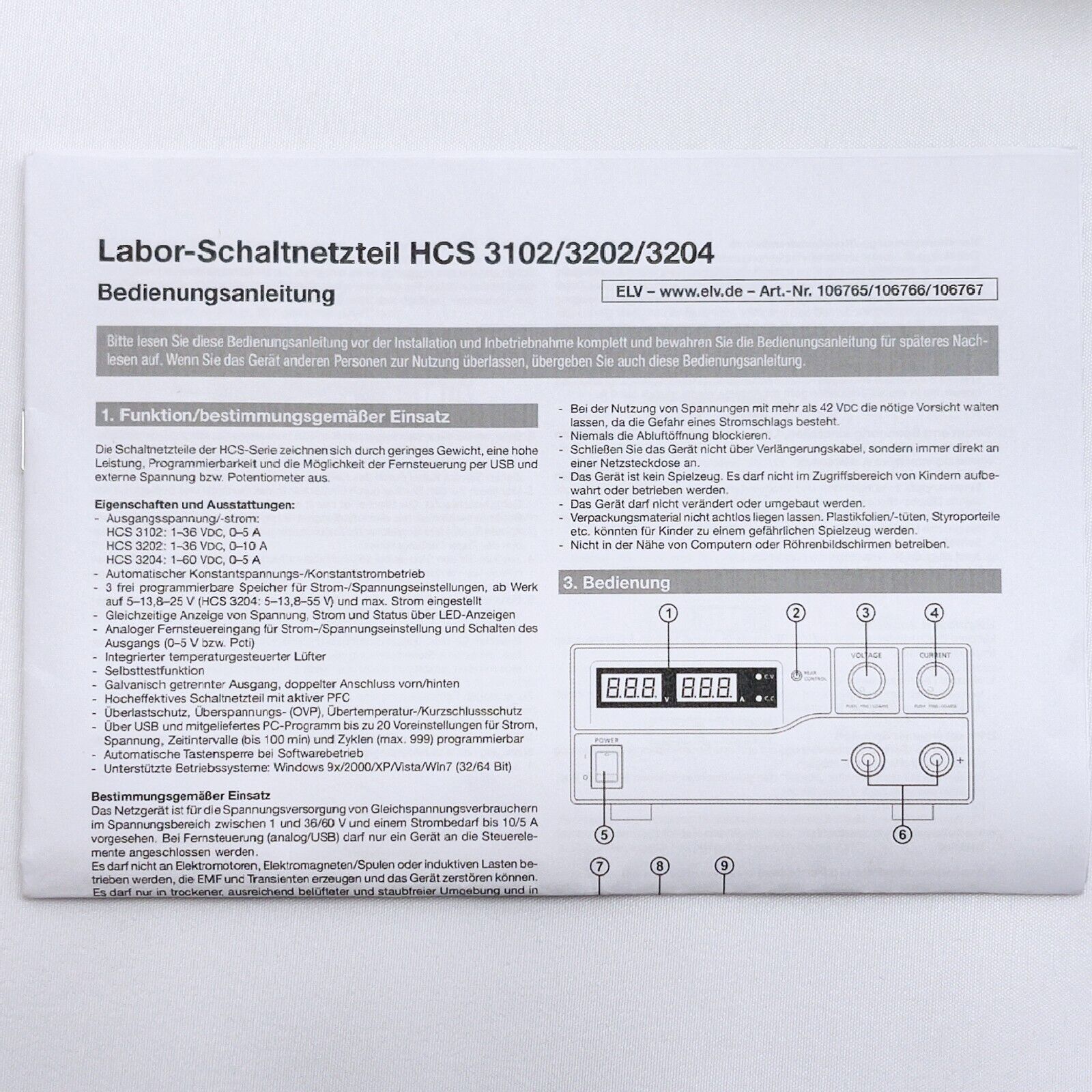

Manson HCS-3200/3202/3204 Official User Manual (PDF) — Manson Power website: Download PDF

Manson HCS-3200/3202/3204 User Manual (PDF) — ICMaster mirror: Download PDF
