Condition: Used

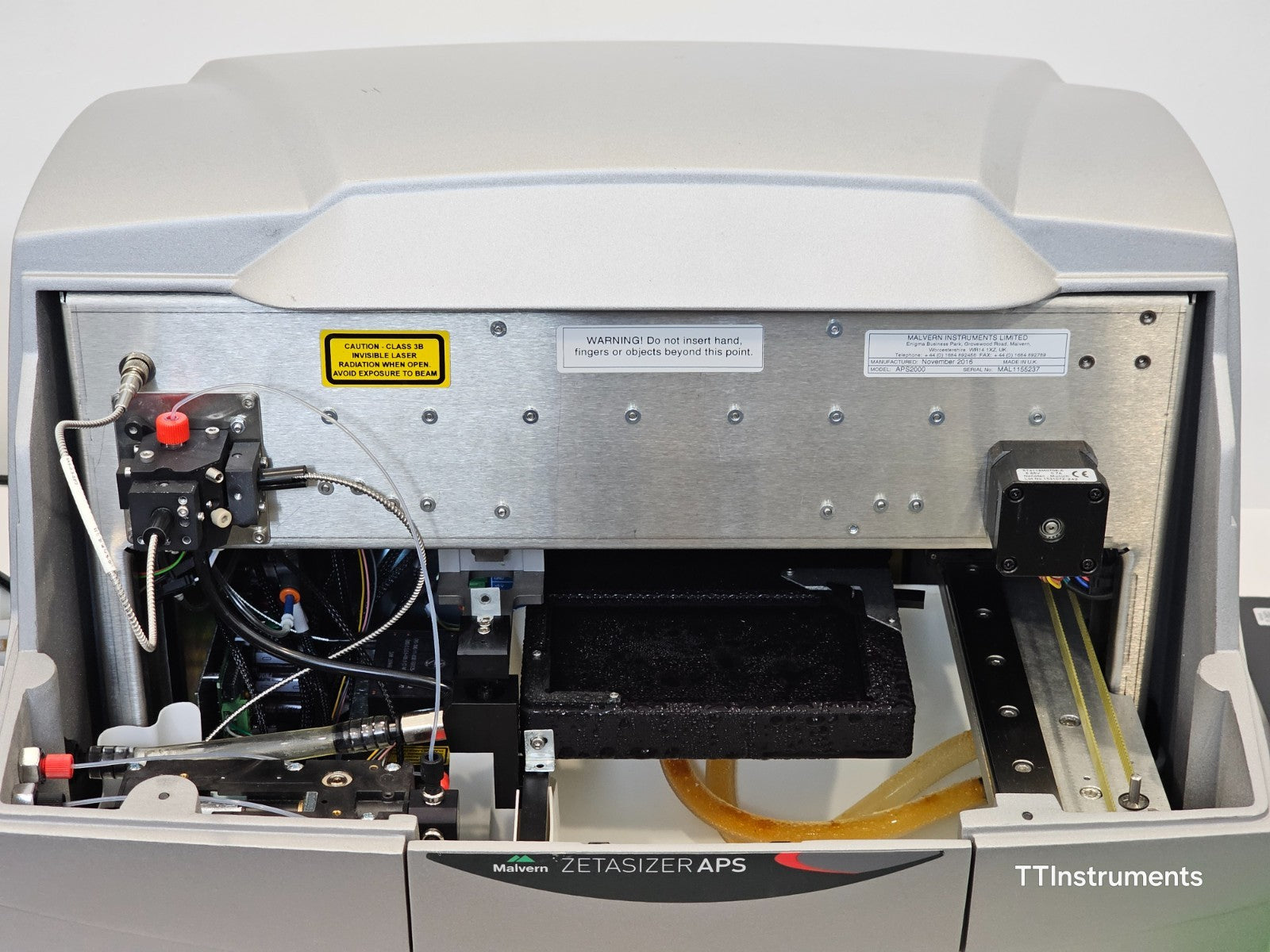

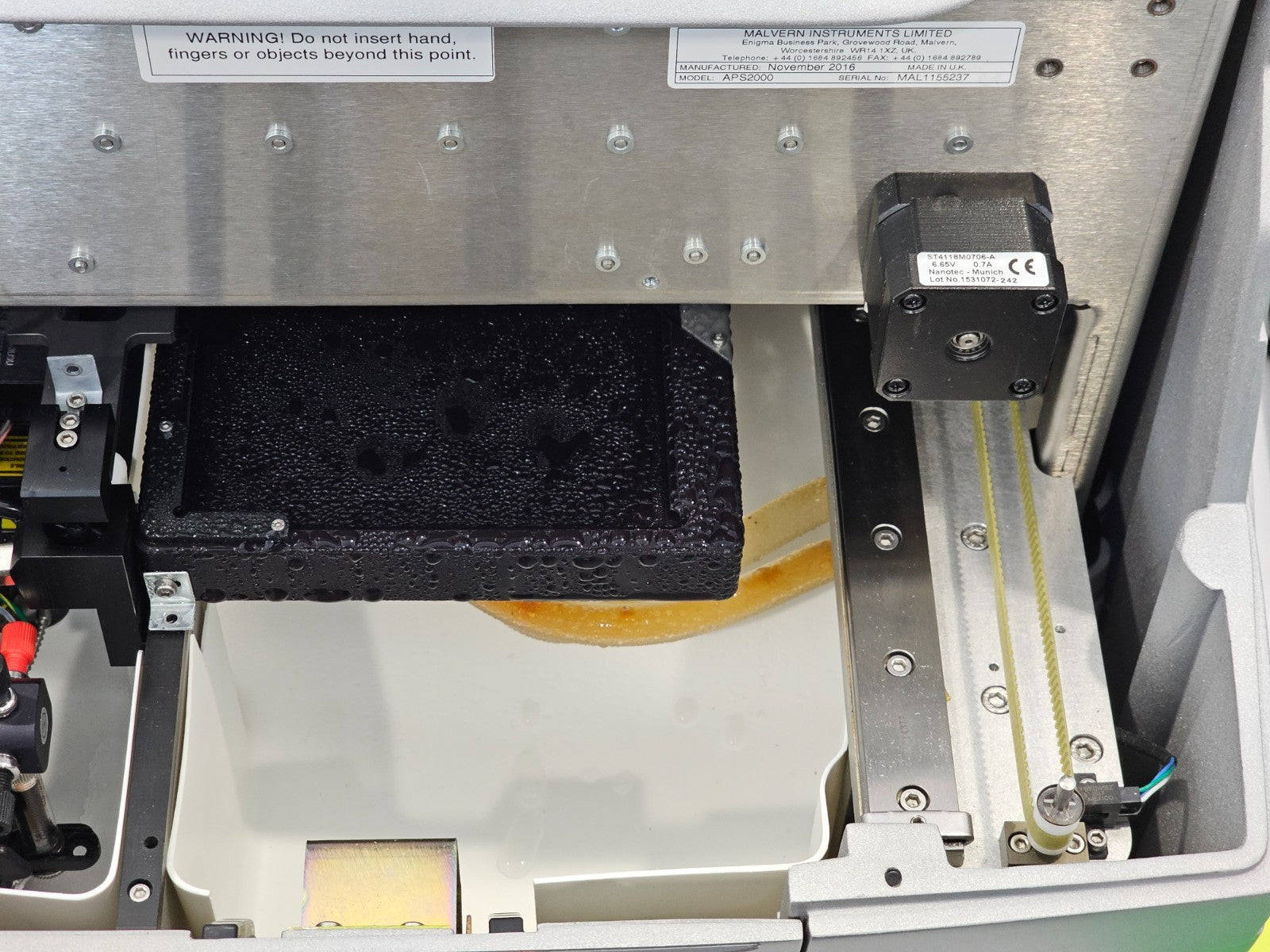

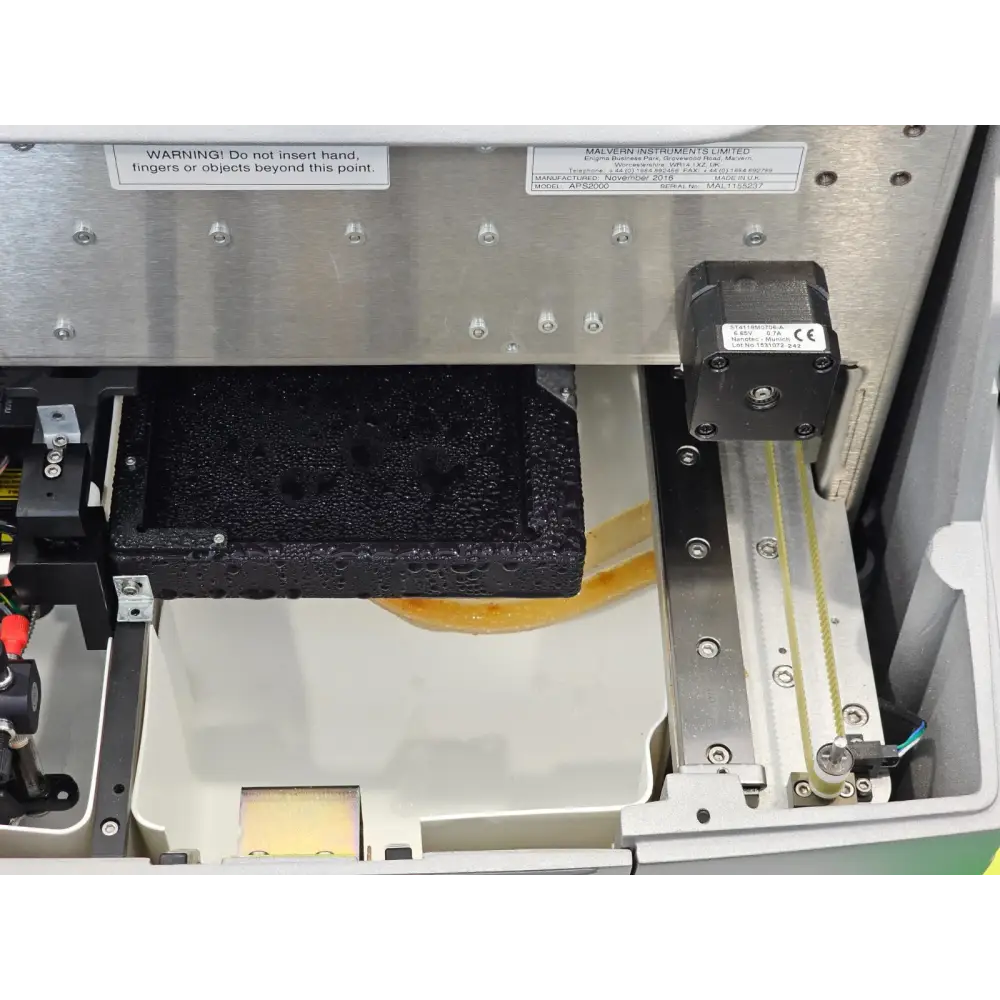

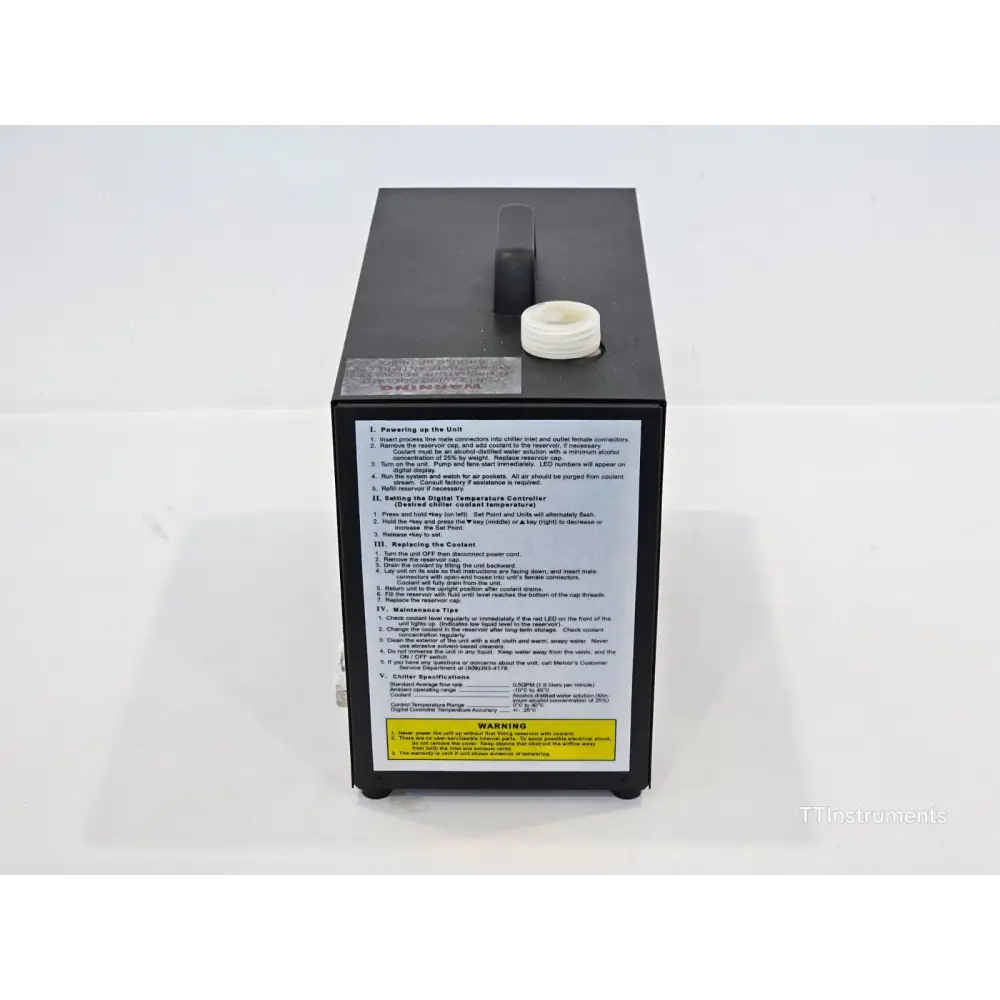

This Malvern Panalytical Zetasizer APS2000 is a partially tested system with cosmetic imperfections that do not affect performance. Power-on testing confirmed the chiller connects and the plate holder drops to approximately 3°C with condensation forming as expected. The chiller has been topped up with alcohol. Note: the instrument ships in transport mode — internal securing screws must be removed before first use.

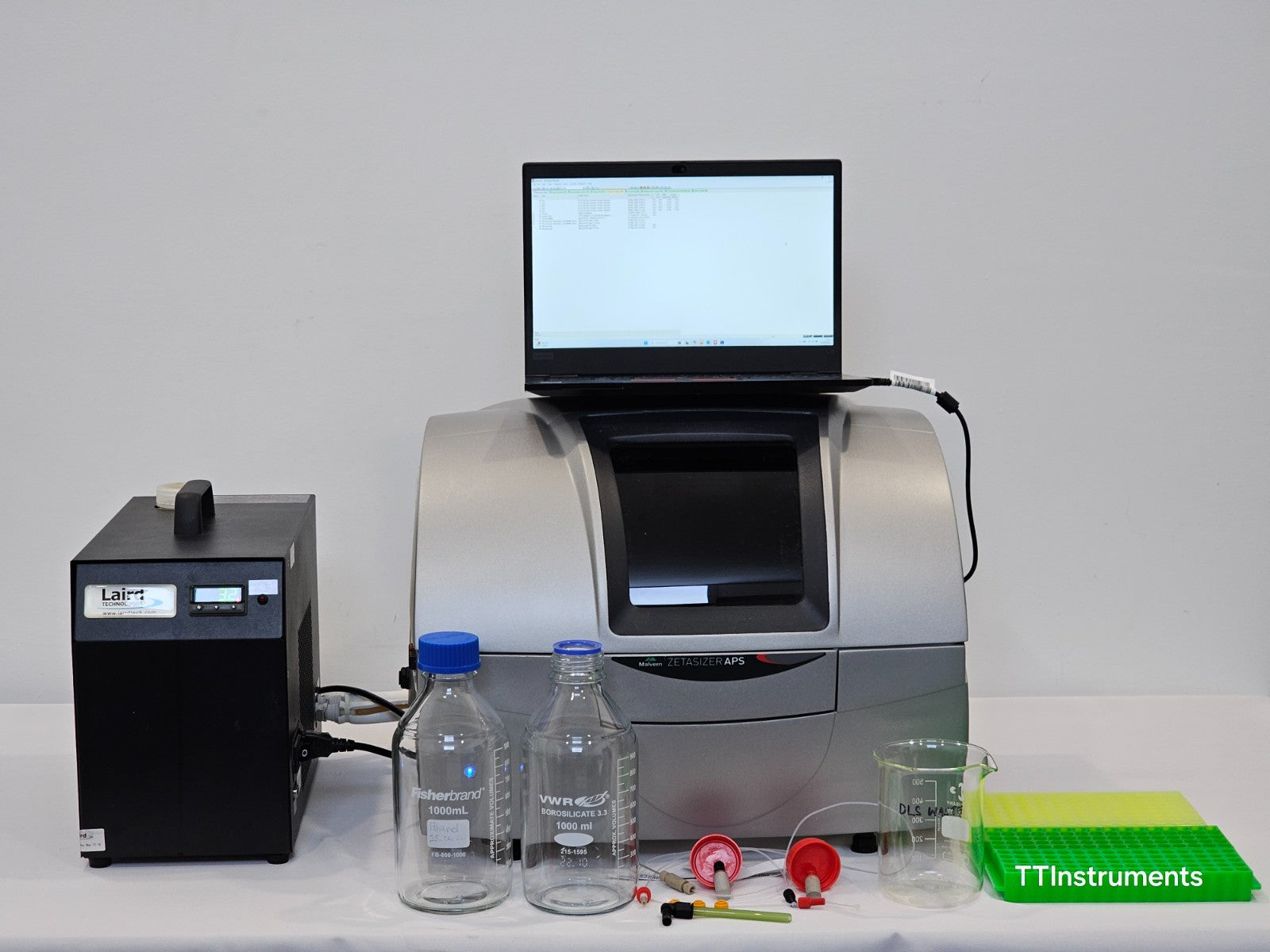

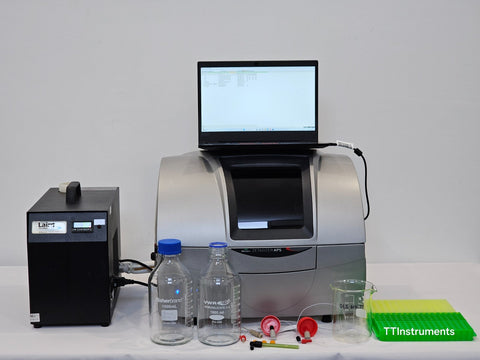

Included with this instrument:

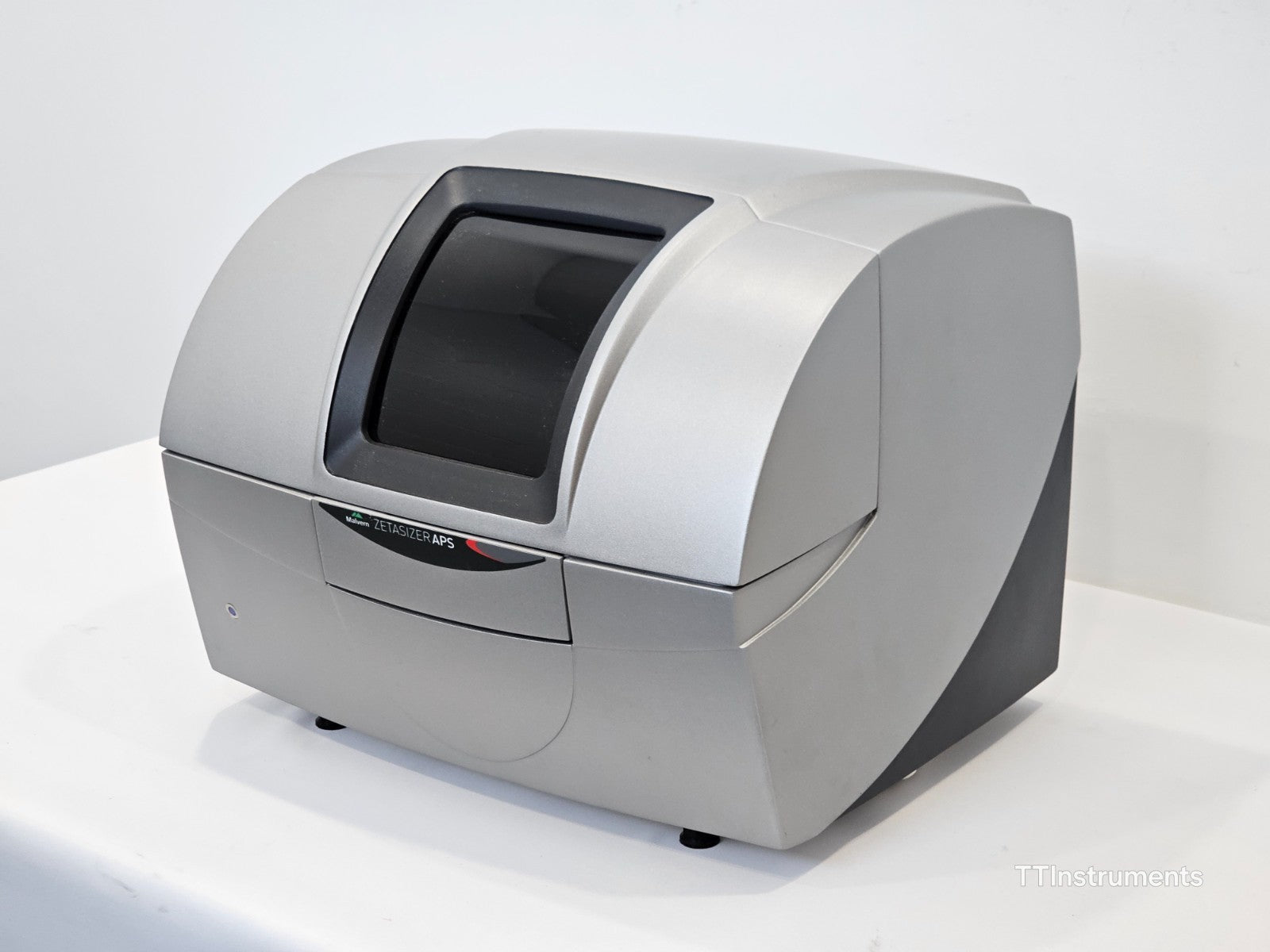

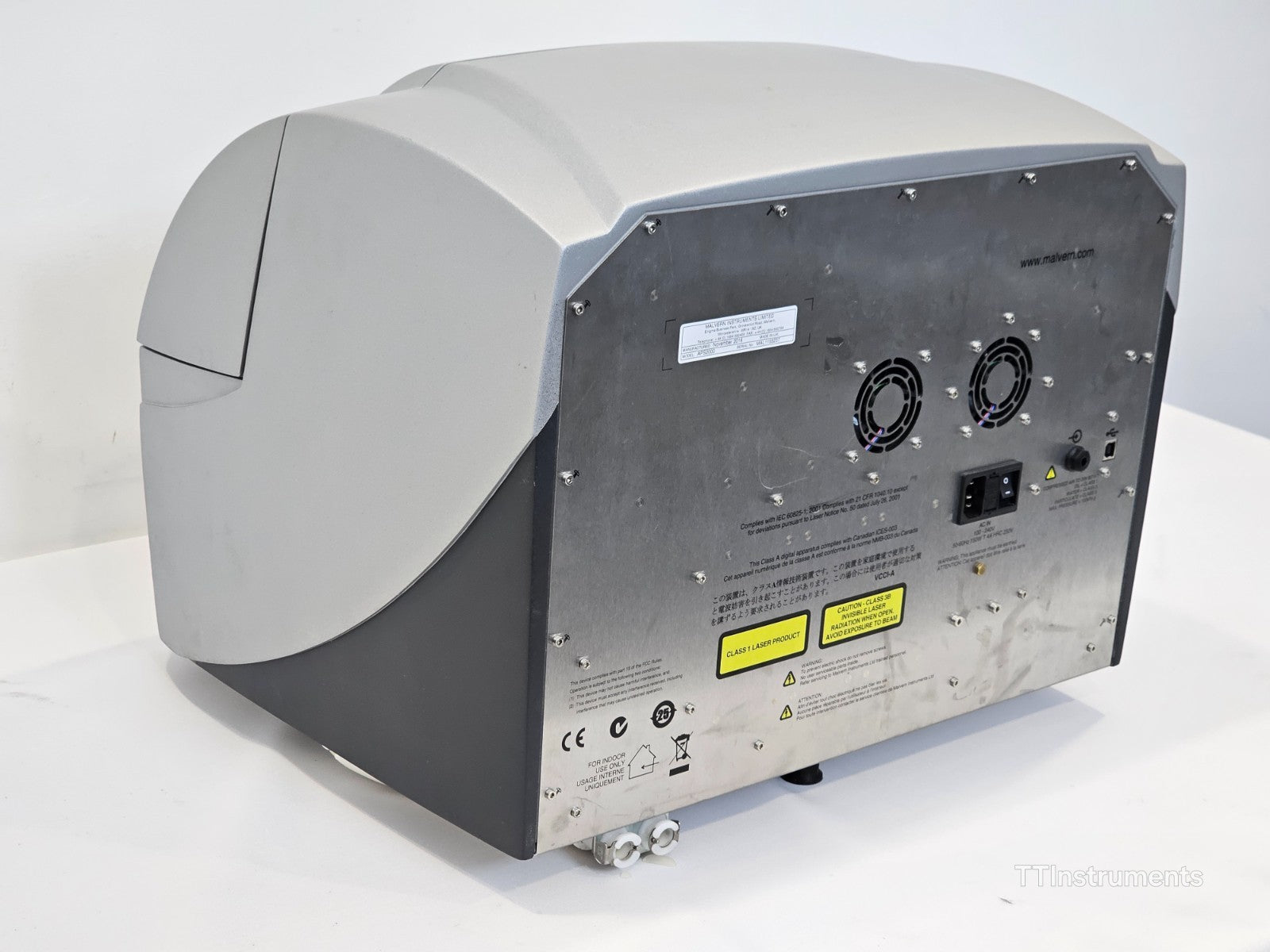

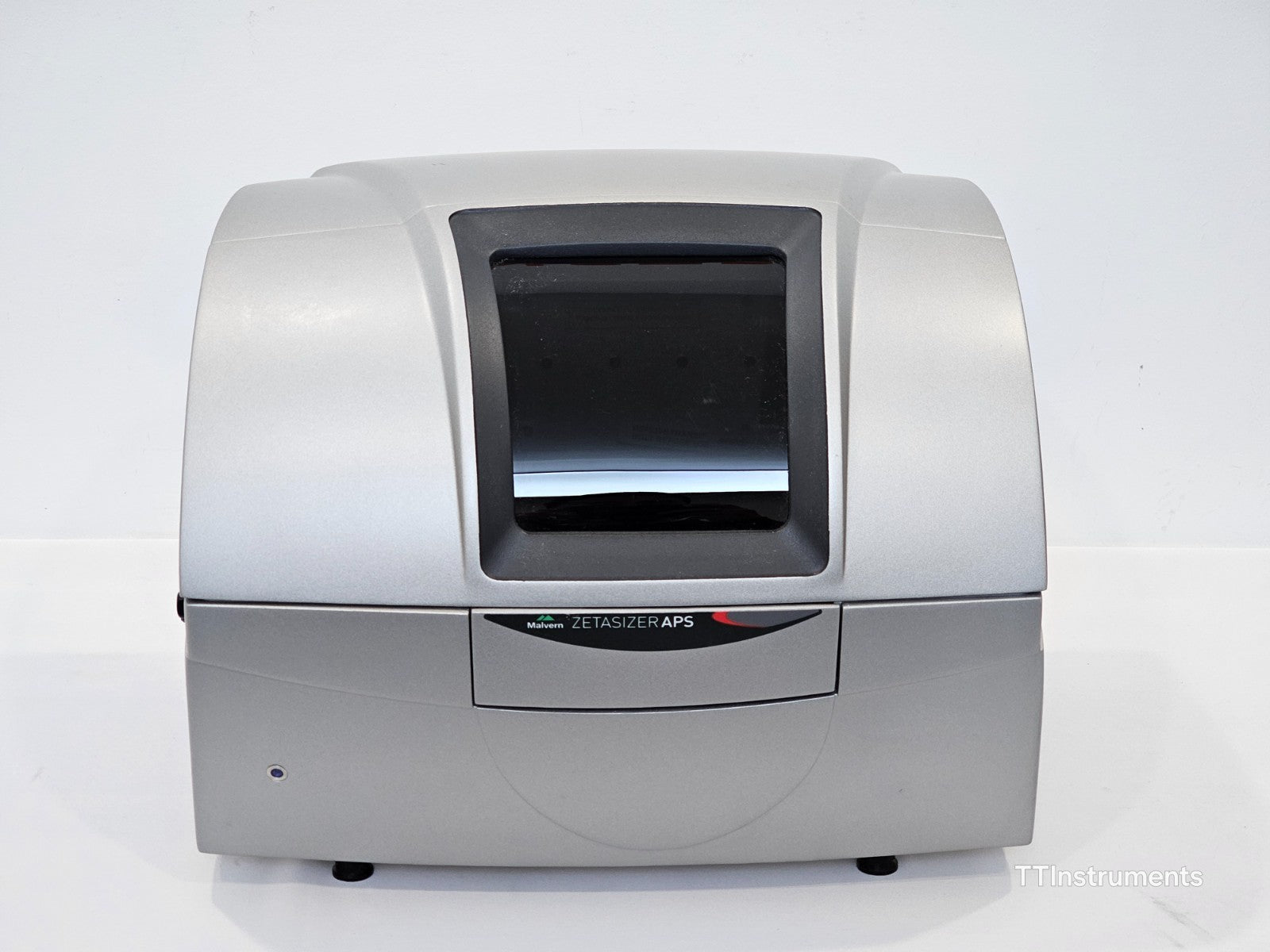

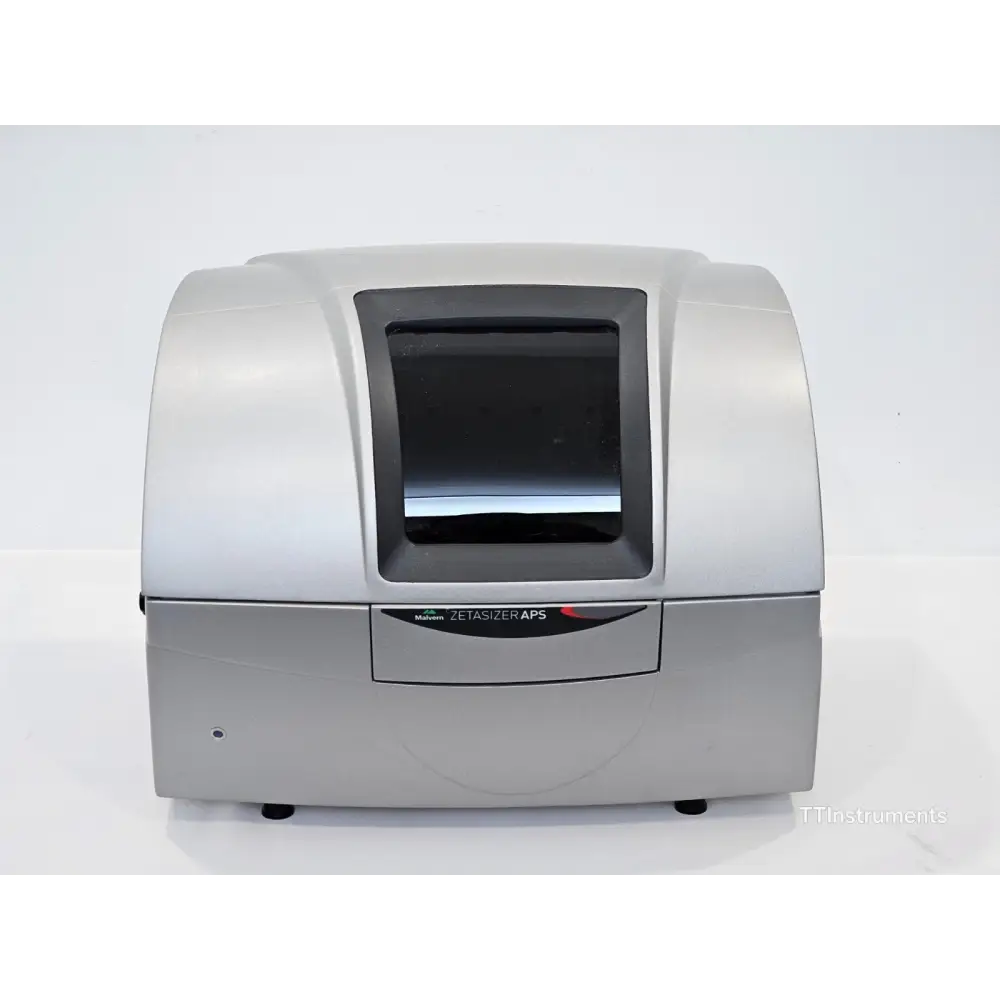

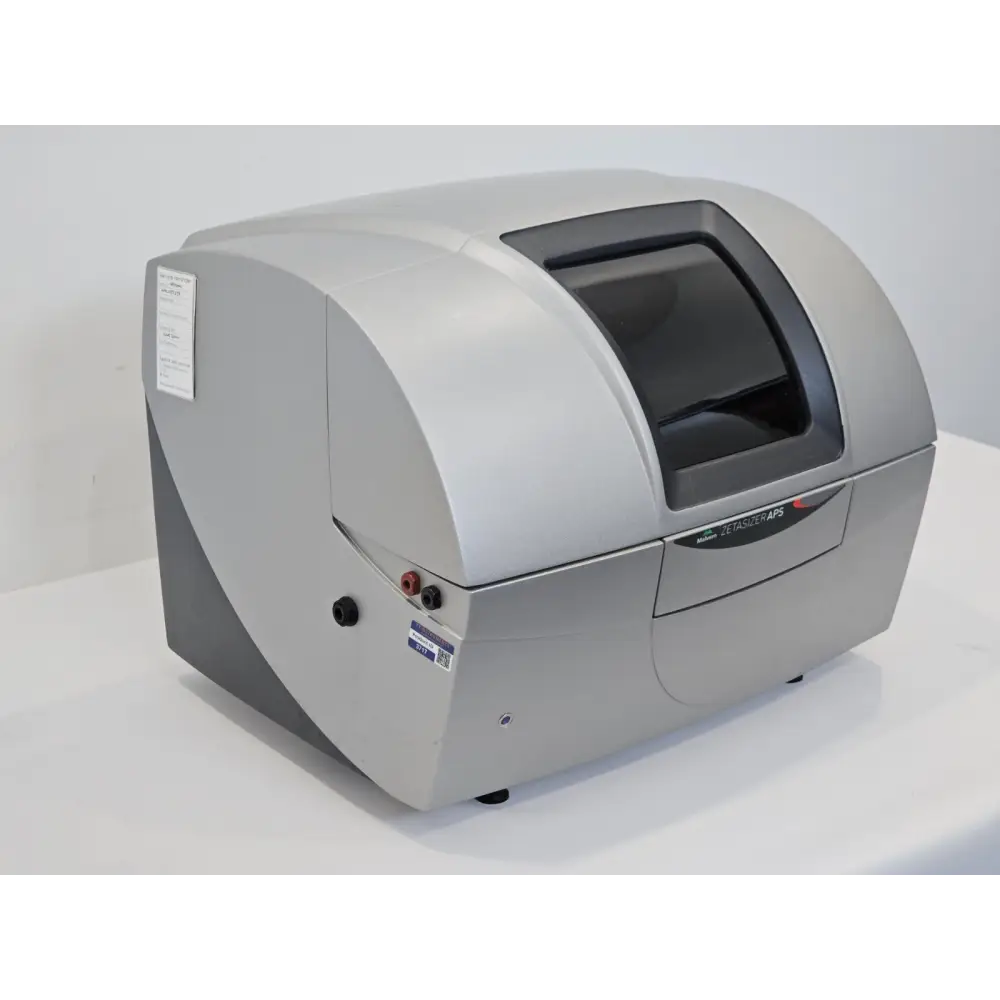

• Malvern Zetasizer APS (APS2000) main unit
• Laptop with Zetasizer software installed

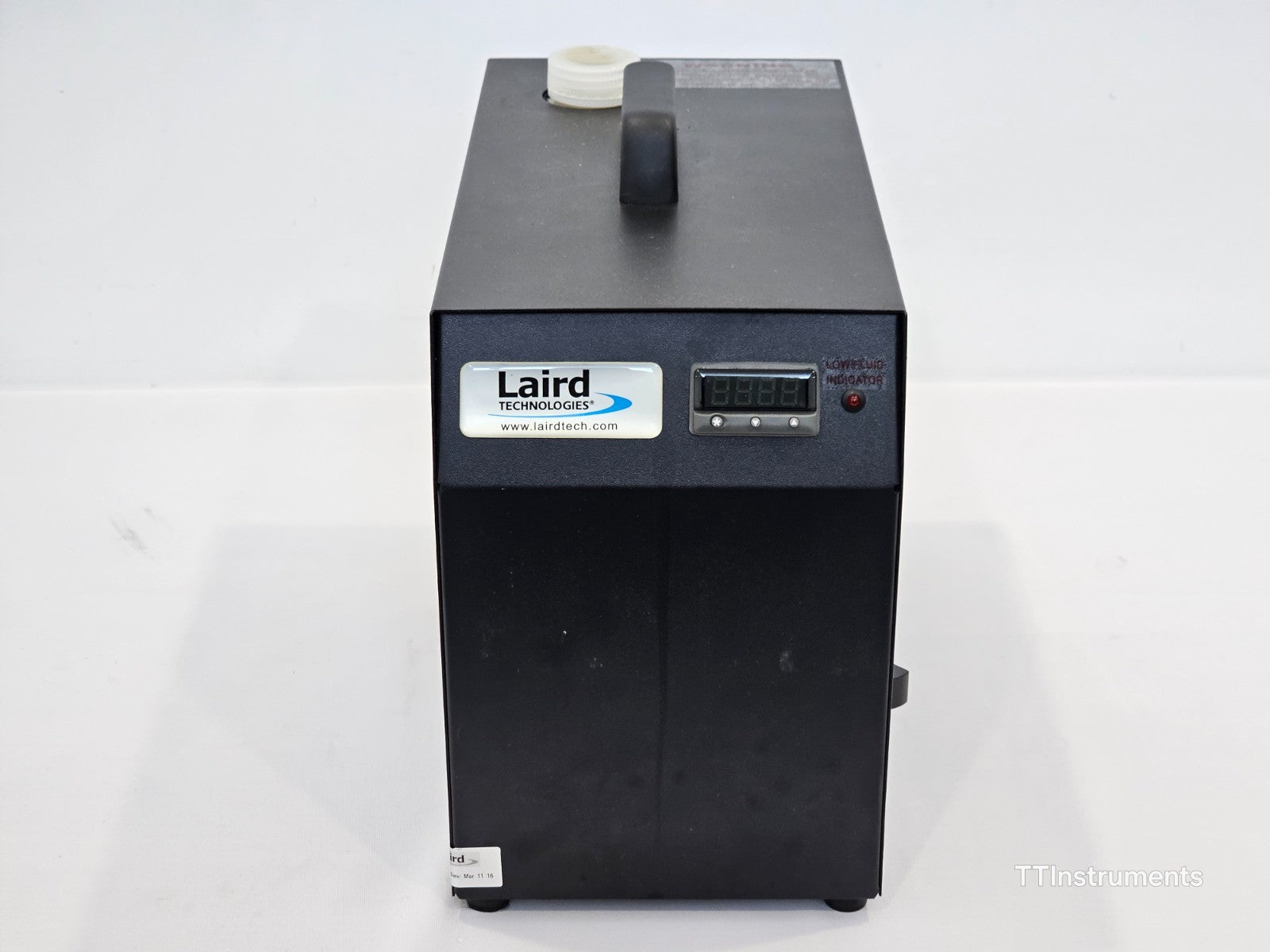

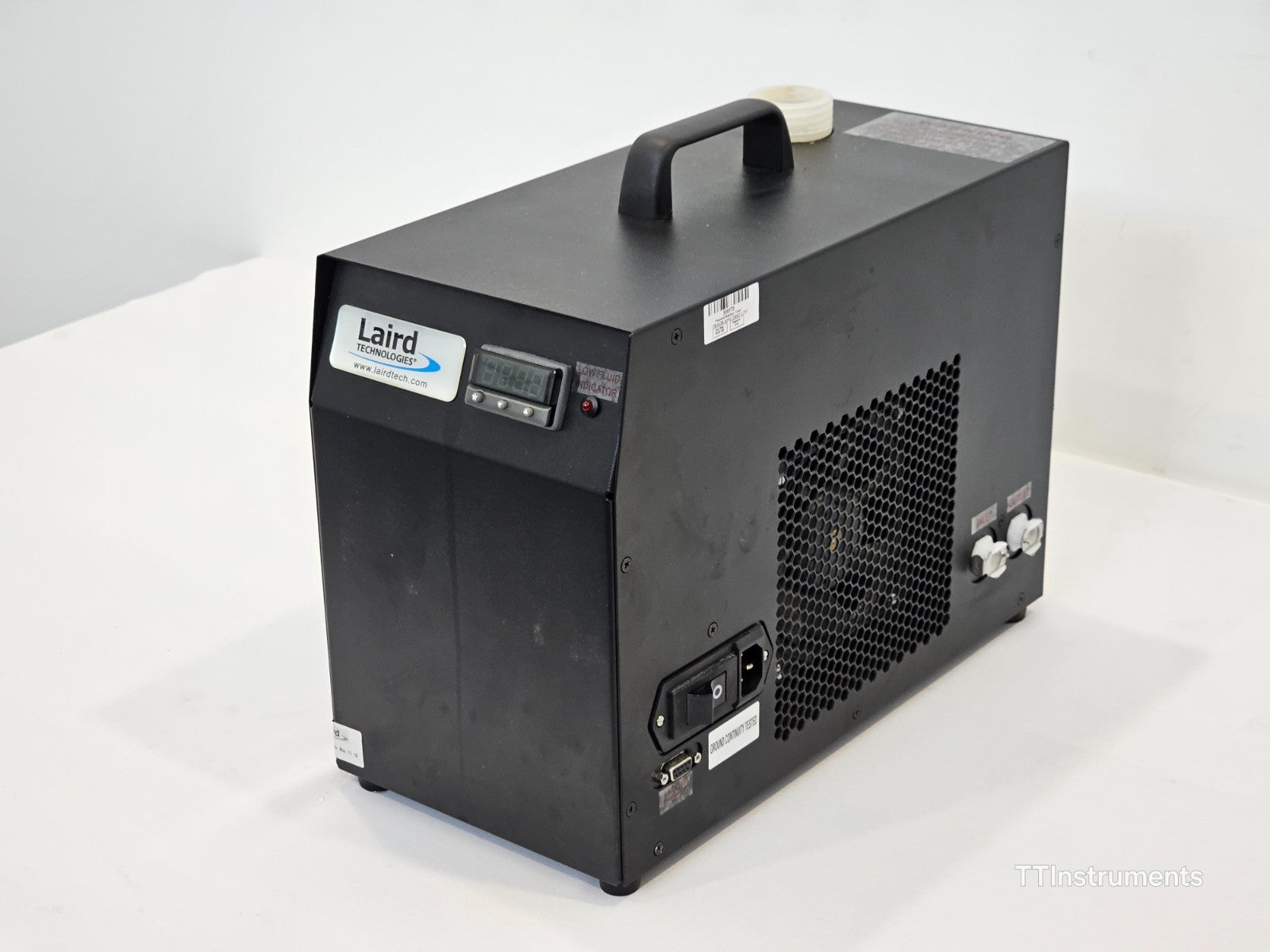

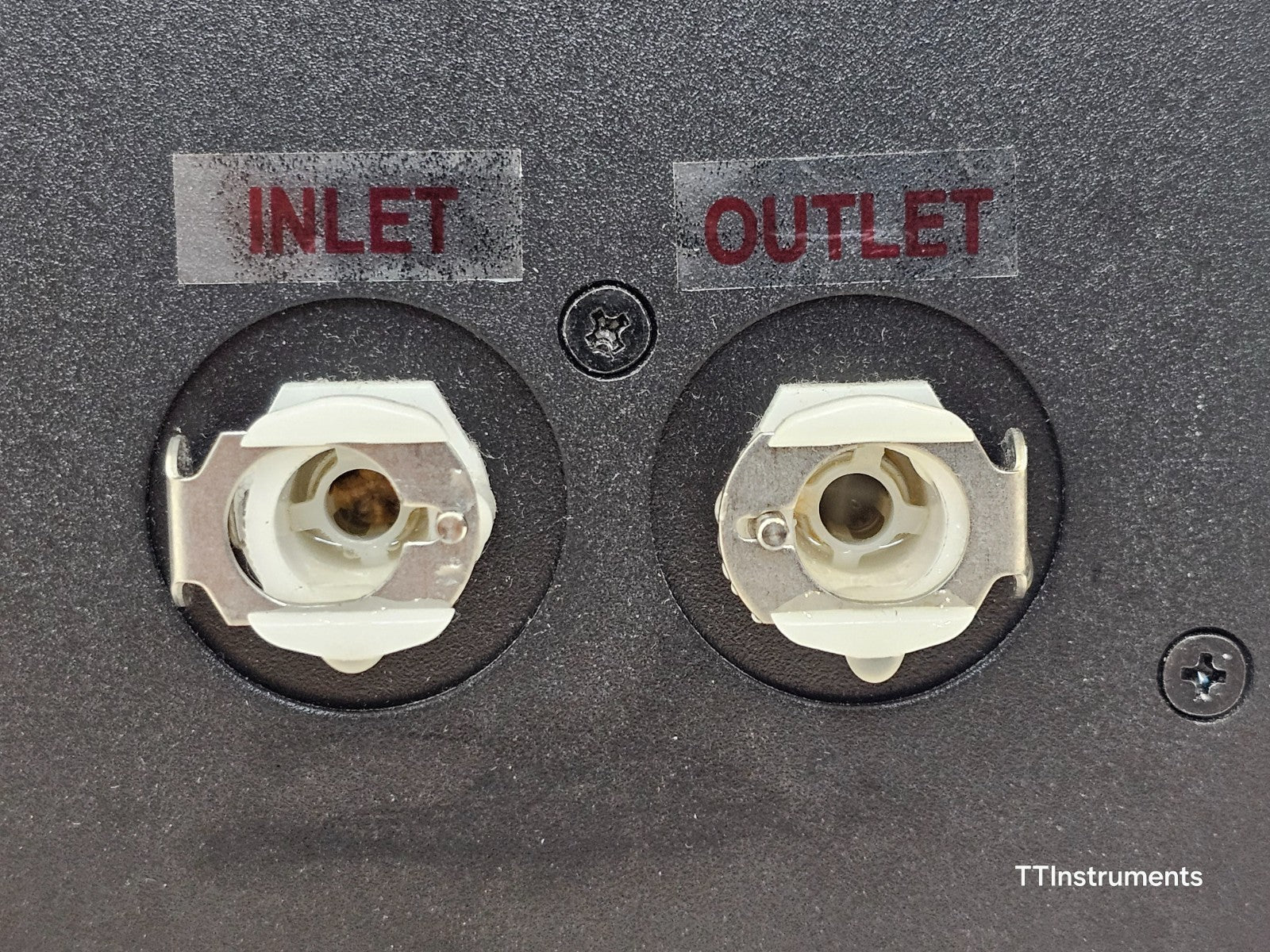

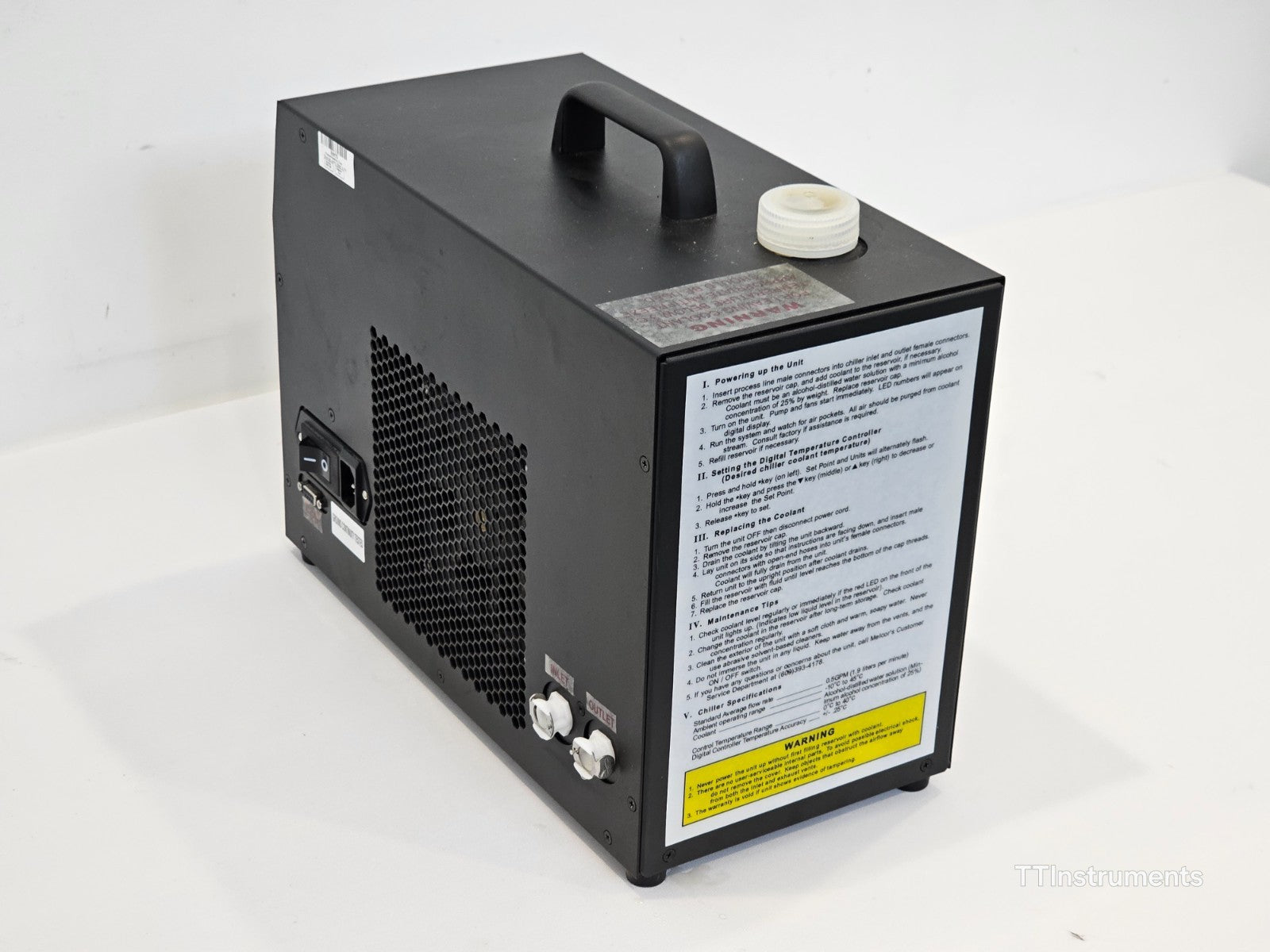

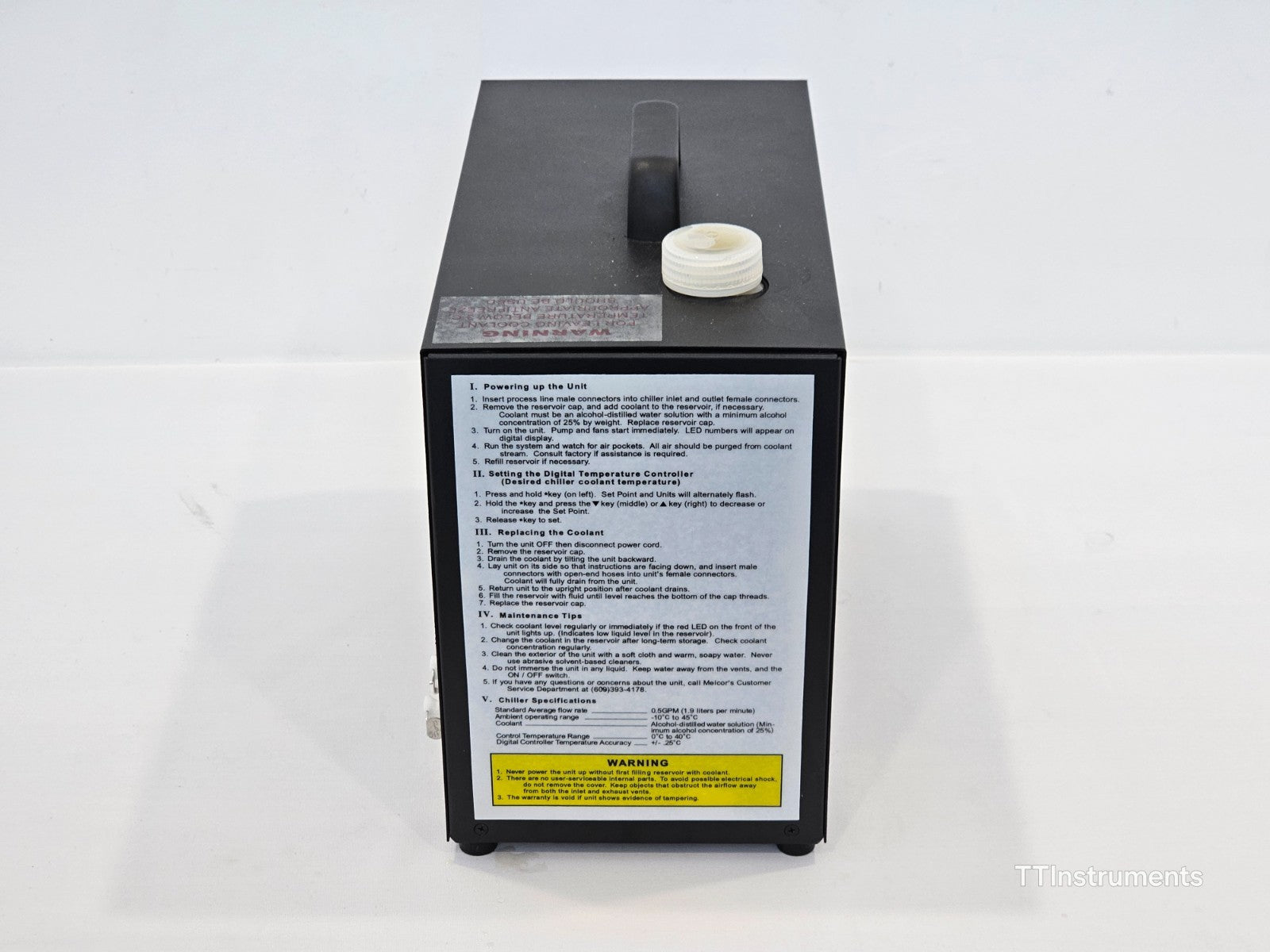

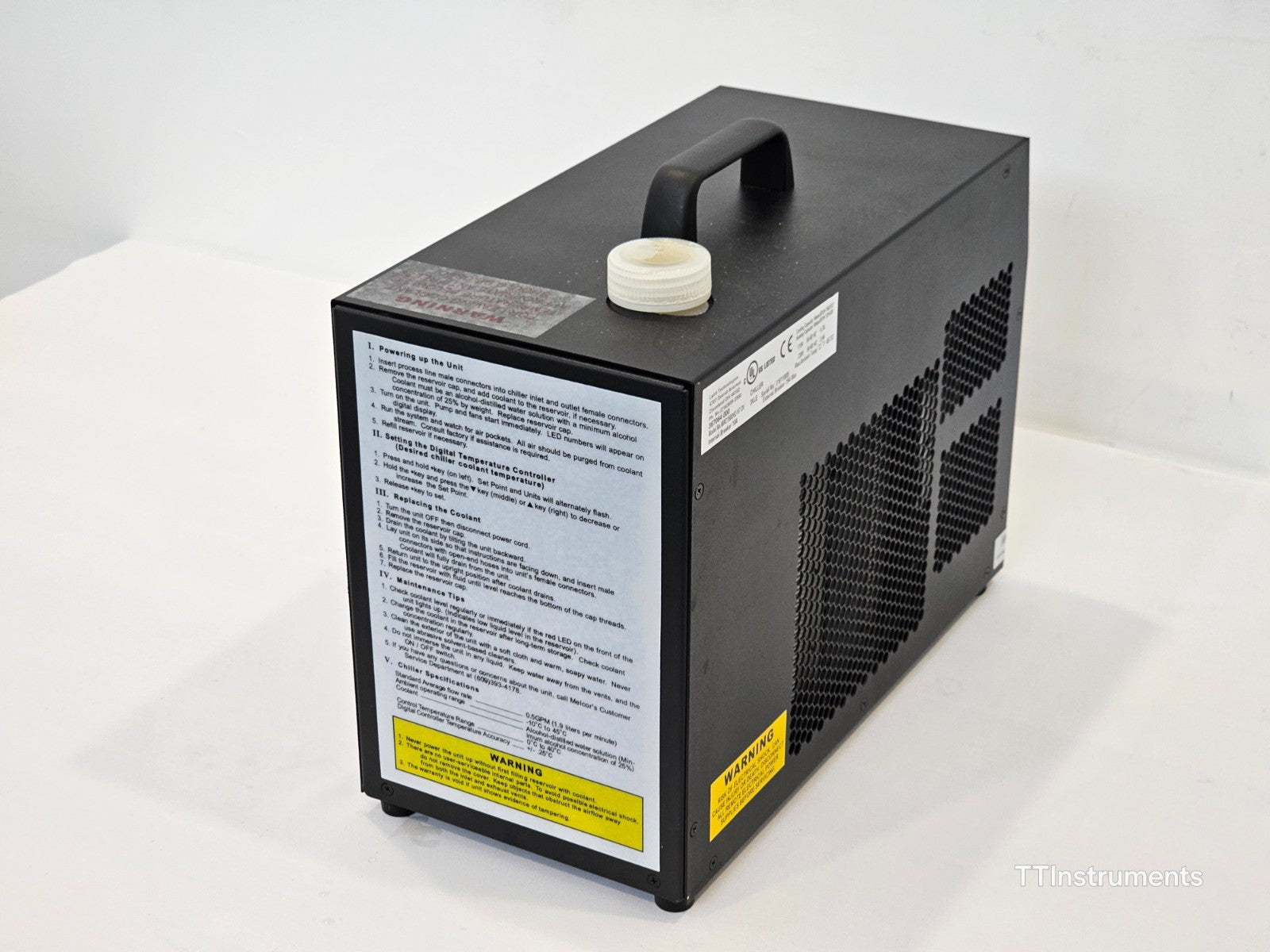

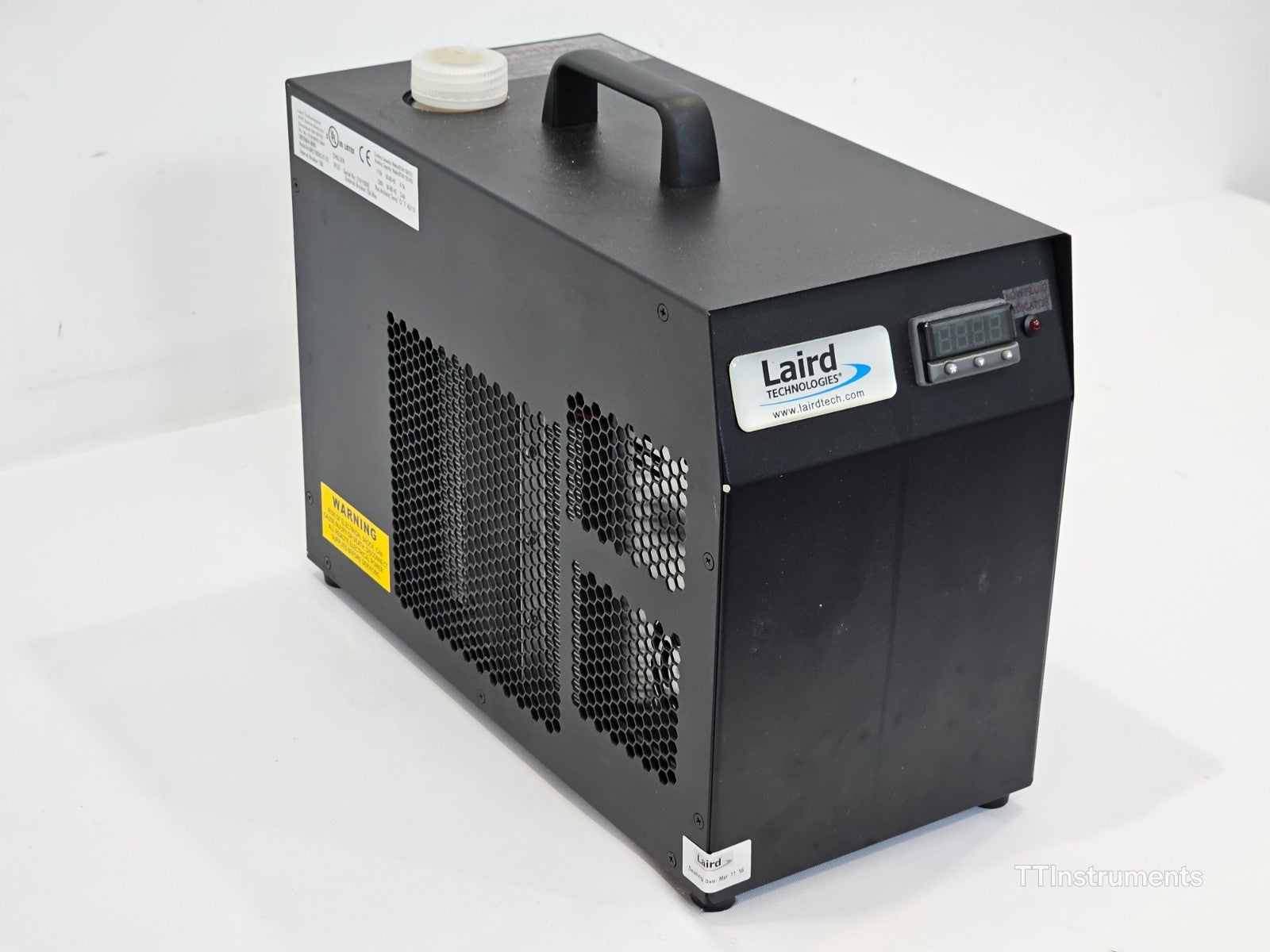

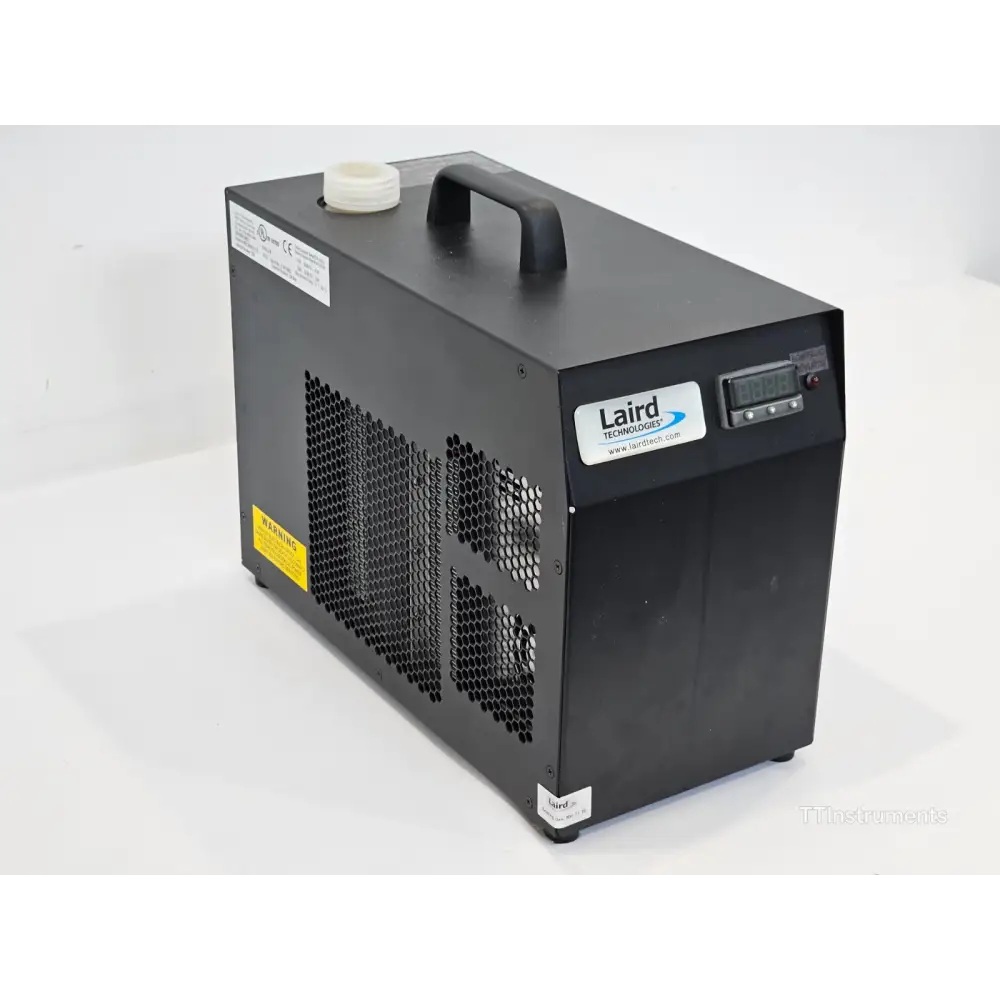

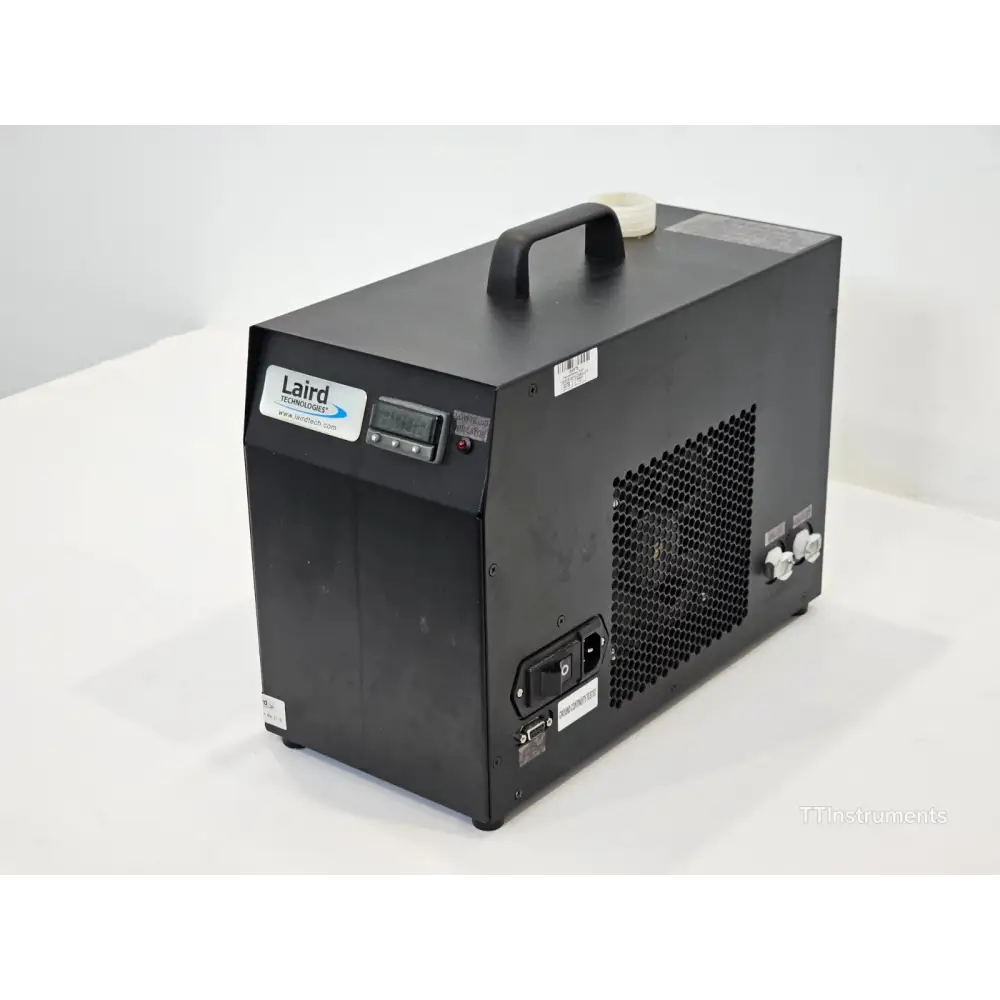

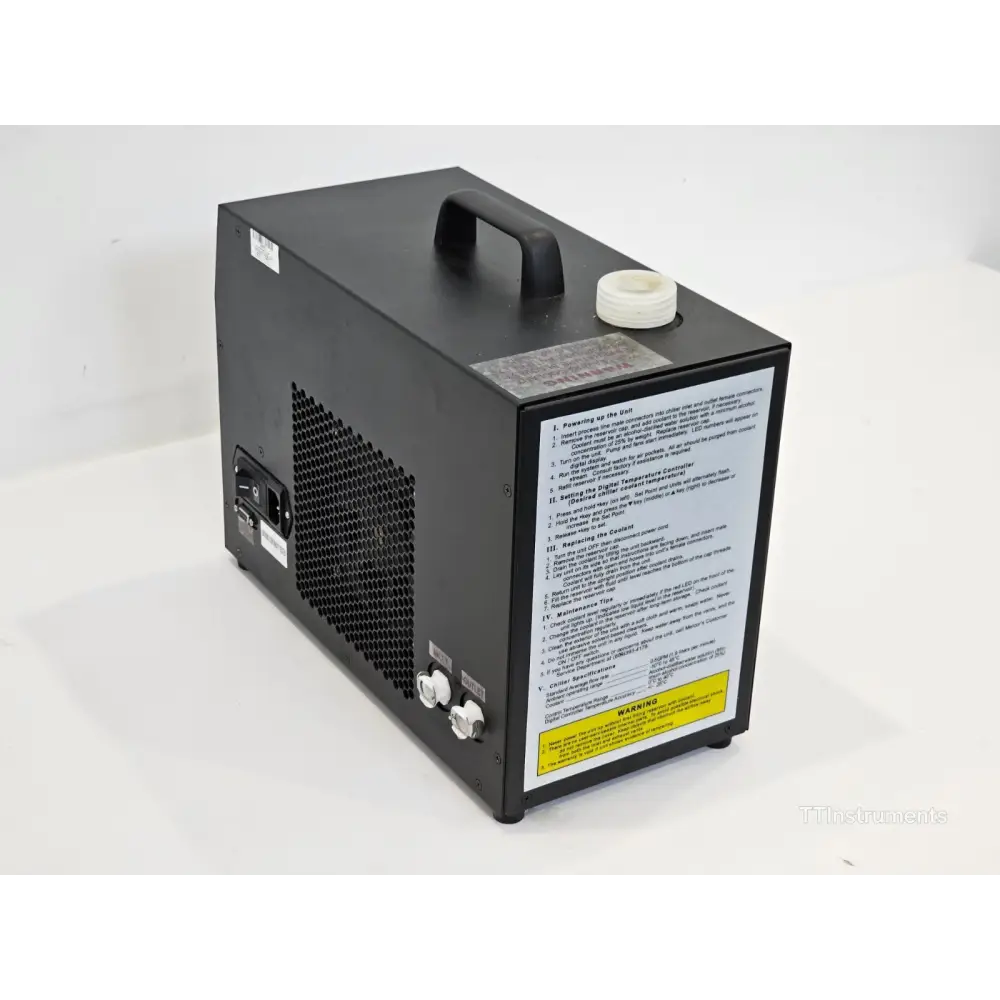

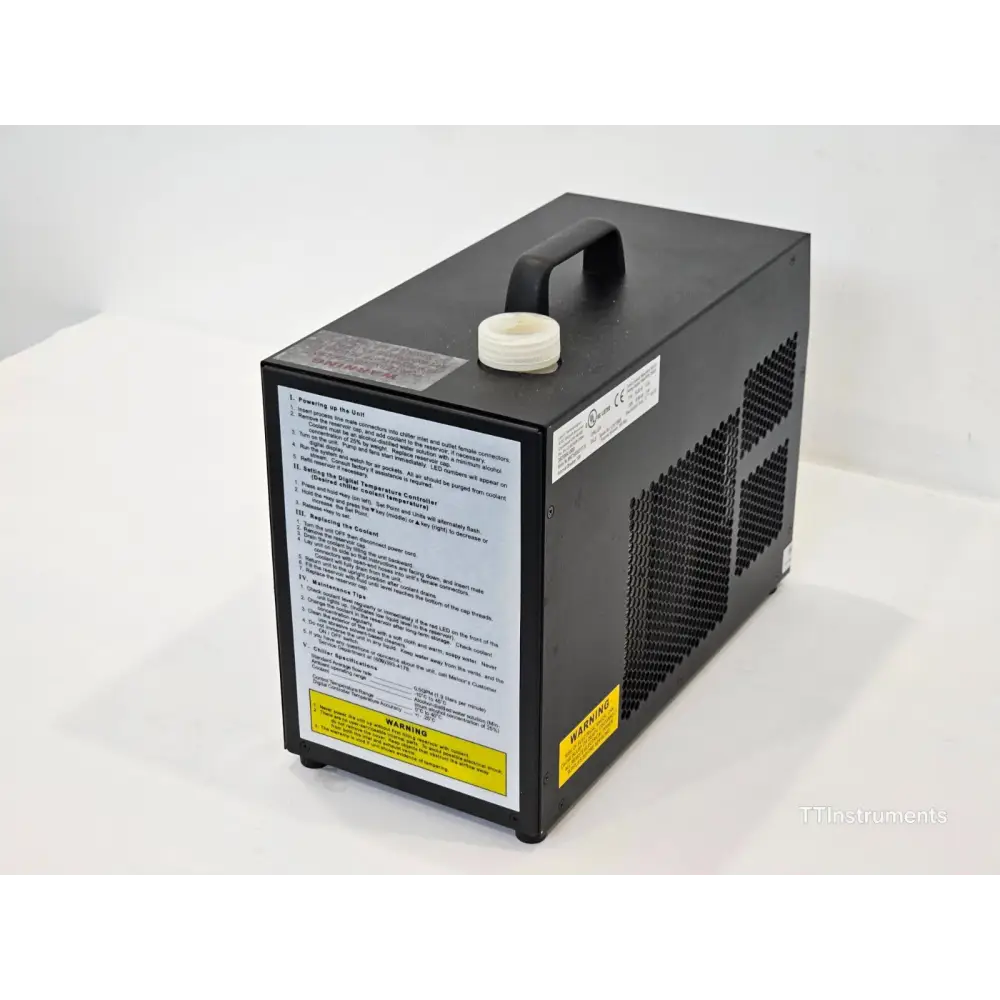

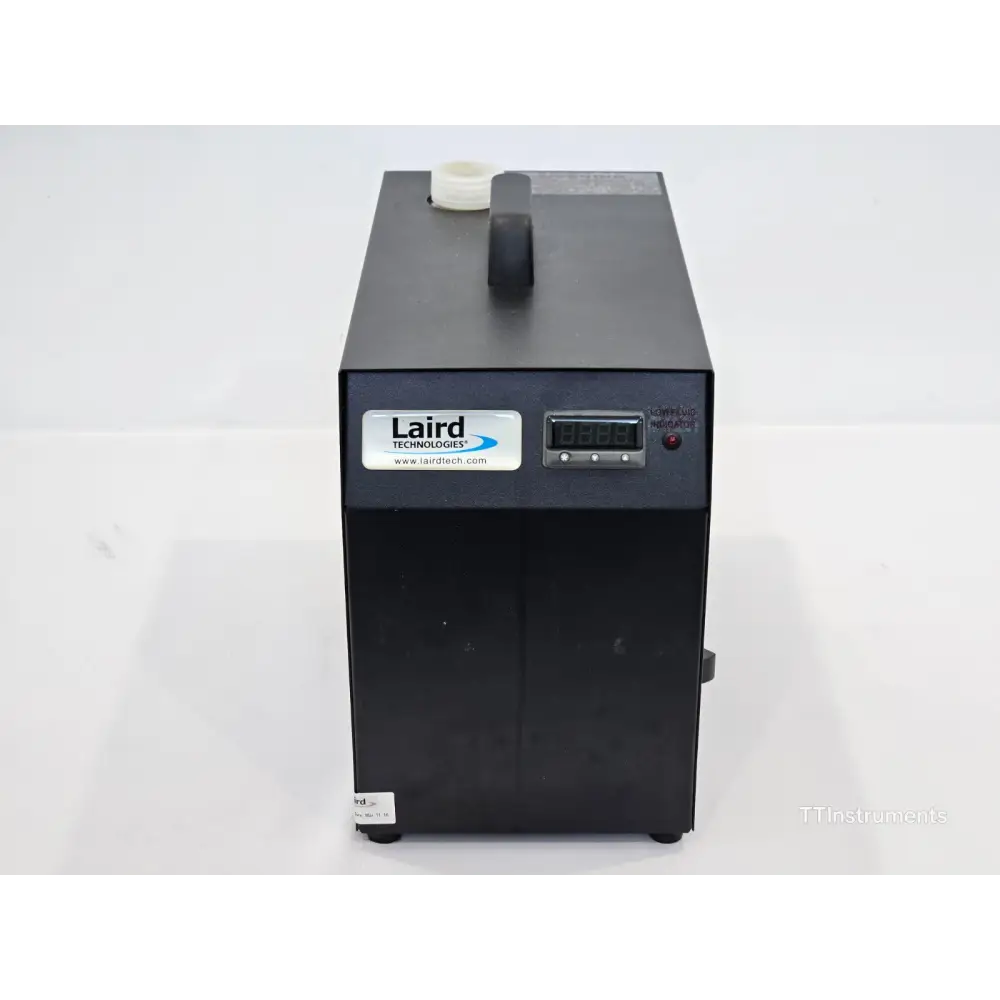

• Laird Technologies external chiller (MRC150DH2-HT-DV)

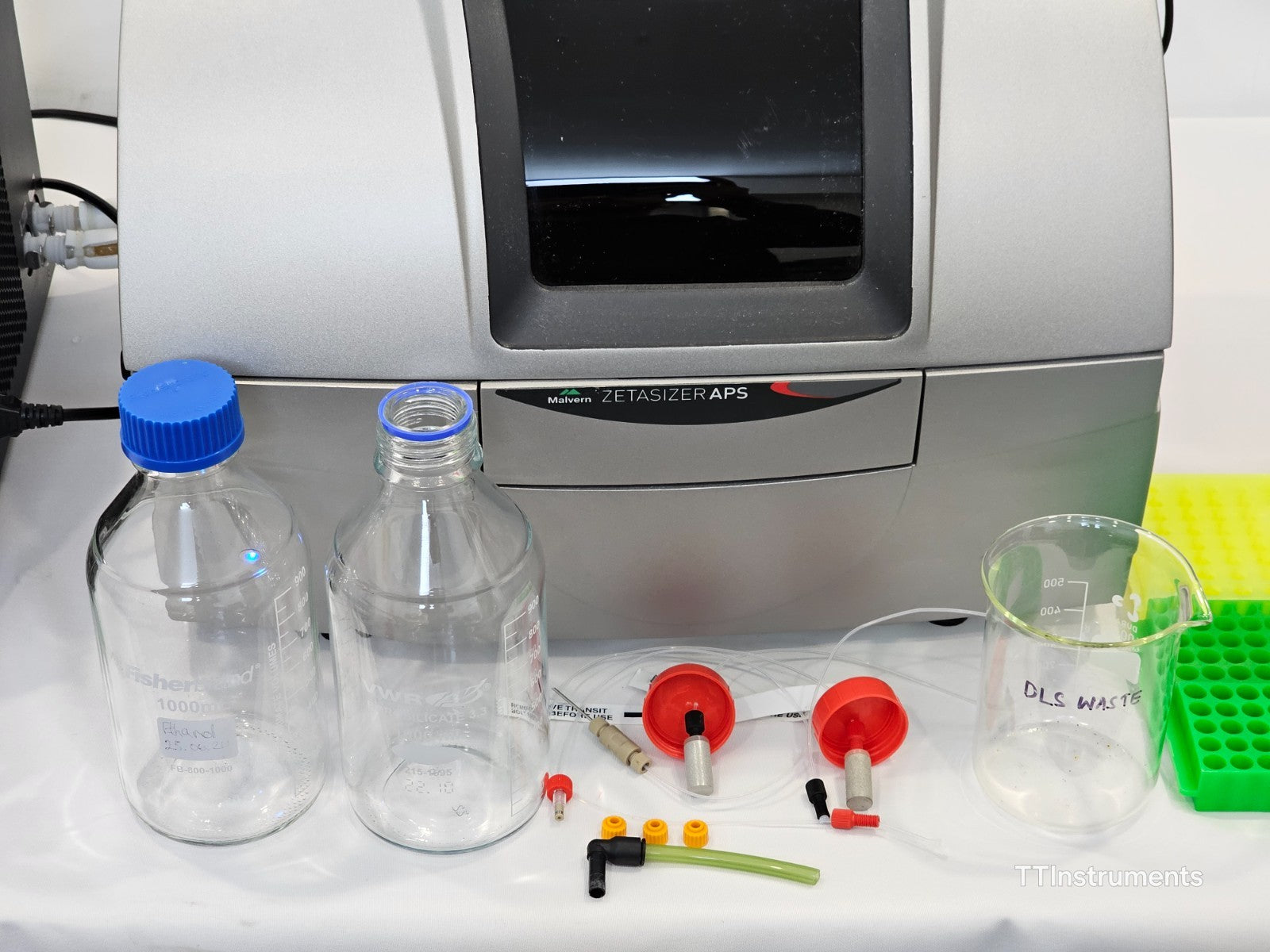

• All pictured accessories

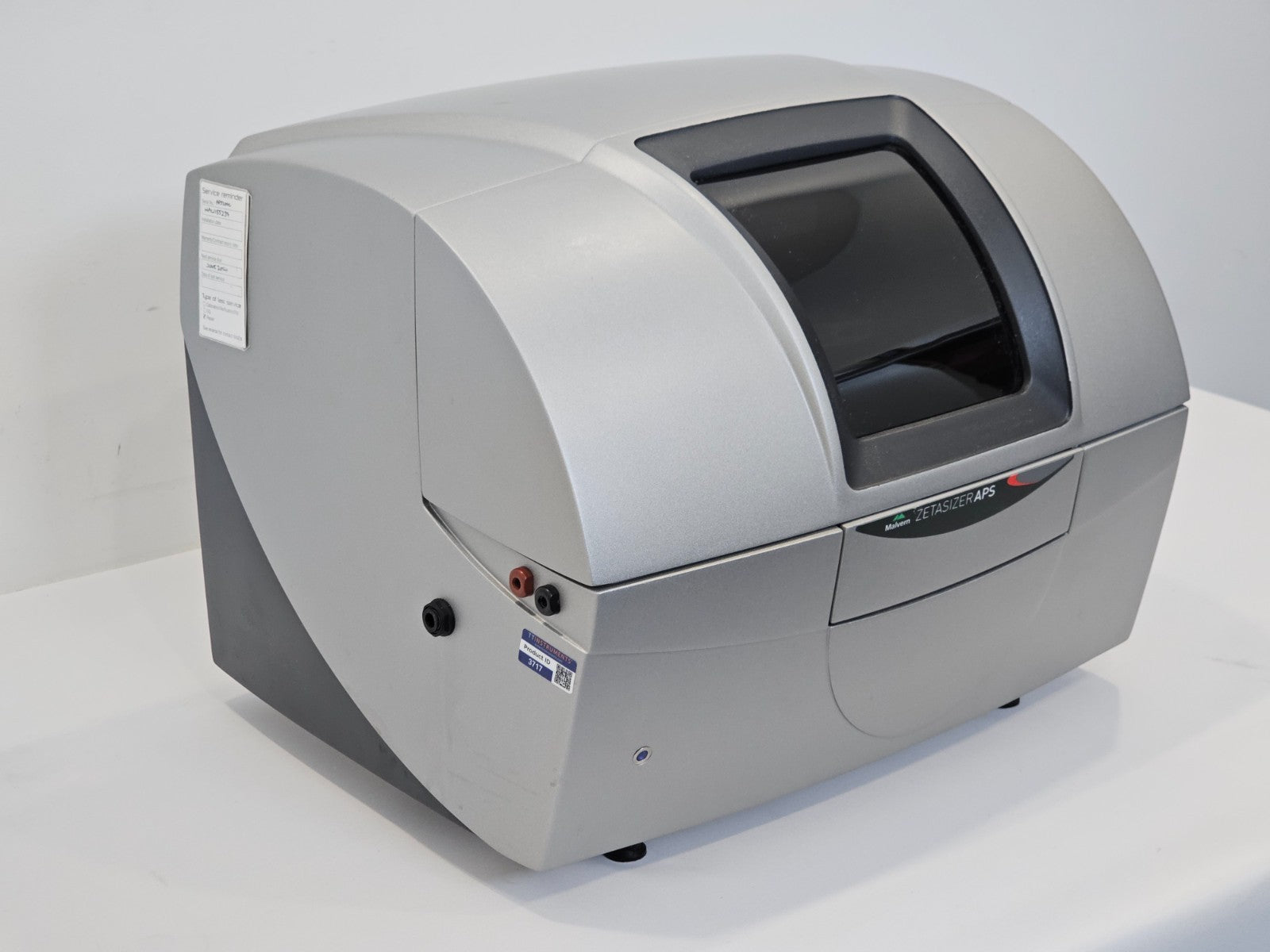

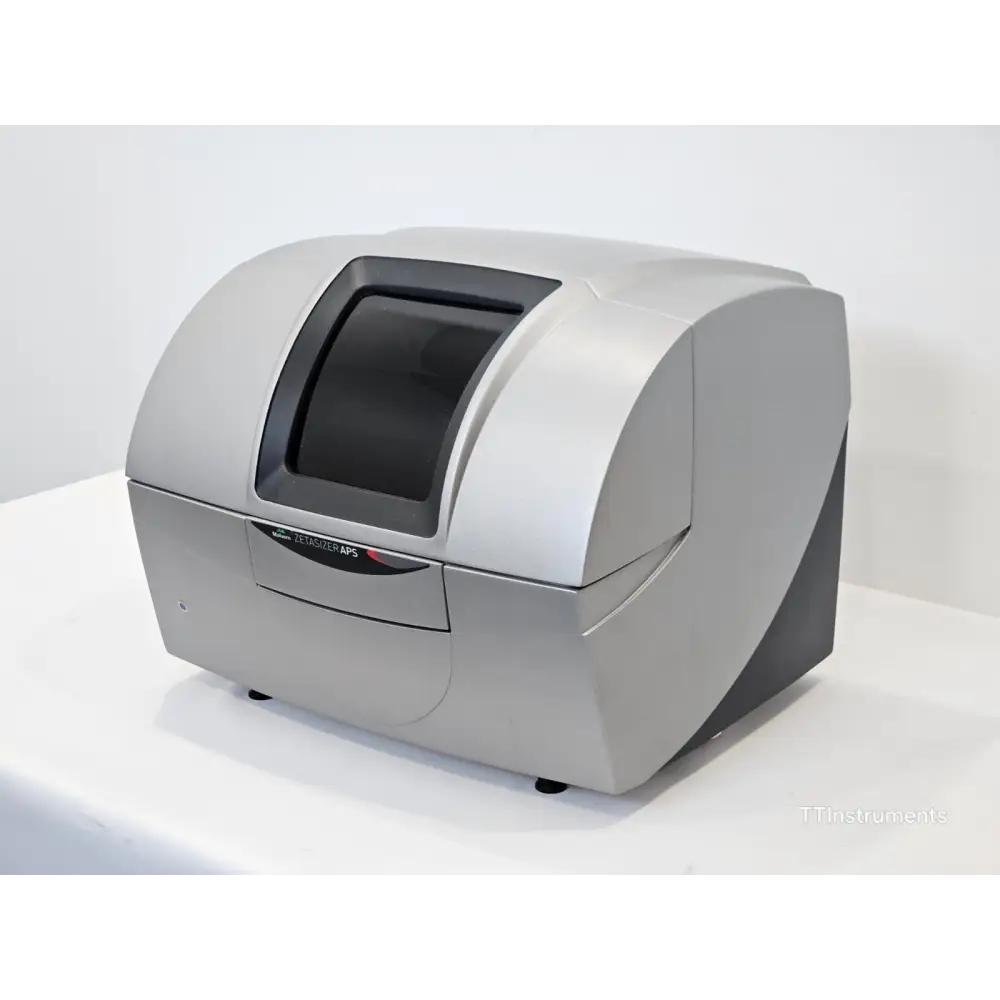

The Malvern Panalytical Zetasizer APS (Auto Plate Sampler) is a robust, simple-to-operate Dynamic Light Scattering (DLS) system designed for automated, high-throughput particle size analysis. It automates the measurement of samples loaded into industry-standard 96- or 384-well plates, bringing advanced light scattering capabilities to pharmaceutical, biopharmaceutical, and protein research laboratories with minimal user input required.

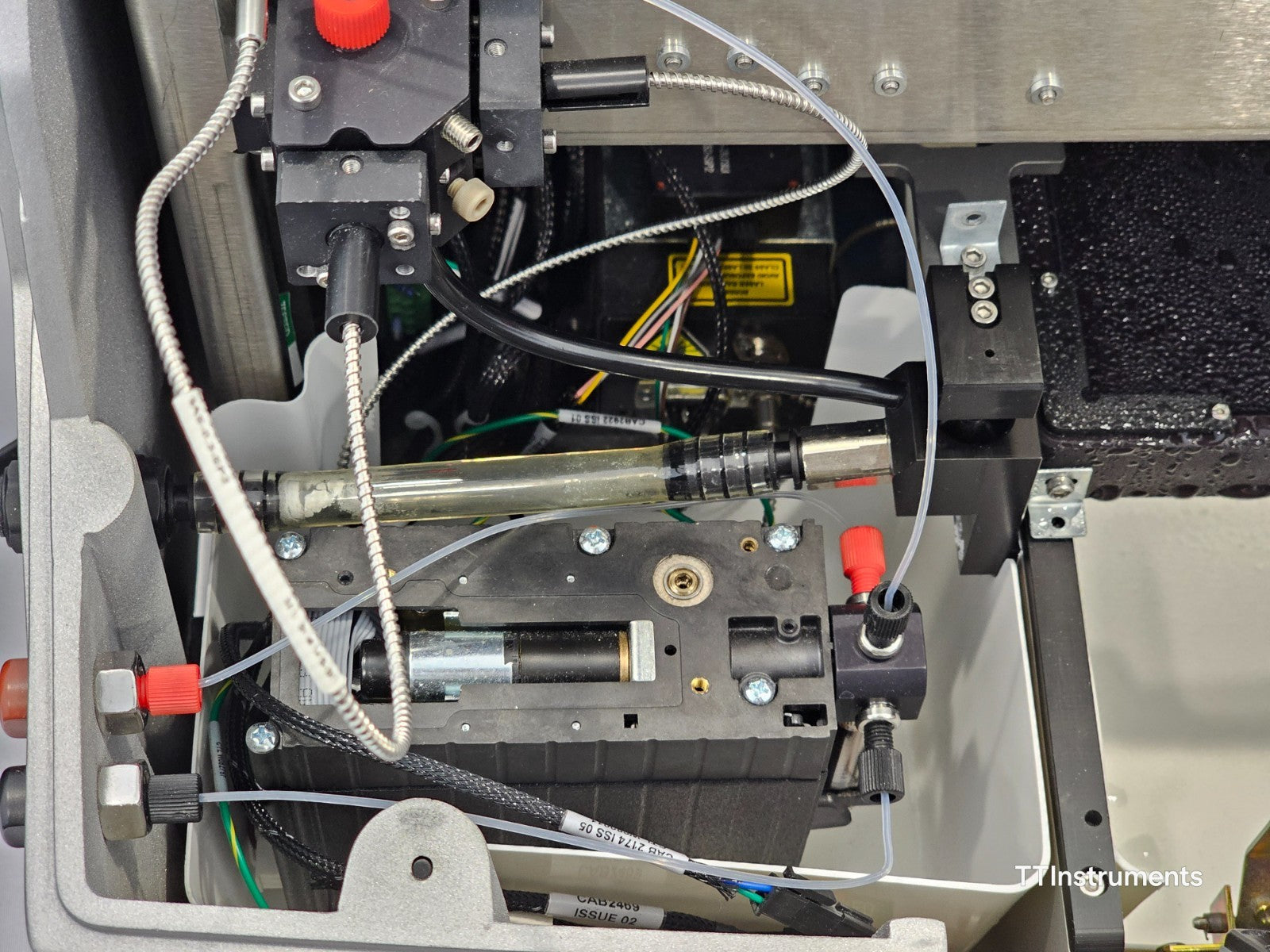

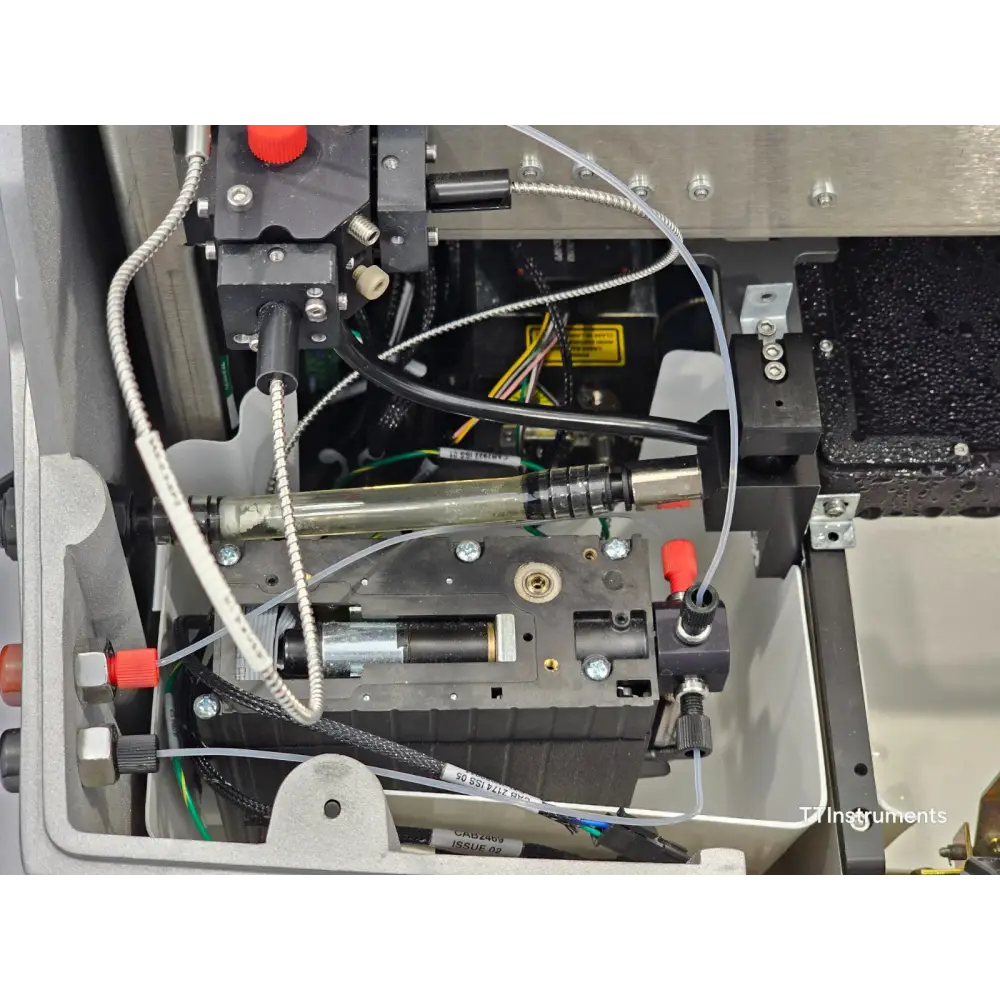

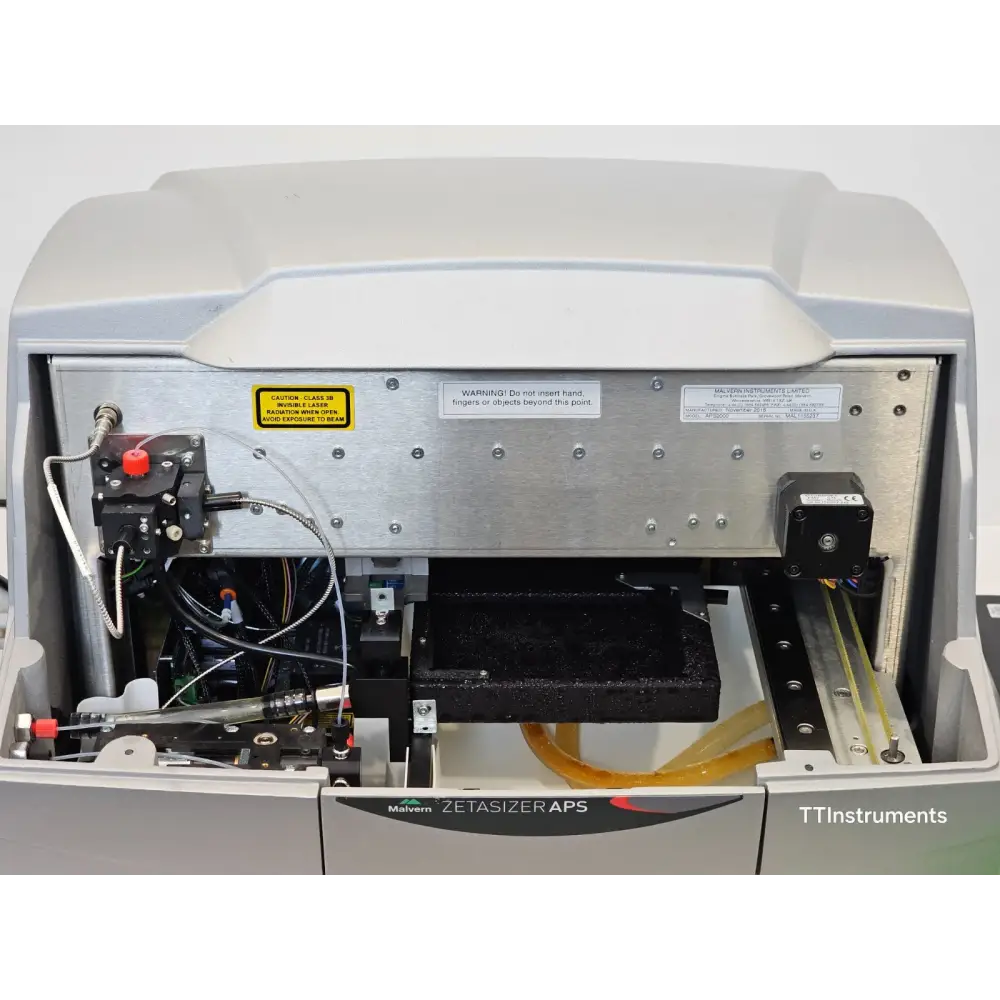

The instrument transfers 20 µL of sample from each well into a precision quartz flow cell for measurement. The flow cell environment is optimised for precision temperature control and optical clarity, meaning any industry-standard disposable or reusable plate can be used without concern for plate transparency or surface quality affecting results.

Dual temperature control is a key differentiating feature: the well plate is maintained at a low, independently regulated temperature to preserve sensitive protein samples prior to measurement, while the measurement cell is separately controlled to ensure measurement accuracy.

The Zetasizer APS uses a 60 mW diode laser at 830 nm wavelength with a 90° detection angle, enabling high sensitivity equivalent to backscatter systems while accommodating small sample volumes as low as 20 µL.

Typical applications include protein aggregate detection, buffer and formulation screening, aggregation temperature (melting point) determination, storage condition optimisation, and crystallisation buffer library screening.

Measurement workflows are SOP-based, and the colour-coded plate navigator allows straightforward setup. The system supports thermal trend analysis and aggregate detection workflows.

Key Specifications:
Measurement technique: Dynamic Light Scattering (DLS)
Size range: 0.15 nm to 1 µm (radius)
Minimum sample volume: 20 µL per well
Sensitivity: 0.1 mg/mL of 15 kDa protein

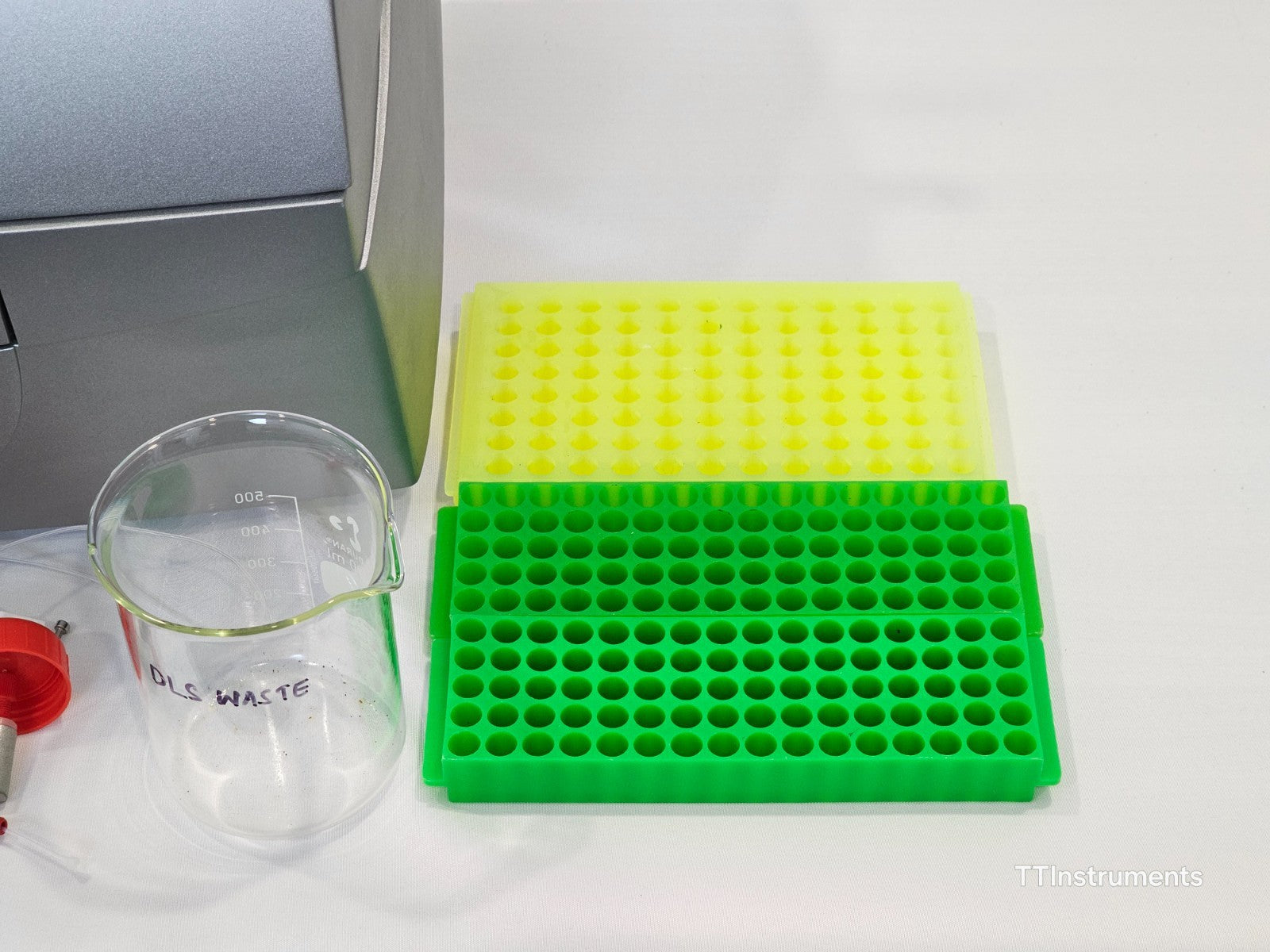

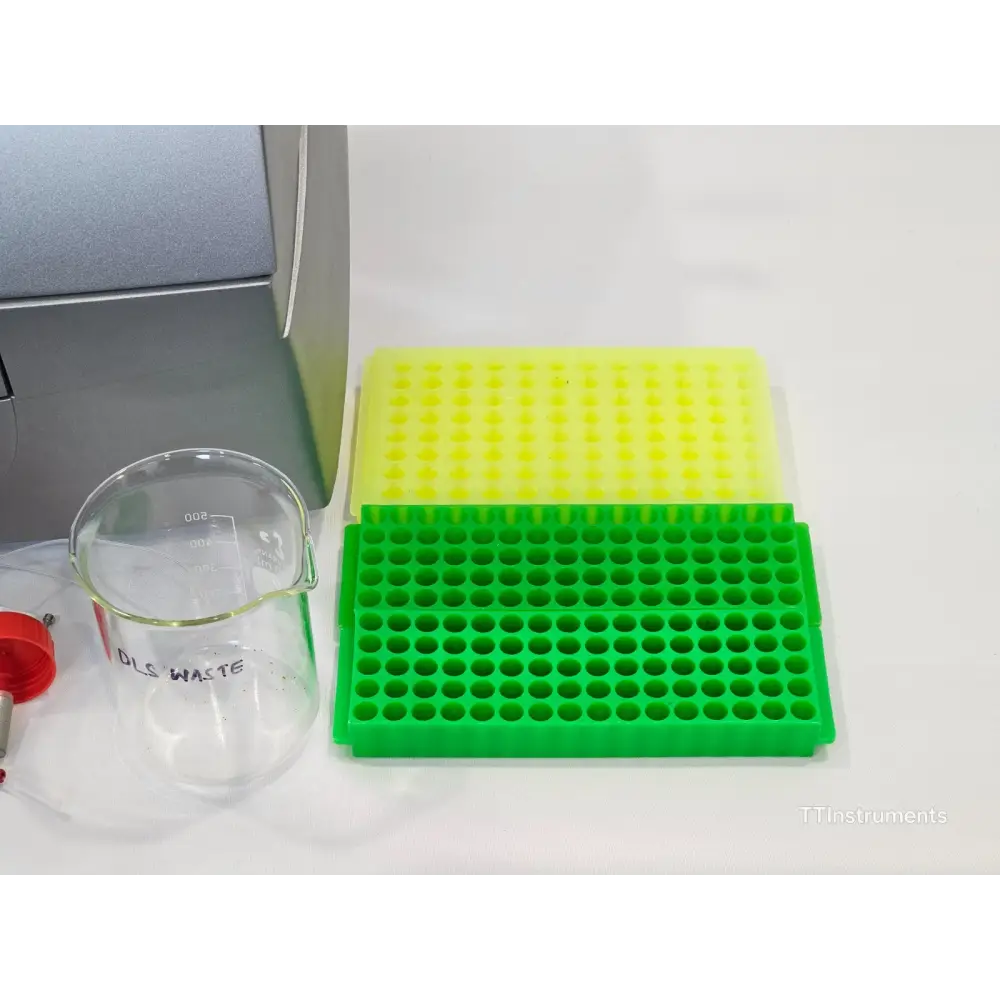

Plate formats: 96-well and 384-well industry-standard plates
Laser: 60 mW diode laser, 830 nm wavelength
Detection angle: 90°
Temperature range: 4°C to 40°C (dual independent control)

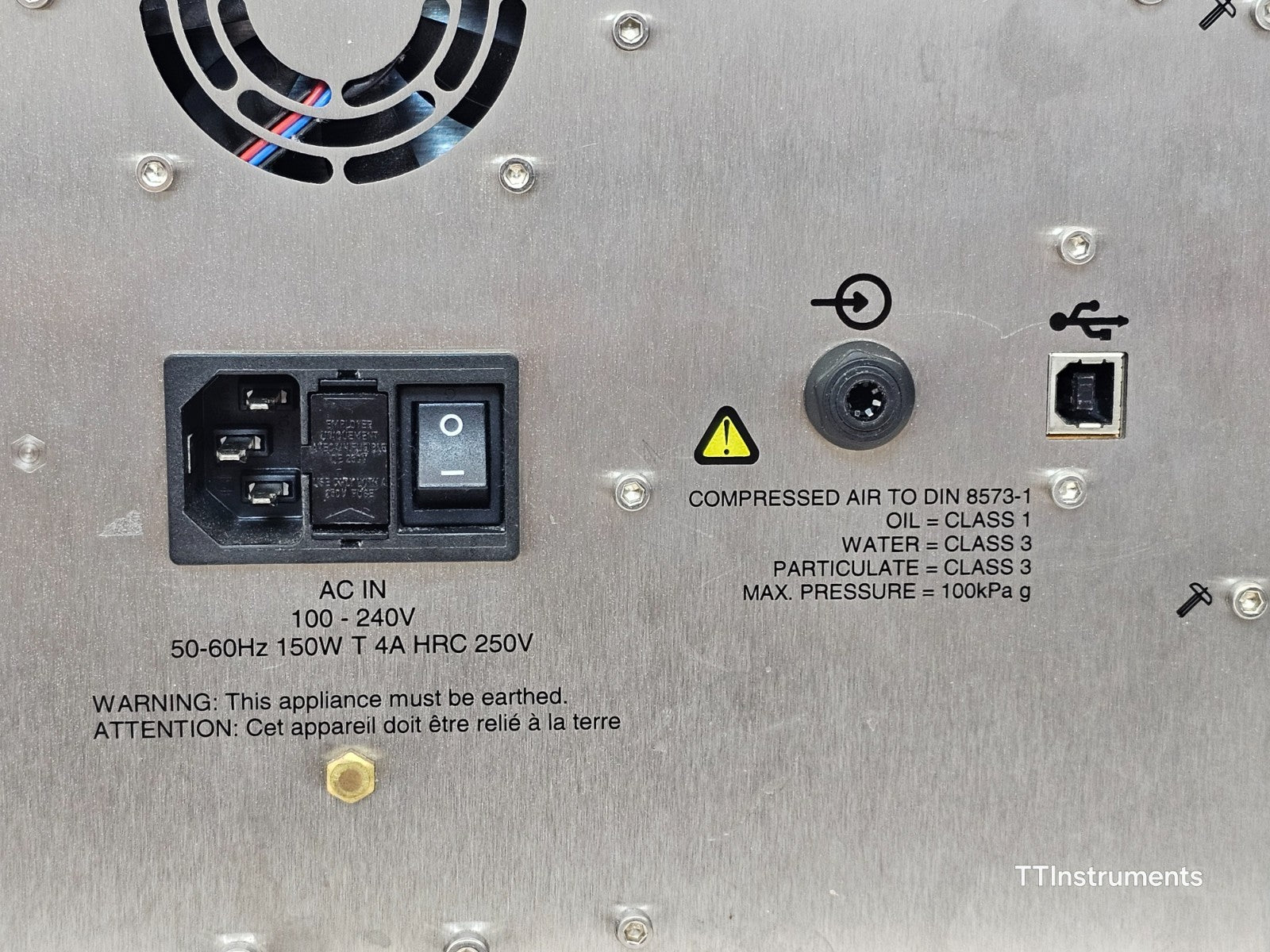

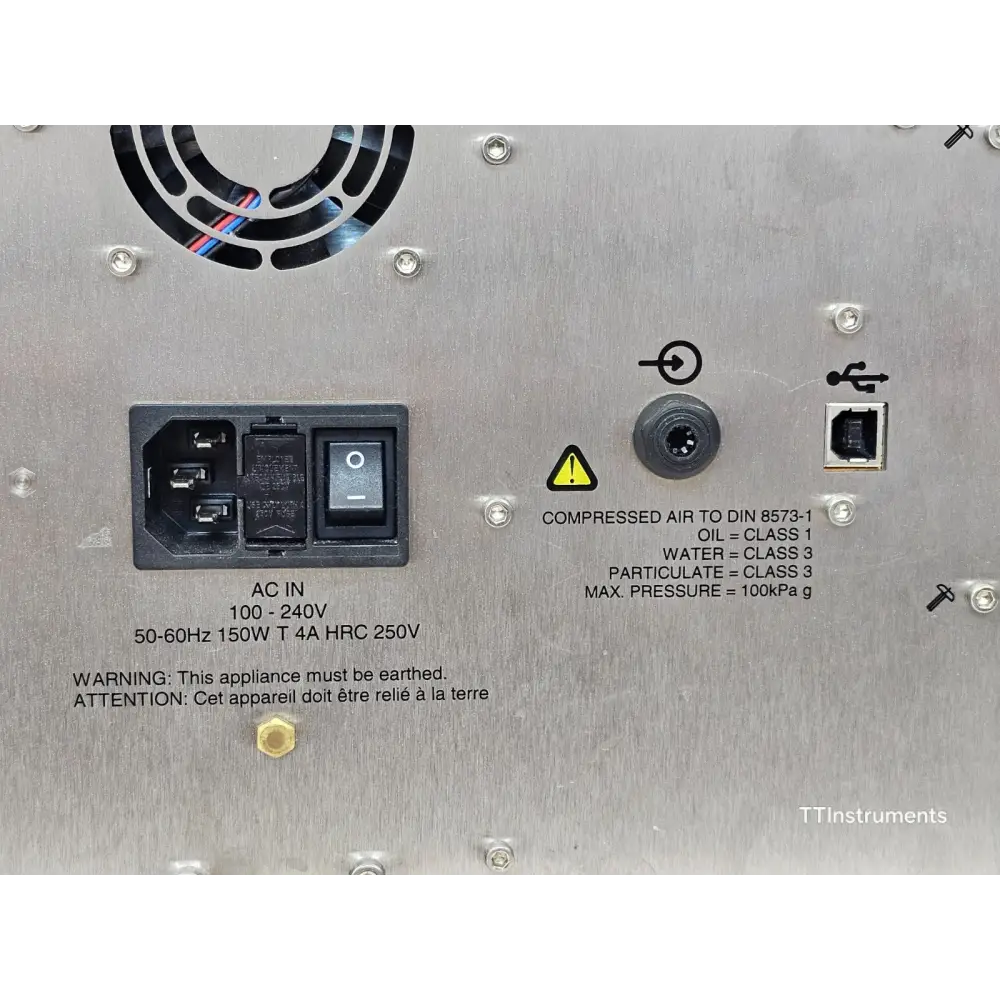

Power supply: 100–240 V AC, 50/60 Hz, 228 W
Weight: 12.2 kg
Dimensions (W x D x H): 200 mm x 385 mm x 310 mm
Sample types: Proteins, polymers, colloids, nanoparticles
Software: Zetasizer Software (SOP-based, colour-coded plate navigator)

Malvern Panalytical Zetasizer APS User Manual (English) — MAN0425EN, full instrument user manual: Download PDF

Malvern Panalytical Zetasizer APS Basic Guide (English) — MAN0494EN, includes system overview, specifications, safety and maintenance: Download PDF

Zetasizer APS product brochure — hosted by TTUHSC, manufacturer marketing document with application overview: Download PDF
