Condition: Used

Tested and fully functional. Cosmetic imperfections are present but do not affect performance. See photos for details of the cosmetic condition.

This listing includes the Prospa software preinstalled on a laptop with a valid license.

Test setup:
- The probe was placed in an open space at least 1 meter from any metallic object and approximately 1 meter from the ground on a solid cardboard box.

- The probe’s x-axis was positioned orthogonal to true north.

- The control unit was placed as far away from the probe as possible given the cable length restrictions.

Test methodology:

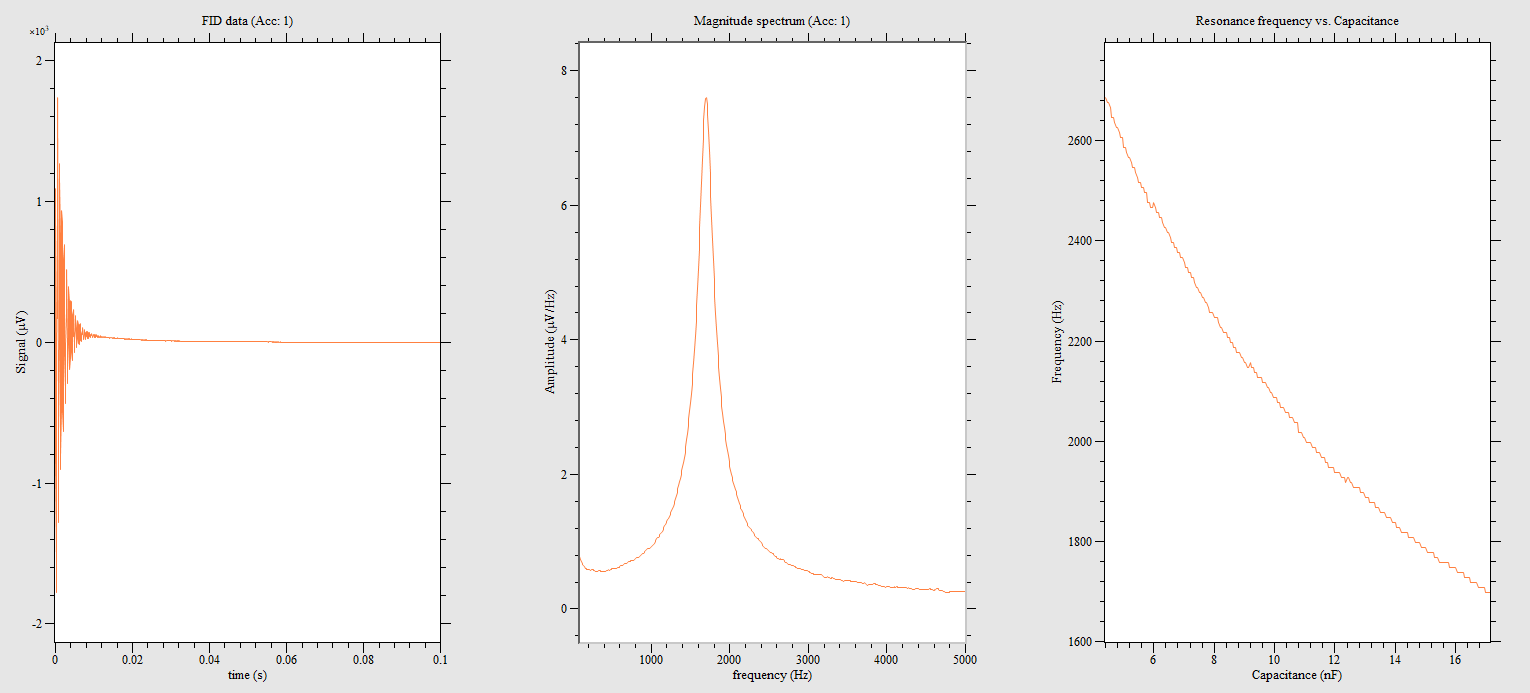

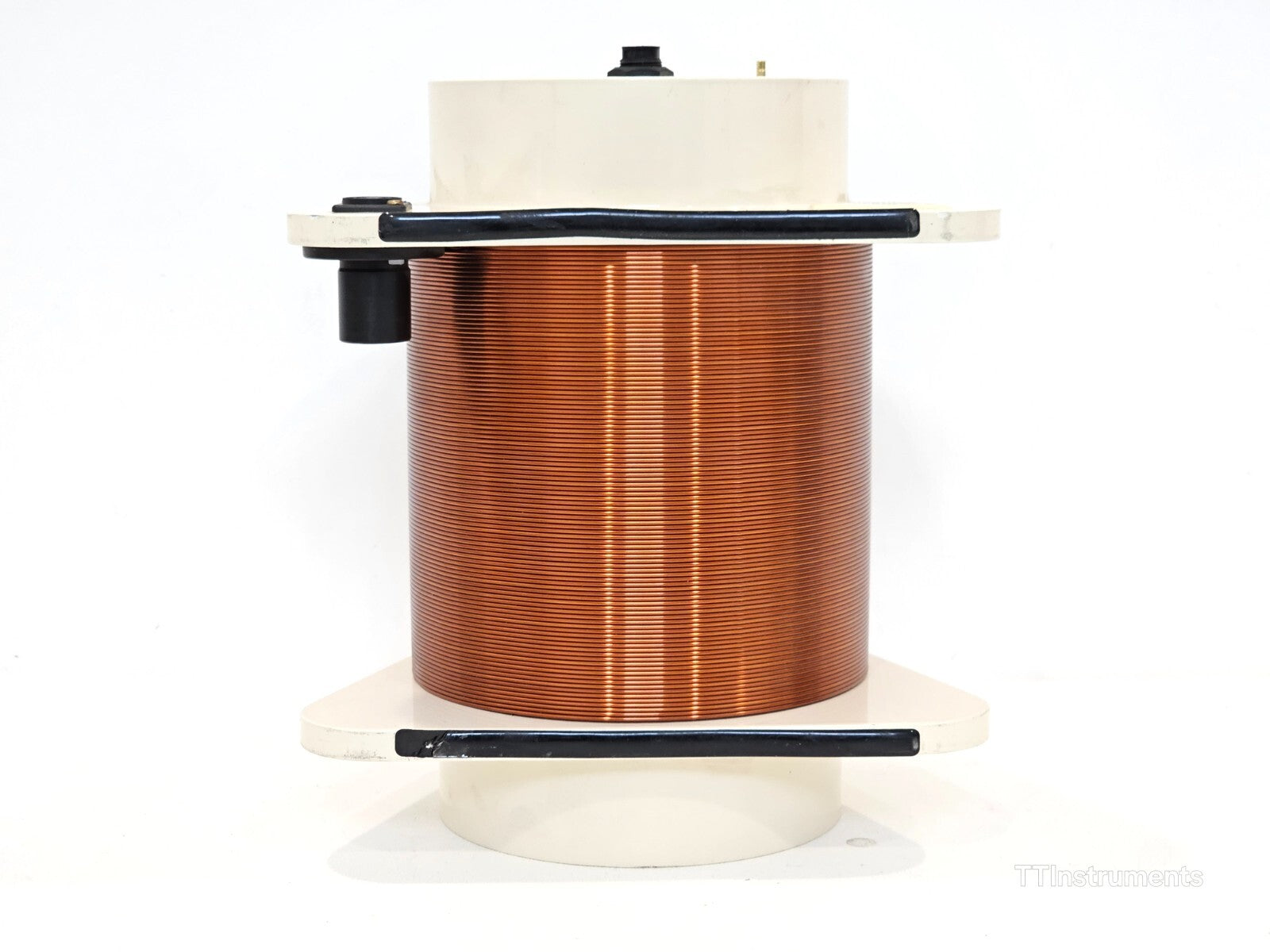

• A coil analysis was performed to determine the inductance and capacitance of the B0 coil. Refer to image 15.

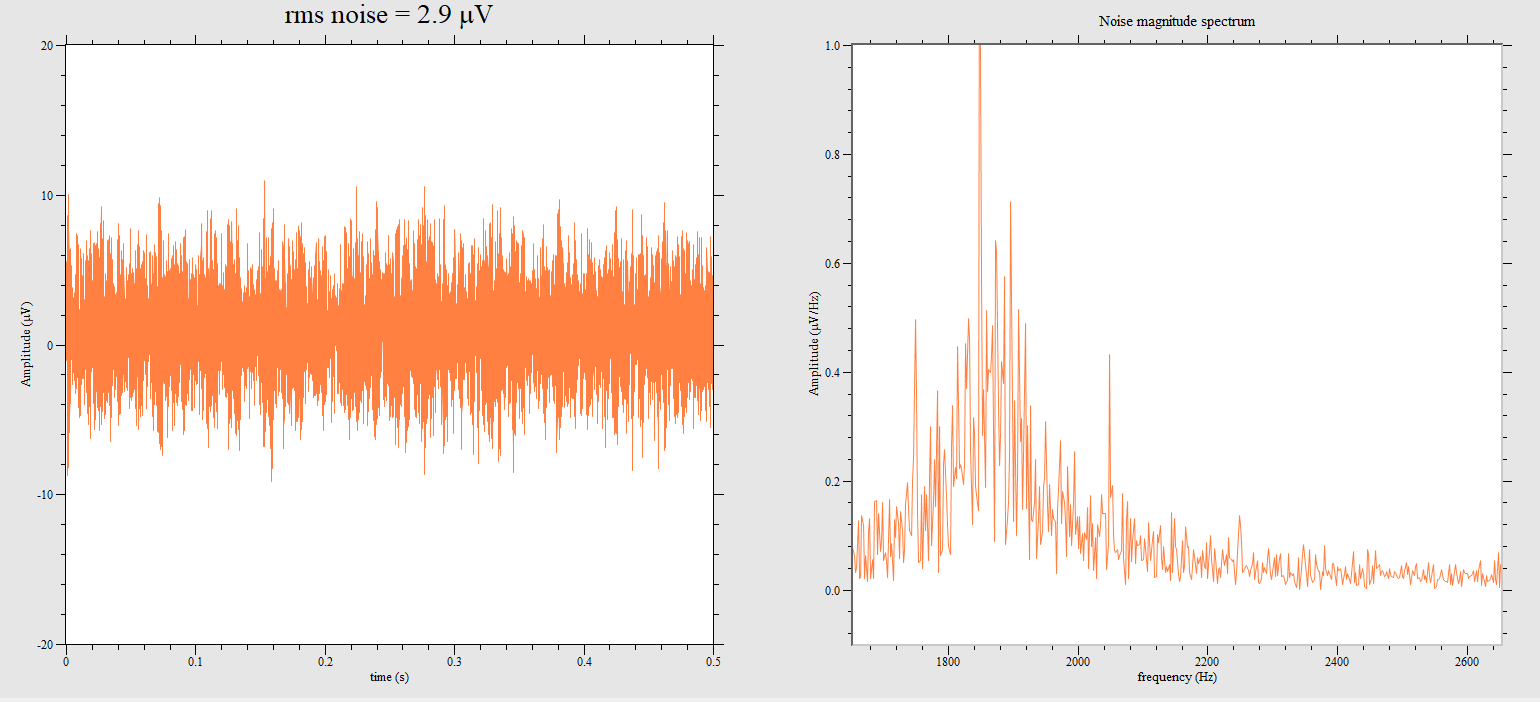

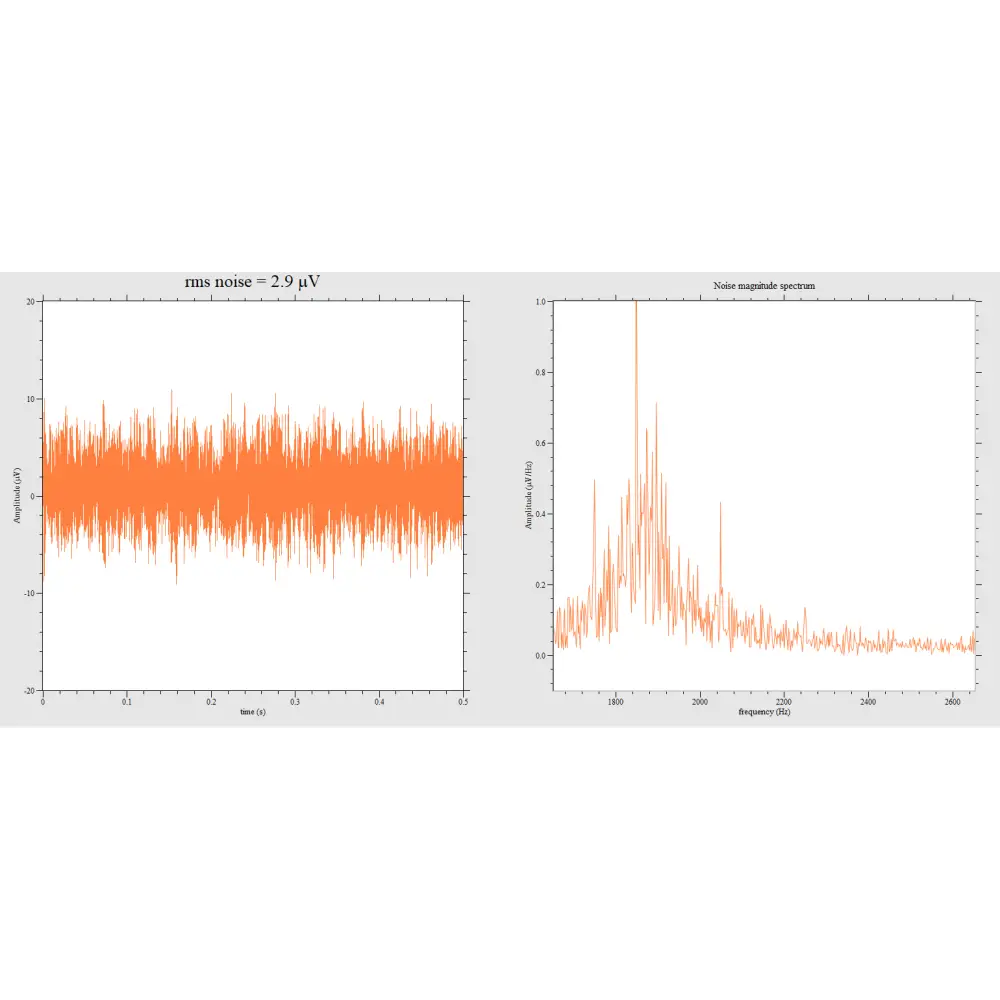

• The noise measurement was performed to ensure that external noise was reduced to a minimum. The obtained result was below 3uV Rms, which is considered excellent. Refer to image 16.

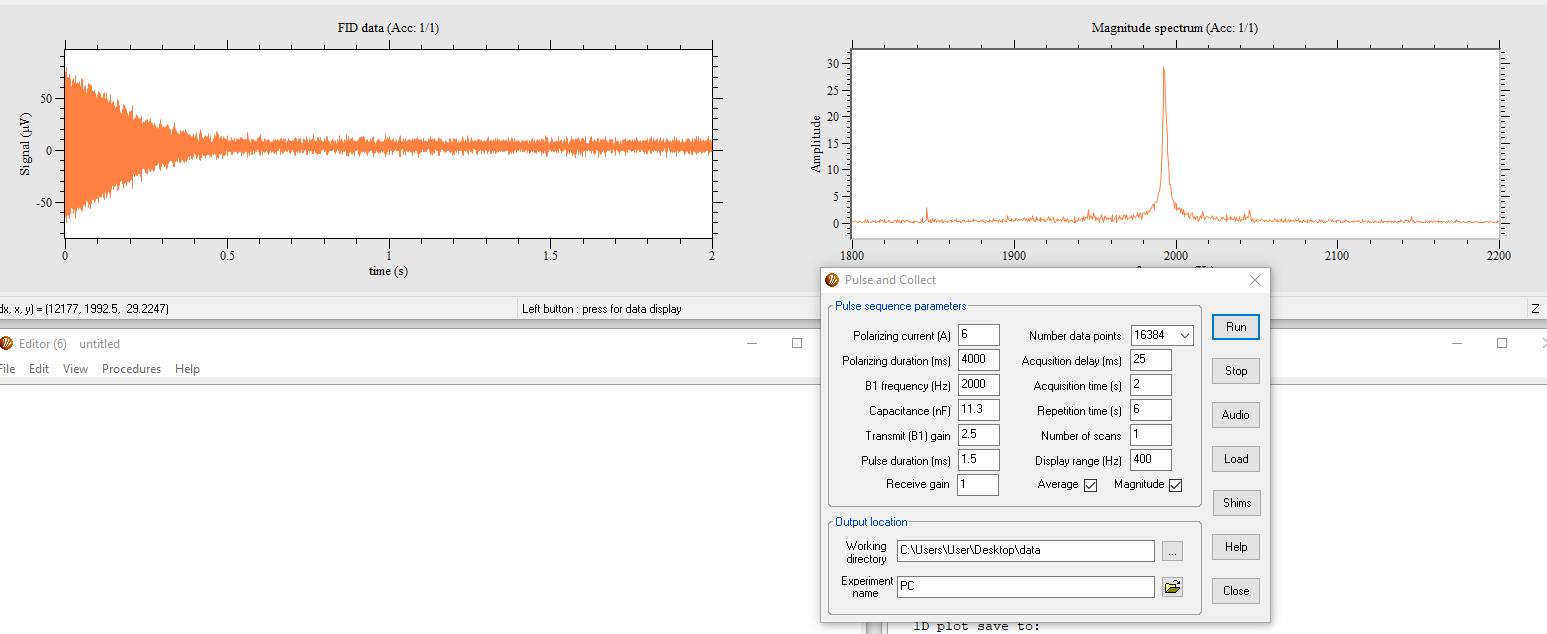

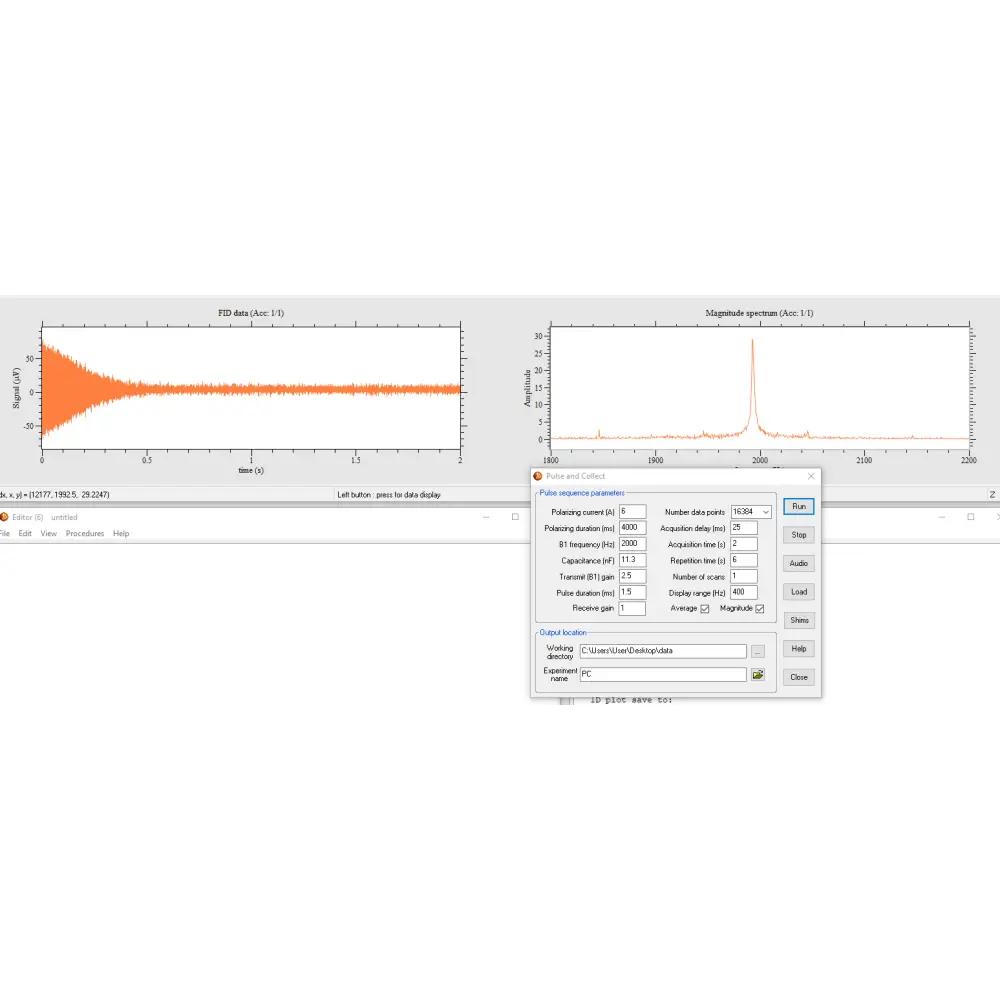

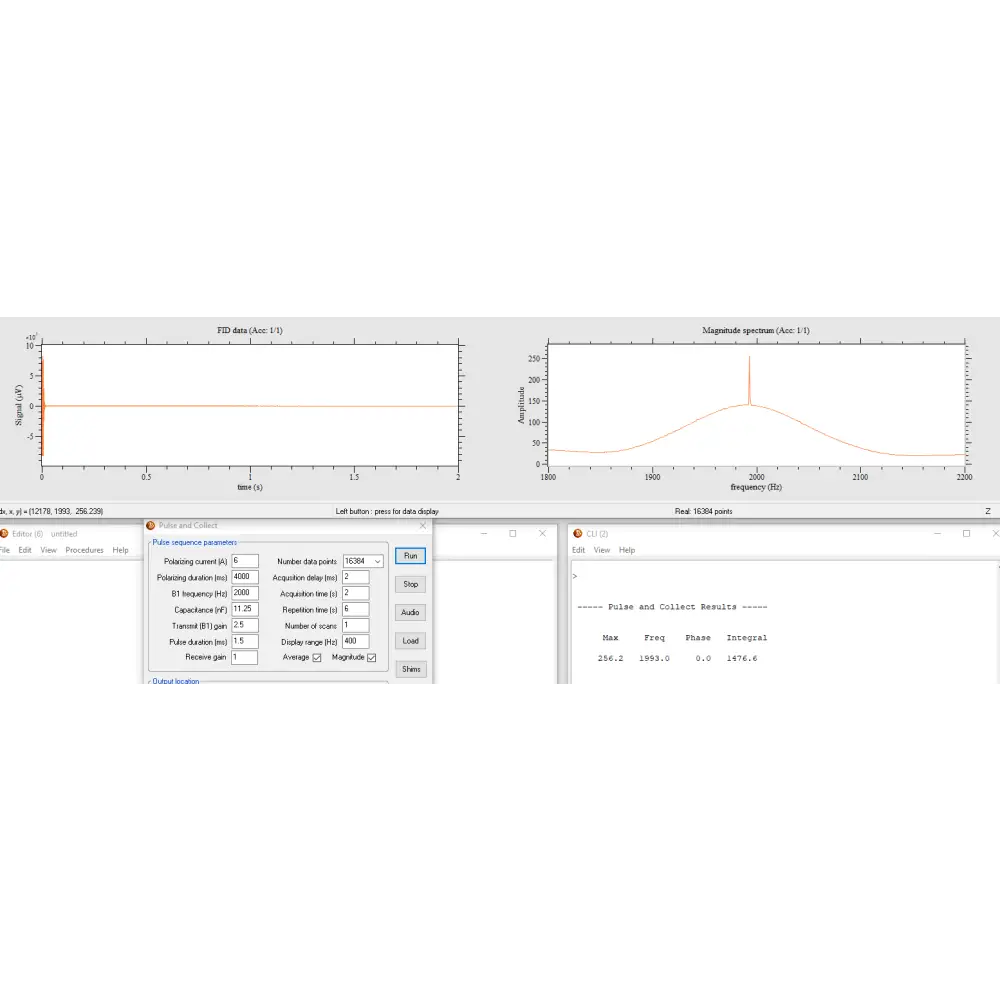

• A pulse-and-collect test was performed to obtain a spectral plot in order to determine the resonant frequency. Refer to image 17.
• A spin-and-echo was performed to ensure the spin-spin relaxation and magnetic field inhomogeneity did not affect the sample.
• Once a decent peak was obtained, an autoshim procedure was run to optimise the largest peak in the desired display range.

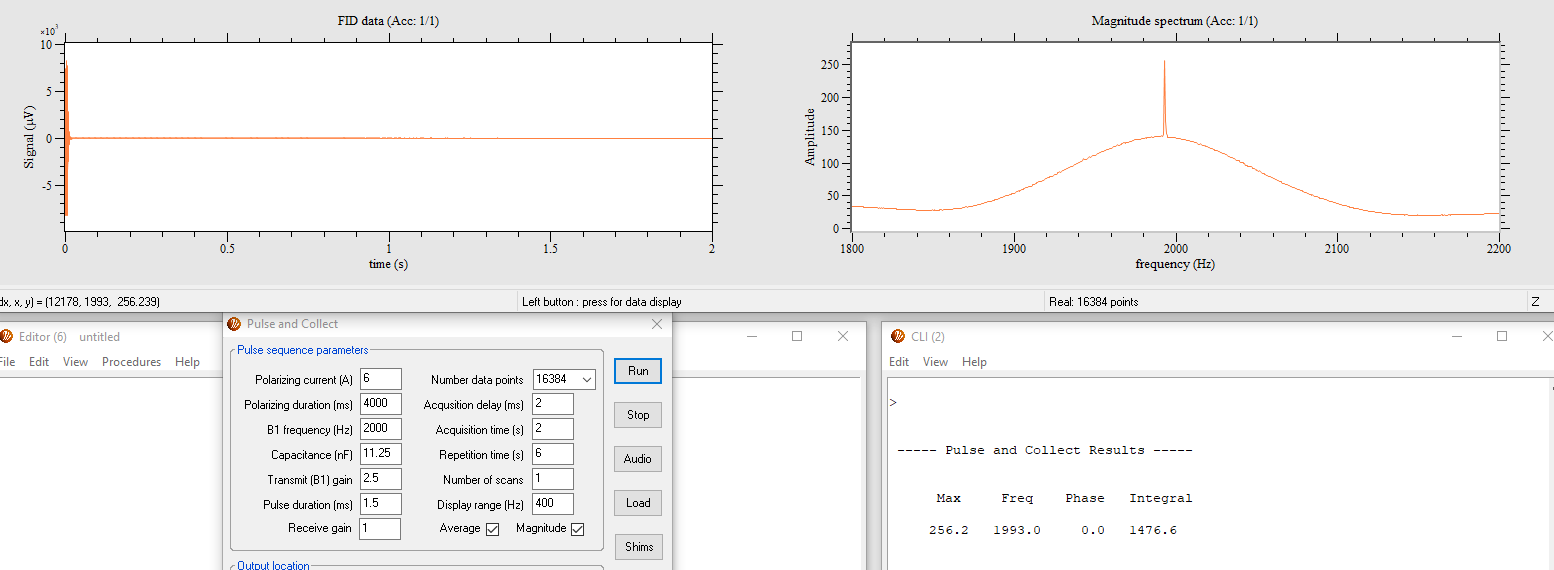

• The auto shim results were applied and another run of pulse-and-collect was performed. Please refer to image 18.

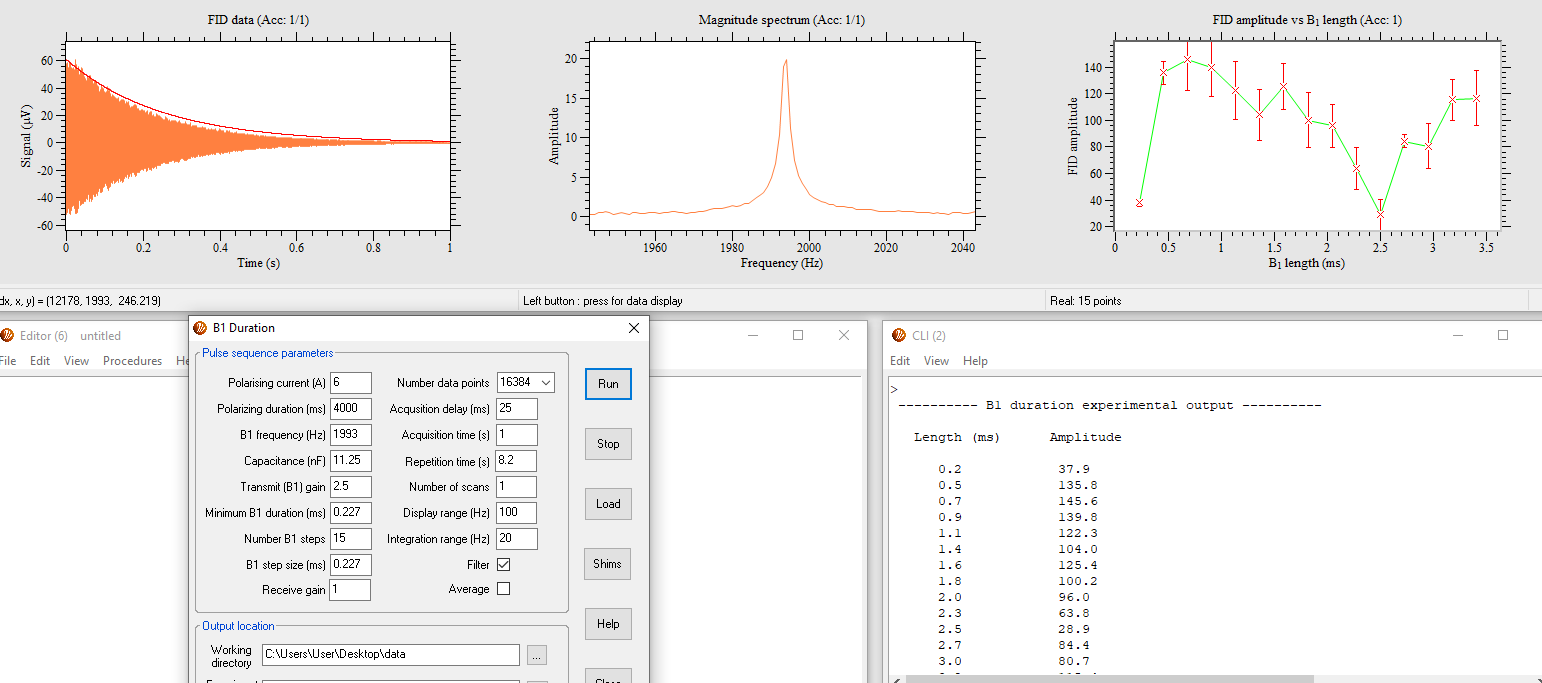

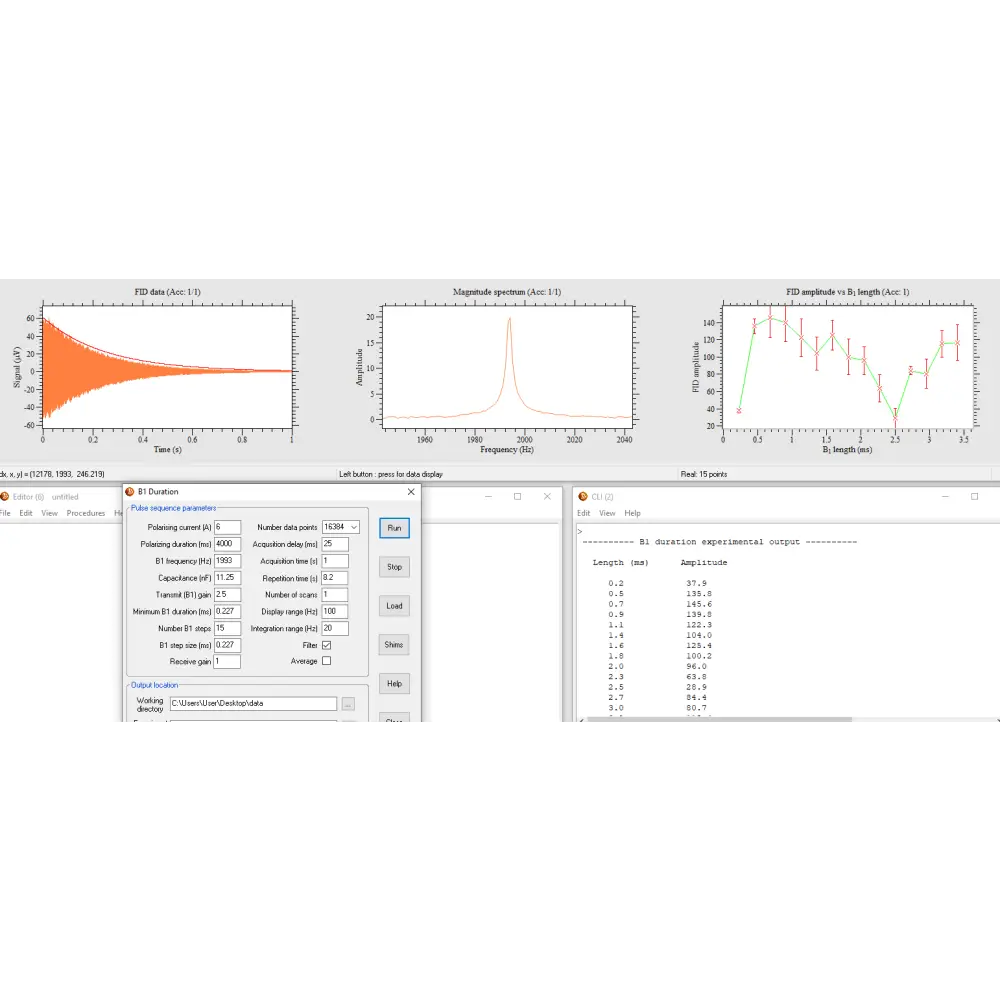

• A B1 Pulse duration test was performed to determine the optimal 90 degrees and 180 degrees excitation pulse lengths, respectively. Refer to image 19 that shows a maximum, representing the excitation duration of the 90 degrees pulse and the minimum representing the 180 degrees pulse.

Results:

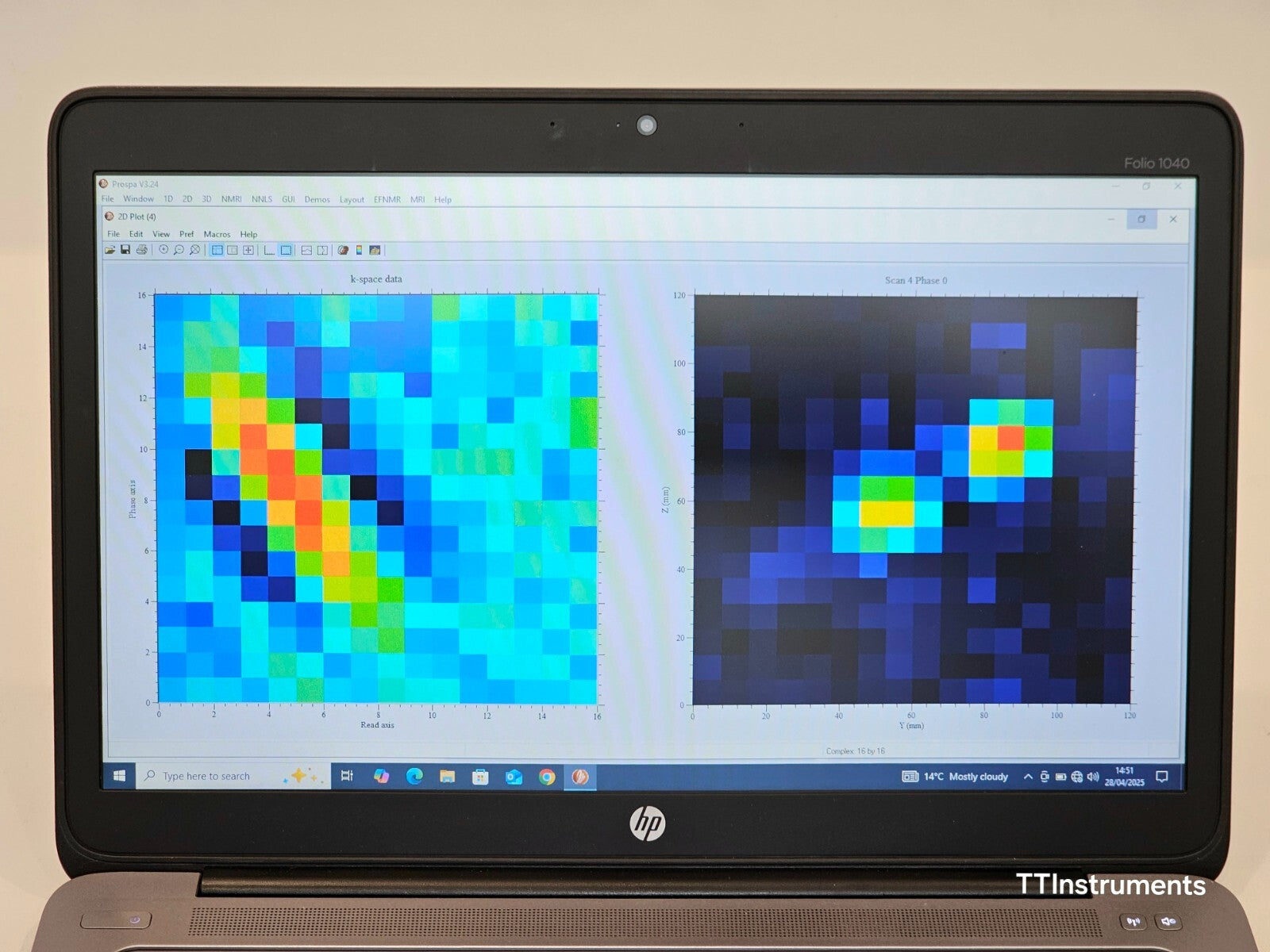

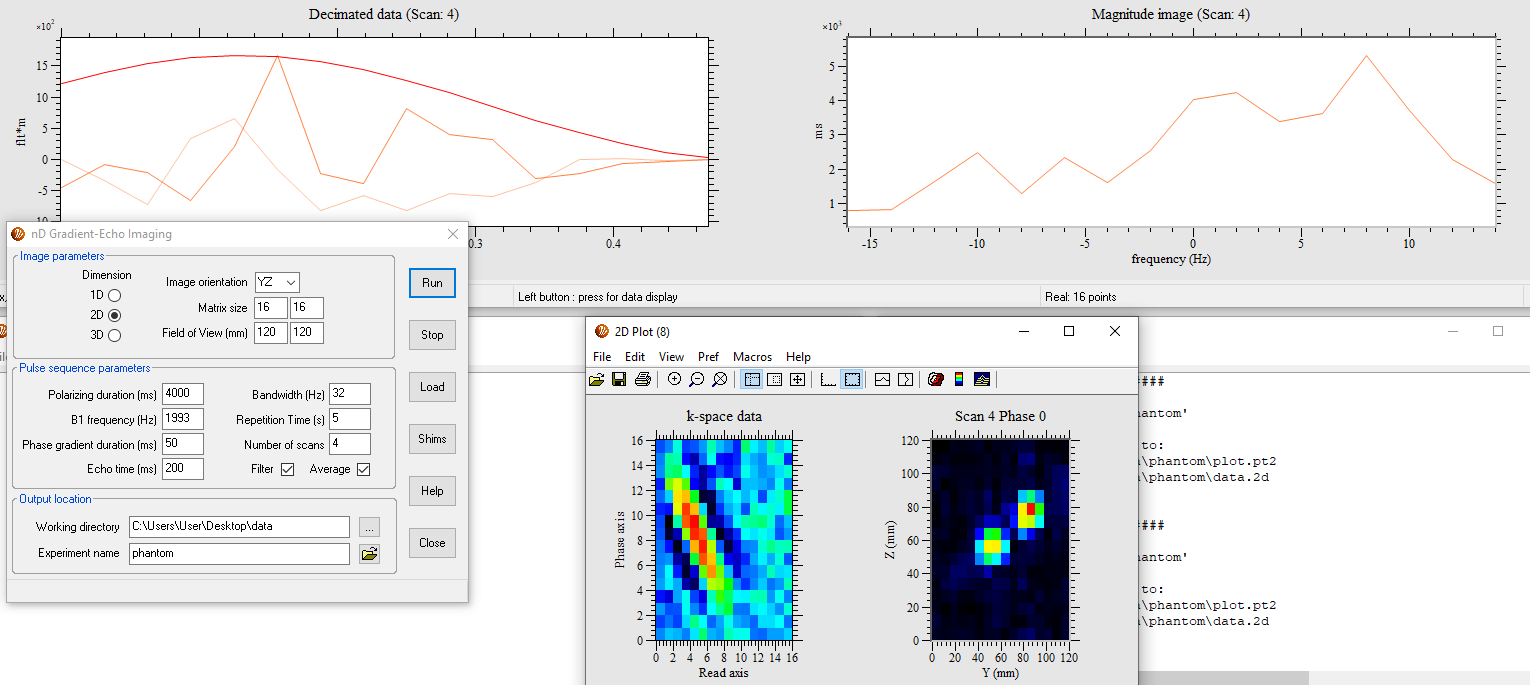

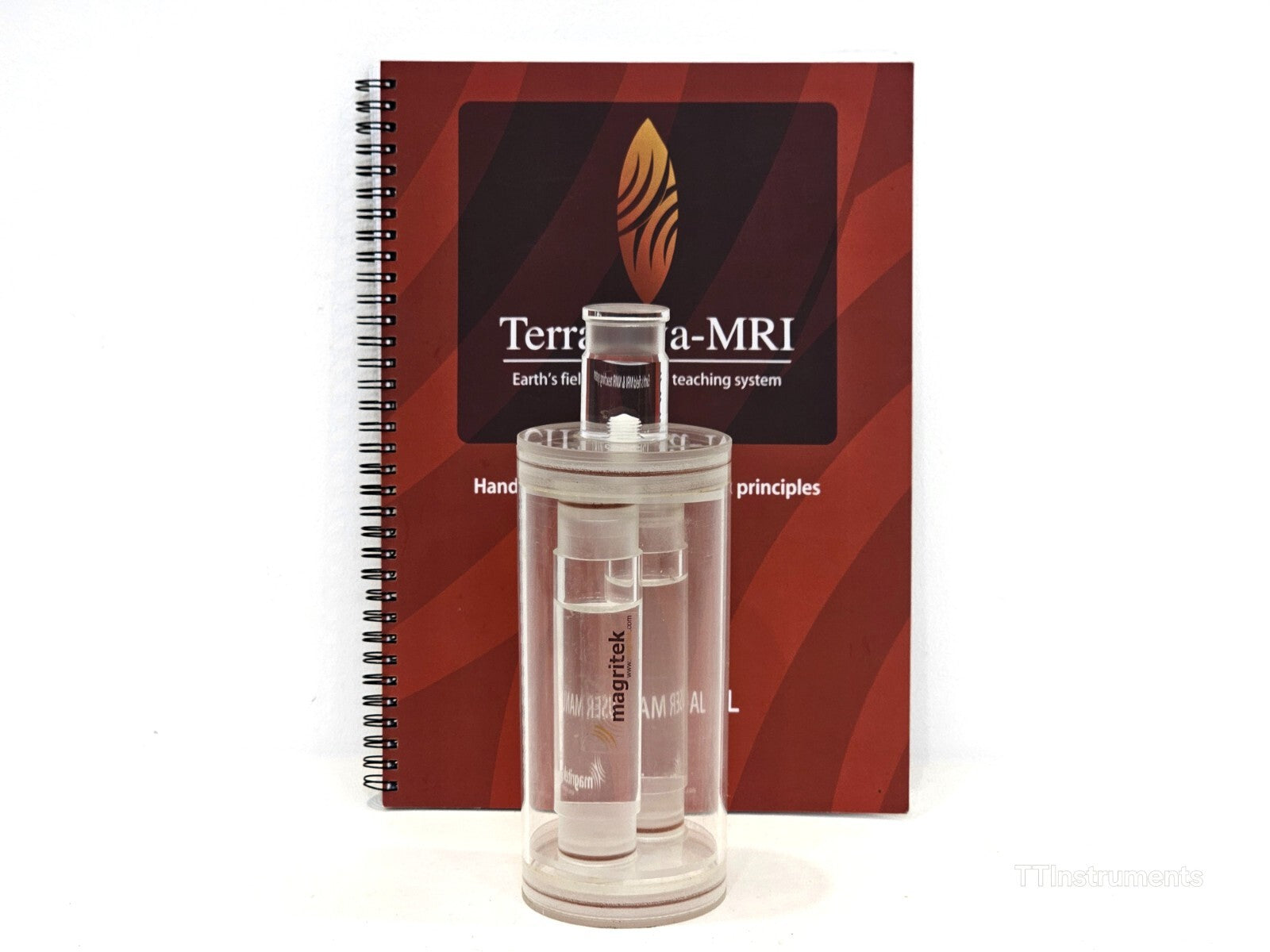

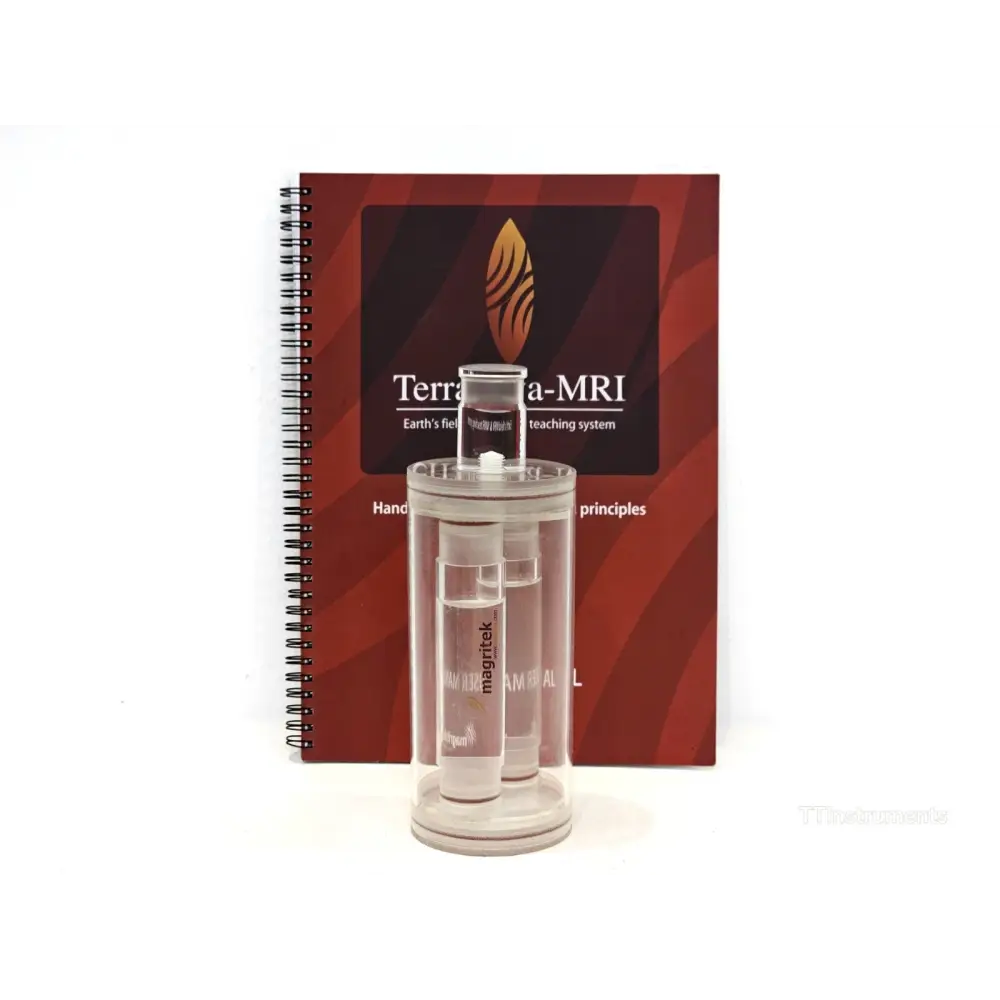

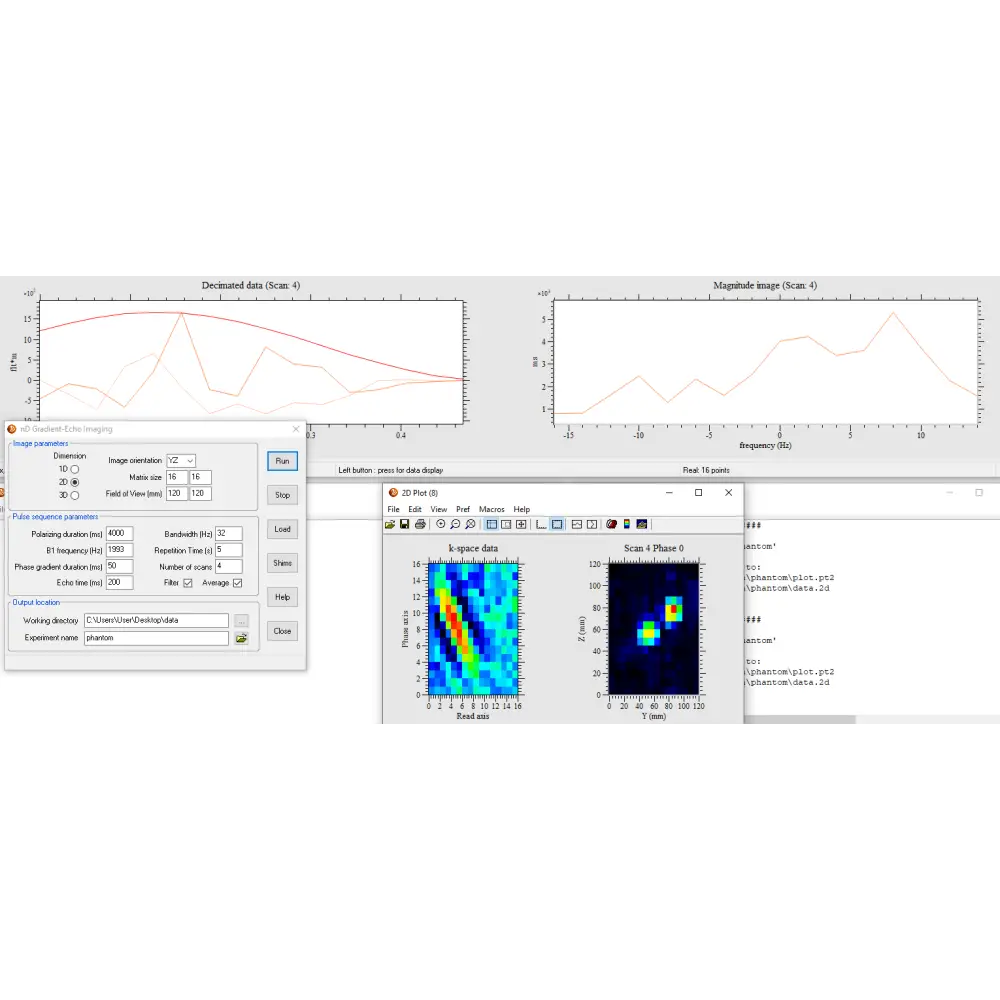

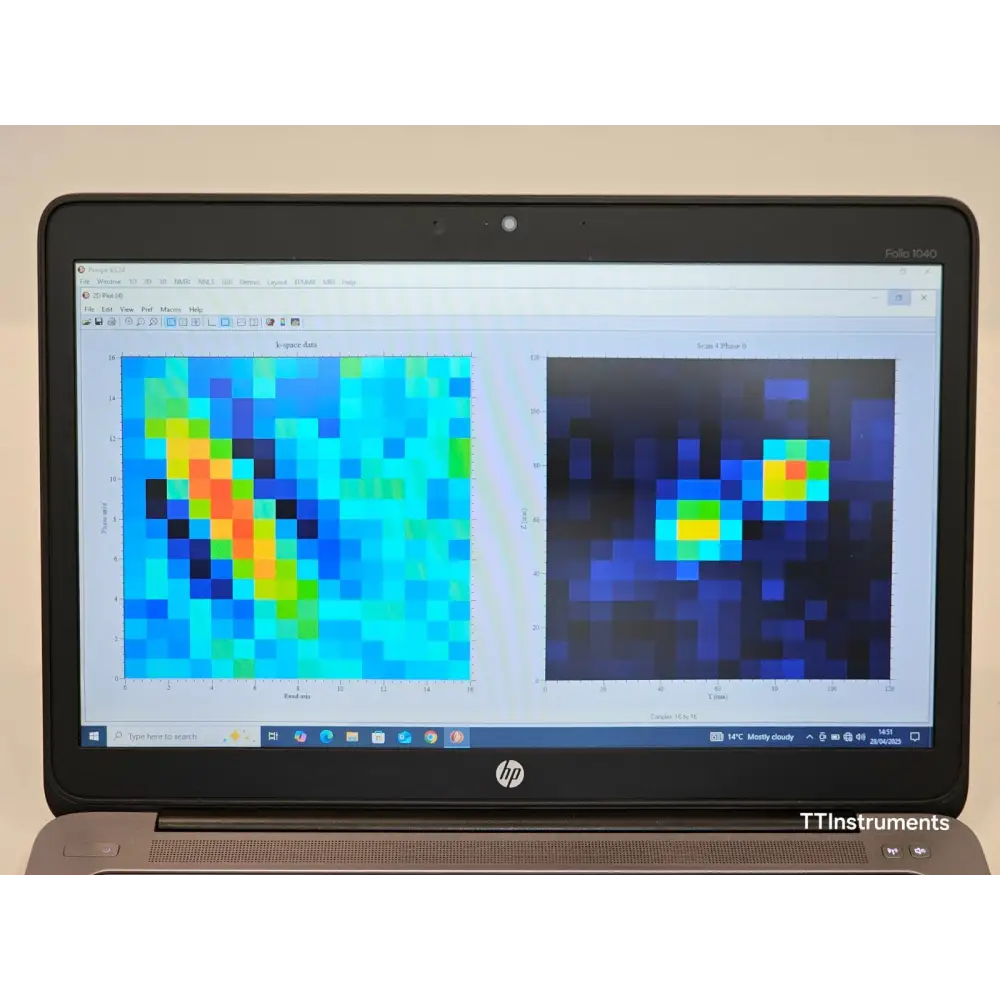

• A phantom bottle containing two tubes of doped liquids was placed within the probe to produce a 2D scan. Refer to image 20.

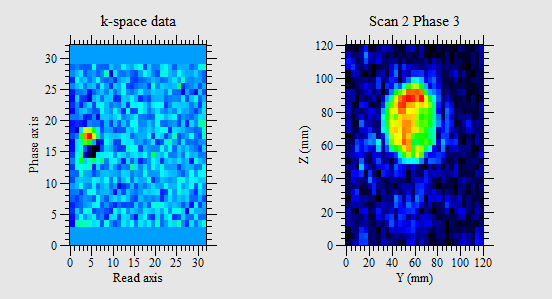

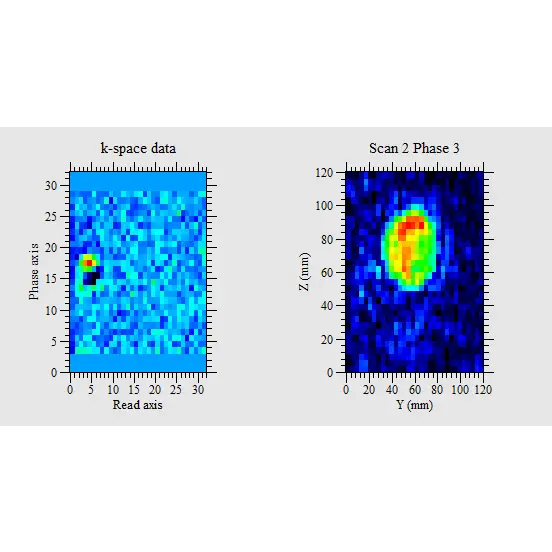

• Another test of a kiwi fruit can also be seen in image 21

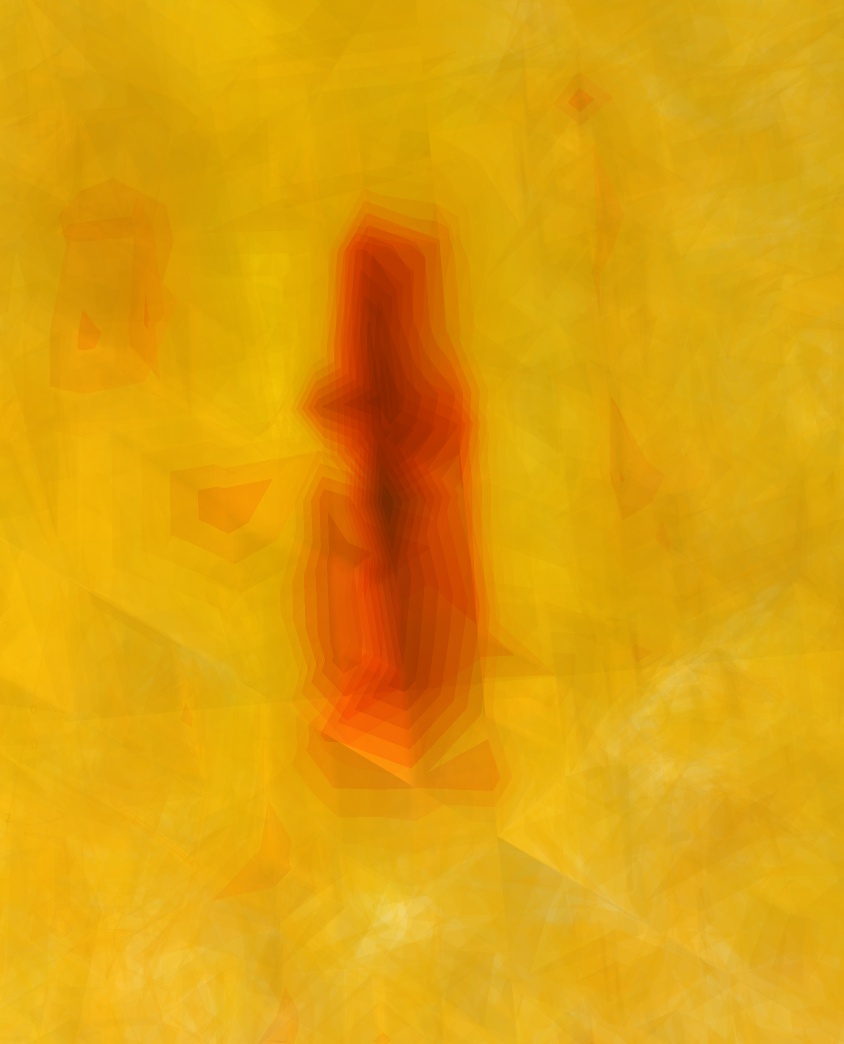

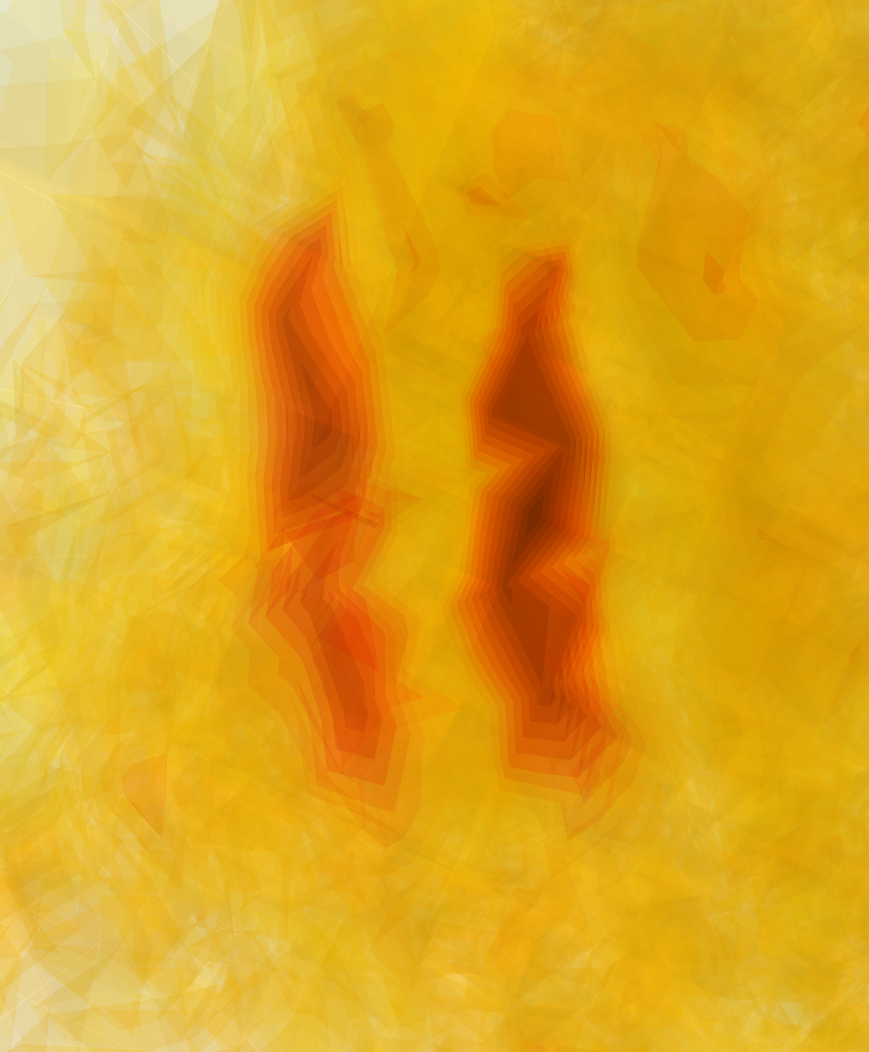

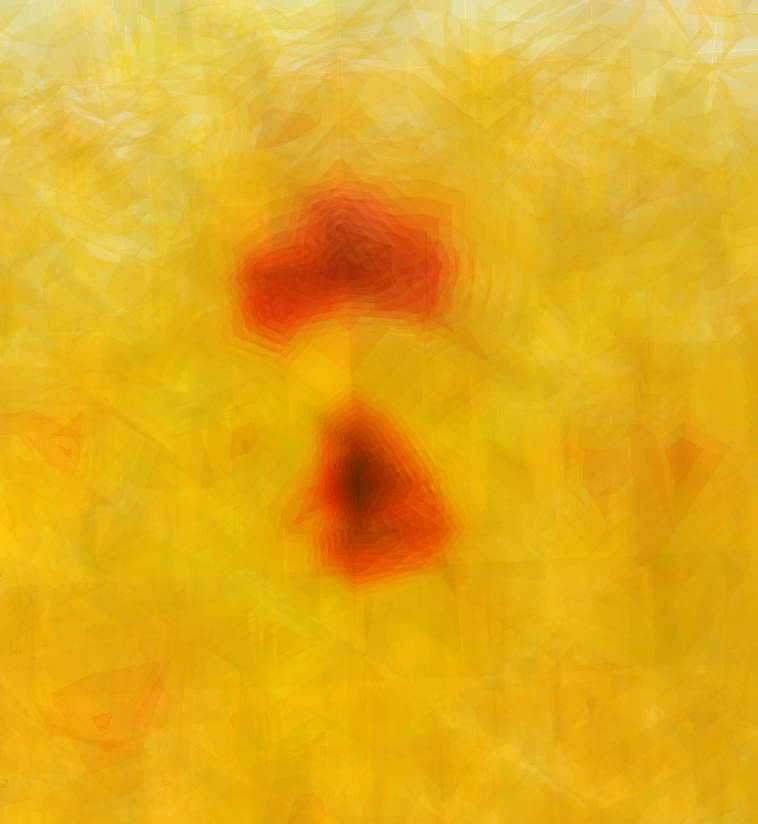

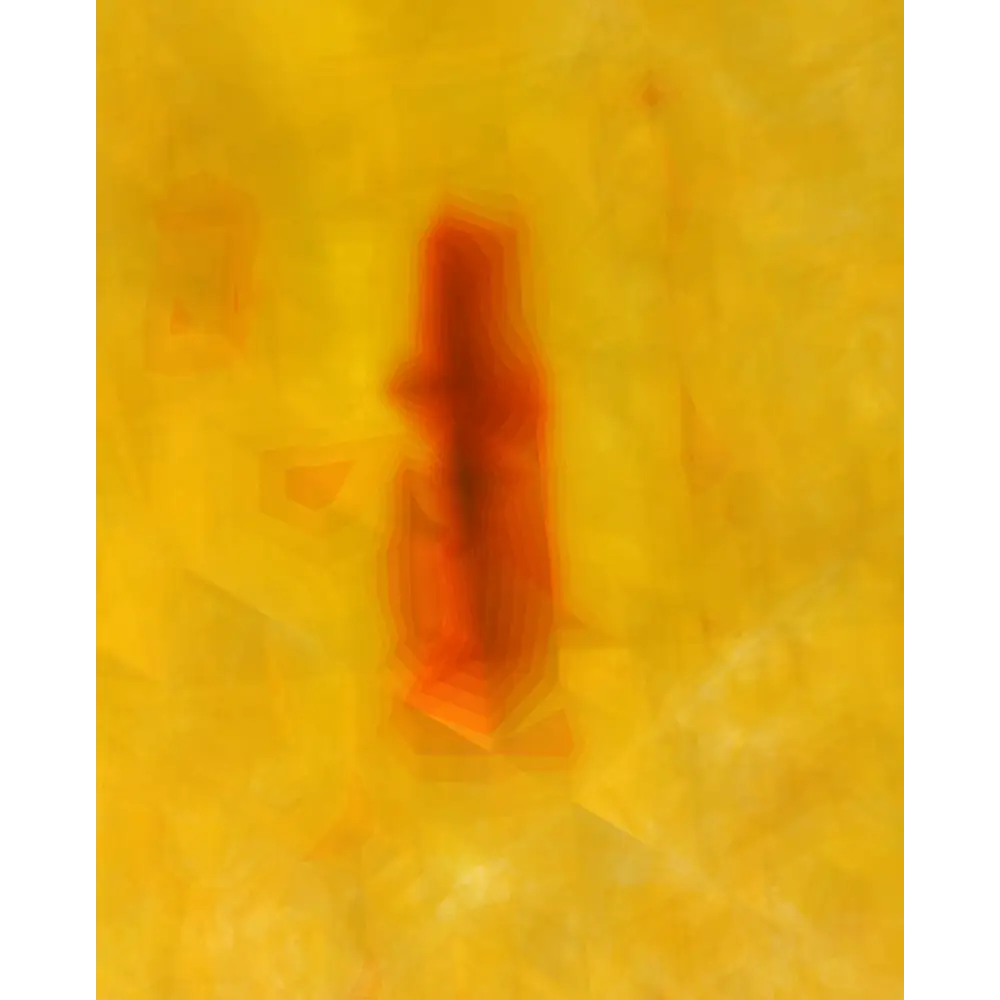

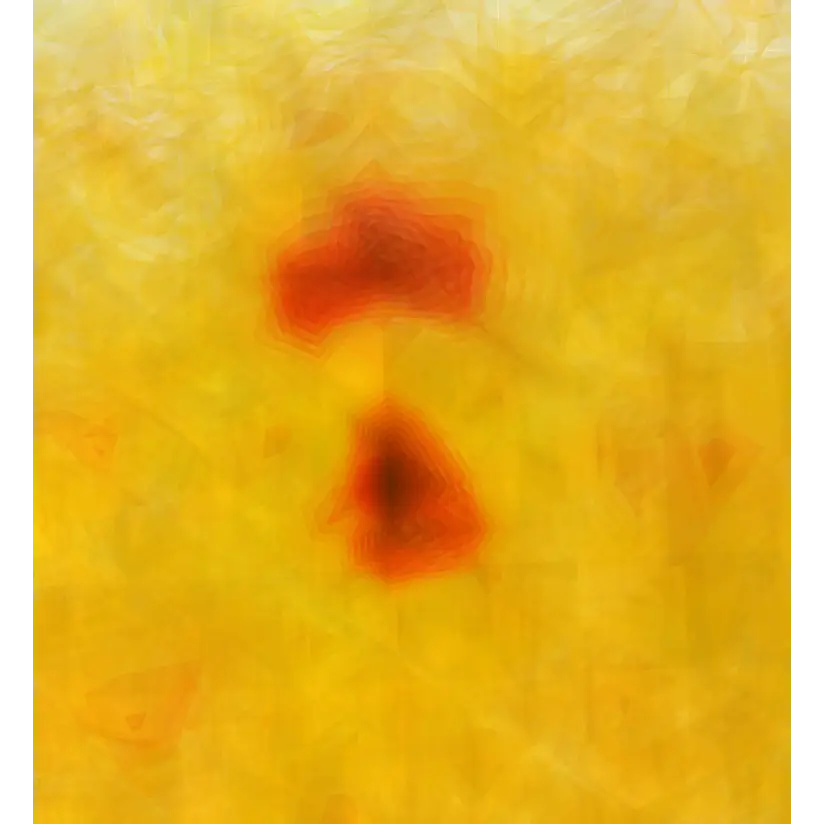

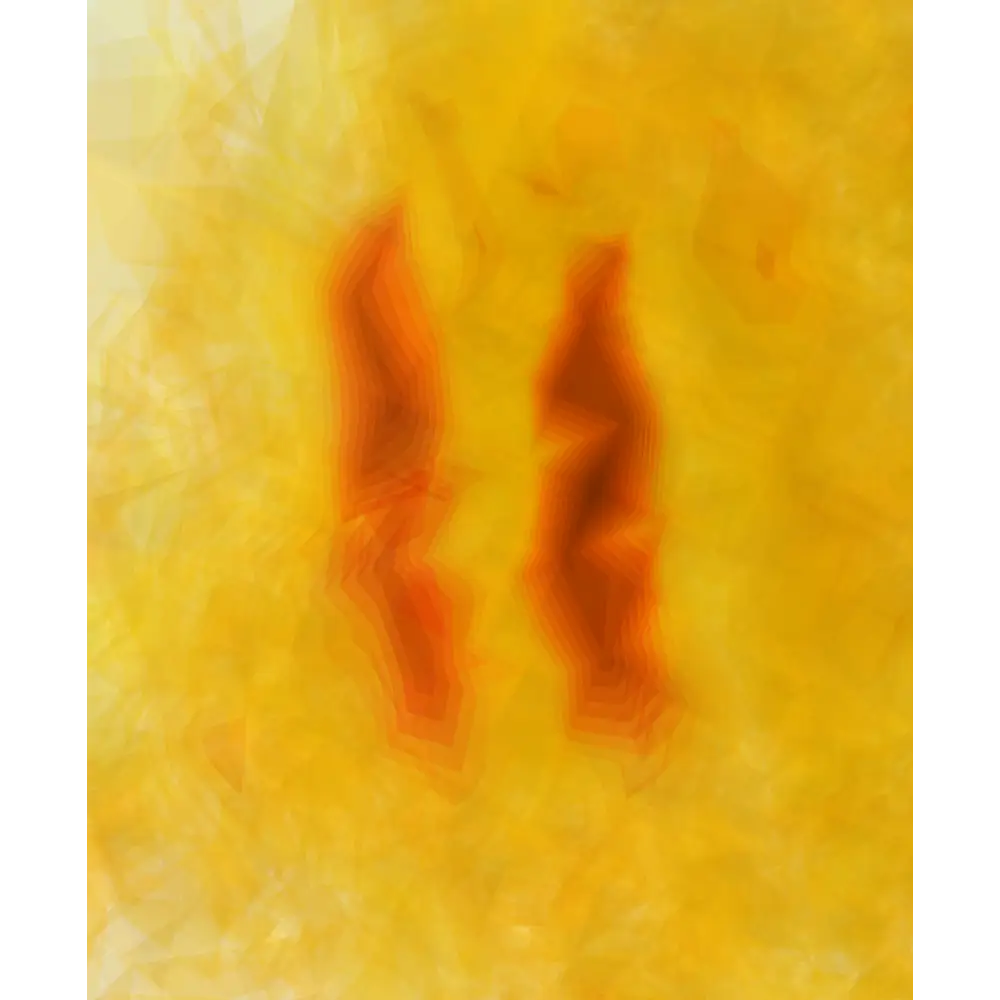

• Finally, a 16x16x16 3D scan of the phantom bottle, is shown in images 22, 23 and 24.

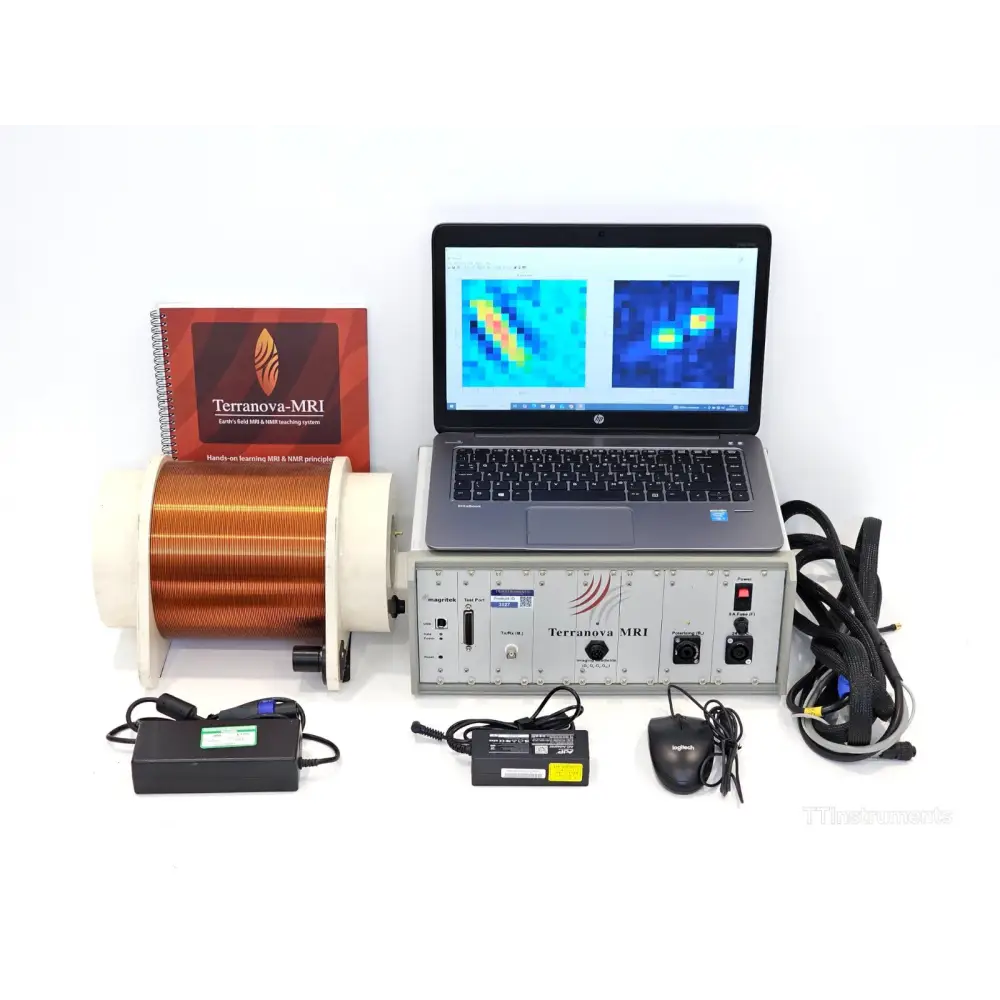

The Magritek Terranova-MRI is the ideal instrument for helping students to grasp the fundamentals of NMR and MRI. Using the earth's magnetic field it avoids heavy and costly magnets, yet provides excellent results.
