Condition: For parts or not working

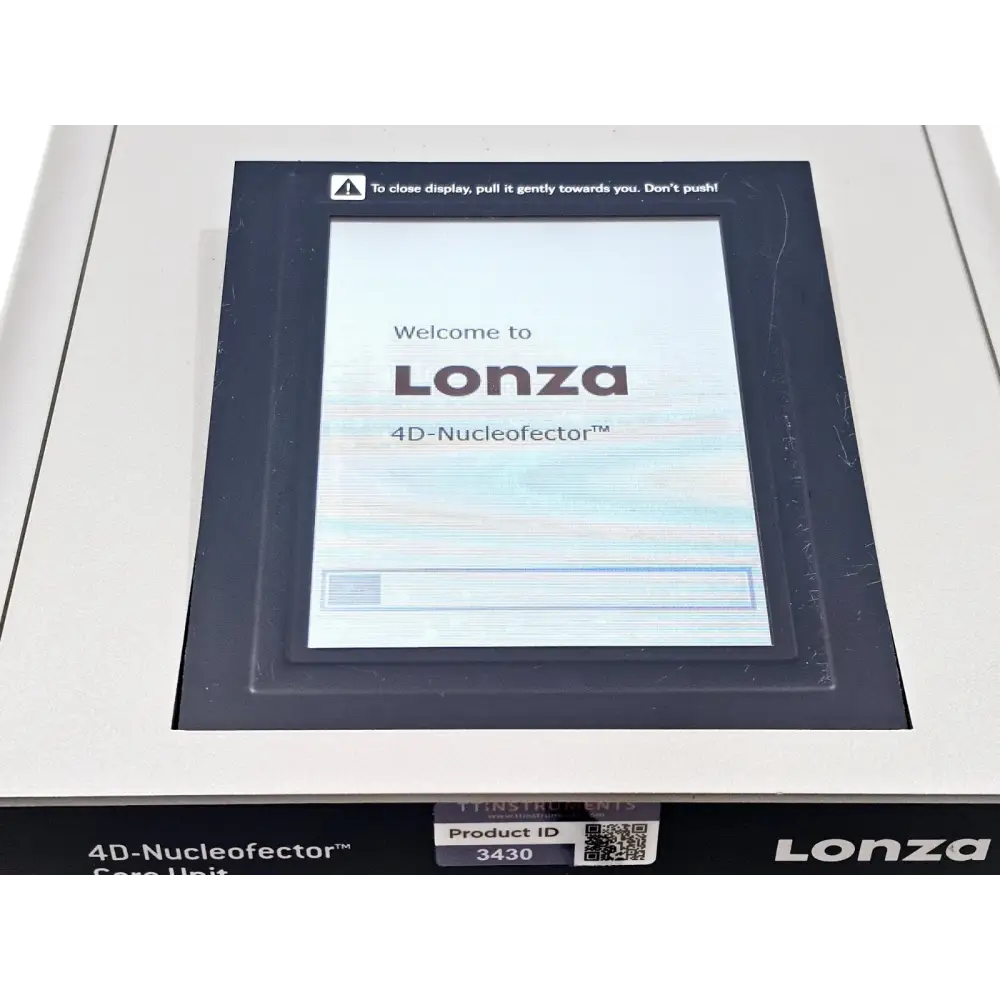

This Lonza 4D-Nucleofector Core and X Unit combination is sold for parts or repair. The system does not boot correctly and is non-functional in its current state, making it suitable for technicians, engineers, or laboratories seeking a source of spare components or a repair project.

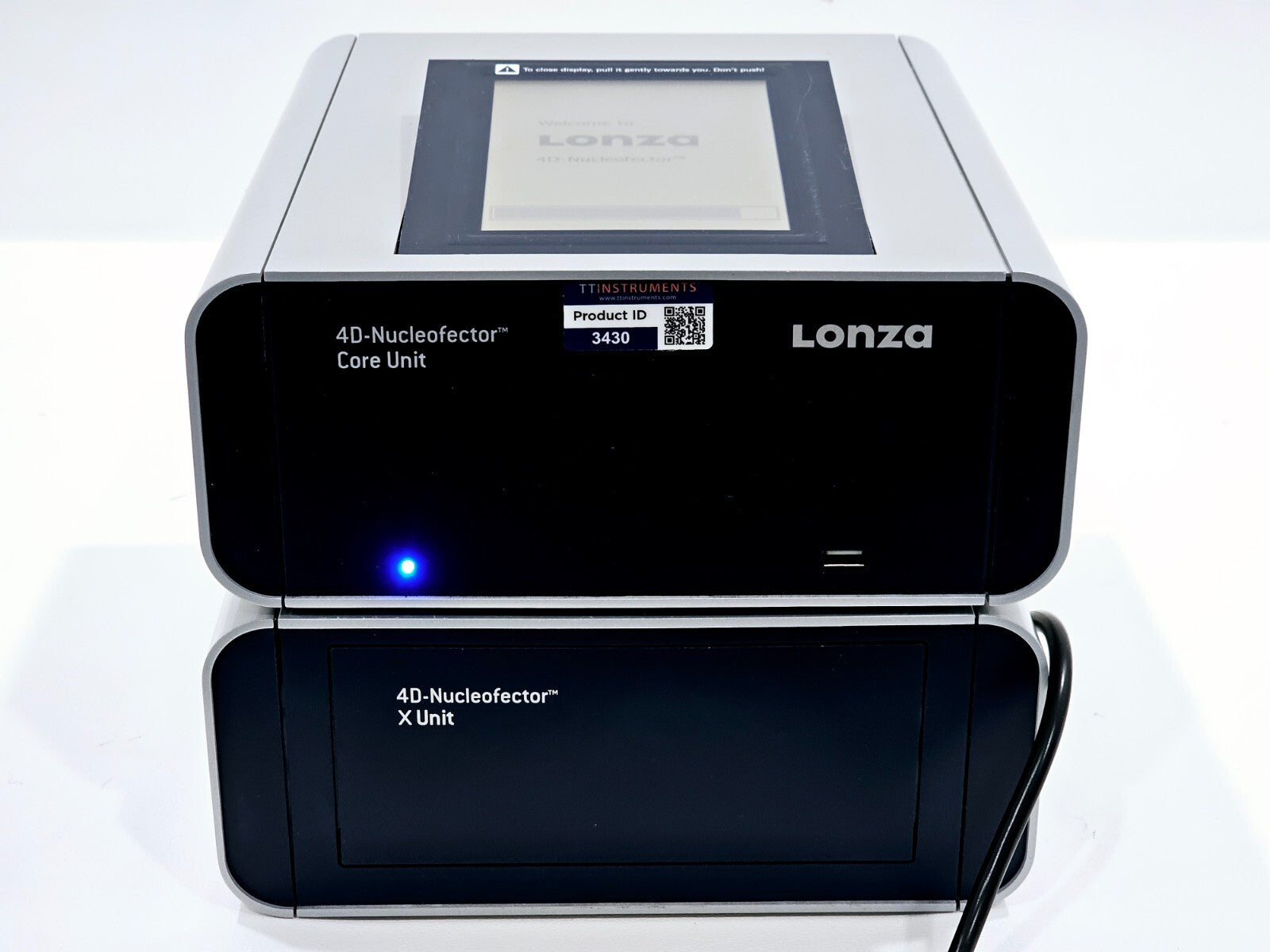

Included items (as described):

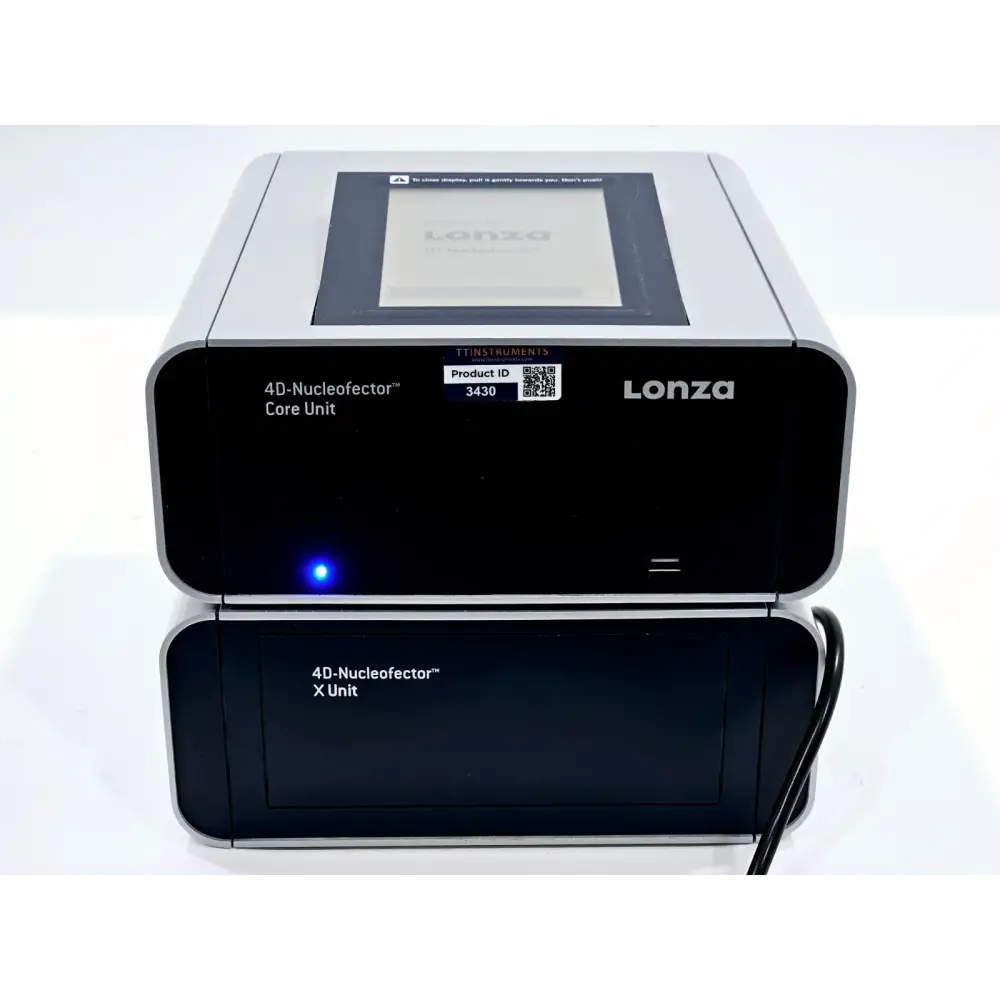

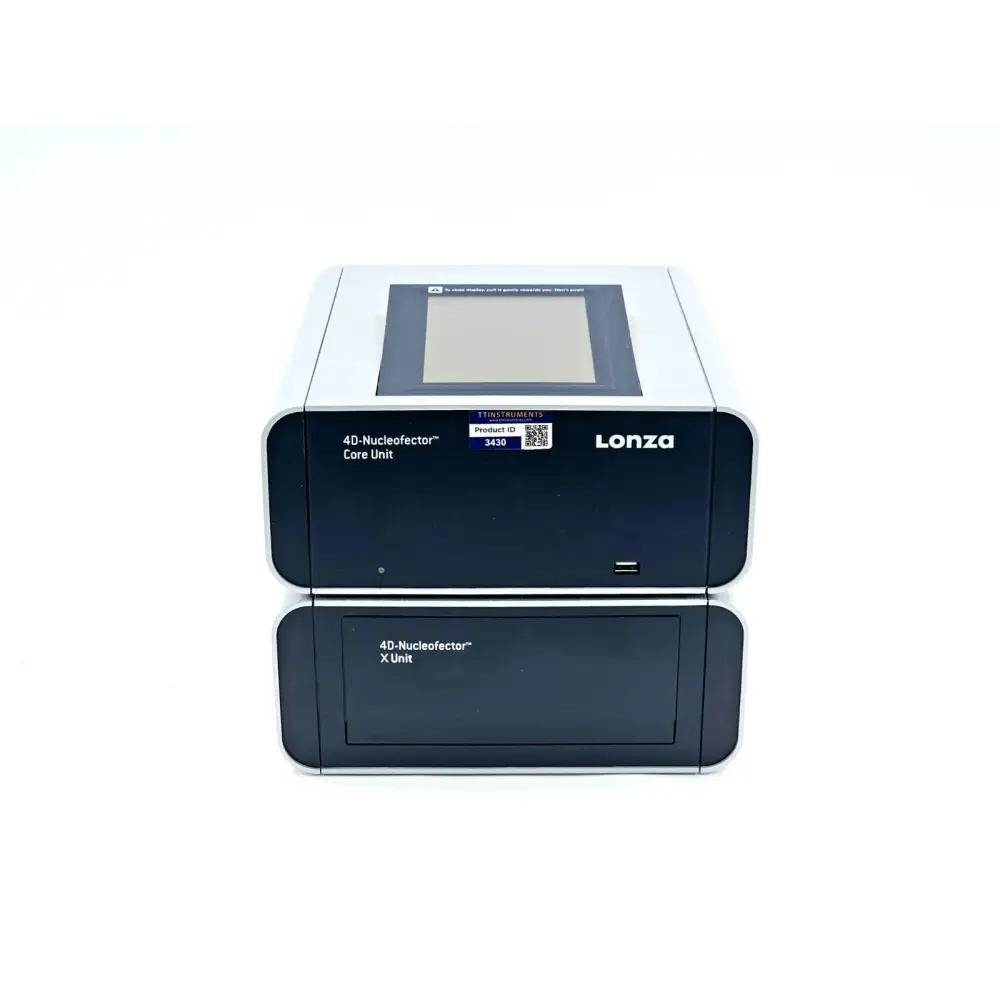

• 4D-Nucleofector Core Unit
• 4D-Nucleofector X Unit

The Lonza 4D-Nucleofector System is a modular, electroporation-based transfection platform designed for efficient introduction of nucleic acids — including plasmid DNA, siRNA, and mRNA — into a broad range of cell types, including hard-to-transfect primary cells, stem cells, and suspension cell lines. The system is intended for research use only.

The Core Unit serves as the central controller of the 4D-Nucleofector System, managing all connected functional modules via the Lonza proprietary interface. The X Unit is a functional module that supports Nucleofection of various cell numbers in multiple formats.

Key Features:
- Modular architecture: Core Unit connects to X, Y, LV, and 96-well functional units
- 5.7-inch foldable touchscreen display for intuitive experiment control
- Touchscreen adjustable to multiple angles (0°, 30°, 45°, 60°) for ergonomic access
- PC Editor software for experiment preparation and USB transfer to device
- Supports over 325 Lonza-optimised protocols for cell lines and primary cells
- USB port for data transfer, firmware updates, and protocol loading
- X Unit compatible with all Core Unit versions (AAF-1001B, AAF-1002B, AAF-1003B)
- Capable of 16–32 reactions per minute using 16-well Nucleocuvette Strips with X Unit

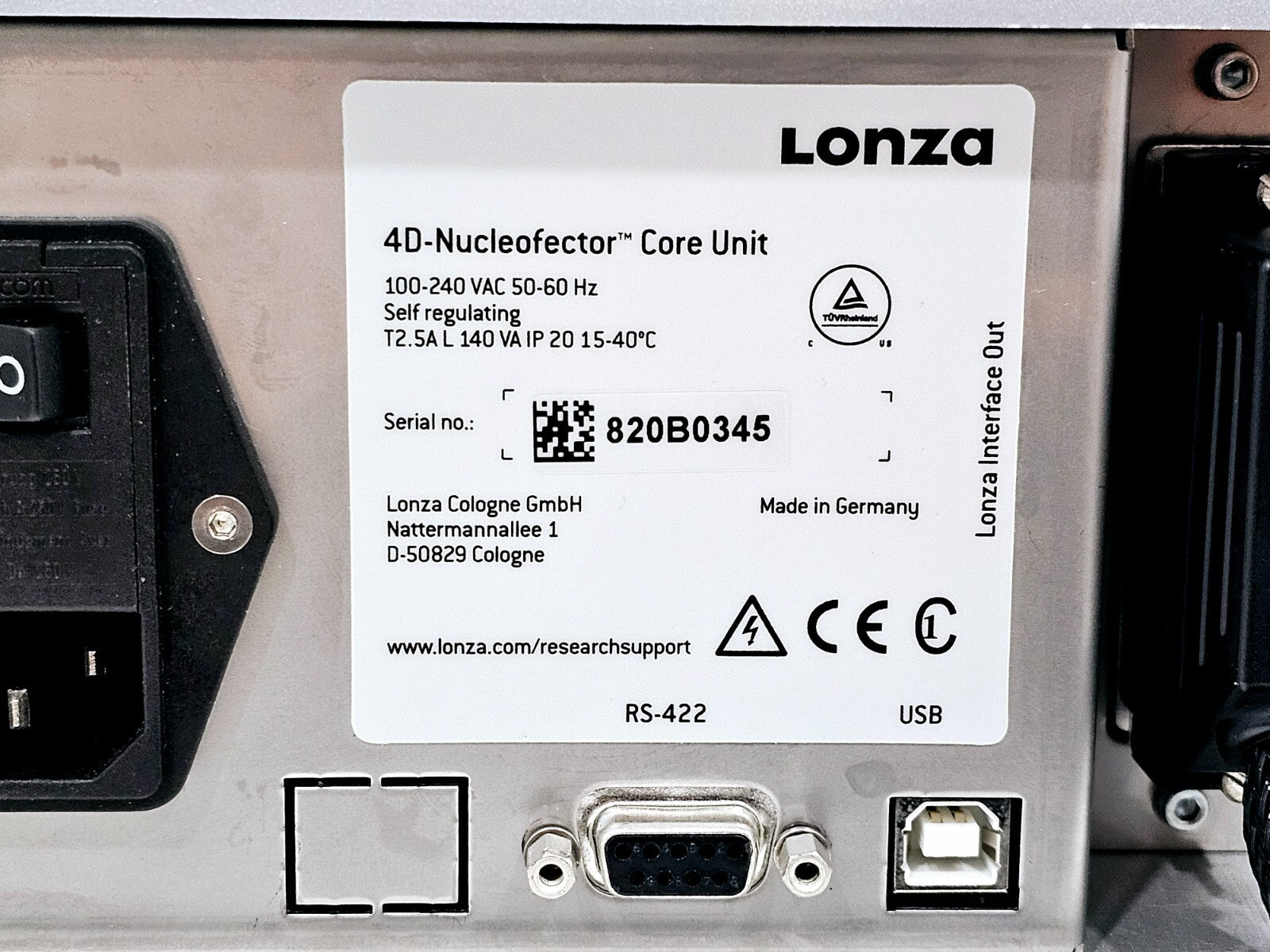

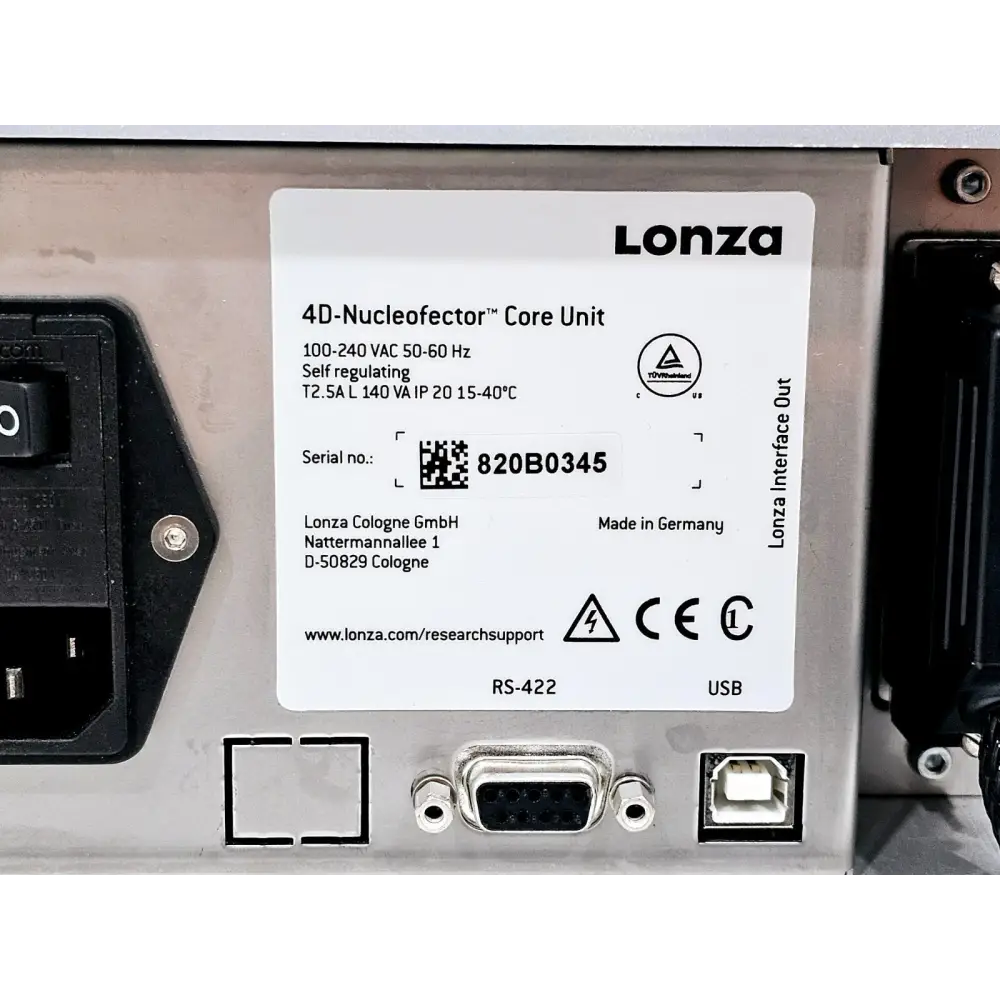

Technical Specifications — Core Unit:
Dimensions (W × H × D): 24.5 × 14.7 × 28 cm / 9.7 × 5.8 × 11.0 in
Power Supply: 100–240 VAC, 50/60 Hz
Power Consumption: 140 VA

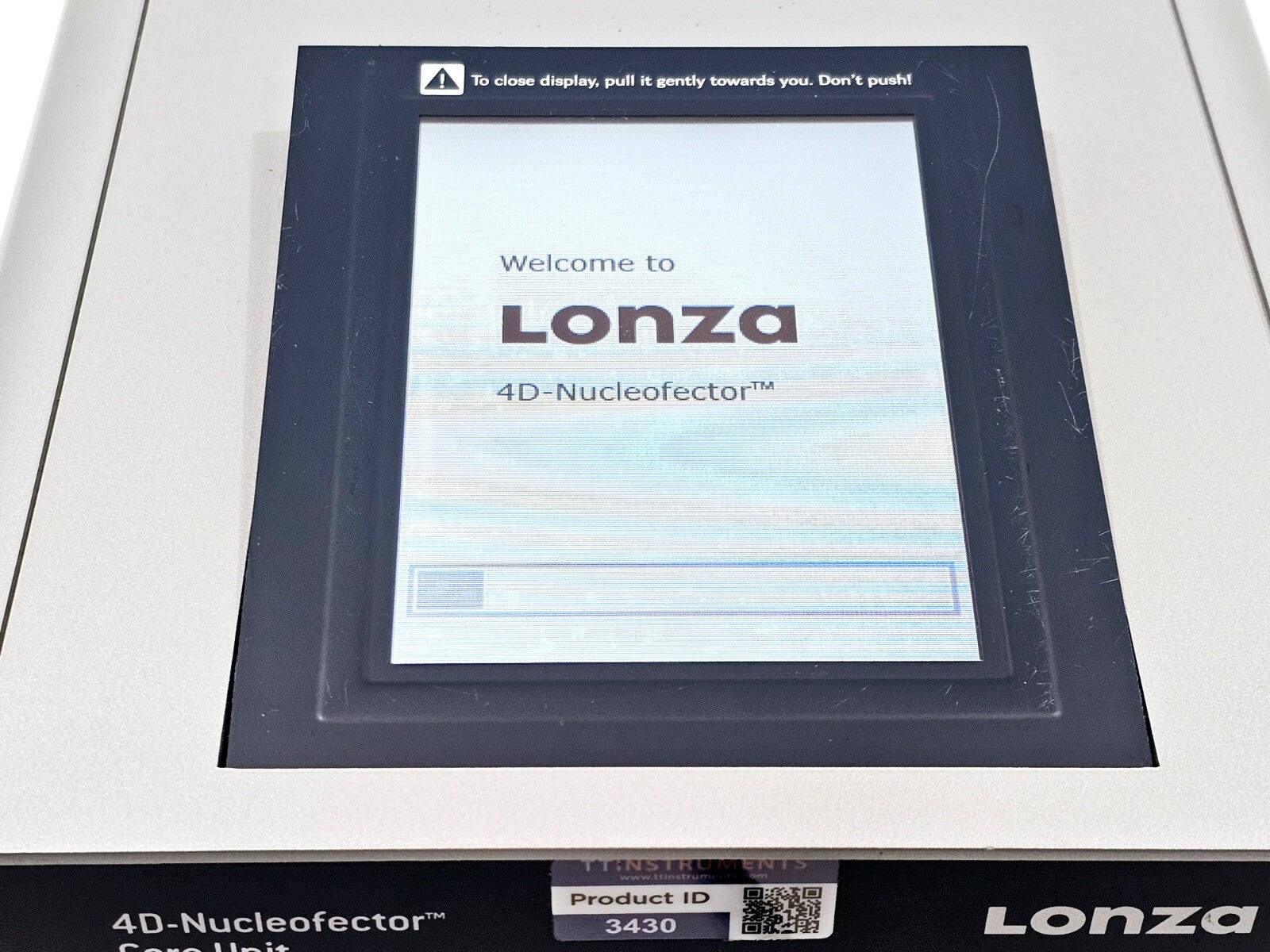

Display: 5.7-inch foldable touchscreen

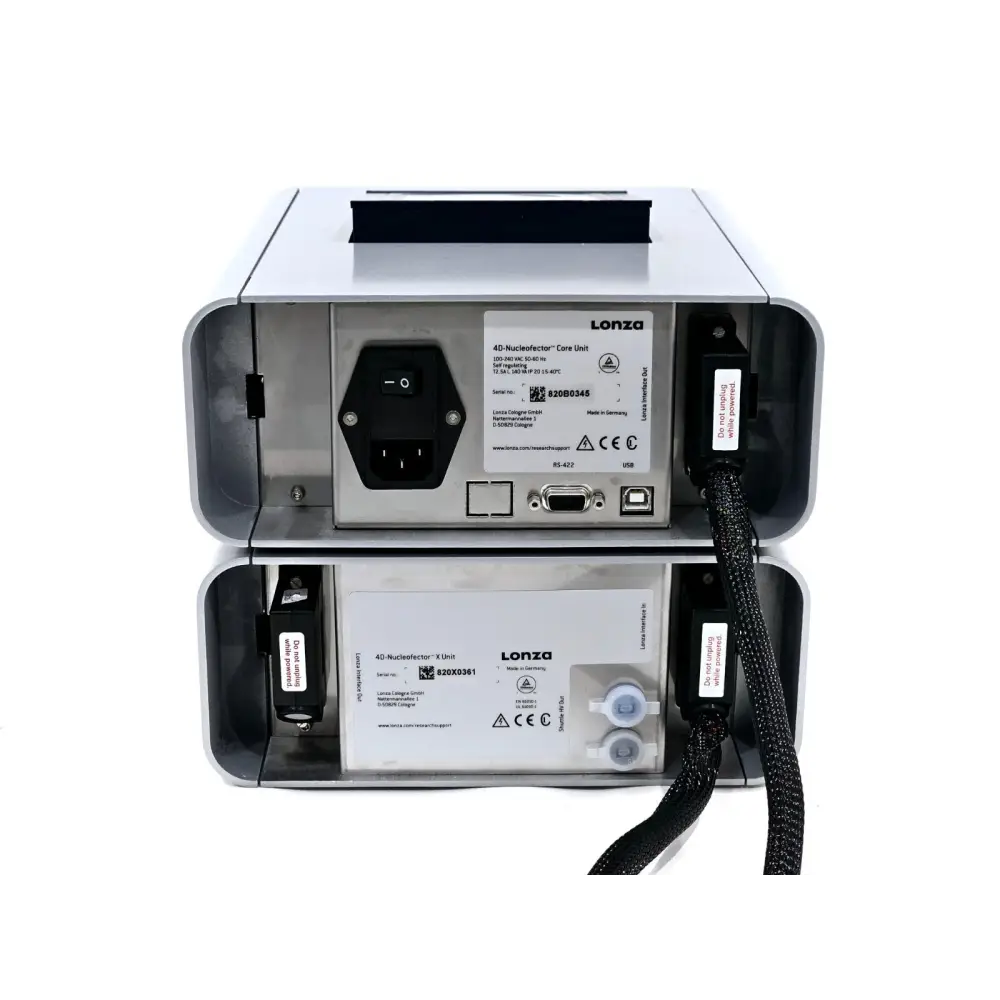

Interface: RS422 Lonza interface for module connection
CE Listed: Yes
Manufactured in: Germany

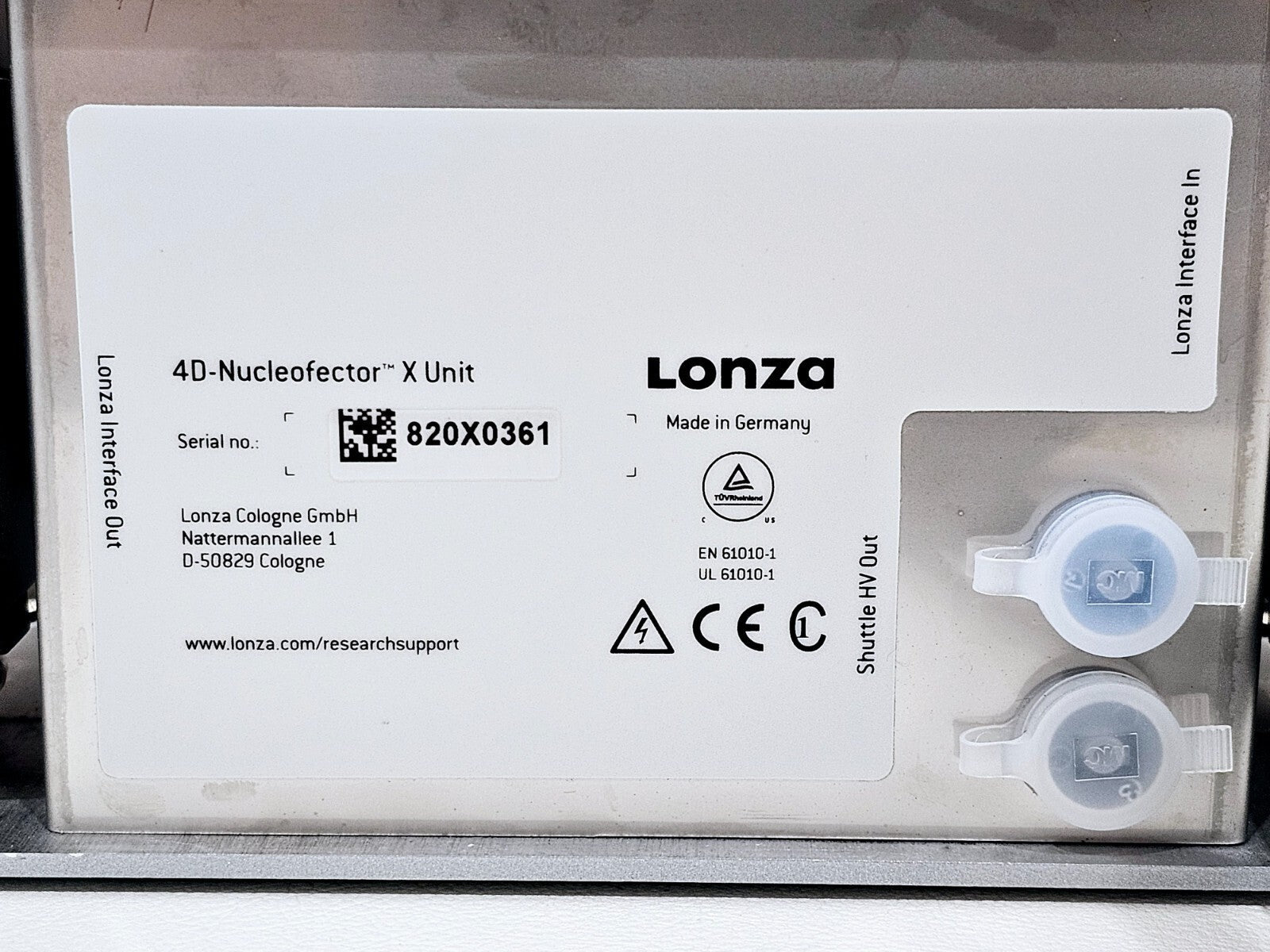

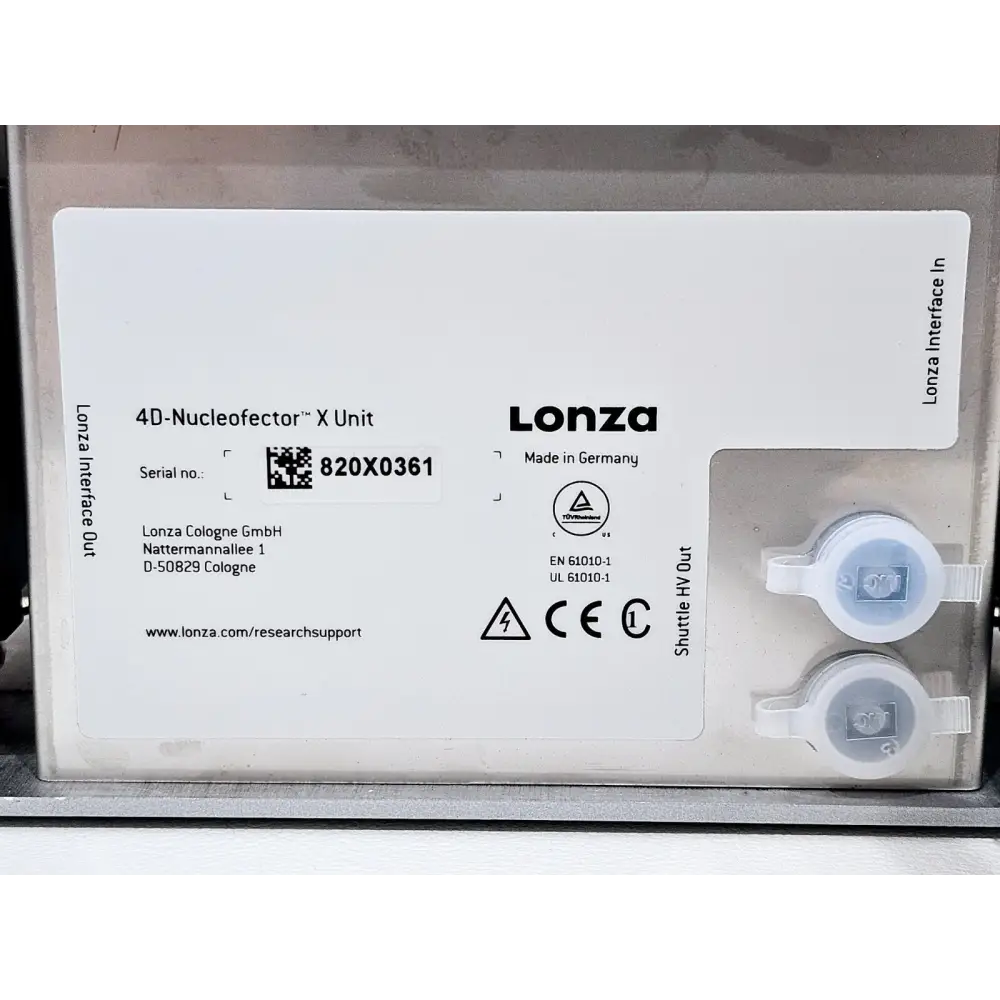

Technical Specifications — X Unit:
Dimensions (W × H × D): 24.5 × 10.5 × 28 cm / 9.7 × 4.1 × 11.0 in
Vessel Compatibility: 16-well 20 µL Nucleocuvette Strips; 100 µL single Nucleocuvette Vessels
Cell Number Range: 2×10⁴ to 2×10⁷ cells
Compatible Core Units: AAF-1001B, AAF-1002B, AAF-1003B

Typical Applications:
- Gene expression studies
- RNA interference (siRNA/shRNA)
- CRISPR/Cas9 genome editing
- Protein production
- Functional genomics research
- Transfection of primary cells, stem cells, and difficult-to-transfect cell lines

Lonza 4D-Nucleofector System Manual (First Generation) — hosted by LabMal: Download PDF

Lonza 4D-Nucleofector System Manual — hosted by Harvard Medical School: Download PDF
