Condition: Used

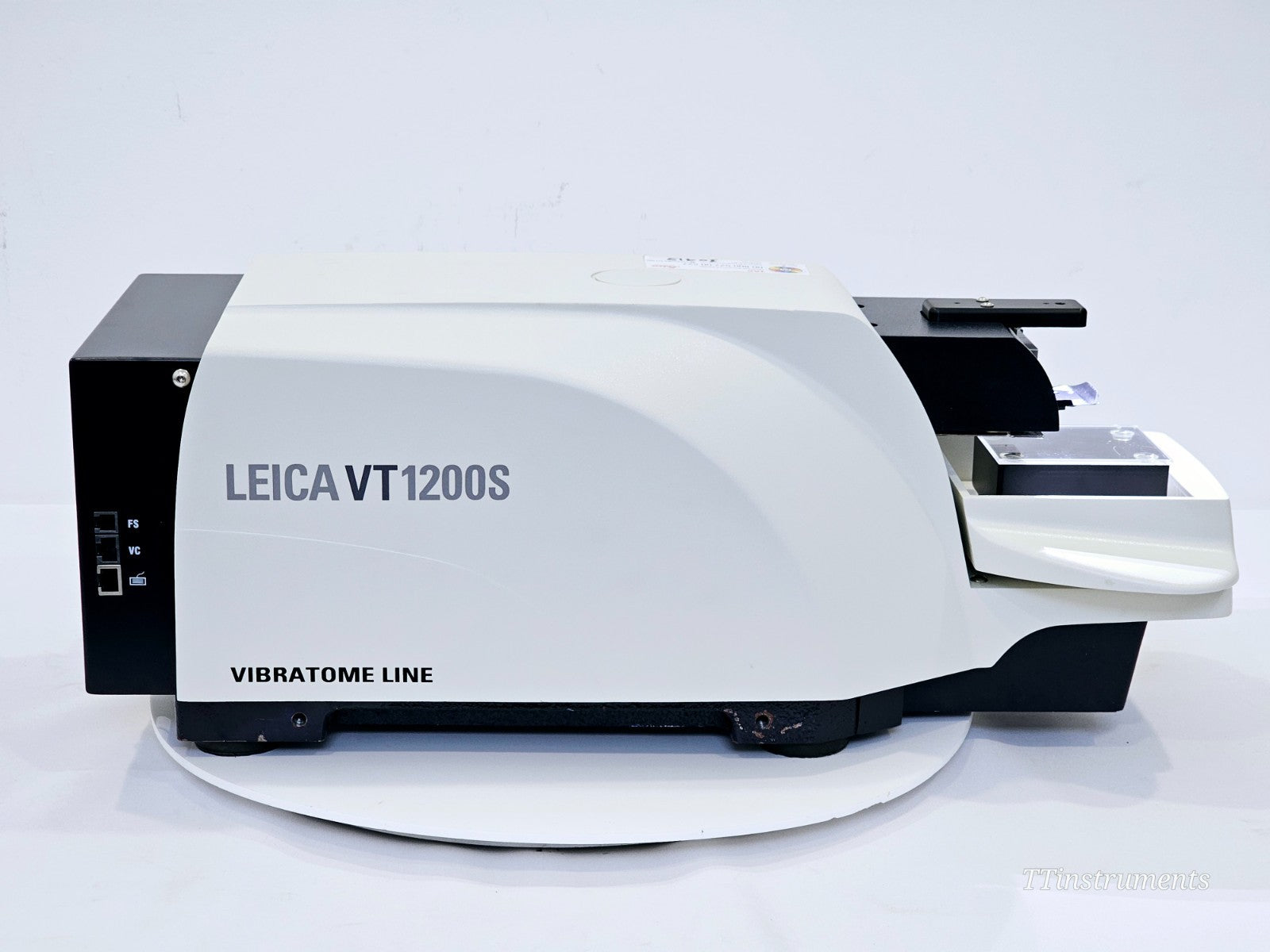

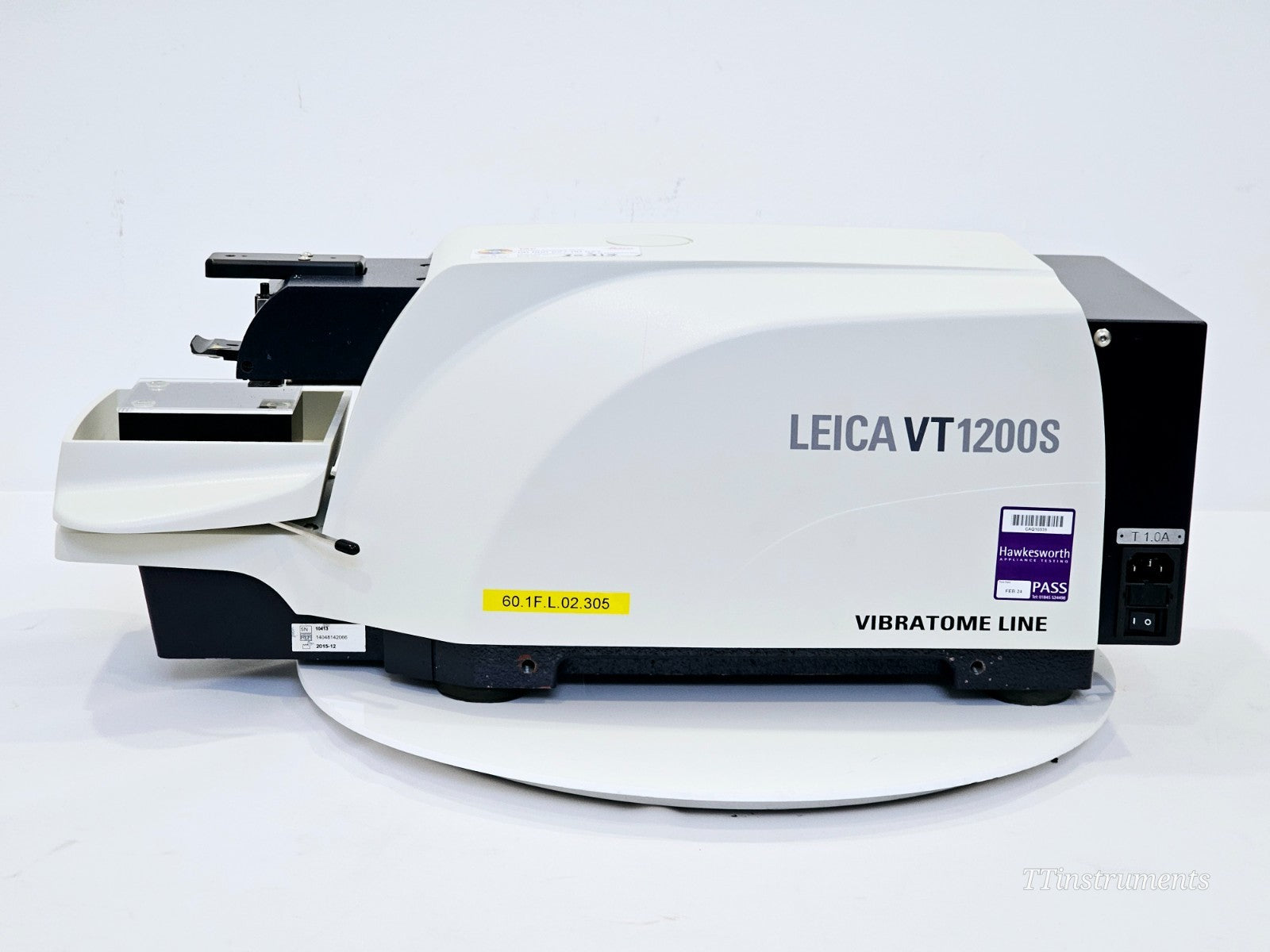

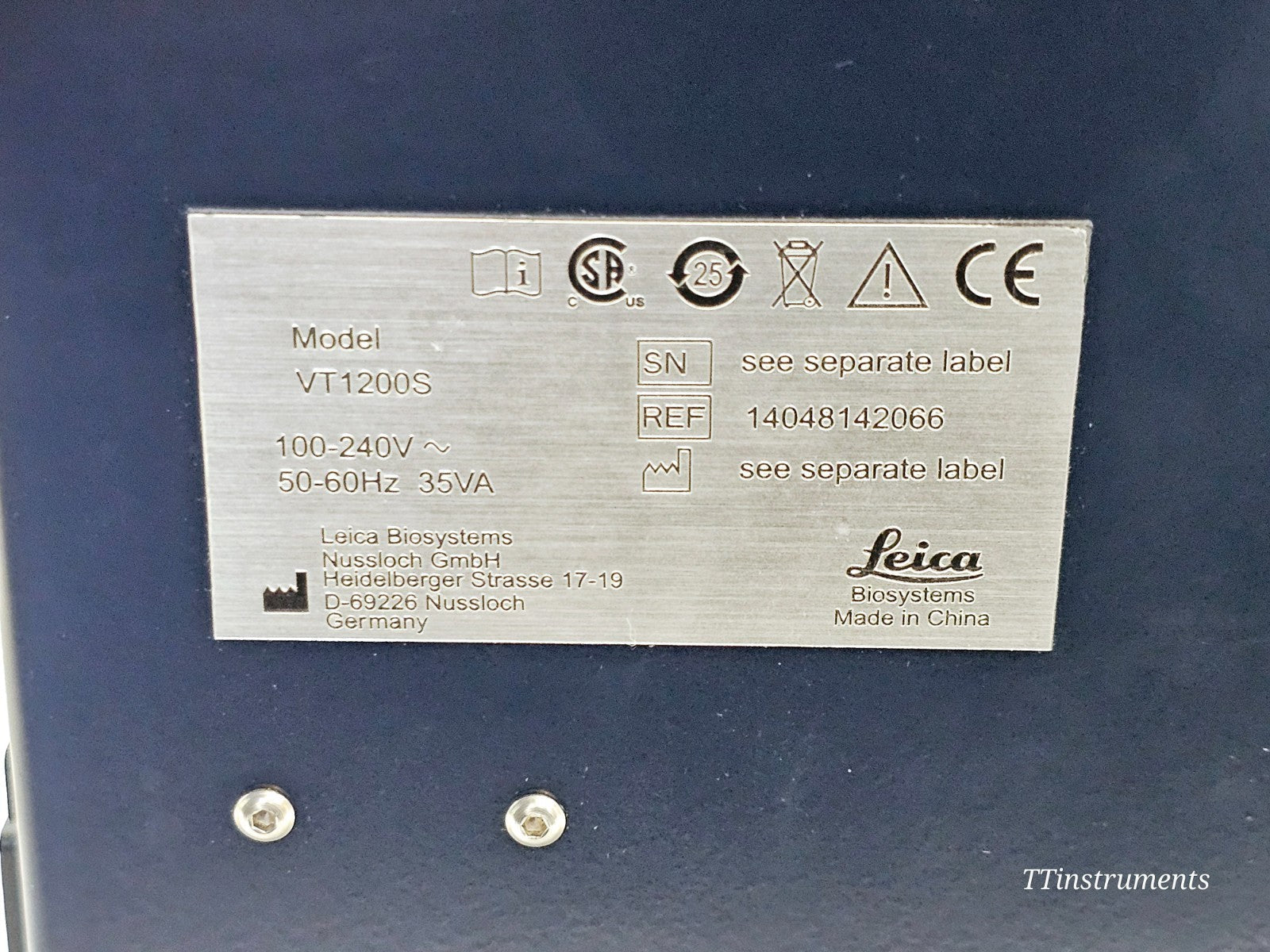

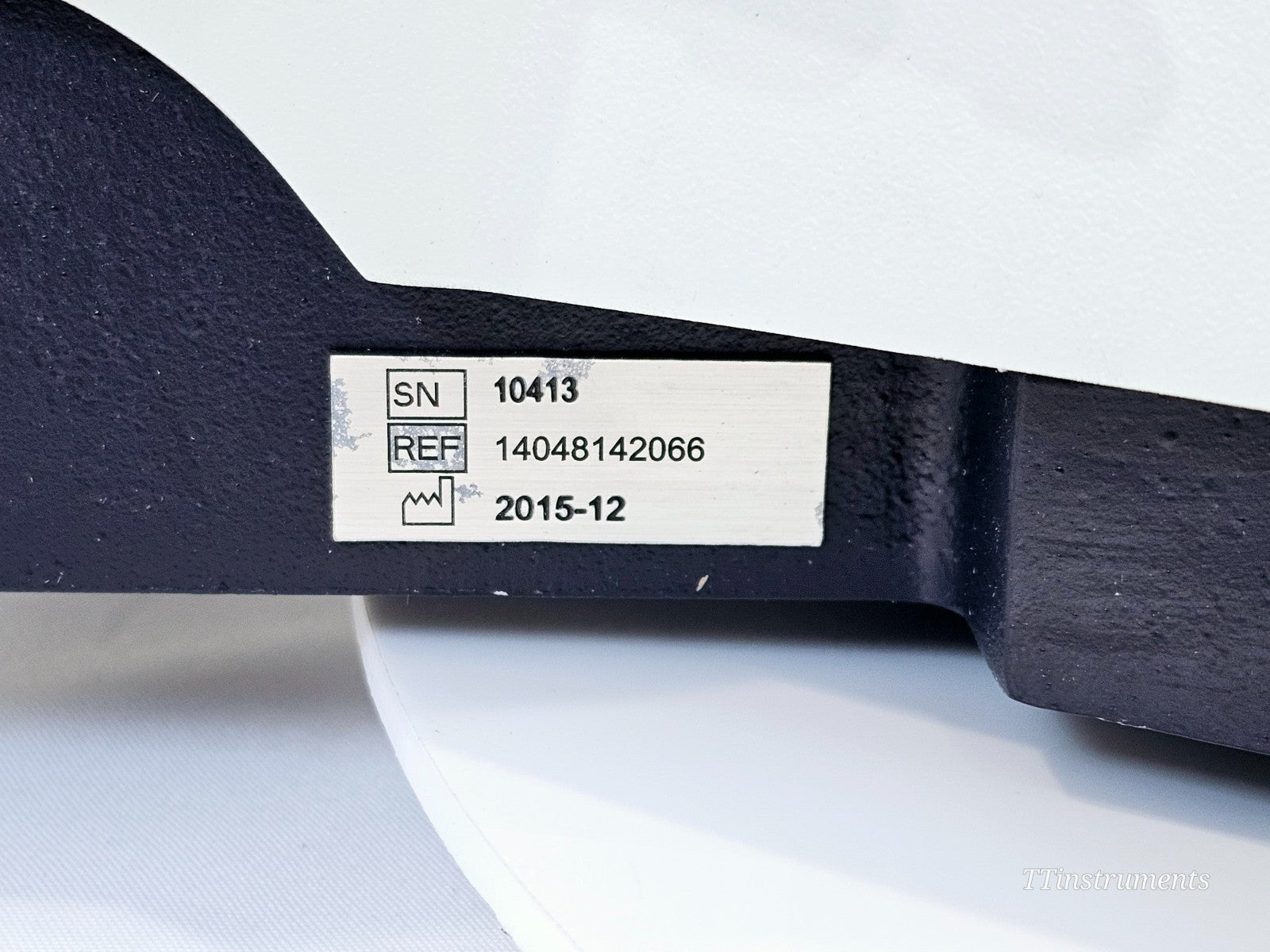

This Leica VT1200S Vibratome (REF 14048142066, SN 10413) was manufactured in December 2015. The unit has been PAT tested (Hawkesworth Appliance Testing — PASS) and carries the asset label 60.1F.L.02.305. The instrument is in used condition and presented in good cosmetic order with the external control panel and buffer/ice tray assembly fitted.

Included in the sale:
• Leica VT1200S main vibratome unit

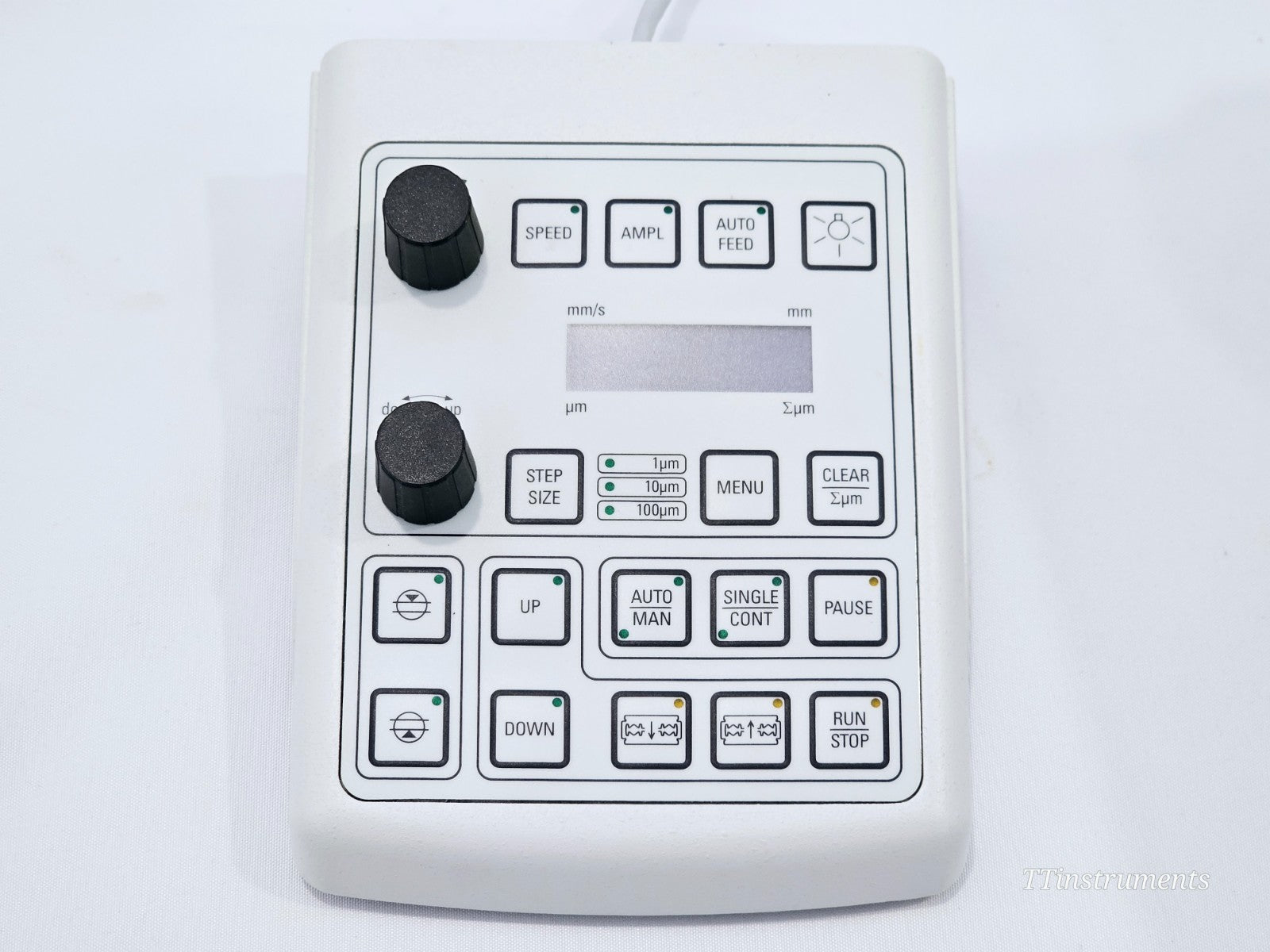

• External control panel (with dual rotary knobs and backlit LCD display)

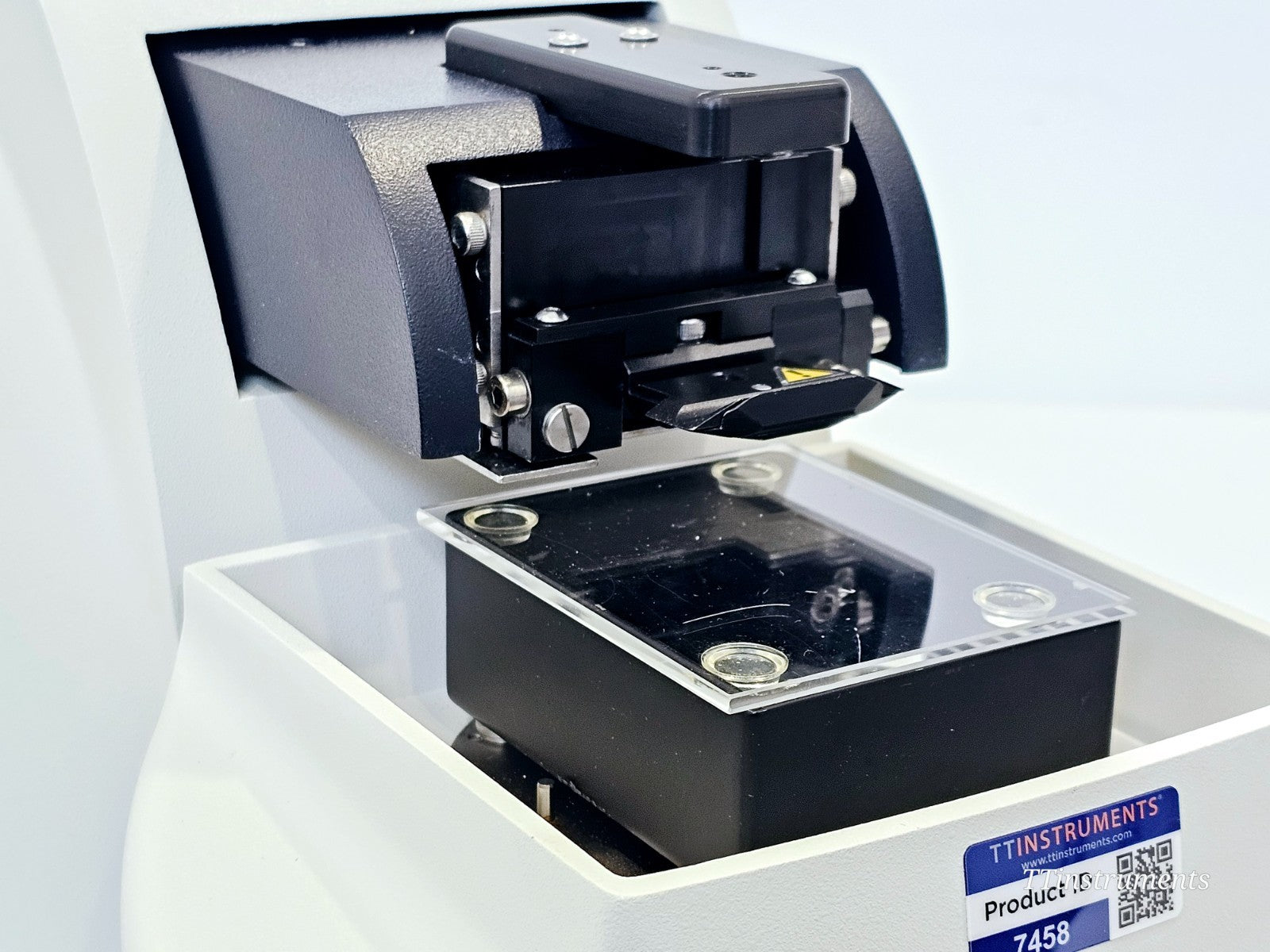

• Buffer tray with clear acrylic lid fitted to specimen stage
• Blade holder assembly (mounted and visible)
• Mains power cable

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Leica VT1200 S is a fully automated vibrating blade microtome (vibratome) from Leica Biosystems, designed to meet the highest sectioning demands for cutting fresh and fixed tissue in neuroscience, medicine, biology, and industry. It is recommended for multi-user laboratories where both semi-automated and fully automated sectioning functions are required. The fully automated mode offers automatic feeding, specimen retraction, and a programmable cutting window to minimise sectioning time. Settings can be stored for up to 8 individual users.

To achieve sections of the highest quality that retain viable cells on the section surface, the vertical deflection of the blade can be measured using the optional Leica Vibrocheck measurement device and minimised with the innovative blade holder design. The instrument features built-in LED illumination that provides comfortable, heat-free lighting during sectioning.

For Research Use Only. Not for use in diagnostic procedures.

Technical Specifications (Leica VT1200 S):
Cutting Frequency: 85 Hz (±10%)
Amplitude: 0–3 mm, adjustable in 0.05 mm increments
Cutting Speed: 0.01–1.5 mm/s (±10%)
Return Speed: 1.0–5 mm/s, in 0.5 mm/s increments (±10%)
Total Vertical Specimen Stroke: 20 mm (motorised)
Cutting Range (Cutting Window): 0.5–45 mm (adjustable)
Section Thickness Adjustment: Manual in 1 µm increments; automatic up to 1000 µm
Specimen Retraction: 0–100 µm (adjustable, can be deactivated)
Maximum Specimen Size (standard blade holder): 33 x 50 mm (L x W)
Specimen Orientation — Rotation: 360°
Specimen Plate Swivel: 0° to 10°
Power Supply: 100–240 V AC, 50–60 Hz, 35 VA
Instrument Weight (basic unit): approx. 56 kg
Manufacturer: Leica Biosystems Nussloch GmbH, Heidelberger Strasse 17–19, D-69226 Nussloch, Germany

Leica VT1200 / VT1200S Instructions for Use — latest edition (v1.8 Rev L, English): Download PDF

Leica VT1200 / VT1200S Instructions for Use — v1.7 Rev J (English, 2018): Download PDF

Leica Vibratome Series product brochure — English (95.8539 Rev F): Download PDF

Leica VT1200 / VT1200S Instructions for Use — v1.5 Rev H (English, University of Basel mirror copy): Download PDF
