Condition: Seller refurbished

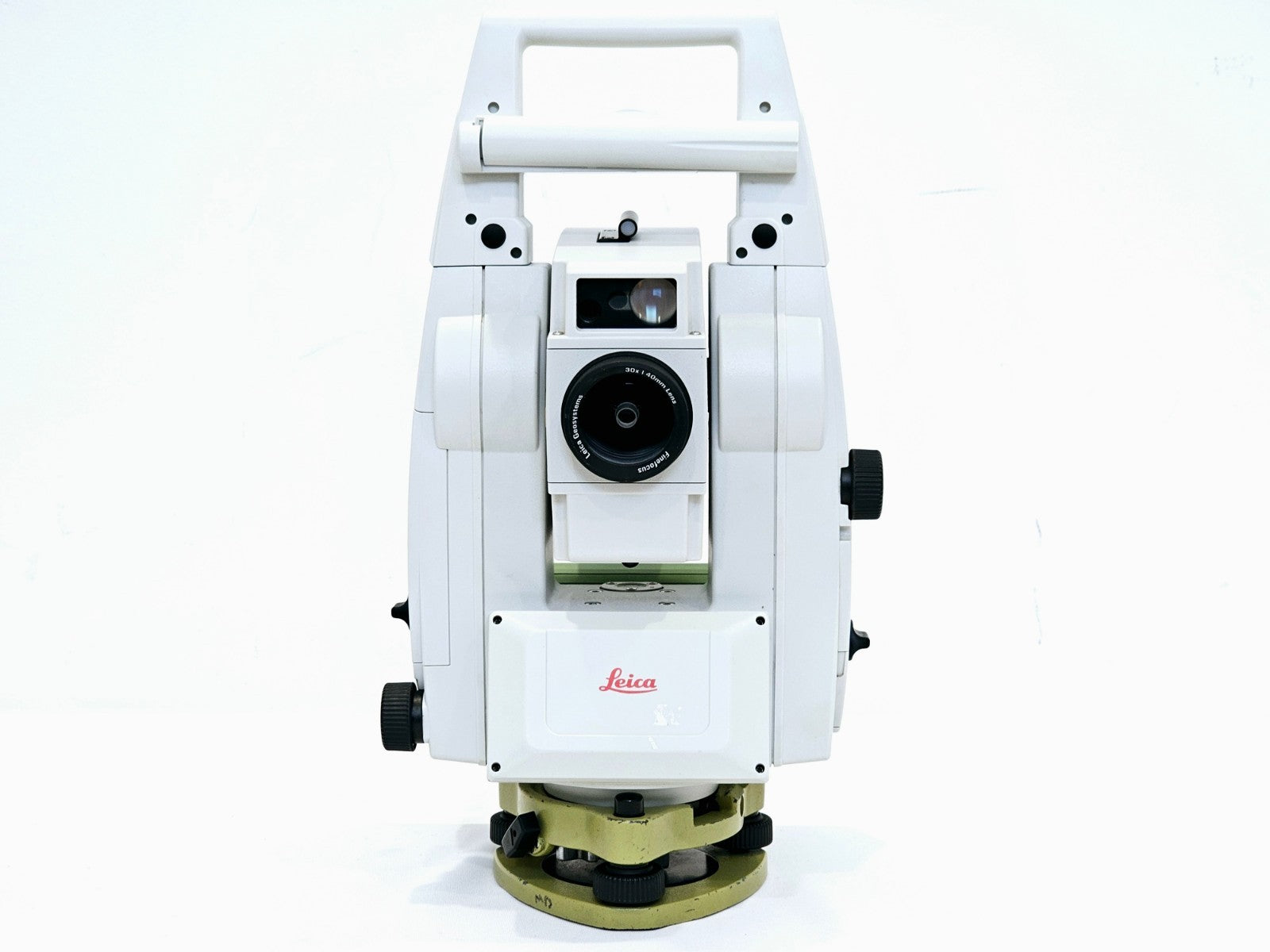

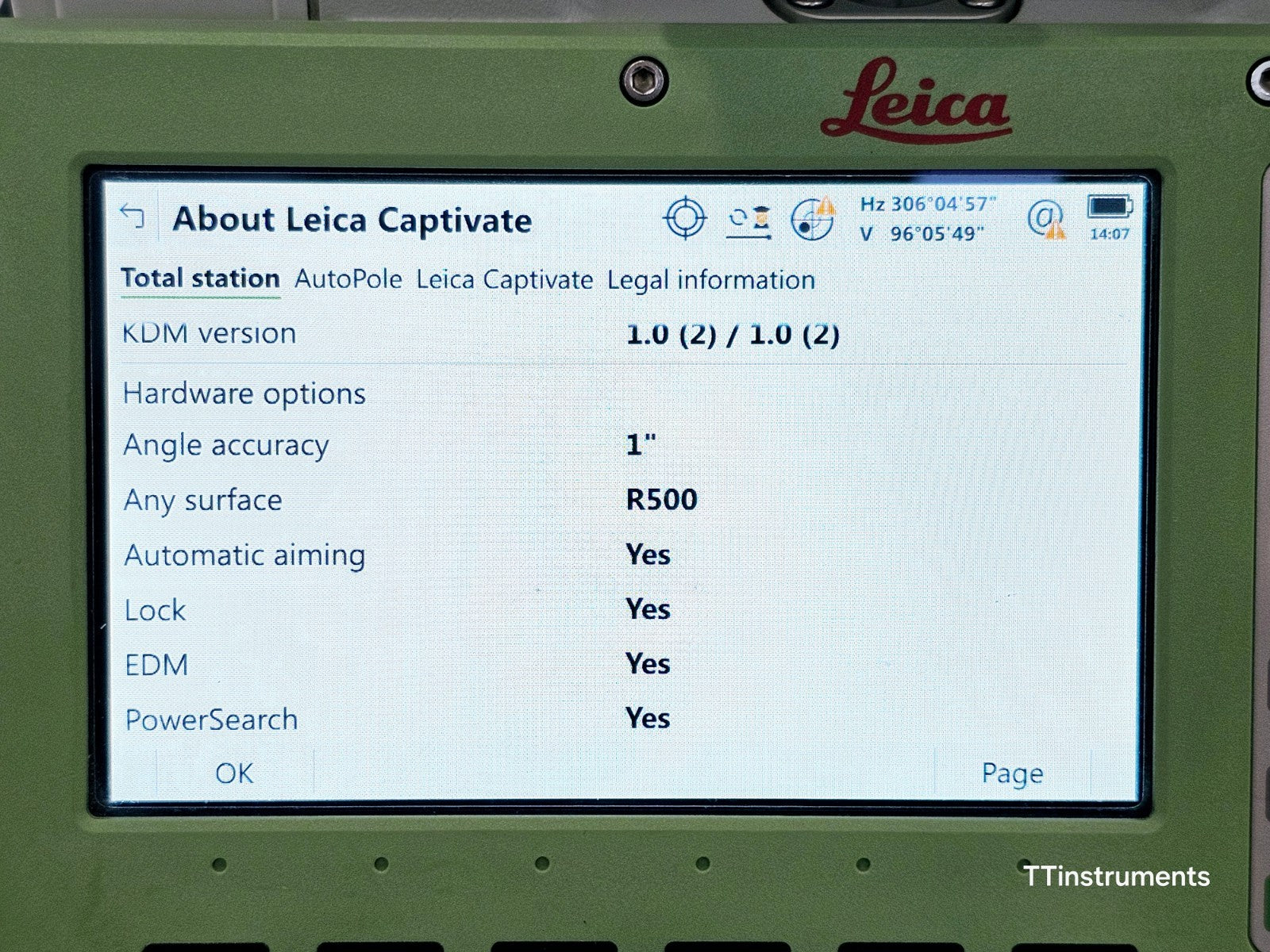

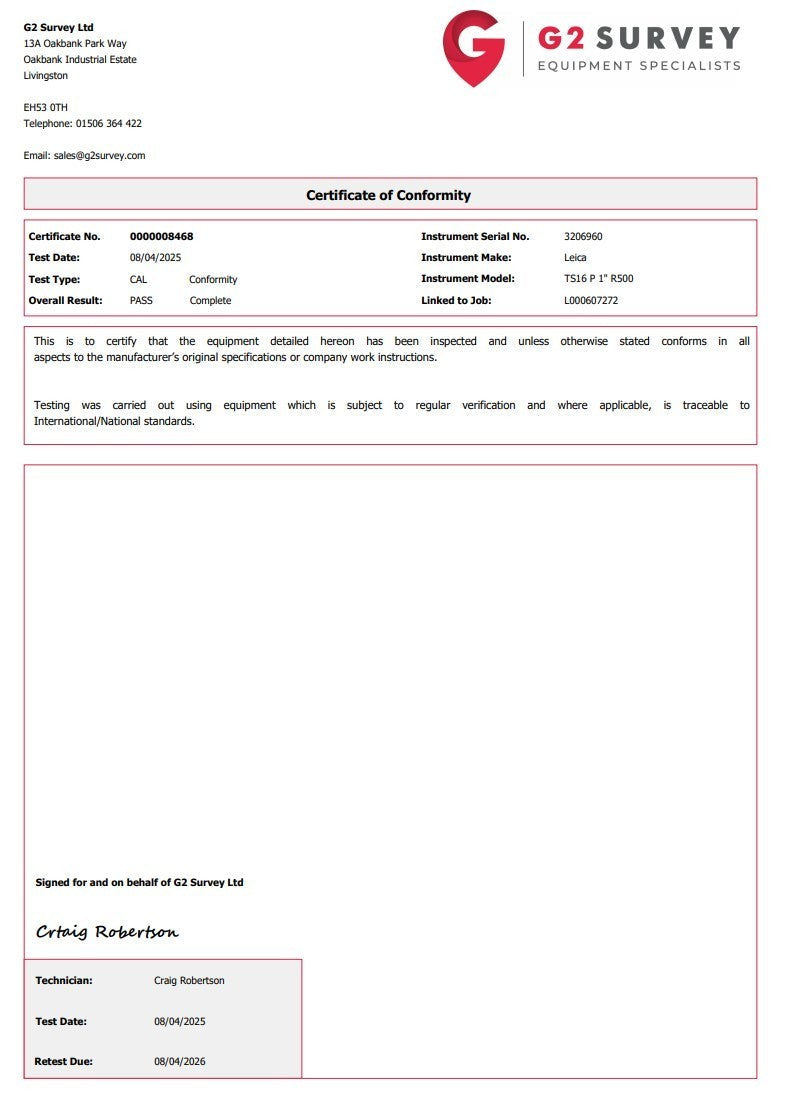

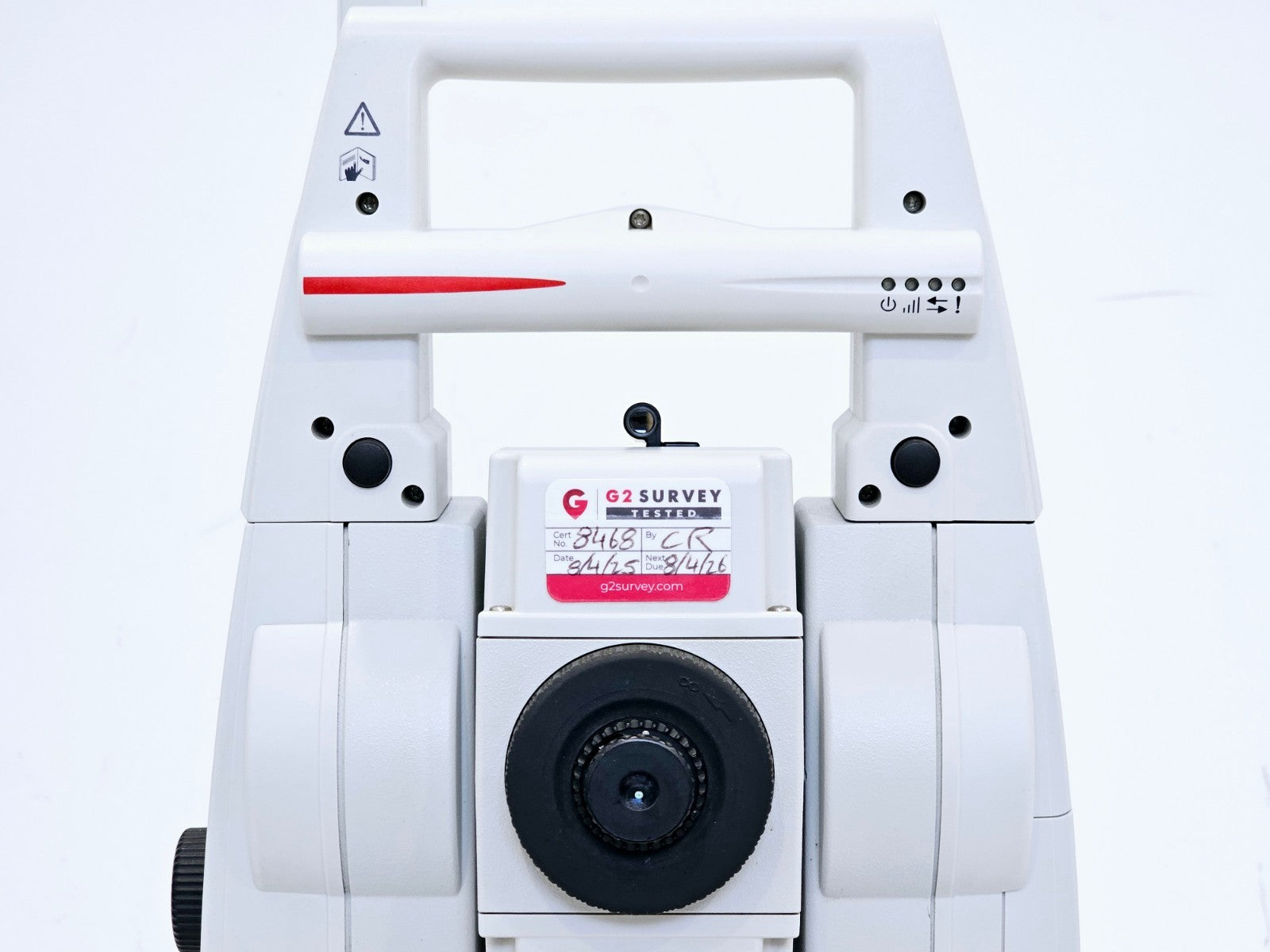

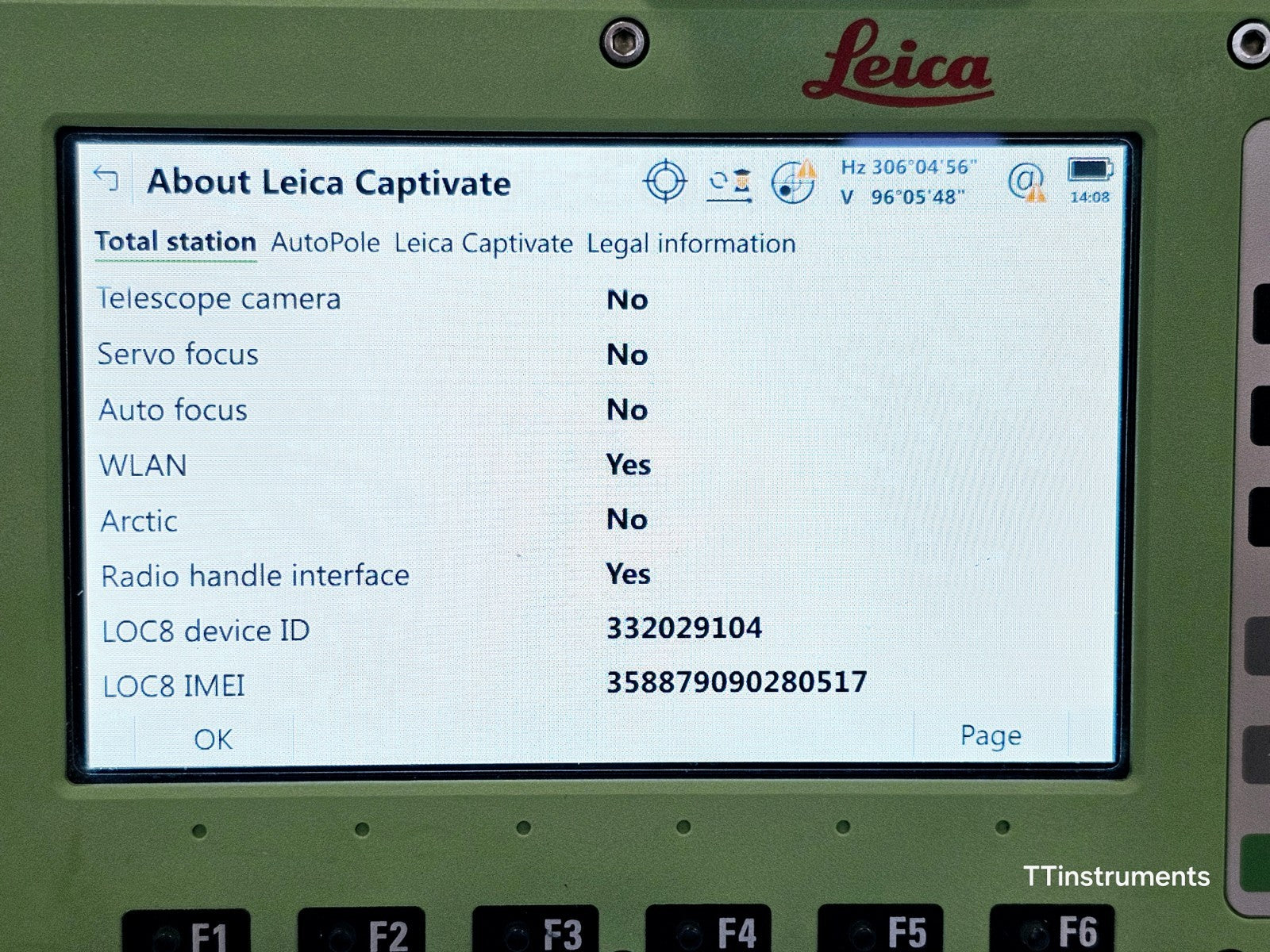

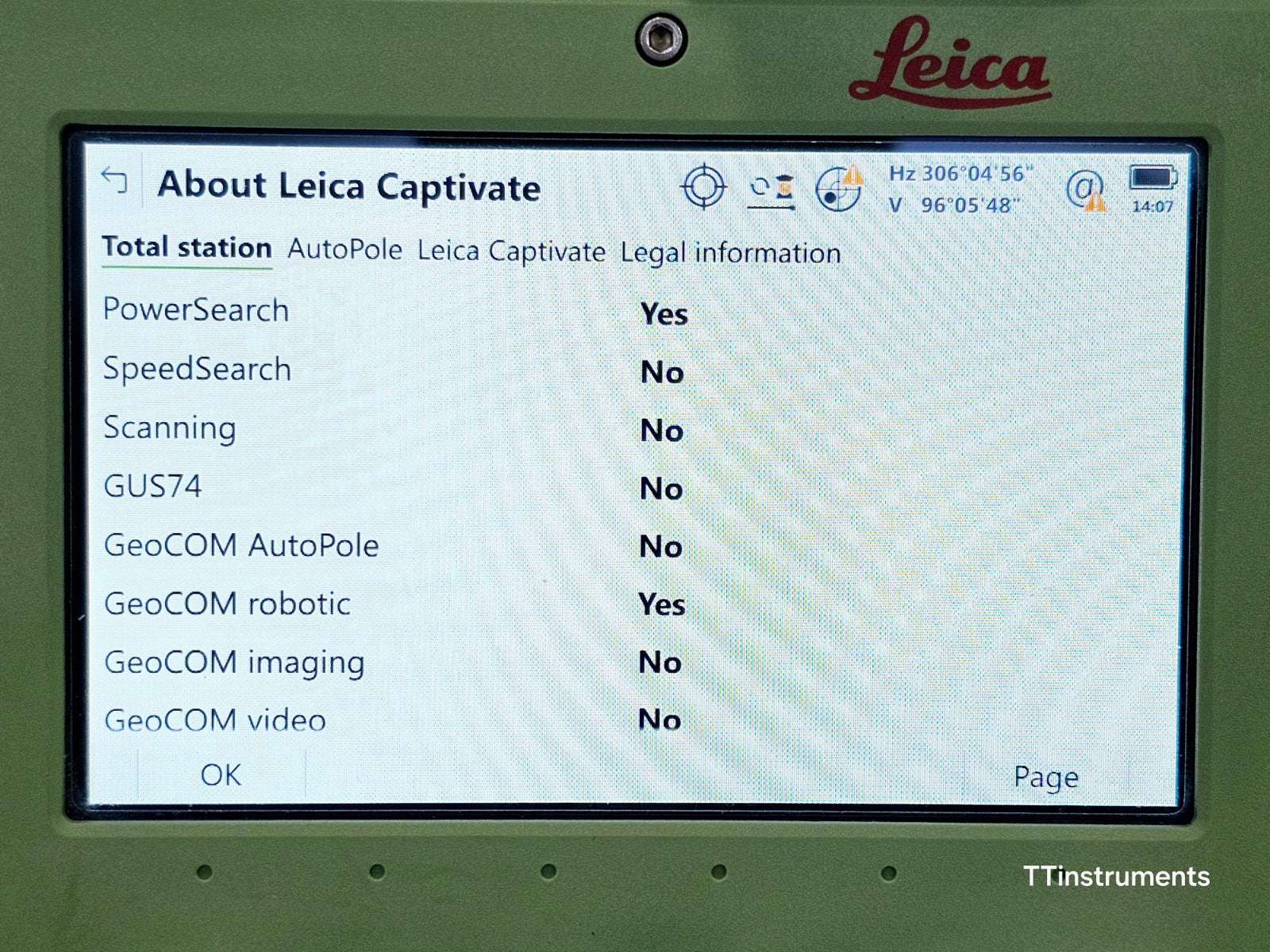

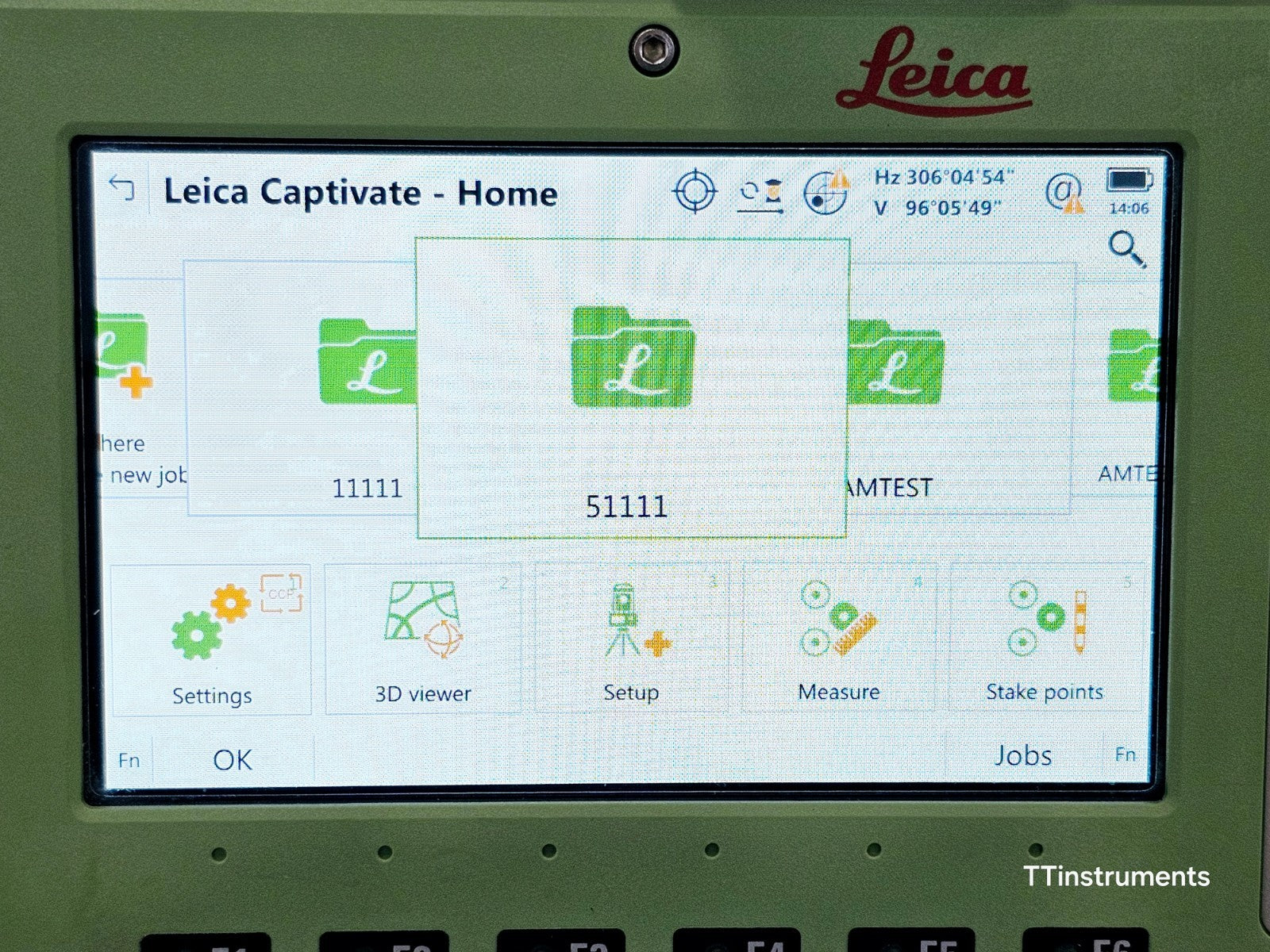

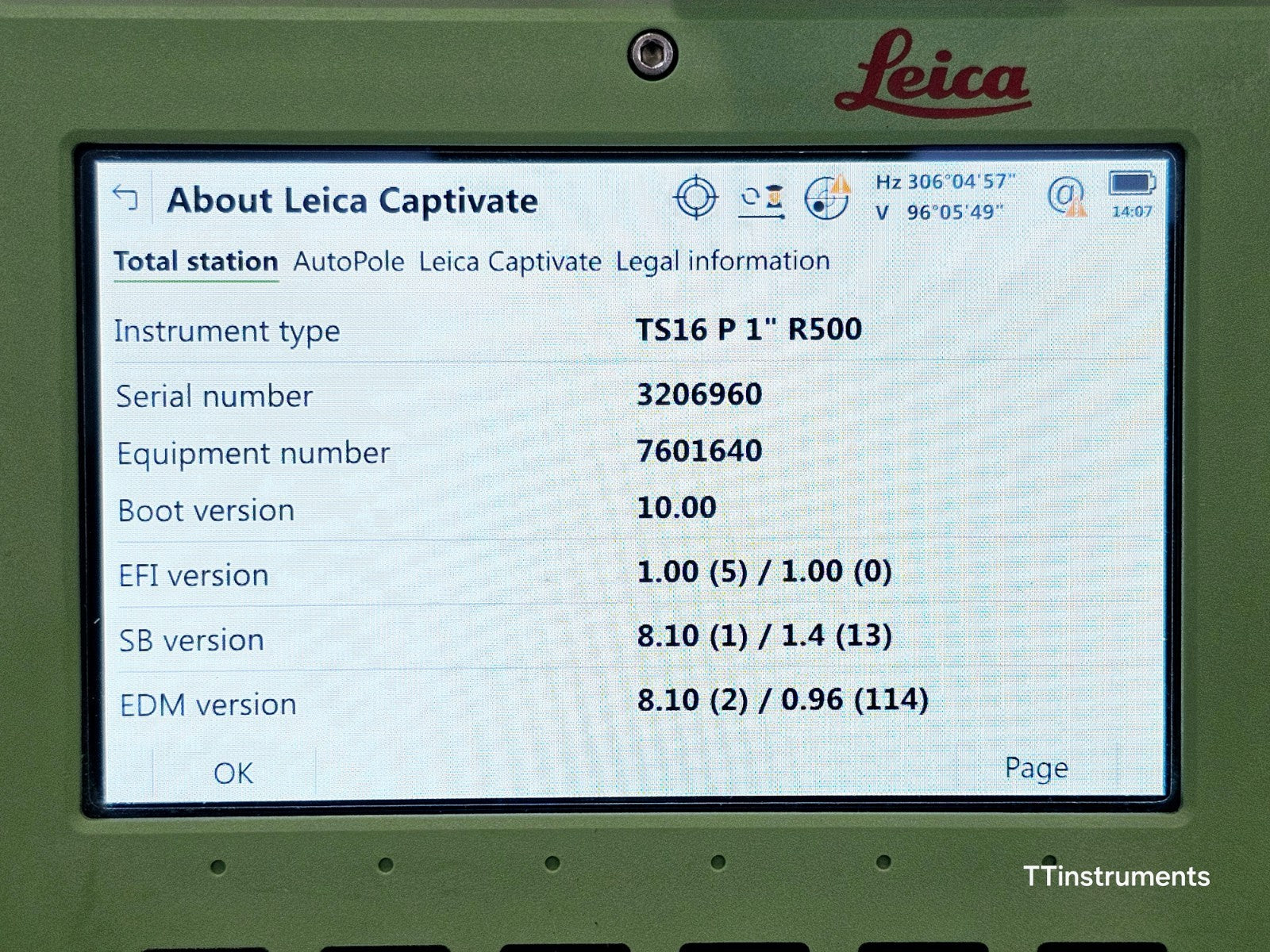

Leica TS16 P 1" R500 robotic total station (manufactured 2017, serial no. 3206960), serviced April 2025, running Leica Captivate v7.51. Active hardware options include ATRplus automatic aiming, Lock, PowerSearch, GeoCOM robotic, WLAN, and radio handle interface.

Licensed Captivate apps (Licence loaded):
• Leica Captivate Basic — Measure & Stakeout
• Sets of Angles

Captivate apps with remaining trial hours (selection):
• COGO Area Division — 40 hrs remaining
• Reference Line — ~39 hrs remaining
• Reference Plane — 40 hrs remaining
• Rail — 40 hrs remaining
• Road — 40 hrs remaining
• Tunnel — ~40 hrs remaining
• DTM Stakeout — ~18.5 hrs remaining
• QuickVolumeSurf — 40 hrs remaining
• HiddenPoint — ~40 hrs remaining
• Traverse — ~36.7 hrs remaining
• VolumeCalculation — ~40 hrs remaining
• QuickVolumeVol — 40 hrs remaining

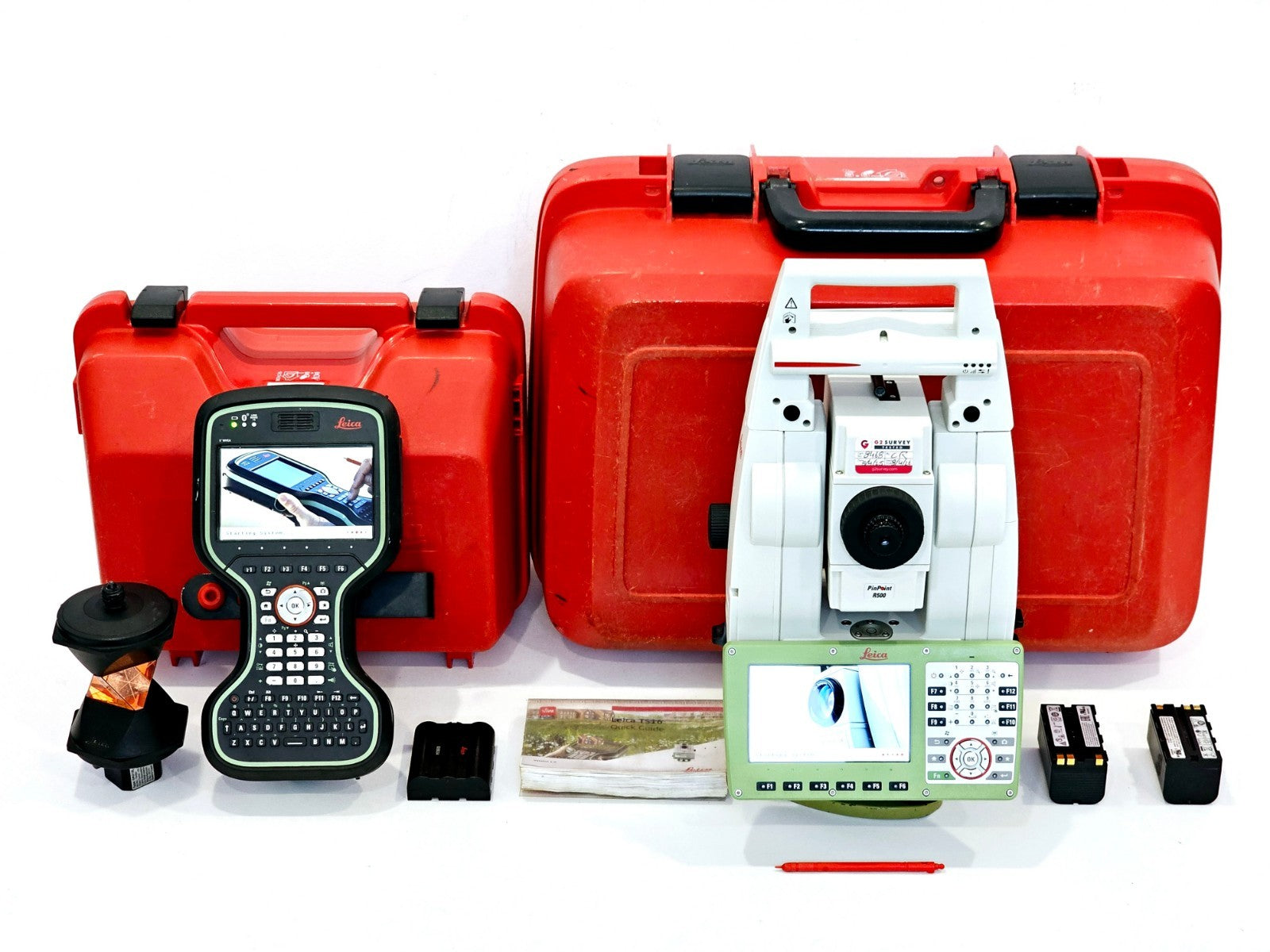

Included in the sale:

Total Station kit:

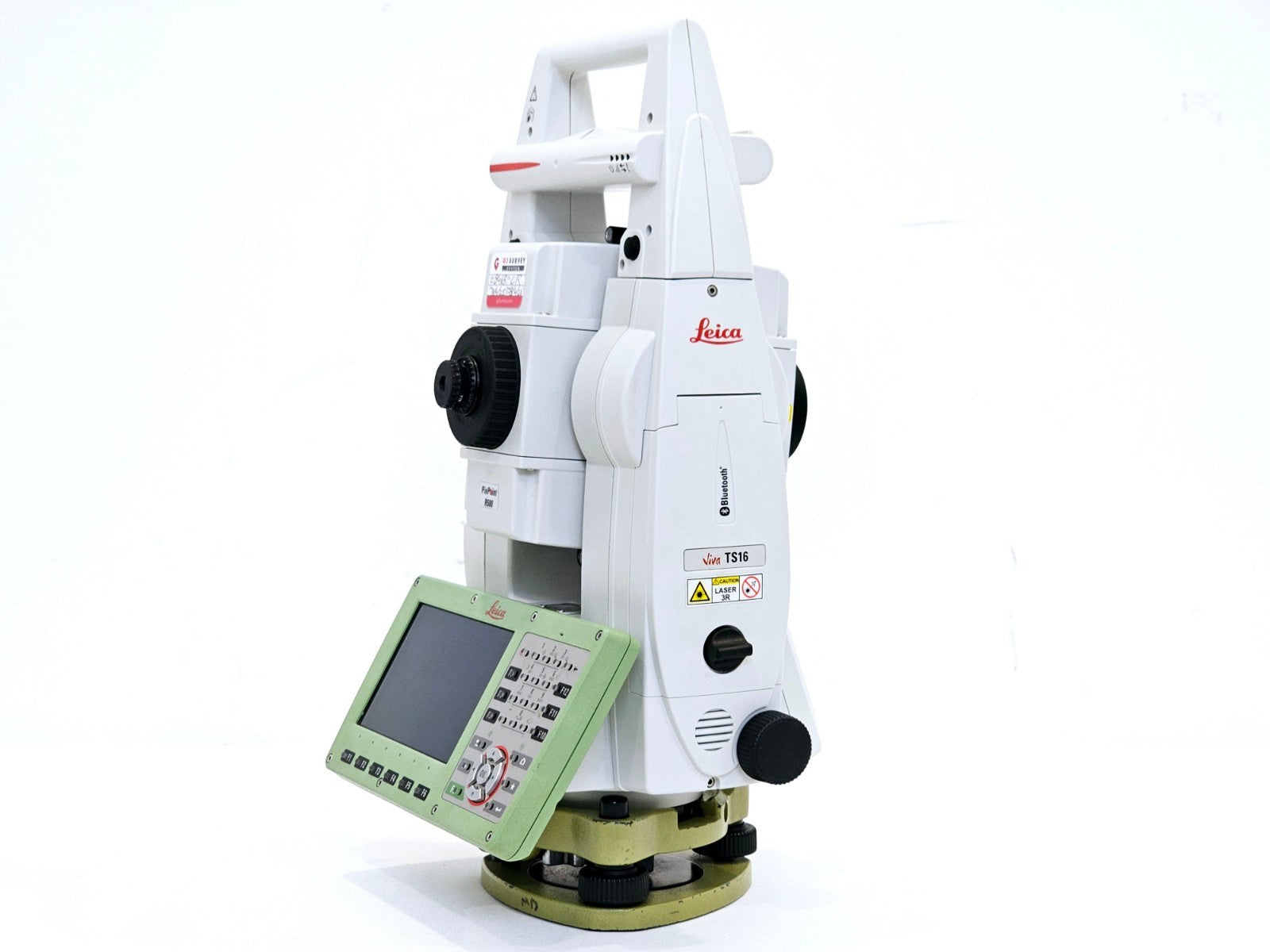

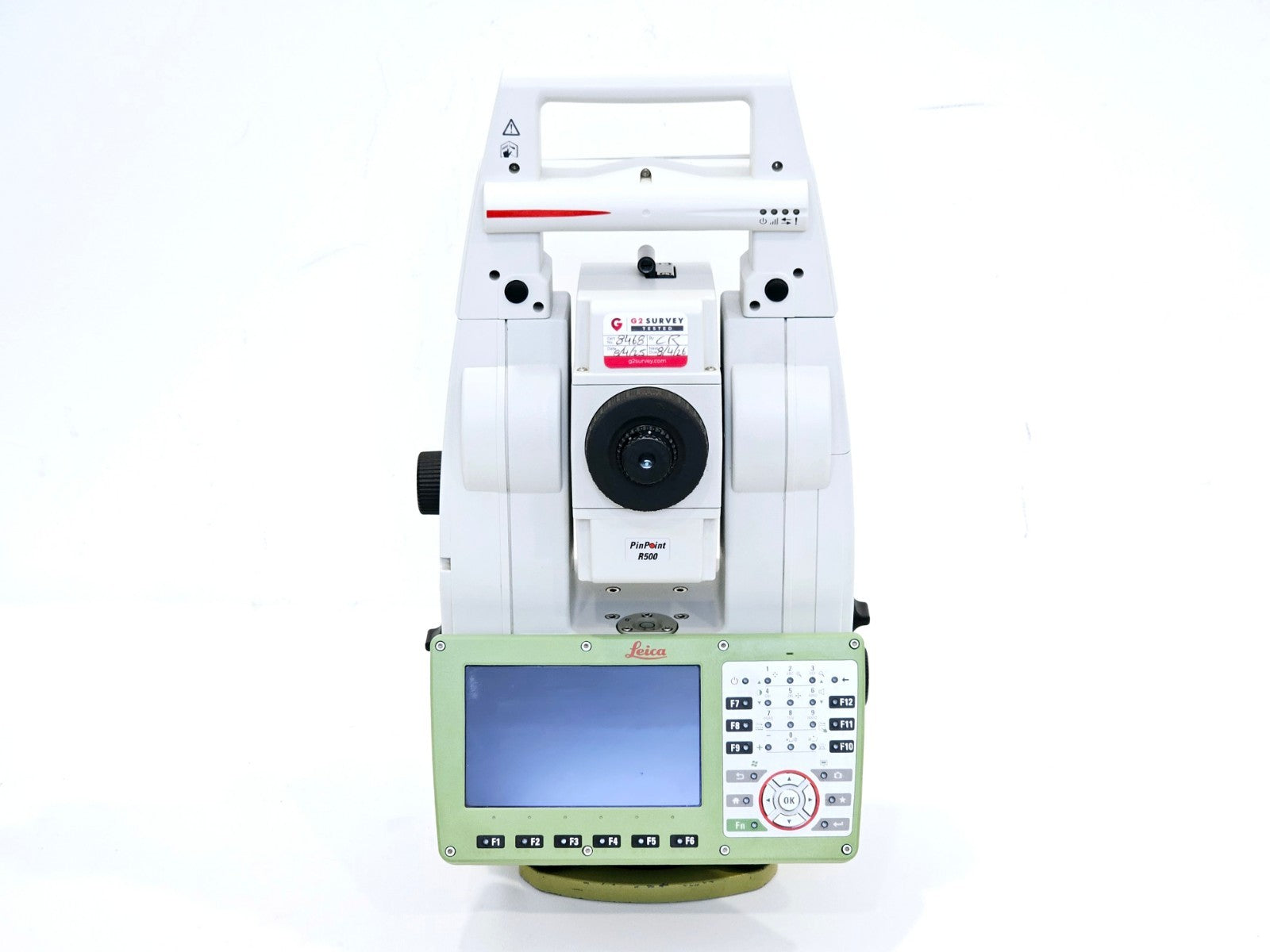

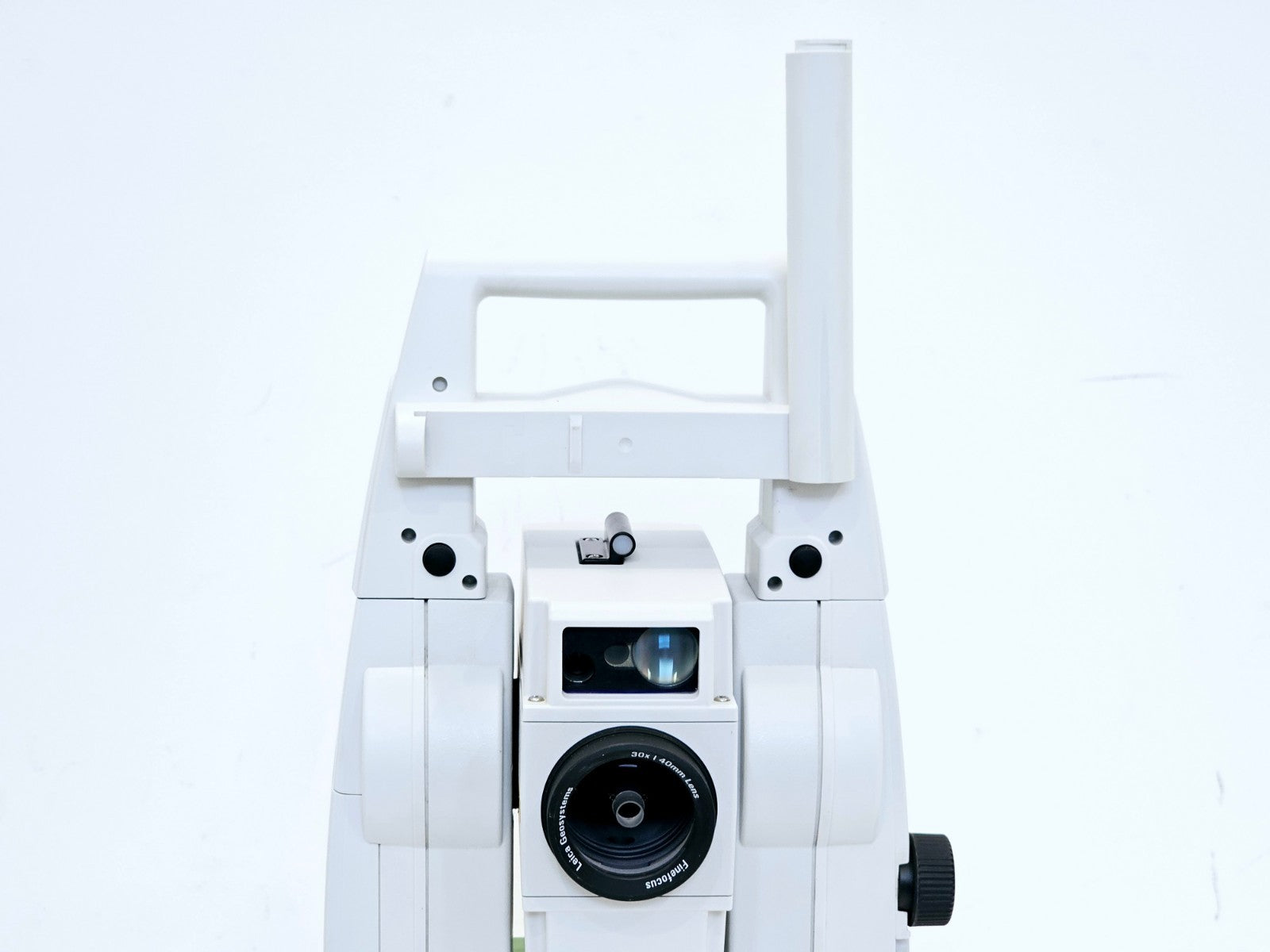

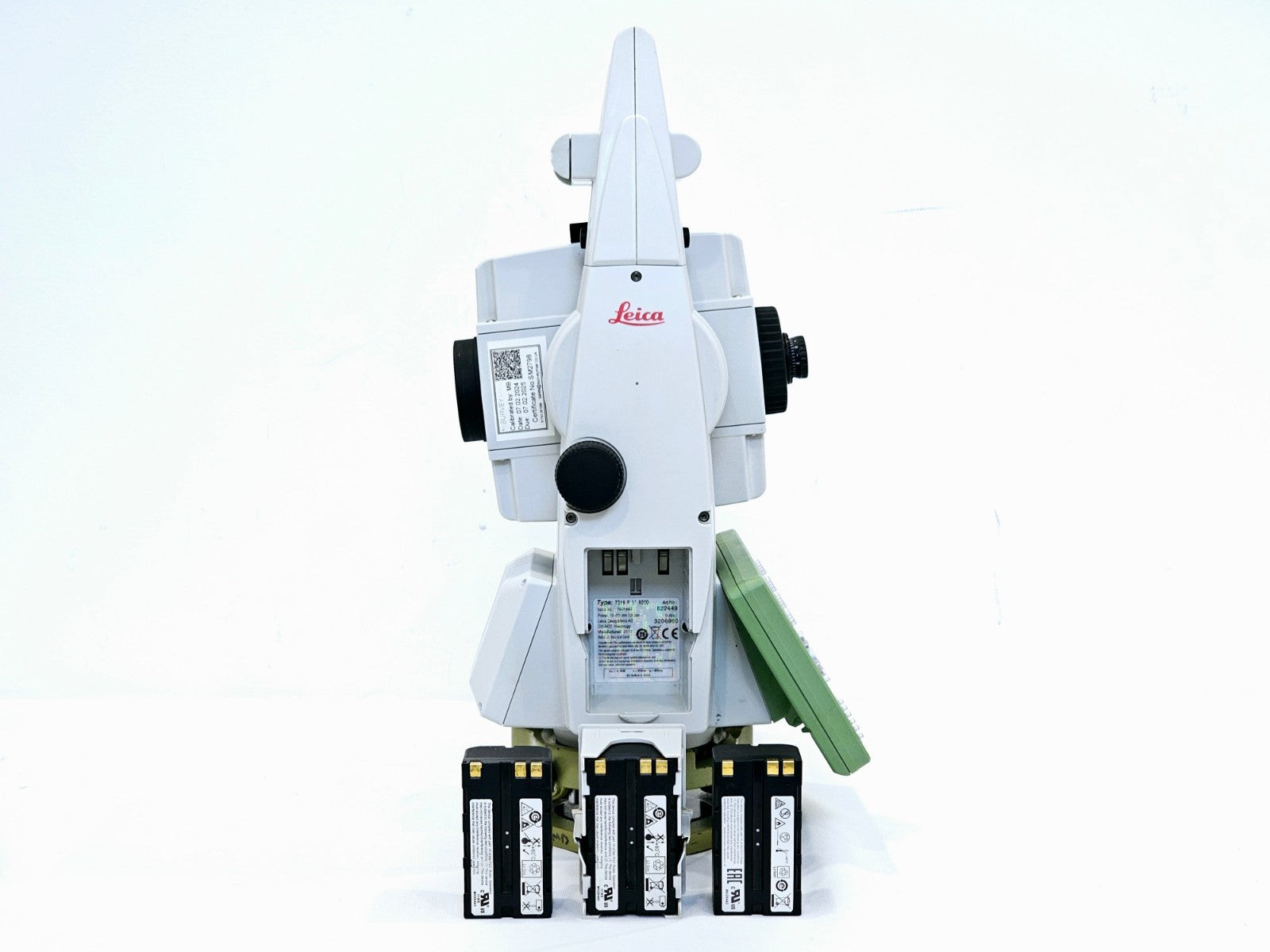

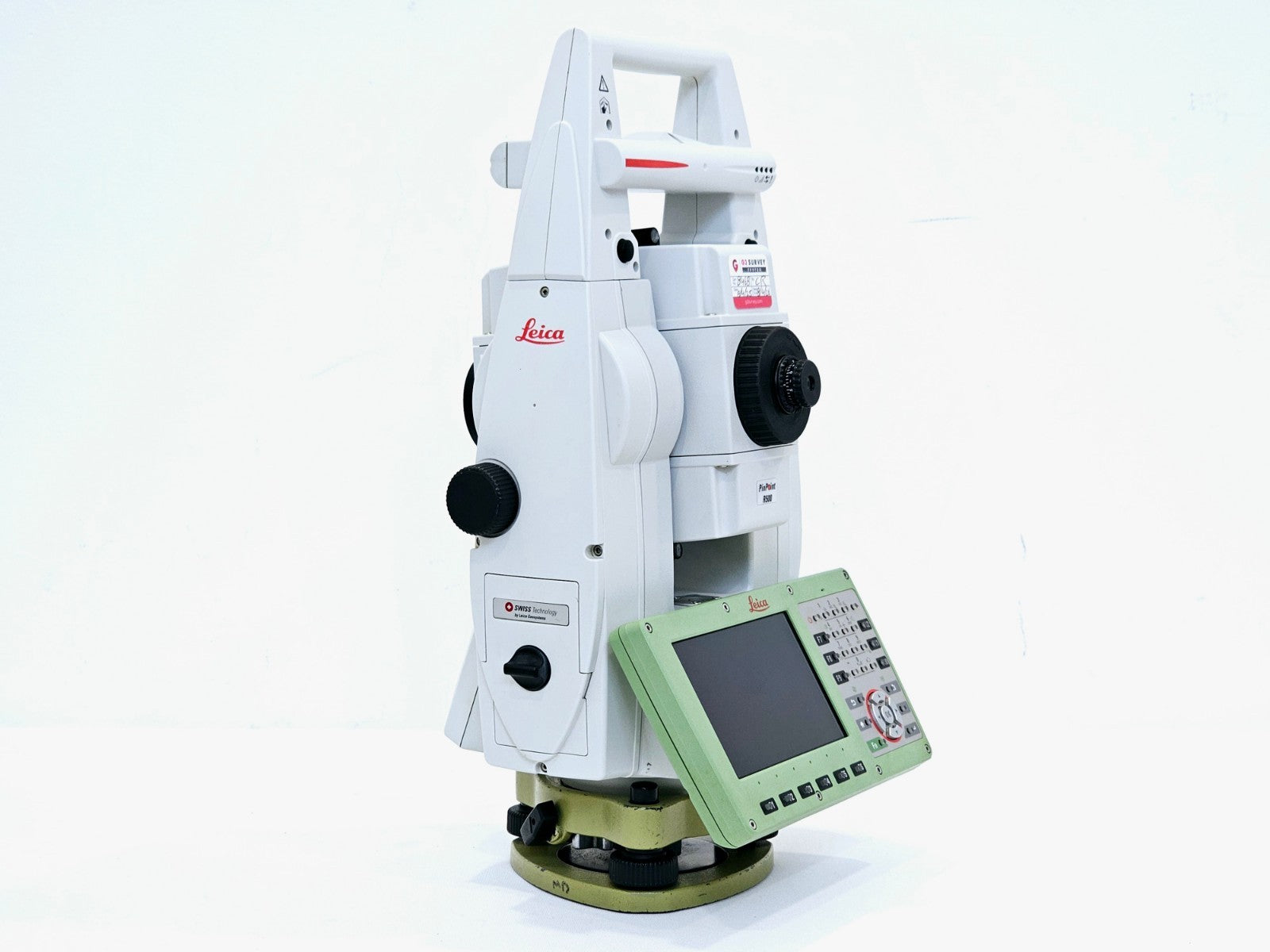

• Leica TS16 P 1" R500 Robotic Total Station (MFG 2017)

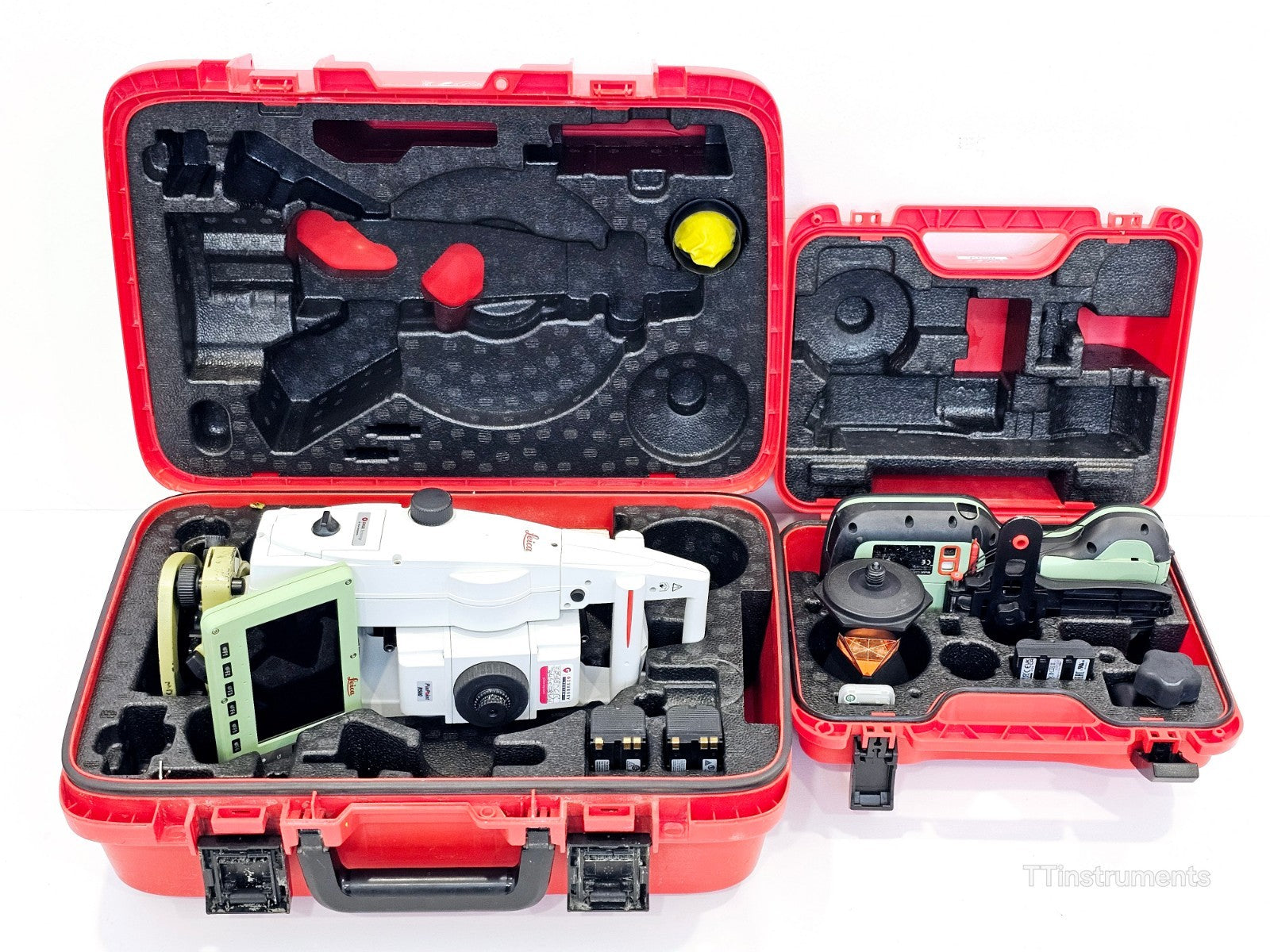

• Carry case
• Quick start guide

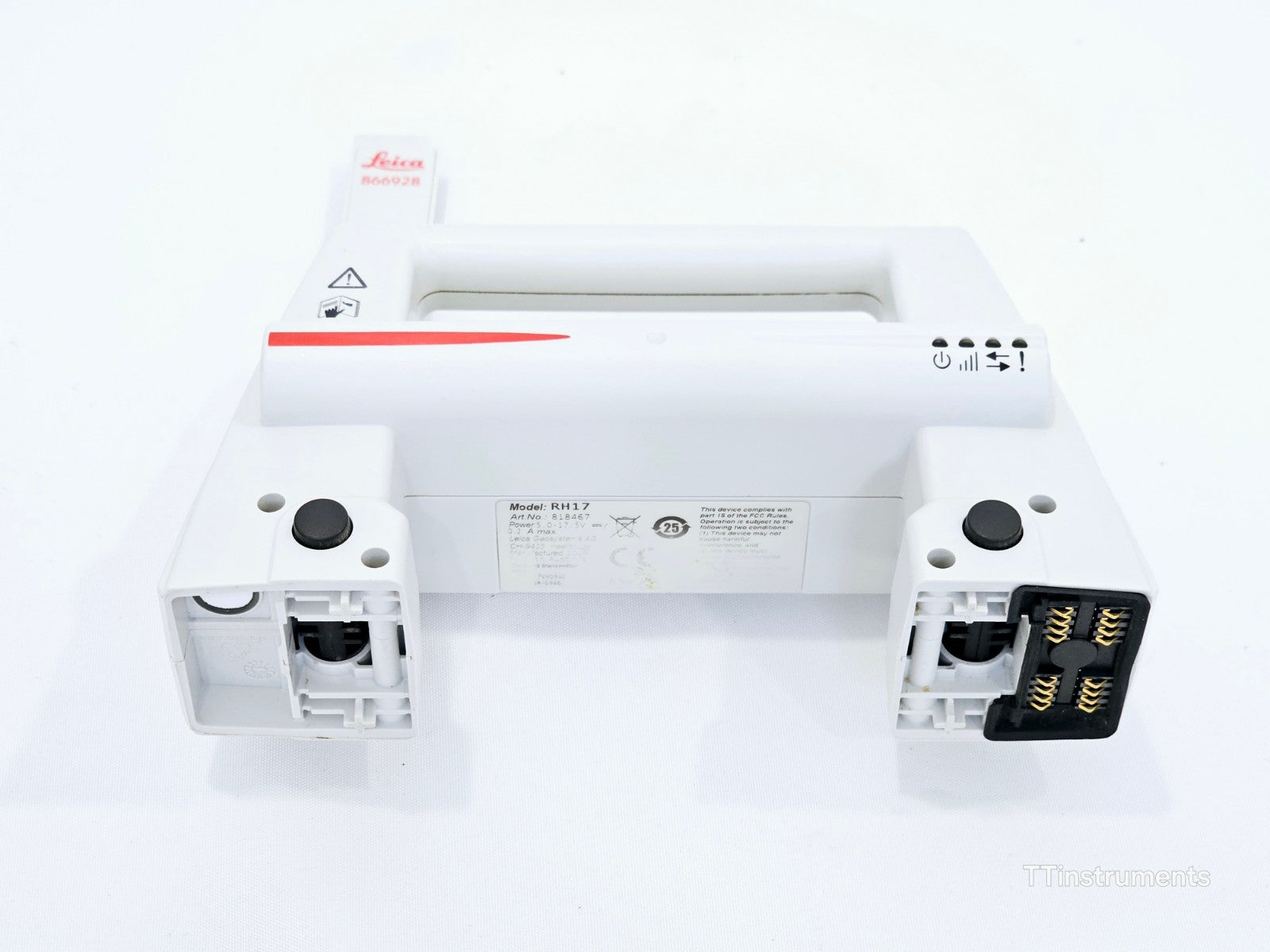

• Leica RH17 Bluetooth radio handle
• 2x Li-ion battery GEB221
• 1x Li-ion battery GEB222

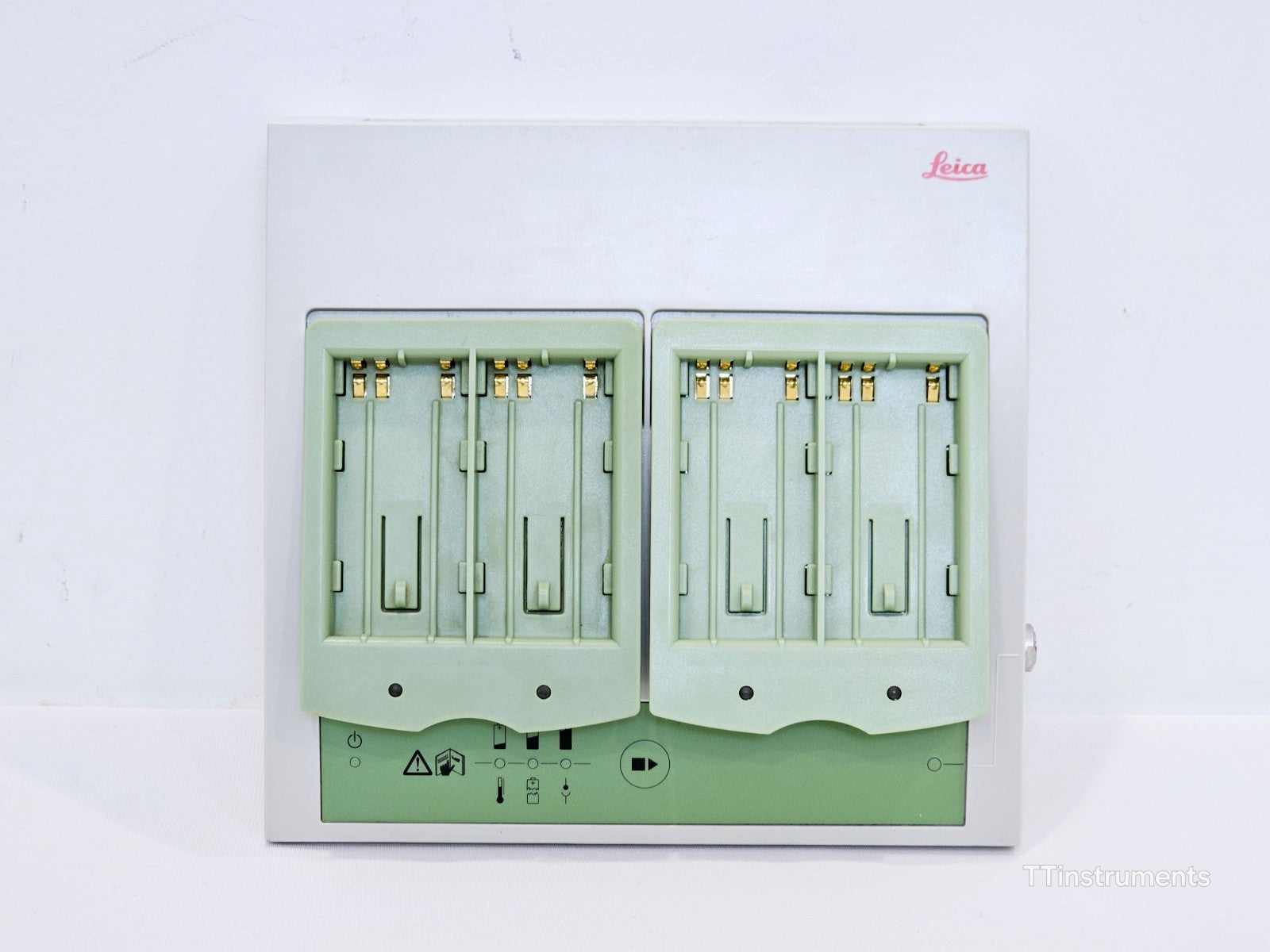

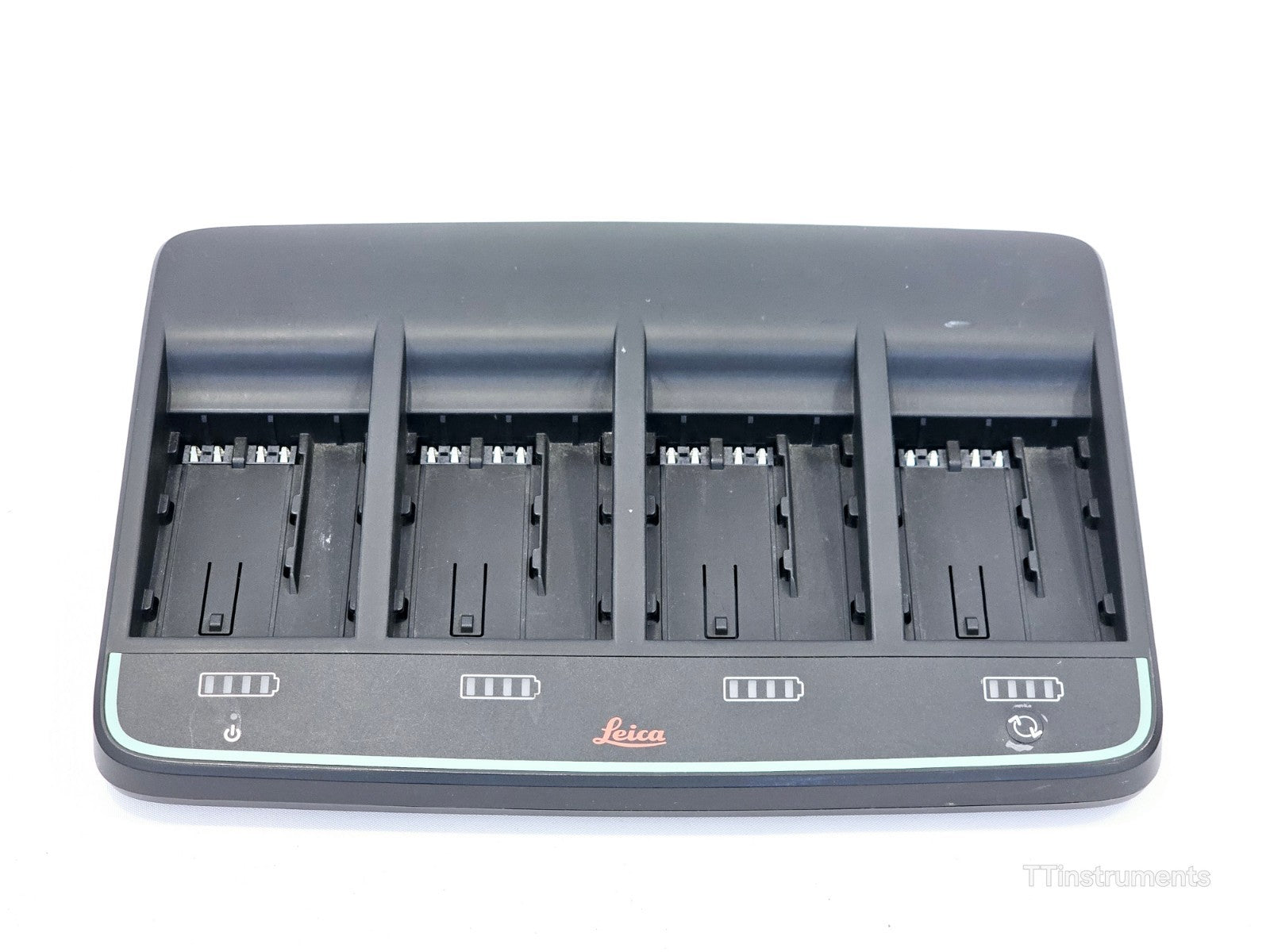

• Charging station

Controller kit:

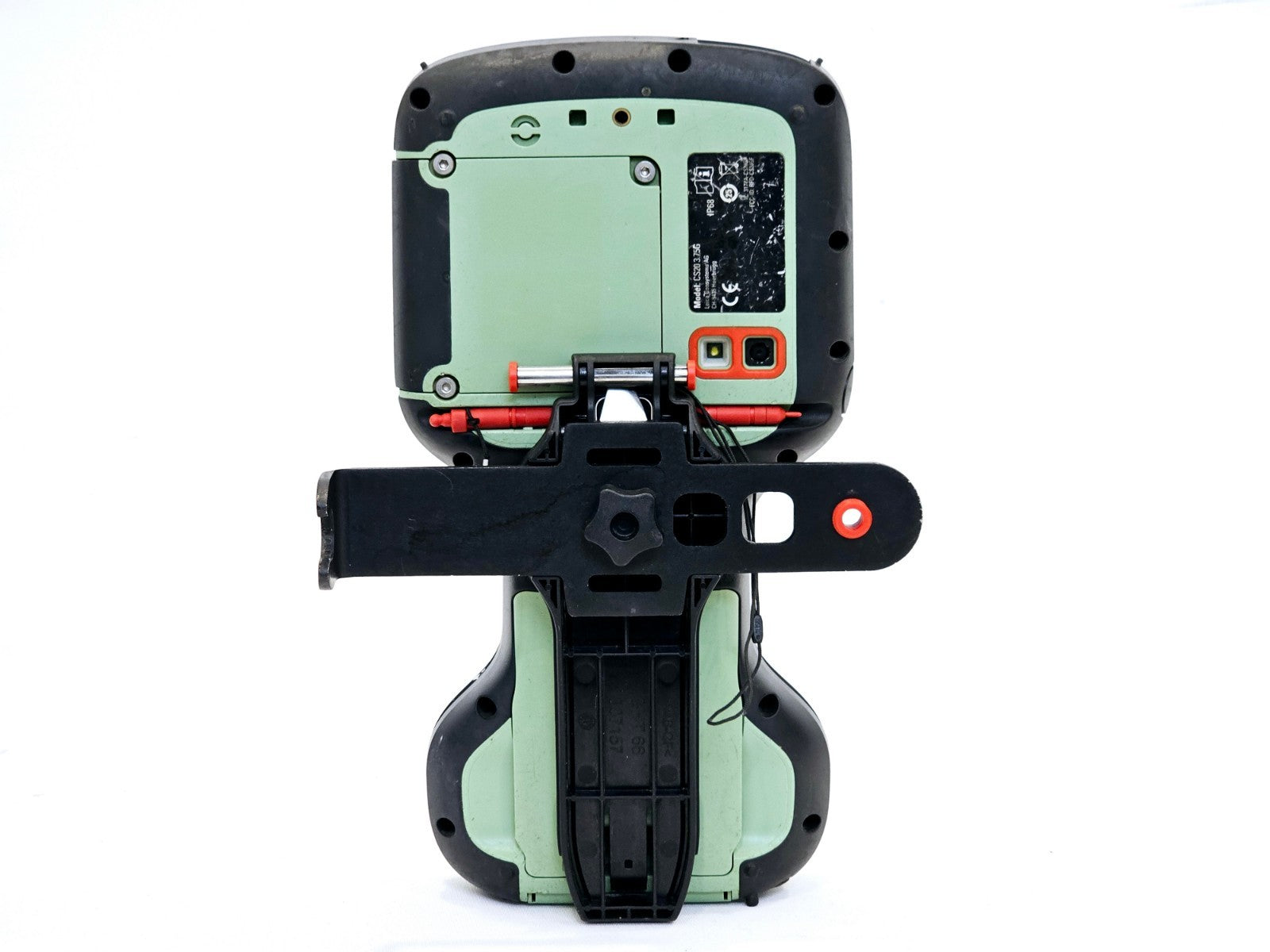

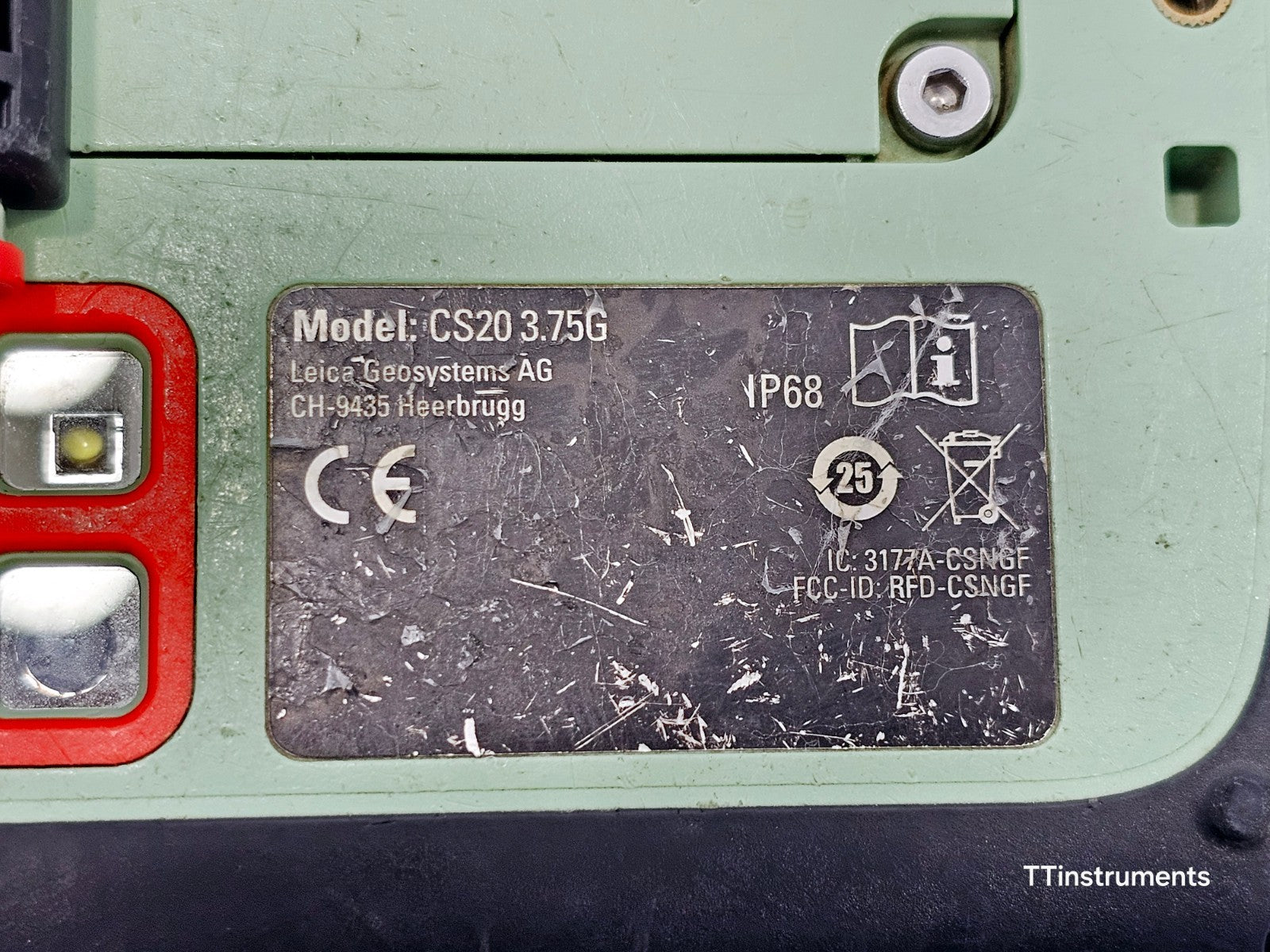

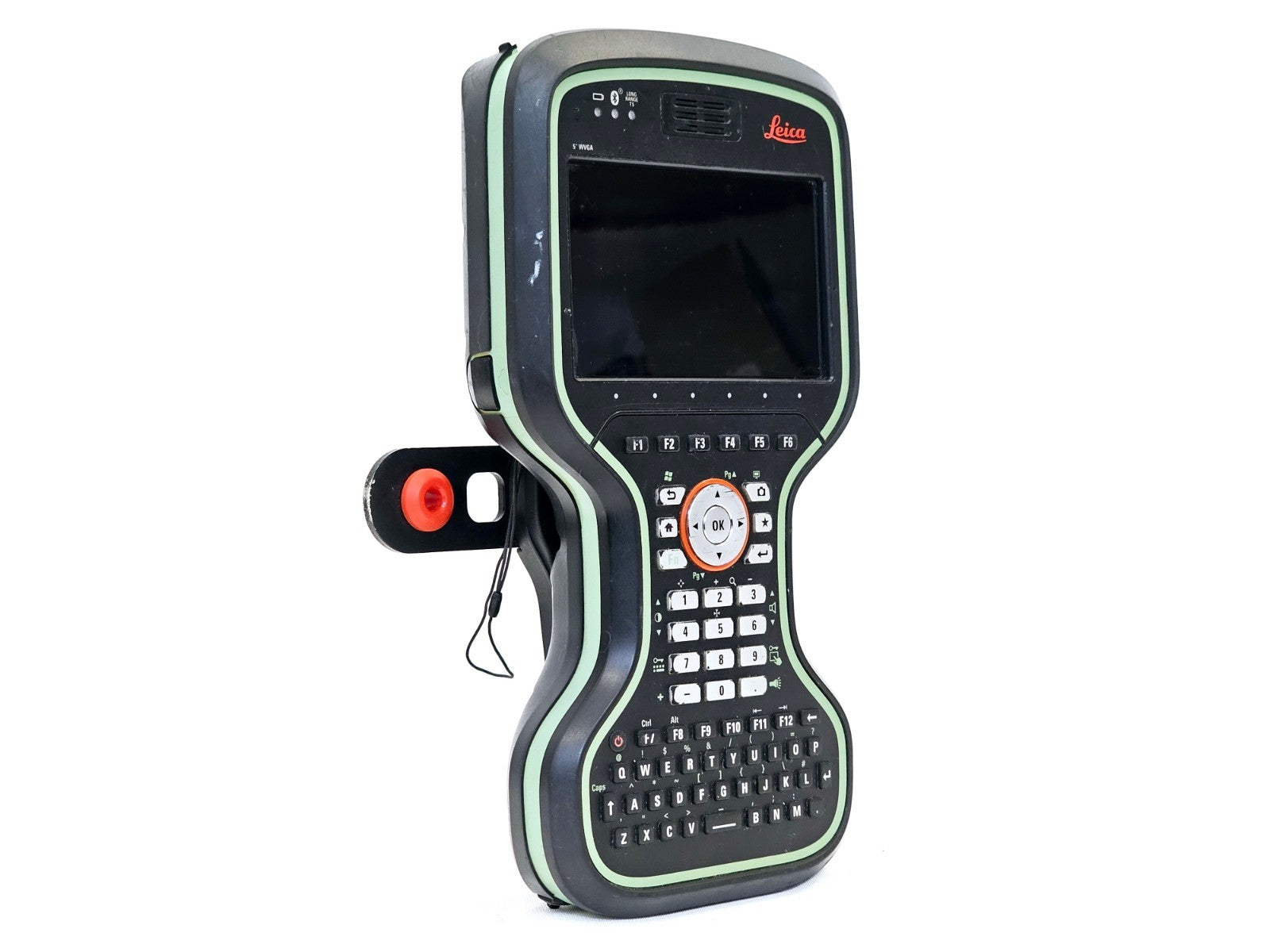

• Leica CS20 3.75G field controller
• Carry case

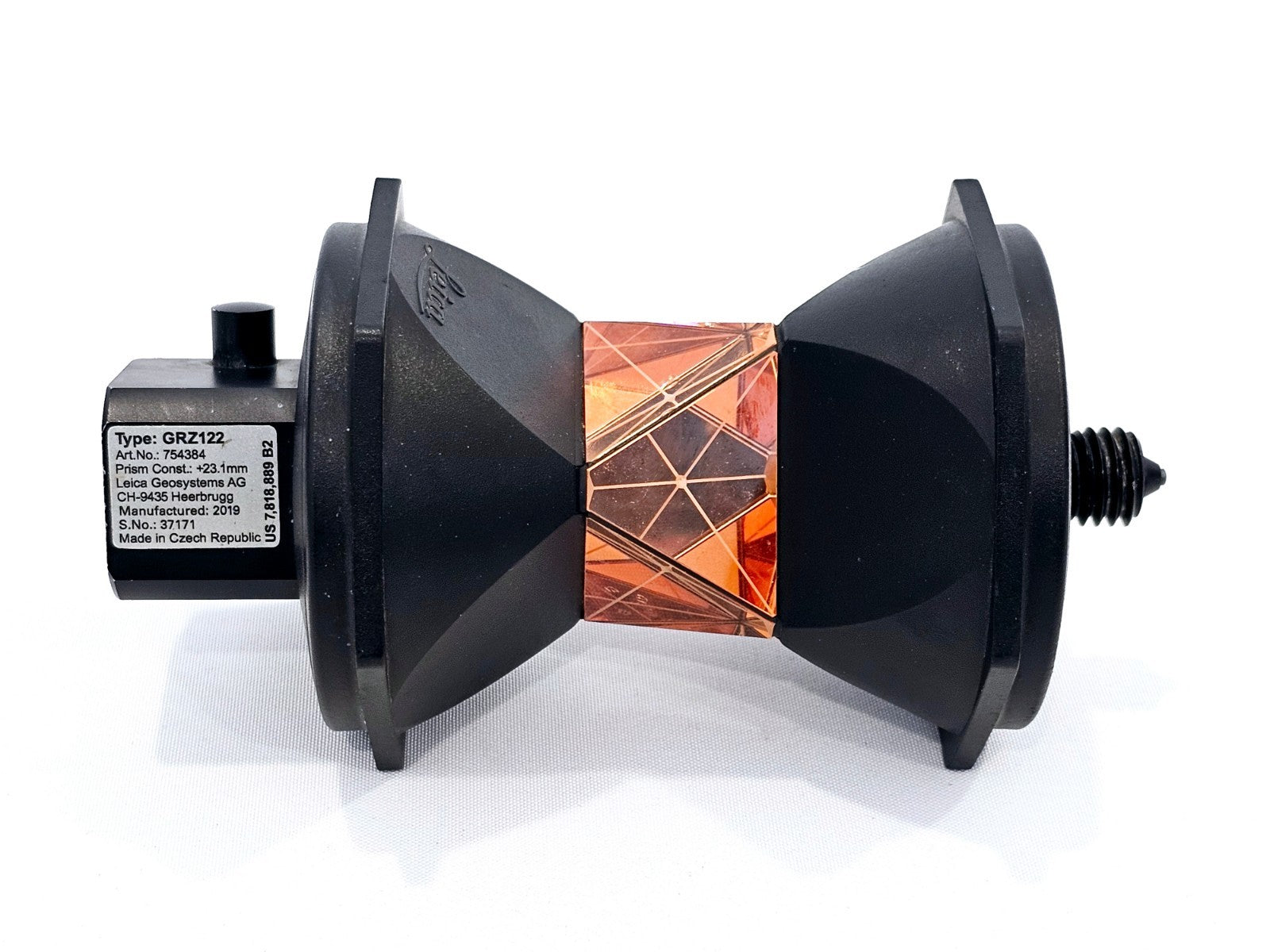

• Prism GRZ122 (Prism Constant +23.1 mm)
• 2x Batteries GEB334

Leica TS16 Robotic Total Station — Manufacturer Description

The Leica TS16 is the world's first self-learning robotic total station, designed for topographic survey, construction layout, and monitoring. Paired with Leica Captivate field software and ATRplus automatic target recognition technology, the TS16 automatically adapts to any environmental condition — including rain, fog, dust, heat shimmer, and reflections — locking onto the correct target and ignoring distractions. PowerSearch enables rapid prism acquisition across the full 360° field, while AutoHeight allows the instrument to measure its own setup height at the press of a button, reducing human error and speeding up station setup.

The TS16 P variant adds PowerSearch and full robotic GeoCOM capability, supporting one-person surveying workflows via a paired CS20 field controller and Bluetooth radio handle. Leica Captivate software turns complex field data into immersive 3D models with intuitive touch-based apps spanning survey, stakeout, road, rail, tunnel, and volume workflows.

Angular Measurement
Accuracy (Hz and V): 1" (0.3 mgon), 2" (0.6 mgon), 3" (1 mgon), 5" (1.5 mgon)
Measurement type: Absolute, continuous, diametrical

Distance Measurement — Prism (GPR1, GPH1P)
Range: 0.9 m to 3,500 m
Accuracy / Measurement time (single, prism): 1 mm + 1.5 ppm / typically 2.4 s
Accuracy / Measurement time (single, prism fast): 2 mm + 1.5 ppm / typically 1.5 s

Distance Measurement — Reflectorless / Any Surface
Range (R500): 0.9 m to >500 m
Range (R1000): 0.9 m to >1,000 m
Accuracy / Measurement time (single, any surface): 2 mm + 2 ppm / typically 2 s
Laser dot size at 50 m: 8 mm x 20 mm
Measurement technology: Coaxial, visible red laser (System Analyser)

Data Storage
Internal memory: 2 GB
Memory card: SD card 1 GB or 8 GB

Interfaces: RS232, USB, Bluetooth, WLAN

Power
Battery operating time: Up to 8 hours

Weight
Total station including battery: 5.1–5.8 kg (model dependent)

Environmental Specifications
Working temperature range: –20°C to +50°C
Dust and water protection (IEC 60529): IP55
Humidity: 95%, non-condensing
Laser class: Class 3R (IEC 60825-1:2014)

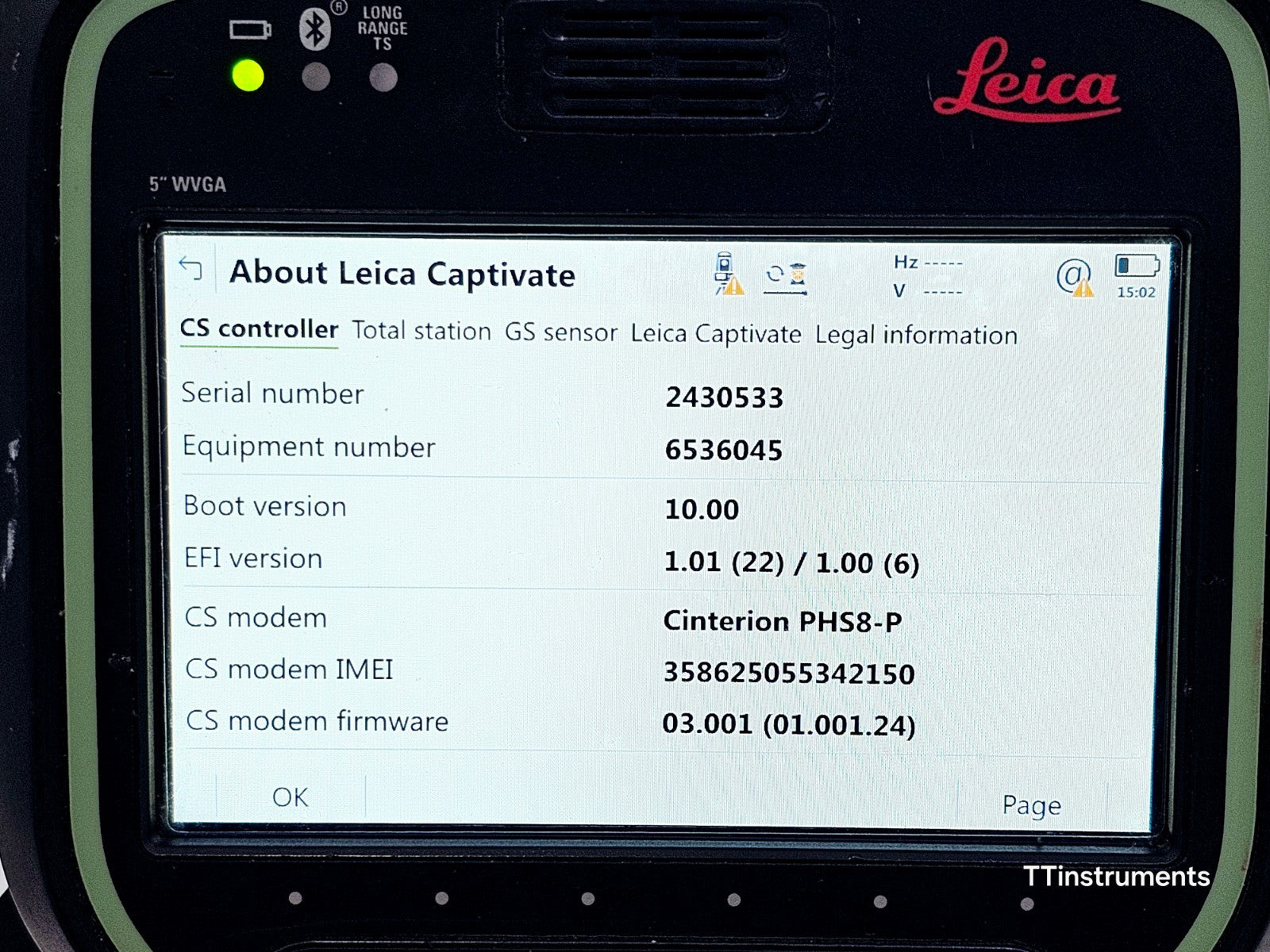

Leica CS20 3.75G Field Controller — Manufacturer Description

The Leica CS20 is a purpose-built, ruggedised field controller designed for use with Leica total stations and GNSS systems running Leica Captivate software. The 3.75G variant includes an integrated long-range Bluetooth module and internal 3.75G (UMTS/HSPA) cellular modem for direct internet connectivity and Active Assist remote support in the field.

Operating System: Windows EC7
Processor: TI OMAP4430 1 GHz Dual-core ARM Cortex-A9 MPCore
Memory (RAM): 2 GB
Internal Storage: Up to 4 GB
Display: 5" (127 mm) WVGA, colour, sunlight-readable touchscreen, landscape orientation
Keypad: Full QWERTY, 37 keys with illumination
Camera: 5 MP with LED flash
Connectivity: Integrated long-range Bluetooth, WLAN, 3.75G modem, USB
Battery life: Up to 8 hours
Durability: IP68-rated housing, drop-resistant to 1.2 m
Weight: Approximately 1.2 kg

Leica Viva TS16 Official Datasheet (PDF) — full technical specifications and model comparison: Download PDF

Leica TS16 User Manual Version 2.0 English (PDF): Download PDF

Leica TS16 User Manual Version 4.1 English (PDF): Download PDF

Leica TS16 Quick Guide (PDF) — condensed setup and operation reference: Download PDF

Leica CS20 Field Controller Datasheet (PDF) — system specifications for CS20 and CS20 3.75G: Download PDF

Leica CS20 Field Controller User Manual (PDF) — full operating instructions: Download PDF

Leica Viva TS16 Equipment List (PDF) — accessories, options and ordering codes: Download PDF
