Leica DMRE HC Microscope 020-525.755 DFC310 FX Camera & Light Source + 4 Objecti

Condition: Used

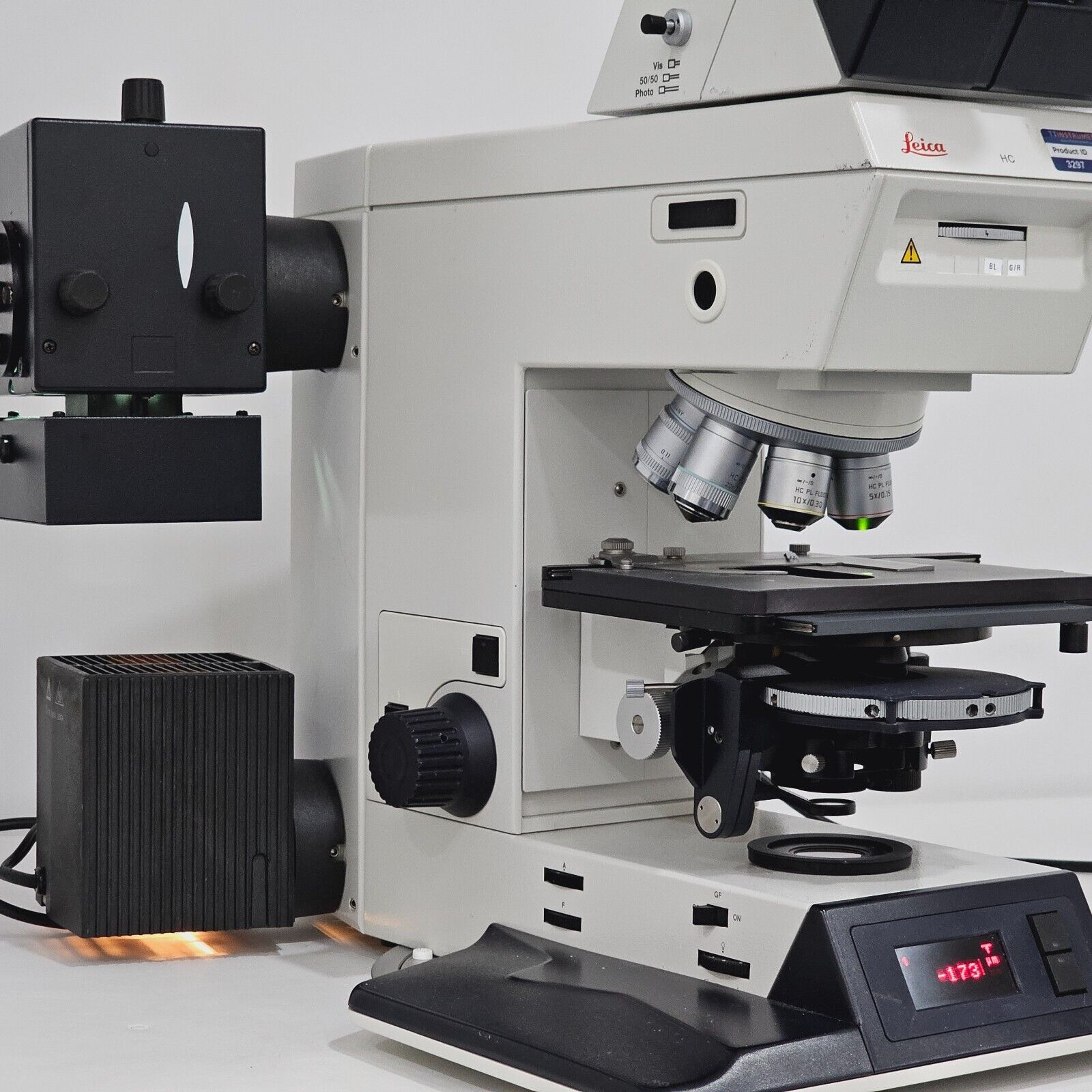

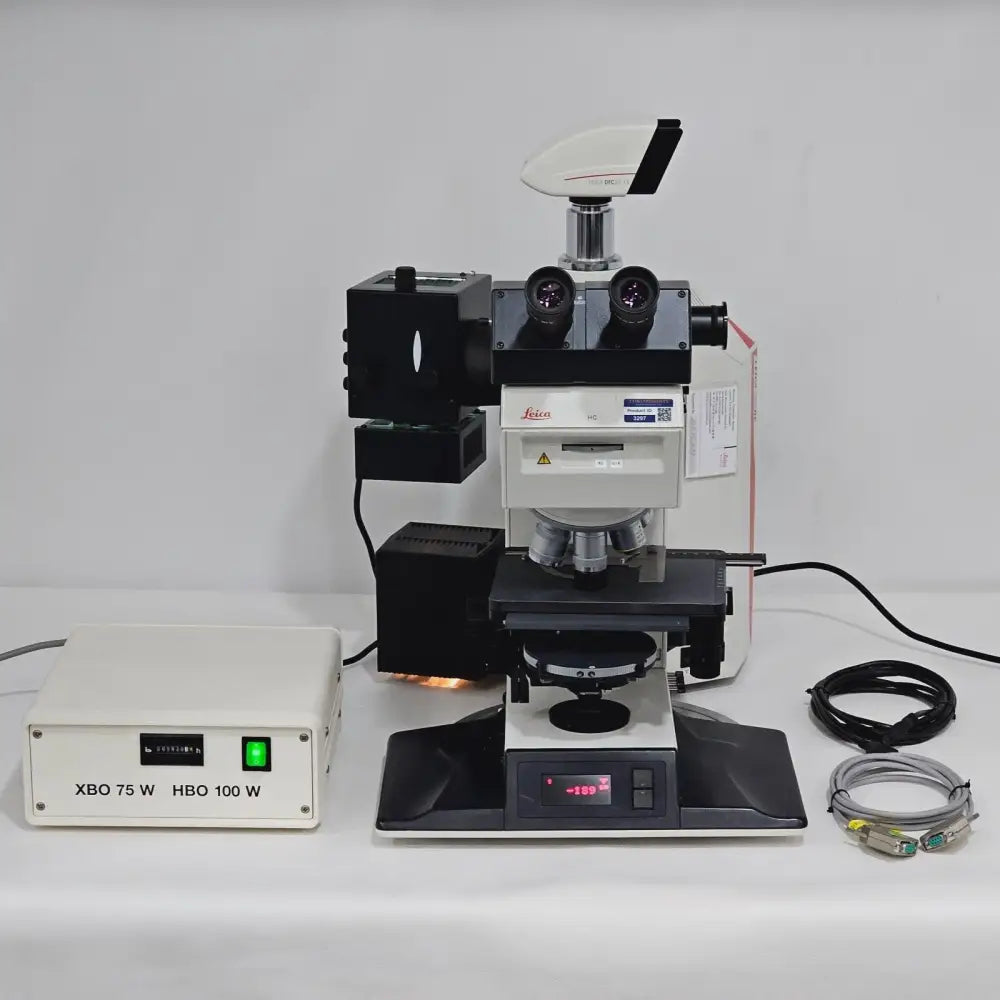

Leica DMRE HC upright research microscope (order no. 020-525.755) in excellent condition with a good working bulb and multiple accessories. Supplied complete with the Leica DFC310 FX digital colour fluorescence camera and four HC PL FLUOTAR objectives covering a magnification range of 2.5x to 20x.

Included in the sale:
• Leica DMRE HC Microscope (020-525.755)
• Leica DFC310 FX digital colour camera
• Objective 1: PL FLUOTAR 2.5x/0.07 (567010)
• Objective 2: HC PL FLUOTAR 5x/0.15 (506504)
• Objective 3: HC PL FLUOTAR 10x/0.30 (506505)
• Objective 4: HC PL FLUOTAR 20x/0.50 (506503)

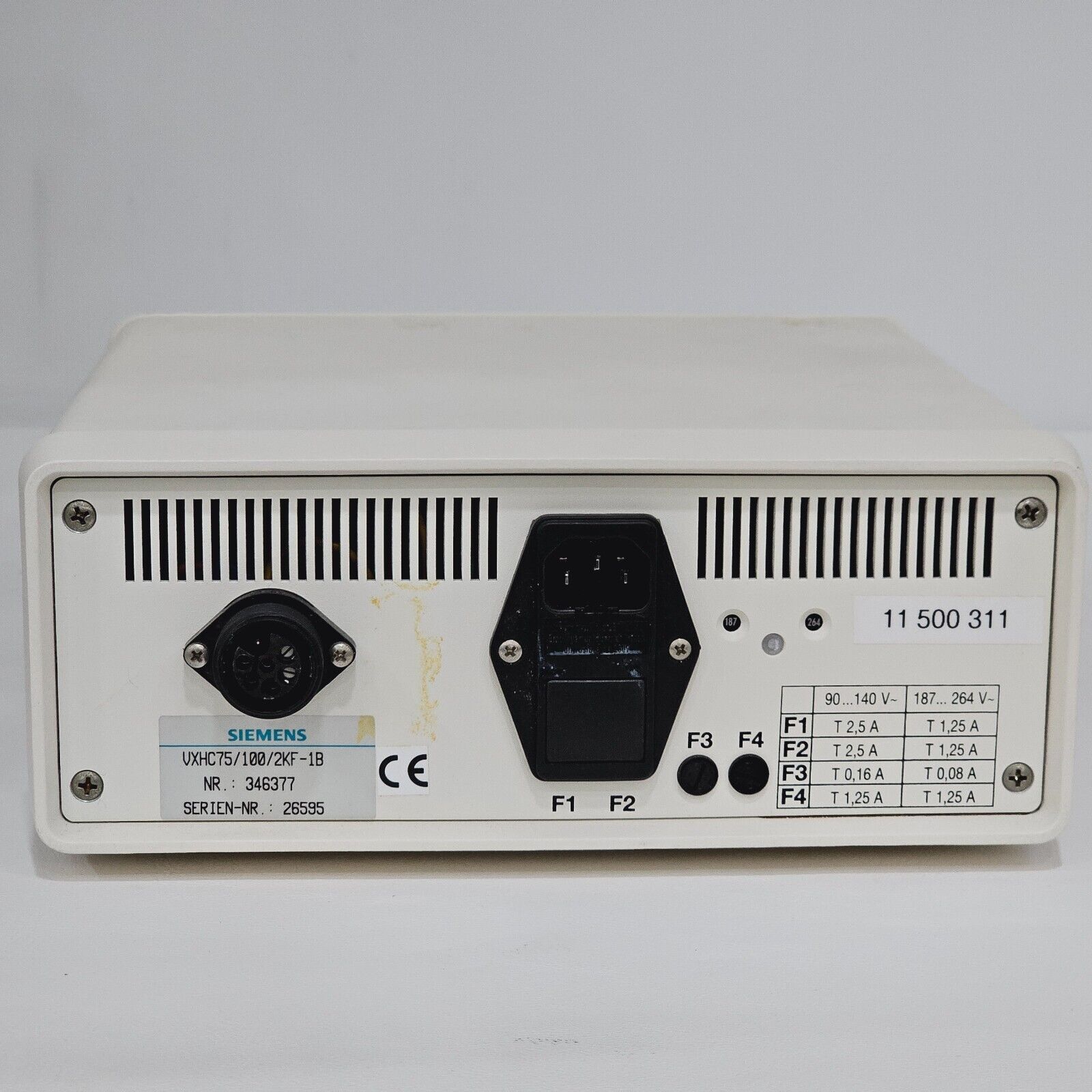

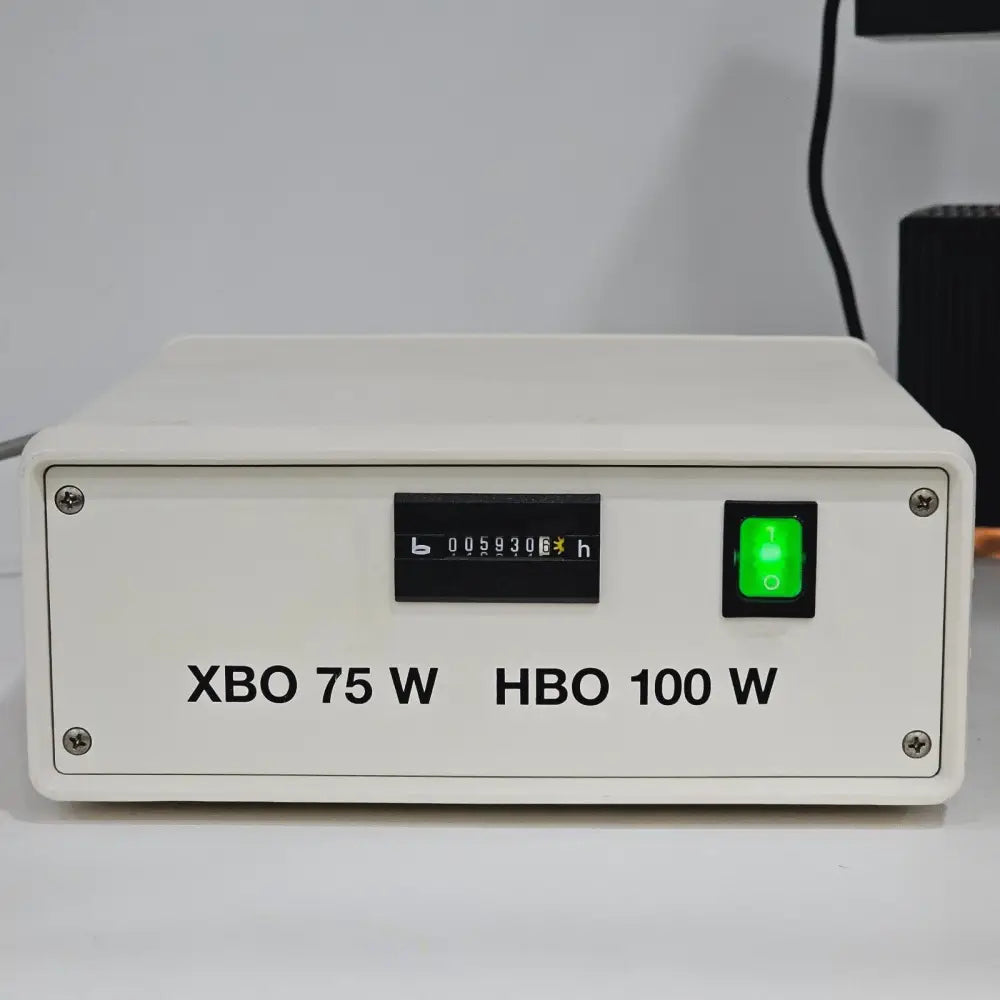

• Light source (as shown)

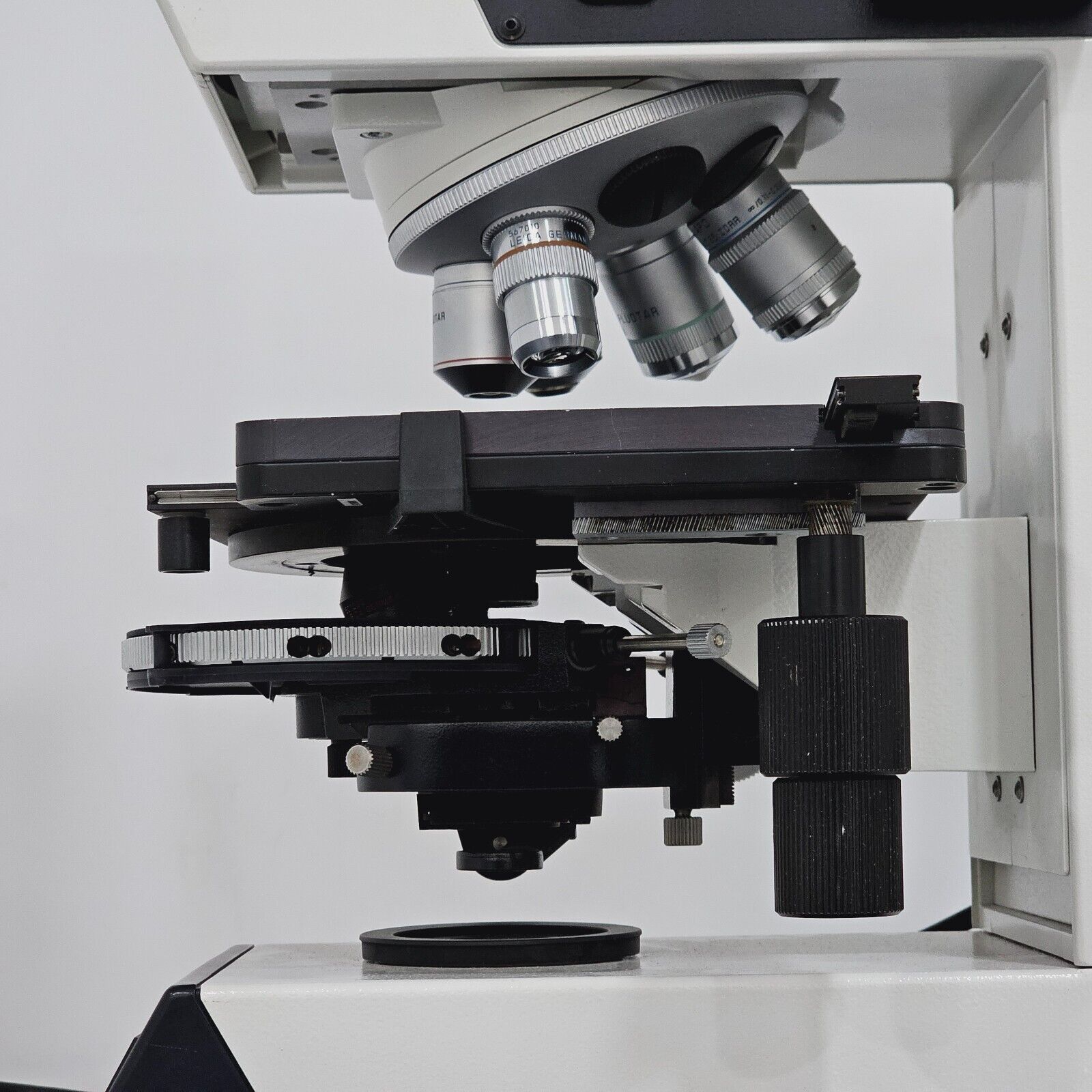

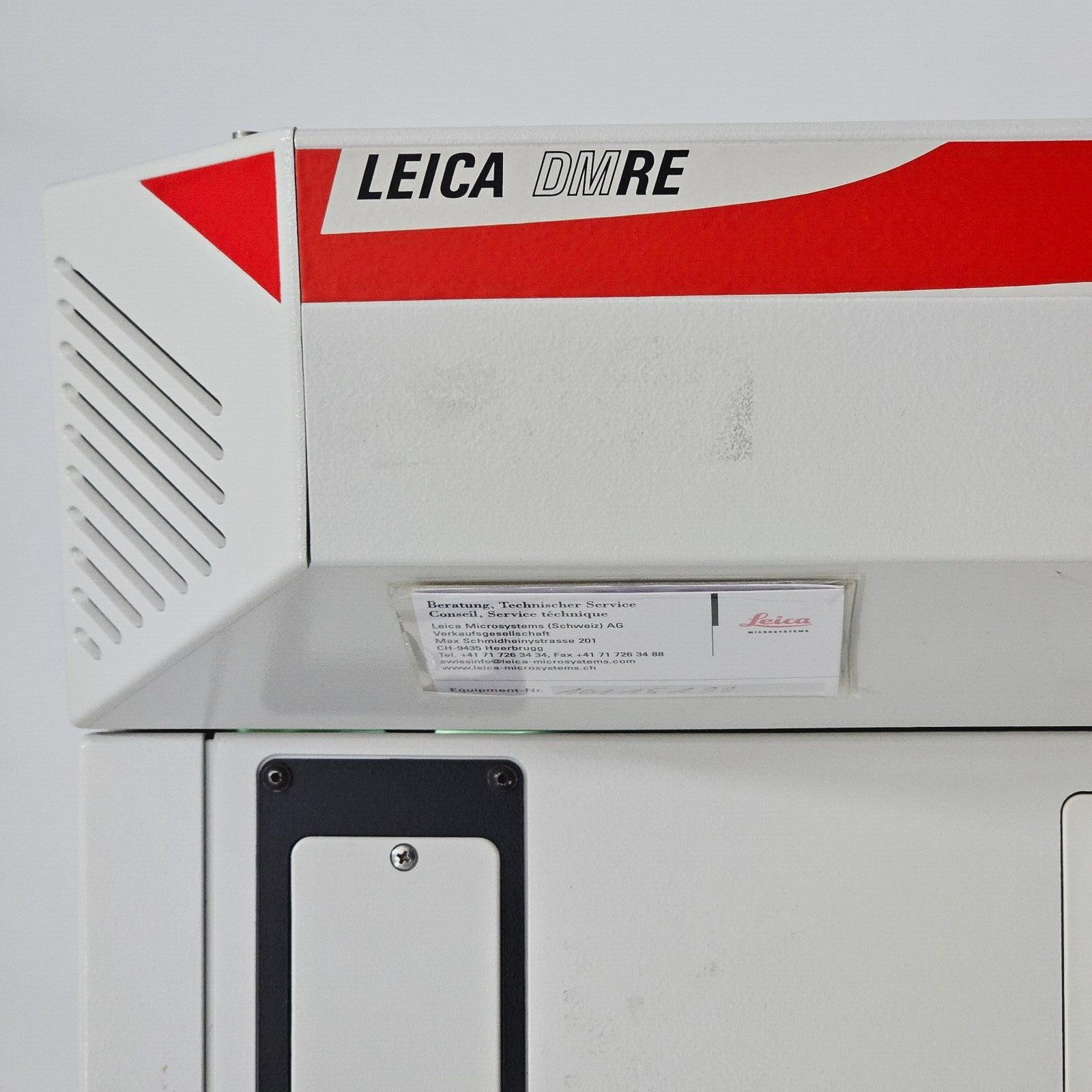

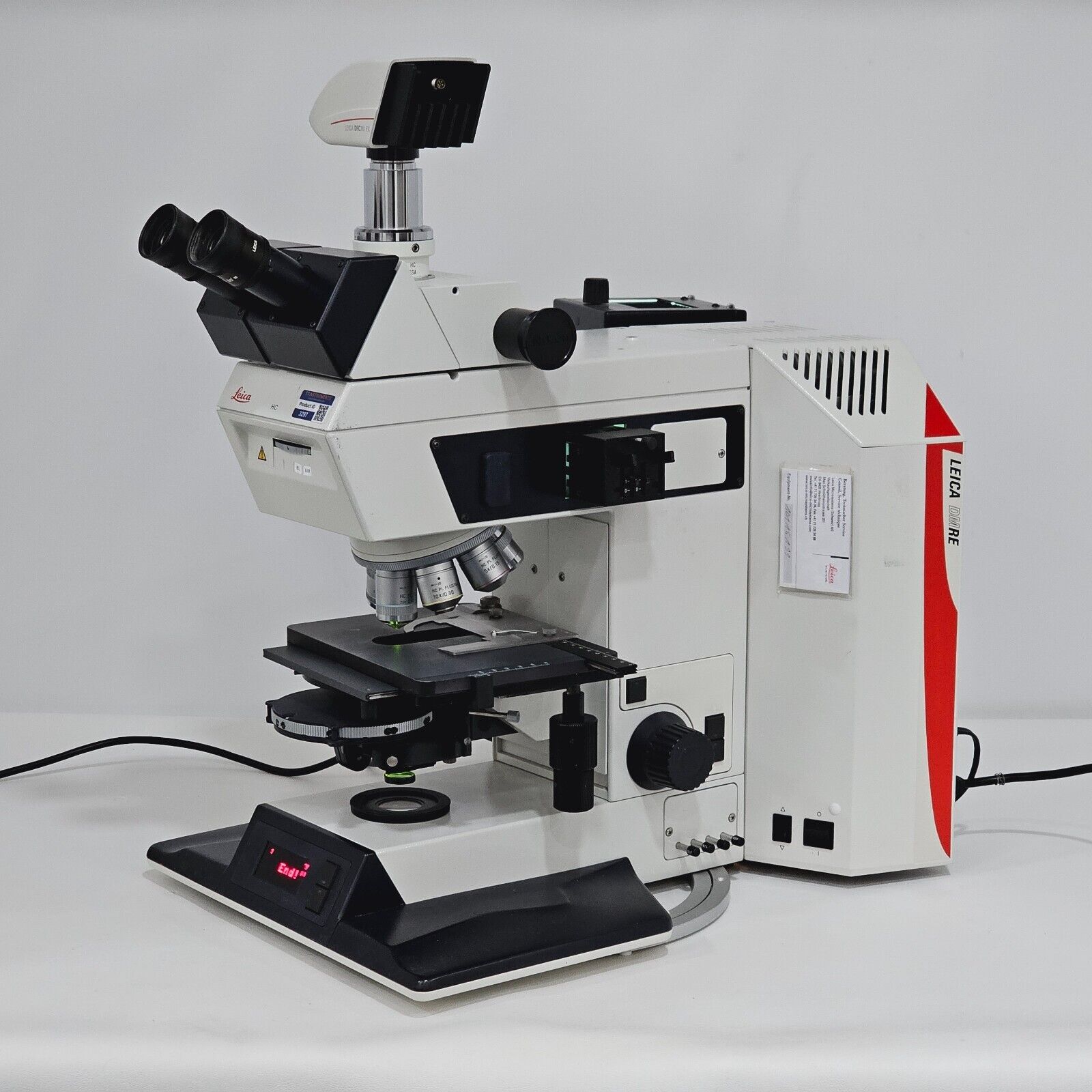

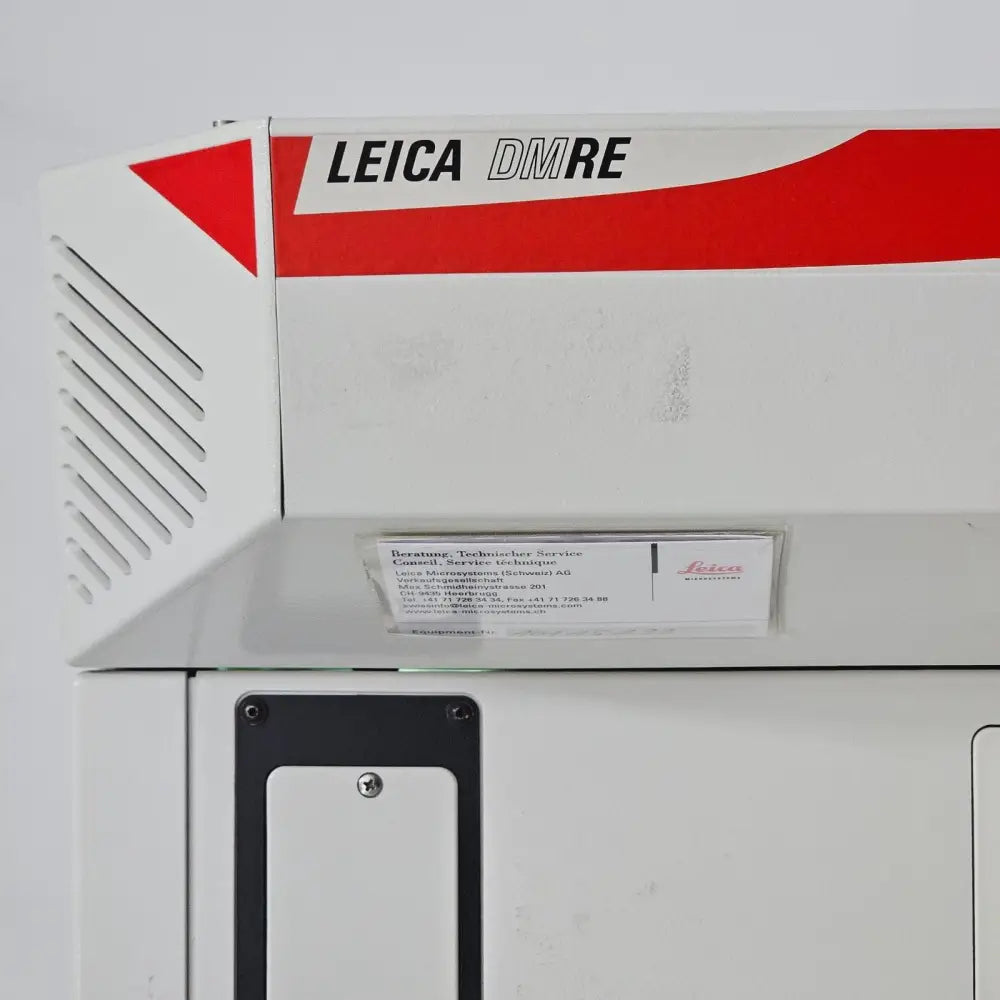

Leica DMRE HC — Upright Research Microscope (DMR Series)

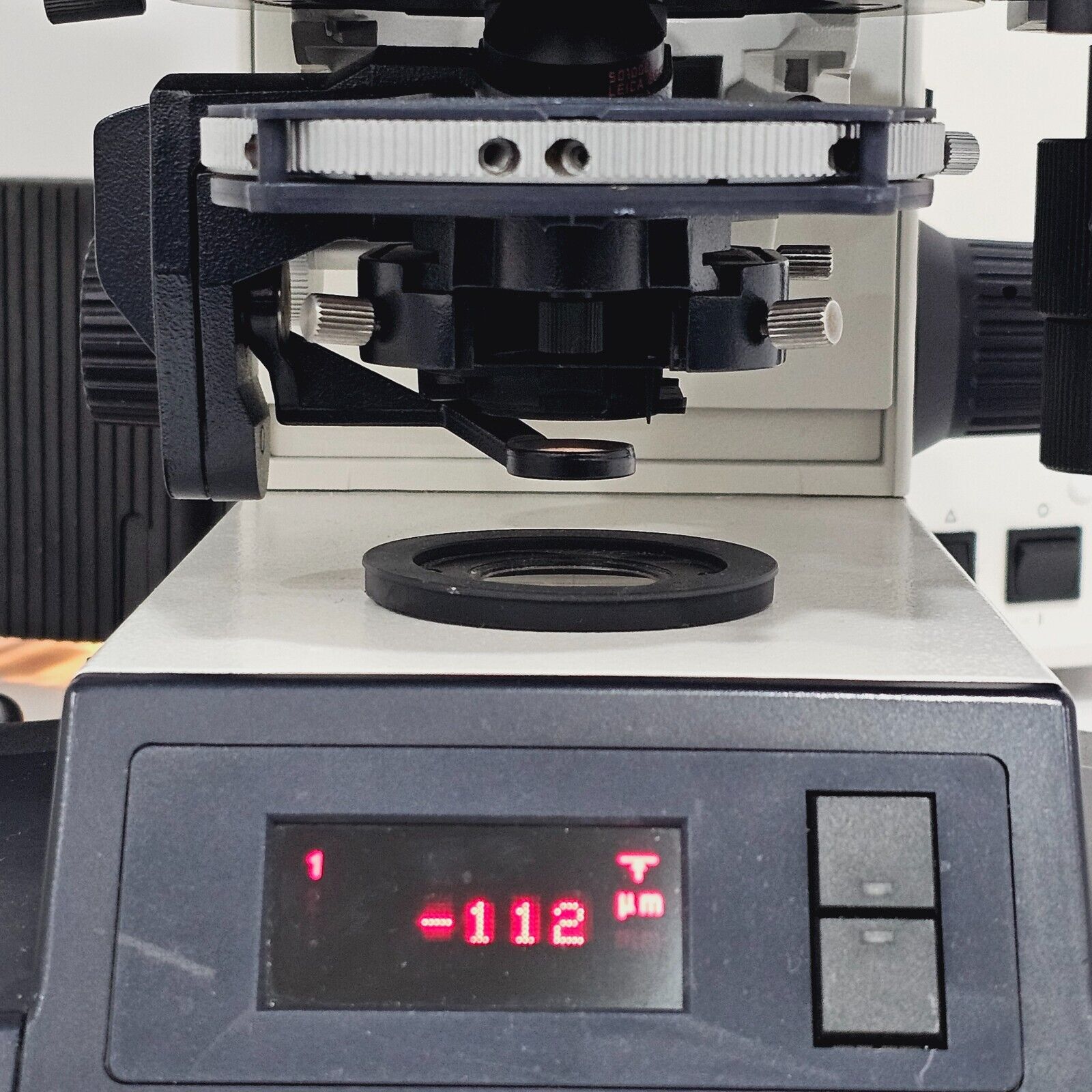

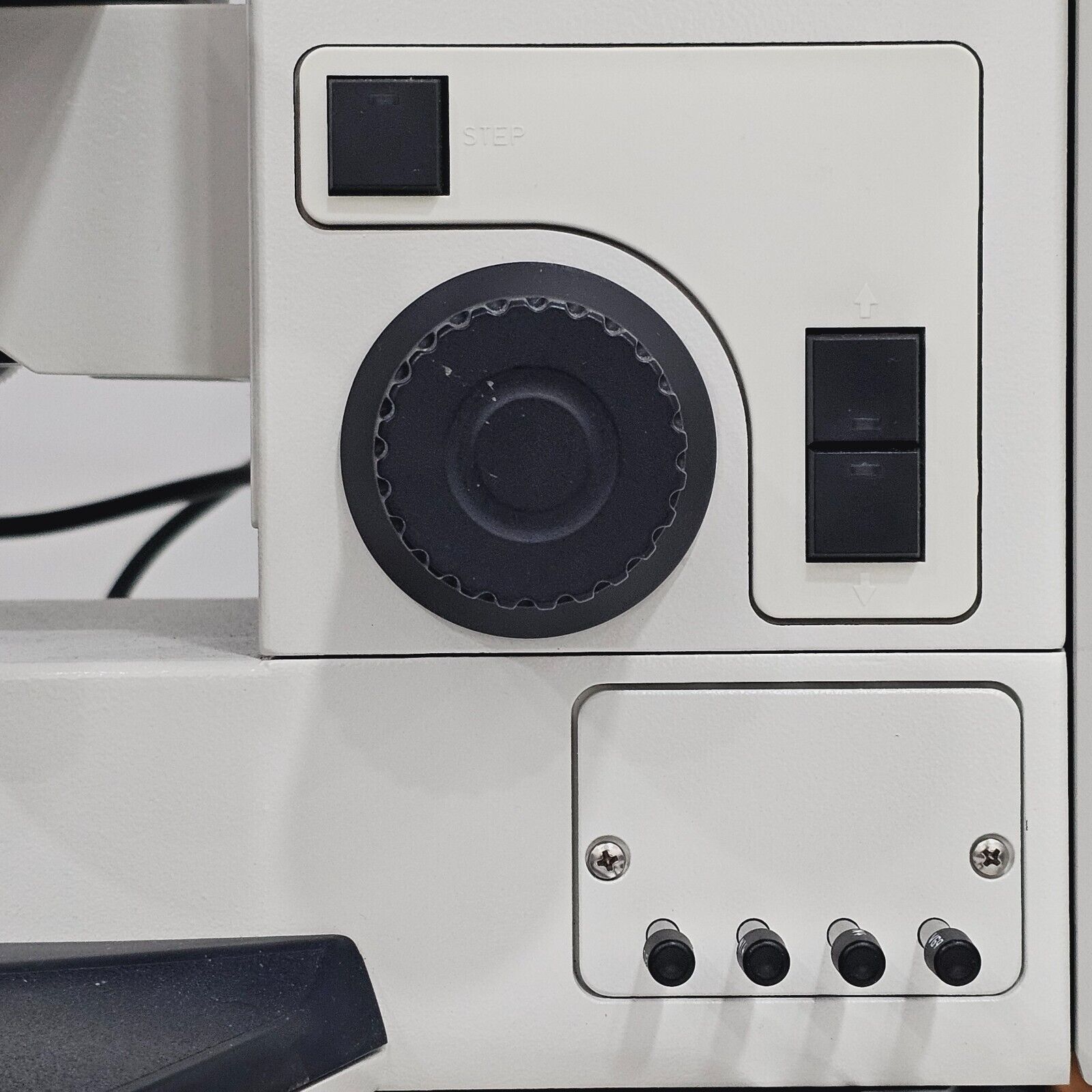

The Leica DMR series represents one of Leica Microsystems' highest-specification upright research microscope platforms. The DMRE variant features a motorised focus drive (RE denoting motor focus), while the HC designation indicates the use of Leica's 4th-generation HC (harmonic correction) infinity optical system, in which aberration corrections are distributed across the objectives, tube lens, and eyepieces for superior image quality across all contrast methods.

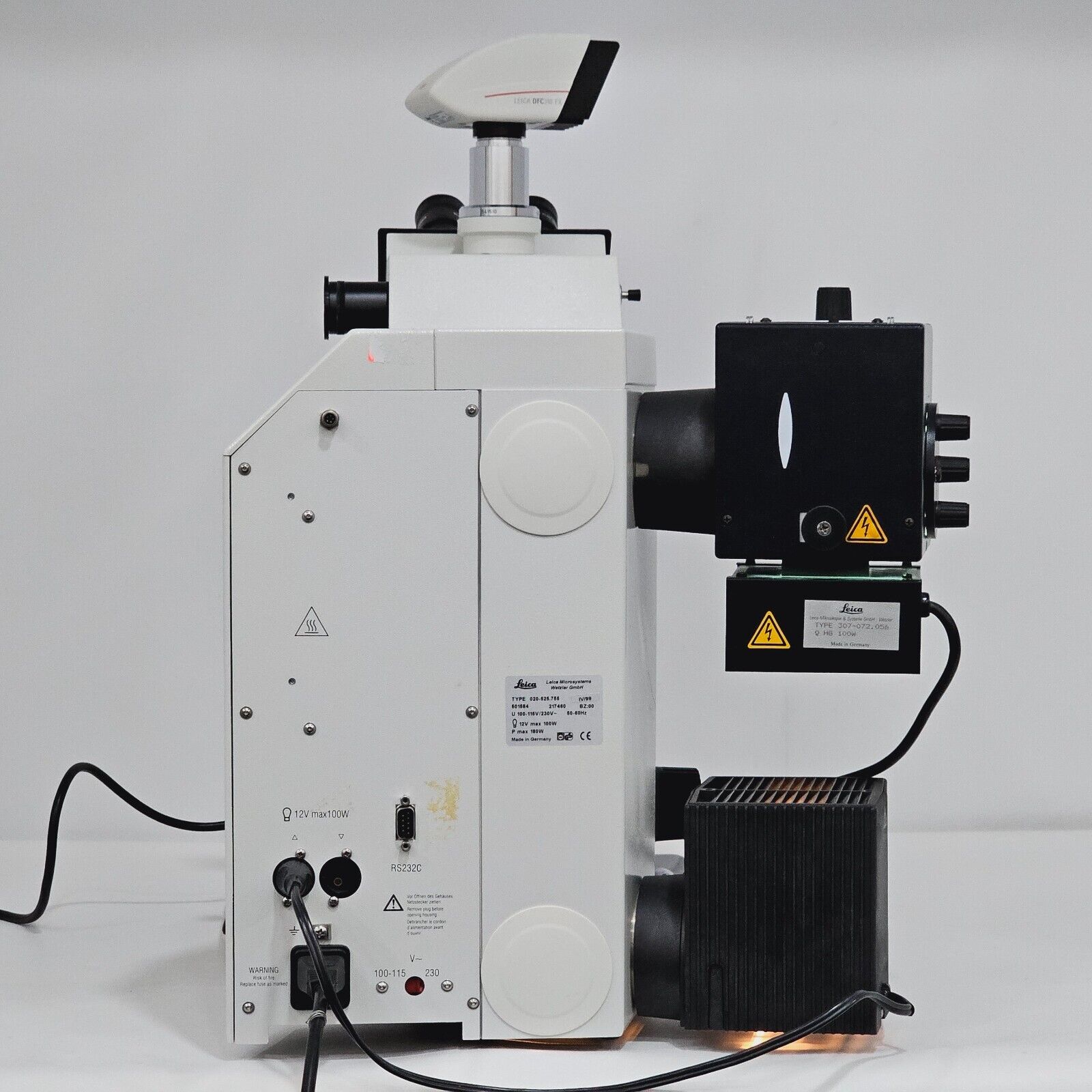

The microscope supports a comprehensive range of contrast techniques including brightfield, darkfield, fluorescence, differential interference contrast (DIC/ICR), incident light polarisation, and phase contrast. The stand features a built-in Bertrand lens, a rotatable fluorescence filter turret accommodating up to four filter cubes with zero pixel shift between positions, and both transmitted and incident light illumination paths. A 12 V / 100 W halogen lamp is used for transmitted light, with support for Hg or Xe arc lamp housings for fluorescence excitation. The stand is equipped with RS-232C interface capability and a lateral photo/TV port with switchable beam splitting.

Microscope Type: Upright research microscope
Series: DM R (DMRE — motorised focus)
Optics System: HC infinity optics (4th generation)
Contrast Methods: Brightfield, darkfield, fluorescence, DIC (ICR), polarisation, phase contrast

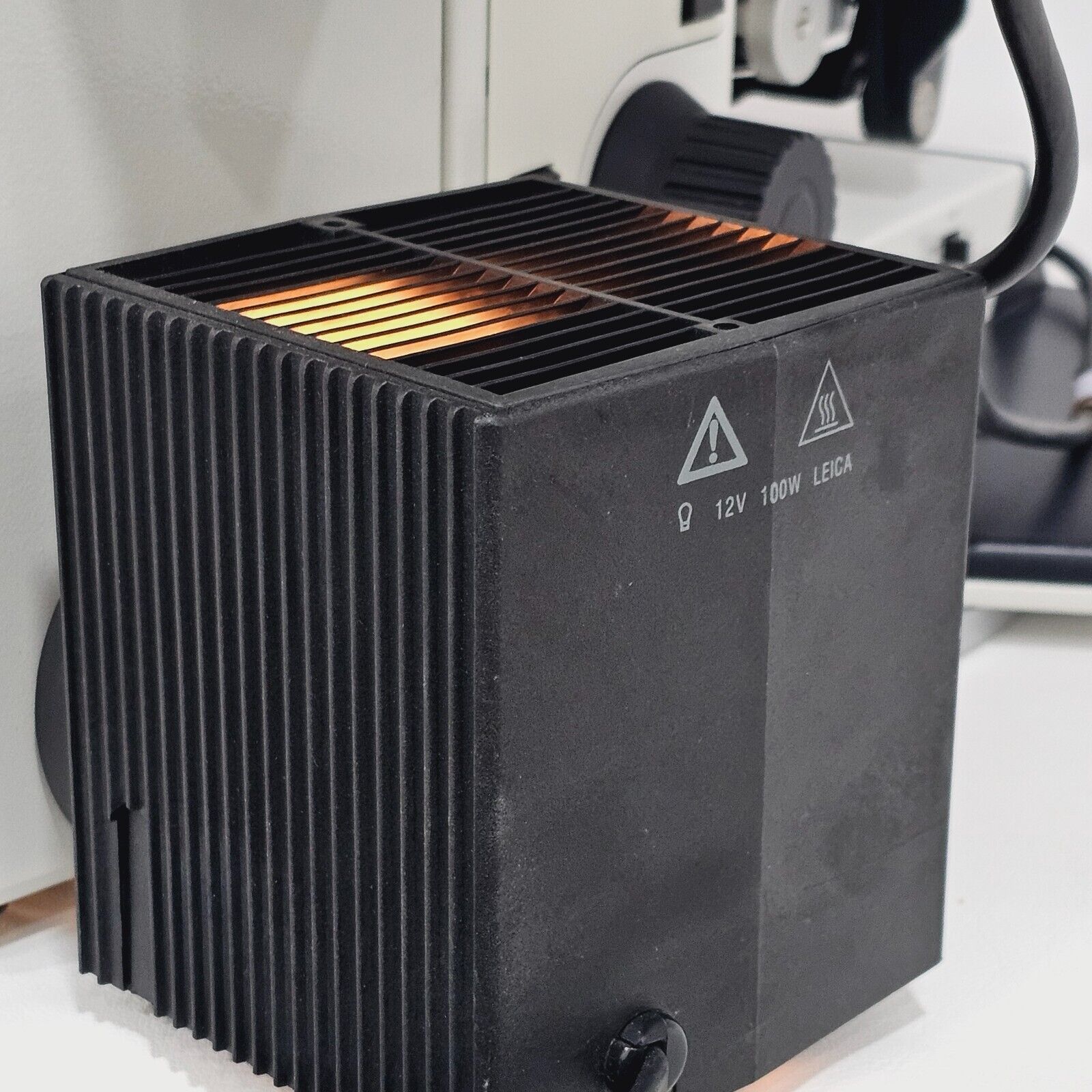

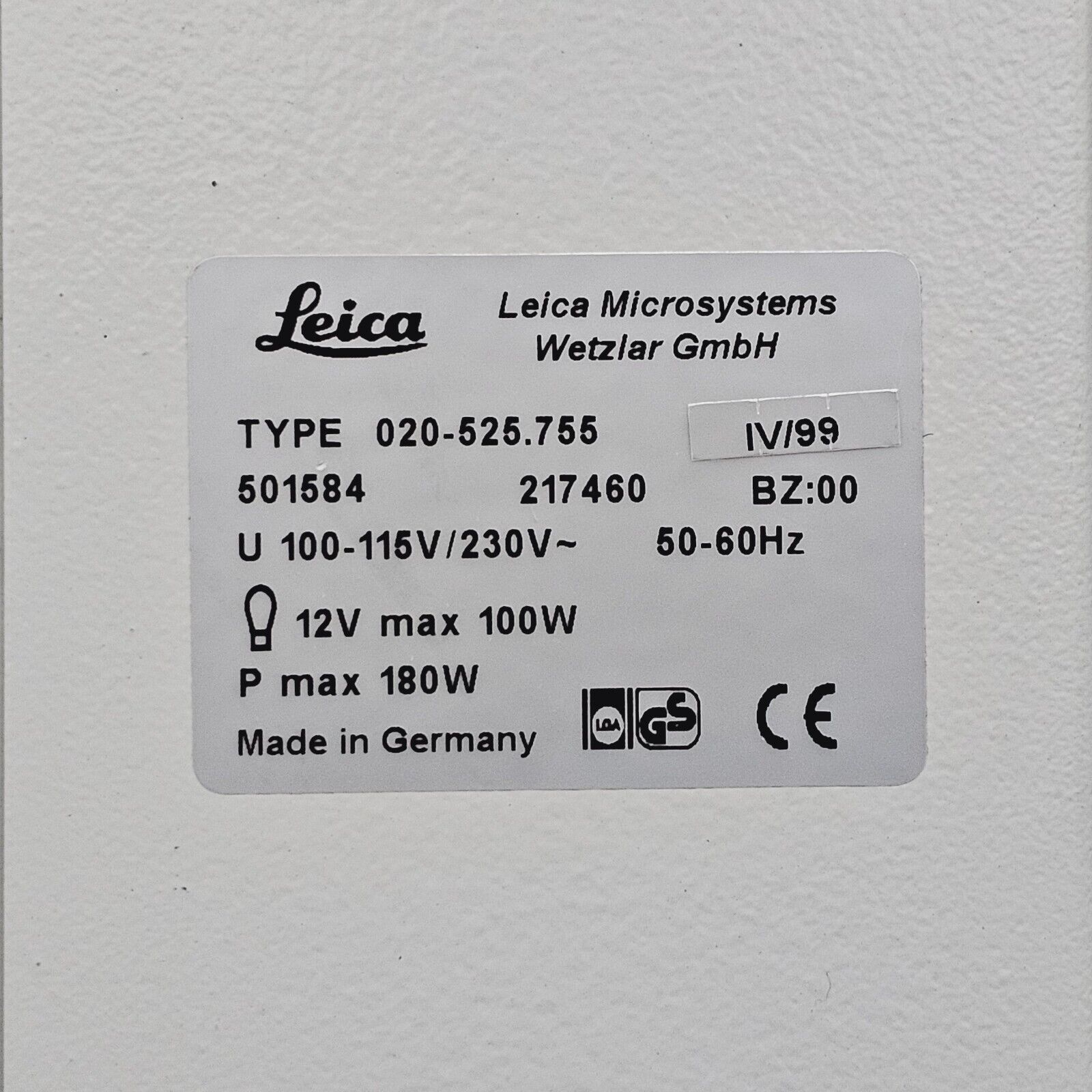

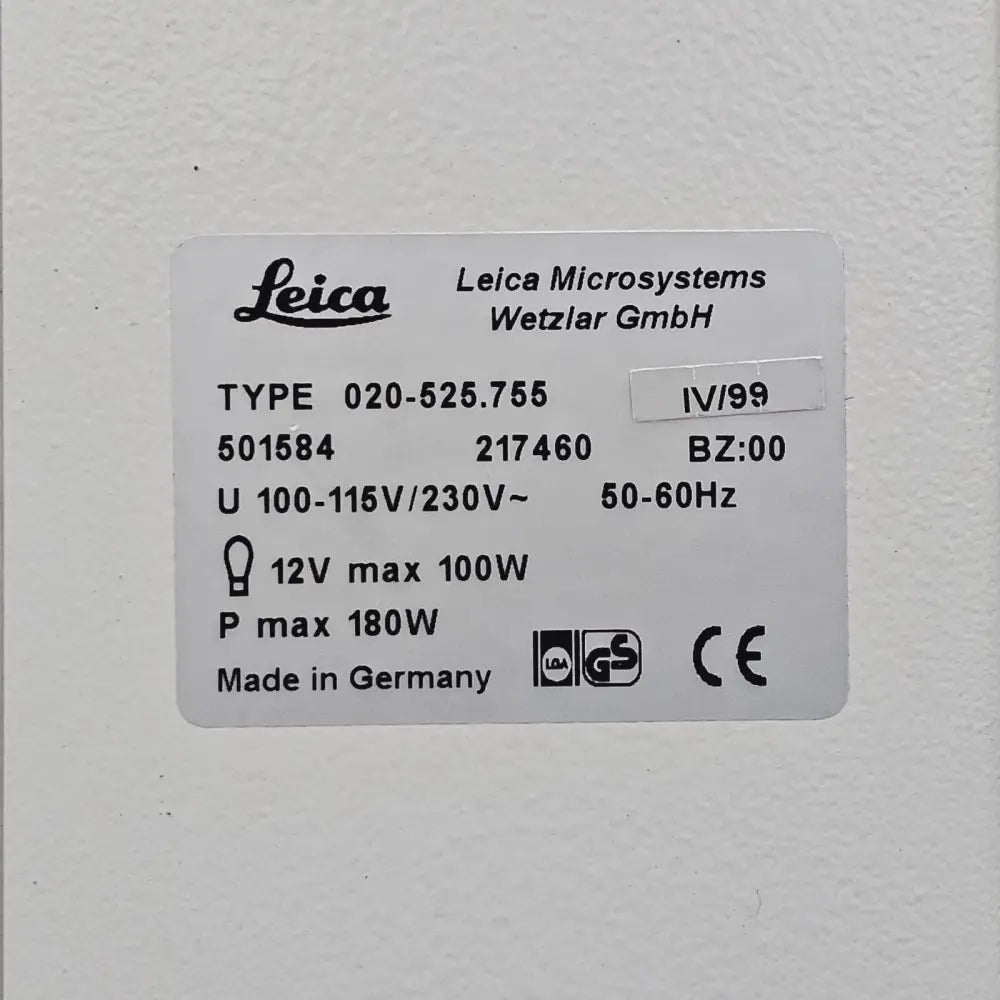

Transmitted Light: 12 V / 100 W halogen

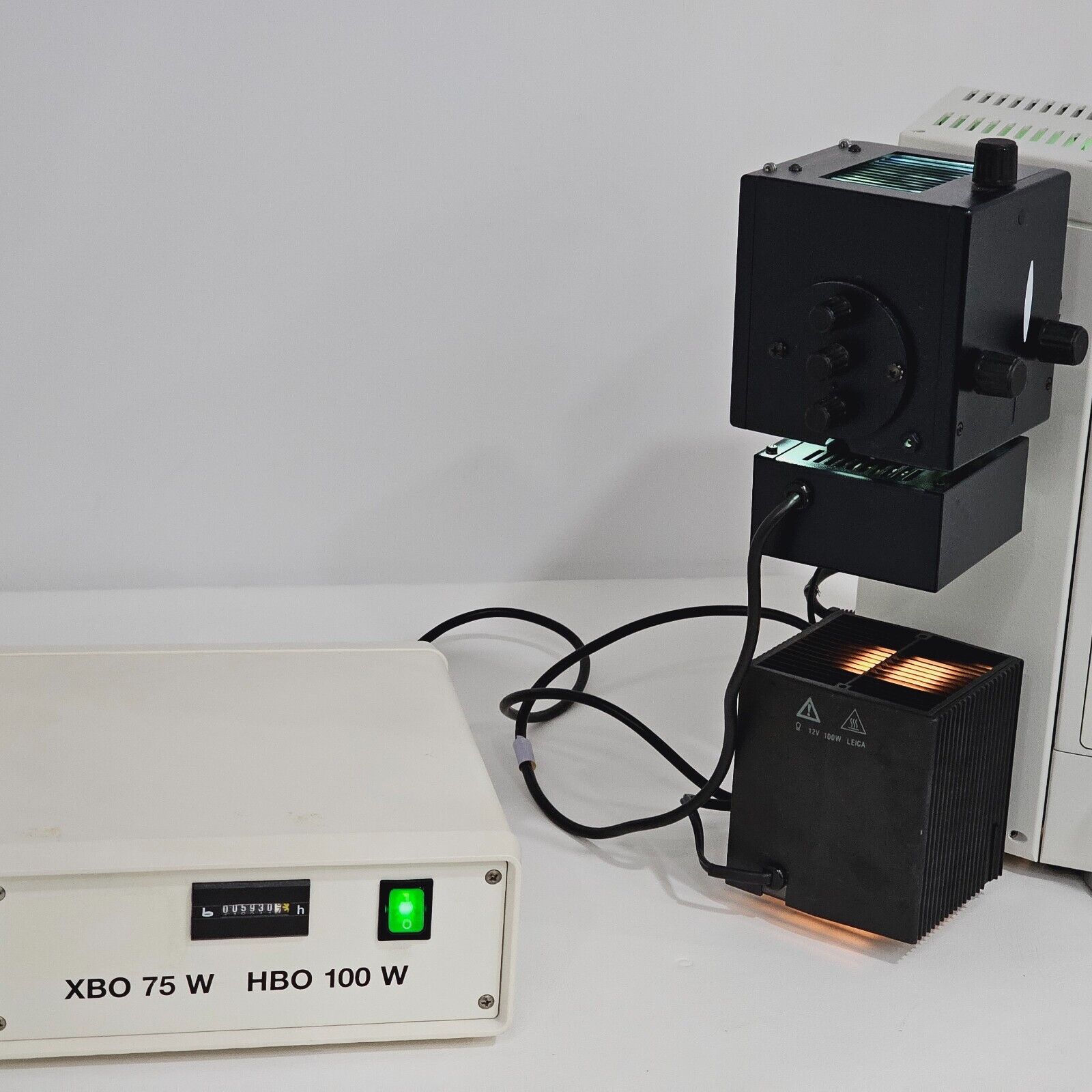

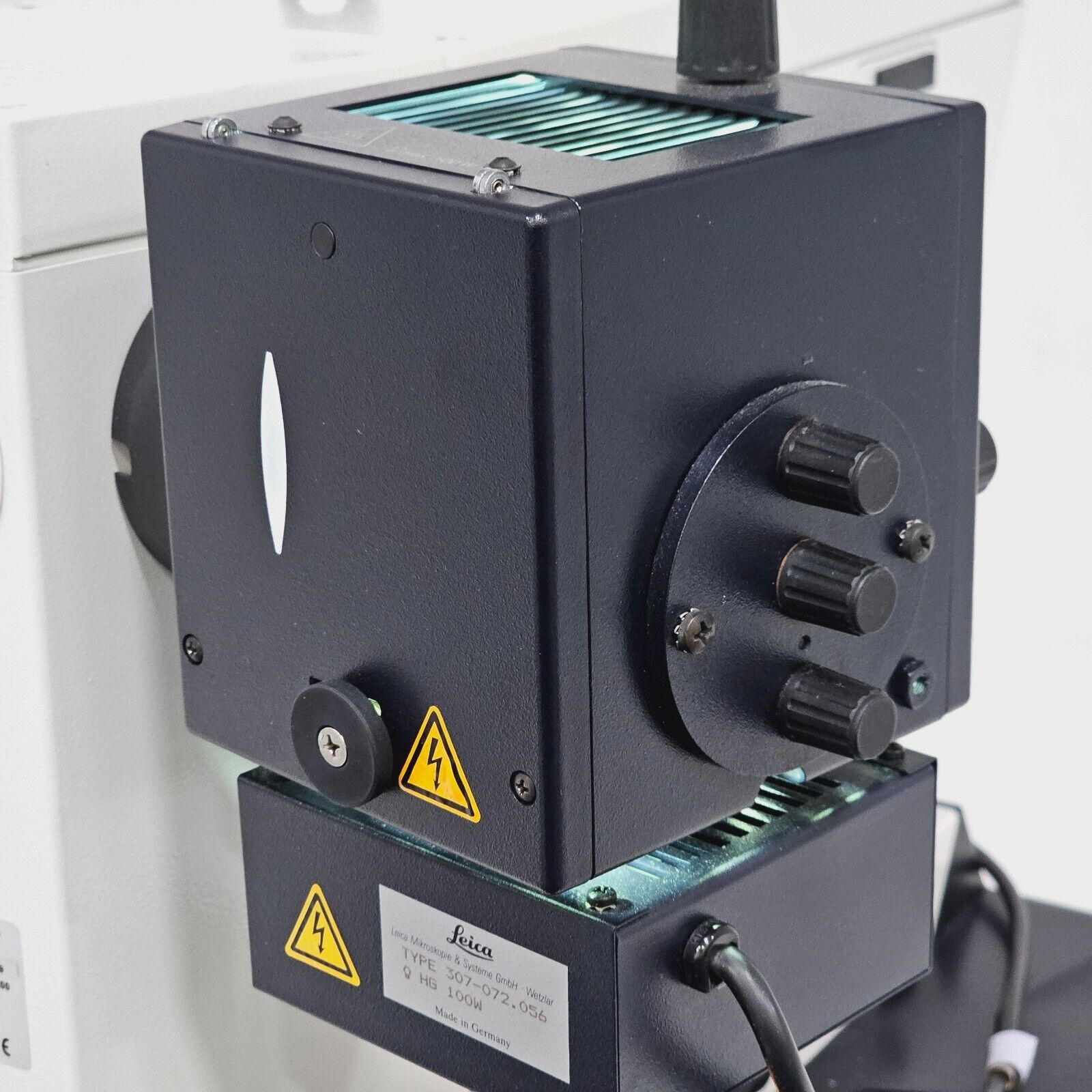

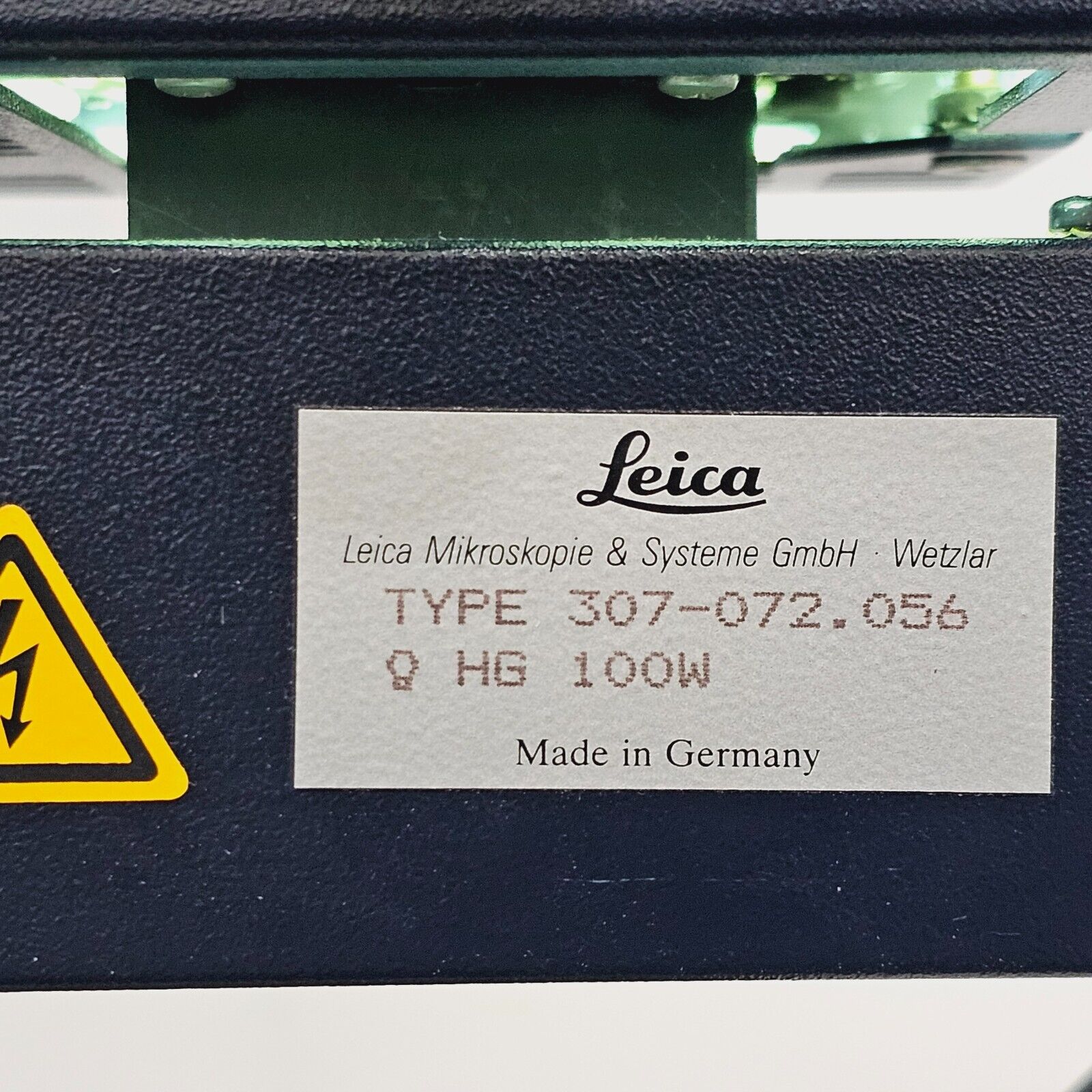

Incident Light: Lamphousing for Hg, Xe or halogen sources

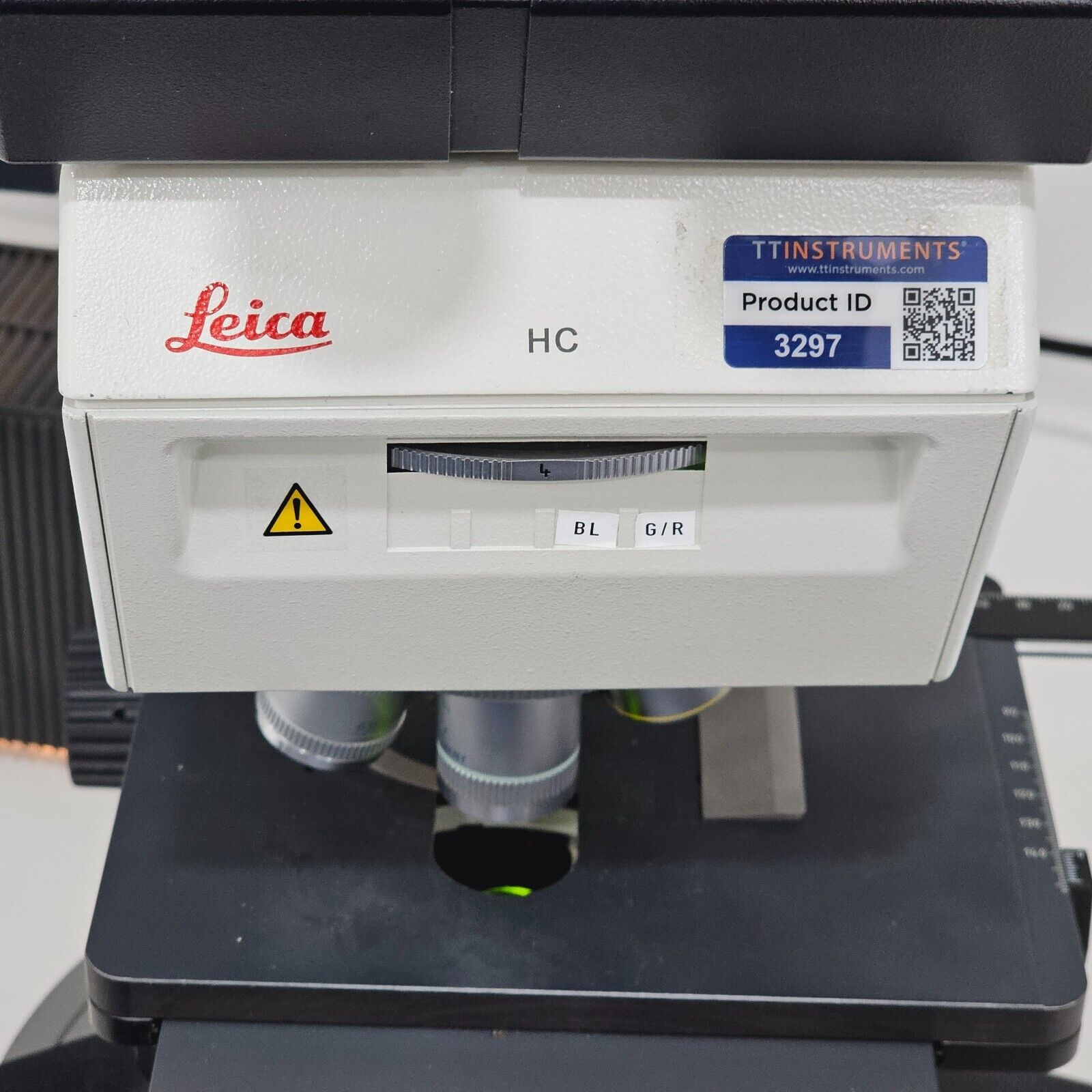

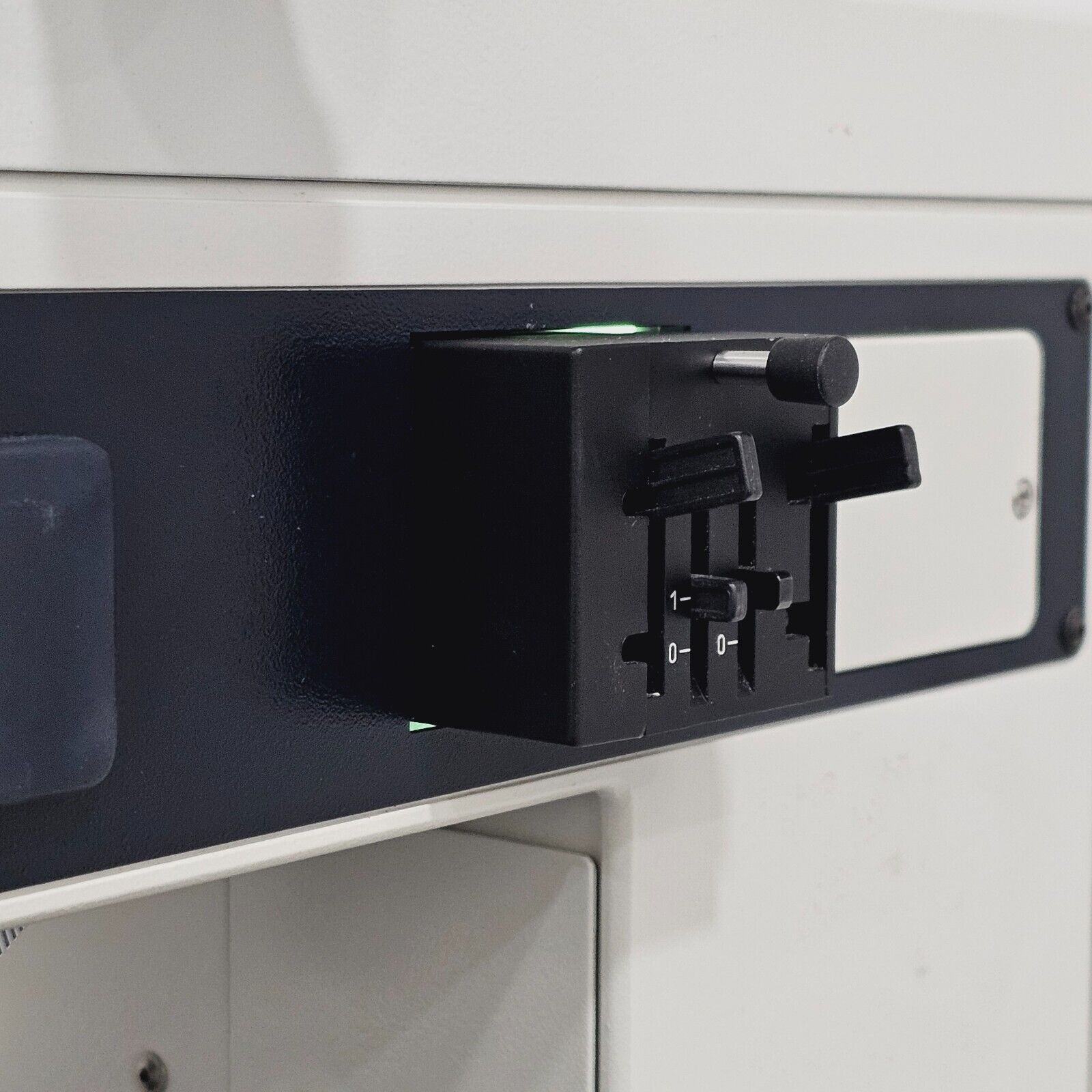

Fluorescence Turret: Up to 4 rotatable filter cubes, zero pixel shift
Objective Thread: M32 x 0.75 mm
Tube Lens Factor: 1x / 1.6x switchable (with Bertrand lens)
Beam Splitter: Switchable 100% visual / 100% photo or 50%/50%

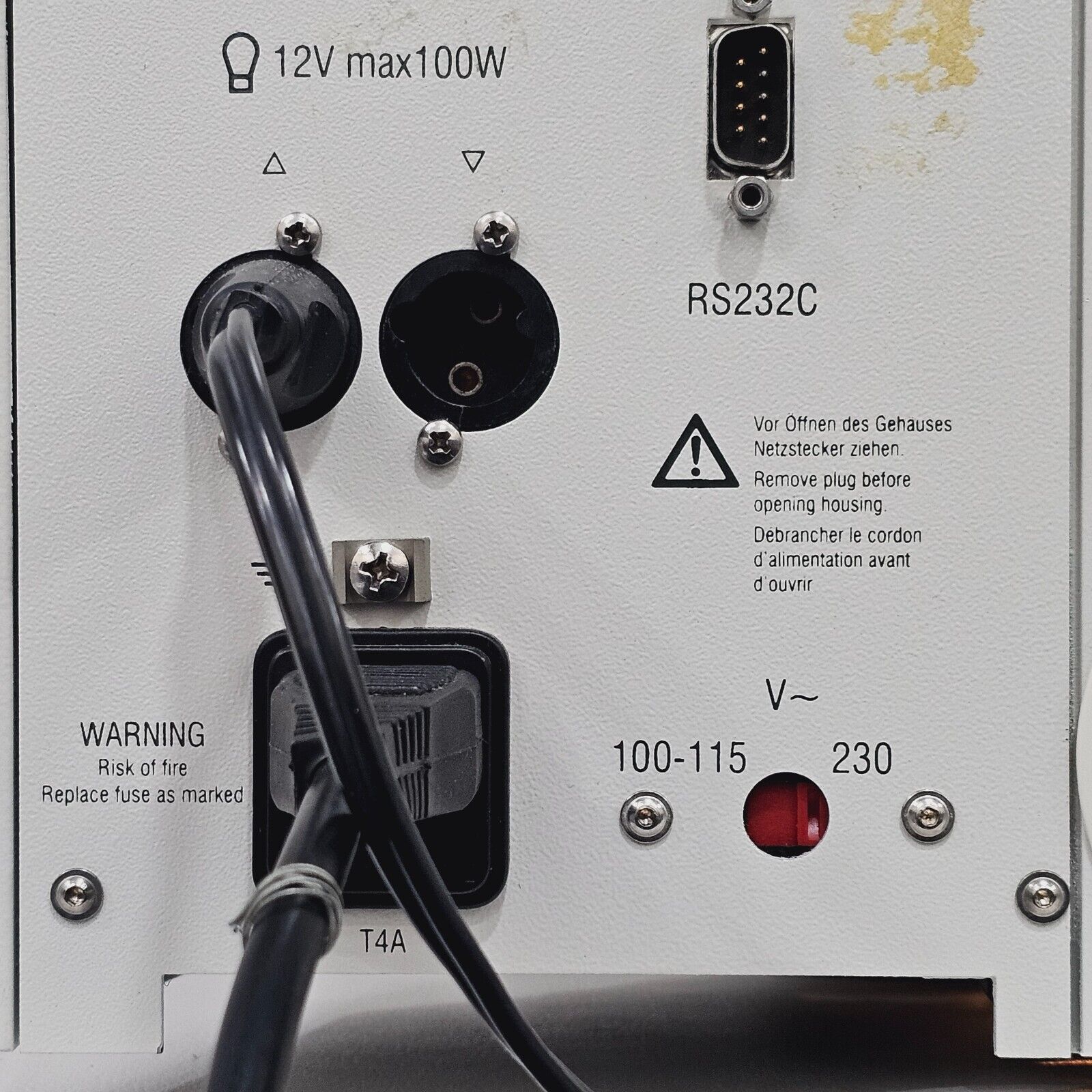

Interface: RS-232C
Illumination: Köhler illumination with centrable field and aperture diaphragms

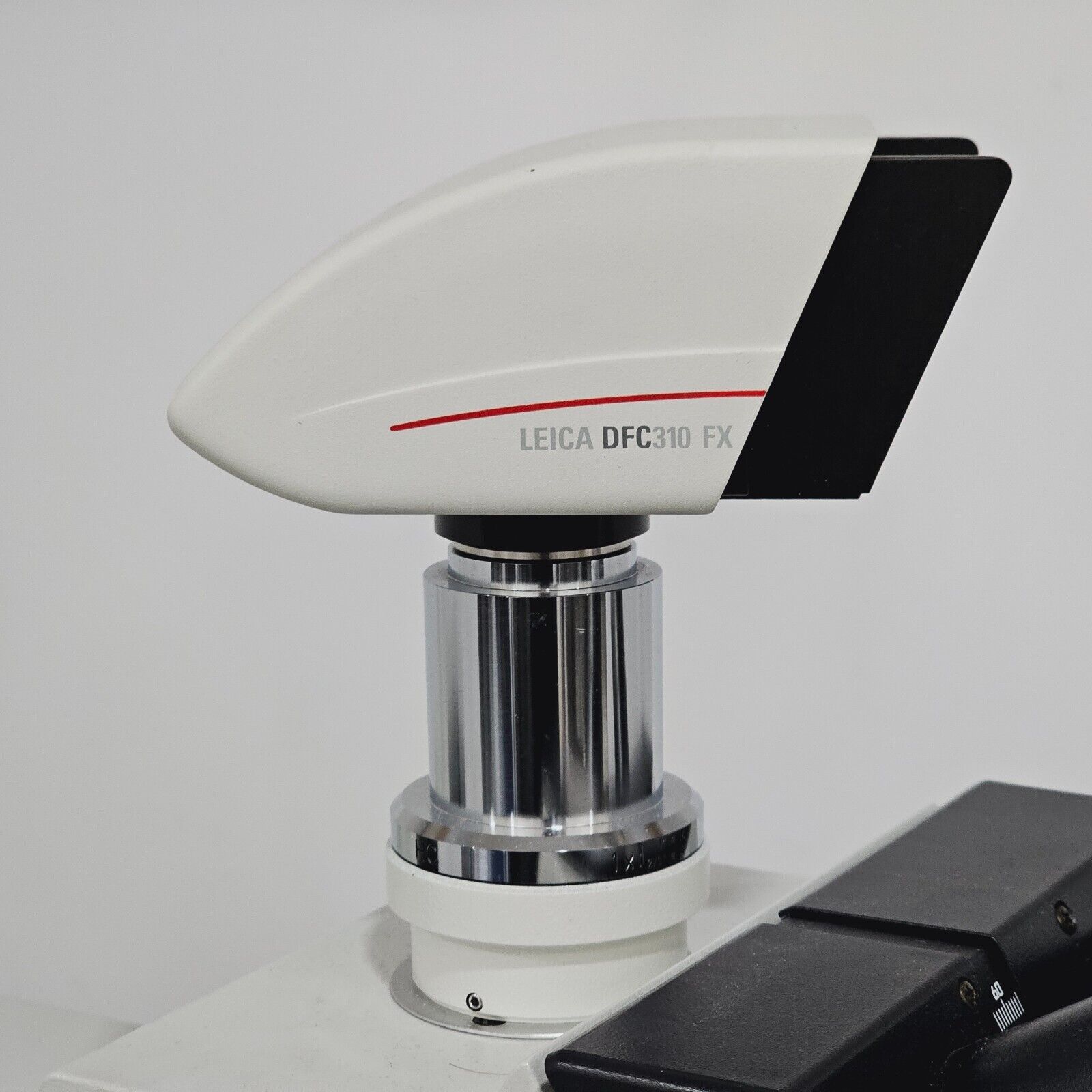

Leica DFC310 FX — Digital Colour Fluorescence Camera

The Leica DFC310 FX is a 1.4-megapixel digital colour camera designed for demanding fluorescence and transmitted light microscopy applications in cell biology, developmental biology, and medicine.

Sensor Type: 2/3" progressive scan interline CCD
Resolution: 1392 x 1040 pixels (1.4 MP)
Colour Depth: 36-bit
Cooling: Active Peltier thermoelectric cooling
Frame Rate: Up to 71 fps (4x4 binning mode)
Acquisition Modes: Full frame, partial scan (freely definable ROI), binning (2x2, 3x3, 4x4)

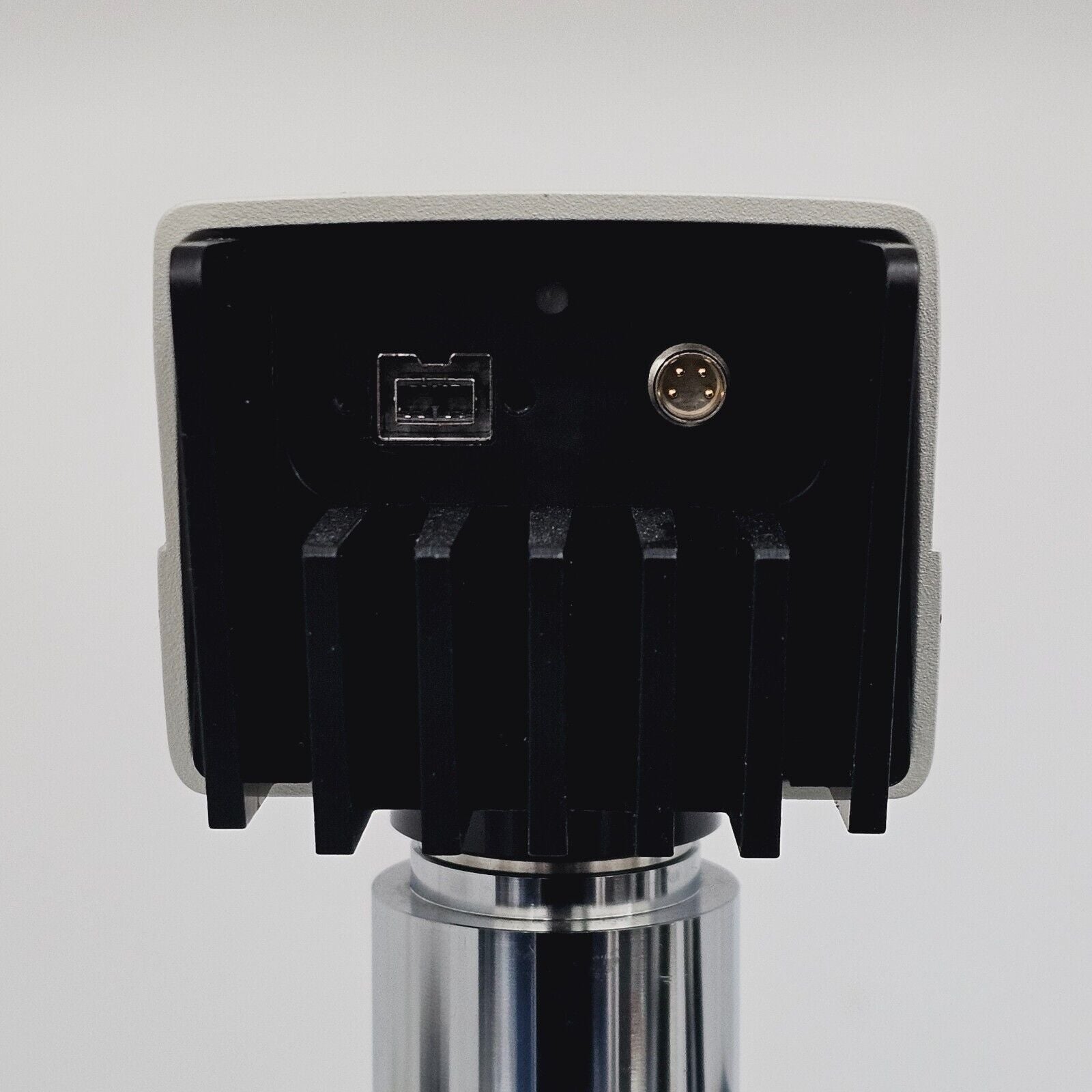

Interface: IEEE 1394b FireWire
C-Mount: 0.7x
White Balance: Automated
Software: Leica DFC Twain (PC), Leica FireCam (Mac), Leica Application Suite (LAS)
Operating Systems: Windows XP/Vista/7 (32 & 64-bit), Mac OS X
Compatibility: PC and Mac
Applications: Fluorescence labelling, GFP imaging, live cell imaging, stained histological sections, vital staining

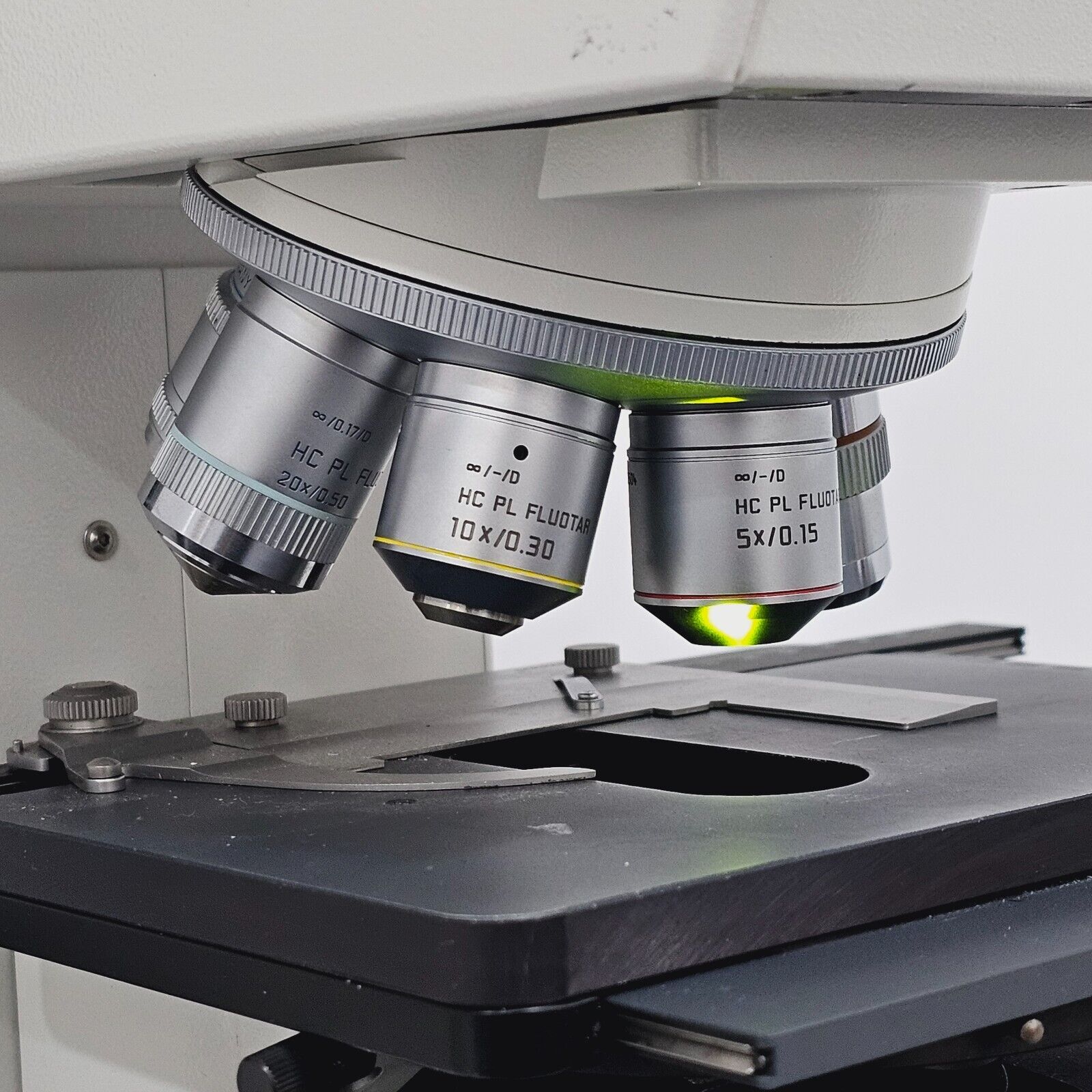

HC PL FLUOTAR Objectives (included):
Objective 1: PL FLUOTAR 2.5x/0.07 (part no. 567010)
Objective 2: HC PL FLUOTAR 5x/0.15 (part no. 506504)
Objective 3: HC PL FLUOTAR 10x/0.30 (part no. 506505)
Objective 4: HC PL FLUOTAR 20x/0.50 (part no. 506503)
