Condition: Seller refurbished

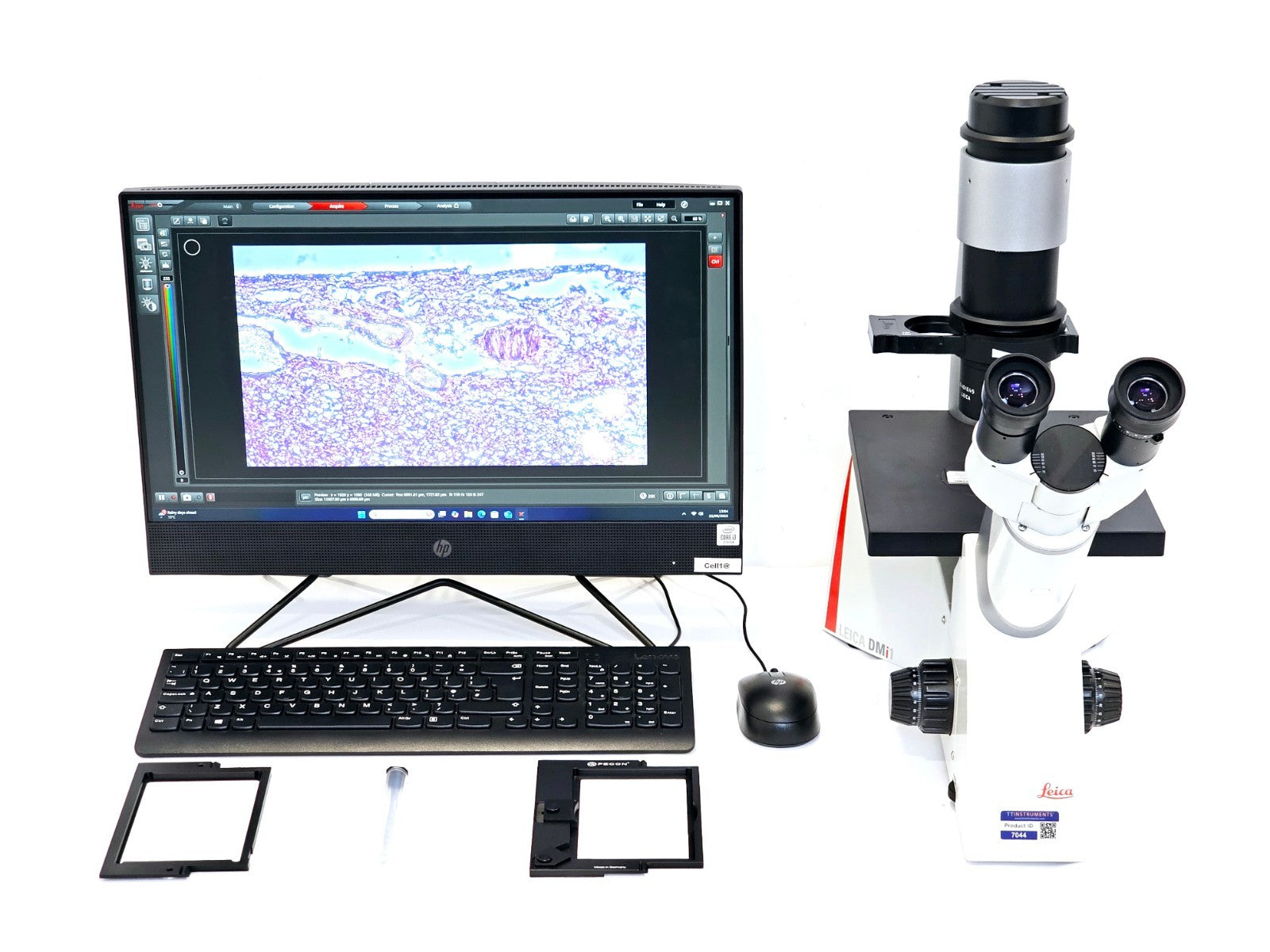

This fully tested and functional Leica DMi1 inverted microscope is supplied with a Leica Flexacam C1 12 MP camera, a configured PC with Leica LAS X software installed, three HI PLAN objectives, an S40 condenser, and a 2-position phase contrast slider. Tested and confirmed fully operational.

Included in the sale:

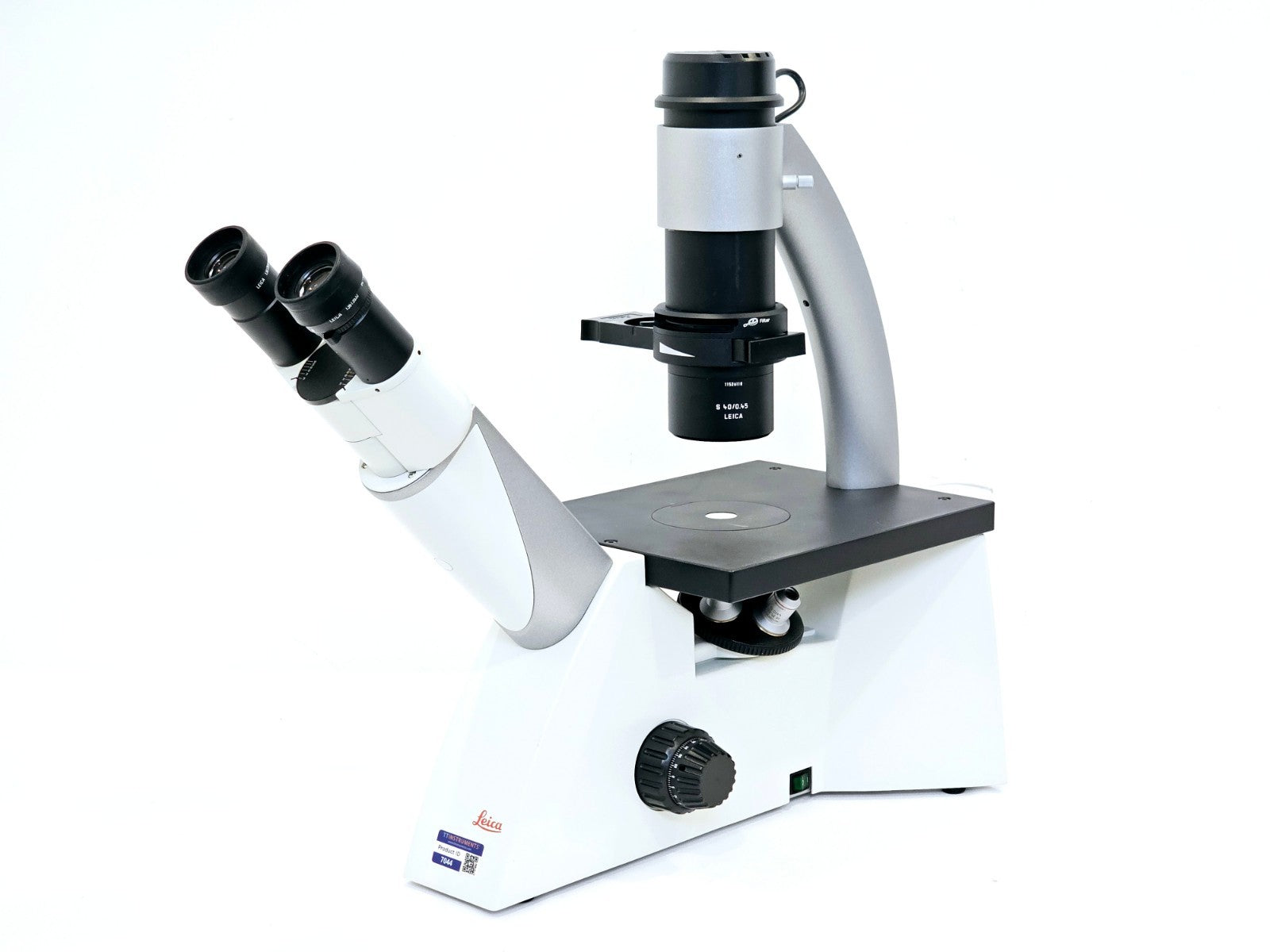

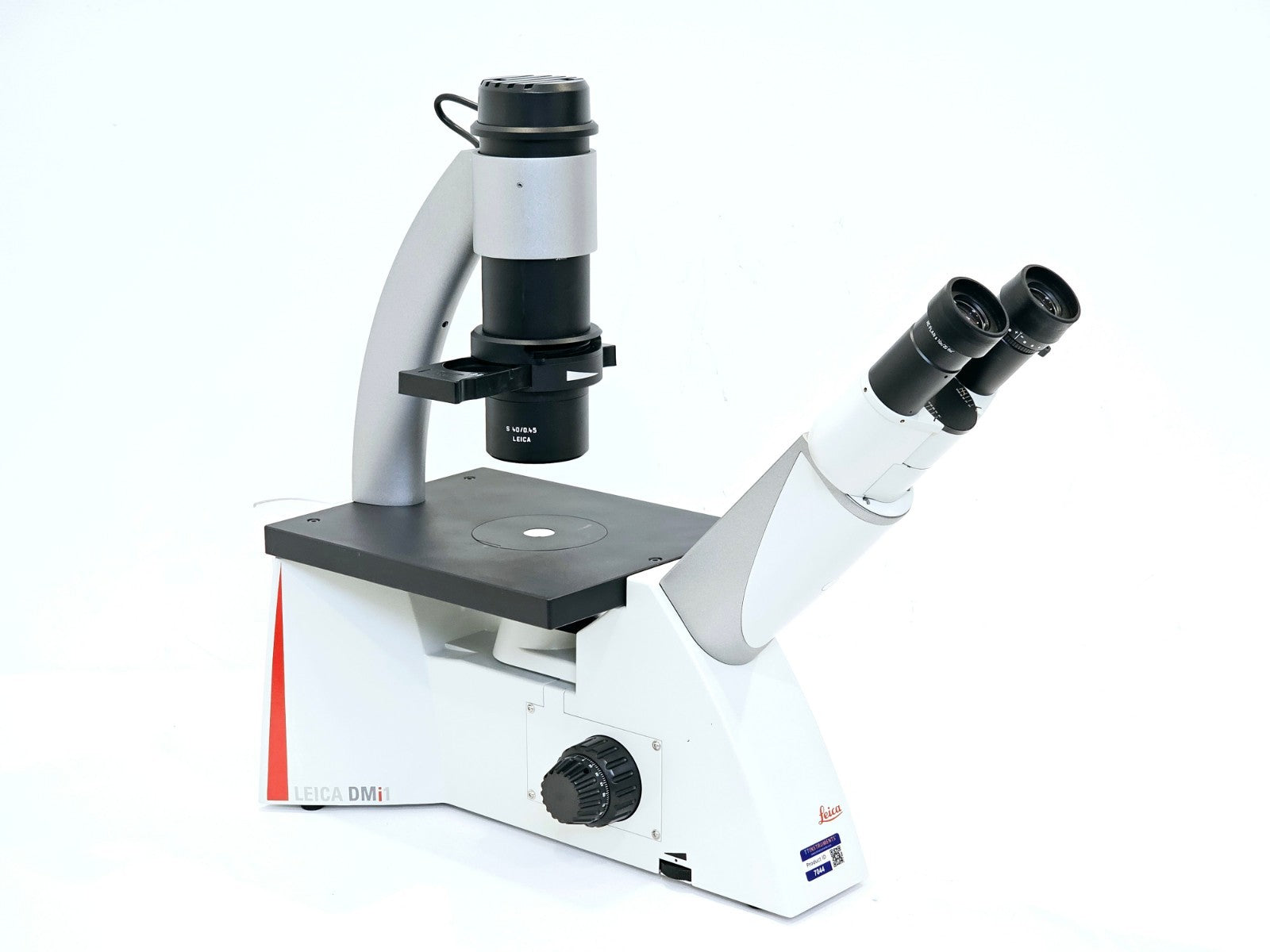

• Leica DMi1 inverted microscope
• Leica Flexacam C1 12 MP camera

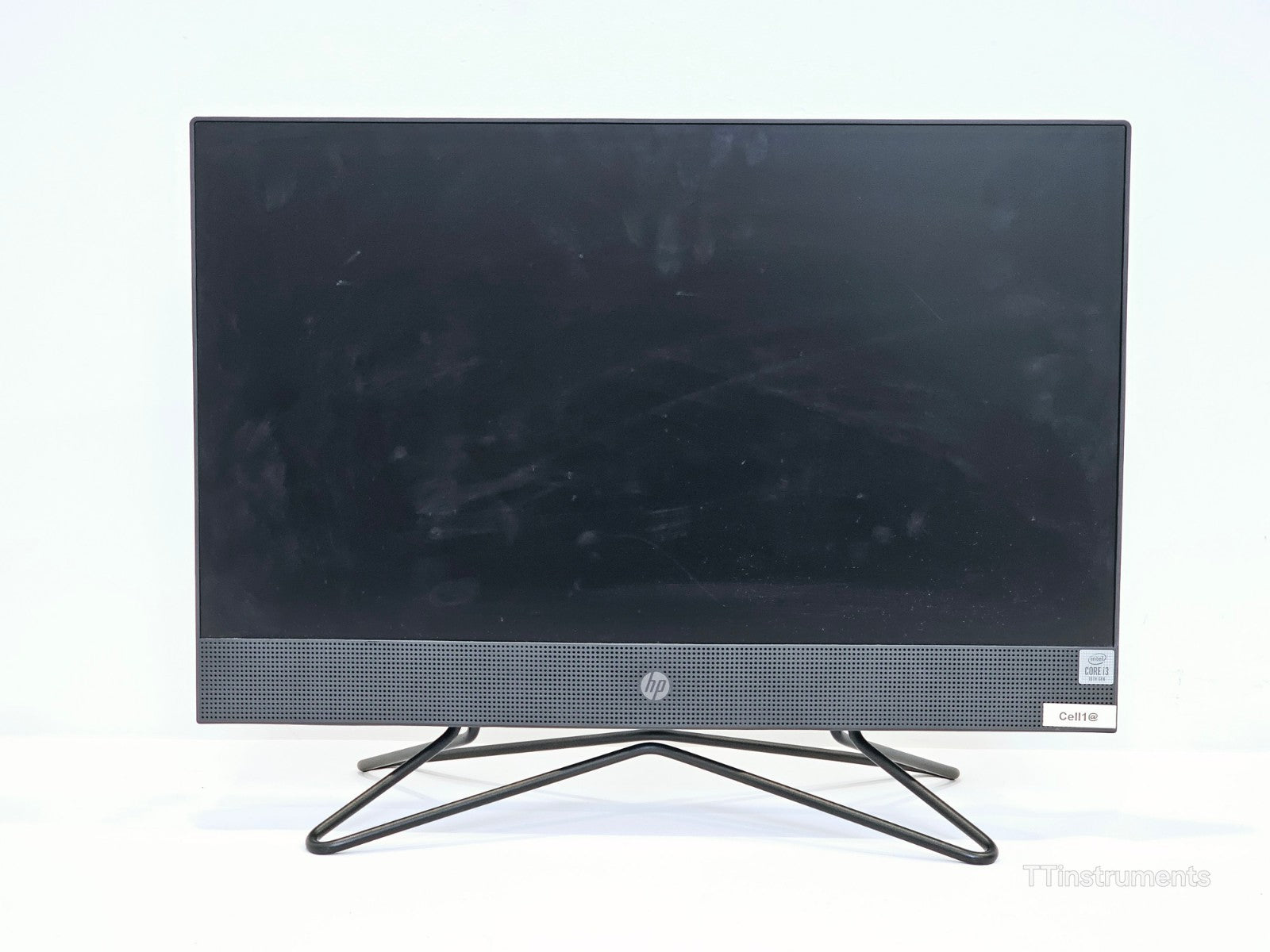

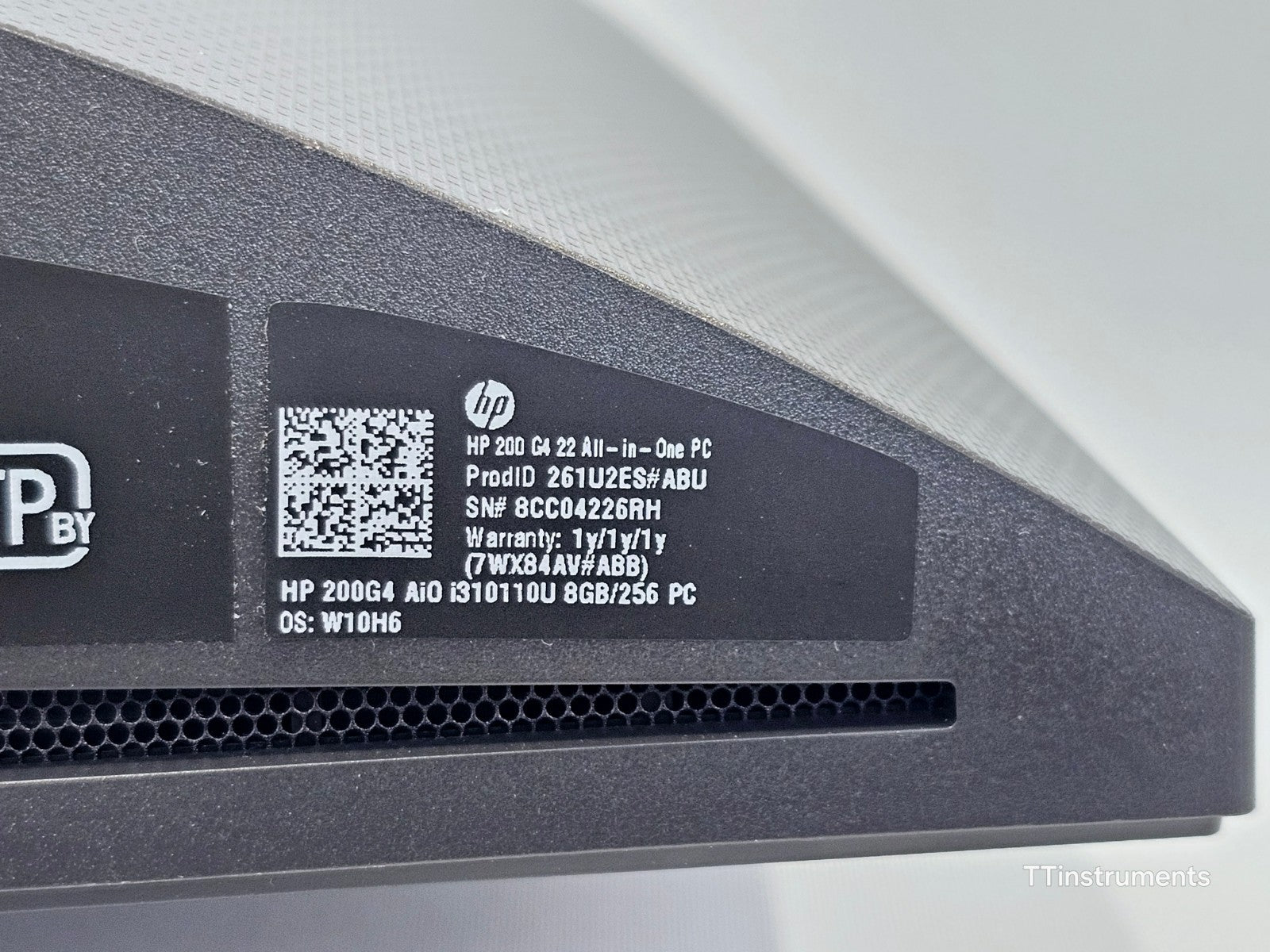

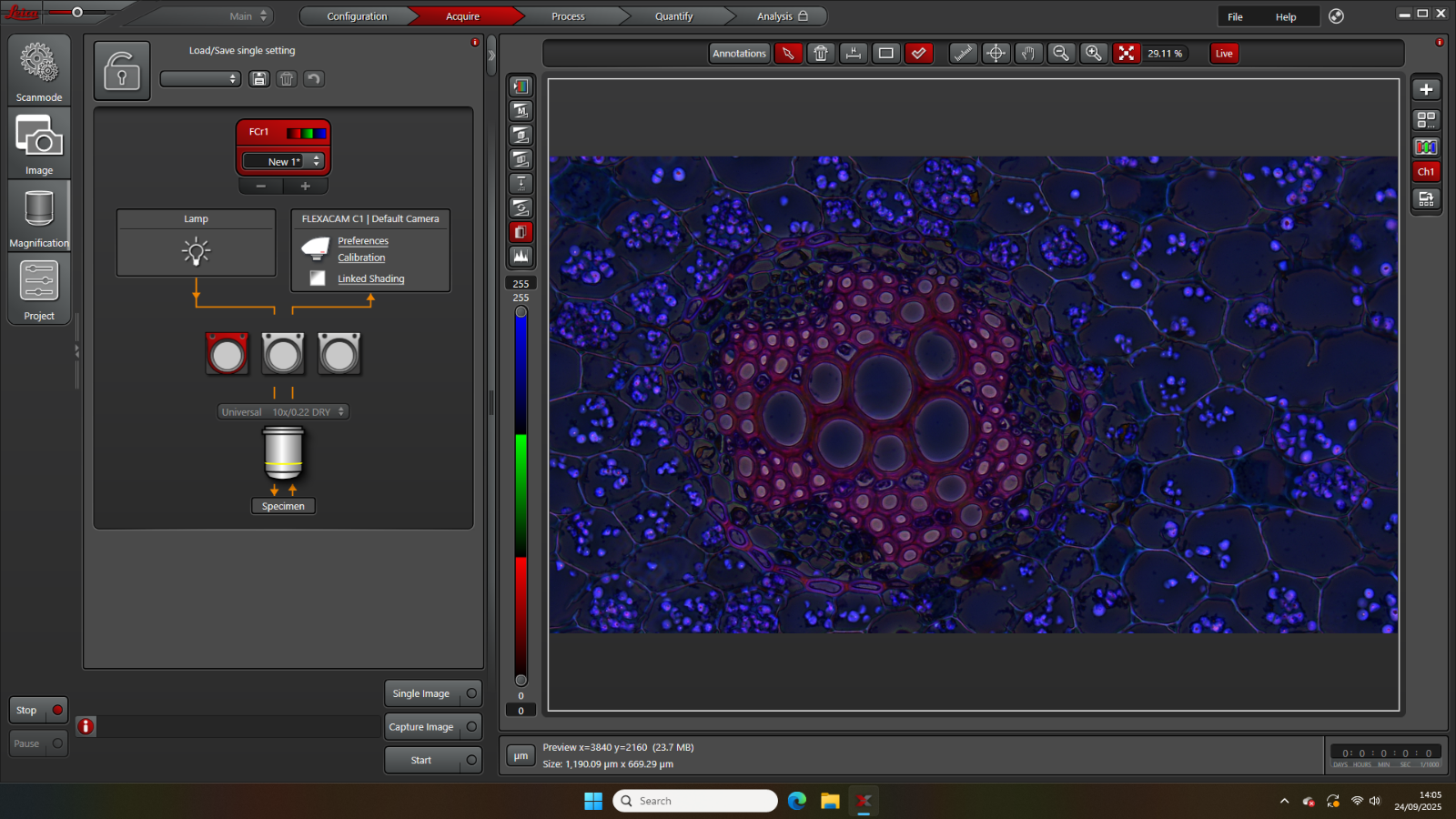

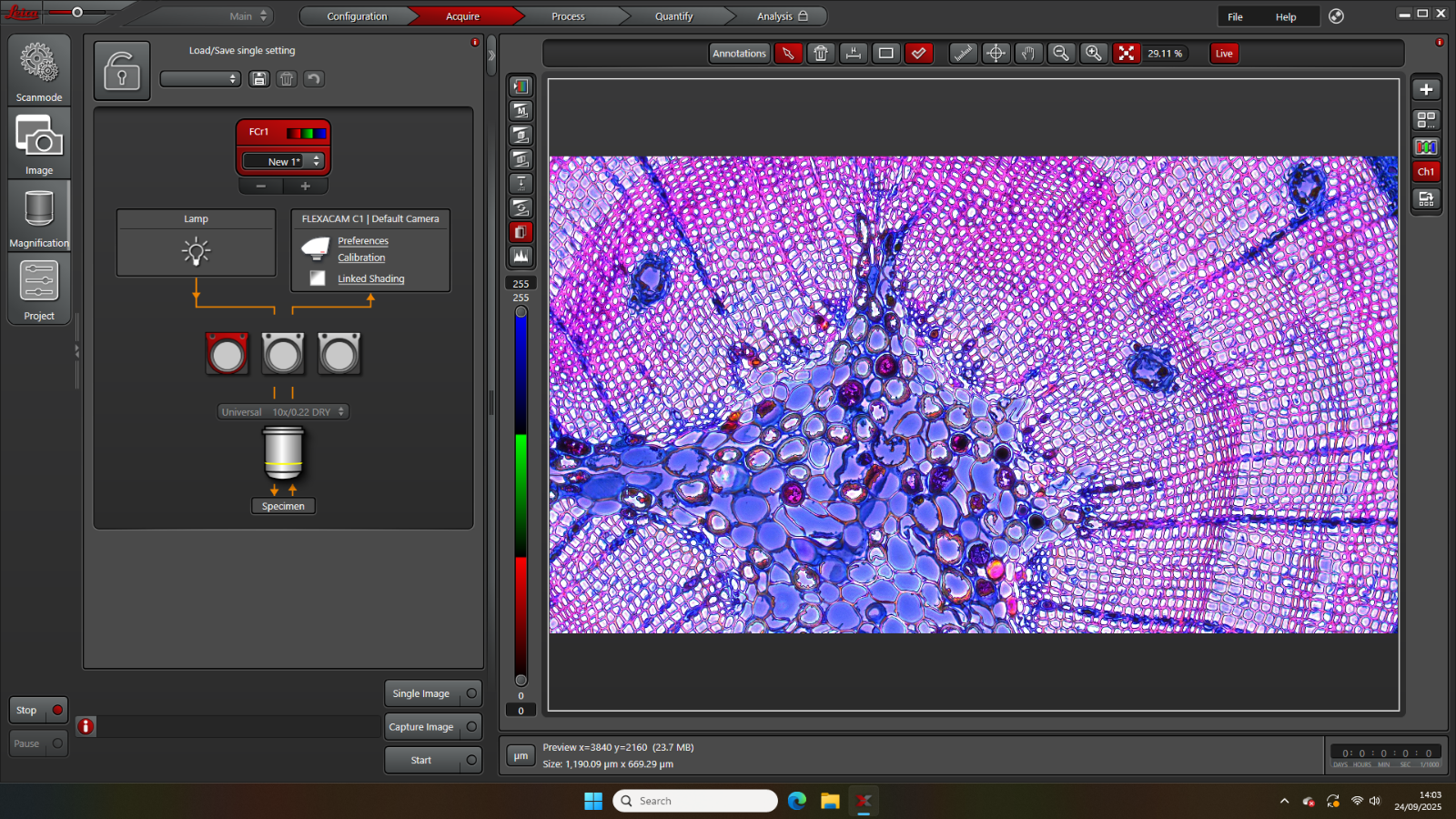

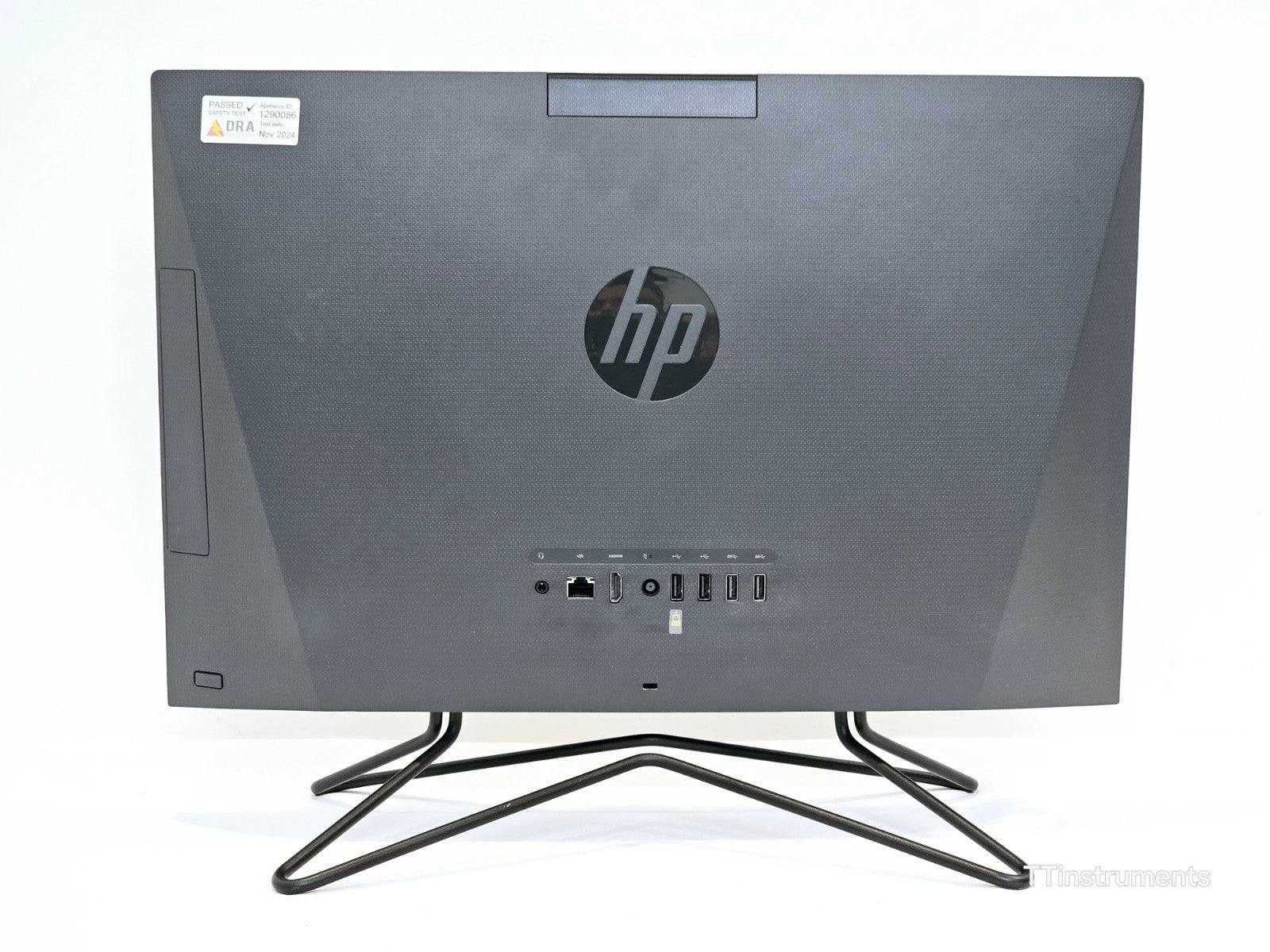

• PC with Leica LAS X software installed

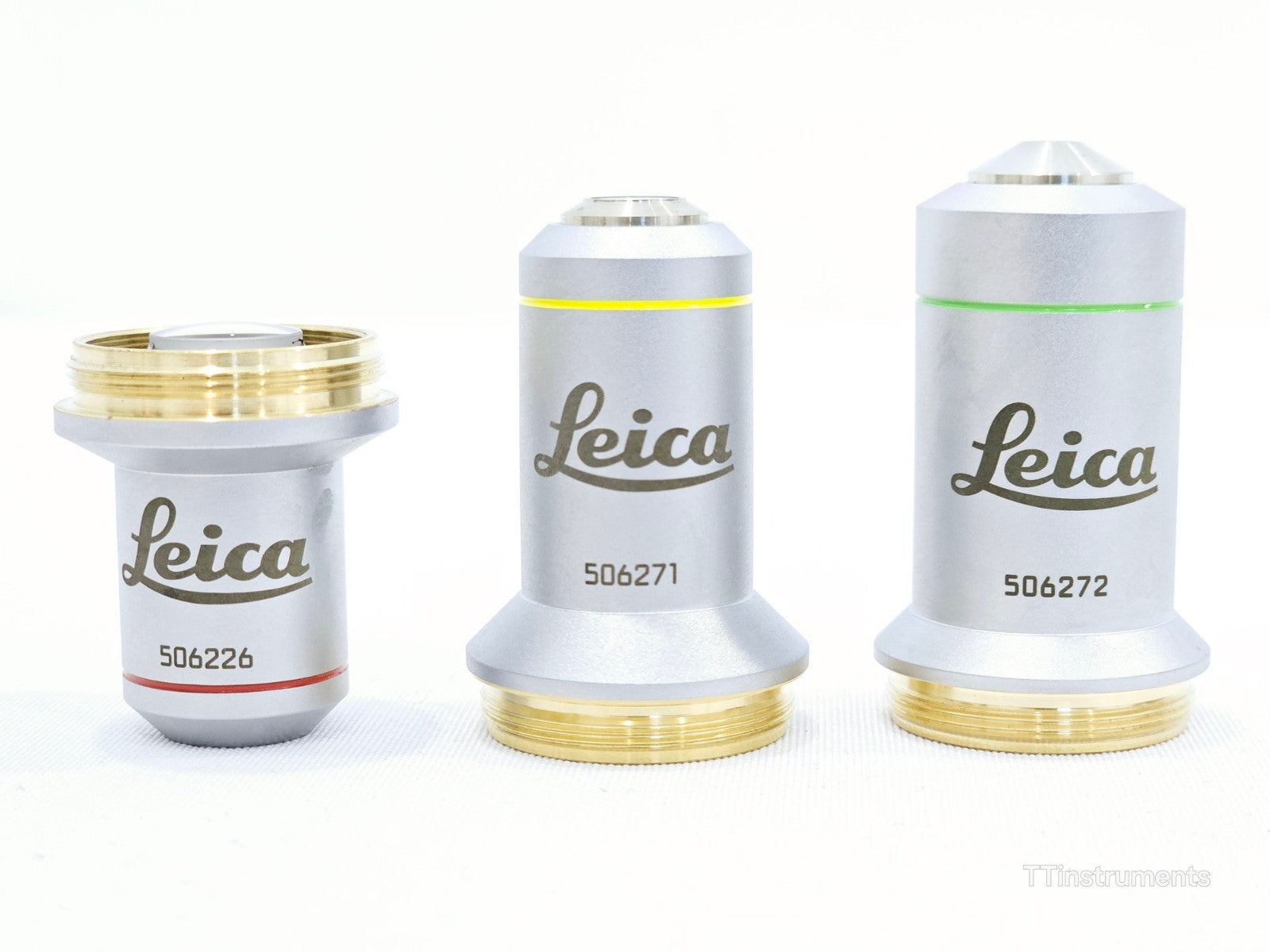

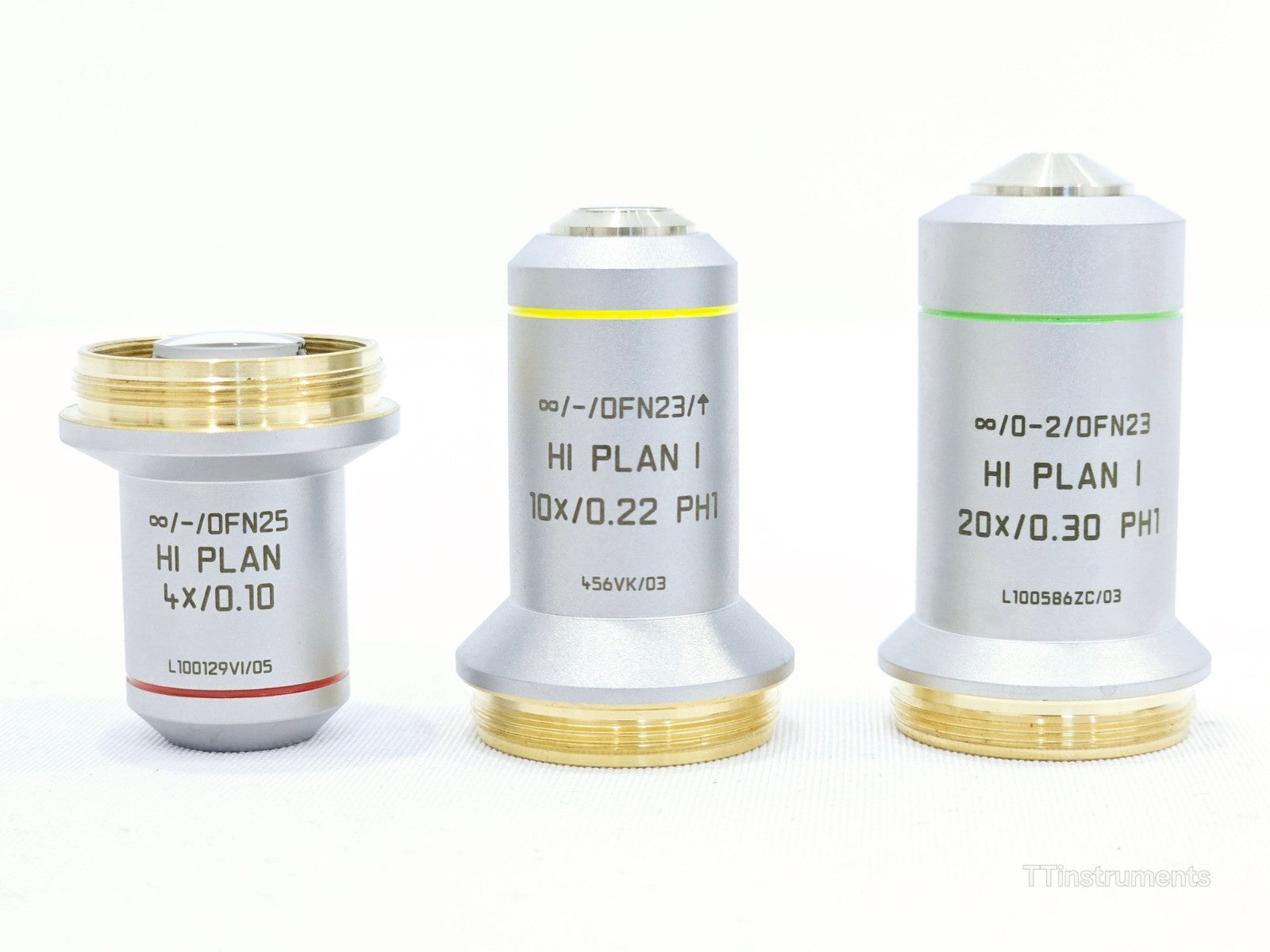

• 4x objective: HI PLAN OFN25 4x/0.1
• 10x objective: HI PLAN I OFN23 10x/0.22 PH1
• 20x objective: HI PLAN I 20x/0.3 PH1

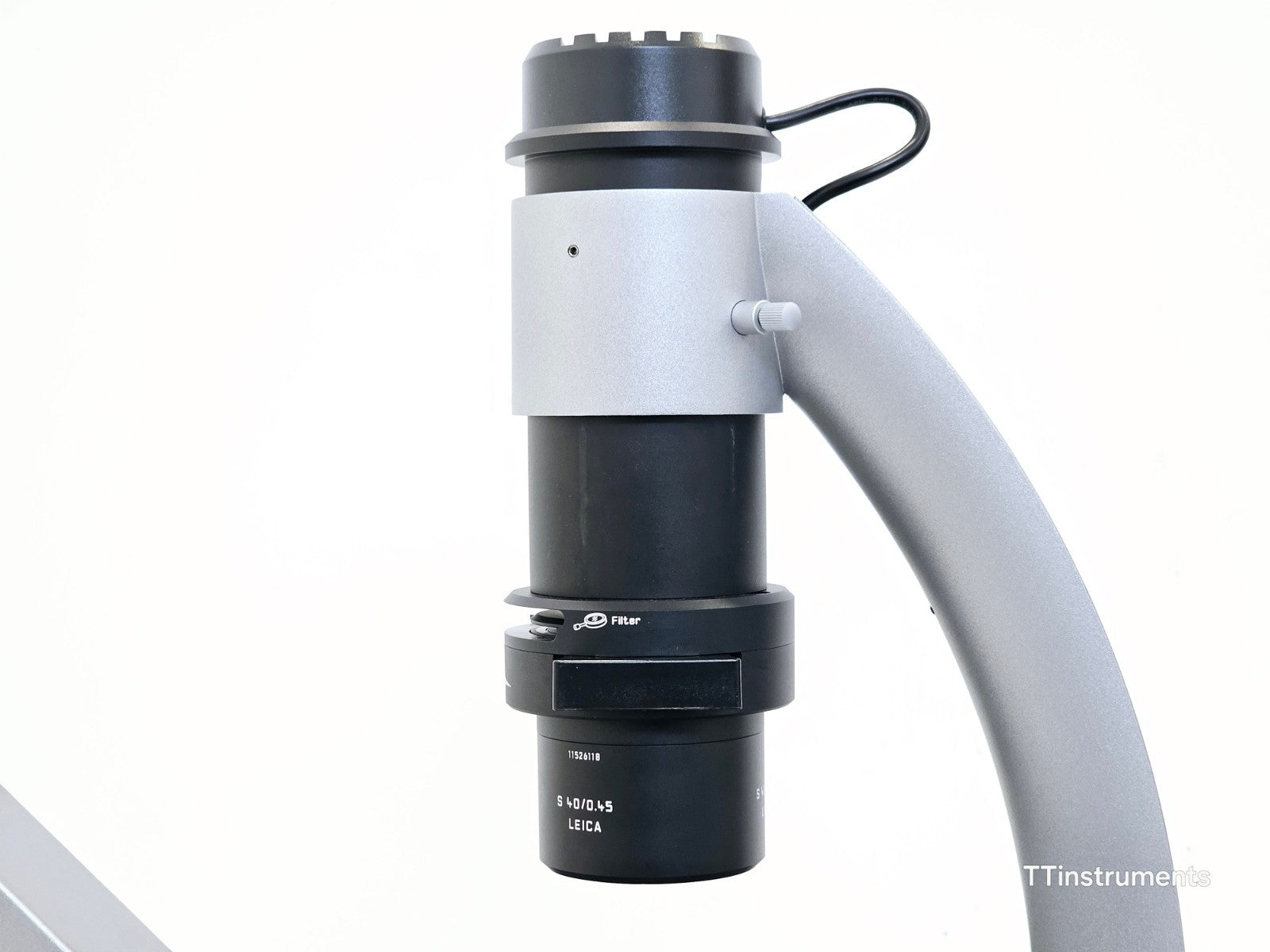

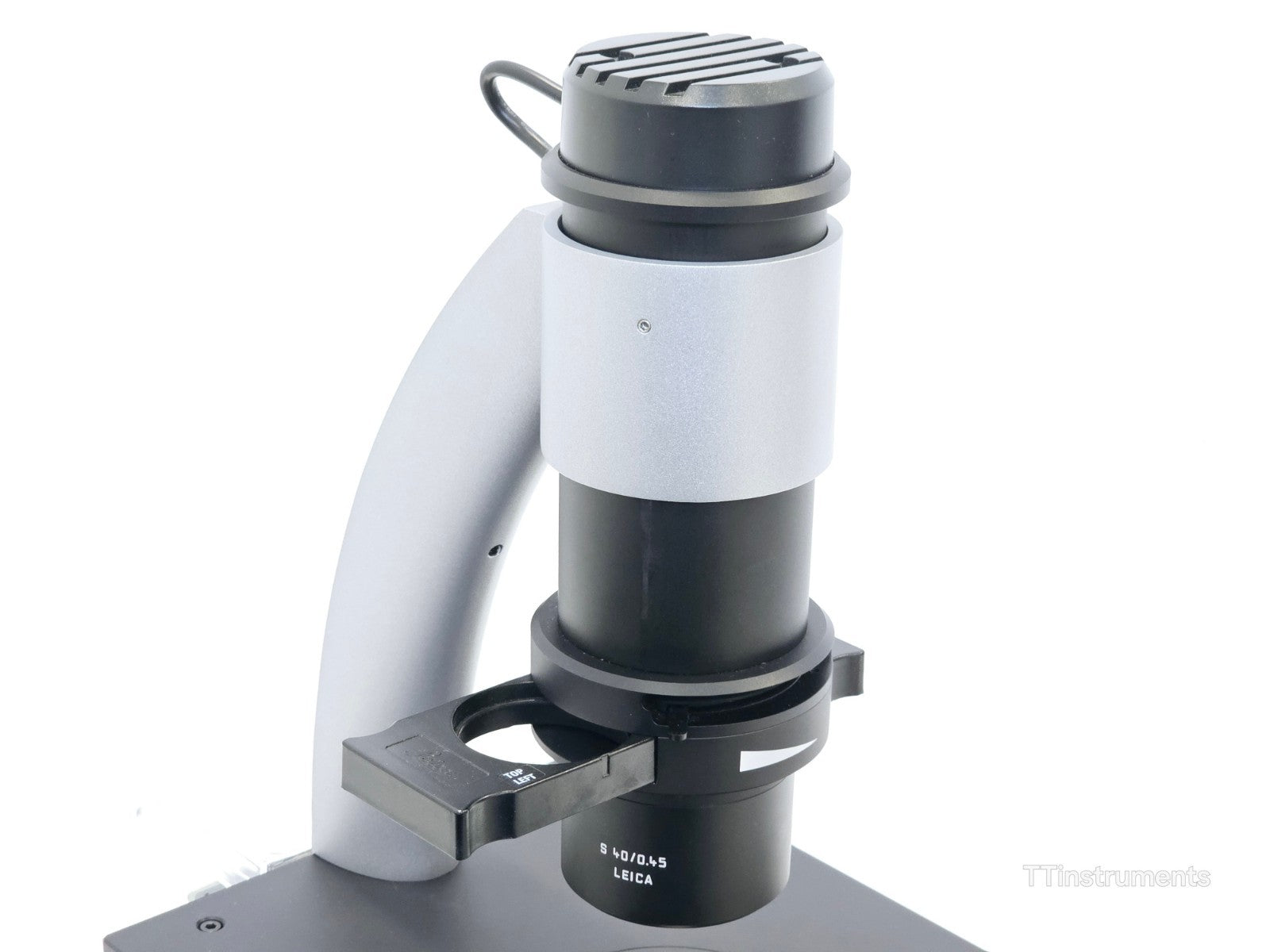

• S40 condenser
• 2-position phase contrast slider

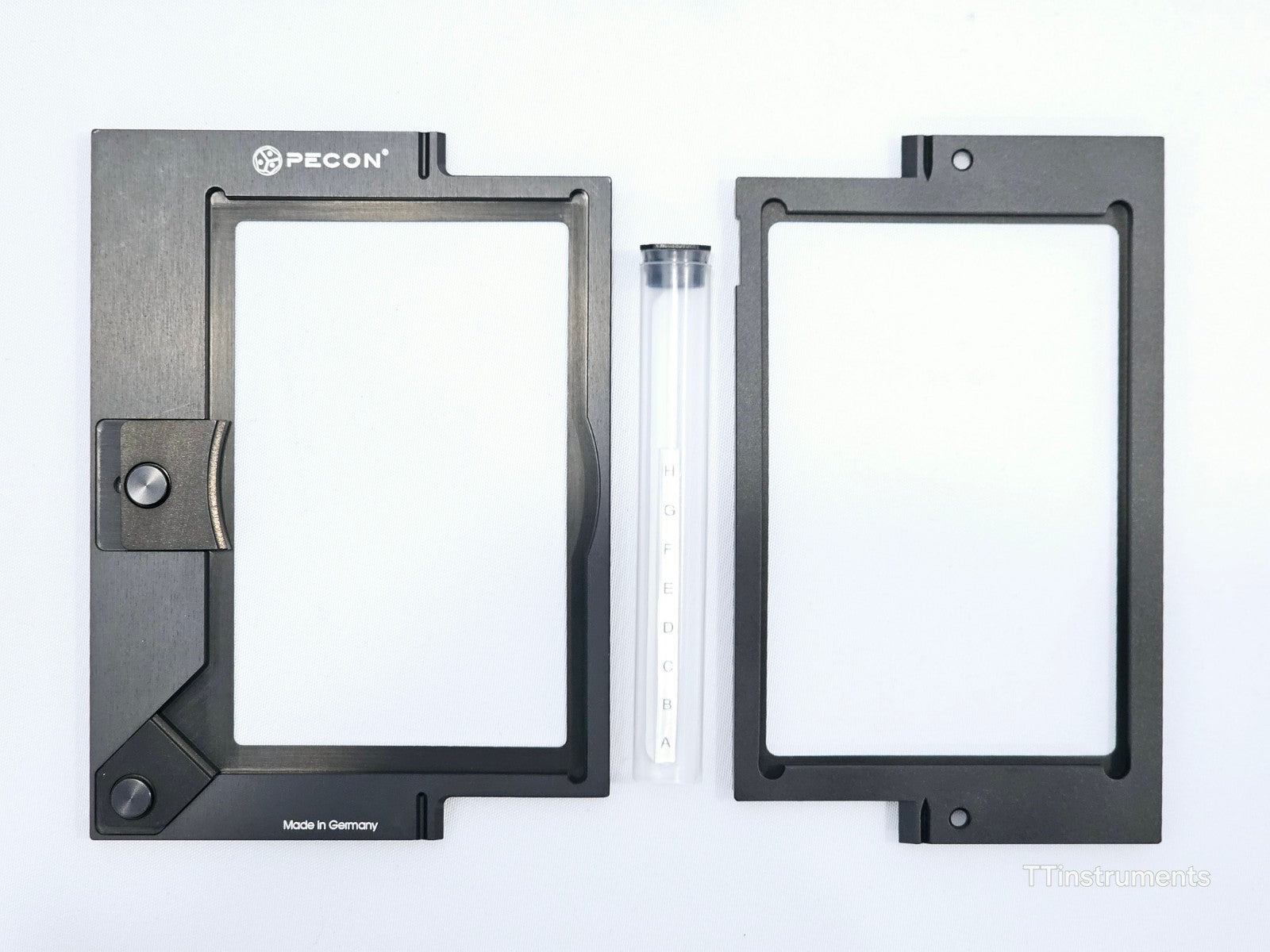

• All pictured accessories

The Leica DMi1 is an inverted light microscope designed for routine cell and tissue culture applications in the life science laboratory. It delivers intuitive operation, ergonomic handling, and a robust all-metal construction for long-term reliability with minimal maintenance.

Key Features:
- Phase contrast imaging from 10x through to 40x with a single hand movement — no need to change the phase ring in the slider between objectives
- Smart sensor integrated in the slider automatically adjusts illumination intensity between brightfield and phase contrast modes
- Accommodates S40 condenser (40–50 mm working distance) or S80 condenser (80 mm working distance) for use with slides, petri dishes, flasks, and multi-well plates
- Optional Leica Flexacam C1 camera (12 megapixels) transforms the microscope into a stand-alone digital imaging station — no PC required for image capture
- Camera mounts at the rear of the stand with no additional trinocular tube needed

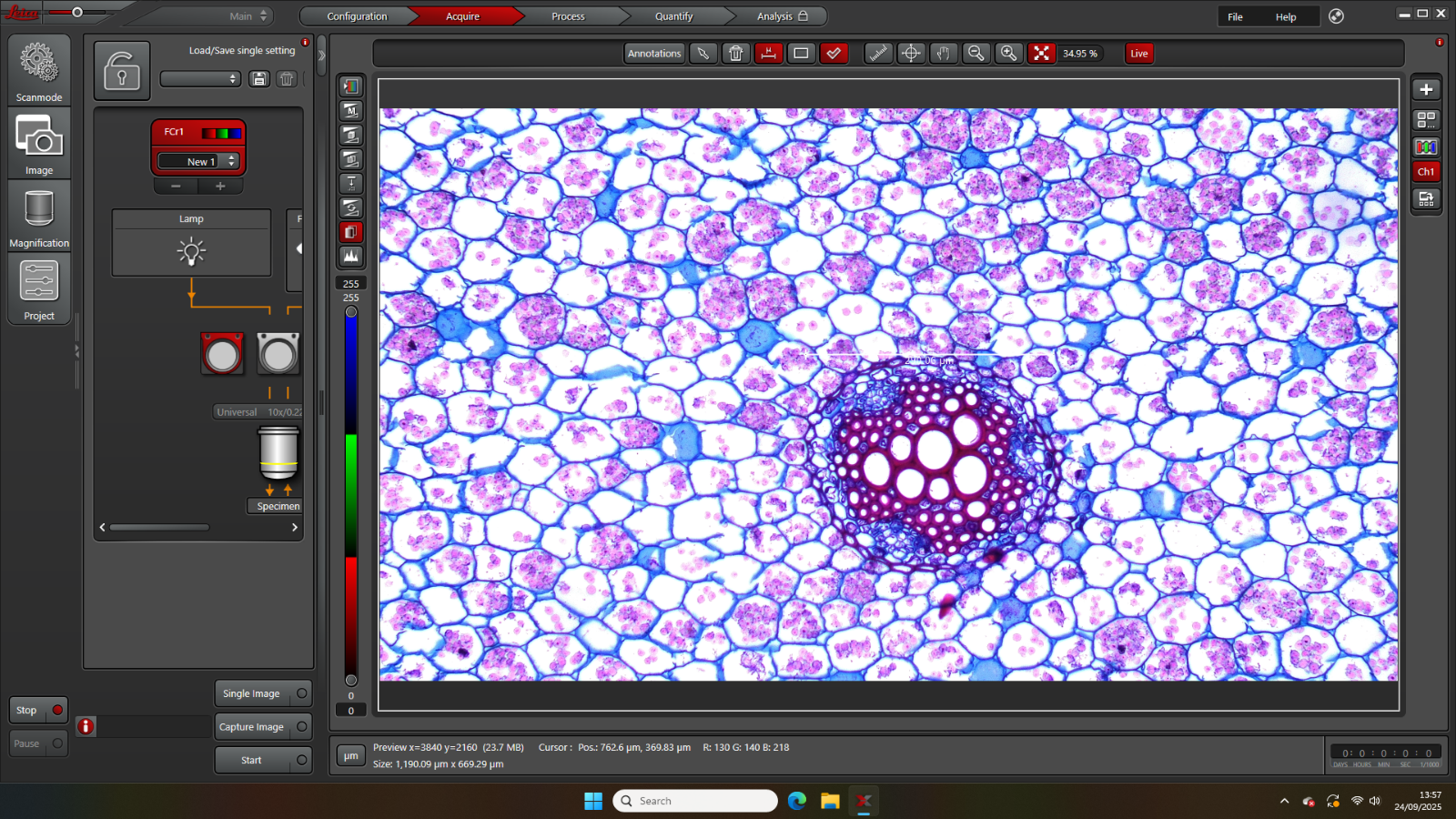

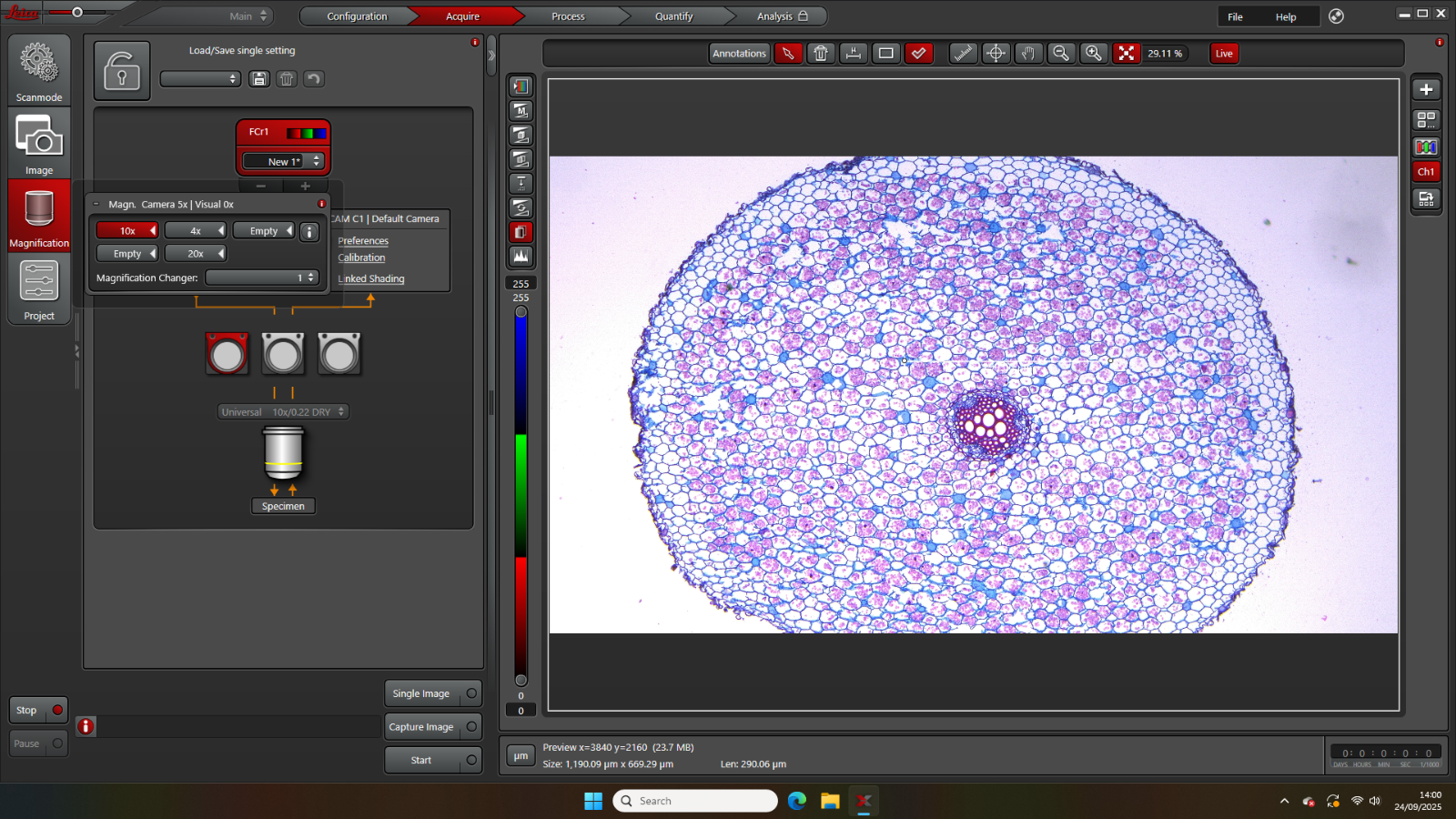

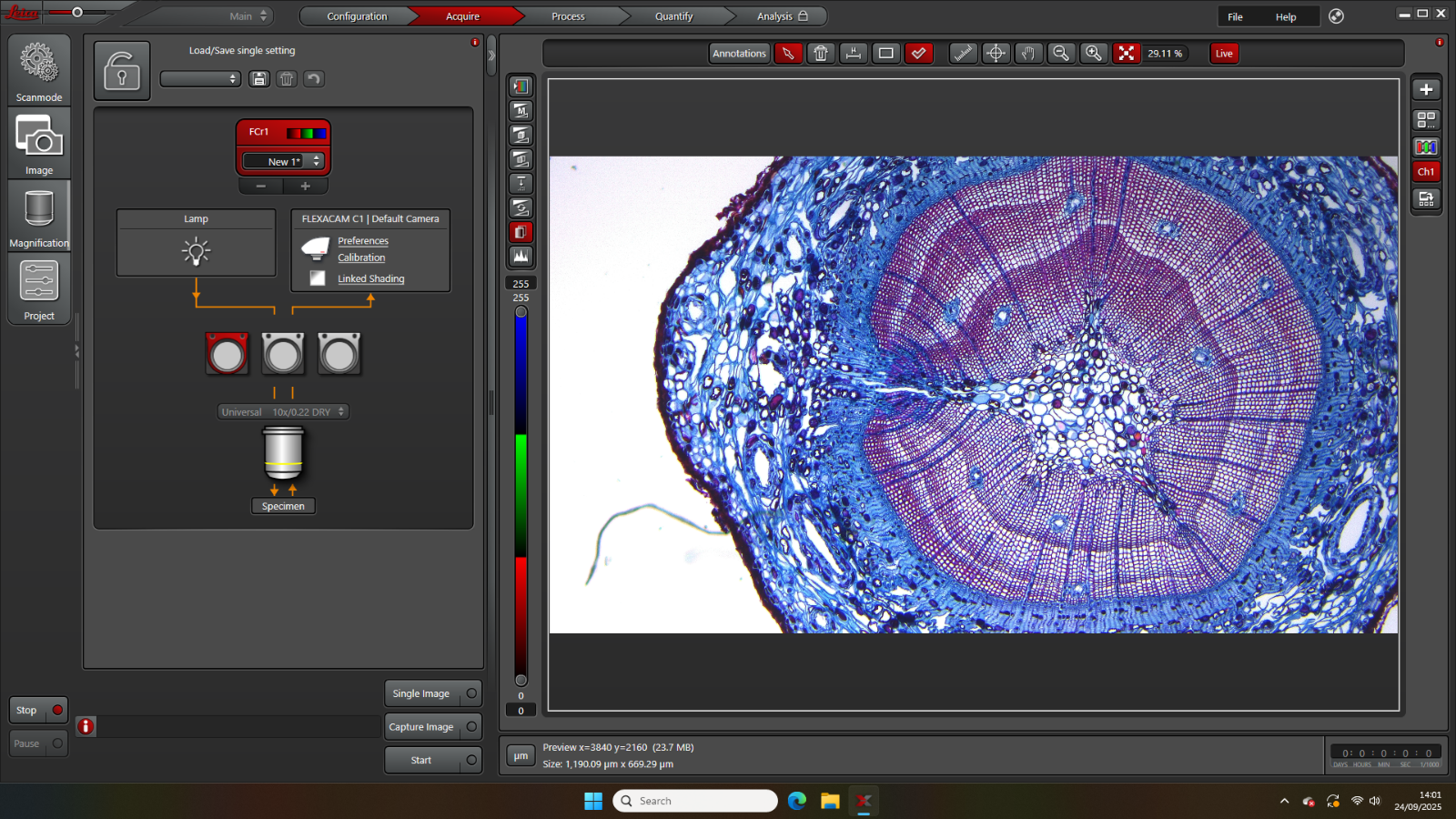

- Compatible with Leica Application Suite X (LAS X) software for full PC-based image acquisition and analysis

Technical Specifications:
Microscope Type: Inverted light microscope
Contrast Methods: Brightfield (BF), Phase Contrast (PH)

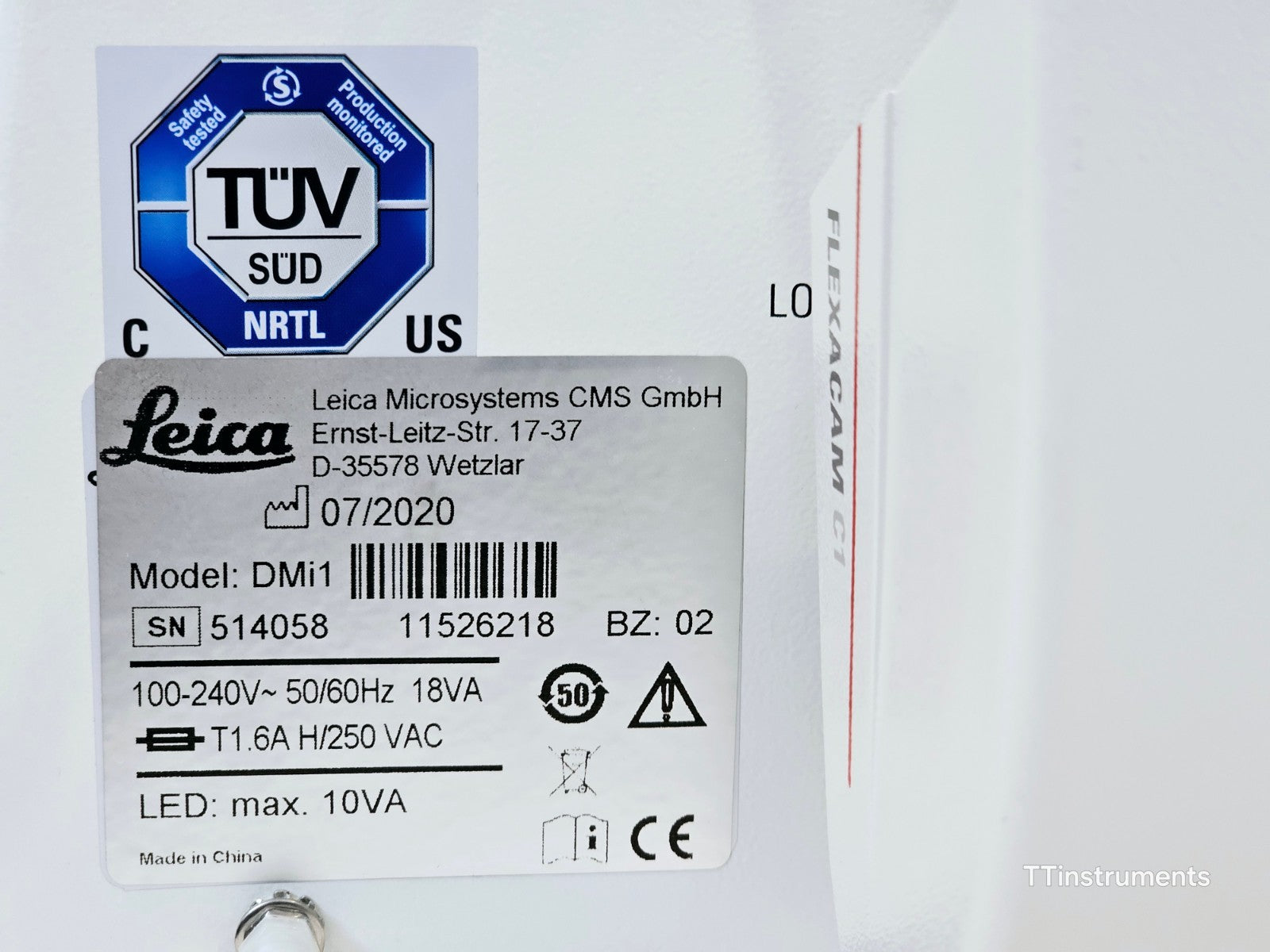

Illumination: 5W LED, constant colour temperature, power range 110–240V / 50–60Hz
LED Service Life: Up to 20 years (at 40 working hours/week)
Auto-Off Function: 2-hour auto-off

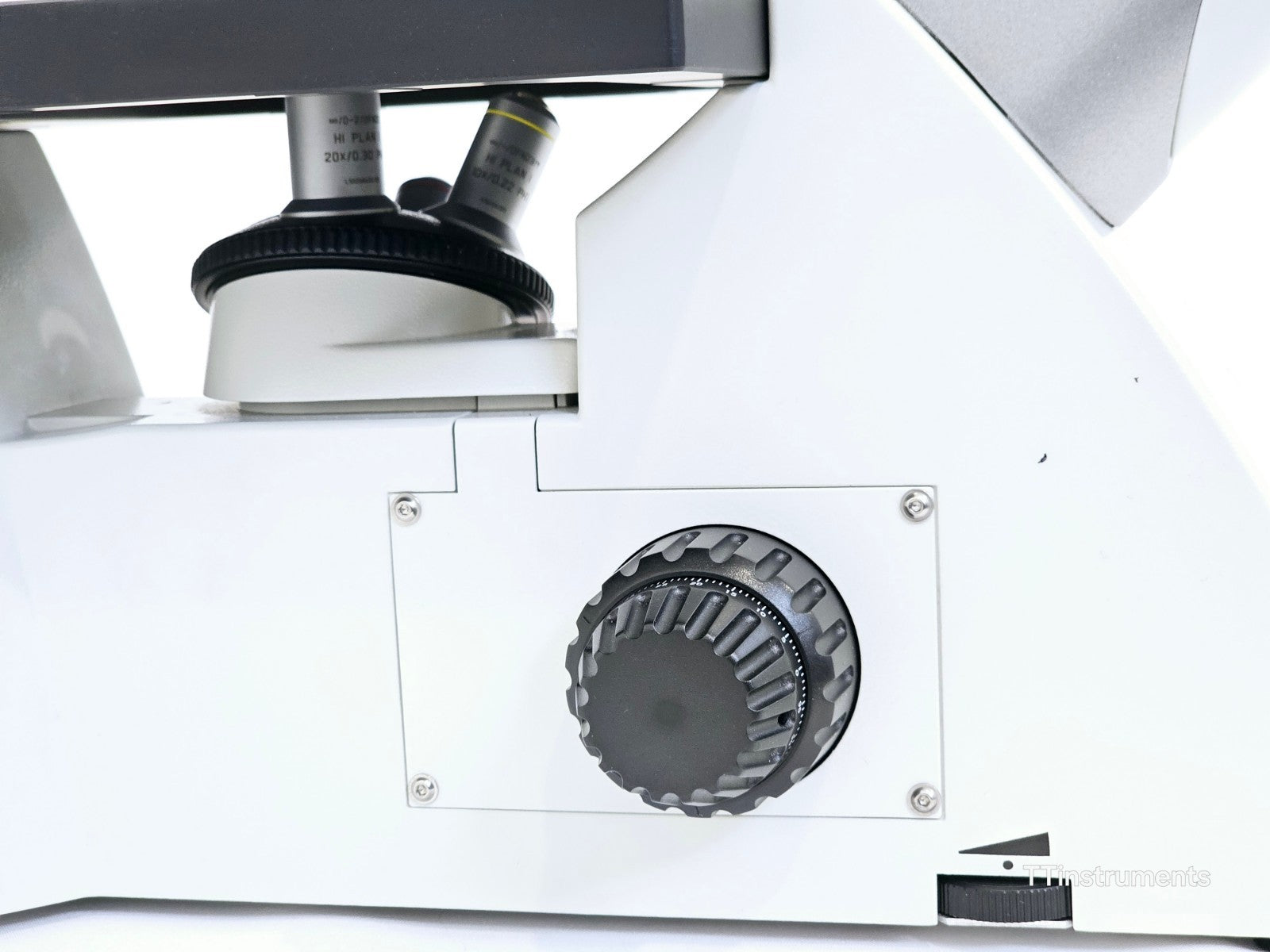

Focus: Coarse and fine focusing, travel range 9 mm, minimum adjustment 2 µm

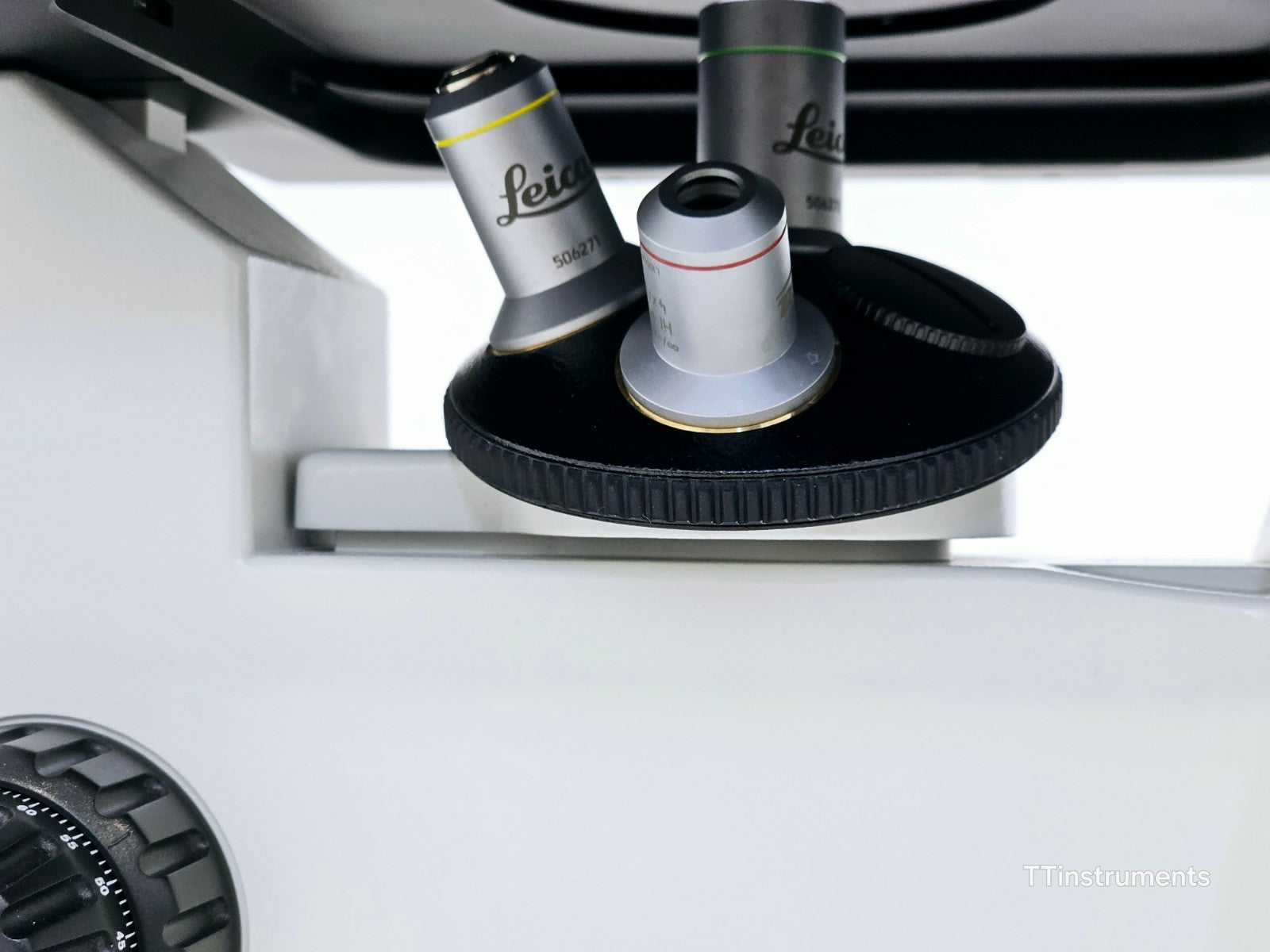

Objective Nosepiece: Manual, 4-position, M25 thread
Fixed Stage Dimensions: 262 mm x 212 mm
Phase Contrast Slider: 2-position (BF/PH1) or 4-position (BF/PH0/PH1/PH2) for S40 or S80 condenser
Condenser Options: S40/0.45 (40–50 mm WD) or S80/0.30 (80 mm WD)
Weight: Approximately 8.5 kg (without lenses and camera)
Dimensions (W x D x H): 262 mm x 212 mm base; overall height 485–543 mm depending on condenser
Camera Option: Leica Flexacam C1 (12 megapixels, CMOS sensor, HDMI 4K output, USB, Ethernet)
Software Compatibility: Leica Application Suite X (LAS X)

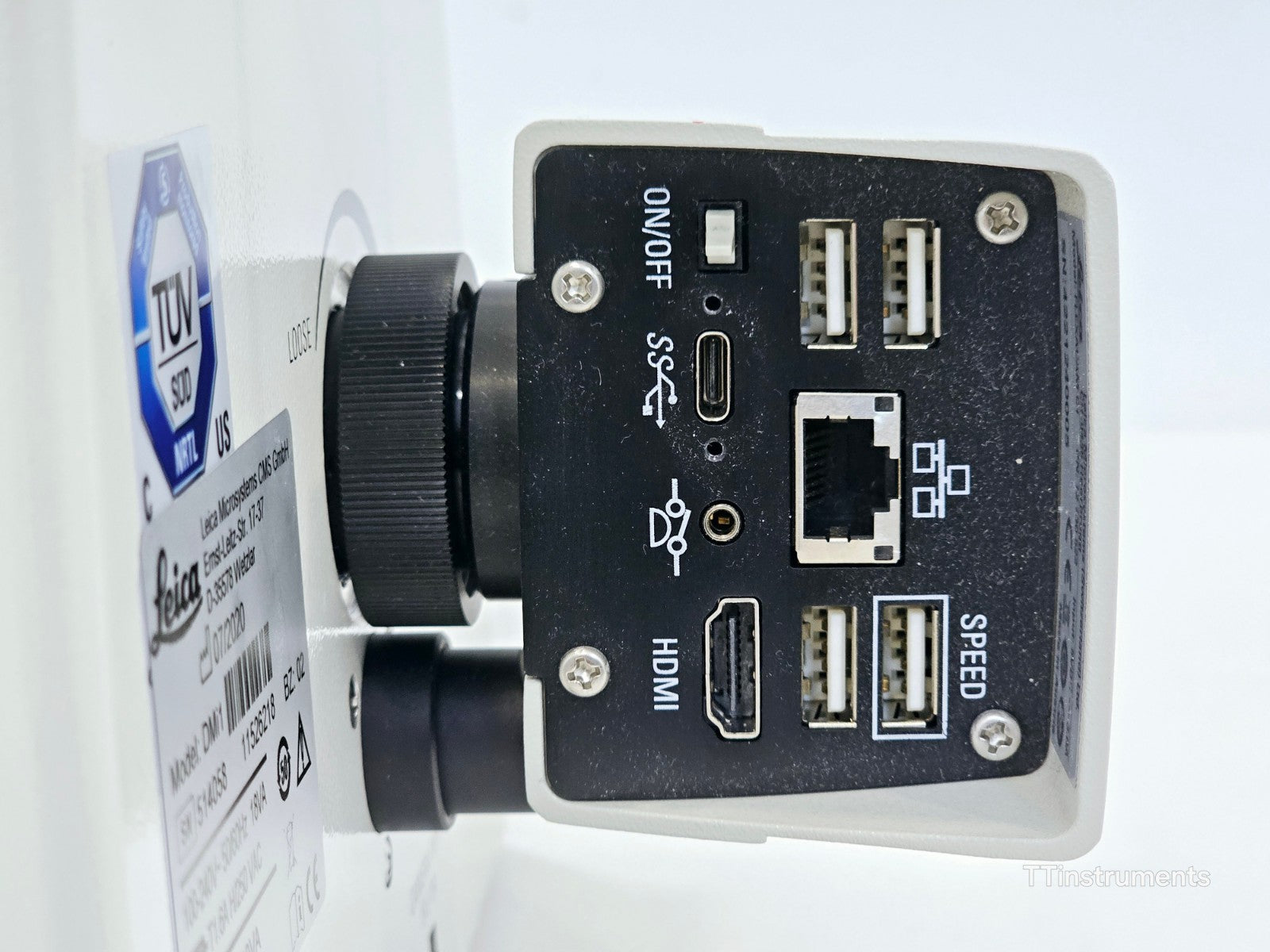

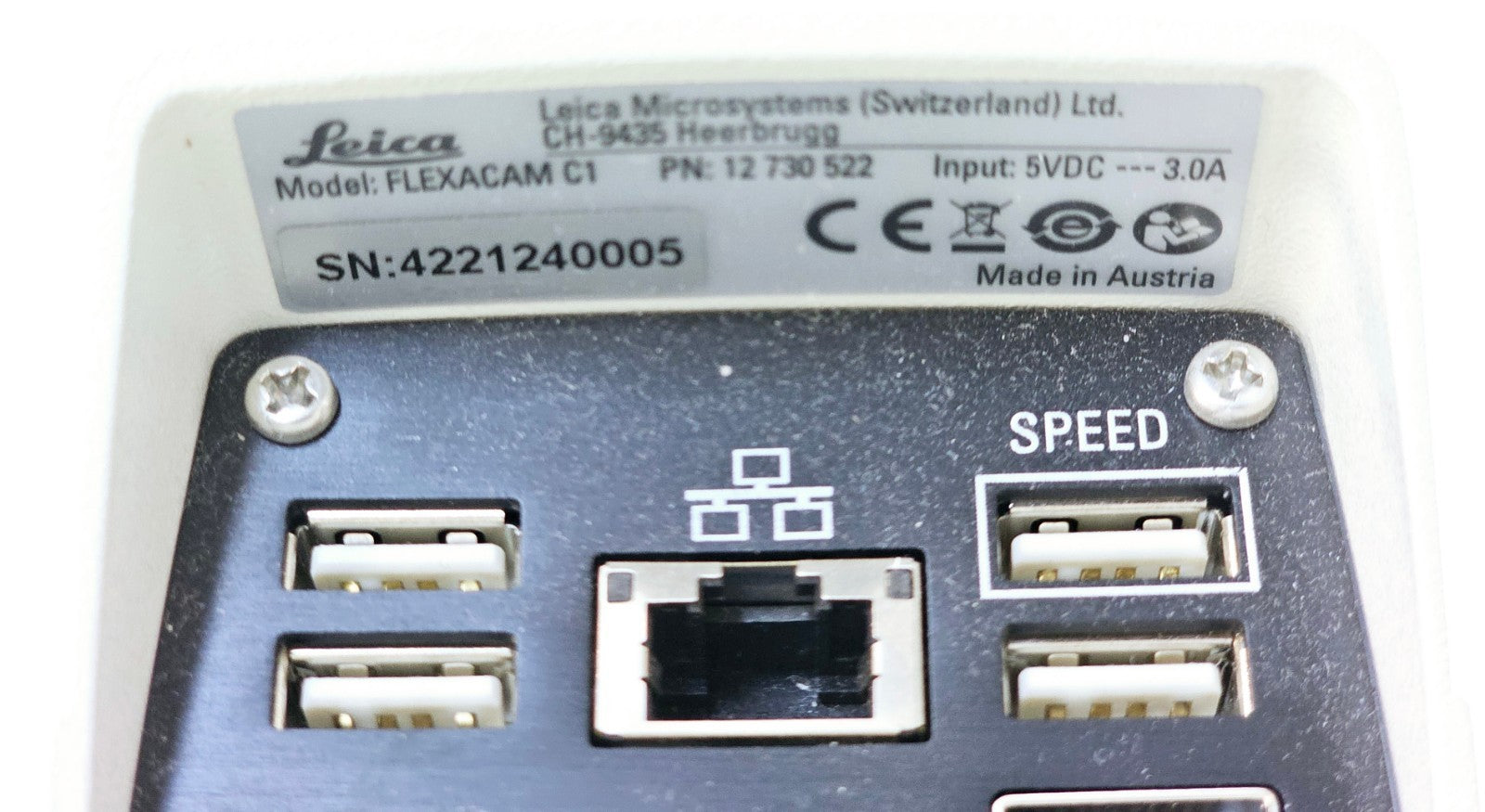

Flexacam C1 Camera Specifications:
Sensor Type: CMOS
Resolution: 12 megapixels
HDMI Output: HDMI 2.0a (type A)
Connectivity: HDMI, USB, Ethernet
Operation Modes: Stand-alone (HDMI monitor), PC mode (LAS X via USB)
Image Storage: USB stick or network (SMB)
Mechanical Interface: C-mount

Leica DMi1 Technical Data Sheet (with Flexacam C1) — official manufacturer specifications PDF: Download PDF

Leica DMi1 Technical Data Sheet (earlier version) — full specifications and product data PDF: Download PDF

Leica Flexacam C1 User Manual — 12 MP stand-alone microscope camera instructions PDF: Download PDF
