Condition: Used

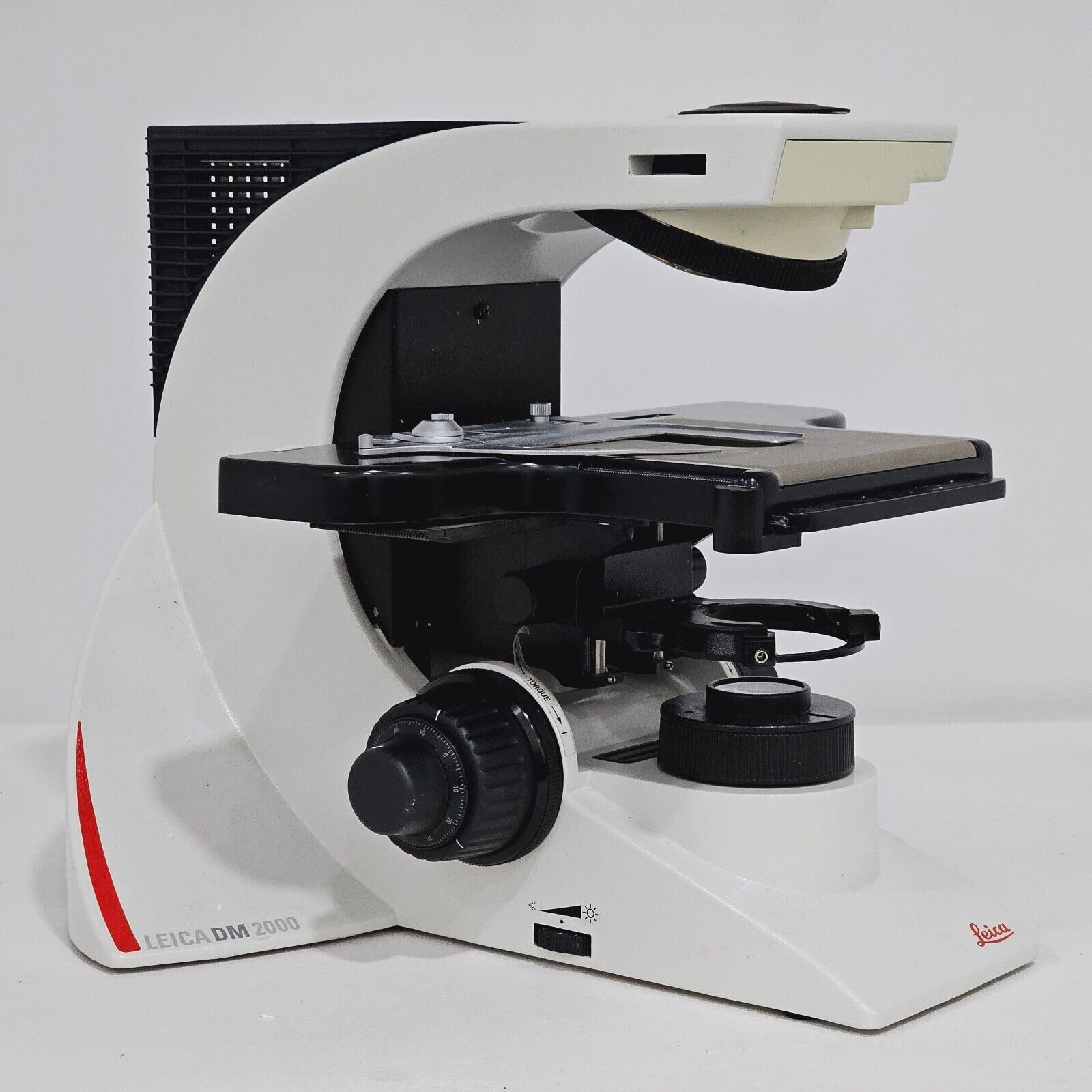

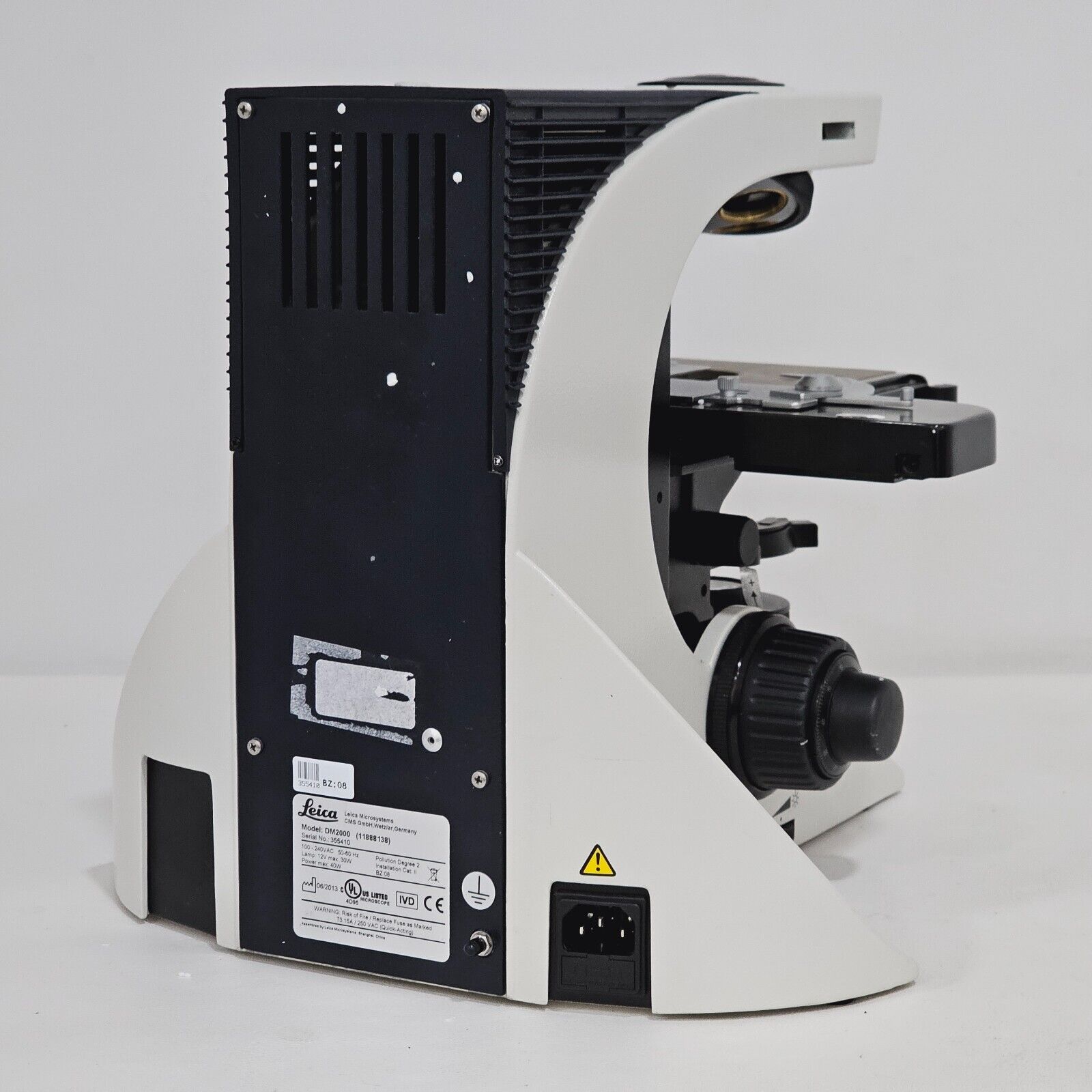

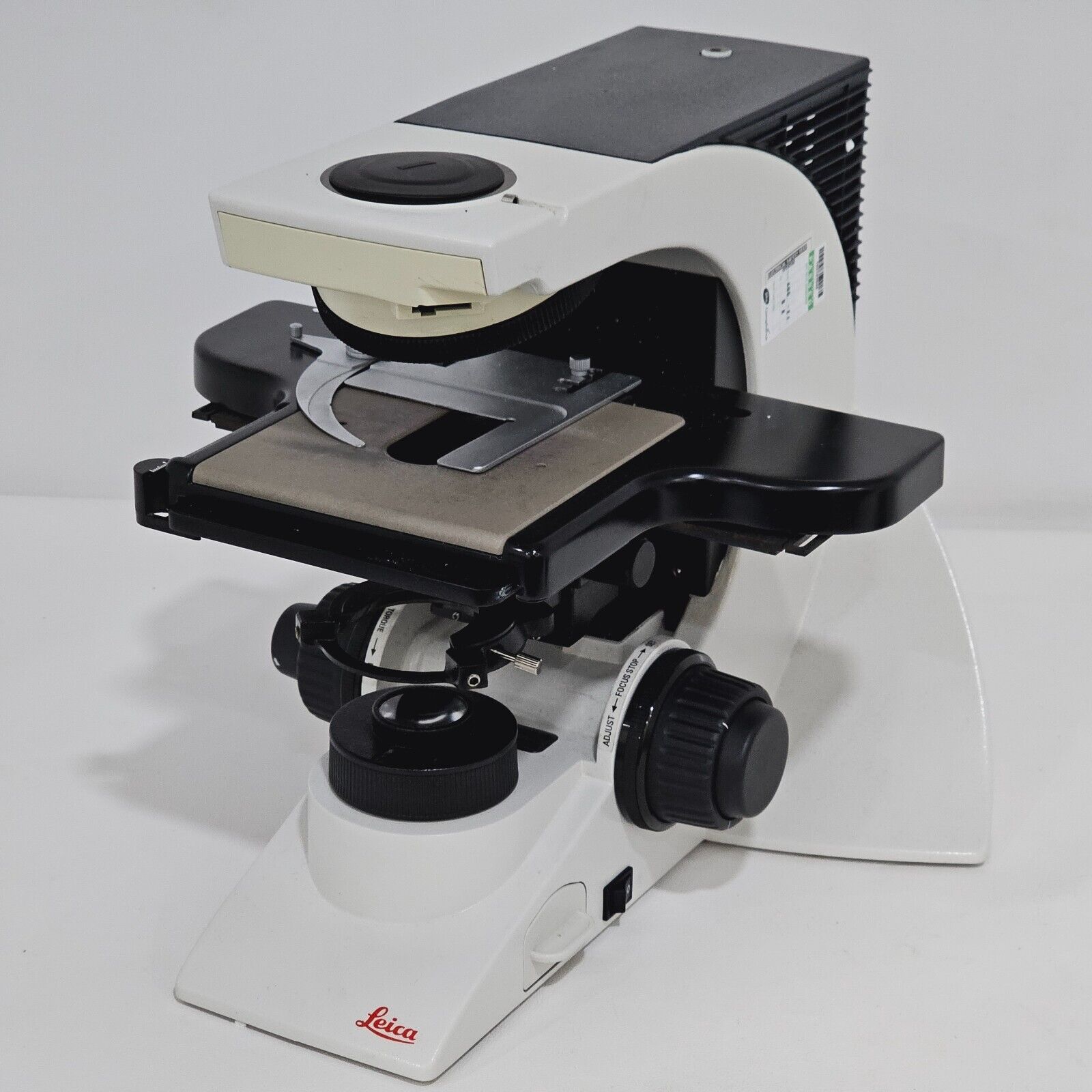

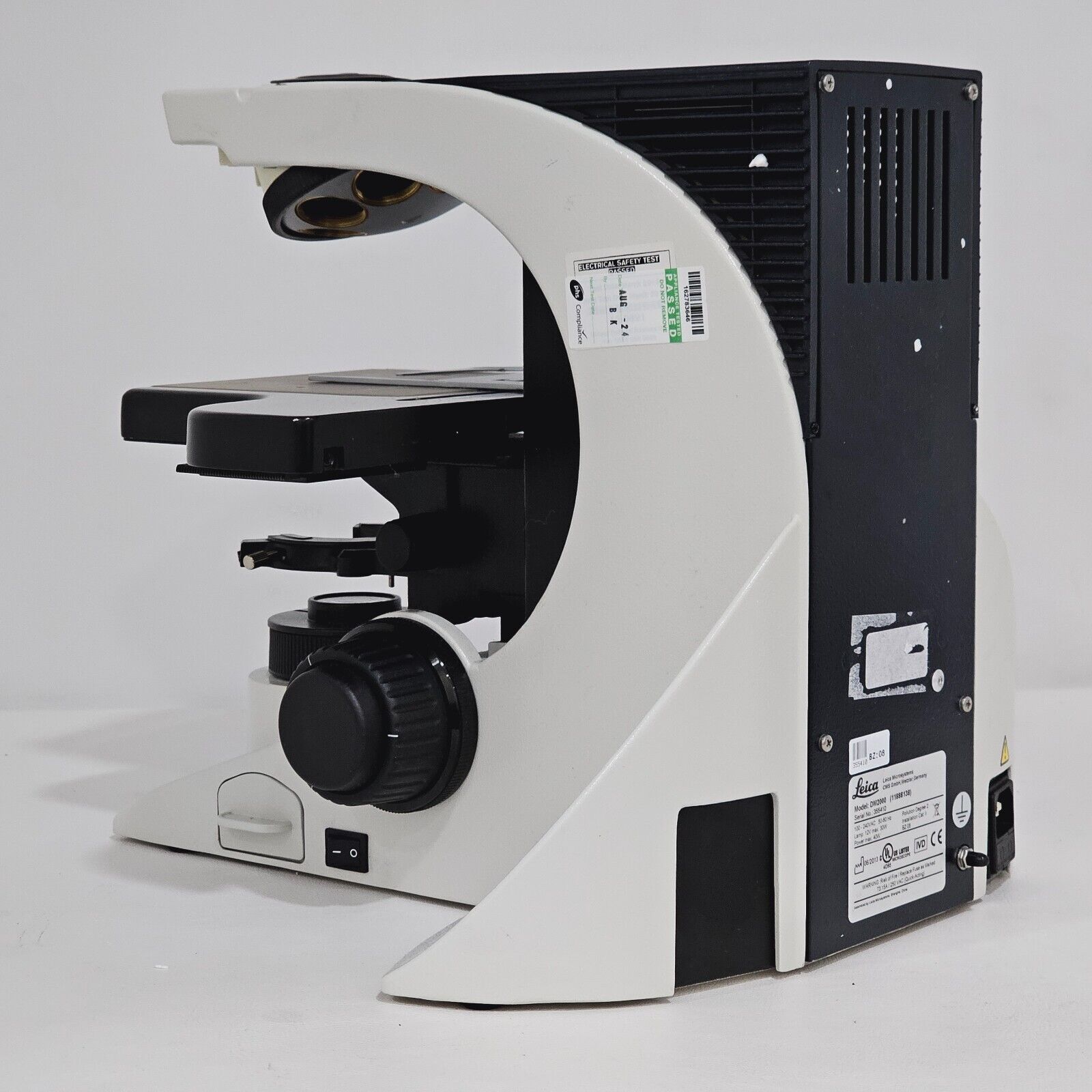

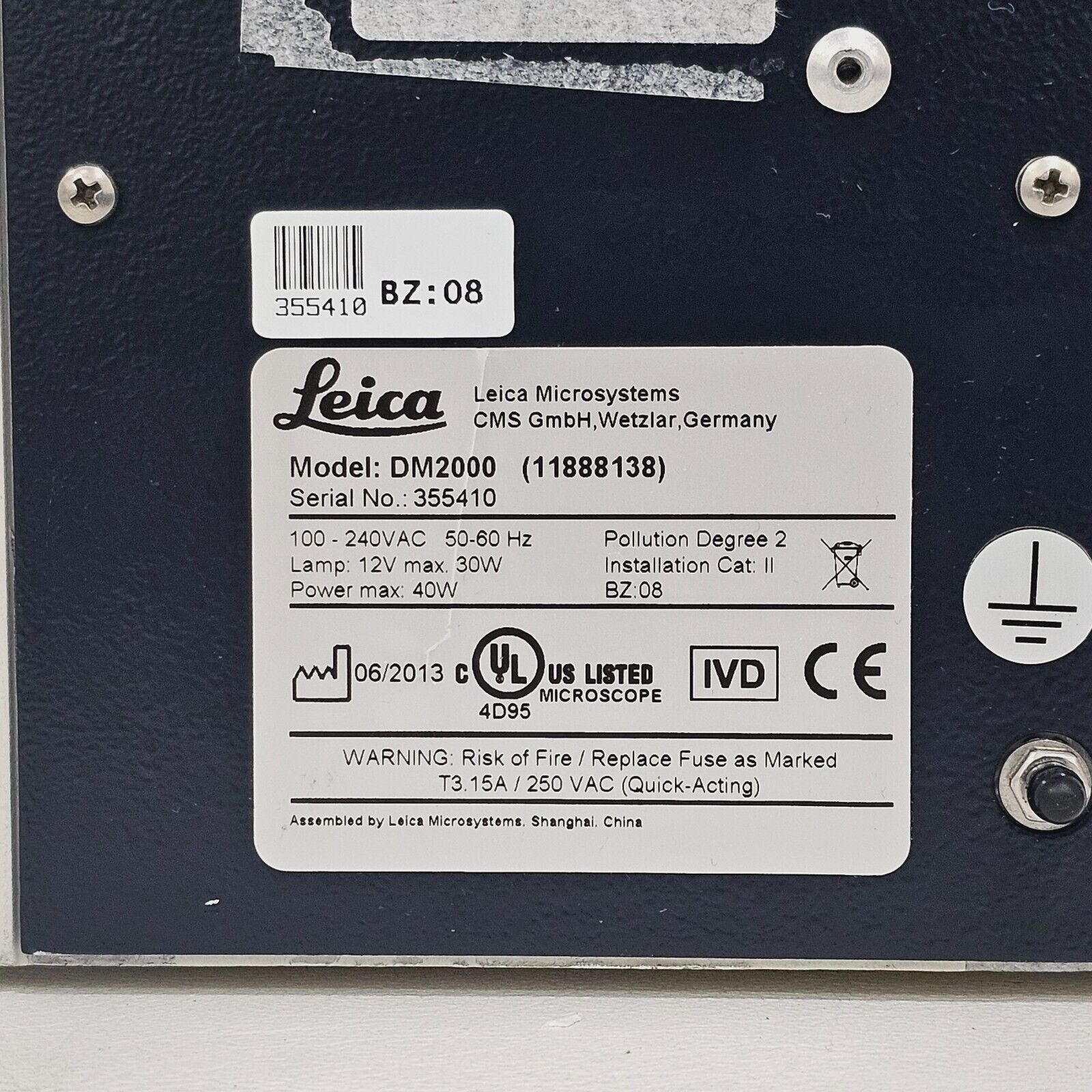

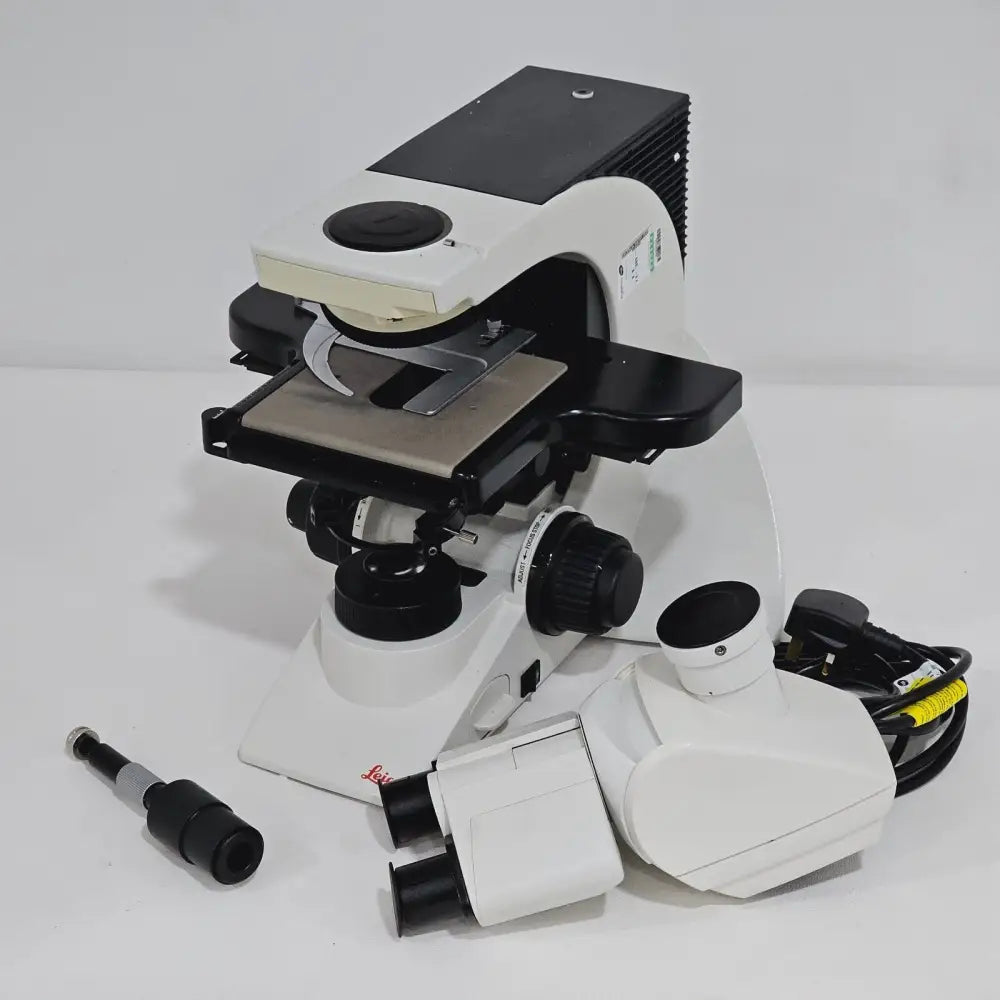

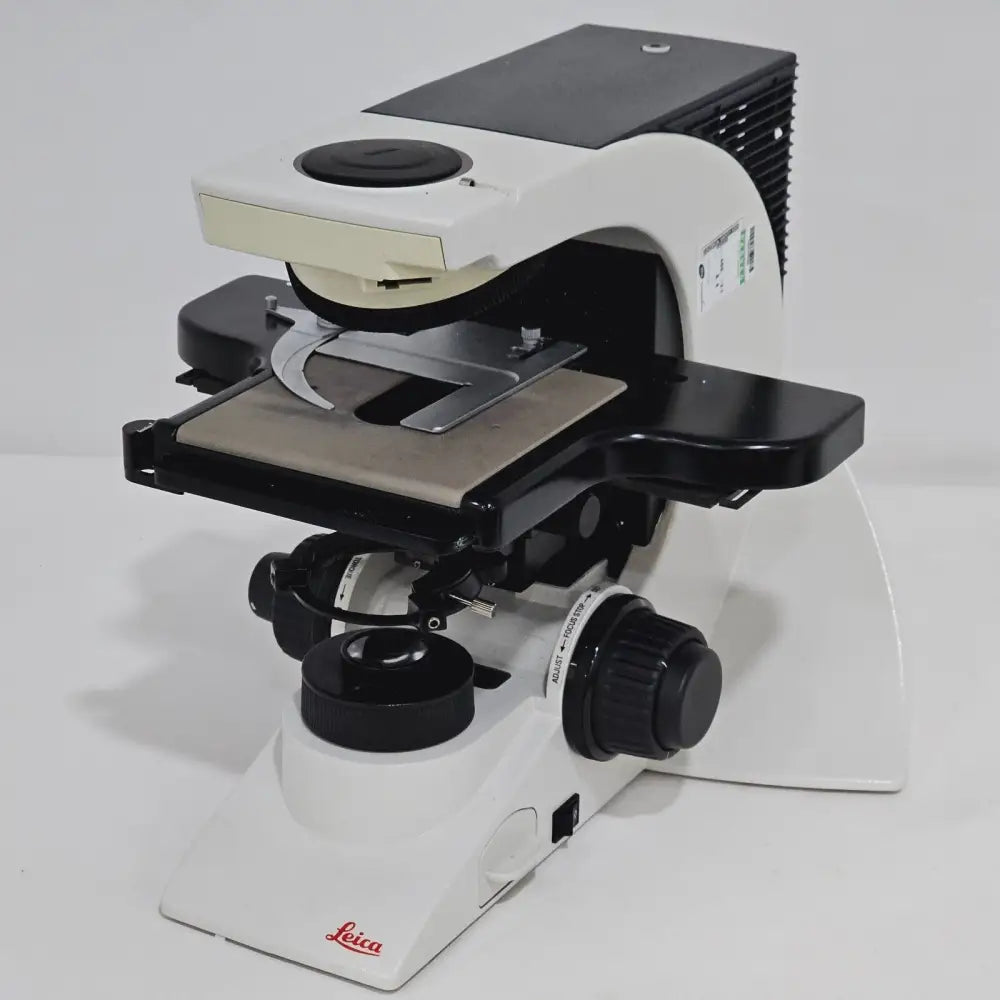

This Leica DM2000 LED microscope (part number 11888138, manufactured 2013) powers up with a good bulb and is offered with the pictured accessories. Objectives are not included with this unit.

Included (as described):

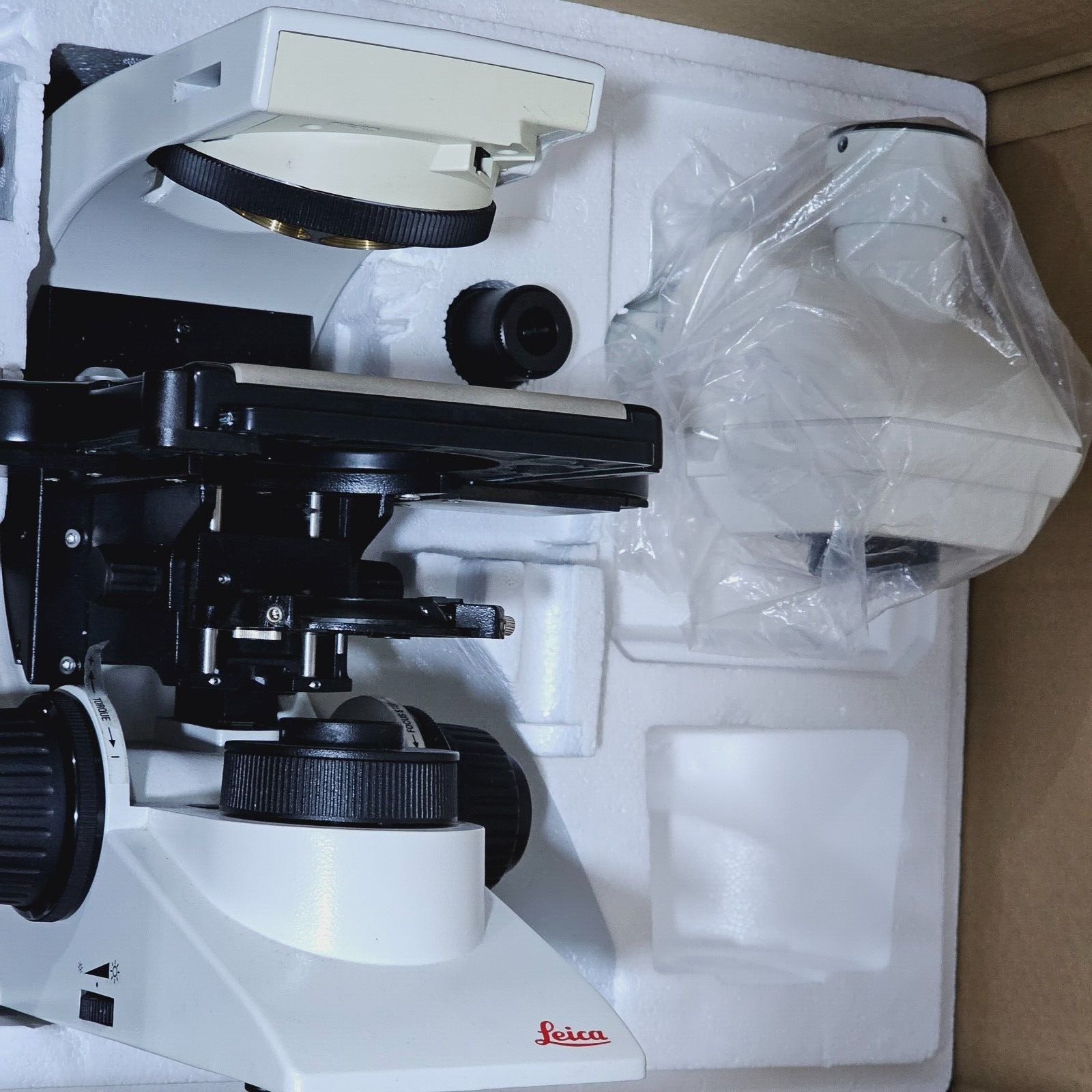

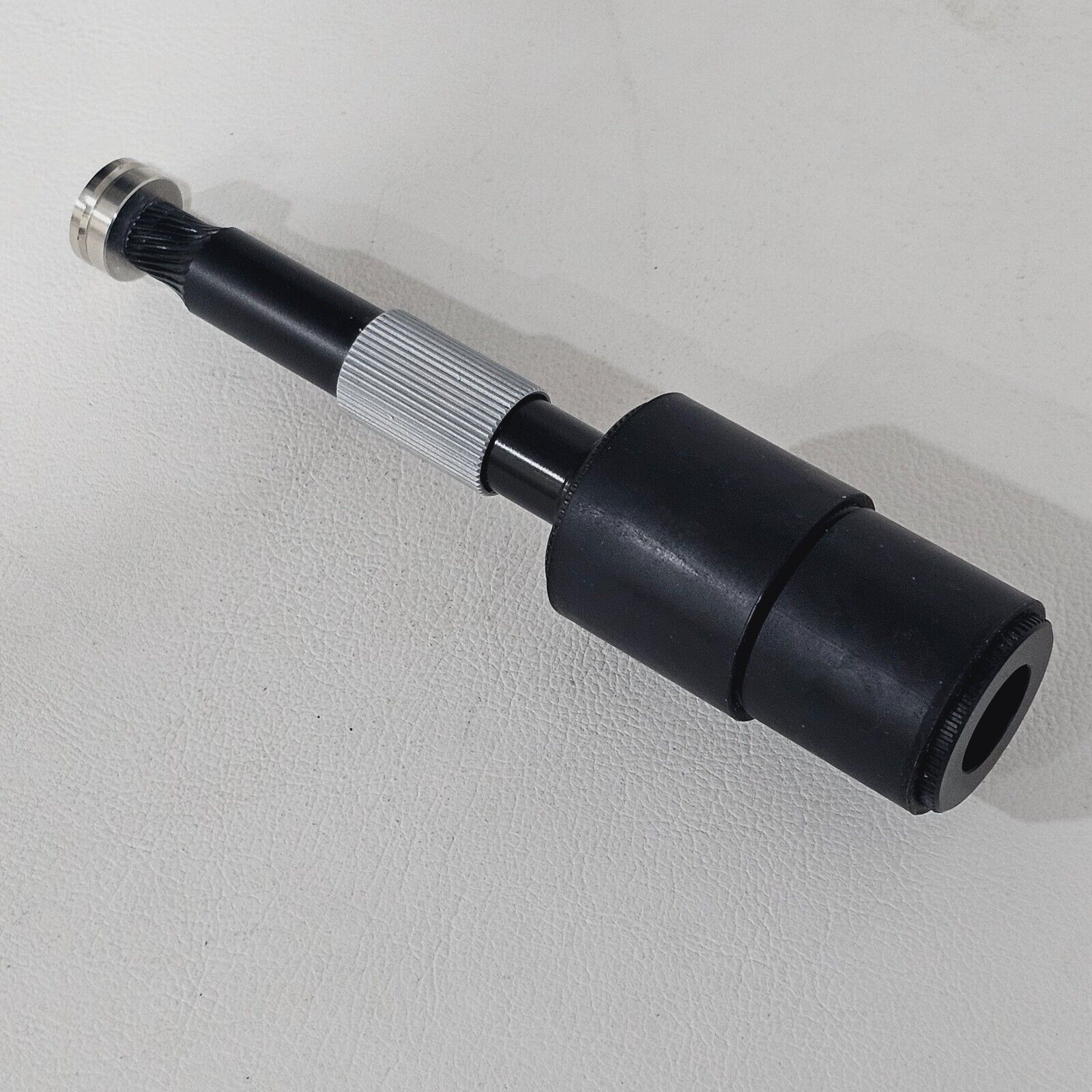

• Pictured accessories

Note: Objectives are not provided.

The Leica DM2000 LED is an ergonomic upright system microscope developed by Leica Microsystems for complex tasks in pathology, cytology, haematology, and other demanding clinical and research laboratory applications. Certified for in-vitro diagnostics (IVD) including in-vitro fertilisation (IVF), it combines high optical performance with outstanding operator comfort.

The LED illumination version delivers bright, daylight-like transmitted light at low power consumption with a constant colour temperature across all intensity levels, eliminating the need for bulb replacement.

The modular design allows configuration with a wide variety of optics and contrast techniques including brightfield, phase contrast, polarisation, and fluorescence. An optional high-performance fluorescence axis accommodates up to five filter cube positions on an easy-to-turn disk, with Zero Pixel Shift Technology filter cubes ensuring accurate image overlay.

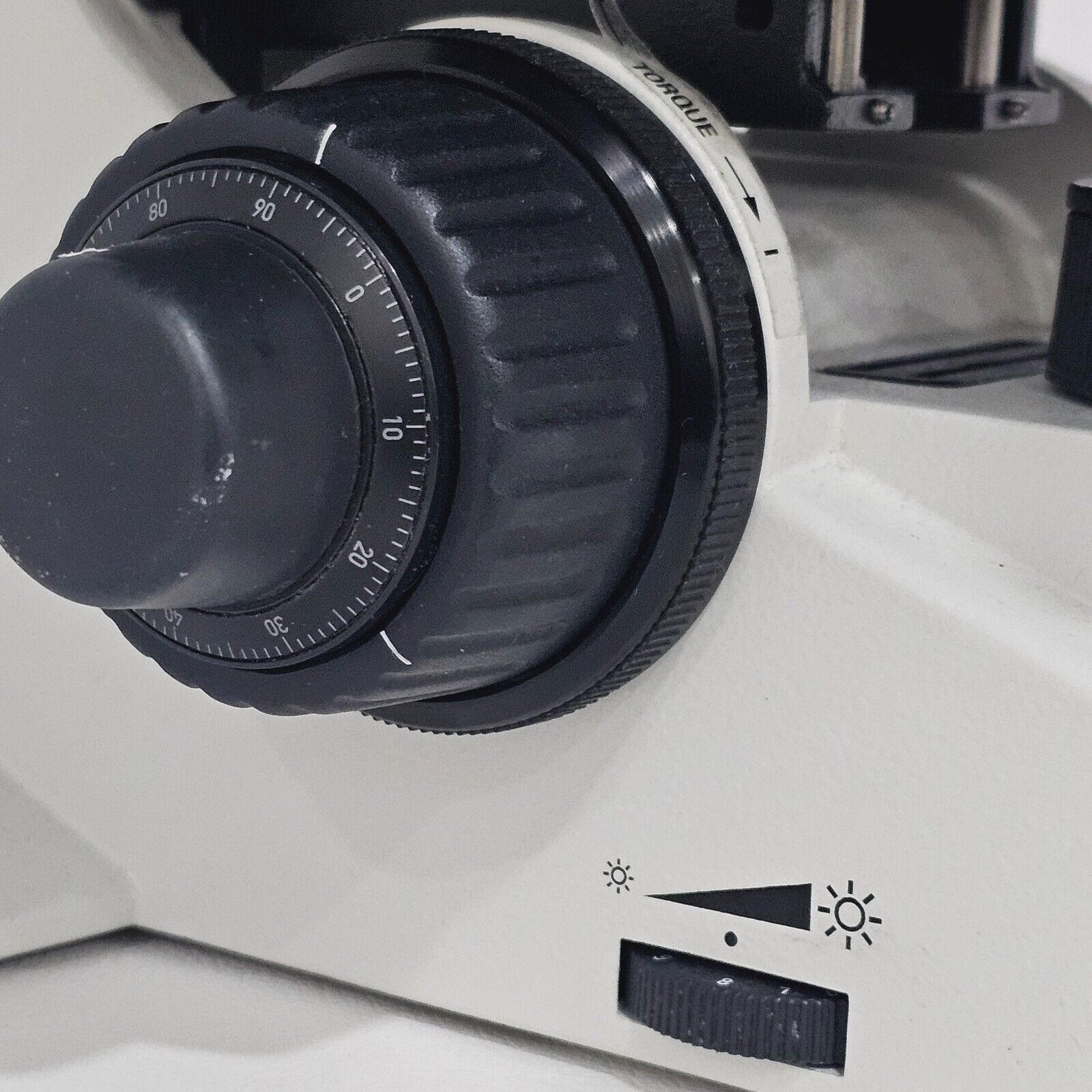

Ergonomic features include patented height-adjustable focus knobs, in-line focus knob and stage control placement, ambidextrous symmetrical operation, and an ergo stage with ceramic stage plate for smooth slide movement.

Key Specifications:
Microscope Type: Upright compound, modular system
Illumination (LED version): Long-life LED transmitted light
Illumination (halogen version): 30 W halogen
Power Supply: Integrated, 90–250 V auto-adjustment
Koehler Illumination: Standard (variable)
Nosepiece: 6-fold standard; 7-fold nosepiece available
Objective Thread: M25 (infinity corrected)
Fluorescence Axis: Optional; 5 filter cube positions on rotating disk
Fluorescence Filter Cubes: Zero Pixel Shift Technology
Focus Mechanism: 2-gear or optional 3-gear, with torque adjustment and adjustable stage height stop

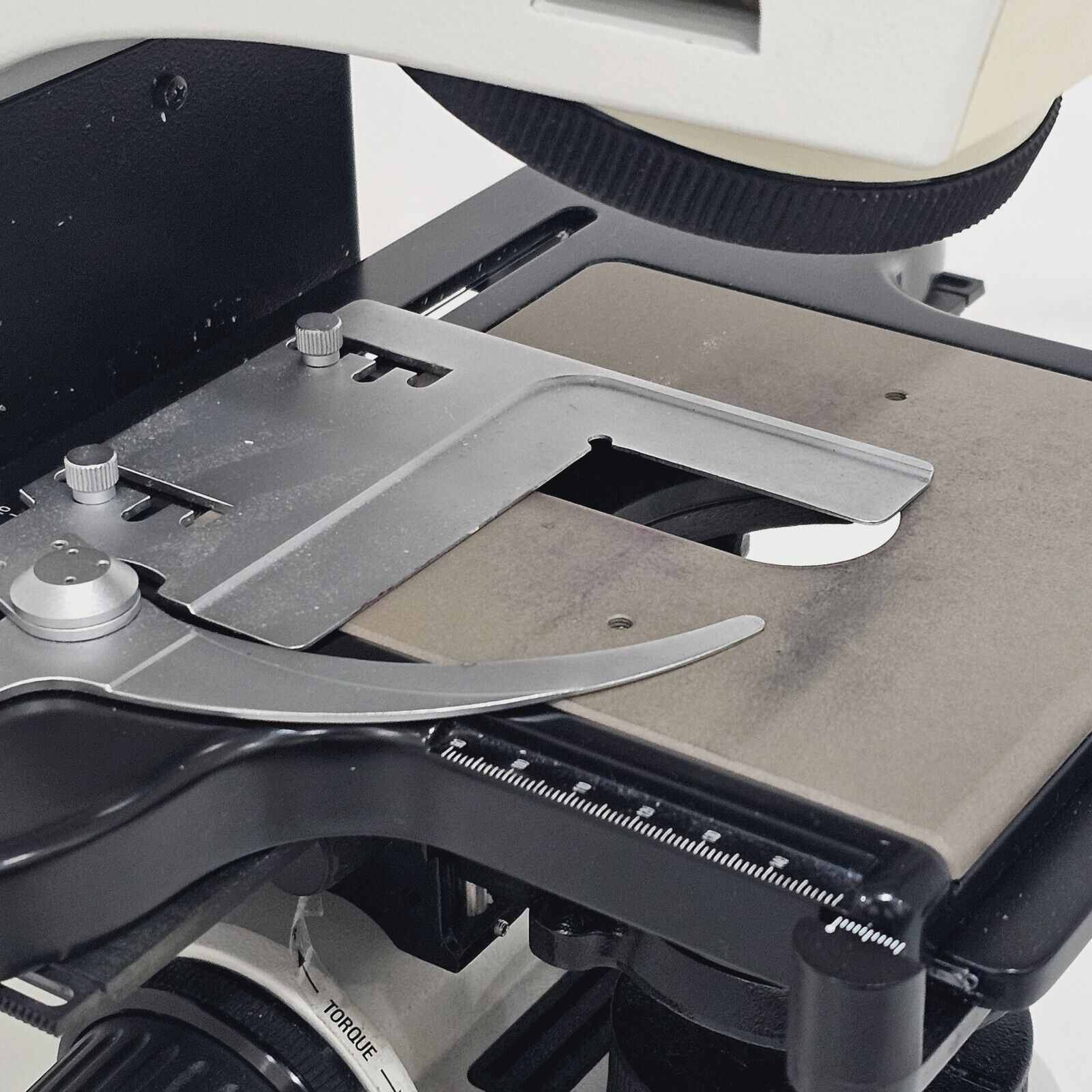

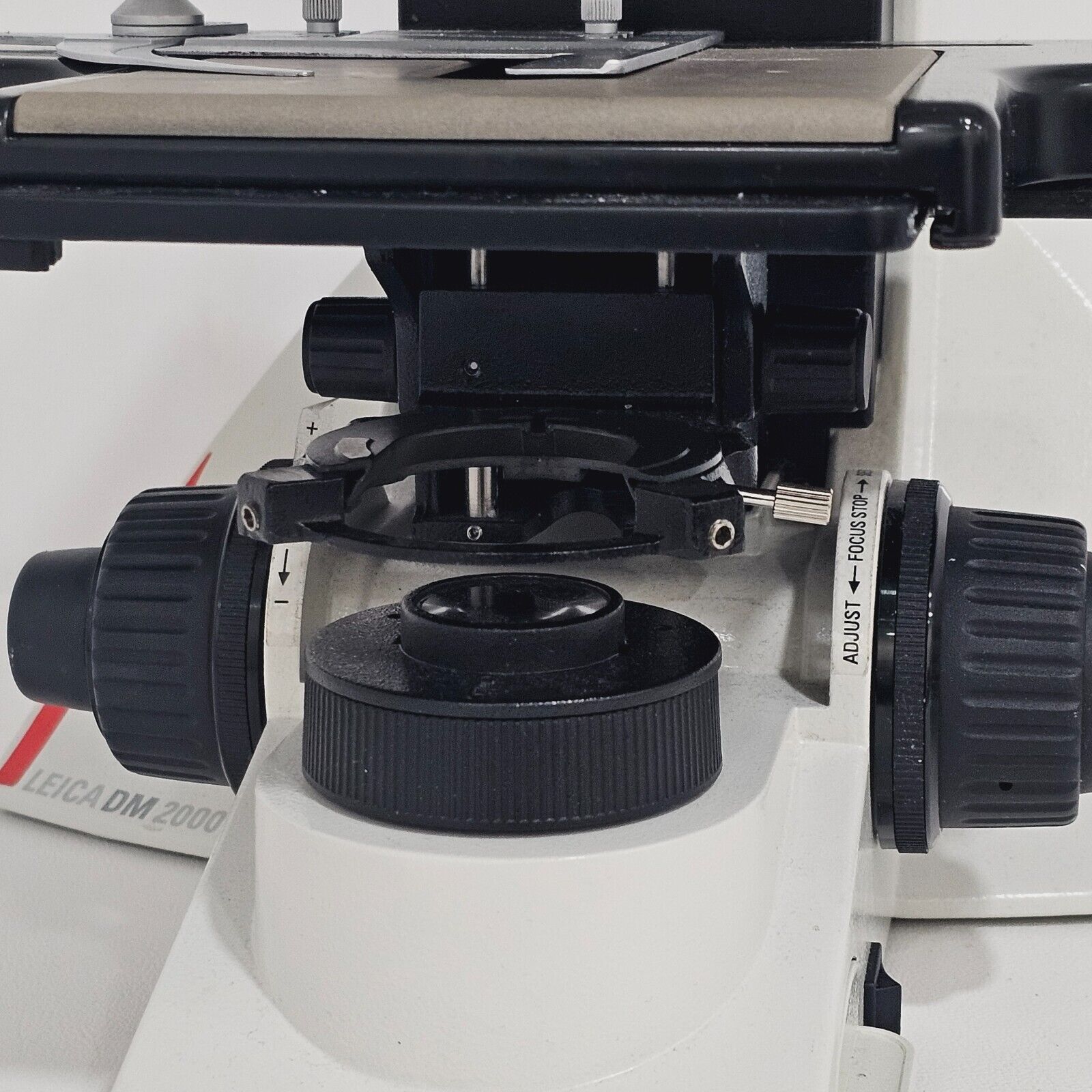

Stage: Ergo stage with ceramic insert and telescoping XY stage control
Contrast Methods: Brightfield, phase contrast, polarisation, fluorescence (optional)
IVD Certification: Yes
Ambient Operating Temperature: 15–35°C
Use Environment: Indoor use only
Applications: Pathology, cytology, haematology, IVF, clinical laboratory, biomedical research

Leica DM2000 / DM2500 / DM3000 Operating Manual (English) — full operating instructions PDF: Download PDF

Leica DM2000 / DM2500 / DM3000 Operating Manual (English) — alternative hosted PDF: Download PDF

Leica DM1000–3000 Technical Information brochure including DM2000 LED specifications: Download PDF

Leica DM1000–3000 Ergonomic System Microscopes research brochure (includes DM2000): Download PDF

Leica DM1000–DM3000 series brochure including DM2000 product overview: Download PDF
