Condition: Used

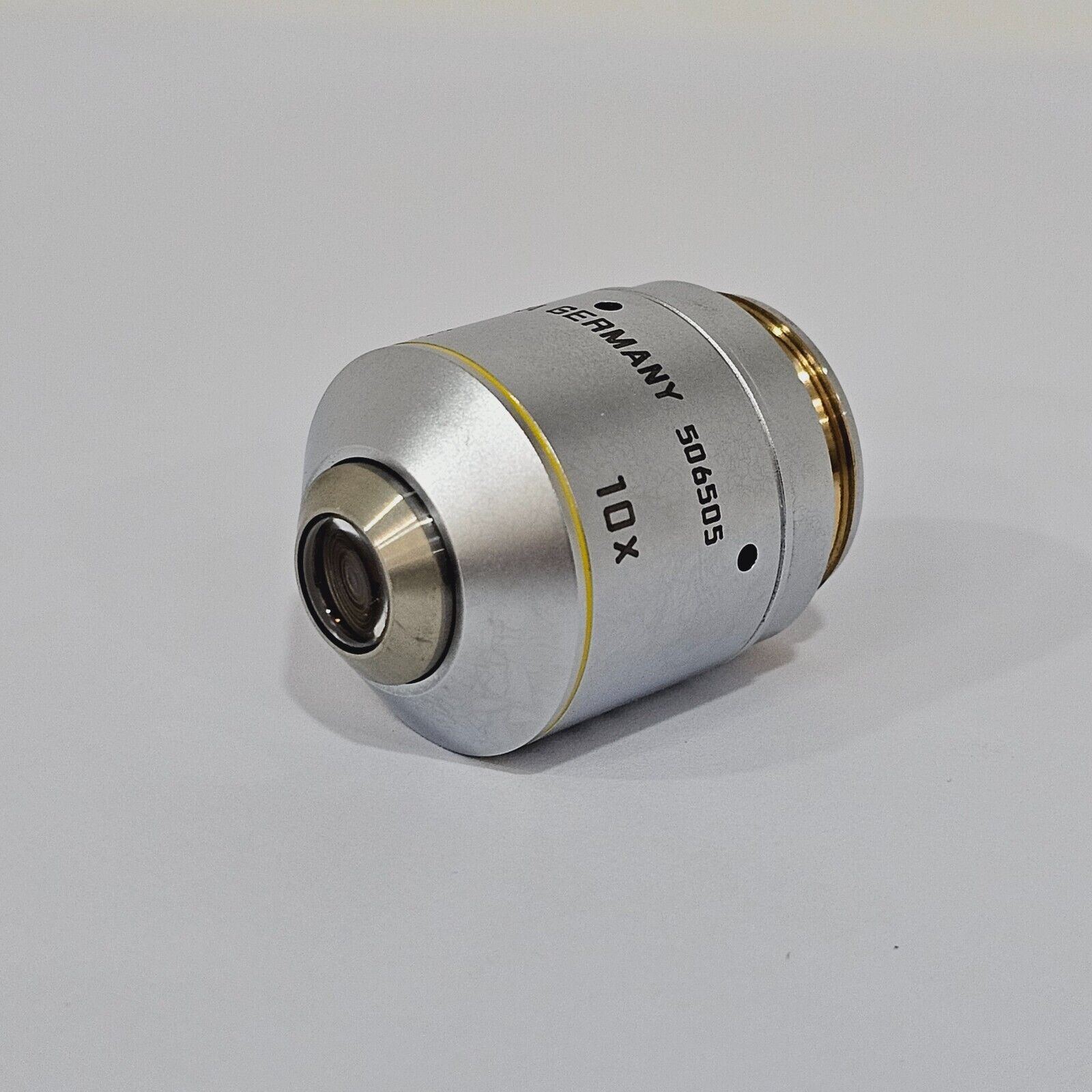

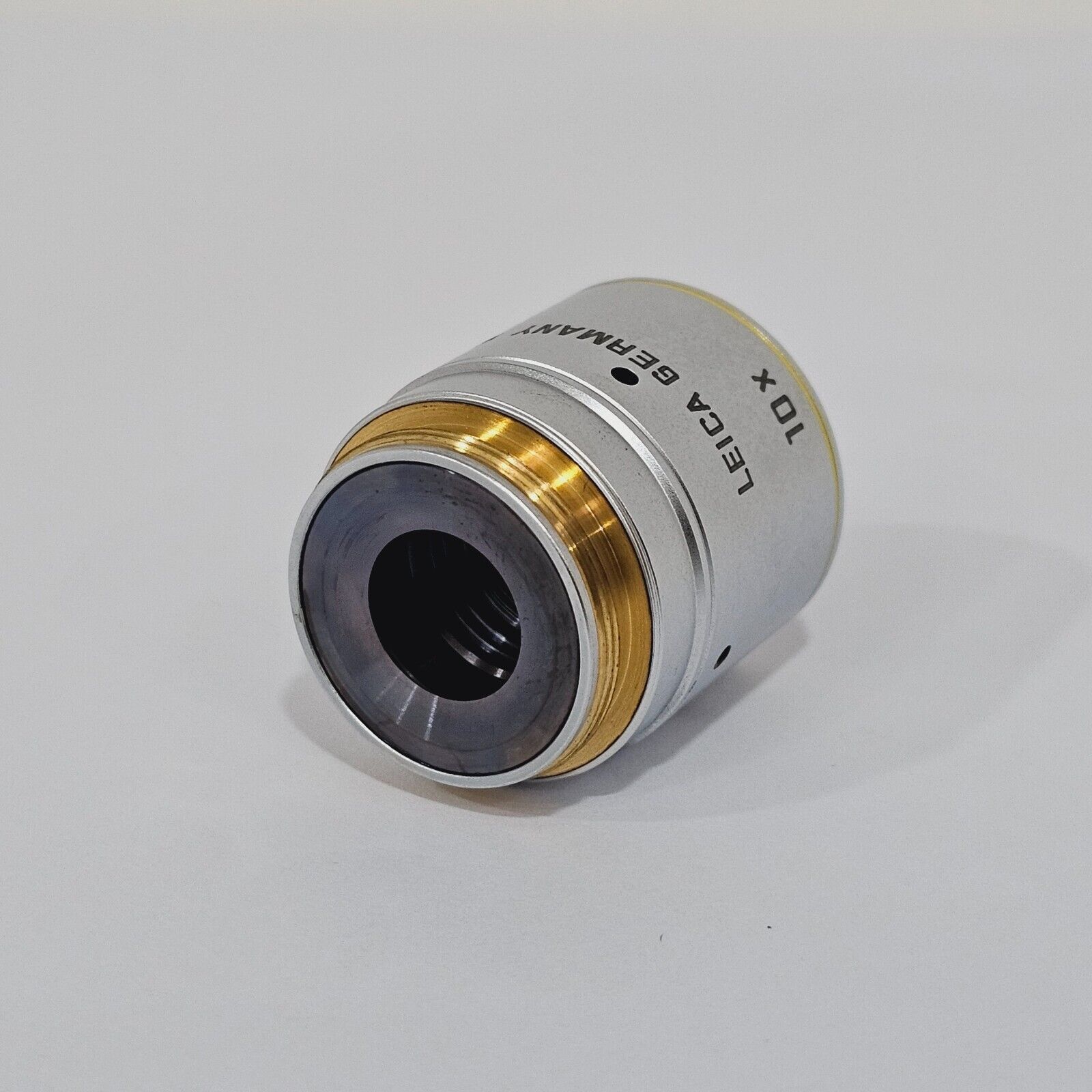

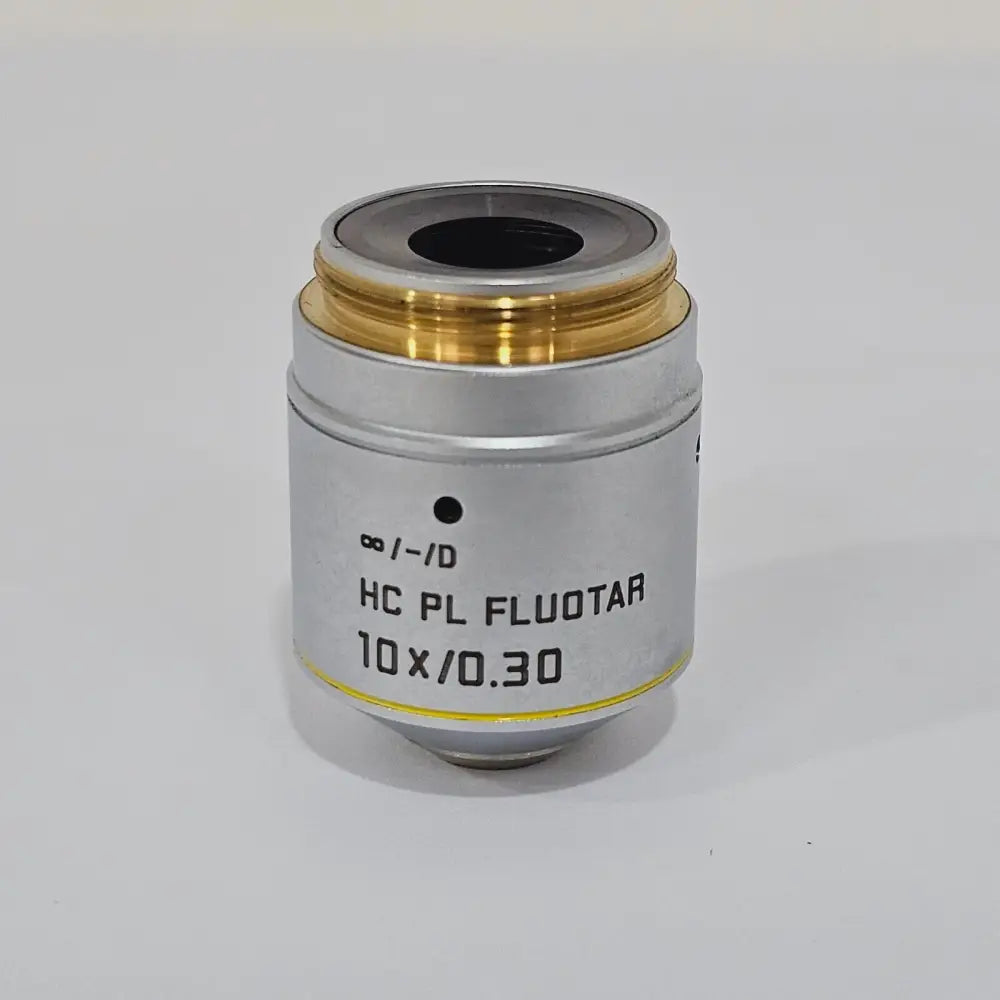

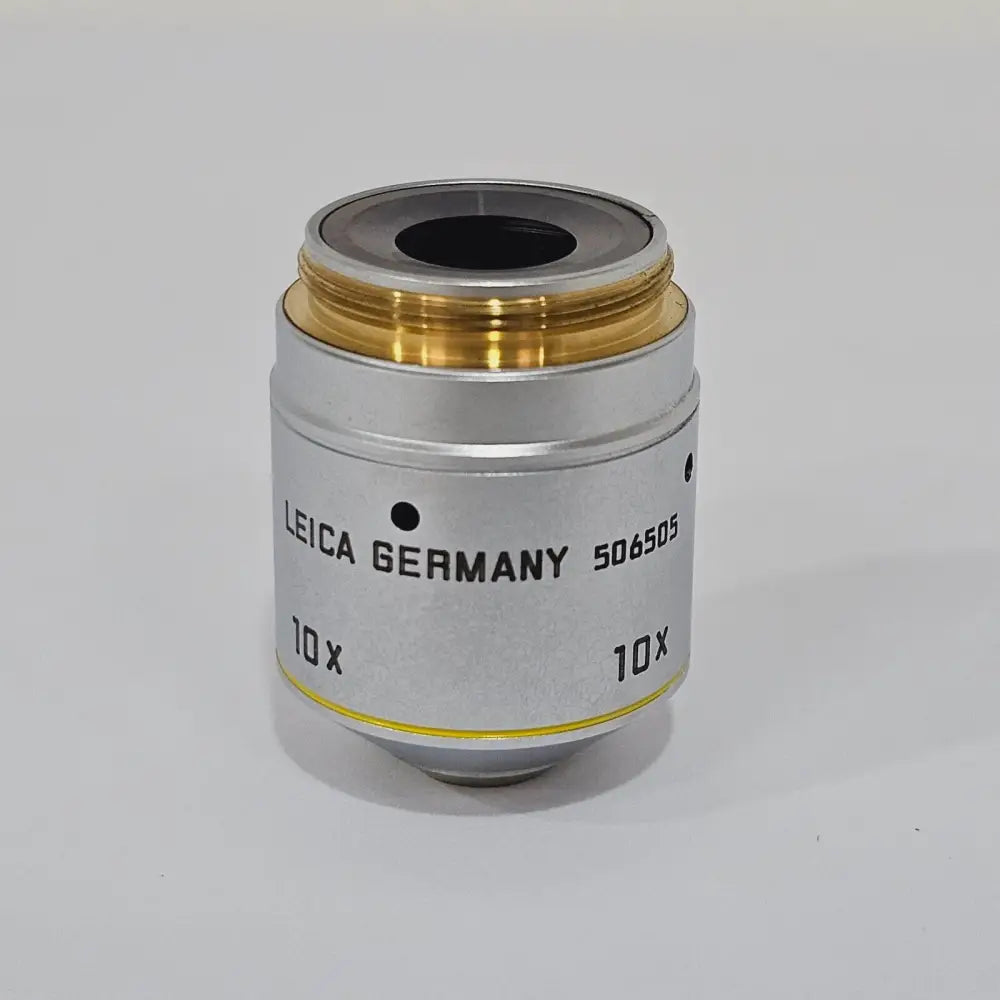

The Leica 506505 HC PL FLUOTAR 10x/0.30 ∞/-/D is a used infinity-corrected plan fluorite objective in good condition. Part number 506505 (also referenced as 11506505), this dry objective features M25 thread, 11 mm working distance, and a field number of 25, suitable for a wide range of laboratory microscopy applications.

Typically includes:
• Leica HC PL FLUOTAR 10x/0.30 ∞/-/D objective lens (506505)

The Leica HC PL FLUOTAR 10x/0.30 (part number 506505) is a plan fluorite (semi-apochromatic) infinity-corrected microscope objective designed for use on Leica DM series upright and inverted microscopes equipped with an M25 objective thread. The HC (High Class) designation indicates superior optical correction and transmission performance. The PL (Plan) correction ensures flat-field imaging edge to edge, while the FLUOTAR fluorite element construction delivers enhanced chromatic and spherical aberration correction compared to achromats, making it well suited to fluorescence, brightfield, and phase contrast microscopy.

The objective is designed for use without a cover glass (denoted by the "-" cover glass designation) and carries the "D" designation indicating suitability for use with a condenser iris diaphragm. Its generous 11.0 mm free working distance makes it particularly practical for applications involving thick specimens, culture dishes, or multi-well plates.

Typical applications include routine biological research, histology, pathology, haematology, microbiology, oncology, and materials science.

Specifications:
Magnification: 10x
Numerical Aperture (NA): 0.30
Optical Correction: Plan Fluorite (HC PL FLUOTAR)
Immersion Medium: Dry (air)
Infinity Correction: ∞ (infinity corrected)
Cover Glass: - (none required)
Free Working Distance (FWD): 11.0 mm
Objective Thread: M25 x 0.75 mm
Field Number (FN): 25
Designation: D (for use with condenser diaphragm)
Part Number: 506505 / 11506505
Compatibility: Leica DM500, DM750, DM1000, DM2000, DM3000, DM4000, DM5000, DM6000 and other M25-thread Leica microscopes

Leica Microsystems official objective finder page for HC PL FLUOTAR 10x/0.30 (506505) with specifications: Download PDF

Leica HCS Objectives full list PDF including 506505 specifications and compatibility data: Download PDF
