Kontron SBC 38006-0000-22-2 ETXexpress-MC T7500 Intel Core2 Duo T7500
Model: 38006-0000-22-2AF1
Condition: New Other
In stock: 0
SKU: 4049 3A02
- Misc Test Equipment
Choose options
Condition: New Other

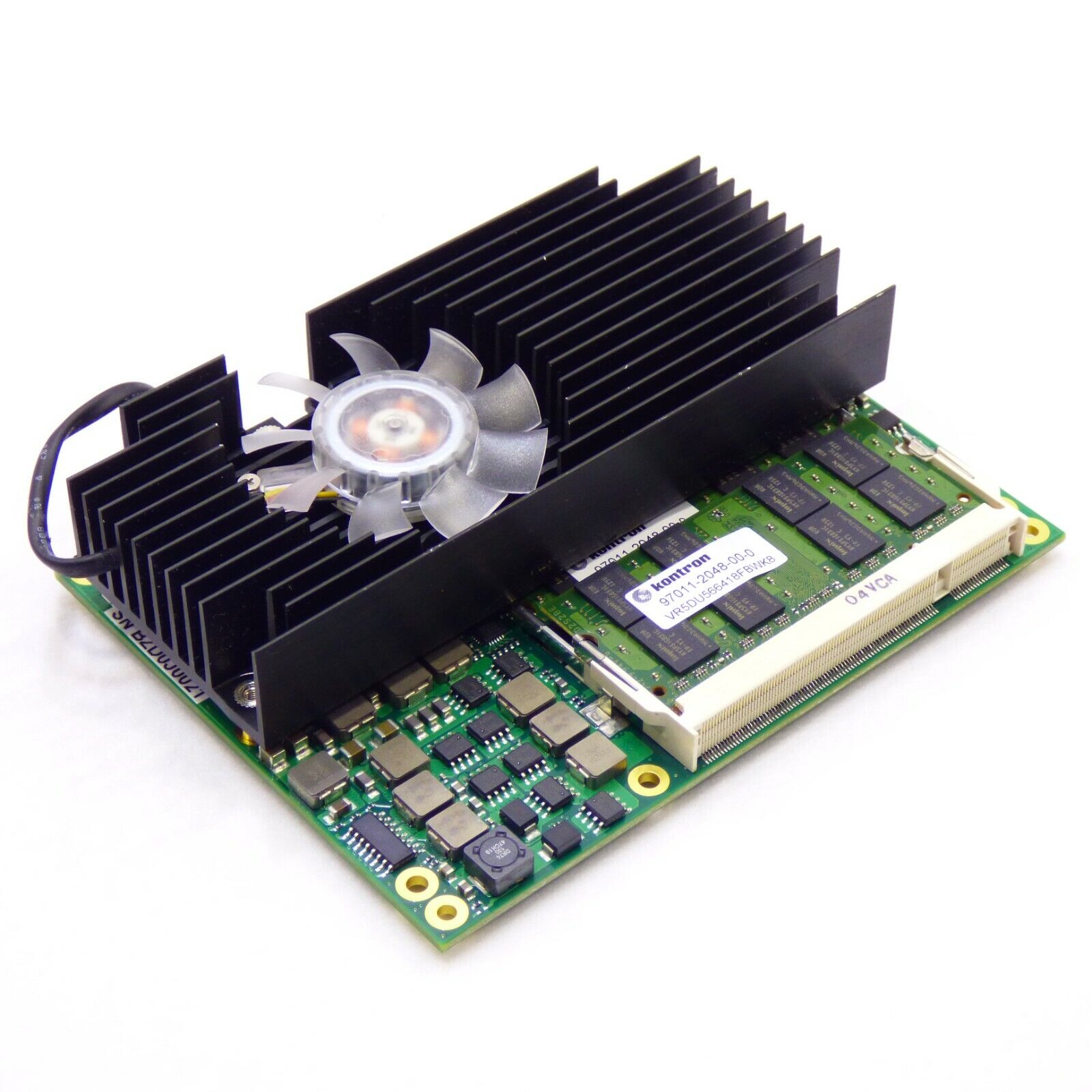

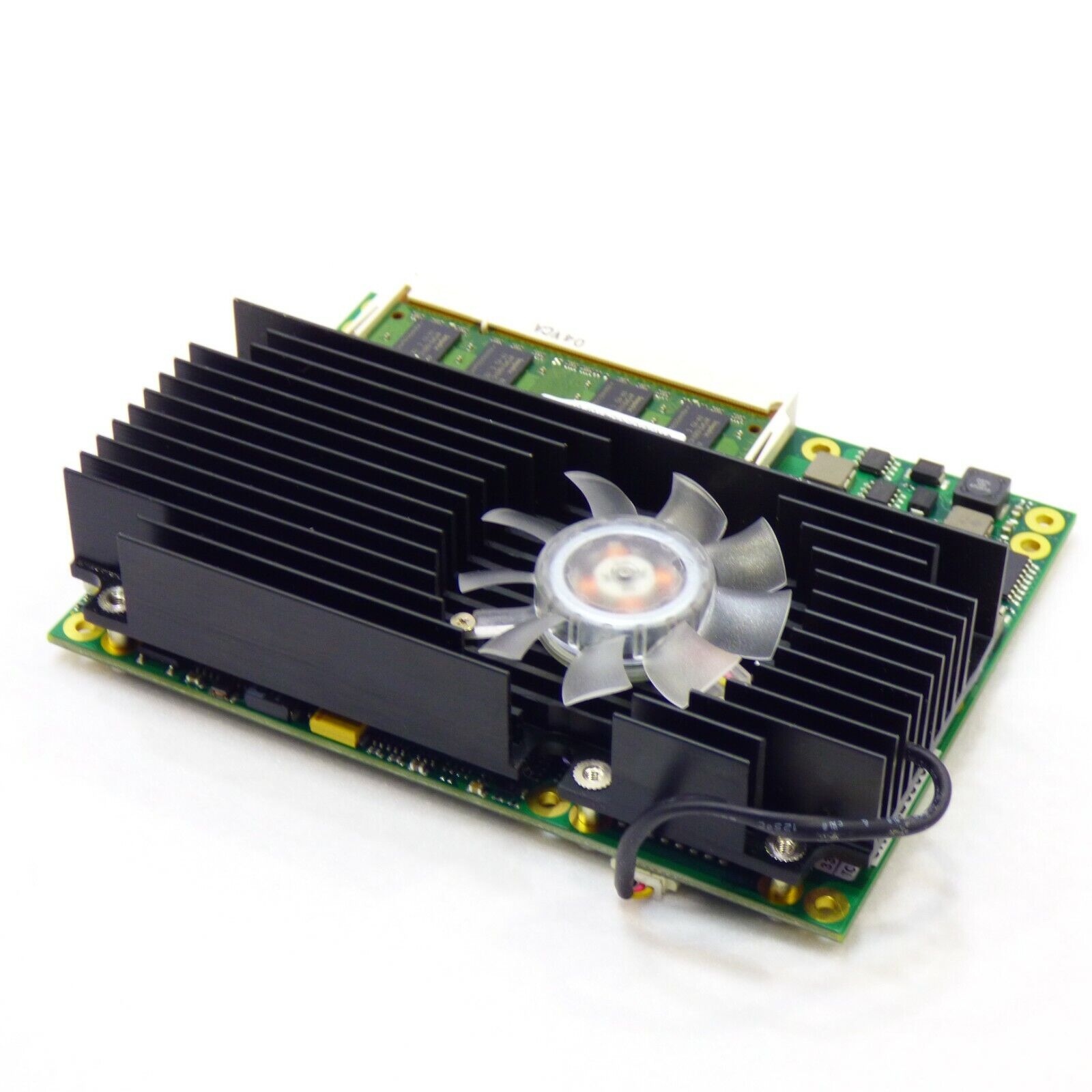

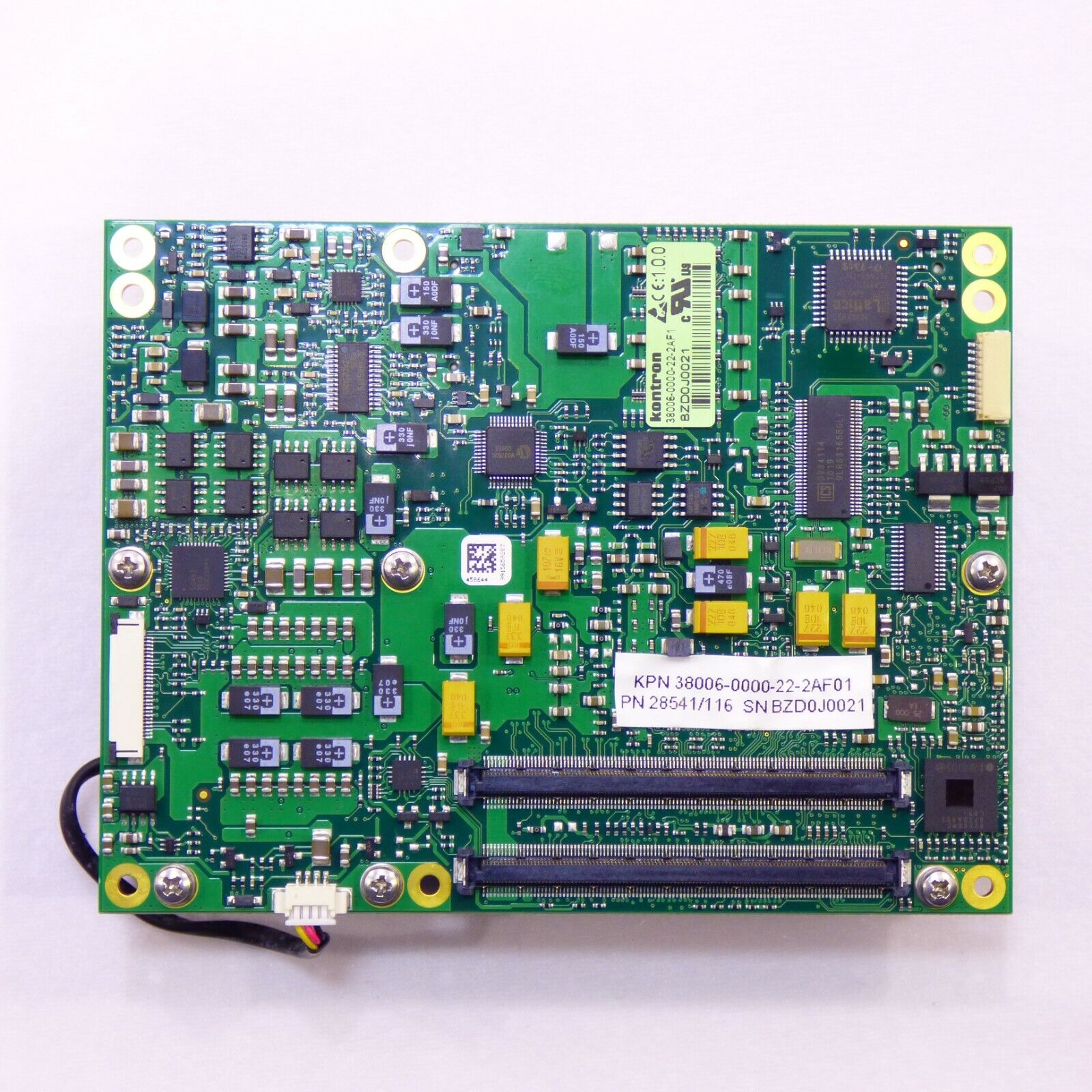

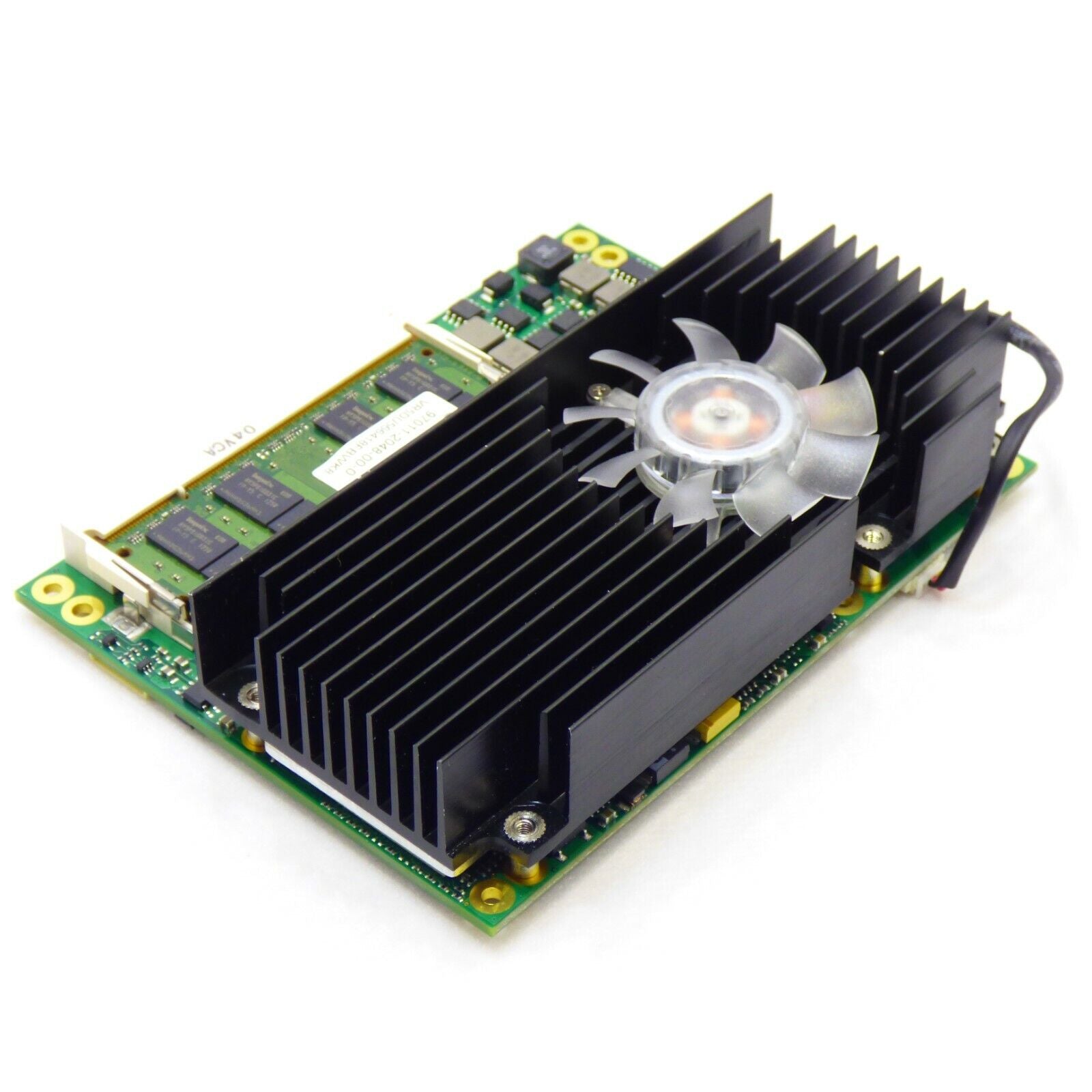

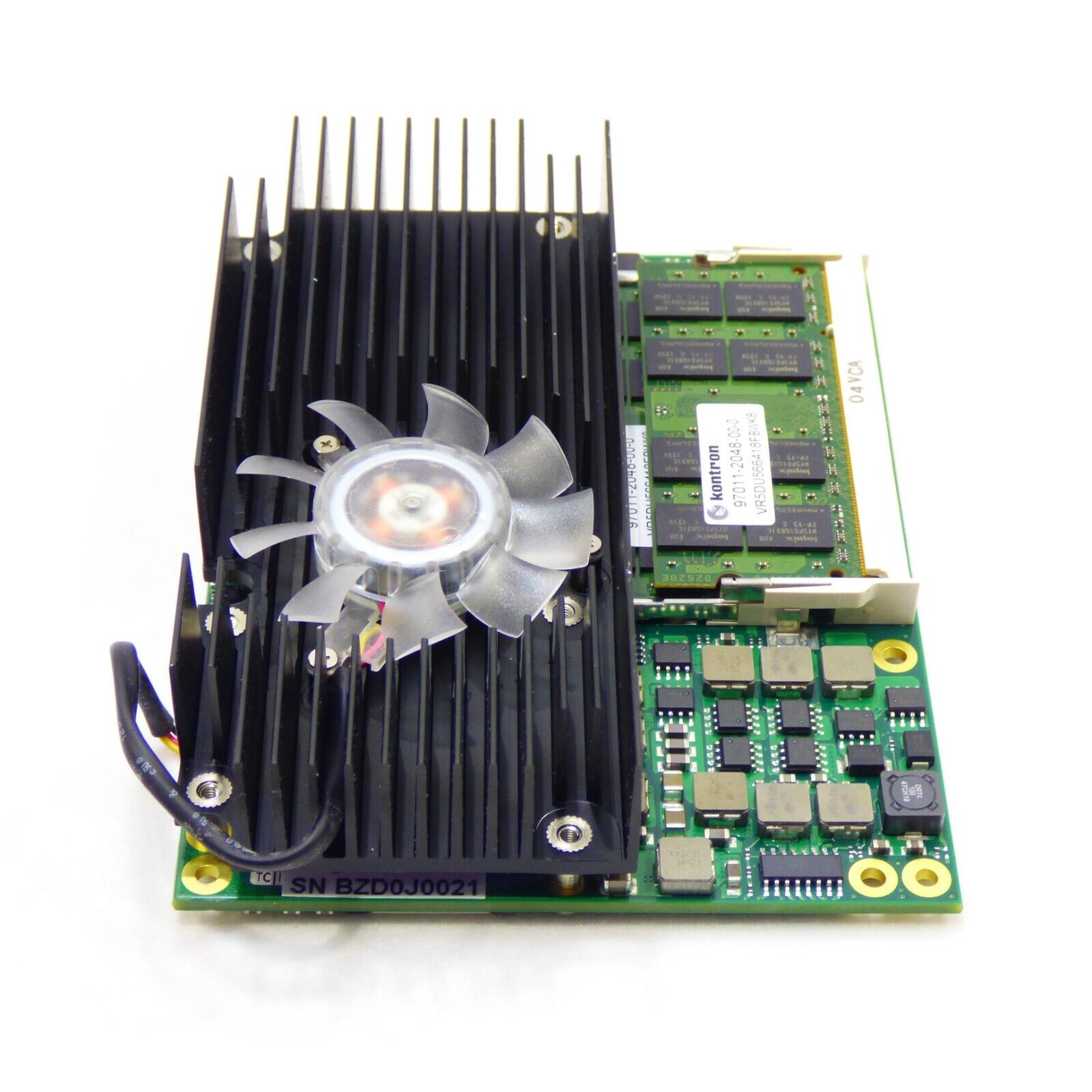

Kontron ETXexpress-MC T7500, part number 38006-0000-22-2, fitted with an Intel Core 2 Duo T7500 (2x2.2GHz BGA, 800MHz FSB, 4MB cache, 65nm). Supplied with 4GB RAM (2x 2GB PC2-5300 DDR2-667MHz non-ECC Unbuffered CL5 200-Pin SO-DIMM, part 97011-2048-00-0). Originally manufactured for Aeroflex — may include preinstalled software.
Included with this product:
• 2x 2GB DDR2 SO-DIMM memory modules (97011-2048-00-0)
• Heat sink
• Cooling fan

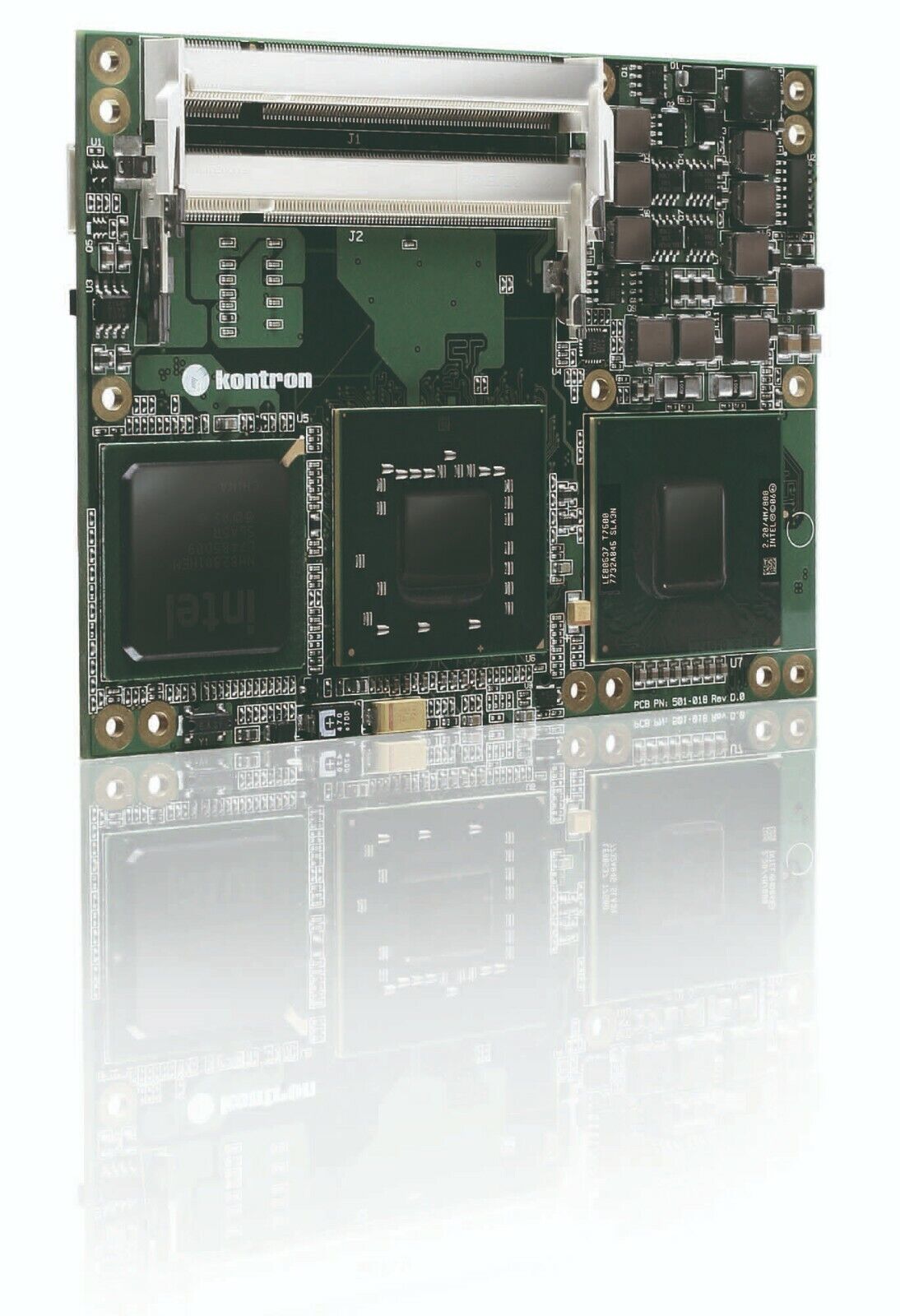

The Kontron ETXexpress-MC is a COM Express Type 2 Computer-on-Module designed for performance-demanding embedded applications. Built around the Intel Core 2 Duo processor family and the Intel GME 965 chipset, it delivers robust computing power within a compact, thermally optimised form factor. The module supports fourth-generation Intel graphics architecture and is fully compliant with the PICMG COM Express specification, ensuring scalability and long-term investment protection across the ETXexpress product family.
Processor: Intel Core 2 Duo T7500 (2x2.2GHz BGA, 800MHz FSB, 4MB L2 cache, 65nm process)
Chipset: Intel GME 965
Memory: Up to 4GB dual-channel DDR2 via two SO-DIMM sockets (533MHz or 667MHz)
Graphics: Intel GMA X3100 integrated graphics; DirectX 9.0 / SM3.0; DVMT 4.0; 24-bit LVDS support
TV Output: Component, S-Video, or composite; HDTV support (480i/480p/720p/1080i/1080p)
PCI Express: 5x PCIe x1 lanes
USB: 8x USB 2.0
Serial ATA: 3x SerialATA 300
Ethernet: 1x Gigabit Ethernet (Intel 82566MM)
Audio: Intel High Definition Audio
Security: Onboard TPM 1.2
PCI: PCI 2.1, 32-bit/33MHz
Power Input: 8.5V–18V wide input supply
Operating Temperature: 0°C to +60°C
Storage Temperature: -10°C to +85°C
Operating Humidity: 10% to 90% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
Miscellaneous: LPC, JIDA support, WakeOnLAN, Watchdog, 8x GPIO, I2C Bus, RTC, LAN Boot, JRC support, ACPI suspend states (S0/S1/S3/S4/S5)
Form Factor: COM Express Basic (ETXexpress), Type 2 pin-out
OS Support: Windows XP, Windows XPe, Windows CE, Linux
Kontron ETXexpress-MC Official Datasheet (PDF): Download PDF
Kontron ETXexpress-MC User Manual v1.7 (PDF): Download PDF
Product Overview
Condition: New Other
Kontron ETXexpress-MC T7500, part number 38006-0000-22-2, fitted with an Intel Core 2 Duo T7500 (2x2.2GHz BGA, 800MHz FSB, 4MB cache, 65nm). Supplied with 4GB RAM (2x 2GB PC2-5300 DDR2-667MHz non-ECC Unbuffered CL5 200-Pin SO-DIMM, part 97011-2048-00-0). Originally manufactured for Aeroflex — may include preinstalled software.
Included with this product:
• 2x 2GB DDR2 SO-DIMM memory modules (97011-2048-00-0)
• Heat sink
• Cooling fan
Manufacturer's Description
The Kontron ETXexpress-MC is a COM Express Type 2 Computer-on-Module designed for performance-demanding embedded applications. Built around the Intel Core 2 Duo processor family and the Intel GME 965 chipset, it delivers robust computing power within a compact, thermally optimised form factor. The module supports fourth-generation Intel graphics architecture and is fully compliant with the PICMG COM Express specification, ensuring scalability and long-term investment protection across the ETXexpress product family.
Processor: Intel Core 2 Duo T7500 (2x2.2GHz BGA, 800MHz FSB, 4MB L2 cache, 65nm process)
Chipset: Intel GME 965
Memory: Up to 4GB dual-channel DDR2 via two SO-DIMM sockets (533MHz or 667MHz)
Graphics: Intel GMA X3100 integrated graphics; DirectX 9.0 / SM3.0; DVMT 4.0; 24-bit LVDS support
TV Output: Component, S-Video, or composite; HDTV support (480i/480p/720p/1080i/1080p)
PCI Express: 5x PCIe x1 lanes
USB: 8x USB 2.0
Serial ATA: 3x SerialATA 300
Ethernet: 1x Gigabit Ethernet (Intel 82566MM)
Audio: Intel High Definition Audio
Security: Onboard TPM 1.2
PCI: PCI 2.1, 32-bit/33MHz
Power Input: 8.5V–18V wide input supply
Operating Temperature: 0°C to +60°C
Storage Temperature: -10°C to +85°C
Operating Humidity: 10% to 90% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
Miscellaneous: LPC, JIDA support, WakeOnLAN, Watchdog, 8x GPIO, I2C Bus, RTC, LAN Boot, JRC support, ACPI suspend states (S0/S1/S3/S4/S5)
Form Factor: COM Express Basic (ETXexpress), Type 2 pin-out
OS Support: Windows XP, Windows XPe, Windows CE, Linux
Resources
Kontron ETXexpress-MC Official Datasheet (PDF): Download PDF
Kontron ETXexpress-MC User Manual v1.7 (PDF): Download PDF
