Condition: Used

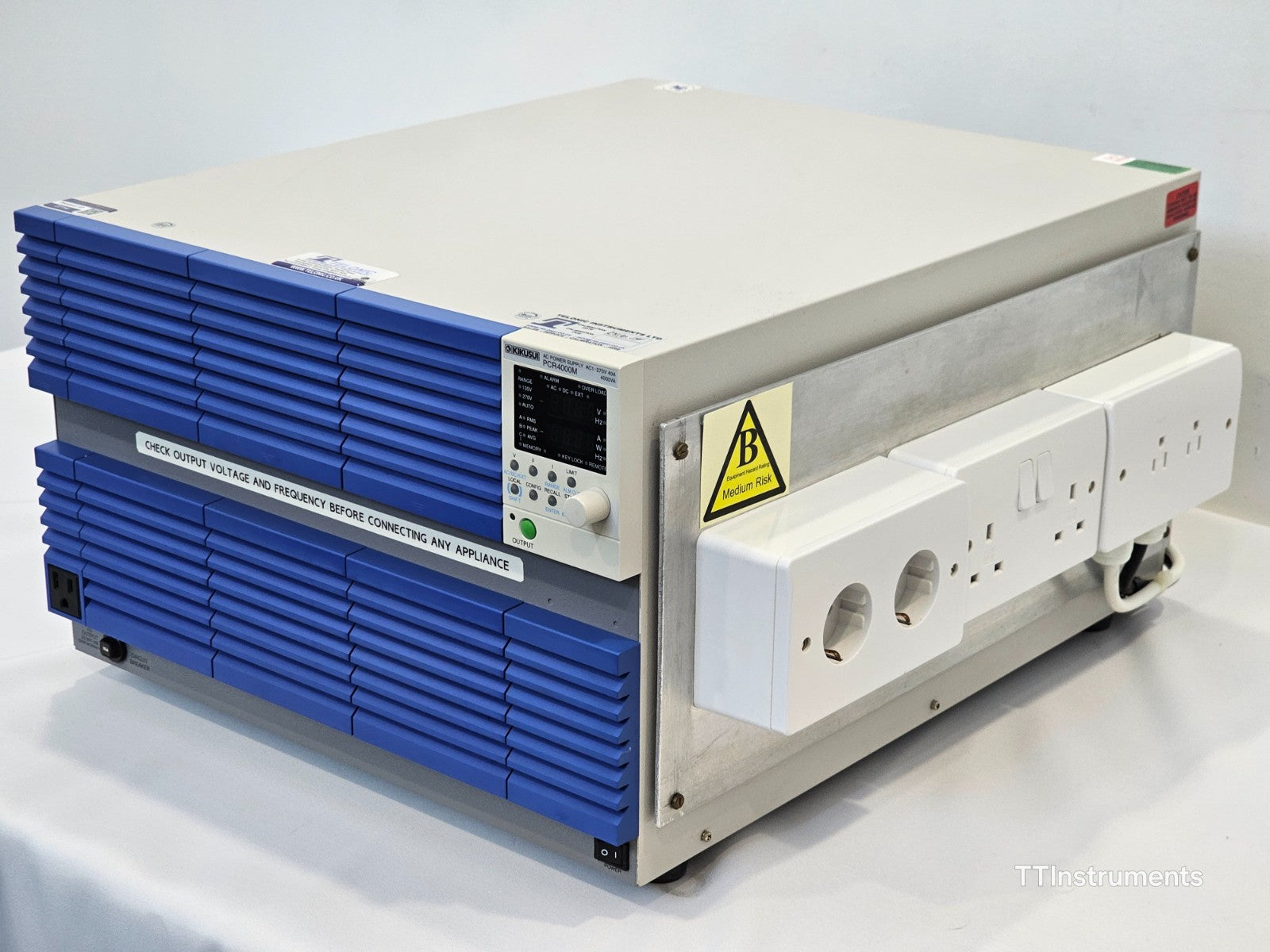

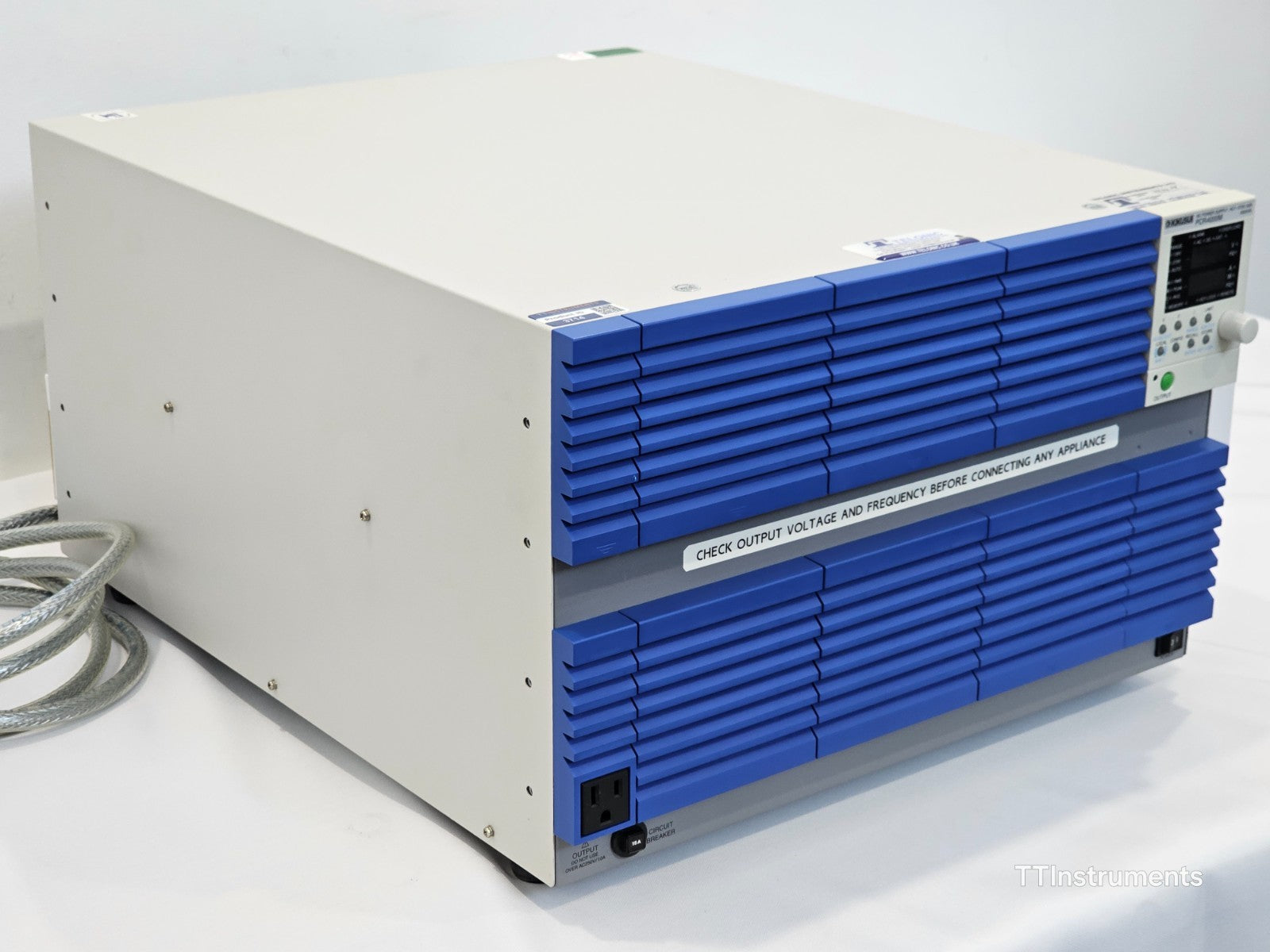

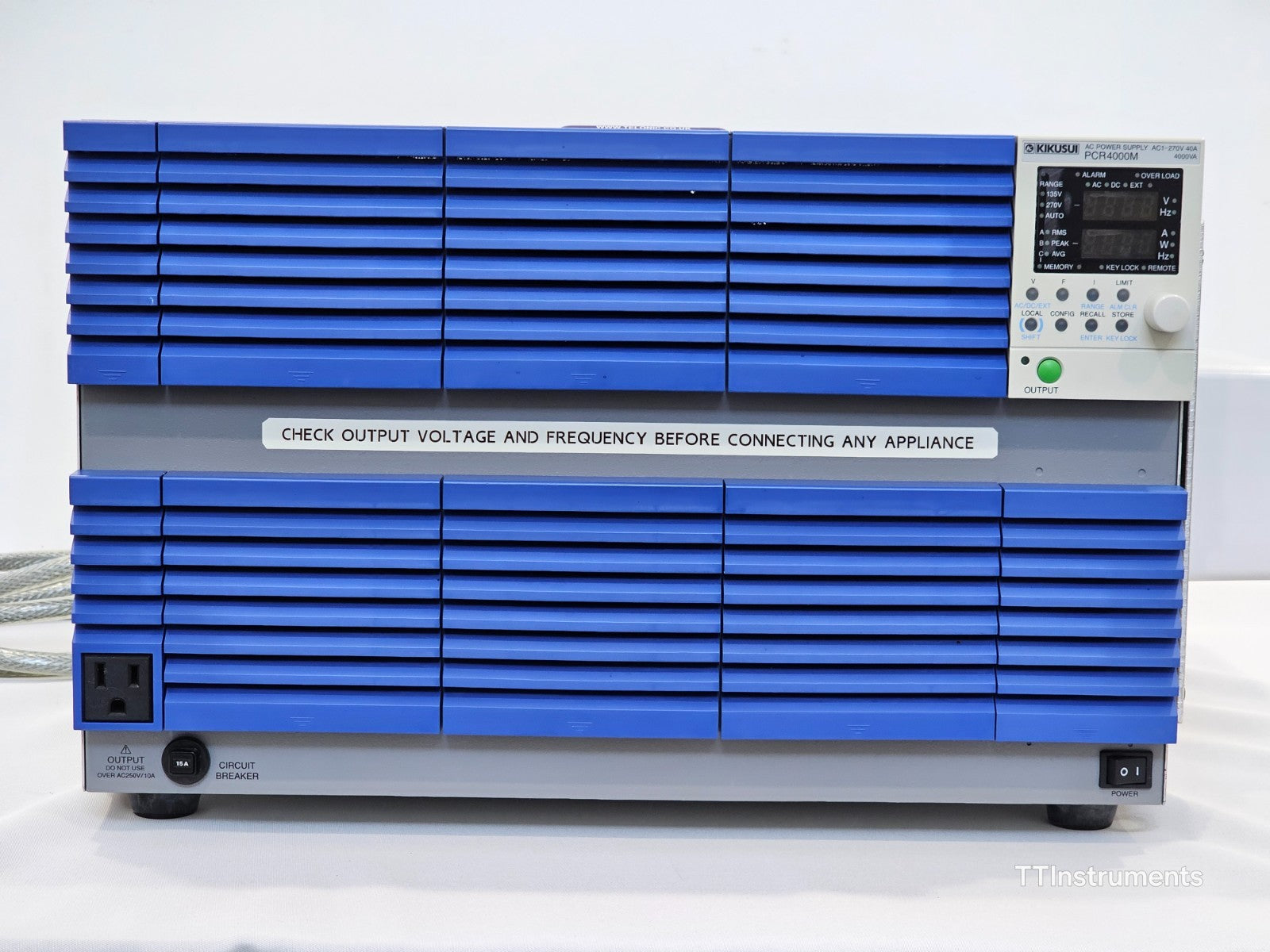

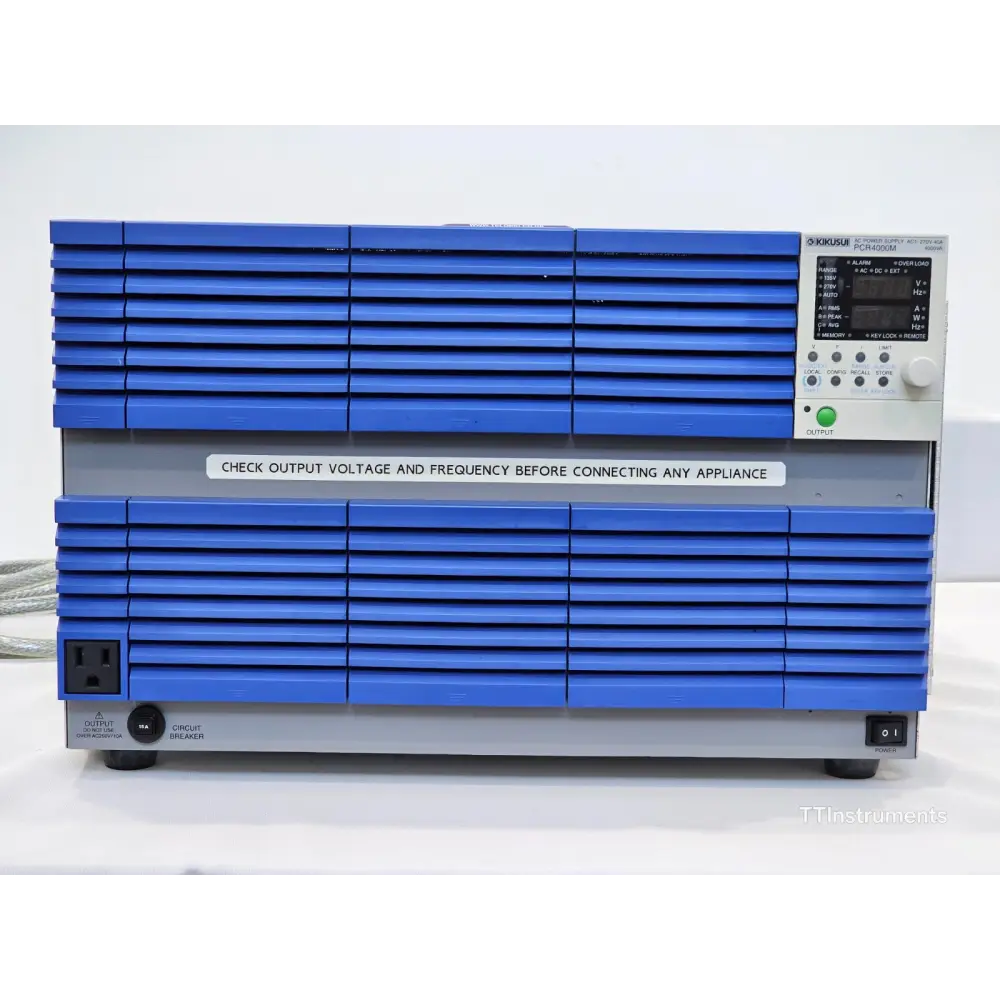

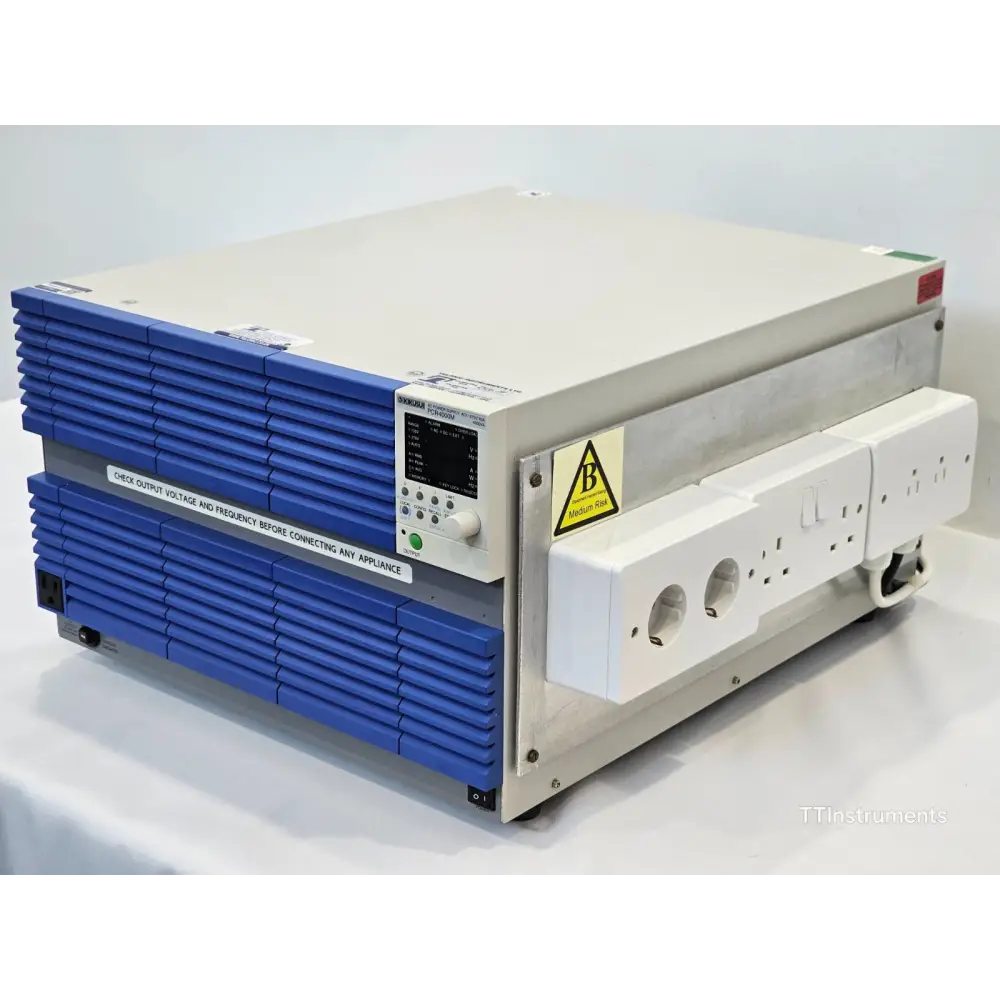

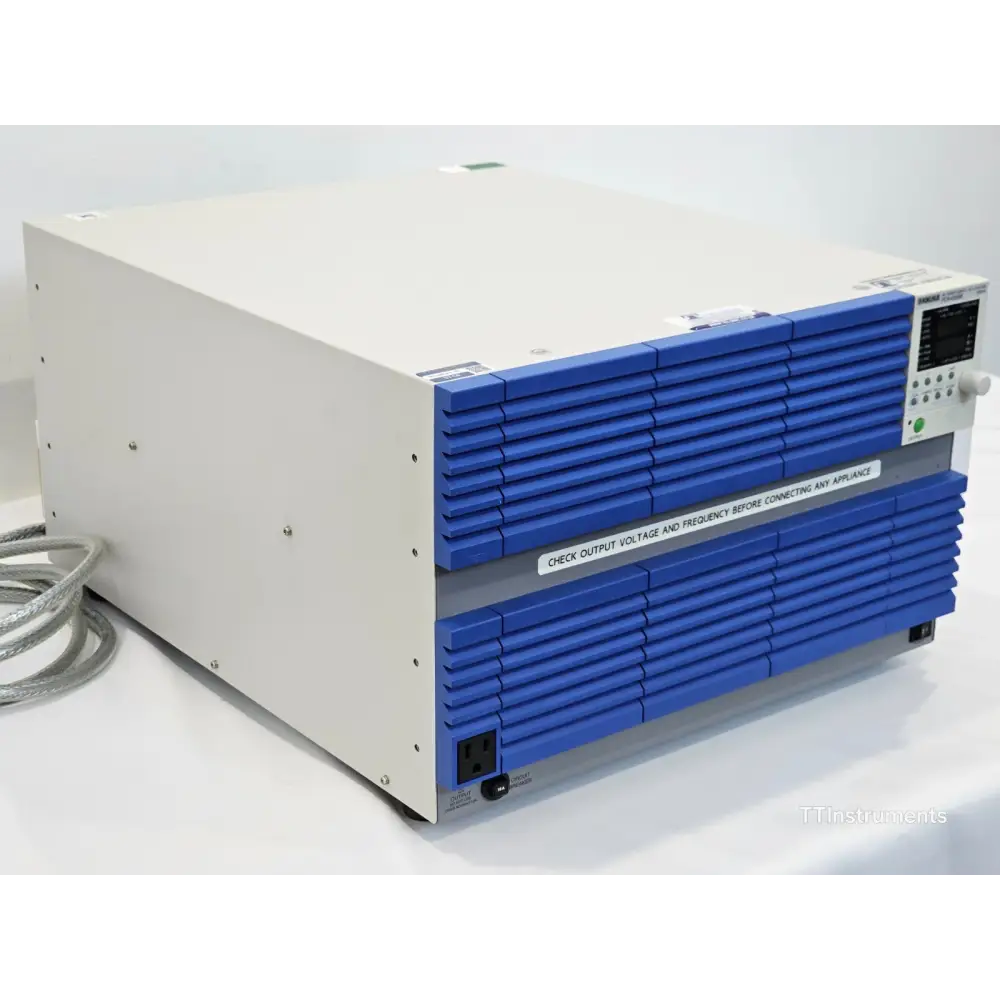

This Kikusui PCR4000MA is a used 4000VA AC/DC programmable power supply and frequency converter. The unit has been powered on and confirmed functional, having been removed from a working environment. Please note that control software is not included and must be purchased separately.

Included in the sale:
• Kikusui PCR4000MA unit

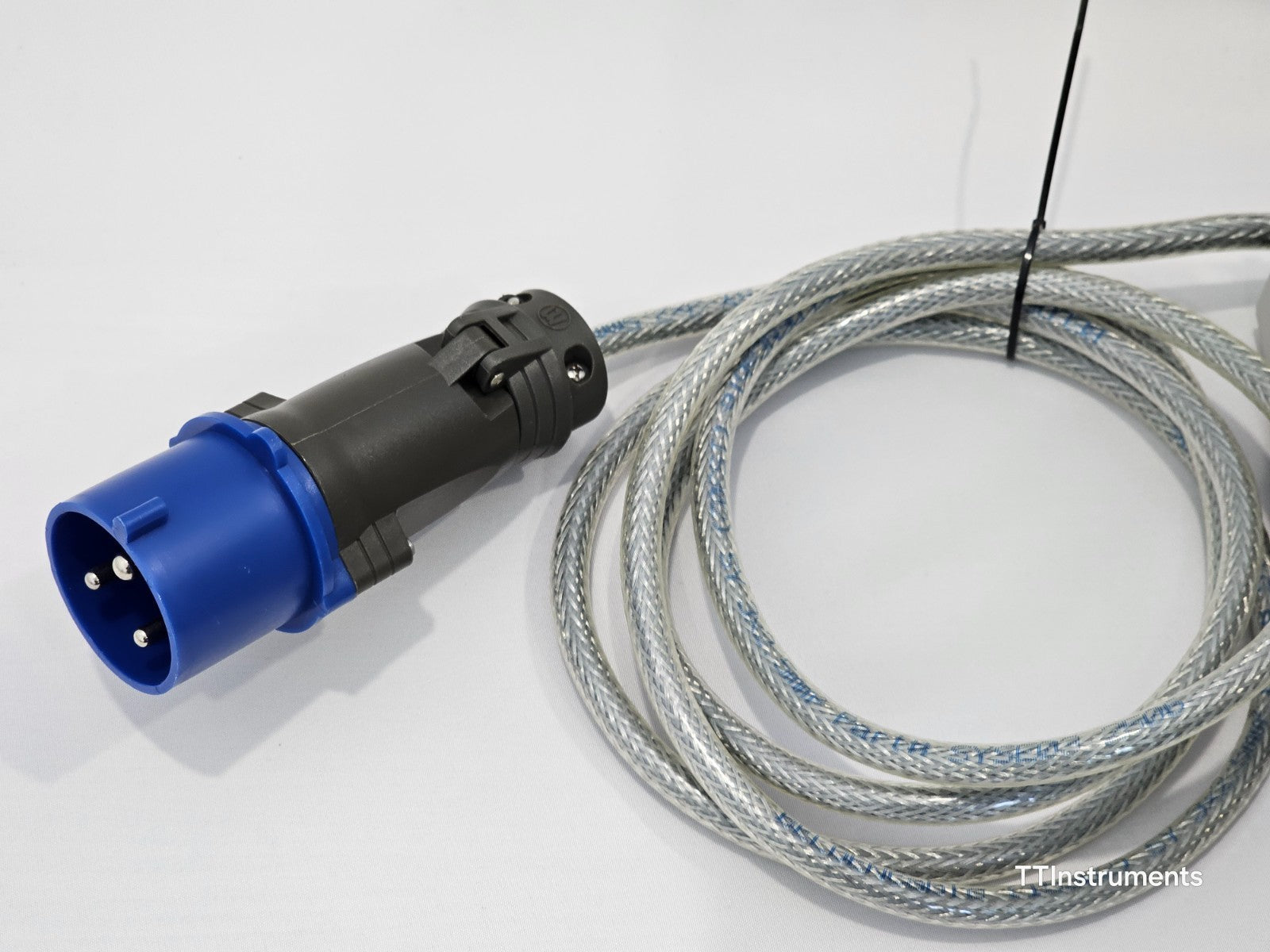

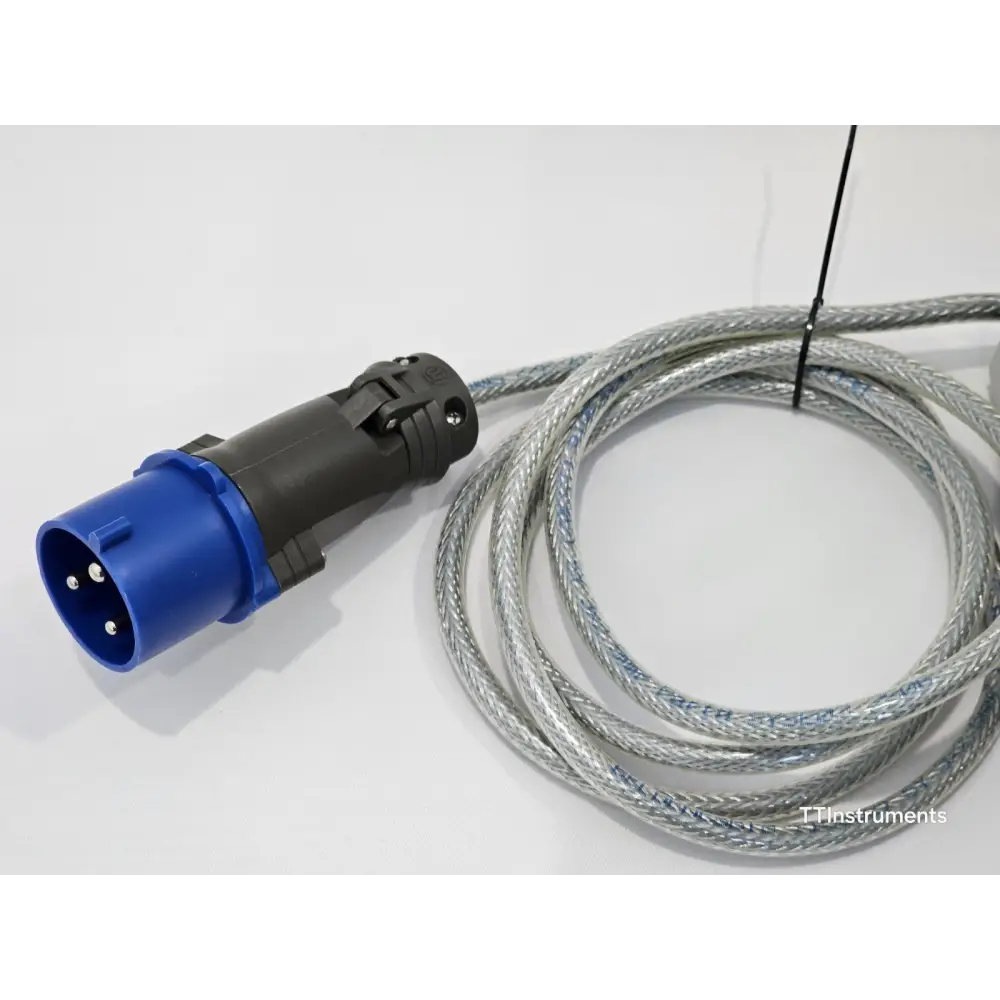

• IP44 AC input cable

The Kikusui PCR4000MA is a compact, single-phase switching AC power supply employing the PWM inverter method, forming part of the PCR-MA Series. It is designed to combine the simplicity of a variable auto-transformer or automatic voltage regulator (AVR) with the versatility of a fully programmable, multifunctional AC power source.

The PCR4000MA delivers a wide-range, programmable output voltage of up to 310 Vrms AC across a frequency range of 40 Hz to 500 Hz, making it ideal for testing equipment destined for global markets — including 120 V/60 Hz (Americas), 230 V/50 Hz (Europe), and 115 V/400 Hz (aviation and military). DC output is also supported, and DC voltage can be superimposed on the AC output in AC+DC mode, enabling comprehensive power source variation and ride-through testing.

Key capabilities include:
• Maximum peak current of three times the rated RMS value, accommodating capacitor-input rectifying loads
• Remote sensing to compensate for voltage drops in load cables
• Memory function storing up to 3 panel presets (up to 11 via software), recallable with the output active for step-change testing
• Built-in measurement of voltage, current, and power for both AC and DC outputs; apparent power, reactive power, power factor, crest factor, and current peak hold available via software

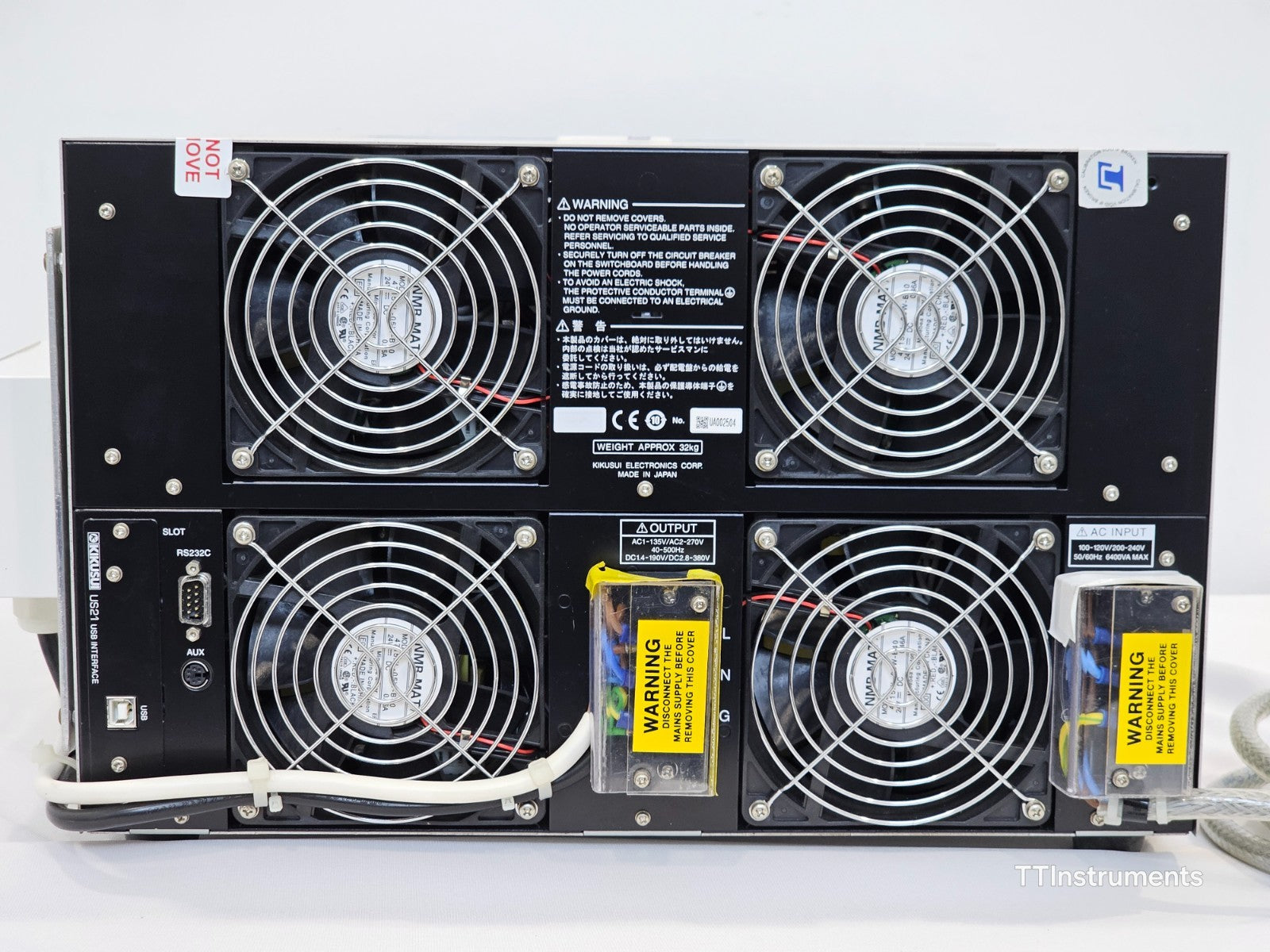

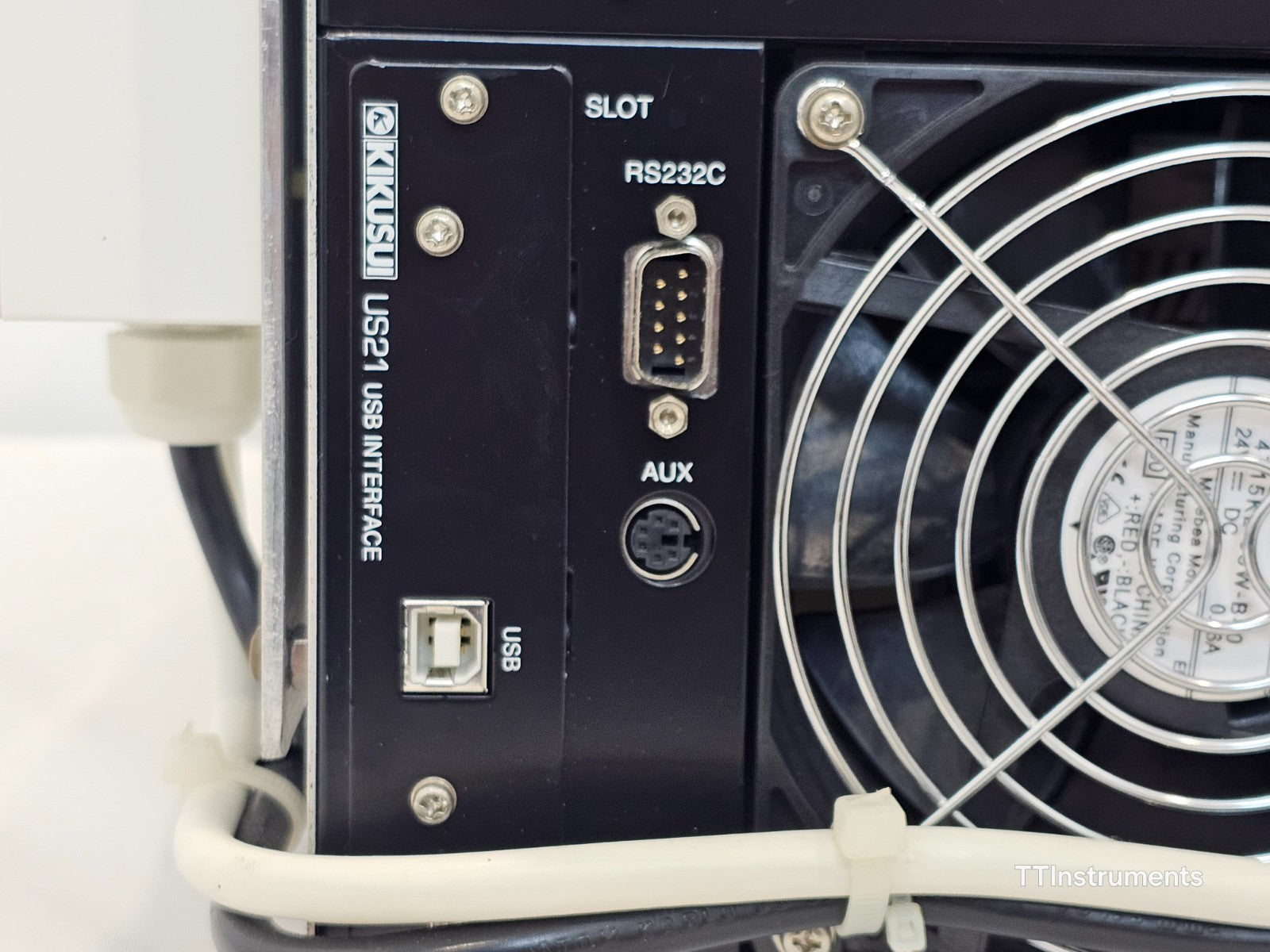

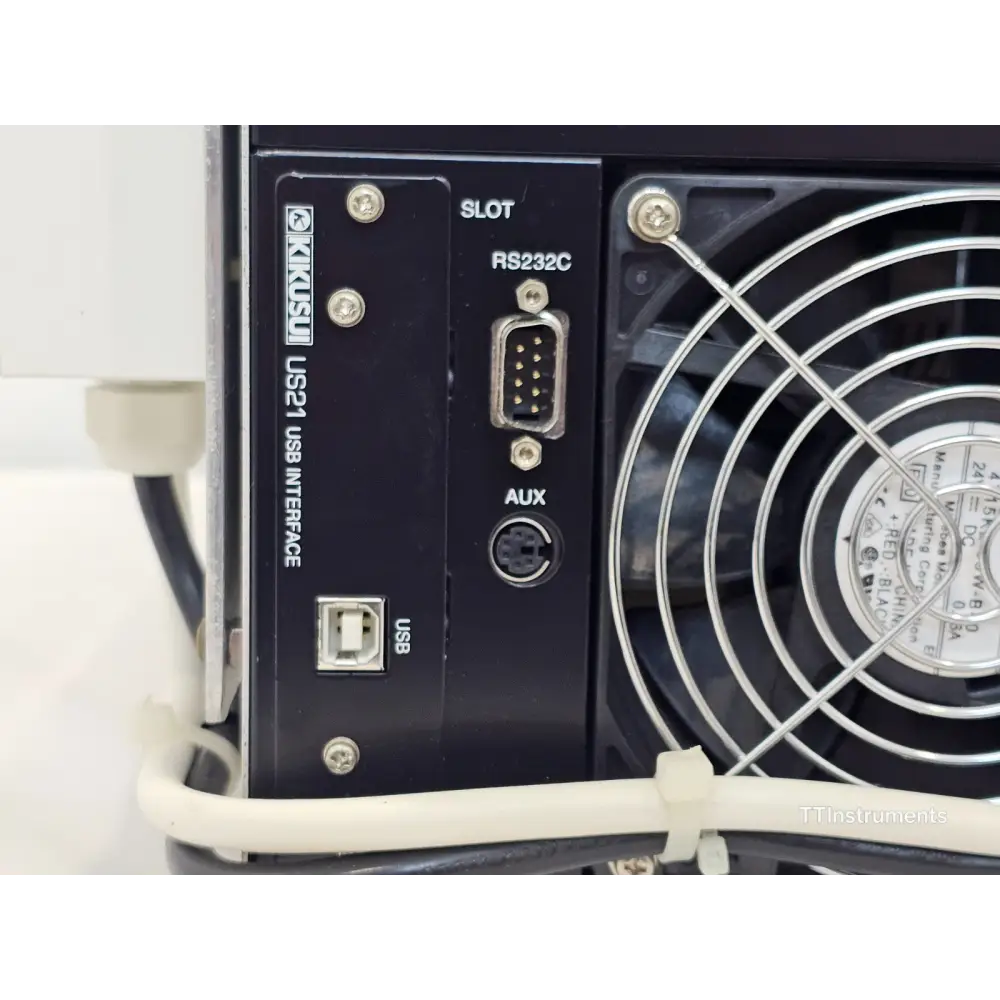

• LAN (LXI-compliant) and USB interfaces standard, with an embedded web browser interface for remote monitoring and control
• GPIB interface board available as a factory option
• Compatible with SCPI command set; supports VXI-11, HiSLIP, and SCPI-RAW protocols over LAN
• Overpower, overcurrent, and overvoltage protection functions
• Selectable output start phase

Technical Specifications (PCR4000MA):
Output Capacity: 4000 VA (single phase)
AC Output Voltage: 0 V to 155 V (low range) / 0 V to 310 V (high range)
AC Output Frequency: 40 Hz to 500 Hz
AC Output Current: 40 A (low range) / 20 A (high range)
DC Output Voltage: ±0 V to 219 V (low range) / ±0 V to 438 V (high range)
DC Output Current: 32 A (low range) / 16 A (high range)
Peak Current: 3× rated RMS value

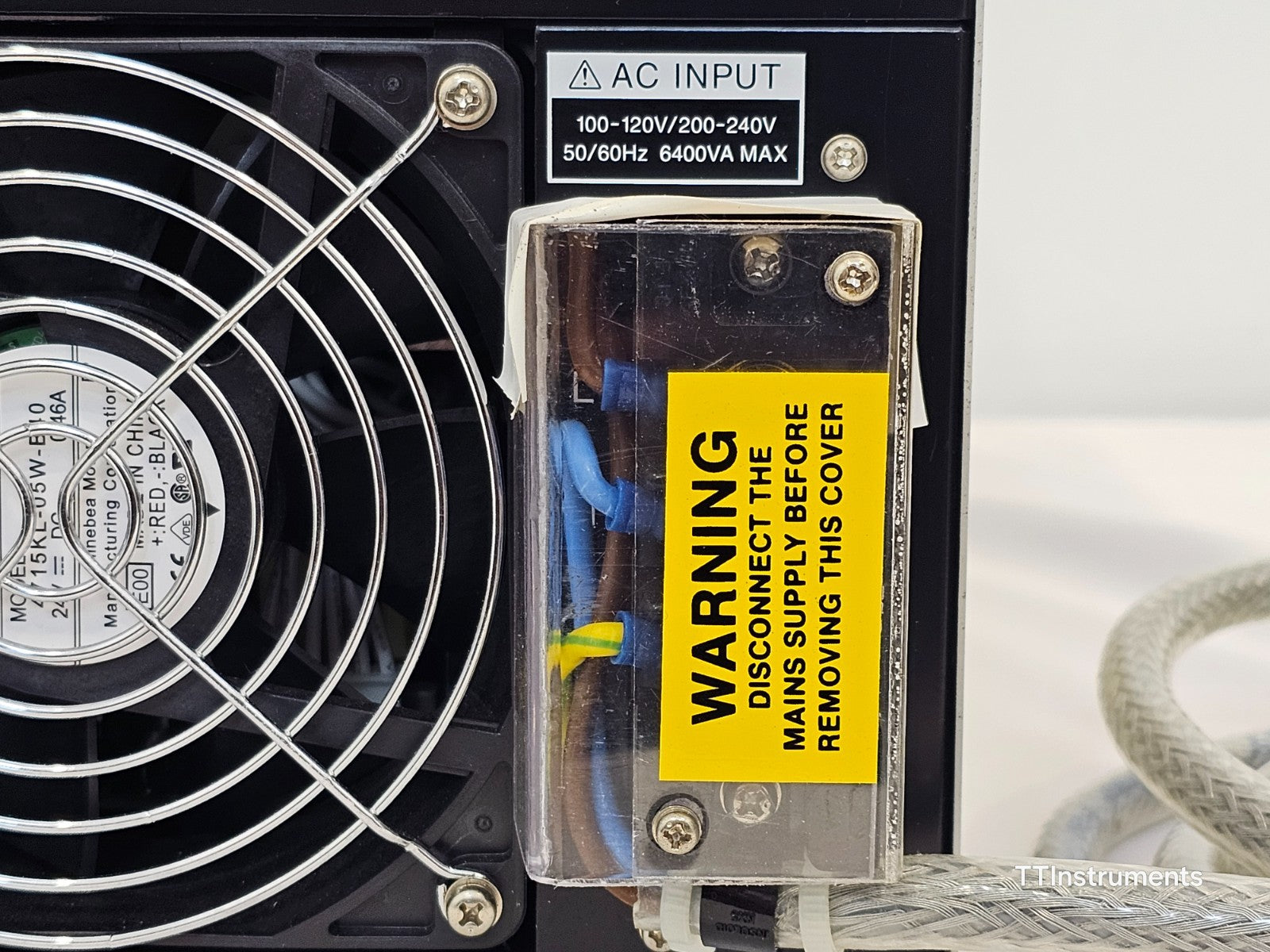

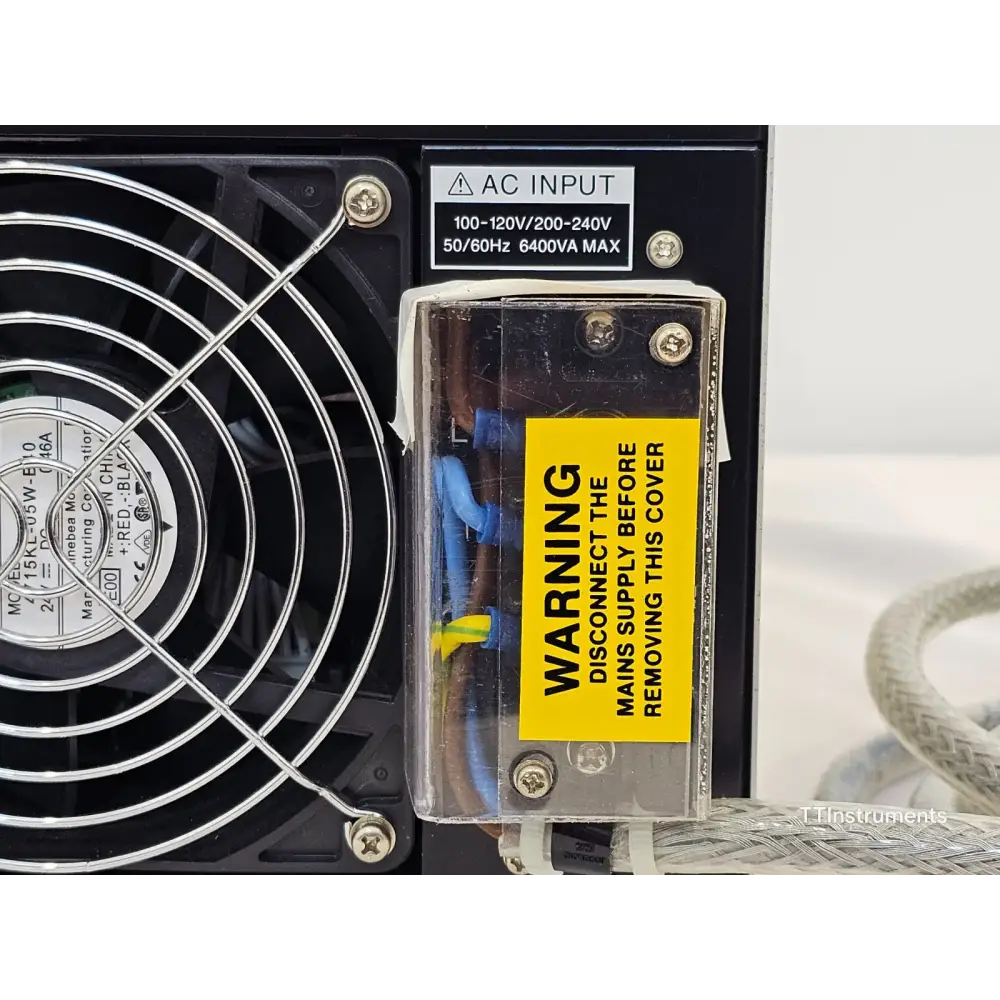

Nominal Input Voltage: 100 V to 120 V / 200 V to 240 V, single phase
Nominal Input Frequency: 50 Hz / 60 Hz (range: 47 Hz to 63 Hz)
Maximum Input Circuit Breaker Rating: 80 A or less
Output Modes: AC, DC, AC+DC, EXT-AC, EXT-DC
Digital Interfaces: LAN (LXI, VXI-11/HiSLIP/SCPI-RAW), USB 2.0 (USBTMC)
Optional Interface: GPIB
Analog Interface: Optional (EX08-PCR-MA)

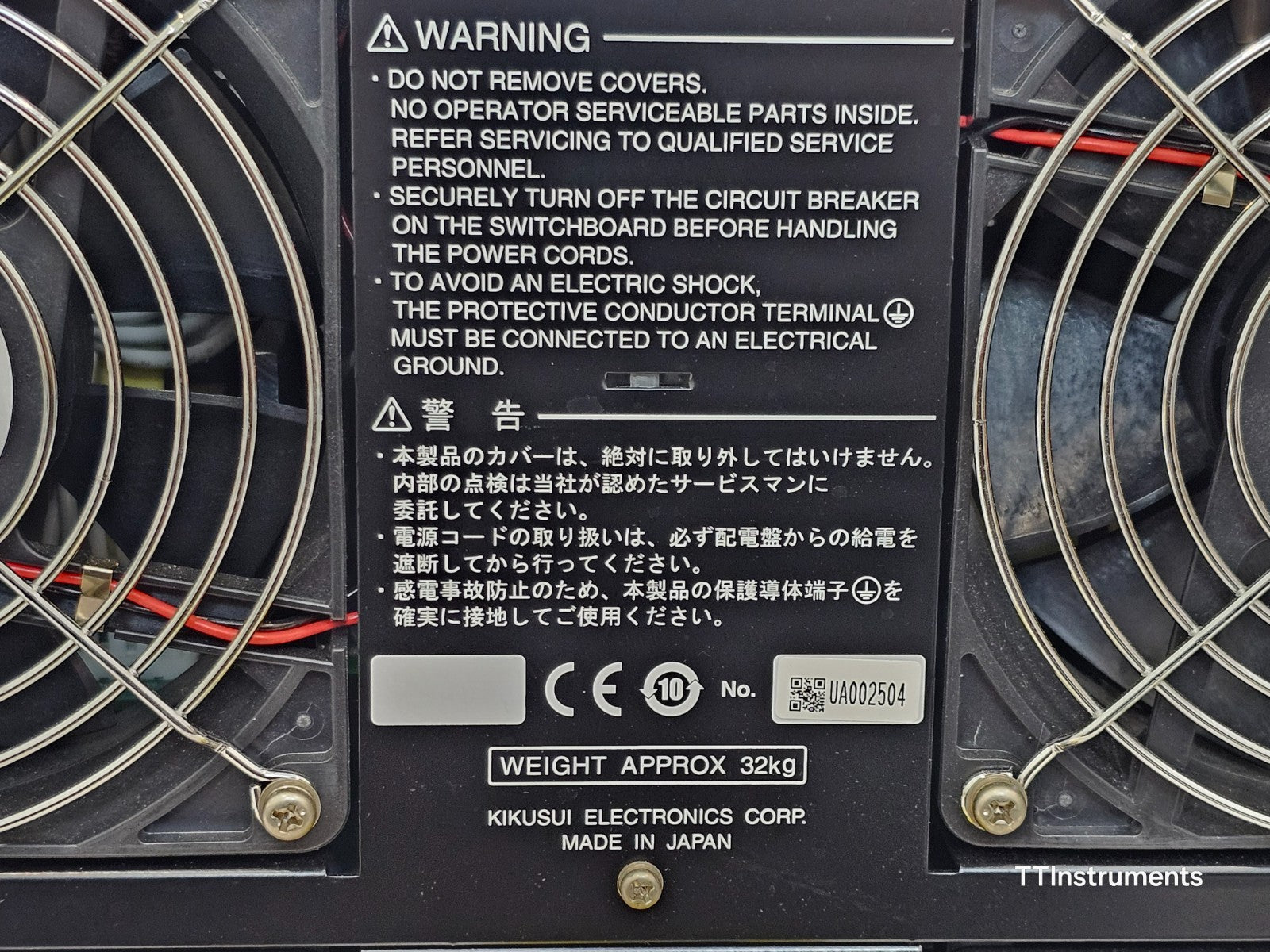

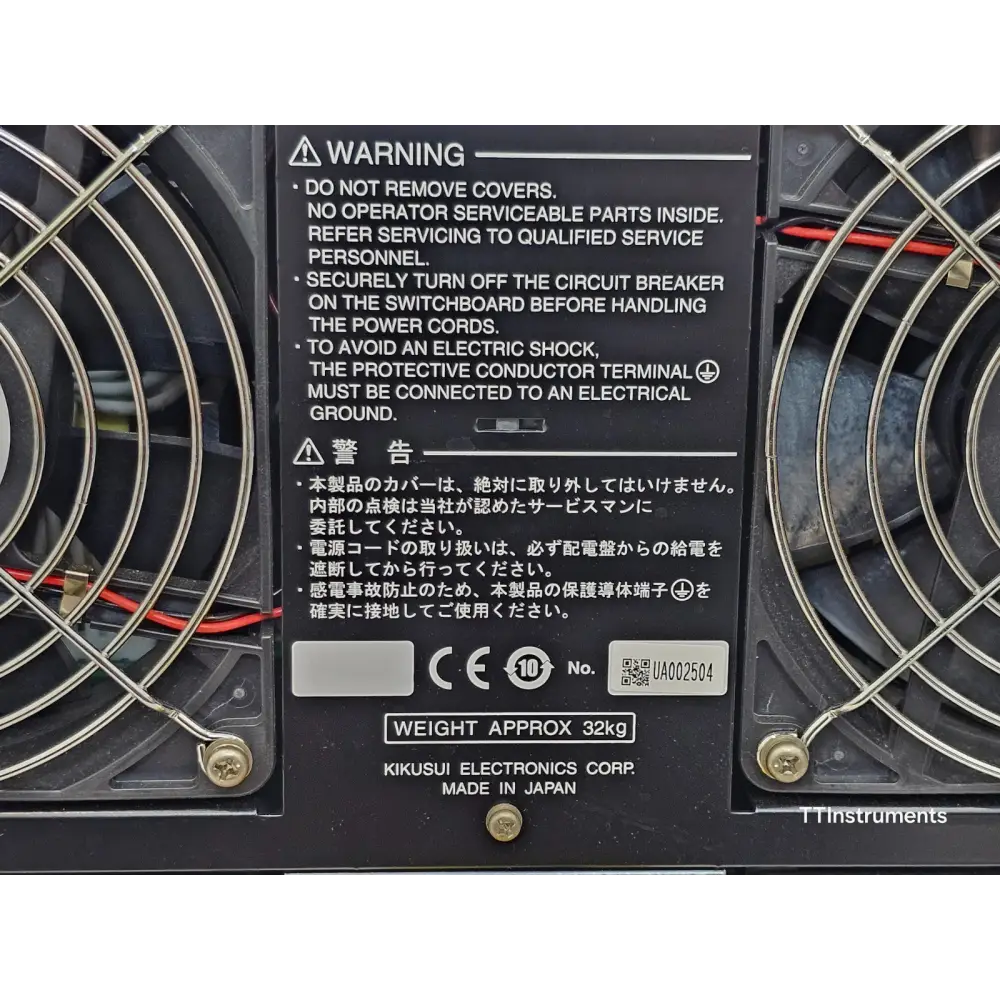

Weight: Approximately 32 kg
Safety Class: IEC Safety Class I

Typical Applications:
• Product compliance and safety testing to IEC/EN standards
• Simulation of worldwide mains supply conditions
• Aviation and military equipment testing at 115 V/400 Hz
• Standby and off-mode power measurement (ErP Directive Lot 6 / IEC 62301)
• Harmonic and flicker analysis (with optional KHA1000 analyser)
• Power supply variation and ride-through testing
• General-purpose laboratory AC and DC sourcing

Kikusui PCR-MA Series AC Power Supply Datasheet (PCR4000MA) — Telonic UK hosted PDF: Download PDF

Kikusui PCR-MA Series User's Manual Appendix (covers PCR500MA, PCR1000MA, PCR2000MA, PCR4000MA) — PDF: Download PDF

Kikusui PCR-MA Series Communication Interface Manual (PCR4000MA) — PDF: Download PDF
