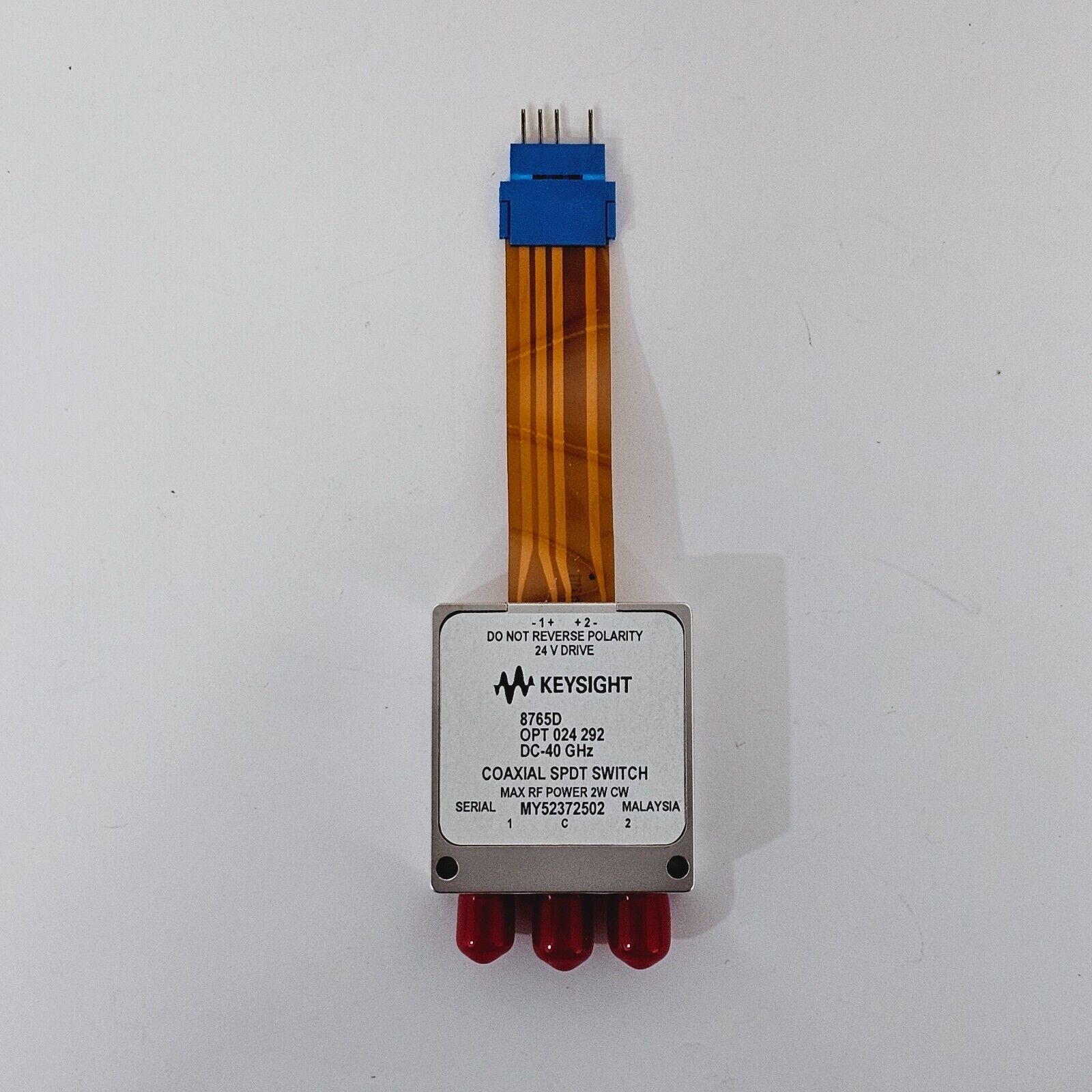

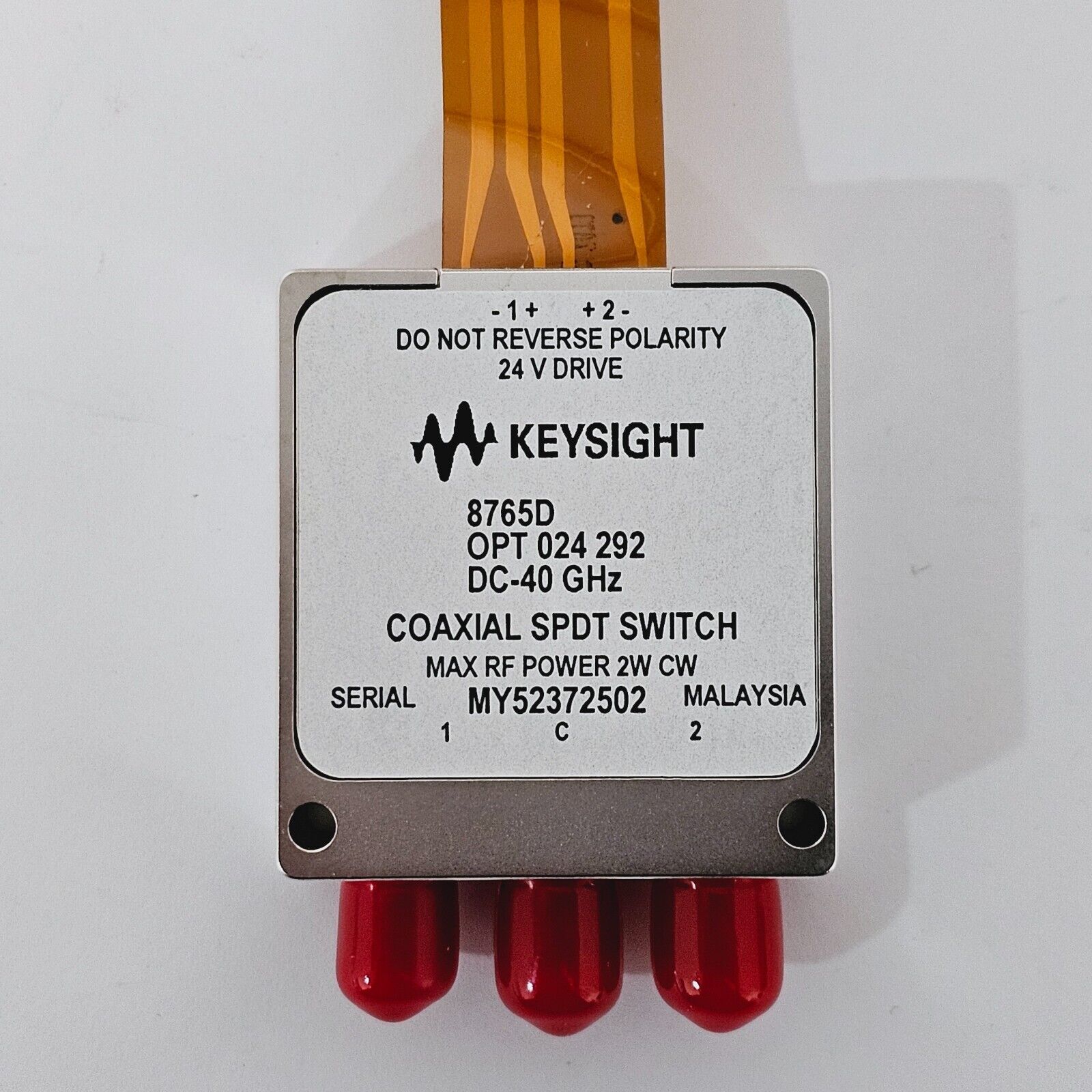

The Keysight Agilent 8765D is an unterminated SPDT break-before-make coaxial switch operating from DC to 26.5 GHz with 3.5 mm connectors and DC to 40 GHz with 2.4 mm connectors. This unit is supplied with Option 024 and Option 292. Option 292 provides a voltage drive option covering any drive voltage between 4.5 V and 32 V DC. Superior RF performance is delivered with insertion loss of < 0.2 dB + 0.023 dB/GHz to 26.5 GHz and 0.75 dB + 0.023 dB/GHz to 40 GHz, and isolation of 110 dB - 2.25 dB/GHz. The switch is designed to operate within its specifications for more than 10,000,000 cycles.

Included in the sale:

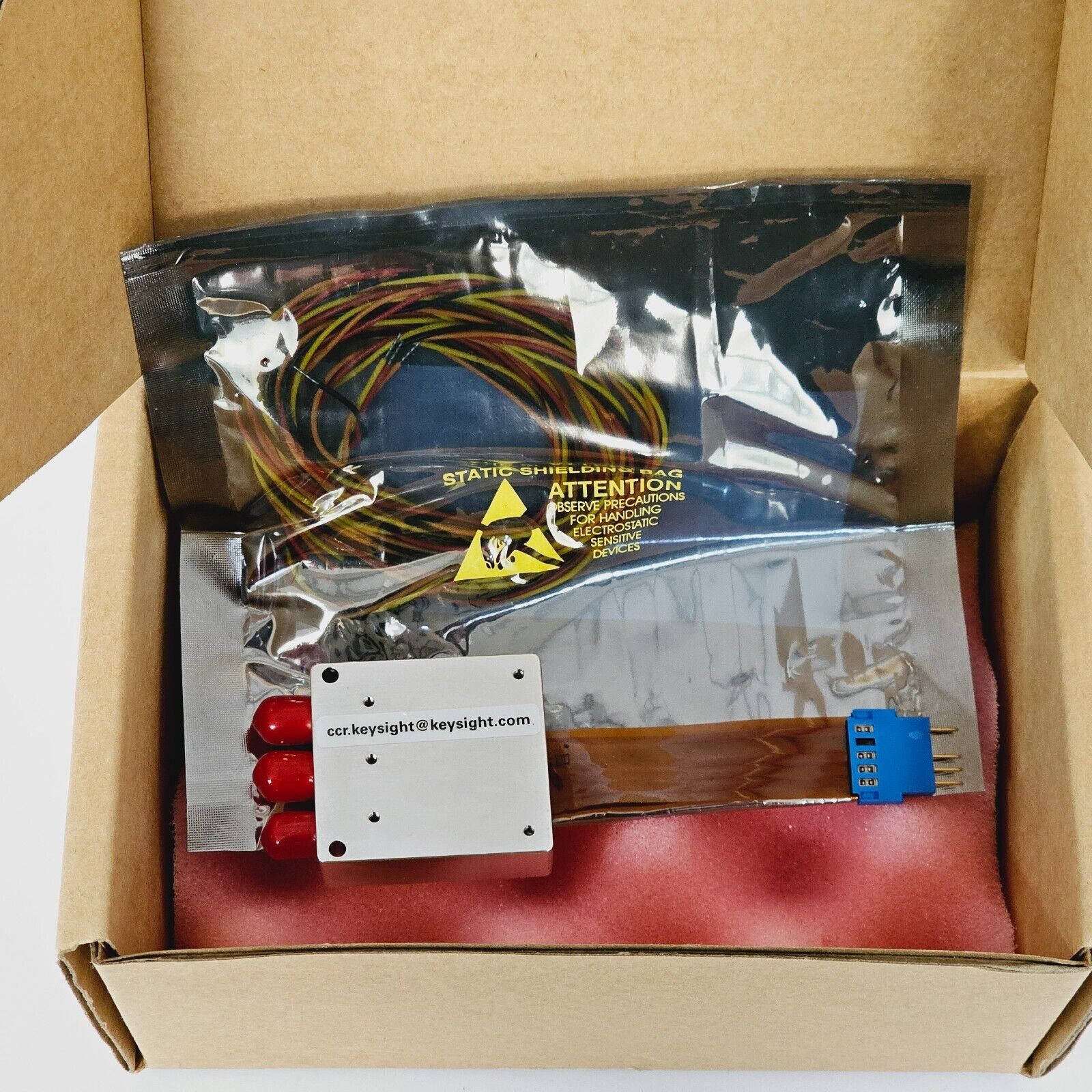

• Keysight Agilent 8765D Coaxial SPDT Switch
• Option 024
• Option 292

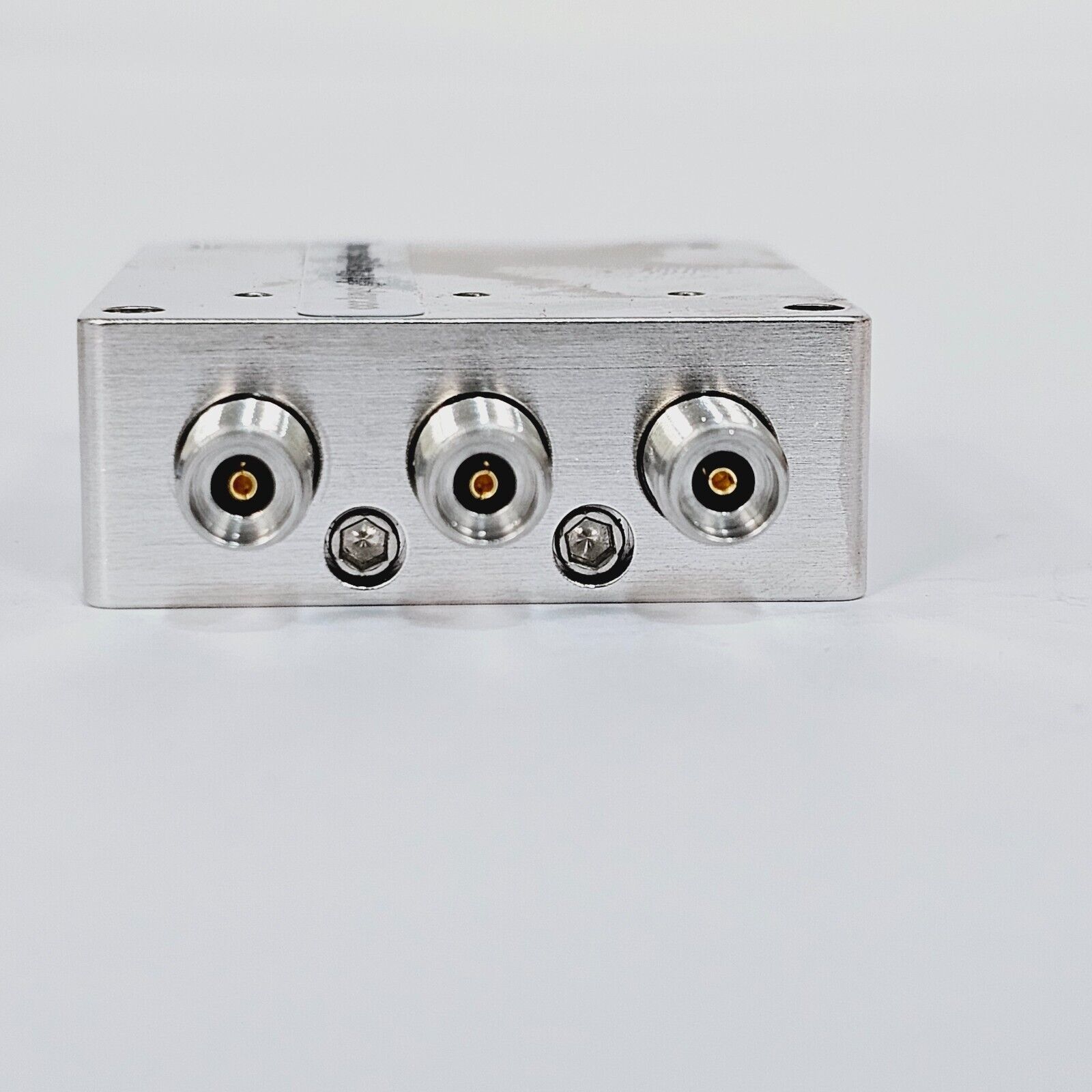

• 2.4 mm female connectors

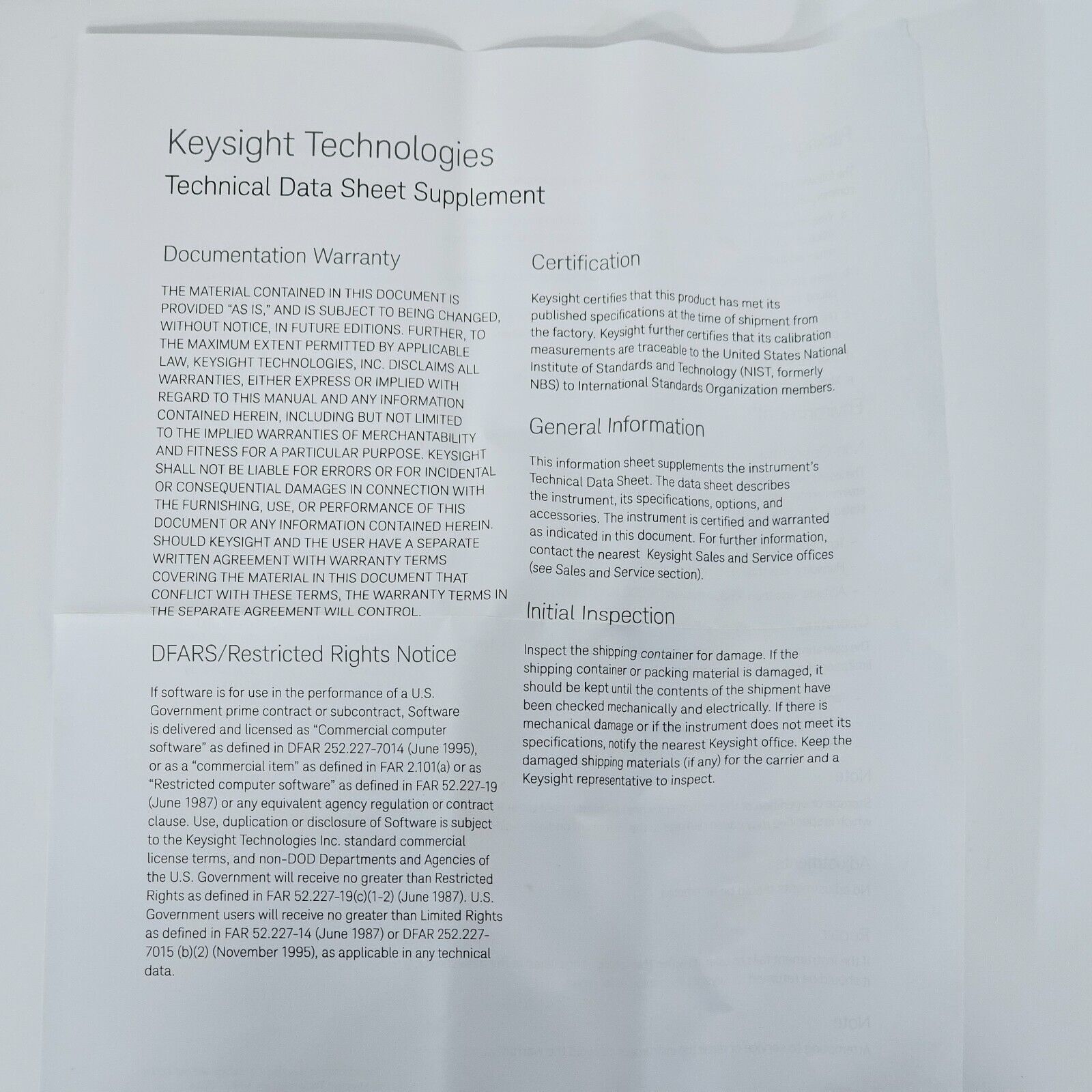

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Keysight (Agilent) 8765 family of coaxial switches is designed from the ground up for excellent electrical and mechanical performance in microwave instrumentation and automated test equipment (ATE) systems. The 8765D model provides SPDT break-before-make switching and is built to deliver superior RF performance across an exceptionally wide frequency range.

With 2.4 mm connectors, the 8765D operates from DC to 40 GHz, making it suitable for millimetre-wave applications. With 3.5 mm connectors, operation is specified to 26.5 GHz. The switch is engineered for long service life and is rated for more than 10,000,000 switching cycles.

Option 292 provides flexibility in drive voltage, accepting any voltage between 4.5 V and 32 V DC. Option UK6 provides a printout of test results for applications requiring documented performance data.

Key Specifications:
Type: Unterminated SPDT, Break-before-make
Frequency Range: DC to 26.5 GHz (3.5 mm), DC to 40 GHz (2.4 mm)
Insertion Loss: < 0.2 dB + 0.023 dB/GHz to 26.5 GHz
Insertion Loss (to 40 GHz): 0.75 dB + 0.023 dB/GHz
Isolation: 110 dB - 2.25 dB/GHz
Connector Type: 2.4 mm female
Impedance: 50 Ohm
Drive Voltage (Option 292): 4.5 V to 32 V DC
Mechanical Life: > 10,000,000 cycles
Manufacturer: Keysight Technologies (formerly Agilent)
