Condition: Used

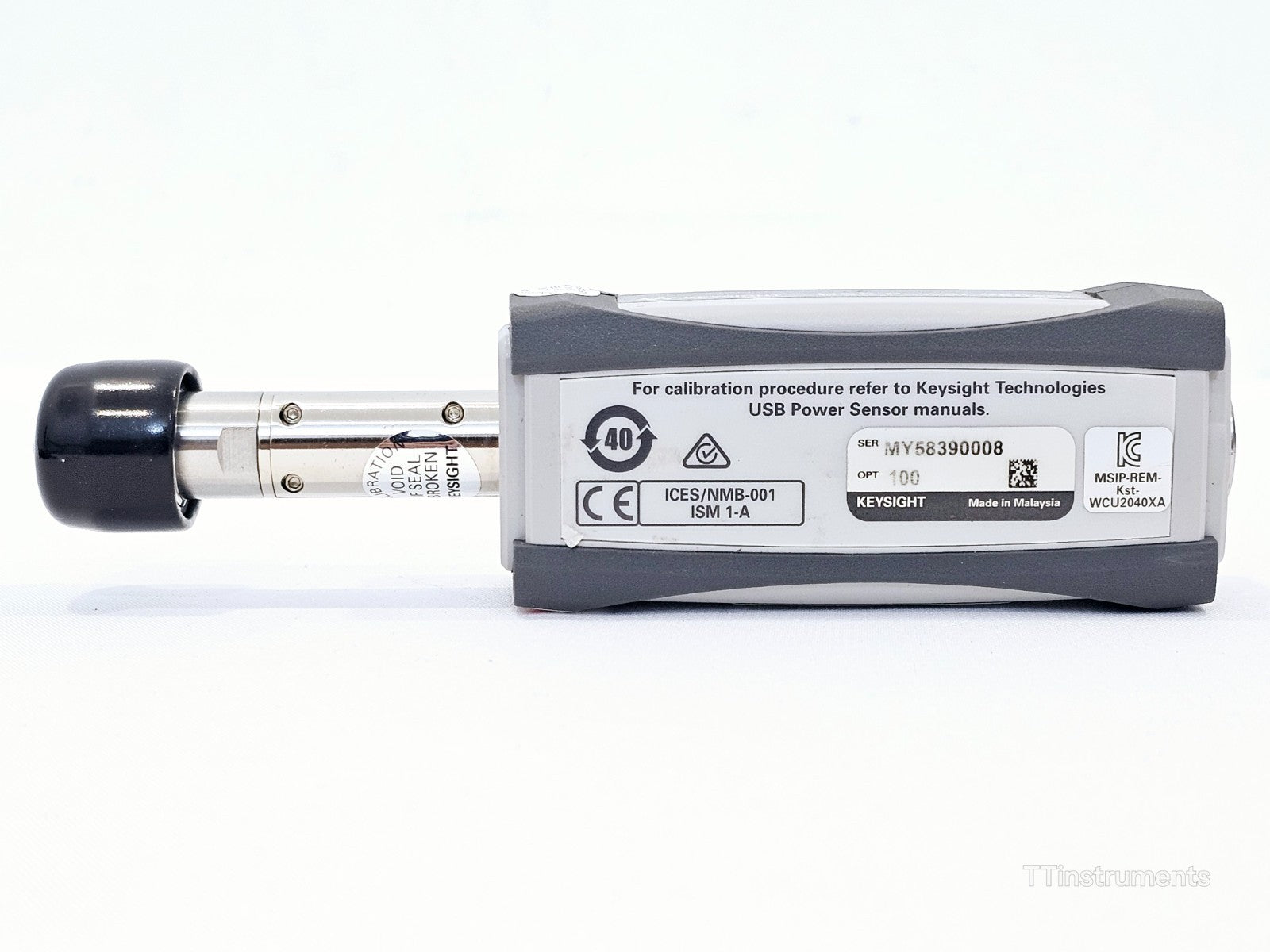

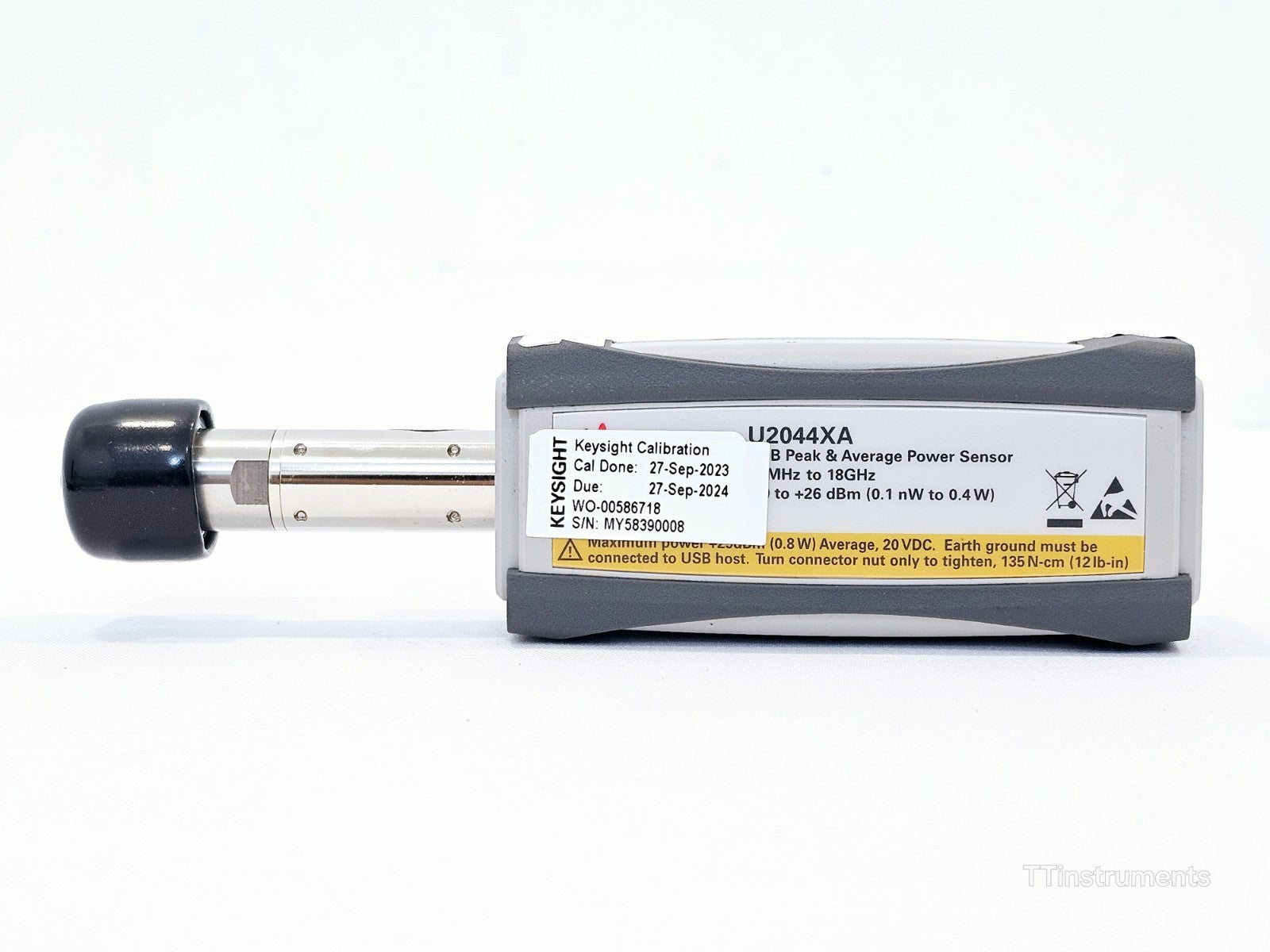

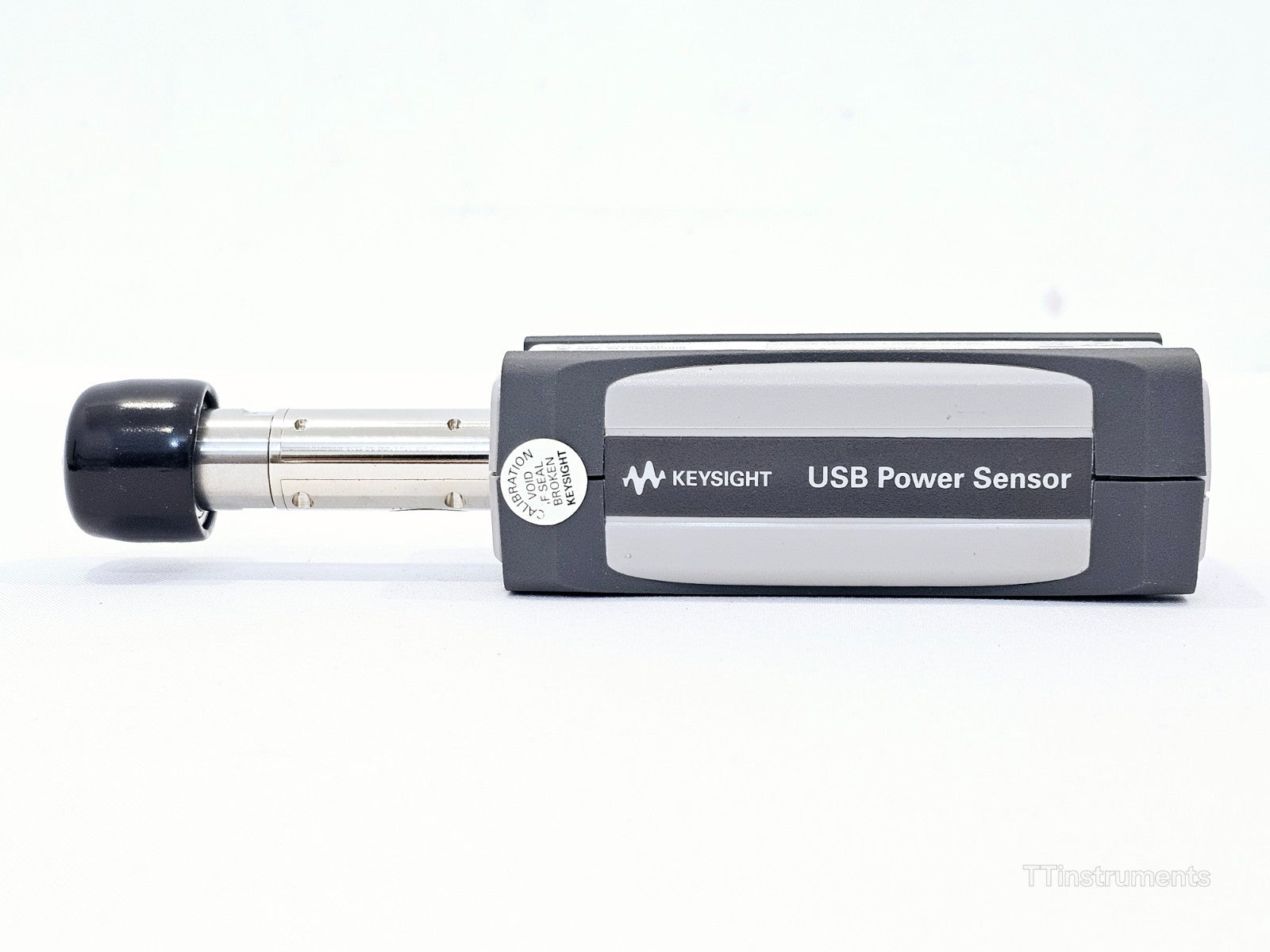

The Keysight U2044XA is a used USB peak and average power sensor in good working condition. Part of the U2040 X-Series, it operates from 10 MHz to 18 GHz with a -70 to +26 dBm dynamic range and connects directly to a PC via USB for PC-based power analysis using the included BenchVue BV0007B software licence.

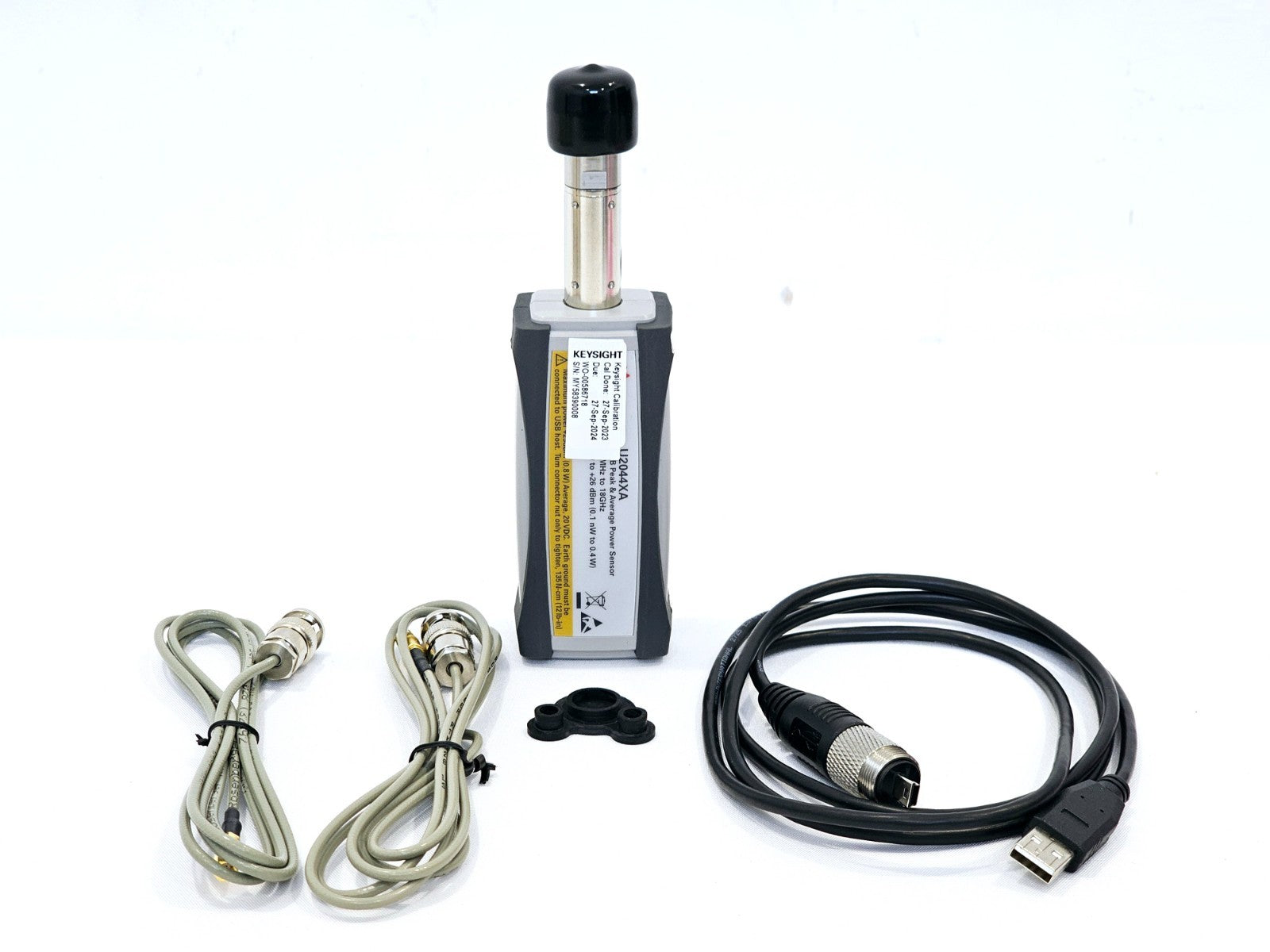

Typically includes:
• Wide dynamic range USB power sensor (U2044XA)

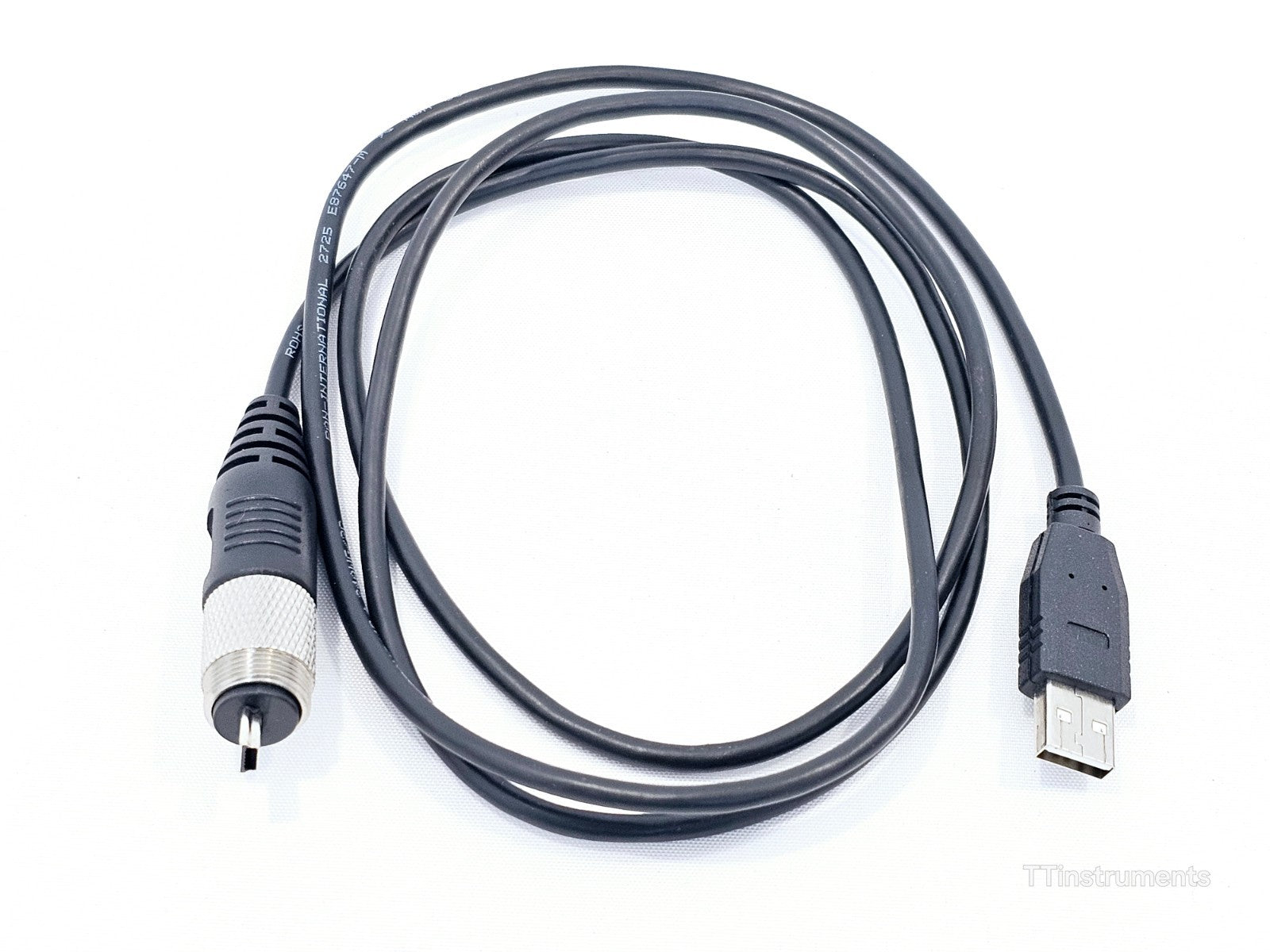

• USB cable (5 ft)

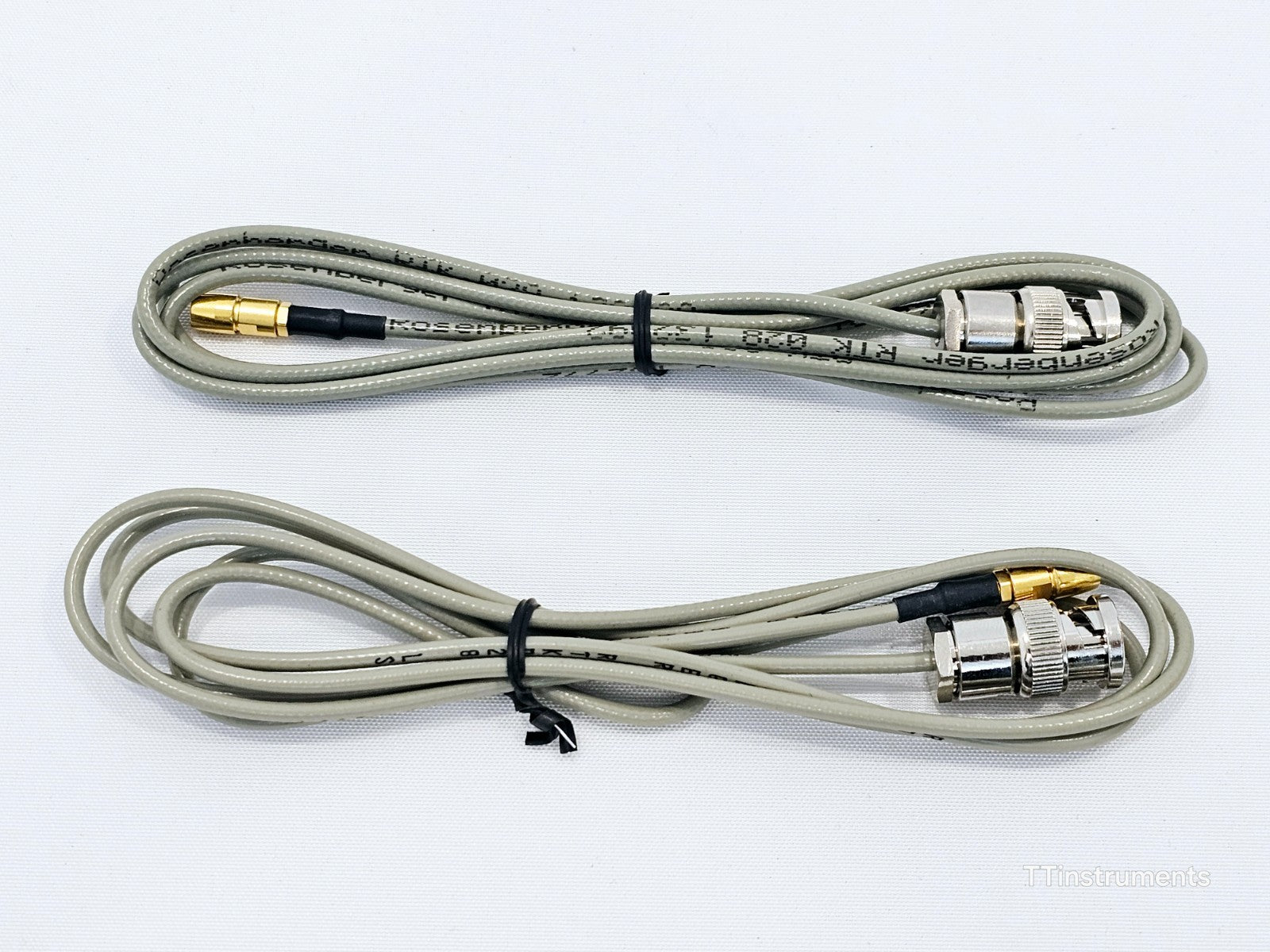

• BNC male to SMB female trigger cable — 50 ohm (x2)
• Certificate of calibration
• BenchVue software licence (BV0007B)

The Keysight U2044XA is part of the U2040 X-Series Wide Dynamic Range Power Sensors family, offering USB connectivity and the world's widest dynamic range in a power sensor. It is designed for accurate, repeatable peak and average power measurements of any modulated signal, from wireless chipset manufacturing to radar pulse analysis.

The U2040 X-Series employs a 4-path diode stack design with parallel data acquisition paths, enabling seamless range transition with high accuracy and repeatability. All diodes operate in their square law region, allowing the sensor to function similarly to thermocouple sensors for accurate RMS power of broadband modulated signals.

The sensor supports all common wireless signal formats including LTE, LTE-Advanced (100 MHz bandwidth), and WLAN 802.11ac (80/160 MHz bandwidth), as well as radar pulse parameter measurements with built-in radar and wireless presets and auto burst detection.

Key Specifications:
Frequency Range: 10 MHz to 18 GHz
Power Measuring Range: -70 dBm to +26 dBm
Dynamic Range: 96 dB
Measurement Speed: 50,000 readings/second (fast/buffer/average mode)

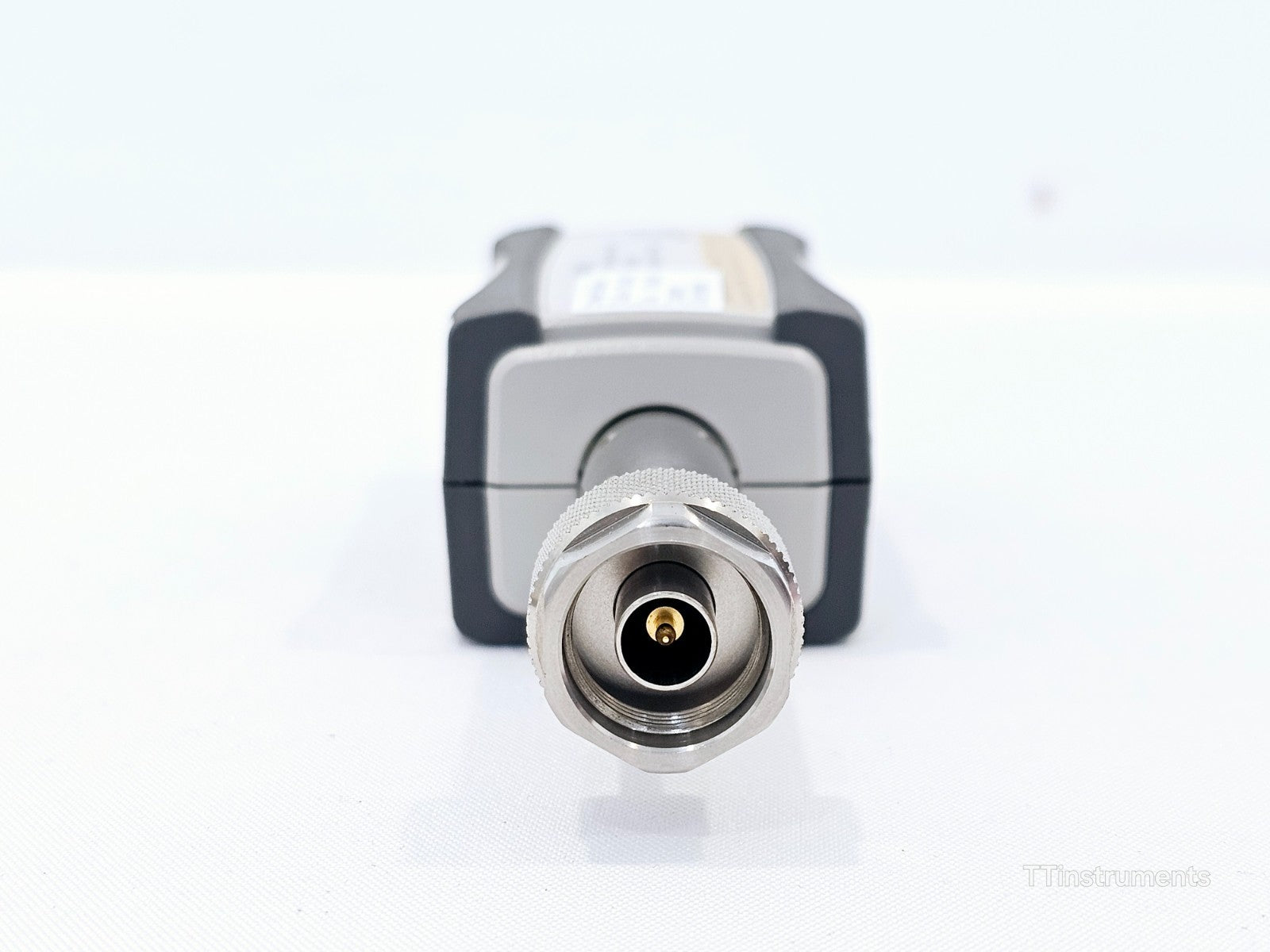

RF Connector: N-Type male
Connectivity: USB
Dimensions: 168 mm (L) x 46 mm (W) x 35 mm (H)
Weight: 300 g
Pulse Repetition Frequency (PRF): Up to 10 kHz
Gate Power Measurements: Up to 4 pairs
Automatic Pulse Parameters: 20 measurements with auto burst detection

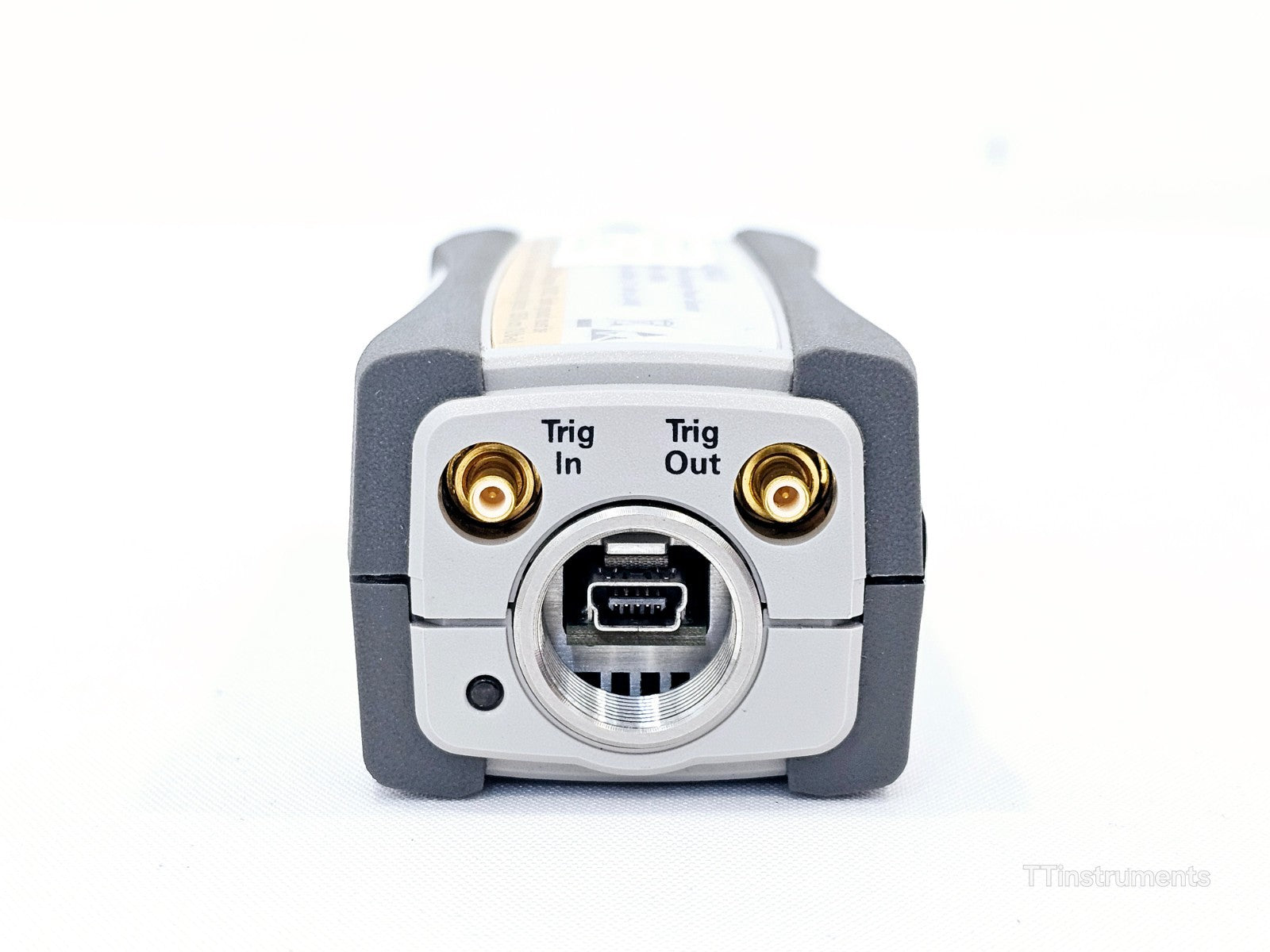

Trigger: Built-in trigger in and out
Internal Calibration: Internal zero and automatic calibration
Software: Keysight BenchVue BV0007B Power Meter/Sensor Control and Analysis app
Regulatory Compliance: IEC 61010-1:2001 / EN 61010-1:2001 (2nd edition), IEC 61326:2002 / EN 61326:1997 + A1:1998 + A3:2003
RoHS Compliant: Yes
Product Series: U2040 X-Series
Product Status: Discontinued / Currently Supported
Replacement Model: U2062XA

Typical Applications:
- Wireless chipset and power amplifier module manufacturing test
- Satellite payload testing
- Radar pulse parameter measurements
- Test system and instrument calibration
- LTE / LTE-Advanced / WLAN 802.11ac signal power measurement
- High-volume manufacturing throughput optimisation

Keysight U2040 X-Series Wide Dynamic Range Power Sensors — Official Data Sheet (PDF): Download PDF

Keysight U2040 X-Series Wide Dynamic Range Power Sensors — User's Guide (PDF): Download PDF

Keysight U2040 X-Series — Programming Guide (PDF): Download PDF

Keysight U2040/50/60 X-Series BenchVue Power Meter Application — Demonstration Guide (PDF): Download PDF

Keysight Power Meters and Power Sensors — Selection Guide Brochure (PDF): Download PDF
