Condition: Used

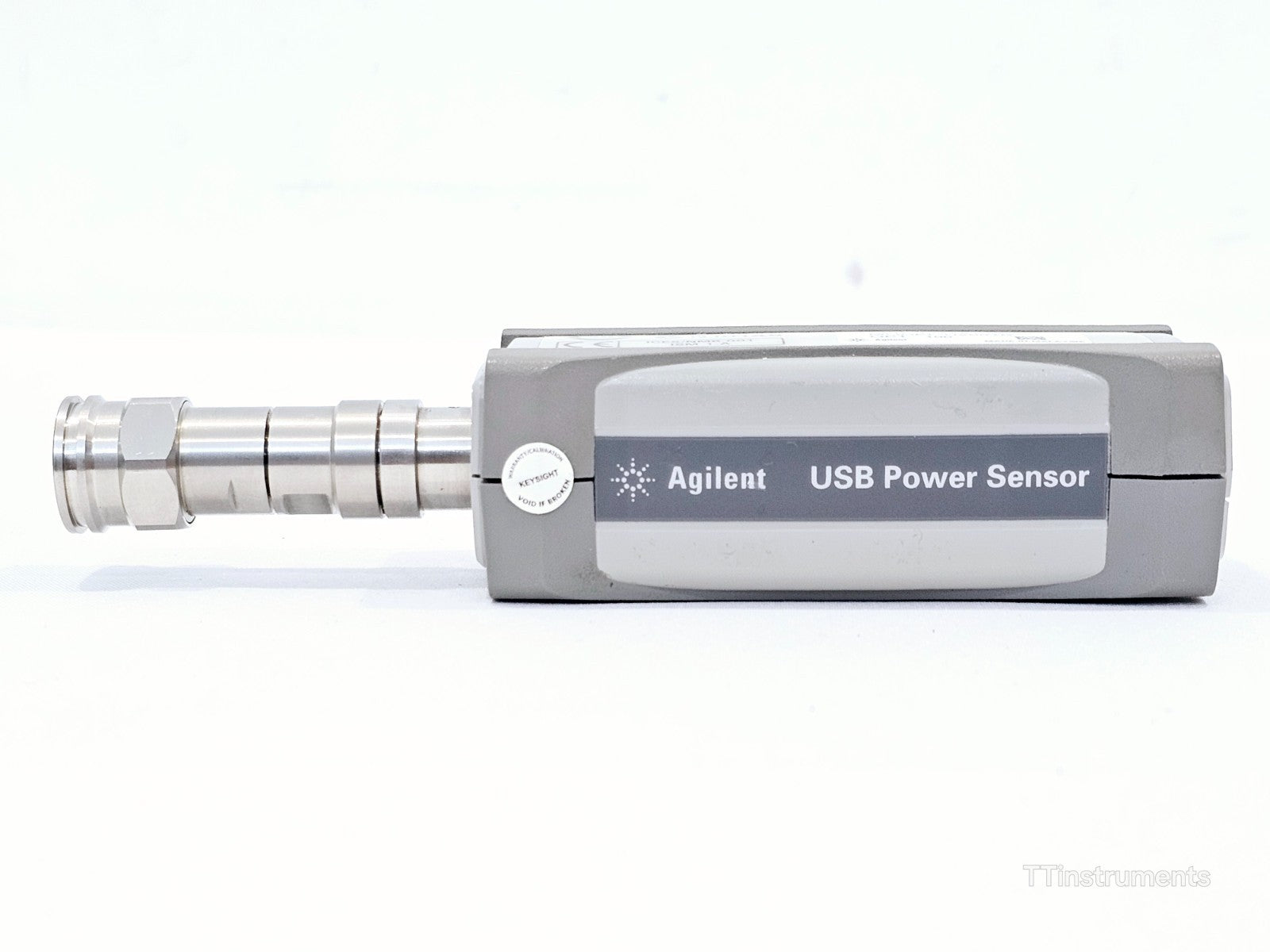

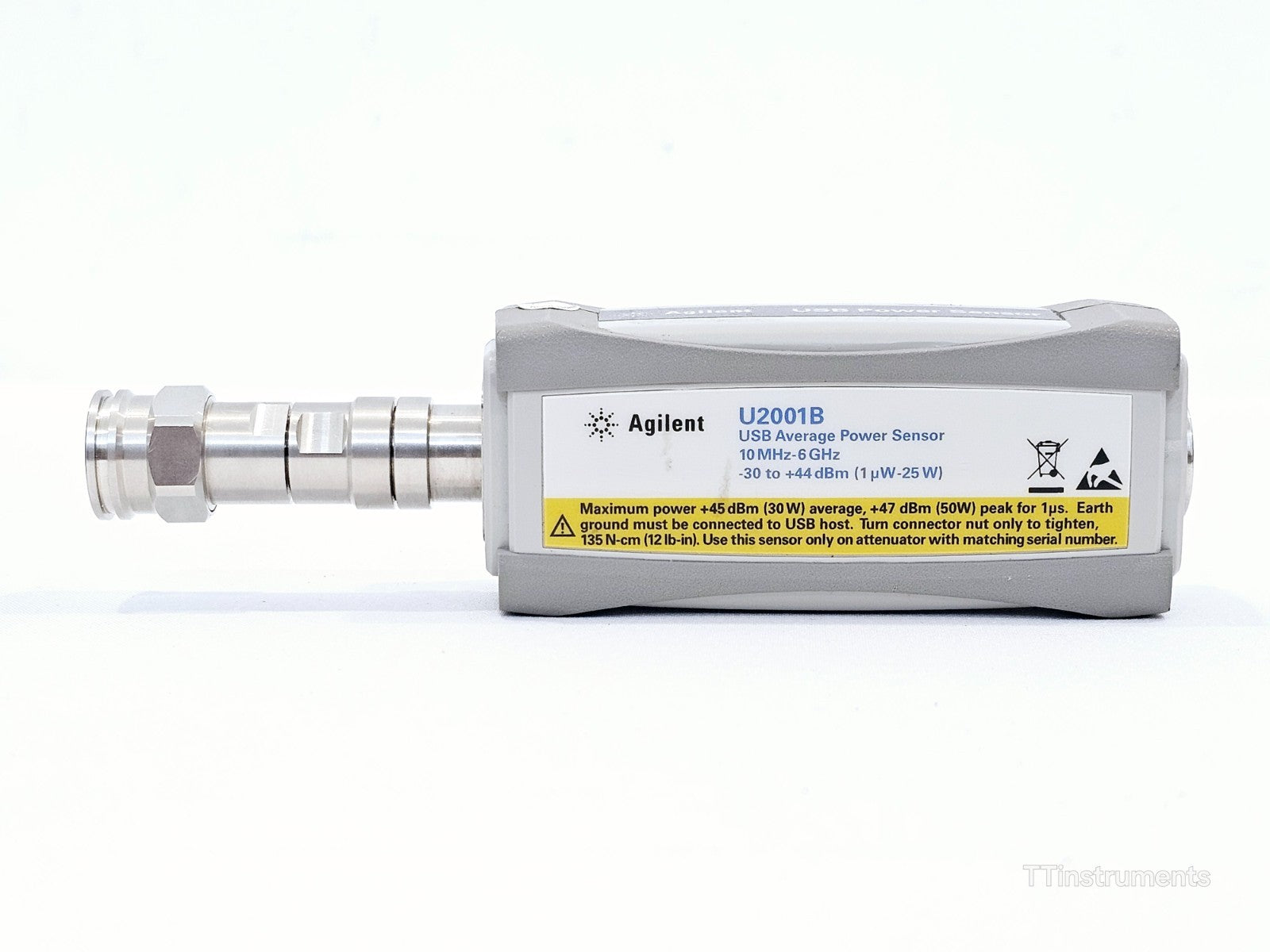

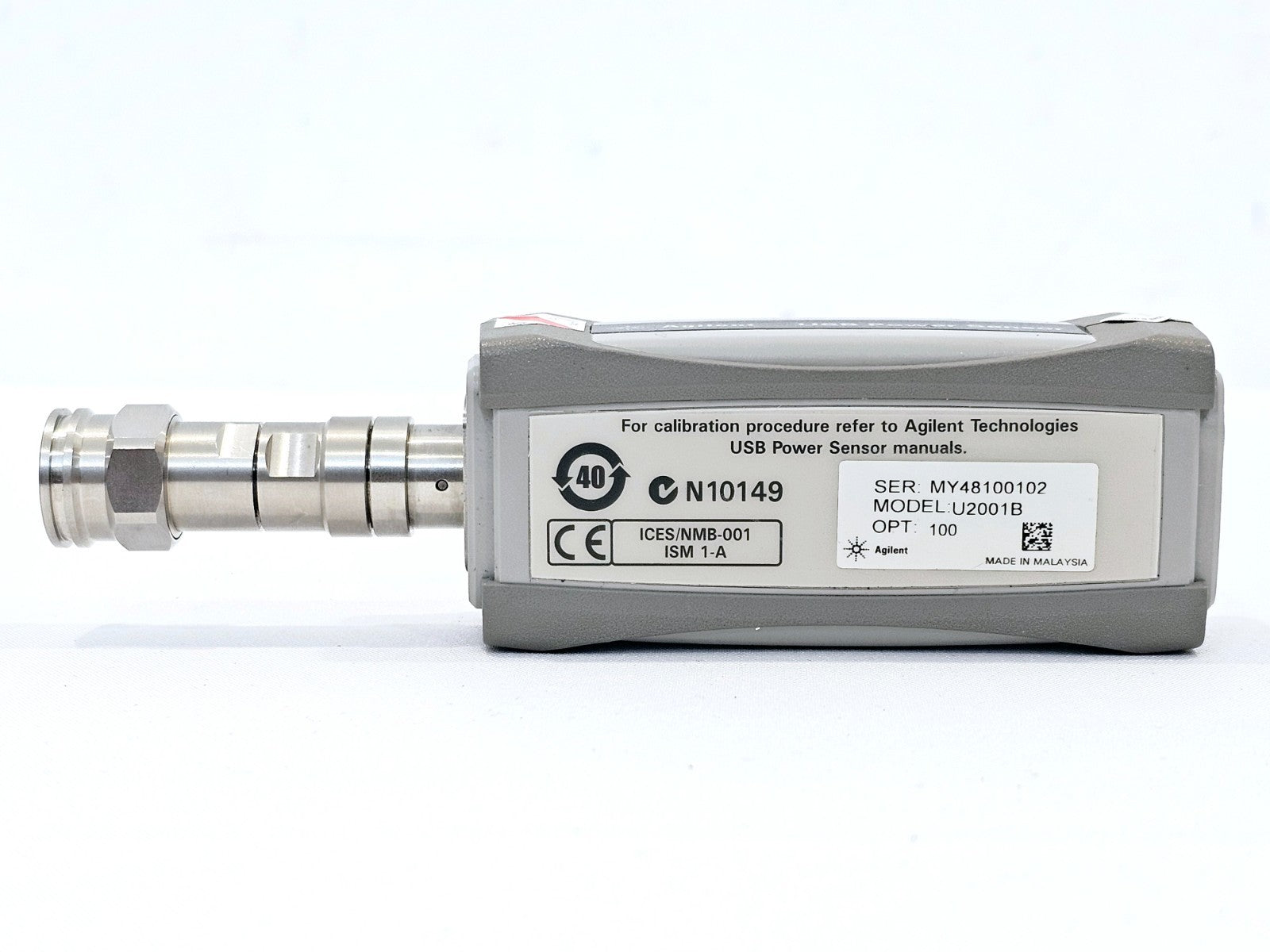

The Keysight U2001B is a USB average power sensor in good working condition. Fitted with Option 100 (N-type male connector), it covers 10 MHz to 6 GHz with a wide dynamic range of -30 to +44 dBm, and supports both internal and external triggering. Compatible with Keysight BenchVue software (BV0007B) for PC-based control and data logging without any programming.

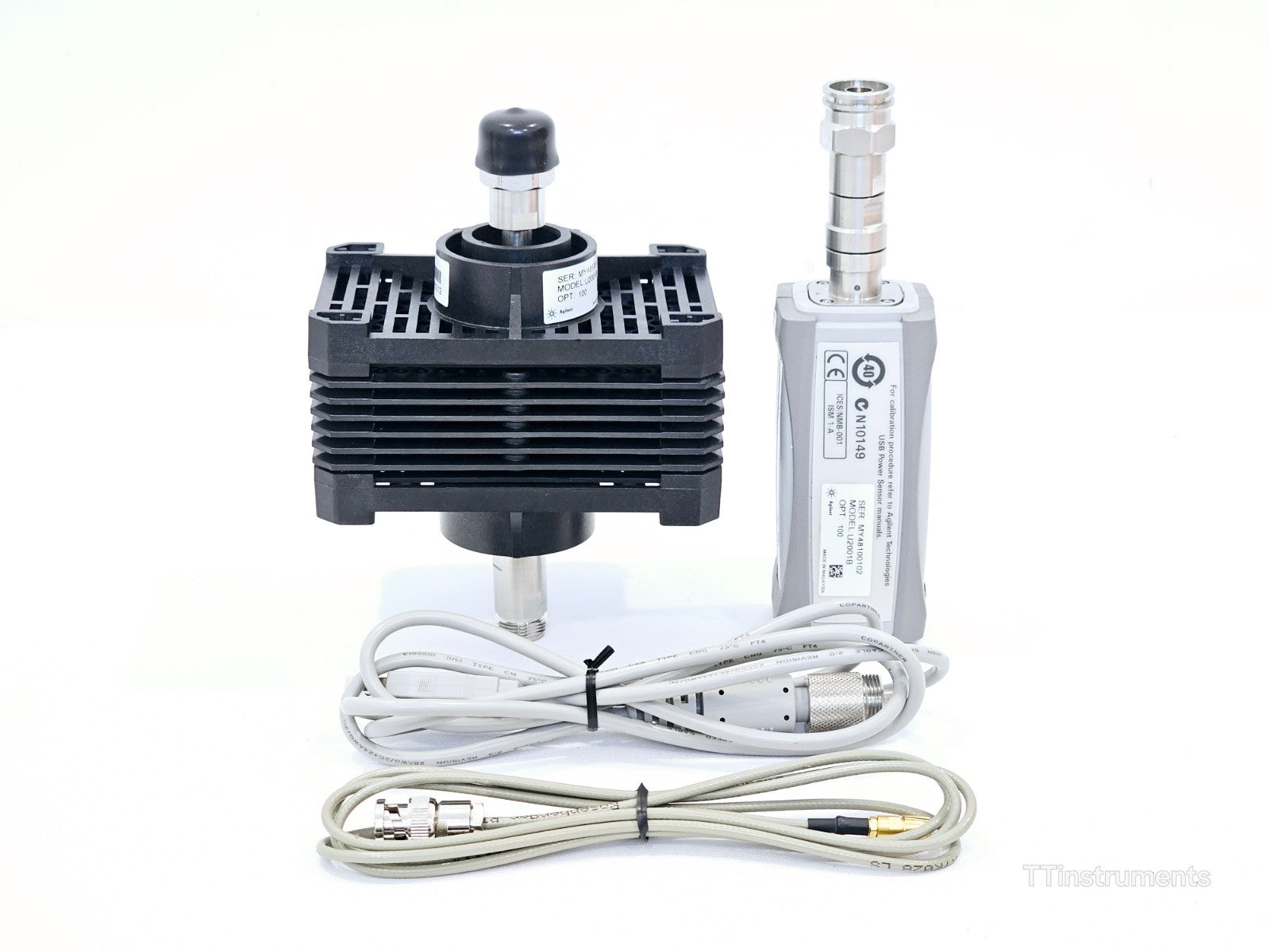

Typically includes:
• Keysight U2001B USB power sensor

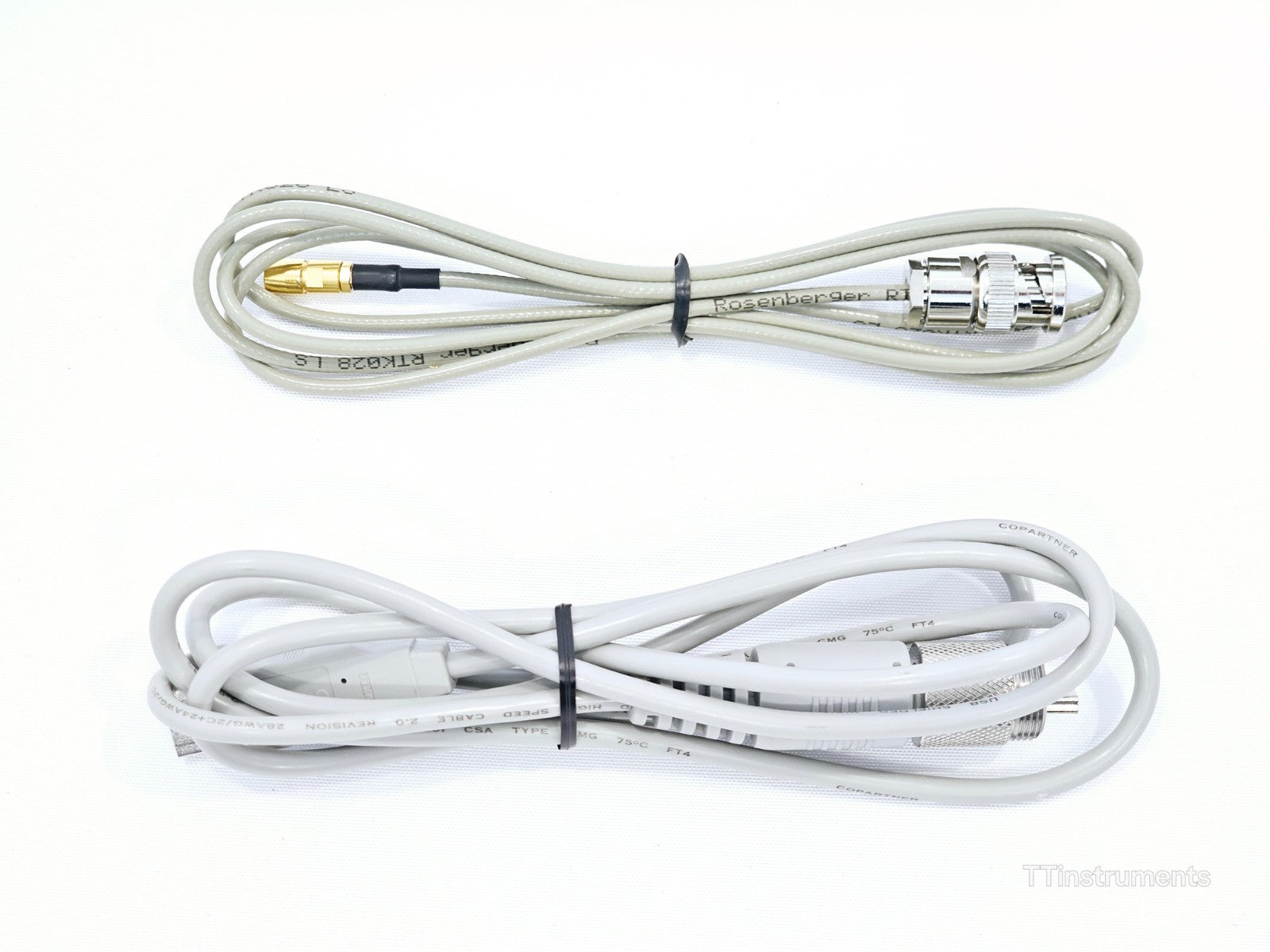

• USB cable

The Keysight U2001B is a member of the U2000 Series USB Power Sensors — standalone, true-average, wide-dynamic-range RF and microwave power sensors that operate like a power meter in a compact form factor. No separate power meter or reference calibrator is required; simply connect via USB to a PC or compatible Keysight instrument and begin measuring.

The U2001B uses a dual-sensor diode pair/attenuator/diode pair topology to ensure diodes remain in their square-law region across the full dynamic range, enabling accurate average power measurements of CW and complex modulated signals including CDMA, W-CDMA, and digital television formats.

Key Features:
• Frequency range: 10 MHz to 6 GHz
• Power range: -30 dBm to +44 dBm
• Connector type: N-type male, 50 Ω
• Measurement speed: Up to 250 readings/second

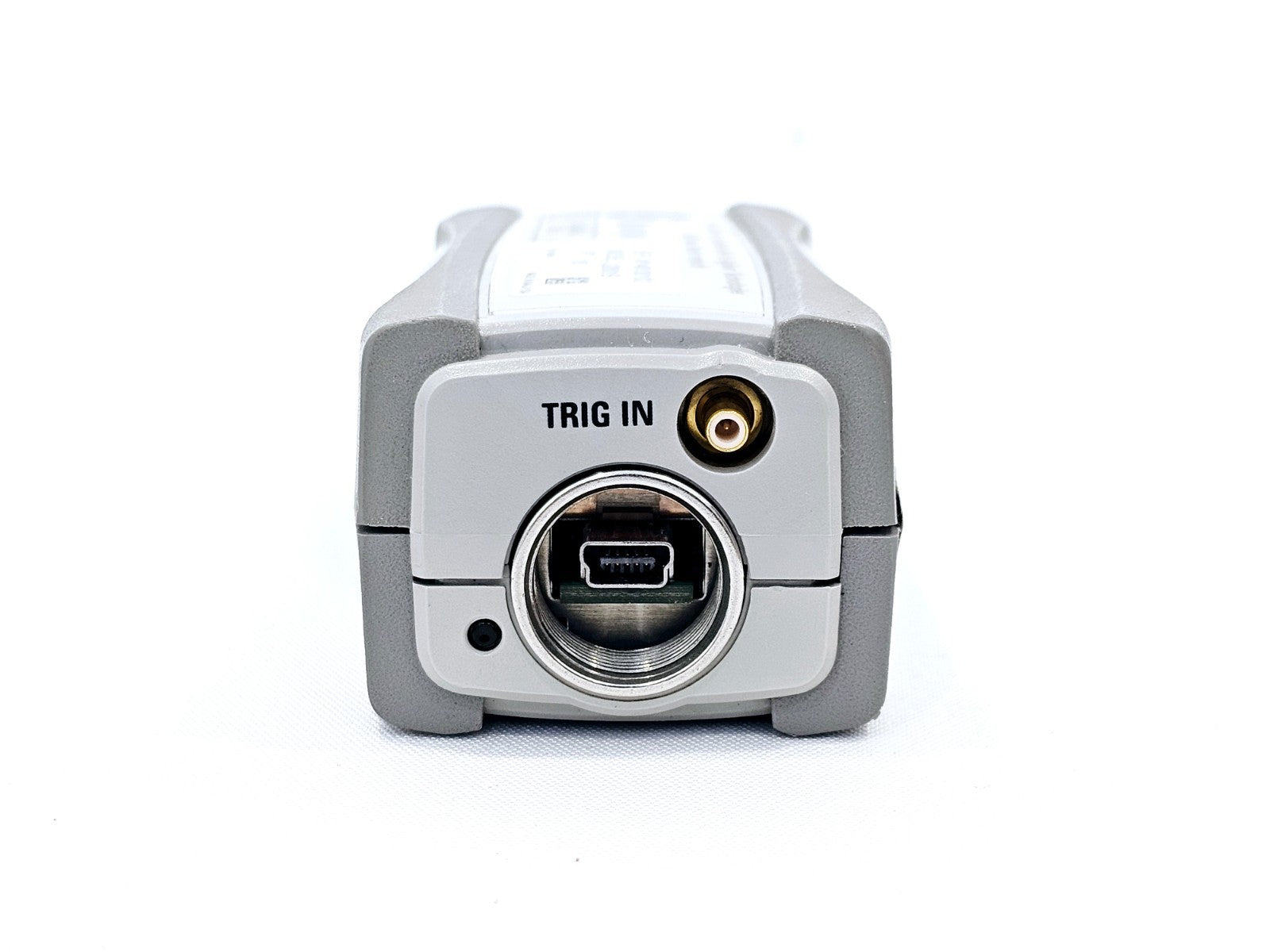

• Internal zeroing: Built-in high-isolation switches isolate the sensor from the DUT for zeroing without disconnection
• Triggering: Internal and external trigger support; internal triggering based on burst signal envelope eliminates need for external trigger signal
• Trace display: Graphical view of signal envelope for gate placement and trigger level setup
• SCPI compatible: Seamless integration into automated test systems
• BenchVue software: Supported by Keysight BenchVue BV0007B Power Meter/Sensor Control and Analysis app for data logging and visualisation without programming
• Instrument integration: Compatible with Keysight signal generators, handheld spectrum analysers, FieldFox analysers, and network analysers for source power calibration

Specifications (U2001B):
Frequency Range: 10 MHz to 6 GHz
Power Range: -30 dBm to +44 dBm
RF Connector: N-type male, 50 Ω
Measurement Speed: Up to 250 readings/second
Max SWR (10 MHz to 2 GHz, 25 °C ±10 °C): 1.14
Max SWR (2 GHz to 6 GHz, 25 °C ±10 °C): 1.18
Reflection Coefficient (10 MHz to 2 GHz): 0.057 (actual max)
Reflection Coefficient (2 GHz to 6 GHz): 0.078 (actual max)
Interface: USB
Power Supply: USB bus-powered (no external adaptor required)
Software: Keysight BenchVue BV0007B (free basic version available)
Compatible Instruments: Keysight signal generators, spectrum analysers, FieldFox, network analysers
Applications: Wireless communications, base station testing, radar pulse measurements, component test, source power calibration, scalar network analysis

Keysight U2000 Series USB Power Sensors Data Sheet (5989-6278EN) — full specifications and features: Download PDF

Keysight U2000 Series USB Power Sensors Operating and Service Manual — includes U2001B: Download PDF

Keysight U2000 Series USB Power Sensors Programming Guide: Download PDF

Keysight U2000 Series Quick Fact Sheet — ordering information and key specifications: Download PDF
