Condition: Used

Used and tested Keysight N5444A InfiniiMax III differential probe head supplied with its cable. The unit has been verified as fully functional.

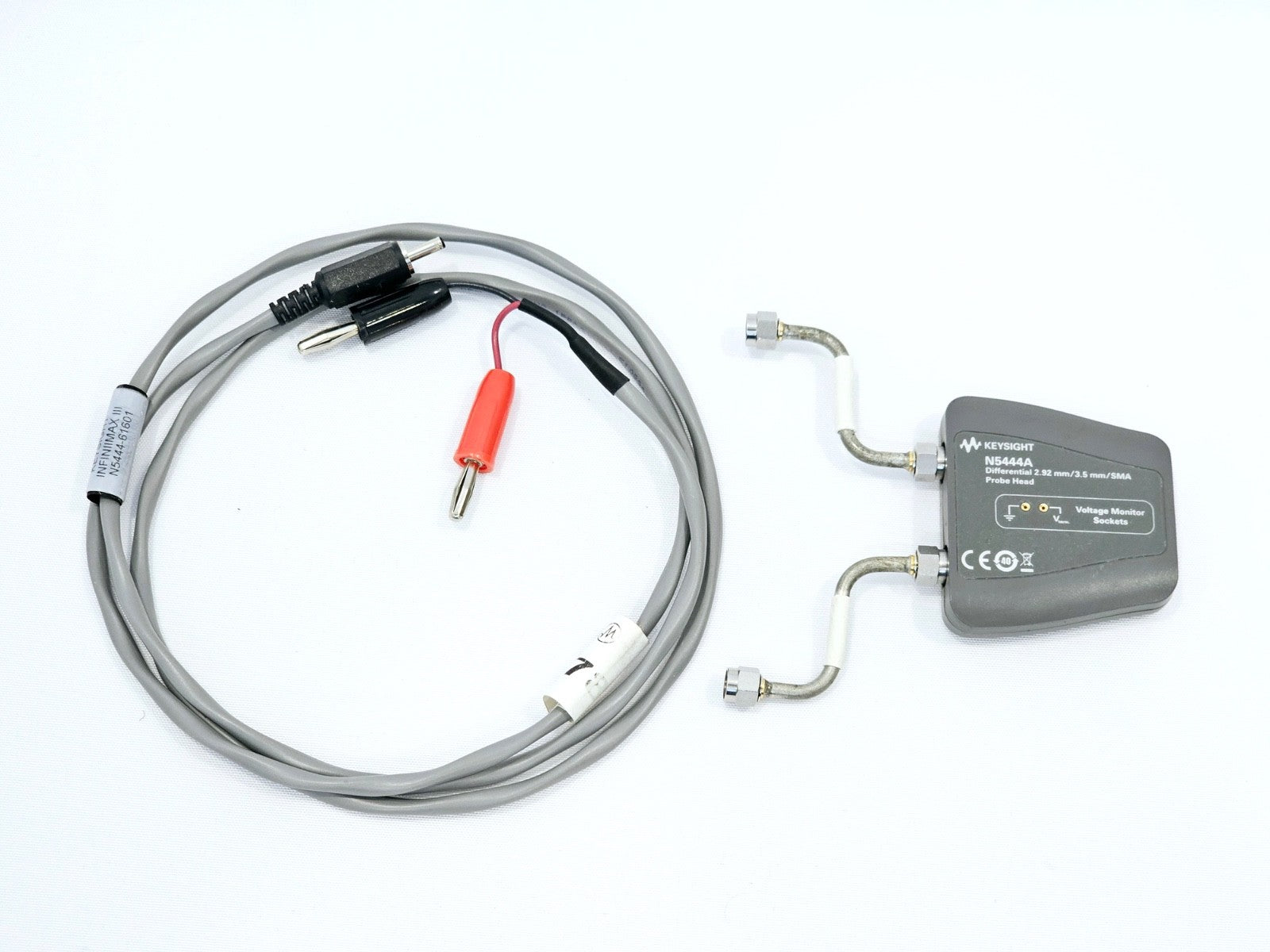

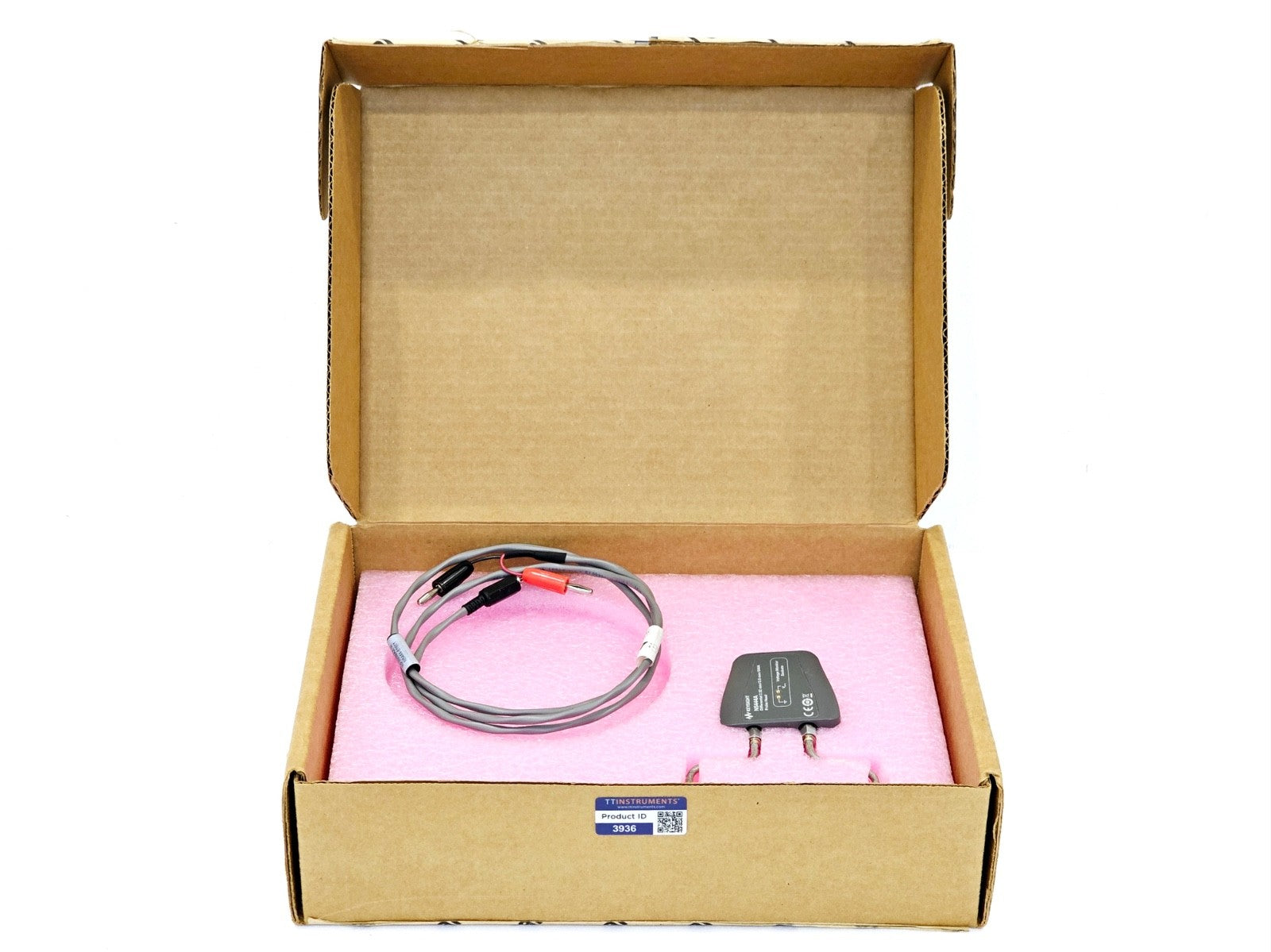

Included in the sale:

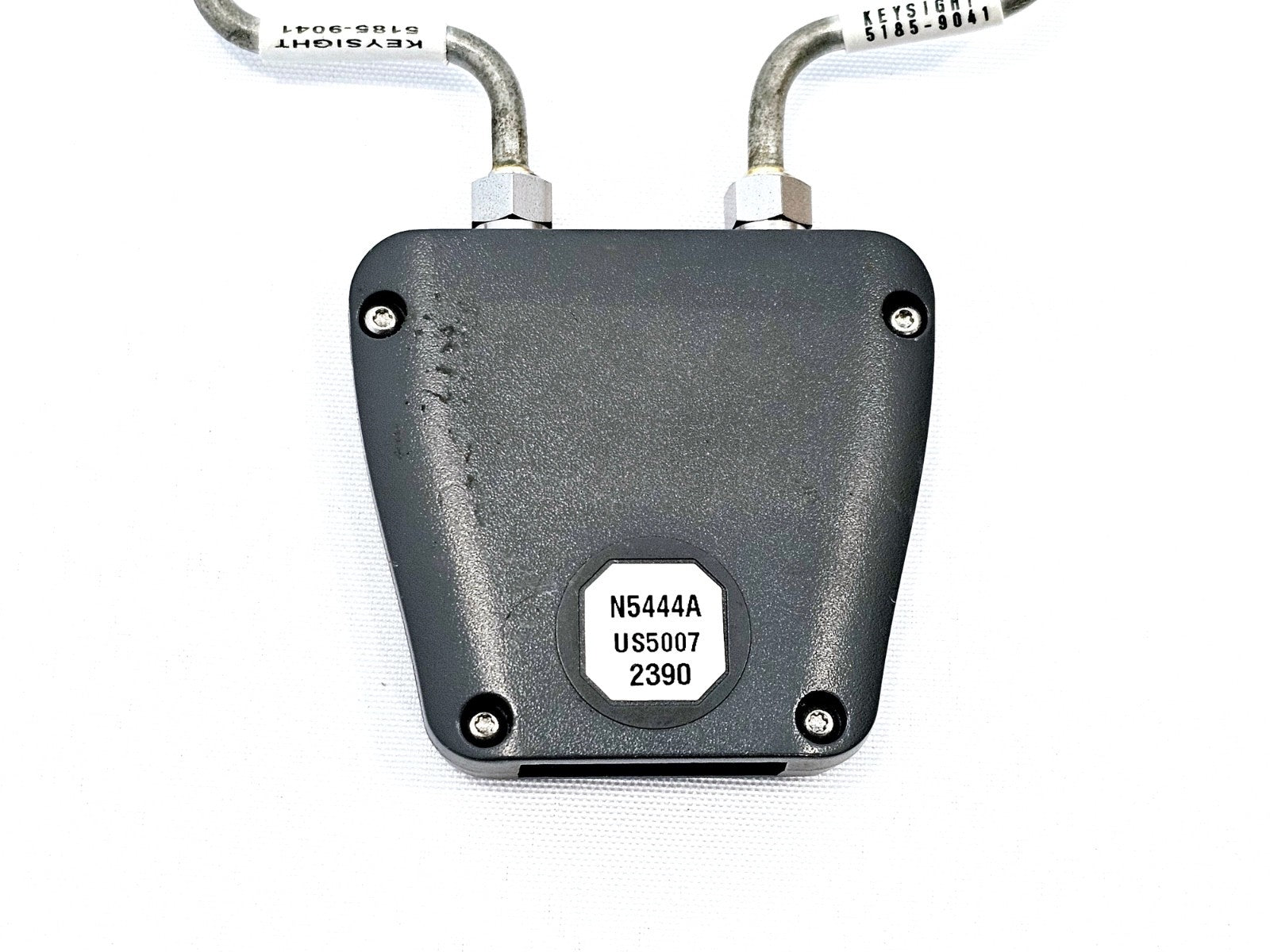

• 1x Keysight N5444A Differential Probe Head

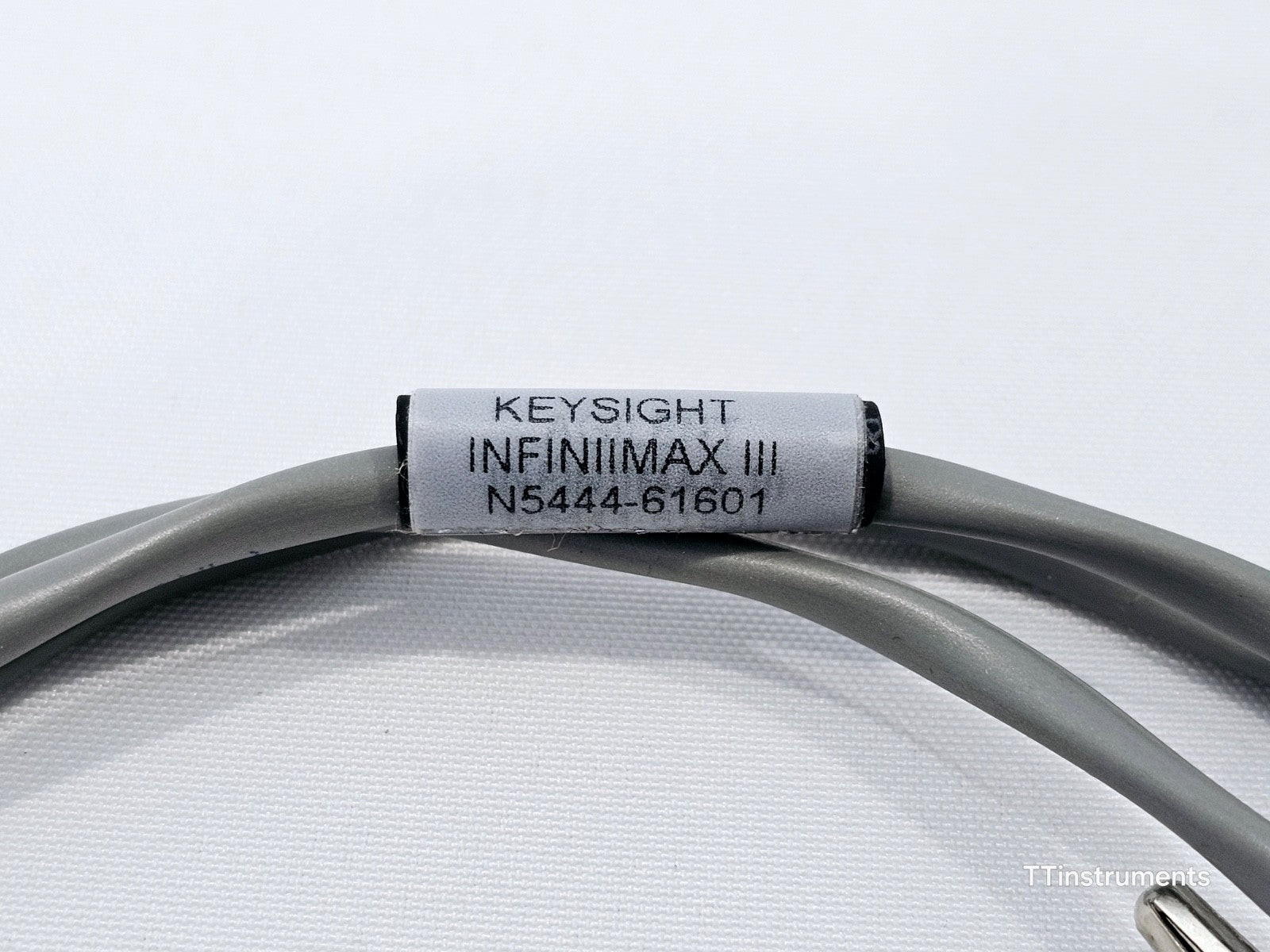

• 1x Cable

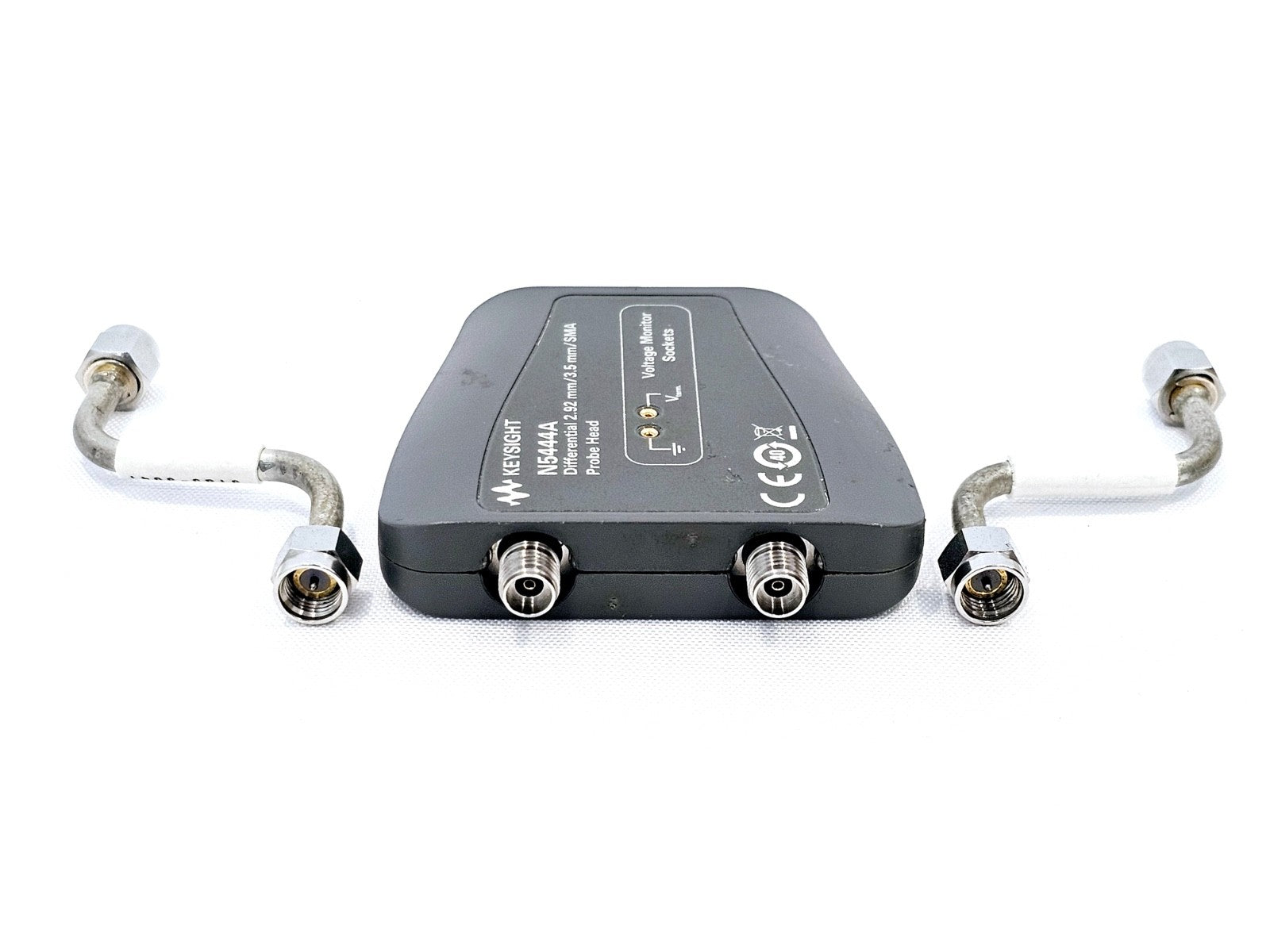

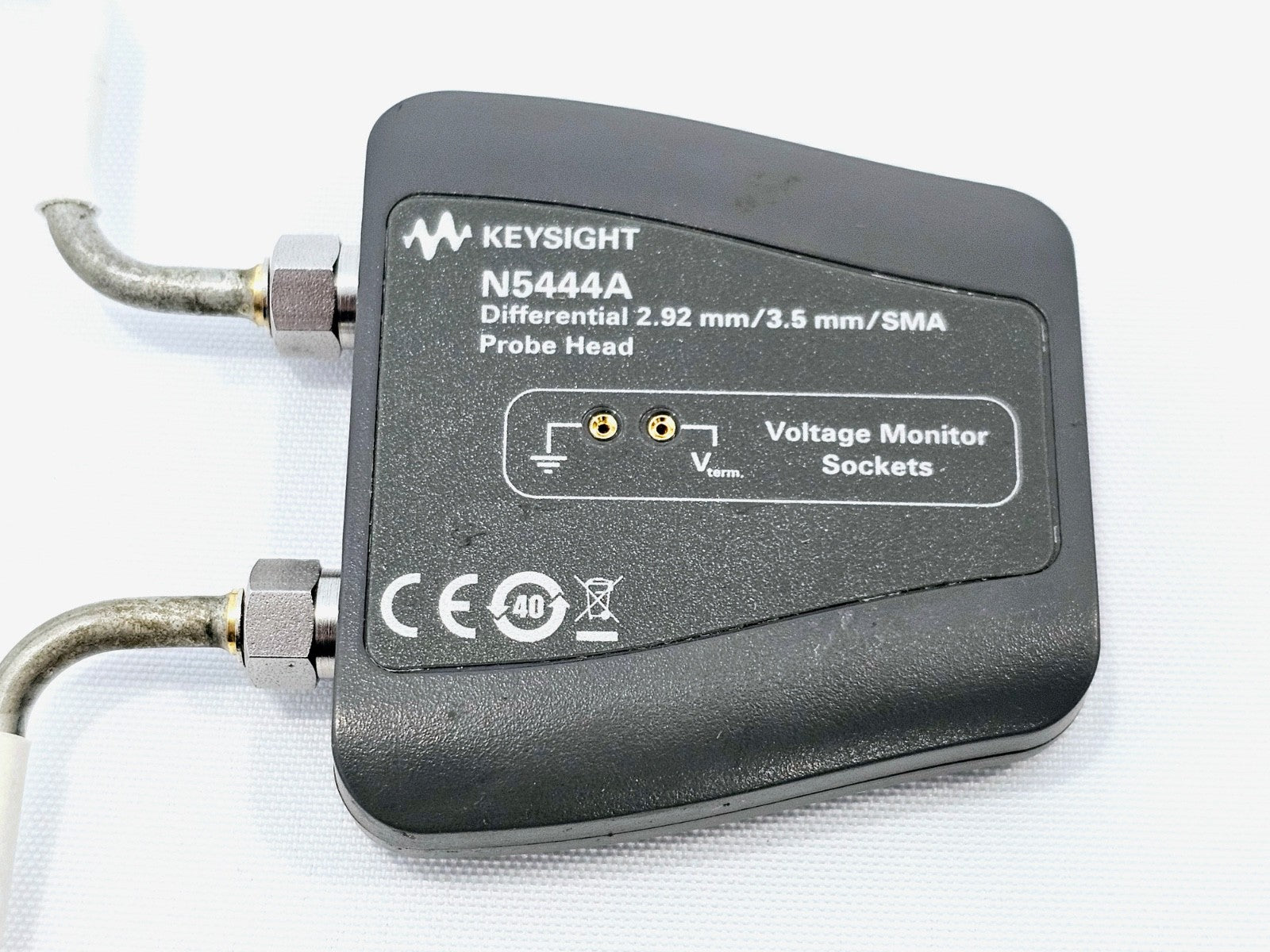

The Keysight Technologies N5444A is an InfiniiMax III 2.92 mm / 3.5 mm / SMA differential probe head designed for use with all InfiniiMax III probe amplifiers. It allows two 2.92 mm, 3.5 mm, or SMA cables to be connected to make a differential measurement on a single oscilloscope channel, supporting high-speed signal integrity work on PCBs and ICs.

The N5444A provides termination to a common DC voltage rather than to ground, a requirement for many modern signal standards. The termination voltage can be controlled internally via the Infiniium oscilloscope software or applied externally via the supplied DC jack.

Key Features:
- Compatible with all InfiniiMax III probe amplifiers (N2800A Series)
- Supports 2.92 mm, 3.5 mm, and SMA cable connections
- RCRC input impedance architecture optimised for high-bandwidth, low-source-impedance signals
- DC termination voltage controlled by scope software or external DC supply
- Optional N5448B 2.92 mm head flex cables available to extend reach (10" or 25 cm)

Technical Specifications:
Bandwidth: 30 GHz
Connector Types: 2.92 mm, 3.5 mm, SMA
DC Input Resistance (single-ended): 50 kΩ ±2% each input to ground
DC Input Resistance (differential): 100 kΩ ±2%
DC Input Resistance (common mode): 25 kΩ ±2%
Input Resistance (>10 kHz, single-ended): 500 Ω each
Termination (DC to ~1 kHz): 55 Ω to termination voltage
Termination (above ~10 kHz): 50 Ω to 0.9× termination voltage
Termination Voltage Range: ±4 V
Termination Voltage Minimum Step: 5 mV
Termination Maximum Current: 80 mA
Maximum Input Voltage: 18 V peak (mains isolated)
Compatibility: InfiniiMax III probe amplifiers (N2800A Series); not compatible with InfiniiMax I or II probe amps
Typical Applications: High-speed serial bus characterisation, differential signal probing, PCIe, DDR, USB, MIPI, and other high-frequency digital standards

Keysight InfiniiMax III/III+ Probing System Data Sheet (5990-5653EN): Download PDF

Keysight Infiniium Oscilloscope Probes and Accessories Data Sheet (N2828A): Download PDF

Keysight InfiniiMax III N2800A Series User Guide / Service Guide (via Keysight product page): Download PDF
