Condition: Used

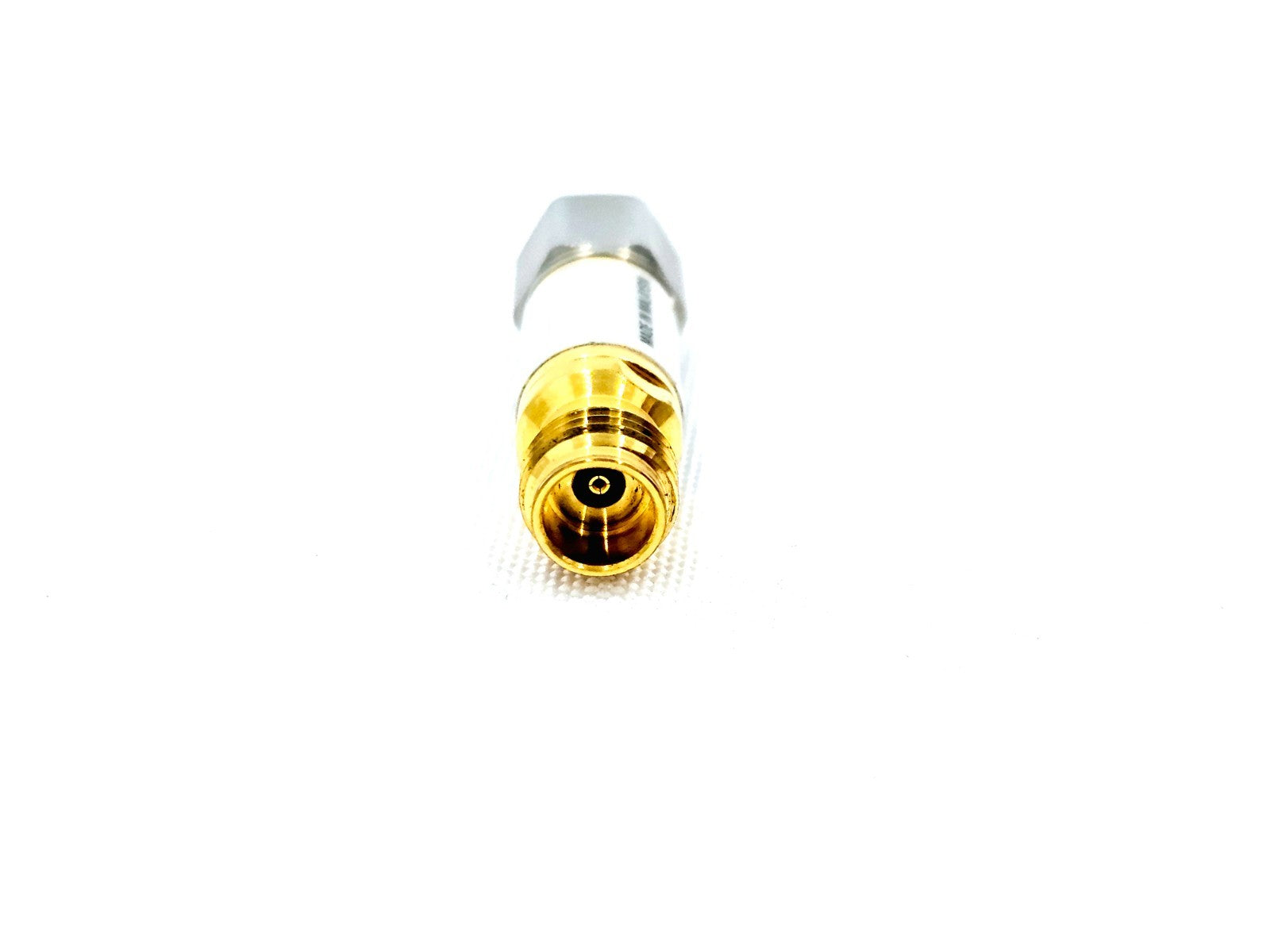

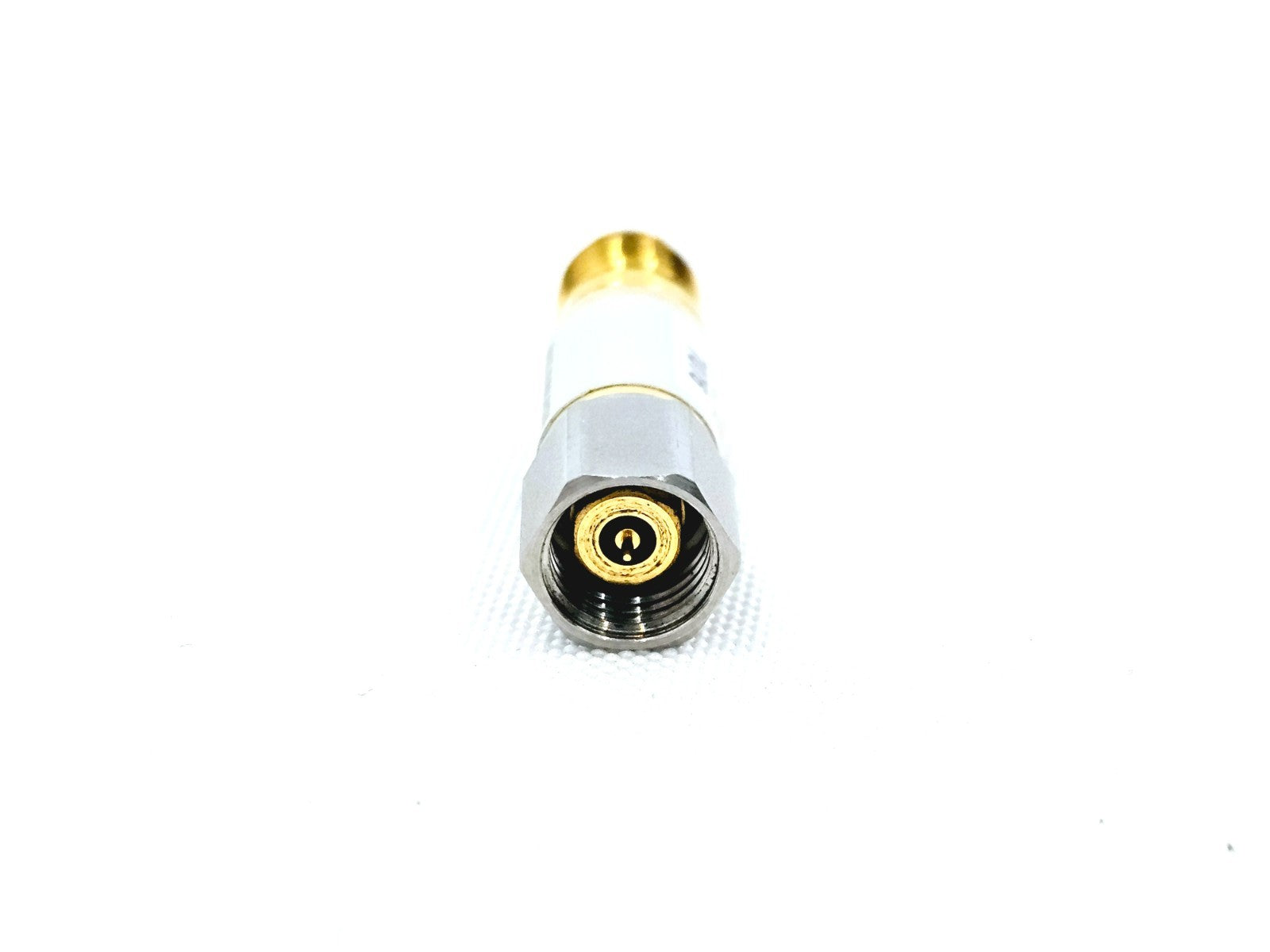

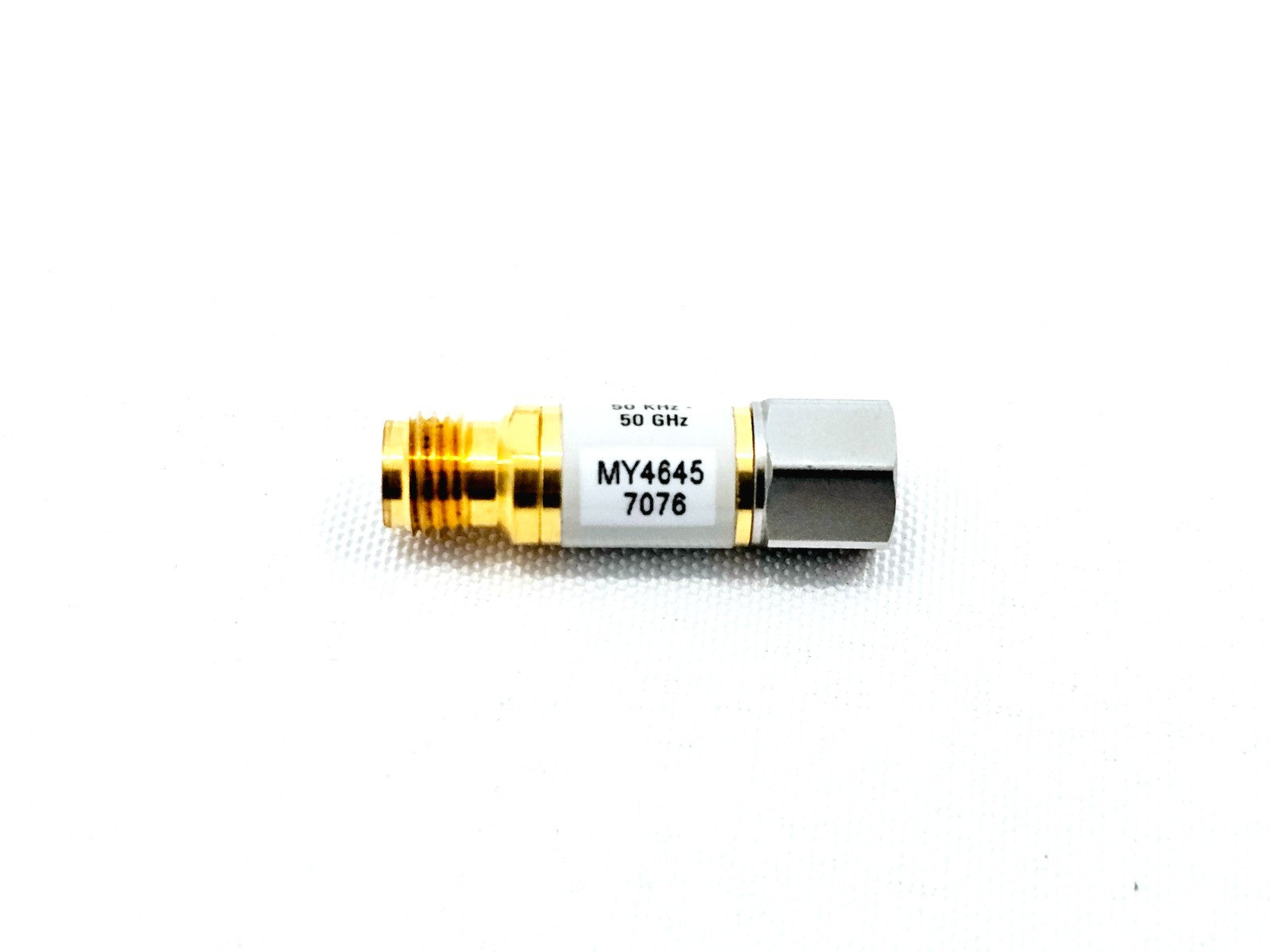

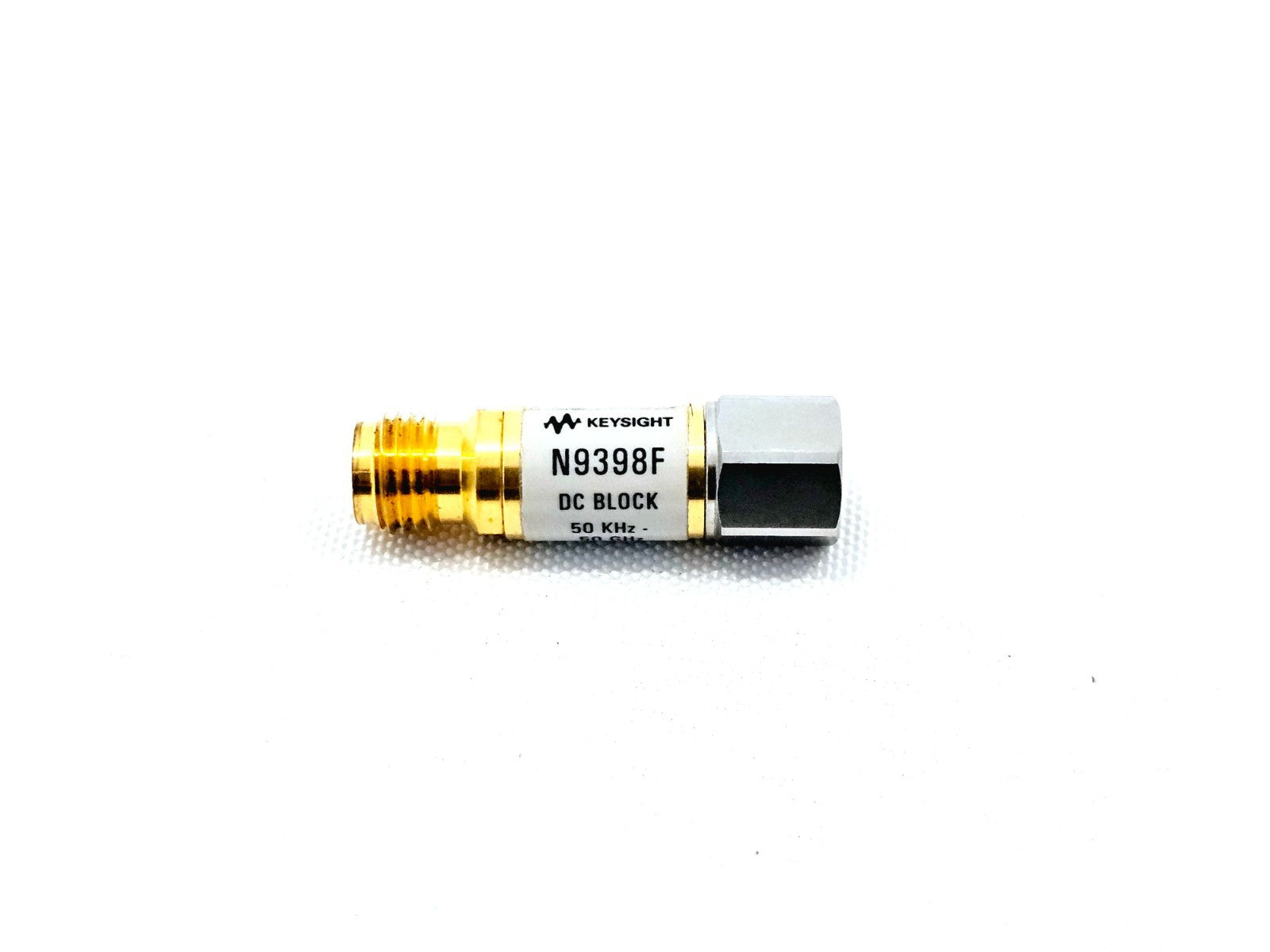

Tested and fully functional. This Keysight N9398F DC block covers 50 kHz to 50 GHz with 2.4 mm precision coaxial connectors and a 16 V maximum DC working voltage, making it well suited for millimetre-wave and broadband RF applications.

Included in the sale:
• 1x Keysight N9398F DC Block

The Keysight N9398F is a precision broadband DC block designed to apply AC drive signals to a device under test while eliminating any DC voltage or current components. Assembled and tested on Keysight precision network analysers, the N9398F is warranted to meet its full specifications across its entire frequency range. It is commonly used in RF and microwave test setups, between amplifier stages, and in telecommunications applications as a surge arrestor to protect sensitive receiver circuits from instantaneous voltage transients.

Frequency Range: 50 kHz to 50 GHz
Insertion Loss: 0.9 dB (50 kHz to 26.5 GHz); 1.0 dB (26.5 GHz to 50 GHz)
Return Loss: 10 dB (50 kHz to 300 kHz); 15 dB (300 kHz to 50 GHz)
Maximum DC Working Voltage: 16 V
Connector Type: 2.4 mm precision coaxial (male–female)
Impedance: 50 Ohm
Rise Time: 2 ps (typical)
Group Delay: 78 ps (typical)
Weight: 0.1 kg (0.22 lbs)
Temperature Stability: Excellent across operating range

Keysight N9398C/F/G and N9399C/F DC Block Technical Overview (includes full specifications): Download PDF

Keysight N9398C/F/G and N9399C/F DC Block Operating and Service Manual: Download PDF

Keysight N9398C/F/G and N9399C/F DC Block Technical Overview (RS Components mirror): Download PDF
