Condition: For parts or not working — Untested. No returns.

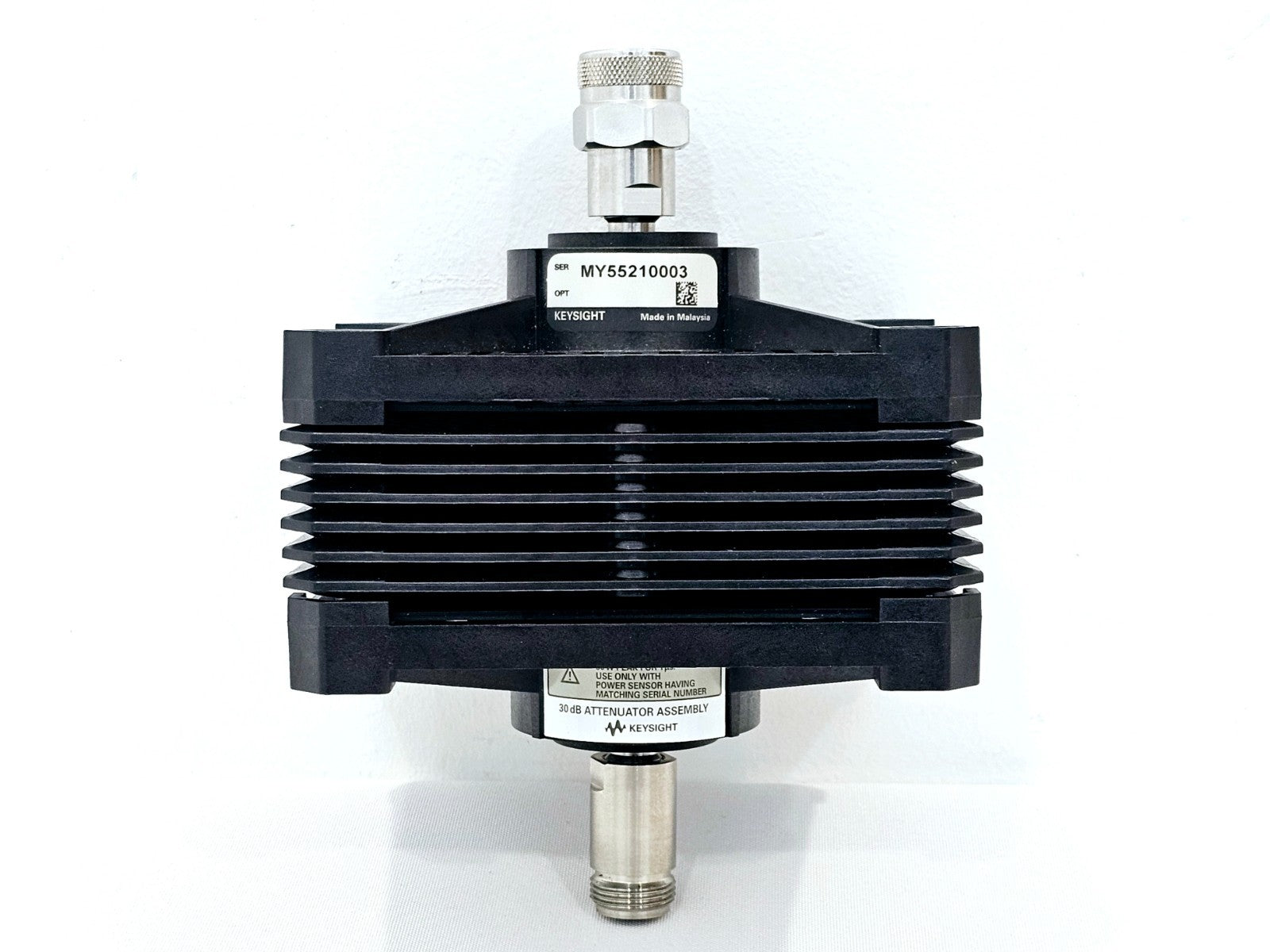

This listing comprises a Keysight N8482A thermocouple power sensor paired with its matching 30 dB N-type attenuator, sold together as found. The N8482A covers 100 kHz to 6 GHz with a dynamic range of -35 dBm to +20 dBm and features EEPROM-based calibration factor storage. The sensor carries the CFT option, providing SCPI compatibility with the legacy 8480 Series.

Included in the sale:

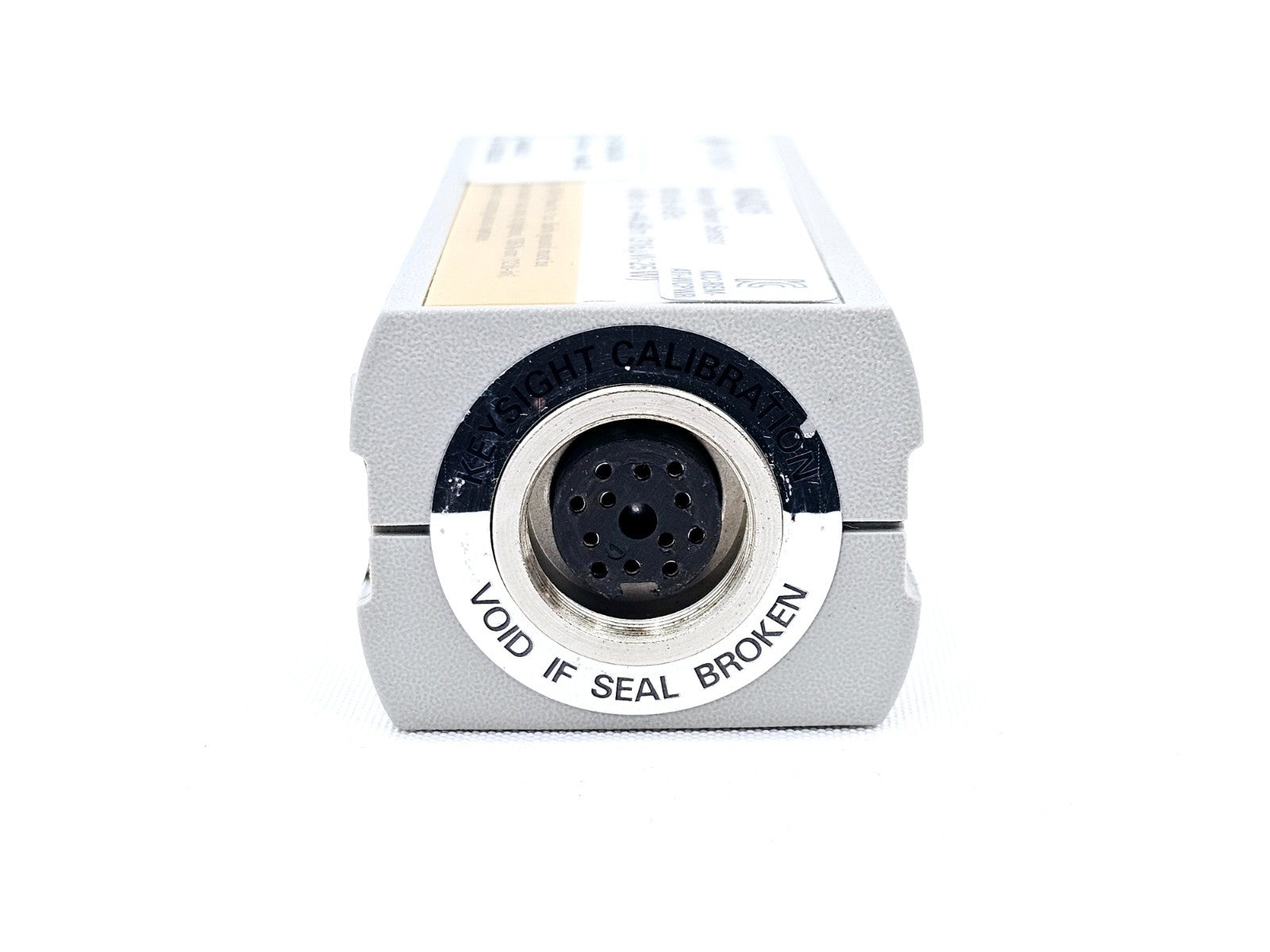

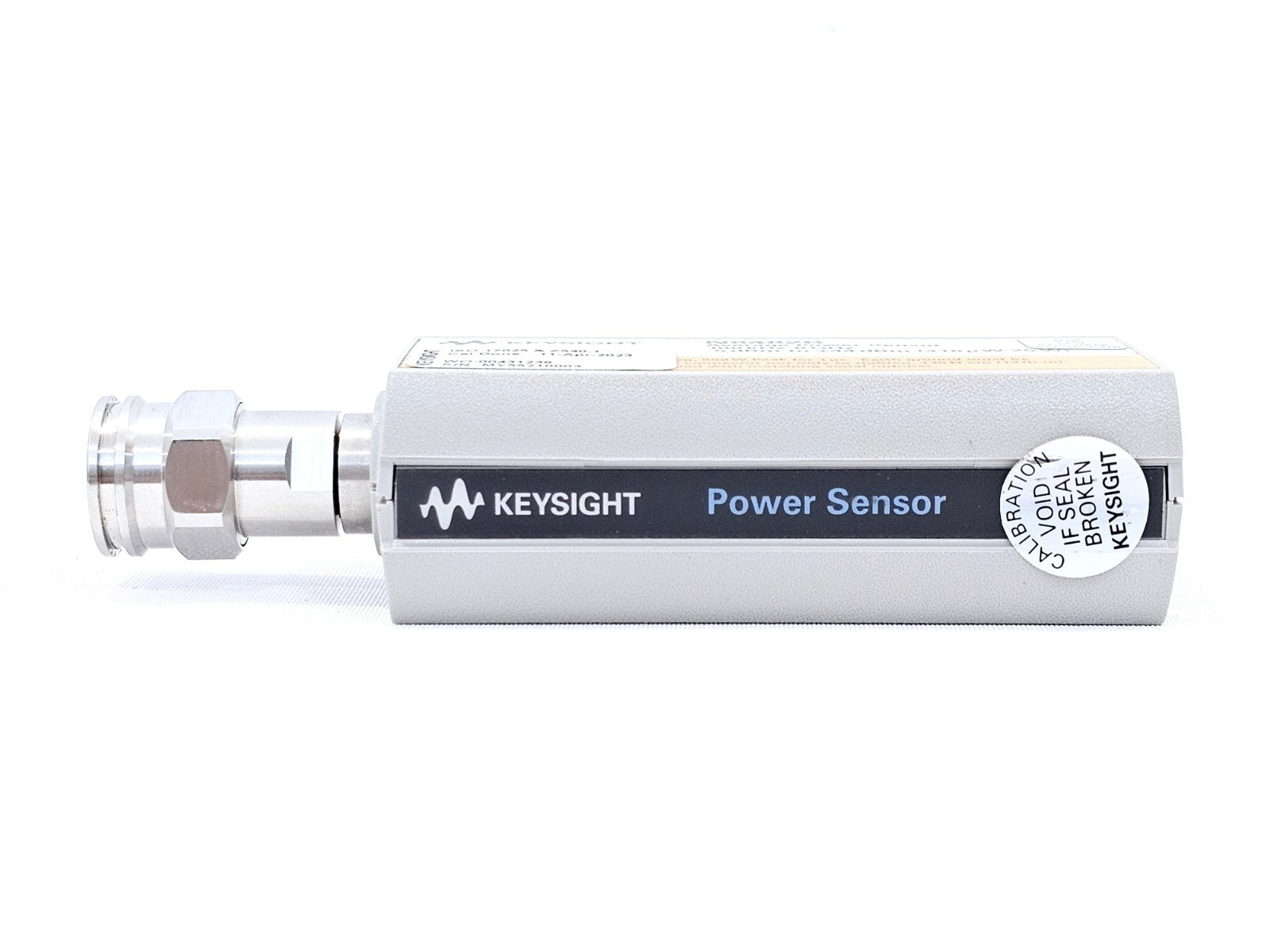

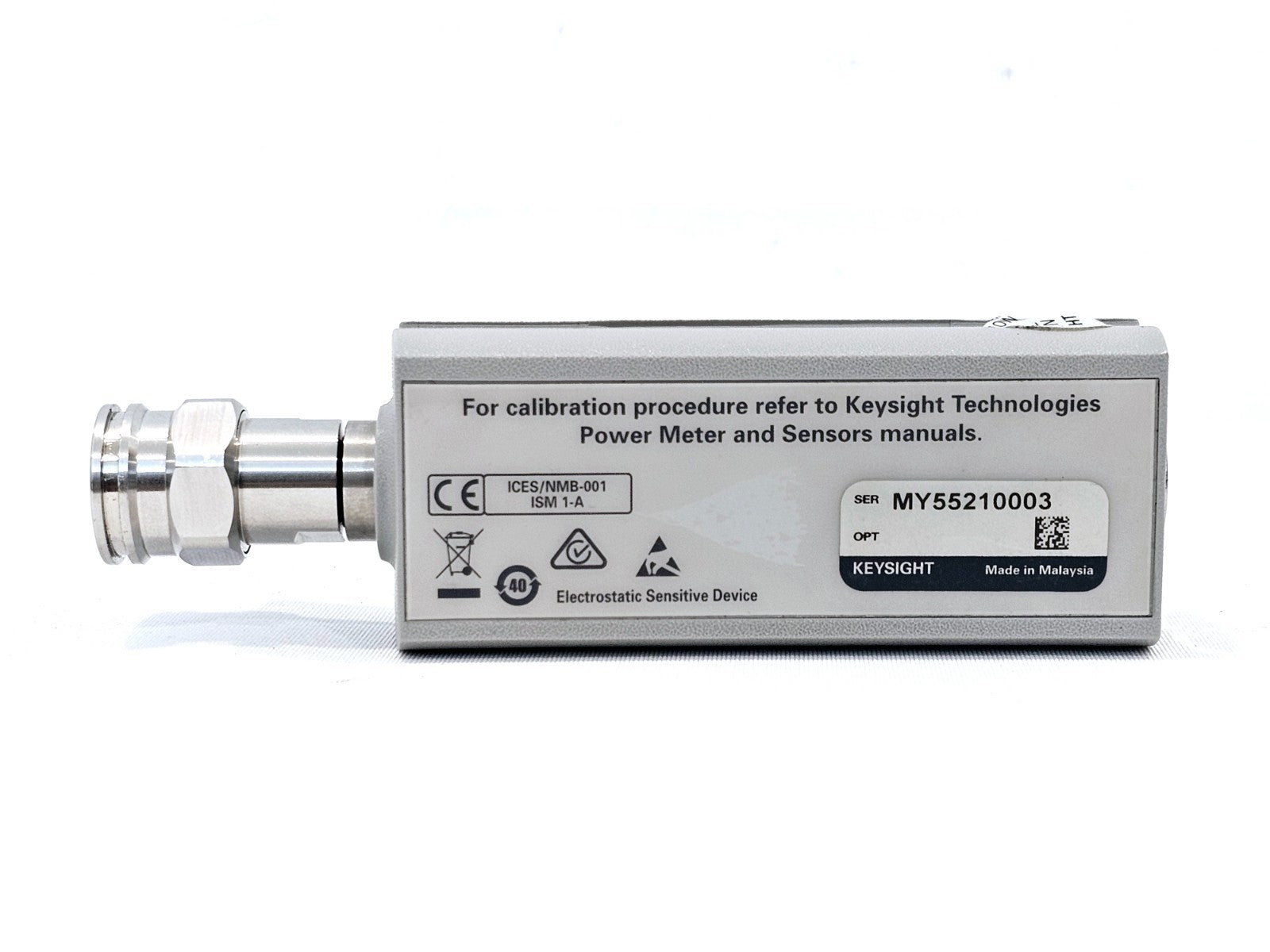

• N8482A thermocouple power sensor

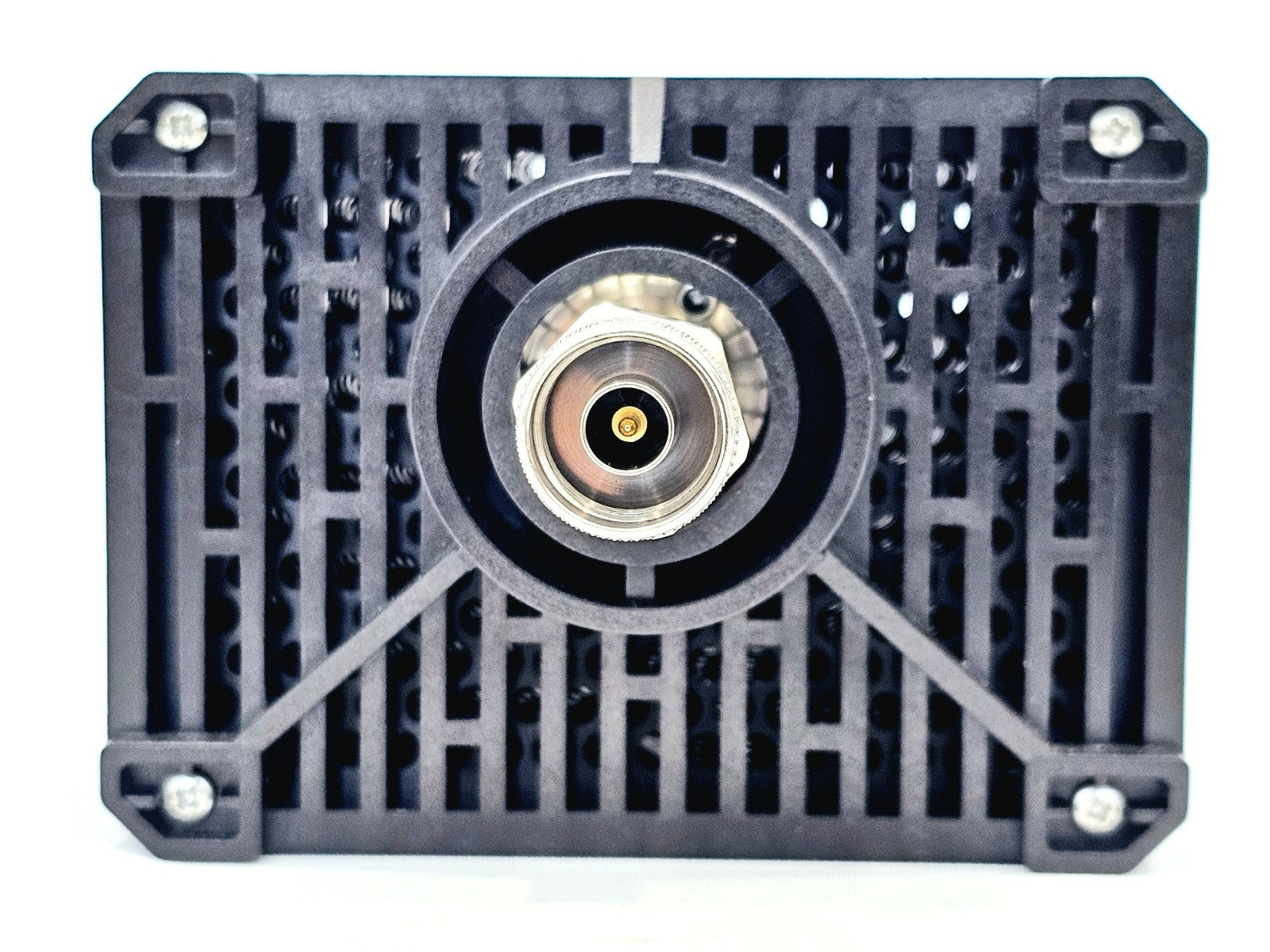

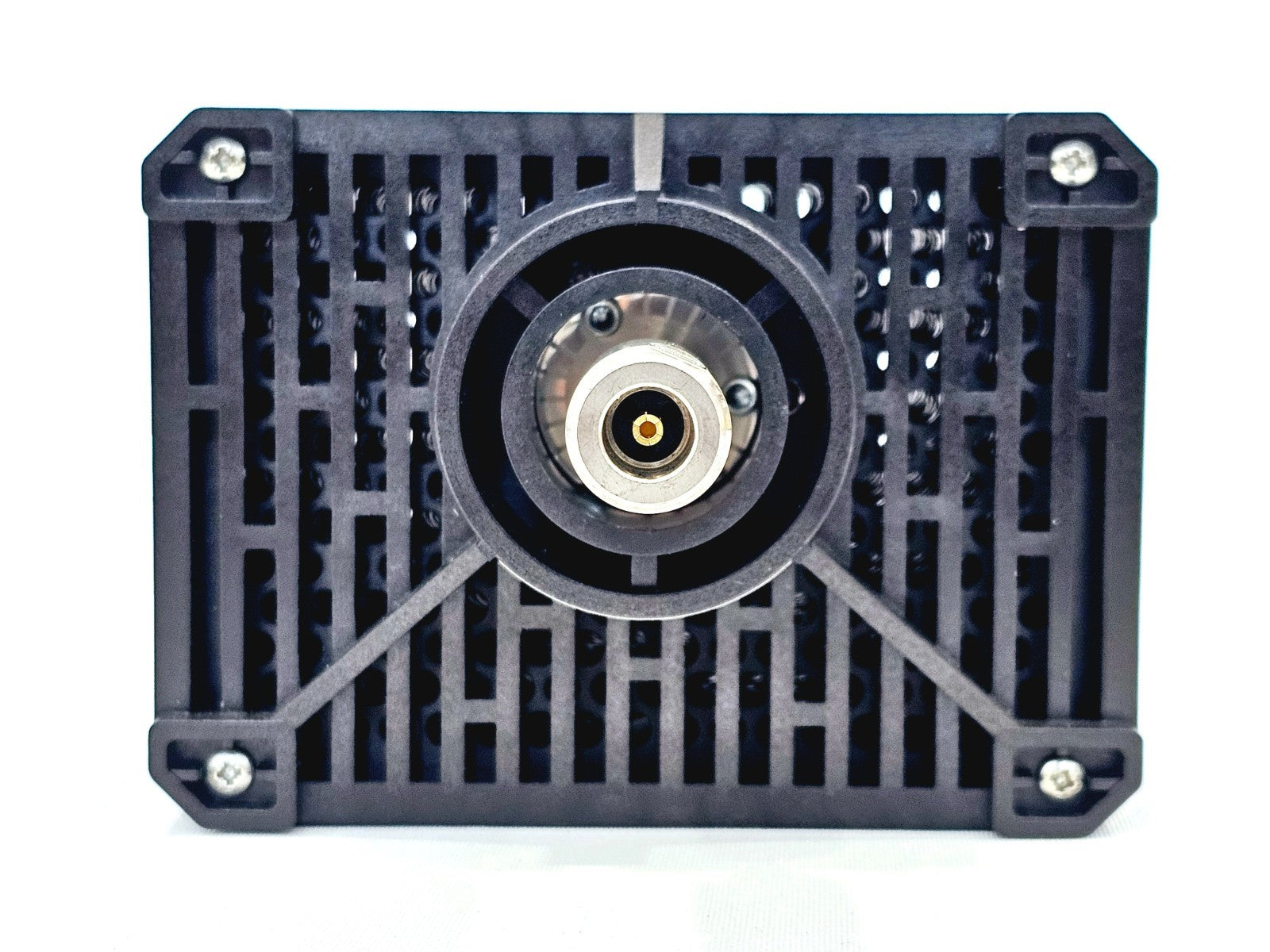

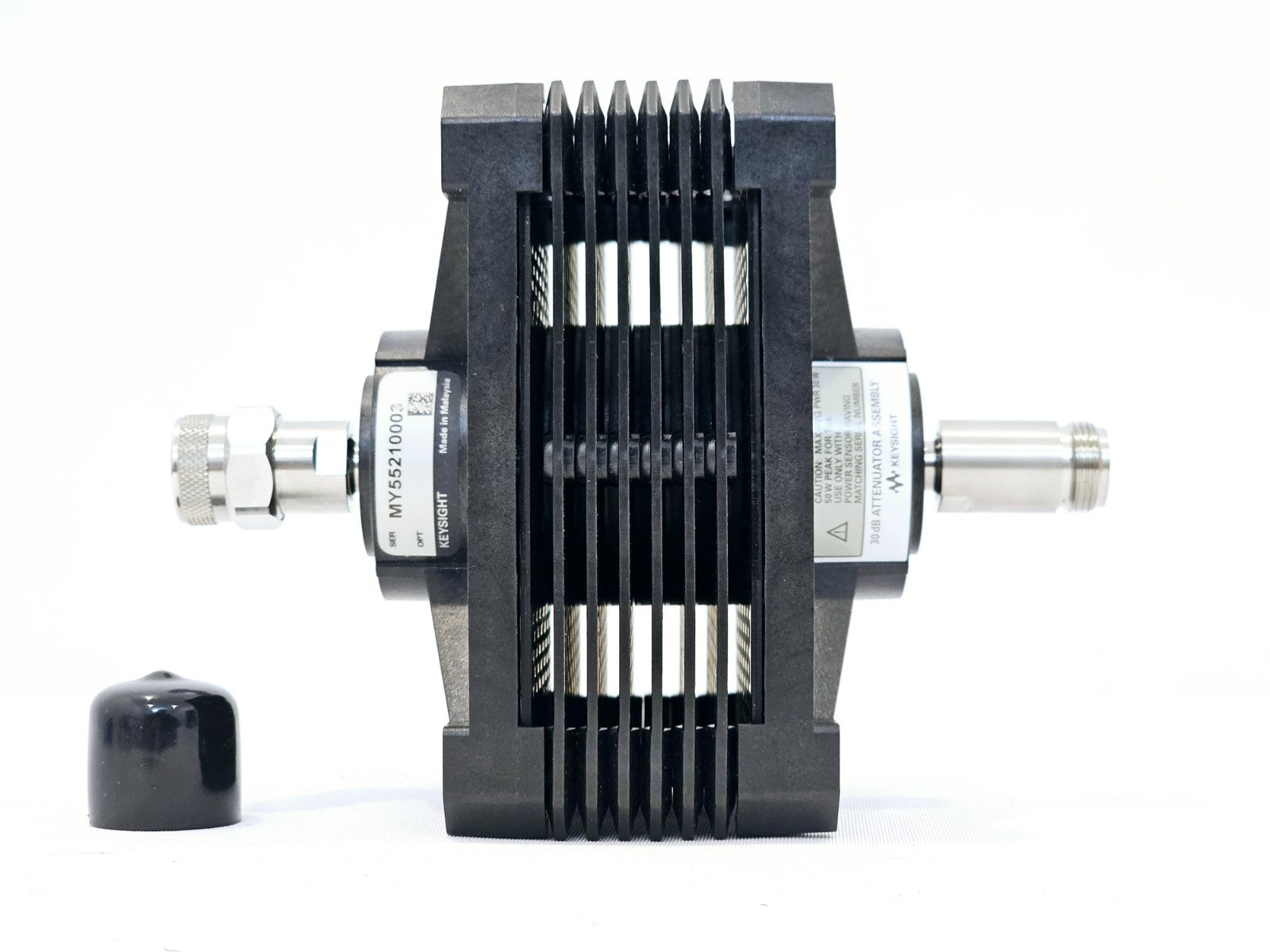

• 30 dB attenuator (matching)

Active options:
• Option CFT — cal factor manual entry and SCPI compatibility with 8480 Series power meters

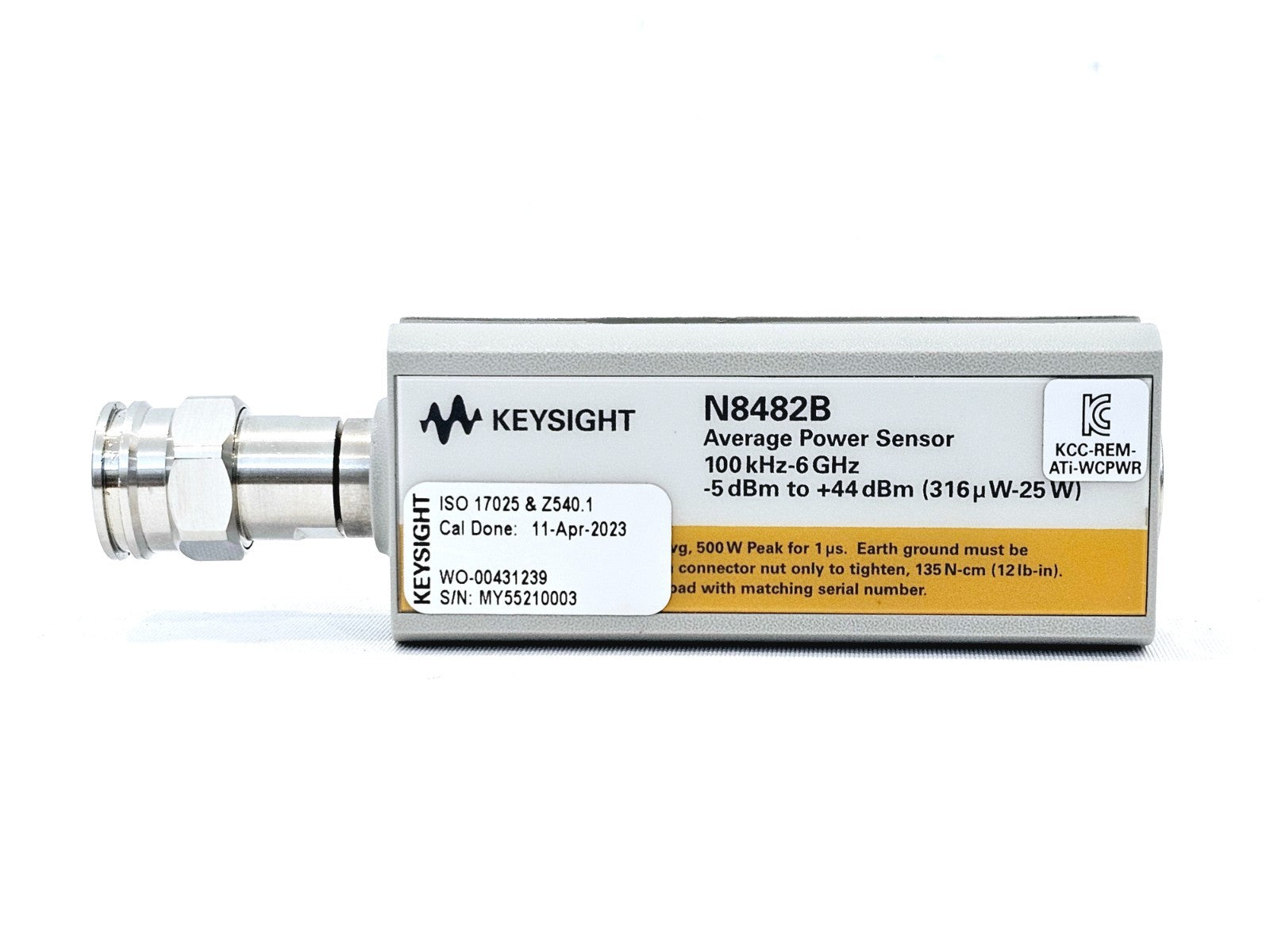

The Keysight N8482B is part of the N8480 Series of thermocouple power sensors, designed as modern replacements for the legacy 8480 Series. The N8482B incorporates a built-in EEPROM that automatically stores and downloads calibration factors, linearity corrections, and temperature compensation data to the power meter upon connection, eliminating the need for manual cal factor entry and reducing measurement setup time.

The B-model sensors include an integrated high-power attenuator, extending the dynamic range to handle signals up to +44 dBm (25 W average). The N8482B is suited to applications in metrology laboratories, radar, mobile radio, TDMA, GSM, W-CDMA, and WiMAX testing environments.

Key Specifications:
Sensor Type: Thermocouple, average power
Frequency Range: 100 kHz to 6 GHz
Dynamic Power Range: -5 dBm to +44 dBm (316 µW to 25 W)
Attenuator: 30 dB integrated (N-type)

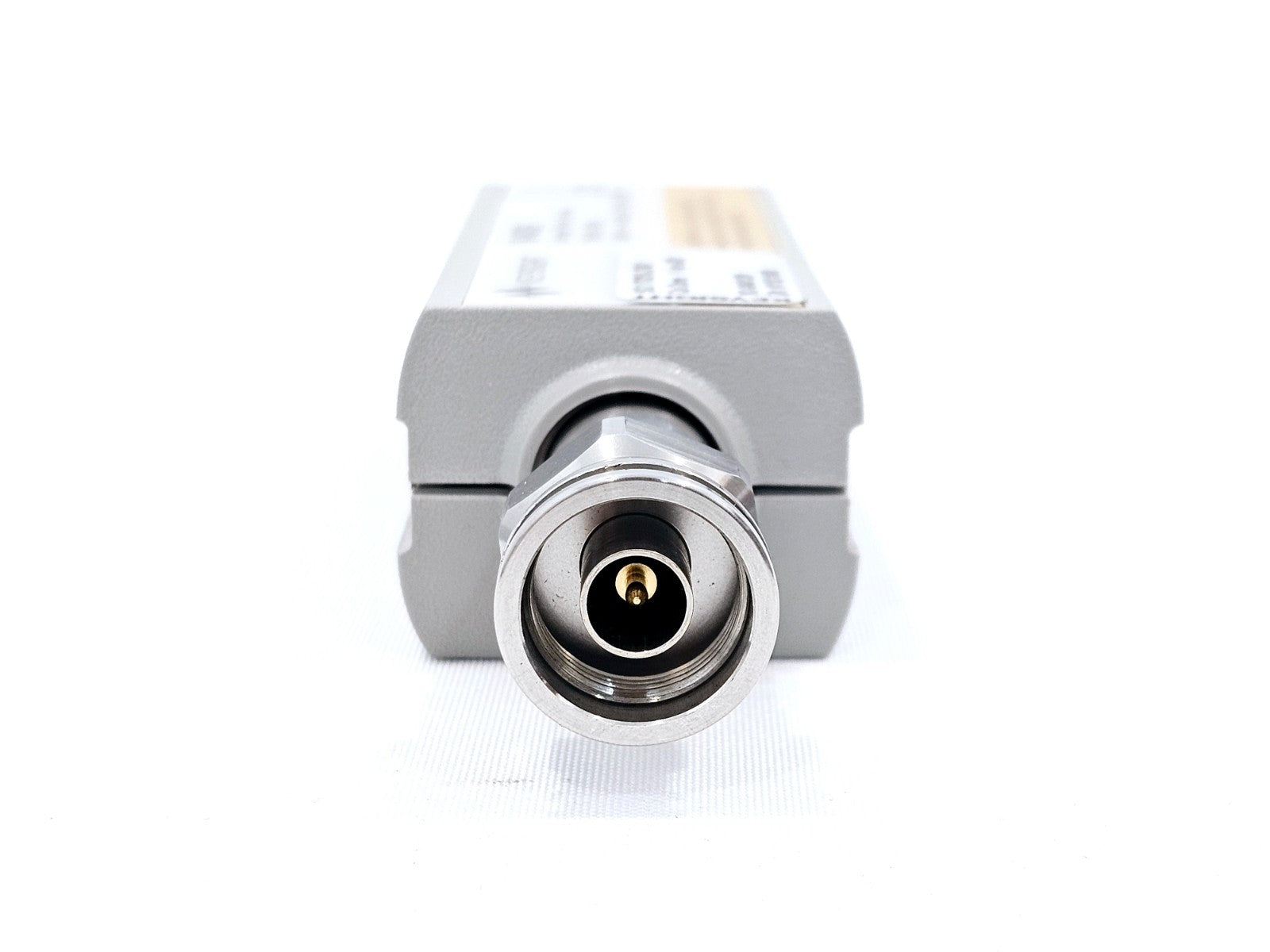

Connector: Type-N (male)
Damage Level (Average Power): +49 dBm
Damage Level (Peak Power): 500 W / 1 µs
Maximum SWR (100 kHz to 2 GHz, 25 ±10 °C): 1.08
Maximum SWR (2 to 6 GHz, 25 ±10 °C): 1.16
Power Linearity: Less than 1% (negligible outside specified range)
Calibration Traceability: US National Institute of Standards and Technology (NIST)
EEPROM: Yes — stores CF, linearity, and temperature corrections
Dual-Range Power: Yes — upper and lower ranges for sensitivity to fluctuating signals
SCPI Compatibility: E-Series sensor codes (standard option); 8480 Series codes (Option CFT)
Compatible Power Meters: EPM Series (N1913/14A, E4418/19B), EPM-P Series (E4416/17A), P-Series (N1911/12A)
Recommended Calibration Interval: 1 year
Operating Temperature: 0 to 55 °C

Note: All N8480 Series power sensors are incompatible with the Keysight 43x, E1416A, N8262A power meters, 5314x microwave counters, and E7495x base station test sets.

Keysight N8480 Series Thermocouple Power Sensors Data Sheet (5989-9333EN): Download PDF

Keysight N8480 Series Thermocouple Power Sensors Data Sheet — Keysight official asset page: Download PDF

Keysight N8480 Series Power Sensors Migration Guide from 8480 Series (5989-9342): Download PDF

Keysight N8480 Series Power Sensors Operating and Service Guide (PDF via rftesolutions): Download PDF
