Condition: Used

Fully functional Keysight N7909A power dissipater unit. Supplied with Ethernet cable and power cable as listed below.

Included in the sale:

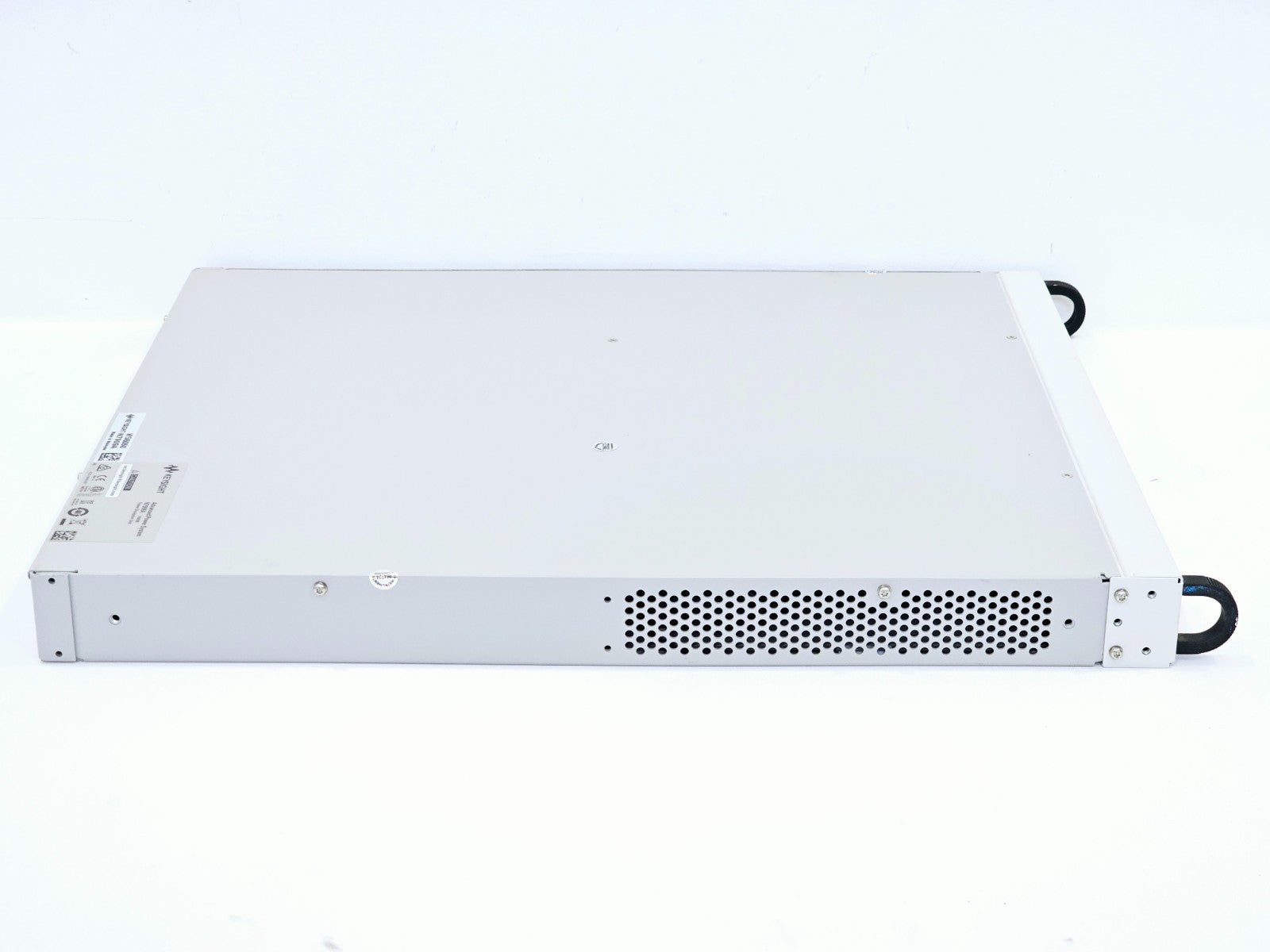

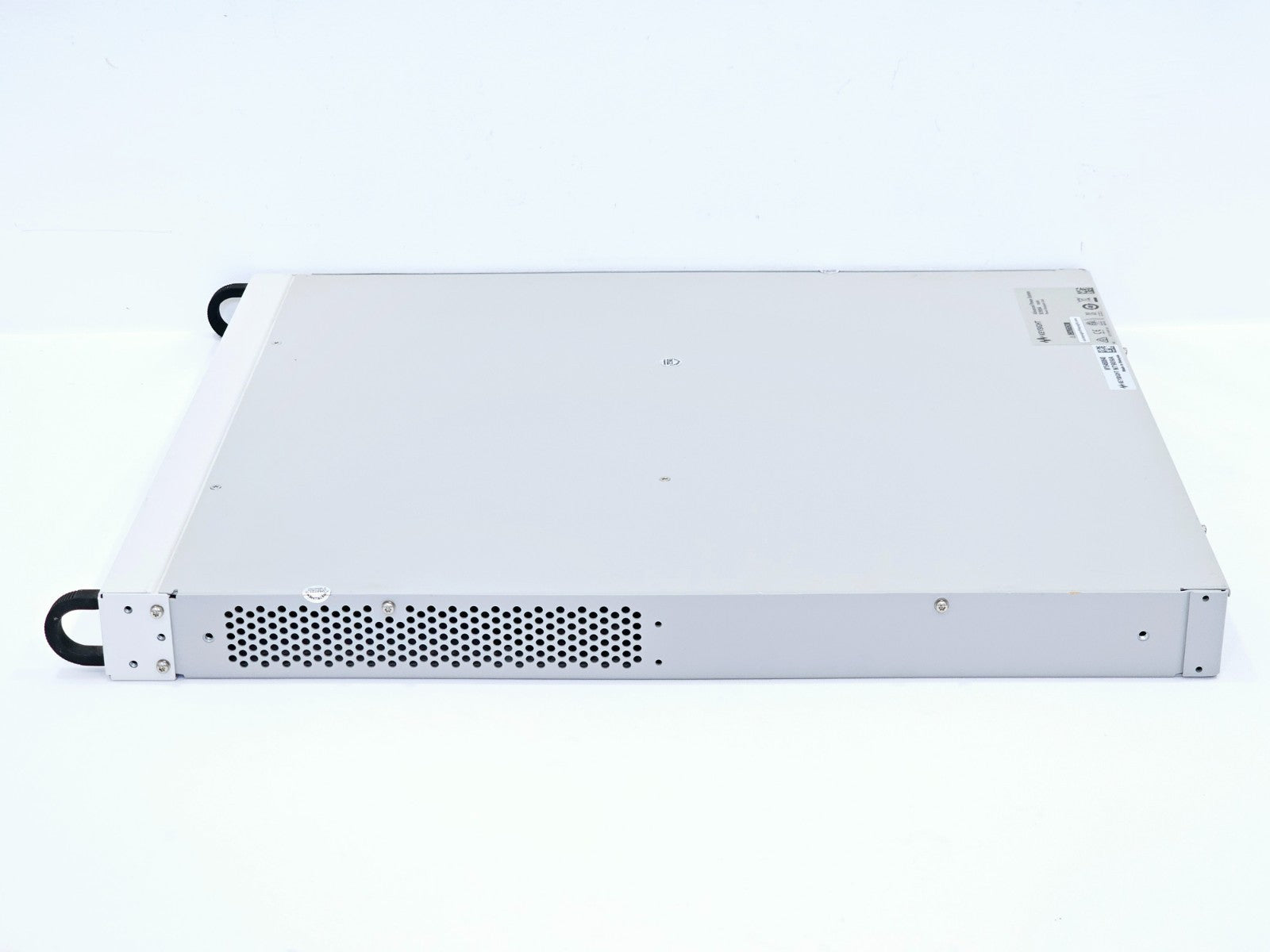

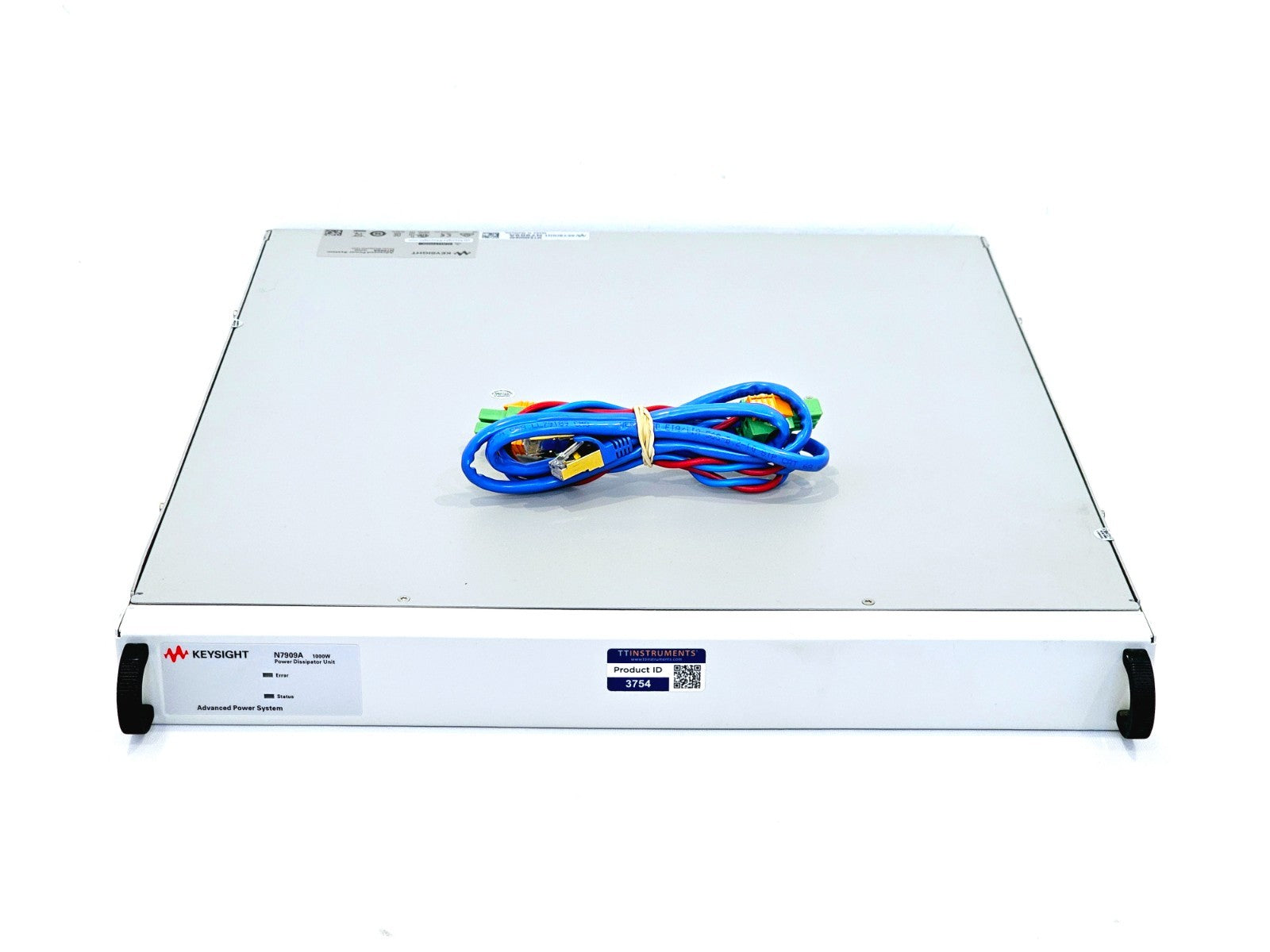

• Keysight N7909A Power Dissipater Unit
• Ethernet cable
• Power cable

The Keysight N7909A is a 1,000 W power dissipater unit designed to add current sinking or full two-quadrant operation to any Advanced Power System (APS) N6900A or N7900A power supply. When added, it extends an APS supply's current sinking capability from the standalone 10% rated output current up to 100% of rated output current, enabling continuous source and sink testing. The N7909A does not operate as a standalone instrument — it is exclusively used in conjunction with an APS power supply.

One N7909A is required per 1 kW APS supply for full two-quadrant operation. Two N7909A units are required per 2 kW APS supply for full two-quadrant operation; a single unit with a 2 kW supply provides 50% current sinking capability. The unit connects to the APS power supply via a two-wire power connection and a communication connection, with all connections located on the rear panel of both units. The optional N7910A APS rack mount kit can be used to mount the N7909A in a standard 19-inch EIA rack.

Key Features:
• Extends APS current sinking from 10% to 100% of rated output current
• Enables continuous two-quadrant (source and sink) operation
• Programmable +/- current waveform capability for dynamic test profiles
• Programmable +/- current limit settings to protect device under test
• Default down-programming for loads with stored energy (e.g. capacitive loads)
• Rear-panel two-wire power and communication interface to APS supply
• Compatible with all N6900A and N7900A series APS power supplies

Specifications:
Power Dissipation: 1,000 W (1 kW)
Form Factor: 1U, full rack width
Compatible Supplies: Keysight APS N6900A and N7900A series

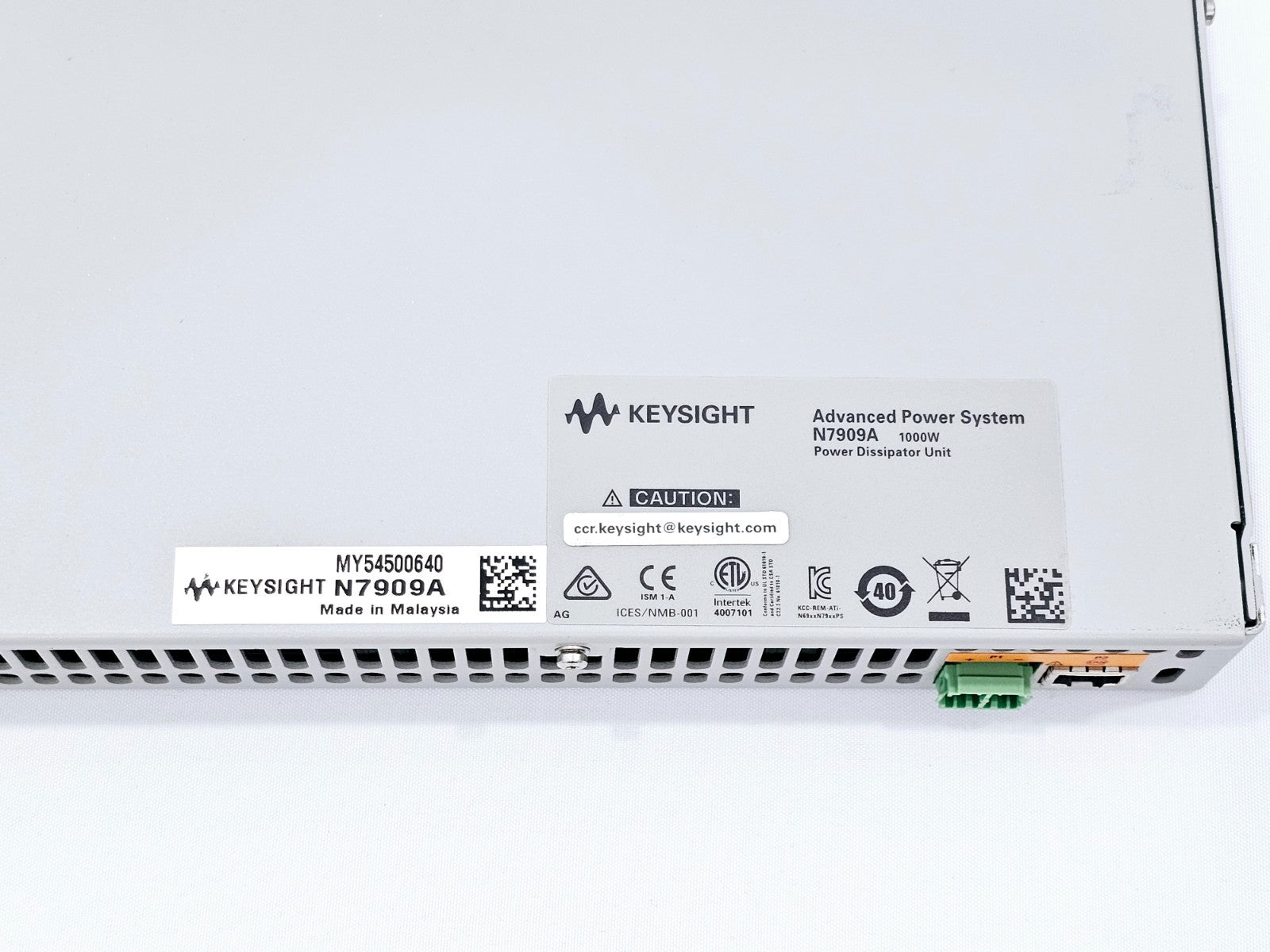

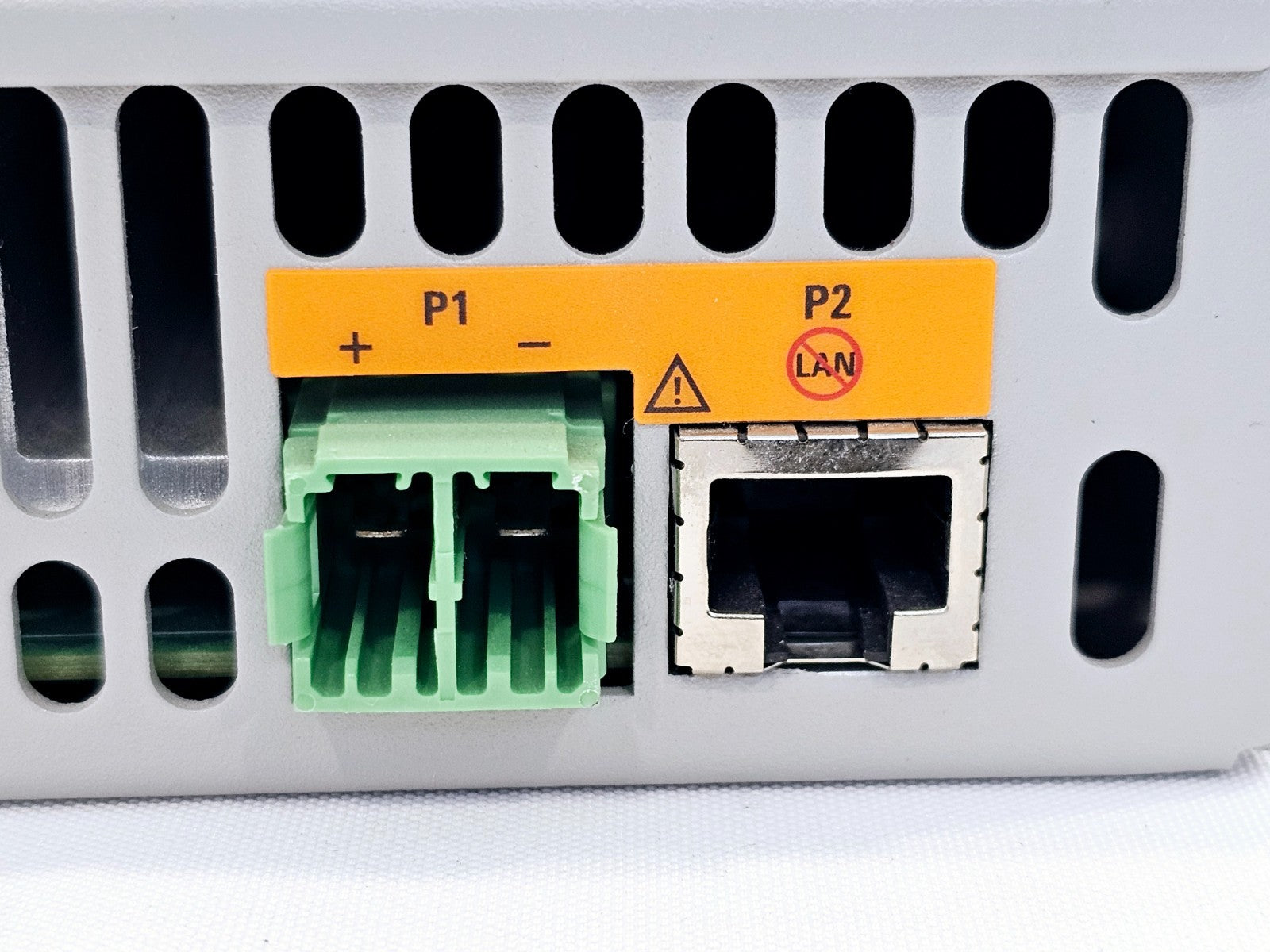

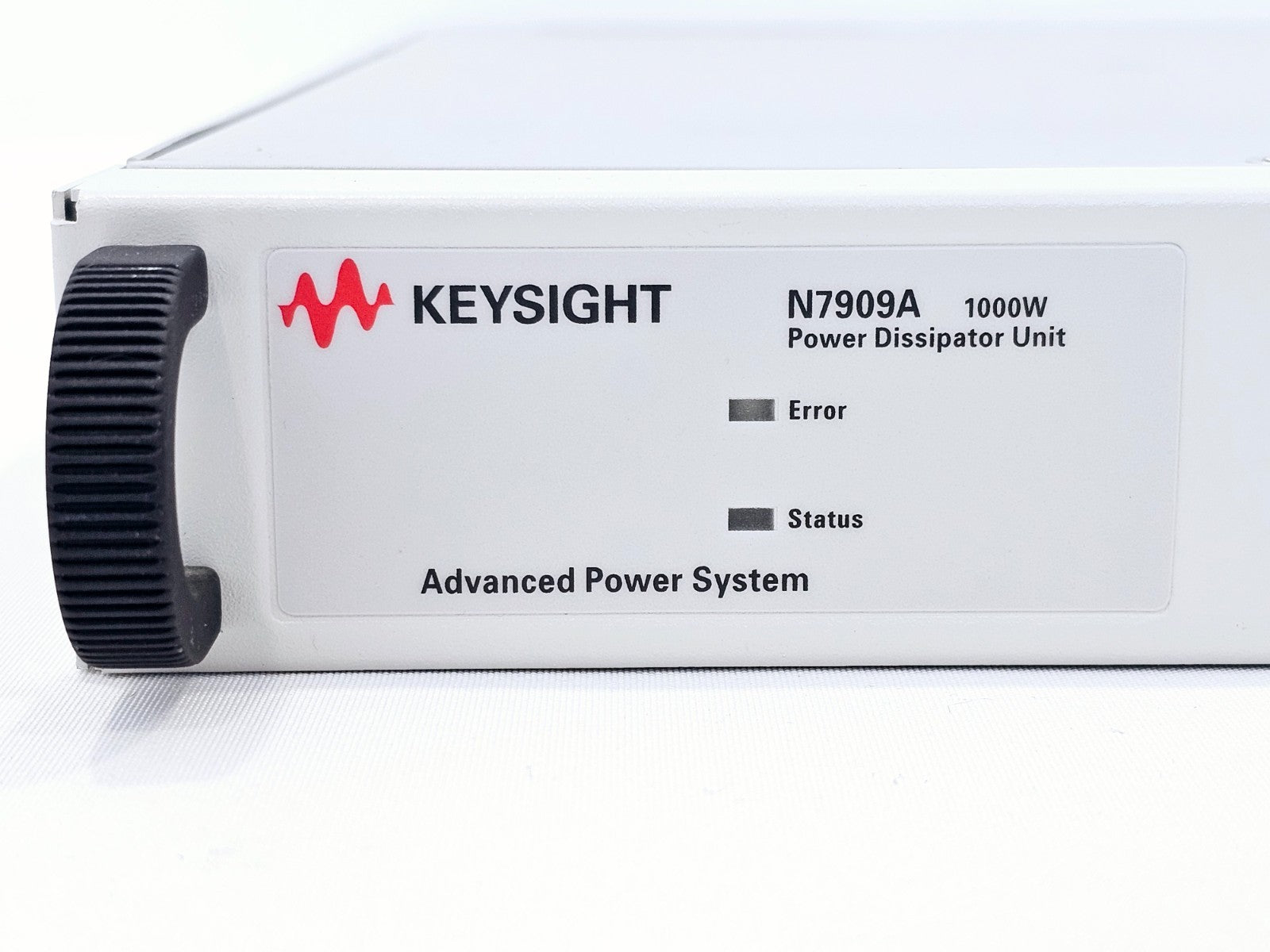

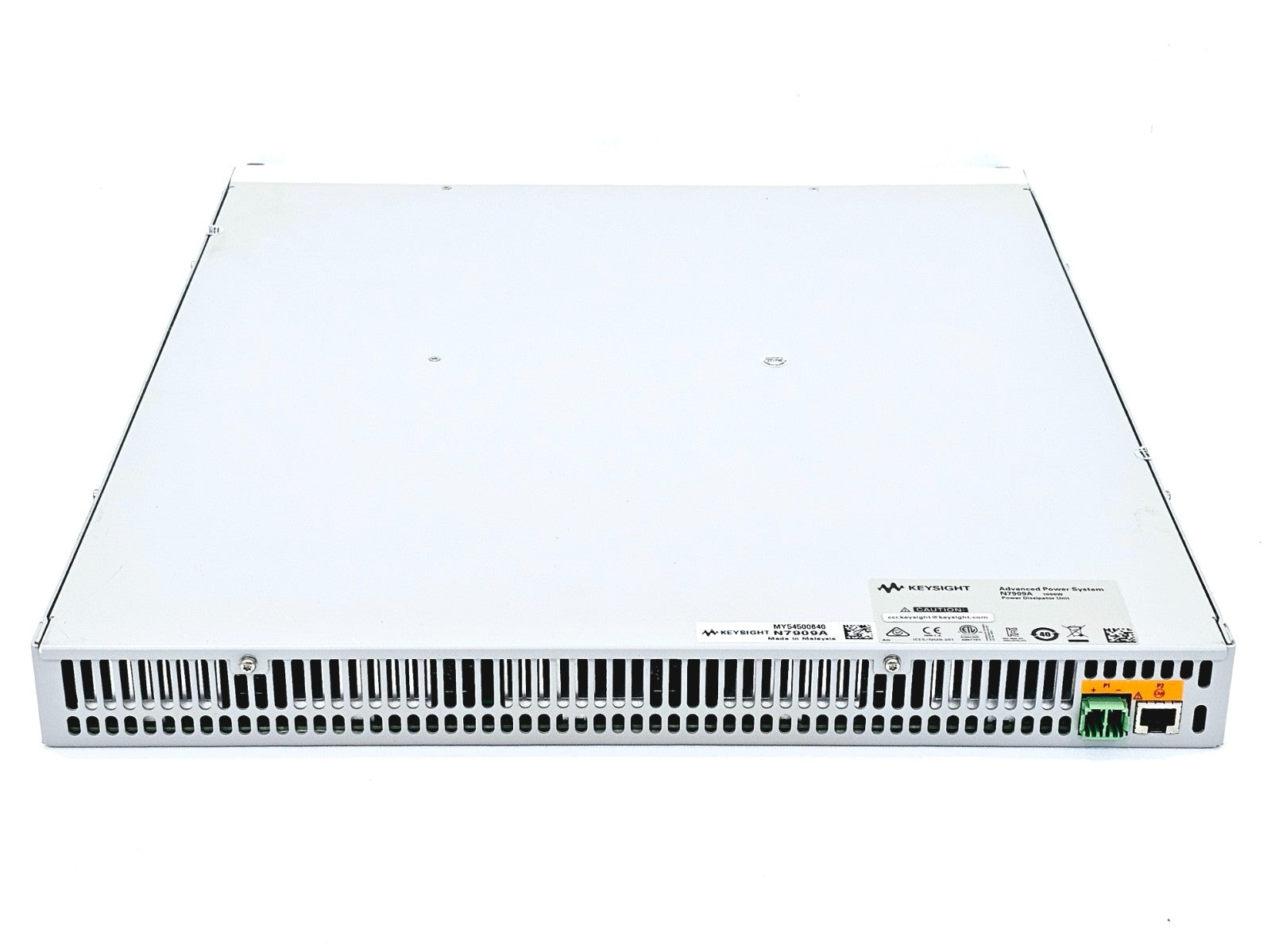

Connection Interface: Two-wire power connection + communication connection (rear panel)
Communication Cable: CAT6A (P2 interface)
Standalone Operation: Not supported — requires APS power supply
Rack Mounting: Compatible with N7910A APS rack mount kit (19-inch EIA rack)
Current Sinking Range (with dissipater): Up to 100% of APS rated output current
Current Sinking Range (without dissipater): Up to 10% of APS rated output current
APS Compatible Voltage Range: 9 V to 160 V
APS Compatible Current Range: 12.5 A to 200 A

For full dimensional and electrical specifications, refer to the Keysight N6900/N7900 Series Operating and Service Guide.

Keysight Advanced Power System N6900 and N7900 Series Data Sheet (5991-2698EN): Download PDF

Keysight N6900/N7900 Series Advanced Power System Operating and Service Guide: Download PDF

Keysight Advanced Power System N6900 Series Power Supplies Data Sheet (5992-0663EN): Download PDF
