Condition: Used

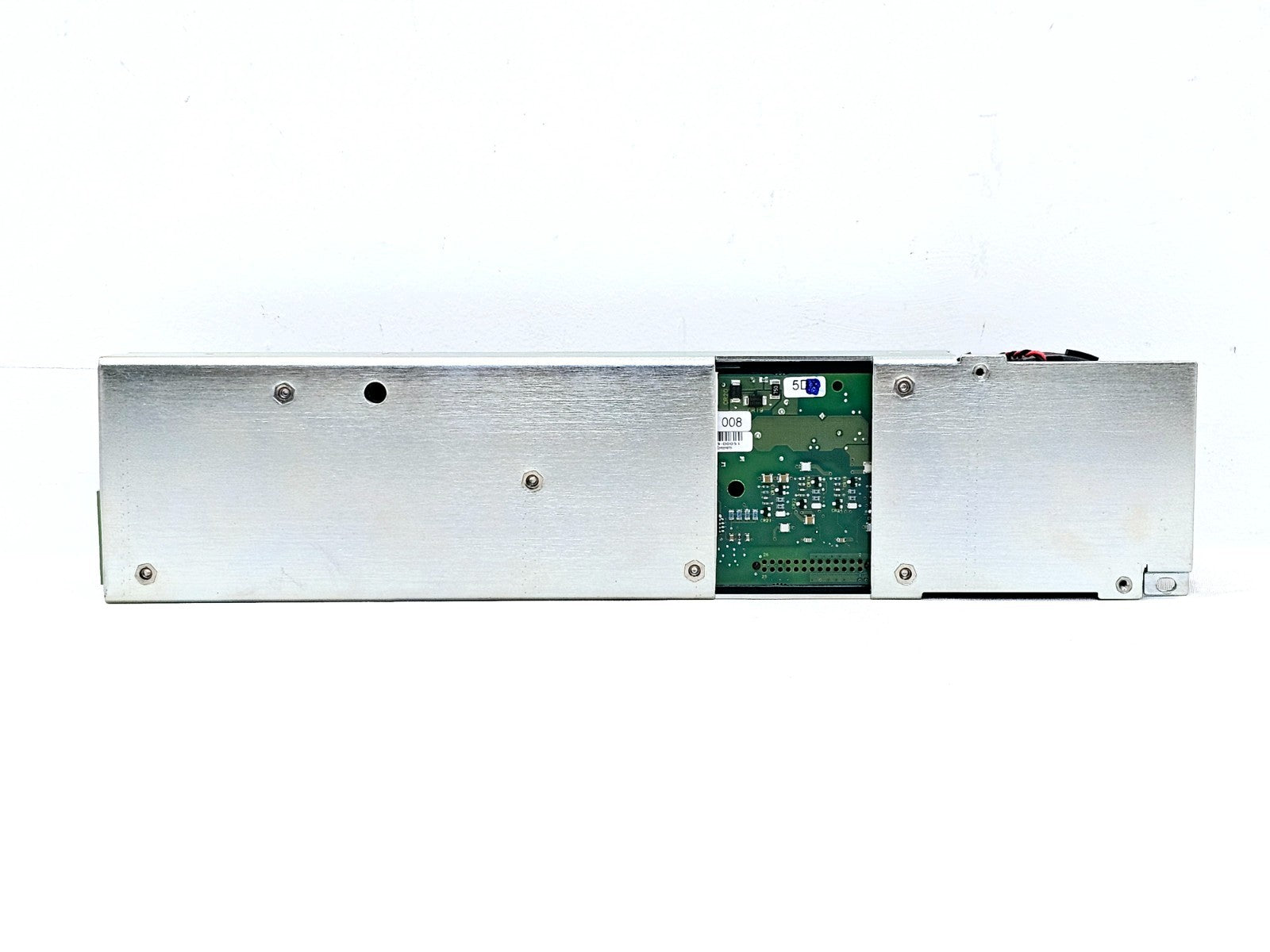

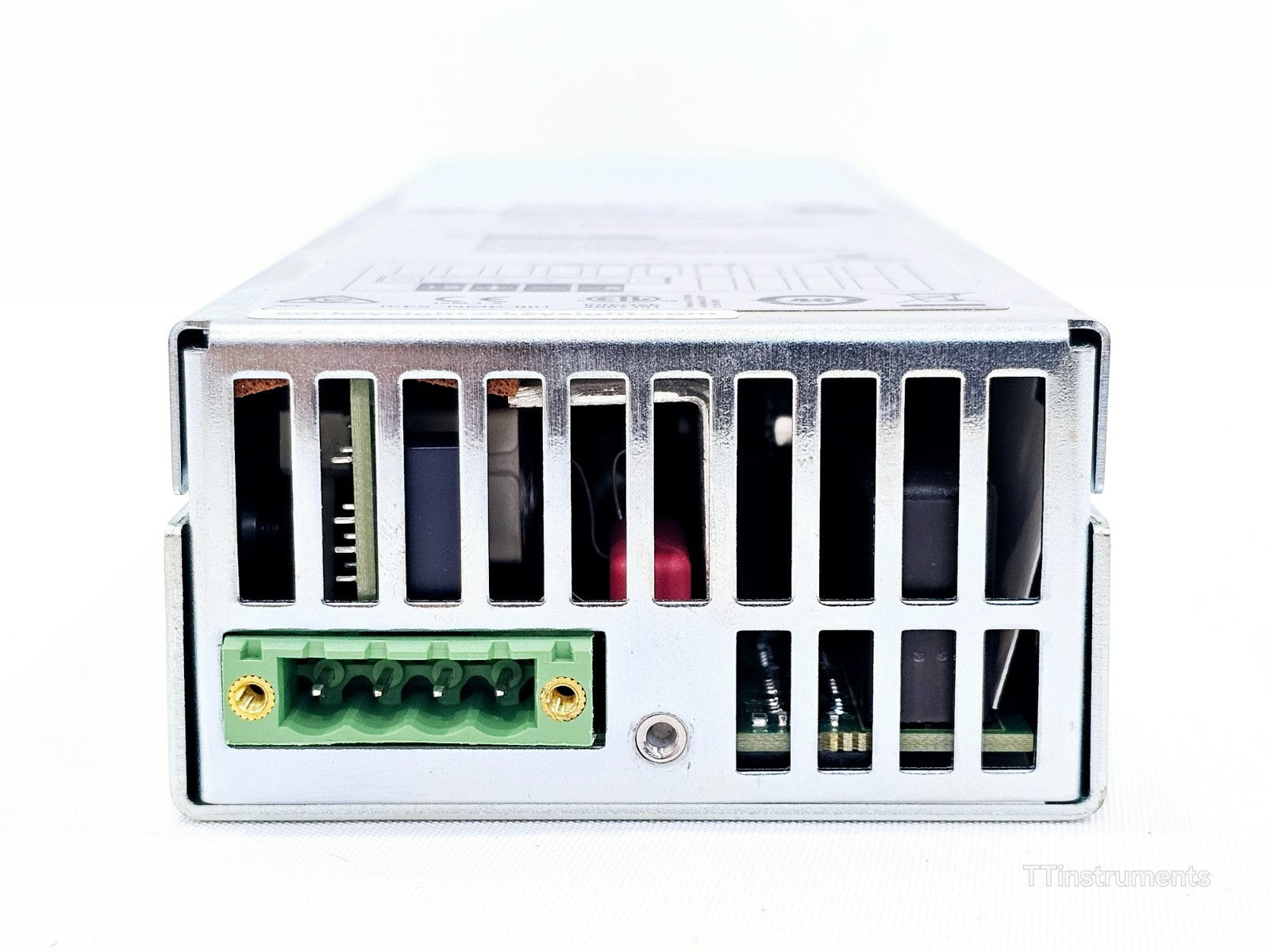

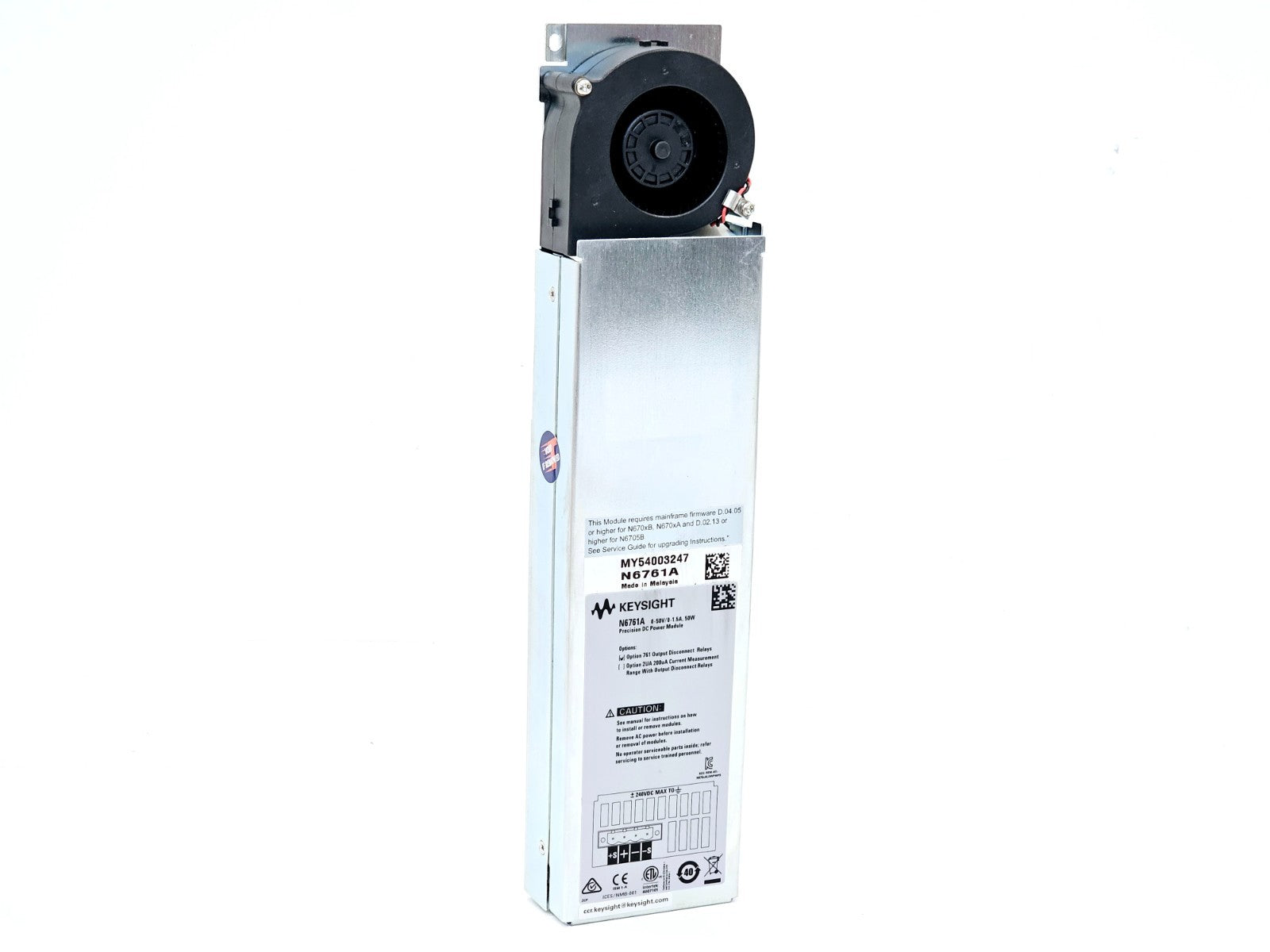

Keysight N6761A Precision DC Power Module rated at 50 V, 1.5 A, 50 W, fitted with Option 761 output disconnect relays. Tested and fully functional; cosmetic imperfections are present but do not affect performance. Occupies one slot in compatible N6700 or N6705 mainframes.

Included in the sale:
• Main unit Keysight N6761A (DC power module only)

The Keysight N6761A is a 50 W precision DC power module that provides low noise and precise control and measurements in the milliampere and microampere region, with the ability to simultaneously digitise voltage and current and capture those measurements in an oscilloscope-like data buffer. It is used in both the 1U high N6700 Low-Profile Modular Power System for ATE applications and the N6705 DC Power Analyzer for bench testing. GPIB, LAN, USB, and LXI compliance are standard on the host mainframe.

Option 761 provides output and sense disconnect relays, allowing complete electrical isolation of the load from the power module output. Relays are built into the module, eliminating the need for additional external wiring.

Key Specifications:
Output Voltage Range (High): 0 – 50 V
Output Current Range (High): 0 – 1.5 A
Output Voltage Range (Low): 0 – 5.5 V
Output Current Range (Low): 0 – 100 mA
Maximum Output Power: 50 W
Voltage Programming Accuracy (High Range): 0.016% + 6 mV
Voltage Programming Accuracy (Low Range, ≤5.5 V): 0.016% + 1.5 mV
Current Programming Accuracy (High Range): 0.04% + 200 µA
Current Programming Accuracy (Low Range, ≤100 mA, 0–7 V): 0.04% + 30 µA
Output Ripple & Noise — Voltage Peak-to-Peak (20 Hz – 20 MHz): 4.5 mV
Output Ripple & Noise — Voltage RMS: 350 µV
Output Ripple & Noise — Current RMS: 2 mA
Load Regulation — Voltage: 0.5 mV
Load Regulation — Current (0–7 V): 30 µA
Load Regulation — Current (7–50 V): 65 µA
Source Regulation — Voltage: 0.5 mV
Source Regulation — Current: 30 µA
Transient Response Settling Band: ±75 mV
Transient Response Settling Time: <100 µs
Specification Temperature Range: 0 °C to 40 °C (after 30-minute warm-up)
Mainframe Compatibility: Keysight N6700 / N6705 series (one module slot)
Remote Interfaces (via mainframe): GPIB (IEEE-488), LAN, USB, LXI-C

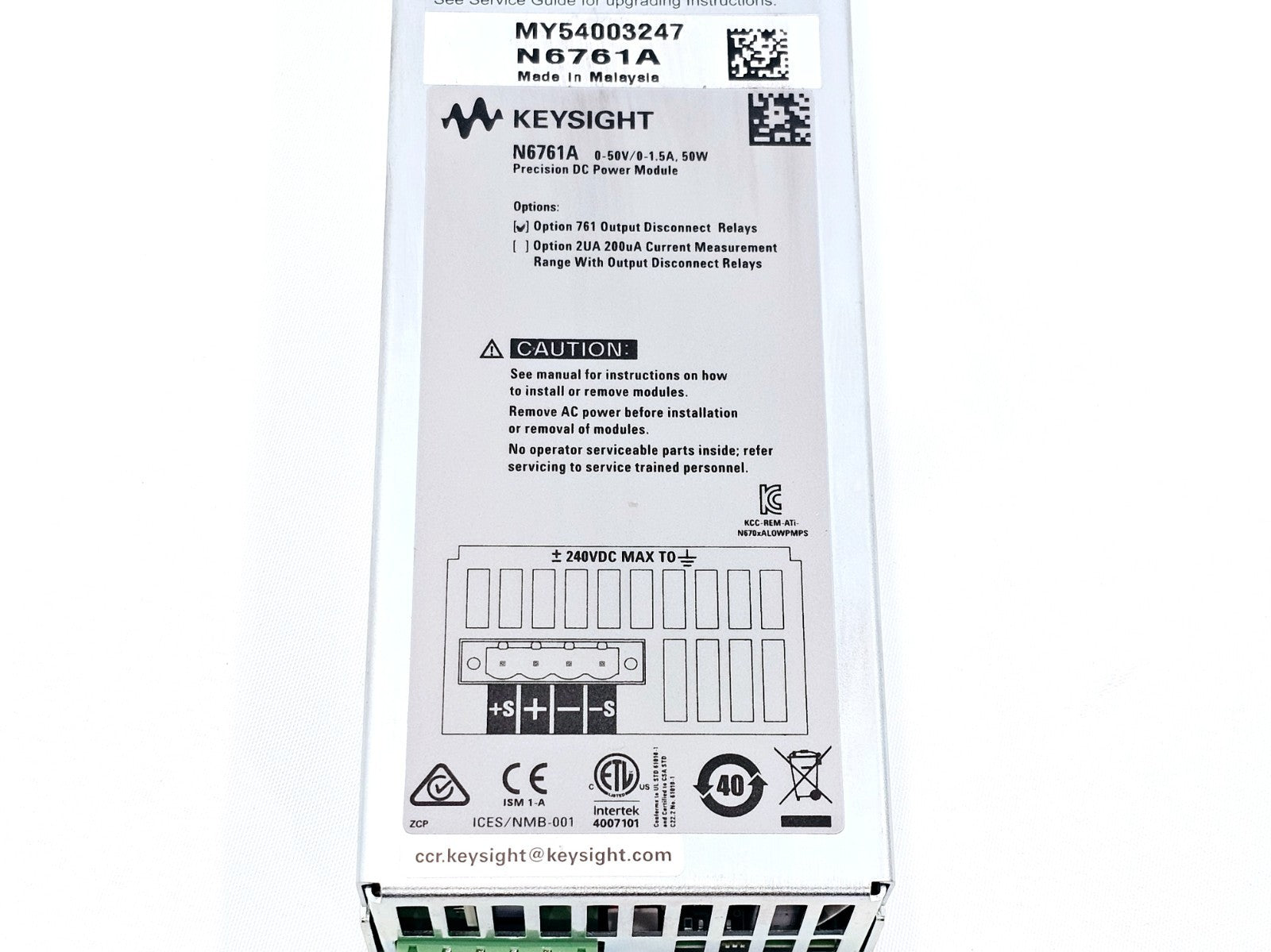

Option 761: Output and sense disconnect relays (built-in)

Keysight N6700 Modular Power System Family — Technical Specifications (includes N6761A): Download PDF

Keysight N6700 Modular Power System Family Datasheet — DC Power Modules N6731B–N6786A (includes N6761A): Download PDF

Keysight N6700 Modular Power System Family — Product Data Sheet (5992-1857): Download PDF

Keysight Series N6700C Low-Profile Modular Power System — User's Guide: Download PDF

Keysight N6705C DC Power Analyzer — User's Guide (compatible mainframe for N6761A): Download PDF

Keysight N6700C Series Modular Power System — Service Manual: Download PDF
