Condition: Used

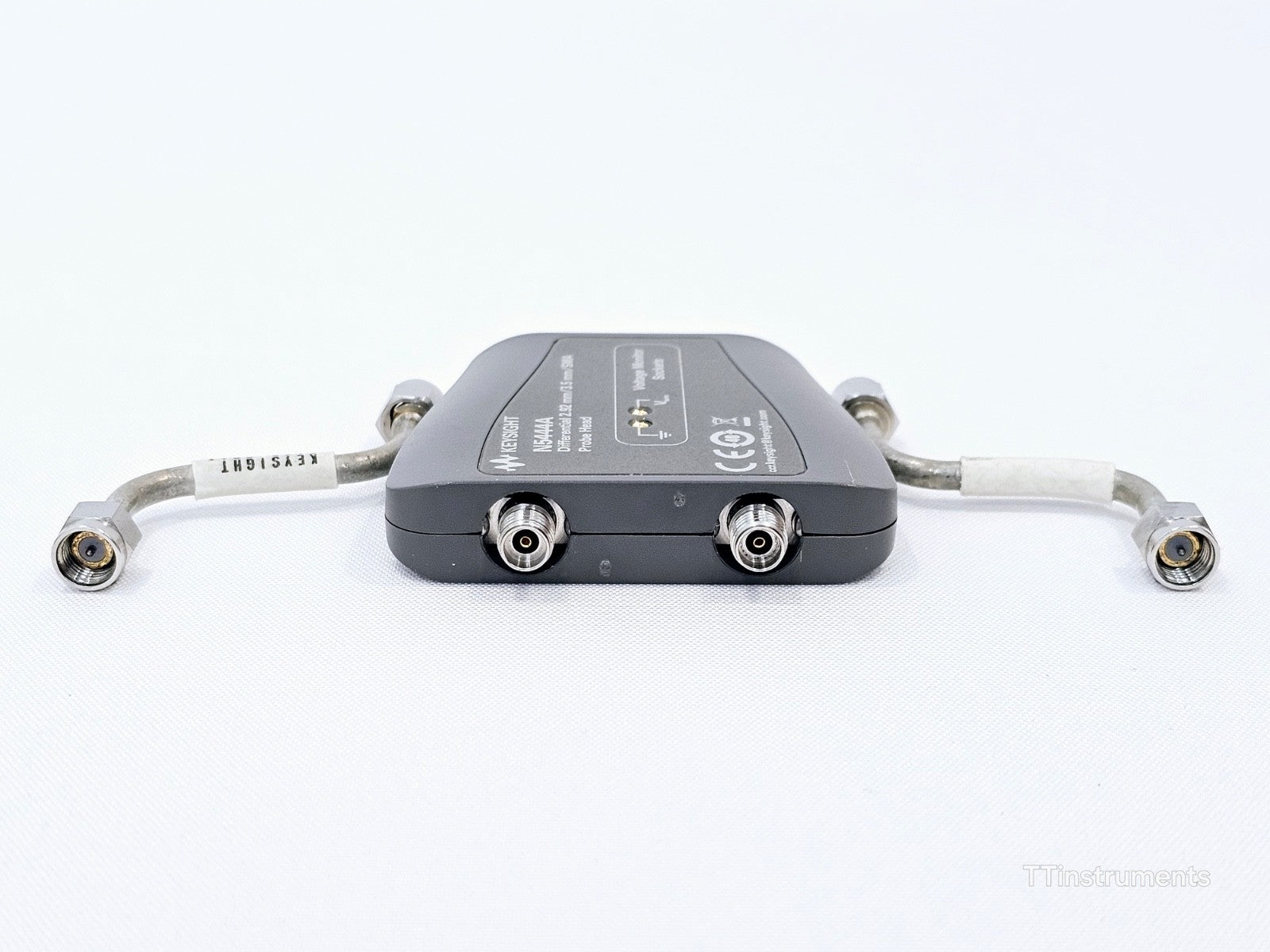

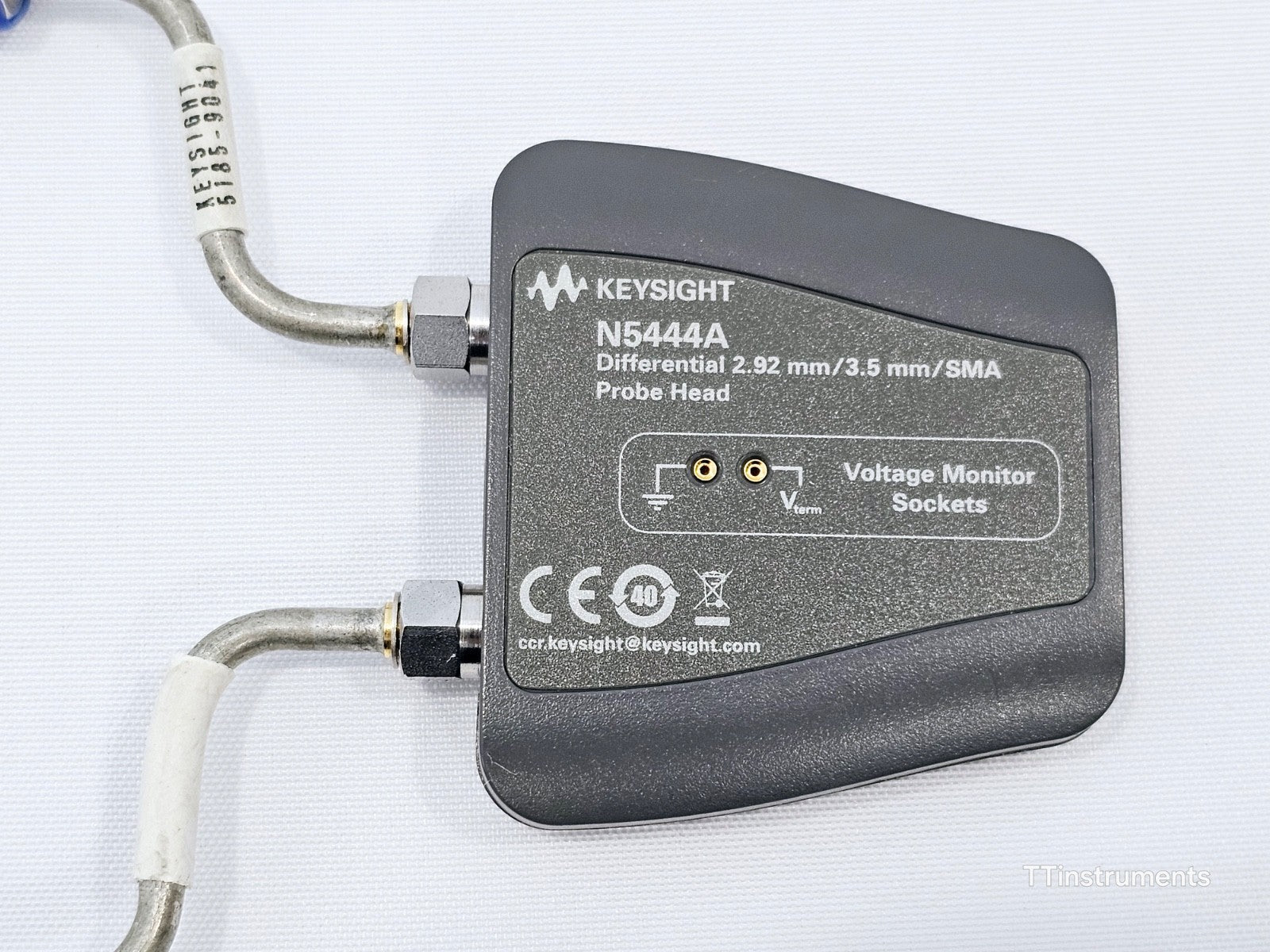

This Keysight N5444A InfiniiMax III Differential 2.92 mm/3.5 mm/SMA Probe Head is offered in used condition. The unit includes its attached semi-rigid input cables and voltage monitor sockets on the front face.

Included in the sale:
• 1x Keysight N5444A InfiniiMax III Differential Probe Head with attached semi-rigid 2.92 mm input cables
• 1x Voltage input cable (grey Belden coax with red/black banana connectors)

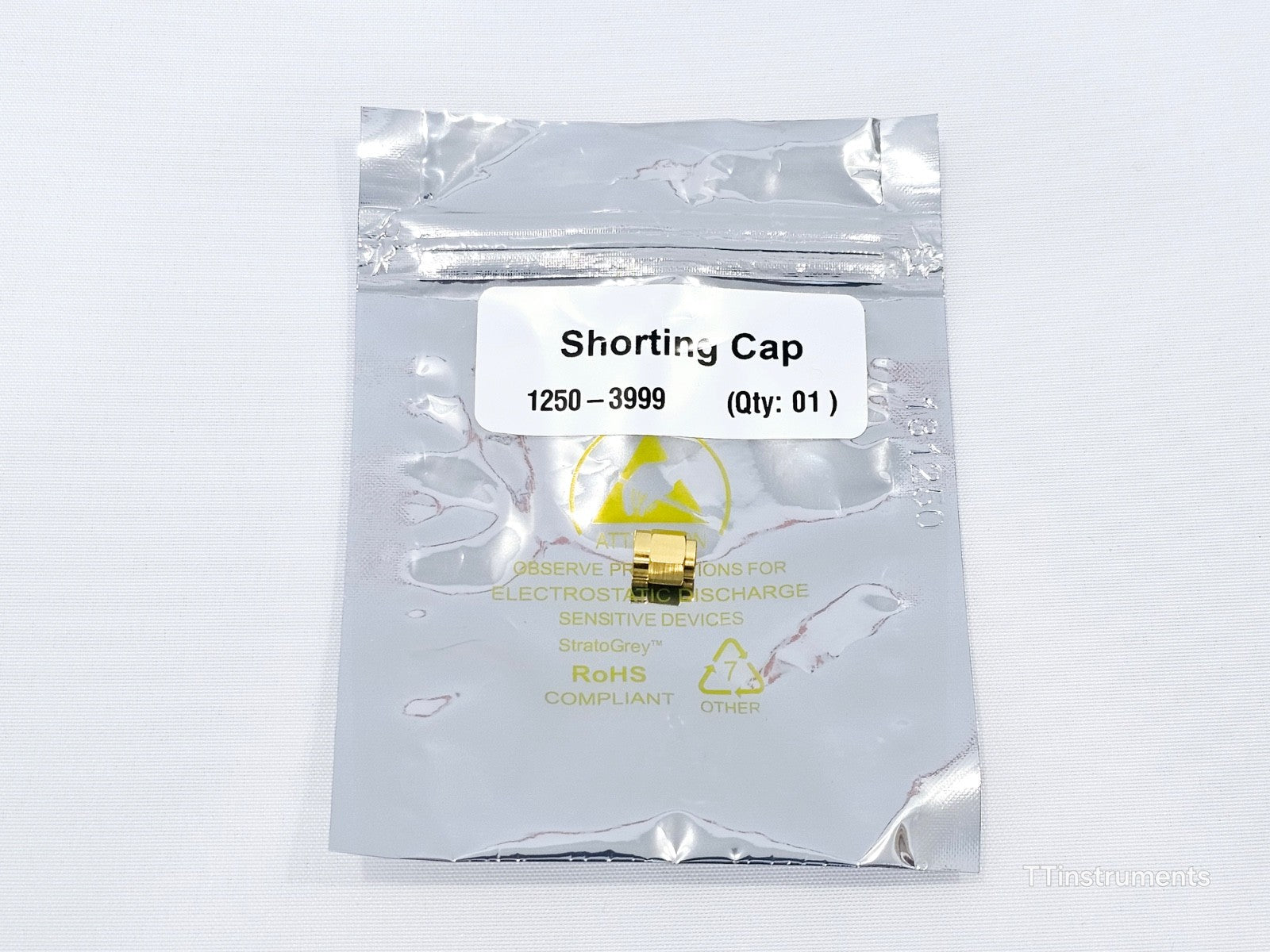

• 1x Shorting Cap (Keysight part 1250-3999, in ESD-safe packaging)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Keysight N5444A is an InfiniiMax III 2.92 mm/3.5 mm/SMA differential probe head designed for use with Keysight InfiniiMax III probe amplifiers and Infiniium high-bandwidth oscilloscopes. It allows two 2.92 mm, 3.5 mm, or SMA cables to be connected simultaneously to perform a differential measurement on a single oscilloscope channel. The probe head is part of the RCRC-architecture InfiniiMax III probing system and is compatible with all InfiniiMax III and III+ probe amplifiers (N2800A, N2801A, N2802A, N2803A series and N7000A/N7001A/N7002A/N7003A series). It supports InfiniiMode when used with InfiniiMax III+ amplifiers, enabling switching between differential, single-ended, and common-mode measurements without reconnecting probe tips.

The N5444A provides termination to a common DC voltage rather than ground, which is required for many modern signal standards. The termination is implemented such that from DC to approximately 1 kHz the input resistance is 55 Ω to Vterm, and above approximately 10 kHz the termination is 50 Ω to 0.9 × Vterm. The termination voltage can be set internally via the oscilloscope or applied externally via the supplied DC voltage jack.

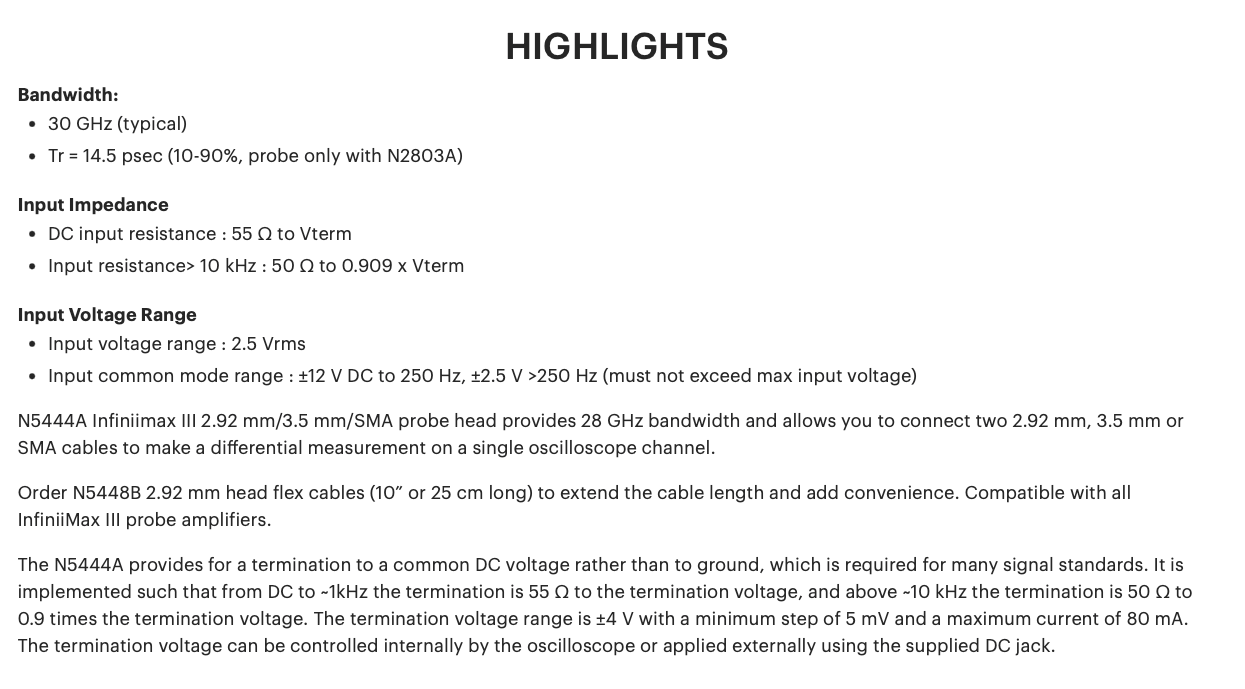

Bandwidth: 30 GHz (typical)
Rise Time (Tr): 14.5 ps (10–90%, probe only with N2803A)
DC Input Resistance: 55 Ω to Vterm
Input Resistance (>10 kHz): 50 Ω to 0.909 × Vterm
Input Voltage Range: 2.5 Vrms
Input Common Mode Range: ±12 V DC to 250 Hz; ±2.5 V above 250 Hz
Termination Voltage Range: ±4 V, minimum step 5 mV, maximum current 80 mA
Connector Types: 2.92 mm / 3.5 mm / SMA
Compatible Amplifiers: All InfiniiMax III and III+ probe amplifiers
InfiniiMode Support: Yes (with InfiniiMax III+ amplifiers)
Input Architecture: RCRC

InfiniiMax III/III+ Probing System datasheet — specifications, probe head comparison and ordering information: Download PDF

Infiniium Oscilloscope Probes and Accessories datasheet — full probe system overview including N5444A specifications: Download PDF

InfiniiMax III N2800A Series Probing System User's Guide — full user and service guide for probe system including N5444A: Download PDF

InfiniiMax III Probe Handling Guide — proper handling and care instructions for InfiniiMax III N2800A Series probes: Download PDF

Keysight N2800A-Series Probes Configuration Card — recommended probe head configurations and tips for InfiniiMax III system: Download PDF
