Condition: Used

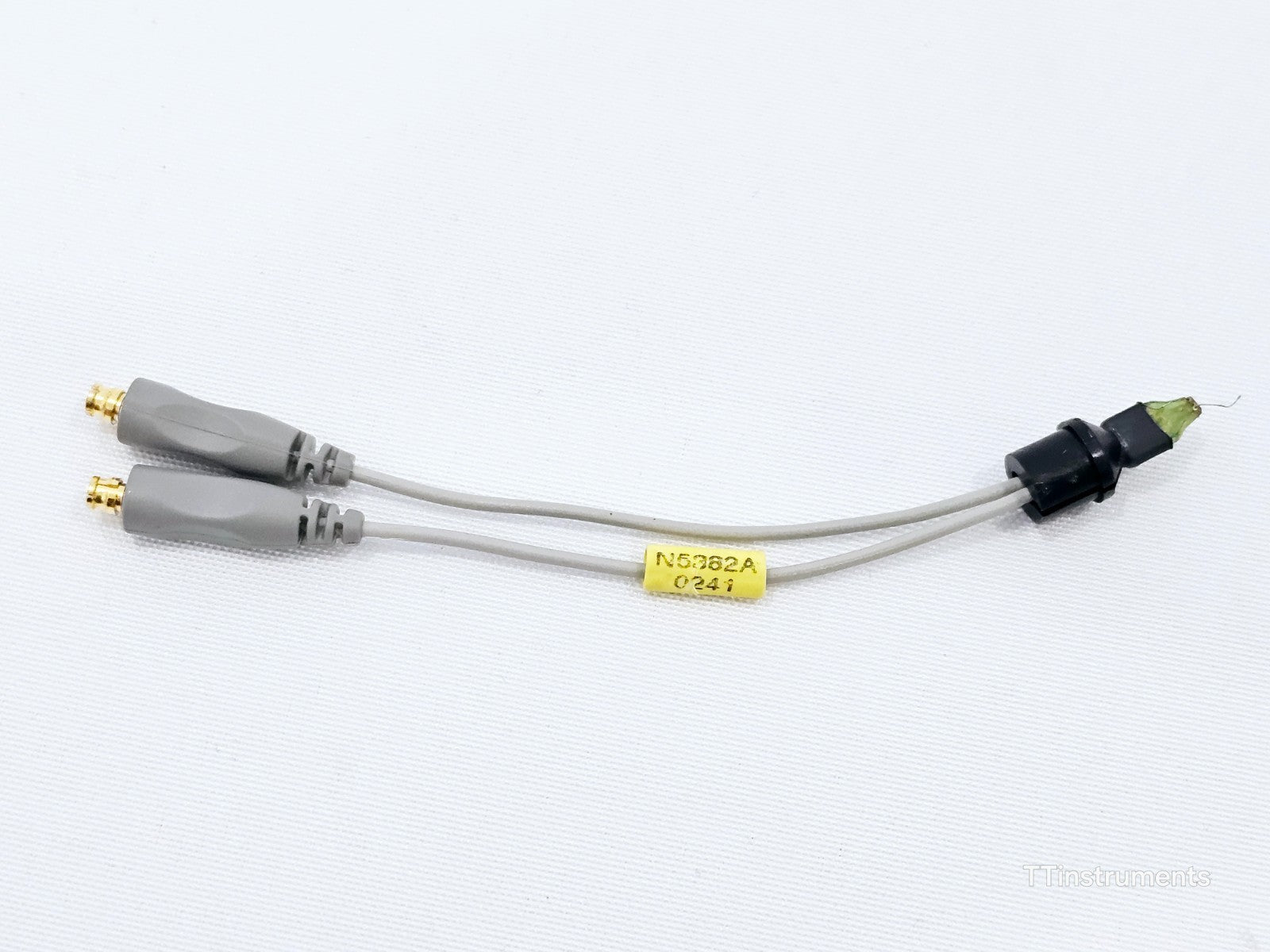

The Keysight N5382A InfiniiMax II 12 GHz Differential Browser Probe Head is a used example in good condition. Designed for hand-held browsing and general-purpose troubleshooting, it pairs with InfiniiMax II probe amplifiers (1168A/1169A) for full-bandwidth differential measurements.

Included with this product:

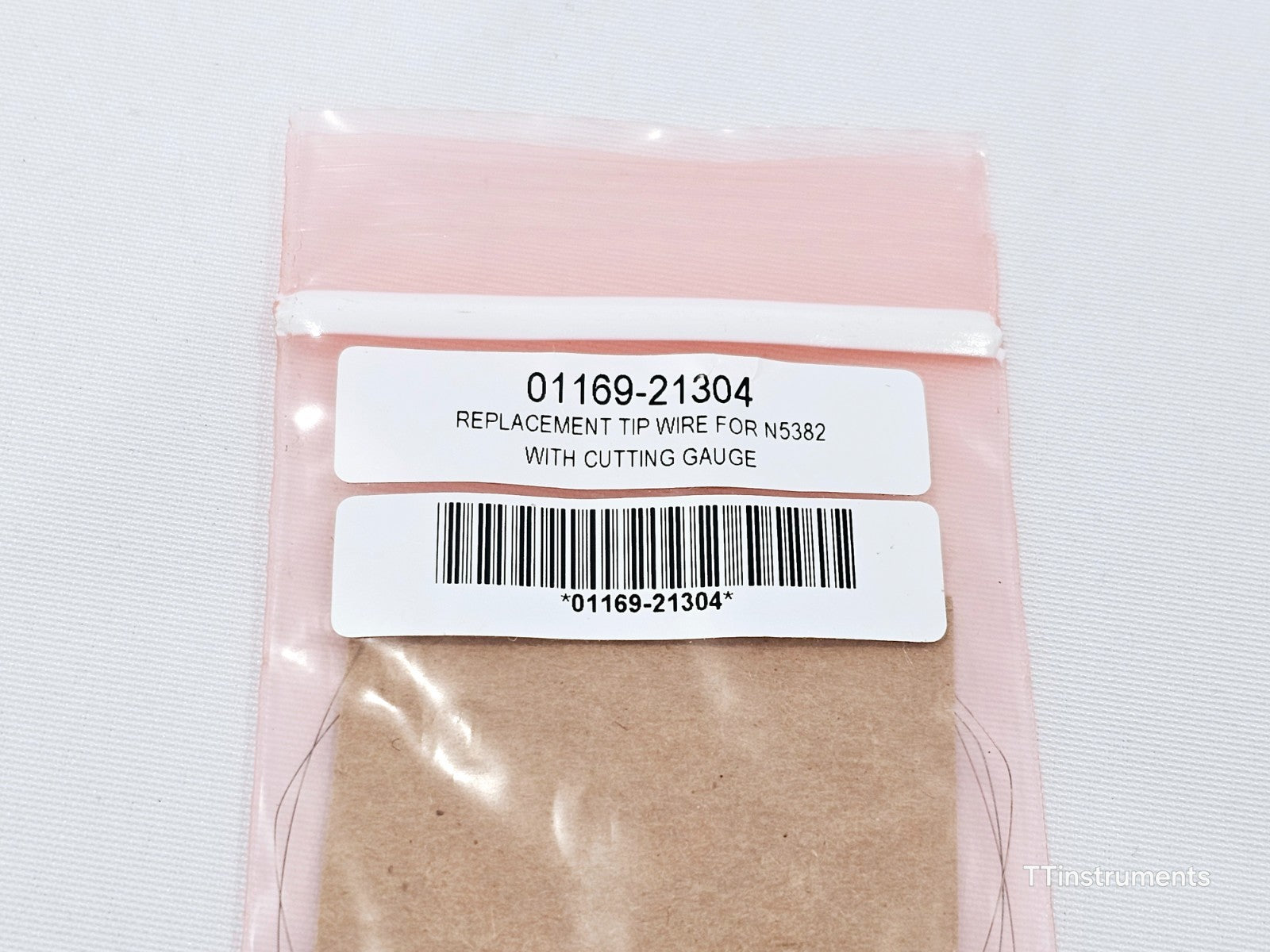

• Wire for replacement leads

The Keysight N5382A is an InfiniiMax II 12 GHz differential browser probe head, part of Keysight's industry-leading InfiniiMax probing system. It is designed for hand-held browsing, use with probe holders, and general-purpose troubleshooting of differential and single-ended high-speed signals on densely populated ICs and PCBs.

The N5382A is recommended for use with InfiniiMax II probe amplifiers (1168A at 10 GHz, 1169A at 12 GHz) and connects to the Keysight Infiniium 80000 and 90000 Series oscilloscopes. The probe head uses steel wire leads that provide Z-axis compliance and a variable tip span, making it highly flexible for browsing across board test points without soldering.

InfiniiMax II probes use an RC input impedance architecture, providing the lowest probe loading and least signal distortion across the widest frequency range — ideal for signal integrity measurements requiring high sensitivity.

Key Specifications:
Bandwidth (specified): 12 GHz
Bandwidth (typical): 13 GHz
Probe Type: Differential browser (hand-held)
Differential Input Capacitance: ≤ 210 fF
Tip Span (variable): 0–2 mm (8–130 mils)
Lead Material: 0.005 inch tin-plated steel wire
Z-axis Compliance: Yes (steel wire leads)
Input Architecture: RC (low loading, low distortion)
Dynamic Range: 3.3 Vp-p (with 1168A/1169A amplifier)
Rated Transient Overvoltage: 80 V peak
Compatible Amplifiers: 1168A (10 GHz), 1169A (12 GHz)
Compatible Oscilloscopes: Keysight Infiniium 80000 and 90000 Series
Product Status: Obsolete (replaced by N2839A InfiniiMax II Differential Browser, 21 GHz)

Typical Applications:
- Hand-held browsing of differential signals
- General-purpose high-speed digital troubleshooting
- Signal integrity measurements on high-density ICs and PCBs
- Use with probe positioners and holders for hands-free operation
- High-speed serial bus standards validation (PCIe, DDR, USB, SATA, HDMI, etc.)

1168A and 1169A InfiniiMax Differential and Single-Ended Probes User's Guide (includes N5382A): Download PDF

1168A 10 GHz and 1169A 12 GHz InfiniiMax Active Probes Quick Start Guide: Download PDF

InfiniiMax SPICE Models for the N5381A and N5382A Probe Heads: Download PDF

Infiniium Oscilloscope Probes and Accessories Data Sheet (covers InfiniiMax II system including N5382A): Download PDF
