Condition: Used

The Keysight N5381A InfiniiMax II 12 GHz Differential Solder-in Probe Head is offered in used condition, in good working order. Supplied with its solder-in tip (TIP) as indicated in the product title, it is designed for use with the Keysight 1168A/1169A InfiniiMax II probe amplifiers and compatible Infiniium oscilloscopes.

Typically included:
• N5381A probe head

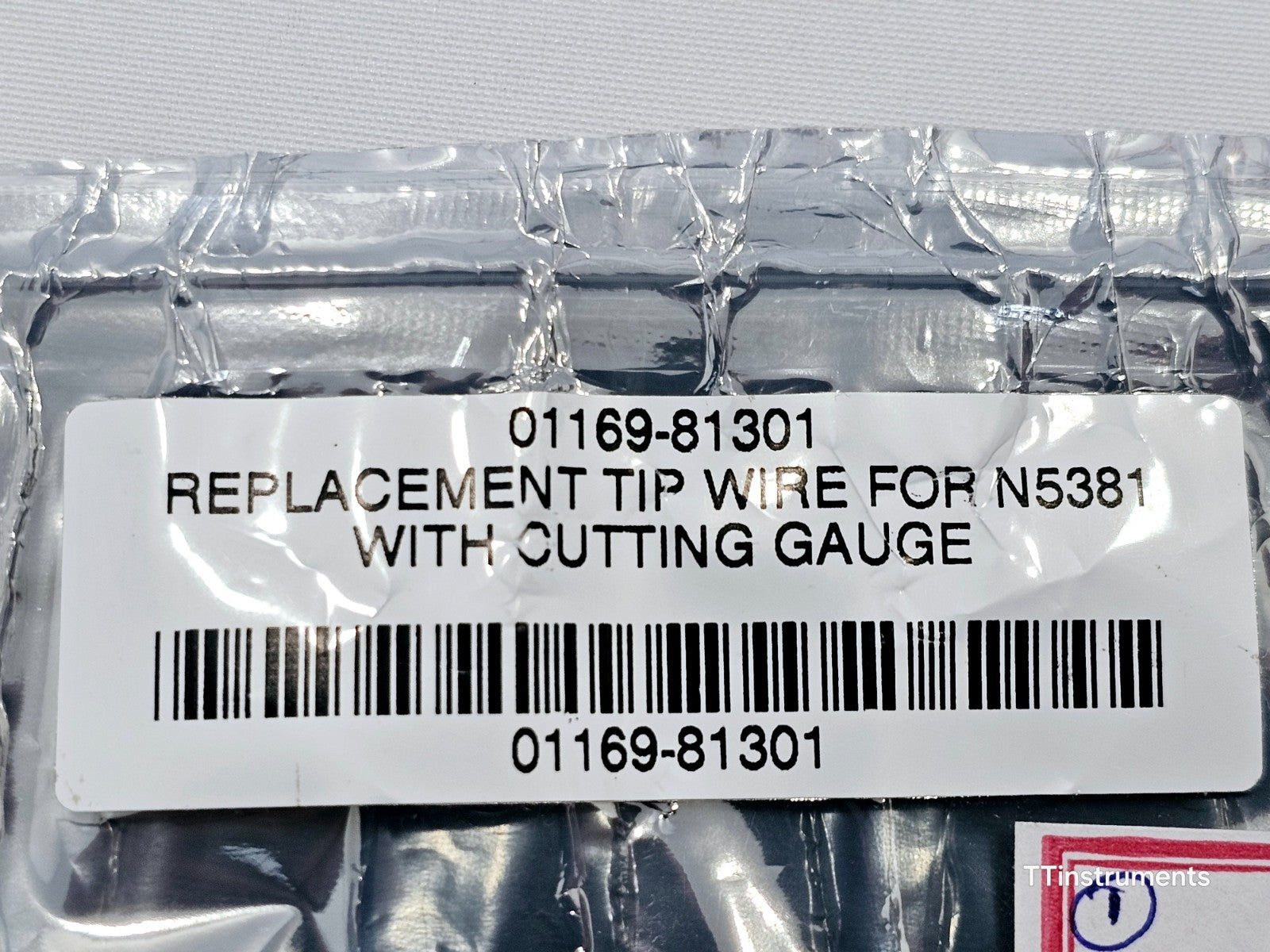

• Solder-in TIP

The Keysight N5381A is part of the InfiniiMax II probing system, designed to provide high-performance differential signal measurements on high-density ICs and PCBs. It is recommended for use with the 1168A and 1169A InfiniiMax II probe amplifiers, and is compatible with Keysight Infiniium DSO80000 and DSO90000 Series oscilloscopes. The N5381A uses an RC input impedance architecture for the lowest probe loading and least signal distortion across the full bandwidth range.

Bandwidth (specified): 12 GHz
Bandwidth (typical): 12.5 GHz
Differential Input Capacitance: ≤ 210 fF
Lead Length: 4 inches (approx. 101.6 mm)
Lead Span (variable): 0.2 – 3.3 mm (8 – 130 mils)
Connection Type: Solder-in (semi-permanent)
Probe Architecture: RC input impedance
Wire Material: Silver-nickel plated, tin-plated nickel wire (0.007 inch)
Operating Temperature Range: –55 °C to +150 °C
Compatible Probe Amplifiers: Keysight 1168A, 1169A (InfiniiMax II series)
Compatible Oscilloscopes: Keysight Infiniium DSO80000, DSA80000, DSO90000, DSA90000 Series
Replacement Product: Keysight N5381B

Typical applications include probing high-speed serial data signals, DDR memory interfaces (e.g. DIMM sockets), and other differential signals on densely packed PCBs where minimal probe loading and a reliable semi-permanent connection are required.

Keysight Infiniium Oscilloscope Probes and Accessories Data Sheet (includes N5381A specifications): Download PDF

Keysight 1168A/1169A InfiniiMax Probe User's Guide (covers N5381A probe head usage and wire replacement): Download PDF

Keysight InfiniiMax Spice Models for N5381A and N5382A Probe Heads: Download PDF

Keysight InfiniiMax II Quick Start Guide (Publication 01169-97002): Download PDF

Keysight Application Note: Extending the Range of InfiniiMax Probes (references N5381A temperature and reach): Download PDF

Agilent/Keysight Infiniium Oscilloscope Probes and Accessories Data Sheet (third-party hosted, includes N5381A): Download PDF
