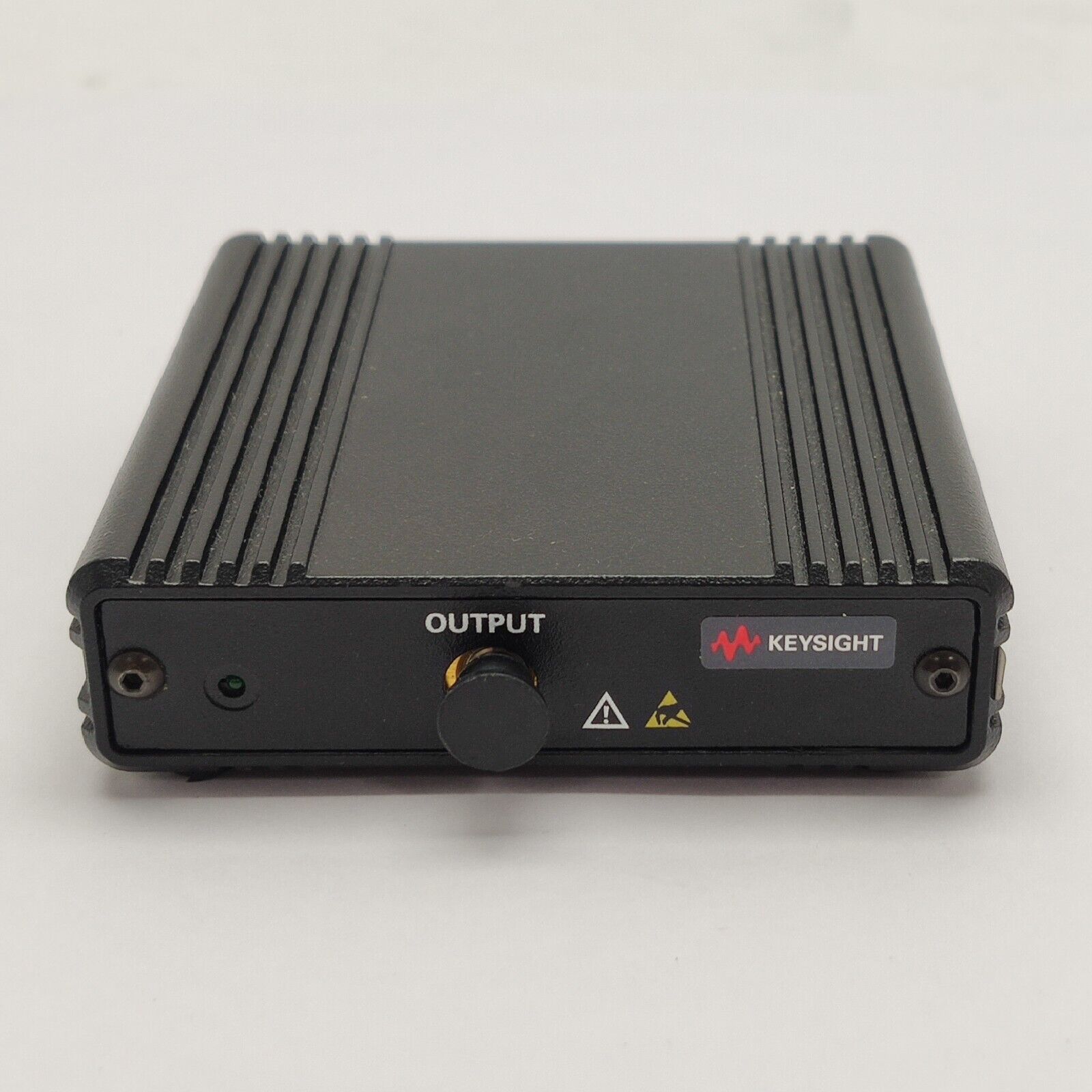

Keysight N4985A-S50 microwave system amplifier front panel showing OUTPUT SMA connector and power LED

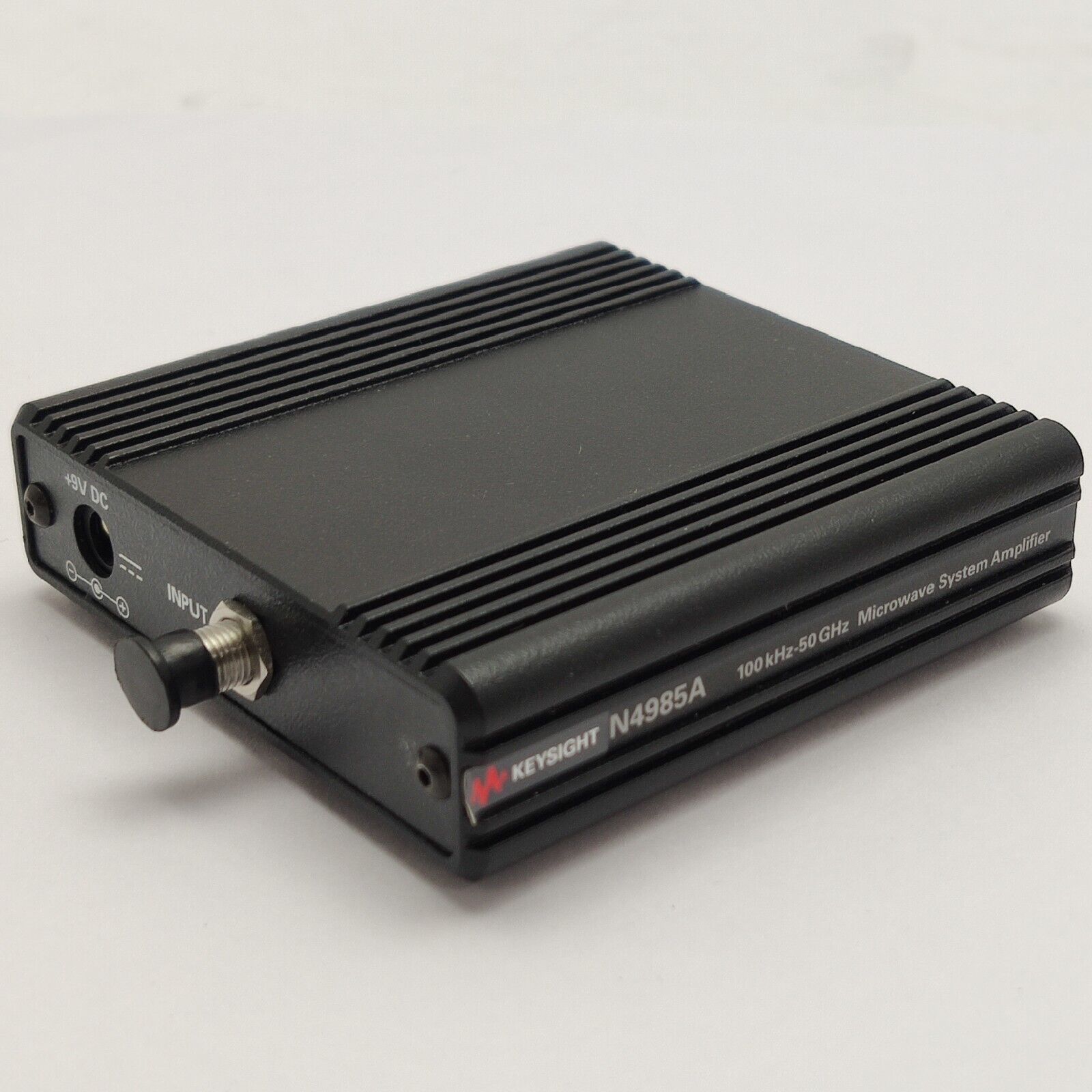

Keysight N4985A 100 kHz–50 GHz microwave system amplifier angled view showing INPUT connector and +9V DC port

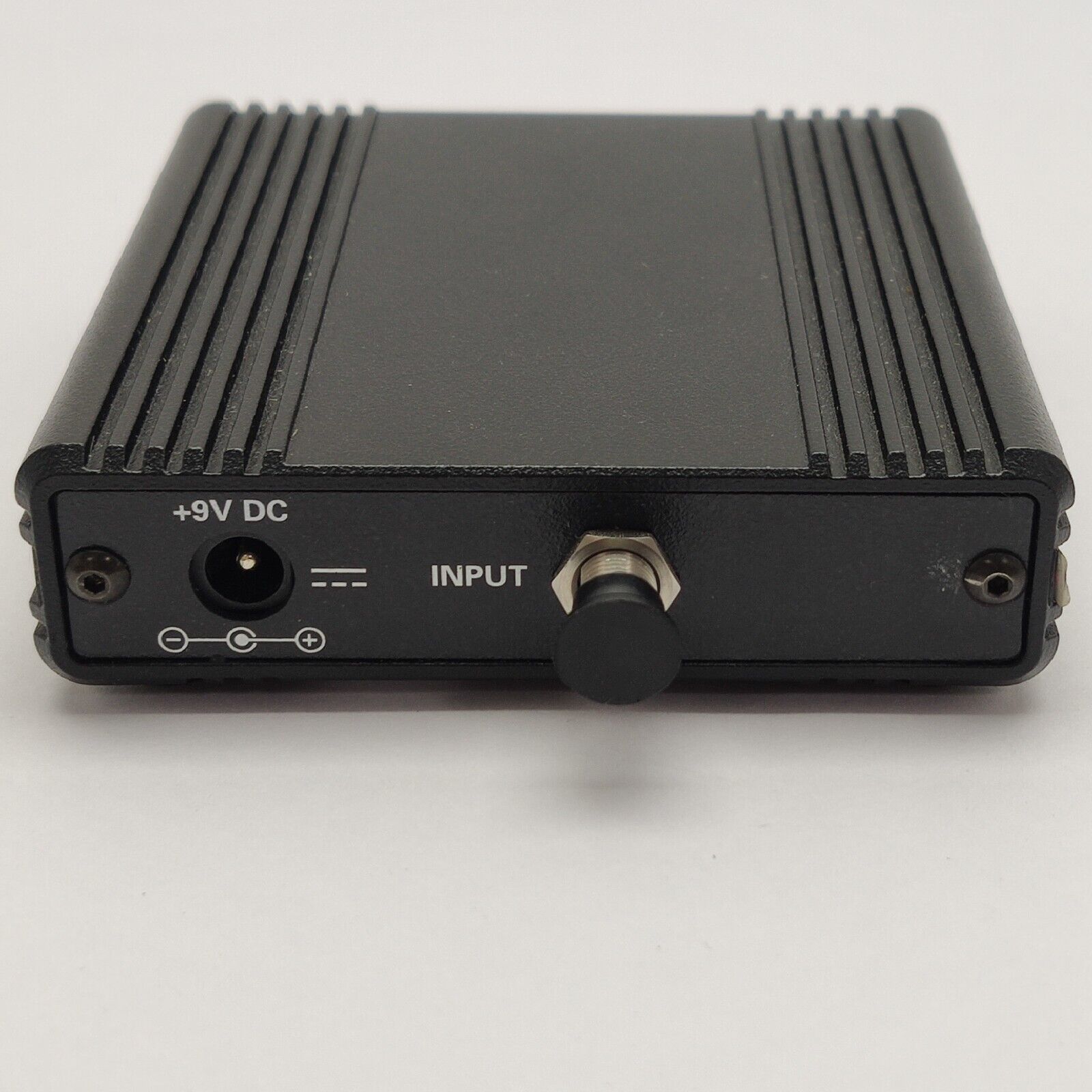

Keysight N4985A-S50 rear panel close-up showing +9V DC power jack and INPUT 2.92mm RF connector

Keysight N4985A-S50 microwave amplifier angled rear view showing INPUT port, DC jack and ribbed chassis

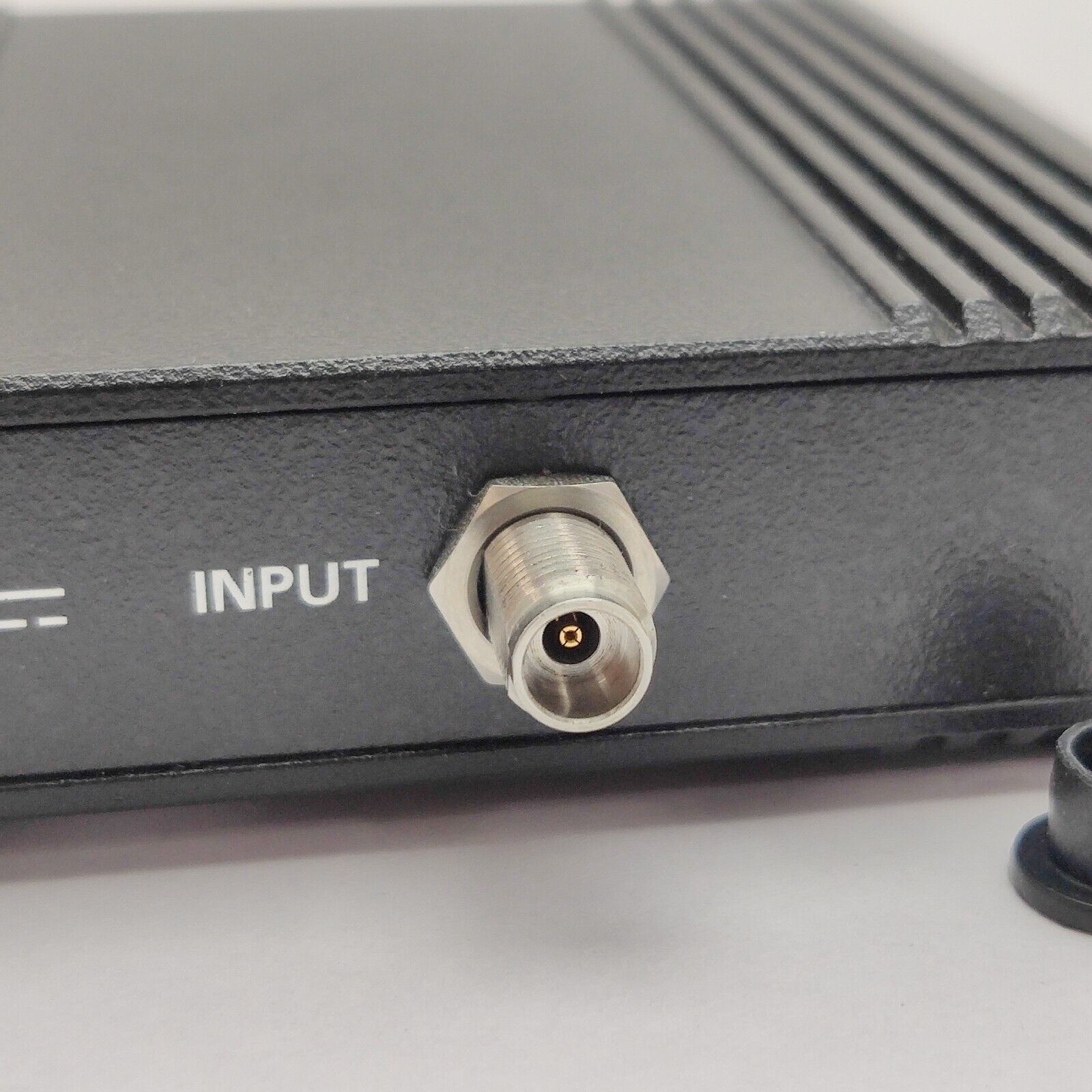

Close-up of Keysight N4985A-S50 INPUT 2.92mm female RF connector with gold centre pin detail

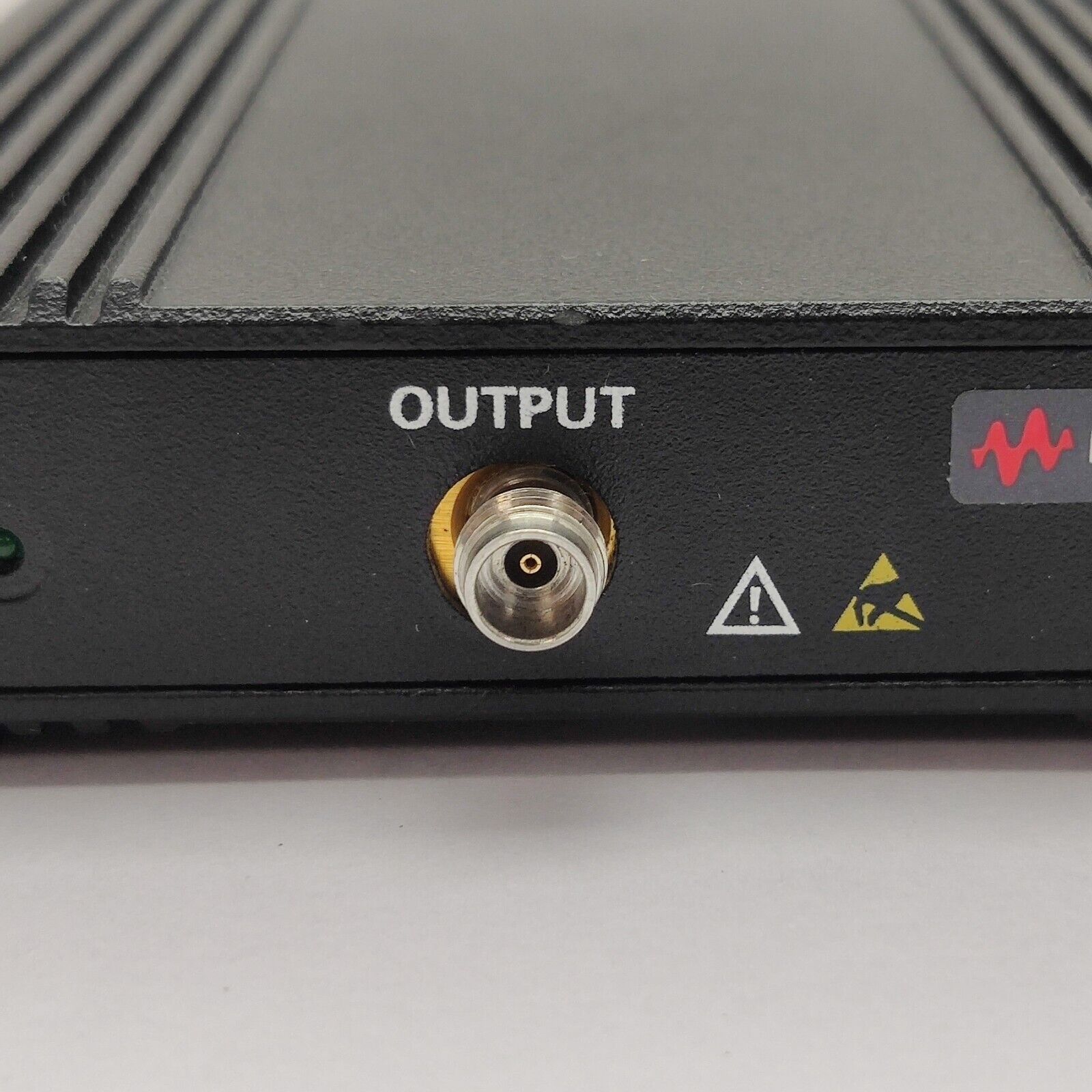

Close-up of Keysight N4985A-S50 OUTPUT 2.92mm connector with gold body, warning and ESD caution symbols visible

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Keysight Agilent N4985A 100 kHz-50 GHz Microwave System Amplifier N4985A-S50

Name: Keysight Agilent N4985A 100 kHz-50 GHz Microwave System Amplifier N4985A-S50
Brand: Keysight Agilent
SKU: 2414 SF01 ER12
Price: 4042.39 GBP
Availability: OutOfStock

The Keysight N4985A-S50 is a high-performance broadband microwave system amplifier covering 100 kHz to 50 GHz, ideal for lab and production test applications.
• Ultra-wideband coverage spanning over 18 octaves — from baseband RF to millimetre wave
• >20 dBm saturated output power with up to 29 dB small signal gain
• Compact, self-contained design powered by +9V DC — perfect for bench or close-to-DUT placement

Manufacturer

Keysight Agilent

Model

N4985A

Condition

Used

In stock

SKU

2414 SF01

£4,042.39

Loads Amplifiers & Attenuators
RF & Microwave
RF Components

Make an Offer

Condition: Used

The Keysight N4985A-S50 is a compact, self-contained broadband microwave system amplifier operating from 100 kHz to 50 GHz. This unit is in used condition and is supplied with its input and output 2.92 mm (K) RF connectors present and a power indicator LED visible on the front panel.

Included in the sale:
• Keysight N4985A-S50 amplifier unit (minimal use, like new)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Keysight Technologies N4985A-S50 is a high-performance, broadband microwave system amplifier featuring baseband RF (< 100 kHz) through millimetre wave (> 50 GHz) frequency coverage — spanning over 18 octaves. It is designed to be a multi-use laboratory RF amplifier, functioning as a gain block for frequency domain applications or as a time domain pulse amplifier. Its compact size and versatile performance make it an excellent general-purpose gain block with moderate power output in a single package, potentially replacing two or three narrower-band amplifiers.

The N4985A-S50 is an ideal companion to synthesised signal generators and microwave sources. Its small form factor allows close placement to the DUT or test fixture, and its high gain with greater than 20 dBm output power helps overcome long cable losses from the signal source.

Key Features:
• Broadband coverage: 100 kHz to 50 GHz (over 18 octaves)
• >22 dBm Psat at 40 GHz
• >27 dB gain to 45 GHz
• Useful gain above 65 GHz
• <6 dB noise figure
• Compact size: 3.5" x 3.5" x 1"

Specifications (N4985A-S50 at 25°C):
Frequency Range: 100 kHz to 50 GHz
Saturated Output Power (Psat, 10 MHz–2 GHz): 20 dBm min, 24 dBm typ
Saturated Output Power (Psat, 2–10 GHz): 26 dBm min, 30 dBm typ
Saturated Output Power (Psat, 10–30 GHz): 25 dBm min, 29 dBm typ
Saturated Output Power (Psat, 30–40 GHz): 23 dBm min, 27 dBm typ
Saturated Output Power (Psat, 40–50 GHz): 20 dBm min, 24 dBm typ
1 dB Compressed Power (P-1, 10 MHz–2 GHz): 17 dBm min, 22 dBm typ
1 dB Compressed Power (P-1, 2–10 GHz): 24 dBm min, 28 dBm typ
Small Signal Gain (S21, 10 MHz–2 GHz): 20 dBm min, 25 dBm typ
Small Signal Gain (S21, 2–10 GHz): 25 dBm min, 29 dBm typ
Small Signal Gain (S21, 10–30 GHz): 24 dBm min, 28 dBm typ
Small Signal Gain (S21, 30–40 GHz): 21 dBm min, 25 dBm typ
Small Signal Gain (S21, 40–50 GHz): 17 dBm min, 24 dBm typ
Noise Figure: <6 dB
Bias Voltage and Current: 9 Vdc at 500 mA
RF Connectors: 2.92 mm (female)
Physical Size: 3.5" x 3.5" x 1" (approx.)

Applications:
• Bench-top lab work
• Production line testing
• Frequency and time domain applications
• Saturated RF amplifier testing
• Driving TWT amplifiers
• Antenna system amplification

Product Overview

Condition: Used

Included in the sale:
• Keysight N4985A-S50 amplifier unit (minimal use, like new)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

Resources

Keysight N4985A System Amplifiers datasheet — technical specifications and performance data for all models including N4985A-S50: Download PDF

Keysight N4985A System Amplifiers operating and service manual — installation, operation, and maintenance guide: Download PDF

Keysight RF and Microwave Amplifiers technical overview — selection guide including N4985A-S30/S50 preamplifiers: Download PDF

Keysight N4985A System Amplifiers datasheet (mirror) — full specifications for N4985A-S30, S50, P15, P25: Download PDF
