Condition: Used

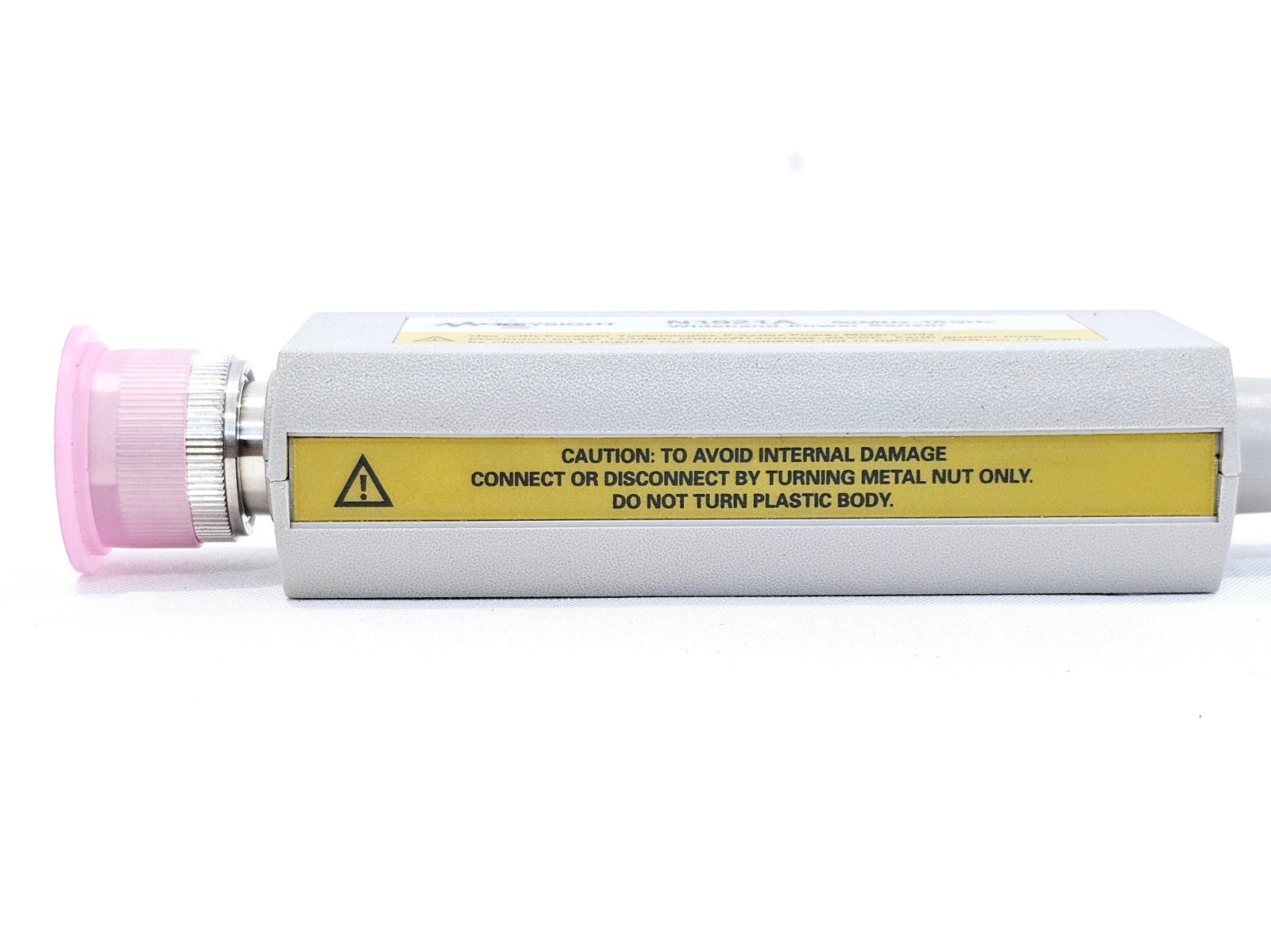

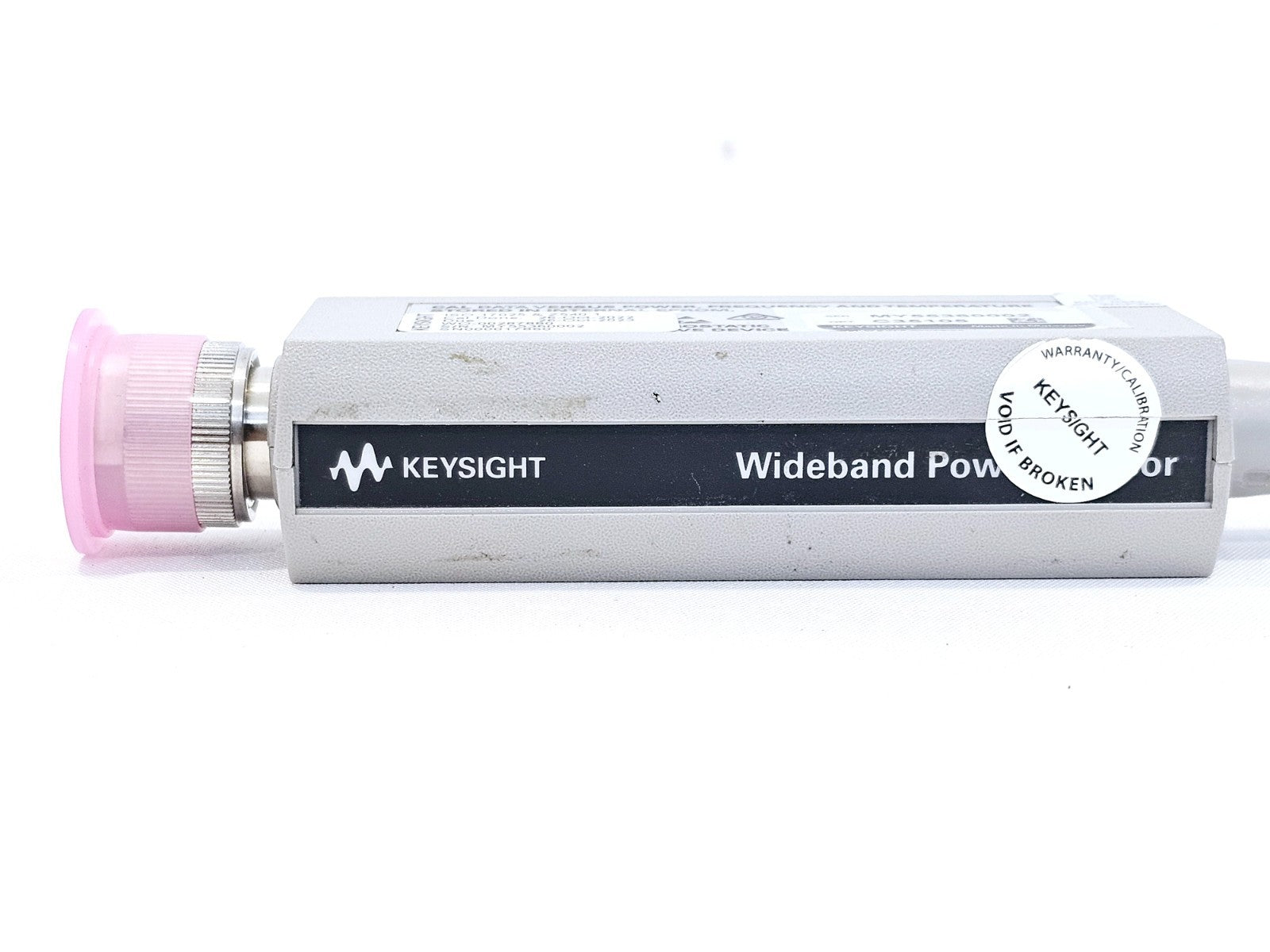

The Keysight N1921A P-Series Wideband Power Sensor is in good working condition. It covers 50 MHz to 18 GHz with a -35 to +20 dBm dynamic range. Correction data including calibration factors, linearity, temperature, and bandwidth are stored in EEPROM. The sensor features a precision Type-N connector with a fixed cable attached.

What is typically included based on the product description:
• N1921A wideband power sensor

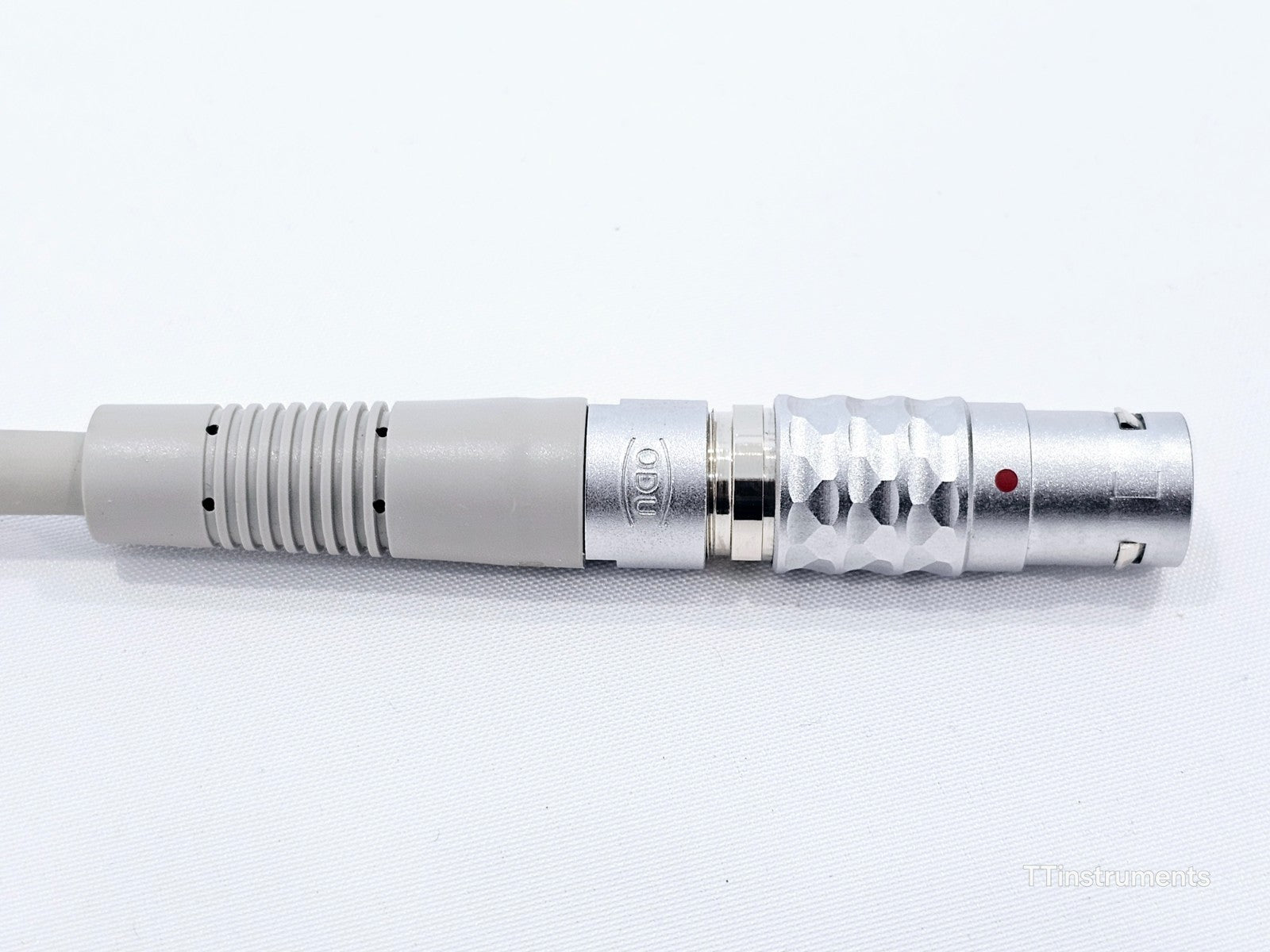

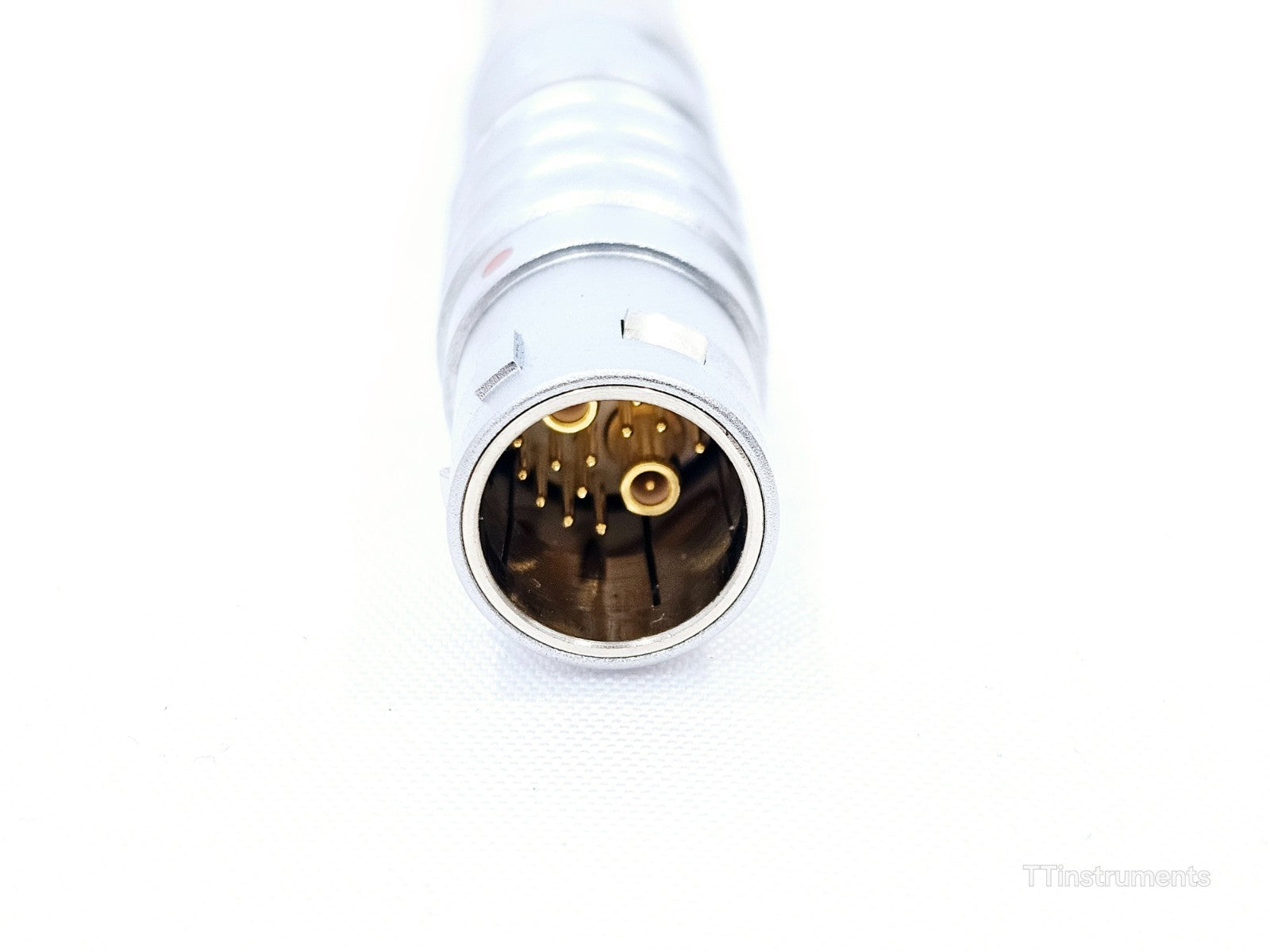

• Fixed sensor cable (available in 1.5 m / 3 m / 10 m lengths)

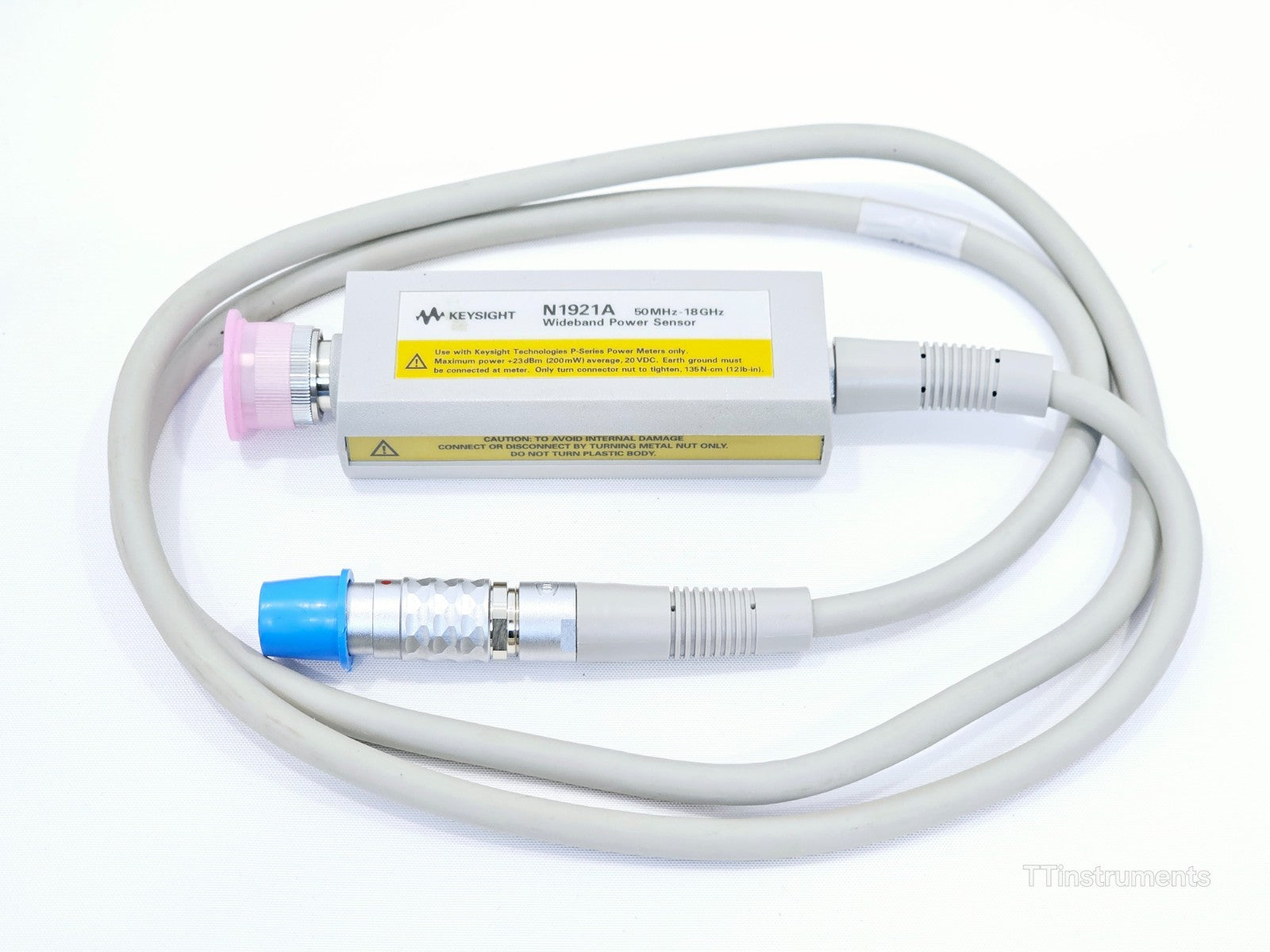

The Keysight N1921A is a P-Series Wideband Power Sensor designed for use with Keysight P-Series power meters such as the N1911A and N1912A. It is the industry's first wideband power sensor to feature internal zero and calibration, integrating a DC reference source and switching circuits directly into the sensor body. This eliminates the need for multiple connections to an external calibration source, reducing connector wear, shortening test time, and minimising measurement uncertainty.

The sensor is suited to characterising pulsed, bursty, and modulated signals across a wide range of RF and microwave applications including wireless communications, radar, and semiconductor test.

Key Specifications:
Frequency Range: 50 MHz to 18 GHz
Dynamic Range (Peak Power): -35 to +20 dBm
Maximum Average Input Power: +25 dBm, 5 VDC
Maximum Peak Input Power: +33 dBm (< 10 µs)
RF Connector: Precision Type-N (50 Ω)
Cable: Fixed to sensor; available lengths 1.5 m (5 ft), 3 m (10 ft), 10 m (31 ft)
Rise Time: ≤ 13 ns (video bandwidth set to Off)
Video Bandwidth Settings: High, Medium, Low, Off
Measurement Capabilities: Peak power, peak-to-average ratio, average power, rise time, fall time, maximum power, minimum power, statistical (CCDF) data

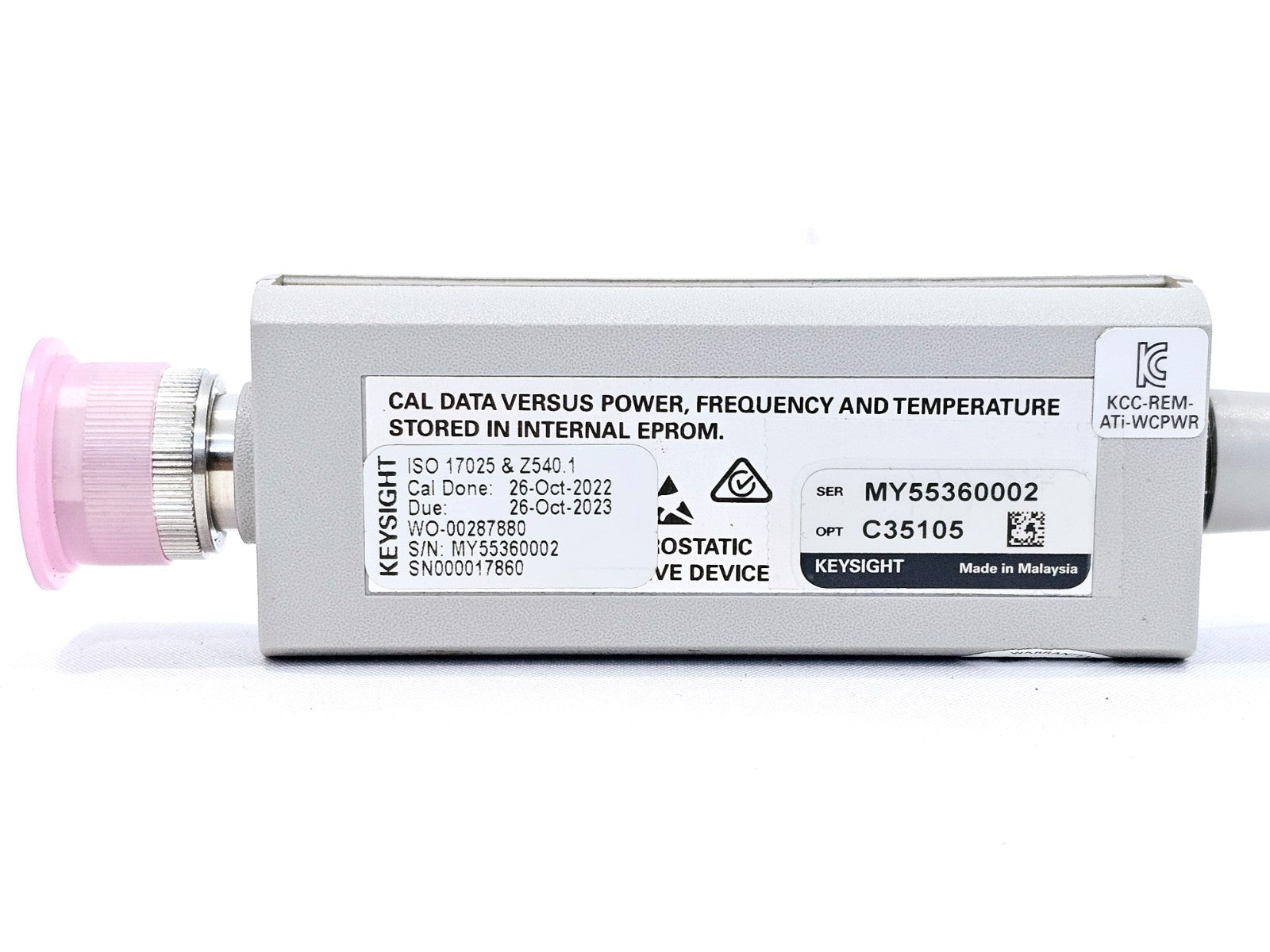

Calibration Data Storage: EEPROM (calibration factors, linearity, temperature, bandwidth correction)
Zero/Cal Method: Internal — zero and calibrate while connected to DUT
Compatible Power Meters: Keysight N1911A (single channel), N1912A (dual channel) P-Series power meters
Software Support: Keysight BenchVue (BV0007B Power Meter/Sensor Control and Analysis app)
Operating Temperature: 0 to 55 °C (warranted specifications)
Calibration Options: ISO 17025 (Option 1A7), ANSI Z540-1-1994 (Option A6J)

Keysight N1911A/N1912A & N1921A/N1922A P-Series Power Meters and Wideband Power Sensors — Official Datasheet (5989-2471EN): Download PDF

Keysight N1921A/N1922A P-Series Wideband Power Sensor — User & Service Guide (9018-05084): Download PDF

Keysight P-Series Power Meters and Wideband Power Sensors — Technical Overview (5989-1049EN): Download PDF

Keysight N1921A/N1922A Operating and Service Guide — third-party hosted PDF: Download PDF
