Condition: Used

This Keysight MSOX3034T is in good working condition and is supplied with a comprehensive set of active software licences, significantly expanding its measurement and analysis capabilities beyond the standard configuration.

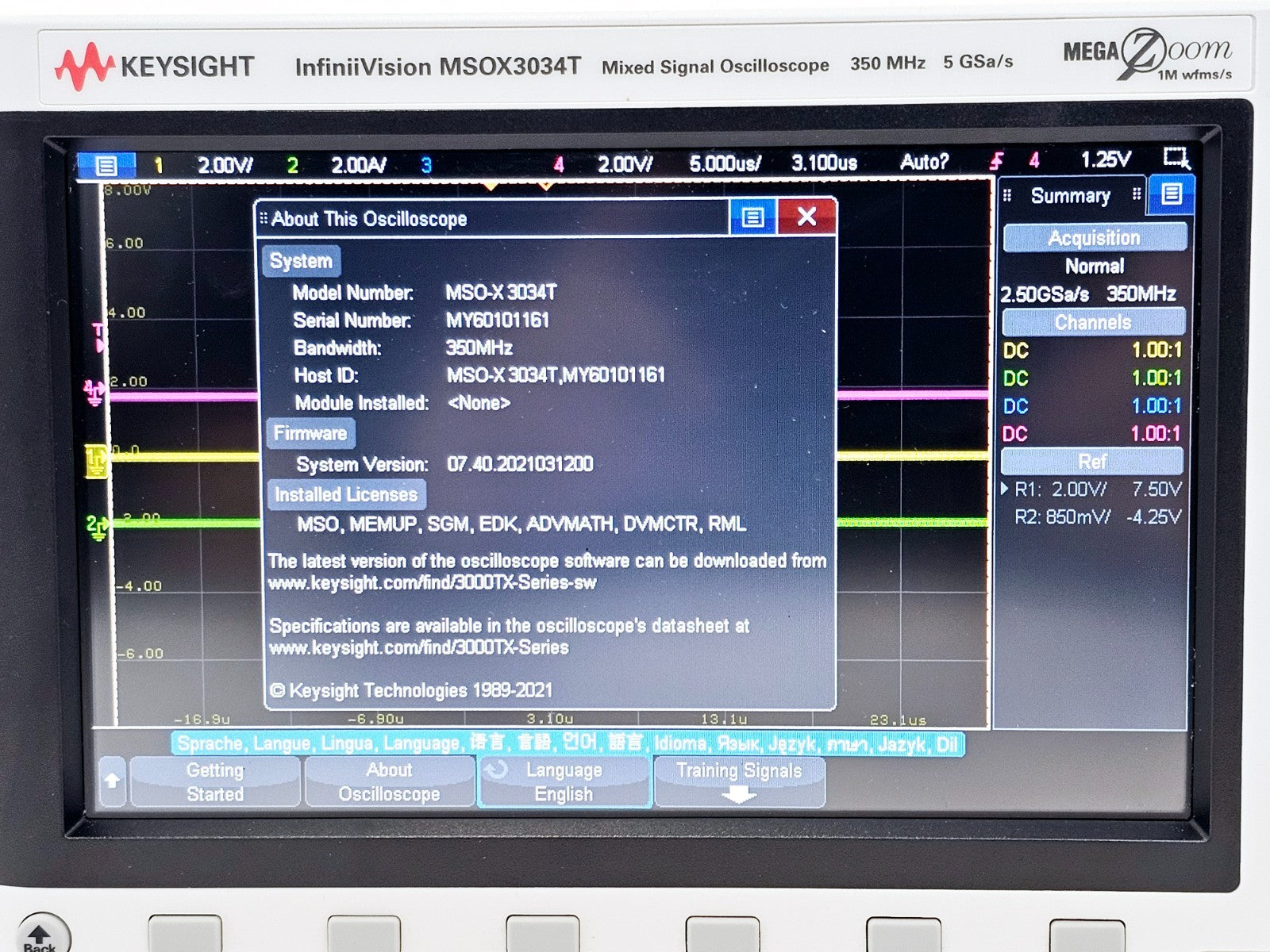

Active licences included:
• MSO — mixed-signal analysis
• MEMUP — memory upgrade
• SGM — serial bus analysis
• EDK — extended digital features
• ADVMATH — advanced math functions
• DVMCTR — digital voltmeter
• RML — serial bus decoding

Also included:

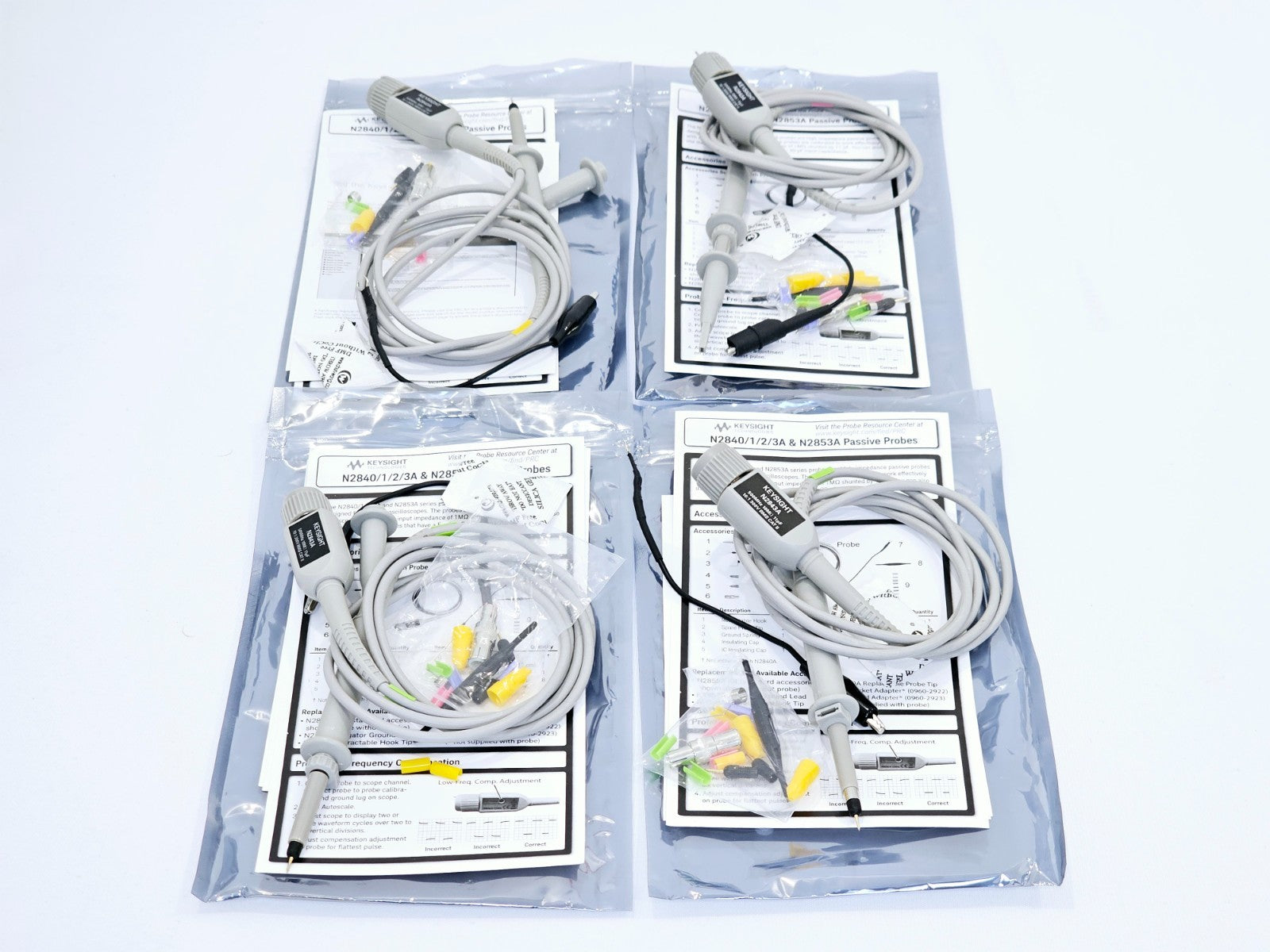

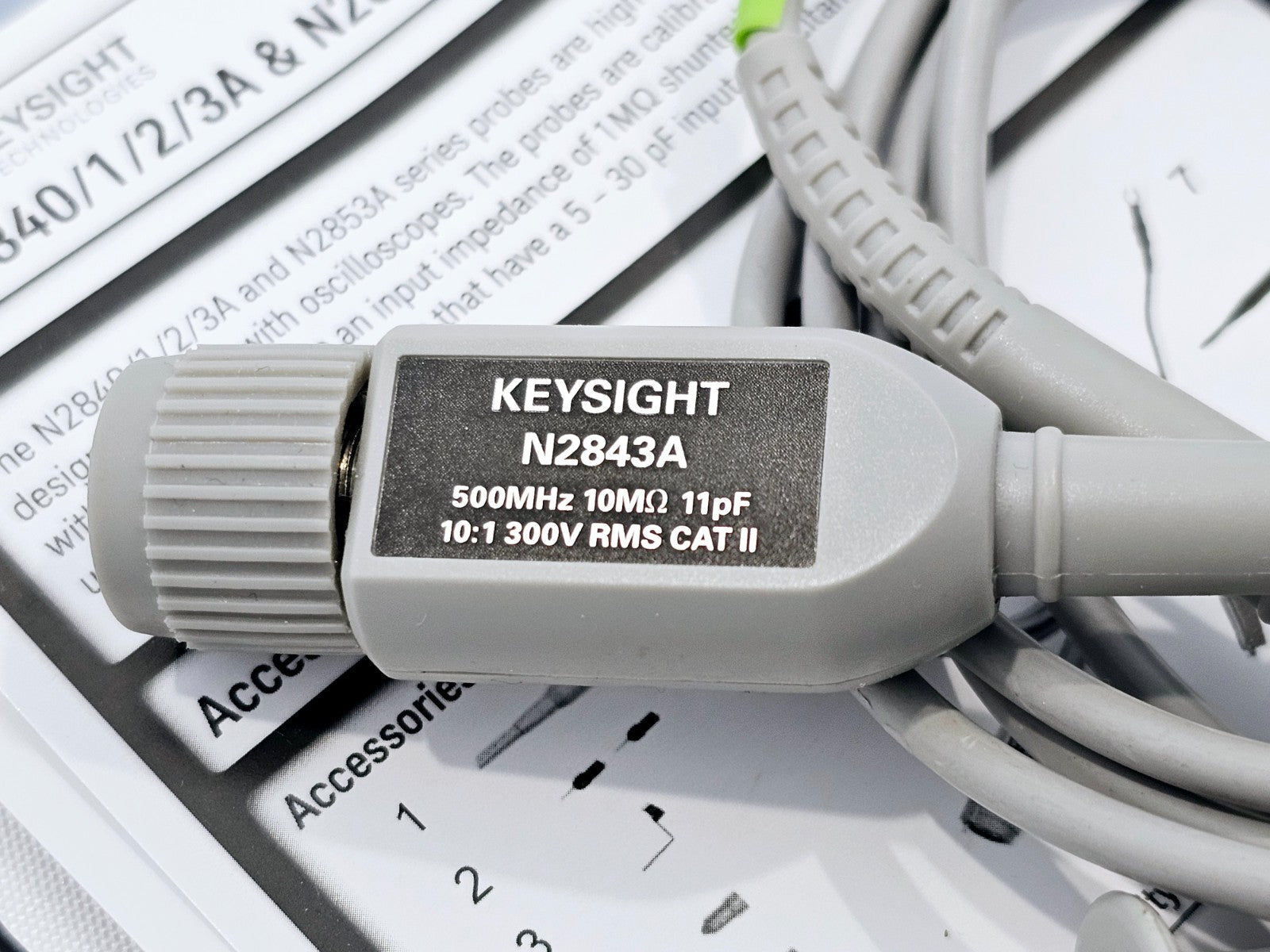

• Keysight N2843A 500 MHz passive probe (10:1, 1.2 m)

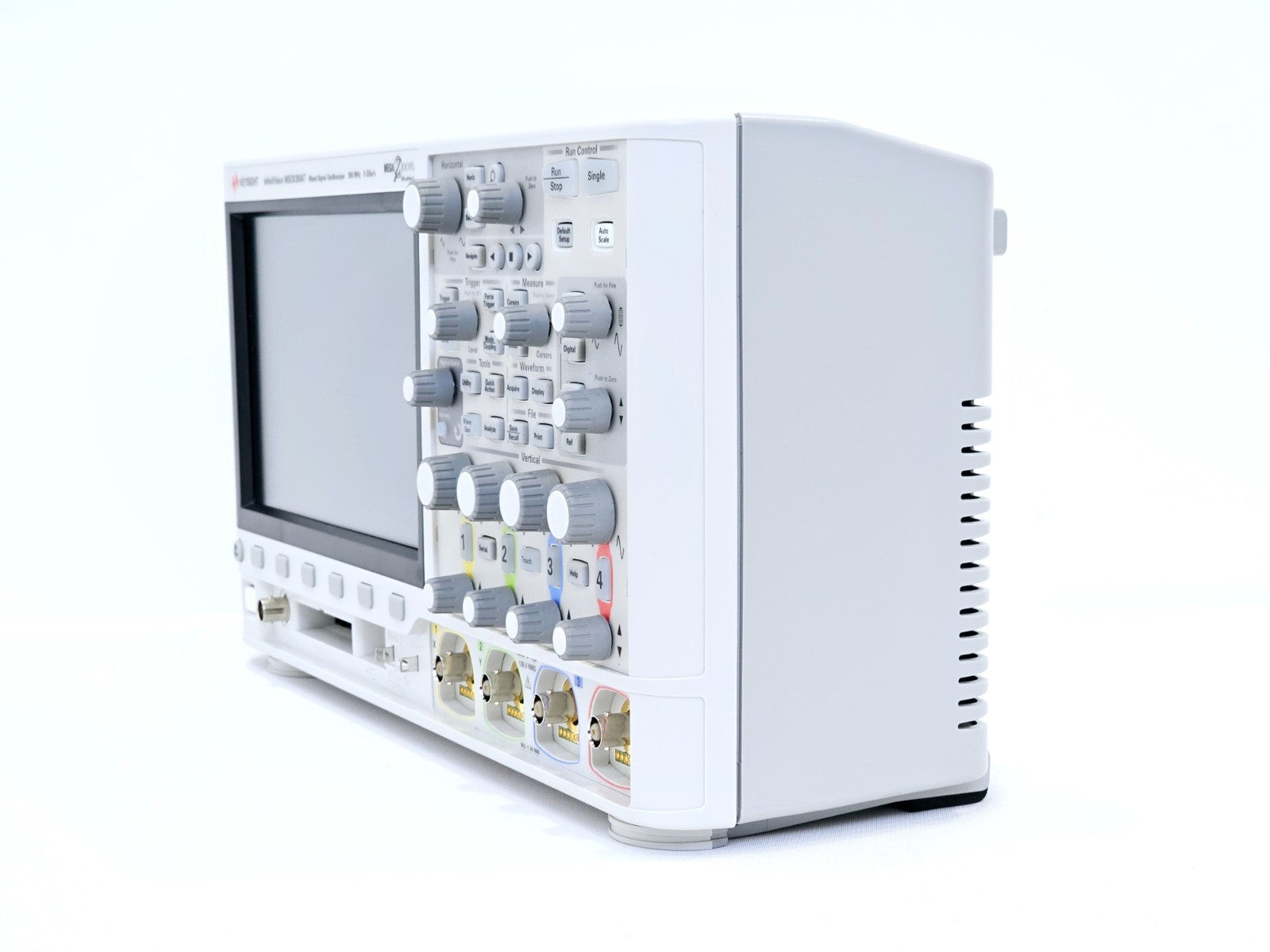

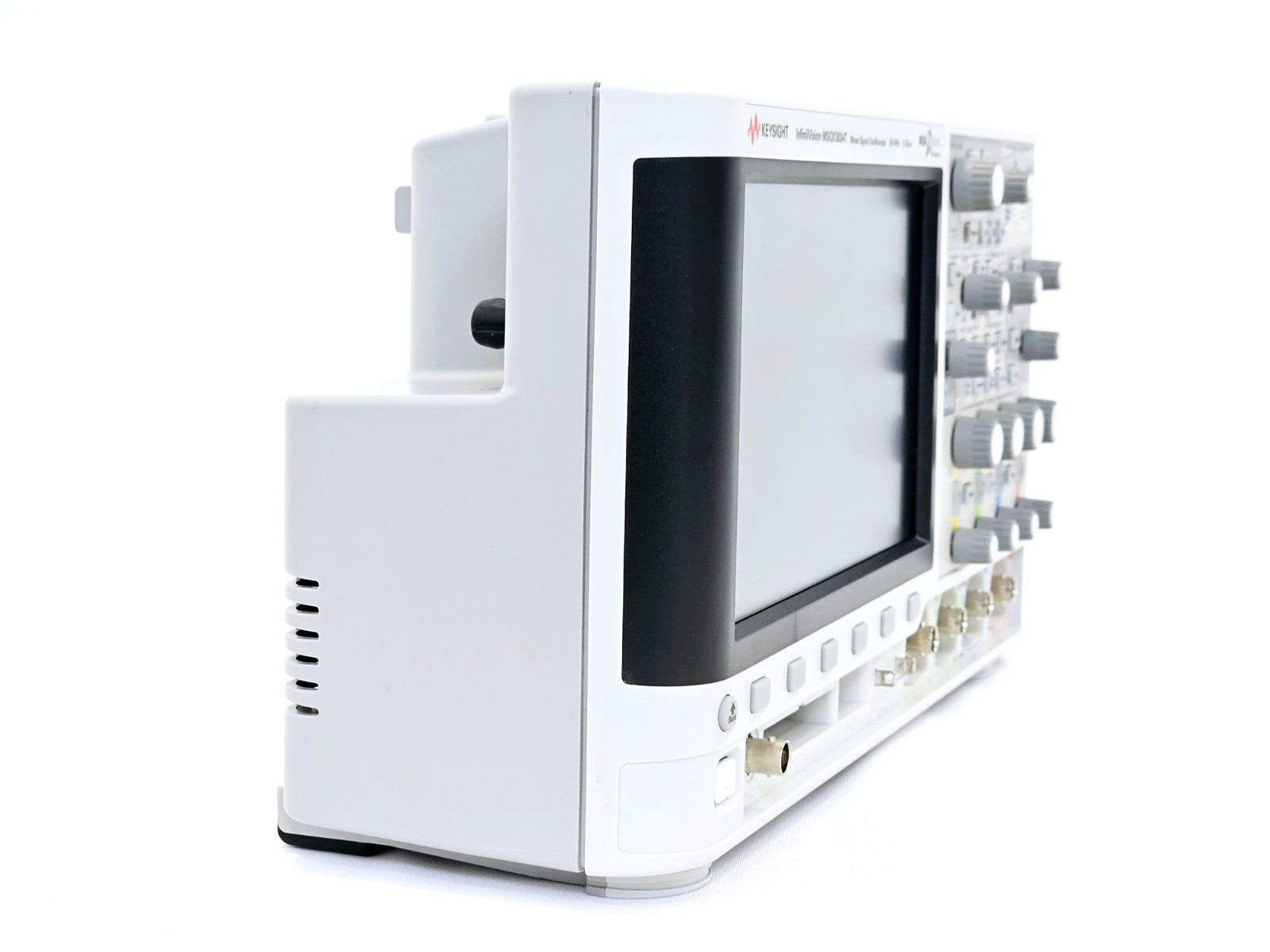

The Keysight MSOX3034T is part of the InfiniiVision 3000T X-Series of mixed signal oscilloscopes. It delivers 350 MHz bandwidth across 4 analog and 16 digital channels, combining the capabilities of a high-performance oscilloscope and logic analyser in a single, compact bench instrument. The 3000T X-Series was designed from the ground up for touch-screen operation, featuring an 8.5-inch capacitive touch display — the largest in its class — with an intuitive gesture-based user interface.

The instrument's MegaZoom IV smart memory technology enables an industry-leading uncompromised waveform update rate of 1,000,000 waveforms per second, maintained even when digital channels, measurements, serial decoding, or math functions are active. The exclusive Zone touch triggering allows users to isolate signals of interest simply by drawing a touch zone on screen, making complex trigger set-up fast and intuitive.

The 3000T X-Series is a fully upgradable 7-in-1 platform integrating oscilloscope, logic analyser (MSO), protocol analyser, arbitrary/function waveform generator, 3-digit DVM, 8-digit counter/totaliser, and frequency response analyser (Bode plots) — all activatable via software licence at any time.

Key Specifications:
Bandwidth: 350 MHz
Analog Channels: 4

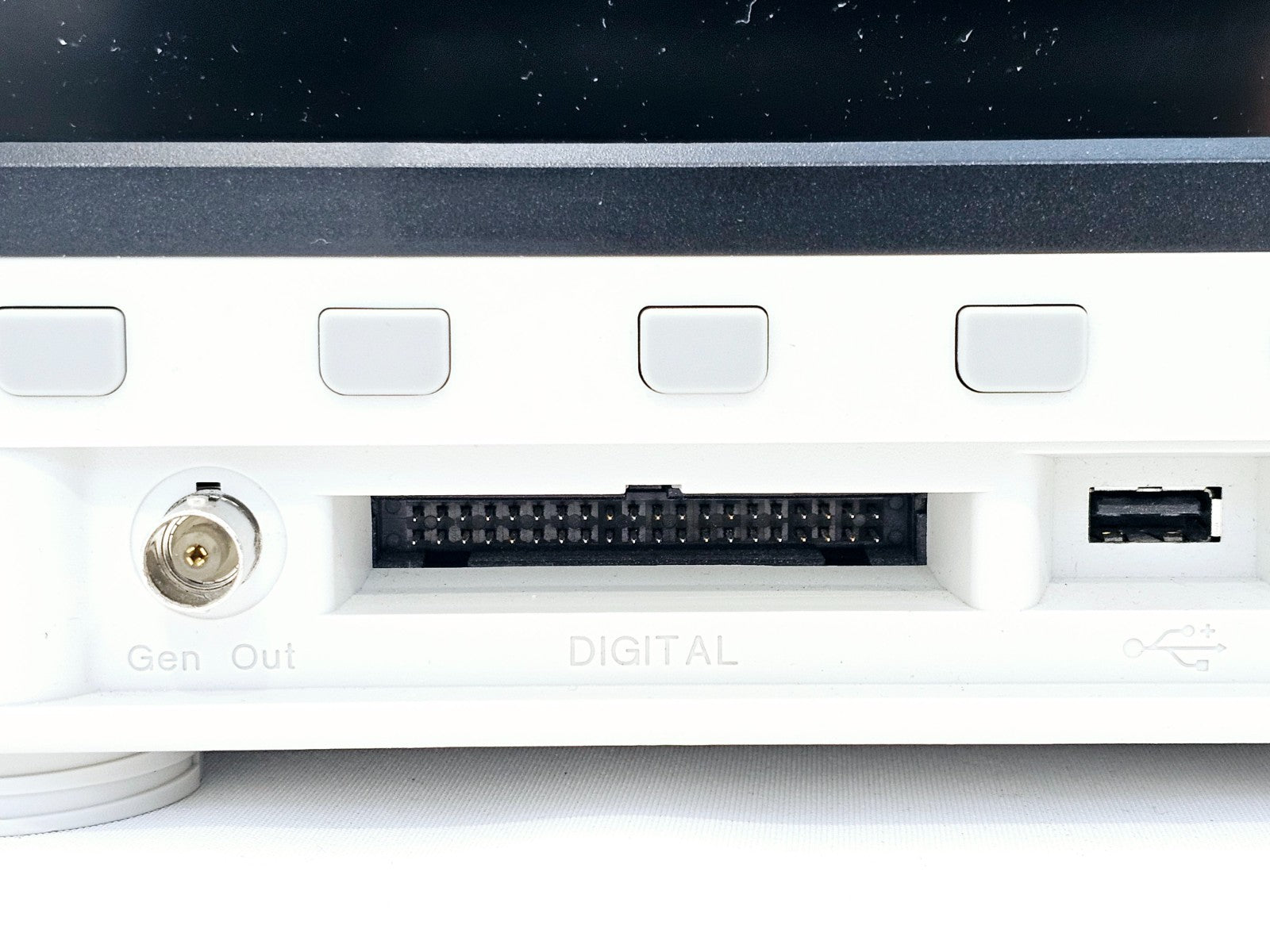

Digital Channels: 16 (MSO)
Total Channels: 20
Sample Rate: 5 GSa/s
Memory Depth: 4 Mpts (standard); upgradeable
Waveform Update Rate: 1,000,000 wfms/s
Display: 8.5-inch WVGA capacitive touch screen (800 x 600)
Vertical Resolution: 8-bit
Input Impedance: 1 MΩ or 50 Ω selectable
Timebase Range: 1 ns/div to 50 s/div
Trigger Types: Edge, glitch, pulse width, burst, runt, setup & hold, video, zone, serial
Serial Decode (optional): I2C, SPI, UART/RS232, CAN, CAN FD, LIN, FlexRay, MIL-STD 1553, ARINC 429, I2S, SENT and more
Arbitrary Waveform Generator: 20 MHz (optional upgrade)
DVM: 3-digit (optional upgrade)

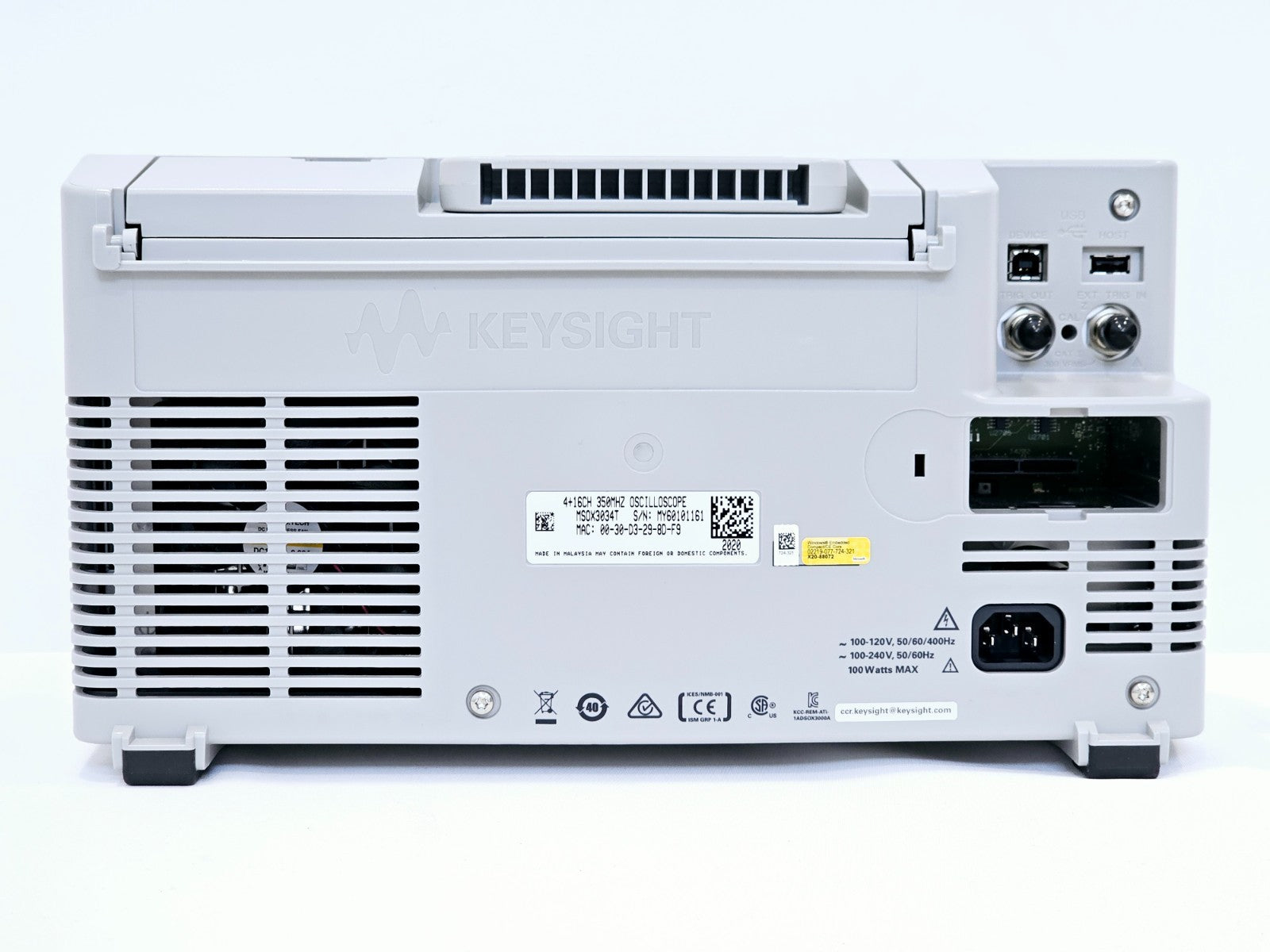

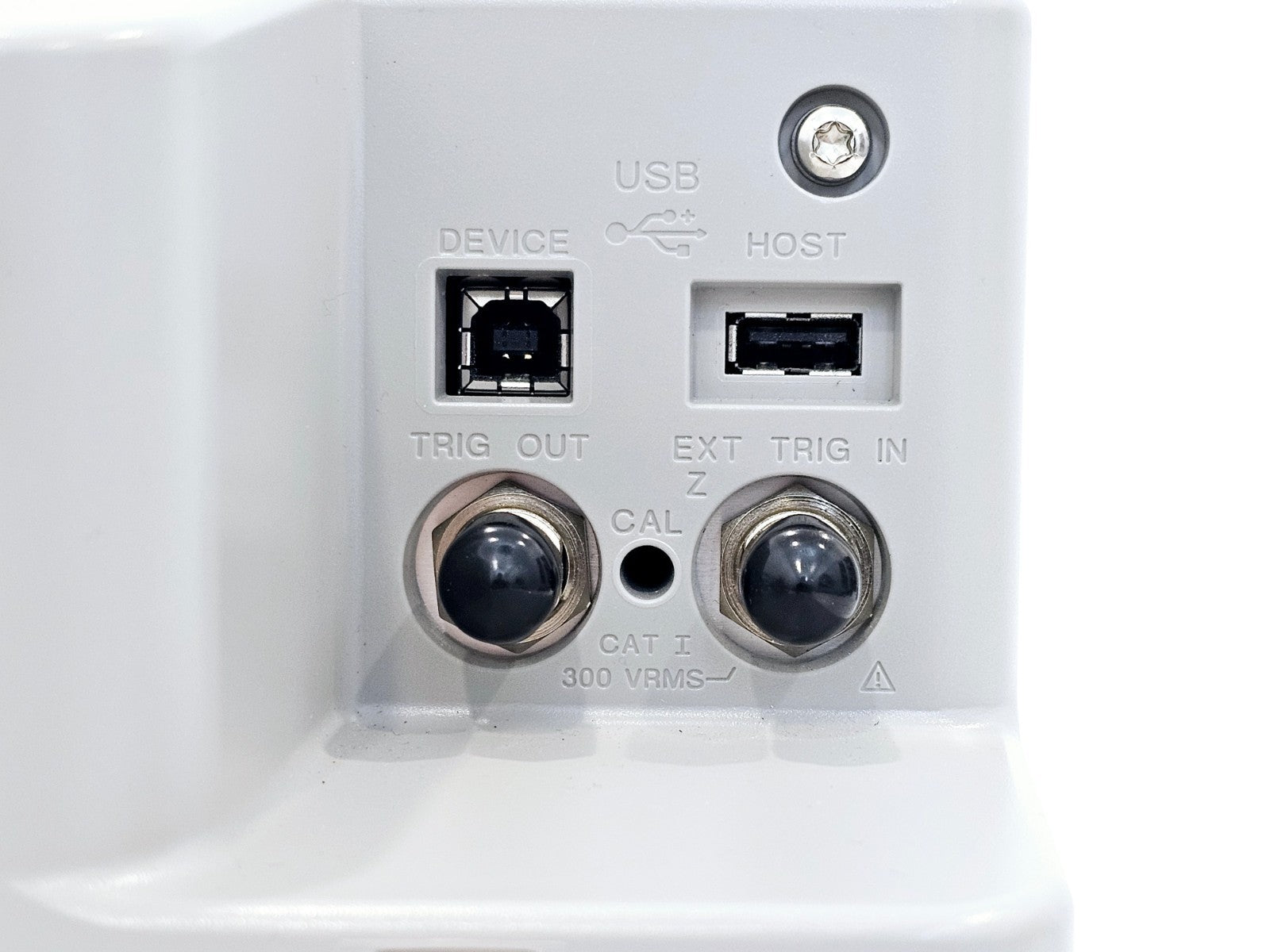

Connectivity: USB host, USB device, LAN (optional GPIB)
Dimensions (W x H x D): 376 mm x 200 mm x 139 mm
Weight: Approximately 4.1 kg

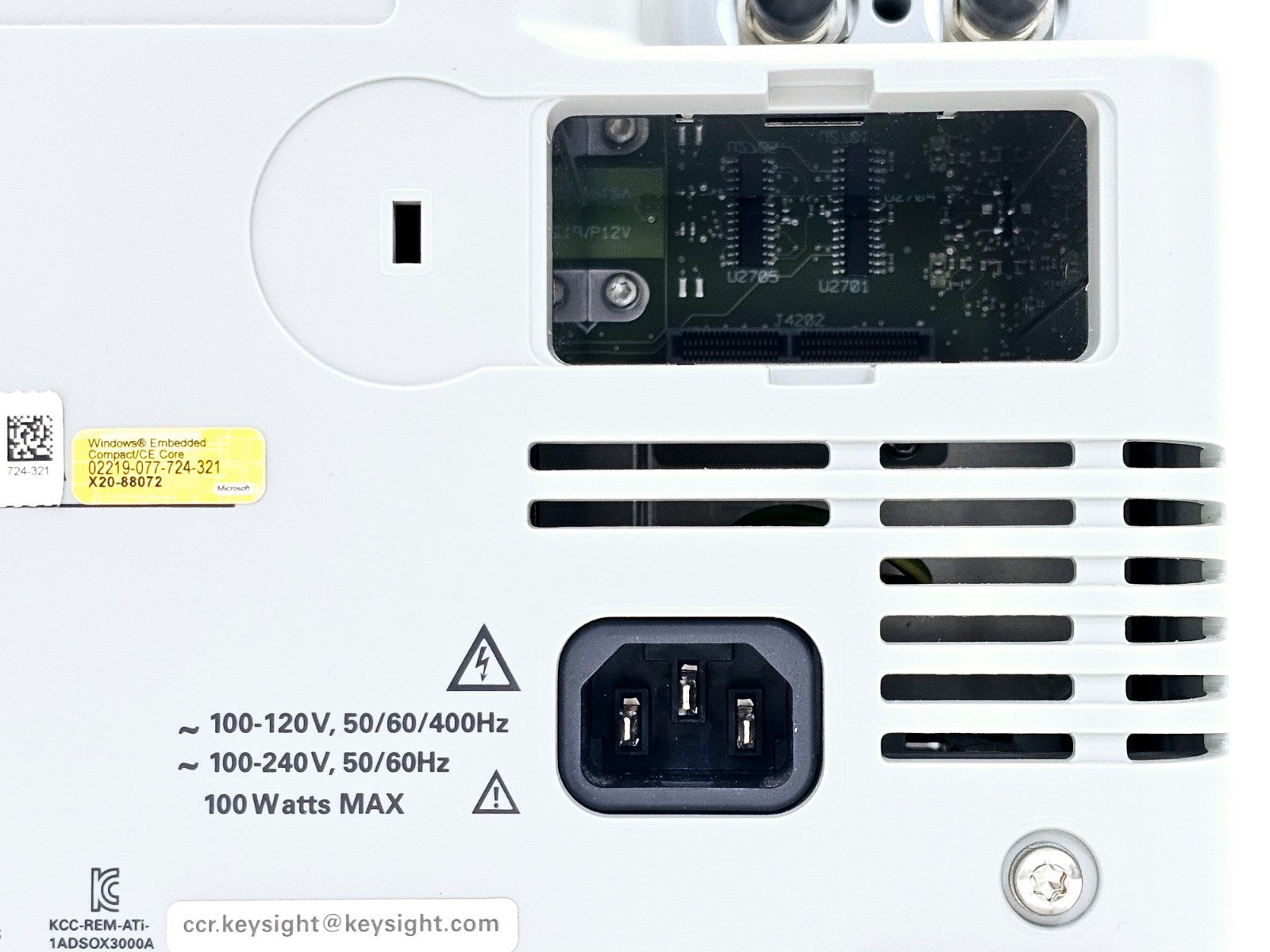

Power: 100–240 V AC, 50/60 Hz

Included N2843A Passive Probe Specifications:
Bandwidth: 500 MHz
Attenuation: 10:1
Input Resistance: 10 MΩ
Cable Length: 1.2 m
Maximum Input Voltage: 300 V

Keysight InfiniiVision 3000T X-Series Oscilloscopes Data Sheet (5992-0140EN): Download PDF

Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide (via Mouser): Download PDF

Keysight InfiniiVision 3000T X-Series Oscilloscopes Service Manual: Download PDF

Keysight InfiniiVision 3000T X-Series Product Fact Sheet (5992-0150EN): Download PDF

Keysight InfiniiVision 3000T X-Series Oscilloscopes Data Sheet (via Batronix): Download PDF

Keysight InfiniiVision 3000T X-Series Oscilloscopes Data Sheet (via TRS Rentelco): Download PDF
