Condition: For parts or not working

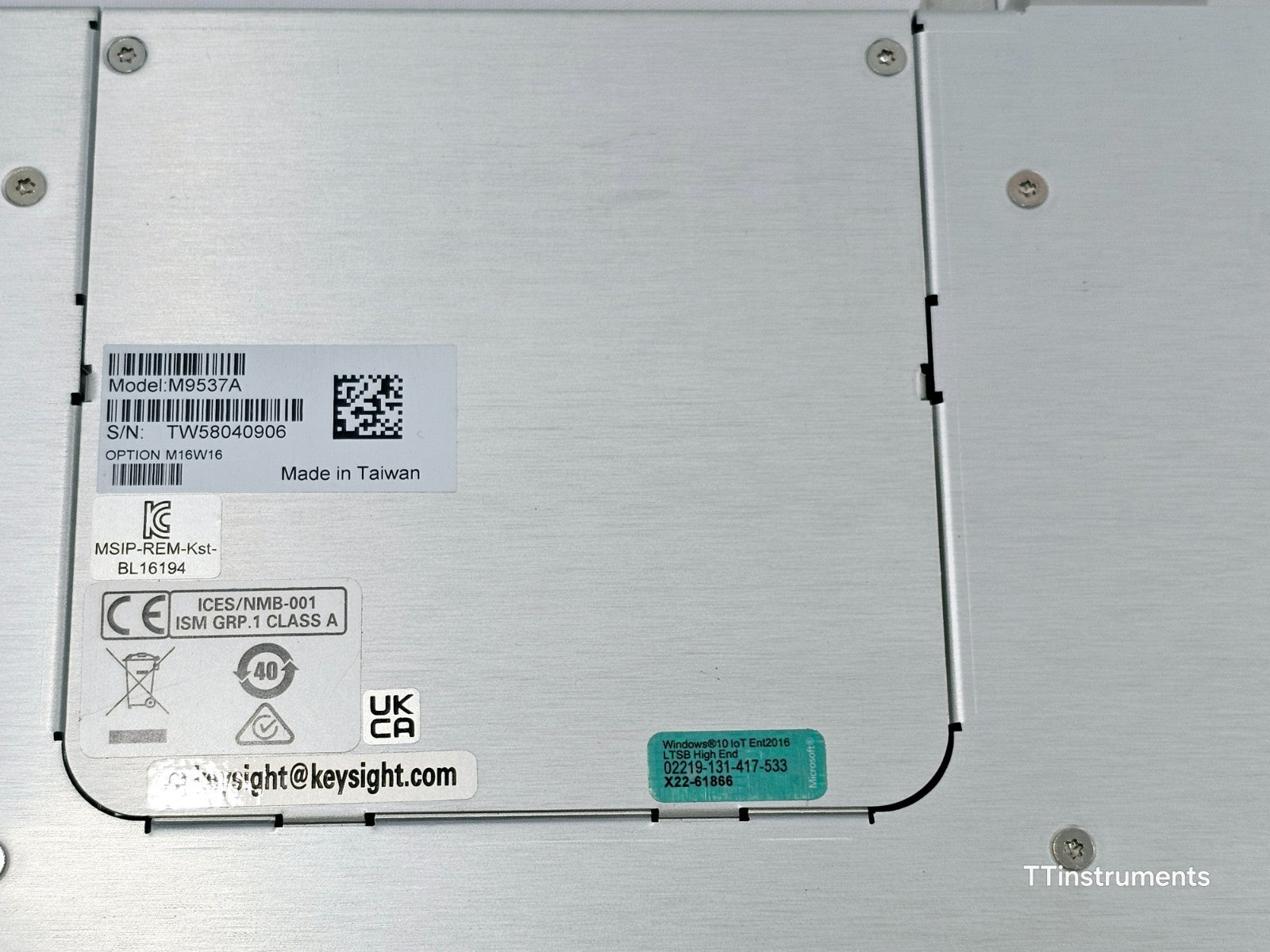

This Keysight M9537A AXIe Embedded Controller is offered for parts or repair. Unable to test — visually appears in good condition. Configured with Option M16 (16 GB RAM) and Option W16 (Windows 10 IoT Enterprise LTSB 64-bit), with an Intel SSD installed (untested).

Included in the sale:
• Keysight M9537A AXIe Embedded Controller
• Option M16 — 16 GB DDR4 RAM
• Option W16 — Windows 10 IoT Enterprise LTSB (64-bit)

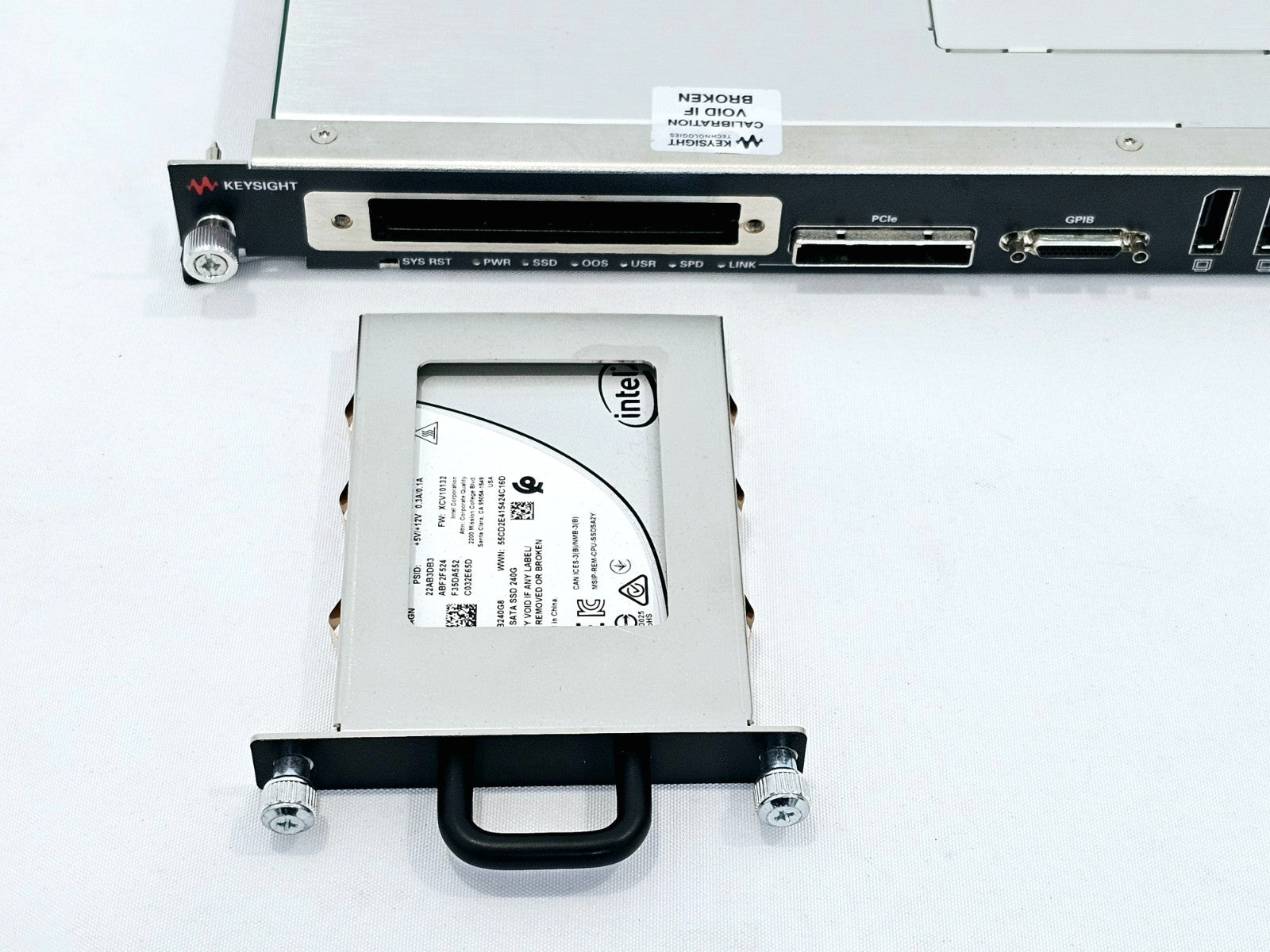

• Intel SSD installed (untested)

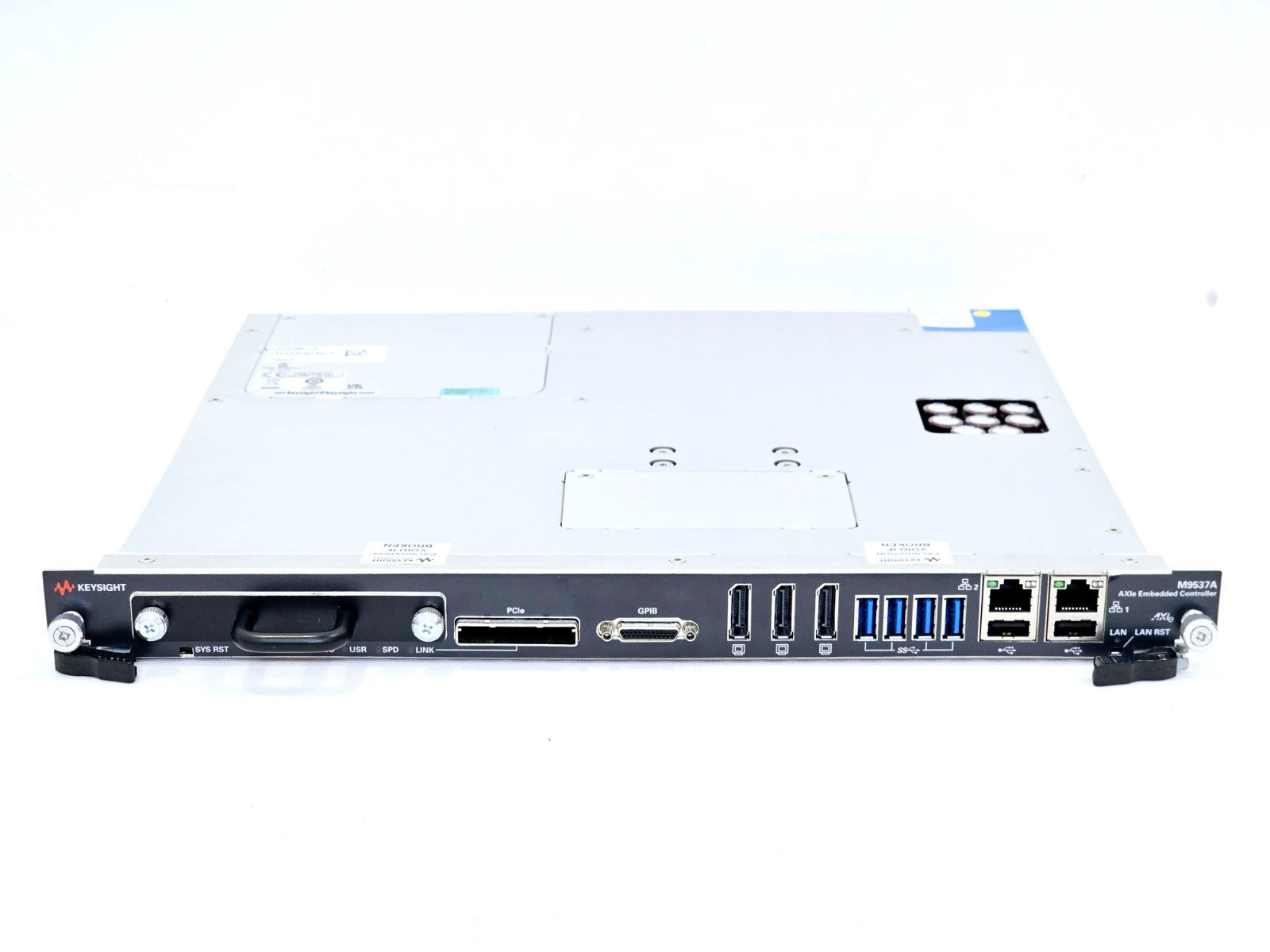

The Keysight M9537A is a second-generation AXIe high-performance embedded controller designed for compact, high-throughput modular test systems. Built on a 6th-generation Intel i7-6820EQ 2.8 GHz quad-core processor with Hyper-Threading Technology, it delivers 8 simultaneous processing threads and is optimised for multi-tasking and multi-chassis environments. It occupies a single AXIe slot and can replace an external host PC once installed in a compatible AXIe chassis.

The M9537A supports the AXIe wide PCIe standard with backward compatibility to AXIe-1, spanning PCIe fabrics from x4 Gen 2 to x16 Gen 3. A front-panel x8 Gen 3 PCIe IPASS connector enables cascading to a second AXIe chassis, connection to RAID storage, or multi-chassis PXIe configurations — supporting control of up to 4 AXIe and PXIe chassis.

Key Specifications:
Processor: Intel Core i7-6820EQ, 2.8 GHz, quad-core with Hyper-Threading (8 threads)
Form Factor: Single-slot AXIe embedded controller module
Memory (Standard): 8 GB DDR4-2133 SODIMM (2 x 260-pin sockets, max 32 GB)
Memory (Option M16): 16 GB DDR4-2133
Storage: Front-removable 240 GB SATA SSD (tool-free)
Optional NVMe Cache: x4 PCIe Gen 3, max sequential read/write 2200 MB/s / 900 MB/s
AXIe Backplane PCIe Link: Gen 3 x16, up to 16 GB/s max data bandwidth
Front Panel PCIe: x8 Gen 3 PCIe IPASS connector

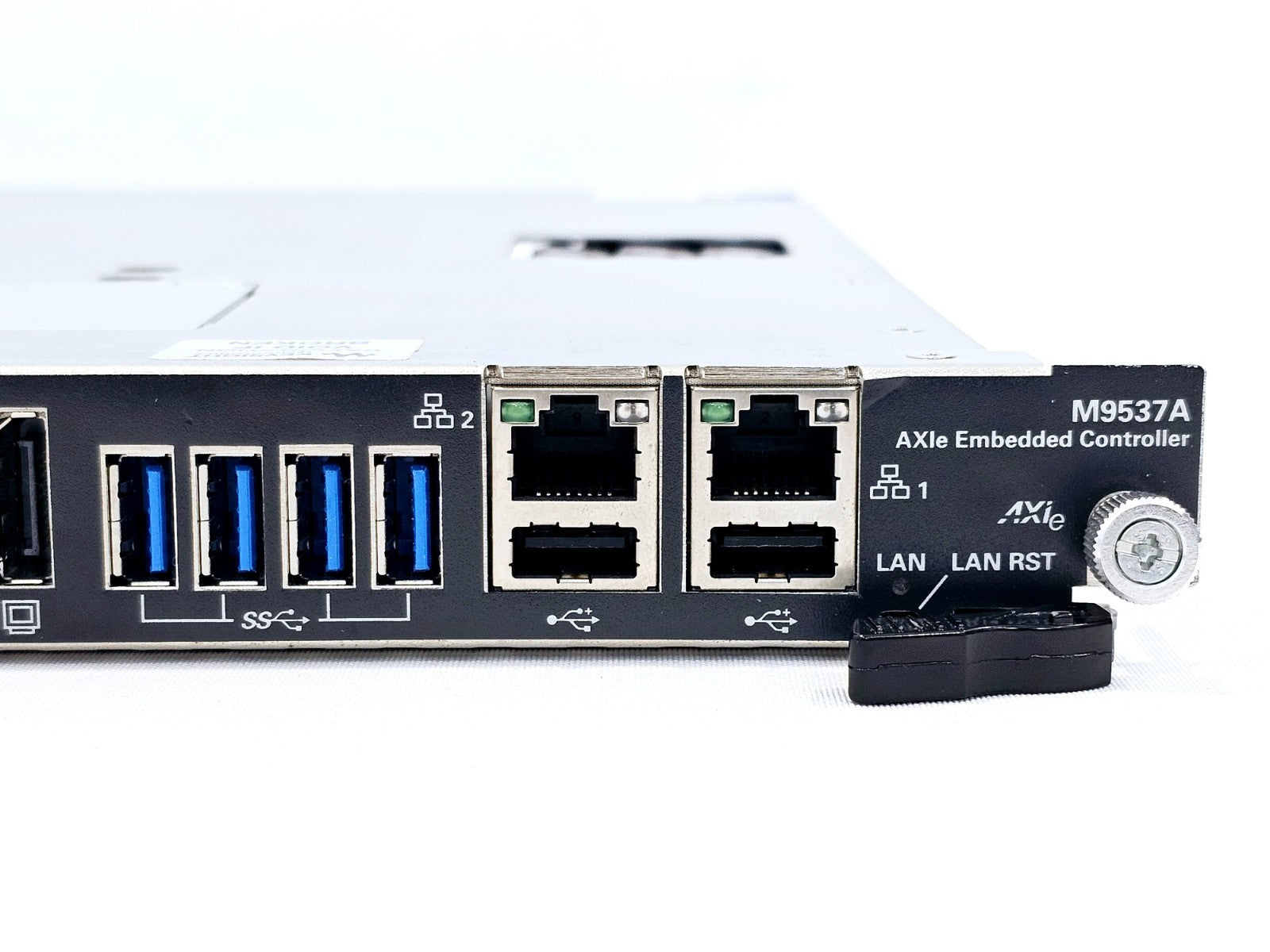

USB: Four USB 3.0, two USB 2.0
LAN: Two ports (10/100/1000 Base-T)
Display Outputs: Three DisplayPort 1.2 (4K-capable)
GPIB: Yes, front panel
DMI: 3.0, 8 GT/s in each direction
Operating System Options: Windows Embedded Standard 7 64-bit or Windows 10 IoT Enterprise LTSB 64-bit (Option W16)
Multi-Chassis Control: Up to 4 AXIe/PXIe chassis via cascade
Compatible Chassis: M9502A (2-slot), M9505A (5-slot), M9514A (14-slot)
Graphics: Intel HD Graphics, up to three 4K monitors
Security: Intel SGX and Intel MPX supported

Keysight M9537A AXIe Embedded Controller Data Sheet (5992-1530): Download PDF

Keysight M9537A AXIe Embedded Controller User Guide: Download PDF

Keysight M9537A AXIe Embedded Controller Technical Specifications: Download PDF

Keysight M9537A AXIe Embedded Controller Security Guide (Declassification): Download PDF

Keysight M9537A AXIe Embedded Controller Data Sheet (alternate mirror, 5992-1530EN): Download PDF
