Condition: Used

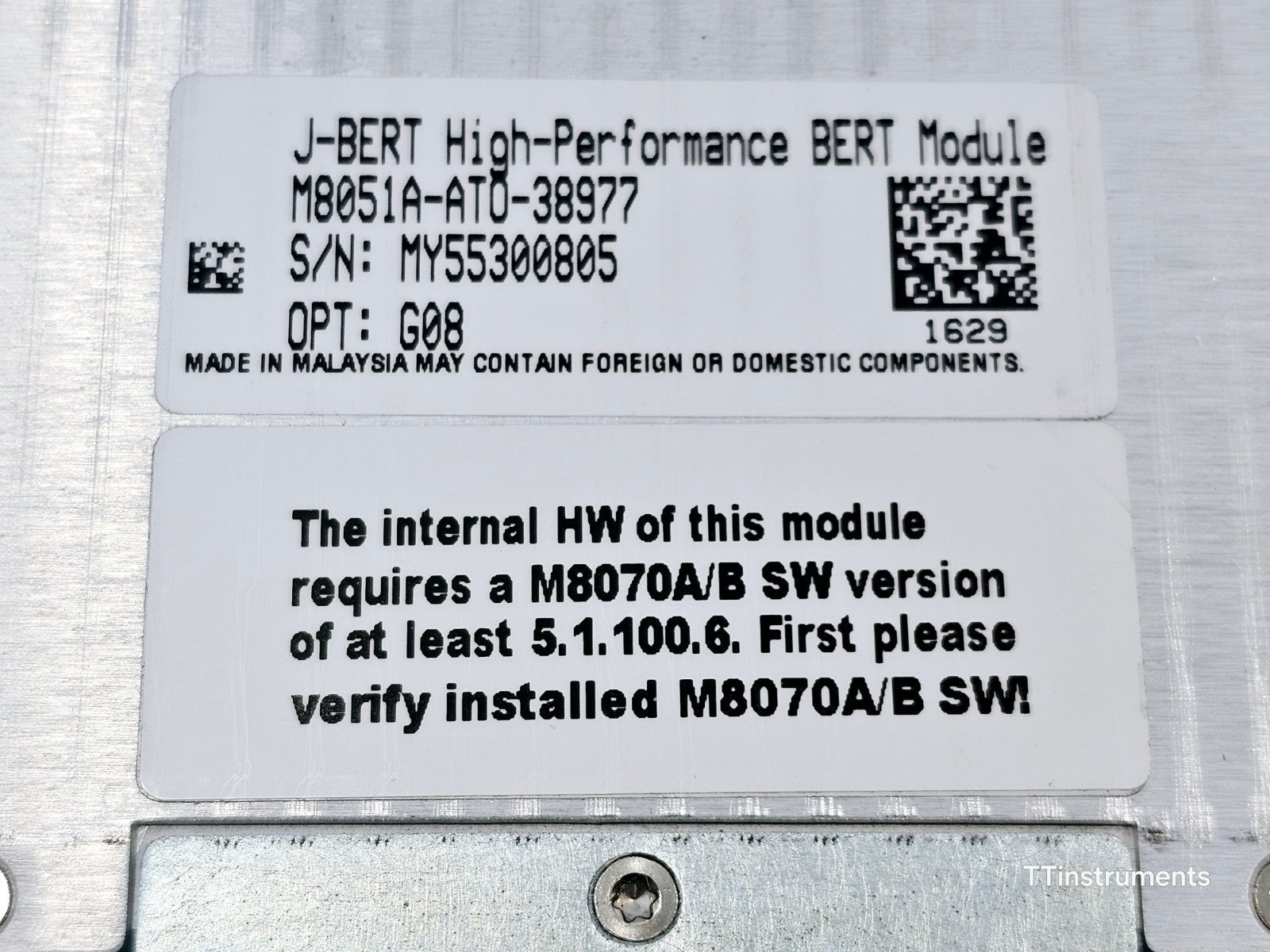

Keysight M8051A J-BERT High-Performance BERT Generator-Analyzer module, serial number MY55300805, fitted with Option G08 (pattern generator one channel, data rate up to 8.5 Gb/s) and requires M8070A/B software version 5.1.100.6 or higher. The module occupies two slots in a compatible AXIe chassis and is fully functional.

Included in the sale:
• Keysight M8051A-ATO-38977 J-BERT High-Performance BERT Generator-Analyzer Module (S/N: MY55300805, Opt: G08)

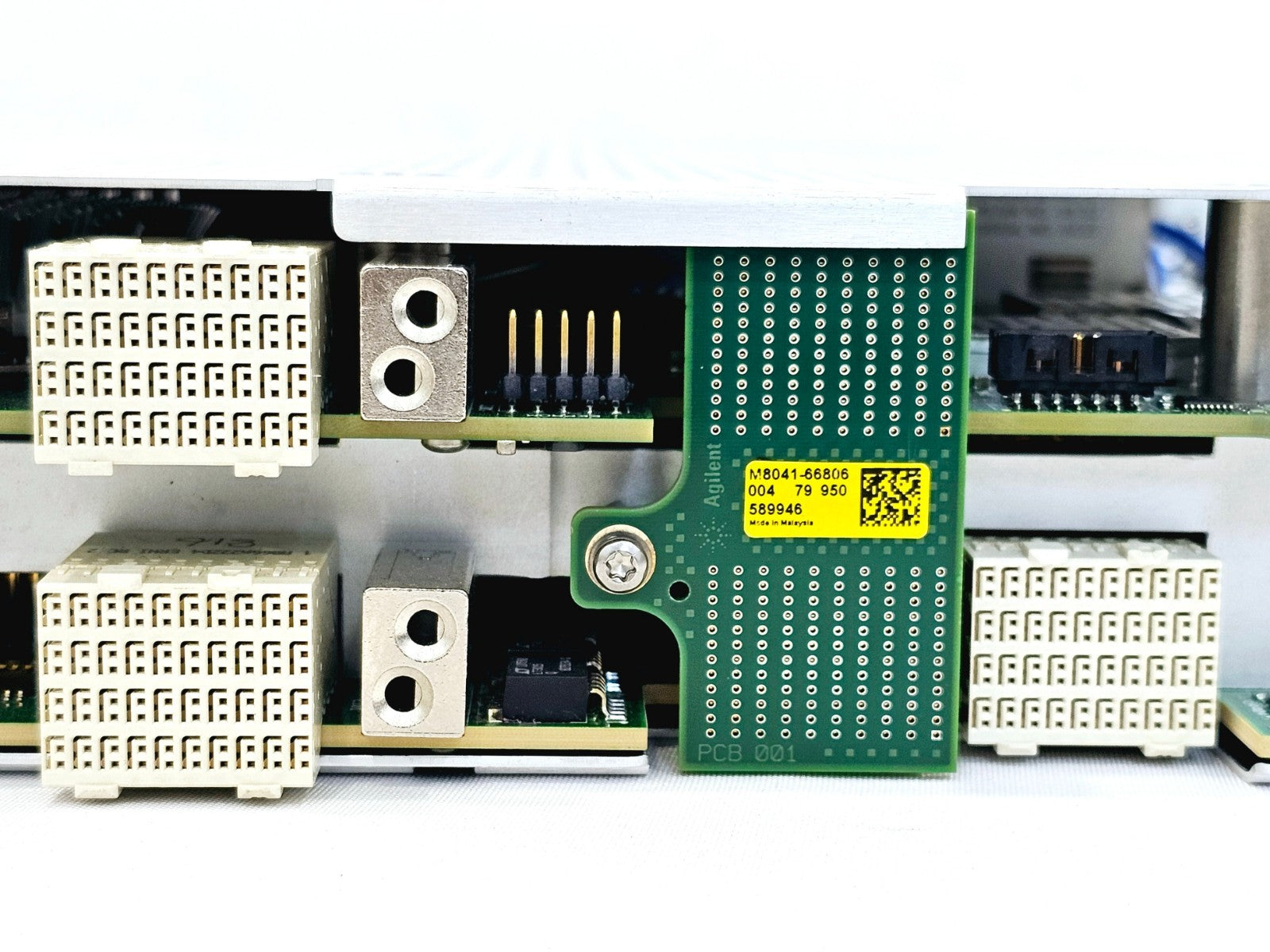

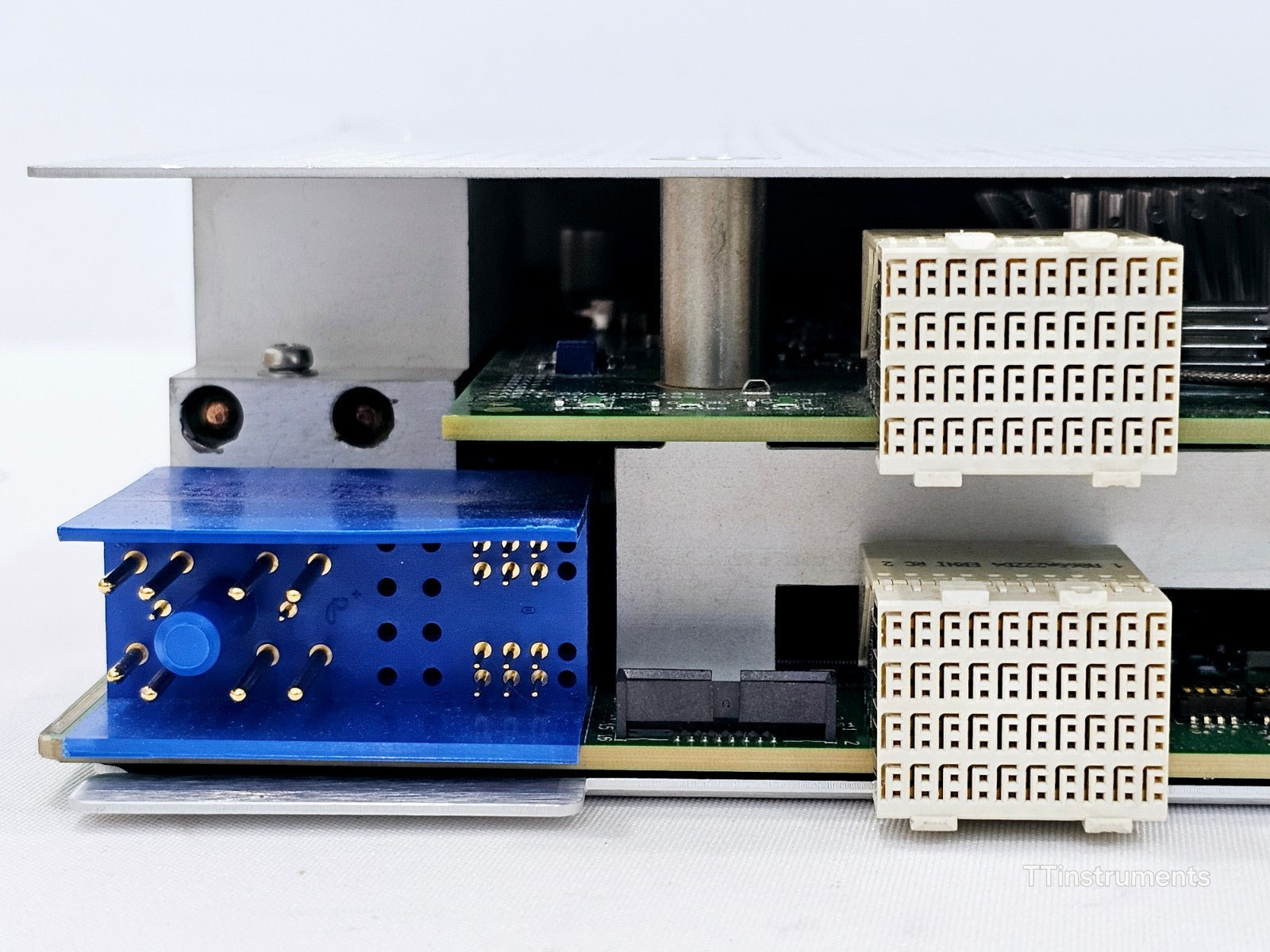

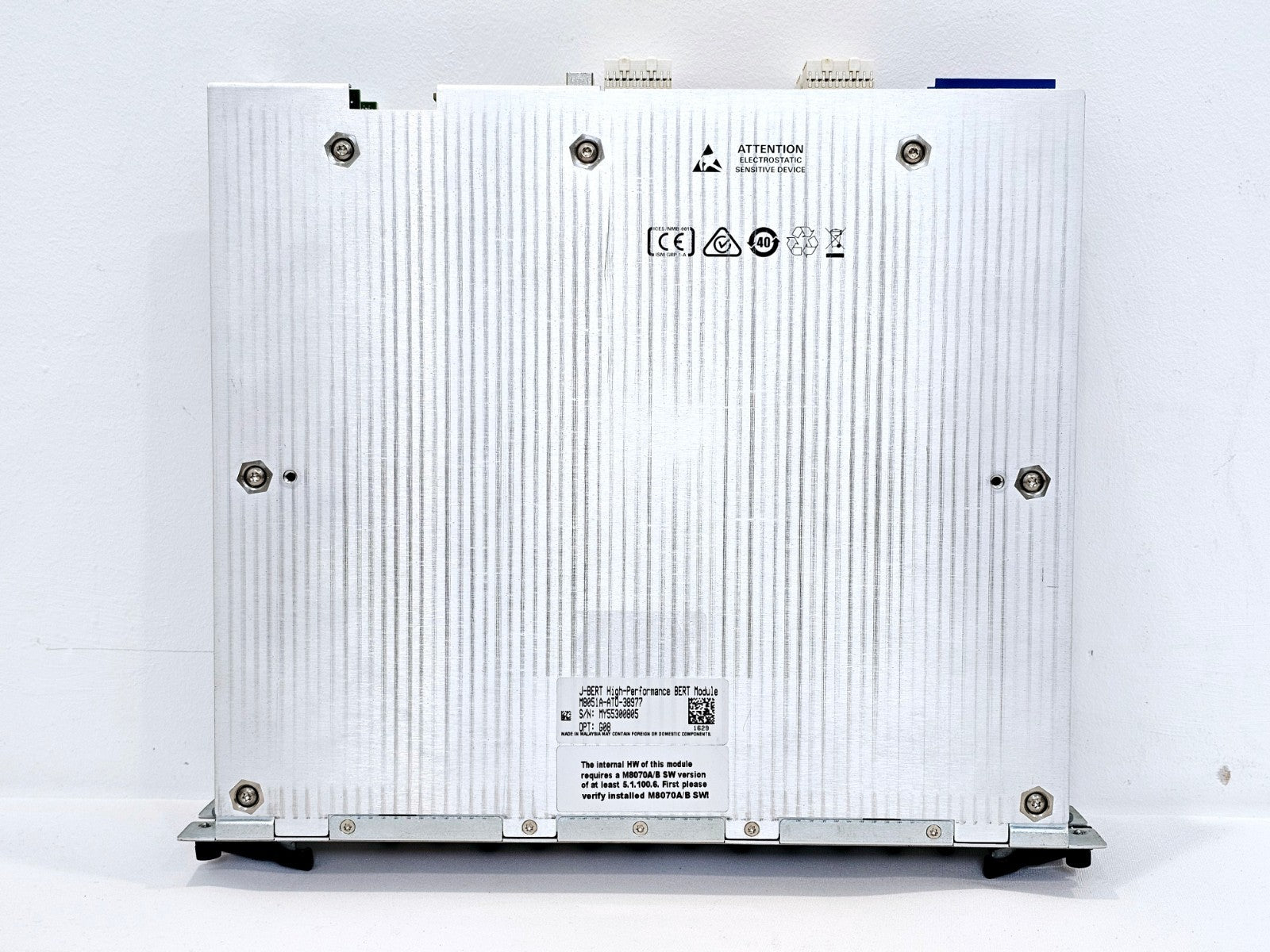

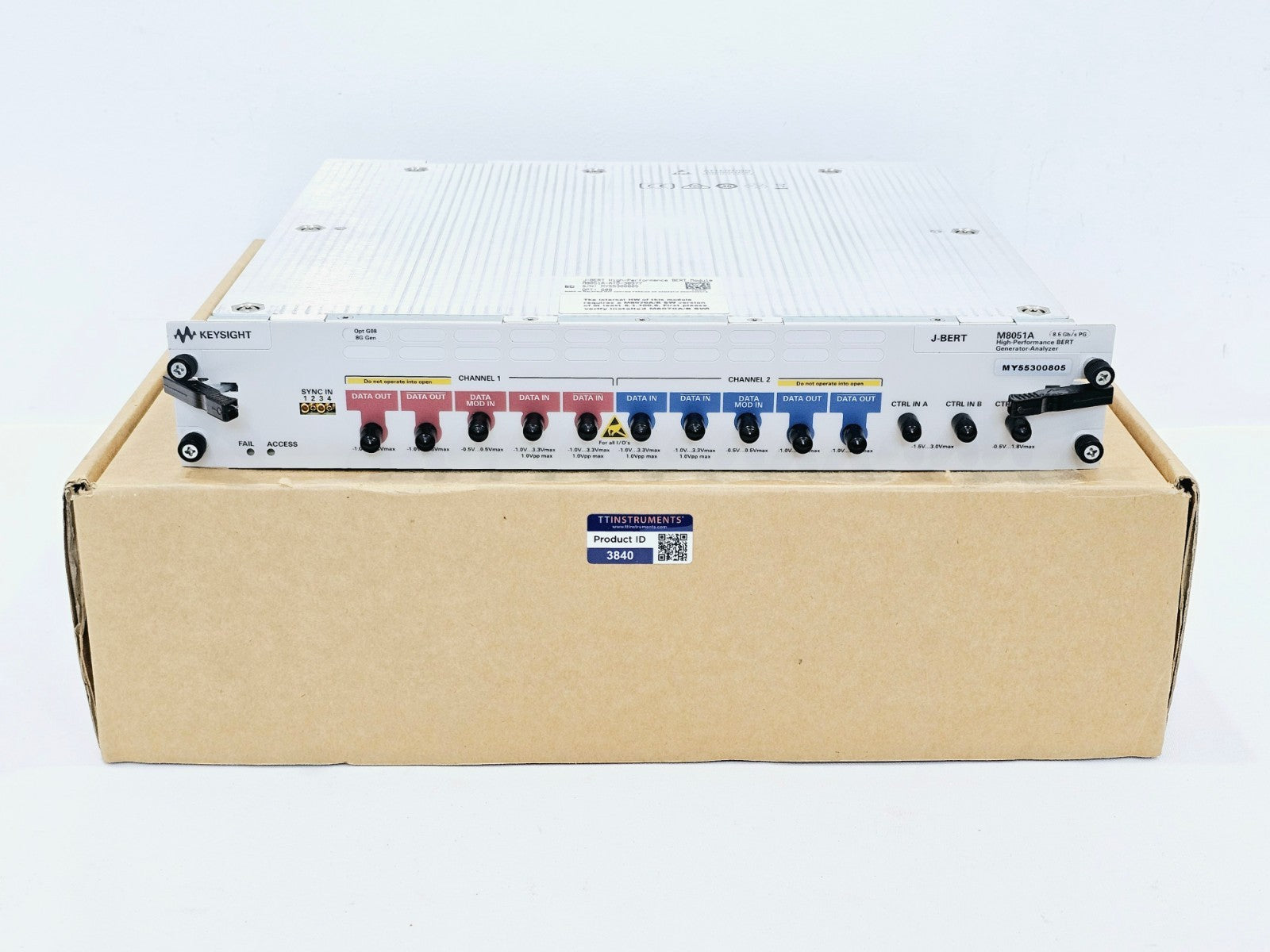

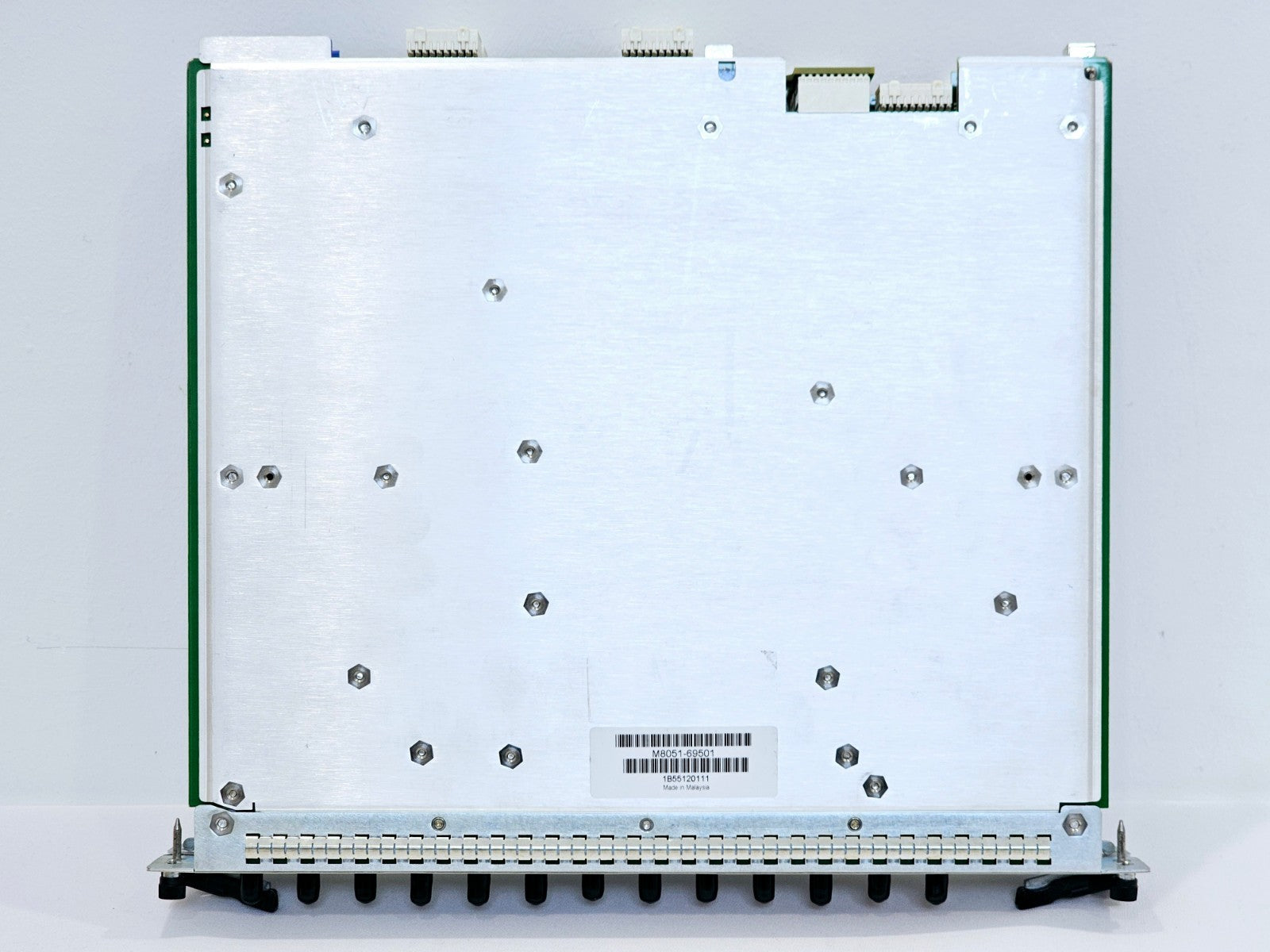

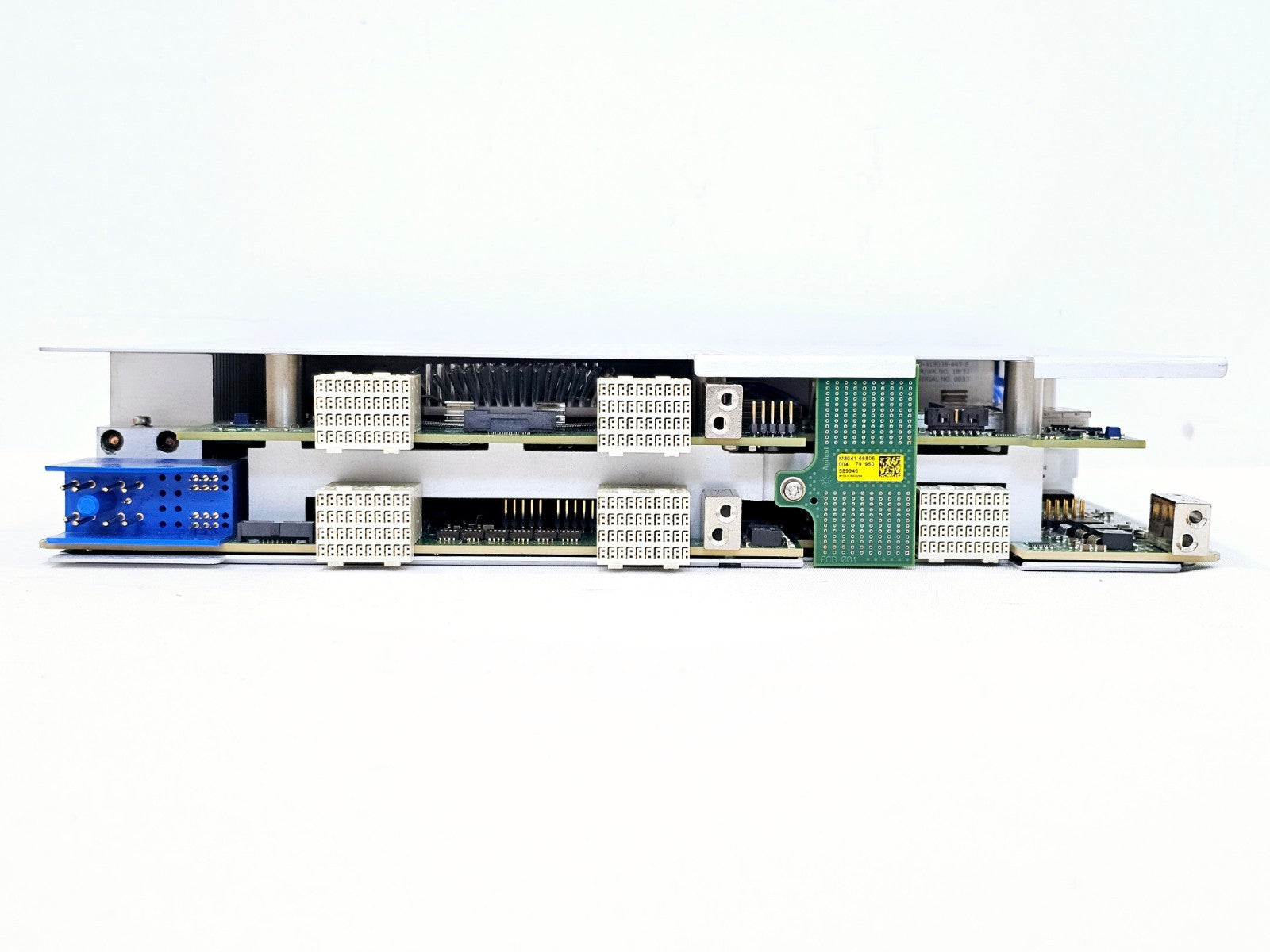

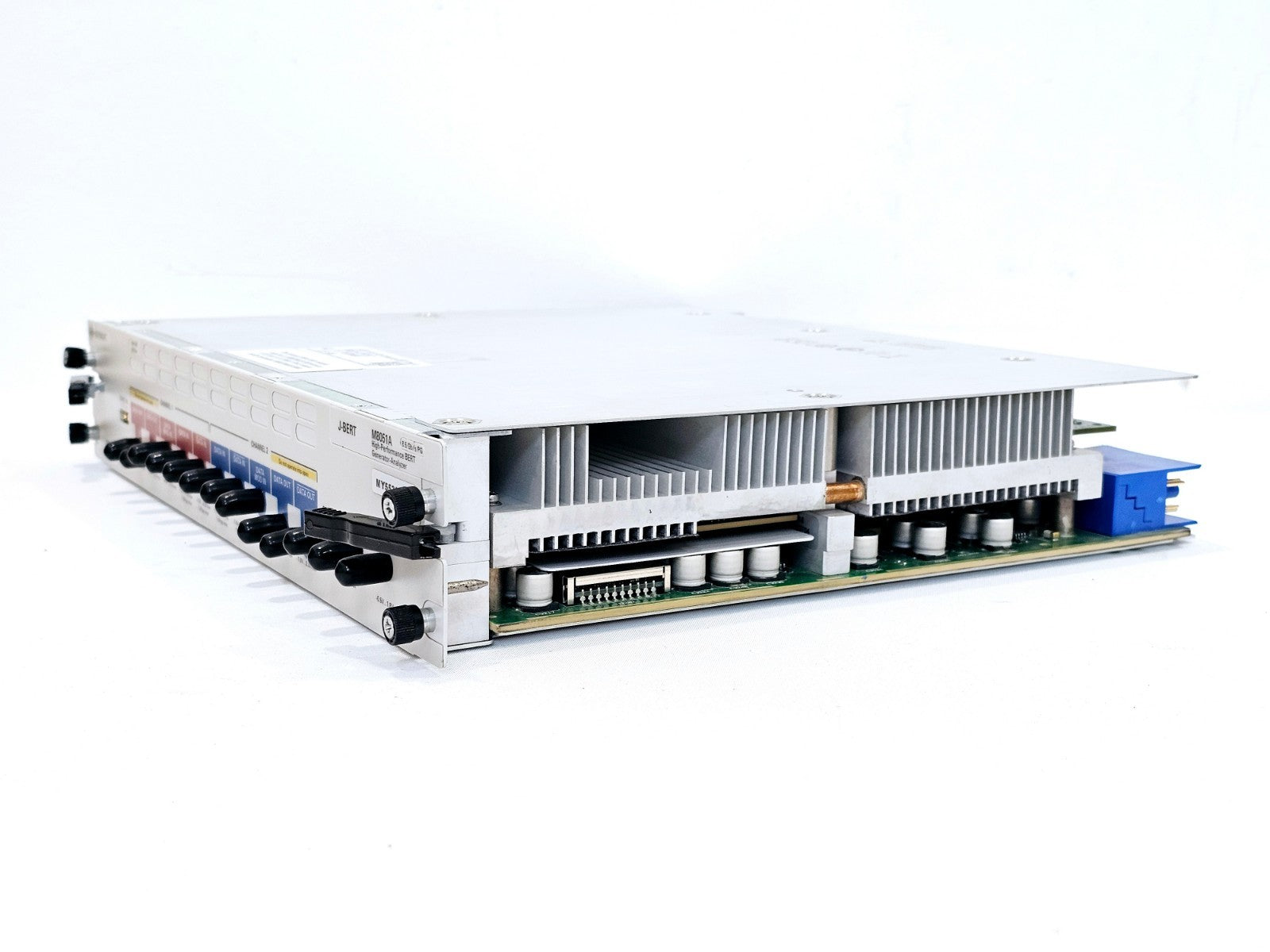

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

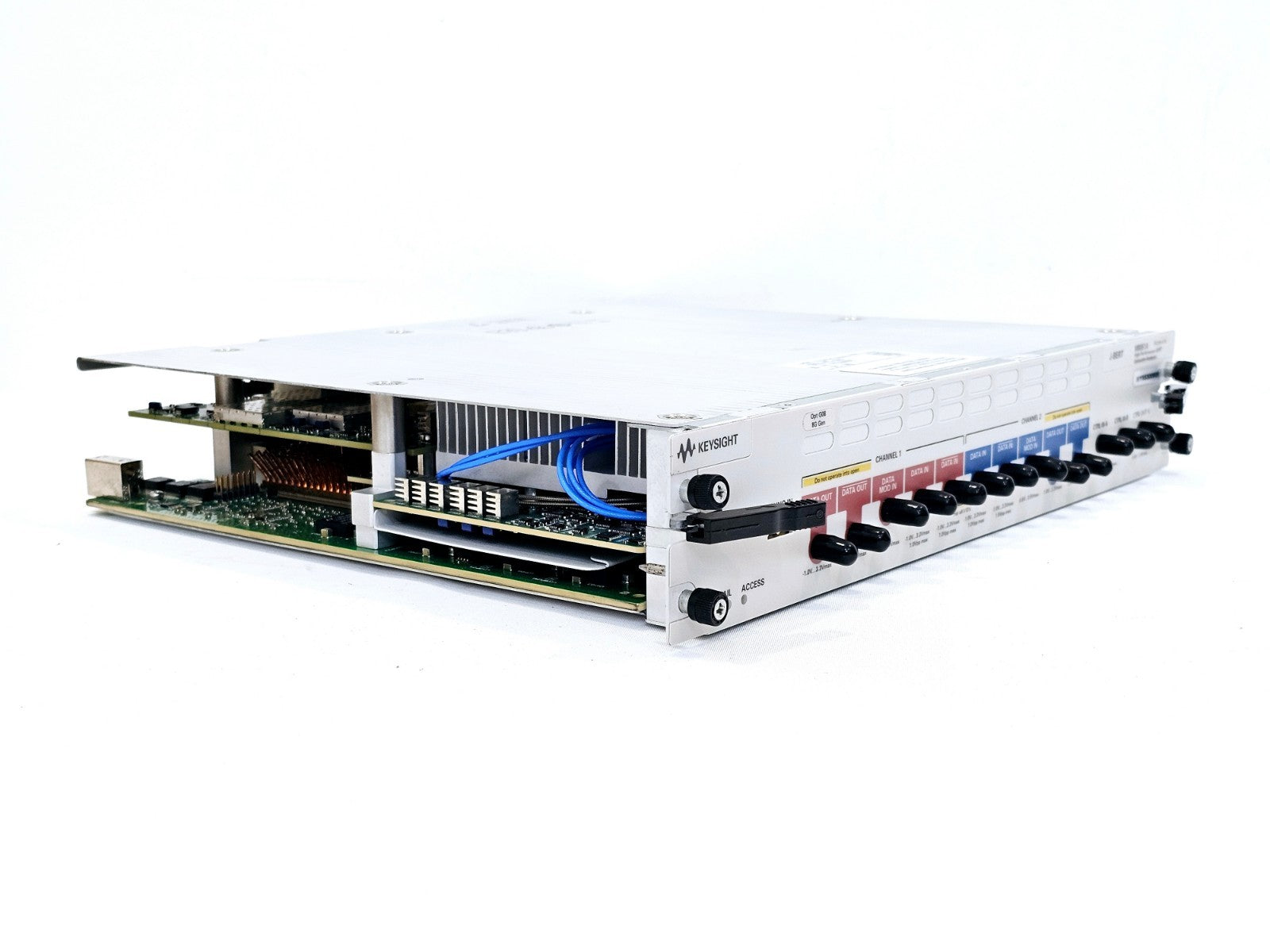

The Keysight M8051A is a J-BERT High-Performance BERT Generator-Analyzer module, part of the M8000 Series BER Test Solutions. It is an extender module that adds two additional BERT channels to a system built around the M8041A master module, enabling scalable multi-channel physical layer receiver characterisation and compliance testing. The module occupies two slots in a compatible AXIe chassis (M9505A 5-slot or M9514A 14-slot) and is controlled via Keysight M8070A/B system software.

The M8051A shares the same core feature set as the M8041A and is designed for testing high-speed serial interfaces including PCI Express, SATA/SAS, USB SuperSpeed, DisplayPort, MIPI M-PHY, Fibre Channel, Thunderbolt, 10/40 GbE and backplane standards.

Key Features:
- Data rates up to 8.5 Gb/s (Opt G08) or 16 Gb/s (Opt G16) per channel
- 2-slot AXIe module; up to 10 BERT channels total in a 14-slot chassis
- Integrated and calibrated jitter injection: RJ, PJ1, PJ2, SJ, BUJ, sinusoidal level interference (common-mode and differential-mode), SSC (triangular and arbitrary, residual), and clock/2
- 8-tap de-emphasis (positive and negative pre- and post-cursors)
- Integrated jitter, de-emphasis, and adjustable ISI configurable per channel individually
- Built-in clock recovery and continuous time linear equalizer (CTLE)
- Interactive link training for PCI Express (PCIe 3 at 8 GT/s, PCIe 4 at 16 GT/s) and USB 3.0/3.1
- Individually adjustable generator channel delay and pattern sequence

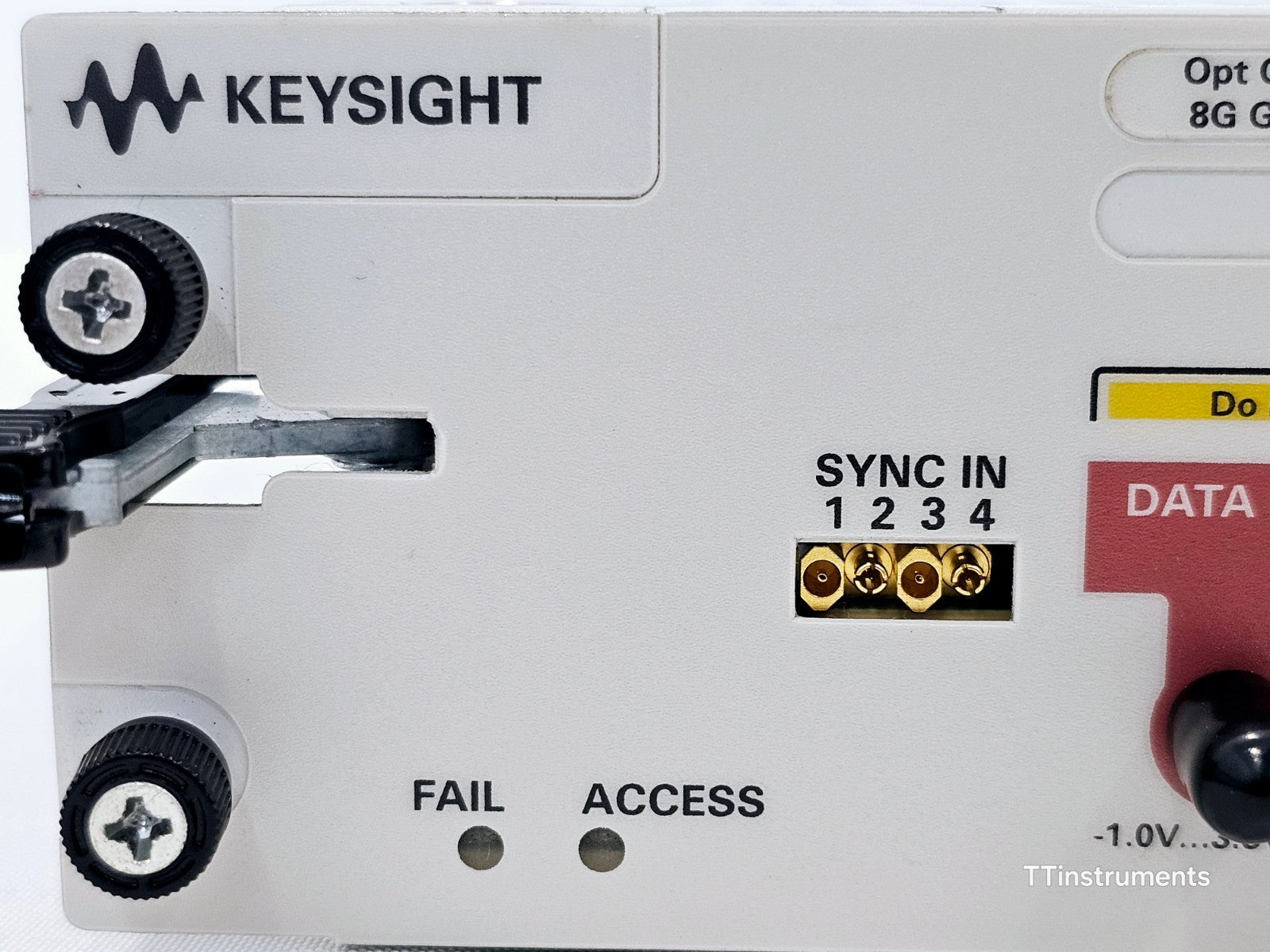

- Clock synchronisation between all modules via SYNC IN interface
- All options and modules are software-upgradeable
- Requires M8070A/B SW version 5.1.100.6 or higher
- Controlled via M8070A/B BER Test System Software

Specifications (M8051A):
Module Type: J-BERT High-Performance BERT Generator-Analyzer (extender)
Data Rate (Opt G08): Up to 8.5 Gb/s
Data Rate (Opt G16): Up to 16 Gb/s
Number of Channels: 2 (per module)
Chassis Slots Occupied: 2
Compatible Chassis: Keysight M9505A (5-slot), M9514A (14-slot) AXIe

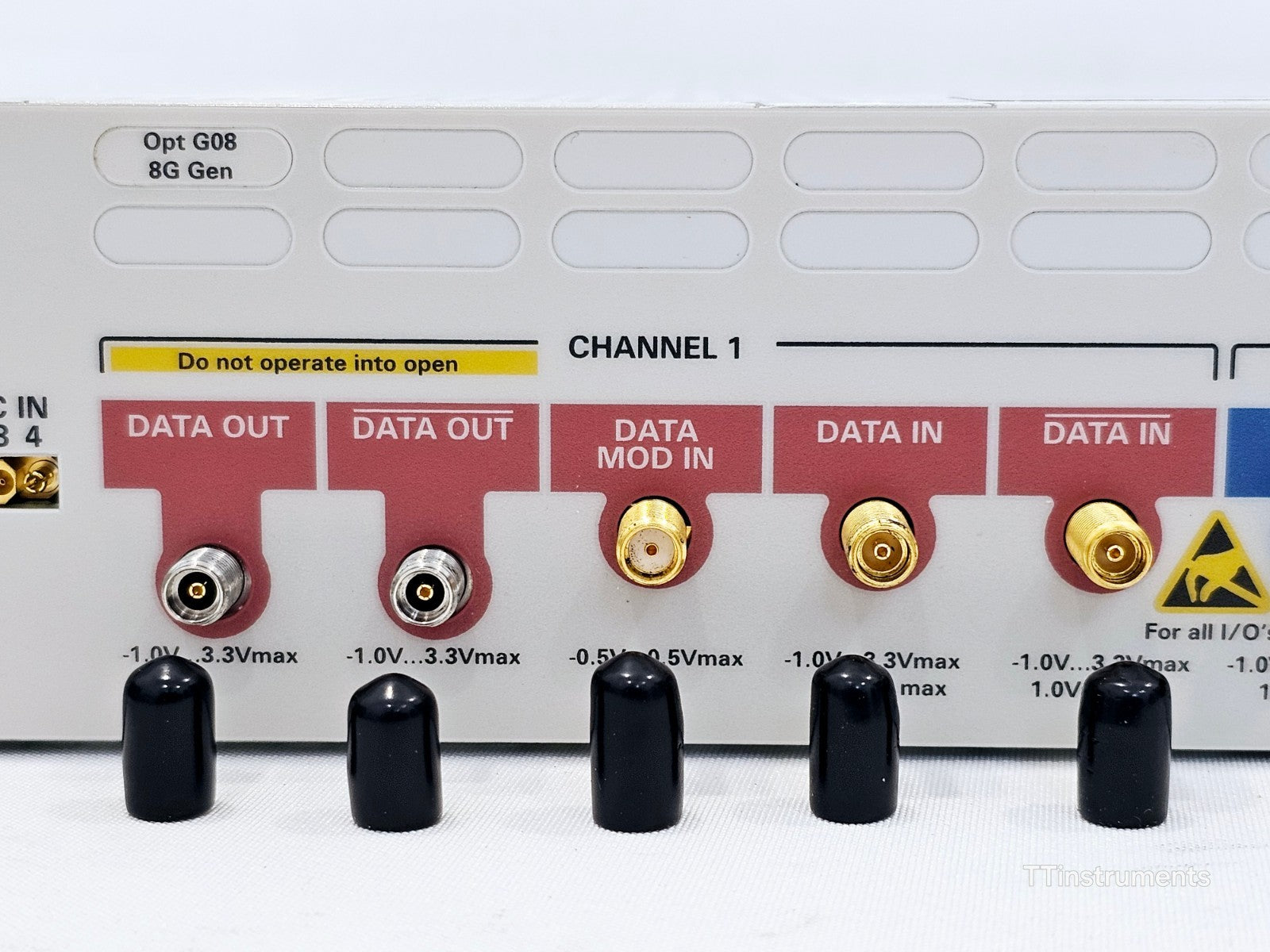

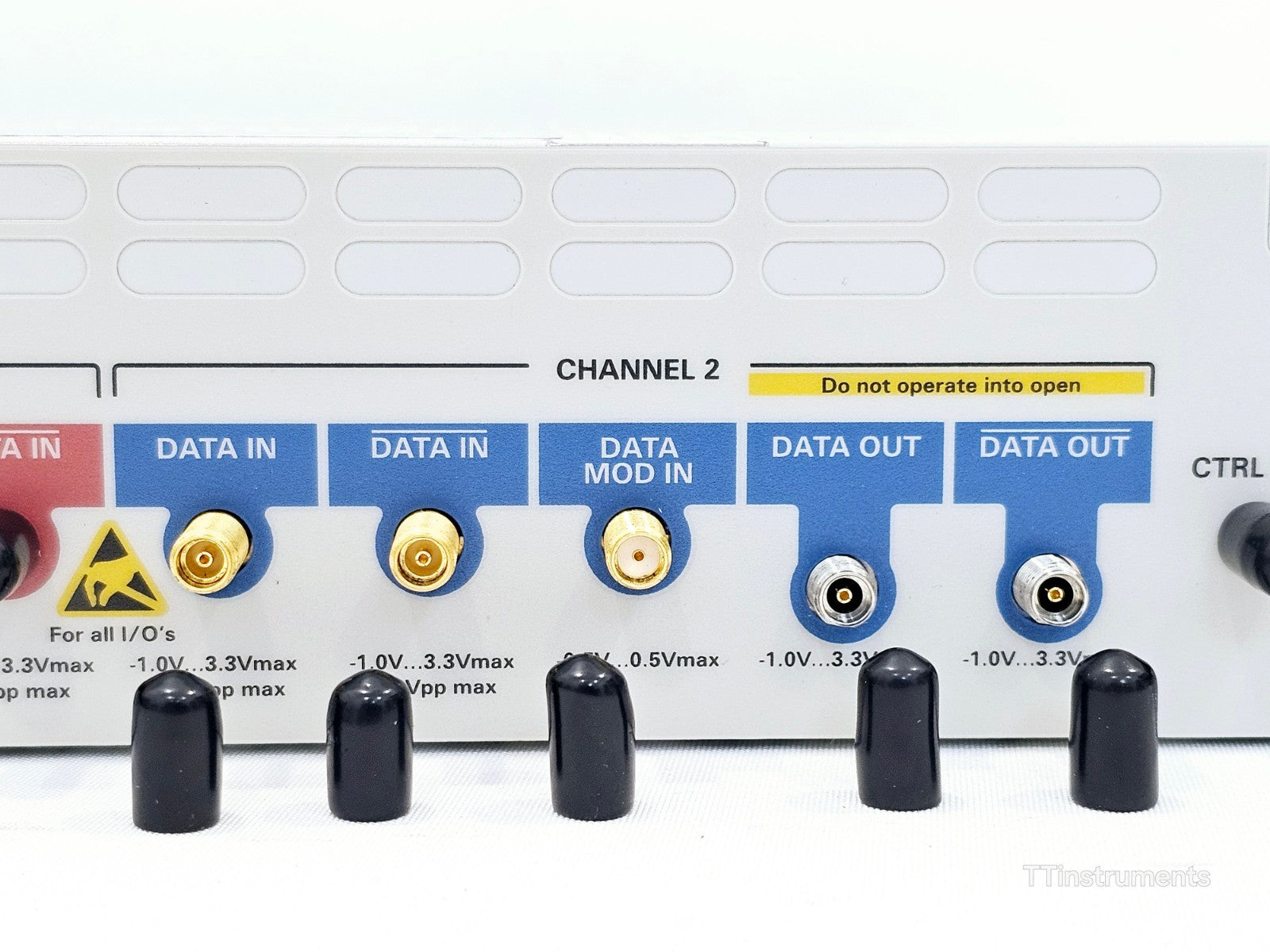

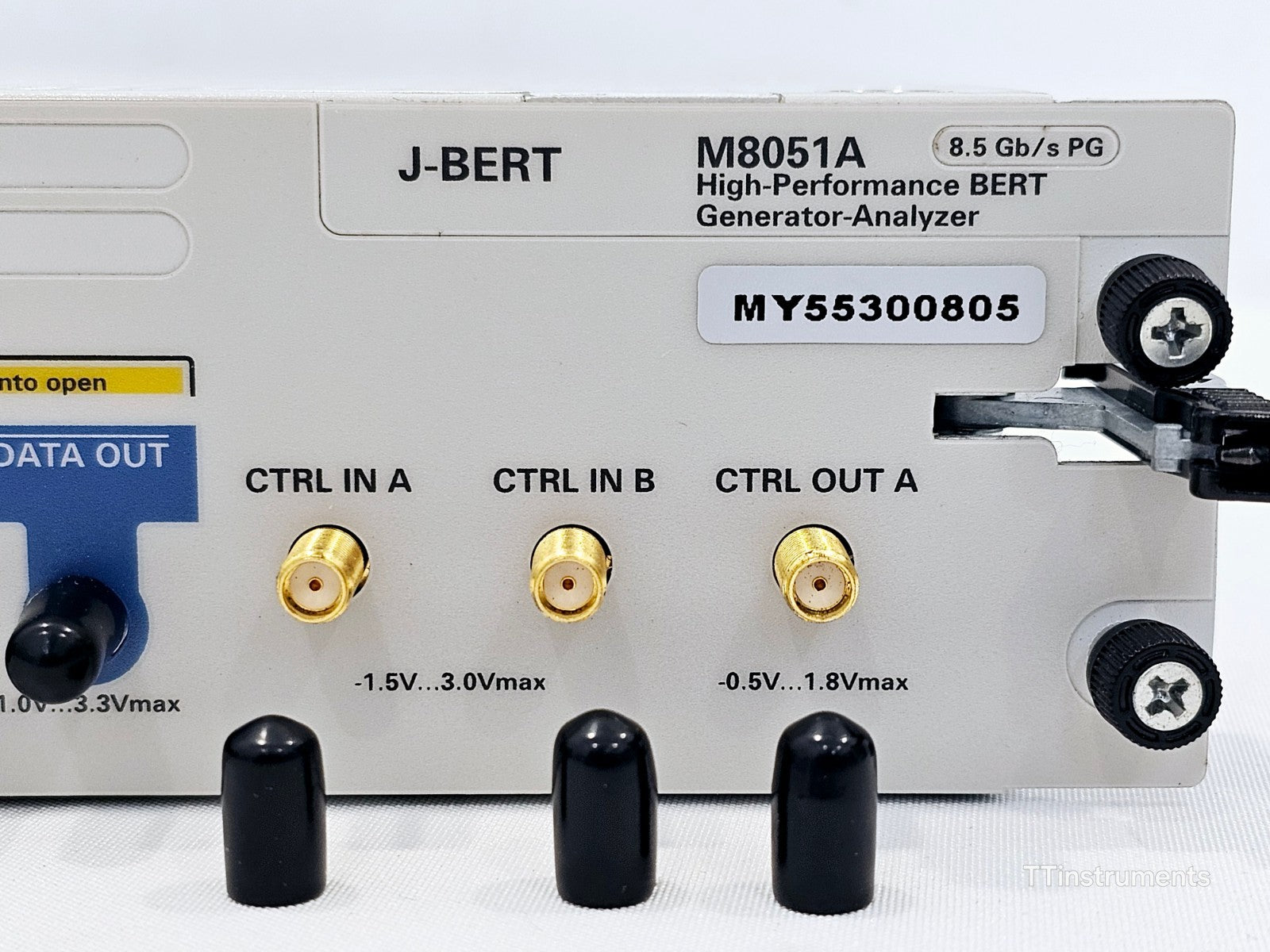

Connector Type (Data I/O): 3.5 mm female (differential)
Connector Type (Supplementary I/O): SMA female
De-emphasis: 8 taps, positive and negative
Jitter Types: RJ, PJ1, PJ2, SJ, BUJ, SSC (triangular/arbitrary/residual), clock/2, sinusoidal level interference
ISI: Adjustable (integrated)
Clock Recovery: Built-in
Equalization: Continuous Time Linear Equalizer (CTLE)
Software: Keysight M8070A/B (minimum version 5.1.100.6 required for this hardware revision)
Form Factor: AXIe

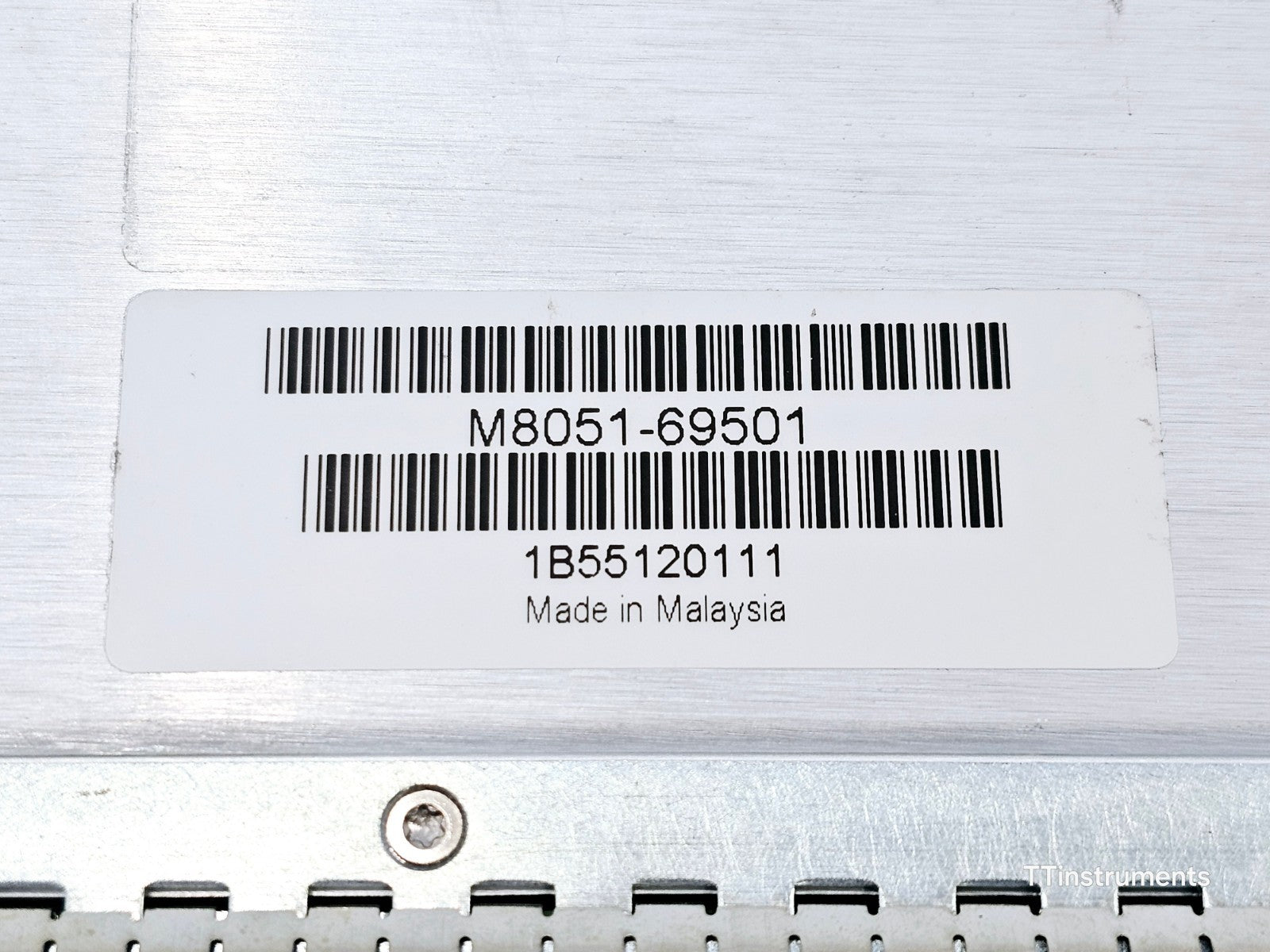

Country of Manufacture: Malaysia

J-BERT M8020A High-Performance BERT data sheet — full technical specifications for M8041A and M8051A modules: Download PDF

J-BERT M8020A configuration guide — ordering and configuration options for M8051A module: Download PDF

Keysight J-BERT M8020A getting started guide — installation and setup for M8051A in AXIe chassis: Download PDF

Keysight M8000 Series quick start guide — setup and connection guide covering M8051A module: Download PDF
