Condition: Used

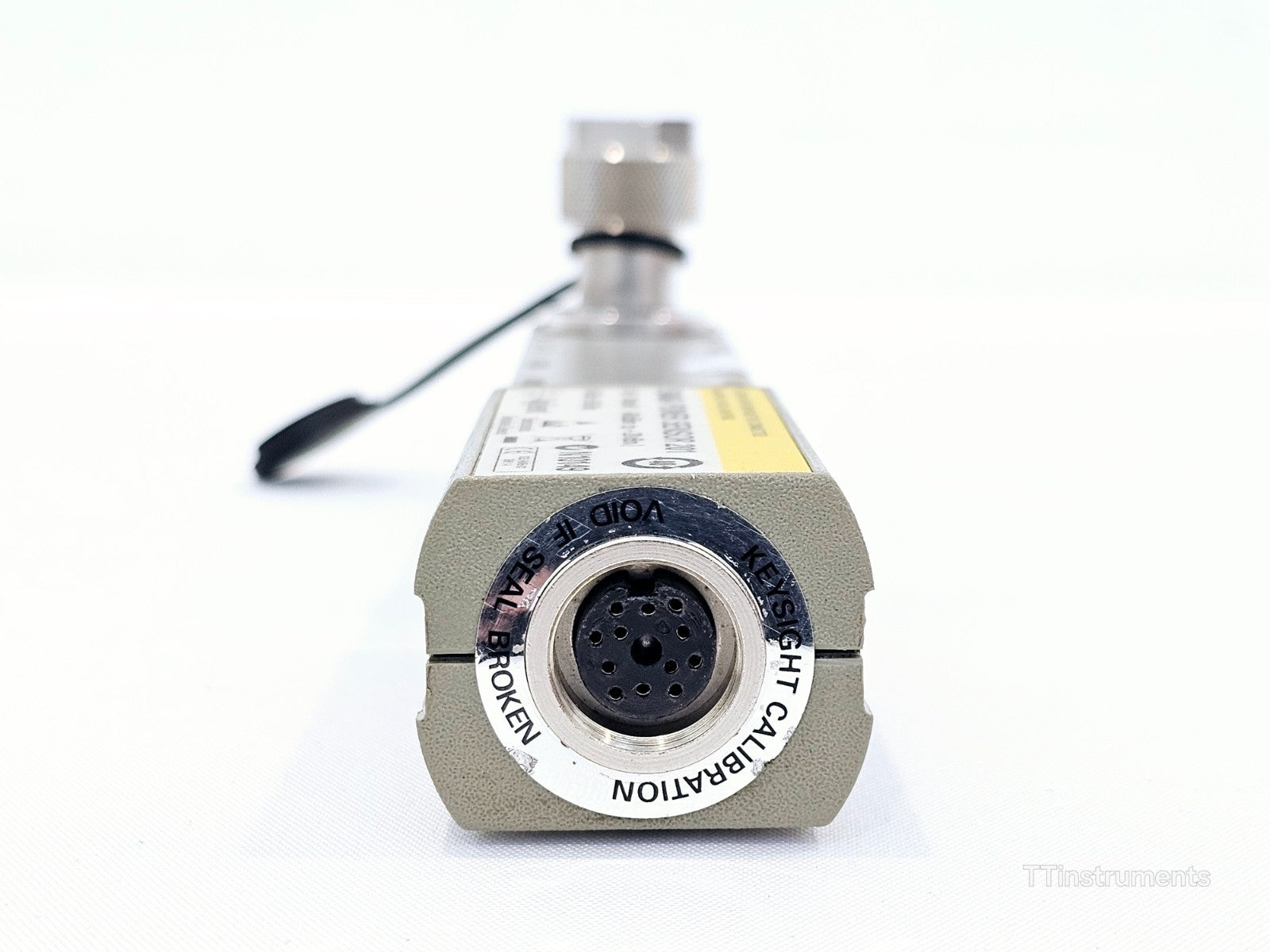

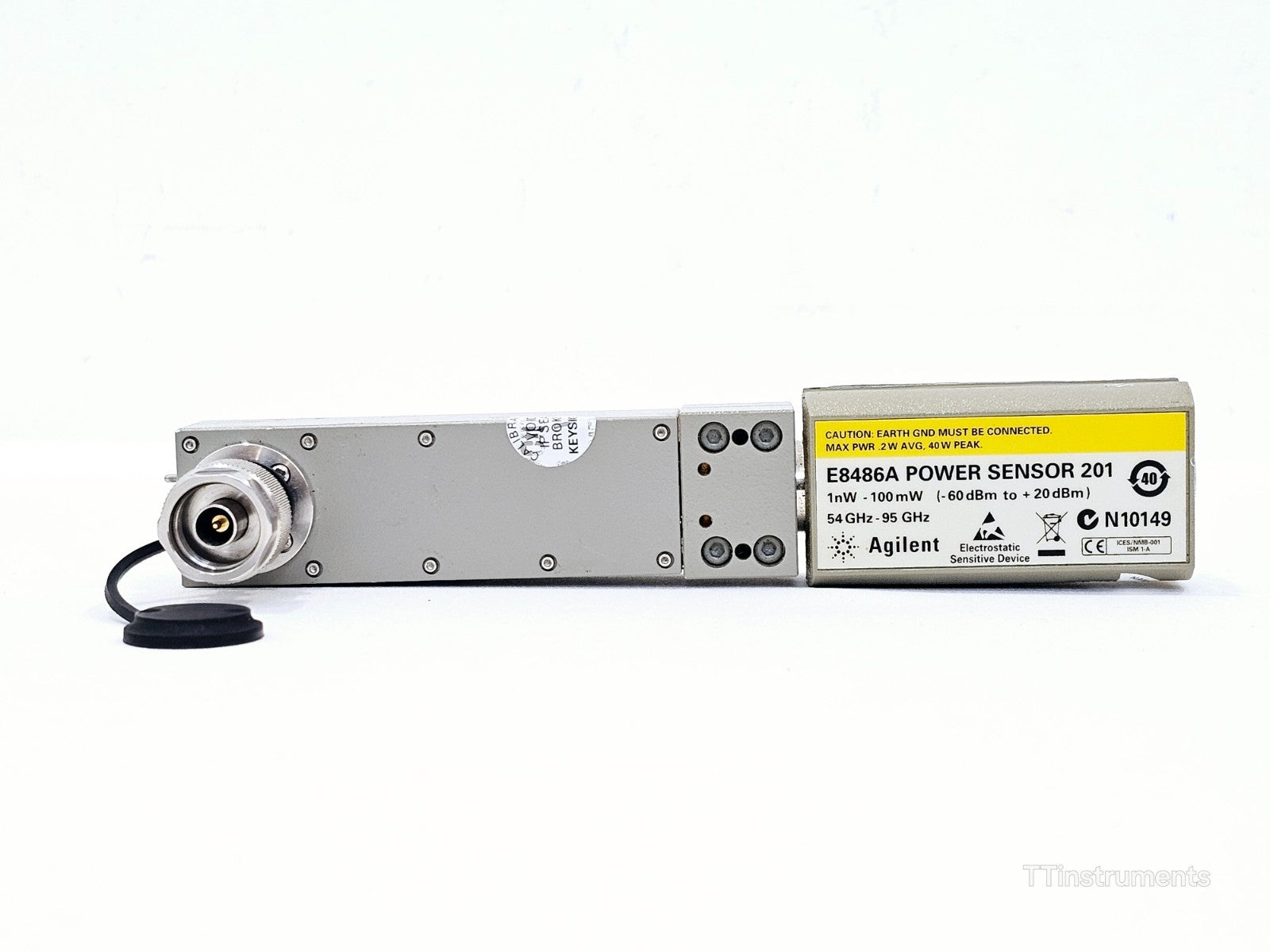

The Keysight E8486A is in good working condition. It features a WR-12 (UG-387/U) flange connector and a diode power sensing element, making it suitable for direct E-band waveguide power measurements. Compatible with a wide range of Keysight EPM, EPM-P, P-series, and legacy power meters.

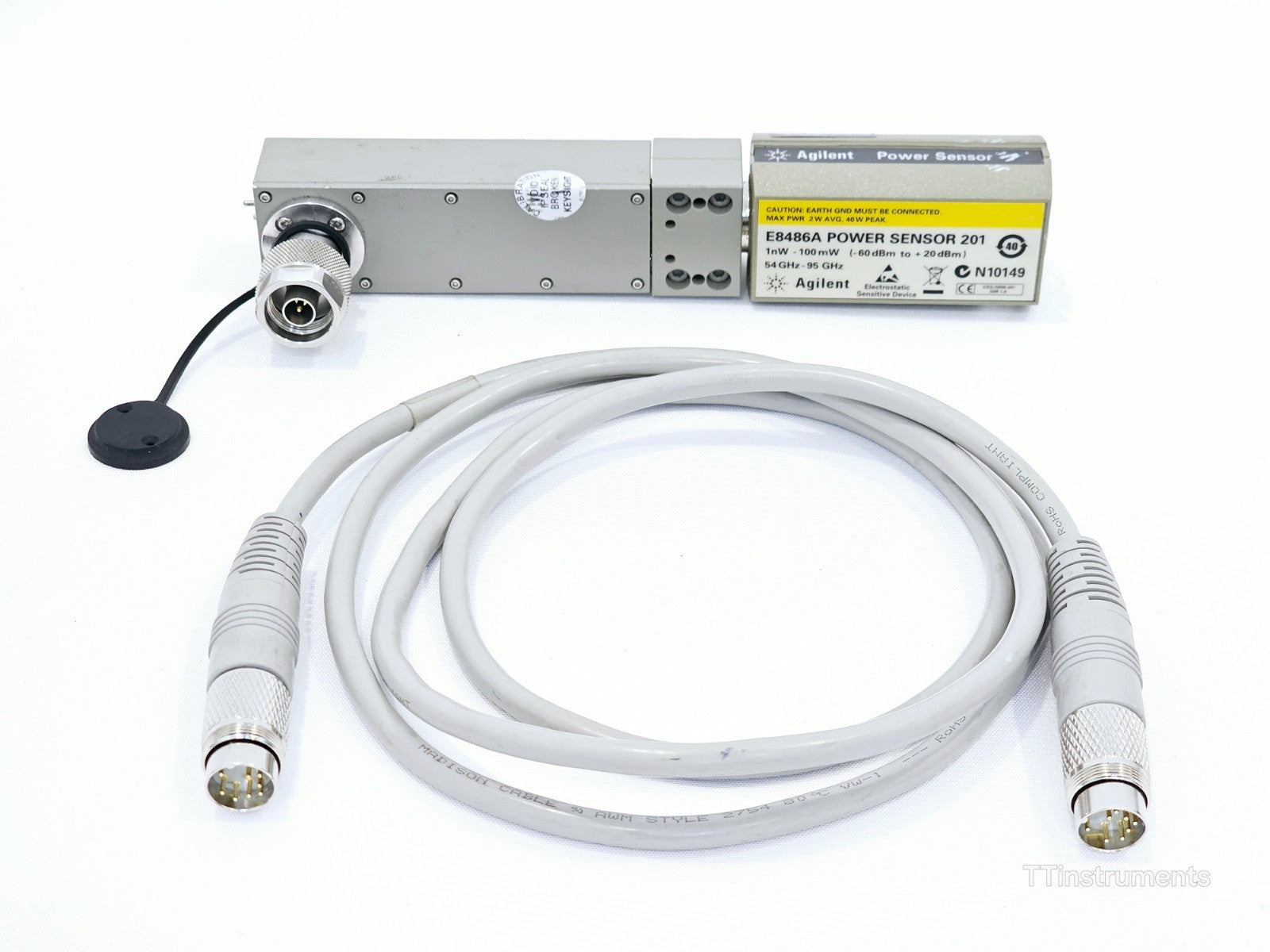

What's typically included:
• Keysight E8486A waveguide power sensor

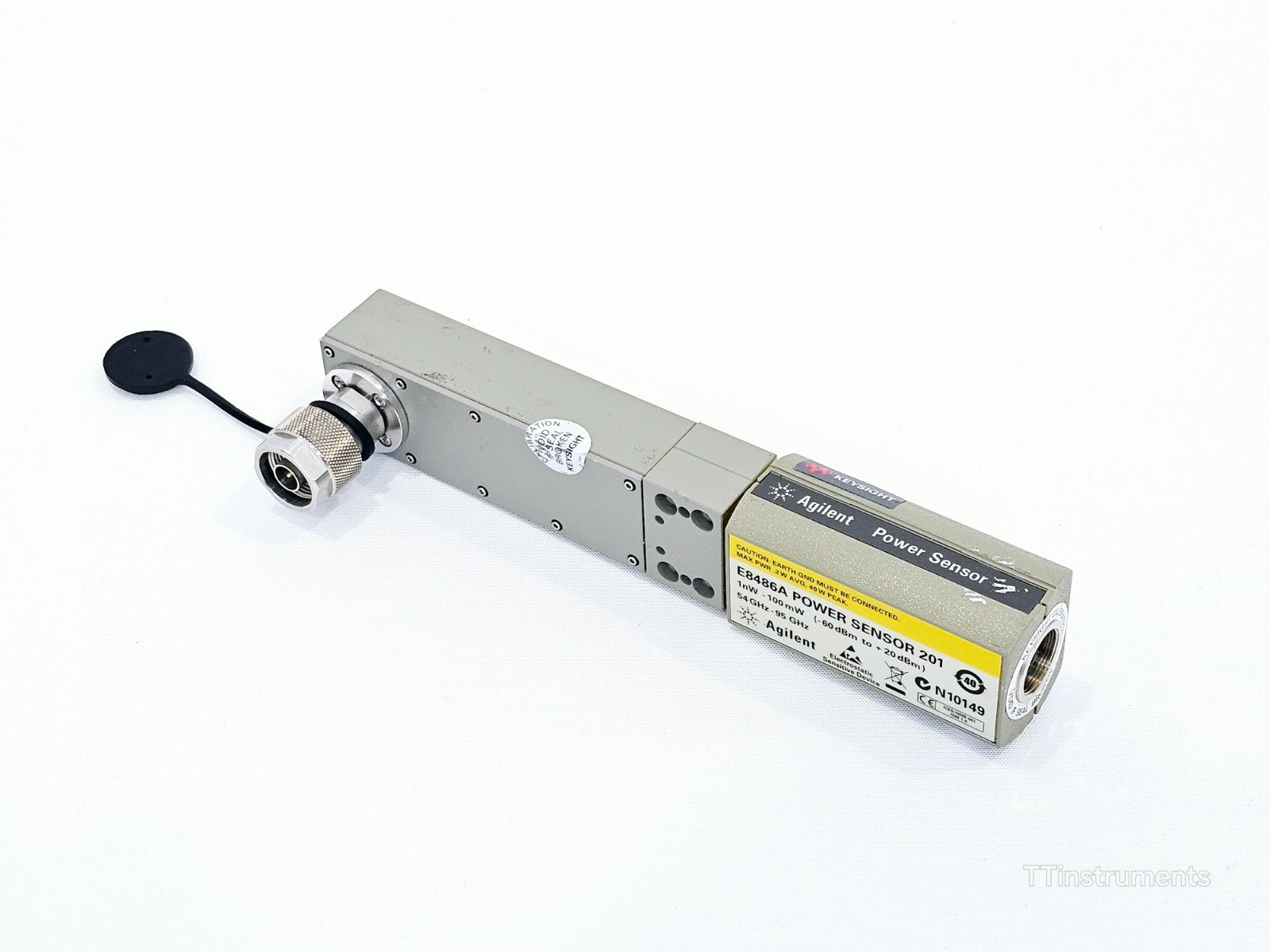

The Keysight E8486A is a waveguide power sensor designed for precise and direct average power measurements in the E-band (60 to 90 GHz) frequency range. Featuring a WR-12 / UG-387/U flange connector, it connects directly to standard WR-12 waveguide systems without the need for additional adapters, making it ideal for radar, satellite communications, aerospace, and millimetre-wave test applications.

The sensor employs Modified Barrier Integrated Diode (MBID) technology, operating in the square-law characteristic for true-average detection. Its excellent standing wave ratio minimises the most common source of power measurement error — sensor-to-source mismatch — while the 50 MHz calibration port eliminates variance between different meter/sensor combinations and provides traceability to the US National Institute of Standards and Technology (NIST) at millimetre-wave frequencies.

Frequency Range: 60 to 90 GHz
Power Measurement Range: -30 to +20 dBm (1 µW to 100 mW)
Maximum Average Power (damage level): 200 mW avg, 1 W peak (10 µs pulse, 0.5% duty cycle)

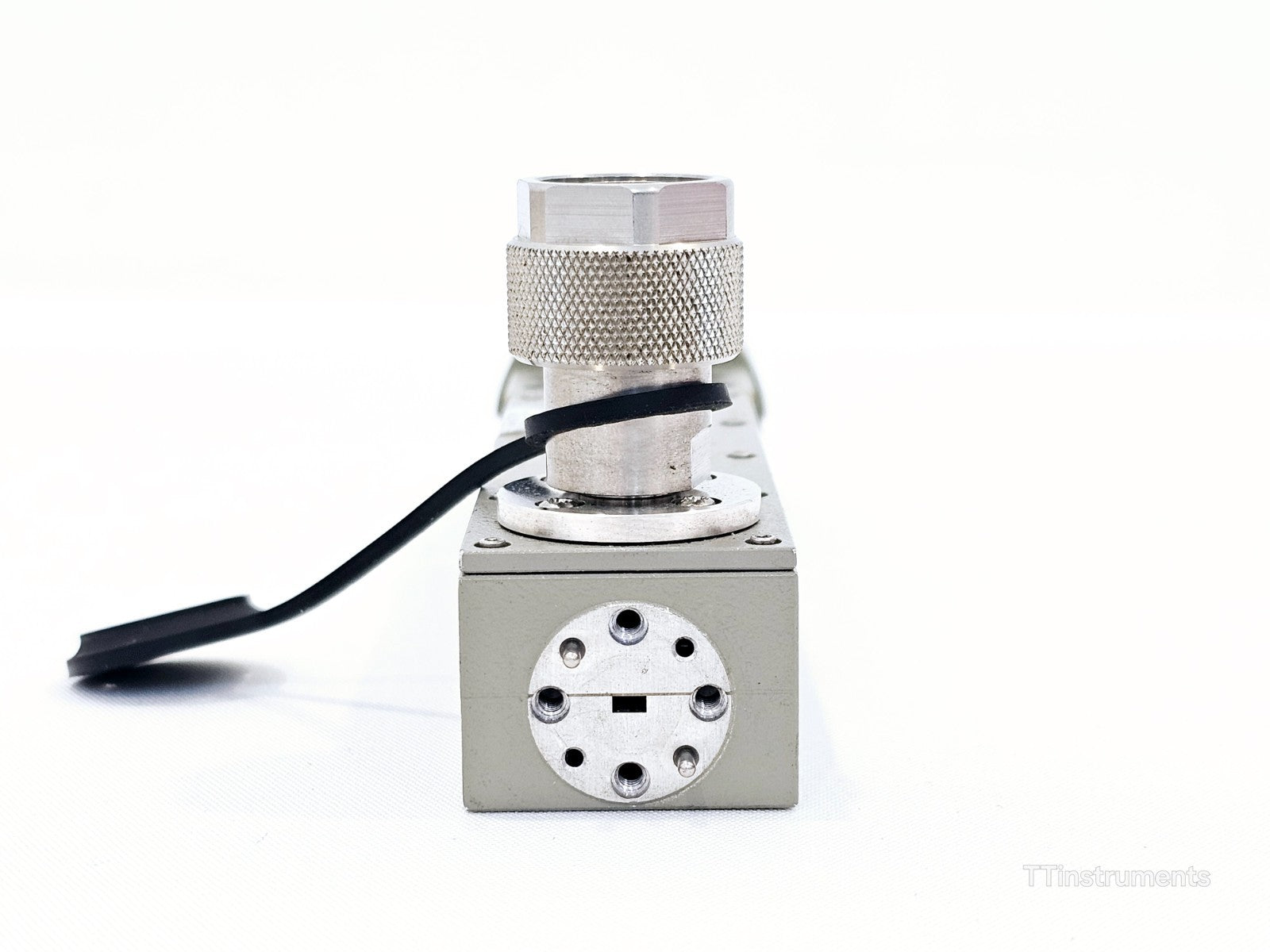

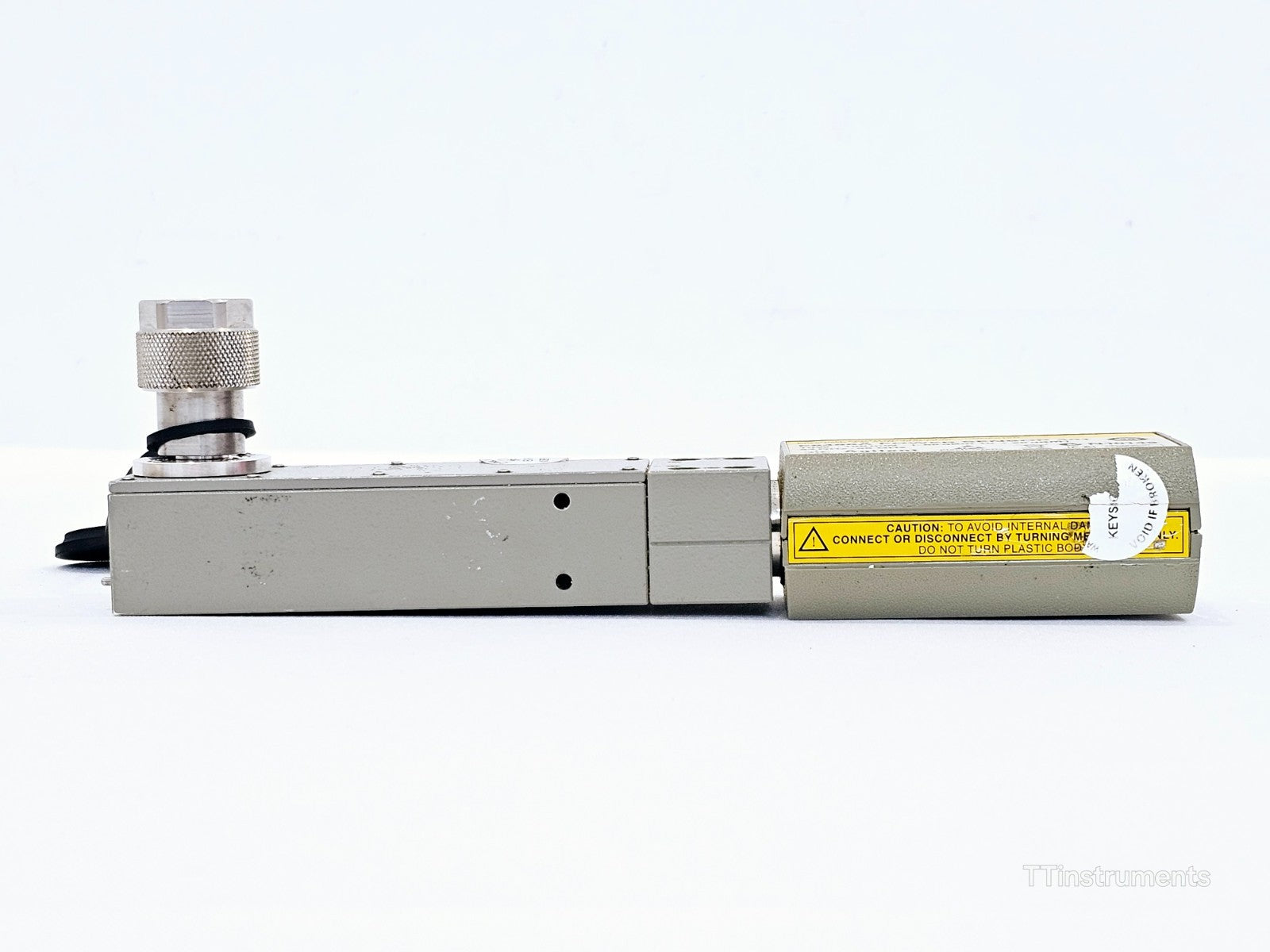

Waveguide Connector: WR-12 / UG-387/U flange
Sensing Element: Diode (Modified Barrier Integrated Diode — MBID)
Standing Wave Ratio (SWR): <1.06 (>30 dB return loss)
Calibration Port: 50 MHz
Calibration Traceability: NIST millimetre-wave sensor calibration
Compatible Power Meters: EPM series (N1913B/14B, N1913A/14A, E4418B/19B), EPM-P series (E4416A/17A), P-series (N1911A/12A), E1416A VXI, 70100A and 43X series
Band: E-band

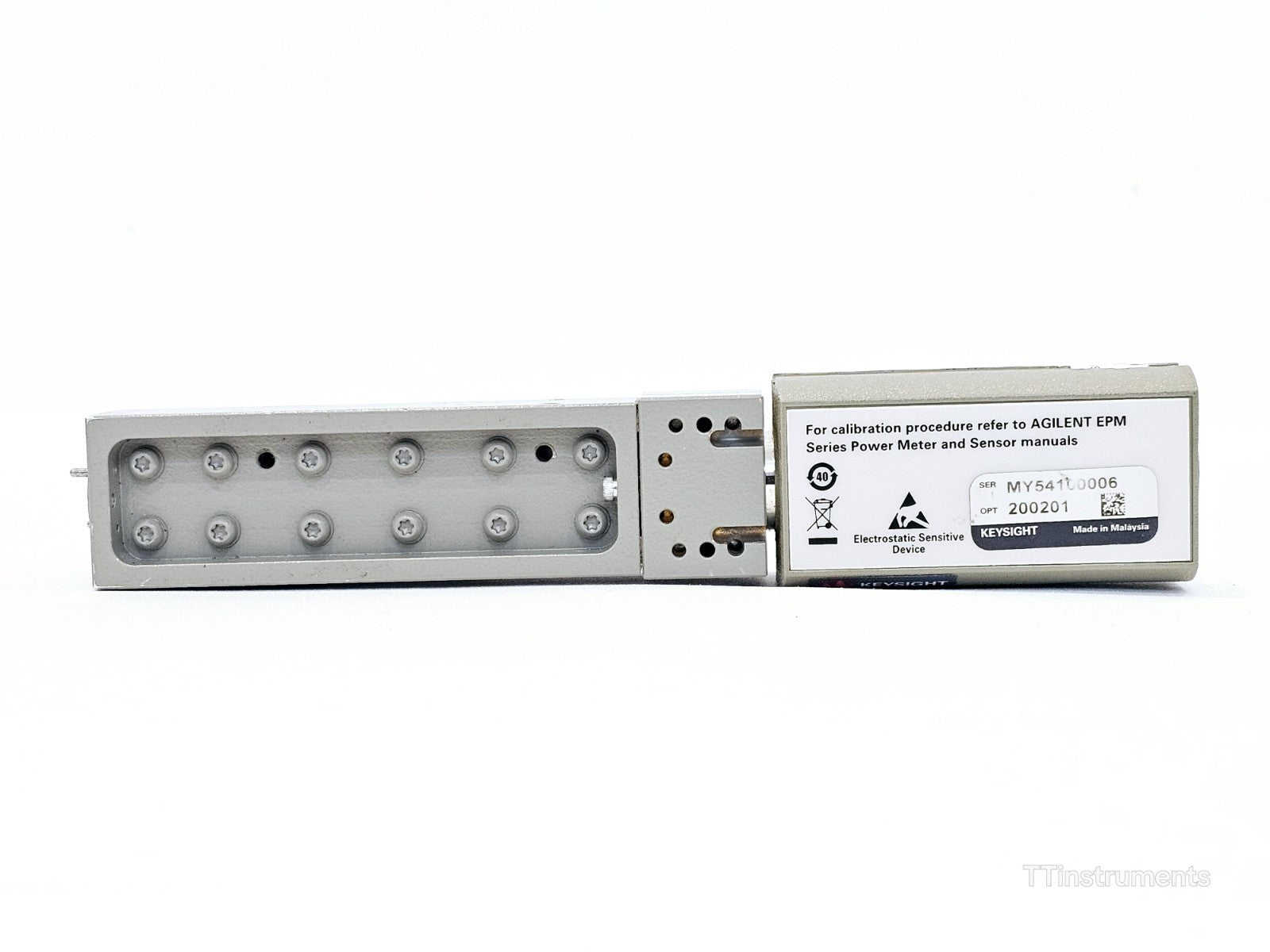

Option 200 (Extended Dynamic Range): -60 to +20 dBm (1 nW to 100 mW)
Option 201: Extended calibration frequency range 54 to 95 GHz

Keysight E8486A, V8486A, W8486A, N8486DD and N8486DG Waveguide Power Sensors — Official Datasheet (5991-3676EN): Download PDF

Keysight E8486A Power Sensor — User's and Service Guide (E8486-90001): Download PDF
