Condition: Used

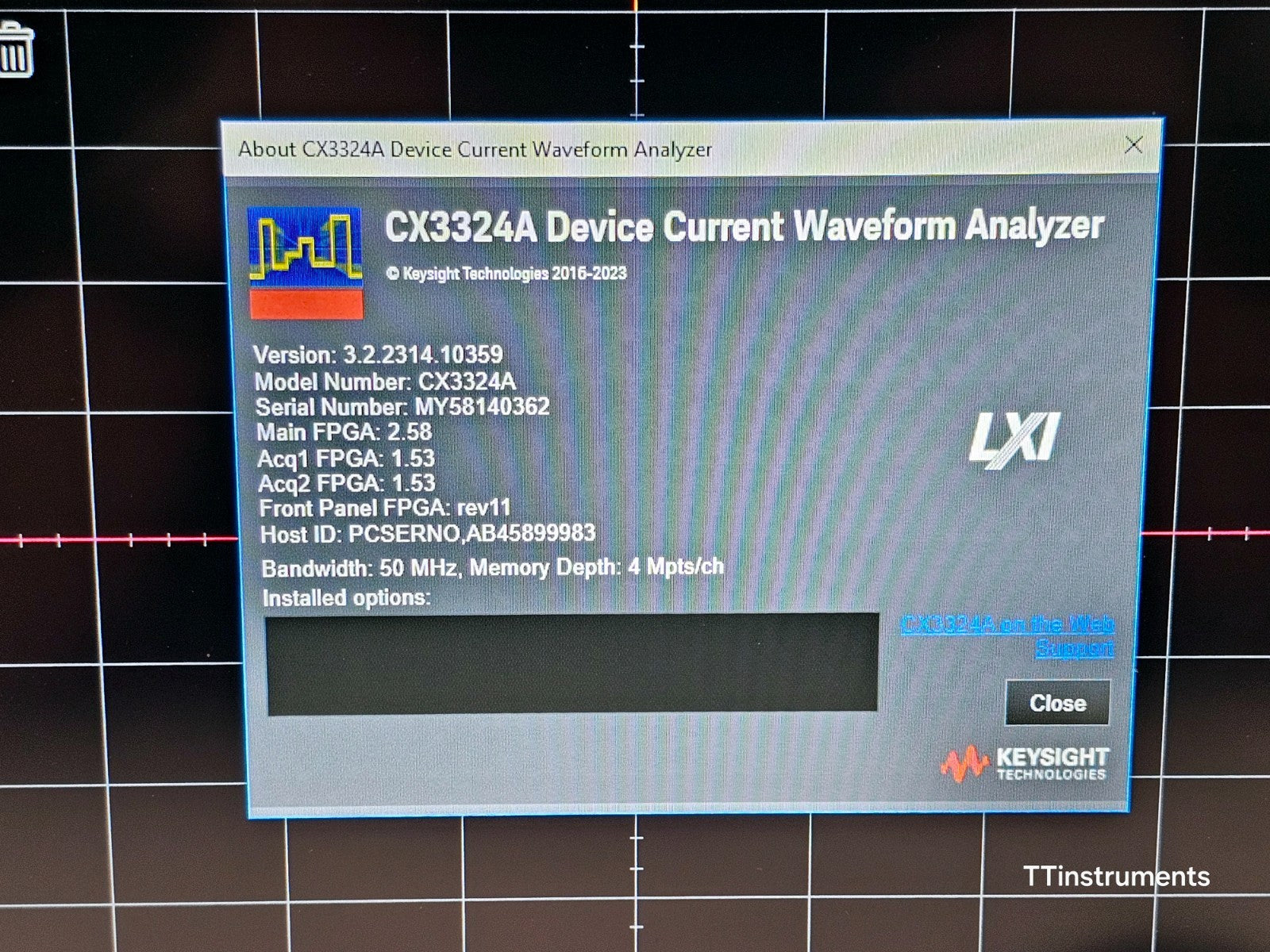

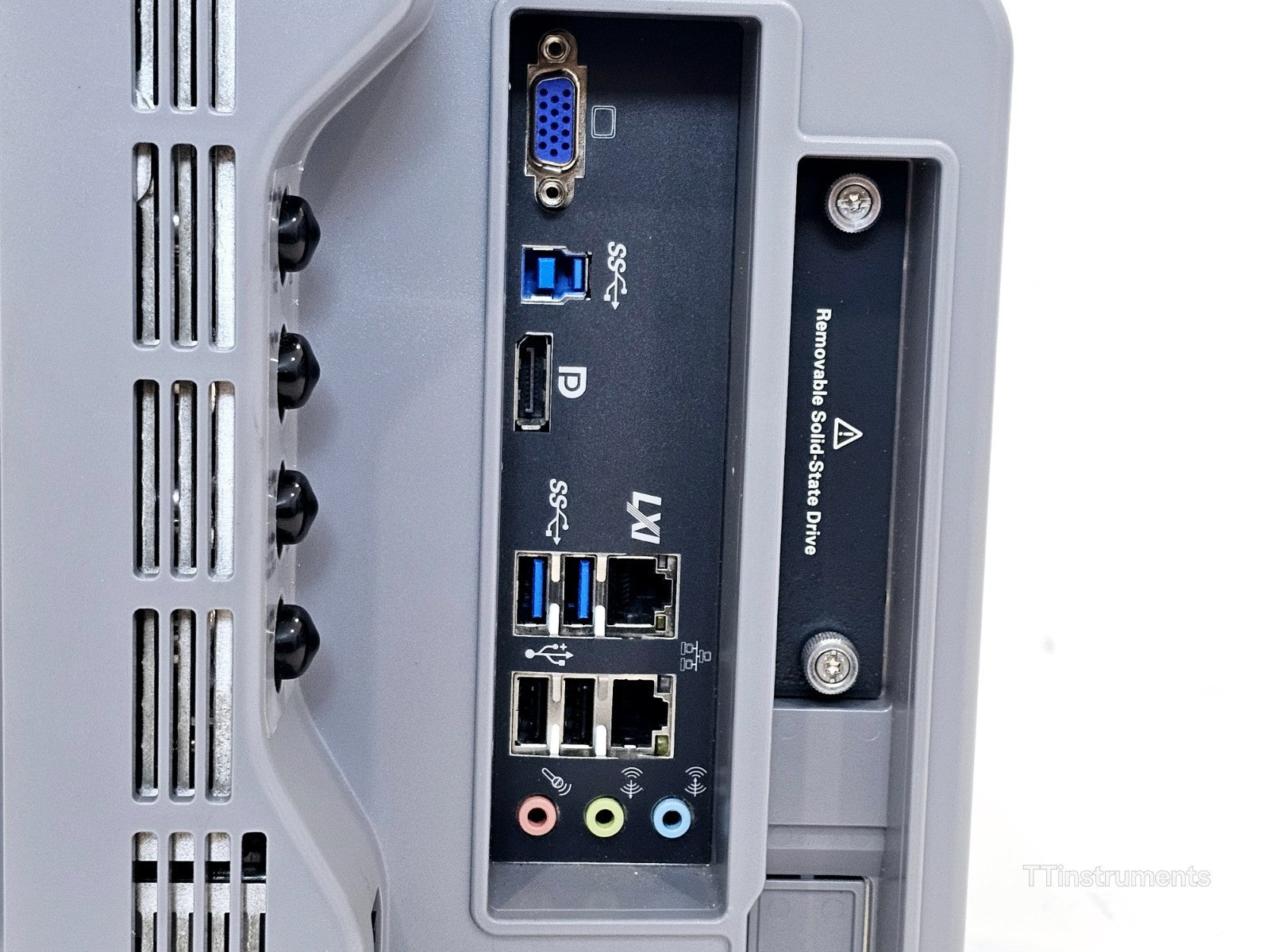

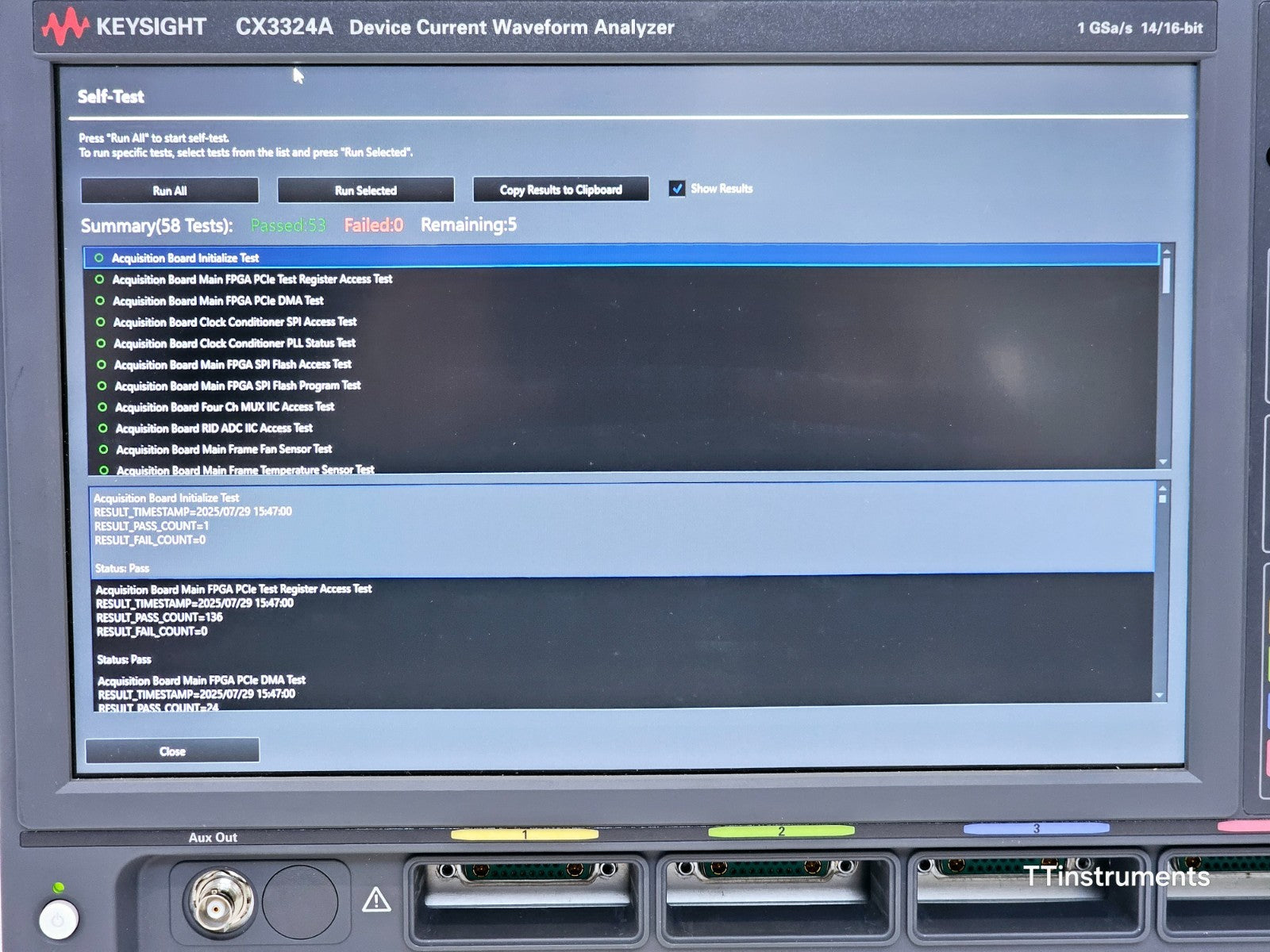

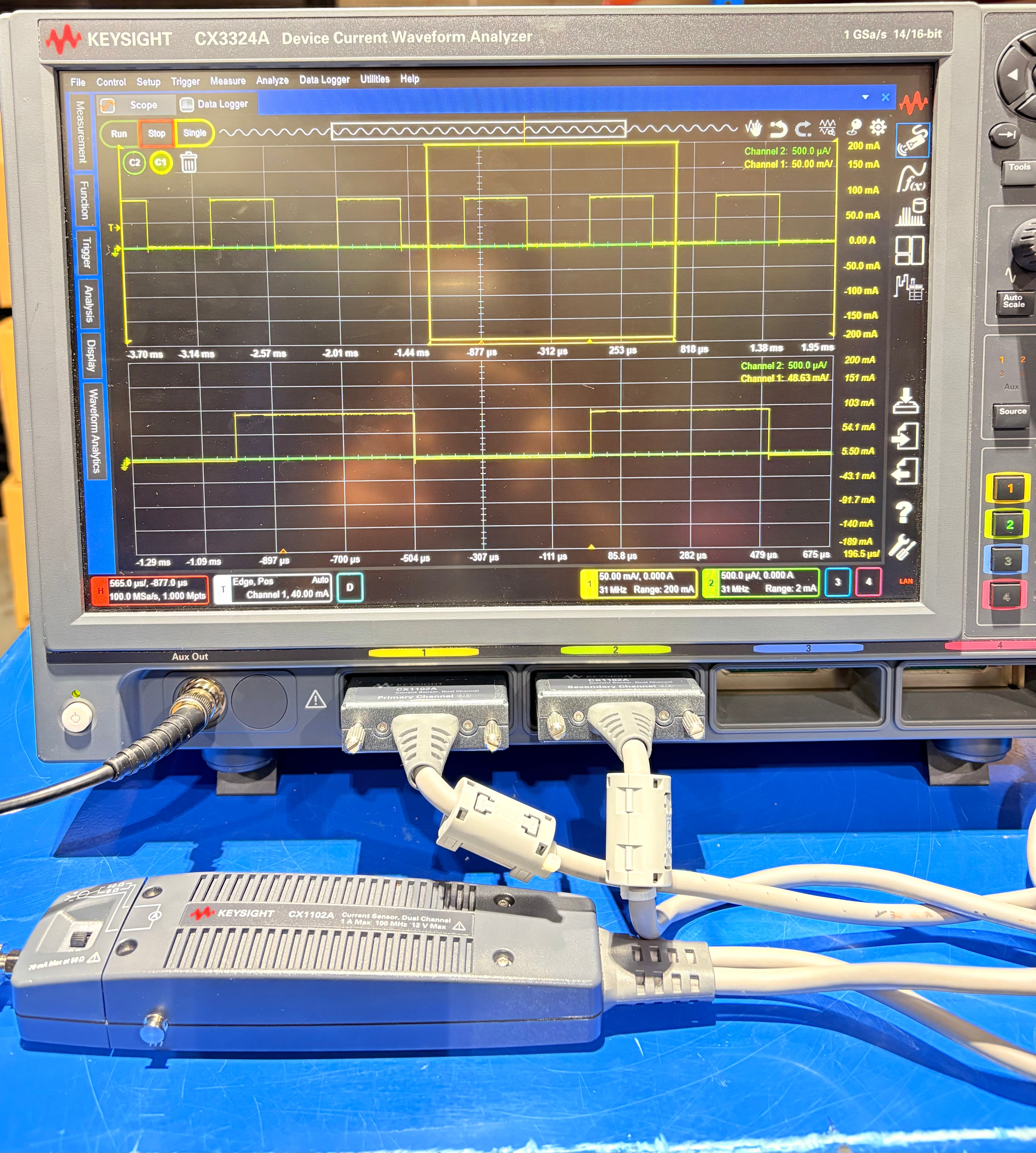

Tested and fully functional — passes all self tests. Probes verified with the calibration output, displaying a clean square wave at 100 mA as expected. All four channels are functional with zero self-test failures. The instrument carries 50 MHz bandwidth and 4 Mpts/ch memory as labelled on the front panel, with LXI/LAN, USB, DisplayPort and VGA connectivity on the rear I/O.

Included in the sale:

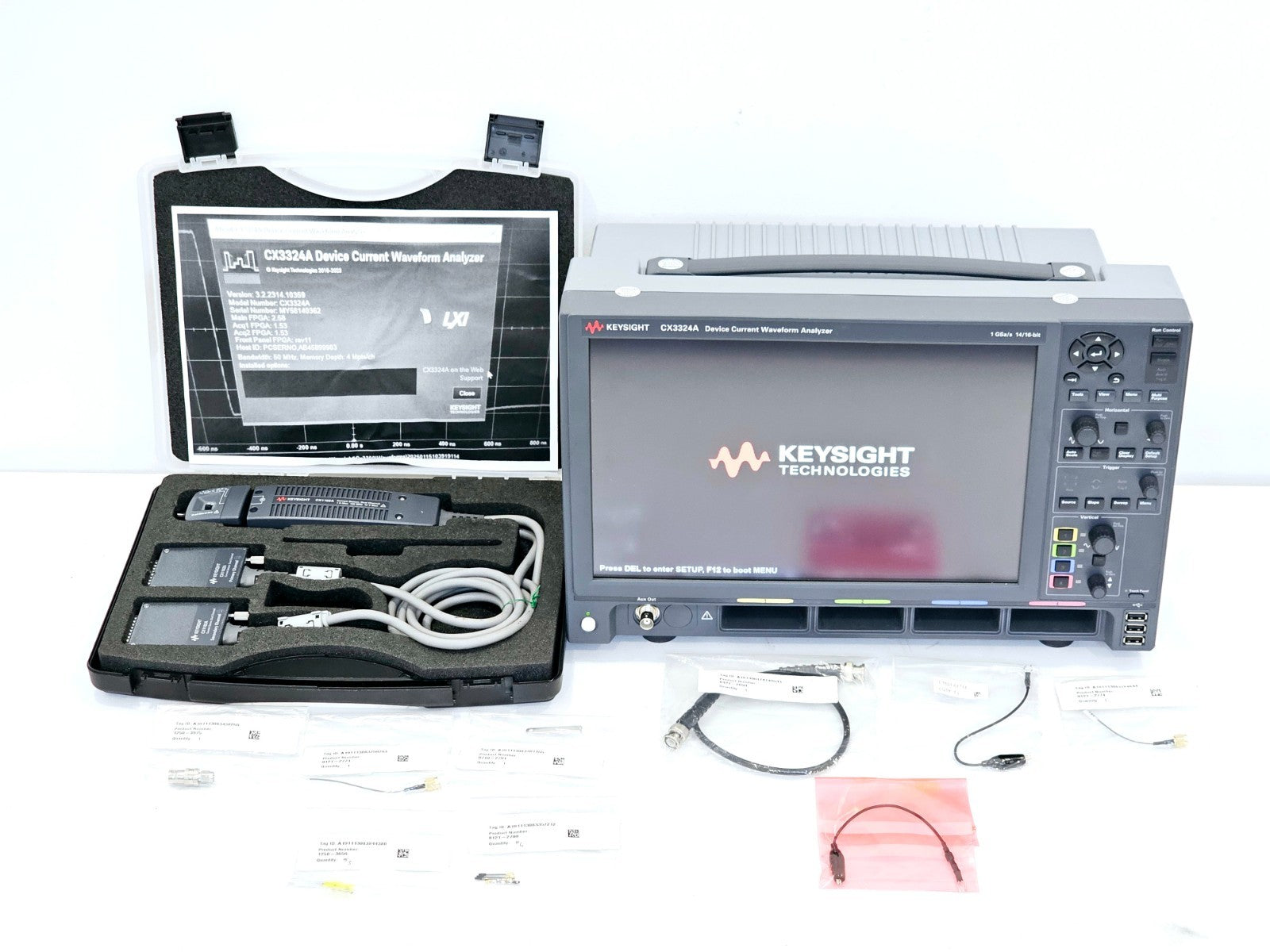

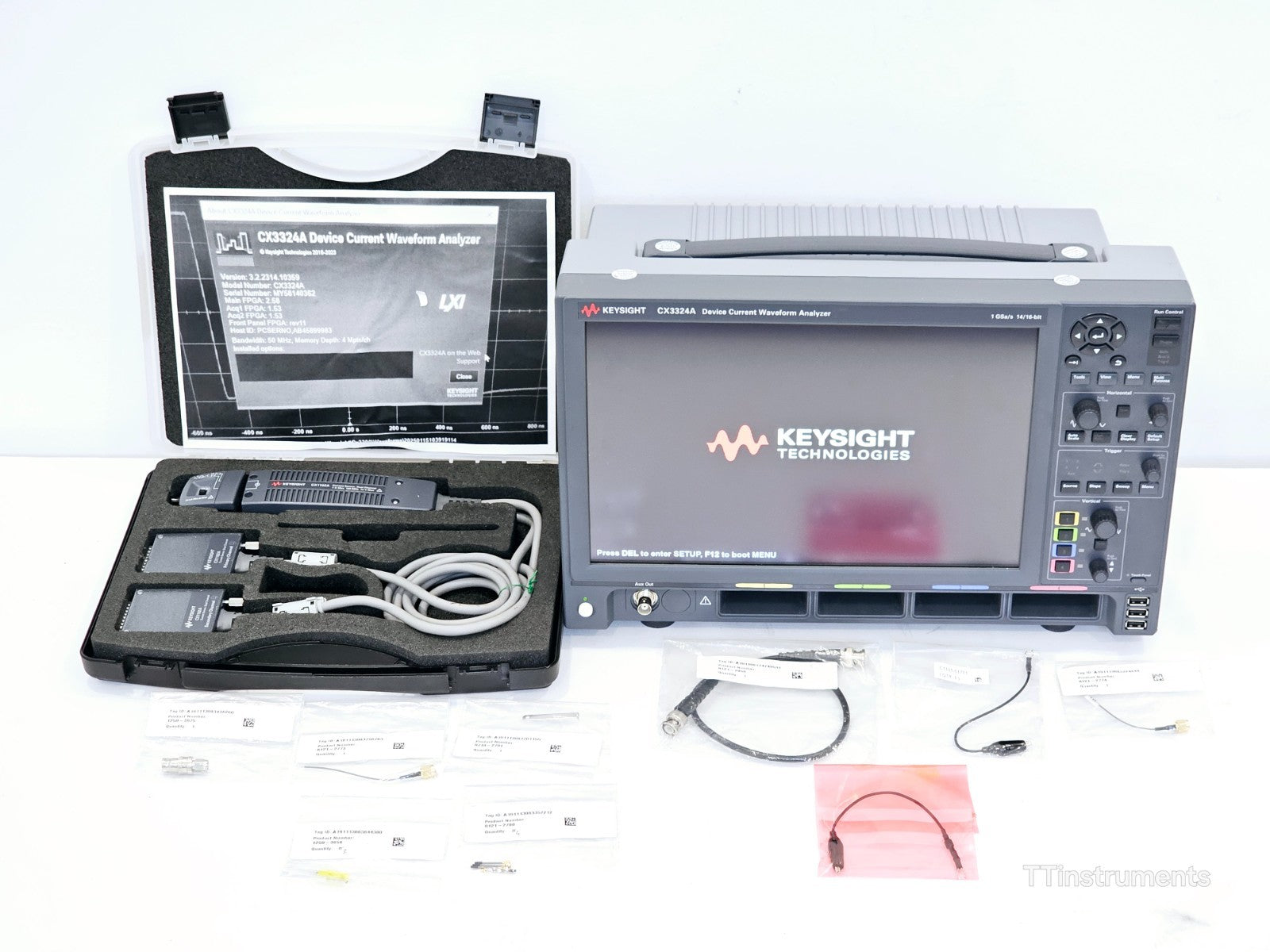

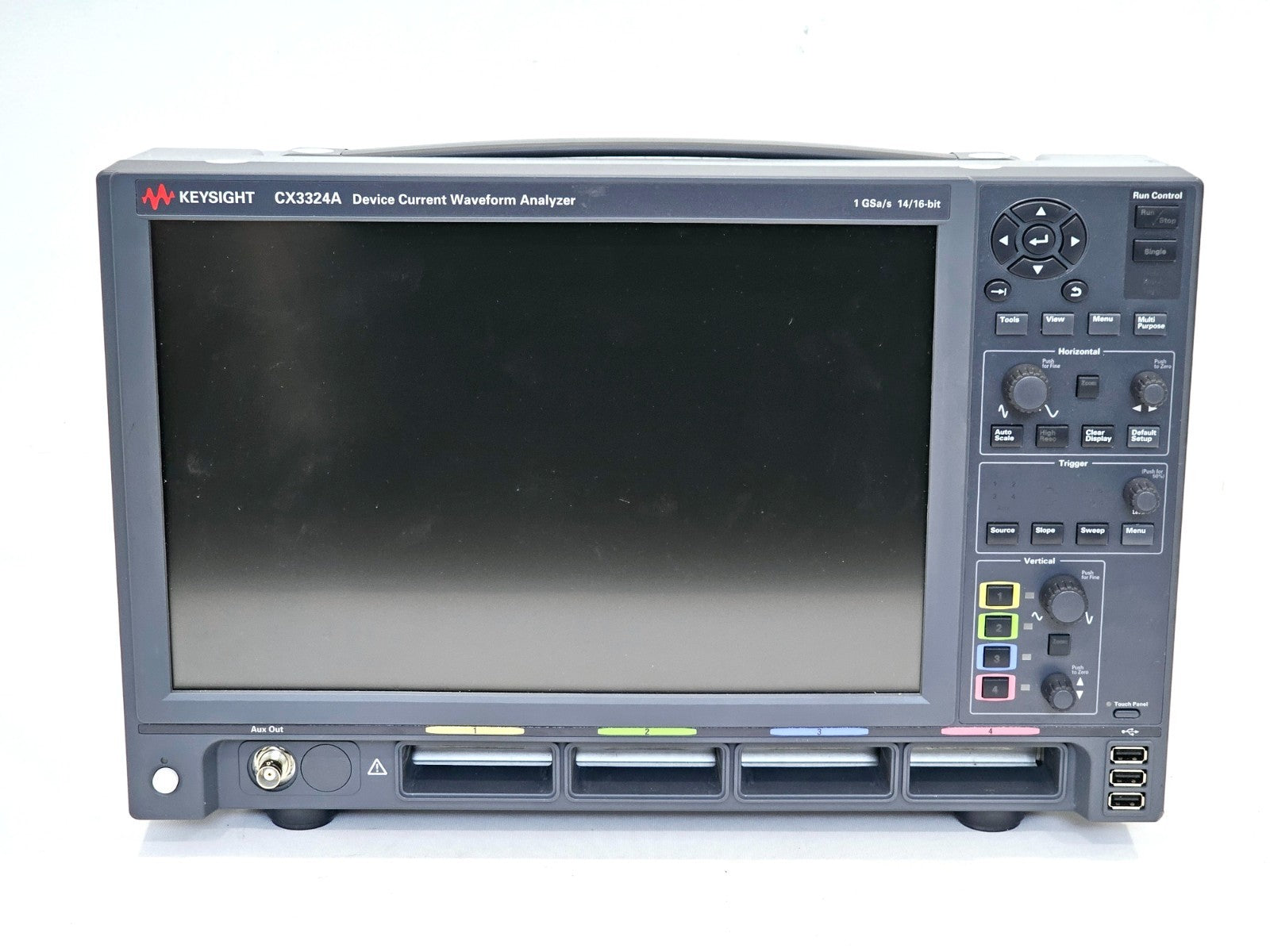

• Keysight CX3324A Device Current Waveform Analyzer — 1 GSa/s, 14/16-bit, 4 channels (main unit)

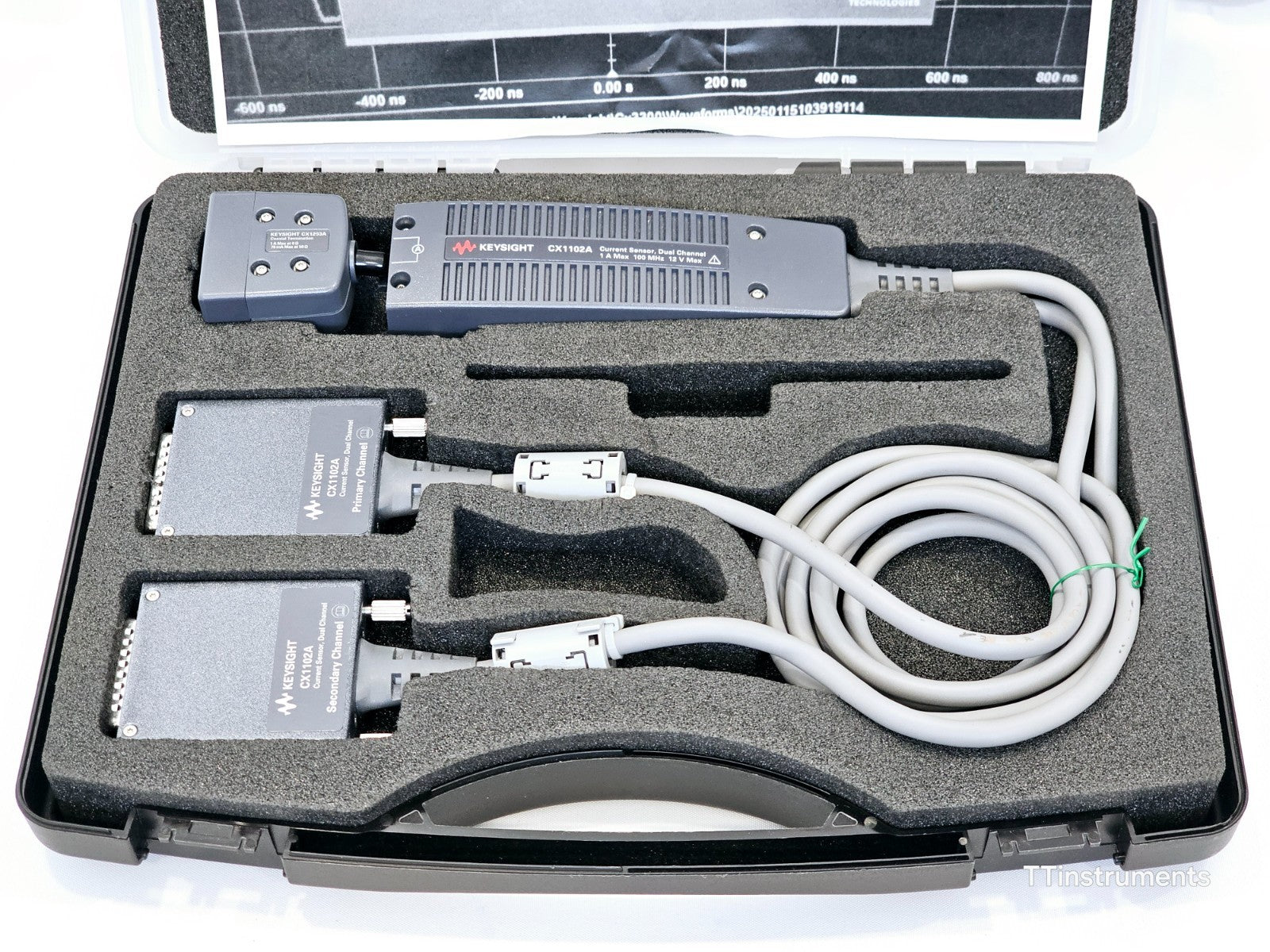

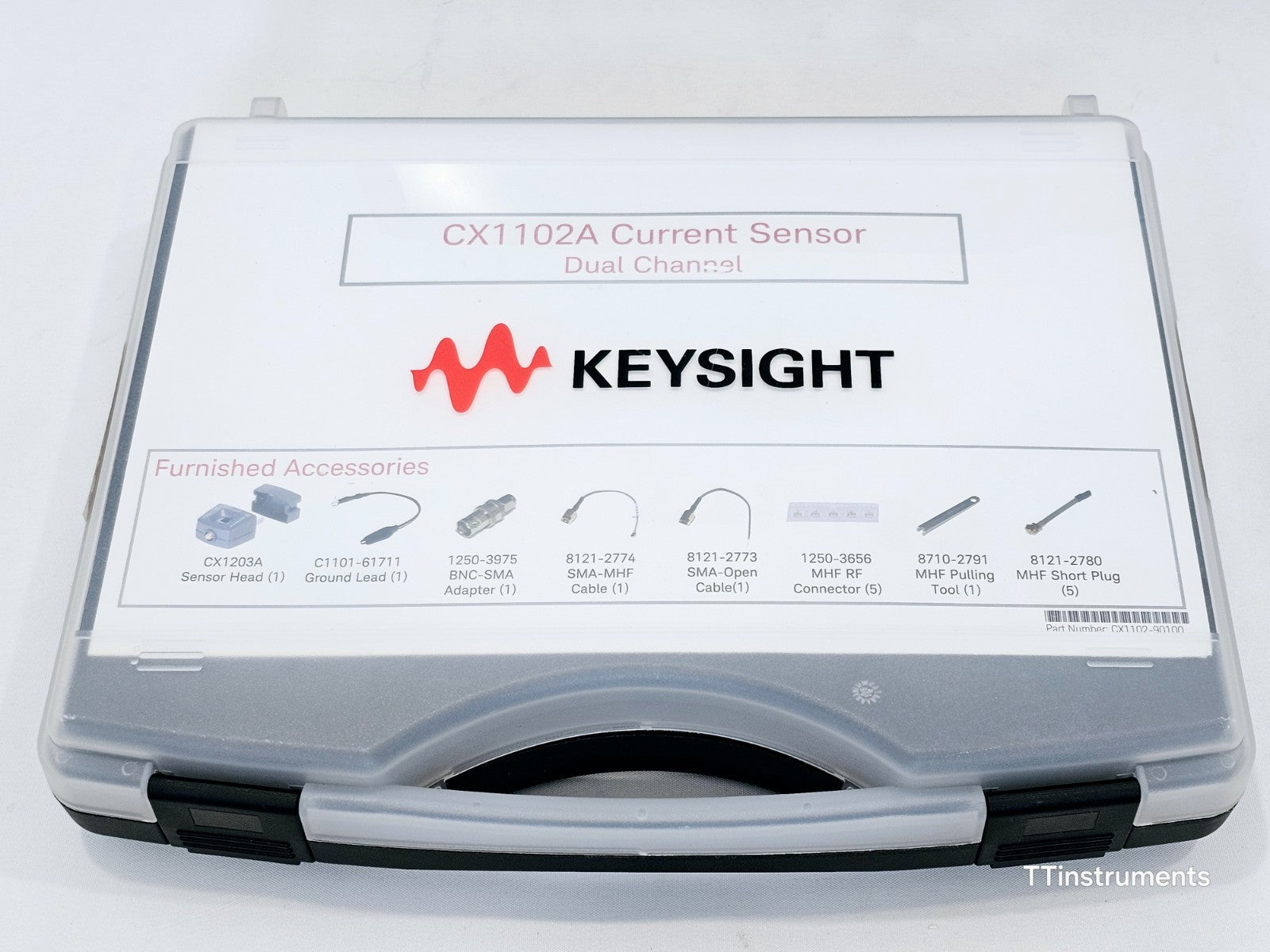

• Keysight CX1102A dual-channel current sensor kit in carry case (handle, two sensor heads, leads)

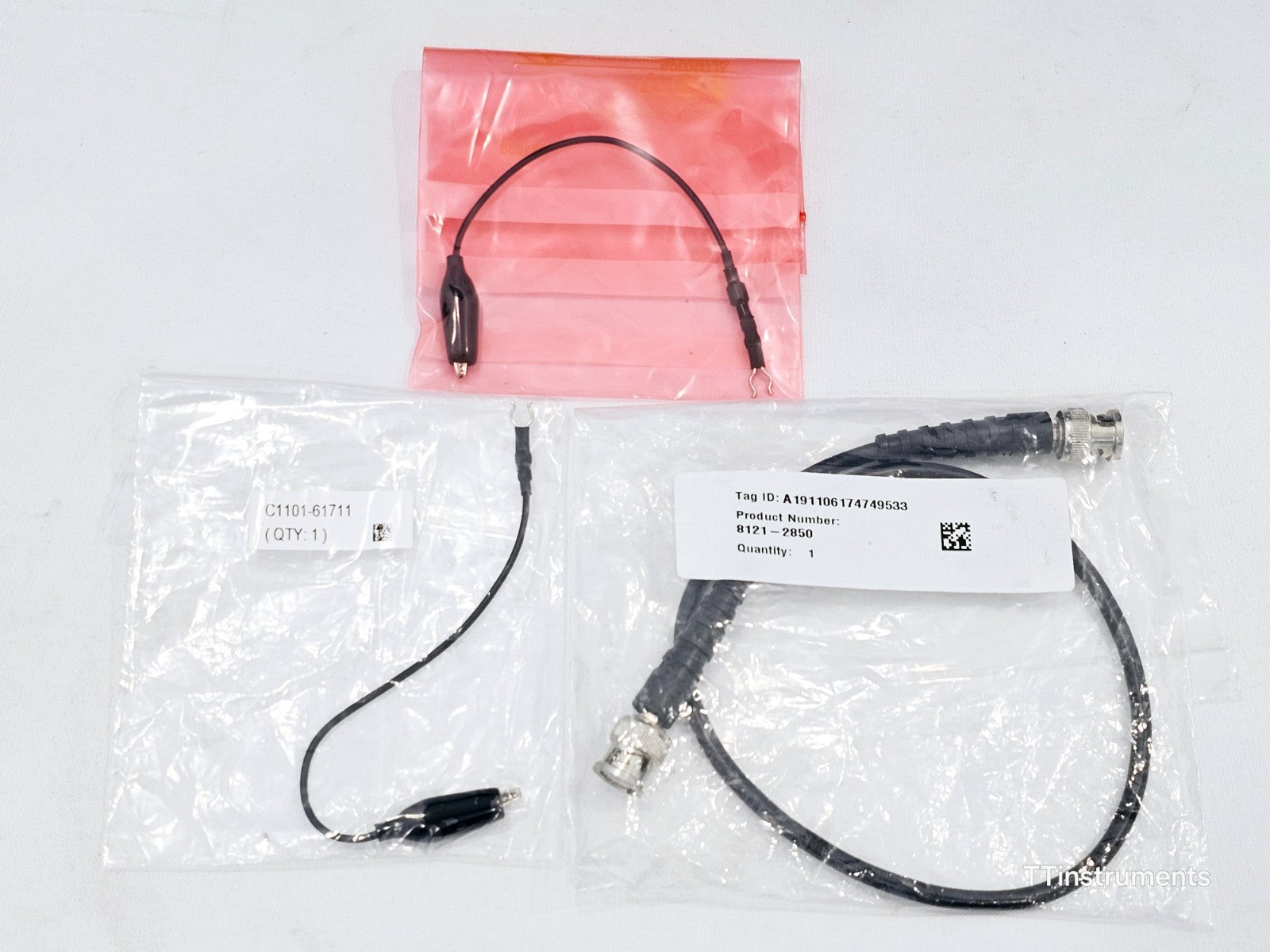

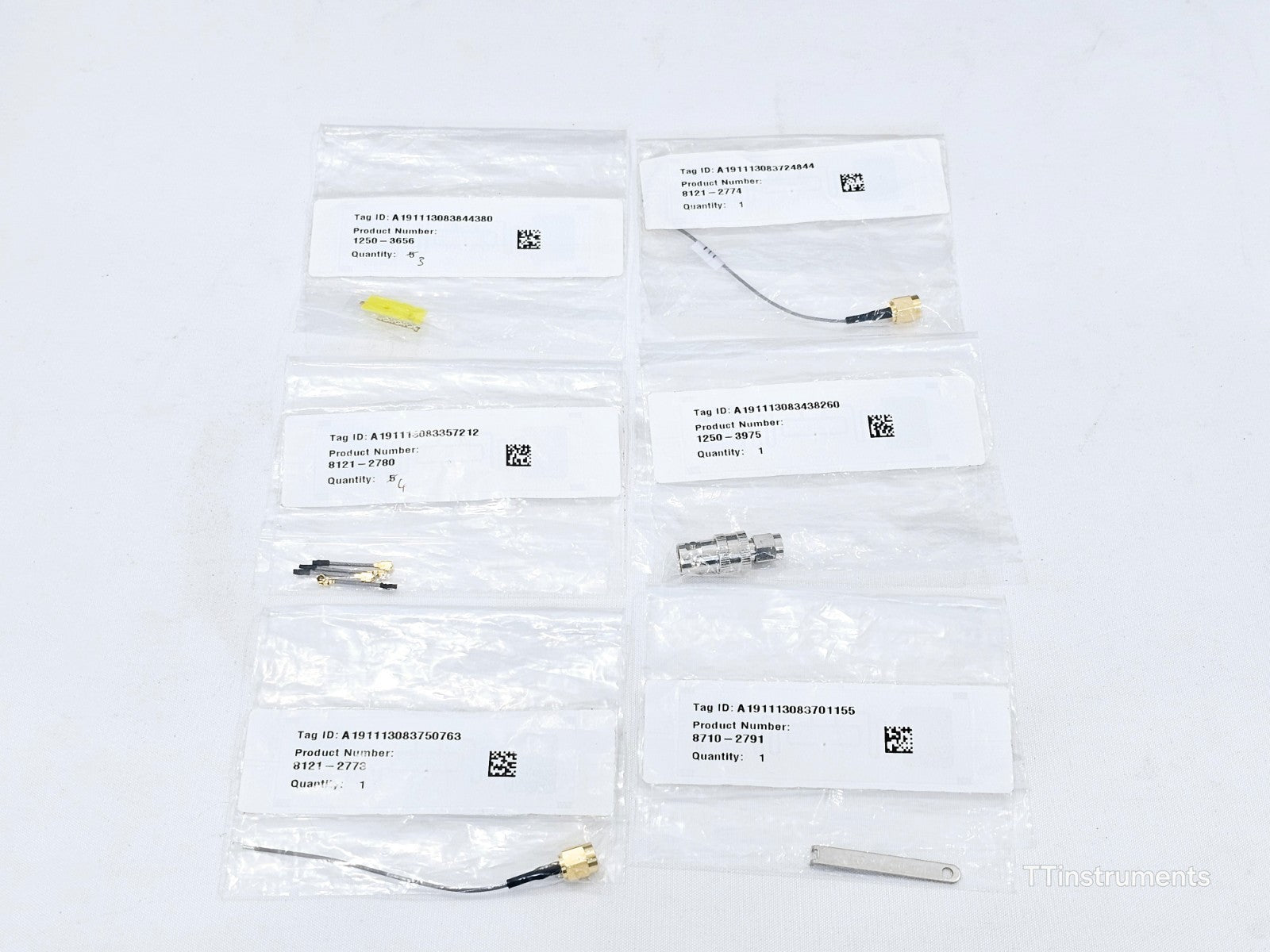

• Assorted Keysight accessories and short coax leads/adapters (bagged items)

The Keysight CX3324A is a 4-channel device current waveform analyzer from the CX3300A series, designed to measure dynamic current and voltage waveforms with the bandwidth and sampling rate of an oscilloscope, the sensitivity and low noise of a DMM, and the long-duration recording capability of a data logger — all in a single instrument. It is optimised for characterising power rails, power delivery networks, and power integrity of power-sensitive devices including IoT, mobile, medical, and automotive applications.

The CX3324A accepts signals from Keysight CX-series current sensors and passive probe interface adapters across all four channels, and digitises them at up to 1 GSa/s. Resolution is switchable between 14-bit (high speed mode) and 16-bit (high resolution mode) via the front-panel High Reso button. Bandwidth and memory depth are field-upgradable via licence options.

On-board analysis functions include Automatic Power and Current Profiler, Power Measurement Wizard, FFT Analyzer, and Statistical Analysis. The 14.1-inch WXGA capacitive touchscreen provides a familiar, easy-to-use graphical interface. Connectivity includes LAN (LXI), USB 2.0/3.0, DisplayPort, and VGA.

The CX1102A dual-channel current sensor (typically paired with this mainframe) uses simultaneous capture technology across a primary and secondary channel — synchronised with a 100× range difference — enabling wide dynamic range measurements (over 100 dB) in a single acquisition, ideal for devices transitioning between sleep and active states.

Mainframe Specifications (CX3324A):
Channels: 4 analogue (plus optional 8-ch digital via CX1152A)
Maximum Sample Rate: 1 GSa/s
ADC Resolution: 14-bit (high speed) / 16-bit (high resolution)
Bandwidth Options: 50 MHz, 100 MHz, 200 MHz
Memory Depth Options: 4 Mpts/ch, 16 Mpts/ch, 64 Mpts/ch, 256 Mpts/ch
Display: 14.1-inch WXGA capacitive touchscreen
Dimensions: 425.6 mm (W) × 266.1 mm (H) × 196.7 mm (D)
Power Supply: 100–240 V (±10%), 50/60 Hz, 250 VA maximum
Safety: IEC 61010-1
EMC: IEC 61326-1
Measurement Category: Category 1
Operating System: Windows 10
Connectivity: LAN (LXI/RJ-45), USB 2.0/3.0, DisplayPort, VGA

CX1102A Dual-Channel Current Sensor Specifications:
Measurement Range: 40 nA to 1 A
Maximum Bandwidth (standalone): 100 MHz
Common Mode Voltage Range: ±12 V
Input Resistance: 410 mΩ (typical)
Dynamic Range: >100 dB (single measurement)
Channels: Primary + Secondary (100× range difference, synchronised)
Compatible Mainframes: CX3322A, CX3324A

Keysight CX3300A Series Device Current Waveform Analyzer — Official Datasheet (5992-1430): Download PDF

Keysight CX3300 Series Device Current Waveform Analyzer — User's Guide (CX3322A / CX3324A): Download PDF

Keysight CX3300 Series Device Current Waveform Analyzer — Quick Reference Guide: Download PDF

Keysight CX3300 Series Device Current Waveform Analyzer — Configuration Guide (5992-1434): Download PDF

Keysight CX3300 Series Device Current Waveform Analyzer — Third-party hosted Datasheet PDF: Download PDF

Keysight CX3300 Series — User's Guide (CX3322A / CX3324A), Keysight S3 hosted PDF: Download PDF
