Condition: New other (see details)

Unused and in excellent condition, opened only for photography. The Keysight CX1206A is a high current adapter with expander that attaches to the CX1101A current sensor, extending its maximum measurement current to 10 A at up to 40 V. Banana jack terminals provide the ammeter + and – connections for a CX3300 series analog channel via the CX1101A.

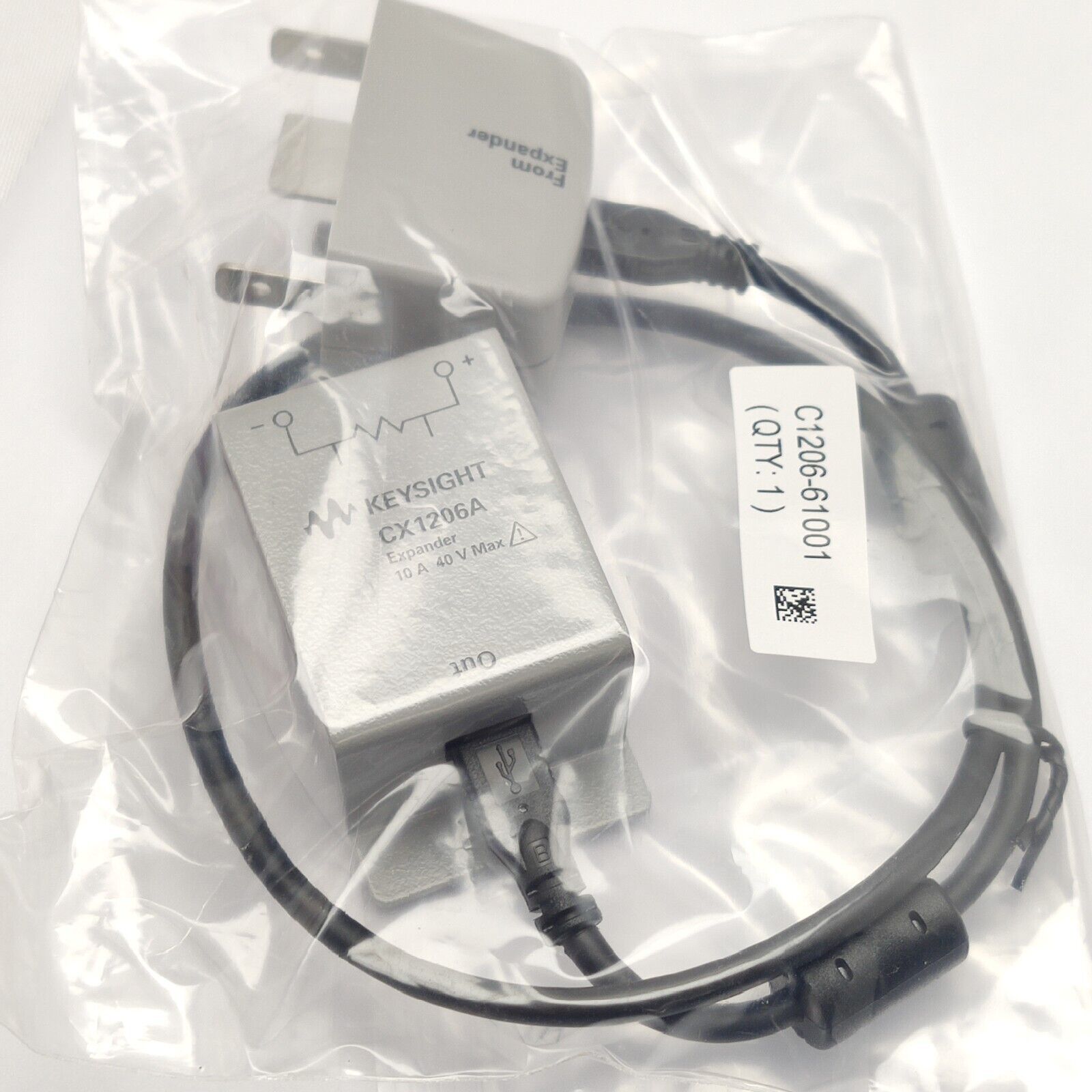

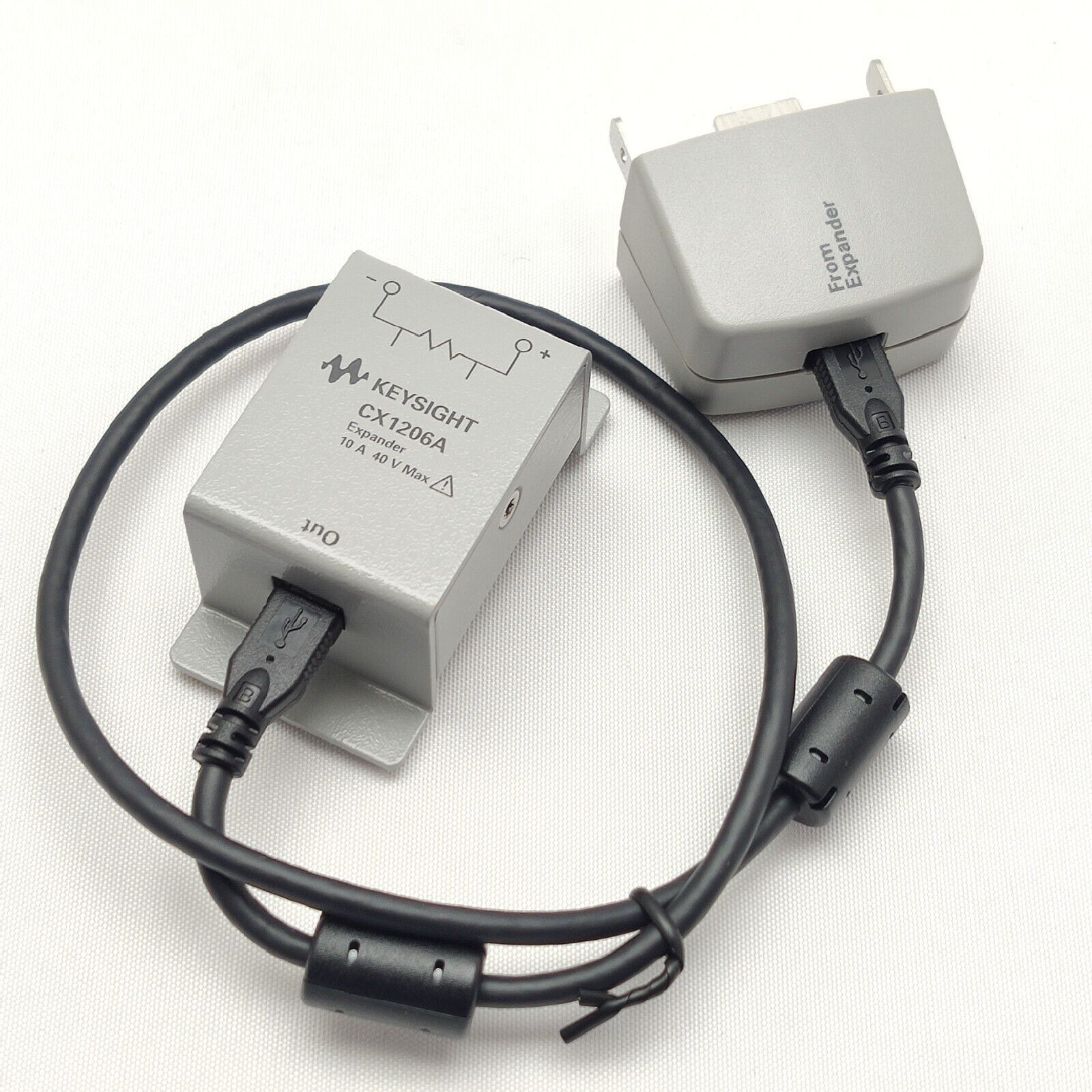

Supplied as pictured. Typically includes:

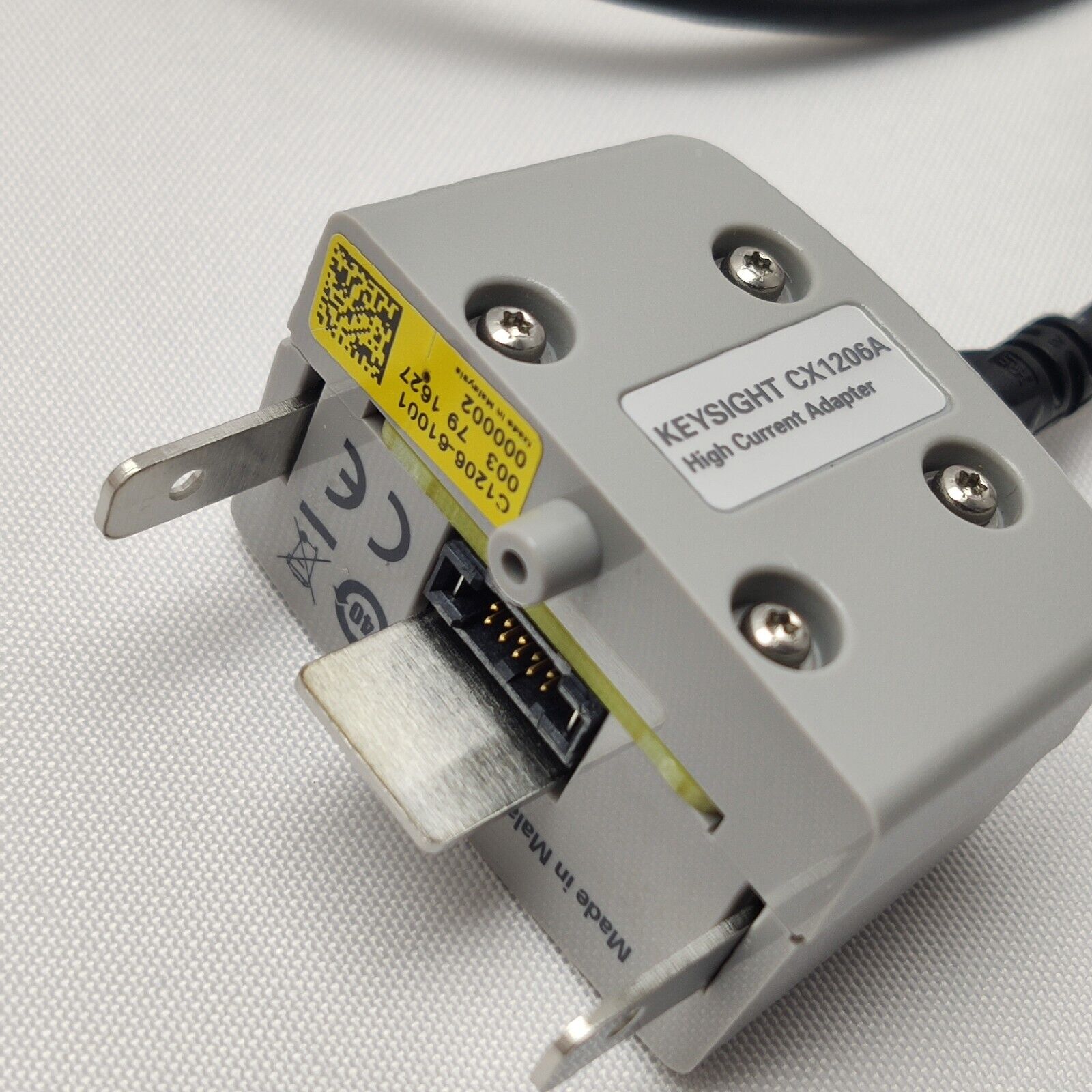

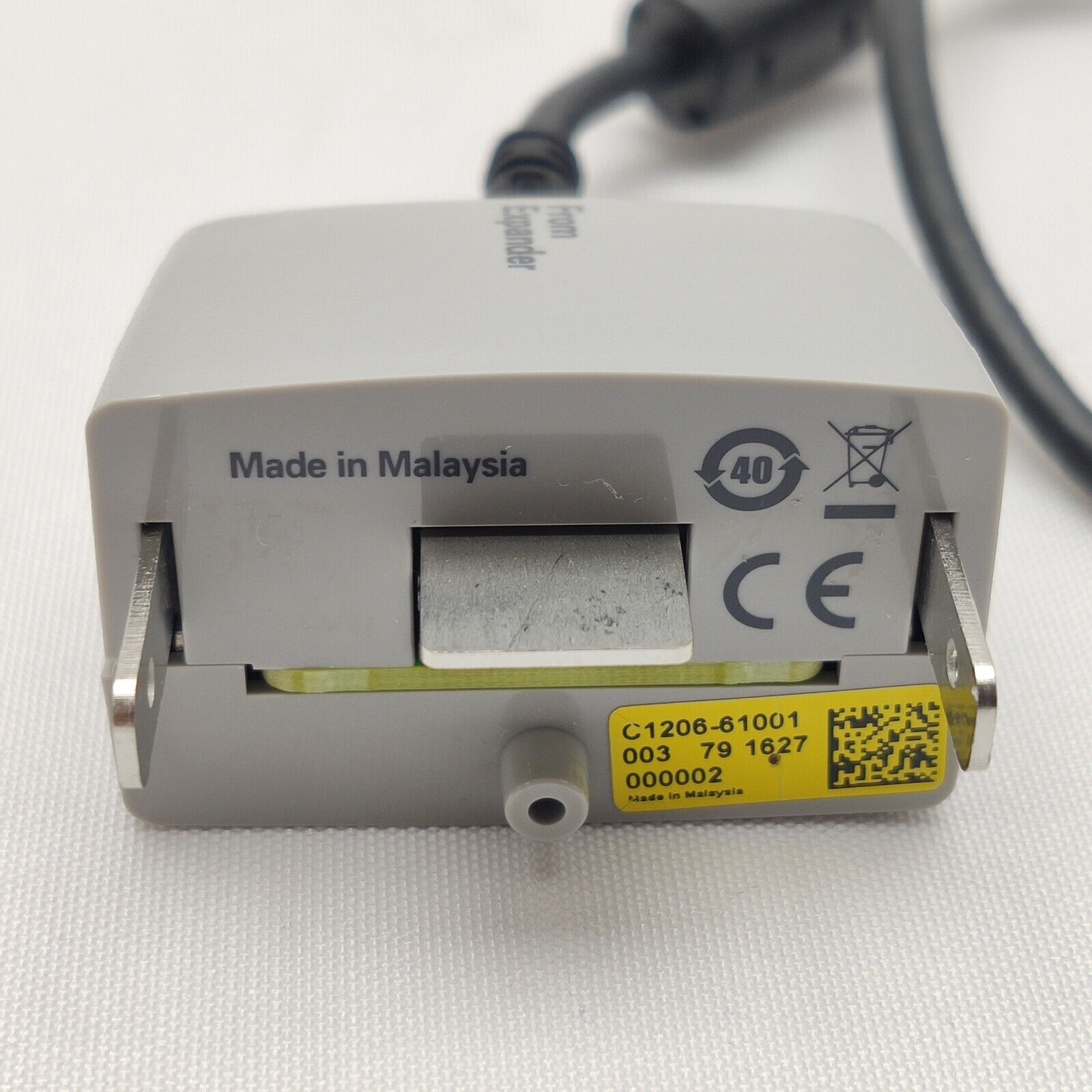

• CX1206A high current adapter (sensor head)

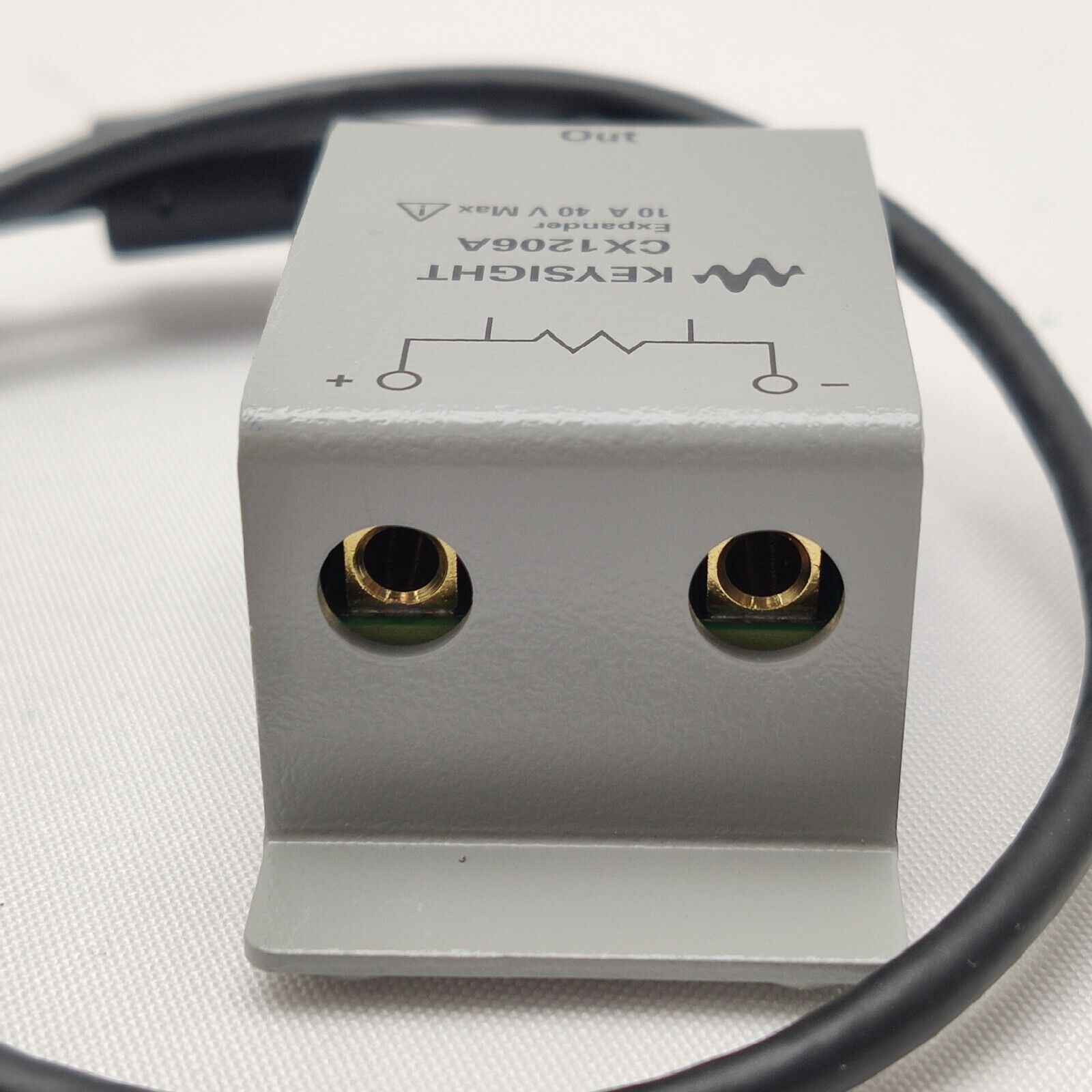

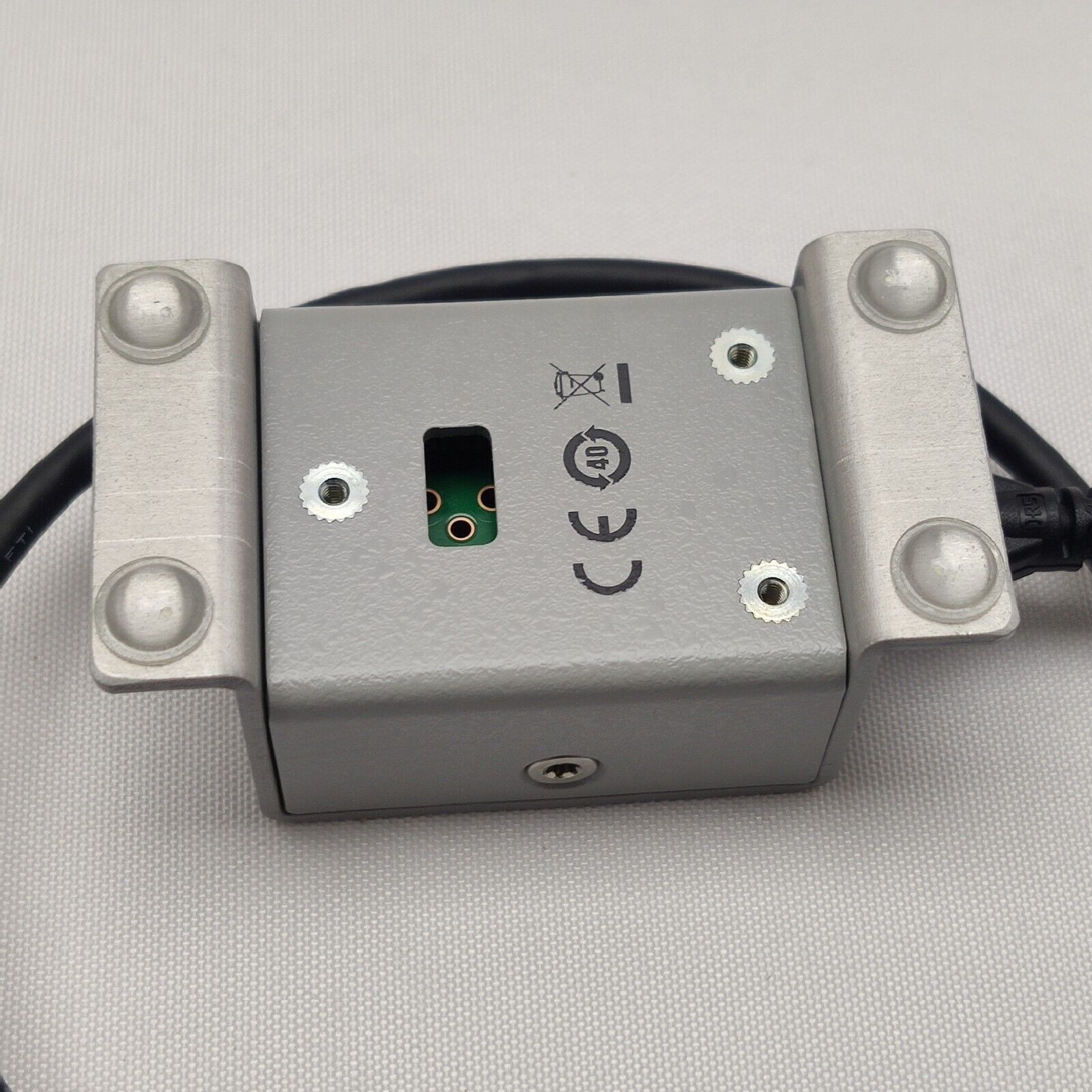

• Expander unit with banana plug terminals

The Keysight CX1206A is a dedicated Sensor Head and High Current Adapter with Expander for use exclusively with the CX1101A single-channel current sensor and the CX3300 Series Device Current Waveform Analyzer. It extends the maximum measurable current of the CX1101A from 1 A up to 10 A, enabling dynamic high-current waveform analysis within the CX3300 ecosystem.

The CX1206A incorporates an ESL (Equivalent Series Inductance) reduced shunt resistor technology to maintain accurate, low-noise current sensing at higher current levels. Current sensing is performed by the expander module, which connects to the DUT via a pair of banana plug cables — providing a convenient, straightforward connection for high-current in-circuit measurements.

The CX3300 Series mainframe digitises signals from the CX1101A at up to 1 GSa/s with 14-bit or 16-bit resolution, and the CX1206A allows this system to cover a broad dynamic range from sub-milliamp to 10 A.

Key Specifications:
Compatible Sensor: CX1101A (single-channel current sensor)
Compatible Mainframe: CX3300 Series Device Current Waveform Analyzer
Maximum Measurement Current: 10 A
Maximum Voltage: 40 V
Minimum Measurable Current: Less than 3 mA
Connection Type: Banana jack terminals (+ and –)
Current Sensing Technology: ESL-reduced shunt resistor
Sensing Location: Expander unit (banana plug interface)

Typical Use Cases:
- Dynamic current waveform characterisation for IoT, mobile, automotive, and medical devices
- Power rail and power delivery network (PDN) analysis requiring high current range
- Device current profiling during high-load or peak-current transient events
- Extending CX1101A measurement capability beyond the standard 1 A limit

For full specifications, refer to the Keysight CX3300 Series datasheet and the CX1101A product page at www.keysight.com.

Keysight CX3300A Series Device Current Waveform Analyzer Datasheet (5992-1430): Download PDF

Keysight 7 Hints for Precise Current Measurements — Application Note referencing CX1206A (5992-2118): Download PDF

Keysight CX3300 Series Device Current Waveform Analyzer User's Guide: Download PDF

Keysight CX3300 Series Product Fact Sheet (5992-1410): Download PDF

Keysight CX1206A Datasheet (via Transcat): Download PDF
