Condition: Used

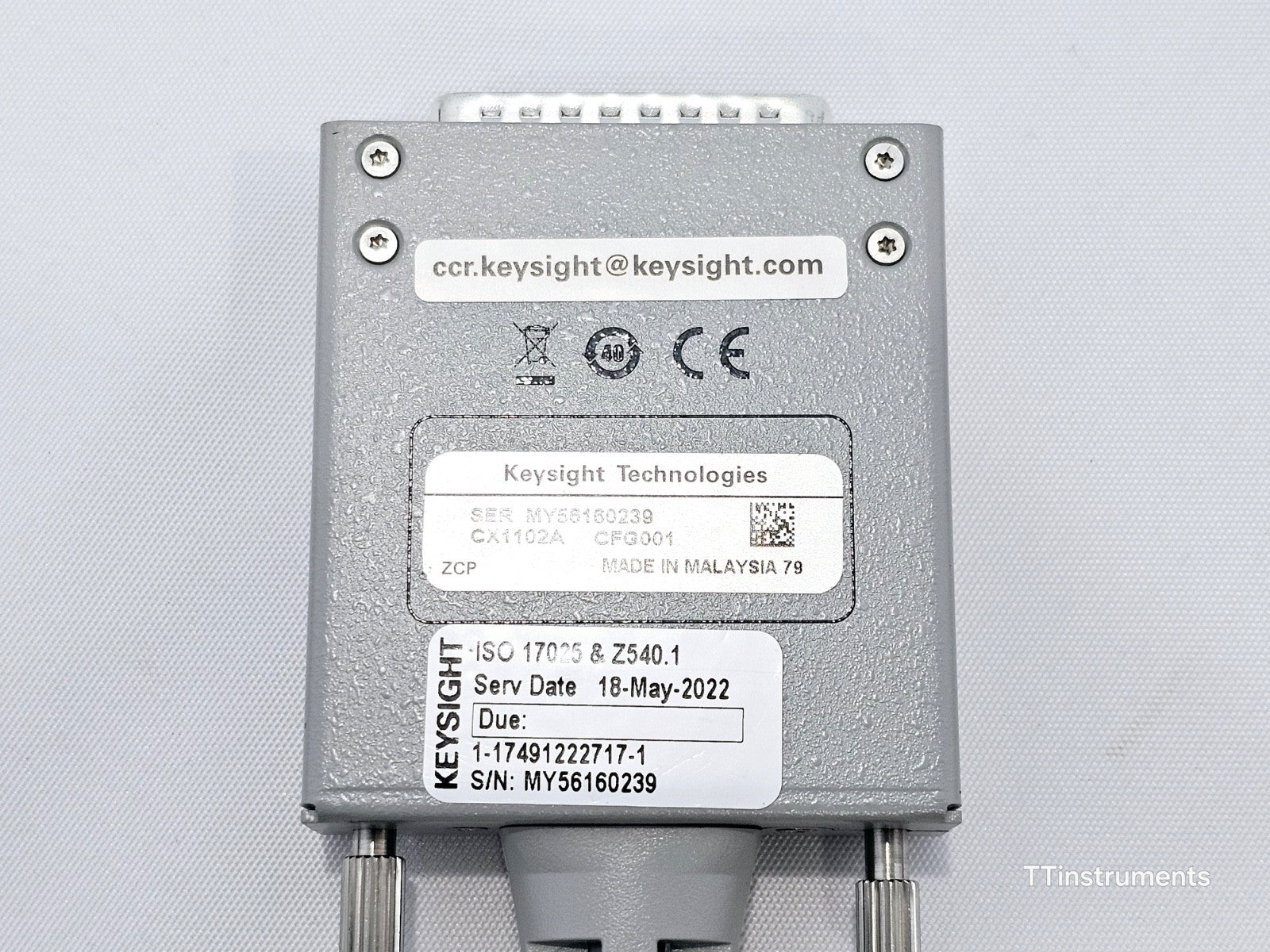

Tested and fully functional. Cosmetic imperfections are present but do not affect performance. This Keysight CX1102A dual-channel current sensor (S/N: MY56160239, CFG001) was last serviced by Keysight to ISO 17025 & Z540.1 standards on 18-May-2022. The unit includes both Primary and Secondary Channel sensor heads and a full accessory kit in its original hard carry case.

Included in the sale:

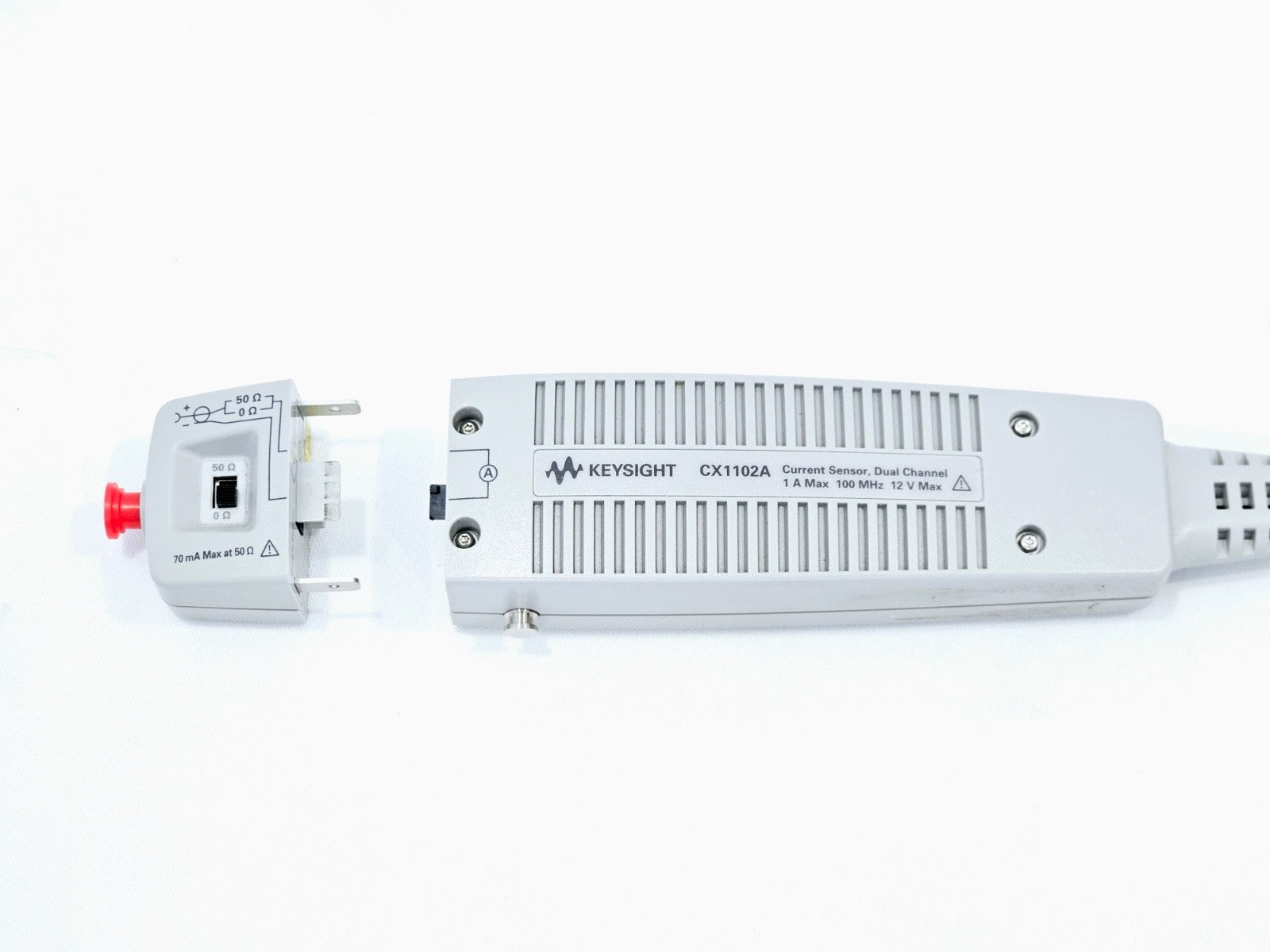

• Keysight CX1102A dual-channel current sensor main unit with attached cable

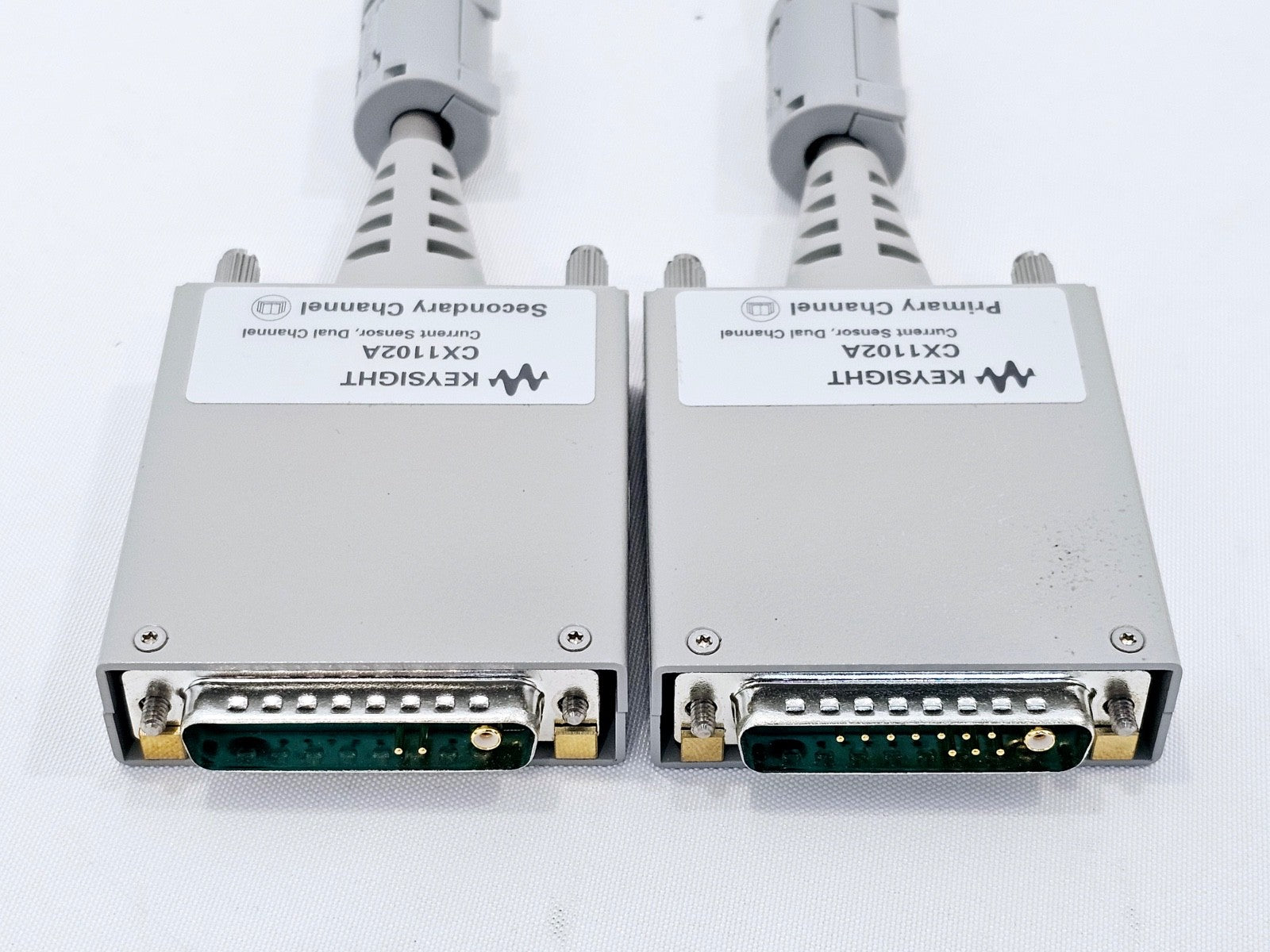

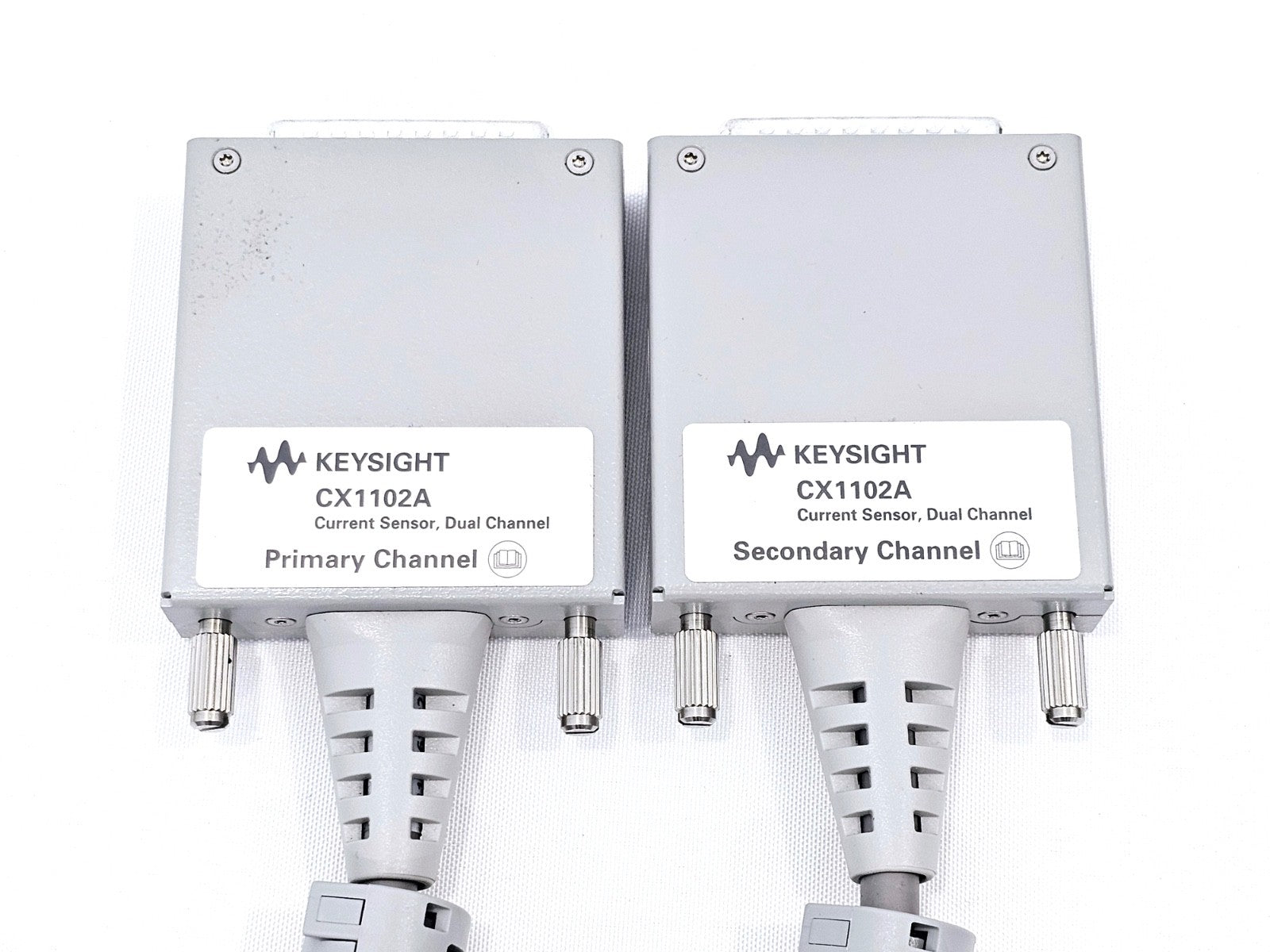

• CX1102A Primary Channel sensor head
• CX1102A Secondary Channel sensor head

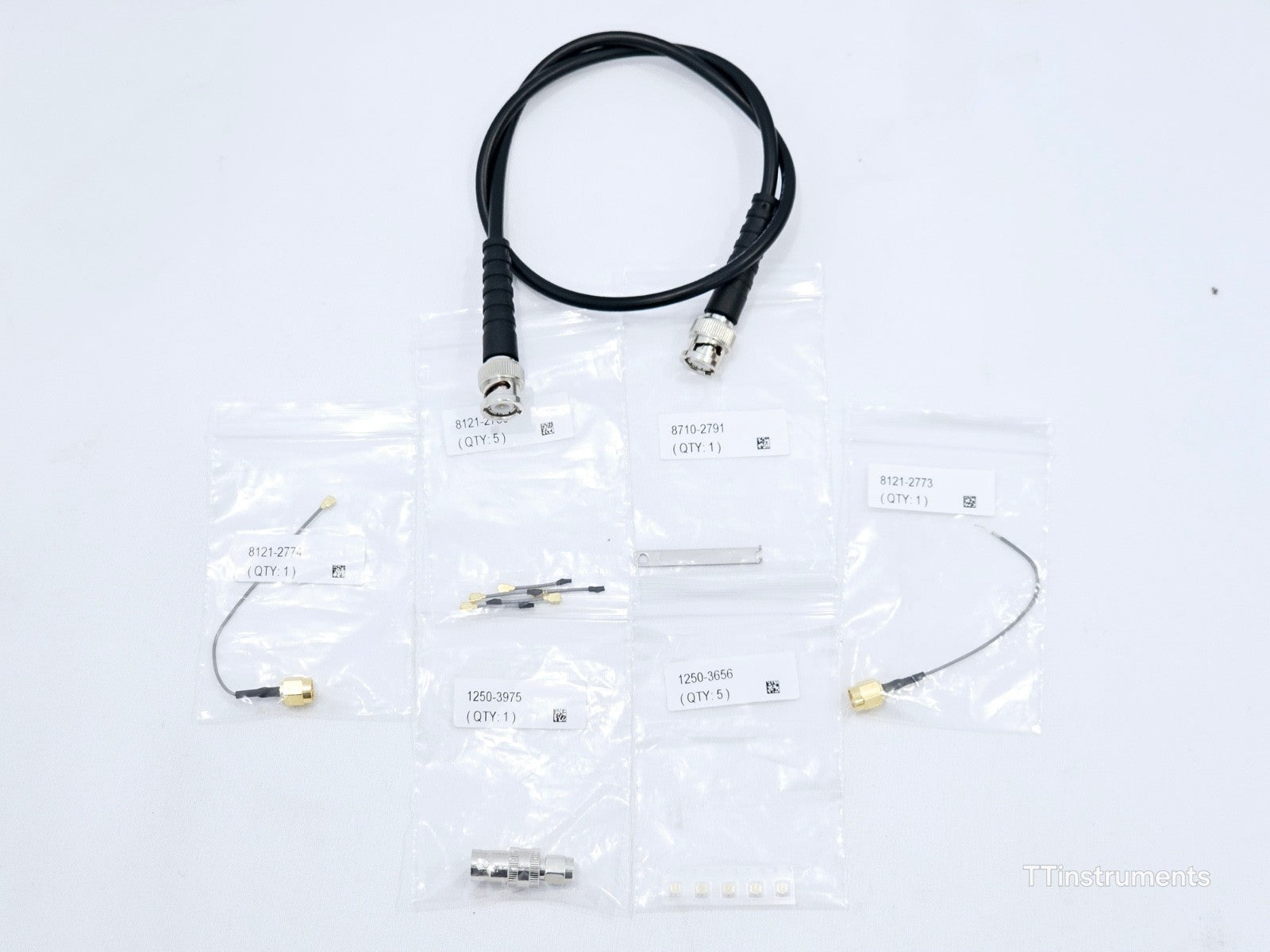

• BNC coaxial cable
• 8121-2773 coaxial cable, SMA plug to open (Qty 1)
• 8121-2774 coaxial cable, SMA plug to MHF plug (Qty 1)
• 8121-2780 shorted MHF plug coax (Qty 5)
• 1250-3975 SMA(P) to BNC(J) 50 Ω adapter (Qty 1)
• 8710-2791 MHF pulling tool (Qty 1)

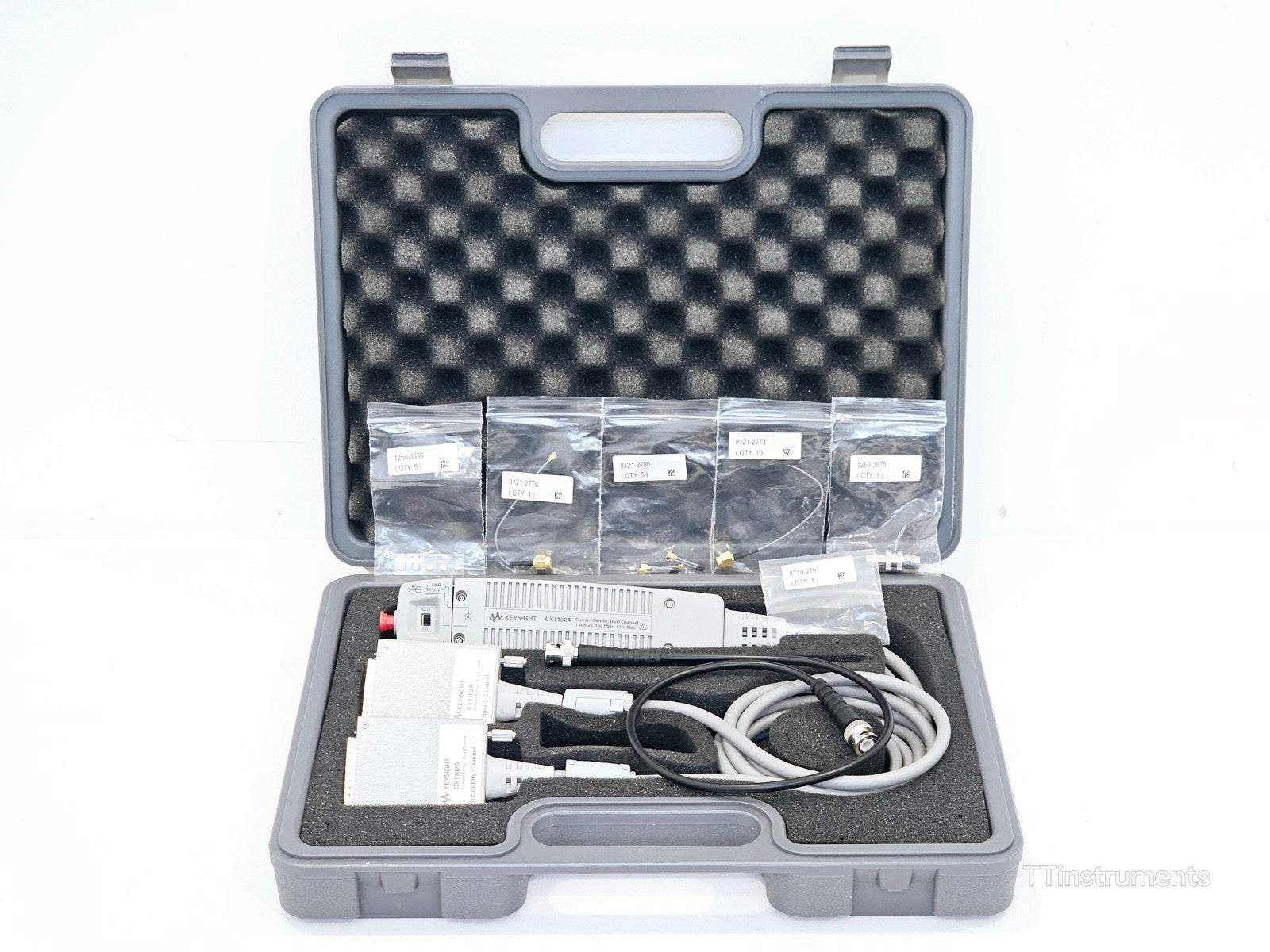

• Hard carry case with custom foam insert

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Keysight CX1102A is a dual-channel current sensor and dedicated accessory for the CX3300A series Device Current Waveform Analyzers (CX3322A and CX3324A). It occupies two channels on the CX3300 series mainframe and enables a much wider dynamic measurement range than a single-channel sensor by using simultaneous capture technology. The primary and secondary channels are synchronised and operate at a 100× range difference, allowing both channels' waveforms to be viewed simultaneously on the mainframe. This makes the CX1102A especially useful for measuring wide dynamic range current waveforms in IoT devices, low-power wireless modules, and microcontrollers that transition intermittently between sleep/standby and active states.

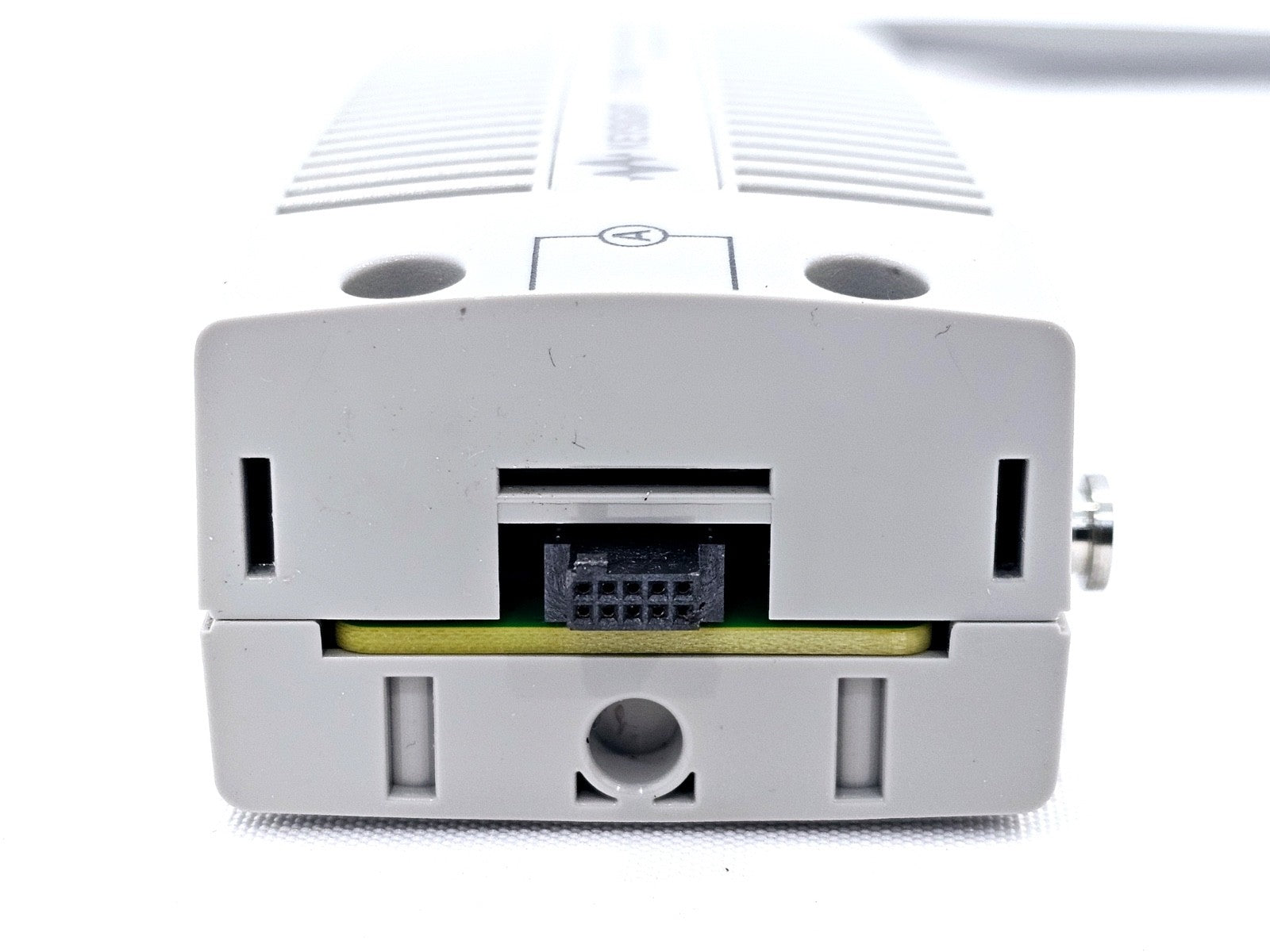

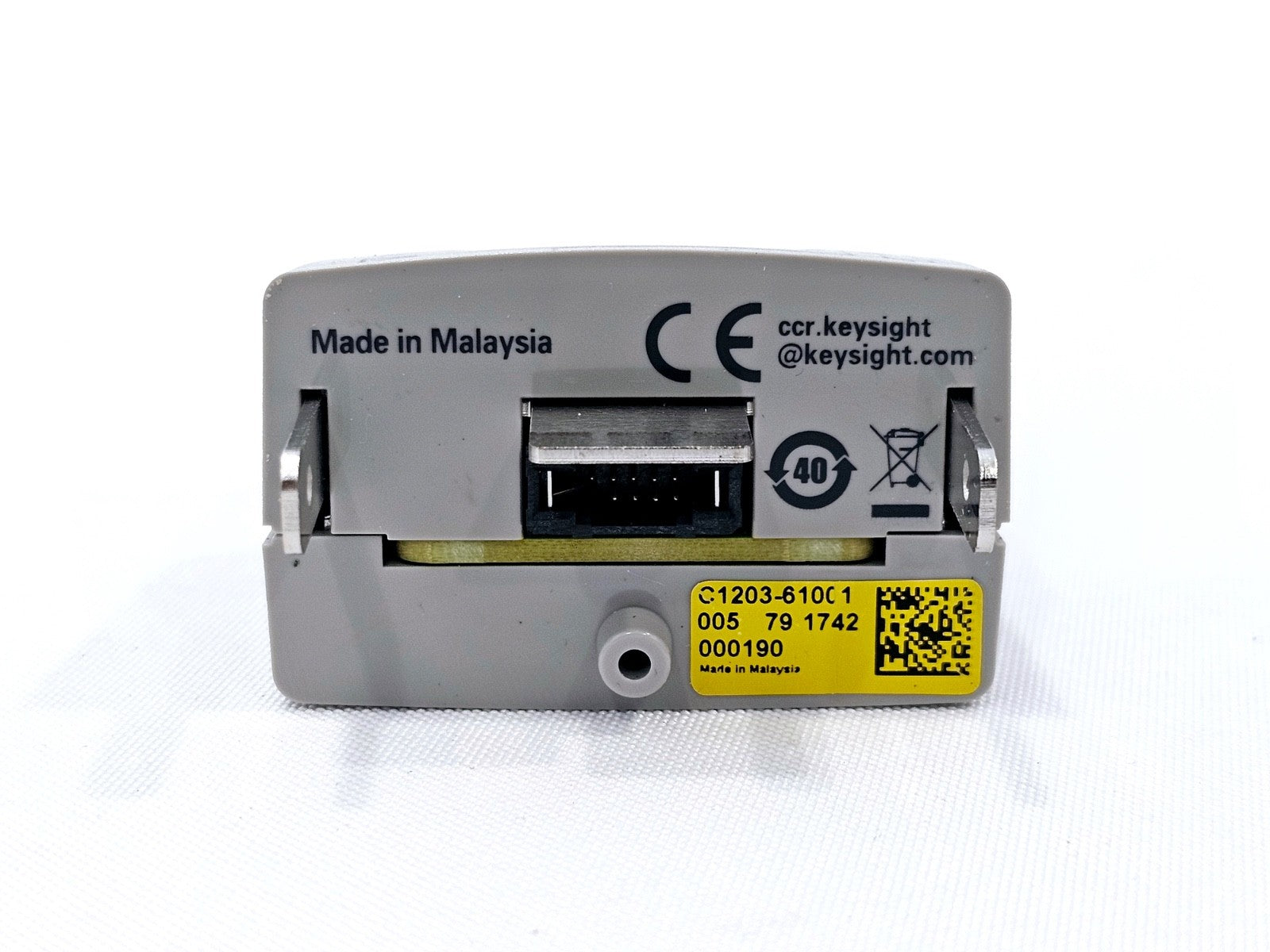

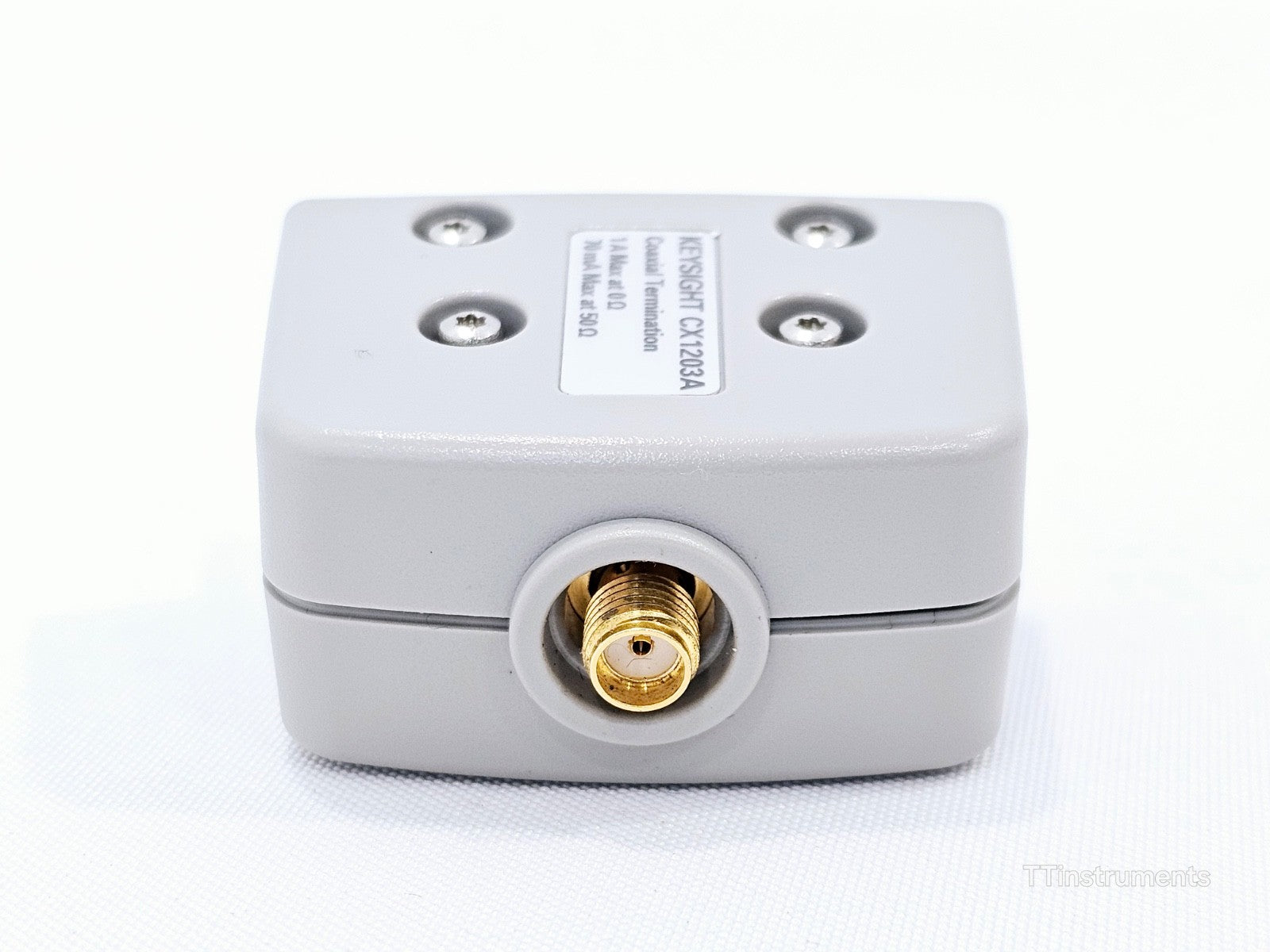

The wideband noise-suppressed current measurement technology enables measurement of low-level current waveforms with a low input resistance of typically 410 mΩ, minimising burden voltage on the device under test. Interchangeable sensor heads (e.g. CX1201A, CX1203A, CX1204A, CX1205A) can be easily attached and detached — SMA connector types enable wideband performance, while twisted-pair and test lead adapters suit quick measurements.

Key Features:
• Measures more than 100 dB wide dynamic range by a single measurement
• Occupies two channels of CX3300 series mainframe
• Primary and secondary channels synchronised with 100× range difference
• Wide measurement range from 40 nA to 1 A
• Maximum stand-alone bandwidth: 100 MHz
• Common mode voltage range: up to ±12 V

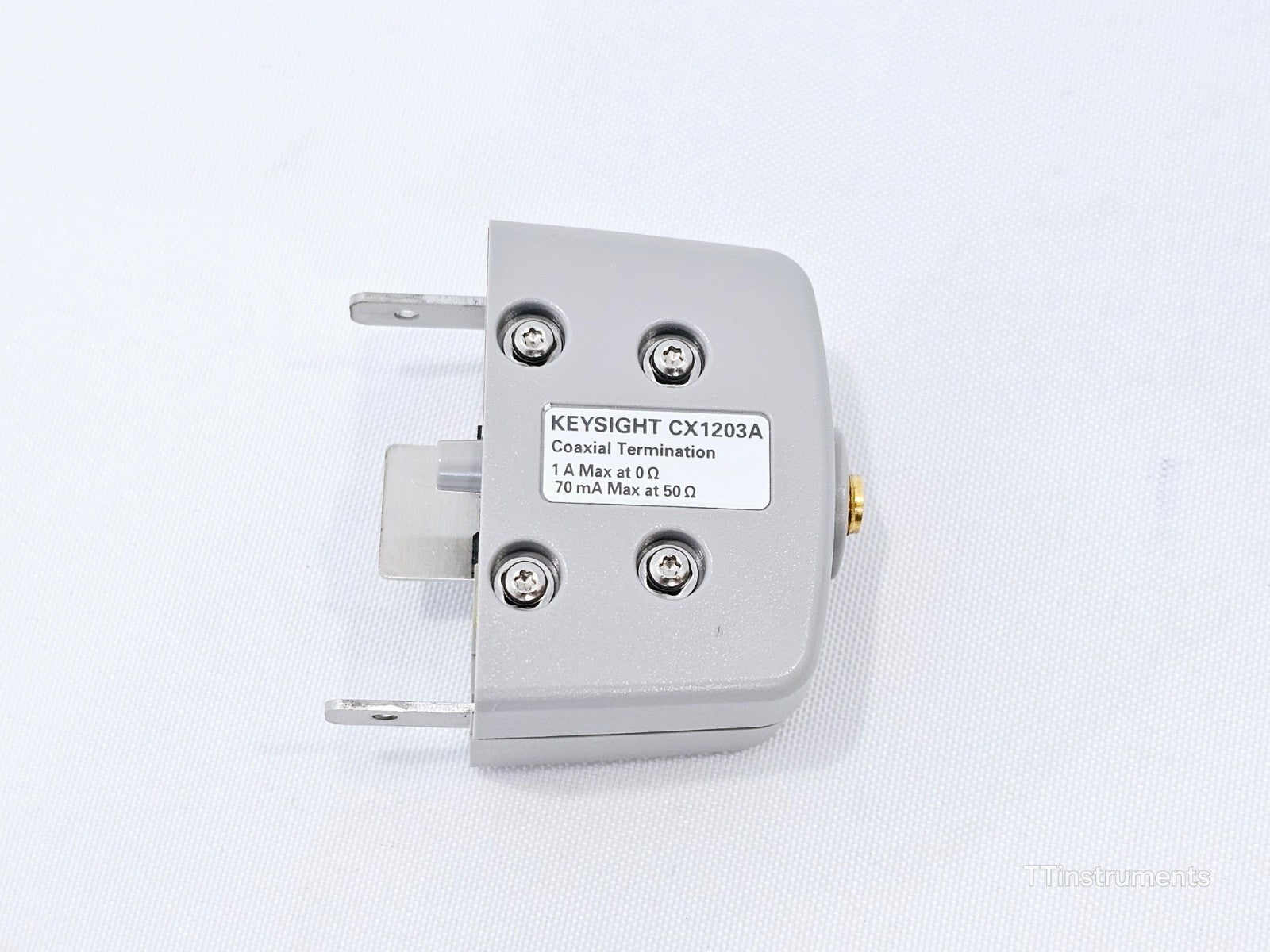

• Low input resistance: 410 mΩ typical (or 50 Ω typical via coaxial termination head)
• Compatible with six interchangeable sensor head adapters (hot-swappable)
• Ideal for IoT, low-power wireless, and embedded MCU current profiling

Specifications:
Model: CX1102A
Type: Dual-Channel Current Sensor
Current Measurement Range: 40 nA to 1 A
Maximum Bandwidth (stand-alone): 100 MHz
Common Mode Voltage Range: ±12 V
Input Resistance: 410 mΩ typical
Dynamic Range: >100 dB
Channel Configuration: Primary + Secondary (100× range difference)
Maximum Input Voltage: 12 V
Maximum Input Current: 1 A
Compatible Mainframes: CX3322A, CX3324A
Dimensions (approx.): 215 × 47 × 32 mm
Weight (approx.): 600 g
Manufacturer: Keysight Technologies
Made in: Malaysia
