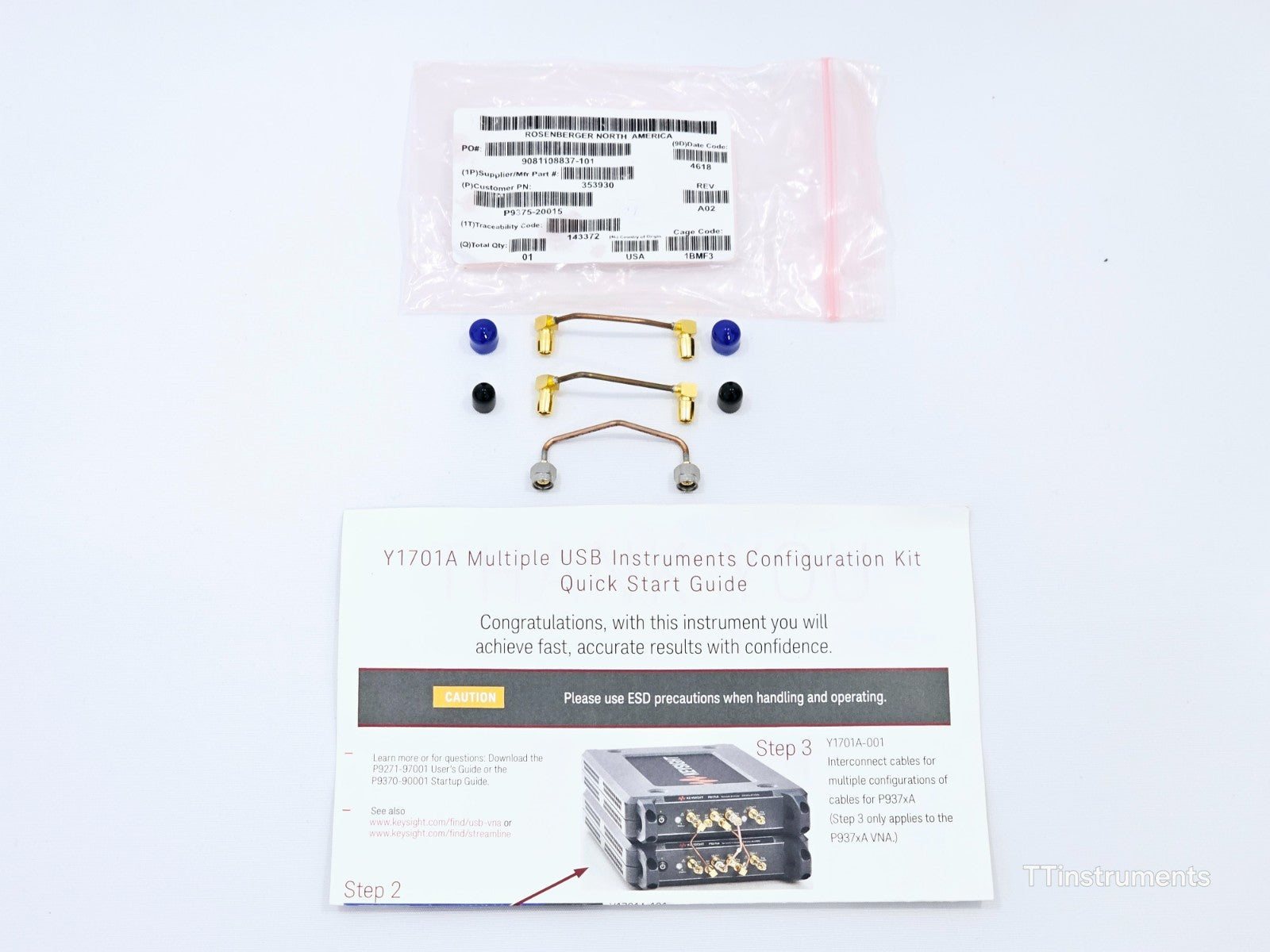

Keysight Y1701A Option 001 kit contents laid out: three semi-rigid cables, port caps, Rosenberger bag, and Quick Start Guide

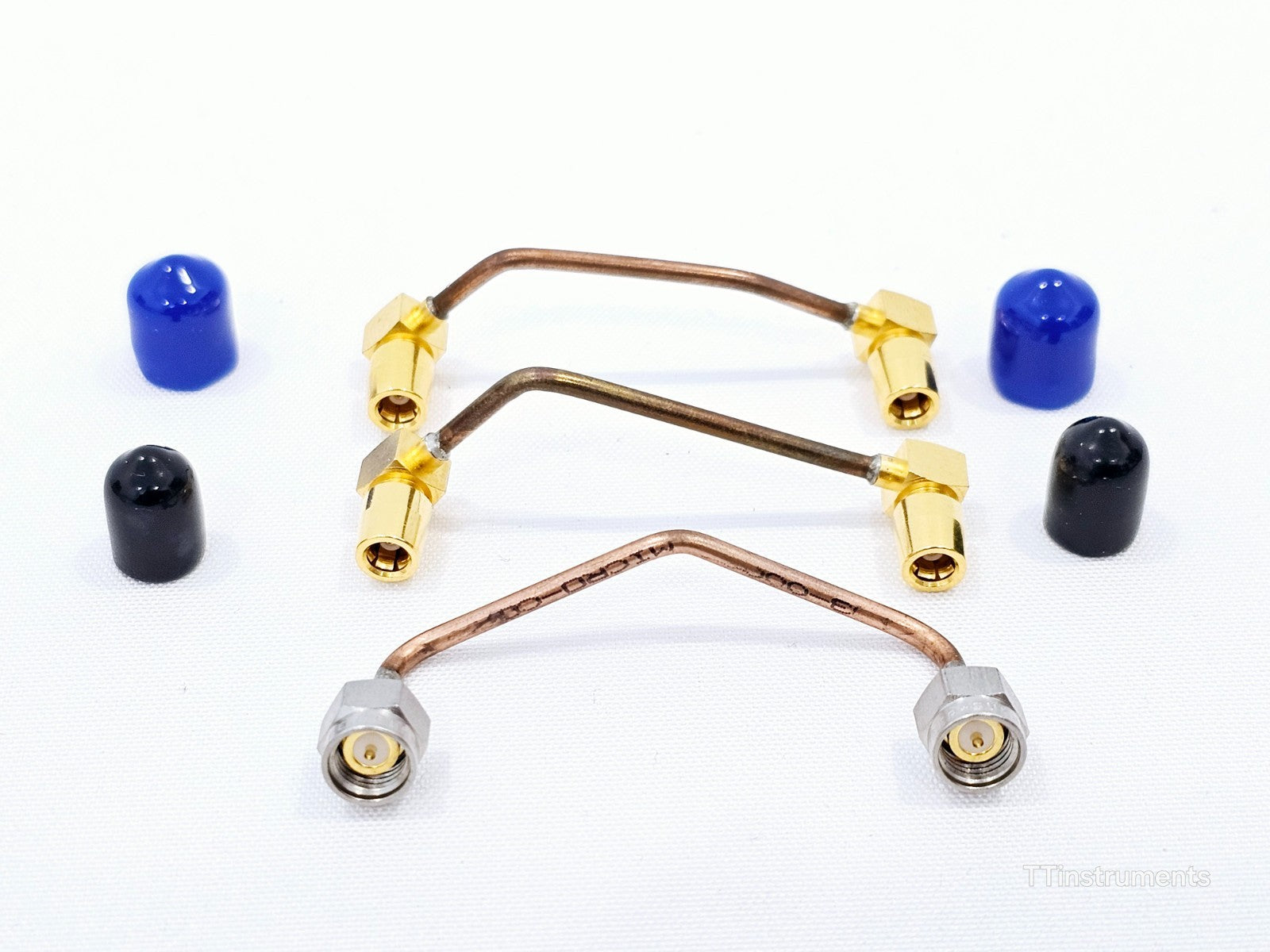

Keysight Y1701A Opt 001 close-up of three P937xA semi-rigid SMA/SMB interconnect cables and four port protection caps

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Keysight Agilent Y1701A Multiple USB Instruments Configuration Kit Opt 001

Name: Keysight Agilent Y1701A Multiple USB Instruments Configuration Kit Opt 001
Brand: Keysight Agilent
SKU: 3952 6F04 ER88
Price: 63.75 GBP
Availability: InStock

The Keysight Y1701A Option 001 is a multiport configuration kit supplying precision semi-rigid and SMB interconnect cables to link two P937xA Streamline Series USB vector network analyzers into a single expanded test system.

• Option 001 — interconnect cables specifically for multiport configuration of P937xA VNAs
• Enables a 4-port VNA system by connecting two 2-port P937xA instruments
• Includes SMA semi-rigid jumper cables and SMB patch cables with port caps

Manufacturer

Keysight Agilent

Model

Y1701A

Condition

New other (see details)

In stock

SKU

3952 6F04

£63.75

Connectors & Cables
RF & Microwave
RF Components

Make an Offer

Keysight Agilent Y1701A Multiple USB Instruments Configuration Kit Opt 001

£63.75

Condition: New other (see details)

The Keysight Y1701A Option 001 provides the interconnect cables required to configure two P937xA Streamline Series USB vector network analyzers into a 4-port multiport measurement system. The kit is supplied in its original Rosenberger North America manufacturer bag (part number 353930, date code 4618, REV A02) and includes a Y1701A-001 Quick Start Guide.

Included in this sale:
• 1 x SMA semi-rigid interconnect cable (LO In/Out connection)
• 2 x SMB semi-rigid interconnect cables with gold-plated right-angle connectors (Trig and Ref connections)
• 2 x blue SMA/SMB port protection caps
• 2 x black SMA/SMB port protection caps
• 1 x Y1701A Multiple USB Instruments Configuration Kit Quick Start Guide
• Original Rosenberger North America manufacturer bag

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Product Overview

Condition: New other (see details)

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

Manufacturer's Description

The Keysight Y1701A Multiple USB Instruments Configuration Kit is an accessory designed for use with the Keysight Streamline Series USB vector network analyzers. It includes a latch kit for physically connecting two Keysight Streamline Series USB instruments, and optional interconnect cables are available to connect two USB vector network analyzers to increase the number of test ports.

Option 001 provides the interconnect cables specifically for multiport configuration of the P937xA Streamline Series VNA. When two P937xA instruments are connected using this kit, they can be identified by the firmware as a single, unified VNA by an external host PC, effectively creating a 4-port network analyser from two 2-port units. At least one VNA instrument connected to the PC must have one S97551A (or equivalent) licence to maintain multiport capabilities.

The frequency range of a multiport array is determined by the lowest-frequency instrument configured in the array. The P937xA and P50xxA Series cannot be combined in multiport configurations due to hardware differences.

Key Features:
• Enables 4-port VNA configuration using two P937xA 2-port USB VNAs
• Instruments are identified as a single VNA by the host PC
• Multiport frequency range governed by the lowest-frequency instrument in the array
• One Y1701A kit required per additional VNA added to the array
• Compatible with Keysight Streamline Series P937xA USB VNAs
• Requires S97551A multiport licence on at least one connected VNA

Compatibility:
Compatible Series: P937xA (Option 001)
Option 001: Interconnect cables for multiport configuration of P937xA
Option 002: Interconnect cables for P500xA / P502xA Series up to 20 GHz
Option 003: Interconnect cables for P500xA / P502xA Series greater than 20 GHz
Option 101: Latch kit for connecting two 1-slot USB instruments

For full specifications and documentation, visit: www.keysight.com/find/usb-vna

Resources

Keysight Streamline Series P937xA & P50xxA VNA Configuration Guide (A-models) — includes Y1701A accessory details: Download PDF

Keysight Streamline Series P937xA Startup Guide — covers Y1701A installation and multiport cable setup: Download PDF

Keysight Streamline Series P937xA Startup Guide (alternative edition) — hardware installation with Y1701A kit: Download PDF

Keysight P937xA & P500xA Streamline Series Configuration Guide (TestEquity hosted PDF): Download PDF
